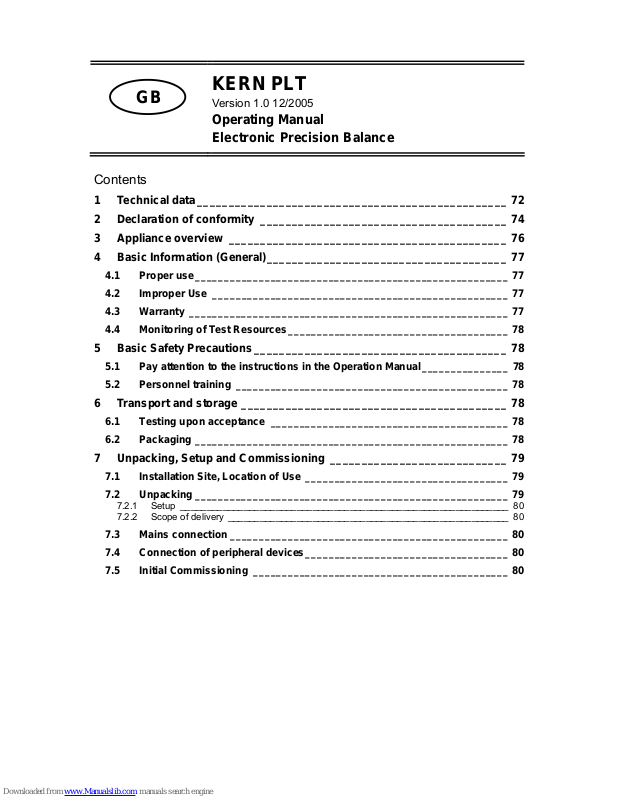

Page 1
GB
KERN PLT
Version 1.0 12/2005
Operating Manual
Electronic Precision Balance
Contents
1 Technical data_________________________________________________ 72
2 Declaration of conformity _______________________________________ 74
3 Appliance overview ____________________________________________ 76
4 Basic Information (General)______________________________________ 77
4.1 Proper use______________________________________________________ 77
4.2 Improper Use ___________________________________________________ 77
4.3 Warranty _______________________________________________________ 77
4.4 Monitoring of Test Resources______________________________________ 78
5 Basic Safety Precautions________________________________________ 78
5.1 Pay attention to the instructions in the Operation Manual_______________ 78
5.2 Personnel training _______________________________________________ 78
6 Transport and storage __________________________________________ 78
6.1 Testing upon acceptance _________________________________________ 78
6.2 Packaging ______________________________________________________ 78
7 Unpacking, Setup and Commissioning ____________________________ 79
7.1 Installation Site, Location of Use ___________________________________ 79
7.2 Unpacking ______________________________________________________ 79
7.2.1 Setup ______________________________________________________________ 80
7.2.2 Scope of delivery _____________________________________________________ 80
7.3 Mains connection ________________________________________________ 80
7.4 Connection of peripheral devices___________________________________ 80
7.5 Initial Commissioning ____________________________________________ 80
Page 2
PLT-BA-defsi-0510
71
8 User menu ____________________________________________________ 81
8.1 User principle of the menu control__________________________________ 84
8.2 Operation of the balance with PS/2-keyboard _________________________ 85
8.3 Menu selection __________________________________________________ 86
8.3.1 P1 Calibration (adjustment) _____________________________________________ 86
8.3.2 P2 GLP (Good laboratory practice) _______________________________________ 90

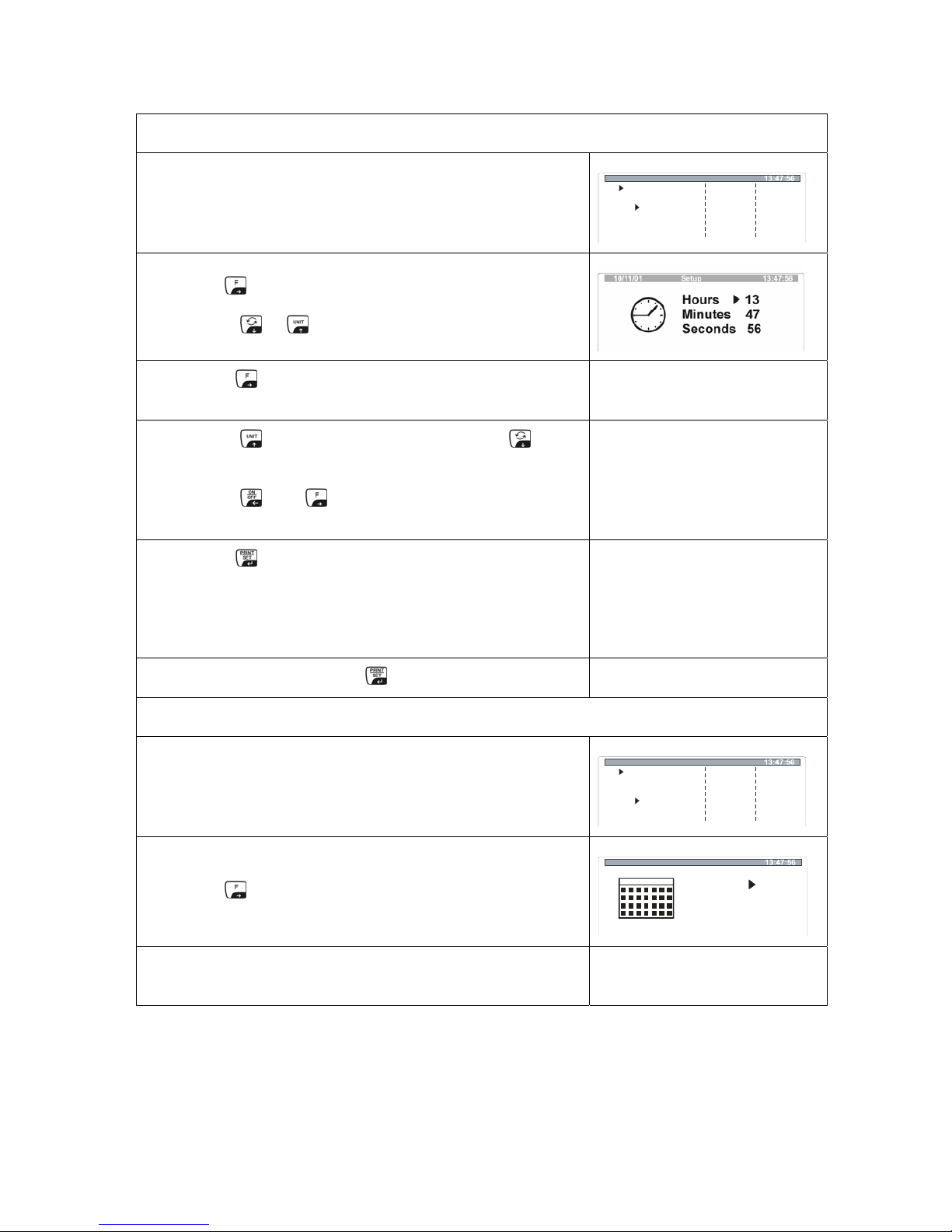

8.3.3 P3 Date/time_________________________________________________________ 92
8.3.4 P4 Readout__________________________________________________________ 94
8.3.5 P5 RS-232 __________________________________________________________ 97
8.3.6 P6 Printouts _________________________________________________________ 99
8.3.7 P7 Units ___________________________________________________________ 104
8.3.8 P8 Operating modes__________________________________________________ 104
8.3.9 P9 Global functions __________________________________________________ 105
9 Operation____________________________________________________ 106
9.1 Operating modes (P8) ___________________________________________ 108
9.1.1 Simple weighing _____________________________________________________ 110

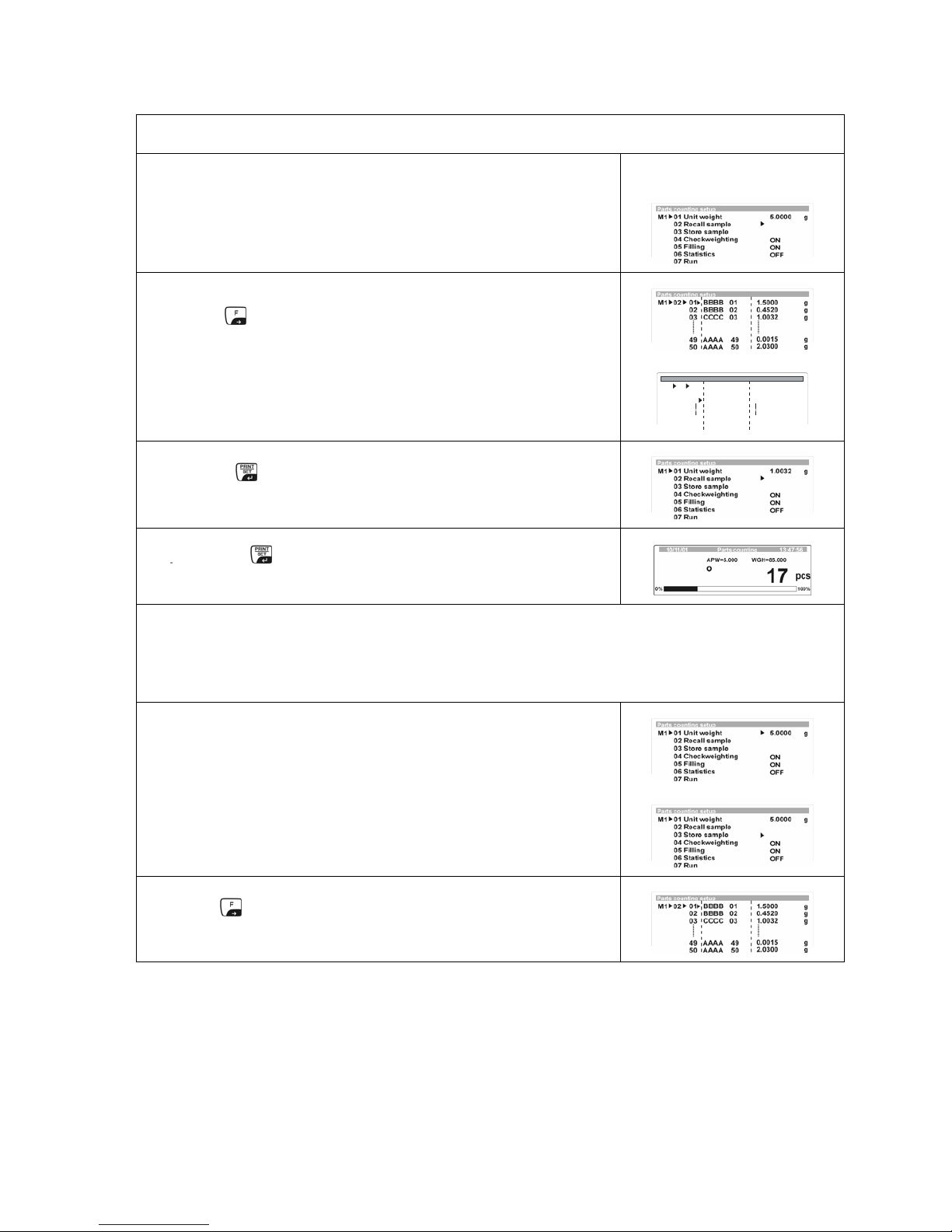

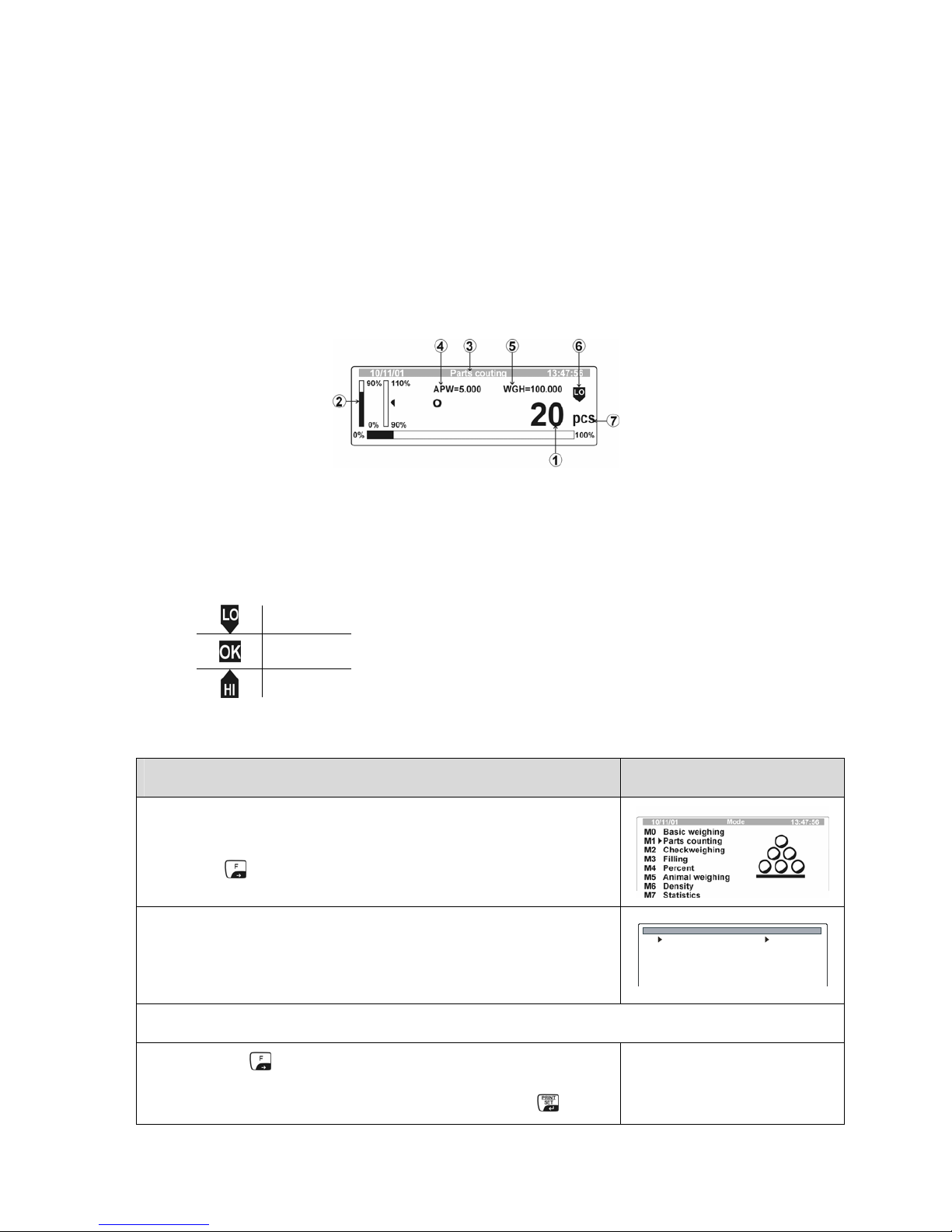

9.1.2 Counting ___________________________________________________________ 112

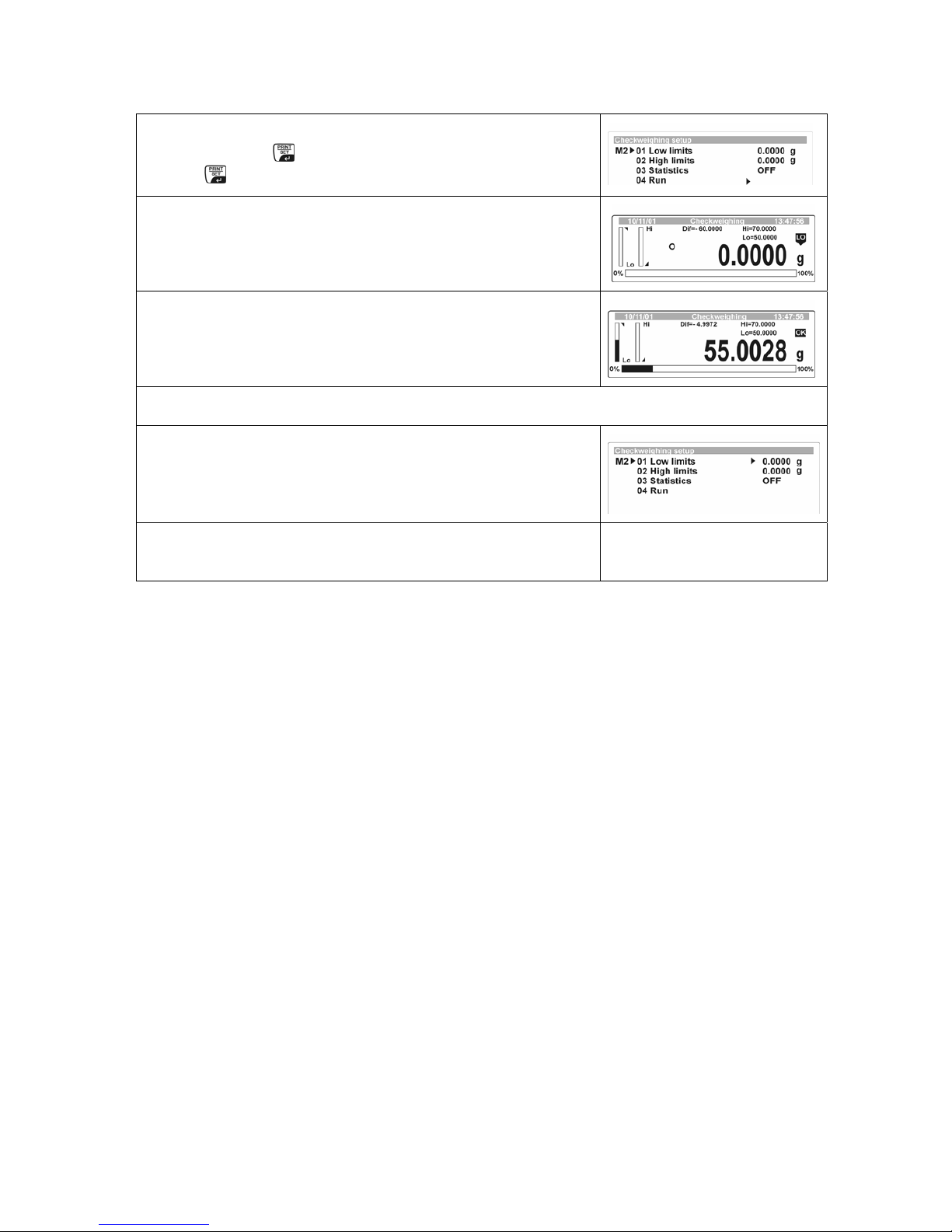

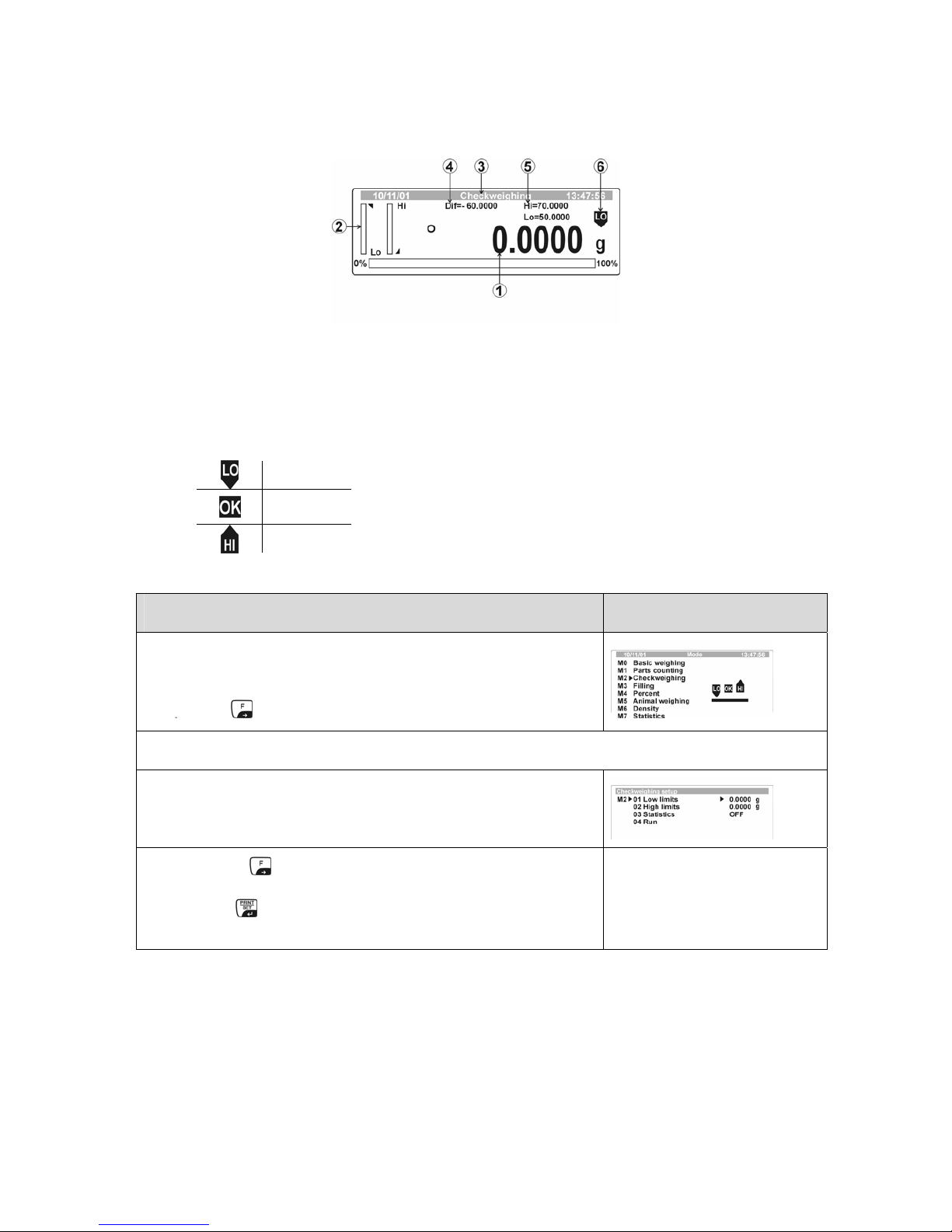

9.1.3 Checkweighing (weighing with tolerance range) ____________________________ 120
9.1.4 Filling _____________________________________________________________ 122
9.1.5 Percent weighing ____________________________________________________ 123

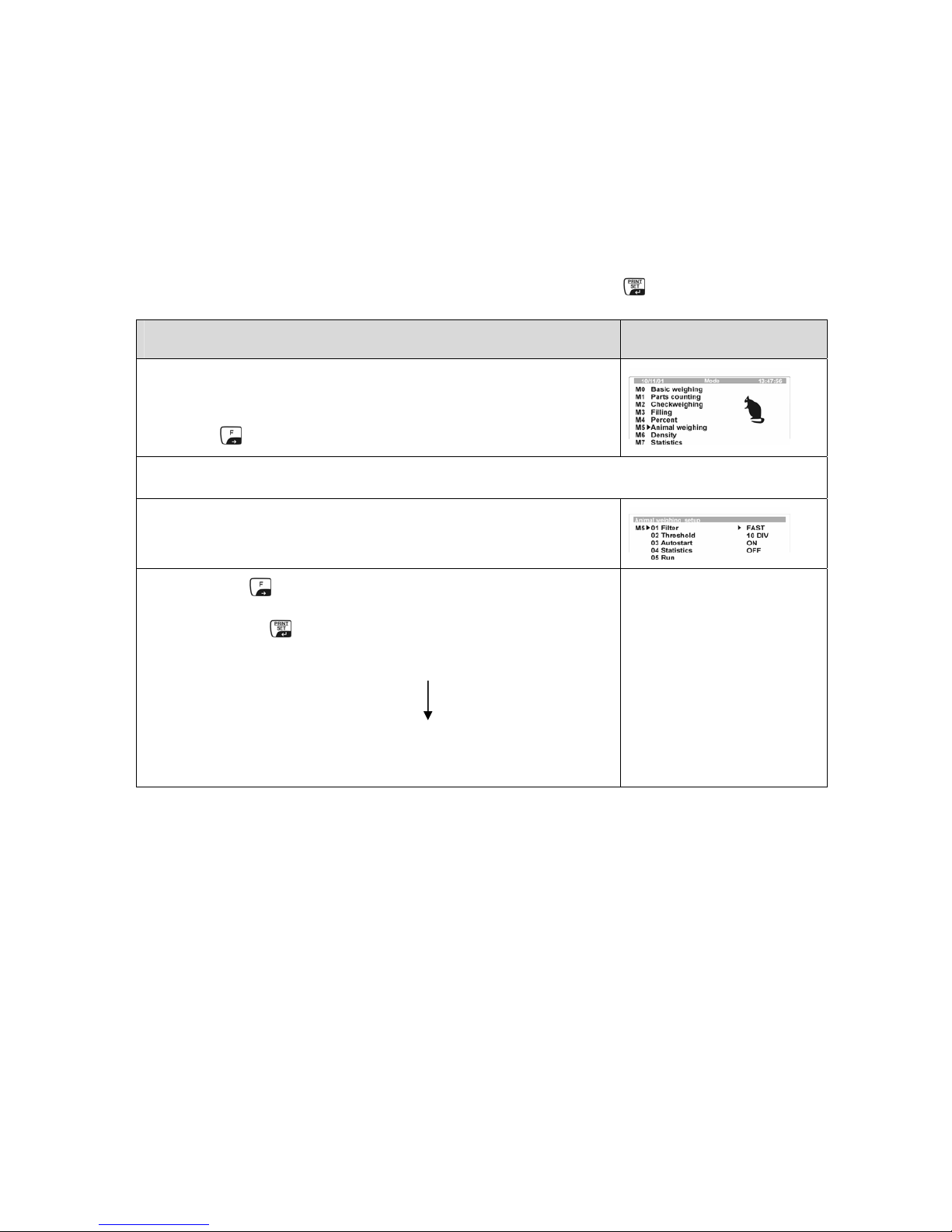

9.1.6 Animal weighing (dynamic weighing) _____________________________________ 125
9.1.7 Density determination_________________________________________________ 127
9.1.8 Formulation_________________________________________________________ 128

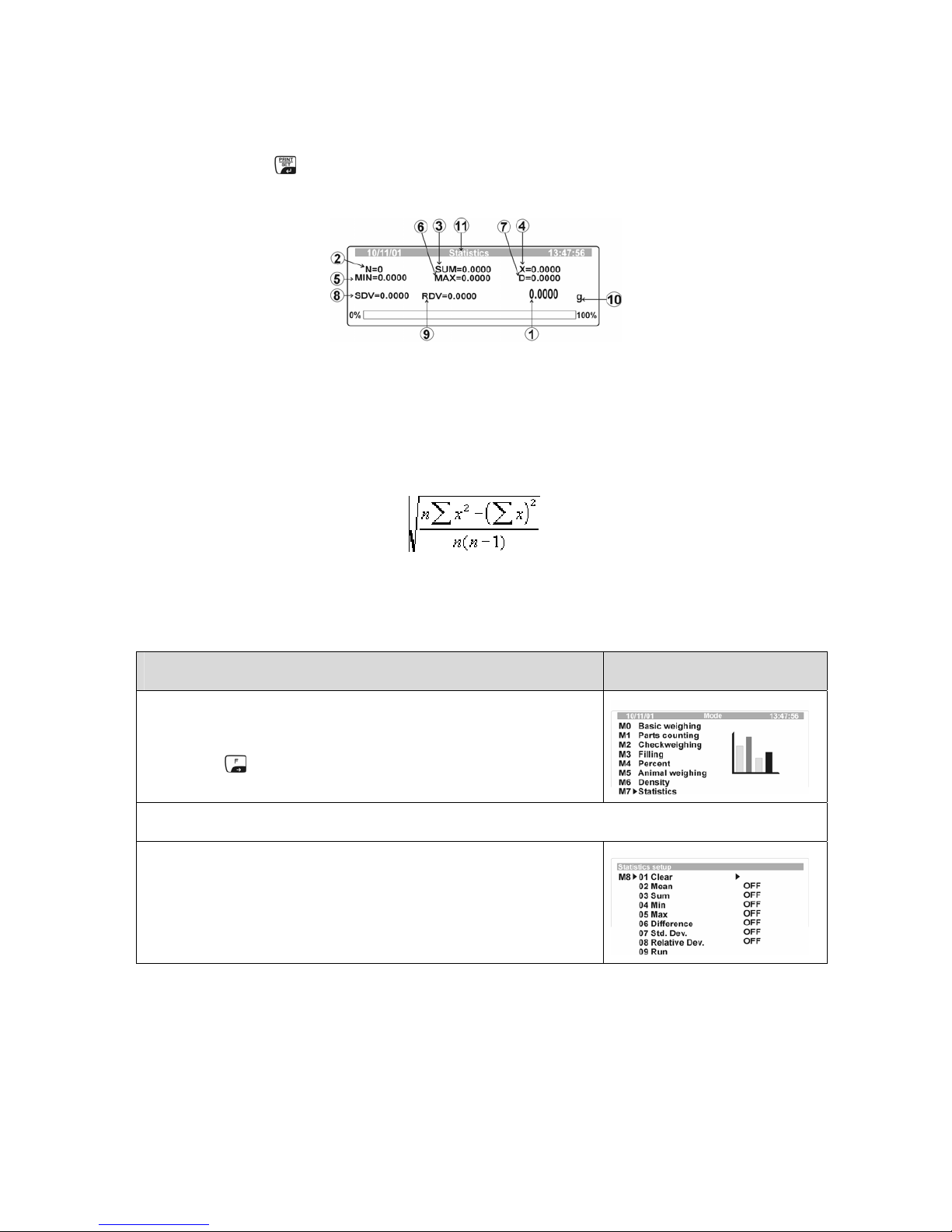

9.1.9 Statistics: __________________________________________________________ 132
10 Data output ________________________________________________ 135
10.1 Technical data__________________________________________________ 135

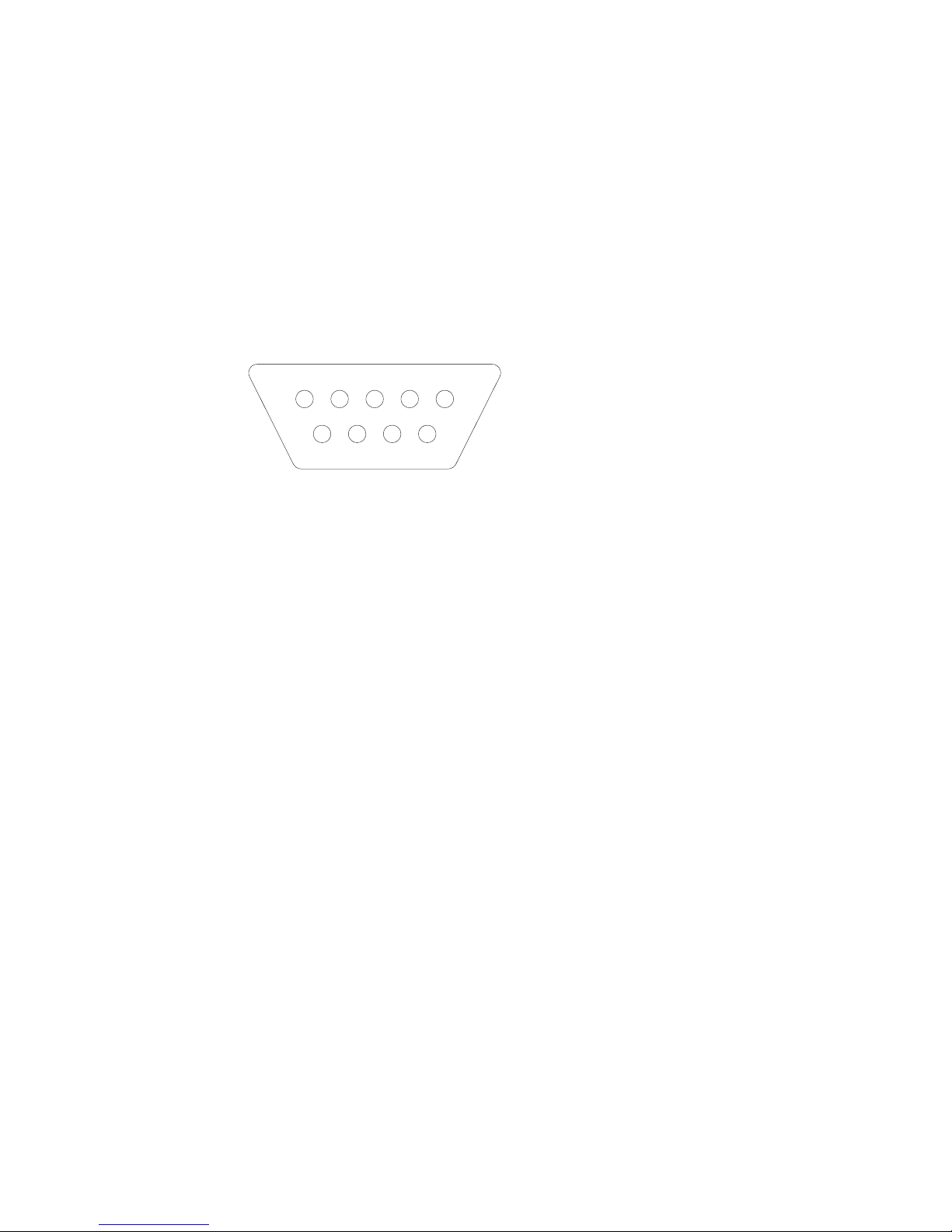

10.2 Pin allocation of the balance output plug (front view) _________________ 135
10.3 Remote control instructions ______________________________________ 136
11 Service, maintenance, disposal________________________________ 137
11.1 Cleaning ______________________________________________________ 137
11.2 Service, maintenance____________________________________________ 137
11.3 Disposal_______________________________________________________ 137
12 Instant help ________________________________________________ 138
Page 3
PLT-BA-defsi-0510
72
1 Technical data
KERN PLT 450-3M PLT 650-3M PLT 2000-3DM
Readability (d) 0.001 g 0.001 g 0.001/0.01 g
Weighing range (max) 450 g 650 g 200/2,000 g
Minimum load 0.02 g 0.02 g 0.02 g
Verification value 0.01 g 0.01 g 0.01/0.1 g
Verification class II II II
Reproducibility 0.002 g 0.002 g 0.002/0.02 g
Linearity ± 0.002 g ± 0.002 g ± 0.002/0.02 g
Stabilization time 4 sec.
Adjustment weight internal
Weighing Units
mg, g, ct
Minimum piece weight for
counting function
> 1 mg
Reference quantities at
piece counting
10, 20, 50,100, freely selectable
Weighing plate, stainless
steel
128 x 128 mm
Dimensions of the housing
(B x D x H)
206 x 330 x 160 (with wind screen)
Dimensions
Glass wind screen [mm]
150 x 150 x 80
(Weighing room 140 x140 x 65)
Net weight (kg) 5,5
Permitted environmental
condition
-15° C to 30° C
Humidity of air max. 80 % relative (not condensing)
Voltage 230 V/50Hz
Page 4
PLT-BA-defsi-0510
73
KERN PLT 2500-2M PLT 4500-2M
Readability (d) 0.01 g 0.01 g
Weighing range (max) 2,500 g 4,500 g
Minimum load 0.5 g 0.5 g
Verification value 0.1 g 0.1 g
Verification class II II
Reproducibility 0.02 g 0.02 g
Linearity ± 0.02 g ± 0.02 g
Stabilization time 4 sec.
Adjustment weight internal
Weighing Units
mg, g, ct
Minimum piece weight for
counting function
> 10 mg
Reference quantities at
piece counting
10, 20, 50,100, freely selectable
Weighing plate, stainless
steel
165 x 165 mm
Dimensions of the housing
(B x D x H)
206 x 330 x 80 (without windscreen)
Net weight (kg) 5,7
Permitted environmental
condition
-15° C to 30° C
Humidity of air max. 80 % relative (not condensing)
Voltage 230 V/50Hz
Page 5
PLT-BA-defsi-0510
74
2 Declaration of conformity
KERN & Sohn GmbH
D-72322 Balingen-Frommern
Postfach 4052
E-Mail: info@kern-sohn.de
Tel: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de
Konformitätserklärung
Declaration of conformity for apparatus with CE mark
Konformitätserklärung für Geräte mit CE-Zeichen
Déclaration de conformité pour appareils portant la marque CE
Declaración de conformidad para aparatos con marca CE
Dichiarazione di conformitá per apparecchi contrassegnati con la marcatura CE
English
We hereby declare that the product to which this declaration refers conforms with the following standards.
Deutsch
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht, mit den nachstehenden Normen übereinstimmt.
Français
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la présente
déclaration, est conforme aux normes citées ci-après.
Español
Manifestamos en la presente que el producto al que se refiere esta declaración est´´a de
acuerdo con las normas siguientes
Italiano
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è conforme alle norme di seguito citate.
Electronic Balance: KERN PLT
Mark applied EU Directive Standards
89/336/EEC EMC
EN45501
EN55022
73/23/EEC Low Voltage EN60950
Date: 22.12.2005 Signature:
Gottl. KERN & Sohn GmbH
Management
Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149
Page 6
PLT-BA-defsi-0510
75
KERN & Sohn GmbH
D-72322 Balingen-Frommern
Postfach 4052
E-Mail: info@kern-sohn.de
Tel: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de
Konformitätserklärung
Declaration of conformity for apparatus with CE mark
Konformitätserklärung für Geräte mit CE-Zeichen
Déclaration de conformité pour appareils portant la marque CE
Declaración de conformidad para aparatos con marca CE
Dichiarazione di conformitá per apparecchi contrassegnati con la marcatura CE
English
We hereby declare that the product to which this declaration refers conforms with the following standards.
This declaration is only valid with the certificate of conformity by a notified body.
Deutsch
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht, mit den nachstehenden Normen übereinstimmt.
Diese Erklärung gilt nur in Verbindung mit der Konformitätsbescheinigung einer
benannten Stelle.
Français
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la présente
déclaration, est conforme aux normes citées ci-après.
Cette déclaration est valide seulement avec un certificat de conformité d’un organisme notifié.
Español
Manifestamos en la presente que el producto al que se refiere esta declaración está de
acuerdo con las normas siguientes.
Esta declaración solo será válida acompañada del certificado de conformidad de
conformidad de la parte nominal.
Italiano
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è conforme alle norme di seguito citate.
Questa dichiarazione sarà valida solo se accompagnata dal certificato di conformità
della parte nominale.
Model: KERN PLT
EU Directive Standards
EC-type-approval certificate no. Issued by
90/384/EEC EN 45501 T6843
NMI
90/384/EEC EN 45501 TCM 128/05-4315 (KERN PLT 2000-3DM)
CMI
Date: 22.12.2005 Signature:
Gottl. KERN & Sohn GmbH
Management
Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-07433/9933-0,Fax +49-074433/9933-149
Page 7
PLT-BA-defsi-0510
76
3 Appliance overview
Mod.: PLT 450-3M, PLT 650-3M, Mod.: PLT 2500-2M, PLT 4500-2M
PLT 2000-3DM with glass windshield
1. Mains connection
2. PS/2 keyboard
3. RS 232 interface
Air bubble
Underfloor weighing device
Page 8
PLT-BA-defsi-0510
77
4 Basic Information (General)
4.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate.
As soon as a stable weighing value is reached the weighing value can be read.
4.2 Improper Use
Do not use balance for dynamic add-on weighing procedures, if small amounts of
goods to be weighed are removed or added. The “stability compensation“ installed in
the balance may result in displaying an incorrect measuring value! (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the weighing plate. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
4.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical dammage or dammage by media, liquids, natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
Page 9
PLT-BA-defsi-0510
78
4.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to the
monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
5 Basic Safety Precautions
5.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you
are already familiar with KERN balances.
5.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
6 Transport and storage
6.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.
6.2 Packaging
Keep all parts of the original packaging in case you need to return the appliance.
Only use original packaging for returning.
Before sending, disconnect all connected cables and loose/movable parts.
Attach possibly existing transport safeguards. Secure all parts, e.g. weighing plate,
power unit etc., to prevent slipping and damage.
Page 10
PLT-BA-defsi-0510
79
7 Unpacking, Setup and Commissioning
7.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
• Place the balance on a firm, level surface;
• Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
• Protect the balance against direct draughts due to open windows and doors;
• Avoid jarring during weighing;
• Protect the balance against high humidity, vapours and dust;
• Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
• Avoid static charge of goods to be weighed or weighing container.
If electro-magnetic fields or static charge occur, or if the power supply is unstable
major deviations on the display (incorrect weighing results) are possible. In that case,
the location must be changed.
7.2 Unpacking
Carefully remove the balance from the packaging, remove plastic cover and setup
balance at the intended workstation.
Page 11
PLT-BA-defsi-0510
80
7.2.1 Setup
Level balance with foot screws until the air bubble of the water balance is in the prescribed circle.
Models d = 10 mg Models d = 1 mg
7.2.2 Scope of delivery
Serial accessories:
• Balance
• Weighing plate
• Mains power supply
• Operating Manual
• Glass wind screen
7.3 Mains connection
Power is supplied via the external mains power supply. The stated voltage value
must be the same as the local voltage.
Only use original KERN mains power supplies. Using other makes requires consent
by KERN.
7.4 Connection of peripheral devices
Before connecting or disconnecting of additional devices (printer, PC) to the data interface, always disconnect the balance from the power supply.
With your balance, only use accessories and peripheral devices by KERN, as they
are ideally tuned to your balance.
7.5 Initial Commissioning
A warming up time of 15 minutes after switching on stabilizes the measuring values.
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
Page 12
PLT-BA-defsi-0510
81
8 User menu
The user menu has nine main menus (P1 - P9), arranged in the following sub-menus:
P1 Calibration
01 Internal Calibration * * * * * * * * Function
02 External Calibration * * * * * * * * Function
03 User Calibration * * * * * * * * Function
04 Calibration Test * * * * * * * * Function
05 Weight corr. 0.0
06 Autom. Calibration 3 both
07 Autom. cal. time 3 3 hours
08 Print report 1 on
P2 GLP
01 User
02 Project
03 Print-out time 1 on
04 Print-out date 1 on
05 User print-out 1 on
06 Project print-out 1 on
07 Id print-out 1 on
08 Last cal. print 1 on
P3 Date/time
01 Date format 0 D/M/Y
02 Time format 0 24 hour
03 Time * * * * * * * * Function
04 Date * * * * * * * * Function
05 Time display 1 on
06 Date display 1 on
P4 Display
01 Filter 3 normal
02 Med. Filter 1 enabled
03 Disp. refresh 1 0.08 s
04 Autozero 1 on
05 Last digit 1 always
06 Negative 0 disabled
Page 13
PLT-BA-defsi-0510
82
P5 RS-232
01 Baud rate 1 4800
02 Parity 0 non
03 Data bits 2 8 bit
04 Stop bits 1 1 bit
05 Handshake 0 none
06 Auto print 0 none
07 Intervall 1 * 0.1 s
08 Min. mass 4 10 d
09 Print on stab. 1 enabled
10 Printout to 1 computer
P6 Printouts
01 Printout no. 0 Standard
02 Printout 1 start 1
03 Printout 1 stop 1
04 Printout 2 start 1
05 Printout 2 stop 1
.. ………………….
10 Printout. edit. * * * * * * * * Function
11 string 1
12 string 2
.. ………………….
90 80. string
P7 Units
01 Gram 1 enabled
02 Milligram 0 disabled
03 Carat 0 disabled
04 Pound 0 disabled
05 Ounce 0 disabled
06 Ounce troy 0 disabled
07 Dwt 0 disabled
08 Teal Hk. 0 disabled
09 Teal S. 0 disabled
10 Teal T. 0 disabled
11 Momme 0 disabled
12 Grain 0 disabled
13 Newton 0 disabled
14 Tical 0 disabled
15 Custom 0 disabled
16 Custum Factor 0.1
P8 Modes
01 Parts Count 1 enabled
02 Checkweighing 1 enabled
03 Filling 1 enabled
04 Percent 1 enabled
05 Animal
1 enabled
06 Density 1 enabled
07 Formulation
1 enabled
08 Statistics
1 enabled
Page 14
PLT-BA-defsi-0510
83
P9 Globals
01 ID setting * * * * * * * * Function
02 ID autoprint 0 off
03 Beep 1 on
04 Language * * * * * * * * Function
05 Backlight 1 on
06 Contrast * * * * * * * * Function
07 Screensaver 1 on
08 Temperature * * * * * * * * Function
09 Balance ID 141475
10 Software rev. MBA p. 32
11 Par. printout * * * * * * * * Function
12 Par. receive * * * * * * * * Function
13 Password prot. * * * * * * * * Function

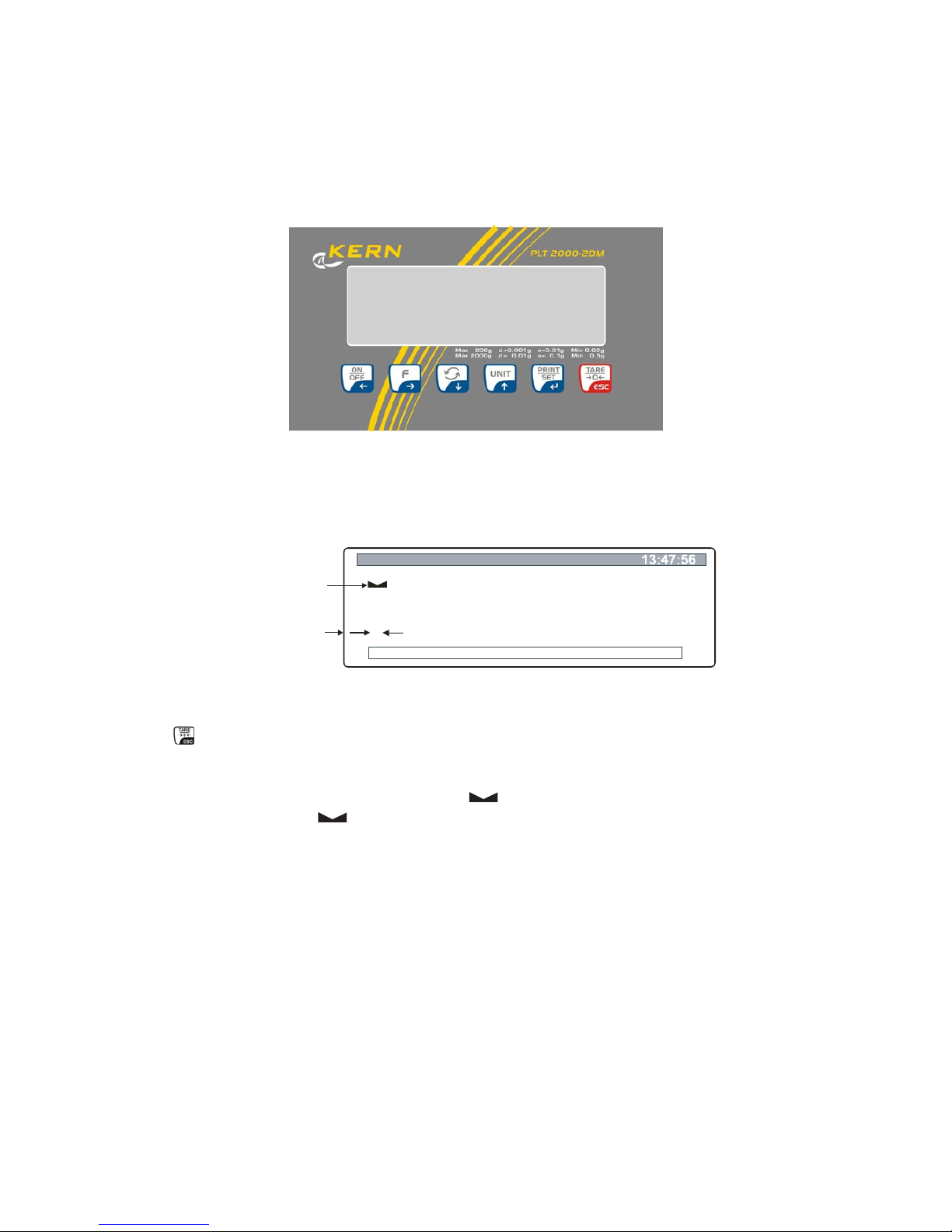

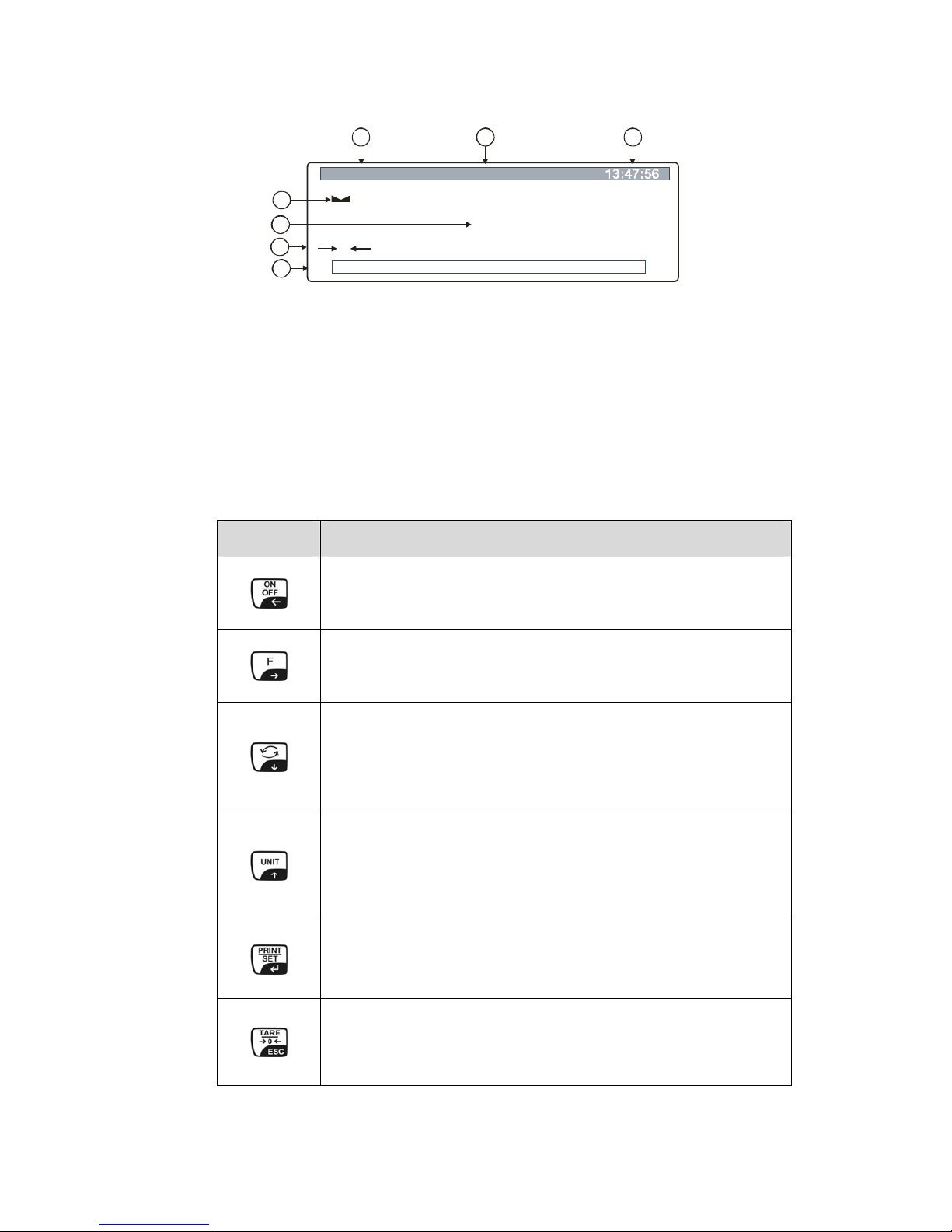

Main menu:
1. Menu number (P1 - P9)
2. Menu designation
3. Cursor ( ► ) indicates the current
menu item
Submenu:
1. Main menu number (P1 – P9)
2. Sub-menu number and designation
3. Parameter value or ****** i.e. this
menu item is stored as function
4. Description of function
5. Cursor ( ► ) shows the current
menu item (e.g. P1).
6. Cursor ( ► ) shows the current set-
ting (e.g. 06).
7. Status
8. Use the arrow key to modify the parameter value, the active parameter
blinks.
Page 15
PLT-BA-defsi-0510
84
8.1 User principle of the menu control
In the menu the settings of the balance can be modified and functions can be activated.
This way, the balance can be adjusted to individual weighing requirements. Proceed
as follows:
Ö Switch on the balance using the key
Ö After actuating the key the display shows the main menus that can be set
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup2.02.05
Ö Use the cursor ( ► ) to select your setting
Use the key to move the cursor ( ► ) down, the key to move it up
Ö The key confirms your selected setting, the display shows the sub-menu or the
active menu item blinks:
Setup
P1
01 Int. calibr.
02 Ext. calibr.
03 User calibr.
04 Calibr. test
05 Weight. corr.
06 Aut calibr.
07
Print report
o
Auto cal. time
08
********
********
********
********
0.0
0
1
function
function
function
off
on
function
31.01.05
1
1 hour
Ö Use the arrow keys to move within and enter into the menu:
• Access to main menu
• Access to submenu
• In the menu one menu
item to the right
• Selection of the number
to be changed to the
right (the respective active
p
osition flashes
)
• Back to main menu
• Selection of the number
to be changed to the left
(the respective active
position flashes)
• Cursor control upwards
• Parameter selection within a function
• Increasing the value for selected numeral or number
• Cursor control downwards
• Parameter selection within a function
• Decreasin
g
the value for selected numeral or number
Page 16
PLT-BA-defsi-0510
85
Ö Actuating the key will confirm your setting; to interrupt use the key
Ö Use the key to return to the menu
Ö Actuate key again, a message will inquire whether you want to save the
changes you made.
Ö Actuating the key will save the selected setting.
Ö If you do not want to save your selected setting, press the key
Ö The balance returns automatically into weighing mode.
Weighing
0.0000
g
0% 100%
0
27.01.05
8.2 Operation of the balance with PS/2-keyboard
Using a PS/2 keyboard will help you to enter numbers and texts faster and easier.
Key allocation:
Balance keyboard
PS keyboard
Page 17
PLT-BA-defsi-0510
86
8.3 Menu selection
8.3.1 P1 Calibration (adjustment)
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.
Using the inbuilt adjusting weight the balance automatically carries out an adjustment
after any temperature change of 3 °C or any time it was disconnected from the power
supply.
Of course it is also possible to check the accuracy of the balance manually any time.
You can choose between two options:
1. Adjustment is started by pressing the F-key three times.
After successful adjustment the balance automatically returns to weighing
mode.
2. Under menu item “P1 01 Adjustment with internal weight” (see table below)
Procedure when adjusting:
Observe stable environmental conditions. A warming up time of ca. 1 hour is required for stabilization.
Note!
During the adjustment process no objects should be on the weighing plate.
Operation Display
Ö Call up menu item "P1 Calibration" (see chapt. 8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Globals
Setup2.02.05
01 Int. cal. - Adjustment with internal weight
Ö Use the cursor ( ► ) to select "01 Int. cal."
Setup
P1
01 Int. calibr.
02 Ext. calibr.
03 User ca libr.
04 Calibr. test
05 Weig ht. corr.
06 Aut calibr.
07
Print report
o
Auto c a l. time
08
********
********
********
********
0.0
0
1
function
function
function
off
on
function
31.01.05
1
1 hour
Page 18
PLT-BA-defsi-0510
87
Ö Press the key; the adjustment with internal ad-
justment weight is made.
Calibration
Internal calibration
Ö After successful adjustment the balance automati-
cally returns to weighing mode.
In case of an adjustment error (e.g. objects on the
weighing plate) the display will show an error message, repeat adjustment.
Weighing
0.0000
g
0% 100%
0
27.01.05
02 Ext. Cal adjustment with external weight - locked for verifiable devices
03 User cal. - locked for verifiable appliances
04 Cal. test
Here, deviation from the last adjustment is determined. This is only a check, i.e.
no values are changed.
Ö Use the cursor ( ► ) to select "04 Cal. test"
Setup
P1
01 Int. calibr.
02 Ext. calibr.
03 User ca libr.
04 Calibr. test
05 Weig ht. corr.
06 Aut calibr.
07
Print report
o
Auto c a l. time
08
********
********
********
********
0.0
0
1
function
function
function
off
on
function
31.01.05
1
1 hour
Ö Press key; calibration test will be executed auto-
matically
Calibration
Calibration check
Ö The result is displayed
Calibration
Check results
Cal.: 180.1354
Act.: 180.1438
Diff.: - 0.0084
05 Weight corr. - Locked for verifiable appliances
06 Autom. cal. - locked for verifiable appliances
07 Auto. Cal.time – locked for verifiable appliances
08 Print report - printout of the adjustment data
Ö Use the cursor ( ► ) to select "08 Print report"
Ö Press key, the current menu item blinks
With the arrow keys save your settings
0 Print report deactivated
1 Print report activated
Setup
P1
01 Int. calibr.
02 Ext. calibr.
03 User ca libr.
04 Calibr. test
05 Weig ht. corr.
06 Aut calibr.
07
Print report
o
Auto c a l. time
08
********
********
********
********
0.0
0
1
function
function
function
off
on
function
31.01.05
1
1 hour
Ö Confirm by pressing the key
Page 19
PLT-BA-defsi-0510
88
Ö With "Print report" activated, you will receive a printout of your adjustment data
after each adjustment (example):
8.3.1.1 Verification
General introduction:
According to EU directive 90/384/EEC balances must be officially verified if they are
used as follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing
b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory
c) For official purposes.
d) For manufacturing final packages.
In cases of doubt, please contact your local trade in standard.
Verification instructions
An EU type approval exists for balances described in their technical data as verifyable. If a balance is used where obligation to verify exists as described above, it
must officially verified and re-verified in regular intervals.
Re-verification of a balance is carried out according to the respective national regulations. The validity for verification of balances in Germany is e.g. 2 years.
The legal regulation of the country where the balance is used must be observed!
After verification the balance is sealed at the indicated positions.
Verification of the balance is invalid without the "seal".
***Print report of internal calibration***
Calibrate : internal
Diff.. : 0.0038 g
Signature………………………….
Page 20
PLT-BA-defsi-0510
89
Position of the “official seals“:
Balances with obligation to verify must be taken out of operation if:
- The weighing result of the balance is outside the error limit. Therefore,
in regular intervals load balance with known test weight (ca. 1/3 of the max.
load) and compare with displayed value.
- The reverification deadline has been exceeded.
Seal Seal
Page 21
PLT-BA-defsi-0510
90
8.3.2 P2 GLP (Good laboratory practice)
Quality assurance systems require printouts of weighing results as well as of correct
adjustment of the balance stating date and time and balance identification. The easiest way is to have a printer connected.
Definition of a standard log:
Operation Display
Ö Call up menu item "P2 GLP" (see chapt. 8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup20.02.05
01 User
Ö Use the cursor ( ► ) to select "01 User"
Ö Press button, the current menu item blinks.
Use the arrow keys to enter user name or number (max. 8 characters).
Setup
P2
01 User
02 Pr
03 Time print
04 Date print
05 User print
oject
ojekt
Last Cal
06 P print
07 Id print
08 Print
WX/235
0
1
Nowak
0
1
1
0
off
on
off
on
on
off
31.01.05
Ö Confirm by pressing the key
02 Project
Ö Use the cursor ( ► ) to select "02 Project"
Ö
Press key, the current menu item blinks
Use the arrow keys to enter project name or
number (max. 8 characters)
Setup
P2
01 User
02 Pr
03 Time print
04 Date print
05 User print
oject
ojekt
Last Cal
06 P print
07 Id print
08 Print
WX/235
0
1
Nowak
0
1
1
0
off
on
off
on
on
off
31.01.05
Ö Confirm by pressing the key
All other settings (03 - 08) are executed
Page 22
PLT-BA-defsi-0510
91
All settings that are supposed to be printed must be activated with "1 / yes"
Example 1:
Setting Printout
P2 03 Printout time
1 yes
P2 04 Printout date
1 yes
P2 05 User printout
1 yes
P2 06 Project printout
1 yes
P2 07 ID-printout
1 yes
P2 08 Cal. printout
1 yes
Example 2:
Setting Printout
P2 03 Printout time
0 no
P2 04 Printout date
1 yes
P2 05 User printout
1 yes
P2 06 Project printout
0 no
P2 07 ID-printout
1 yes
P2 08 Cal. printout
0 no
Date : 18.01.05
Time : 10:41:05
User : Miller
Projec : AB/007
Balance no. : WL 041078
----------------------------
18.01.05 07:48
Automatic calibration
Devi.: 0.003[5] g
-----------------------------------
10.429[0] g
Date: 22/10/2004
User: Miller
Balance no.: 10
---------------------------------------
13.0521 g
Page 23
PLT-BA-defsi-0510
92

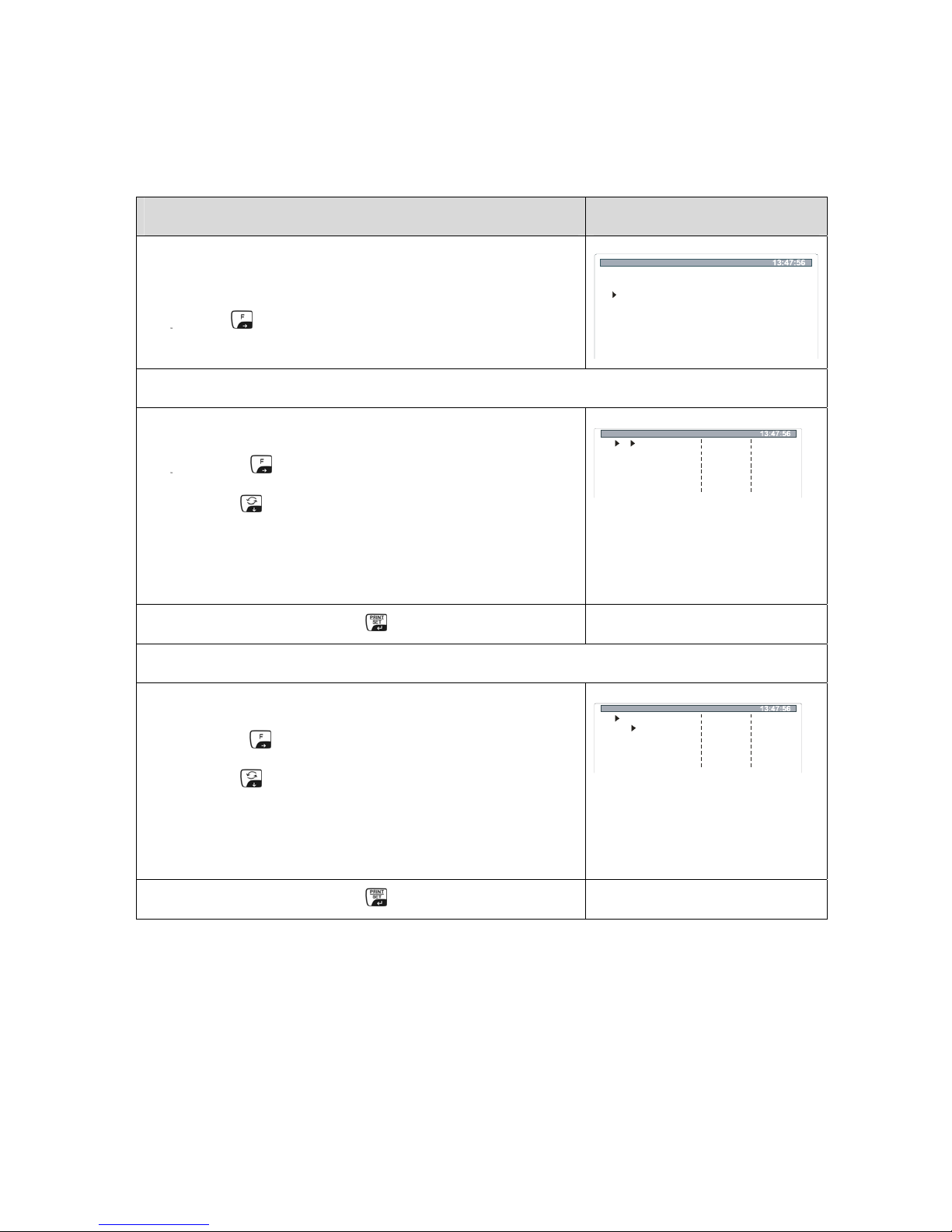

8.3.3 P3 Date/time
Under this menu item you can set output and formatting of date and time
in the status bar.
Operation Display
Ö Call up menu item "P3 Date/time" (see chap. 8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup20.02.05
01 Date format
Ö Use the cursor ( ► ) to select "01 Date format"
Ö Press the key; the current menu item blinks.
Ö Use the button to choose between the following
settings:
1 Month/Day/Year
0 Day/Month/Year
Setup
P3
01
02
03
04
05
Date format
Time format
Time
Date
Disp. time
Date06 Disp.
1
1
0
1
DA/MO /YR
24 Std.
********
Function
********
On
On
Function
29.12.04
Ö Confirm by pressing the key
02 Time format
Ö Use the cursor ( ► ) to select "02 Time format"
Ö Press the key; the current menu item blinks.
Ö Use the
button to choose between the following
settings:
0 24 hours
1 12 hours (PM/AM)
Setup
P3
01
02
03
04
05
Date format
Time format
Time
Date
Disp. time
Date06 Disp.
1
1
0
1
DA/MO /YR
24 Std.
********
Function
********
On
On
Function
29.12.04
Ö Confirm by pressing the key
Page 24
PLT-BA-defsi-0510
93
03 Time
Ö Use the cursor ( ► ) to select "03 Time"
Setup
P3
01
02
03
04
05
Date format
Time format
Time
Date
Disp. time
Date06 Disp.
1
1
0
1
DA/MO/YR
24 Std.
********
Function
********
On
On
Function
29.12.04
Ö Press button
Ö Use the or key to control your selection
Ö Use the key to confirm your selection (e.g.
hours), the current menu item blinks
Ö Use the key to increase the value, the key
to decrease.
Ö Use the and keys to select the place to be
changed (the respective active place blinks)
Ö Use the key to confirm your selection (e.g.
hours).
Ö To change minutes and seconds proceed in the
same way.
Ö Confirm by pressing the key
04 Date
Ö Use the cursor ( ► ) to select "04 Date"
Setup
P3
01
02
03
04
05
Date format
Time format
Time
Date
Disp. time
Date06 Disp.
1
1
0
1
DA/MO/YR
24 Std.
********
Function
********
On
On
Function
29.12.04
Ö Press button
Setup
Year 200
Mo 11
10
4
nth
Day
APRIL 2004
Setup
29.12.04
Ö All other settings are made in the same way as time
(03 Time).
Page 25
PLT-BA-defsi-0510
94
05/06 Displ. Time/Date
Ö Use the cursor ( ► ) to select e.g. "05 Displ.
time/date"
Ö Press the key; the current menu item blinks.
Ö Use the button to choose between the following
settings:
0 Time/date is displayed in the status bar
1 Time/date is not displayed in status bar
Setup
P3
01
02
03
04
05
Date format
Time format
Time
Date
Disp. time
Date06 Disp.
1
1
0
1
DA/MO/YR
24 Std.
********
Function
********
On
On
Function
29.12.04
Ö Confirm by pressing the key
8.3.4 P4 Readout
Operation Display
Ö Call up menu item "P4 Readout " (see chapt. 8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup20.02.05
01 Filter
Ö Use the cursor ( ► ) to select "01 Filter"
Ö Press the key; the current menu item blinks.
Ö Use the
and keys to select between the fol-
lowing settings:
1 Very quiet and stable environment:
Balance works very fast but is more sensitive to external influences
5 Busy environment:
Balance works more slowly but is less
sensitive to outside influences
Setup
P4
01 Filter
0
0
0
02 Med. Filter
3 Disp refresh
4 Autozero
5 Last digit
06 Negative
5
1
Slowest.
enabled
0.08 s
On
Always
1
1
1
0 disabled
Setup
29.12.05
Ö Confirm by pressing the key
Page 26
PLT-BA-defsi-0510
95
02 Med. Filter
This is a filter that is adjustable for e.g. 50 sample weighing procedures/ collects,
organizes, averages during a certain interval e.g. in 1 s. Especially useful in case of
impacts or shocks.
Ö Use the cursor ( ► ) to select "02 Med. filter"
Ö Press the -key; the current menu item blinks.
Ö Use the - and -keys to select between the following
settings:
0 blocked
1 active
Setup
P4
01 Filter
0
0
0
02 Med. Filter
3 Disp refresh
4 Autozero
5 Last digit
06 Negative
5
1
Slowest.
enabled
0.08 s
On
Always
1
1
1
0 disabled
Setup
29.12.05
Ö Confirm by pressing the key
03 Disp.refresh
Ö Use the cursor ( ► ) to select "03 Disp.refresh"
Ö Press the key; the current menu item blinks
Ö Use the and keys to set the time it takes
before the display is updated after the weight value
has changed.
1 0.08/ s
5 1.0 s
Setup
P4
01 Filter
0
0
0
02 Med. Filter
3 Disp refresh
4 Autozero
5 Last digit
06 Negative
5
1
Slowest.
enabled
0.08 s
On
Always
1
1
1
0 disabled
Setup
29.12.05
Ö Confirm by pressing the key
04 Autozero
Ö Use the cursor ( ► ) to select "04 Autozero"
Ö
Press the key; the current menu item blinks
Ö Use the and keys to select between the fol-
lowing settings:
0 Deviations from the Zero display are not
automatically tared.
1 Deviations from the Zero display are auto-
matically tared.
Setup
P4
01 Filter
0
0
0
02 Med. Filter
3 Disp refresh
4 Autozero
5 Last digit
06 Negative
5
1
Slowest.
enabled
0.08 s
On
Always
1
1
1
0 disabled
Setup
29.12.05
Ö Confirm by pressing the key
Page 27
PLT-BA-defsi-0510
96
05 Last digit
Ö Use the cursor ( ► ) to select “05 Last number"
Ö Press the key; the current menu item blinks
Ö Use the and keys to select between the fol-
lowing settings:
0 Last fractional digits are omitted
1 All fractional digits
Setup
P4
01 Filter
0
0
0
02 Med. Filter
3 Disp refresh
4 Autozero
5 Last digit
06 Negative
5
1
Slowest.
enabled
0.08 s
On
Always
1
1
1
0 disabled
Setup
29.12.05
Ö Confirm by pressing the key

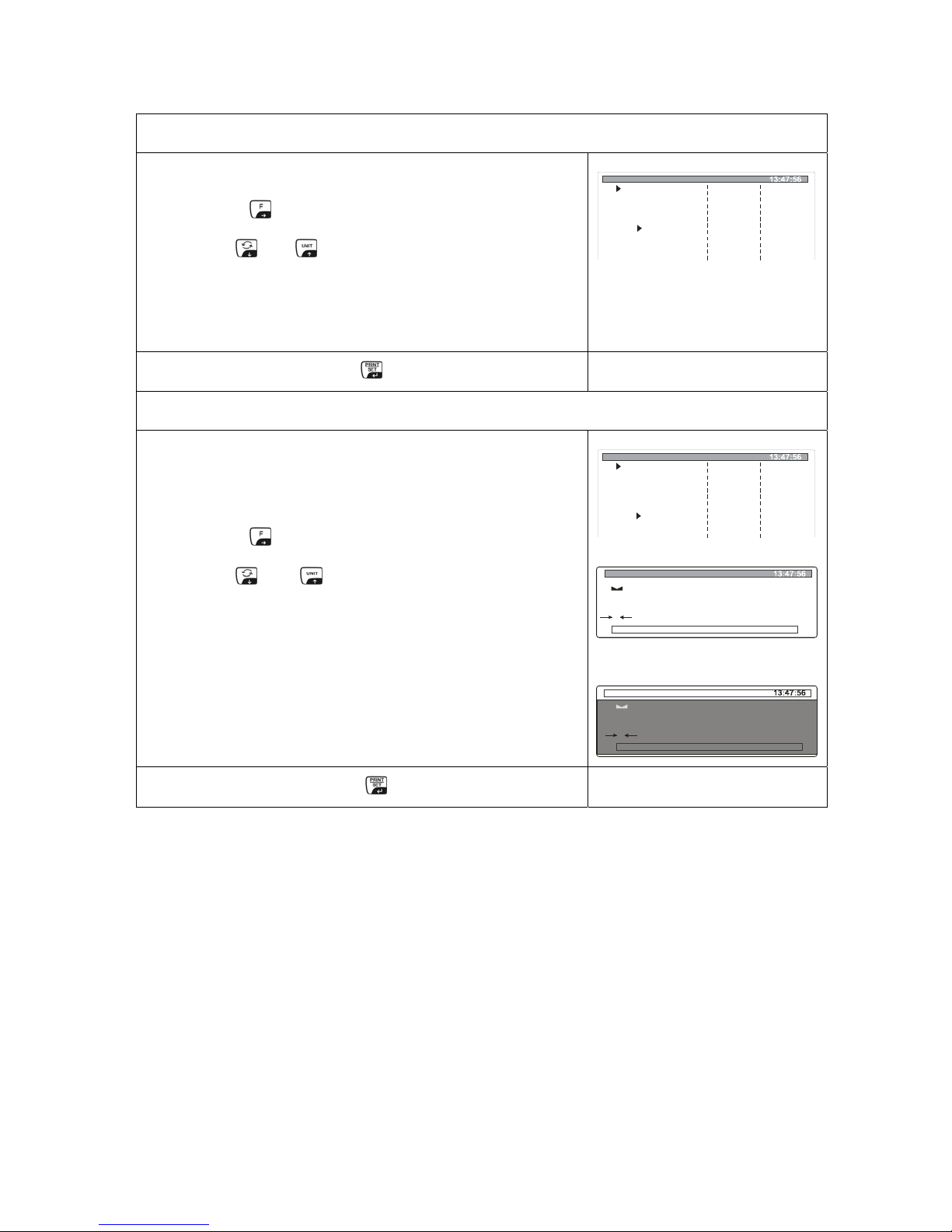

06 Negativ
Ö Use the cursor ( ► ) to select “06 Negativ"
Ö Press the key; the current menu item blinks
Ö Use the and key to invert the colour settings
of the display
0 blocked
1 active
Setup
P4
01 Filter
0
0
0
02 Med. Filter
3 Disp refresh
4 Autozero
5 Last digit
06 Negative
5
1
Slowest.
enabled
0.08 s
On
Always
1
1
1
0 disabled
Setup
29.12.05
Weighing
0.0000
g
0% 100%
0
27.01.05
Ø
Wiegen
100%
27.01.05
0.0000
g
0%
0
27.01.05
Weighing
Ö Confirm by pressing the key
Page 28
PLT-BA-defsi-0510
97

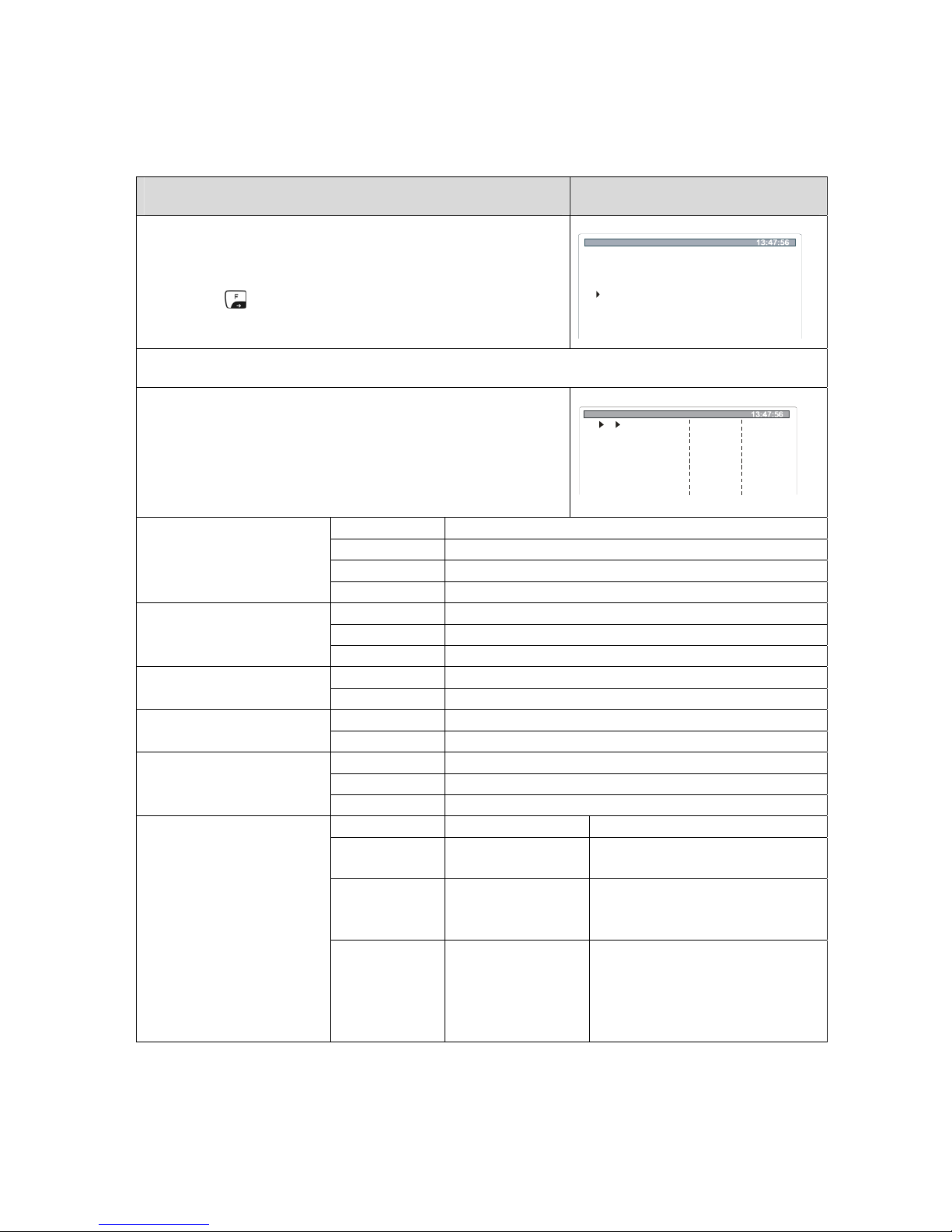

8.3.5 P5 RS-232
In this menu item you can save your settings for the interface.
Operation Display
Ö Call up menu item "P5 RS-232" (see chapt. 8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup20.02.05
01 -10 Parameter selection
Ö Use the cursor ( ► ) to select your parameters
(01 - 10)
Setup
P5
01 B ud rate
02 Parity
03 Data bits
04 Stop bits
05 Handshake
a
Min.mass
09 Print on stab 1 enabled
06 Auto print
07 Inetrval
08
0
0
2
0
9600
8 bits
1 bit
2
1
* 0.1 s
1 d
25
none
1
none
none
29.12.04
01 Baud rate 0
2400
1
4800
2
9600
3
19200
02 Parity 0
none
1
even
2
uneven
03 Data bits 1
7 Bit
2
8 Bit
04 Stop bits 1
1 Stop bit
2
2 Stop bit
05 Handshake 0
None
1
RTS/CTS
2
XON/XOFF
06 Autom. Printout 0
None No data output
1
steady
Continuous serial data output
2
interval (discrete)
Serial data output after a
certain interval, defined in
parameter „07 Interval“
3
at resting
Unique autom. Data output
for steady weighing value.
New output only after removing the weight and new
loading
Page 29
PLT-BA-defsi-0510
98
07 Interval
1 – 9999
(Enter via
arrow keys)
Definition of an interval after which data output
is executed.
Pulse = parameter value x 0.1 sec
08 Min. measuring
value
1
1 d
2
2 d
3
5 d
13
10000 d
Definition of a minimum measuring
value from which serial data output
is executed
Ö Press key, the current menu item blinks
With the arrow keys (see chap. 8.1) save your settings
Ö Confirm by pressing the key
Page 30
PLT-BA-defsi-0510
99

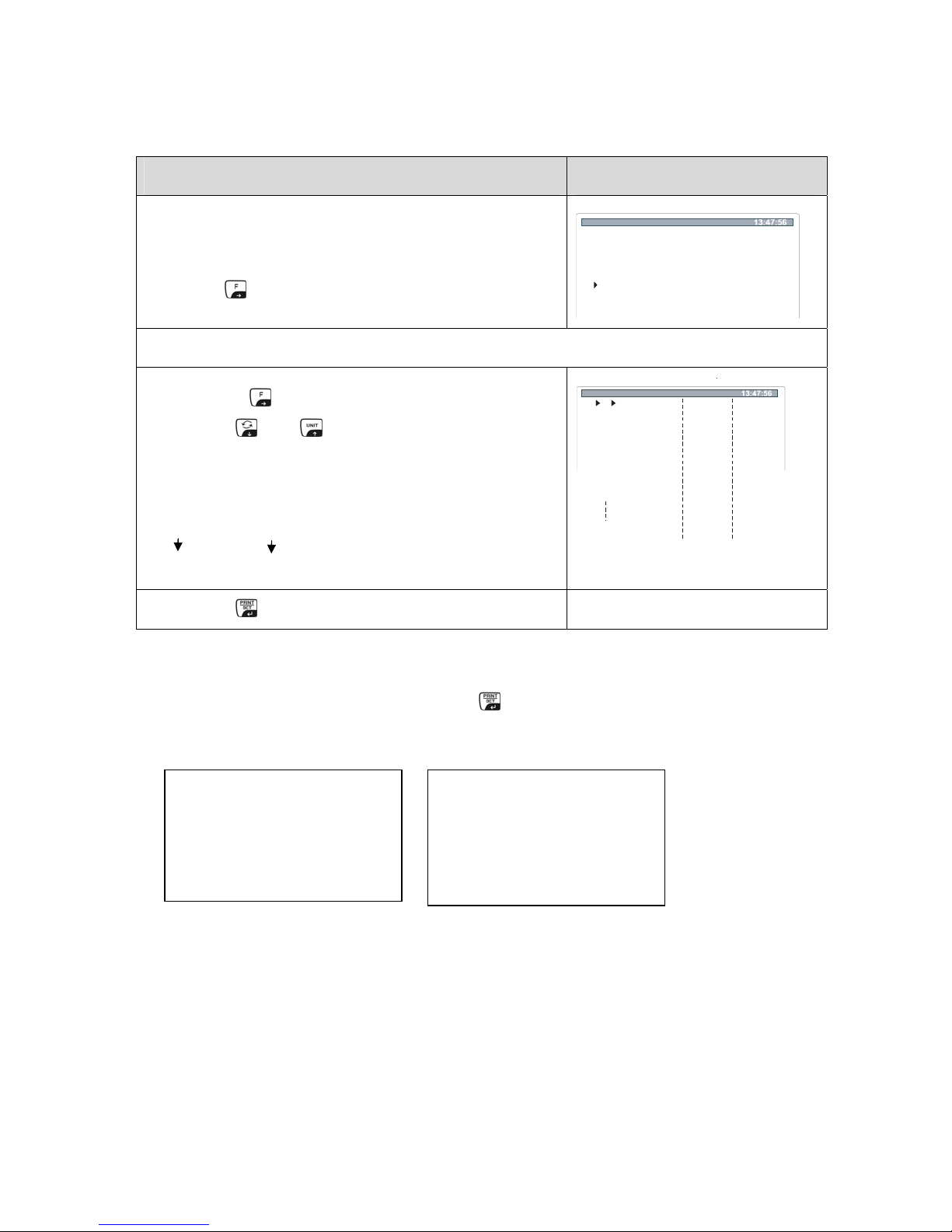

8.3.6 P6 Printouts
In this menu item you can select between 5 different types of data output:
Operation Display
Ö Call up menu item "P6 Printouts "
(see chapt. 8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup20.02.05
01 Printout no.
Ö Use the cursor ( ► ) to select “01 Printout no."
Ö Press the key; the current menu item blinks
Ö Use the and keys to select between the
following settings:
0 standard
1 1. Printout
4 4. Printout
Setup
P6
01 Printout No.
02 Pr. 1 start
03 Pr. 1 stop
04
05
Pr. 2 start
Pr. 2 stop
06 Pr. 3 start
07 Pr. 3 stop
08 Pr. 4 start
09 Pr. 4 stop
10 String 1
11 String 2
88 String 79
89 String 80
0
0
0
0
Standard
0
0
0
0
0
29.12.04
Ö Use the key to confirm your selection
8.3.6.1 Standard data output (0 standard)
Data output is carried out by actuating the key.
Definition of the log header is executed in menu item “P2 GLP”.
Examples.
*: ? = instable measuring value
Date: 22/10/2004
Time: 13.04.23
User: Mustermann
Project: XW/456
0.008 g
Date: 22/10/2004
Time: 13.16.49
User: Mustermann
Project: XW/456
Balance: 10
? 62.685 g *
Page 31
PLT-BA-defsi-0510
100
8.3.6.2 User-defined data output (1. Printout - 4. Printout )
Here you can define 4 different types of data output.
Ö The content of the data output is defined as follows.
First line 1. Printout start - 1, i.e. text begins at line 1 (1. Text)
Last line 1. Printout stop - 20, i.e. text ends at line 20 (20. Text)
Ö Text input per line is carried out via the arrow keys (see chapter 8.1)
in the respective strings.
1. Text Start of text input
20. Text End of text input
During text input lines may overlap, e.g.:
1. Printout start - 1
1. Printout stop - 40
2. Printout start - 20
2. Printout stop - 40
Text input:
• Max. 640 characters
• 80 lines
• 8 characters per line
Ö After each line confirm your text input using the key.
Ö After completely entering the text use the
key to confirm (see chapt. 8.1).
Page 32
PLT-BA-defsi-0510
101
Apart from flow text (characters, numbers and numerals) the following variables
are stored in the menu:
General variables
%%
Printout of 1 character “%” (i.e. in order to print out 1 character %, two
%% must be entered)
%N
Net weight
%d
Current date
%t
Current time
%i
Balance ID-no.
%R
Program no.
%P
Project number.
%U
User no.
%F
Current function (operating mode)
%C
Date and time of last adjustment
%K
Type of last adjustment
%I
Deviation from last adjustment
%1-5
Code 1-5
Print related variables
\\
Printout of 1 character “/” (i.e. in order to print out 1 character /, two //
must be entered)
\c
CRLF (carriage return line feed)
line beginning next line
\r
CR (carriage return)
line beginning
\n
LF (line feed) next line
\t
Tabulator
\s
Next "Text"
\0
End of data output
Page 33
PLT-BA-defsi-0510
102
Variables in the various operating modes
Variable Description Operating mode
%W
Reference quantity Parts counting
%H
Lower limit
%L
Upper limit
Weighing with tolerance range
%Z
Nominal value Filling
%B
Reference mass Percent weighing
%A
Sensitivity
%b
Mean Value
Dynamic weighing
(animal weighing)
%I
Liquid
%p
Method
%c
Temperature
%a
Density liquid
%v
Sinker
Density determination
Variable for statistics
%n
Number weighing processes
%x
Mean Value
%S
Sum of all measuring values
%m
Min value
%M
Max value
%D
Difference min and max value
%s
Standard Deviation
%r
Variance
Page 34
PLT-BA-defsi-0510
103
Examples for text input:
Example 1: Max mass can not exceed 11.250 g!
Text
Parameter Nr.
1 2 3 4 5 6 7 8
20 string 10 M a x m a s s
21 string 11
c a n n o t
22 string 12
e x c e e d
23 string 13 1 1 . 2 5 0 g
24 string 14
!
25 string 15
Example 2: Kern & Sohn GmbH
Date:
Time:
Weight:
*****Signature:..........
*** Weighing with tolerance range ***
Text
Parameter Nr.
1 2 3 4 5 6 7 8
26 string 16 K e r n & S
27 string 17 o h n G m b H
28 string 18 \ c D a t u m :
29 string 19 % d \ c Z e i t
30 string 20 : % t \ r \ n G
31 string 21 e w i c h t : %
32 string 22 N \ c \ c * * *
33 string 23 * * U n t e r s
34 string 24 c h r i f t : .
35 string 25 . . . . . . .
36 string 26 . . \ c * * % F
37 string 27 * * * *
Page 35
PLT-BA-defsi-0510
104

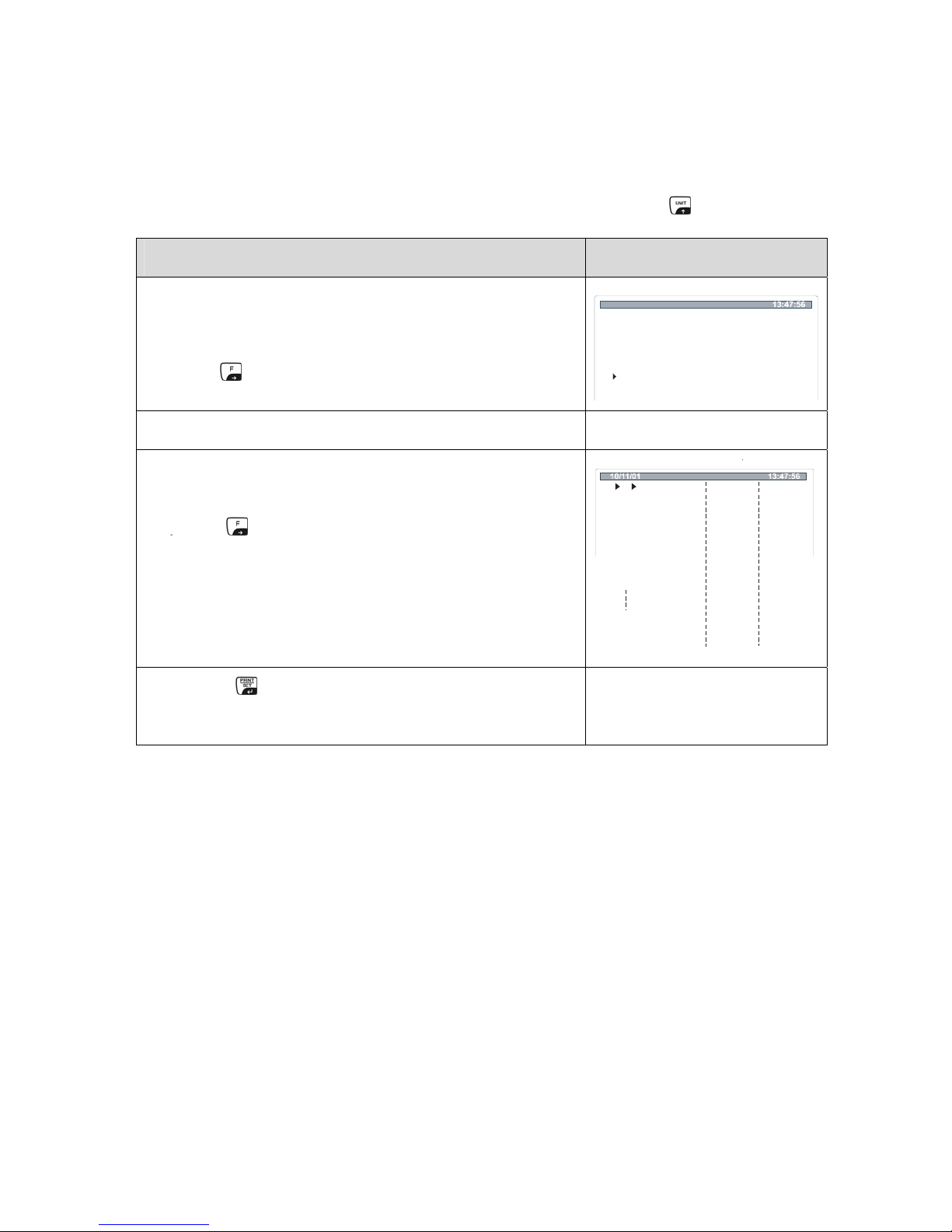

8.3.7 P7 Units
In this menu item you can activate various different weighing units (see chapter 1
“Technical data“).
Switching into the activated units happens by multiple pressing the key
Operation Display
Ö Call up menu item "P7 Weighing units" (see chapt.
8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup20.02.05
01 -16 Parameter selection
Ö Use the cursor ( ► ) to select your setting (01 -10)
Ö Press key, the current menu item blinks
With the arrow keys (see chap. 8.1) save your settings
0 Weighing unit deactivated
1 Weighing unit activated
Setup
P7
01 Grams
02 Miligrams
03
04 Pounds
05 Ounces
Carats
06 Ounces troy
07 Dwt
08 Taels Hk
09 Taels S.
10 Taels T.
11 Momms
12 Grains
13 Newtons
14 Tical
15 Custom
16 Custom factor
.
1
0
1
0
1
0
0
0
0
0
0
0
0
0
0
1.0
disabled
enabled
disabled
enabled
enabled
enabled
enabled
enabled
enabled
enabled
enabled
enabled
enabled
enabled
disabled
Ö Use the key to confirm your selection
Ö Save (see chapter 8.1)
8.3.8 P8 Operating modes
See Chapter 9.1
Page 36
PLT-BA-defsi-0510
105

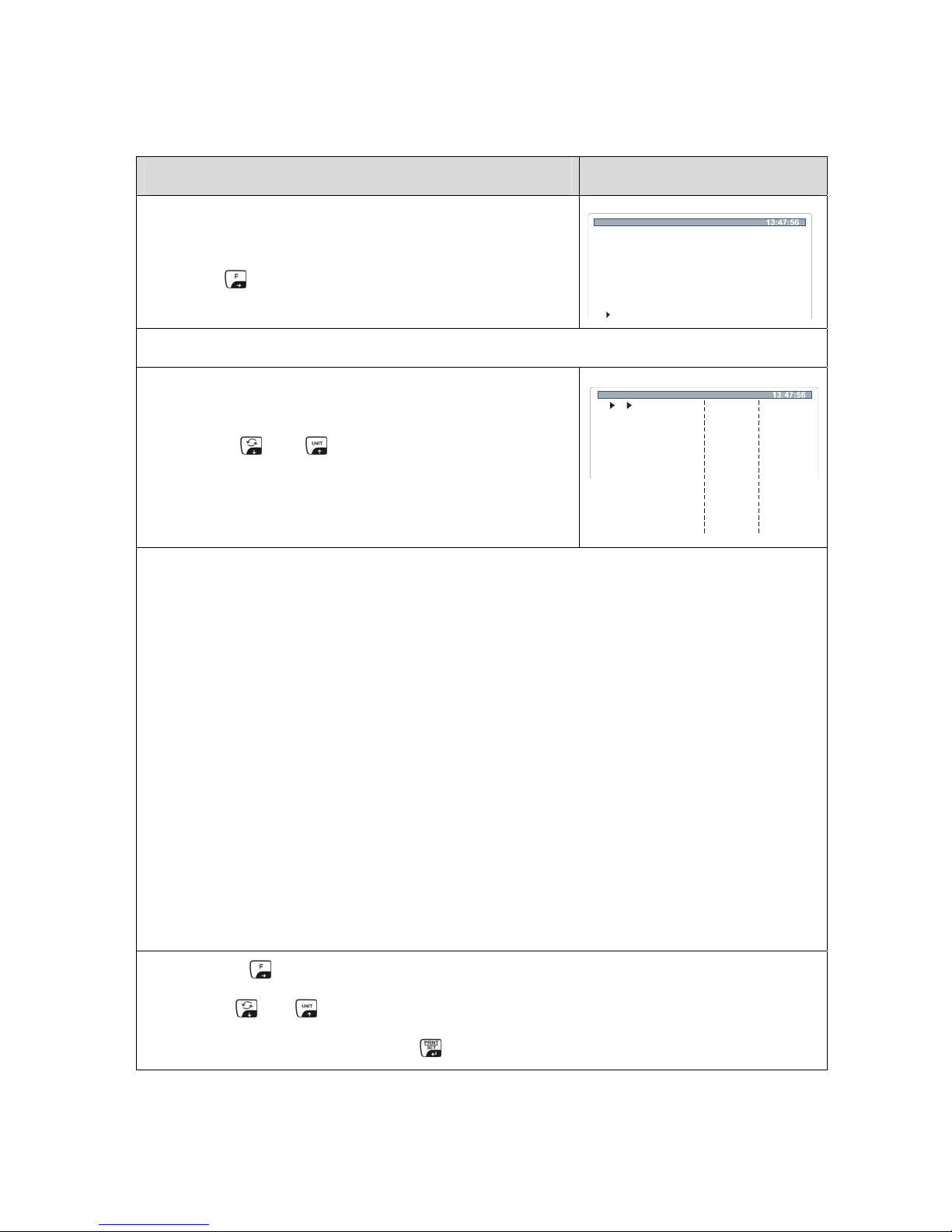

8.3.9 P9 Global functions
Operation Display
Ö Call up menu item "P9 Globals" (see chapt. 8.1)
Ö Press button
P1 Calibration
P2 GLP
P3 Date/Time
P4 Readout
P5 RS-232
P6 Printouts
P7 Units
P8 Modes
P9 Global
s
Setup20.02.05
01 -13 Parameter selection
Ö Use the and keys to select parameter
"01 - 13"
P9
01
02
03
04
05
ID setting
ID autoprint
Beep
Language
Backlight
Contrast
Screensaver
Temperature
Balance ID
Software rev..
Par. printout
12 Par. receive
13 Passwd. Prot.
06
07
08
09
10
11
1
0
1
Fcun tion
1
on
Fcun tion
On
On
********
********
********
Fcun tion
un tionFc
Setup
29.12.04
********
Off
********
Fcun tion
Wl04305
MXA0.40
********
*******
*
un tionFc
un tionFc
01 Set ID
Entering a user code
02 Auto ID printout
User code can also be printed
03 Acoust. Signal
Tone on/off
04 Language
User guidance selectable in German, English and Spanish
05 Illumination
Back lighting of the display on/off
06 Contrast
Contrast of the display
07 Screensaver
Back lighting automatically switches off as soon as a stable
measuring value is reached (Condition: Backlight on)
08Temperature
Temperature indicator
09 Balance no.
Balance identification no.
10 Program no.
Software issue
11 Par. Printout
Balance parameters are printed out
12 Par. receiving
Not documented
13 Password
protection
Password protection
Ö Press the key; the current menu item blinks.
Ö Use the
and keys to activate/deactivate parameters
Ö Confirm your selection with the
key
Page 37
PLT-BA-defsi-0510
106
9 Operation
Operating elements
• Display:
• Overview of display:
Weighing
0.0000
g
0% 100%
0
27.01.05
Stability d ispl ay
Balance z ero-d ispl ay
Balance zero display:
If the balance does not show exactly zero although the pan scale is unloaded, press
the -button and the balance will be reset to zero. (Display [ → 0 ← ] )
Stability display:
If the display shows the stability display [ ] the balance is in a stable status. If the
status is instable the [
] display disappears.
Page 38
PLT-BA-defsi-0510
107
Weighing
0.0000
g
0%
100%
4
1
3
6 5
7
0
2
27.01.05
1.
Weight display
2.
Balance zero display
3.
Stability display
4.
Capacity display
5.
Operating mode (status)
6.
Current date
7.
Current time
• Keyboard overview:
Key Function
• Turn on/off
• Menu item to the left
• Access to the user menu
• Menu item to the right
• Switch-over key into operating modes
• Decreasing the value for selected numeral or number
• Parameter selection (cursor control down)
• Switching-over to other weighing units
• Parameter selection (cursor control up)
• Increasing the value for selected numeral or number
• Printout of the weighed value on an external appliance
(printer or PC)
• Confirm/save settings
• Taring
• Leave menu
• Set weight display at zero
Page 39
PLT-BA-defsi-0510
108

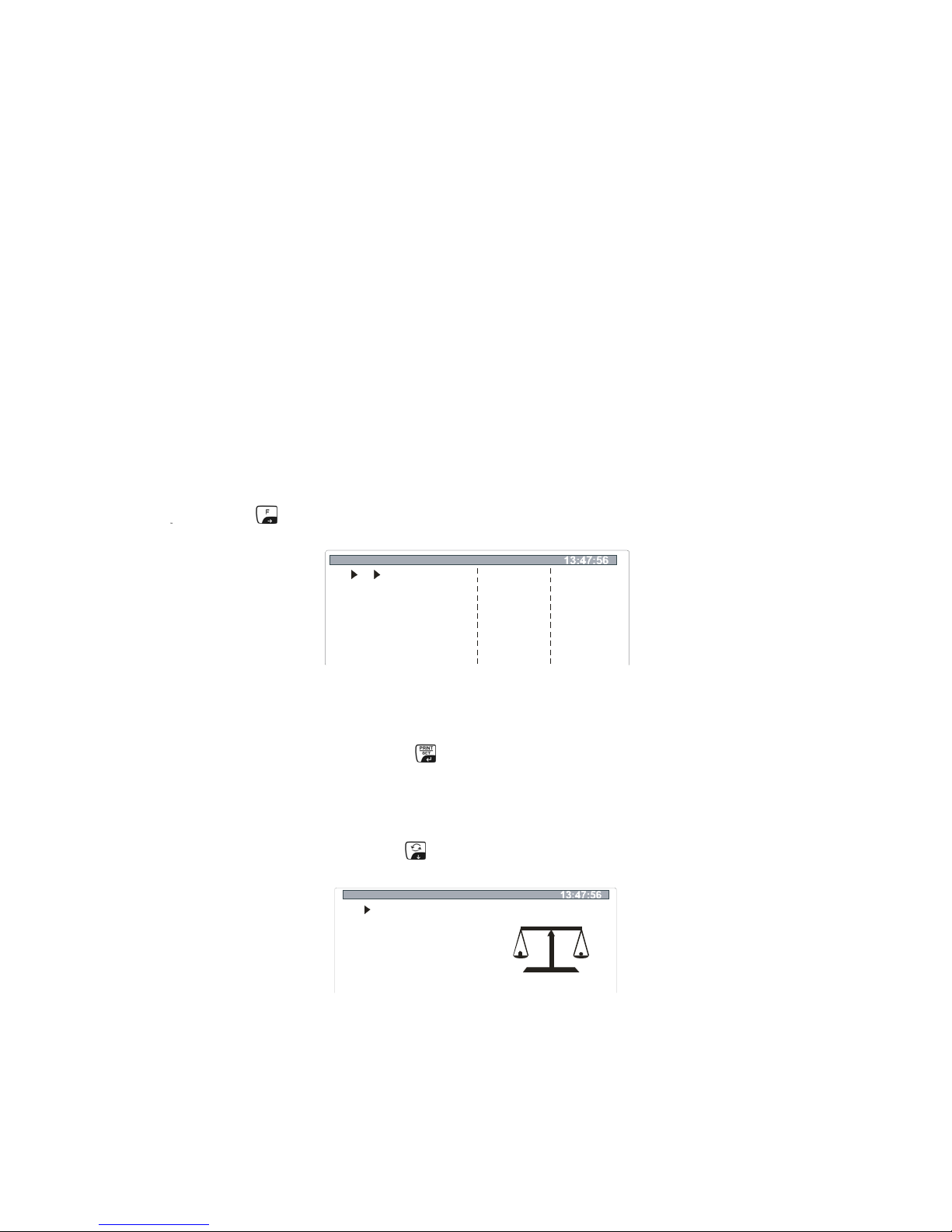

9.1 Operating modes (P8)
Under this menu item you can activate or test weigh the following operating modes of
the balance
P8 01: Counting
P8 02: Checkweighing
P8 03: Filling
P8 04: Percent weighing
P8 05: Animal weighing
P8 06: Density
P8 07: Formulation
P8 08: Statistics:
Notice: Some operating modes may be combined (e.g. statistics/counting, sta-
tistics/Percent determination). Further details are described in the respective chapters.
Activation/deactivation of the operating modes:
Ö In main menu call up menu item P8 "Operating mode" (see chapt. 8.1)
Ö Press the key; the overview of the operating modes is displayed:
Mode
P8
01 Parts Count
02 Checkweighing
03 Filling
04 Percont
05 Animal
06
07 Formulation
08
Density
Statistics
0
1
0
disabled
1
1
0
1
enabled
disabled
disabled
disabled
enabled
enabled
20.02.05
Ö Use the arrow keys (see chapt. 8.1) to activate (1) or deactivate (0) the desired
operating modes.
Ö Confirm your selection with the key.
Ö Save (see chapter 8.1)
All activated operating modes are now stored in a sub-menu (M0 - M8) and can be
directly called up directly with the key:
M0 Basic w eighin g
M1 P arts counting
M2 Checkweighing
M3 Filling
M4 P ercent
M5 Animal we ighing
M6 Density
M7 Formulation
M8 Statistics
Mode20.02.05
Page 40
PLT-BA-defsi-0510
109

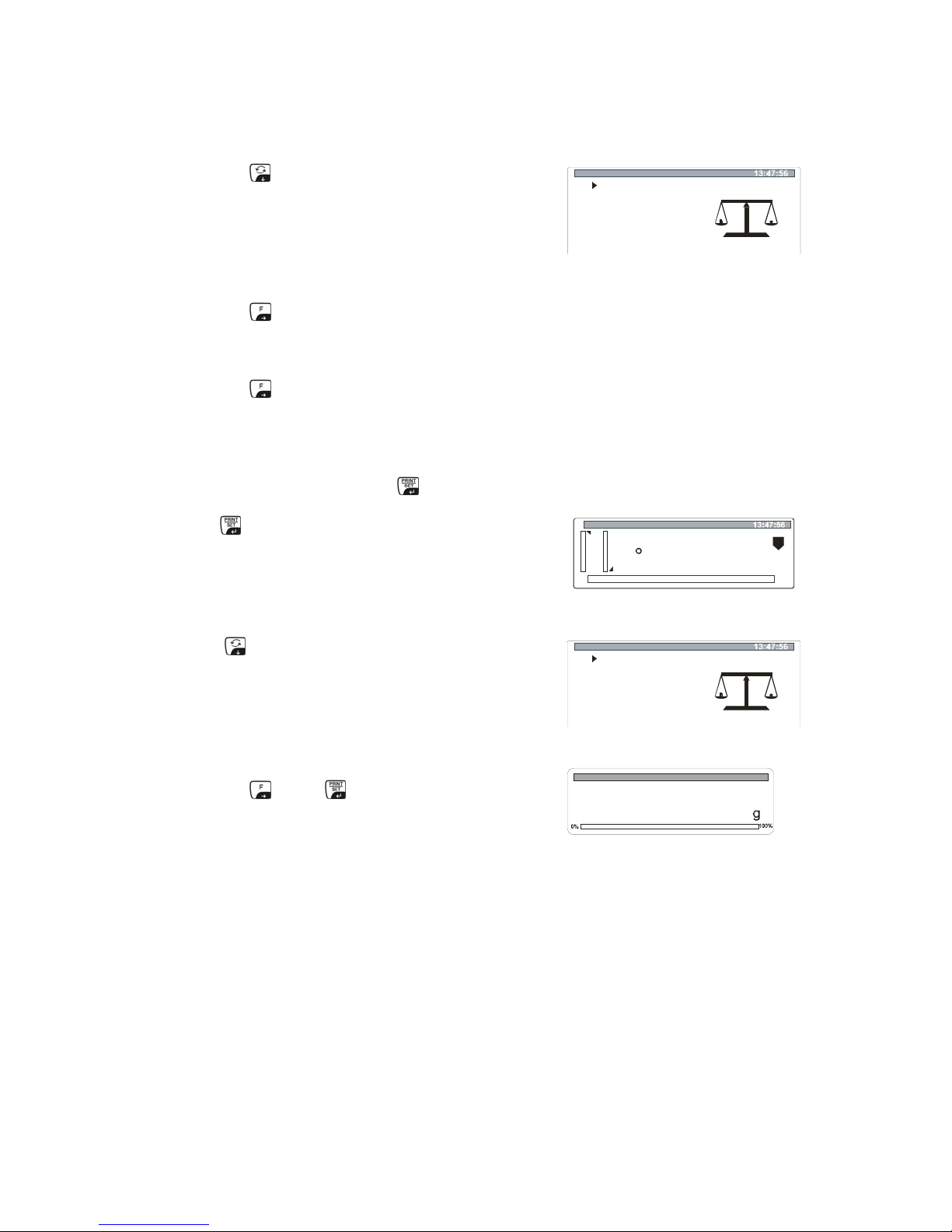

Navigating in operating modes mode:
Ö Press the -key
Ö Use the cursor (►) to select your operating
mode
M0 Basic weighing
M1 Parts counting
M2 Checkw eighing
M3 Filling
M4 Percent
M5 Animal weighing
M6 Dens ity
M7 Formulation
M8 Statistics
Mode20.02.05
Ö Press the -key; the parameter selection appears
Ö Use the cursor (►) to select parameter
Ö Press the -key; the current menu item blinks
Ö Use the arrow keys (see chapter 8.1) to save your settings. All settings possible
are described in the chapters of the respective operating mode
Ö Confirm your setting with the -key
Ö Press -key again, the graphic display of the
respective operating mode appears. You are
now in the operating mode.
0.0000
g
0% 100%
Dif=- 60.0000
Hi
Lo
Hi=70.0000
Lo=50.0000
LO
Checkweighing
29.12.04
Return to weighing mode:
Ö Press -key
Ö Cursor (►) to M0 Basic weighing
M0 Basic weighing
M1 Parts counting
M2 Checkw eighing
M3 Filling
M4 Percent
M5 Animal weighing
M6 Dens ity
M7 Formulation
M8 Statistics
Mode20.02.05
Ö Press the or the -key
13:47:32
0.0000
Weighing29.12.04
Page 41
PLT-BA-defsi-0510
110
9.1.1 Simple weighing
Operation: Display:
Ö Switch on the balance using the key
or
Ö Use the key to call the menu item „M0 Weighing"
(chap.9.1)
Ö Your balance is ready to weigh as soon as the “0.000" display
appears.
0,0000
Ö Put on items to be weighed; after stability time the measuring
value is displayed.
19.6879 g
Ö Pressing the key provides option to switch to a different
weighing unit, e.g. ct (see chapt. 8.3.7 " P7 Weighing units")
98.4380 ct
Ö To turn off the balance press the -key
9.1.1.1 Taring
The dead weight of any weighing container may be tared away by pressing a button,
so that the following weighings show the net weight of the goods to be weighed.
Operation: Display:
Ö Switch on the balance using the key
Ö Your balance is ready to weigh as soon as the “0.0000" dis-
play appears.
0.0000 g
Ö Put on items to be weighed, weighed value is displayed.
19.6879 g
Ö Press the key to start the tare procedure.
The weight of the container is now saved internally.
0.0000 g
Ö Place the goods to be weighed into the tare container. Read
the weight of the goods on the display.
53.2587 g
The taring process can be repeated any number of times, e.g. when adding several
components for a mixture (adding).
The limit is reached when the whole weighing range is exhausted.
After removing the taring container the total weight is displayed as negative display.
Page 42
PLT-BA-defsi-0510
111
9.1.1.2 Underfloor weighing
Underfloor weighing enables you to weigh objects that cannot be placed on the
weighing plate due to their size or shape.
Proceed as follows:
• Switch off balance.
• Open the closing lid on the bottom of your balance.
• Suspend hook for underfloor weighing carefully and completely.
• Place your balance over an opening.
• Suspend the goods to be weighed from the hook and carry out the weighing.
CAUTION
• Always ensure that all suspended objects are stable enough to hold the desired
goods to be weighed safely (danger of breaking).
• Never suspend loads that exceed the stated maximum load (max) (danger of
breaking)
Always ensure that there are no persons, animals or objects that might be damaged
underneath the load.
NOTICE
After completing the underfloor weighing the opening on the bottom of the balance
must always be closed (dust protection).
!
Page 43
PLT-BA-defsi-0510
112
9.1.2 Parts Counting
Before the balance can count parts, it must know the average part weight (i.e. reference). This is either entered manually or determined by weighing. Proceed by putting
on a certain number of the parts to be counted. The balance determines the total
weight and divides it by the number of parts (the so-called reference quantity). Counting is then carried out on the basis of the calculated average piece weight.
As a rule:
The higher the reference quantity the higher the counting exactness.
Display overview for parts counting operation:
1. Number of all parts on the weighing plate
2. Weighing assistance coarse/fine (only displayed for active dispensing)
3. Operating mode (status bar)
4. Reference weight
5. Weight of all parts on the weighing plate
6. Tolerance marker (only displayed for active tolerance weighing)
too light
Nominal
value
too heavy
7. Display for parts counting operation
Operation Display
Ö Call up menu item "P1 Parts Counting" (see chap. 9.1)
Ö Press button
Ö Use the cursor ( ► ) to select your setting (01 - 07)
Parts counting setup
M1 01 Unit weight
02 Recall sample
03 Store sample
04 Checkweighting
05 Filling
06
07 Run
Statistics
5.0000 g
ON
ON
OFF
01 Reference weight – manual entering of the reference weight
Ö Press the key; the current menu item blinks.
Use the arrow keys (see chapter 9.1) to enter the reference weight for a unit. Confirm by pressing the key
Page 44
PLT-BA-defsi-0510
113

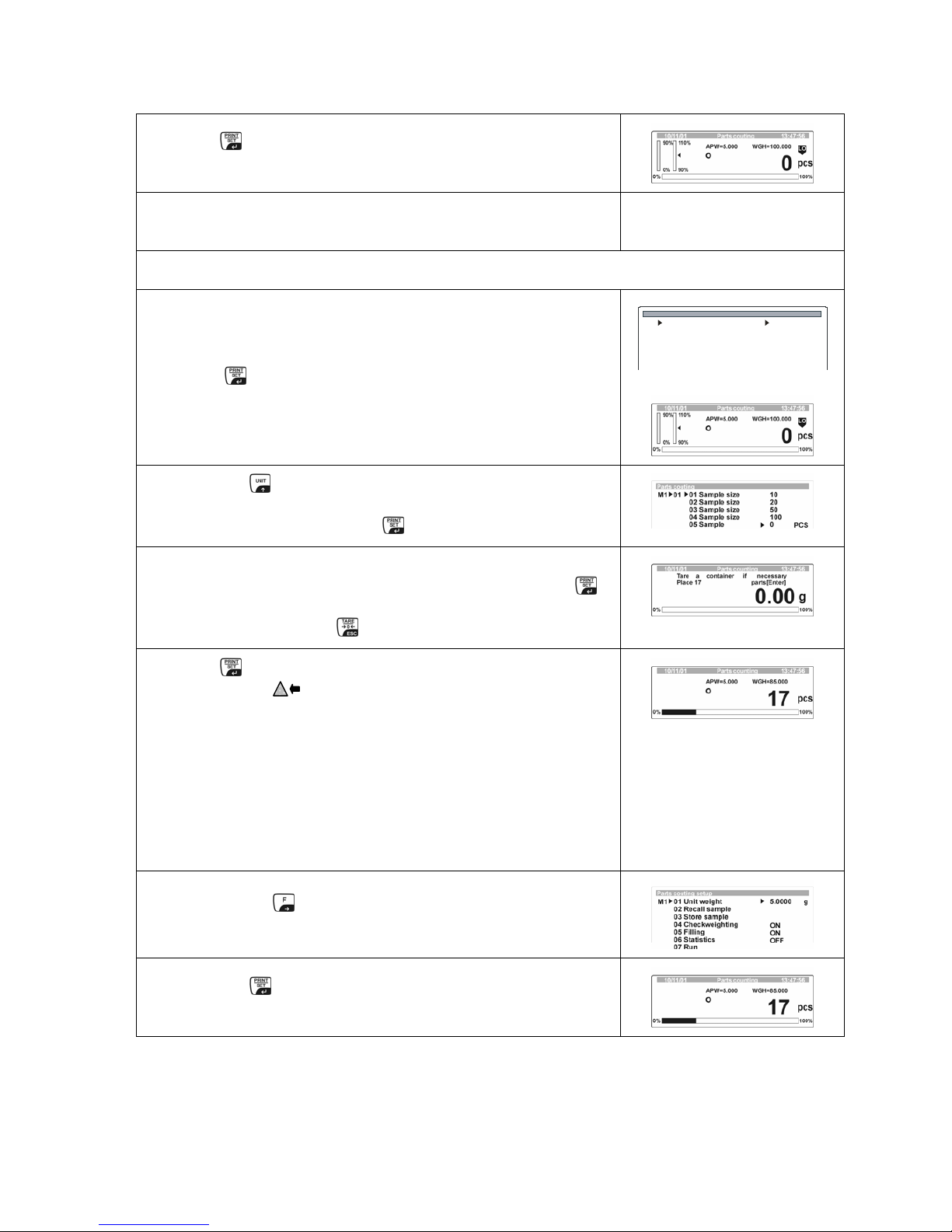

Ö Press key; the display changes into parts counting
operation
Ö The balance is now in parts counting mode counting all
units on the weighing plate
01 Reference weight – determination of reference weight through weighing
Ö Press key; display changes to counting mode
Parts counting setup
M1 01 Unit weight
02 Recall sample
03 Store sample
04 Checkweighting
05 Filling
06
07 Run
Statistics
5.0000 g
OFF
OFF
OFF
Ö Press the key; use arrow keys to select reference
quantity (factory-defined are quantities of 10, 20, 50,100,
or freely selectable),
use the key to confirm
Ö Place as many counting parts on the balance as the set
reference quantity requires, confirm by pressing the
key. If you are using a weighing container first tare your
balance pressing the key.
Ö Press button
The symbol ( ) in the display indicates that automatic
reference optimization is switched on. Every time more
pieces are added the balance carries out optimization
automatically. It is not necessary to press another key to
start the optimization process. For each reference optimization the average piece weight (reference) is newly
calculated. As the additional pieces increase the base
for the calculation, the reference also becomes more exact.
Ö Operate the key. The reference quantity is saved
under "01 Unit weight".
Ö Press the key; the balance is now in parts counting
mode counting all units on the weighing plate.
Page 45
PLT-BA-defsi-0510
114
02 Recall sample – calling up a reference weight from the data base
Ö Use the cursor ( ► ) to select "02 Recall sample"
Ö Press key; the sub-menu "02 Recall sample" is dis-
played.
Ö Use the arrow keys to select the desired reference
weight
M1
01 BBBB 01
02 BBBB
03 CCCC
49 AAAA
50 AAAA
02
03
49
50
1.5000
0.4520
1.0032
0.0015
2.0300
g
g
g
g
g
02
Parts counting setup
Ö Use the key to confirm; the selected reference weight
appears under “01 Unit weight“.
Ö Press the key; the balance is now in parts counting
mode counting all units on the weighing plate.
03 Store sample - saving a reference weight in the database
The reference weight stored in menu item "01 Reference weight" can be saved in the
data base as follows (max. 200 parameters):
Ö Use the cursor ( ► ) to select "03 Store sample"
Ö Press key; the sub-menu "03 Store sample" is dis-
played.
Page 46
PLT-BA-defsi-0510
115

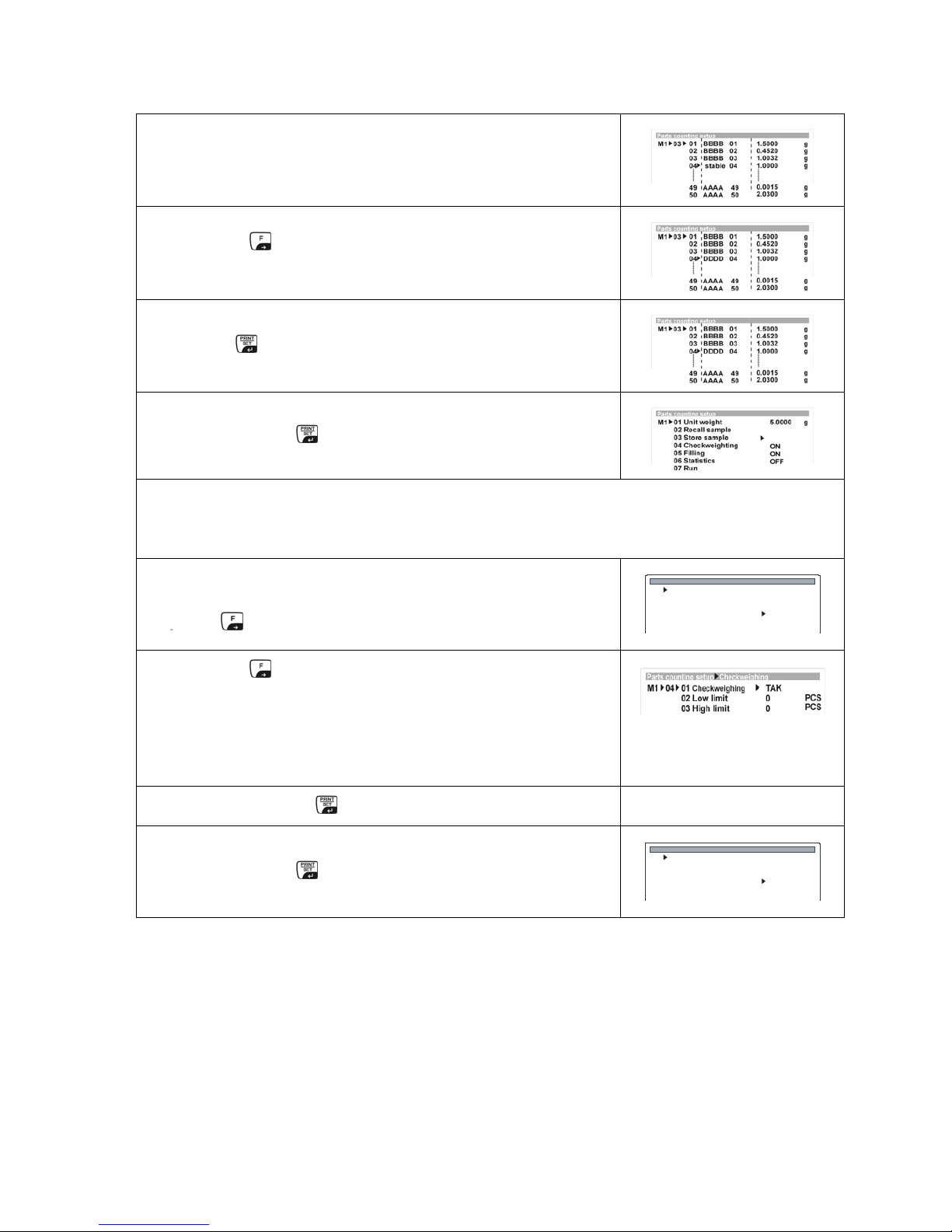

Ö Use the arrow keys to select parameter no.
Ö Press the key; use the arrow keys to enter parameter
name (max. 10 characters)
Ö Use the key to confirm, the blinking stops
Ö By pressing the key you will return to the menu
04 Checkweighing
The combination Counting / Checkweighing enables you to check whether your
reference weight is within your set tolerance
Ö Use the cursor ( ► ) to select "04 Checkweighing".
Ö Press button
Parts counting setup
M1 01 Unit weight
02 Recall sample
03 Store sample
04 Checkweighting
05 Filling
06
07 Run
Statistics
5.0000 g
OFF
on
OFF
Ö Press the key; the current menu item blinks
Ö Activate operating mode „Checkweighing“ via the arrow
keys (yes).
Ö Set tolerance markers
Ö Confirm each with key
Ö By pressing the key you will return to the menu
Parts counting setup
M1 01 Unit weight
02 Recall sample
03 Store sample
04 Checkweighting
05 Filling
06
07 Run
Statistics
5.0000 g
OFF
on
OFF
Page 47
PLT-BA-defsi-0510
116

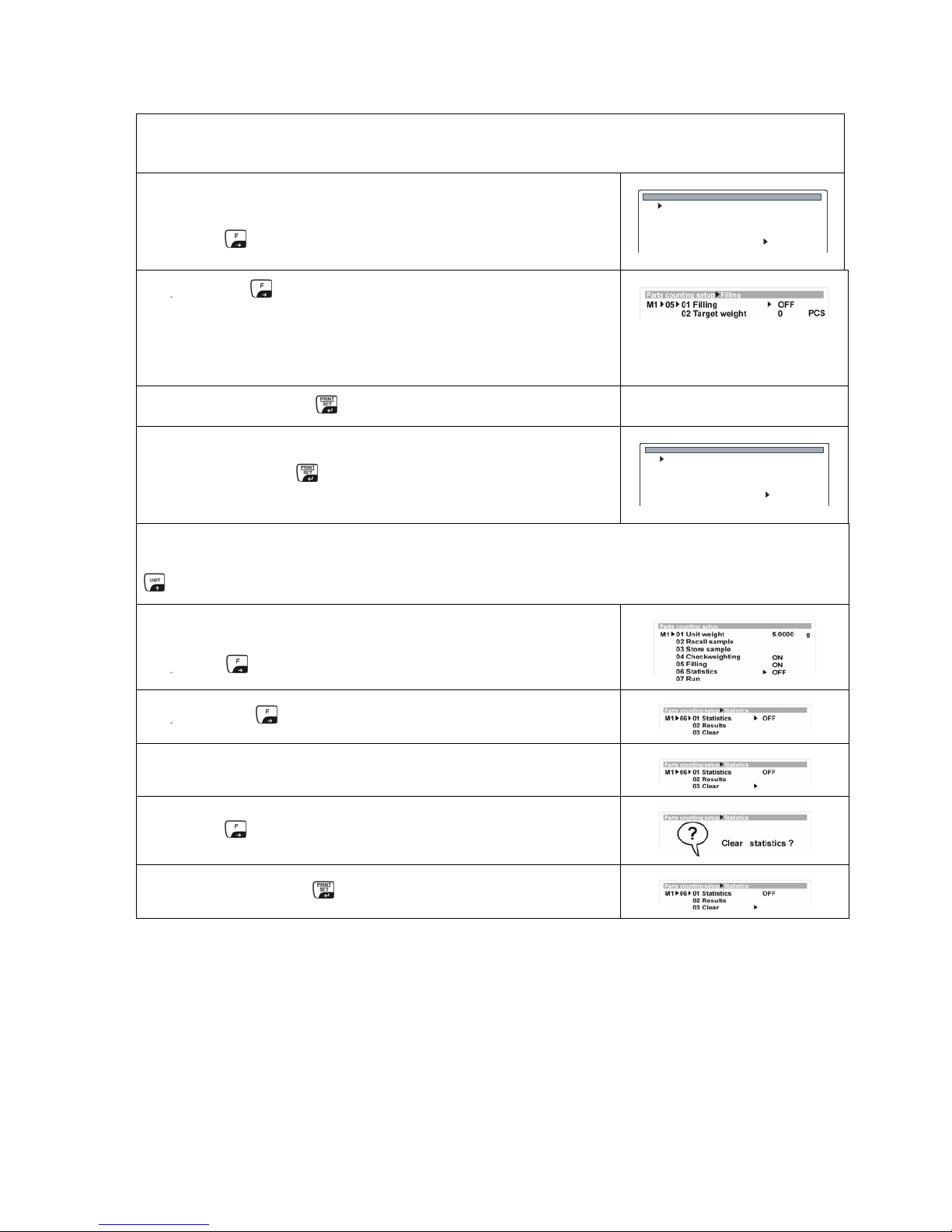

05 Filling
The combination Counting/Filling enables you to define a target quantity
Ö Use the cursor ( ► ) to select "05 Filling"
Ö Press button
Parts counting setup
M1 01 Unit weight
02 Recall sample
03 Store sample
04 Checkweighting
05 Filling
06
07 Run
Statistics
5.0000 g
OFF
on
on
Ö Press the key; the current menu item blinks
Ö Activate operating mode "Filling" via arrow keys
Ö Enter value for target weight
Ö Confirm each with key
Ö By pressing the key you will return to the menu
Parts counting setup
M1 01 Unit weight
02 Recall sample
03 Store sample
04 Checkweighting
05 Filling
06
07 Run
Statistics
5.0000 g
OFF
on
on
06 Statistics
When combining parts counting /statistics the displayed value is accepted by pressing the
key.
Ö Use the cursor ( ► ) to select “06 Statistics"
Ö Press button
Ö Press the key; the current menu item blinks
Ö Use the cursor ( ► ) to select menu item "03 Delete"
Ö Press button
Ö Confirm using the key; data will be deleted
Page 48
PLT-BA-defsi-0510
117

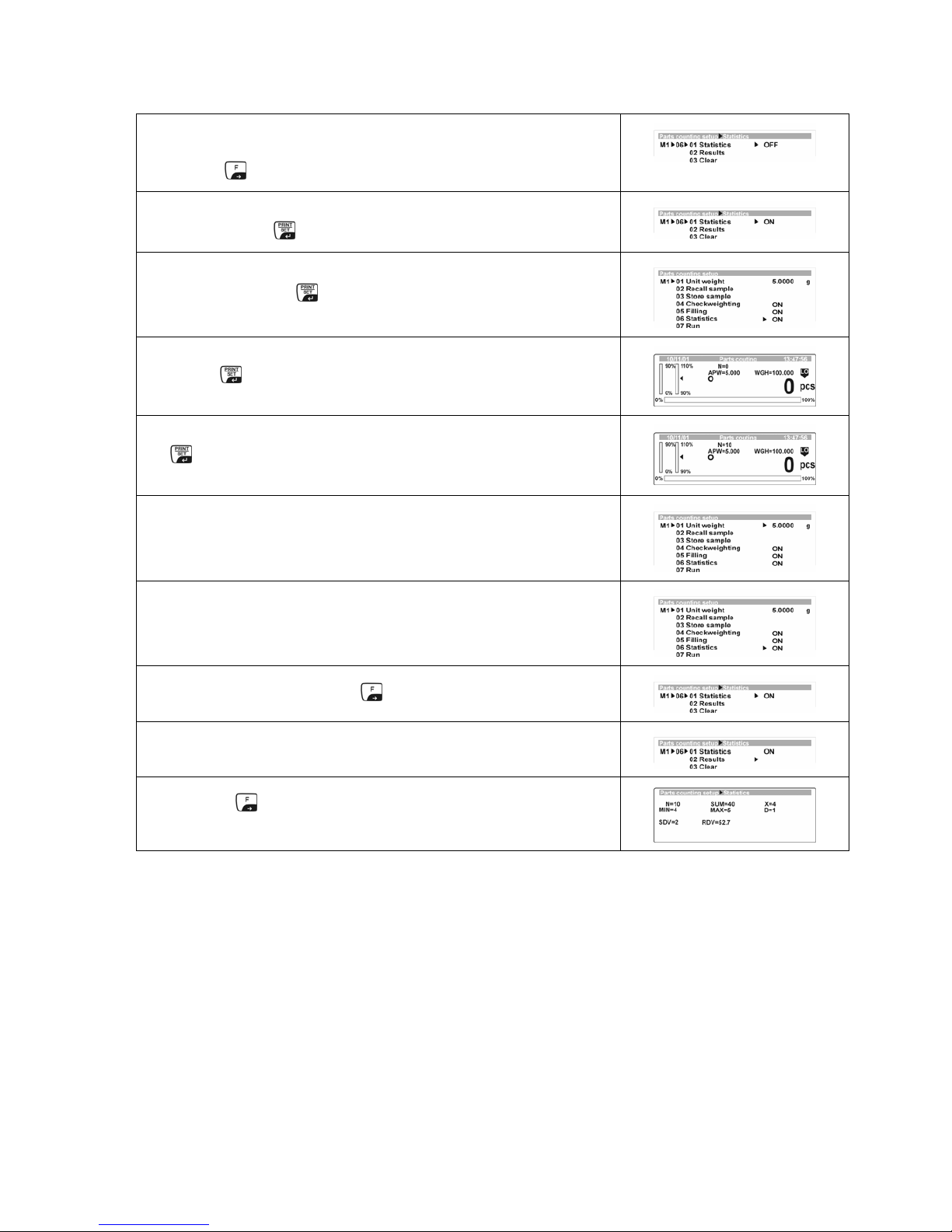

Ö Use the cursor ( ► ) to select "01 Statistics"
Ö Press button
Ö Activate operating mode „Statistics“ via the arrow keys,
confirm with key
Ö By pressing the key you will return to the menu
Ö Press key; display changes into parts counting mode
Ö After each measuring (stable measuring value) press the
key; the displayed value will be saved and added to
the saved number of values (N).
Ö Call the statistical results after e.g.
10 measurements (N=10)
Call-up menu via the key
Ö Use the cursor ( ► ) to select menu item "06 Statistics"
Ö Confirm by pressing the key
Ö Use the cursor ( ► ) to select menu item "02 Results"
Ö Use the key to confirm; the display will show your
statistical results.
Page 49
PLT-BA-defsi-0510
118

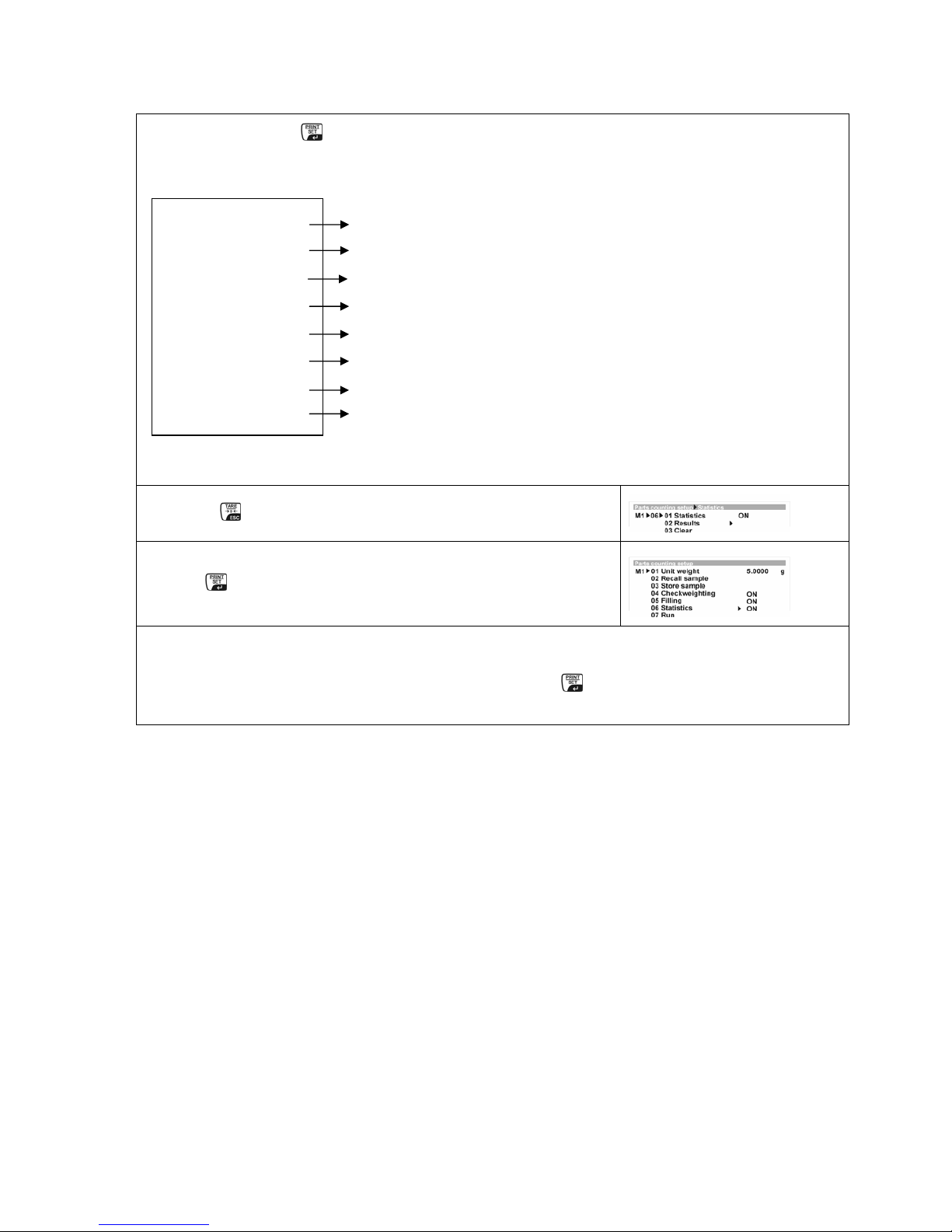

Ö By actuating the key you can print your statistical results on a connected printer
(see example).
Ö Press button
Ö The key will take you back to the menu
07 Run
With parameter selection "M1 07 Run" (confirm with key) you will get directly into
counting mode.
N : 10
SUM : 40 pcs
X : 4 pcs
MIN : 4 pcs
MAX : 5 pcs
D : 1 pcs
SDV : 2 pcs
RDV : 52,7 %
Number of weighings
Total of weighings
Mean value
Min. value
Max. value
MAX – MIN
Standard deviation
Variance
Page 50
PLT-BA-defsi-0510
119
9.1.2.1 Data output in counting mode
Standard data output:
Key Display GLP parameter Data output
Zählen
17
pcs
0%
100%
APW=5.000 WGH=100.000
20.1.05
P2 03 Printout Time 0: no
P2 04 Printout Date 0: no
P2 05 User printout 0: no
P2 06 Proj. Printout 0: no
P2 07 ID- printout 0: no
P2 08 Cal. printout 0: no
17 pcs
Zählen
17
pcs
0%
100%
APW=5.000 WGH=100.000
20.1.05
P2 03 Printout Time 1: yes
P2 04 Printout Date 1: yes
P2 05 User printout 1: yes
P2 06 Proj. Printout 1: yes
P2 07 ID- printout 1: yes
P2 08 Cal. printout 1: yes
Date: 16/01/2004
Time: 13:12:30
User: Maier
Project: Checking.
Weight: 11111111
Last calibration:
---------------------16/01/2004 13:02
External calibration:
0.0001 g
--------------------- 17 pcs
User-defined data output
Key Display Variable selection Data output
Zählen
15
pcs
0% 100%
0%
90% 110%
90%
N=10
APW=5.000
WGH=100.000
20.01.05
%d
%t;
%i;
%R;
%P;
%U;
%F;
%V;
%N;
%W;
%n;
%x;
%S;
%m;
%M;
%D;
%s;
%r;
%C;
%K;
%I;
17/01/2004
08:16:09
11111111
MBA 0.01
Checking.
Mustermann.
Pieces
15 pcs
15.048 g
5.30000 g
13
15 pcs
195 pcs
15 pcs
17 pcs
2 pcs
0 pcs
0.00 %
16/01/2004 13:02
External calibration
0.01 g
Page 51
PLT-BA-defsi-0510
120
9.1.3 Checkweighing (weighing with tolerance range)
Overview of display:
1. Current weighing value
2. Weighing assistance
3. Operating mode
4. Nominal value
5. Upper limit (Hi), lower limit (Lo)
6. Tolerance marker
too light
Nominal
value
too heavy
Operation Display
Ö Call up menu item "M2 Checkweighing"
(see chap. 9.1)
Ö Press button
01 - 02 Lower/upper limit – entering limit values
Ö Use the cursor ( ► ) to select „01 Lower limit or
02 Upper limit“
Ö Press the key; the current menu item blinks.
Use the arrow keys to enter limit values and confirm
with the key.
Notice: First enter upper limit.
Page 52
PLT-BA-defsi-0510
121
Ö Use the cursor ( ► ) to select „04 Start“
or press the key once more. Confirm by pressing
the key
Ö The balance is now in checkweighing mode
Ö Put on goods to be weighed, tolerance control is
started
03 Statistics - combination Checkweighing/Statistics
Ö Use the cursor ( ► ) to select “03 Statistics",
Ö All other steps are the same as for combination Parts
counting /Statistics (Chapt. 9.1.2)
Page 53
PLT-BA-defsi-0510
122
9.1.4 Filling
Display overview for dispensing operation:
1. Residue filling quantity
2. Weighing assistance coarse /fine
3. Operating mode
4. Target weight
5. Current net weight
Operation Display
Ö Call up menu item "M3 Filling" (see chap. 9.1)
Ö Press button
Ö Use the cursor ( ► ) to select menu item "01 Target
weight"
Ö Press the key; the current menu item blinks.
Use the arrow keys to enter target quantity
Ö Confirm by pressing the key
Ö Use the cursor ( ► ) to select menu item "03 Run";
confirm with key.
The balance is now in filling mode
02 Statistics - combination Filling/Statistics
Ö Use the cursor ( ► ) to select menu item "02 Statis-
tics"
Ö All other steps are the same as for combination Parts
counting /Statistics (Chapt. 9.1.2)
Page 54
PLT-BA-defsi-0510
123

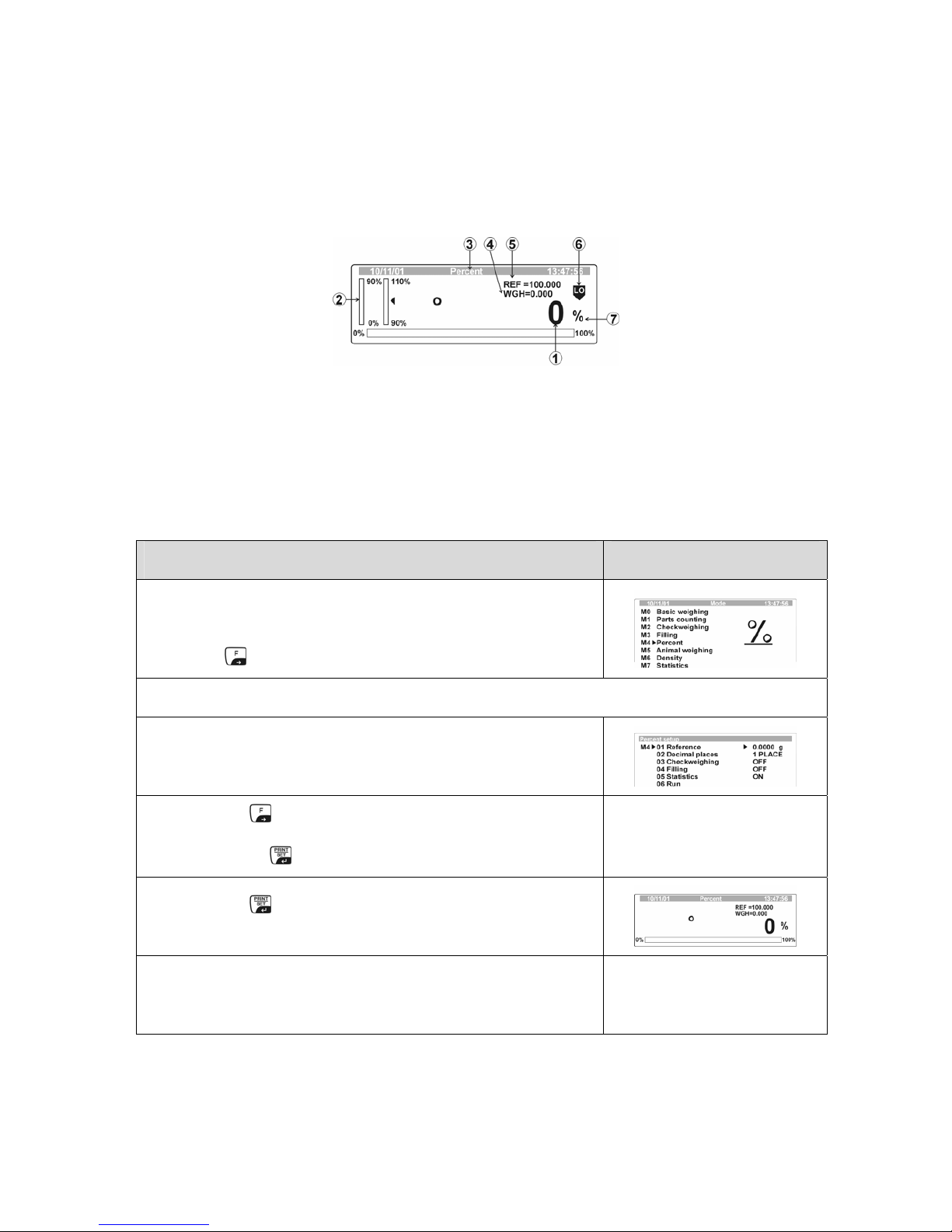

9.1.5 Percent weighing
Percent determination allows weight display in percent, in relation to a
reference weight.
Display overview for percent determination operation:
1. % - deviation to reference weight
2. Weighing assistance (is only displayed if dispensing is activated)
3. Operating mode
4. Current net weight
5. Reference weight
6. Tolerance marker (only displayed for active tolerance weighing)
7. Percent determination mode
Operation Display
Ö Call up menu item "M4 Percent weighing"
(see chap. 9.1)
Ö Press button
01 Reference weight – numeric entering of the reference weight
Ö Use the cursor ( ► ) to select menu item “01 Refer-
ence weight"
Ö Press the key; the current menu item blinks.
Use the arrow keys to enter reference weight and confirm with the
key.
Ö Press the key; the balance is now in percent de-
termination mode.
Ö Now you can place the test objects onto the weighing
plate; the percentage in regards to the reference object is displayed
Page 55
PLT-BA-defsi-0510
124
01 Reference weight – determination of reference weight through weighing
Ö Call up Percent weighing mode
Percent setup
M4 01 Reference
02 Decimal places
03 Checkweighing
04 Filling
05 Statistics
06 Run
0.0000
1 PLAC E
OFF
OFF
ON
g
Ö Press button. Put on reference weight; if necessary,
tare first
Ö Press key, the weight is taken as reference (100%).
Percent
100,0
%
0%
100%
L
REF =100.000
WGH=0.000
24.01.05
Ö Now you can place the test objects onto the weighing
plate; the percentage is displayed
Percent
17,3
%
0%
100%
L
REF =100.000
WGH=0.000
24.01.05
02 Decimal digits
Ö Use the cursor ( ► ) to select menu item “02 Decimal
digits"
Ö Press the key; the current menu item blinks.
Use the arrow keys to enter fractional digits; confirm with
the key
Ö Press the key; the balance is now in percent determi-
nation mode.
03 Check weighing
04 Filling
05 Statistics
06 Run
Ö Use the cursor ( ► ) to select menu item “03 - 06"
Ö All other steps are the same as for combination Parts
counting /Statistics (Chapt. 9.1.2)
Page 56
PLT-BA-defsi-0510
125
9.1.6 Animal weighing (dynamic weighing)
For unsteady items to be weighed (e.g. animals) or strong vibrations you can activate
the dynamic weighing function with automatic or manual start. During a certain period
of time the balance determines weight values and calculates an average.
In automatic start measuring starts automatically as soon as the weight
changes.
In manual start you trigger measuring by actuating the -key.
Operation Display
Ö Call up menu item "M5 Animal weighing"
(see chap. 9.1)
Ö Press button
01 Filter – filter for adjustment to the environmental conditions
Vibrations are filtered out by increasing the number of measuring cycles.
Ö Use the cursor ( ► ) to select menu item “01 Filter"
Ö Press the key; the current menu item blinks. Use the
arrow keys to enter the sensitivity of the filter and confirm with the key.
Very slow (Insensitive,very busy setup location)
slow
standard
fast
very fast (Sensitive,very quiet setup location)
Page 57
PLT-BA-defsi-0510
126

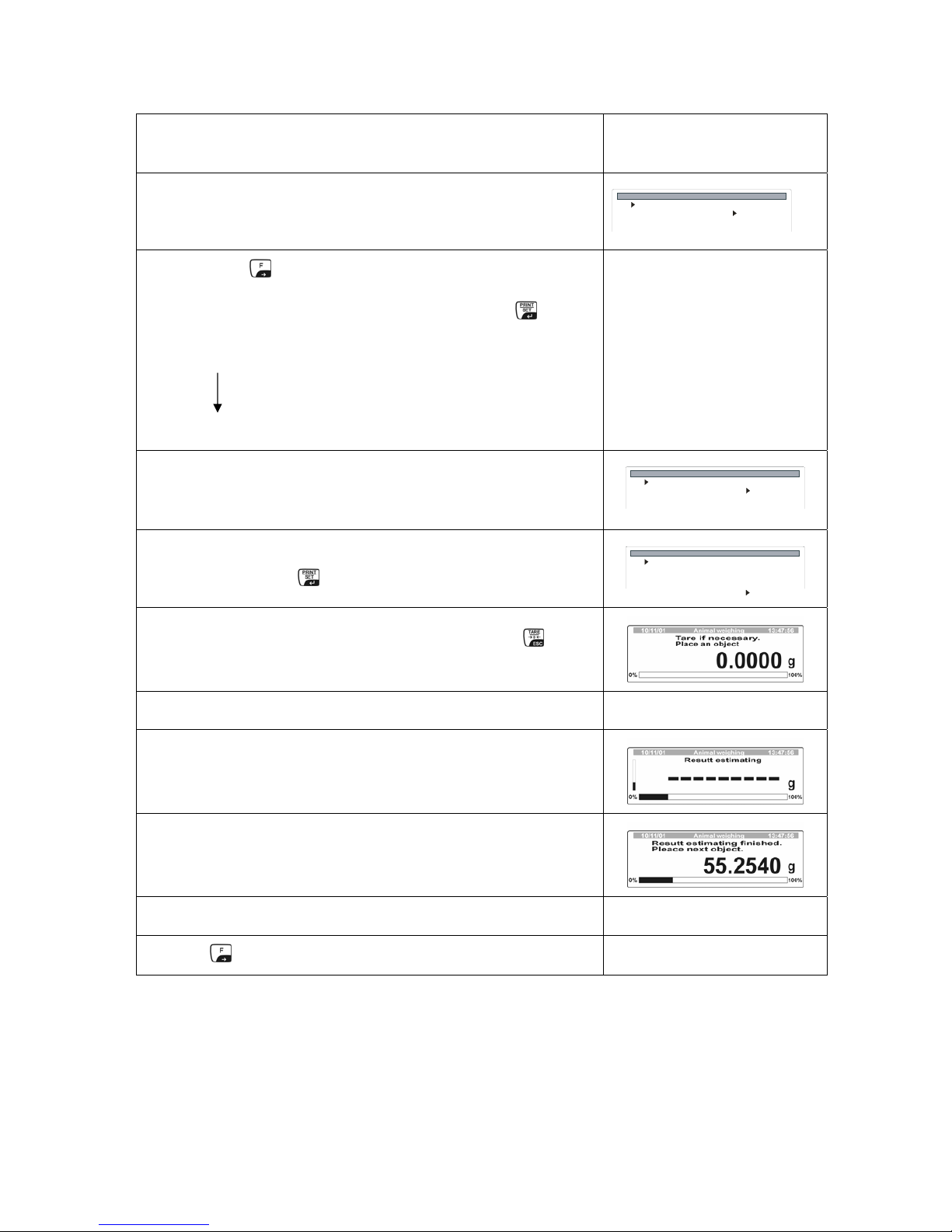

02 Threshold
(precondition: 03 - Auto start activated)
Ö Use the cursor ( ► ) to select menu item “02 Thresh-
old value"
Animal weighing s e tu p
M5 01 Filter
02 Threshold
03
04
05 Run
Autostart
Statistics
FAST
10 DIV
ON
OFF
Ö Press the key; the current menu item blinks. Use
the arrow keys to set the number of measurements
used for averaging. Confirm by pressing the key
10 DIV
1000 DIV
03 Weighing with automatic start
After selecting your parameters and with 03 Auto start
activated, carry out weighing as follows:
Animal weighing s e tu p
M5 01 Filter
02 Threshold
03
04
05 Run
Autostart
Statistics
FAST
10 DIV
ON
OFF
Ö Use the cursor ( ► ) to select menu item “05 Run";
confirm with the key
Animal weighing s e tu p
M5 01 Filter
02 Threshold
03
04
05 Run
Autostart
Statistics
FAST
10 DIV
ON
OFF
Ö If you are using a weighing container use the key
for taring
Ö Put goods to be weighed on weighing plate
Ö Dynamic weighing is started automatically.
Ö When weighing is complete the weight is shown in the
display
Ö To start a new weighing cycle relieve the balance
Ö The key will take you back to the menu
Page 58
PLT-BA-defsi-0510
127

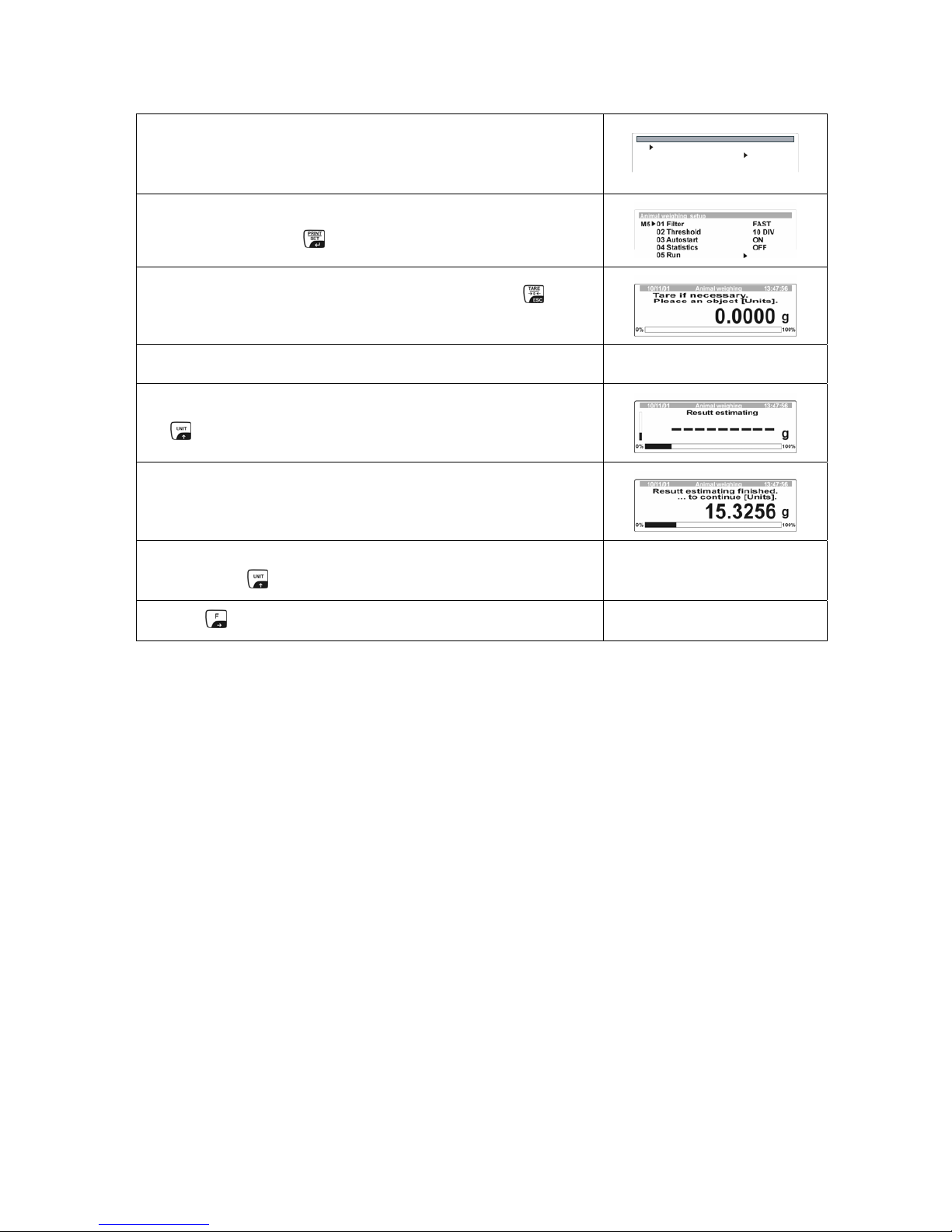

03 Weighing with automatic start
After selecting your parameters and with 03 Auto start
activated, carry out weighing as follows:
Animal weighing setup
M5 01 Filter
02 Threshold
03
04
05 Ru
n
Autostart
Statistics
FAST
10 DIV
O
OFF
FF
Ö Use the cursor ( ► ) to select menu item “05 Run";
confirm with the key
Ö If you are using a weighing container use the key
for taring
Ö Put goods to be weighed on weighing plate
Ö The dynamic weighing is started by pressing the
key
Ö When weighing is complete the weight is shown in the
display
Ö To start a new weighing cycle relieve the balance and
press the key
Ö The key will take you back to the menu
9.1.7 Density determination
Density determination of solids and liquids see operating manual
"Density set".
Page 59
PLT-BA-defsi-0510
128
9.1.8 Formulation
The formula function allows to add on various components of a mixture. To check,
the overall weight of all components can be called up.
Overview of display:
Formulation
0,000
0% 100%
0%
90% 110%
90%
WGH =10.000
3
6
2
1
5
SUM=0.000
24.01.05
Item
IC=0
g
7
4
1. Current net weight
2. Weighing assistance coarse /fine)
3. Operating mode
4. Sum memory
5. Target value of the ingredients (determined in parameter 04 Formula)
6. Designation of the ingredients (determined in parameter 04 Formula)
7. Number of the added on ingredients
Operation Display
Ö Call up menu item "M7 Formulation" (see chap. 9.1)
Ö Press button
M0 Basic weighing
M1 Parts counting
M2 Checkweighing
M3 Filling
M4 Percent
M5 Animal weighing
M6 Density
M7 Formulatio
n
Mode
01 – 07 Parameter selection
Ö Use the cursor ( ► ) to select menu items "01 - 07"
Formulation setup
M7 01
02
03
04
05
06
07
Hints
Auto . print
Number of item
Formula
printout
tics
Run
Statis
Formula
OFF
OFF
1
OFF
Page 60
PLT-BA-defsi-0510
129

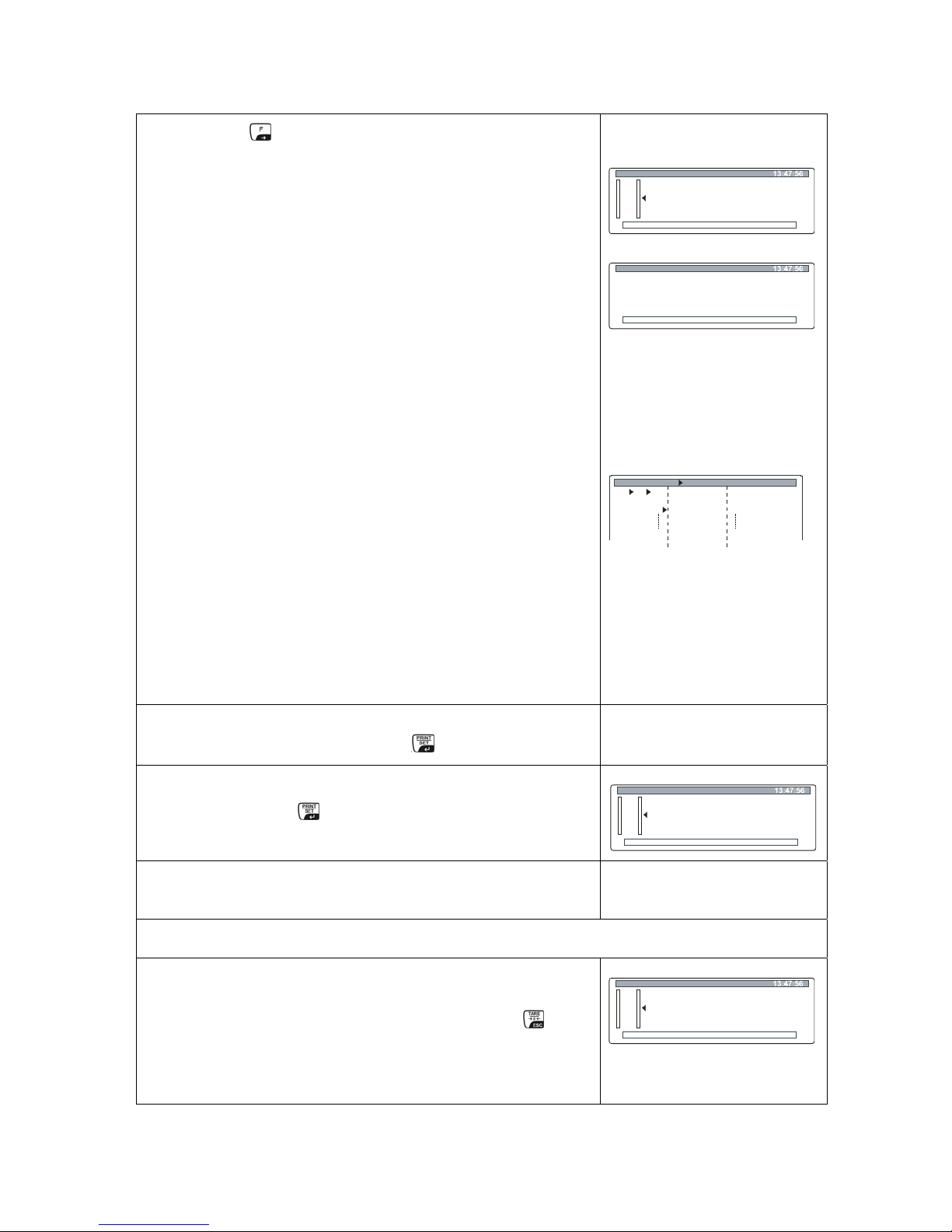

Ö Press the key; the current menu item blinks.
01 Hints yes: Data of the individual ingredients
of a formula are shown on
Display
no: Setting for producing a
mixture by weighing
02 Autom.
printout yes: Autom. Data output
no: no autom. Data output
03 Number of Memory space for 20 ingredients
ingredients
04 Formula Designation of the ingredients
(max 10 characters) and
quantity
05 Formula
printout Printout of formula
06 Statistics Combination with statistics
07 Run Call up of formula mode
Formulation
0.0000
g
0% 100%
0%
01 1= .0000WGH
SUM=0.0000
90% 110%
90%
20.01.05
Item
IC=0
Formulation
0.0000
g
0% 100%
SUM=0.0000
20.01.05
IC=0
M7 01 BBBB 01
02 BBBB
03 CCCC
9 AAAA
0 AAAA
02
03
49
50
1
2
1.5000
0.4520
1.0032
0.0015
2.0300
g
g
g
g
g
04
Formulation setup Formula
Ö Use the arrow keys to activate/deactivate parameters,
confirm your selection with the key
Ö Use the cursor ( ► ) to select menu item “05 Run";
confirm with the
key, the balance is now in formula
mode.
Formulation
0.0000
g
0%
100%
0%
01 1= .0000WGH
SUM=0.0000
90% 110%
90%
20.01.05
Item
IC=0
Ö From here, you start adding on the various ingredients
for a mixture:
Producing a mixture according to a defined formula
Ö If you are using a weighing container use the key
for taring
Formulation
0.0000
g
0%
100%
0%
01 1= .0000WGH
SUM=0.0000
90% 110%
90%
20.01.05
Item
IC=0
Page 61
PLT-BA-defsi-0510
130
Ö Add on ingredient 1; see target value (WGH) on the
display
Formulation
10.001
g
0%
100%
0%
10=.000WGH
SUM=0.0000
90% 110%
90%
20.01.05
Item
IC=0
Ö As soon as the weighing value is stable, press key,
ingredient 1 is stored,
the display shows the target value ingredient 2
(WGH), total of the saved ingredients (SUM), as well
as the number of already poured ingredients (IC)
Formulation
0.0000
g
0%
100%
0%
20= .000WGH
SUM= 0.0011
90% 110%
90%
20.01.05
Item
IC 1=
Ö Add on ingredient 2; see target value (WGH) on the
display
Ö Repeat these steps until you have added all ingredi-
ents.
Ö Press button
Formulation
g
0%
100%
Form ula finished
....To c o n tin u e (U n its )
109 024.
24.01.05
Ö Confirm completion of the mixture with the key
Ö The key will take you back to the menu
Generating a mixture by adding on
Ö Parameter selection:
01 Hints no
02 Autom.printout yes – if formula printout desired
Use the cursor ( ► ) to select menu item “04 For-
mula", press the key
Formulation
0.0000
g
0%
100%
SUM=0.0000
20.01.05
IC=0
Ö If you are using a weighing container use the key
for taring
Ö Add on ingredient 1
Formulation
10.002
g
0%
100%
SUM=0.0000
20.01.05
IC=0
Ö As soon as the weighing value is stable, press key,
ingredient 1 is stored, the display shows the total of
the saved ingredients (SUM), as well as the number
of already poured ingredients (IC)
The weight display returns to zero.
Formulation
0.000
g
0%
100%
SUM= 0.0012
20.01.05
IC 1=
Page 62
PLT-BA-defsi-0510
131

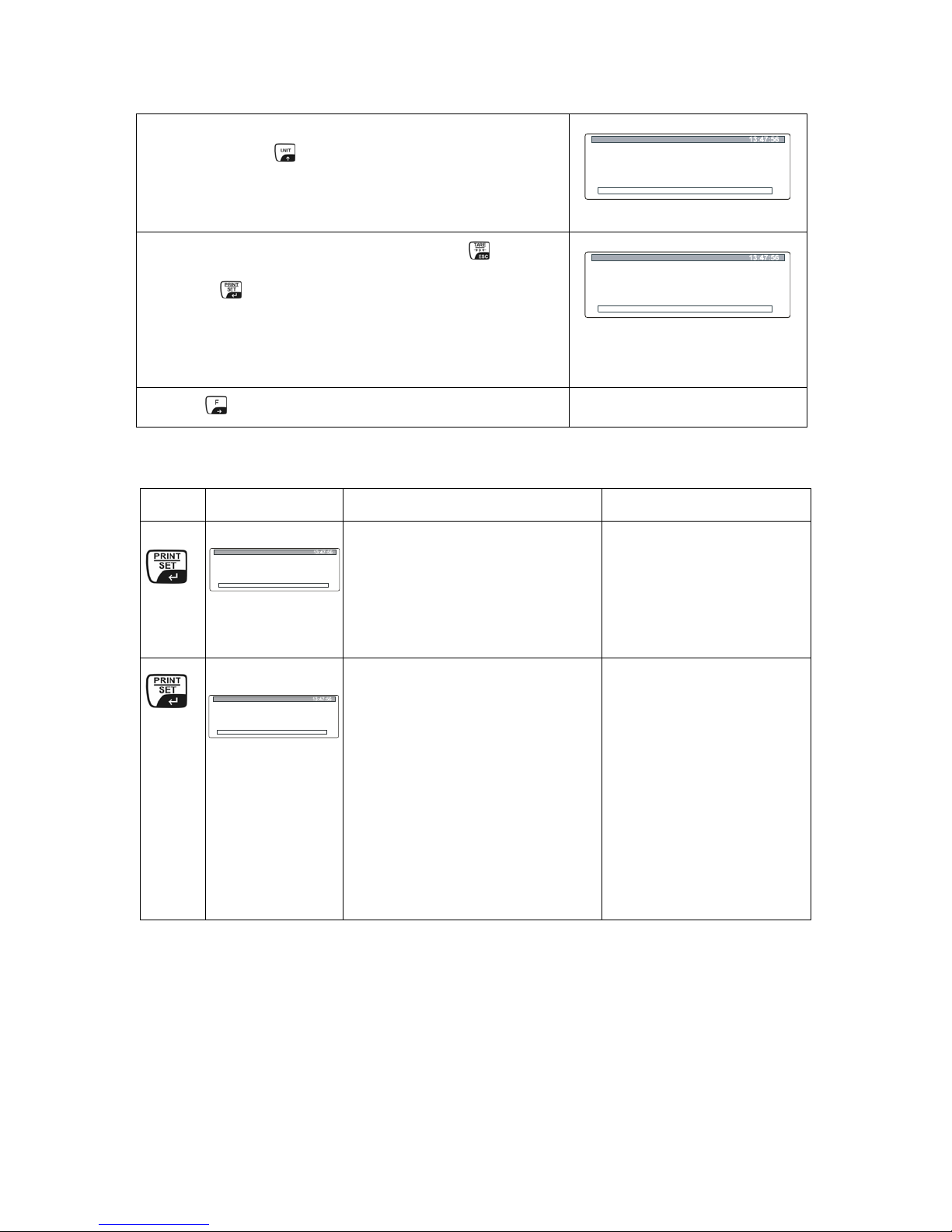

Ö Add ingredient 2; as soon as the weighing value is
stable, press key
Ö Repeat this step until you have added all ingredi-
ents.
Formulation
0.000
g
0%
100%
SUM= 0.012 21
20.01.05
IC 5=
Ö Enter last ingredient and confirm with key
Ö Press key; formula is printed out.
Formulation
g
0%
100%
Form ula finished
....To c o n tin u e (U n its )
120 021.
24.01.05
Ö The key will take you back to the menu
Example for a data output (standard printout)
Key Display GLP Parameters Data output
Formulation
g
0%
100%
Formu la finished
....To c o n tin u e (U n its )
30 002.
24.01.05
P2 03 Printout Time 0: no
P2 04 Printout Date 0: no
P2 05 User printout 0: no
P2 06 Proj. Printout 0: no
P2 07 ID- printout 0: no
P2 08 Cal. printout 0: no
1 10,000 g
2 10,000 g
3 10,002 g
---------------------SUM 30,002 g
Formulation
g
0%
100%
Formu la finished
....To c o n tin u e (U n its )
30 002.
24.01.05
P2 03 Printout Time 1: yes
P2 04 Printout Date 1: yes
P2 05 User printout 1: yes
P2 06 Proj. Printout 1: yes
P2 07 ID- printout 1: yes
P2 08 Cal. printout 1: yes
Date: 16/01/2004
Time: 13:12:30
User: Mustermann
Project: xxxxx
Balance no: :WL041055
Last calibration:
---------------------16/01/2004 13:02
Automatic calibration
Deviation: 0.0001 g
---------------------1 10,000 g
2 10,000 g
3 10,002 g
---------------------SUM 30,002 g
Page 63
PLT-BA-defsi-0510
132
9.1.9 Statistics:
The statistic function is possible for display values in g, piece or %.
By actuating the key the currently displayed value is saved for the statistics.
Overview of display:
1. Current net weight
2. Number of all weighing procedures
3. Sum of all measuring values
4. Mean Value
5. Smallest value
6. Largest value
7. Difference max - MIN
8. Standard deviation SDV:
9. Variance RDV.: (SDV / average) * 100%)
10. Weighing unit
11. Status bar
Operation Display
Ö Call up menu item "M8 Statistics" (see chap. 9.1)
Ö Press
button
01 – 08 Parameter selection
Ö Use the cursor ( ► ) to select menu items "01 - 08"
Page 64
PLT-BA-defsi-0510
133

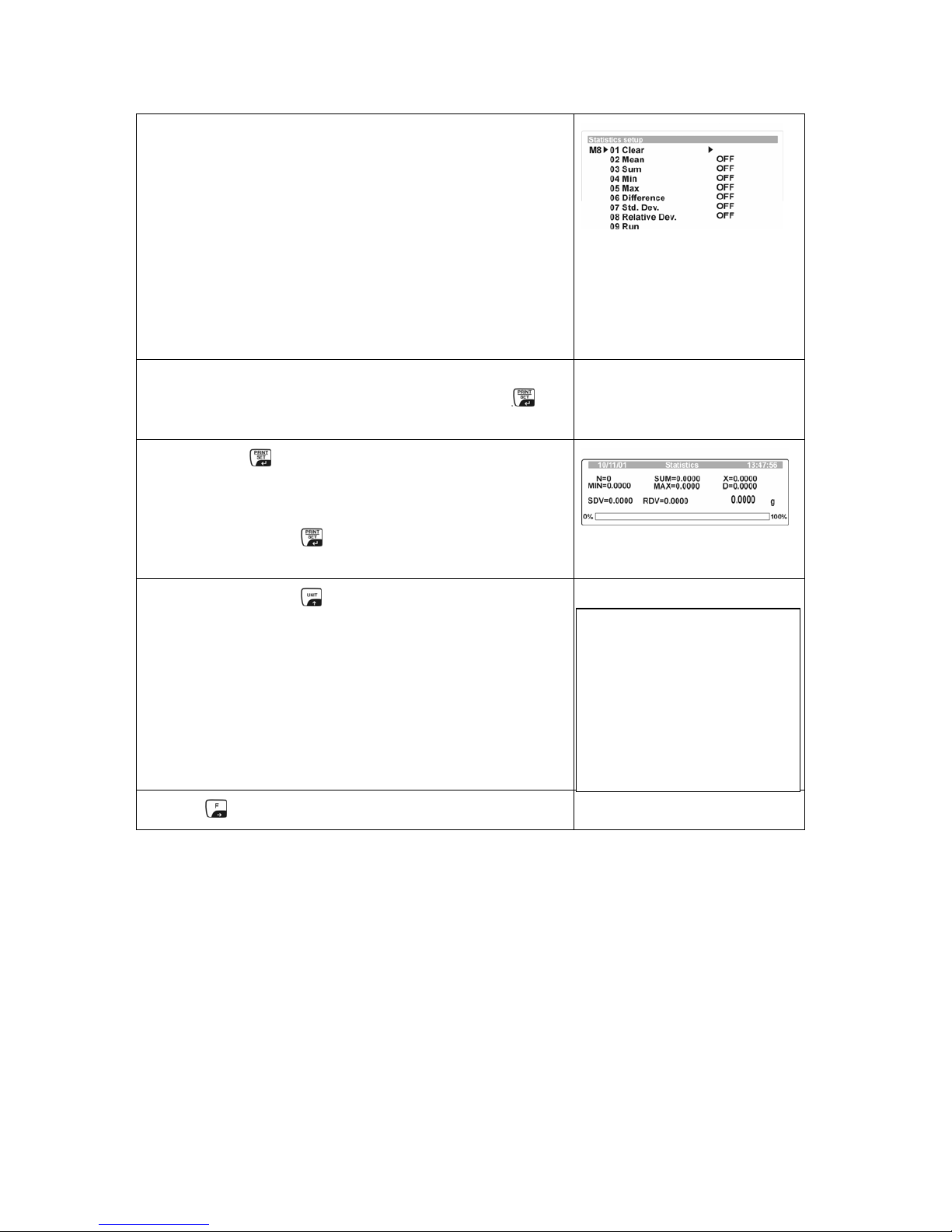

Ö Press the -key; the current menu item blinks.
01 Delete Delete data
02 Sum Sum of all weighing procedures
03 Mean value Mean Value
04 Min Minimum
05 Max Maximum
06 Difference Difference min/max
07 Stand. devi. Standard Deviation
08 Relative devi. Variance
09 Run Call up statistic mode
Ö Use the arrow keys to activate/deactivate the
menu items, confirm your selection with the
key
Ö Press the key; the balance is now in statistics
mode. All your activated menu items are now
shown in the display
Ö By actuating the key the currently displayed
value is saved for the statistics.
Ö By actuating the key you can print your statisti-
cal results on a connected printer.
Printout (Example):
Ö The key will take you back to the menu
N : 5
SUM : 169,6880 g
X : 33,9376 g
Min : 0,0000 g
MAX : 100,0012 g
D : 100,0012 g
SDV : 42,2166 g
RDV : 124,4 %
Page 65
PLT-BA-defsi-0510
134
Example for a data output during a measuring sequence:
Key Display GLP Parameters Data output
Statistik
g
0%
100%
N=3
MIN= 0.00599
SUM= 0.0 015 3 4
MAX= 0 .0 0514
X= 0.0 0511
D=0.0005
SDV=0.0003
RDV=0.1
5990.00
27.1.05
P2 03 Printout Time 0: no
P2 04 Printout Date 0: no
P2 05 User printout 0: no
P2 06 Proj. Printout 0: no
P2 07 ID- printout 0: no
P2 08 Cal. printout 0: no
3 50,0099 g
Statistik
g
0%
100%
N=3
MIN= 0.00599
SUM= 0.0 015 3 4
MAX= 0 .0 0514
X= 0.0 0511
D=0.0005
SDV=0.0003
RDV=0.1
5990.00
27.1.05
P2 03 Printout Time 1: yes
P2 04 Printout Date 1: yes
P2 05 User printout 1: yes
P2 06 Proj. Printout 1: yes
P2 07 ID- printout 1: yes
P2 08 Cal. printout 1: yes
Date: 16/01/2004
Time: 13:12:30
User: Mustermann
Project: xxxxx
Balance no: :WL041055
Last calibration:
---------------------16/01/2004 13:02
External calibration:
0.0001g
---------------------3 50.0099 g
Statistik
g
0%
100%
N=3
MIN= 0.00599
SUM= 0.0 015 3 4
MAX= 0 .0 0514
X= 0.0 0511
D=0.0005
SDV=0.0003
RDV=0.1
5990.00
27.1.05
N : 3
SUM : 150.0304 g
X : 50.0101 g
Min : 50.0099 g
MAX : 50.0104 g
D : 0.0005 g
SDV : 0.0003 g
RDV : 0.01 %
Page 66
PLT-BA-defsi-0510
135
10 Data output
10.1 Technical data
8 data bits
Baud rate selectable at 2400, 4800, 9600 and 19200 Baud
Miniature plug-in necessary (9 pole D-Sub)
For operation with interface faultless operation is only ensured with the correct
KERN – interface cable (max. 2m)
10.2 Pin allocation of the balance output plug (front view)
5 1
9 6
Pin 2: Rxd
Pin 3: Txd
Pin 4: DTR
Pin 5: GND
Pin 6: Tara
Pin 7: RTS
Pin 8: CTS
Pin 9: Print
Page 67
PLT-BA-defsi-0510
136
10.3 Remote control instructions
Commands Function
R CR LF
Reset to manufacturer setting - reset
PC CR LF
Command to call up the values of the balance
S CR LF
Measuring value stable
SI CR LF
Measuring value instable
SU CR LF
Last stable measuring value
SU CR LF
Current measuring value
Z CR LF
Zeroing stable value
ZI CR LF
Zeroing instable value
T CR LF
Taring stable value
TI CR LF
Taring instable value
C0 CR LF
Cancel continuous data output
C1 CR LF
Start continuous data output
CU0 CR LF
Cancel continuous data output (operating mode)
CU1 CR LF
Start continuous data output (operating mode)
NB CR LF
Serial no. of balance
FS CR LF
Weighing range max.
RV CR LF
Software issue
PD CR LF
Date display
PD CR LF
Time display
PMCR LF
Operating mode
PS CR LF
Balance parameters are printed out
B CR LF
Tone
ER CR LF
Call up error message
DS CR LF
Display check
CS CR LF
Delete display check
DH CR LF
Display check header
CH CR LF
Delete display check header
DF CR LF
Display check bar graph (footer)
CF CR LF
Delete display check bar graph (footer)
CL CR LF
Start internal adjustment from outside
KL CR LF
Lock keyboard
KU CR LF
Unlock keyboard
E0 CR LF
Keytone off
E1 CR LF
Keytone on
O0 CR LF
Balance off
O1 CR LF
Balance on
A0 CR LF
Auto zero off
A1 CR LF
Auto zero on
TC0 CR LF
Automatic adjustment off
TC1 CR LF
Automatic adjustment on
Page 68
PLT-BA-defsi-0510
137
11 Service, maintenance, disposal
11.1 Cleaning
Before cleaning, please disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth
dampened with mild soap suds. Ensure that no liquid penetrates into the device and
wipe with a dry soft cloth.
Loose residue sample/powder can be removed carefully with a brush or manual
vacuum cleaner.
Spilled weighing goods must be removed immediately.
11.2 Service, maintenance
The appliance may only be opened by trained service technicians who are authorized
by KERN.
Before opening, disconnect from power supply.
11.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
Page 69
PLT-BA-defsi-0510
138
12 Instant help
In case of an error in the program process, briefly turn off the balance and disconnect
from power supply. The weighing process must then be restarted from the beginning.
Help:
Fault Possible cause
The displayed weight does
not glow.
• The balance is not switched on.
• The mains supply connection has been interrupted
(mains cable not plugged in/faulty).
• Power supply interrupted.
The displayed weight is
permanently changing
• Draught/air movement
• Table/floor vibrations
• Weighing plate has contact with other objects.
•
Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
The weighing result is obviously incorrect
• The display of the balance is not at zero
• Adjustment is no longer correct.
• Great fluctuations in temperature.
•
Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
Should other error messages occur, switch balance off and then on again. If the error
message remains inform manufacturer.
Loading...
