Operating manual
Analytical Precision Balance
KERN AEJ-C/AES-C/PLJ-C
Version 1.4
10/2015
GB
AEJ-C/AES-C/PLJ-C-BA-e-1514
2 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
GB
KERN AEJ-C/AES-C/PLJ-C
Version 1.4 10/2015
Operating manual
Analytical Precision Balance
Contents
1 Technical data ................................................................................................... 5
1.1 Dimensions ............................................................................................................................... 9
2 Appliance overview ......................................................................................... 10
2.1 Display and Keyboard Summary .......................................................................................... 13
2.1.1 Navigation buttons / numeric input ....................................................................................... 15
3 Basic instructions ........................................................................................... 16
3.1 Proper use ............................................................................................................................... 16
3.2 Improper Use .......................................................................................................................... 16
3.3 Warranty .................................................................................................................................. 16
3.4 Monitoring of Test Resources ............................................................................................... 17
4 Basic Safety Precauti on s ................................................................................ 17
4.1 Pay attention to the instructions in the Operation Manual ................................................ 17
4.2 Personnel training .................................................................................................................. 17
5 Transport and storage .................................................................................... 17
5.1 Testing upon acceptance ...................................................................................................... 17
5.2 Packaging / return transport ................................................................................................. 17
6 Unpacking, Setup and Commissioning ......................................................... 20
6.1 Installation Site, Location of Use .......................................................................................... 20
6.2 Unpacking and checking ....................................................................................................... 20
6.3 Placing ..................................................................................................................................... 21
6.4 Mains connection ................................................................................................................... 24
6.4.1 Turning On the Power .......................................................................................................... 24
6.5 Connection of peripheral devices ......................................................................................... 24
6.6 Initial Commissioning ............................................................................................................ 24
7 Adjustment ....................................................................................................... 25
7.1 Automatic adjustment with internal weight (only AEJ-C and PLJ-C) ............................... 26
7.2 Menu settings ......................................................................................................................... 27
7.2.1 P1.1 INT.JUS T . - interna l adju s tment (only models AE J-C and PLJ -C) .................................... 27
7.2.2 P1.2 EXT.JUST.- external adjustm ent (only AES-C) ........................................................... 28
7.2.3 P1.3 BE.JUST. User adjustment (model AES-C only) ......................................................... 29
7.2.4 P1.4 TEST JUST. – adjustment report (only models AE J-C and PL J -C) .................................... 30
7.2.5 Printing adjustment reports .................................................................................................. 31
7.3 Verification .............................................................................................................................. 32
AEJ-C/AES-C/PLJ-C-BA-e-1514 3
8 Menu ................................................................................................................. 34
8.1 Navigation in the menu .......................................................................................................... 34
8.2 Menu overview ........................................................................................................................ 35
8.3 Exit menu / back to weighing mode. .................................................................................... 40
9 Entry by navigation keys ................................................................................ 41
10 User ............................................................................................................... 42
10.1 Login/logout ............................................................................................................................ 42
10.2 Authorisation levels ............................................................................................................... 43
11 Weighing ....................................................................................................... 44
11.1 S witch on-off ba lance ............................................................................................................ 44
11.2 Weighing ................................................................................................................................. 44
11.3 Weigh ing units switch-over ................................................................................................... 45
11.4 Taring ....................................................................................................................................... 45
11.4.1 Entering a tare value manually (pre-tare) ........................................................................ 45
11.4.2 Deleting the tare value ..................................................................................................... 45
11.5 Underfloor weighing ............................................................................................................... 46
11.6 S electing the operating mode ............................................................................................... 47
11.6.1 Invoking operating modes: ............................................................................................... 47
11.6.2 To select operating modes: ............................................................................................. 48
12 Weighing scale settings operating mode weighing .................................. 49
12.1 Filter - adaptation to ambient conditions and weighing options ...................................... 49
12.2 Rest position control .............................................................................................................. 50
12.3 Auto Zero ................................................................................................................................. 51
12.4 Hide last decimal place .......................................................................................................... 52
12.5 E n vironmental conditions ..................................................................................................... 53
12.6 P rint mode ............................................................................................................................... 54
12.7 Information display ................................................................................................................ 55
12.7.1 Special information .......................................................................................................... 56
12.7.2 Shortcut keys ................................................................................................................... 57
13 Additional operating modes ....................................................................... 58
13.1 P arts counting ........................................................................................................................ 58
13.2 Weigh ing with tolerance range ............................................................................................. 63
13.3 Dosing...................................................................................................................................... 66
13.4 P ercent determination............................................................................................................ 69
13.5 Animal weighing ..................................................................................................................... 71
13.6 Statistics .................................................................................................................................. 73
13.7 Totalization .............................................................................................................................. 76
13.8 HOLD function ........................................................................................................................ 79
4 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
14 Further useful functions “P6 OTHER“ ....................................................... 80
14.1 Language ................................................................................................................................. 80
14.2 Authorisations ........................................................................................................................ 81
14.3 Acoustic signal for key operation ......................................................................................... 82
14.4 Backlight and brightness control for display ...................................................................... 83
14.5 Date .......................................................................................................................................... 84
14.6 Time ......................................................................................................................................... 85
14.7 Date format .............................................................................................................................. 86
14.8 Time format ............................................................................................................................. 87
15 Weighing units ............................................................................................. 88
15.1 How to enabl e weighing units ............................................................................................... 88
15.2 How to set a standard weight unit ........................................................................................ 89
16 GLP/ISO report “P5.3 GLP PRINT“ ............................................................. 90
17 Data output RS 232 and USB ...................................................................... 92
17.1 Technical data ......................................................................................................................... 92
17.2 S etting interface RS 232 ........................................................................................................ 93
17.3 Interface cable ........................................................................................................................ 94
17.4 Output log ............................................................................................................................... 94
17.4.1 Issue after pressing the PRINT ´button ........................................................................... 94
17.4.2 Remote control instructions ............................................................................................. 95
18 Connecting external devices ...................................................................... 97
18.1 P rinter settings ....................................................................................................................... 98
18.1.1 Setting an adjustment report ............................................................................................ 99
18.1.2 Set header ..................................................................................................................... 100
18.1.3 Print measured result ..................................................................................................... 101
18.1.4 Adjust footer ................................................................................................................... 101
19 Data bases .................................................................................................. 102
19.1 Data base USER .................................................................................................................... 102
19.2 Data base products .............................................................................................................. 106
19.3 Data base Taring ................................................................................................................... 109
19.4 Data base Weighing processes .......................................................................................... 110
19.5 Alibi memory ......................................................................................................................... 113
19.6 E xporting and importing data bases .................................................................................. 114
20 Servicing, maintenance, disposal ............................................................ 117
20.1 Clean ...................................................................................................................................... 117
20.2 Servicing, maintenance ....................................................................................................... 117
20.3 Disposal ................................................................................................................................. 117
22 Instant help ................................................................................................. 118
22.1 Error messages .................................................................................................................... 119
23 Declaration of conformit y ......................................................................... 120
AEJ-C/AES-C/PLJ-C-BA-e-1514 5
1 Technical data
KERN AEJ 100-4CM AEJ 200-4CM AEJ 200-5CM
Readability (d) 0.1 mg 0.1 mg 0.01 mg; 0.1 mg
Weighing range (max) 160 g 220 g 82 g; 220 g
Minimum load (Min) 10 mg 10 mg 1 mg
Verification value (e) 1 mg 1 mg 1 mg; 1 mg
Verification class I I I
Reproducibility 0.2 mg 0.2 mg 0.04 mg; 0.1 mg
Linearity ± 0.3 mg ± 0.3 mg ± 0.1 mg; 0.2 mg
Stabilization time 4 sec. 4 sec. 6 sec; 3.5sec.
Adjustment weight internal internal internal
Warm-u p time 8 h 8 h 8 h; 8 h
Weighing Units g, mg, ct g, mg, ct g, mg, ct
Smallest part weight for
piece counting
0.1 mg 0.1 mg 0.1 mg
Reference quantities at
piece counting
10, 20, 50,
freely selectable
10, 20, 50,
freely selectable
10, 20, 50,
freely selectable
Weighing plate, stainless
steel [cm]
Ø 10 Ø 10 Ø 8.5
Net weight (kg) 5.4 5.4 5.4
Permissible
ambient condition
+10° C to +40° C +10° C to +40° C +10° C to +40° C
Humidity of air
80 % relative
(not condensing)
80 % relative
(not condensing)
80 % relative
(not condensing)
Input voltage 110 - 230 V AC, 110 - 230 V AC, 110 - 230 V AC,
Power pack
secondary voltage
13.5 V – 16 V 13.5 V – 16 V 13.5 V – 16 V
Interface RS 232C; USB RS 232C; USB RS 232C; USB
Underfloor weighing device Hooks Hooks Hooks
6 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
KERN AES 100-4C AES 200-4C
Readability (d) 0.1 mg 0.1 mg
Weighing range (max) 160 g 220 g
Reproducibility 0.2 mg 0.2 mg
Linearity ± 0.2 mg ± 0.2 mg
Stabilization time 4 sec. 4 sec.
Recommended adjusting
weight not supplied (class)
150 g (E2) 200 g (E2)
Warm-u p time 8 h 8 h
Weighing Units ct, dwt, g, gn, m g , oz ct, dwt, g, gn, m g , oz
Smallest part weight for
piece counting
0.5 mg 0.5 mg
Reference quantities at
piece counting
10, 20, 50,
freely selectable
10, 20, 50,
freely selectable
Weighing plate, stainless
steel [cm]
Ø 10 Ø 10
Net weight (kg) 5.4 5.4
Permissible
ambient condition
+18° C to +30° C +18° C to +30° C
Humidity of air
80 % relative
(not condensing)
80 % relative
(not condensing)
Input voltage 110 - 230 V AC, 110 - 230 V AC,
Power pack
secondary voltage
13.8 V 13.8 V
Interface RS 232C; USB RS 232C; USB
Underfloor weighing device Hooks Hooks
AEJ-C/AES-C/PLJ-C-BA-e-1514 7
KERN PLJ 300-3CM PLJ 600-3CM
Readability (d) 1 mg 1 mg
Weighing range (max) 360 g 600 g
Minimum load (Min) 20 mg 20 mg
Verification value (e) 10 mg 10 mg
Verification class II II
Reproducibility 1 mg 2 mg
Linearity ± 4 mg ± 4 mg
Stabilization time 4 sec. 4 sec.
Adjustment weight internal internal
Warm-u p time 2 h 4 h
Weighing Units ct, g, kg ct, g, kg
Smallest part weight for
piece counting
5 mg 5 mg
Reference quantities at
piece counting
10, 20, 50,
freely selectable
10, 20, 50,
freely selectable
Weighing plate, stainless
steel [mm]
128 x 128 128 x 128
Net weight (kg) 4.6 4
Permissible
ambient condition
+10° C bis +40° C +10° C bis +40° C
Humidity of air
80 % relative
(not condensing)
80 % relative
(not condensing)
Input voltage 100 - 240 V 100 - 240 V
Power pack
secondary voltage
13.5 V – 16 V 13.5 V – 16 V
Interface RS 232C; USB RS 232C; USB
Underfloor weighing device Hooks Hooks
8 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
KERN PLJ 700-3CM PLJ 3000-2CM
Readability (d) 1 mg 10 mg
Weighing range (max) 750 g 3500 g
Minimum load (Min) 20 mg 500 mg
Verification value (e) 10 mg 100 mg
Verification class II II
Reproducibility 2 mg 10 mg
Linearity ± 4 mg ± 40 mg
Stabilization time 4 sec. 4 sec.
Adjustment weight internal
Warm-u p time 4 h 2 h
Weighing Units ct, g, kg
Smallest part weight for
piece counting
5 mg
Reference quantities at
piece counting
10, 20, 50,
freely selectable
Weighing plate, stainless
steel [mm]
128 x 128 195 x 195
Net weight (kg) 3.5 4.4
Permissible
ambient condition
+10° C bis +40° C
Humidity of air
80 % relative
(not condensing)
Input voltage 100 - 240 V
Power pack
secondary voltage
13.5 V – 16 V
Interface RS 232C; USB
Underfloor weighing device Hooks
AEJ-C/AES-C/PLJ-C-BA-e-1514 9
1.1 Dimensions
AEJ-C/AES-C:
PLJ-C:
10 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
2 Appliance overview
KERN AEJ/AES-C:
1. Glass wind screen
2. Weighing pan
3. Display
4. Keyboard
5. Levelling screw
AEJ-C/AES-C/PLJ-C-BA-e-1514 11
KERN PLJ-C:
1. Glass wind screen
2. Weighing pan
3. Display
4. Keyboard
5. Levelling screw
12 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
Connections (all model s ):
1. Mains connection
2. COM 2 connection
3. COM 1 connection
4. USB 2 connection
5. USB 1 connection
AEJ-C/AES-C/PLJ-C-BA-e-1514 13
2.1 Display and Keyboard Summ ary
Example AEJ-C:
1. Stability display
2. Zero indicator
3. Information line
4. The non-verified value is given in brackets in verified scales.
5. Weighing unit “g“
14 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514

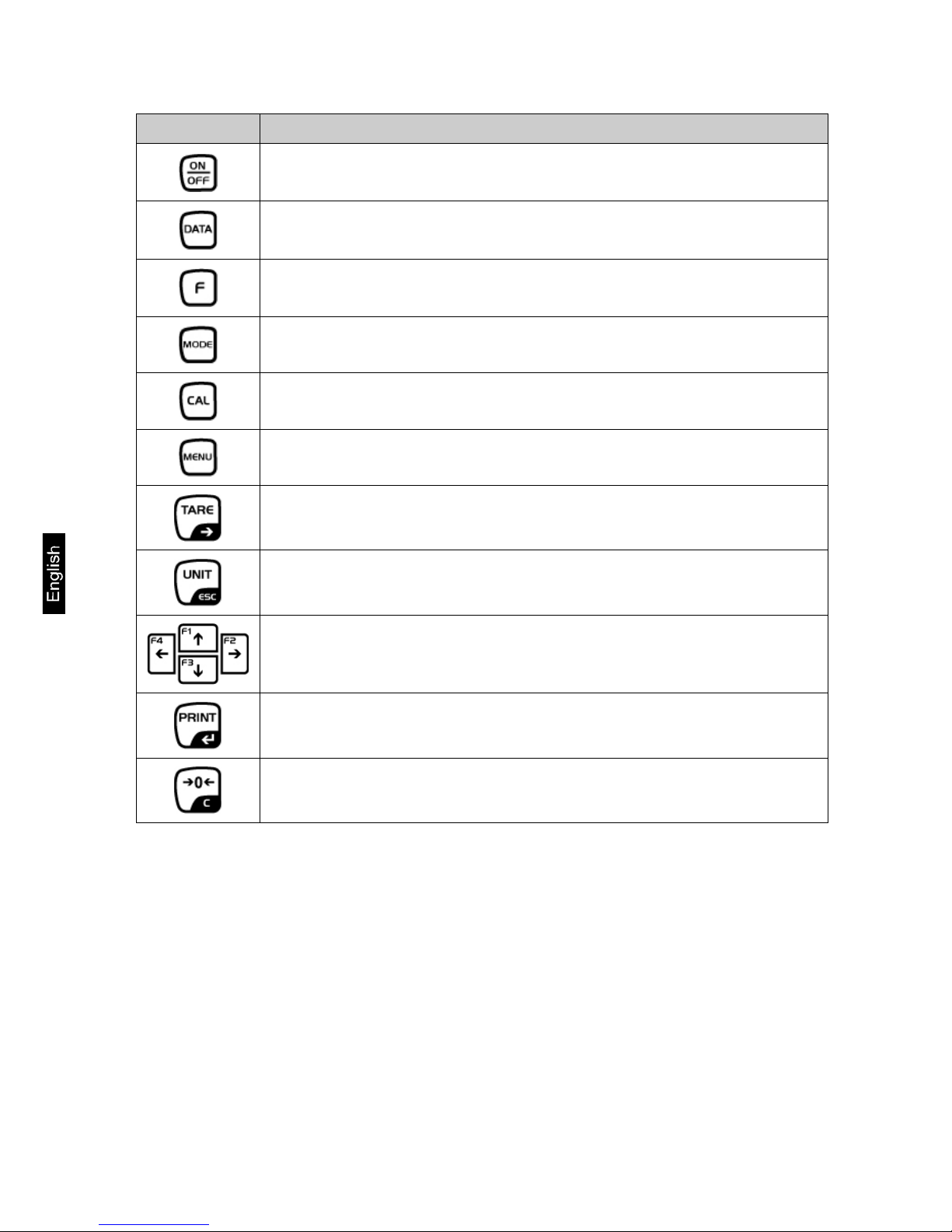

Button
Function
• Turn on/off
• Invoke data bases
• Function key
• Selection of operating mode
• Invoke adjustment
• Call up menu
• Taring
• Switch-over weighing unit
• In menu: Return to weighing mode
• Scroll backwards in menu
• Scroll forward in menu
• Navigation keys see chap. 2.1.1
• Calculate weighing data via interface
• Confirm/save in menu
• Zeroing
• Delete entry in data base
AEJ-C/AES-C/PLJ-C-BA-e-1514 15
2.1.1 Navigation buttons / numeric input
Button Designation Function
Navigation button
Increase flashing dig it
Navigation button
Decrease flashing digi t
Navigation button
Digit selection to the right
Navigation button
Digit selection to the left
Navigation button
Confirm entry
ESC Cancel input
16 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
3 Basic instructions
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
pan. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic add-on weighing procedures, if small amounts of
goods to be weighed are removed or added. The “stability compensation“ installed in
the balance may result in displaying an incorrect measuring value! (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the weighing pan. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be
damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-relat ed faul ts and destruction of the balanc e.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage or damage by media, liquids, natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
AEJ-C/AES-C/PLJ-C-BA-e-1514 17
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN's accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
4 Basic Safety Precautions
4.1 Pay attention to the instruc t ions in the Operation Manual
Carefully read this operation manual before setup and
commissioning, even if you are already familiar with KERN balances.
All language versions contain a non-binding translation.
The original German is binding.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transport and storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
Keep all parts of the original packaging for a possibly required return.
Only use original packaging for returning.
18 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
Prior to dispatch disconnect all cables and remove loose/mobile
parts.
Figure example KERN AEJ/AES-C
Reattach possibly supplied transport securing devices.
Secure all parts such as the glass wind screen, the weighing
platform, power unit etc. against shifting and damage.
AEJ-C/AES-C/PLJ-C-BA-e-1514 19
20 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
• Place the balance on a firm, level surface;
• Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
• Protect the balance against direct draughts due to open windows and doors;
• Avoid jarring during weighing;
• Protect the balance against high humidity, vapours and dust;
• Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (co nd ens a ti on o f air humidi ty on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
• Avoid static charge of goods to be weighed or weighing container.
If electro-magnetic fields or static charge occur, or if the power supply is unstable
major deviations on the display (incorrect weighing results) are possible. In that case,
the location must be changed.
6.2 Unpacking and checking
Remove device and accessories carefully from packaging, remove packaging
material and place device at the planned work place. Verify that there has been no
damage and that all packing items are present.
Scope of delivery / serial accessories:
• Balance, see chap. 2
• Mains adapter
• Operating manual
• Protective cover
• Flush-mounted hook
• Transport locking device (models AEJ-C and PLJ-C)
AEJ-C/AES-C/PLJ-C-BA-e-1514 21
6.3 Placing
Remove transportation lock (only models AEJ-C and PLJ-C)
To detach transport locking device, unscrew locking screw.
For transportation screw in locking screw carefully right up to the limit stop.
• Level balance with foot screws until the air bubble of the water balance is in the
prescribed circle
• Check levelling regularly
22 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
Models AEJ/AES-C
• Open glass wind screen on all sides
• Place protection sheet (1) into the weighing chamber
• Place centring ring (2) on the protection sheet
• Put weighing plate (3) on the centring ring
• Place wind protection ring (4) into the weighing chamber
AEJ-C/AES-C/PLJ-C-BA-e-1514 23
Models PLJ-C:
10 mg models
• Remove adhesive tape from the rubber element (1)
• Place weighing pan (2) on the rubber elements
1 mg models
• Remove adhesive tape from the rubber element (1)
• Place weighing pan (2) on the rubber elements
• Place wind shield (3)
24 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
6.4 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.
6.4.1 Turning On the Pow er
• Supply balance with power via the mains adapter. The display unit lights up and
shown the software version. The weighing scale carries out a self-test and
automatically moves into weighing mode.
When „CAL“ appears on the display, an automatic adjustment will take place
(only models AEJ-C and PLJ-C).
6.5 Connection of periphera l devi c e s
Before connecting or disconnecting of additional devices (printer, PC) to the data
interface, always disconnect the balance from the power supply.
With your balance, only use accessories and peripheral devices by KERN, as they
are ideally tuned to your balance.
6.6 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have
reached the operating temperature (see warming up time chap. 1).
During this warming up time the balance must be connected to the power supply
(mains, accumulator or battery).
To adapt the balance to ambient conditions, open wind screen doors.
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
AEJ-C/AES-C/PLJ-C-BA-e-1514 25
7 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordina ted - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To
receive accurate measuring values it is also recommended to adjust the balance
periodically in weighing operation.
Possible adjustments include:
• Automatic adjustment by internal weight (models ILJ only)
Chap. 7.2.1
• Manual adjustment by internal weight is triggered by pressing CAL
• Adjustment with external weight, see chap. 7.2.2
• Adjustment can only be carried out when the weighing pan is free of objects.
Any loads remaining on the weighing pan will be indicated by error message
Er1Hi.
• You can cancel the adjustment by pressing the UNIT-key.
26 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
7.1 Automatic adjustment with internal weight (only AEJ-C and
PLJ-C)
With the internal adjustment weight, the weighing accuracy can be checked and readjusted at any time.
The automatic adjustment function is always enabled. You can start adjustment at
any time by pressing the CAL-key manually.
If a load is present on the weighing plate, the message LIMIT EXCEEDED will
appear on the display. If the weight on the weighing plate is below 10% of max, the
weighing scale nevertheless will be adjusted.
Automatic adjustment is carried out:
• When balance was disconnected from the mains.
• When the temperature is changing
The moment a change in temperature of 3°C is detected by the temperature
sensor, the weighing scale will carry out a fully automatic adjustment. The °C
symbol indicates the pending adjustment.
• at the end of a time interval
After the time interval (selectable 1-12 h) specified in the menu has passed.
In weighing scales with type approval certificate
• Adjustment takes place every 3 hours
In the following operating modes the automatic internal adjustment is disabled:
• Parts counting
• Tolerance weighing
• Dosing
• Percent determination
• Animal weighing
• Statistics
• Totalization
• Hold function
AEJ-C/AES-C/PLJ-C-BA-e-1514 27
7.2 Menu settings
Menu item „P1 ADJUSTMENT“ [Adjustment]
AEJ-C / PLJ-C AES-C
P1.1 INT.JUST. -
Internal adjustment, ILJ-C only
- P1.2 EXT.JUST.
External adjustment *
- P1.3 BE.JUST.
User adjustment
P1.4 TEST J UST. -
Adjustment test
* = Locked in weighing scales with type approval certificate [Er 9 lock].
7.2.1 P1.1 INT.J US T. - internal adjustment (only models AE J -C and P LJ -C)
• For automatic internal adjustment see chap. 7.1
• Starting internal adjustment manually
Press the CAL-key or invoke menu “P1.1 INT.JUST.“
Press
or
Internal adjustment will be taking place.
• Ensure that there are no objects on the weighing pan.
• You can cancel the adjustment by pressing the UNIT-key.
• After successful adjustment the weighing scale will return automatically to
the menu item. To return to weighing mode, press UNIT.
28 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
7.2.2 P1.2 EXT.JUST.- external adjustment (only AES-C)
Carry out adjustment with the help of the recommended adjustment weight (see
chapter 1 “Technical Specifications”).
Observe stable environmental conditions. A warming up time (see chapter 1) is
required for stabiliz at ion.
• This function is locked in weighing scales with type approval certificate.
Ensure that there are no objects on the
weighing pan. Press PRINT-key,
CALIBRATION (JUSTAGE) will be shown.
Wait until the weighed value for the
required adjustment weight appears.
(Example)
Place the required adjustment weight
carefully in the centre of the weighing plate
and press the PRINT key.
The display is showing CALIBRATION,
adjustment is starting.
Adjustment is completed when the
message REMOVE MASS appears;
remove adjustment weight. After
successful adjustment the weighing scale
will return automatically to sub-menu item
P 1.2.
To return to weighing mode, press the
UNIT key.
AEJ-C/AES-C/PLJ-C-BA-e-1514 29
7.2.3 P1.3 BE.JUST. User adjustment (model AES-C only)
This function allows the user to select a test weight of an arbitrary weight value.
Having said this, the test weight should not amount to less than 30% of the maximum range.
This function is not accessible in calibrated weighing scales!
Start the process in weighing mode
as shown on the picture.
Digits will appear on the display, with
the digit on the left flashing. Use the
arrow keys to enter your desired
adjustment weight and confirm by
pressing PRINT.
Care should be taken to ensure that
there are no objects on the weighing
plate, then confirm by pressing
PRINT.
Wait until the weighed value for the
set adjustment weight appears.
Place the required adjustment
weight carefully in the centre of the
weighing plate and press the PRINT
key. The display is showing
CALIBRATION, adjustment is
starting.
Adjustment is completed when the
message REMOVE MASS appears;
remove adjustment weight. After
successful adjustment the weighing
scale will automatically return to submenu item P 1.3.
Return to weighing mode by
repeatedly pressing UNIT
30 AEJ-C/ AEJ-C/AES-C/PLJ-C-BA-e-1514
7.2.4 P1.4 TEST J UST.
– adjustment report (only models AE J -C and P LJ -C)
This function is applied to compare the internal adjustment weight with the saved
value. The test is carried out automatically. The result will be shown on the display
and issued via the interface if an optional printer is connected.
Press UNIT to return to the menu item and into weighing mode
Loading...
