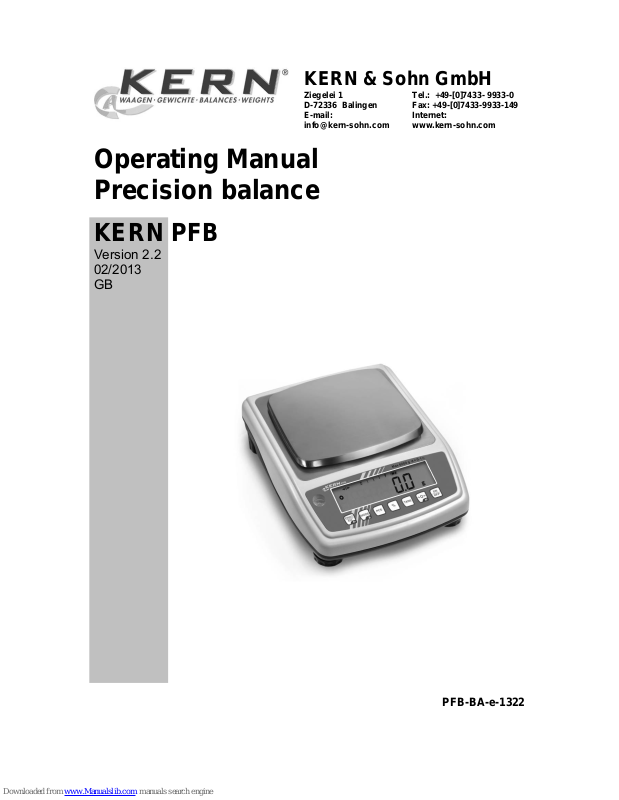

Operating Manual
Precision balance
KERN PFB
Version 2.2
02/2013
GB
PFB-BA-e-1322
2 PFB-BA-e-1322
GB
KERN PFB
Version 2.2 02/2013
Operating Manual
Precision balance
Table of Contents
1 Technical Data ................................................................................................... 4
2 Declaration of conformity ................................................................................. 8
3 Basic Information (General) ............................................................................. 9
3.1 Proper use .................................................................................................................................. 9
3.2 Improper Use .............................................................................................................................. 9
3.3 Warranty ..................................................................................................................................... 9
3.4 Monitoring of Test Resources................................................................................................... 10
4 Basic Safety Precautions ................................................................................ 10
4.1 Pay attention to the instructions in the Operation Manual ........................................................ 10
4.2 Personnel training ..................................................................................................................... 10
5 Transportation & Storage ............................................................................... 10
5.1 Testing upon acceptance ......................................................................................................... 10
5.2 Packaging / return transport ..................................................................................................... 10
6 Unpacking, Setup and Commissioning ......................................................... 11
6.1 Installation Site, Location of Use .............................................................................................. 11
6.2 Unpacking ................................................................................................................................. 11
6.2.1 Placing/ Remove the transportation lock .................................................................................. 12
6.2.2 Scope of delivery ...................................................................................................................... 12
6.3 Mains connection ...................................................................................................................... 12
6.4 Connection of peripheral devices ............................................................................................. 12
6.5 Initial Commissioning ................................................................................................................ 13
6.6 Adjustment ................................................................................................................................ 13
6.7 Adjusting ................................................................................................................................... 13
6.7.1 Procedure when adjusting (non-verifiable models): ................................................................. 14
6.7.2 Adjustment procedure (models PFB-M): .................................................................................. 15

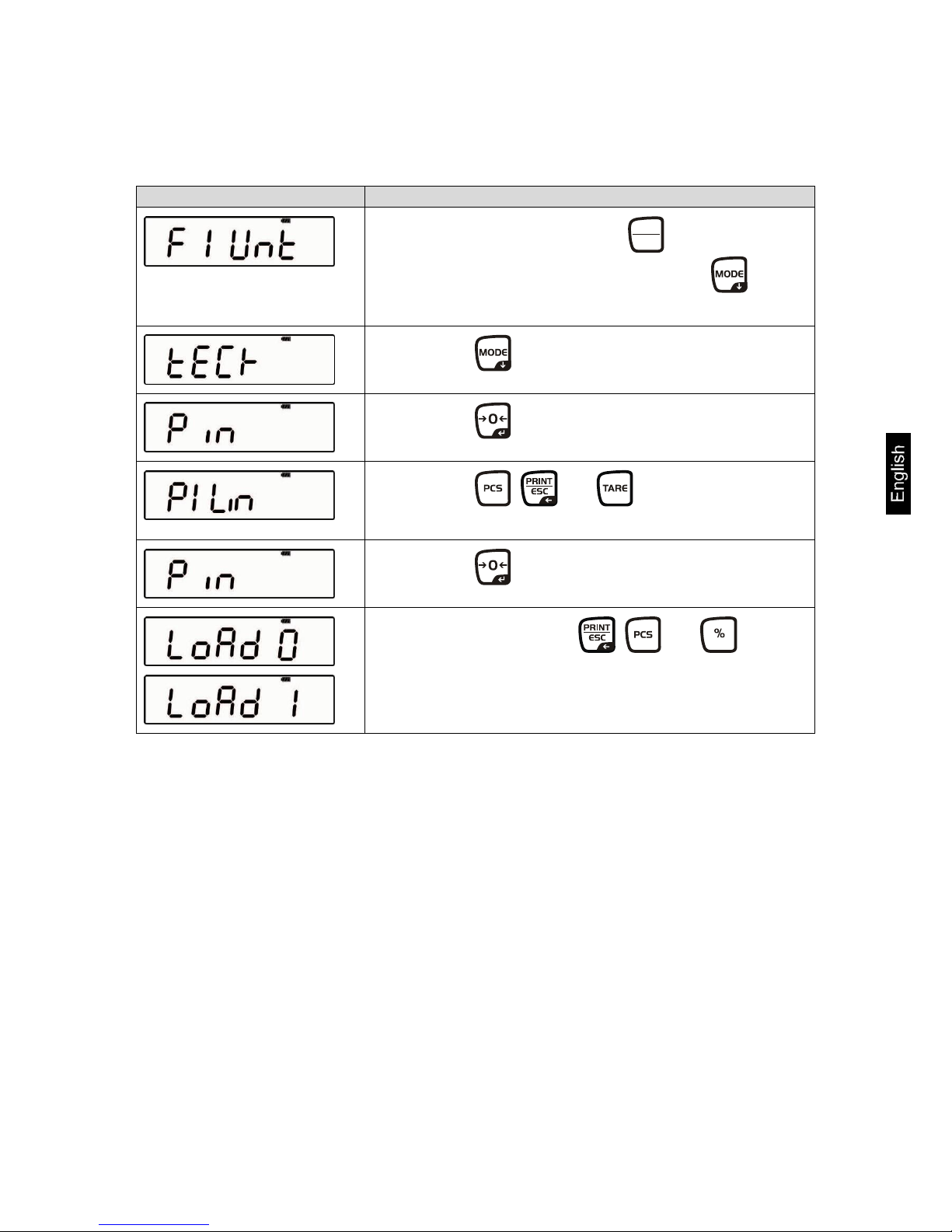

6.8 Linearization ............................................................................................................................. 16

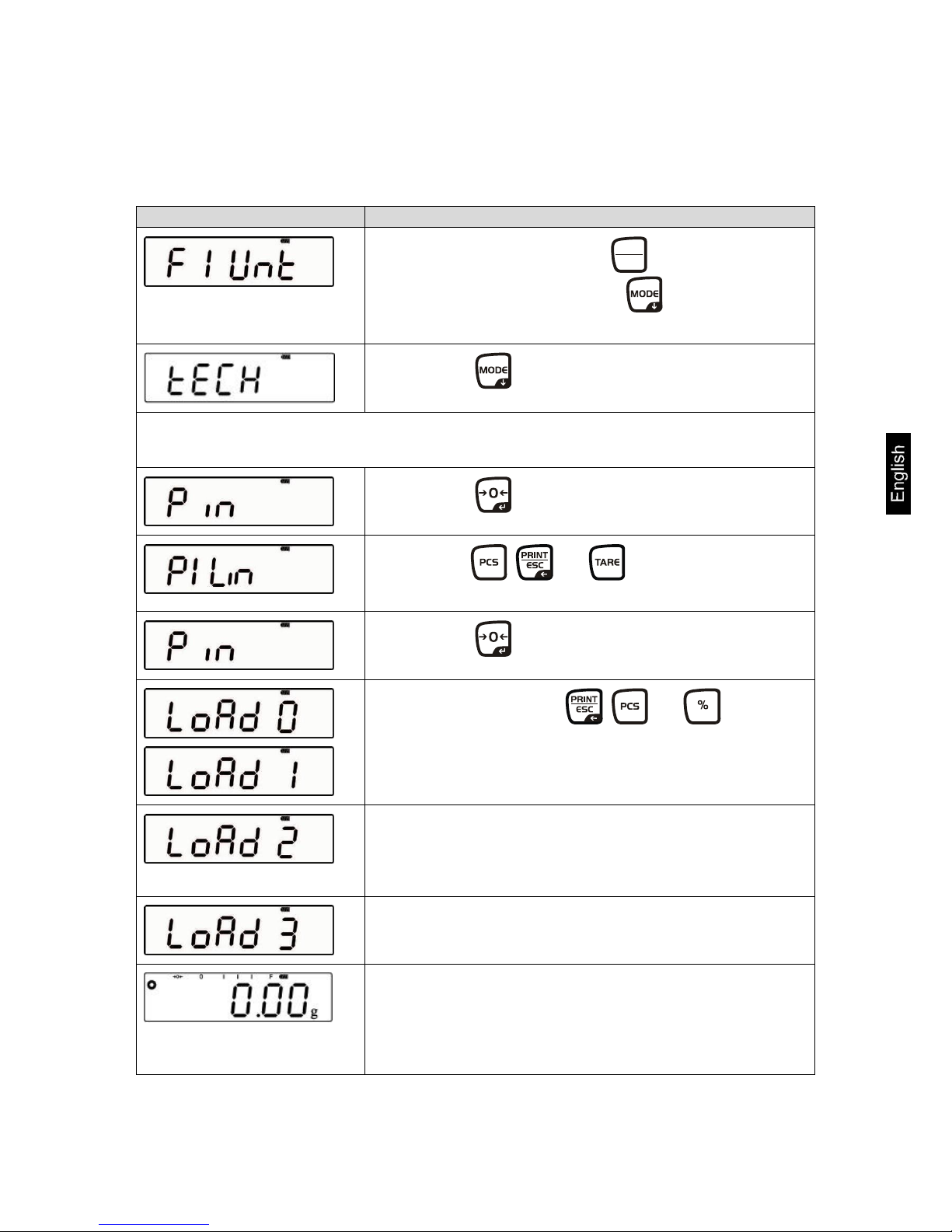

6.8.1 Linearization non-verifiable models (low resolution) ................................................................ 17
6.8.2 Linearization of non verifiable models (low resolution) and verifiable models ......................... 19
6.8.3 Table Linearization points......................................................................................................... 20
6.9 Verification ................................................................................................................................ 21
6.10 Operation with second display unit PFB-A08 for open points of sale ...................................... 23
7 Controls ............................................................................................................ 25
7.1 Keyboard overview ................................................................................................................... 25
7.2 Overview of display .................................................................................................................. 26
PFB-BA-e-1322 3
8 Operation ......................................................................................................... 27
8.1 Simple weighing ....................................................................................................................... 27
8.1.1 Non-verifiable models ............................................................................................................... 27
8.1.2 Models PFB-M .......................................................................................................................... 27
8.2 Taring ........................................................................................................................................ 28
8.2.1 Non-verifiable models ............................................................................................................... 28
8.2.2 Models PFB-M .......................................................................................................................... 29
8.3 Parts counting ........................................................................................................................... 30
8.3.1 Non-verifiable models ............................................................................................................... 30
8.3.2 Models PFB-M .......................................................................................................................... 31

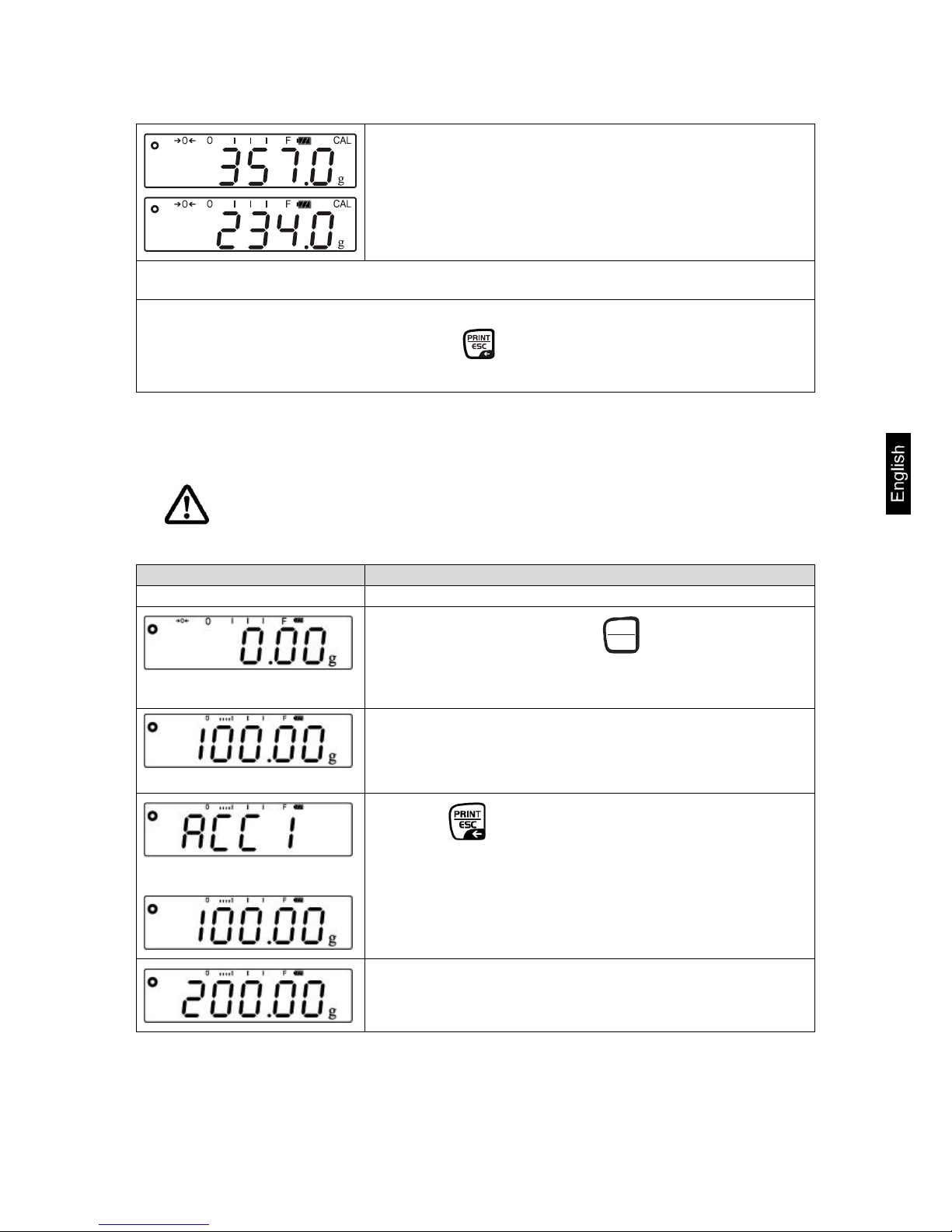

8.4 Adding....................................................................................................................................... 32
8.4.1 Non-verifiable models ............................................................................................................... 32
8.4.2 Models PFB –M ........................................................................................................................ 33

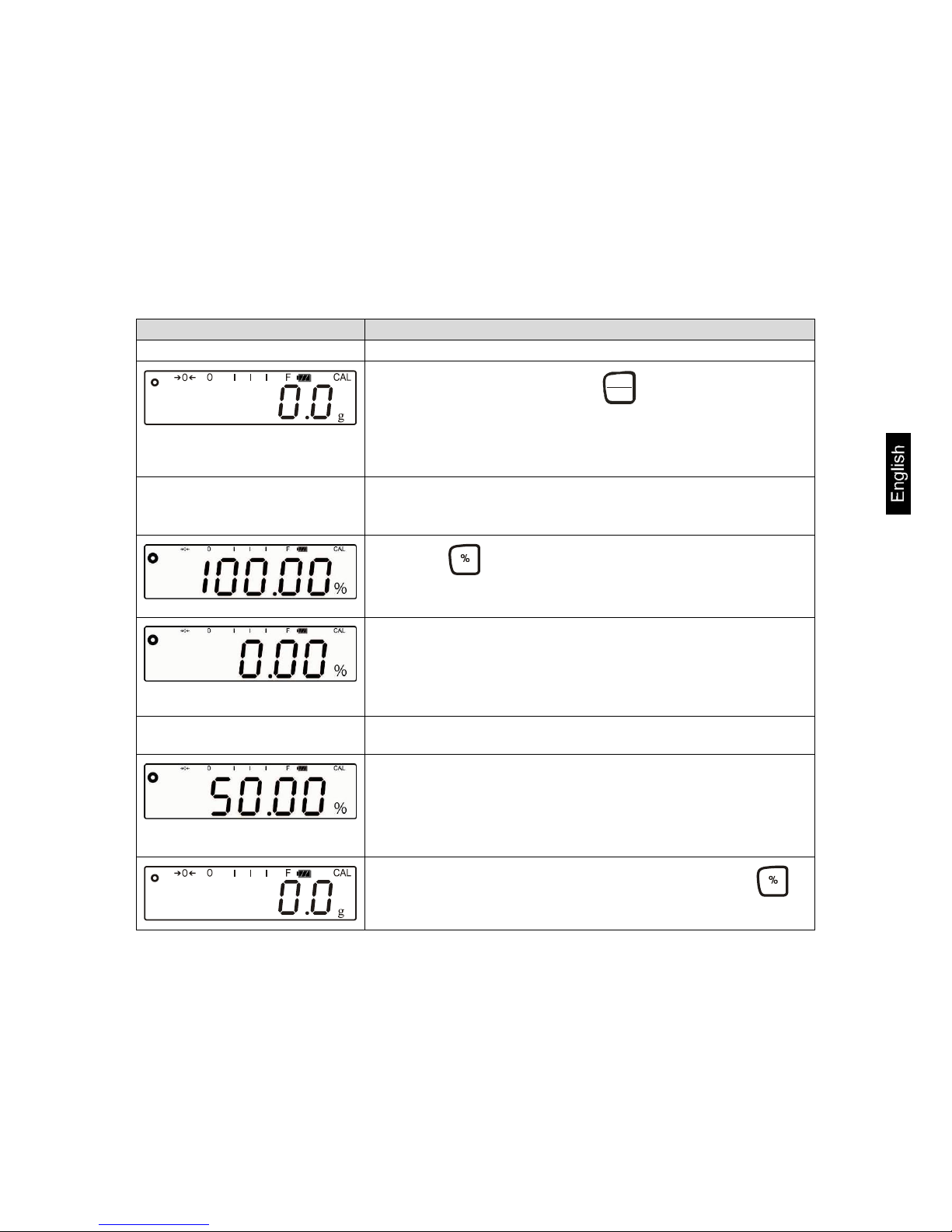

8.5 Percent weighings .................................................................................................................... 35
8.5.1 Non-verifiable models ............................................................................................................... 35
8.5.2 Models PFB-M .......................................................................................................................... 36
9 The menu ......................................................................................................... 37
9.1 Menu map ................................................................................................................................. 37
9.2 Call up menu ............................................................................................................................ 37
9.3 Navigation in the menu ............................................................................................................. 37
9.4 Menu overview non-verifiable models ...................................................................................... 37
9.5 Menu overview models PFB-M ................................................................................................ 39
9.6 Menu settings ........................................................................................................................... 41
9.6.1 Switch over weighing units (Unit) (only non-verifiable appliances) .......................................... 41
9.6.2 Display background illumination ............................................................................................... 42
9.6.3 Multi-Tare function (only models PFB-M) ................................................................................. 43
10 Data output RS232 ....................................................................................... 44
10.1 Technical data .......................................................................................................................... 44
10.2 Pin allocation of balance output bushing: ................................................................................. 44
10.3 Printer operation - printout examples ....................................................................................... 45
10.4 Continuous data output ............................................................................................................ 46
10.5 Remote control instructions ...................................................................................................... 46
11 Error messages ................................ ................................ ............................ 46
12 Service, maintenance, disposal ................................ ................................ .. 47
12.1 Cleaning.................................................................................................................................... 47
12.2 Service, maintenance ............................................................................................................... 47
12.3 Disposal .................................................................................................................................... 47
13 Instant help ................................................................................................... 48
4 PFB-BA-e-1322
1 Technical Data
KERN
PFB 120-3
PFB 200-3
PFB 300-3
PFB 1200-2
Readability (d)
0.001 g
0.001 g
0.001 g
0.01 g
Weighing range (max)
120 g
200 g
300 g
1200 g
Reproducibility
0.001 g
0.001 g
0.001g
0.01 g
Linearity
±0.003 g
±0.003 g
±0.003 g
±0.03 g
Smallest part weight for
parts counting
2 mg
2 mg
2 mg
20 mg
Reference quantities at
parts counting
10, 20, 50, 100, 200
Weighing Units
g, ct, lb, oz, d, ozt, dwt, mo, tl h, tl c, tl t, t, bt, n
Recommended adjustment
weight, not added (class)
100 g (F1)
200 g (F1)
300 g (F1)
1000 g (F1)
Warm-up time
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
200 x 257 x 152 (with draft shield)
200 x 257 x 87(without draft shield)
Draft shield (B x D x H) mm
158 x 143 x 64 (inside)
167 x 154 x 80 (outside)
Weighing plate, stainless steel
(mm)
Ø 80
Ø 80
Ø 80
Ø 120
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
PFB-BA-e-1322 5
KERN
PFB 2000-2
PFB 3000-2
PFB 6000-1
PFB 6K0.05
Readability (d)
0.01 g
0.01 g
0.1 g
0.05 g
Weighing range (max)
2000 g
3000 g
6000 g
6000 g
Reproducibility
0.01 g
0.01 g
0.1 g
0.05 g
Linearity
±0.03 g
±0.03 g
± 0.3 g
± 0.15 g
Smallest part weight for
parts counting
20 mg
20 mg
200 mg
200 mg
Reference quantities at
parts counting
10, 20, 50, 100, 200
Weighing Units
g, ct, lb, oz, d, ozt, dwt, mo, tl h, tl c, tl t, t, bt, n
Recommended adjustment
weight, not added (class)
2000 g (F1)
3000 g (F1)
5000 g (F1)
5000 g (F1)
Warm-up time
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
200 x 257 x 152
(with draft shield)
200 x 257 x 87
(without draft shield)
200x260x87
200x257x87
Draft shield (B x D x H) mm
158 x 143 x 64 (inside)
167 x 154 x 80 (outside)
-
-
Weighing plate, stainless steel
(mm)
Ø 120
Ø 120
155 x 145
155 x 145
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
6 PFB-BA-e-1322
KERN
PFB 600-1M
PFB 600-2M
Readability (d)
0.1 g
0.01 g
Weighing range (max)
600 g
600 g
Reproducibility
0.1 g
0.01 g
Linearity
± 0.1 g
± 0.02 g
Verification value (e)
100 mg
100 mg
Verification class
II
II
Minimum load (Min)
5 g 500 mg
Smallest part weight for
parts counting
20 mg
20 mg
Reference quantities at
parts counting
10, 20, 50, 100, 200
Weighing Units
g
g, ct
Recommended adjustment
weight, not added (class)
600 g (F1)
600 g (F1)
Warm-up time
30 minutes
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
190 x 220 x 140
(with draft shield)
190 x 220 x 60
(without draft shield)
Draft shield (B x D x H) mm
158 x 143 x 64 (inside)
167 x 154 x 80 (outside)
Weighing plate, stainless steel
(mm)
Ø 120
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
PFB-BA-e-1322 7
KERN
PFB 6000-0M
PFB 6000-1M
Readability (d)
1 g
0.1 g
Weighing range (max)
6000 g
6000 g
Reproducibility
1 g
0.1 g
Linearity
± 1 g
± 0.3 g
Verification value (e)
1 g
1 g
Verification class
II
II
Minimum load (Min)
50 g 5 g
Smallest part weight for
parts counting
200 mg
200 mg
Reference quantities at
parts counting
10, 20, 50, 100, 200
Weighing Units
g
g, ct,
Recommended adjustment
weight, not added (class)
6000 g (F1)
6000 g (F1)
Warm-up time
30 minutes
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
190 x 220 x 80
Weighing plate, stainless steel
(mm)
155 x 145
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
8 PFB-BA-e-1322
2 Declaration of conformity
KERN & Sohn GmbH
D-72322 Balingen-Frommern
Postbox 4052
email: info@kern-sohn.de
Phone: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de
Declaration of conformity
EC-Konformitätserklärung EC-Declaration of -Conformity
EC- Déclaration de conformité EC-Declaración de Conformidad
EC-Dichiarazione di conformità EC-Conformiteitverklaring
EC- Declaração de conformidade EC- Prohlášení o shode
EC-Deklaracja zgodności EC-Заявление о соответствии
D
Konformitätserklärung
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht,
mit den nachstehenden Normen übereinstimmt.
GB
Declaration of
conformity
We hereby declare that the product to which this declaration refers conforms
to the following standards.
CZ
Prohlášení o
shode
Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu
s níže uvedenými normami.
E
Declaración de
conformidad
Manifestamos en la presente que el producto al que se refiere esta
declaración está de acuerdo con las normas siguientes
F
Déclaration de
conformité
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la
présente déclaration, est conforme aux normes citées ci-après.
I
Dichiarazione di
conformitá
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si
riferisce è conforme alle norme di seguito citate.
NL
Conformiteitverklaring
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking
heeft, met de hierna vermelde normen overeenstemt.
P
Declaração de
conformidade
Declaramos por meio da presente que o produto no qual se refere esta
declaração, corresponde às normas seguintes.
PL
Deklaracja
zgodności
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie dotyczy,
jest zgodny z poniższymi normami.
RUS
Заявление о
соответствии
Мы заявляем, что продукт, к которому относится данная декларация,
соответствует перечисленным ниже нормам.
Electronic Balance: KERN PFB
Mark applied
EU Directive
Standards
2004/108/EC
EMC
EN 61000-6-1 :2007
EN 61000-6-3 :2007
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
EN 61000-3-2 :2006
Date: 18.09.2008
Signature:
KERN & Sohn GmbH
Management
KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149
PFB-BA-e-1322 9
3 Basic Information (General)
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
plate. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the balance. (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the weighing plate. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be
damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored
The appliance is used outside the described uses
The appliance is modified or opened
Mechanical damage and damage caused by media, liquids
Natural wear and tear
The appliance is improperly set up or incorrectly electrically connected
The measuring system is overloaded
10 PFB-BA-e-1322
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and
commissioning, even if you are already familiar with KERN
balances.
Versions in other languages are non-binding translations.
The only binding version is the original document in German.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transportation & Storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
Keep all parts of the original packaging for a possibly required
return.
Only use original packaging for returning.
Prior to dispatch disconnect all cables and remove loose/mobile
parts.
Reattach possibly supplied transport securing devices.
Secure all parts such as the glass wind screen, the weighing
platform, power unit etc. against shifting and damage.
PFB-BA-e-1322 11
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
Place the balance on a firm, level surface;
Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
Protect the balance against direct draughts due to open windows and doors;
Avoid jarring during weighing;
Protect the balance against high humidity, vapors and dust;
Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
Avoid static charge of goods to be weighed or weighing container.
Major display deviations (incorrect weighing results) may be experienced should
electromagnetic fields (e.g. due to mobile phones or radio equipment), static
electricity accumulations or instable power supply occur. Change location or remove
source of interference.
6.2 Unpacking
Carefully remove the balance from the packaging and setup balance at the intended
workstation.
12 PFB-BA-e-1322
[1]
6.2.1 Placing/ Remove the transportation lock
The balance must be installed in a way that the weighing plate is exactly in horizontal
position.
Remove the transportation lock [ 1 ] (PFB 120-3, PFB 200-3, PFB 300-3):
6.2.2 Scope of delivery
Serial accessories:
Balance
Weighing plate
Mains power supply
Operating Manual
Draft shield (only models PFB 120-3, PFB 200-3, PFB 300-3, PFB 600-1M, PFB
600-2M, PFB 1200-2, PFB 2000-2, PFB 3000-2)
6.3 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.

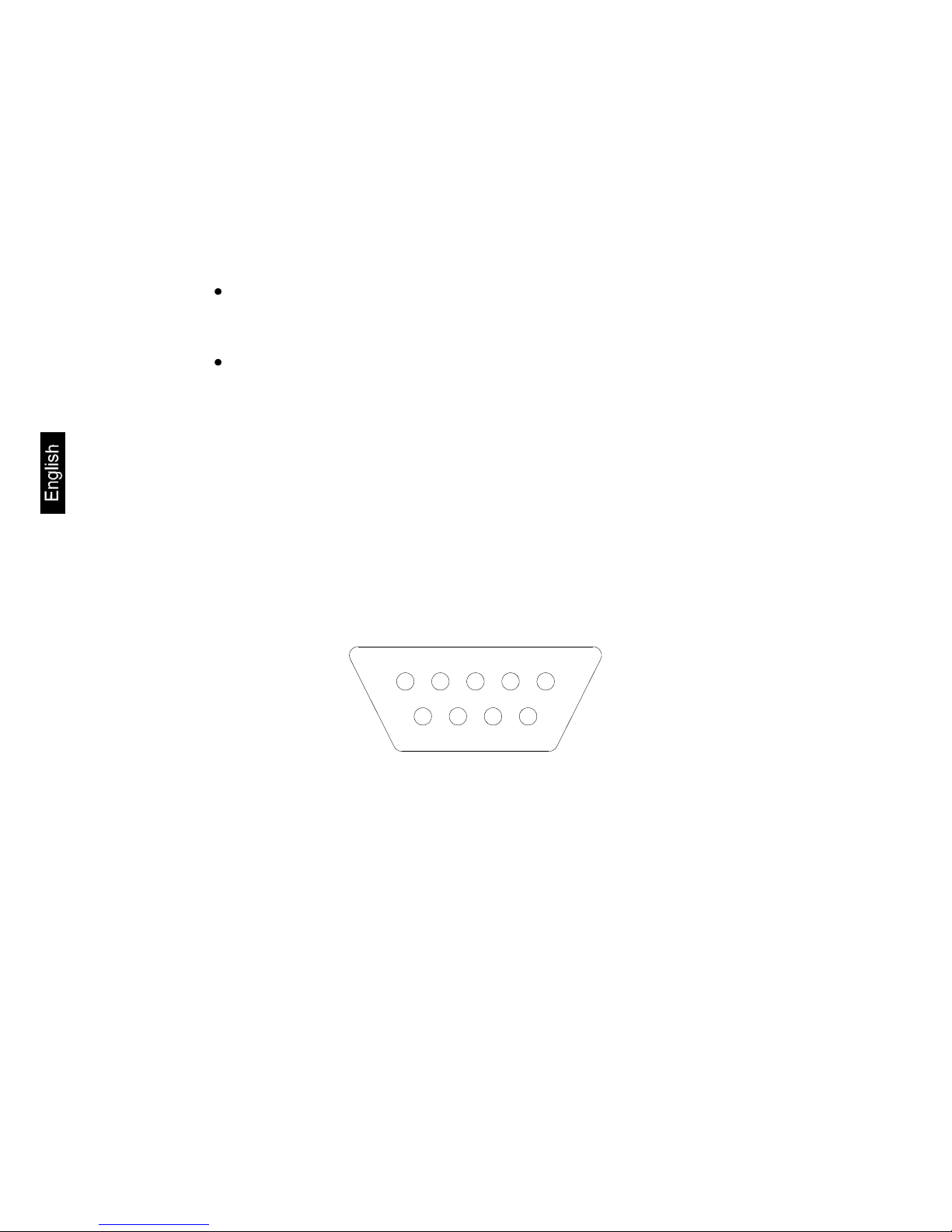

6.4 Connection of peripheral devices
Before connecting or disconnecting of additional devices (printer, PC) to the data
interface, always disconnect the balance from the power supply.
With your balance, only use accessories and peripheral devices by KERN, as they
are ideally tuned to your balance.
PFB-BA-e-1322 13
6.5 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have
reached the operating temperature (see warming up time chap. 1). During this
warming up time the balance must be connected to the power supply (mains,
accumulator or battery).
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
6.6 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To
receive accurate measuring values it is also recommended to adjust the balance
periodically in weighing operation.
6.7 Adjusting
The adjustment should be made with the recommended adjustment weight (see
chap. 1 "Technical data").
14 PFB-BA-e-1322
6.7.1 Procedure when adjusting (non-verifiable models):
Observe stable environmental conditions.
A warming up time (see chapter 1; Technical Data) is required for stabilization.
Ensure that there are no objects on the weighing plate.
Balance display
Operation
In weighing mode press approx. 3 sec. until
„UnLoAd“ appears.
When display „LoAd“ appears, put the necessary
adjustment weight (see chap.1; Technical Data) on the
center of the weighing plate.
Adjustment will be carried out automatically after dead
stop control.
Wait for stability display

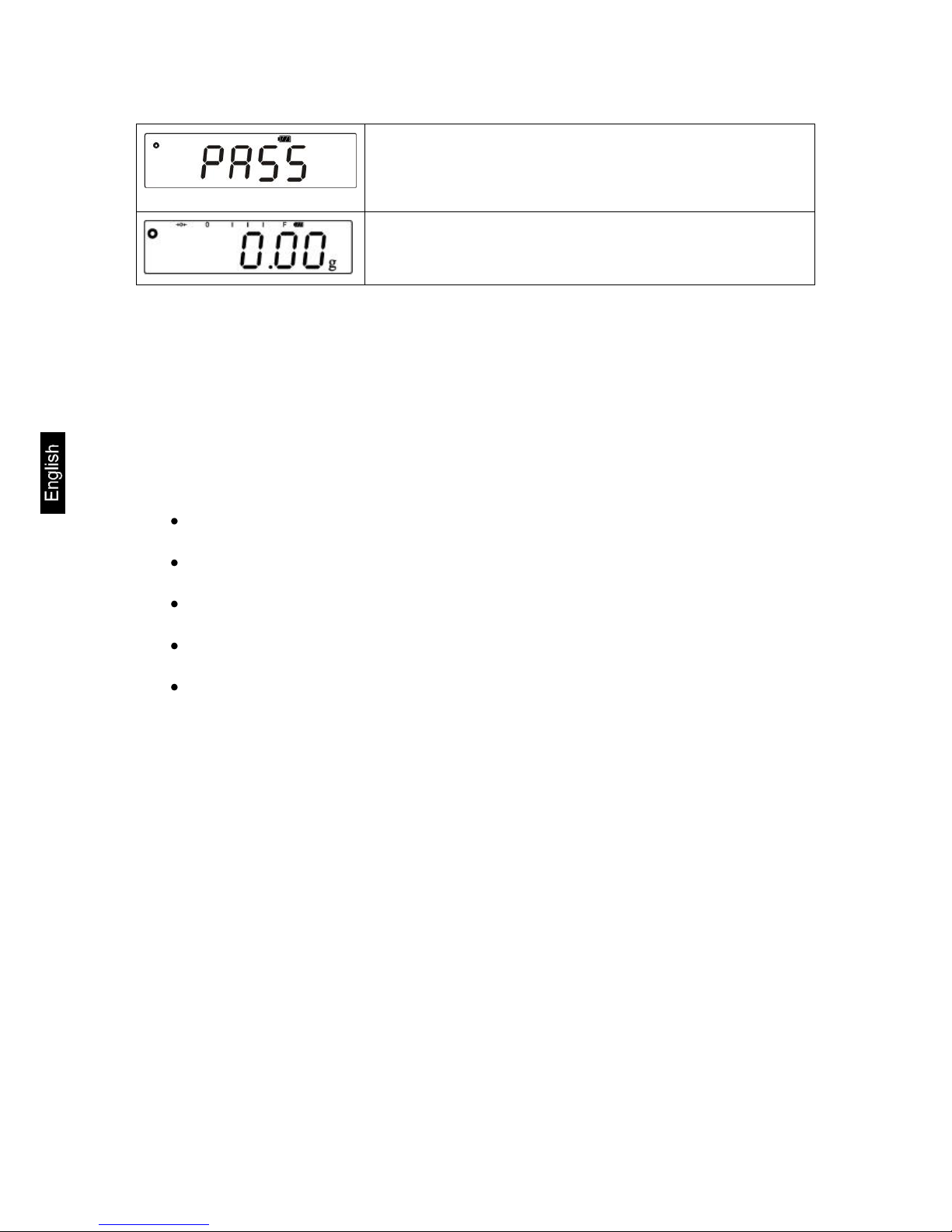

„Pass“ appears, the adjustment process has been
finished successfully.
Take away adjustment weight
Wait until the balance is again in the weighing mode.
PFB-BA-e-1322 15

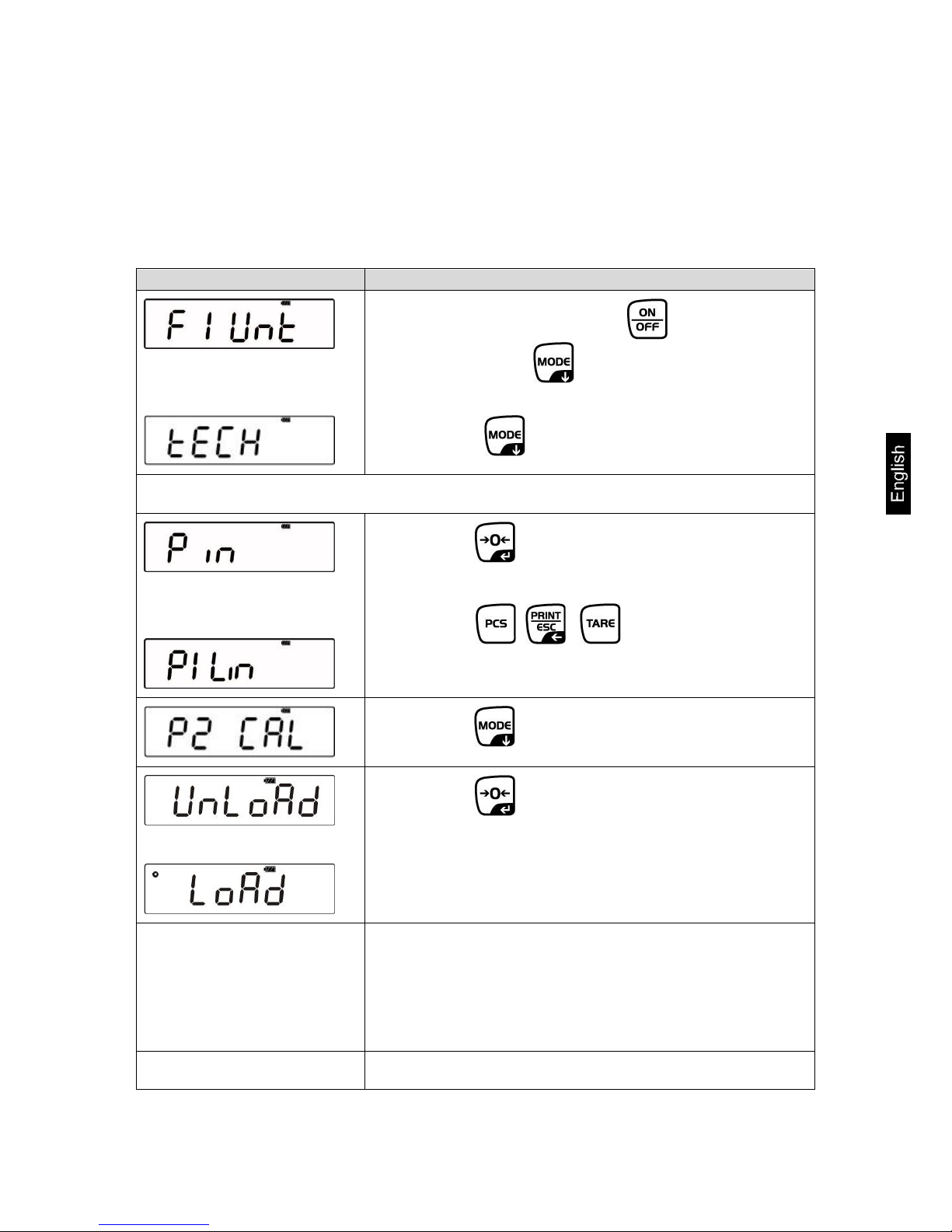

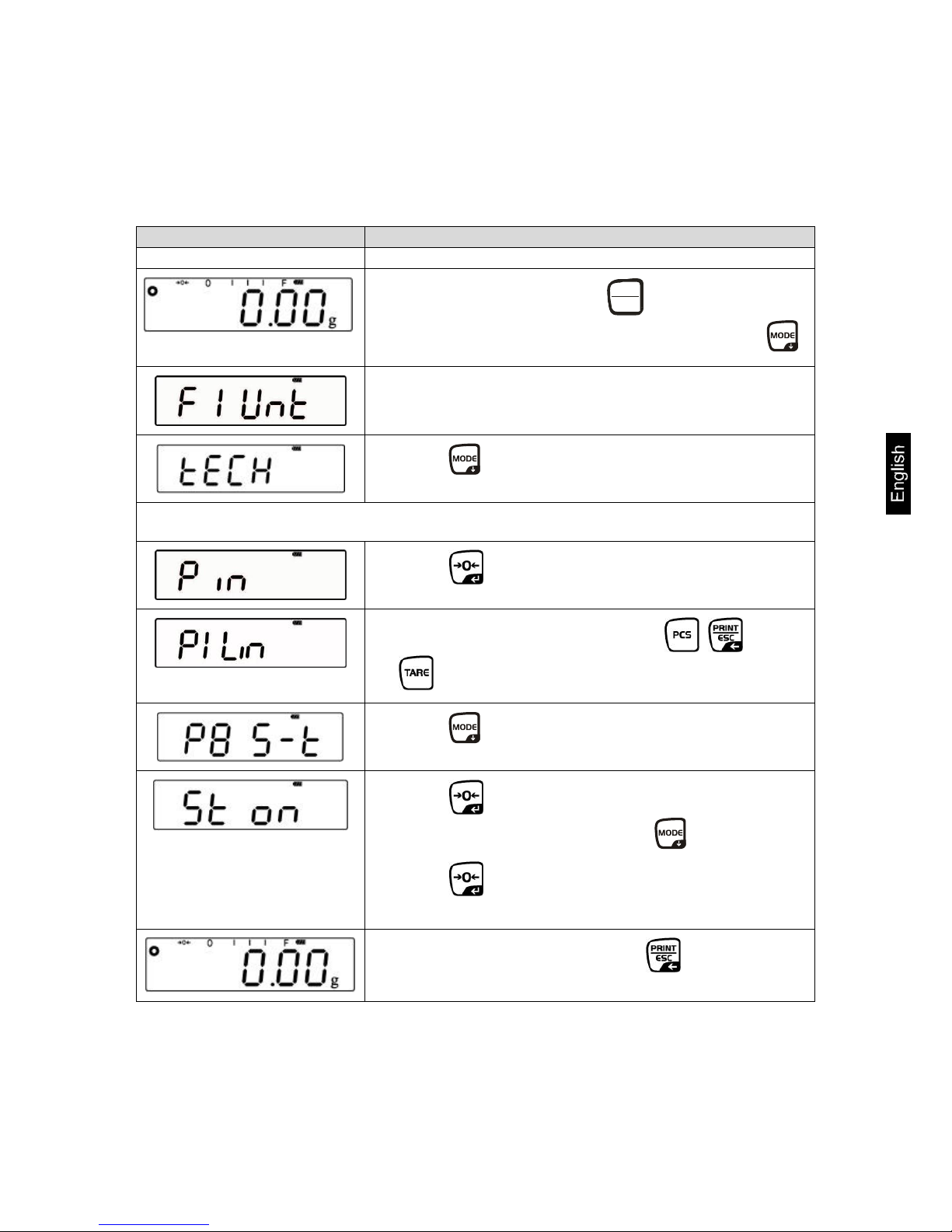

6.7.2 Adjustment procedure (models PFB-M):
Observe stable environmental conditions.
A warming up time (see chapter 1; Technical Data) is required for stabilization.
Ensure that there are no objects on the weighing plate.
Balance display
Operation

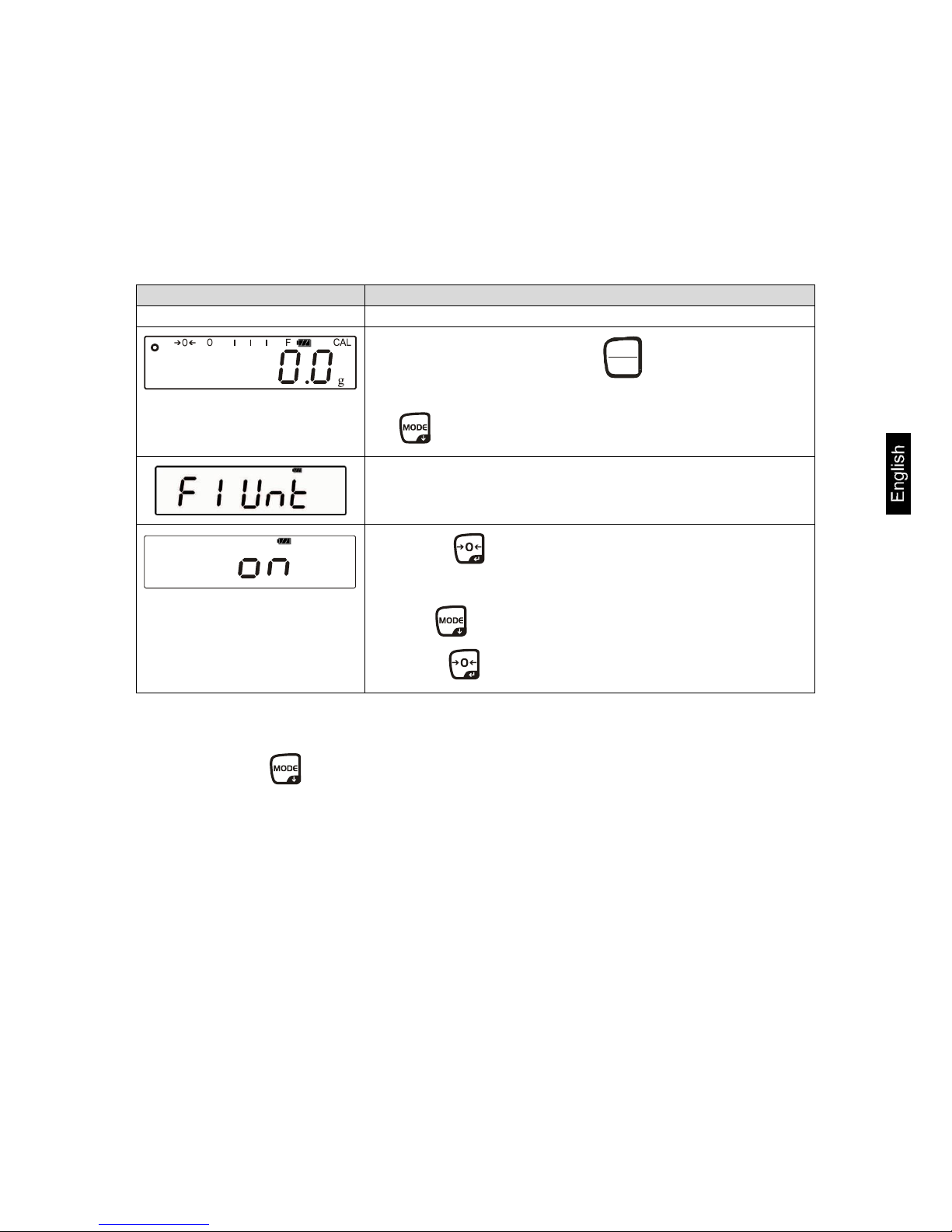

Start balance by pressing During the
selftest press .
„F1 Unt“ is displayed.
Press repeatedly until „tECH“ is displayed

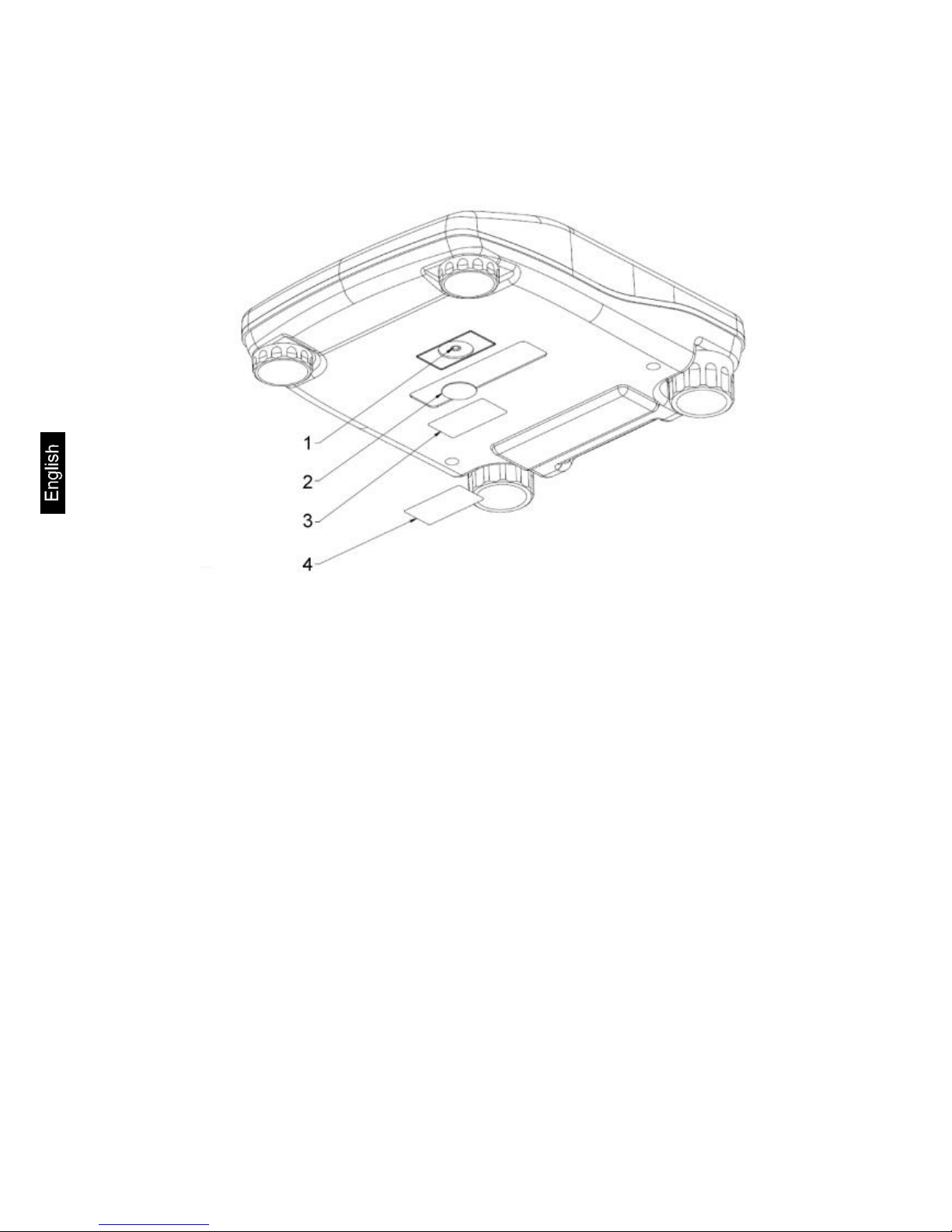

Press adjustment switch on the lower side of the balance!
Press , „Pin“ is displayed
Enter password:
Press , , subsequently.
„P1 Lin“ is displayed
Press , „P2 CAL“ will be displayed
Press , „UnLoAd“ followed by „LoAd“ is
displayed.
Put the necessary adjustment weight (see
chap.1; Technical Data) on the centre of the
weighing plate.
Adjustment will be carried out automatically after dead
stop control.
Wait for stability display
Loading...
