Kern PFB 120-3, PFB 200-3, PFB 300-3, PFB 1200-2, PFB 2000-2 User guide

...
KERN & Sohn GmbH
Ziegelei 1 D-72336 Balingen E-mail: info@kern-sohn.com
Tel.: +49-[0]7433- 9933-0 Fax: +49-[0]7433-9933-149 Internet: www.kern-sohn.com
Operating Manual Precision balance
KERN PFB
Version 2.2
02/2013 GB
PFB-BA-e-1322
GB
KERN PFB
Version 2.2 02/2013
Operating Manual Precision balance
Table of Contents
1 Technical Data ................................................................................................... 4
2 Declaration of conformity ................................................................................. 8
3 Basic Information (General) ............................................................................. 9
3.1 Proper use .................................................................................................................................. 9
3.2 Improper Use .............................................................................................................................. 9
3.3 Warranty ..................................................................................................................................... 9
3.4 Monitoring of Test Resources................................................................................................... 10
4 Basic Safety Precautions ................................................................................ 10
4.1 Pay attention to the instructions in the Operation Manual ........................................................ 10
4.2 Personnel training ..................................................................................................................... 10
5 Transportation & Storage ............................................................................... 10
5.1 Testing upon acceptance ......................................................................................................... 10
5.2 Packaging / return transport ..................................................................................................... 10
6 Unpacking, Setup and Commissioning ......................................................... 11
6.1 Installation Site, Location of Use .............................................................................................. 11
6.2 Unpacking ................................................................................................................................. 11
6.2.1 Placing/ Remove the transportation lock .................................................................................. 12
6.2.2 Scope of delivery ...................................................................................................................... 12
6.3 Mains connection ...................................................................................................................... 12
6.4 Connection of peripheral devices ............................................................................................. 12
6.5 Initial Commissioning ................................................................................................................ 13
6.6 Adjustment ................................................................................................................................ 13
6.7 Adjusting ................................................................................................................................... 13
6.7.1 Procedure when adjusting (non-verifiable models): ................................................................. 14
6.7.2 Adjustment procedure (models PFB-M): .................................................................................. 15

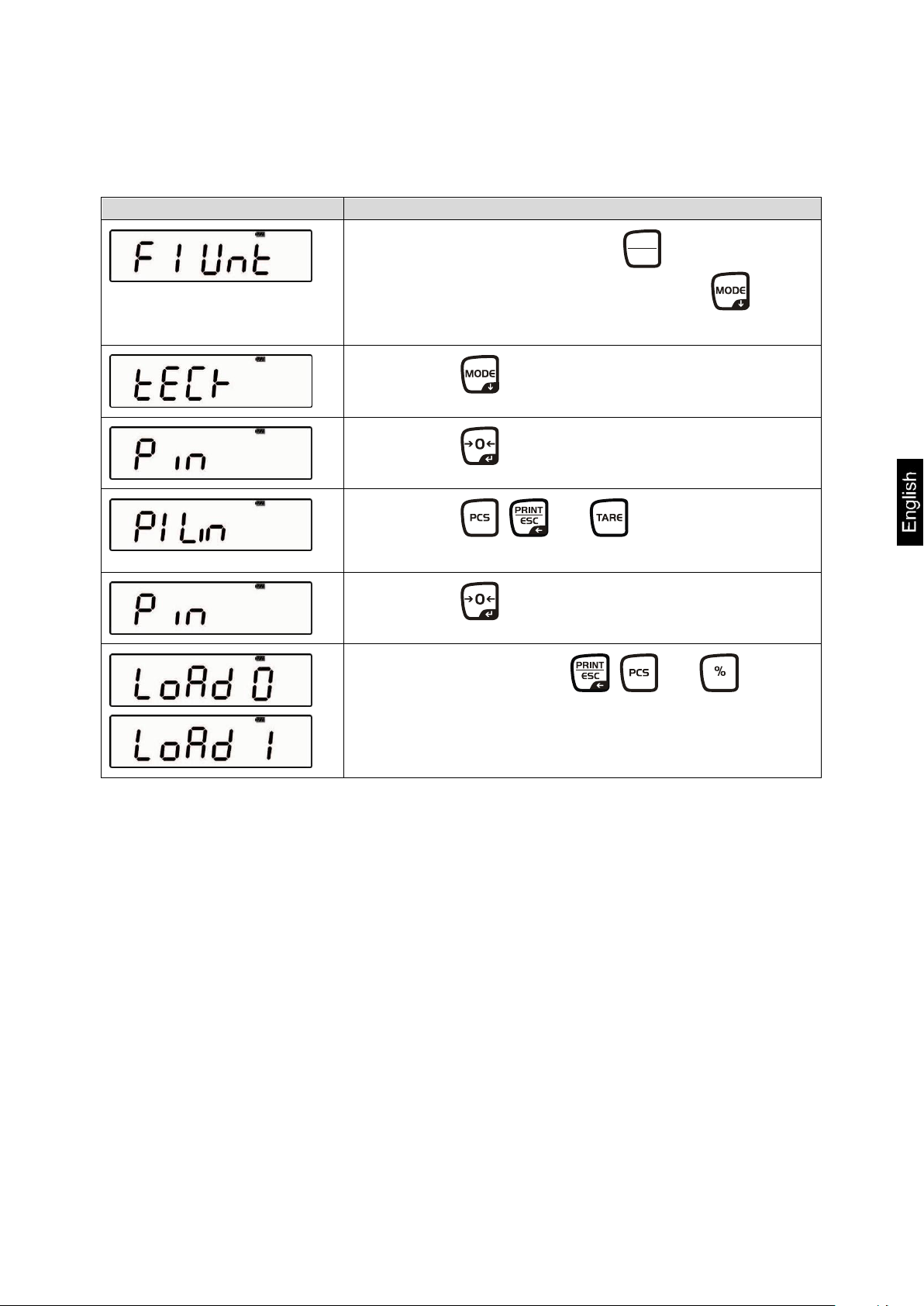

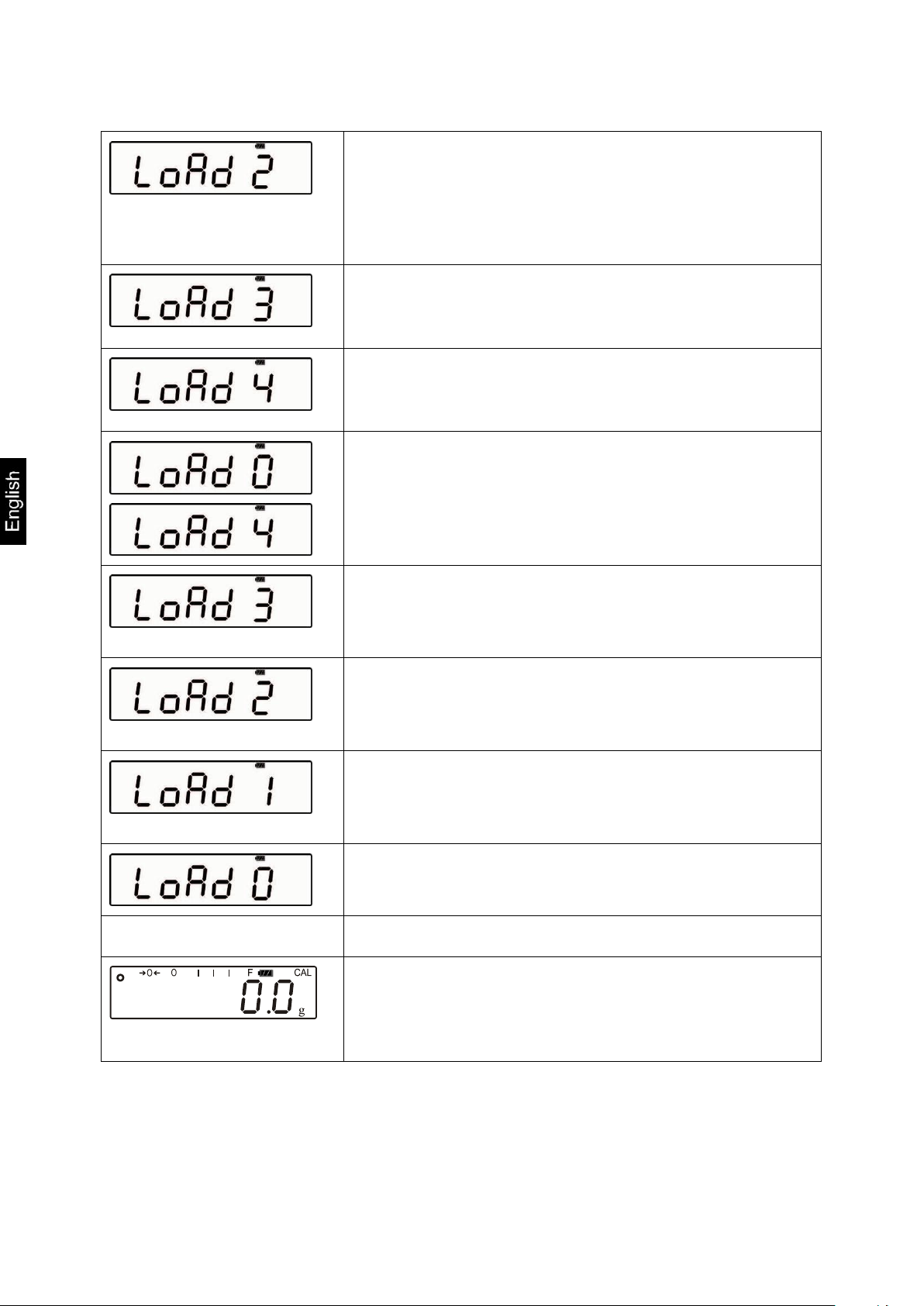

6.8 Linearization ............................................................................................................................. 16
6.8.1 Linearization non-verifiable models (low resolution) ................................................................ 17
6.8.2 Linearization of non verifiable models (low resolution) and verifiable models ......................... 19
6.8.3 Table Linearization points......................................................................................................... 20
6.9 Verification ................................................................................................................................ 21
6.10 Operation with second display unit PFB-A08 for open points of sale ...................................... 23
7 Controls ............................................................................................................ 25

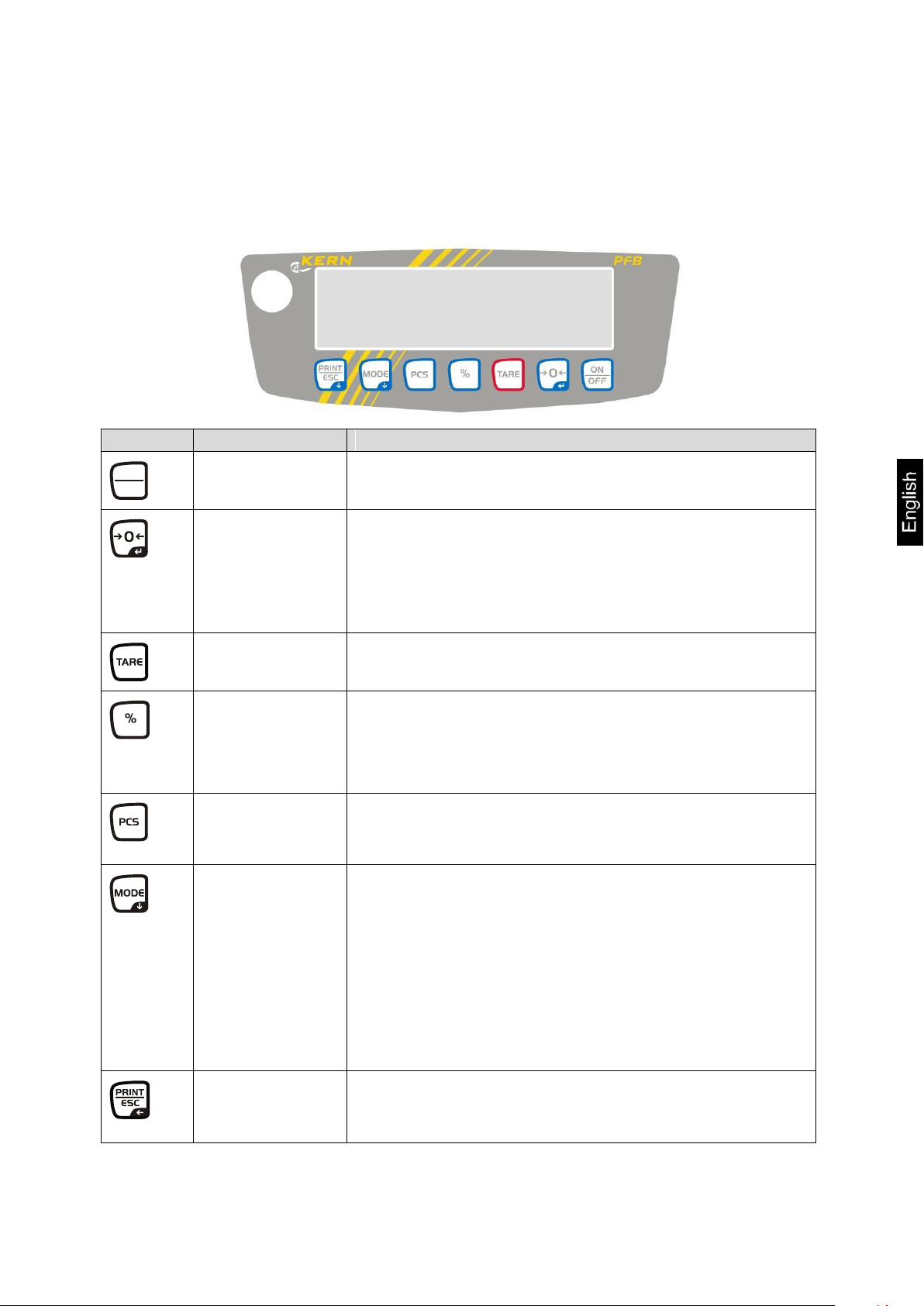

7.1 Keyboard overview ................................................................................................................... 25
7.2 Overview of display .................................................................................................................. 26
2 PFB-BA-e-1322
8 Operation ......................................................................................................... 27
8.1 Simple weighing ....................................................................................................................... 27
8.1.1 Non-verifiable models ............................................................................................................... 27
8.1.2 Models PFB-M .......................................................................................................................... 27
8.2 Taring ........................................................................................................................................ 28
8.2.1 Non-verifiable models ............................................................................................................... 28
8.2.2 Models PFB-M .......................................................................................................................... 29
8.3 Parts counting ........................................................................................................................... 30
8.3.1 Non-verifiable models ............................................................................................................... 30
8.3.2 Models PFB-M .......................................................................................................................... 31
8.4 Adding....................................................................................................................................... 32
8.4.1 Non-verifiable models ............................................................................................................... 32
8.4.2 Models PFB –M ........................................................................................................................ 33
8.5 Percent weighings .................................................................................................................... 35
8.5.1 Non-verifiable models ............................................................................................................... 35
8.5.2 Models PFB-M .......................................................................................................................... 36
9 The menu ......................................................................................................... 37
9.1 Menu map ................................................................................................................................. 37
9.2 Call up menu ............................................................................................................................ 37
9.3 Navigation in the menu ............................................................................................................. 37

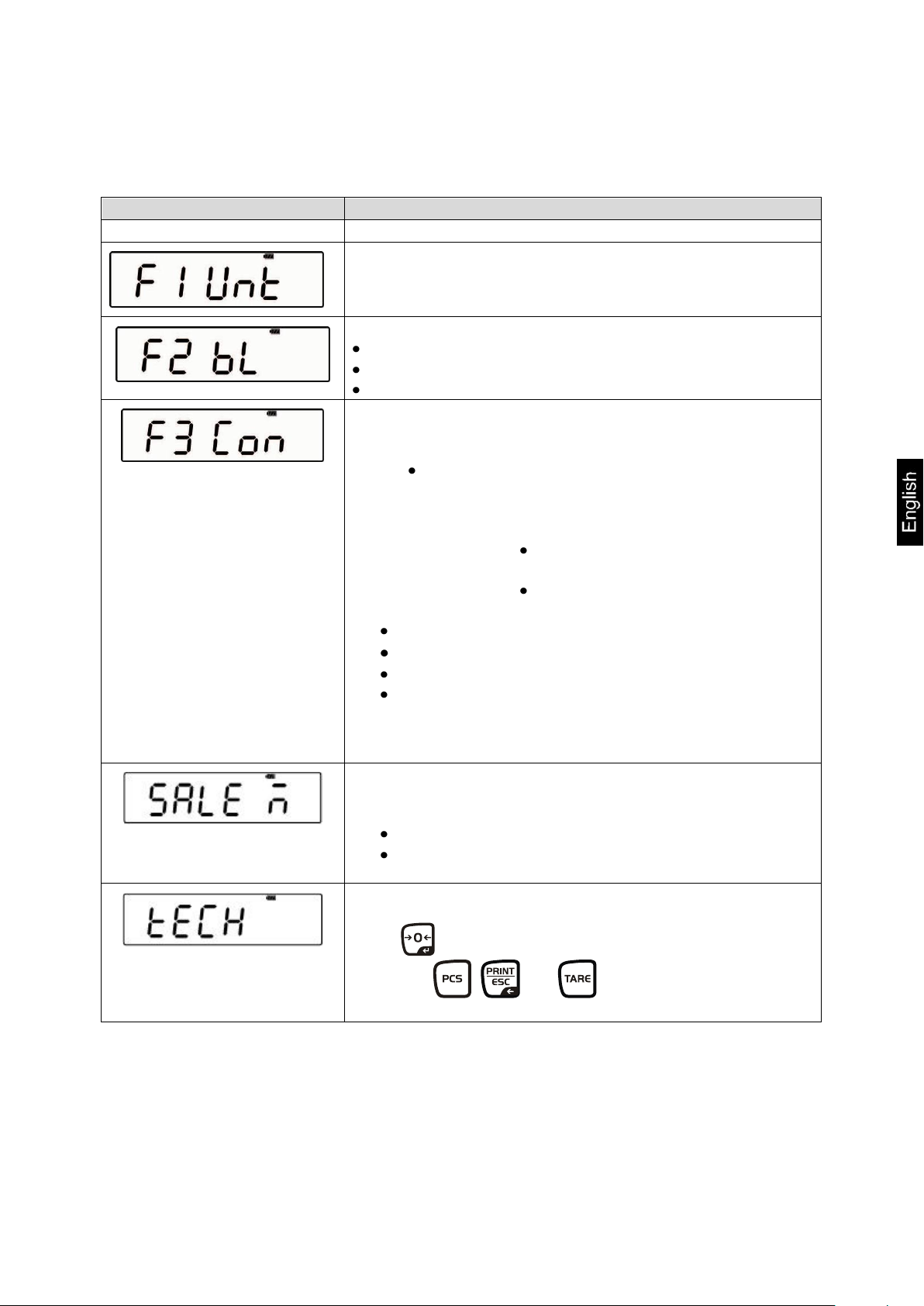

9.4 Menu overview non-verifiable models ...................................................................................... 37
9.5 Menu overview models PFB-M ................................................................................................ 39
9.6 Menu settings ........................................................................................................................... 41
9.6.1 Switch over weighing units (Unit) (only non-verifiable appliances) .......................................... 41
9.6.2 Display background illumination ............................................................................................... 42
9.6.3 Multi-Tare function (only models PFB-M) ................................................................................. 43
10 Data output RS232 ....................................................................................... 44
10.1 Technical data .......................................................................................................................... 44

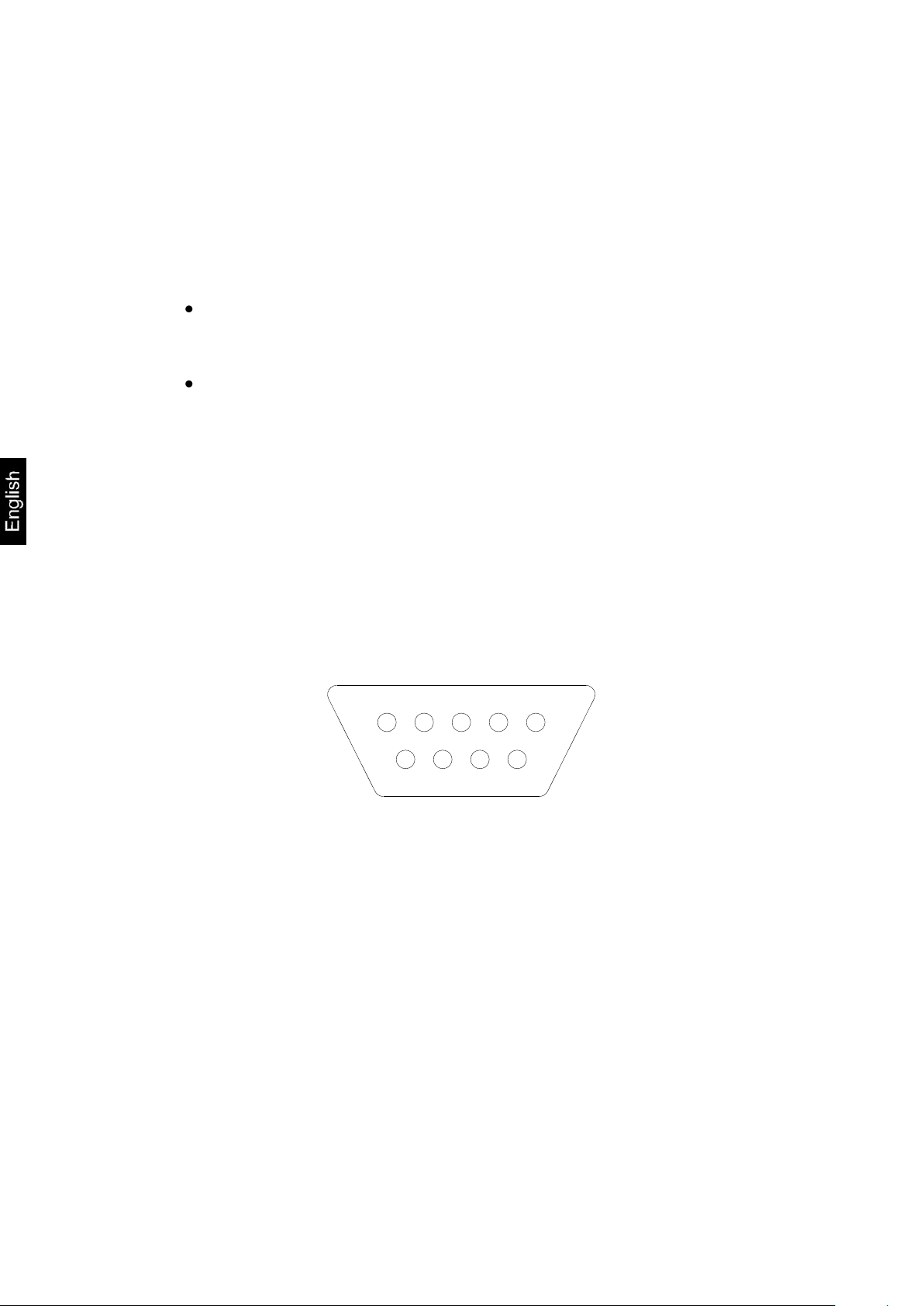

10.2 Pin allocation of balance output bushing: ................................................................................. 44
10.3 Printer operation - printout examples ....................................................................................... 45
10.4 Continuous data output ............................................................................................................ 46
10.5 Remote control instructions ...................................................................................................... 46
11 Error messages ............................................................................................ 46
12 Service, maintenance, disposal .................................................................. 47
12.1 Cleaning.................................................................................................................................... 47
12.2 Service, maintenance ............................................................................................................... 47
12.3 Disposal .................................................................................................................................... 47
13 Instant help ................................................................................................... 48
PFB-BA-e-1322 3
1 Technical Data
KERN
PFB 120-3
PFB 200-3
PFB 300-3
PFB 1200-2
Readability (d)
0.001 g
0.001 g
0.001 g
0.01 g
Weighing range (max)
120 g
200 g
300 g
1200 g
Reproducibility
0.001 g
0.001 g
0.001g
0.01 g
Linearity
±0.003 g
±0.003 g
±0.003 g
±0.03 g
Smallest part weight for parts counting
2 mg
2 mg
2 mg
20 mg
Reference quantities at parts counting
10, 20, 50, 100, 200
Weighing Units
g, ct, lb, oz, d, ozt, dwt, mo, tl h, tl c, tl t, t, bt, n
Recommended adjustment weight, not added (class)
100 g (F1)
200 g (F1)
300 g (F1)
1000 g (F1)
Warm-up time
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
200 x 257 x 152 (with draft shield)
200 x 257 x 87(without draft shield)
Draft shield (B x D x H) mm
158 x 143 x 64 (inside)
167 x 154 x 80 (outside)
Weighing plate, stainless steel (mm)
Ø 80
Ø 80
Ø 80
Ø 120
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
4 PFB-BA-e-1322
KERN
PFB 2000-2
PFB 3000-2
PFB 6000-1
PFB 6K0.05
Readability (d)
0.01 g
0.01 g
0.1 g
0.05 g
Weighing range (max)
2000 g
3000 g
6000 g
6000 g
Reproducibility
0.01 g
0.01 g
0.1 g
0.05 g
Linearity
±0.03 g
±0.03 g
± 0.3 g
± 0.15 g
Smallest part weight for parts counting
20 mg
20 mg
200 mg
200 mg
Reference quantities at parts counting
10, 20, 50, 100, 200
Weighing Units
g, ct, lb, oz, d, ozt, dwt, mo, tl h, tl c, tl t, t, bt, n
Recommended adjustment weight, not added (class)
2000 g (F1)
3000 g (F1)
5000 g (F1)
5000 g (F1)
Warm-up time
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
200 x 257 x 152
(with draft shield)
200 x 257 x 87
(without draft shield)
200x260x87
200x257x87
Draft shield (B x D x H) mm
158 x 143 x 64 (inside)
167 x 154 x 80 (outside)
-
-
Weighing plate, stainless steel (mm)
Ø 120
Ø 120
155 x 145
155 x 145
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
PFB-BA-e-1322 5
KERN
PFB 600-1M
PFB 600-2M
Readability (d)
0.1 g
0.01 g
Weighing range (max)
600 g
600 g
Reproducibility
0.1 g
0.01 g
Linearity
± 0.1 g
± 0.02 g
Verification value (e)
100 mg
100 mg
Verification class
II
II
Minimum load (Min)
Smallest part weight for parts counting
20 mg
20 mg
Reference quantities at parts counting
10, 20, 50, 100, 200
Weighing Units
g
g, ct
Recommended adjustment weight, not added (class)
600 g (F1)
600 g (F1)
Warm-up time
30 minutes
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
190 x 220 x 140
(with draft shield)
190 x 220 x 60
(without draft shield)
Draft shield (B x D x H) mm
158 x 143 x 64 (inside)
167 x 154 x 80 (outside)
Weighing plate, stainless steel (mm)
Ø 120
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
5 g 500 mg
6 PFB-BA-e-1322
KERN
PFB 6000-0M
PFB 6000-1M
Readability (d)
1 g
0.1 g
Weighing range (max)
6000 g
6000 g
Reproducibility
1 g
0.1 g
Linearity
± 1 g
± 0.3 g
Verification value (e)
1 g
1 g
Verification class
II
II
Minimum load (Min)
Smallest part weight for parts counting
200 mg
200 mg
Reference quantities at parts counting
10, 20, 50, 100, 200
Weighing Units
g
g, ct,
Recommended adjustment weight, not added (class)
6000 g (F1)
6000 g (F1)
Warm-up time
30 minutes
2 hours
Stabilization time (typical)
3 sec.
Operating temperature
+ 5° C .... + 35° C
Humidity of air
max. 80 % (not condensing)
Housing (B x D x H) mm
190 x 220 x 80
Weighing plate, stainless steel (mm)
155 x 145
Weight kg (net)
2 kg
Voltage
12 V / 500 mA
50 g 5 g
PFB-BA-e-1322 7
2 Declaration of conformity
KERN & Sohn GmbH
D-72322 Balingen-Frommern Postbox 4052 email: info@kern-sohn.de
Phone: 0049-[0]7433- 9933-0 Fax: 0049-[0]7433-9933-149 Internet: www.kern-sohn.de
D
Konformitäts­erklärung
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht, mit den nachstehenden Normen übereinstimmt.
GB
Declaration of conformity
We hereby declare that the product to which this declaration refers conforms to the following standards.
CZ
Prohlášení o
shode
Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu s níže uvedenými normami.
E
Declaración de conformidad
Manifestamos en la presente que el producto al que se refiere esta declaración está de acuerdo con las normas siguientes
F
Déclaration de conformité
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la présente déclaration, est conforme aux normes citées ci-après.
I
Dichiarazione di conformitá
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è conforme alle norme di seguito citate.
NL
Conformiteit­verklaring
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking heeft, met de hierna vermelde normen overeenstemt.
P
Declaração de conformidade
Declaramos por meio da presente que o produto no qual se refere esta declaração, corresponde às normas seguintes.
PL
Deklaracja
zgodności
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie dotyczy, jest zgodny z poniższymi normami.
RUS
Заявление о соответствии
Мы заявляем, что продукт, к которому относится данная декларация, соответствует перечисленным ниже нормам.
Mark applied
EU Directive
Standards
2004/108/EC EMC
EN 61000-6-1 :2007 EN 61000-6-3 :2007 EN 61000-3-3 : 1995+A1 :2001+A2 :2005 EN 61000-3-2 :2006
Date: 18.09.2008
Signature:
KERN & Sohn GmbH
Management
KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149
Declaration of conformity
EC-Konformitätserklärung EC-Declaration of -Conformity EC- Déclaration de conformité EC-Declaración de Conformidad EC-Dichiarazione di conformità EC-Conformiteitverklaring EC- Declaração de conformidade EC- Prohlášení o shode EC-Deklaracja zgodności EC-Заявление о соответствии
Electronic Balance: KERN PFB
8 PFB-BA-e-1322
3 Basic Information (General)
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing plate. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be displayed due to the “stability compensation“ in the balance. (Example: Slowly draining fluids from a container on the balance.) Do not leave permanent load on the weighing plate. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this. Never operate balance in explosive environment. The serial version is not explosion protected. The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance. The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored The appliance is used outside the described uses The appliance is modified or opened Mechanical damage and damage caused by media, liquids
Natural wear and tear The appliance is improperly set up or incorrectly electrically connected The measuring system is overloaded
PFB-BA-e-1322 9
3.4 Monitoring of Test Resources
Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances.
Versions in other languages are non-binding translations. The only binding version is the original document in German.
Keep all parts of the original packaging for a possibly required
return.
Only use original packaging for returning. Prior to dispatch disconnect all cables and remove loose/mobile
parts.
Reattach possibly supplied transport securing devices. Secure all parts such as the glass wind screen, the weighing
platform, power unit etc. against shifting and damage.
In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transportation & Storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
10 PFB-BA-e-1322
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
Place the balance on a firm, level surface; Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight; Protect the balance against direct draughts due to open windows and doors; Avoid jarring during weighing; Protect the balance against high humidity, vapors and dust; Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature. Avoid static charge of goods to be weighed or weighing container.
Major display deviations (incorrect weighing results) may be experienced should electromagnetic fields (e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove source of interference.
6.2 Unpacking
Carefully remove the balance from the packaging and setup balance at the intended workstation.
PFB-BA-e-1322 11
[1]
Remove the transportation lock [ 1 ] (PFB 120-3, PFB 200-3, PFB 300-3):
Balance Weighing plate Mains power supply Operating Manual Draft shield (only models PFB 120-3, PFB 200-3, PFB 300-3, PFB 600-1M, PFB
600-2M, PFB 1200-2, PFB 2000-2, PFB 3000-2)
6.2.1 Placing/ Remove the transportation lock
The balance must be installed in a way that the weighing plate is exactly in horizontal position.
6.2.2 Scope of delivery Serial accessories:
6.3 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use original KERN mains adapters. Using other makes requires consent by KERN.
6.4 Connection of peripheral devices
Before connecting or disconnecting of additional devices (printer, PC) to the data interface, always disconnect the balance from the power supply. With your balance, only use accessories and peripheral devices by KERN, as they are ideally tuned to your balance.
12 PFB-BA-e-1322
6.5 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. 1). During this warming up time the balance must be connected to the power supply (mains, accumulator or battery). The accuracy of the balance depends on the local acceleration of gravity. Strictly observe hints in chapter Adjustment.
6.6 Adjustment
As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.
6.7 Adjusting
The adjustment should be made with the recommended adjustment weight (see chap. 1 "Technical data").
PFB-BA-e-1322 13

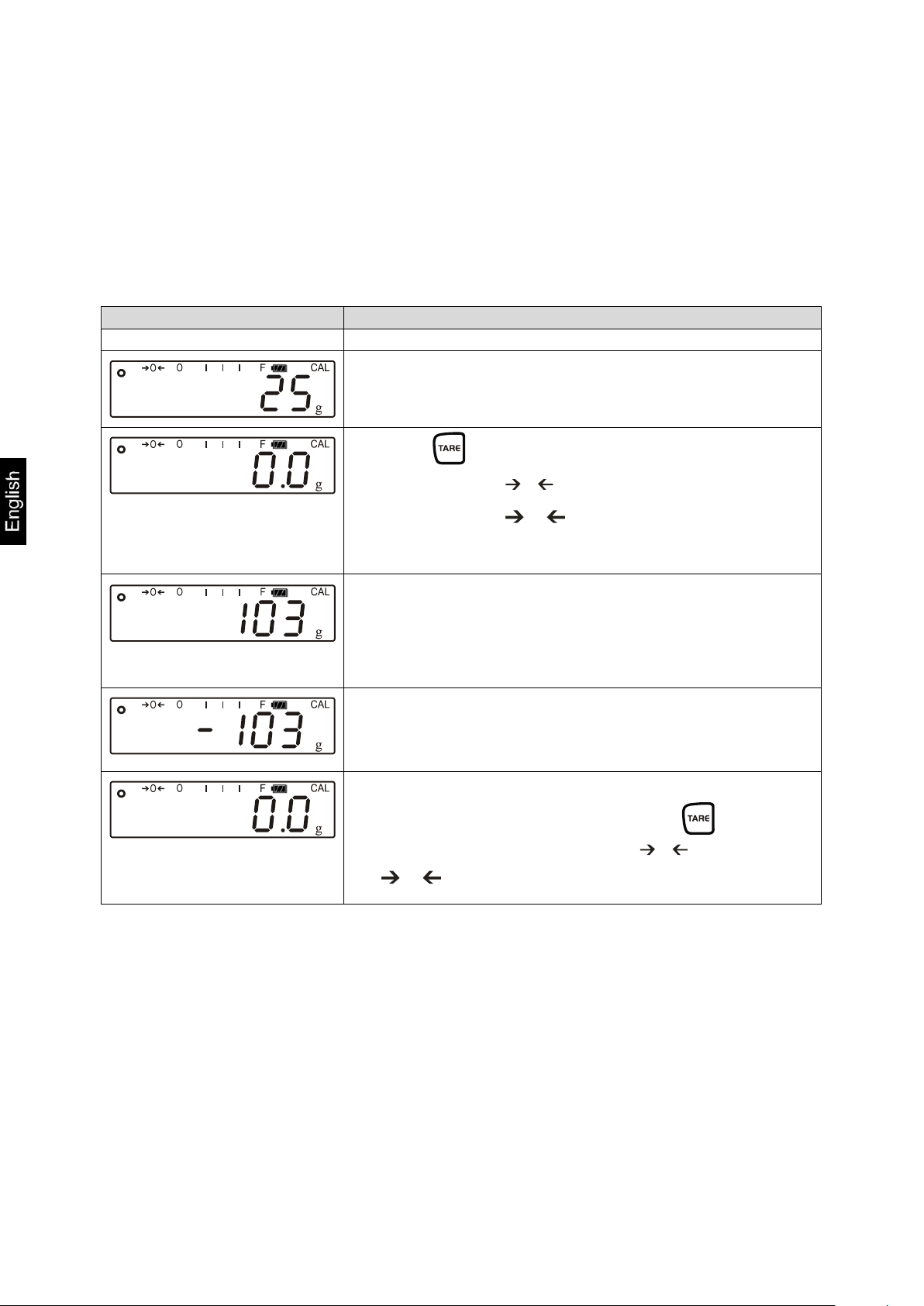

Balance display
Operation
In weighing mode press approx. 3 sec. until
„UnLoAd“ appears.
When display „LoAd“ appears, put the necessary
adjustment weight (see chap.1; Technical Data) on the center of the weighing plate.
Adjustment will be carried out automatically after dead stop control.
Wait for stability display

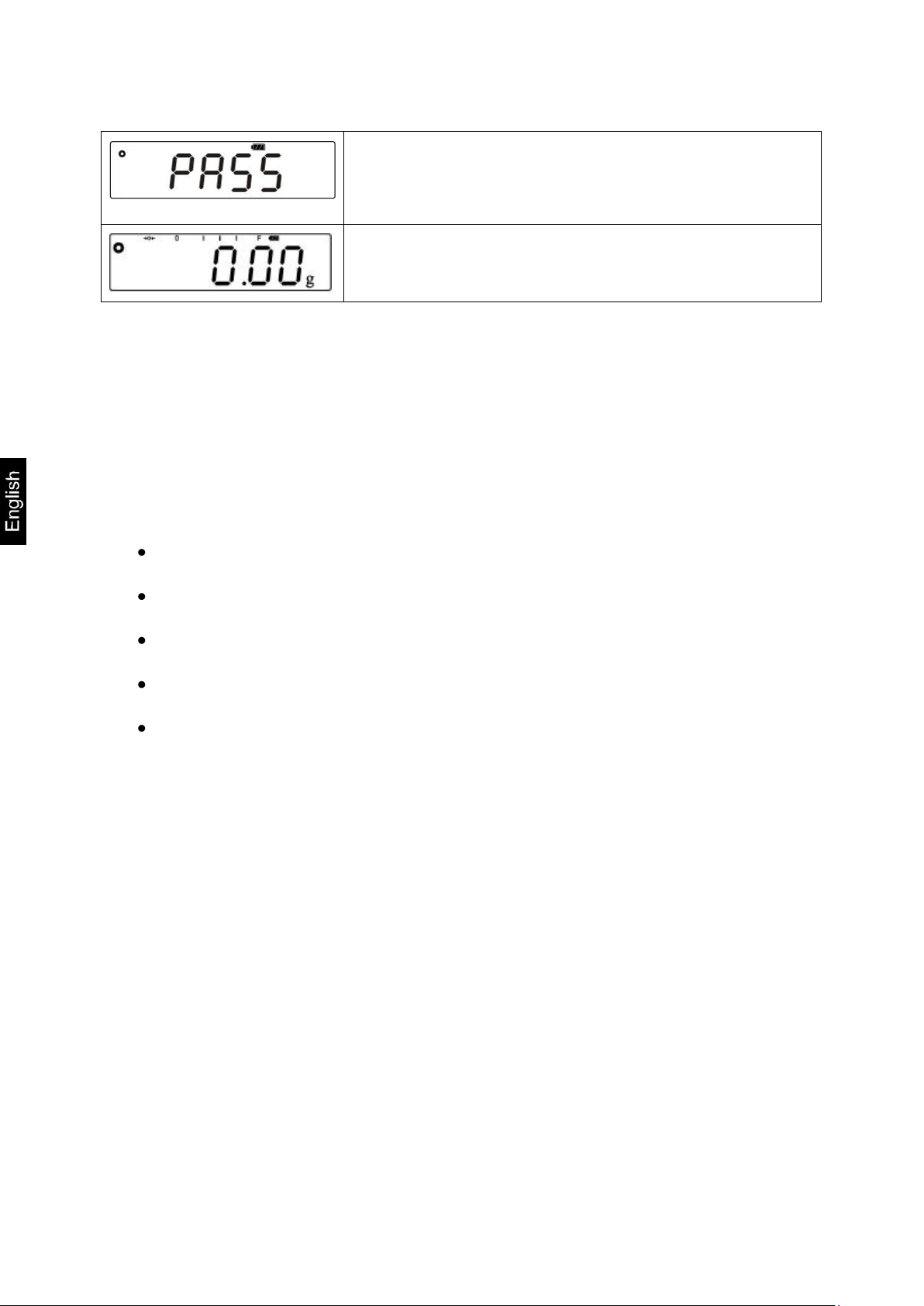

„Pass“ appears, the adjustment process has been
finished successfully.
Take away adjustment weight
Wait until the balance is again in the weighing mode.
6.7.1 Procedure when adjusting (non-verifiable models):
Observe stable environmental conditions. A warming up time (see chapter 1; Technical Data) is required for stabilization. Ensure that there are no objects on the weighing plate.
14 PFB-BA-e-1322
Balance display
Operation
Start balance by pressing During the
selftest press . F1 Unt“ is displayed.
Press repeatedly until „tECH“ is displayed
Press adjustment switch on the lower side of the balance!
Press , „Pin“ is displayed Enter password:
Press , , subsequently.
„P1 Lin“ is displayed
Press , „P2 CAL“ will be displayed
Press , „UnLoAd“ followed by „LoAd“ is
displayed.
Put the necessary adjustment weight (see
chap.1; Technical Data) on the centre of the weighing plate.
Adjustment will be carried out automatically after dead stop control.
Wait for stability display
6.7.2 Adjustment procedure (models PFB-M):
Observe stable environmental conditions. A warming up time (see chapter 1; Technical Data) is required for stabilization. Ensure that there are no objects on the weighing plate.
PFB-BA-e-1322 15
„Pass“ appears, the adjustment process has been finished successfully.
Remove adjusting weight during selftest
Wait until the balance is again in weighing mode.
6.8 Linearization
Linearity shows the greatest deviation of a weight display on the scale to the value of the respective test weight according to plus and minus over the entire weighing range. If linearity deviation is discovered during a testing instrument control, you can improve this by means of linearization.
In balances with a resolution of > 15 000 dividing steps carrying out a
linearization is recommended. Carrying out linearization is restricted to specialist staff possessing well
acquainted with the workings of weighing scales. The test weights to be used must be adapted to the weighing scale’s
specifications; see chapter “testing instruments control”. Observe stable environmental conditions. Stabilisation requires a certain
warm-up time. After successful linearization you will have to carry out calibration;
see chapter “testing instruments control”.
16 PFB-BA-e-1322
Balance display
Operation
Start balance by pressing
ON
OFF
Whilst the
balance carries out a self test, press until „F1 Unt“ appears
Press repeatedly until “tECH“ appears
Press , „Pin“ appears
Press , and successively, „P1
Lin“ appears
Press anew, „Pin“ appears again
Press successively , and , „LoAd
0“ appears; after the apparition of the stability display and the signal sound, „LoAd 1“ will be
displayed
6.8.1 Linearization non-verifiable models (low resolution)
PFB-BA-e-1322 17
Put on weight 1 (see table chap. 6.8.1) Wait for the stability display and the signal sound „LoAd 2“ appears Remove weight 1 and put on the weight 2
After the stability display and the signal sound
„LoAd 3“ appears; remove weight 2 and put on
weight 3
After the stability display and the signal sound
„LoAd 4“ appears; remove weight 3 and put on
weight 4
After having placed weight 4, „LoAd 0“ appears
again
Remove weight 4, „LoAd 4“ appears anew Place weight 4 again
Wait for the stability display and the signal
sound, „LoAd 3“ will be displayed
Remove weight 4 and place weight 3
Wait for the stability display and the signal
sound, „LoAd 2“ will be displayed
Remove weight 3 and place weight 2
Wait for the stability display and the signal
sound, „LoAd 1“ will be displayed
Remove weight 2 and place weight 1
Wait for the stability display and the signal sound „LoAd 0“ will be displayed
Remove weight 1
After the stability display and the signal sound
the balance carries out a selftest and changes into the weighing mode. Now the linearization is concluded successfully.
18 PFB-BA-e-1322
Balance display
Operation
Start balance by pressing
ON
OFF
. While the balance
carries out a self test, press until „F1 Unt“ appears
Press repeatedly until “tECH“ appears
In case of verifiable models press the adjustment switch on the lower side of the balance!
Press , „Pin“ appears
Press , and successively, „P1 Lin“
appears
Press anew, „Pin“ appears again
Press successively , and , „LoAd 0“
appears; after the apparition of the stability display and the signal sound, „LoAd 1“ will be displayed
Put on weight 1 (see table chap.6.8.1)
Wait for the stability display and the signal sound „LoAd 2“ appears Remove weight 1 and put on the weight 2
After the stability display and the signal sound „LoAd
3“ appears; remove weight 2 and put on weight 3
After the stability display and the signal sound the
balance carries out a selftest. Remove the weight during selftest. The balance changes into weighing mode. Now the linearization is concluded successfully.
6.8.2 Linearization of non verifiable models (low resolution) and verifiable models
PFB-BA-e-1322 19
Max
Weight 1
Weight 2
Weight 3
Weight 4
120 g
30 g
60 g
90 g
120 g
200 g
50 g
100 g
150 g
200 g
300 g
50 g
100 g
200 g
300 g
1200 g
300 g
600 g
900 g
1200 g
2000 g
500 g
1000 g
1500 g
2000 g
3000 g
0.5 kg
1 kg
2 kg
3 kg
6000 g
1 kg
2 kg
4 kg
6 kg
Max
Load 0
Load 1
(weight 1)
Load 2
(weight 2)
Load 3
(weight 3)
600 g
0 g
200 g
400 g
600 g
6000 g
0 g
2000 g
4000 g
6000 g
6.8.3 Table Linearization points
Non-verifiable models:
Models PFB-M:
20 PFB-BA-e-1322
Verification of the balance is invalid without the seal.
The seal marks attached on balances with type approval point out that the balance may only be opened and serviced by trained and authorised specialist staff. If the seal mark is destroyed, verification looses its validity. Please observe all national laws and legal regulations. In Germany a re­verification will be necessary.
6.9 Verification
General introduction:
According to EU directive 90/384/EEC or 2009/23EG balances must be officially verified if they are used as follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing. b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory.
c) For official purposes d) For manufacturing final packages
In cases of doubt, please contact your local trade in standard. Verification notes:
An EU type approval exists for balances described in their technical data as verifiable. If a balance is used where obligation to verify exists as described above, it must be verified and re-verified at regular intervals. Re-verification of a balance is carried out according to the respective national regulations. The validity for verification of balances in Germany is e.g. 2 years. The legal regulation of the country where the balance is used must be observed!
PFB-BA-e-1322 21
Position of seals and adjusting switch:
1. Adjustment switch
2. Plastic disk to cover the adjustment switch
3. Self-destroying seal mark
4. Self-destroying seal mark
22 PFB-BA-e-1322
The second display unit is exclusively suitable for the connection to KERN balances.
Adjust the Sale mode: Setting „SALE Y“ = 6000 e
The totalizing function is not available Only the weighing unit Gram is available
Start balance by pressing
ON
OFF
. While the
balance carries out a self test, press until „F1 Unt“ appears
Press repeatedly until „SALE n“ is
displayed
Press adjustment switch on the lower side of the balance!
Press
Press , „SALE Y“ is displayed
Confirm setting by
The balance changes automatically into weighing mode thus being limited to max. 6000e.
6.10 Operation with second display unit PFB-A08 for open points of sale
For the use in open points of sale, operation with a second display unit is required. In the models PFB 600-1M and PFB 6000-0M this (PFB-A08) is already existing.
For configuration proceed as follows:
First adjust on the balance the following:
In the menu select menu item „F3 Con“ and adjust the continuous printed
output „P Cont“
Moreover set the baud rate to „9600“
PFB-BA-e-1322 23
Switch off Sale mode: Setting „SALE n“ = 6000 e or 60000 d
The totalizing function is available The weighing units gram and carat are available
Start balance by pressing
ON
OFF
. While the
balance carries out a self test, press until „F1 Unt“ appears
Press repeatedly until „SALE n“ is
displayed
Press adjustment switch on the lower side of the balance!
(when „SALE n“ is not displayed, press )
Confirm setting by
The balance changes automatically into weighing mode and thus will be adjusted for 6000 e or 60000 d.
Connect the second display to the balance via the delivered connecting cable Now the balance can be controlled via the second display:
Press to switch on or off only the second display
Reset balance and second display to zero by
Tare balance and second display to zero by
24 PFB-BA-e-1322
Key
Designation
Pressed once and released
ON
OFF
[ON/OFF]
Turn on/off
[ZERO]
Set weight display at zero Activate the current element in the menu Select in Weighing units (menu F UNIT):
change to the next unit
[TARE]
Taring
[%]
Call-up %-function In the percent mode back to weighing mode Only % function
[PCS]
Call-up parts counting mode In the piece count mode back to weighing mode
[MODE]
Weighing units switch-over; At weighing unit switch-over (menu „F UNIT“):
Set weighing unit on/off
Counting up in parts counting mode Select menu and pass through menu items
from top to bottom
Changing readability
[PRINT/ESC]
Print out weighing result Exit menu (jumping back to weighing mode)
7 Controls
7.1 Keyboard overview
Buttons specification:
PFB-BA-e-1322 25
7.2 Overview of display
Display
Description
g
Gram
kg
Kilogram
0
Zeroing display
T
Taring
ο
Stability display
Pcs
Display for parts counting
%
Percent weighing display
Display for tolerance weighing
(mom)
Momme
CAL
Display for adjustment. Signals the adjustment function
Bar graph
Weight unit display
g (Gramm) (ct) Carat (oz) Ounce (ozt) Fine ounce (d) Dram (dwt) Penny weight (tl.h) Tael (Taiwan) (tl.c) Tael (Chin.) (t.lt) Troy Tael (t) Tola
In models PFB-M only g available
26 PFB-BA-e-1322
8 Operation
Balance display
Operation
Start balance by pressing
ON
OFF
The balance will carry out a self-test. Wait for „0.0“ display
Should the balance not display exactly „0.0
despite empty scale pan, press the button. The balance starts with resetting to „0
Place goods to be weighed on balance
Wait until the stability display appears [ ] . Read weighing result.
To switch off the balance press shortly
ON
OFF
.
Balance display
Operation
Start balance by pressing
ON
OFF
The balance will carry out a self-test. Wait for „0.0 display
(example)
Should the balance not display exactly „0.0
despite empty scale pan, press the button. The balance starts with resetting to „0
Place goods to be weighed on balance.
Wait until the stability display appears [ ] . Read weighing result.
To switch off the balance press shortly
ON
OFF
.
8.1 Simple weighing
8.1.1 Non-verifiable models
8.1.2 Models PFB-M
PFB-BA-e-1322 27
8.2 Taring
Balance display
Operation
Deposit weighing receptacles.
The weight of the container is displayed.
Press , the zero display appears.
The pictogram
T
is displayed.
The pictogram
O
goes out.
The weight of the container is now internally saved.
Place goods to be weighed in the weighing
container. The net weight of the goods to be weighed is
displayed.
The weight of the weighing container will be
displayed as a minus number after removing the weighing container.
The tare weight is saved until it is deleted. Remove
the load from the balance and press . The zero display appears, the pictogram
T
goes out and
O
will be displayed again.
The dead weight of any weighing container may be tared away by pressing a button, so that the following weighings show the net weight of the goods to be weighed.
8.2.1 Non-verifiable models
28 PFB-BA-e-1322
Balance display
Operation
(example)
Put on weighing container.
The weight of the container is displayed.
Press , the zero display appears.
The pictogram NET is displayed. The pictogram
O
goes out.
The weight of the container is now internally saved.
Place goods to be weighed in the weighing
container. The net weight of the goods to be weighed is
displayed.
The weight of the weighing container will be
displayed as a minus number after removing the weighing container.
The tare weight is saved until it is deleted. Remove
the load from the balance and press . The zero display appears, the pictogram NET goes out and
O
will be displayed again.
8.2.2 Models PFB-M
PFB-BA-e-1322 29
8.3 Parts counting
The higher the reference quantity the higher the counting exactness.
Balance display
Operation
Start balance by pressing
ON
OFF
The balance will carry out a self-test. Wait for „0.0“ display.
Press
Appears the reference quantity „10“. By pressing the key several times, the
reference quantities 10, 20, 50, 100, 200 can be set
Place as many parts to count on the weighing plate
as the set reference quantity requires.
Confirm by pressing
(Example)
The balance is now in parts counting mode and counts all units on the weighing plate.
Press
The balance is in weighing mode and displays the weight of the counted parts.
Remove the load
Back to weighing mode by pressing again the
button.
Before the balance can count parts, it must know the average part weight (i.e. reference). Proceed by putting on a certain number of the parts to be counted. The balance determines the total weight and divides it by the number of parts (the so­called reference quantity). Counting is then carried out on the basis of the calculated average piece weight.
8.3.1 Non-verifiable models
30 PFB-BA-e-1322
Balance display
Operation
Start balance by pressing
ON
OFF
The balance will carry out a self-test. Wait for „0.0“ display.
Press .
Appears the reference quantity „10
By pressing the key several times, the reference quantities 10, 20, 50, 100, 200 can be set.
(example)
Place as many parts to count on the weighing plate
as the set reference quantity requires.
Confirm by pressing The balance is now in parts counting mode and counts
all units on the weighing plate.
Press .
The balance is in weighing mode and displays the weight of the counted parts.
Remove the counted parts
Press , the balance goes to weighing mode
8.3.2 Models PFB-M
PFB-BA-e-1322 31

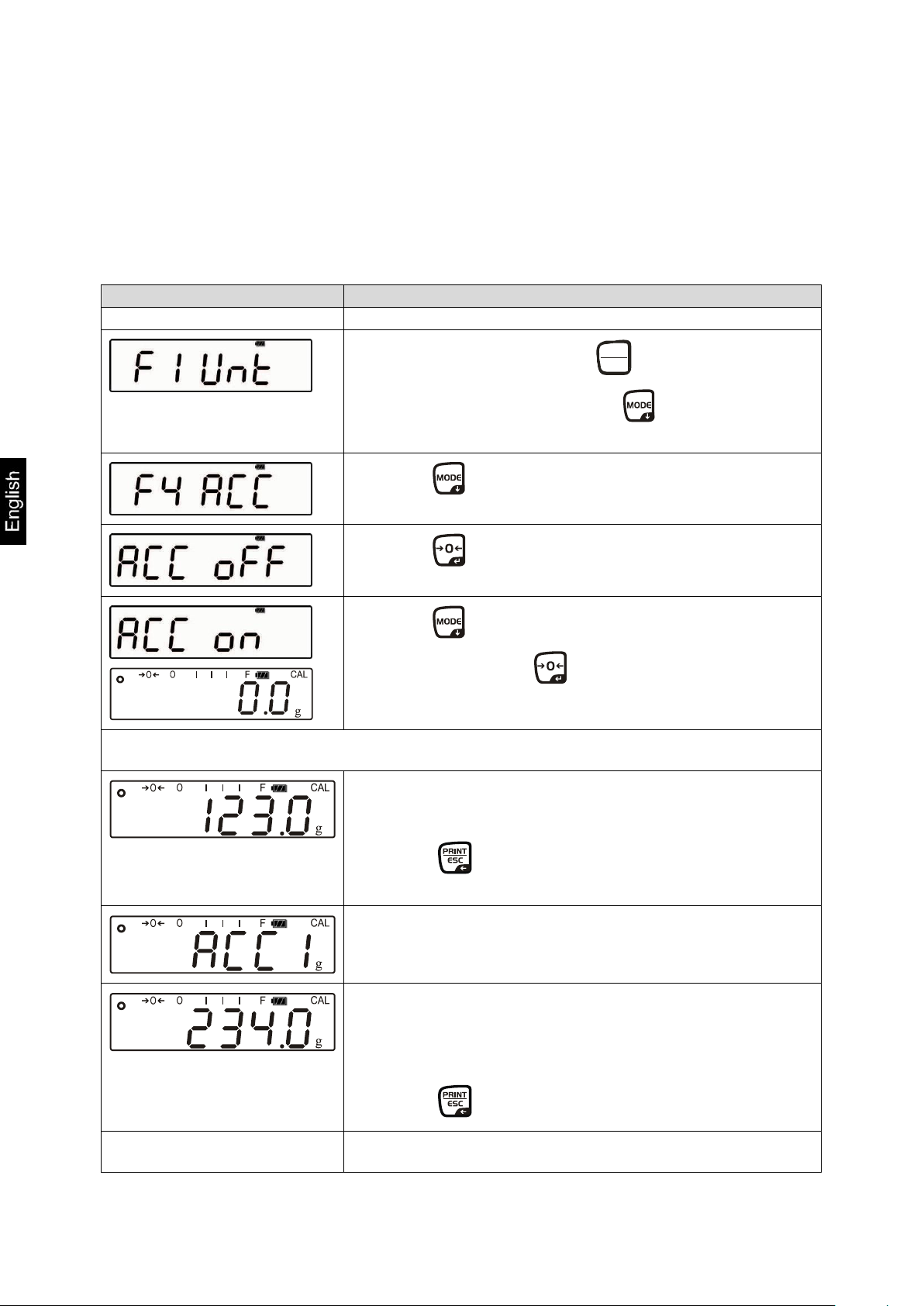

8.4 Adding
Balance display
Operation
Start balance by pressing
ON
OFF
Whilst the balance is
carrying out a selftest, press . F1 Unt appears,
Press repeatedly until „F4 ACC“ appears
Press , „ACC oFF“ appears
Press button to adjust „ACC on“
Acknowledge with button and press
Print to return into weighing mode
(example)
Put on the first sample The weight of the first sample is displayed
Press
ACC 1“ is shortly displayed, then appears once more
the weight of the first test item.
(example)
Remove the first sample Put on the second sample
The weight of the second sample is displayed.
Press
ACC 2“ is shortly displayed
It is useful, when a mixture of various components is weighed in a tare container and finally for control purposes the sum weight of all weighed components is required.
8.4.1 Non-verifiable models
32 PFB-BA-e-1322
Then appears for 2 seconds the weight of both test items, before the weight of the second test item will appear again.
With the further samples proceed as described above.
In order to display the total weight of the samples, remove weight from the weighing plate, wait for the zero display and press . The number of weighing actions and
the total weight of the samples will be displayed shortly.
The totalizing function is not available in sale mode.
Balance display
Operation
Start balance by pressing
ON
OFF
.
The balance will carry out a self-test. Wait for „0.0“ display.
(example)
Put on the first sample The weight of the first sample is displayed.
Press , „ACC 1“ is shortly displayed, then
appears once more the weight of the sample which now is stored.
Remove the first sample and put on the second one.
The weight of the second sample is displayed.
8.4.2 Models PFB –M
PFB-BA-e-1322 33

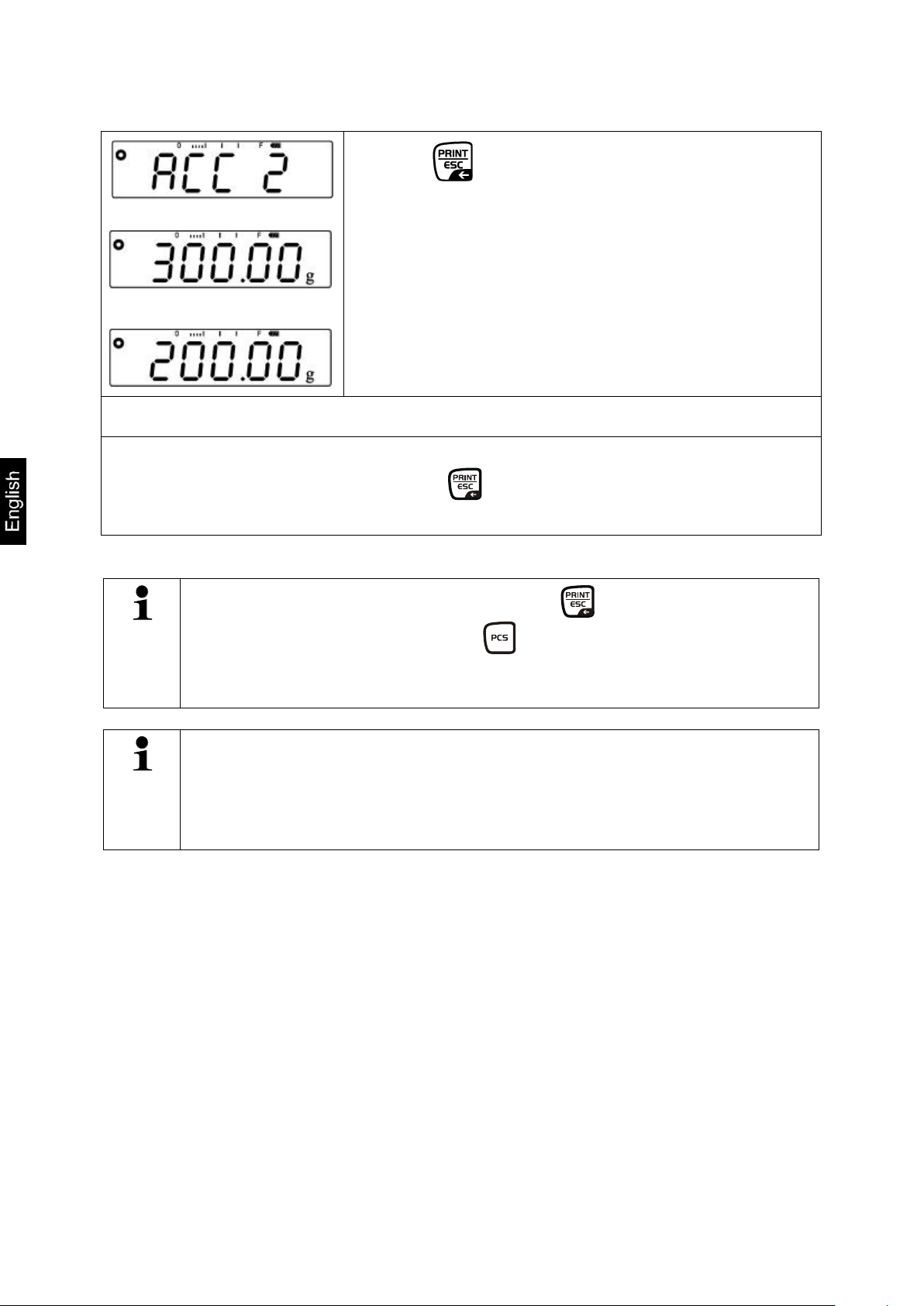

Press , „ACC 2“ is shortly displayed, then
appears shortly the total weight and then the weight of the second sample which now is also stored.
With the further samples proceed as described above.
In order to display the total weight of the samples, remove weight from the weighing plate, wait for the zero display and press . The number of weighing actions and
the total weight of the samples will be displayed shortly.
In order to delete the stored values, press and while the sum of the test items is displayed, press , the balance will return to
„0.0 g“.
The two following items limit the totalizing process:
1. Totalizing max. 99 times
2. Number of digits displayed
34 PFB-BA-e-1322
8.5 Percent weighings
Balance display
Operation
Start balance by pressing
ON
OFF
The balance will carry out a self-test. Wait for the „0.0 g“ display.
Put a reference weight on the weighing plate, which
corresponds to 100%
Press
In the display appears „100.00%
Remove reference weight
The display returns to „0.0 %
Put on specimen
In the display appears the percentage of the specimen with reference to the reference weight.
Back to weighing mode by pressing again the
button.
Percent weighing allows to display weight in percent, in relation to a reference weight. Percent weighing allows to display weight in percent, in relation to a reference
weight.
8.5.1 Non-verifiable models
PFB-BA-e-1322 35
Balance display
Operation
Start balance by pressing
ON
OFF
.
The balance will carry out a self-test. Wait for the „0.0 g“ display.
Put a reference weight on the weighing plate, which
corresponds to 100%
(example)
Press
In the display appears „100.00%
Remove reference weight
The display returns to „0.0 %
Put on specimen
In the display appears the percentage of the specimen with reference to the reference weight.
Back to weighing mode by pressing again the
button.
8.5.2 Models PFB-M
36 PFB-BA-e-1322
Key
Direction in the menu
Description
Select menu and pass through menu items from top to bottom
Select current element
Exit the current element, return to weighing mode
Balance display
Operation
Selection of weighing units
Background lighting on/automatic/off
EL on: Background lighting on EL Au: Background lighting switches on
automatically
EL off: Background lighting off
9 The menu
9.1 Menu map
In the menu can be made 8 different settings and the adjustment.
9.2 Call up menu
The menu is called-up by pressing the key, while the balance is carrying out the self test. In the display appears the message „F1 UNT“
9.3 Navigation in the menu
9.4 Menu overview non-verifiable models
PFB-BA-e-1322 37
RS -232 interface
S 232:
P Prt: connect with printer
b XXXX: Baud rate can be selected
between 9600, 600, 1200, 2400, 4800
LP-50: not documented
EnG: Selection of Language
English
Chi: Selection of Language
Chinese
tP: Standard printer setting P Cont: Continuous printout P AUto: autom. Printout P ASk: Data output via remote control commands
S USb: not documented
Adding (see chap. 8.4):
ACC of: Adding disabled ACC on: Adding enabled
Press :
Pin: Press , and successively, „P1 Lin“ appears
P1 Lin
Linearization (see chapter 6.8)
P2 CAL
Not documented
P3 Cont
P4 AZn
P5 GrA
P6 CAP
38 PFB-BA-e-1322
Balance display
Operation
Not available
Background lighting on/automatic/off
EL on: background lighting on EL Au: background lighting switches on automatically EL off: background lighting off
RS -232 interface S 232:
P Prt: connect with printer
b XXXX: Baud rate can be selected
between 9600, 600, 1200, 2400, 4800
LP-50: not documented
EnG: selection of language
English
Chi: selection of language Chinese
tP: standard printer setting
P Cont: continuous printout
P AUto: autom. printout
Wireless P ASk: data output via control remote commands
S USb: not documented
SALE n: Second display
Press adjusting switch!
SALE Y: Sale mode enabled (6000 e) SALE n: Sale mode not enabled (6000e or
60000d)
Press adjusting switch!
Press :
Pin: press , and successively, „P1 Lin“ appears
9.5 Menu overview models PFB-M
PFB-BA-e-1322 39
P1 Lin
Linearization (see chap. 6.8)
P2 CAL
Not documented
P3 Cont
P4 AZn
P5 GrA
P6 CAP
P7 SPd
P8 5-t
Multi-Tare function:
St on: Multi-Tare ON St oFF: Multi-Tare OFF
40 PFB-BA-e-1322
Balance display
Operation
Start balance by pressing
ON
OFF
As long as the balance carries out a self test, press
.
F1 Unt“ is displayed.
(Example)
Press Weighing unit is switched on or off.
Use to switch weighing unit on or off
Using change to the next unit.
9.6 Menu settings
9.6.1 Switch over weighing units (Unit) (only non-verifiable appliances)
The weighing units are switched on or off via the menu.
Activate function:
Switch-over weighing unit:
By pressing the key in the weighing mode it is possible to switch over between the activated units.
PFB-BA-e-1322 41
9.6.2 Display background illumination
Balance display
Operation
or
(models PFB-M)
Start balance by pressing
ON
OFF
As long as the balance carries out a self test, press
.
F1 Unt“ is displayed.
Press F2 bL“ is displayed.
(Example)
Press EL on“ or „EL off“ resp. „EL AU“ is displayed
Press to switch over between the three settings
Press to activate the displayed setting.
Display
Adjustment
Function
„EL on“
Background illumination on
Contrastful display which can also be red in the darkness.
„EL off“
Background illumination off
Battery saving
„EL AU“
The background illumination will be switched off automatically 10 sec after having reached a stable weighing value.
Battery saving
In the menu the display background illumination can be switched on or off. To achieve this, follow the sequence of operations below:
42 PFB-BA-e-1322
Balance display
Operation
Start balance by pressing
ON
OFF
.
While the balance carries out a self test, press .
F1 Unt“ is displayed.  Press repeatedly until „tECH“ is displayed
Press adjusting switch!
Press , „Pin“ is displayed
Enter password using the buttons , and
successively, „P1 Lin“ is displayed
Press repeatedly until „P8 5-t“ is displayed
Press , „St on“ is displayed
(if „St on“ is not displayed, press )
Press again, the Multi-Tare function is now
enabled.
Return to weighing mode using
9.6.3 Multi-Tare function (only models PFB-M)
The balance can be tared several times successively. For that make in the menu the following setting:
PFB-BA-e-1322 43
Pin 2 input Pin 3 output Pin 5 signal earth
10 Data output RS232
You can print out weighing data via the RS 232C interface.
The following conditions must be met to provide successful communication between the weighing balance and the printer.
Use a suitable cable to connect the weighing balance to the interface of
the printer. Faultless operation requires an adequate KERN interface cable.
Communication parameters (baud rate, bits and parity) of balance and
printer must match.
10.1 Technical data
Connection 9 pin d-subminiature bushing Baud rate 9600 Parity 8 bits, no parity
10.2 Pin allocation of balance output bushing:
5 1
9 6
44 PFB-BA-e-1322
8.65 g
Gross weight
PCS:
10 pcs
Reference quantity
UW:
0.861 g
Individual weight
8.61 g
1:
35.07 g N
First weighing
2:
8.62 g N
Second weighing
3:
8.00 g N
Third weighing
1-3:
51.69 g N
Total of all individual weighings
PERC:
30,19 %
Weight value in percent
Please note that negative values cannot been edited via the interface!
10.3 Printer operation - printout examples
Standard printout “weighing data“
G:
Printout parts counting
G:
Printout adding
Printout percent
Gross weight
PFB-BA-e-1322 45
,
-/U k g CR
LF
T
Function:
Tare balance
Z
Function:
Set balance to zero
W
Function:
Weighing value for the weight (stable or unstable) is sent via the RS232 interface
S
Function:
Stable weighing value for the weight is sent via the RS232 interface
P
Function:
In counting mode the number of the pieces to be counted is displayed in „Pcs“
Err 3
Incorrect adjusting weight
Put on correct adjustment weight (see chap. 1; Technical Data
Err 4
Zero range exceeded
Remove load and press to reset balance to zero.
Err 5
Keyboard error
Inadmissible input
Err 6
Electronic error
Switch balance off and on again. If the error message remains displayed, please contact your dealer.
Transportation lock
Remove the transportation lock
10.4 Continuous data output
-Header 1- -Header 2- -- Weighing data -- Weighing unit Final character
Head line 1: ST=stable, US=instable Head line 2: NT=net, GS=gross
10.5 Remote control instructions
The remote control commands are sent from the remote control unit to the balance as ASCII code. After the balance having received the s/w/t commands, it will send the following data.
11 Error messages
46 PFB-BA-e-1322
12 Service, maintenance, disposal
12.1 Cleaning
Before cleaning, please disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device and wipe with a dry soft cloth. Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner.
Spilled weighing goods must be removed immediately.
12.2 Service, maintenance
The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply.
12.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
PFB-BA-e-1322 47
13 Instant help
Fault
Possible cause
The displayed weight does not glow.
The balance is not switched on. The mains supply connection has been interrupted
(mains cable not plugged in/faulty). Power supply interrupted. (Rechargeable) batteries are inserted incorrectly or
empty No (rechargeable) batteries inserted.
The displayed weight is permanently changing
Draught/air movement Table/floor vibrations Weighing plate has contact with other objects. Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
The weighing result is obviously incorrect
The display of the balance is not at zero Adjustment is no longer correct. Great fluctuations in temperature. Warm-up time was ignored. Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.
Help:
Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer.
48 PFB-BA-e-1322
Loading...
