KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Operating manual
Platform balance
KERN ILJ-C/ILS-C
Version 2.0
10/2013
GB
ILJ-C/ILS-C-BA-e-1320
2 ILJ-C/ILS-C-BA-e-1320
GB
KERN ILJ-C/ILS-C
Version 2.0 11/2013
Operating manual
Platform balance
Contents
1 Technical data ................................................................................................... 5
1.1 Dimensions ............................................................................................................................... 7
2 Appliance overview ........................................................................................... 8
2.1 Display and Keyboard Summary ............................................................................................ 9
2.1.1 Navigation buttons / numeric input ....................................................................................... 11
3 Basic instructions ........................................................................................... 12
3.1 Proper use ............................................................................................................................... 12
3.2 Improper Use .......................................................................................................................... 12
3.3 Warranty .................................................................................................................................. 12
3.4 Monitoring of Test Resources ............................................................................................... 13
4 Basic Safety Precautions ................................................................................ 13
4.1 Pay attention to the instructions in the Operation Manual ................................................ 13
4.2 Personnel training .................................................................................................................. 13
5 Transport and storage .................................................................................... 13
5.1 Testing upon acceptance ...................................................................................................... 13
5.2 Packaging / return transport ................................................................................................. 13
6 Unpacking, Setup and Commissioning ......................................................... 14
6.1 Installation Site, Location of Use .......................................................................................... 14
6.2 Unpacking and checking ....................................................................................................... 14
6.3 Placing ..................................................................................................................................... 15
6.4 Mains connection ................................................................................................................... 16
6.4.1 Turning On the Power .......................................................................................................... 16
6.5 Connection of peripheral devices ......................................................................................... 16
6.6 Initial Commissioning ............................................................................................................ 16
7 Adjustment ....................................................................................................... 17
7.1 Automatic adjustment using internal weight (ILJ-C only) .................................................. 18
7.2 Menu settings ......................................................................................................................... 19
7.2.1 P1.1 INT.JUST. – Internal adjustment (models ILJ-C only) ................................................. 19
7.2.2 P1.2 EXT.JUST.- External adjustment (ILS only) ................................................................ 20
7.2.3 P1.3 BE.JUST. User adjustment (model ILS-C only) .......................................................... 21
7.2.4 P1.4 TEST JUST. – Adjustment report (models ILJ-C only) ................................................ 22
7.2.5 Printing adjustment reports .................................................................................................. 23
7.3 Verification .............................................................................................................................. 24
ILJ-C/ILS-C-BA-e-1320 3
8 Menu ................................................................................................................. 26
8.1 Navigation in the menu .......................................................................................................... 26
8.2 Menu overview ........................................................................................................................ 27
8.3 Exit menu / back to weighing mode ..................................................................................... 31
9 Entry by navigation keys ................................................................................ 32
10 User ............................................................................................................... 33
10.1 Login/logout ............................................................................................................................ 33
10.2 Authorisation levels ............................................................................................................... 34
11 Weighing ....................................................................................................... 35
11.1 Switch on-off balance ............................................................................................................ 35
11.2 Weighing ................................................................................................................................. 35
11.3 Weighing units switch-over ................................................................................................... 36
11.4 Taring ....................................................................................................................................... 36
11.4.1 Entering a tare value manually (pre-tare) ........................................................................ 36
11.4.2 Deleting the tare value ..................................................................................................... 36
11.5 Underfloor weighing ............................................................................................................... 37
11.6 Selecting the operating mode ............................................................................................... 38
11.6.1 Invoking operating modes: ............................................................................................... 38
11.6.2 To select operating modes: ............................................................................................. 39
12 Weighing scale settings operating mode weighing .................................. 40
12.1 Filter - adaptation to ambient conditions and weighing options ...................................... 40
12.2 Rest position control .............................................................................................................. 41
12.3 Auto Zero ................................................................................................................................. 42
12.4 Hide last decimal place .......................................................................................................... 43
12.5 Environmental conditions ..................................................................................................... 44
12.6 Printout mode ......................................................................................................................... 45
12.7 Setting weighing units ........................................................................................................... 46
12.7.1 How to enable weighing units .......................................................................................... 46
12.7.2 How to set a standard weight unit.................................................................................... 47
12.8 Information display ................................................................................................................ 48
12.8.1 Special information .......................................................................................................... 49
12.8.2 Shortcut keys ................................................................................................................... 50
13 Additional operating modes ....................................................................... 51
13.1 Parts counting ........................................................................................................................ 51
13.2 Weighing with tolerance range ............................................................................................. 56
13.3 Dosing...................................................................................................................................... 59
13.4 Percent determination............................................................................................................ 62
13.5 Animal weighing ..................................................................................................................... 64
13.6 Statistics .................................................................................................................................. 66
13.7 Totalization .............................................................................................................................. 69
13.8 HOLD function ........................................................................................................................ 72
4 ILJ-C/ILS-C-BA-e-1320
14 Further useful functions “P6 OTHER“ ....................................................... 73
14.1 Language ................................................................................................................................. 73
14.2 Authorisations ........................................................................................................................ 74
14.3 Acoustic signal for key operation ......................................................................................... 75
14.4 Background illumination and brightness control for display ............................................ 76
14.5 Date .......................................................................................................................................... 77
14.6 Time ......................................................................................................................................... 78
14.7 Date format .............................................................................................................................. 79
14.8 Time format ............................................................................................................................. 80
15 GLP/ISO report “P5.3 GLP PRINT“ ............................................................. 81
16 Data output RS 232 and USB ...................................................................... 83
16.1 Technical data ......................................................................................................................... 83
16.2 Setting interface RS 232 ........................................................................................................ 84
16.3 Interface cable ........................................................................................................................ 85
16.4 Output log ............................................................................................................................... 85
16.4.1 Issue after pressing the PRINT ´button ........................................................................... 85
16.4.2 Remote control instructions ............................................................................................. 86
17 Connecting external devices ...................................................................... 88
17.1 Printer settings ....................................................................................................................... 89
17.1.1 Setting an adjustment report ............................................................................................ 90
17.1.2 Set header ....................................................................................................................... 91
17.1.3 Print measured result ....................................................................................................... 92
17.1.4 Adjust footer ..................................................................................................................... 92
18 Data bases .................................................................................................... 93
18.1 Data base USER ...................................................................................................................... 93
18.2 Data base products ................................................................................................................ 97
18.3 Data base Taring ................................................................................................................... 100
18.4 Data base Weighing processes .......................................................................................... 101
18.5 Alibi memory ......................................................................................................................... 104
18.6 Exporting and importing data bases .................................................................................. 105
19 Servicing, maintenance, disposal ............................................................ 108
19.1 Clean ...................................................................................................................................... 108
19.2 Servicing, maintenance ....................................................................................................... 108
19.3 Disposal ................................................................................................................................. 108
20 Instant help ................................................................................................. 109
20.1 Error messages .................................................................................................................... 110
21 Declaration of conformity ......................................................................... 111
ILJ-C/ILS-C-BA-e-1320 5
1 Technical data
KERN
ILJ 25K-4CM
Readability (d)
0.1 g
Weighing range (max)
25 kg
Minimum load (Min)
5 g
Verification value (e)
1 g
Verification class
II
Reproducibility
0.1 g
Linearity
± 0.4 g
Stabilization time
3 sec.
Adjustment weight
internal
Warm-up time
2 h
Weighing Units
g, kg, ct
Smallest part weight for
piece counting
100 mg
Reference quantities at
piece counting
10, 20, 50, 100 freely selectable
Weighing plate, stainless
steel [mm]
347 x 259
Net weight (kg)
19.9
Permissible
ambient condition
+10° C to +40° C
Humidity of air
80 % relative (not condensing)
Input voltage
100 - 240 V AC, 50 Hz
Power pack
secondary voltage
15 V
Interface
RS 232C
Underfloor weighing device
Hooks
6 ILJ-C/ILS-C-BA-e-1320
KERN
ILS 30K-4C
ILS 50K-4C
Readability (d)
0.1 g
0.1 g
Weighing range (max)
30 kg
50 kg
Reproducibility
0.2 g
0.2 g
Linearity
± 0.4 g
± 0.4 g
Recommended adjusting
weight not supplied (class)
30 kg (E2)
50 kg (E2)
Warm-up time
2 h
4 h
Stabilization time
3 sec.
Weighing Units
g, kg, ct, lb, oz, ozt, dwt, tlh, tls, tlt, tlc, mom, gr, ti, N, baht, tola
Smallest part weight for
piece counting
100 mg
Reference quantities at
piece counting
10, 20, 50, 100 freely selectable
Weighing plate, stainless
steel [mm]
347 x 259
Net weight (kg)
13.5
Permissible
ambient condition
+10° C to +40° C
Humidity of air
80 % relative (not condensing)
Input voltage
100 - 240 V AC, 50 Hz
Power pack
secondary voltage
15 V
Interface
RS 232C
Underfloor weighing device
Hooks
ILJ-C/ILS-C-BA-e-1320 7
1.1 Dimensions
8 ILJ-C/ILS-C-BA-e-1320
2 Appliance overview
Example KERN ILS-C:
1. Weighing plate
2. Bubble level
3. Display
4. Buttons
5. Levelling screw
ILJ-C/ILS-C-BA-e-1320 9
2.1 Display and Keyboard Summary
Example ILJ-C:
1. Stability display
2. Zero indicator
3. The non-verified value is given in brackets in verified scales.
4. Weighing unit “g“
5. Information line
10 ILJ-C/ILS-C-BA-e-1320
Button
Function
Turn on/off
Invoke data bases
Function key
Selection of operating mode
Invoke adjustment
Call up menu
Taring
Switch-over weighing unit
In menu: Return to weighing mode
Scroll backwards in menu
Scroll forward in menu
Navigation key, see chap. 2.1.1
Calculate weighing data via interface
Confirm/save in menu
Zeroing
Delete entry in data base
ILJ-C/ILS-C-BA-e-1320 11
2.1.1 Navigation buttons / numeric input
Button
Designation
Function
Navigation button
Increase flashing digit
Navigation button
Decrease flashing digit
Navigation button
Digit selection to the right
Navigation button
Digit selection to the left
Navigation button
Confirm entry
ESC
Cancel input
12 ILJ-C/ILS-C-BA-e-1320
3 Basic instructions
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
plate. As soon as a stable weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use balance for dynamic add-on weighing procedures, if small amounts of
goods to be weighed are removed or added. The “stability compensation“ installed in
the balance may result in displaying an incorrect measuring value! (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the weighing plate. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be
damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
Our conditions in the operation manual are ignored
The appliance is used outside the described uses
The appliance is modified or opened
Mechanical damage or damage by media, liquids, natural wear and tear
The appliance is improperly set up or incorrectly electrically connected
The measuring system is overloaded
ILJ-C/ILS-C-BA-e-1320 13
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN's accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and
commissioning, even if you are already familiar with KERN balances.
All language versions contain a non-binding translation.
The original German is binding.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transport and storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
Keep all parts of the original packaging for a possibly required
return.
Prior to dispatch disconnect all cables and remove loose/mobile
parts.
Secure all parts such as the weighing plate, power unit etc.
against shifting and damage.
Only use original packaging for returning.
14 ILJ-C/ILS-C-BA-e-1320
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
Place the balance on a firm, level surface;
Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
Protect the balance against direct draughts due to open windows and doors;
Avoid jarring during weighing;
Protect the balance against high humidity, vapours and dust;
Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
Avoid static charge of goods to be weighed or weighing container.
If electro-magnetic fields or static charge occur, or if the power supply is unstable
major deviations on the display (incorrect weighing results) are possible. In that case,
the location must be changed.
6.2 Unpacking and checking
Remove device and accessories carefully from packaging, remove packaging
material and place device at the planned work place. Verify that there has been no
damage and that all packing items are present.
Scope of delivery / serial accessories:
Balance, see chap. 2
Mains adapter
Operating manual
Protective cover
Flush-mounted hook
Transport locking device (models ILJ-C only)
ILJ-C/ILS-C-BA-e-1320 15
6.3 Placing
Remove transport locking (only models ILJ-C)
To detach transport locking device, unscrew locking screw.
For transportation screw in locking screw carefully right up to the limit stop.
Level balance with foot screws until the air bubble of the water balance is in the
prescribed circle
Check levelling regularly
16 ILJ-C/ILS-C-BA-e-1320
6.4 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.
6.4.1 Turning On the Power
Supply balance with power via the mains adapter. The display unit lights up and
shown the software version. The weighing scale carries out a self-test and
automatically moves into weighing mode.
When “CAL” is displayed, adjustment will be taking place automatically
(ILJ models only).
6.5 Connection of peripheral devices
Before connecting or disconnecting of additional devices (printer, PC) to the data
interface, always disconnect the balance from the power supply.
With your balance, only use accessories and peripheral devices by KERN, as they
are ideally tuned to your balance.
6.6 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have
reached the operating temperature (see warming up time chap. 1).
During this warming up time the balance must be connected to the power supply
(mains, accumulator or battery).
To adapt the balance to ambient conditions, open wind screen doors.
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
ILJ-C/ILS-C-BA-e-1320 17
7 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To
receive accurate measuring values it is also recommended to adjust the balance
periodically in weighing operation.
Possible adjustments include:
Automatic adjustment by internal weight (models ILJ only)
Chap. 7.2.1
Manual adjustment by internal weight is triggered by pressing CAL
Adjustment with external weight, see chap. 7.2.2
Adjustment can only be carried out when the weighing plate is free of
objects. Any loads remaining on the weighing plate will be indicated by error
message Er1Hi.
You can cancel the adjustment by pressing the UNIT-key.
18 ILJ-C/ILS-C-BA-e-1320
7.1 Automatic adjustment using internal weight (ILJ-C only)
With the internal adjustment weight, the weighing accuracy can be checked and readjusted at any time.
The automatic adjustment function is always enabled. You can start adjustment at
any time by pressing the CAL-key manually.
If a load is present on the weighing plate, the message LIMIT EXCEEDED will
appear on the display. If the weight on the weighing plate is below 4% of max, the
weighing scale nevertheless will be adjusted.
Automatic adjustment is carried out:
When balance was disconnected from the mains.
When the temperature is changing
The moment a change in temperature of 3°C is detected by the temperature
sensor, the weighing scale will carry out a fully automatic adjustment. The °C
symbol indicates the pending adjustment.
at the end of a time interval
After the time interval (selectable 1-12 h) specified in the menu has passed.
In weighing scales with type approval certificate
Adjustment takes place every 3 hours
ILJ-C/ILS-C-BA-e-1320 19
7.2 Menu settings
Menu item „P1 ADJUSTMENT“ [Adjustment]
ILJ-C
ILS-C
P1.1 INT.JUST.
-
Internal adjustment, ILJ-C only
-
P1.2 EXT.JUST.
External adjustment *
-
P1.3 BE.JUST.
User adjustment
P1.4 TEST JUST.
-
Adjustment test
* = Locked in weighing scales with type approval certificate [Er 9 lock].
7.2.1 P1.1 INT.JUST. – Internal adjustment (models ILJ-C only)
For automatic internal adjustment see chap. 7.1
Starting internal adjustment manually
Press the CAL-key or invoke menu “P1.1 INT.JUST.“
Press
or
Internal adjustment will be taking place.
Ensure that there are no objects on the weighing plate.
You can cancel the adjustment by pressing the UNIT-key.
After successful adjustment the weighing scale will return automatically to
the menu item. To return to weighing mode, press UNIT.
20 ILJ-C/ILS-C-BA-e-1320
7.2.2 P1.2 EXT.JUST.- External adjustment (ILS only)
Carry out adjustment with the help of the recommended adjustment weight (see
chapter 1 “Technical Specifications”).
Observe stable environmental conditions. A warming up time (see chapter 1) is
required for stabilization.
This function is locked in weighing scales with type approval certificate.
Ensure that there are no objects on the
weighing pan. Press PRINT-key,
JUSTAGE will be shown.
Wait until the weighed value for the
required adjustment weight appears.
(Example)
Place the required adjustment weight
carefully in the centre of the weighing plate
and press the PRINT key.
The display is showing JUSTAGE,
adjustment is starting.
Adjustment is completed when the
message REMOVE LOAD appears;
remove adjustment weight. After
successful adjustment the weighing scale
will return automatically to sub-menu item
P 1.2.
To return to weighing mode, press the
UNIT key.
ILJ-C/ILS-C-BA-e-1320 21
7.2.3 P1.3 BE.JUST. User adjustment (model ILS-C only)
This function allows the user to select a test weight of an arbitrary weight value.
Having said this, the test weight should not amount to less than 30% of the maximum range.
This function is not accessible in calibrated weighing scales!
Start the process in weighing mode
as shown on the picture.
Digits will appear on the display, with
the digit on the left flashing. Use the
arrow keys to enter your desired
adjustment weight and confirm by
pressing PRINT.
Care should be taken to ensure that
there are no objects on the weighing
plate, then confirm by pressing
PRINT.
Wait until the weighed value for the
set adjustment weight appears.
Place the required adjustment
weight carefully in the centre of the
weighing plate and press the PRINT
key.
The display is showing JUSTAGE,
adjustment is starting.
Adjustment is completed when the
message REMOVE LOAD appears;
remove adjustment weight. After
successful adjustment the weighing
scale will automatically return to submenu item P 1.3.
Return to weighing mode by
repeatedly pressing UNIT
22 ILJ-C/ILS-C-BA-e-1320
7.2.4 P1.4 TEST JUST. – Adjustment report (models ILJ-C only)
This function is applied to compare the internal adjustment weight with the saved
value. The test is carried out automatically. The result will be shown on the display
and issued via the interface if an optional printer is connected.
Press UNIT to return to the menu item and into weighing mode
ILJ-C/ILS-C-BA-e-1320 23
7.2.5 Printing adjustment reports
An adjustment report will be generated automatically after an adjustment and sent to
the RS232 connection COM 1.
For setting of adjustment report see chap. 17.1.1
Sample adjustment record:
-------------------Just.Prot.-----------------Art Just External
User Kern
Draft
Date 21.11.2013
Time 9:54:39
ID Balance 132051
Diff.Adjust. -0.2 g
Signature
24 ILJ-C/ILS-C-BA-e-1320
7.3 Verification
General introduction:
According to EU directive 2009/23/EC balances must be officially verified if they are
used as follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing.
b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory.
c) For official purposes
d) For manufacturing final packages
In cases of doubt, please contact your local trade in standard.
Verification notes:
An EU type approval exists for balances described in their technical data as
verifiable. If a balance is used where obligation to verify exists as described above, it
must be verified and re-verified at regular intervals.
Re-verification of a balance is carried out according to the respective national
regulations. The validity for verification of balances in Germany is e.g. 2 years.
The legal regulation of the country where the balance is used must be observed!
Verification of the balance is invalid without the seal.
The seal marks attached on balances with type approval point out that the
balance may only be opened and serviced by trained and authorised
specialist staff. If the seal mark is destroyed, verification looses its validity.
Please observe all national laws and legal regulations. In Germany a reverification will be necessary.
ILJ-C/ILS-C-BA-e-1320 25
Position of the “official seals“:
Balances with obligation to verify must be taken out of operation if:
The weighing result of the balance is outside the error limit. Therefore, in
regular intervals load balance with known test weight (ca. 1/3 of the max. load) and
compare with displayed value.
The reverification deadline has been exceeded.
26 ILJ-C/ILS-C-BA-e-1320
8 Menu
8.1 Navigation in the menu
Call up menu
In weighing mode press the MENU-key and the first menu
block “P1 JUSTAGE” will appear.
Select menu block
Use the cursor key to select the individual menu blocks
one by one.
Use the cursor key to scroll down.
Use the cursor key to scroll up.
Select menu item
Confirm selected menu command by pressing . The first
menu item of the selected menu block will be shown.
Use the cursor key to select individual menu items one by
one.
Use the cursor key to scroll down.
Use the cursor key to scroll up.
Select setting
Confirm selected menu item with and the current setting
will be shown
Change settings
Use the cursor keys to change to the available settings.
Use the cursor key to scroll down.
Use the cursor key to scroll up.
Confirm setting / back
to menu
Either confirm by pressing the PRINT-key or reject by
pressing the TARE-key.
Save / back to
weighing mode
see chap. 8.3
ILJ-C/ILS-C-BA-e-1320 27
8.2 Menu overview
The menu is sub-divided into eight menu blocks (P1 – P8).
P1 Adjustment [Adjustment]
P1.1 INT JUST. [Internal adjustment] ILJ-C only
P1.2 EXT. JUST. [External adjustment] *
P1.3 USER ADJUSTMENT [Entry adjustment weight]
P1.4 TEST JUST [Adjustment test] ILJ-C only*
P1.5 AU.TEM.JUST [not documented]
P1.6 AU:ZEIT:JUST [not documented]
* = locked in devices with type approval certificate
P2 OPERATING MODULES [Operating modes]
P2.1 ACCESS [Function selection]
P2.1.1 WEIGHING YES/NO
P2.1.2 QUANTITY YES/NO
P2.1.3 CHECK WEIGHING YES/NO
P2.1.4 DOSING YES/NO
P2.1.5 DEVIATION YES/NO
P2.1.6 SOLIDS-DENSITY YES/NO
P2.1.7 LIQUIDS-DENSITY YES/NO
P2.1.8 ANIMAL WEIGHING YES/NO
P2.1.9 STATISTICS YES/NO
P2.1.10 TOTALIZING YES/NO
P2.1.11 MAX.HOLD YES/NO
P2.2 WEIGHING [Weighing mode]
P2.2.1 READING
P2.2.1.1 FILTER BY MEANS OF/MEDIUM/SLOW/VERY.SLOW/VERY.FAST/FAST
P2.2.1.2 RESULT.DETERMINATION FAST+ACCURATE/ACCURATE/FAST
P2.2.1.3 AUTOZERO YES/NO
P2.2.1.4 LASTDIGIT ALWAYS/NEVER/WHEN STABLE
P2.2.1.5 ENVIRONMENT UNSTABLE/STABLE
P2.2.2 PRINT MODE
P2.2.2.1 MODE ALL/WHEN STABLE/AUTO
P2.2.2.2 AUTO.SCHW. 0.0
P2.2.3 UNITS
P2.2.3.1 ACCESS
P2.2.3.1.1 Each unit can be enabled or disabled by selecting YES or NO
P2.2.3.2 ST-UNIT G
P2.2.3.3 B.UNIT 1
P2.2.3.4 B.UNIT 2
P2.2.4 INFORM
P2.2.5 SPECINFORM

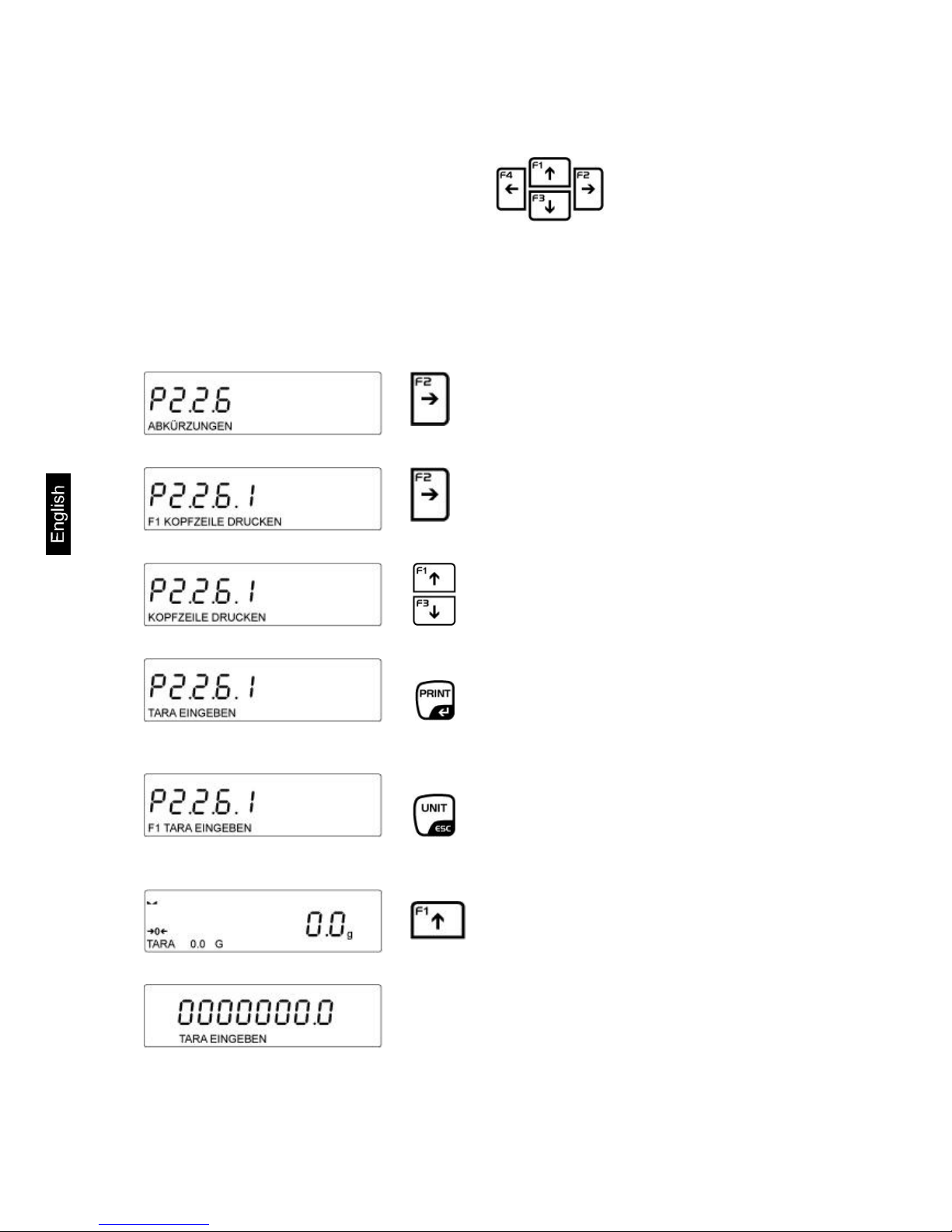

P2.2.6 SHORTCUTS
28 ILJ-C/ILS-C-BA-e-1320

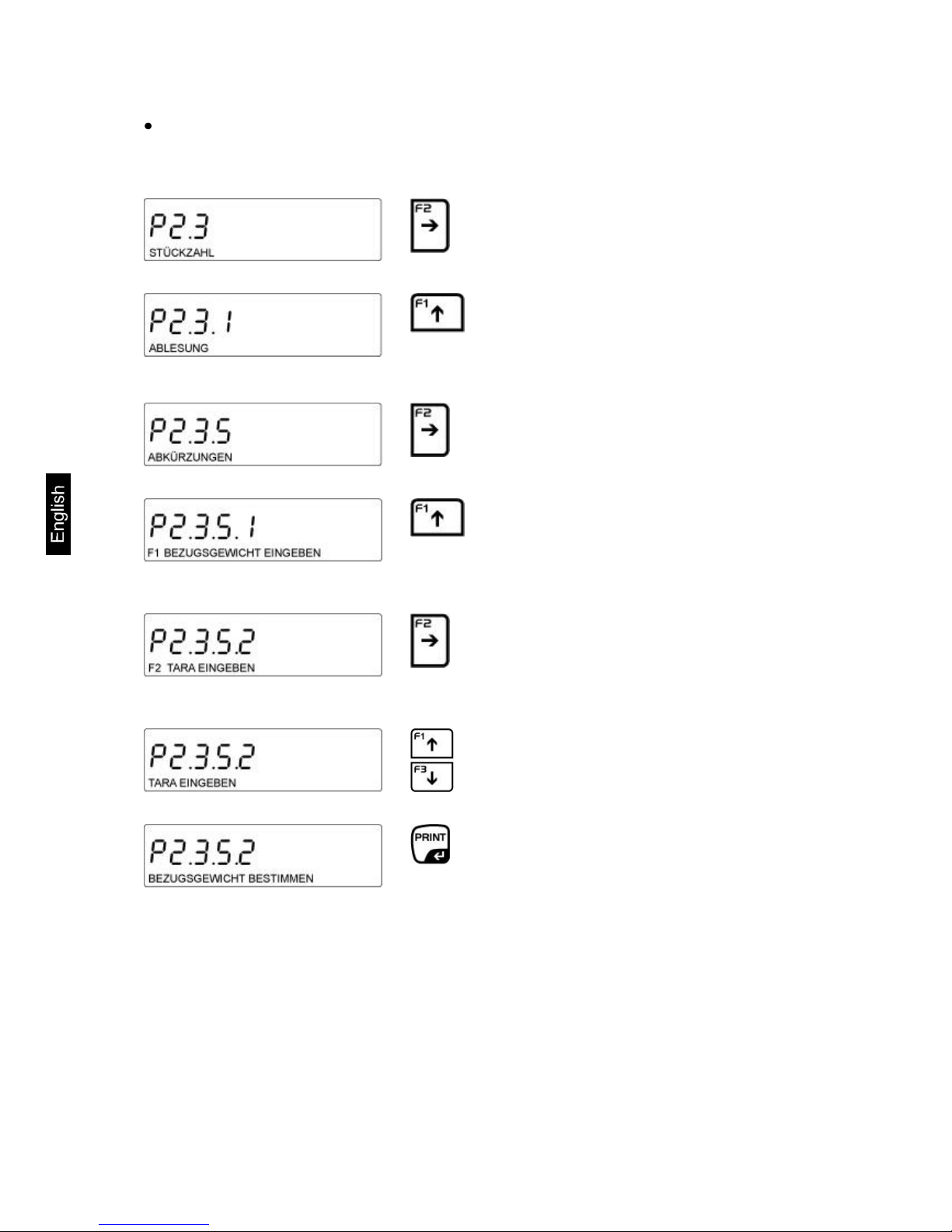

P2.3 QUANTITY [Piece counting]
For sub-menus see menu item P2.2
Additional: P2.3.3 INFOM REF.WEIGHT
P2.3.6 ACAI YES
P2.4 CHECK WEIGHING [Check weighing]
For sub-menus see menu item P2.2.1
P2.5 DOSING [Dosing]
For sub-menus see menu item P2.2.1
P2.6 DEVIATION [Determination of percentage]
For sub-menus see menu item P2.2.1
P2.7 DENSITY OF SOLIDS [Determination of density of solids, not recorded]
For sub-menus see menu item P2.2.1
P2.8 DENSITY OF LIQUIDS [Determination of density of liquids, not recorded]
For sub-menus see menu item P2.2.1
P2.9 ANIMAL WEIGHING [Animal weighing]
For sub-menus see menu item P2.2.1
P2.10 STATISTICS [Statistics function]
For sub-menus see menu item P2.2.1
P2.11 ADDING UP [Adding up function]
For sub-menus see menu item P2.2.1
P2.12 MAX.HOLD [Hold function]
P2.12.1 READING
For sub-menus see menu item P2.2.1
P2.12.2 INFORM NET/GROSS/USER/PRODUCTS/SPECINFORM/NO/TARE
P2.12.3 SPECINFORM
P2.12.4. SHORTCUTS
P2.12.4.1 F1 PRINT HEADER
F2 LOGIN
F3 PRINT HEADER
F4 SELECT PRODUCT
P2.12.5. THRESHOLD 1.0
P3 COMMUNICATION [Interface parameter]
P3.1 COM 1 [Transmission parameter COM 1]
P3.1.1 BAUD RATE 4800/9600/19200/38400/57600/115200/2400
P3.1.2 PARITY NONE/PAIRED/UNPAIRED
P3.2 COM 2 [Transmission parameter COM 2]
For sub-menus see menu item P3.1
P3.3 WIFI [W-LAN-connection]
P3.3.1 STATUS NONE
P3.3.2 SELECT NET
P3.3.3 NET-PAR.
P3.3.3.1 NAME
P3.3.3.2 PASSWORD
P3.3.3.3 CHANNEL NR AUTO/1/2/…14
P3.3.3.4 IP 10.10.1.250
P3.3.3.5 MASK 255.255.0.0
P3.3.4 WI-FI
ILJ-C/ILS-C-BA-e-1320 29
P4 DEVICES [Connecting devices]
P4.1 COMPUTER [Connection to computer]
P4.1.1 PORT COM 1/COM 2/USB/WIFI/NONE
P4.2 PRINTER [Connection to printer]
P4.2.1 PORT COM 1/COM 2/USB/WIFI/NONE
P4.3 BARCODE READER [not documented]
P4.3.1 PORT NONE/COM 1/COM 2/NONE
P4.4 ADDITIONAL DISPLAY SCREEN [not documented]
P4.4.1 PORT COM 1/COM 2/NONE
P4.5 EXTERNAL KEYS ILJ-C only
P5 PRINTOUTS [Printer settings]
P5.1 ADJUST.REP. [Printout of adjustment report]
P5.1.1 DRAFT _/0-9/A….Z
P5.2 HEADER [Printout of header]
P5.2.1 LINES YES/NO
P5.2.2 OPER.MODUL YES/NO
P5.2.3 DATE YES/NO
P5.2.4 TIME YES/NO
P5.2.5 BALANCE TYPE YES/NO
P5.2.6 ID BALANCE YES/NO
P5.2.7 USER YES/NO
P5.2.8 PRODUCT YES/NO
P5.2.9 VARIABLE 1 YES/NO
P5.2.10 VARIABLE 2 YES/NO
P5.2.11 EMPTY LINE YES/NO
P5.2.12 ADJUST.REP. YES/NO
P5.2.13 SPECPRINT NONE/SPECPRINT 1-4
P5.3 GLP PRINT [Printer settings]
P5.3.1 DATE YES/NO
P5.3.2 TIME YES/NO
P5.3.3 USER YES/NO
P5.3.4 PRODUCT YES/NO
P5.3.5 VARIABLE 1 YES/NO
P5.3.6 VARIABLE 2 YES/NO
P5.3.7 TARE YES/NO
P5.3.8 GROSS YES/NO
P5.3.9 CURRENT RESULT YES/NO
P5.3.10 ADJUST.REP YES/NO
P5.3.11 SPECPRINT NONE/SPECPRINT 1-4
30 ILJ-C/ILS-C-BA-e-1320
P5.4 FOOTER [Printout of footer]
P5.4.1 OPERATING MODULES YES/NO
P5.4.2 DATE YES/NO
P5.4.3 TIME YES/NO
P5.4.4 BALANCE TYPE YES/NO
P5.4.5 ID BALANCE YES/NO
P5.4.6 USER YES/NO
P5.4.7 PRODUCT YES/NO
P5.4.8 VARIABLE 1 YES/NO
P5.4.9 VARIABLE 2 YES/NO
P5.4.10 LINES YES/NO
P5.4.11 EMPTY LINE YES/NO
P5.4.12 ADJUST.REP. YES/NO
P5.4.13 SIGNATURE YES/NO
P5.4.14 SPECPRINT NONE/SPECPRINT 1-4
P5.5 SPECPRINT 1 [Special printout no.1]
P5.6 SPECPRINT 2 [Special printout no.2]
P5.7 SPECPRINT 3 [Special printout no.3]
P5.8 SPECPRINT 4 [Special printout no.4]
P5.9 VARIABLE 1 [Printout Variable 1]
P5.10 VARIABLE 2 [Printout Variable 2]
P6 OTHER [additional useful functions]
P6.1 LANGUAGE GERMAN [Select menu language Poli./Engl./Germ/Span./French]
P6.2 AUTORIZ.ADMIN [Access steps for editing menu]
P6.3 KEYPAD TONE YES [Keypad tone on/off]
P6.4 BACKGROUND ILLUMINATION 70 [Background illumination]
P6.5 DATE 06.11.2013 [Setting the date]
P6.6 TIME 12:30:04 [Setting the time]
P6.7 DATE–FORM DDMMYYYY [Date format]
P6.8 TIME-FORM [Time format]
P7 INFO [Balance settings]
P7.1 ID BALANCE 123456 [Balance ID]
P7.2 BALANCE TYPE [Balance model]
P7.3 PROGRAM VERSION [Software status]
P7.4 TEMPERATURE 25.3 °C [Temperature]
P7.5 ADJUSTMENT-DR [Printer settings]
Loading...
