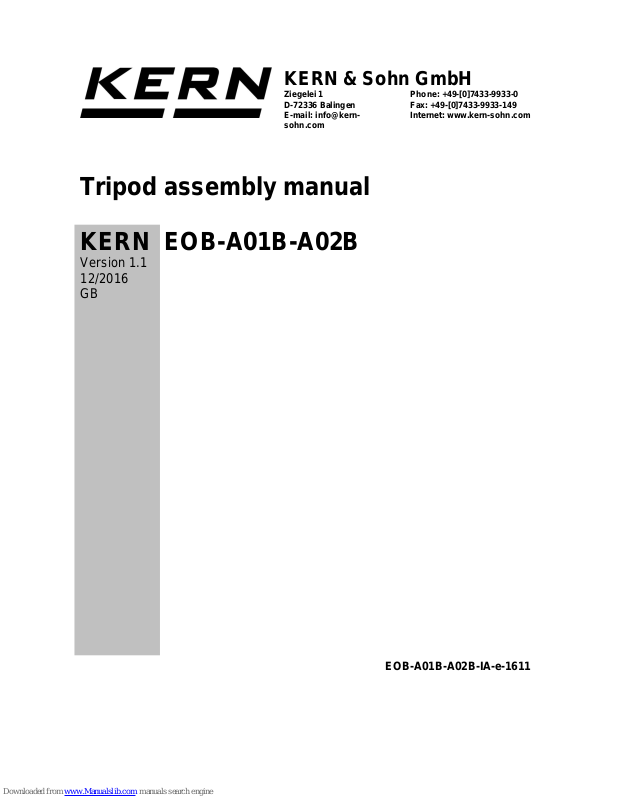

KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-mail: info@kern-
sohn.com
Phone: +49-[0]7433-9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Tripod assembly manual
KERN EOB-A01B-A02B
Version 1.1
12/2016
GB
EOB-A01B-A02B-IA-e-1611
2 EOB-A01B-A02B-IA-e-1611
GB
KERN EOB-A01B-A02B
Version 1.1 12/2016
Tripod assembly manual
Table of contents
1 Technical data .......................................................................................................... 2
2 Scope of delivery ..................................................................................................... 3
3 Overview ................................................................................................................... 5
EOB-A01B
Only for platforms with the size of 304 × 315 mm
1 Technical data
KERN EOB-A01B EOB-A02B
Tripod height 48 cm 100 cm
EOB-A01B-A02B-IA-e-1611 3
2 Scope of delivery
EOB-A01B:
Tripod
Display holder
Tripod foot
Screw, 1 piece
Plastic cylinder
Screw with nut, 1 piece
Screw, 4 pieces
Cable guide, 3 pieces with 3 screws
Rubber washer
x 3
4 EOB-A01B-A02B-IA-e-1611
EOB-A02B:
Tripod
Tripod foot
Plastic cylinder
Adjustment leg, 3 pieces
Display holder
Screws, 3 pieces
Screw with nut, 1 piece
EOB-A01B-A02B-IA-e-1611 5
3 Overview
EOB-A01B:
1 Tripod 7 Display holder
2 Tripod foot 8 Screw
3
Plastic cylinder
9
Screw
4 Screw 10 Screw
5 Screw 11 Cable guide
6 Rubber washer
6 EOB-A01B-A02B-IA-e-1611
EOB-A02B:
1
Tripod
2 Plastic cylinder
3 Display holder
4 Screw
5 Nut
6 Tripod foot
7 Legs with adjustable height
8
Screws
