KEPCO RAX-100P User Manual

INSTRUCTION MANUAL
KEPCO
An ISO 9001 Company.
KIT
DIN RAX
-100P
DIN-RAIL MOUNTING KIT
FOR SERIES RAX 100W
DESCRIPTION. Kepco KIT, Models DIN RAX-100P contains a mounting bracket with left and right preassembled
mounting clips and associated hardware used to install RAX Series power supplies on a DIN rail. The -100 suffix is for the 100 Watt Series; the “P” suffix is for mounting the power supply perpendicular to the DIN rail as shown in Figure 1. Outline Dimensions are shown in Figure 5

FIGURE 1. P SUFFIX ORIENTATION

TABLE 1. COMPONENTS SUPPLIED

SCREW
KIT
MODEL NO.
DIN RAX-100P 128-2028
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
©2000, KEPCO, INC Data subject to change without notice 228-1400
MOUNTING
BRACKET
PART NO.
(QTY 6)
(Power Supply
To Mounting
Bracket)
PART NO.
101-0383
(8-32 X 3/16
BHPH)
http://www.kepcopower.com " email: hq@kepcopower.com
WASHE R
(QTY 6)
(Power Sup-
ply To Mount-
ing Bracket)
PART NO.
103-0017
(NO. 8, INT.
TOOTH)
CLIP
(QTY 2)
PAR T
NO.
108-0362 128-1938
CLIP
PLATE
(QTY 2)
PART NO.
SCREW
Thread-form
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
101-0443
(4-40 X 1/4
BHPH)
WAS HE R
(QTY 4)
(Clip To
Mounting
Bracket)
PART NO.
103-0014
(NO. 4, INT.
TOOTH)
1
INSTALLATION
1. INSTALL MOUNTING BRACKET. Attach the mounting bracket to the power supply using the hardware supplied (see Figure 2).

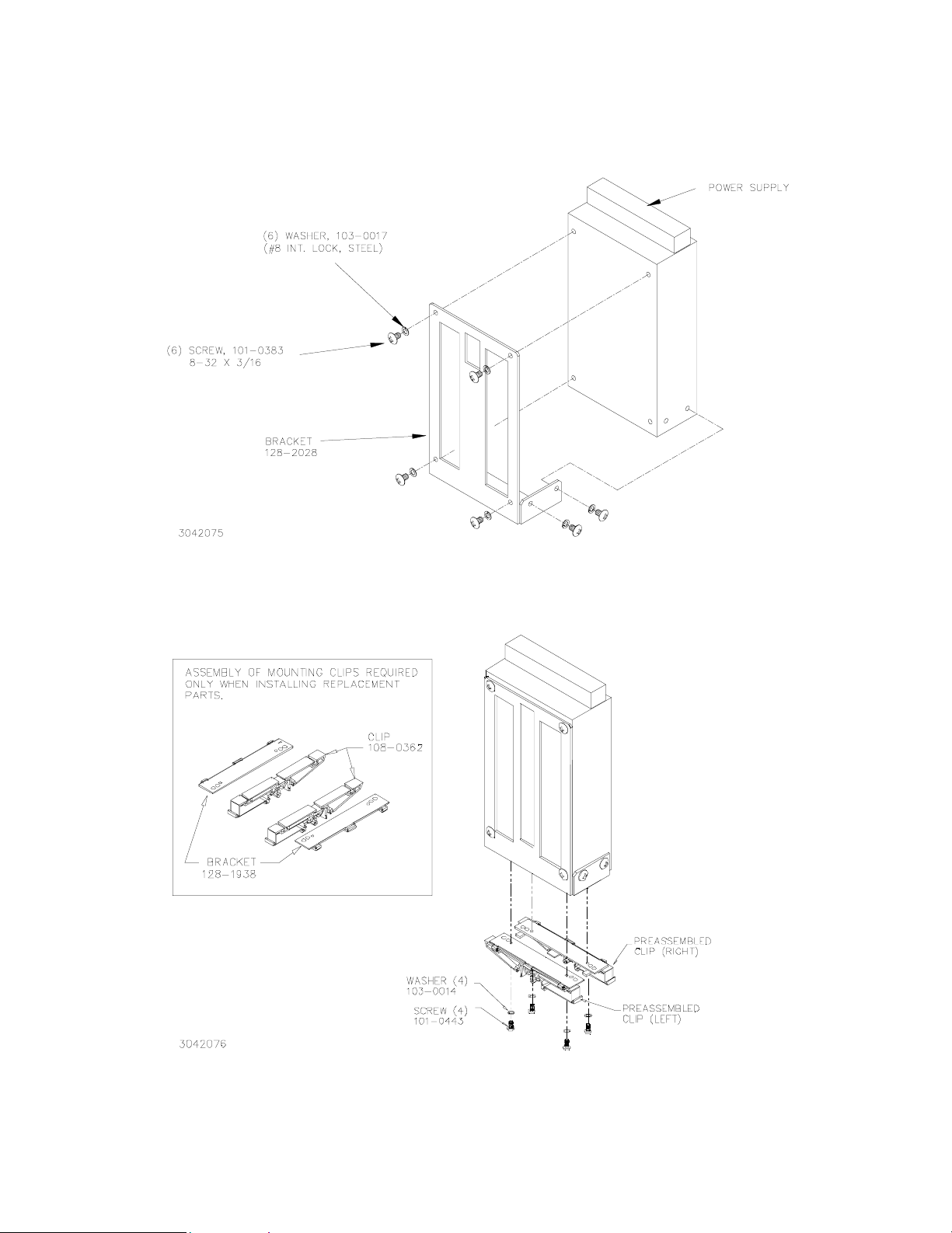

FIGURE 2. INSTALLING MOUNTING BRACKET ON POWER SUPPLY

2. INSTALL CLIPS. Attach preassembled mounting clips into the mounting bracket holes using hardware supplied (see Figure 3).

FIGURE 3. INSTALLING CLIPS ON MOUNTING BRACKET

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 "
2
http://www.kepcopower.com " email: hq@kepcopower.com
228-1400 061901
FAX (718) 767-1102
3. INSTALL POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of both mounting clips under one edge of the rail, then snap the other end of the two clips into place (see Figure 4A).
INSTALLATION
A

FIGURE 4. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL

B
REMOVAL
REMOVING POWER SUPPLY FROM DIN RAIL. While grasping the power supply with one hand, Insert a screwdriver
into the access holes provided and apply leverage towards the left as shown in Figure 4B to disengage each clip from the rail. Where mounting clips are close together, it may be necessary to apply leverage with two screwdrivers simul­taneously.
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 "
http://www.kepcopower.com " email: hq@kepcopower.com
061901 228-1400
FAX (718) 767-1102
3

FIGURE 5. RAX 100W POWER SUPPLY WITH KIT INSTALLED, OUTLINE DIMENSIONS

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 "
4
http://www.kepcopower.com " email: hq@kepcopower.com
228-1400 061901
FAX (718) 767-1102
