INSTRUCTION MANUAL

KEPCO

An ISO 9001 Company.

KIT

DIN MRW-150L,

-160L, -170L

DIN-RAIL MOUNTING KIT

FOR SERIES MRW 150/151KV, 160/161KV, 170/171KV

DESCRIPTION. Kepco KITs, Models DIN MRW-150L, -160L, and -170L each contain a cover, cable kit, left and right

mounting clips, and associated hardware (see Table 1) used to install MRW Series power supplies on a DIN rail. The

-150L suffix is for MRW 150KV and 151KV Models, -160L is for MRW 160KV and 161KV models and -170L is for
MRW 170KV and 171KV models. The “L” suffix is for mounting along the long dimension (length) as shown in Figure 1.

FIGURE 1. L SUFFIX ORIENTATION

TABLE 1. COMPONENTS SUPPLIED

KIT

MODEL NO.

DIN MRW-150L CA 19 219-0184 108-0362 128-1938

DIN MRW-160L CA 20 219-0184 108-0362 128-1938

DIN MRW-170L CA 20 219-0239 108-0362 128-1938

NOTE: Clip and Bracket are supplied preassembled into left and right mounting clip assemblies. To replace a mounting clip assembly,
order both the clip and bracket and assemble per Figure 2 detail.

COVER

PART NO.

CABLE KIT

PART NO.

CLIP

(QTY 2)

PART NO.

BRACKET

(QTY 2)

PART NO.

SCREW (QTY 4)

PAR T N O .

101-0383

(8-32 X 0.187 PHPH)

101-0383

(8-32 X 0.187 PHPH)

101-0383

(8-32 X 0.187 PHPH)

WASHER (QTY4)

PART NO.

103-0032

(NO. 8, SPLIT, LOCK)

103-0032

(NO. 8, SPLIT, LOCK)

103-0032

(NO. 8, SPLIT, LOCK)

KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL [phone] " FAX [phone]

http://www.kepcopower.com "

©1998, KEPCO, INC
Data subject to change without notice 228-1296

email: [e-mail]

1

INSTALLATION

1. INSTALL COVER. Attach the cover to the power supply per Instruction Manual supplied with the cover.

2. INSTALL CLIPS. Attach left and right clips to power supply using hardware supplied (see Figure 2).

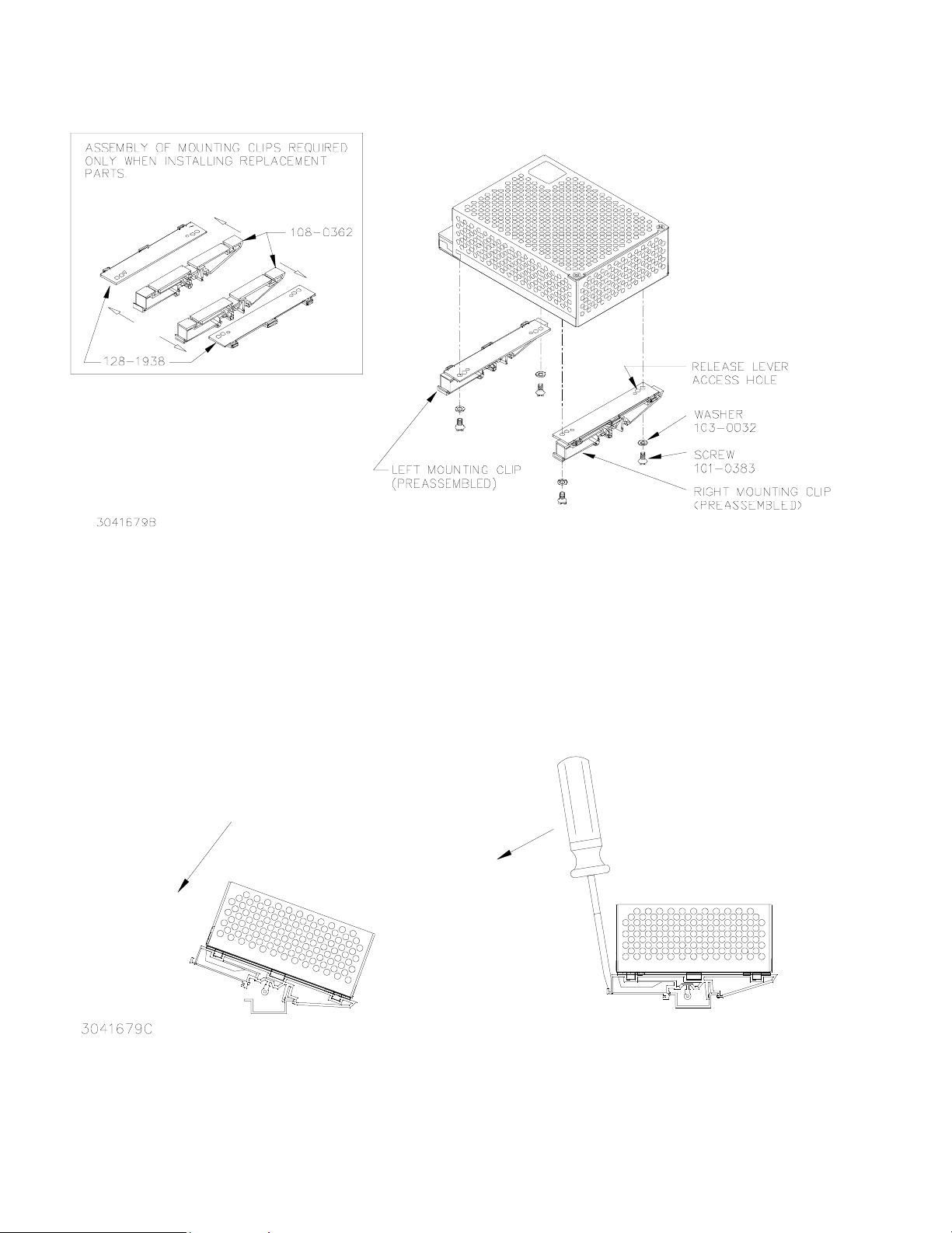

FIGURE 2. INSTALLING CLIPS ON POWER SUPPLY

3. INSTALL CABLE KIT. Attach wires to the power supply per Instruction Sheet supplied with cable kit.

4. INSTALL POWER SUPPLY ON DIN RAIL. To mount the power supply on the rail insert one end of both
clips under one edge of the rail, then snap the other end of the two clips into place (see Figure 3A).

REMOVING POWER SUPPLY FROM DIN RAIL. With power off, disconnect wires from power supply. While
grasping the power supply with one hand, insert a screwdriver in the area shown in Figure 3B and apply leverage
towards the left as shown in Figure 3B to disengage each clip from the rail. Where mounting clips are close
together, it may be necessary to apply leverage with two screwdrivers simultaneously.

INSTALLATION

A

B

REMOVAL

FIGURE 3. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL
