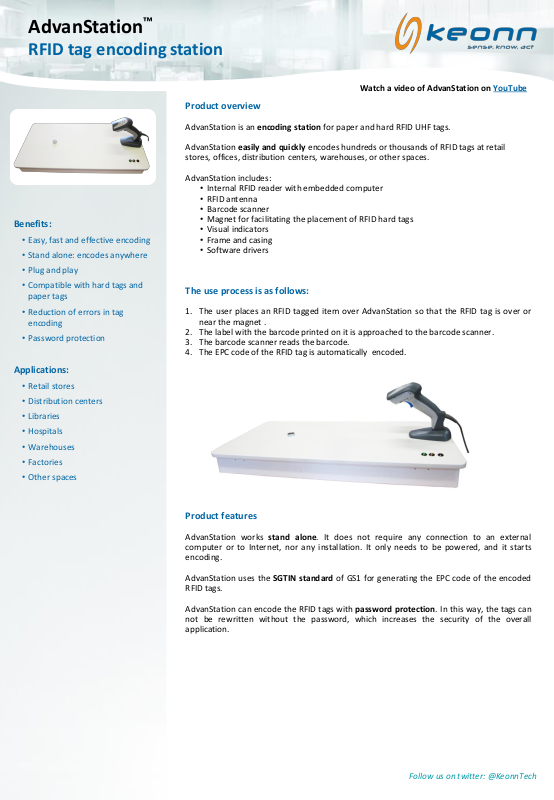

Product overview

AdvanStation is an encoding station for paper and hard RFID UHF tags.

AdvanStation easily and quickly encodes hundreds or thousands of RFID tags at retail
stores, offices, distribution centers, warehouses, or other spaces.

AdvanStation includes:

• Internal RFID reader with embedded computer

• RFID antenna

• Barcode scanner

• Magnet for facilitating the placement of RFID hard tags

• Visual indicators

• Frame and casing

• Software drivers

The use process is as follows:

1. The user places an RFID tagged item over AdvanStation so that the RFID tag is over or
near the magnet .

2. The label with the barcode printed on it is approached to the barcode scanner.

3. The barcode scanner reads the barcode.

4. The EPC code of the RFID tag is automatically encoded.

Product features

AdvanStation works stand alone. It does not require any connection to an external
computer or to Internet, nor any installation. It only needs to be powered, and it starts
encoding.

AdvanStation uses the SGTIN standard of GS1 for generating the EPC code of the encoded
RFID tags.

AdvanStation can encode the RFID tags with password protection. In this way, the tags can
not be rewritten without the password, which increases the security of the overall
application.

Benefits:

• Easy, fast and effective encoding

• Stand alone: encodes anywhere

• Plug and play

• Compatible with hard tags and

paper tags

• Reduction of errors in tag
encoding

• Password protection

Applications:

• Retail stores

• Distribution centers

• Libraries

• Hospitals

• Warehouses

• Factories

• Other spaces

AdvanStation

™

RFID tag encoding station

Watch a video of AdvanStation on YouTube

Follow us on twitter: @KeonnTech

Air Protocol Interface EPC global UHF Class 1 Gen 2 / ISO 18000-6C

Supported regions

FCC (NA, SA) 902 MHz - 928 MHz
ETSI (EU, IN) 865.6 MHz - 867.6 MHz
MIC (KR) 910 MHz - 914 MHz
SRRC-MII (P.R.China) 920 MHz - 925 MHz
Brazil: 902-907,5 MHz and 915-928 MHz (as sub-band of FCC)
ACMA (AU, NZ) 920 MHz – 926 MHz

Open region
Encoding standard SGTIN
Writing time

1 tag every 3 seconds (includes barcode scanning time)
Security RFID tag encoding with password

Connectors and switches

On-off switch

USB Standard A female connector for connecting the barcode scanner

Power supply C13 female connector

Visual indicators

Green LED

Orange LED

Red LED

(See user guide for colour codes)

Power supply 120 - 230 V AC

Power consumption

Idle consumption < 3 W

Max consumption (@30 dBm) < 10W
Temperature -10 °C to +55 °C
Size

350 mm x 700 mm x 68.6 mm (13.8 in x 27.6 in x 2.7 in)

Weight

5000 g (176.4 oz) (includes barcode scanner -weight may change across

hardware revisions-)

AdvanStation

™

RFID tag encoding station

Specifications

Mechanical specifications

Units in millimeters
