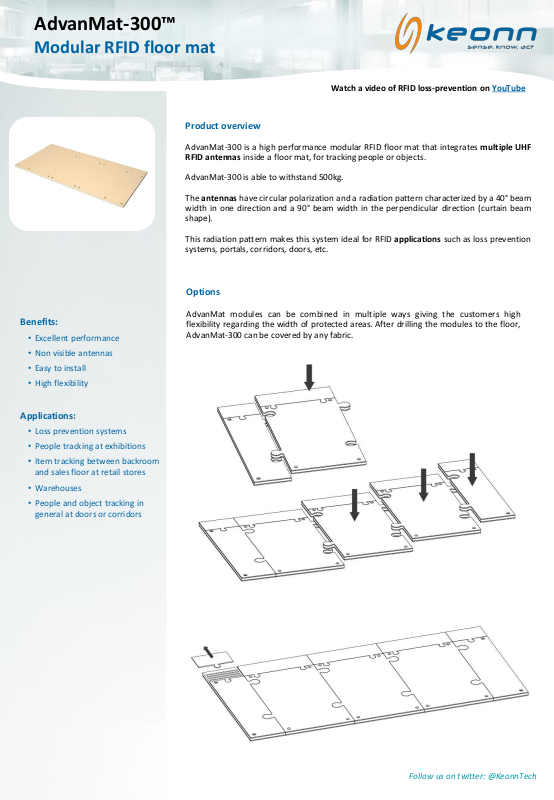

Keonn ADMT-P-L15-300 Product Data Sheet

Follow us on twitter: @KeonnTech

AdvanMat modules can be combined in multiple ways giving the customers high
flexibility regarding the width of protected areas. After drilling the modules to the floor,
AdvanMat-300 can be covered by any fabric.

Product overview

AdvanMat-300 is a high performance modular RFID floor mat that integrates multiple UHF
RFID antennas inside a floor mat, for tracking people or objects.

AdvanMat-300 is able to withstand 500kg.

The antennas have circular polarization and a radiation pattern characterized by a 40° beam
width in one direction and a 90° beam width in the perpendicular direction (curtain beam
shape).

This radiation pattern makes this system ideal for RFID applications such as loss prevention

systems, portals, corridors, doors, etc.

Benefits:

• Excellent performance

• Non visible antennas

• Easy to install

• High flexibility

Applications:

• Loss prevention systems

• People tracking at exhibitions

• Item tracking between backroom

and sales floor at retail stores

• Warehouses

• People and object tracking in

general at doors or corridors

AdvanMat-300™

Modular RFID floor mat

Options

Watch a video of RFID loss-prevention on YouTube

Follow us on twitter: @KeonnTech

Operating Frequency EU Version 865 - 868 MHz (ETSI EN 302 208)
Operating Frequency US Version 902 - 928 MHz (FCC part 15)

Operating Detection distance Up to 3 m

Radiation pattern Fan beam
Gain of each antenna 6 dBi
Beam width of each antenna

40° / 90°

Polarization Circular

Cables and connectors cables with SMA female connectors
Sizes • Right ending module:

600 mm x 150 mm (23.6 inches x 5.9 inches)

• Antenna module:
600 mm x 300 mm (23.6 inches x 11.8 inches)

• Separation module 30 cm:
600 mm x 300 mm (23.6 inches x 11.8 inches)

• Separation module 15 cm:

600 mm x 150 mm (23.6 inches x 5.9 inches)

• Left ending module:
600 mm x 150 mm (23.6 inches x 5.9 inches)

Height 16 mm (0.6 inches)

Weight

• Right ending module: 600 g (21.16 oz)

• Antenna module: 1600 g (56.44 oz)

• Separation module 30 cm: 1200 g (42.33 oz)

• Separation module 15 cm: 600 g (21.16 oz)

• Left ending module: 600 g (21.16 oz)

Temperature range

-20°C to +55°C

Specifications

Radiation pattern of each antenna

AdvanMat-300™

Modular RFID floor mat
