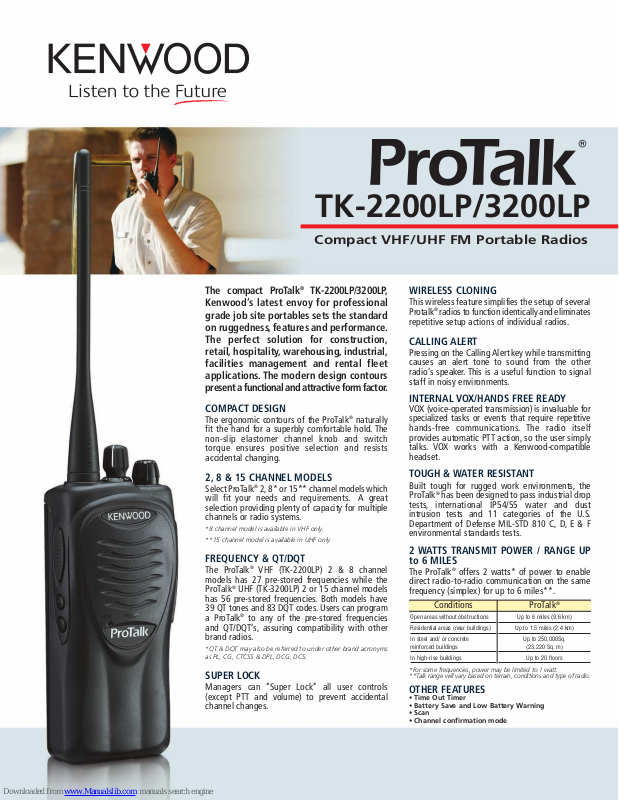

TK-2200LP/3200LP
Compact VHF/UHF FM Portable Radios
The compact ProTalk®TK-2200LP/3200LP,
Kenwood’s latest envoy for professional
grade job site portables sets the standard
on ruggedness, features and performance.
The perfect solution for construction,
retail, hospitality, warehousing, industrial,
facilities management and rental fleet
applications. The modern design contours
present a functional and attractive form factor.
COMPACT DESIGN
The ergonomic contours of the ProTalk®naturally
fit the hand for a superbly comfortable hold. The
non-slip elastomer channel knob and switch
torque ensures positive selection and resists
accidental changing.
2, 8 & 15 CHANNEL MODELS
Select ProTalk®2, 8* or 15** channel models which
will fit your needs and requirements. A great
selection providing plenty of capacity for multiple
channels or radio systems.
*8 channel model is available in VHF only.
**15 channel model is available in UHF only.
FREQUENCY & QT/DQT
The ProTalk®VHF (TK-2200LP) 2 & 8 channel
models has 27 pre-stored frequencies while the
ProTalk®UHF (TK-3200LP) 2 or 15 channel models
has 56 pre-stored frequencies. Both models have
39 QT tones and 83 DQT codes. Users can program
a ProTalk®to any of the pre-stored frequencies
and QT/DQT’s, assuring compatibility with other
brand radios.
*QT & DQT may also be referred to under other brand acronyms
as PL, CG, CTCSS & DPL, DCG, DCS.
SUPER LOCK
Managers can ‘‘Super Lock’’ all user controls
(except PTT and volume) to prevent accidental
channel changes.
WIRELESS CLONING
This wireless feature simplifies the setup of several
Protalk®radios to function identically and eliminates
repetitive setup actions of individual radios.
CALLING ALERT
Pressing on the Calling Alert key while transmitting
causes an alert tone to sound from the other
radio’s speaker. This is a useful function to signal
staff in noisy environments.
INTERNAL VOX/HANDS FREE READY
VOX (voice-operated transmission) is invaluable for
specialized tasks or events that require repetitive
hands-free communications. The radio itself
provides automatic PTT action, so the user simply
talks. VOX works with a Kenwood-compatible
headset.
TOUGH & WATER RESISTANT
Built tough for rugged work environments, the
ProTalk®has been designed to pass industrial drop
tests, international IP54/55 water and dust
intrusion tests and 11 categories of the U.S.
Department of Defense MIL-STD 810 C, D, E & F
environmental standards tests.
2 WATTS TRANSMIT POWER / RANGE UP
to 6 MILES
The ProTalk®offers 2 watts* of power to enable
direct radio-to-radio communication on the same
frequency (simplex) for up to 6 miles**.
Conditions
Open areas without obstructions
Residential areas (near buildings)
In steel and/ or concrete
reinforced buildings
In high-rise buildings
*For some frequencies, power may be limited to 1 watt.
**Talk range will vary based on terrain, conditions and type of radio
OTHER FEATURES
•
Time Out Timer
•
Battery Save and Low Battery Warning
•
Scan
•
Channel confirmation mode
Up to 6 miles (9.6 km)
Up to 1.5 miles (2.4 km)
Up to 250,000Sq.
ProTalk
(23,220 Sq. m)
Up to 20 floors
®
.
Page 2
Options
JQA-QMA1205
■ KNB-29N
Ni-MH Battery Pack
(1,500mAh)
■ KNB-45L
2,000mAh/7.4V
Li-Ion Battery Pack
■ KSC-31
Fast Charger
For the KNB-29N (3-Hour)
■ KSC-35K
Fast Charger
For the KNB-45L (3-Hour)
■ KRA-16
VHF Stubby Antenna
■ KRA-17
UHF Stubby Antenna
■ KRA-22
VHF Low Profile
Helical Antenna
■ KRA-23
UHF Low Profile
Helical Antenna
■ KRA-26
VHF Helical Antenna
■ KRA-27
UHF Whip Antenna
■ KMC-45
Compact Speaker
Microphone
■ KMC-21
Lightweight Compact
Speaker Microphone
■ KEP-2
Earphone Kit for
KMC-17
(2.5mm plug)
■ KHS-7
Single Muff Headset
Specifications
Model TK-2200LP VHF TK-3200LP UHF
GENERAL
Frequency Range 150-174 MHz 450-470 MHz
Number of Channels
LV2P / LU2P 2 2
LV8 P 8 LU15P - 15
Channel Spacing
Wide/Narrow 25, 30kHz/12.5,15kHz 25kHz/12.5kHz
Channel Step 2.5, 5, 6.25, 7.5kHz 5, 6.25kHz
Operating Voltage 7.5V DC±20%
Battery Life (5-5-90 duty cycle)
with KNB-29N (1500mAh) 14 hours (Battery Saver Off)
with KNB-45L* (2000mAh) 17 hours (Battery Saver Off)
Operating Temperature Range** -22°F ~ +140°F (-30°C ~ +60°C)
Frequency Stability ±2.5ppm (-22°F ~ +140°F)
Antenna Impedance 50 Ω
Channel Frequency Spread 24MHz 20MHz
Dimensions (W x H x D), Projections not Included
Radio Only 2.13” x 4.8” x 0.83” (54 x 122 x 21.1mm)
with KNB-29N/KNB-45L 2.13” x 4.8” x 1.30” (54 x 122 x 33mm)
Weight (net)
Radio Only 5.6oz (160g)
with KNB-29N 12.7oz (360g)
with KNB-45L 9.9oz (280g)
FCC ID ALH36913120 ALH36923130
FCC Compliance Parts 22/74/90 Parts 90/95
*KNB-45L included with radio package.
**-14°F ~ +140°F (-10°C ~ +60°C) When KNB-29N/45L in use.
18 hours (Battery Saver On)
22 hours (Battery Saver On)
■ KHS-7A
Single Muff Headset
with In-line PTT
■ KHS-8BL
2-wire Palm Mic
with Earphone (Black)
■ KHS-8BE
2-wire Palm Mic
with Earphone (Beige)
■ KHS-22
Behind-the-head
Headset with PTT
■ KHS-23
2-wire Palm Mic
■ KHS-25
D-Ring Ear Hanger
with PTT & Boom Mic
■ KHS-26
Earbud In-line
PTT Headset
All accessories and options may not be available in all markets.
Contact an authorized Kenwood dealer for details and complete list of all accessories and options.
Model TK-2200LP VHF TK-3200LP UHF
RECEIVER (Measurements made per TIA/EIA-603)
Sensitivity (12dB SINAD)
Wide/Narrow 0.25µV/0.28µV
Selectivity
Wide/Narrow 70dB/60dB
Intermodulation Distortion
Wide/Narrow 65dB/60dB
Spurious Response 65dB 60dB
Audio Output 500mW with less than 10% distortion
TRANSMITTER (Measurements made per TIA/EIA-603)
RF Power Output
High/Low 2W/1W 2W/1W
Spurious Response 65dB
Modulation
Wide/Narrow 16KØF3E/11KØF3E
FM Noise
Wide/Narrow 45/40dB
Audio Distortion Less than 5%
Kenwood follows a policy of continuous advancement in development.
For this reason specifications may be changed without notice.
®
FleetSync
is a registered trademark of Kenwood Corporation.
All other trademarks are property of their respective owners.
■ KHS-27
D-Ring In-line
PTT Headset
■ HMC-3
Headset with PTT
Built-in Vox
■ KMB-25
Six Unit Charger
Adapter (for six
KSC-31/35K chargers
■ KMB-28
Six Unit Charger
Adapter (for six
KSC-35K chargers
■ KBH-10
Belt Clip
■ KWR-1
Water Resistance Bag
■ KLH-126
Nylon Case
(chargers not included)
(chargers not included)
Applicable MIL-STD & IP
Standard MIL 810C MIL 810D MIL 810E MIL 810F
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II
Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II
Solar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I
Rain 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III
Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4
Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III
Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I
Shock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV
International Protection Standard
Dust & Water Protection IP54/55
*To meet MIL 810 and IP grade, the 2-pin connector cover has to be connected.
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
ACCESSORIES INCLUDED
• KNB-45L Li-Ion Battery
• KSC-35K 3-Hour Fast Charger
• KBH-10 Spring Action Belt Clip
• Removable Antenna
ADS#41008 Printed in USA
