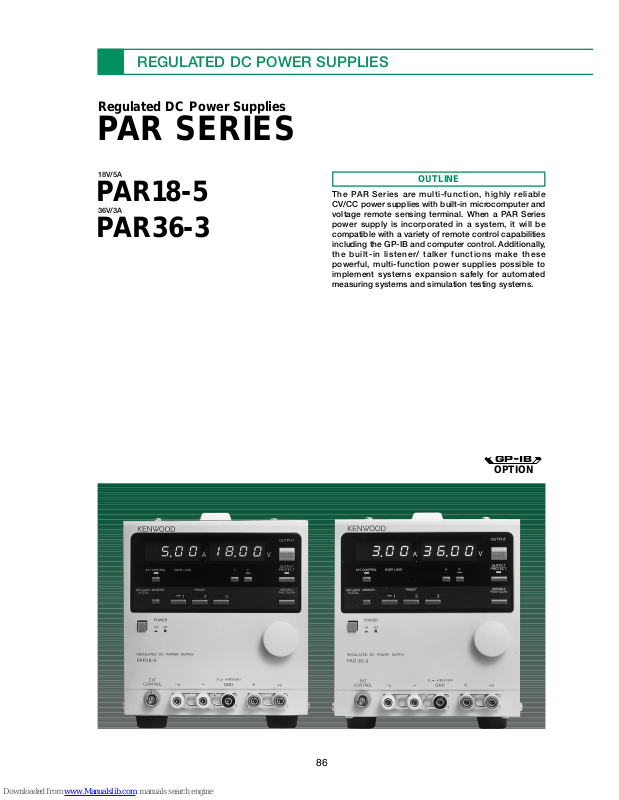

REGULATED DC POWER SUPPLIES
86
The PAR Series are multi-function, highly reliable
CV/CC power supplies with built-in microcomputer and
voltage remote sensing terminal. When a PAR Series
power supply is incorporated in a system, it will be
compatible with a variety of remote control capabilities
including the GP-IB and computer control. Additionally,
the built-in listener/ talker functions make these
powerful, multi-function power supplies possible to
implement systems expansion safely for automated
measuring systems and simulation testing systems.
PAR SERIES
18V/5A
PAR18-5
36V/3A
PAR36-3
GP IB
OPTION
Regulated DC Power Supplies
OUTLINE
Page 2
Master Operation
The PAR Series power supplies are compatible with single-control
operation when they are incorporated in a system, with one master
capable of controlling up to ten slave power supplies, controlling
all the functions simultaneously under the same conditions.
External Remote Control
By connecting the RT-63 Remote Controller, it is possible to
simultaneously control functions such as preset value (output
value) switching and output ON/OFF status of up to 10 power
supplies. It is also possible to perform remote control using
contact or logic signals via the RT-63.
GP-IB Control Enabling Expansion of Applications in System
Power Supplies
When used in combination with the GP-IB adapter (GP-620), the
PAR Series power supplies are applicable to automated measuring
systems and the listener/talker functions enable the control of all
functions and the reading of all output voltage and current values.
Every GP-620 can control up to ten power supplied by
recognizing their IDs so a system with excellent safety can be
implemented. The system can be expanded more by increasing
the GP-620 GP-IB adapters.
Computer Control for Extension to Programmable Power
Supplies
An external computer can be directly connected to use the PAR
Series power supplies as programmable supplies and implement a
power supply system which can control all function settings and
read output voltage and current values of the supplies.
87
PAR SERIES
REGULATED DC POWER SUPPLIES
PAR SERIES
REGULATED DC POWER SUPPLIES
CPU
GP IB
GP-620
PARSeries(upto10units) Lis tener/talker
GP-620
PARSeries(upto10units)
Listener/talker
PAR
PARSeries(upto10units)
PARSeries(upto10units)
RemoteController
RT-63
orexternalsignals
RS-232C
CPU
PARSeries(upto10units) Lis tener/talker
FEATURES
REMOTE CONTROL CAPABILITIES
Remote Sensing
The remote sensing terminal allows for compensation to handle
the voltage drop caused by the impedance of leads for up to 1 V
per path.
Three Preset Voltages
Up to 3 most frequently used voltage and current settings can be
preset to allow speedy output switching with a press of a button.
Output Protection
The output is interrupted when a preset key or variable key is
pressed so output of unexpected voltage or current can be
prevented. (It is also possible to disable the output protection
function.)
Key Lock
A key-lock function can be used to hold all setting values and
invalidate the input of other keys than the power switch, thereby
preventing the inadvertent changes of values during experiments.
Simultaneous Display of Voltage and Current
Output voltage and current are indicated simultaneously on 7segment LED display to allow easy checking of the output values
and setting values.
Energy Saving Design
The energy-saving design minimize temperature rise inside the
unit, making a ventilation fan unnecessary, and thereby
eliminating trouble such as noise, vibration and absorption of dirt.
Simplified Operation
The ease of operation is improved by adopting the one-touch
button or rotary encoder control operations for the setting of keys
and switches.
EXT CONTROL Signal Output
An open-collector signal is output for use in driving an external
relay, etc.
Page 3
REGULATED DC POWER SUPPLIES
88
Model PAR18-5 PAR-36-3
Output voltage
Output voltage 0 to ＋18V 0 to ＋36V
Setting resolution 10mV
Maximum output voltage ＋18V ＋36V
Output current
Output current 0 to ＋5A 0 to ＋3A
Setting resolution 10mA
Maximum output current ＋5A ＋3A
Voltage regulation characteristics (at times other than during voltage remote sensing operation)
Line regulation (with respect to ±10% variation in AC)
2mV
Load regulation (with respect to change from 0 to 100%)
5mV 4mV
Ripple/noise (10Hz to 1MHz) 0.5mVrms
Ripple peak (p-p) 5.6mVp-p 4.2mVp-p
Transient response 100μs Typ
Temperature coefficient 100ppm/℃ Typ
Current regulation characteristics (at times other than during voltage remote sensing operation)
Line regulation (with respect to ±10% variation in AC)
4mA Typ 3mA Typ
Load regulation (with respect to change from 0 to 100%)
20mA Typ 15mA Typ
Ripple/noise (10Hz to 1MHz) 5mArms Typ 4mArms Typ
Ripple peak (p-p) 10mAp-p Typ 8mAp-p Typ
Temperature coefficient 200ppm/℃ Typ
Voltmeter
Display (3-1/2 digits, LED)
Maximum 19.99V display, fixed range, red LEDs Maximum 39.99V display, fixed range, red LEDs
Accuracy (OUT ON) PAR18-5 :± (0.5%rdg＋ 2digit) at 23℃±5℃ 80%RH or less
PAR36-3 :± (0.5%rdg＋ 4digit) at 23℃±5℃ 80%RH or less
Ammeter
Display (3 digits, LED) Maximum 9.99A display, fixed range, red LEDs
Accuracy (OUT ON) ± (1.0%rdg＋ 2digit) at 23℃±5℃ 80%RH or less
Functions
OUTPUT ON/OFF
Output on/off switch, but output cannot be switched on when MEMORY is on (red LED lights when on)
OUTPUT PROTECT ON/OFF
Cut off the output if voltage or current setting changed. (red LED lights when on)
PRESET (1, 2, 3) 3 sets of voltage and current values can be preset (green LED lights when on).
The setting contents of each preset can be checked.
MEMORY Presetting of voltage and current values is possible (red LED lights when on).
KEY LOCK
All setting functions are fixed and all keys except POWER are locked (red LED lights when on).
EXT CONTROL ON/OFF On/off switch of EXT CONTROL terminal, current ; 100mA max
applied voltage ; 60V max, open collector, active low (red LED lights when on).
V/A Voltage and current settings(green LED lights when on)
Output
Polarity Positive or negative side groundable
Terminal color ＋, ＋S (red), −, −S (white), and GND (black)
Groundable voltage limit ±250V DC
Voltage remote sensing Possible, within 1.0V from output voltage
Power consumption VA/ W Approx. 264VA/213W
Power requirement 100V±10% AC, 50/60Hz, 120V/220V/240V±10% (MAX 250V AC) internally switchable
Case dimensions 138（W）×147（H）×372（D）mm
Maximum dimensions 143（W）×167（H）×392（D）mm
Weight Approx.8.0kg
Accessories Instruction manual
×1, Power cable× 1, Modular cable×1
SPECIFICATIONS
Page 4
REGULATED DC POWER SUPPLIES
89
PAR SERIES
REGULATED DC POWER SUPPLIES
PAR SERIES

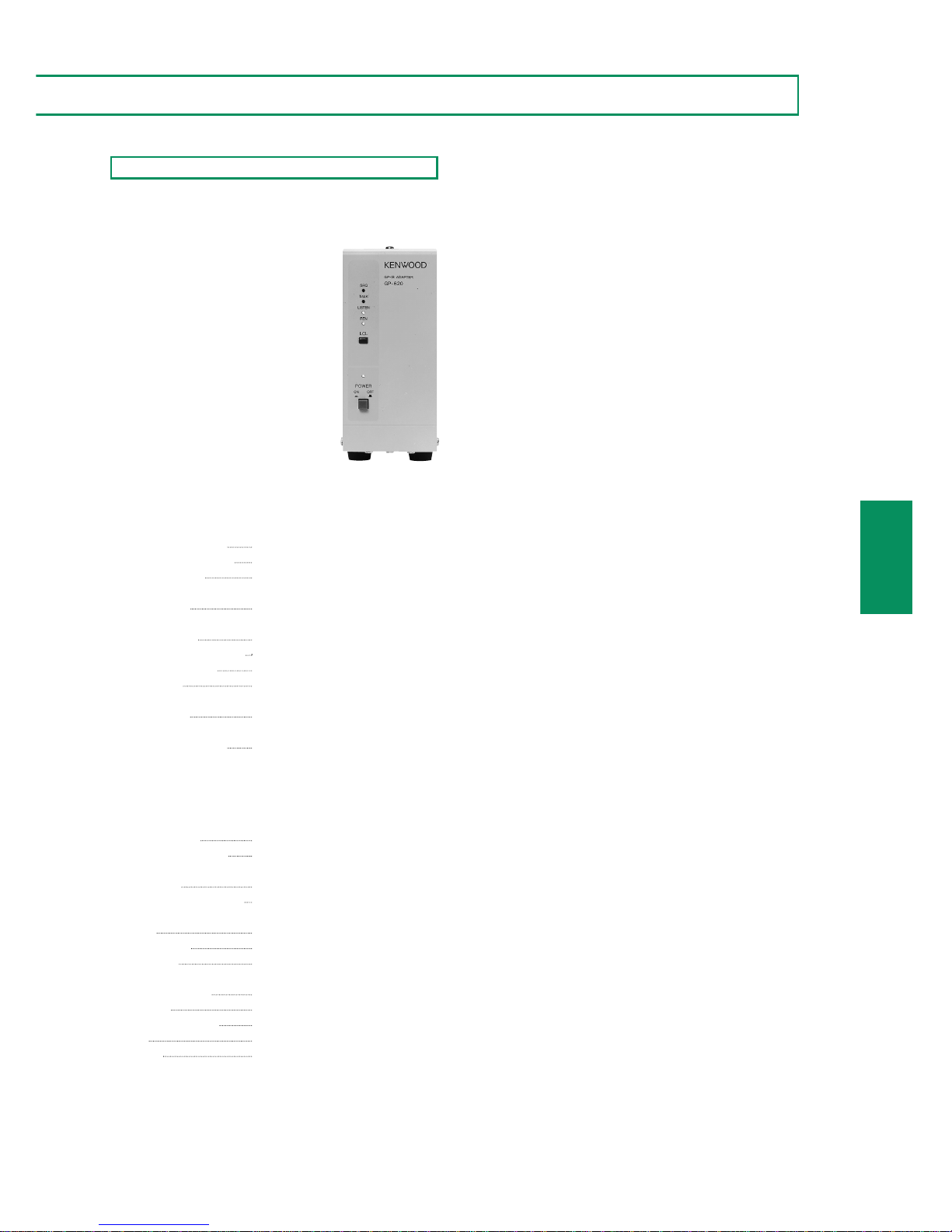

GP-IB Adapter
Provides the listener/talker function which
controls all functions including the voltage
and current settings and reads the output
voltage and current values of the
KENWOOD PWR/PWR-P/PAR Series
power supplies through the GP-IB bus.
●A single adapter can control up to 4 PWR
or PWR-P Series supplies or up to 10 PAR
Series supplies.
●The interface function conforms to IEEE488-1978 and the listener/talker function,
SRQ function and ID recognition allows you
to create a system with excellent safety.
GP-IB Adapter
GP-620
【GP-620 Specifications】
GP-IB
Electrical specifications Conforms to IEEE488-1978
Mechanical specifications Conforms to IEEE488-1978
Interface functions SH1, AH1, TE0, L3, LE0, T6, SR1, RL1,
PP0, DC1, DT1, C0
Address setting Addresses 0 to 30 can be set using an
address switch.
Listen-only mode Can be set with the L-ONLY switch.
Transmission delimiter selection Can be set with the EOI/CR.LF switch.
Remote/local function Can be set with the Local switch.
Talker function Detection of the status of all outputs and
settings of the controlled power supplies.
Listener function Detection of the status of all outputs of
the controlled power supplies.
Service request function Notification of change in the CC/CV
status of the controlled power supplies,
notification of abnormal voltage
occurrence in the controlled power
supplies.
PWR bus (REMOTE connector)
Data transfer rate 9600 bits/sec, ±5%
Data code configuration Start bit
× 1 bit, data bit × 7 bits, parity
bit
× 1 bit, stop bit × 1 bit
Parity system Even parity
Maximum control code length 1.5 meters
Number of controllable power
supplies 4 (PWR/PWR-P), 10 (PAR)
Signaling format Single current NRZ (0: +5 V, 1: 0 V)
Power supply 100/120/220/240 V AC ±10% (250 V max.)
internally switchable. 50/60 Hz.
Power consumption Approx. 5 W
Dimensions 68(W)
×147(H)×251(D) mm
Maximum dimensions 73(W)
×161.5(H)×283(D) mm
Weight Approx. 1.8 kg
Accessory Instruction Manual
× 1
