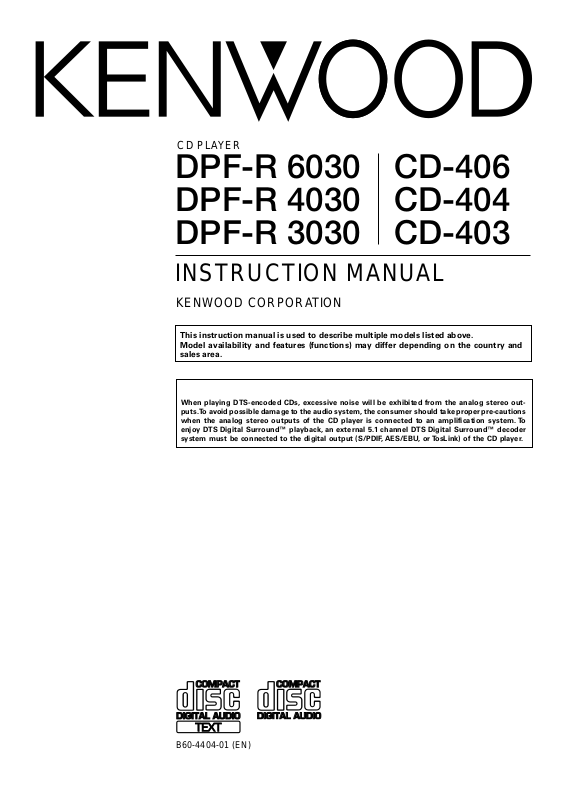

Kenwood CD-403, DPF-R 4030, DPF-R 6030, CD-406, CD-404 User Manual

...

CD PLAYER

DPF-R 6030 CD-406 DPF-R 4030 CD-404 DPF-R 3030 CD-403

INSTRUCTION MANUAL

KENWOOD CORPORATION

This instruction manual is used to describe multiple models listed above. Model availability and features (functions) may differ depending on the country and sales area.

DTS disclaimer clause

When playing DTS-encoded CDs, excessive noise will be exhibited from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper pre-cautions when the analog stereo outputs of the CD player is connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the digital output (S/PDIF, AES/EBU, or TosLink) of the CD player.

COMPACT

DIGITAL AUDIO

TEXT

B60-4404-01 (EN)

COMPACT

DIGITAL AUDIO

TEXT

Before applying power

Units are designed for operation as follows.

Caution : Read this page carefully to ensure safe operation.

U.S.A. and Canada ...................................................................AC 120 V only

Australia ....................................................................................AC 240 V only

For the United Kingdom

Factory fitted moulded mains plug

1.The mains plug contains a fuse. For replacement, use only a 13Amp ASTA-approved (BS1362) fuse.

2.The fuse cover must be refitted when replacing the fuse in the moulded plug.

3.Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

IMPORTANT: The wires in the mains lead are coloured in accord-

Do not connect those leads to the earth terminal of a three-pin plug.

ance with the following code:

Blue : Neutral Brown : Live

Europe and U.K......................................................................... AC 230 V only

China and Russia .....................................................................AC 220 V only

*Other countries ................................ AC 110-120 / 220-240 V switchable

*AC voltage selection

The AC voltage selector switch on the rear panel is set to the voltage that prevails in the area to which the unit is shipped. Before connecting the power cord to your AC outlet, make sure that the setting position of this switch matches your line voltage. If not, it must be set to your voltage in accordance with the following direction.

Move switch lever to match your line voltage with a small screwdriver or other pointed tool.

AC110120V

AC110-

AC220-

120V~

240V~

Note: Our warranty does not cover damage caused by excessive line voltage due to improper setting of the AC voltage selector switch.

AC voltage selector switch

AC220240V

SYSTEM

DIGITAL

LINE

CONTROL

OUTPUT

OUTPUT VARIABLE

TEXT

COAXIAL OPTICAL

The illustration shows the CD-406/DPF-R6030.

Safety precautions

WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The marking of products using lasers

(Except for some areas)

CLASS 1

LASER PRODUCT

The marking is located on the rear panel and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

Before applying power

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future.

Keep this manual handy for future reference.

Accessories

Audio cord ............... (1) System control cord ...........(1)

Remote control unit ..............(1) Batteries (R6/AA)................. (2)

(Except for CD-403/DPF-R3030) (Except for CD-403/DPF-R3030)

6789

+10

POWER

CLEAR CHECK

DISC

SELECTOR

RC-P0601

EDIT

TIME

DISP.

P.MODE 0

REMOTE CONTROL UNIT

OUTPUT

54312

SKIP

DOWN UP

REPEAT RANDOM

Special features

CD-TEXT support (CD-406/DPF-R6030 only)

Advanced technologies incorporated in pursuit of improved sound quality and stability (CD-406/DPF-R6030 only)

Convenient features for dubbing CD onto tape

¶ The text information such as disc title or track title (up to 1000 letters) recorded on the CDs

can be easily called and displayed in alphanumerics. (Some words and text may not be displayed.)

¶ D.R.I.V.E. (Dynamic Resolution Intensive Vector Enhancement) IC is built in for drastic

reduction of distortion at small signal level.

¶ Edit mode is the function for rearranging tracks according to the tape length so that no

music is interrupted in the middle.

¶ Auto space function. %

AC plug adaptor .............. (1)

Use to adapt the plug on the power cord to the shape of the wall outlet. (Accessory only for regions where use is necessary.)

(

Easy operation functions

¶ Easy operation functions allow systematic operation with other KENWOOD components

connected through the system control connection.

ENERGY STAR

As an

Partner, Kenwood Corpora-

tion has determined that this products meets the

ENERGY STAR

guidelines for energy efficiency. This product can save energy. Saving energy reduces air pollution and lowers utility bills.

Contents

Caution: Read the pages marked carefully to ensure safe operation.

Before applying power................................................... 2

Safety precautions ...................................................... 2

Unpacking .................................................................... 3

Special features ........................................................... 3

System connections ....................................................... 4

Controls and indicators.................................................. 6

Operation of remote control unit ................................. 8

Preparing to play tracks ................................................. 9

Normal play (TRACK mode) ........................................ 10

Displays.......................................................................... 12

Programmed play (PGM mode) ................................... 13

Playback in a random order (Random playback) .......16

Repeated playback ........................................................ 17

Editing ............................................................................. 19

Timer operations ........................................................... 21

Maintenance................................................................... 22

In case of difficulty ........................................................ 23

Specifications ................................................................. 24

System connections

Caution:

Do not plug in the power lead until all connections are completed.

Make connections as shown below. When connecting the related system components, refer also to the instruction manuals of the related components.

CD-406/DPF-R6030 :

To wall AC outlet

SYSTEM

LINE

CONTROL

OUTPUT

VARIABLE

DIGITAL OUTPUT

TEXT

COAXIAL OPTICAL

75Ω coaxial cable with RCA PIN. (Commercially-available)

SYSTEM

CONTROL

Malfunction of microcomputer

If operation is not possible or erroneous display appears even though all connections have been made properly, reset the microcomputer referring to “In case of difficulty”.

(COAXIAL)

DIGITAL INPUT

(OPTICAL)

Remove the protection cap when using the DIGITAL OUTPUT (OPTICAL) jack

Commercially-available optical fiber cable

DIGITAL

COAXIAL

INPUT

OPTICAL

Amplifier (or receiver, etc.)

Digital component (MD, DAT, etc.)

DIGITAL INPUT

(OPTICAL)

System control cord

Remove the protection cap when using the DIGITAL OUTPUT (OPTICAL) jack

CD-404/403/ DPF-R4030/R3030 :

To wall AC outlet

Audio cord

SYSTEM

LINE

CONTROL

OUTPUT

VARIABLE OPTICAL

DIGITAL OUTPUT

TEXT

Connection to digital amplifier or MD

Connect the DIGITAL OUTPUT (OPTICAL or COAXIAL (CD-406/DPF-R6030 only)) jack to the digital input jack of the amplifier, DAT recorder, MD recorder, etc., using an optical fiber cable or coaxial cable which are commercially available in audio stores.

÷When using an optical fiber cable to connect this unit to a digital

amplifier, insert the plug straight into the jack until a snap sound is heard.

÷Be careful not to bend, coil, or bundle the optical fiber cable. ÷Optical fiber cables available on the market may not always be able to

be used with this player. If your cord cannot be used with this unit, consult the store from which you purchased the cord or your nearest dealer.

Optical fiber cable

Notes

1. Connect all cords firmly. If connections are loose there could be loss of sound or noise produced.

2. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging/unplugging connection cords without removal of the power cord can cause malfunctions or damage to the unit.

System connections

System control connections

Connecting system control cords after connecting a KENWOOD audio component system lets you take advantage of convenient system control operations.

This unit is compatible only with the [SL-16] mode. The system control operation is not available if the unit is connected in the [XS-8] connection mode.

If your component has the mode select switch, set the connected components to the [SL16] mode.

÷You can connect the system control cord to either system control jack

of the unit.

NotesNotes

Notes

1. If your amplifier or receiver does not have a system control terminal, do not connect any system control cords to the system control terminals on the other components.

2. Do not connect system control cords to any components other than those specified by KENWOOD. It may cause a malfunction and damage your equipment.

3. Be sure the system control plugs are inserted all the way in to the system control terminals.

SYSTEM CONTROL

Amplifier or receiver

This unit

Cassette deck

System control operations

Remote Control

Lets you operate this unit with the system remote control unit supplied with the amplifier or receiver.

Automatic Operation

Automatically switches the input selector on the amplifier or receiver when you start playback from this unit.

Synchronized Recording

Lets you synchronize recording with the start of playback when recording from a CD. Also, the simple CCRS operation enables great recordings from CDs. See the operating instructions supplied with your cassette deck for details.

Adjusting the output levels of the output jacks and headphone output (Except for CD-403/DPFR3030)

The OUTPUT level (UP/DOWN) keys of the remote control unit can adjust the output levels from the LINE/OUT and PHONES jack of the unit.

POWER DISC SELECTOR

P.MODE 0

+10

EDIT

CLEAR CHECK

TIME

SKIP

DISP.

REPEAT RANDOM

OUTPUT

DOWN UP

REMOTE CONTROL UNIT

RC-P0601

÷It is not favorable for the sound quality to decrease the output level from

this unit too much. Use these keys for coordination with other line levels.

÷Adjusting the headphone output level also changes the LINE/OUT

level. Do not adjust the output level from this unit particularly during recording.

OUTPUT

DOWN UP

To use the headphone (Except for CD-403/DPFR3030)

Connect a stereo headphone to the PHONES jack of the CD player.

CD-406/DPF-R6030

CD-404/DPF-R4030

SINGLE TOTAL

P.C.P.C.

ALL

Output level

54321 109876 1514131211 2019181716

Controls and indicators

CD-406/DPF-R6030

Play indicator

Pause indicator

CD-404/403/DPF-R4030/R3030

EDIT indicator

RANDOM indicator

Program mode indicator

FILE

RANDOM

AUTO

PAUSE

Disc No. indicators

Play indicator Pause indicator

PGM

MULTI

EDIT

54321

Text information display

REPEAT indicator

REPEAT

DISC

TRACK NO.

NO.

TRACK NO. indicator

(The displays given in this manual are approximations only. They may differ from what actually appears on the display.)

Program check indicator

Music calendar (1 ~ 20)

SINGLE TOTAL

P.C.

ALL

Time counter, Program No. (SINGLE, TOTAL)

54321 109876 1514131211 2019181716

The illustration of the common parts is of CD-406/DPF-R6030.

Except for USA

Canada

and

ON/STANDBY

CHECK

POWER

ON/STANDBY

P.MODE TIME DISP.

RANDOM REPEAT

CLEAR

DISPLAY

CD-404/403 DPF-R4030/R3030

DISC 1

DISC SKIP

DISC 2DISC 1

DISC 4 DISC 5

DISC 3

DISC 2 DISC 3

DISC 4 DISC 5

OPEN/CLOSE

PHONES

Standby mode

While the standby indicator of the unit is lit, a small amount of current is flowing into the unit’s internal circuitry to back up the memory. This condition is referred to as the standby mode of the unit. While the unit is in the standby mode, it can be turned ON from the remote control unit.

The keys with the same name as those on the remote control unit operate the same way as the remote control unit.

Controls and indicators

1 ON/STANDBY (POWER /

Turns the unit ON/STANDBY.

) key 9

2 P.MODE key #

Used for playback mode switching.

3 CHECK key $

Used to check or change program contents.

4 CLEAR key %

Used to clear the program.

Remote control light sensor (CD-406/404/DPF-R6030/ R4030 only) 8

6 Skip (4/¢) keys !

Press to skip to the beginning of another track.

7 Disc selector keys (DISC1 – DISC5) / Indicator (CD-406/

DPF-R6030

Press to select the disc to be played.

only)

8 OPEN/CLOSE (0) key 9

Opens and closes the disc tray.

9 RANDOM key ^

Press to play the tracks in a random order.

0 REPEAT key &

Press to play the tracks repeatedly.

! TIME DISP. key @

Press to switch the time indication mode.

@ Disc tray 9

Load the disc to be played back.

# Search (1/¡) keys !

Fast forwards or fast reverses the track.

$ DISC SKIP key 9

Press to rotate the disc tray or to select the disc.

% Stop (7) key 0 ^ PHONES jack (CD-406/404/DPF-R6030/R4030 only) 5

Use to connect (optional) headphones.

& Play/pause (6) key 0

Each time the key is pressed, playback and pause switch each other.

Operation of remote control unit

The keys with the same name as those on the main unit operate the same way as on the main unit.

The keys marked * are provided only on the remote control unit.

(Except for CD-403/DPF-R3030)

DISC

SELECTOR

P.MODE 0

EDIT

TIME

SKIP

DISP.

REPEAT RANDOM

OUTPUT

DOWN UP

REMOTE CONTROL UNIT

RC-P0711

RC-P0601

POWER

+10

CLEAR CHECK

Loading batteries

1 DISC SELECTOR keys 0 2 DISC SKIP key 9

3 Program-related and other keys

RANDOM key ^ REPEAT key & P.MODE key # TIME DISP. key @

* EDIT key (

CHECK key $ CLEAR key %

*4 OUTPUT (DOWN, UP) keys 5

5 POWER key 9

*6 Numeric keys (1 ~ 0, +10)

7 Basic function keys

Stop key (7) 0 Play/Pause key (6) 0 Skip (4/¢) keys ! Search keys (1/¡) !

1 Remove the cover. 2 Insert batteries. 3 Close the cover.

÷Insert two AA-size (R6) batteries as

indicated by the polarity marking.

Operation

After plugging in the power cord, press the ON/STANDBY ( POWER/

) key of the main unit to turn the power ON. When the unit is

turned ON, press the key of the function to be operated.

÷When pressing more than one remote control key successively, press

the keys securely by leaving an interval of 1 second or more between keys.

Remote control light sensor

DISC SELECTOR

SKIP

REPEAT RANDOM

DOWN UP

POWER

Operating range

(Approx.)

P.MODE 0

+10

EDIT

CLEAR CHECK

TIME

DISP.

OUTPUT

REMOTE CONTROL UNIT

RC-P0601

Notes

1. The supplied batteries are intended for use in operation checks. Therefore, their lives may be shorter than ordinary batteries.

2. When the remote-controllable distance gets shorter than before, replace both batteries with new ones.

3. Malfunction may occur if direct sunlight or the light of a high-frequency lighting fluorescent lamp enters the remote control light sensor. In such a case, change the system installation position to prevent the malfunction.

+ 16 hidden pages
