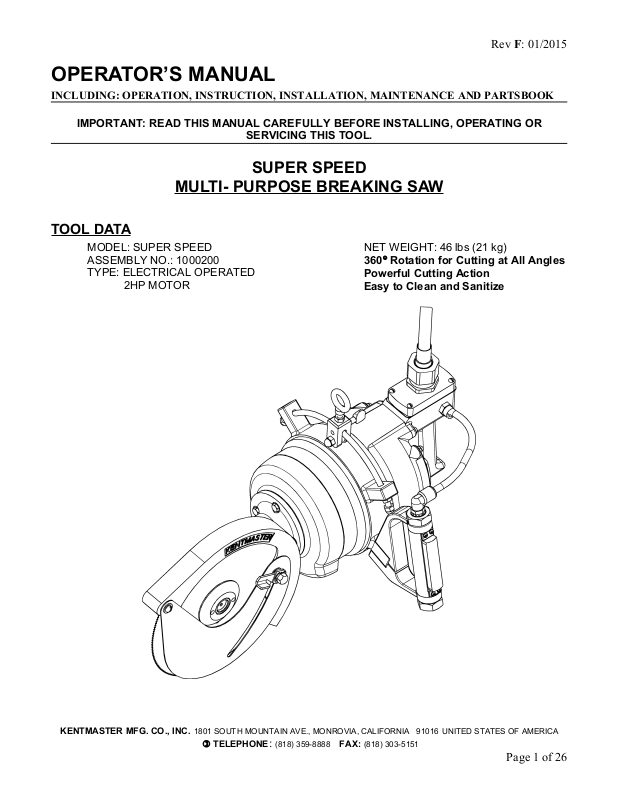

Rev F: 01/2015
OPERATOR’S MANUAL
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR
SERVICING THIS TOOL.
SUPER SPEED
MULTI- PURPOSE BREAKING SAW
TOOL DATA
MODEL: SUPER SPEED
ASSEMBLY NO.: 1000200
TYPE: ELECTRICAL OPERATED
2HP MOTOR
NET WEIGHT: 46 lbs (21 kg)
360° Rotation for Cutting at All Angles
Powerful Cutting Action
Easy to Clean and Sanitize
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 1 of 26
Rev F: 01/2015
= Hazards or unsafe practices which could result in severe
personal injury, death or substantial property damage.
= Hazards or unsafe practices which could result in minor
personal injury, product or property damage.
= Important installation, operation or maintenance information.
OPERATING AND SAFETY INSTRUCTIONS
! WARNING
! WARNING
! WARNING
! WARNING
! WARNING
! WARNING
! WARNING
! WARNING
! WARNING
DO NOT OPERATE THIS TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THE SAFETY
INSTRUCTIONS AND OPERATING MANUALS.
DO NOT OPERATE THIS TOOL UNTIL YOU HAVE RECEIVED TRAINING IN THE HANDLING,
OPERATION AND USE OF THIS TOOL.
STOP USING A MALFUNCTIONING OR DEFECTIVE TOOL IMMEDIATELY. REPORT ANY
PROBLEMS OR DEFECTS TO YOUR SUPERVISOR FOR REMOVAL OF THE TOOL FROM
SERVICE.
DO NOT ATTEMPT TO REPAIR THE TOOL YOURSELF.
DO NOT ALLOW UNAUTHORIZED PERSONS TO USE TOOL.
REMOVE AND DISCONNECT POWER FROM THE TOOL WHEN TOOL IS LEFT
UNATTENDED OR IS NOT IN USE.
NEVER TIE DOWN, BYPASS, ALTER OR MODIFY THE ACTIVATING SWITCHES OR
TRIGGERS OF THIS TOOL.
NEVER MAKE ALTERATIONS OR MODIFICATIONS TO THIS TOOL.
BE CONSTANTLY AWARE AND ALERT FOR UNSAFE CONDITIONS AND REPORT THEM
IMMEDIATELY TO YOUR SUPERVISOR.
! WARNING
NEVER PLACE YOUR HAND OR ANY PART OF YOUR BODY IN THE CUTTING PATH OF
! WARNING
! WARNING
! WARNING
! CAUTION
! WARNING
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
THE TOOL.
NEVER ALLOW ANYONE ELSE TO PLACE THEIR HANDS OR ANY PART OF THEIR BODY
IN THE CUTTING PATH OF THE TOOL.
DO NOT ACTIVATE CONTROL SWITCHES OR TRIGGERS OF THIS TOOL UNLESS YOU
INTEND TO TEST OR OPERATE THIS TOOL.
DO NOT USE THIS TOOL FOR ANY PURPOSE OTHER THAN IT’S INTENDED PURPOSE.
WHEN OPERATING THIS TOOL WEAR THE PROTECTIVE GEAR AND SAFETY EQUIPMENT
SUPPLIED TO YOU.
THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED
80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED.
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 2 of 26
Rev F: 01/2015
INSTALLATION INSTRUCTIONS
ALL ELECTRICAL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN IN
ACCORDANCE WITH THE NATIONAL, STATE AND LOCAL ELECTRICAL CODES.
(REFER TO NAMEPLATE ON TOOL FOR PROPER POWER CONFIGURATION).
1. A BALANCER IS REQUIRED FOR OPERATION AND USE OF THIS TOOL. WEIGHT OF TOOL MUST FALL WITHIN
WEIGHT RANGE OF BALANCER.
2. INSTALL BALANCER ABOVE WORK AREA. BALANCER MUST HAVE SUFFICIENT VERTICAL TRAVEL SO
OPERATOR CAN REACH ENTIRE WORK AREA WITH TOOL WITHOUT STRAIN.
3. ADJUST BALANCER ACCORDING TO THE OPERATOR'S PREFERENCE AND COMFORT.
4. TOOL REQUIRES GREASING AFTER EVERY 40 HOURS OF OPERATION. GREASE USING KENTMASTER
GREASE (PART NO. 7903030 FOR BEARINGS AND 7903090 FOR GEARS).
OPERATING INSTRUCTIONS
ONLY TRAINED PERSONNEL ARE TO OPERATE THIS TOOL.
1. TO HELP ENSURE TOOL IS OPERATING PROPERLY, PERFORM FOLLOWING STEPS AT START OF EACH SHIFT:
• MAKE SURE TOOL MOVES UP AND DOWN FREELY WHILE HANGING FROM BALANCER OVERHEAD.
• WITH POWER TO TOOL TURNED ON, TEST TRIGGER FOR PROPER OPERATION.
• DEPRESS EACH TRIGGER SEPARATELY. TOOL SHOULD NOT ACTIVATE. DEPRESS BOTH TRIGGERS. TOOL
SHOULD ACTIVATE.
• IF TOOL HAS “ANTI-TIE DOWN” OPTION, BOTH TRIGGERS MUST BE DEPRESSED SIMULTANEOUSLY FOR
TOOL TO ACTIVATE.
2. HOLD TOOL FIRMLY IN HAND WITH TRIGGER LEVERS IN POSITION TO BE ACTIVATED BY FINGERS.
3. SQUEEZE TRIGGERS TO ACTIVATE TOOL, RELEASE TRIGGERS TO DEACTIVATE TOOL.
4. POSITION TOOL AND PERFORM CUTTING OPERATION.
5. DO NOT LAY TOOL DOWN WHEN TOOL IS NOT BEING USED
MAINTENANCE
ONLY TRAINED AND QUALIFIED PERSONNEL ARE TO PERFORM MAINTENANCE
AND SERVICE TO THIS TOOL.
1. TOOL REQUIRES GREASING AFTER EVERY 40 HOURS OF OPERATION. GREASE USING KENTMASTER GREASE
(PART NO. 7903030 FOR BEARINGS AND 7903090 FOR GEARS)
BLADE REMOVAL AND CLEANING
ALWAYS DISCONNECT POWER SUPPLY FROM TOOL BEFORE INSTALLING OR
REMOVING BLADES FROM TOOL.
1. REMOVE BLADE NUT (PART NO. 6003180, FIG. NO. 9 AND 10) USING WRENCH ( 4501610)
2. REMOVE BLADE.
3. SHARPEN BLADES WHEN NECESSARY.
5. REASSEMBLE ALL PARTS IN REVERSE ORDER.
SERVICE
1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN YOUR PREVENTIVE MAINTENANCE
PROGRAM.
2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL.
3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION.
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 3 of 26
Rev F: 01/2015
VIBRATION DATA
Model Measuring device Average total vibration Aeq (m/s2) Gain (dB)
Rear Handle Front Handle
SUUPERSPEED
VHM-100 2.06 1.63 20 / 40/ 40
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 4 of 26
PARTS BOOK
SUPER SPEED – MAIN ASSEMBLY
Rev F: 01/2015
Figure 1 1000200: SUPER SPEED - MAIN ASSEMBLY
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 5 of 26
1000200: SUPER SPEED
ITEM PART # DESCRIPTION QTY
1
OPTIONS 2HP MOTOR ASSEMBLY 1
1001540 NOSE GEAR ASSEMBLY, 8", 9" & 10" 1
2
1001760 NOSE GEAR ASSEMBLY, 11" & 12" 1
4000230 8" SAW BLADE(150 TEETH) 1
4000110 9" THIN RIM SAW BLADE (240 TEETH) 1
4000060 10" SAW BLADE (220 TEETH) 1
3
4000280 10" SAW BLADE (120 TEETH) 1
4000080 11" SAW BLADE (240 TEETH) 1
4000520 12" SAW BLADE (240 TEETH) 1
6003250 GUARD FOR 8" BLADE 1
4
1000280 GURAD FOR 9" & 10" BLADE 1
6001890 GUARD FOR 11" & 12" BLADE 1
1002420 POWER SUPPLY, NON 42V MOTOR OPTIONS 1
5
1002430 POWER SUPPLY, 42V MOTOR OPTIONS 1
1002425 POWER SUPPLY,NON 42V, ANTI-TIE DOWN 1
6 1001560 REAR HANDLE ASSEMBLY 1
7 1003900 FRONT HANDLE ASSEMBLY 1
8 4501610 WRENCH / TOOL 1
6001190 DEPTH GAUGE FOR 9" & 10" BLADE 1
9
6001191 DEPTH GAUGE FOR 8" BLADE 1
10
OPTIONS MAGNETIC STARTER BOX 1
Rev F: 01/2015
Figure 2 SUPER SPEED - BOM
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 6 of 26
MOTOR ASSEMBLY
Rev F: 01/2015
MOTOR ASSEMBLY 2HP, 550V, 3PH, 60HZ, 2.2 AMPS 1002850 2340450 1002801
MOTOR ASSEMBLY 2HP, 380V, 3PH, 60HZ, 2.8 AMPS 1002840-380-360 2340440 1002801
MOTOR ASSEMBLY 2HP, 220V, 3PH, 60HZ, 4.8 AMPS 1002840-220-360 2340440 1002801
MOTOR ASSEMBLY 2HP, 460V, 3PH, 60HZ, 2.2 AMPS 1002830-460-360 2340430 1002801
MOTOR ASSEMBLY 2HP, 230V, 3PH, 60HZ, 4.4 AMPS 1002830-230-360 2340430 1002801
MOTOR ASSEMBLY 2HP, 380V, 3PH, 50HZ, 3.1 AMPS 1002820-380-350 2340420 1002801
MOTOR ASSEMBLY 2HP, 220V, 3PH, 50HZ, 5.4 AMPS 1002820-220-350 2340420 1002801
MOTOR ASSEMBLY 2HP, 230V, 3PH, 50HZ, 5.0 AMPS 1002810-230-350 2340410 1002801
MOTOR ASSEMBLY 2HP, 115V, 3PH, 50HZ, 10.0 AMPS 1002810-115-350 2340410 1002801
MOTOR ASSEMBLY 2HP, 42V, 3PH, 50HZ, 30 AMPS 1002800 2340400 1002801
MOTOR OPTION DESCRIPTION MOTOR ASSEMBLY
MOTOR ASSEMBLY FOR 8", 9" & 10" BLADE
#2
STATOR
#1 MOTOR
w/o STATOR
Figure 3 MOTOR ASSEMBLY w/STATOR for 8”, 9” & 10” BLADES
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 7 of 26
Rev F: 01/2015
1002801: MOTOR w/o STATOR (8", 9" & 10" BLADE)
ITEM PART # DESCRIPTION QTY
1 1000220 HOUSING - FAN 1
2 1000230 FRONT END BELL 1
3 1002720 END BELL 1
4 1000270 FAN 1
5 1002710 ROTOR AND SHAFT ASSEMBLY 1
6 1000390 COVER END BELL 1
7 1000460 TIE ROD 4
8 1000480 DEFLECTOR - AIR 2
9 1003700 YOKE ASSEMBLY 1
10 2000040 NAME PLATE 1
11 3204050 BEARING 1
12 3304050 BEARING 1
13 5002060 RETAINING RING 2
14 5100980 RETAINING RING 2
15 8028040 SCREW 4
16 8081020 SCREW 4
17 8313020 SET SCREW 1
18 8501090 NUT 4
Figure 4 1002801: MOTOR w/o STATOR (8", 9" & 10" BLADE)
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 8 of 26
Rev F: 01/2015
MOTOR ASSEMBLY 2HP, 550V, 3PH, 60HZ, 2.2 AMPS 1002950 2340450 1002901
MOTOR ASSEMBLY 2HP, 380V, 3PH, 60HZ, 2.8 AMPS 1002940-380-360 2340440 1002901
MOTOR ASSEMBLY 2HP, 220V, 3PH, 60HZ, 4.8 AMPS 1002940-220-360 2340440 1002901
MOTOR ASSEMBLY 2HP, 460V, 3PH, 60HZ, 2.2 AMPS 1002930-460-360 2340430 1002901
MOTOR ASSEMBLY 2HP, 230V, 3PH, 60HZ, 4.4 AMPS 1002930-230-360 2340430 1002901
MOTOR ASSEMBLY 2HP, 380V, 3PH, 50HZ, 3.1 AMPS 1002920-380-350 2340420 1002901
MOTOR ASSEMBLY 2HP, 220V, 3PH, 50HZ, 5.4 AMPS 1002920-220-350 2340420 1002901
MOTOR ASSEMBLY 2HP, 230V, 3PH, 50HZ, 5.0 AMPS 1002910-230-350 2340410 1002901
MOTOR ASSEMBLY 2HP, 115V, 3PH, 50HZ, 10.0 AMPS 1002910-115-350 2340410 1002901
MOTOR ASSEMBLY 2HP, 42V, 3PH, 50HZ, 30 AMPS 1002900 2340400 1002901
MOTOR OPTION DESCRIPTION MOTOR ASSEMBLY
MOTOR ASSEMBLY FOR 11" & 12" BLADE
#2
STATOR
#1 MOTOR
w/o STATOR
Figure 5 MOTOR ASSEMBLY w/STATOR for 11 & 12” BLADES
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 9 of 26
Rev F: 01/2015
1002901: MOTOR w/o STATOR (11" & 12" BLADES)
ITEM PART # DESCRIPTION QTY
1 1000220 HOUSING - FAN 1
2 1002720 END BELL 1
3 1000270 FAN 1
4 1002710 ROTOR AND SHAFT ASSEMBLY 1
5 1000390 COVER END BELL 1
6 1000460 TIE ROD 4
7 1000480 DEFLECTOR - AIR 2
8 1000760 FRONT END BELL 1
9 1003700 YOKE ASSEMBLY 1
10 2000040 NAME PLATE 1
11 3204050 BEARING 1
12 3304050 BEARING 1
13 5002060 RETAINING RING 2
14 5100980 RETAINING RING 2
15 8028040 SCREW 4
16 8081020 SCREW 4
17 8313020 SET SCREW 1
18 8501090 NUT 4
Figure 6 1002901: MOTOR w/o STATOR (11” & 12” BLADES)
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 10 of 26
1003700: YOKE ASSEMBLY
ITEM PART # DESCRIPTION QTY
1 1003810 HANGER YOKE 1
2 1003820 ROD - HANGER 1
3 1003830 ASSEMBLY CARRIER 1
4 3850010 NYLON BEARING STRIP 1
5 8443080 SCREW 1
6 8500130 NUT 2
7 8501130 NUT 2
8 8703020 PLUG 1
Rev F: 01/2015
Figure 7 1003700: YOKE ASSEMBLY
1003830: CARRIER ASSEMBLY
ITEM PART # DESCRIPTION QTY
1 1003860 CARRIER - BEARING 1
2 3601150 BEARING 1
3 8443080 SCREW 1
4 8463070 SHOULDER EYE BOLT 1
5 8500130 NUT 1
6 8501130 NUT 1
7 8870220 SCREW 1
Figure 8 1003830: CARRIER ASSEMBLY
KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (818) 359-8888 FAX: (818) 303-5151
Page 11 of 26
NOSE GEAR ASSEMBLY
(Item #1)
Rev F: 01/2015
NOSE GEAR ASSEMBLY FOR 8”, 9” & 10” BLADE
1001540: NOSE GEAR ASSEMBLY (8", 9" &10" BLADE)
ITEM PART # DESCRIPTION QTY ITEM PART # DESCRIPTION QTY
1 1000360 COVER GEAR NOSE 1 16 5001560 RETAINING RING 1
2 1000400 BEVEL/SPUR GEAR 1 17 6003180 NUT - BLADE 1
3 1000410 PINION 1 18 7017110 GREASE FITTING 1
4 1000440 GASKET 1 19 7885580 SEAL 1
5 1000740 DRIVEN SPUR GEAR 1 20 8270530 SCREW 6
6 1001430 GEAR NOSE HOUSING 1 21 8411060 SCREW 4
7 1001520 SHAFT 1 22 8500470 NUT 1
8 1001530 SHAFT 1 23 8500520 NUT 1
9 3000030 LOCKWASHER 1 24 8600440 KEY 2
10 3001030 LOCKNUT 1 25 8705000 WASHER 3
11 3521020 BEARING - DOUBLE ROW 1 26 8705010 WASHER 1
12 3524030 BEARING 1 27 8705470 WASHER 1
13 3650020 BEARING CONE 2 28 8712030 SPRING WASHER 2
14 3650030 BEARING CUP 2 29 8803080 INSERT 6
15 5001370 RETAINING RING 1
Install blade guard
6003250 or 1000280
under cover 1000360
Figure 9 1001540: NOSE GEAR ASSEMBLY FOR 8” 9” & 10” BLADE
Page 12 of 26
NOSE GEAR ASSEMBLY FOR 11” & 12” BLADE
Rev F: 01/2015
1001760: NOSE GEAR ASEEMBLY (11" & 12" BLADE)
ITEM PART # DESCRIPTION QTY ITEM PART # DESCRIPTION QTY
1 1001580 COVER GEAR NOSE 1 16 5001560 RETAINING RING 1
2 1000400 BEVEL/SPUR GEAR 1 17 6003180 NUT - BLADE 1
3 1000410 PINION 1 18 7017110 GREASE FITTING 1
4 1000440 GASKET 2 19 7885580 SEAL 1
5 1000740 DRIVEN SPUR GEAR 1 20 8270530 SCREW 6
6 1001520 SHAFT 1 21 8411060 SCREW 3
7 1001530 SHAFT 1 22 8500470 NUT 1
8 1001750 GEAR NOSE HOUSING 1 23 8500520 NUT 1
9 3000030 LOCKWASHER 1 24 8600440 KEY 2
10 3001030 LOCKNUT 1 25 8705000 WASHER 3
BEARING - DOUBLE
11 3521020
12 3524030 BEARING 1 27 8705470 WASHER 1
13 3650020 BEARING CONE 2 28 8712030 SPRING WASHER 2
14 3650030 BEARING CUP 2 29 8803080 INSERT 6
15 5001370 RETAINING RING 1
ROW 1 26 8705010 WASHER 1
Install blade guard 600189 on top of
cover 1001580 (Item #1)
Figure 10 1001760: NOSE GEAR ASSEMBLY FOR 11” & 12” BLADE
Page 13 of 26
DEPTH GAUGE FOR 9” & 10” BLADE
Rev F: 01/2015
BLADE DEPTH GAUGE
6001190: DEPTH GAUGE FOR 9" & 10" BLADE
ITEM PART # DESCRIPTION QTY
1 1002300 GAUGE - 10" 1
2 1002540 LEVER 1
3 1002550 BOLT 1
4 1002560 WASHER 1
5 1002570 NUT 1
6 1002580 SPRING LOAD 1
7 1002590 LEVER RETAINER 2
8 6201200 WASHER 1
9 8031060 SCREW 1
10 8505100 WASHER 1
Figure 11 6001190: DEPTH GAUGE FOR 9” & 10” BLADE
6001191: DEPTH GAUGE FOR 8" BLADE
ITEM PART # DESCRIPTION QTY
1 1002540 LEVER 1
2 1002550 BOLT 1
3 1002560 WASHER 1
4 1002570 NUT 1
5 1002580 SPRING LOAD 1
6 1002590 LEVER RETAINER 2
7 6003240 DEPTH GAUGE 1
8 6201200 WASHER 1
9 8031060 SCREW 1
10 8505100 WASHER 1
Figure 12 6001191: DEPTH GAUGE FOR 8” BLADE
Page 14 of 26
POWER SUPPLY
1002420: POWER CORD ASSEMBLY, NON 42V
ITEM PART # DESCRIPTION QTY
1 2001240 POWER CORD 1
2 2001270 CABLE CONNECTOR 1
3 2001610 PLUG, MALE 1
4 2001620 SOCKET, FEMALE 1
5 2008510 CORD GRIP 1
Rev F: 01/2015
Figure 13 1002420: POWER CORD ASSEMBLY, NON 42V
1002430: POWER CORD ASSEMBLY, 42V
ITEM PART # DESCRIPTION QTY
1 2001270 CABLE CONNECTOR 1
2 2001700 GROMMET 1
3 2007030 POWER CORD 1
Figure 14 1002430: POWER CORD ASSEMBLY, 42V
Page 15 of 26
Rev F: 01/2015
1002425: POWER CORD, NON 42V, w/ATD
ITEM PART # DESCRIPTION QTY
1 2001080 POWER CORD 1
2 2001270 CABLE CONNECTOR 1
3 2009120 TIMER 1
TIMER (ITEM #3), ANTI – TIE DOWN UNIT, IS
PLACED IN MAGNETIC STARTER BOX.
Figure 15 1002425: POWER CORD, NON 42V, w/ATD
Page 16 of 26
WIRING DIAGRAM
Rev F: 01/2015
Figure 16 ELECTRIC MOTOR LEAD HOOKUP DIAGRAM
Page 17 of 26
3 PHASE – DIFFERENT MOTOR AND CONTROL VOLTAGE, w/o ATD
Rev F: 01/2015
NOTES:
1. DO NOT ATTEMPT OR MAKE RAPAIRS ON THE MACHINE WHILE POWER IS ON.
2. ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN.
3. THE ELECTRICAL DIAGRAM SHOWS THE MACHINE IN THE “OFF” POSITION.
4. THE GROUND WIRE (GREEN) OF THE POWER CABLE IS CONNECTED TO THE FRAME
OF THE MACHINE.
To obtain the correct Kentmaster part number for 3-pole contactor and overload
relay, please contact the Kentmaster representative.
Figure 17 WIRING DIAGRAM – different control and motor voltage, w/o ATD
Page 18 of 26
3 PHASE – SAME MOTOR AND CONTROL VOLTAGE, w/o ATD
Rev F: 01/2015
NOTES:
1. DO NOT ATTEMPT OR MAKE RAPAIRS ON THE MACHINE WHILE POWER IS ON.
2. ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN.
3. THE ELECTRICAL DIAGRAM SHOWS THE MACHINE IN THE “OFF” POSITION.
4. THE GROUND WIRE (GREEN) OF THE POWER CABLE IS CONNECTED TO THE FRAME
OF THE MACHINE.
To obtain the correct Kentmaster part number for 3-pole contactor and overload
relay, please contact the Kentmaster representative.
Figure 18 WIRING DIAGRAM – same control and motor voltage, w/o ATD
Page 19 of 26
3 PHASE – DIFFERENT MOTOR AND CONTROL VOLTAGE, with ATD
L N
Rev F: 01/2015
NOTES:
5. DO NOT ATTEMPT OR MAKE RAPAIRS ON THE MACHINE WHILE POWER IS ON.
6. ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN.
7. THE ELECTRICAL DIAGRAM SHOWS THE MACHINE IN THE “OFF” POSITION.
8. THE GROUND WIRE (GREEN) OF THE POWER CABLE IS CONNECTED TO THE FRAME
OF THE MACHINE.
To obtain the correct Kentmaster part number for 3-pole contactor and overload
relay, please contact the Kentmaster representative.
Figure 19 WIRING DIAGRAM – different control and motor voltage, with ATD
Page 20 of 26
3 PHASE – SAME MOTOR AND CONTROL VOLTAGE, with ATD
Rev F: 01/2015
NOTES:
9. DO NOT ATTEMPT OR MAKE RAPAIRS ON THE MACHINE WHILE POWER IS ON.
10. ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN.
11. THE ELECTRICAL DIAGRAM SHOWS THE MACHINE IN THE “OFF” POSITION.
12. THE GROUND WIRE (GREEN) OF THE POWER CABLE IS CONNECTED TO THE FRAME
OF THE MACHINE.
To obtain the correct Kentmaster part number for 3-pole contactor and overload
relay, please contact the Kentmaster representative.
Figure 20 WIRING DIAGRAM – same control and motor voltage, with ATD
Page 21 of 26
REAR HANDLE
Rev F: 01/2015
HANDLES
1001560: REAR HANDLE ASSEMBLY
ITEM PART # DESCRIPTION QTY
1 1000260 HANDLE 1
2 1000380 TRIGGER 1
3 1000450 PLATE - SWITCH MOUNT 1
4 1001570 COVER - SWITCH HANDLE 1
5 1002050 GASKET 1
6 1500110 SPRING 1
7 2000080 LOCKNUT 1
8 2000090 BOOT - MOISTURE SEAL 1
9 2000540 SWITCH 1
10 7036150 FITTING 1
11 8028080 SCREW 4
12 8031060 SCREW 4
13 8068030 SCREW 2
14 8613160 PIN 1
Figure 21 1001560: REAR HANDLE ASSEMBLY
Page 22 of 26
FRONT HANDLE
Rev F: 01/2015
1003900: FRONT HANDLE
ITEM PART # DESCRIPTION QTY
1 1003840 BRACKET, RIGHT- HANDLE 1
2 1003850 BRACKET, LEFT - HANDLE 1
3 1302420 HANDLE 1
4 1302430 TRIGGER 1
5 1302440 SPRING 1
6 1302450 PLUNGER 1
7 1302460 HOLDER, PLUNGER 1
8 1302470 HOLDER 2
9 1701550 SPRING 2
10 2000690 SWITCH 1
11 7036450 ELBOW 1
12 7300750 TUBE 1
13 8086020 SCREW 4
14 8500580 NUT 2
15 9213080 SCREW 1
16 9213140 SCREW 1
Figure 22 1003900: FRONT HANDLE
Page 23 of 26
Rev F: 01/2015
NOTICE TO EMPLOYER AND PURCHASER OF TOOL
NOTICE TO SAFETY DIRECTOR
You have purchased a powerful tool that, if misused, can cause severe
injury and harm to your employees. You must instruct your employees in
the safe and proper use of this tool and to follow the safety procedures
and instructions that have been supplied by the manufacturer of this tool.
Please follow the following instructions.
1. Instruct tool operators to test the tool each day before using it to be sure it does not
malfunction. Remove and repair any tool that malfunctions.
2. Instruct tool operators to immediately stop using a tool that malfunctions or is defective.
3. Instruct personnel to immediately remove all tools that malfunction. Be sure to disconnect
tool from power supply.
4. Instruct all personnel to stay clear of tool, and not to stand or walk in front of, or next to
tool when in use.
5. Point out to all personnel the dangers related to the misuse of tool and the importance
of following safety procedures and instructions.
6. Do not make, or allow others to make, alterations or modifications to this tool.
Replace all lost or illegible labels.
7. Follow all safety, installation and maintenance instructions provided with this tool.
Establish proper safety procedures in accordance with local and national requirements
to prevent accidental energizing of tool that can cause injuries.
8. If this tool is sold or change in ownership takes place, you must provide the new owner all
safety instructions, notices and maintenance instructions you were originally provided.
You can obtain additional copies of the instructions from Kentmaster, free of charge upon
request.
9. Give copies of instructions to: (A) Tool Operators
(B) Maintenance Supervisor
(C) Clean-up Supervisor
Page 24 of 26
Rev F: 01/2015
INDEX
TOOL DATA...................................................................................................................................................................................1
OPERATING AND SAFETY INSTRUCTIONS............................................................................................................................2
INSTALLATION INSTRUCTIONS...........................................................................................................................................3
OPERATING INSTRUCTIONS.................................................................................................................................................3
MAINTENANCE.........................................................................................................................................................................3
BLADE REMOVAL AND CLEANING.....................................................................................................................................3
SERVICE.....................................................................................................................................................................................3
VIBRATION DATA....................................................................................................................................................................4
PARTS BOOK.................................................................................................................................................................................5
SUPER SPEED – MAIN ASSEMBLY.......................................................................................................................................5
MOTOR ASSEMBLY.................................................................................................................................................................7
NOSE GEAR ASSEMBLY.......................................................................................................................................................12
NOSE GEAR ASSEMBLY FOR 8”, 9” & 10” BLADE.......................................................................................................12
NOSE GEAR ASSEMBLY FOR 11” & 12” BLADE...........................................................................................................13
BLADE DEPTH GAUGE..........................................................................................................................................................14
DEPTH GAUGE FOR 9” & 10” BLADE.............................................................................................................................14
POWER SUPPLY......................................................................................................................................................................15
WIRING DIAGRAM.................................................................................................................................................................17
3 PHASE – DIFFERENT MOTOR AND CONTROL VOLTAGE, w/o ATD.....................................................................18
3 PHASE – SAME MOTOR AND CONTROL VOLTAGE, w/o ATD...............................................................................19
3 PHASE – DIFFERENT MOTOR AND CONTROL VOLTAGE, with ATD....................................................................20
3 PHASE – SAME MOTOR AND CONTROL VOLTAGE, with ATD..............................................................................21
HANDLES.................................................................................................................................................................................22
REAR HANDLE....................................................................................................................................................................22
FRONT HANDLE.................................................................................................................................................................23
NOTICE TO EMPLOYER AND PURCHASER OF TOOL........................................................................................................24
INDEX............................................................................................................................................................................................25
Kentmaster Worldwide Location...................................................................................................................................................26
Page 25 of 26
Kentmaster Worldwide Location
Kentmaster Equipment (Aust) PTY.LTD.
Unit 2,24 Central Court
Browns Plains Qld. 4118
Australia
Telephone: (07) 3806-8400
Fax: (07) 3806-7933
Australia@Kentmaster.com
Kentmaster do Brasil, Ltda.
Av. Dr. Joao Teodoro No. 805
Bairro De Vila Rezende
13405-240 Piracicaba, SP,
Brazil
Telephone #1: (019) 3 413 3113
Telephone #2: (019)983-4973
Fax: (019) 3 413 3113
Brazil@Kentmaster.com
Kentmaster (IRL) LTD.
Benamore, Dublin Road.
Roscrea,
CO, Tipperary,
Ireland
Telephone: (353) 0505-23292
Fax: (353) 0505-23299
Ireland@Kentmaster.com
Kentmaster Equipment (NZ) LTD.
5 Cooper Street
Havelock North
New Zealand
Telephone #1: (64) 6 8777 857
Telephone #2: 0800 KENTMASTER
Fax: (64) 6 8777 858
NewZealand@Kentmaster.com
Rev F: 01/2015
Kentmaster South Africa (PTY) LTD.
Johannesburg - S. Africa
Unit 54 Sunnyrock Park
Sunrock Close, Germiston
South Africa
Telephone: (27) 11-455-3748
Fax: (27) 11-455-3749
SouthAfrica@Kentmaster.com
Kentmaster (UK ) LTD.
Unit 16 Avonbank Ind. Centre
West Town Rd, Avonmouth-Bristol,
BS11 9DE
England
Telephone: (44) 117-923-5035
Fax: (44)-117-932-9010
UK@Kentmaster.com
Kentmaster Mfg. Co., Inc.
1801 South Mountain Ave.
Monrovia, CA, 91016
USA
Telephone #1: (626) 359-8888
Telephone #2: (800) 421-1477
Fax: (626) 303-5151
info@Kentmaster.com
Kentmaster Omaha
4417 South 139th Street
Omaha, NE, 68137
USA
Telephone #1: (402) 896-3355
Telephone #2: (800) 367-3181
Fax: (402) 896-3311
Omaha@Kentmaster.com
Page 26 of 26
Loading...
