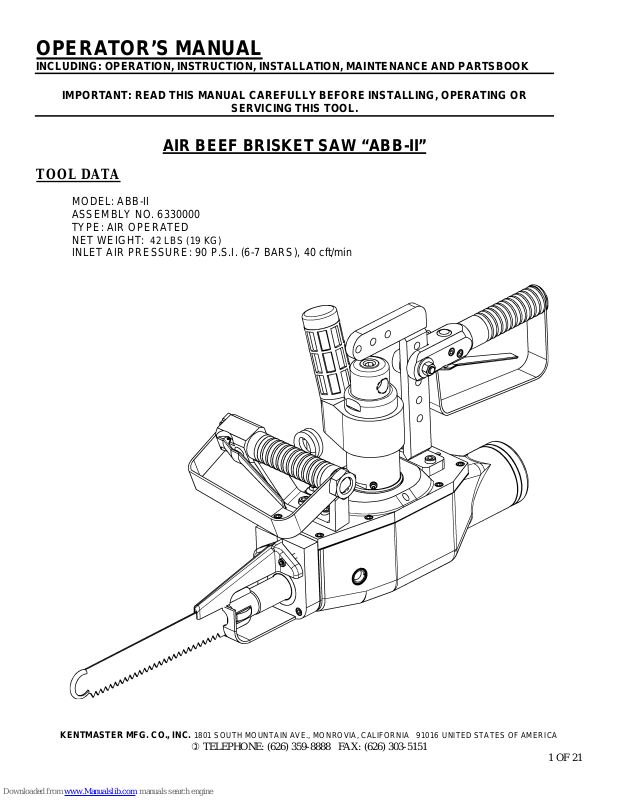

KENTMASTER ABB-II Operator's Manual

OPERATOR’S MANUAL

INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK

IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR

SERVICING THIS TOOL.

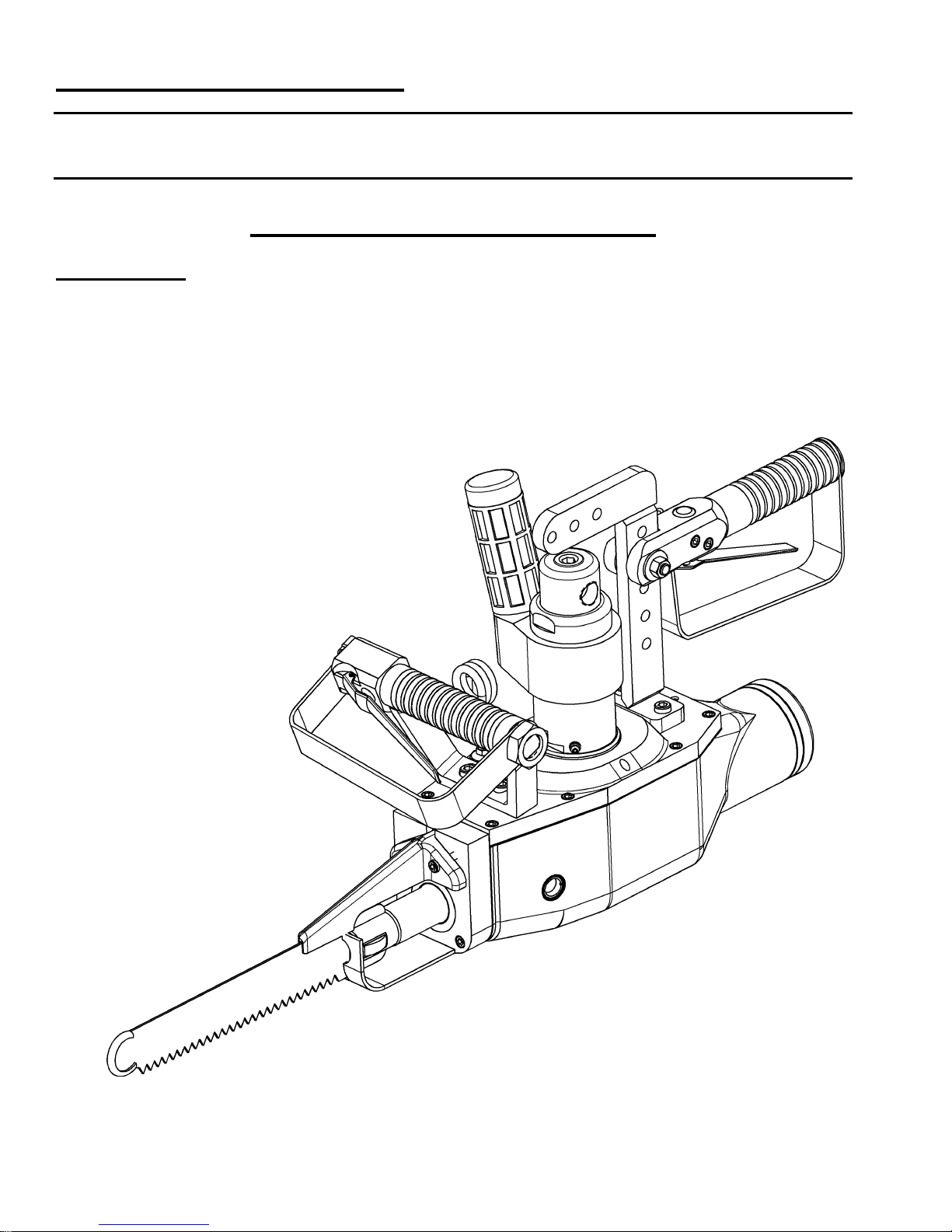

AIR BEEF BRISKET SAW “ABB-II”

TOOL DATA

MODEL: ABB-II
ASSEMBLY NO. 6330000
TYPE: AIR OPERATED
NET WEIGHT: 42 LBS (19 KG)
INLET AIR PRESSURE: 90 P.S.I. (6-7 BARS), 40 cft/min

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

1 OF 21

= Hazards or unsafe practices which could result in severe personal injury,

! WARNING

death or substantial property damage.

= Hazards or unsafe practices which could result in minor personal injury,

! CAUTION

product or property damage.

= Important installation, operation or maintenance information.

! NOTICE

OPERATING AND SAFETY INSTRUCTIONS

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! WARNING

! CAUTION

! WARNING

DO NOT OPERATE THIS TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THE SAFETY
INSTRUCTIONS AND OPERATING MANUALS.

DO NOT OPERATE THIS TOOL UNTIL YOU HAVE RECEIVED TRAINING IN THE HANDLING,
OPERATION AND USE OF THIS TOOL.

STOP USING A MALFUNCTIONING OR DEFECTIVE TOOL IMMEDIATELY. REPORT ANY
PROBLEMS OR DEFECTS TO YOUR SUPERVISOR FOR REMOVAL OF THE TOOL FROM
SERVICE.

DO NOT ATTEMPT TO REPAIR THE TOOL YOURSELF.
DO NOT ALLOW UNAUTHORIZED PERSONS TO USE TOOL.
REMOVE AND DISCONNECT POWER FROM THE TOOL WHEN TOOL IS LEFT UNATTENDED OR

IS NOT IN USE.
NEVER TIE DOWN, BYPASS, ALTER OR MODIFY THE ACTIVATING SWITCHES OR TRIGGERS OF

THIS TOOL.
NEVER MAKE ALTERATIONS OR MODIFICATIONS TO THIS TOOL.
BE CONSTANTLY AWARE AND ALERT FOR UNSAFE CONDITIONS AND REPORT THEM

IMMEDIATELY TO YOUR SUPERVISOR.

NEVER PLACE YOUR HAND OR ANY PART OF YOUR BODY IN THE CUTTING PATH OF THE
TOOL.

NEVER ALLOW ANYONE ELSE TO PLACE THEIR HANDS OR ANY PART OF THEIR BODY IN THE
CUTTING PATH OF THE TOOL.

DO NOT ACTIVATE CONTROL SWITCHES OR TRIGGERS OF THIS TOOL UNLESS YOU INTEND
TO TEST OR OPERATE THIS TOOL.

DO NOT USE THIS TOOL FOR ANY PURPOSE OTHER THAN IT’S INTENDED PURPOSE.
WHEN OPERATING THIS TOOL WEAR THE PROTECTIVE GEAR AND SAFETY EQUIPMENT

SUPPLIED TO YOU.
THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED 80 dB

(A). EAR AND SOUND PROTECTION GEAR IS REQUIRED.

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

2 OF 21

OPERATING INSTRUCTIONS

! WARNING

1. TO ENSURE TOOL IS OPERATING PROPERLY, PERFORM FOLLOWING STEPS AT START OF EACH SHIFT:

• MAKE SURE TOOL MOVES UP AND DOWN FREELY WHILE HANGING FROM BALANCER OVERHEAD.

• WITH POWER TO TOOL TURNED ON, TEST TRIGGER FOR PROPER OPERAT ION.

• DEPRESS EACH TRIGGER SEPARATELY. TOOL SHOULD NOT ACTIVATE. DEPRESS BOTH TRIGGERS.

TOOL SHOULD ACTIVATE.

• IF TOOL HAS "ANTI-TIE DOWN" OPTION, BOTH TRIGGERS MUST BE DEPRESSED SIMULTANEOUSLY FOR
TOOL TO ACTIVATE.

2. TO PERFORM WORK, HOLD TOOL FIRMLY AT BOTH HANDLES. SQUEEZE TRIGGERS TO ACTIVATE TOOL.

3. POSITION TOOL AND PERFORM CUTTING OPERATION.

ONLY TRAINED PERSONNEL ARE TO OPERATE THIS TOOL.

MAINTENANCE

ONLY TRAINED AND QUALIFIED PERSONNEL ARE TO PERFORM MAINTENANCE

! WARNING

AND SERVICE TO THIS TOOL.

THE COMPRESSED AIR DISTRIBUTION SYSTEM MUST BE LARGE ENOUGH TO SUPPLY AN ADEQUATE VOLUME OF CLEAN
AND DRY COMPRESSED AIR TO THE TOOL.

1. MAKE ALL NECESSARY LINE CONNECTIONS TO THE TOOL.

2. AN AIR FILTER-REGULATOR-LUBRICATOR (PART NO. 7200030) MUST BE INSTALLED IN AIR SUPPLY FO R EACH TOOL.

3. FILL LUBRICATOR WITH KENTMASTER AIR MIST OIL (PART NO. 7903050). SET DRIP RATE ACCORDING TO

INSTRUCTIONS SUPPLIED. TURN ADJUSTMENT ON SIGHT FEED DOME TO INCREASE/DECREASE OIL DELIVERY.
MONITOR THE DEVICE BEING LUBRICATED AND READJUST IF NEEDED.

4. TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE.

5. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART

7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR
AND INTERNAL PARTS OF TOOL.

BLADE REMOVAL AND CLEANING.

ALWAYS DISCONNECT POWER SUPPLY FROM TOOL BEFORE INSTALLING OR

! WARNING

REMOVING BLADE FROM TOOL.

! WARNING

ALWAYS WEAR WIRE MESH GLOVES WHEN INSTALLING OR REMOVING BLADE FROM TOOL.

1. REMOVE NUT AND BOLT (ITEM NO. 1 AND 2, FIG. NO. 1).

2. REMOVE BLADE (ITEM NO. 3, FIG. NO. 1).

3. CLEAN ALL PARTS REMOVED WITH SOAP AND WATER.

4. SHARPEN OR REPLACE BLADES WHEN NECESSARY.

5. REASSEMBLE IN REVERSE ORDER.

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

3 OF 21

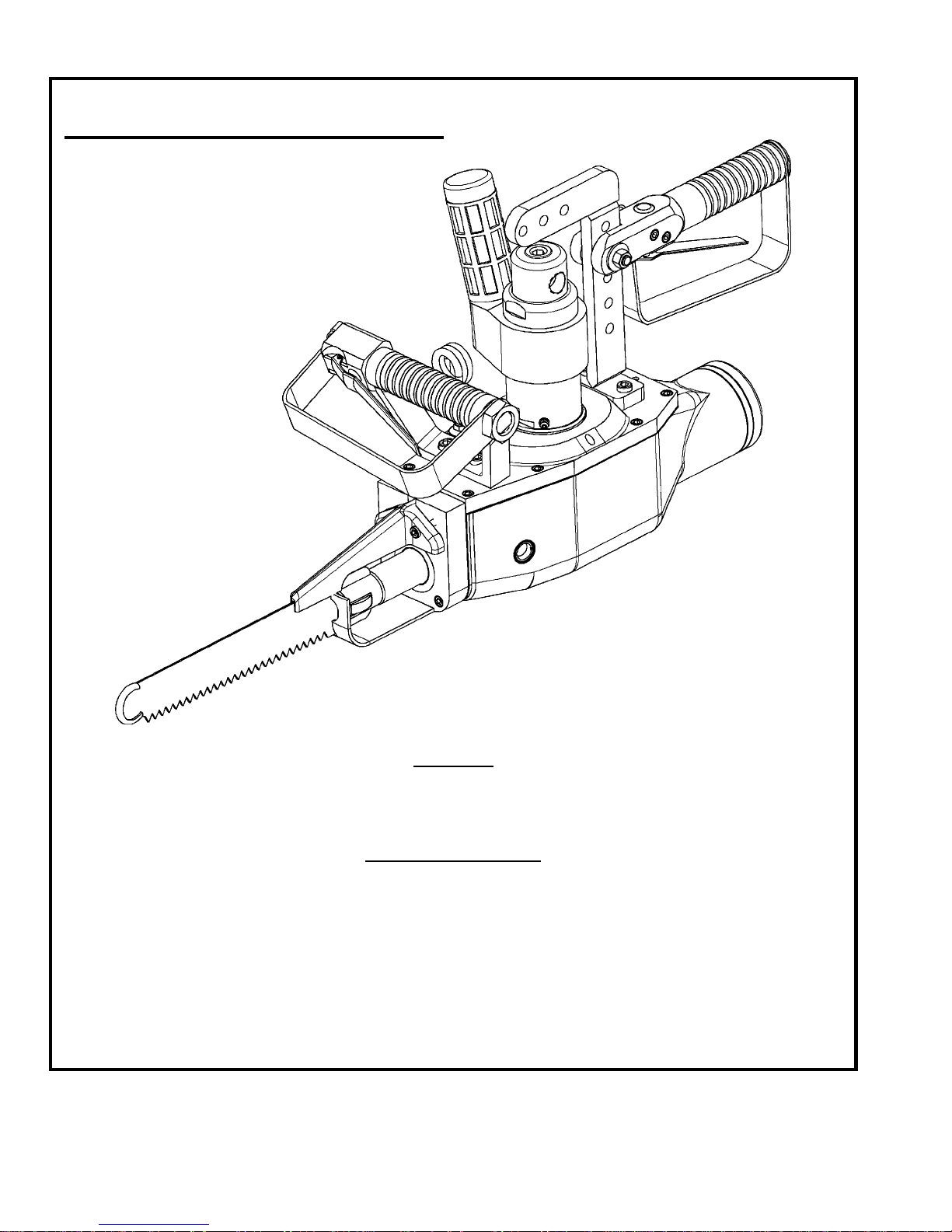

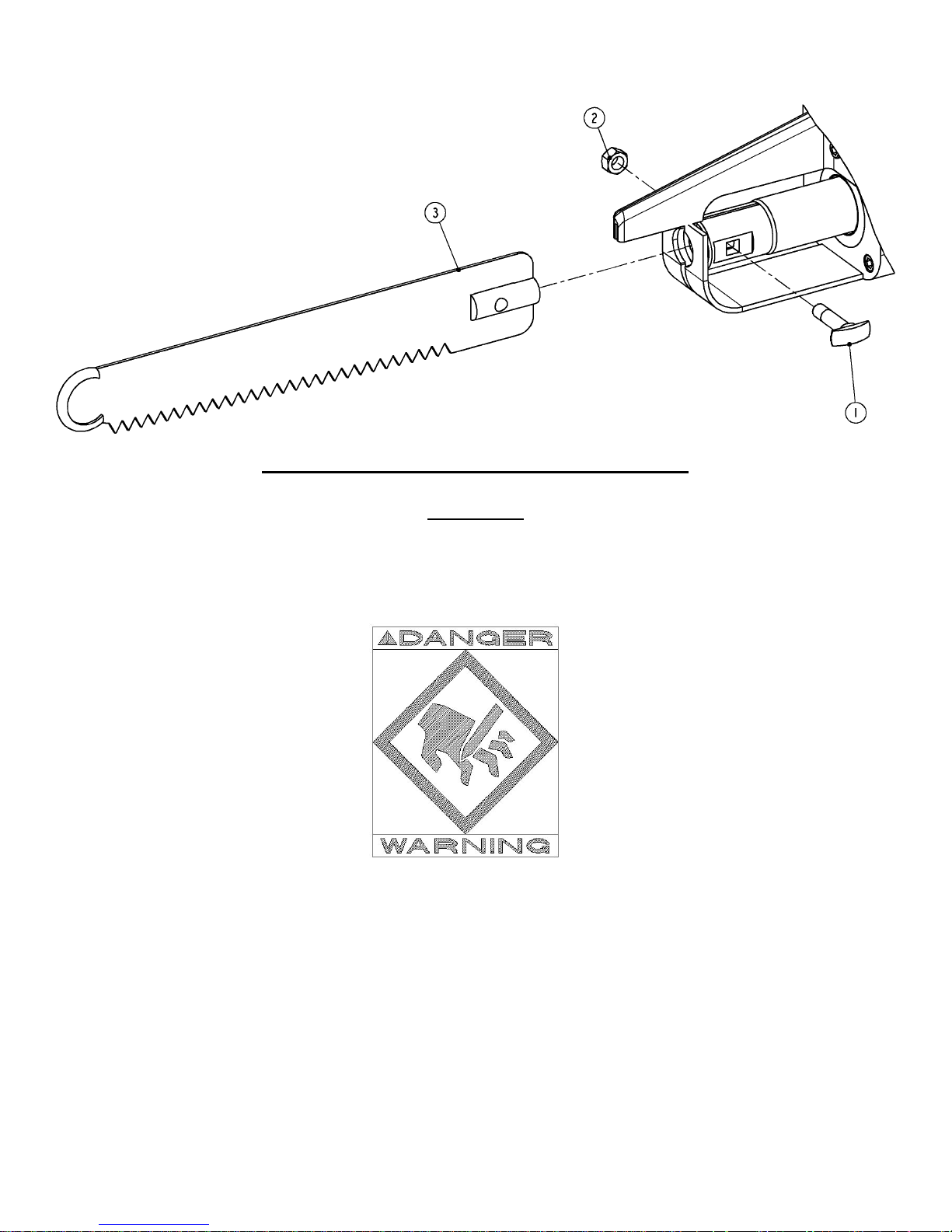

Figure 1 MODEL ABB-II – BLADE REPLACMENT

SERVICE

1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM.

2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL.

3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS

AND CUSTOMER SERVICE INFORMATION.

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

4 OF 21

PARTS BOOK

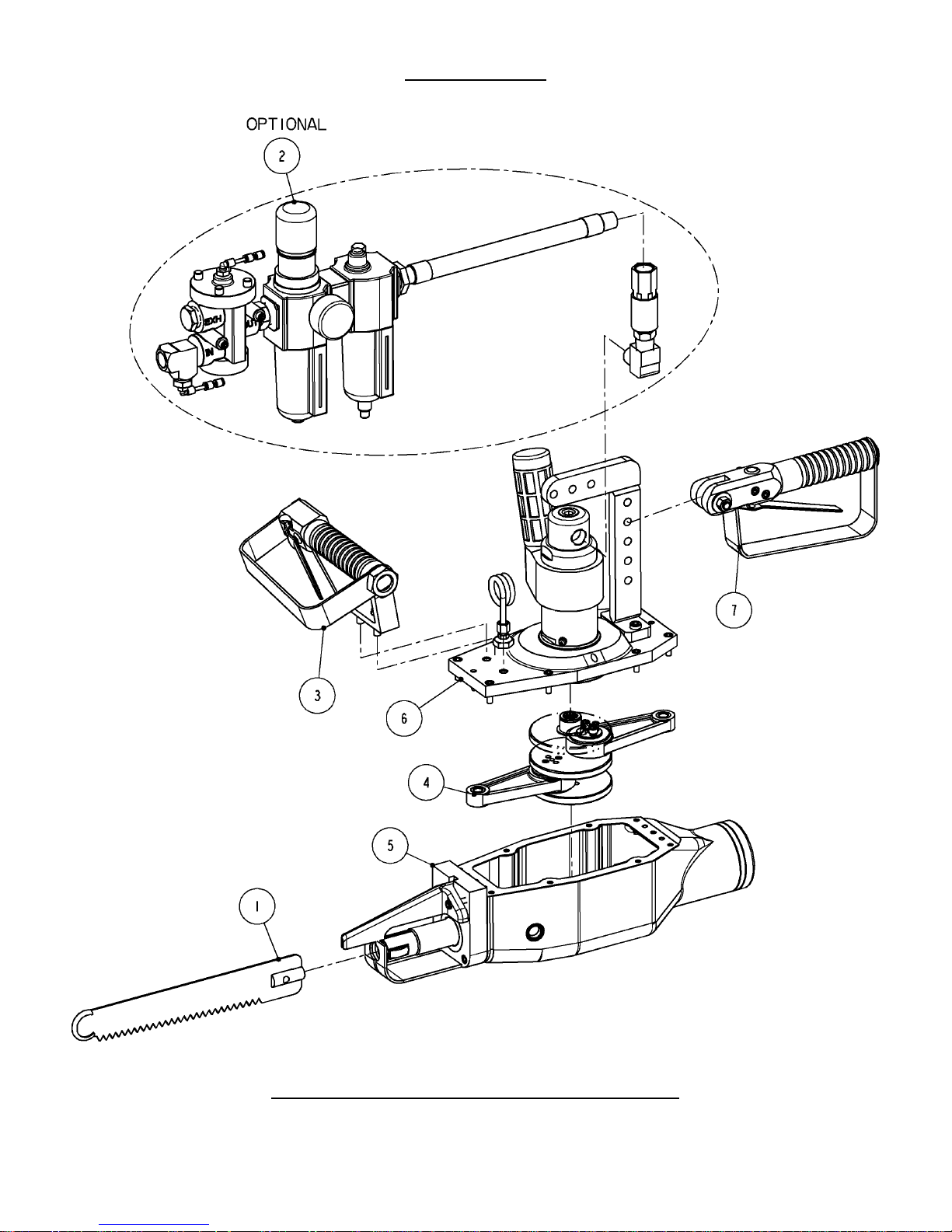

Figure 2 MODEL “ABB-II” – MAIN ASSEMBLY

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

5 OF 21

6330000: ABB-II, BEEF BRISKET SAW, AIR

ITEM PART # DESCRIPTION QTY

4100220 BLADE, 12.0" LONG, 3 TPI 1

1

4100221 BLADE, 10.5" LONG, 3 TPI 1

4100222 BLADE, 12.0" LONG, 4 TPI 1
2 6001607 POPPET VALVE, LUBRICATOR/FILTER/REGULATOR & AIR HOSE/ OPTIONAL 1
3 6551340 AIR HANDLE, FRONT 1
4 6552010 DRIVE LINK 1
5 6552020 HOUSING ASSEMBLY 1
6 6552030 DRIVE ASSEMBLY, AIR 1
7 6600530 AIR HANDLE, REAR 1

MODEL “ABB-II” REQUIRES POPPET VALVE (#6001605- SEE KIT 6001607).
AN AIR FILTER-REGULATOR-LUBRICATOR (#7200030) MUST BE INSTALLED IN AIR SUPPLY FOR EACH TOOL.

Figure 3 BOM FOR MODEL “ABB-II”

.

6001607: POPPET VALVE, REGULATOR/FILTER/LUBRICATOR & AIR HOSE

ITEM PART # DESCRIPTION QTY

1 6001605 POPPET VALVE ASSEMBLY 1
2 7002450 BUSHING 1
3 7002680 ADAPTER 1
4 7003130 ELBOW COUPLING 1
5 7034060 MALE QUICK CONNECT 1
6 7034260 FEMALE SOCKET 1
7 7200030 REGULATOR/FILTER/LUBRICATOR 1
8 7310040 AIR HOSE 1

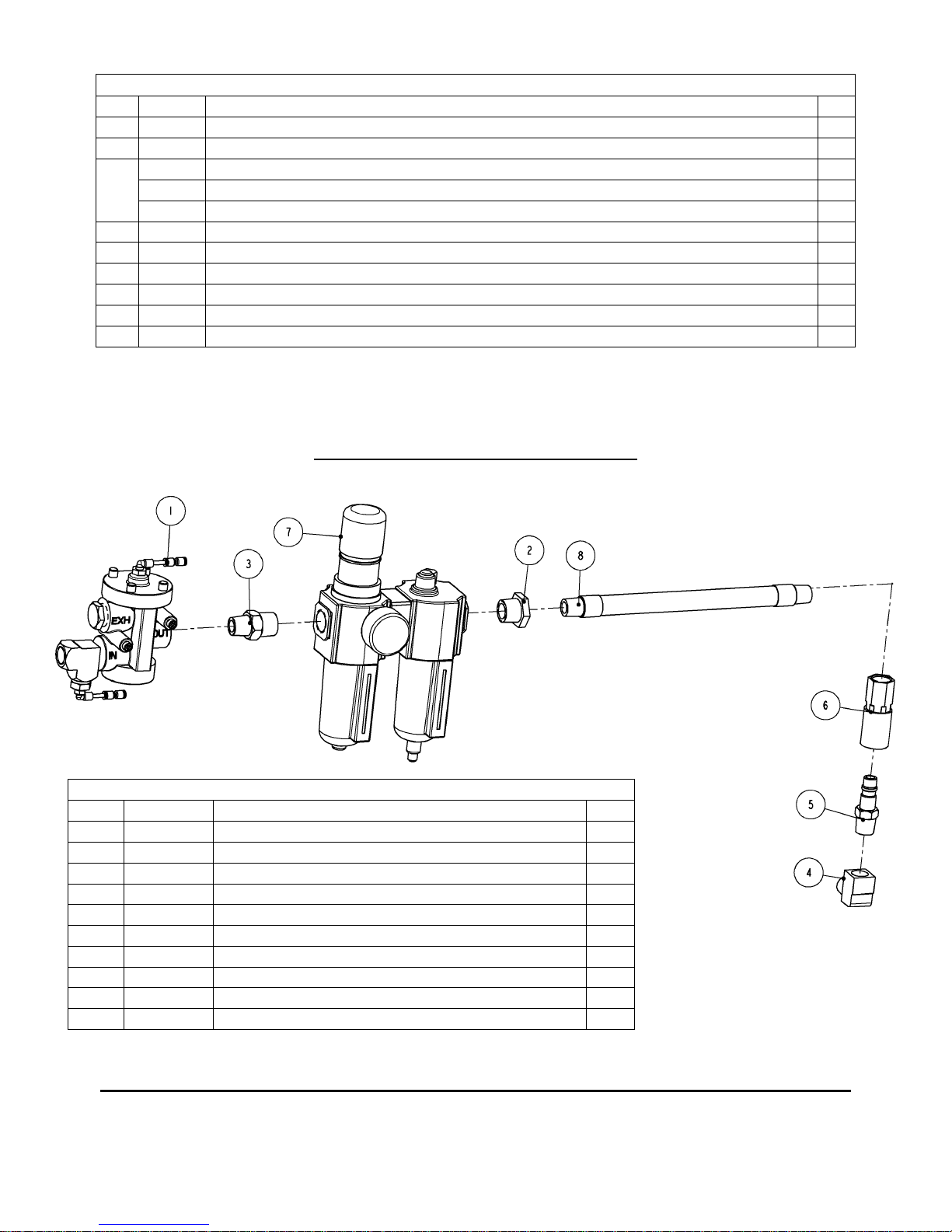

Figure 4 6001607: POPPET VALVE, REGULATOR/FILTER/LUBRICATOR & AIR HOSE

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

6 OF 21

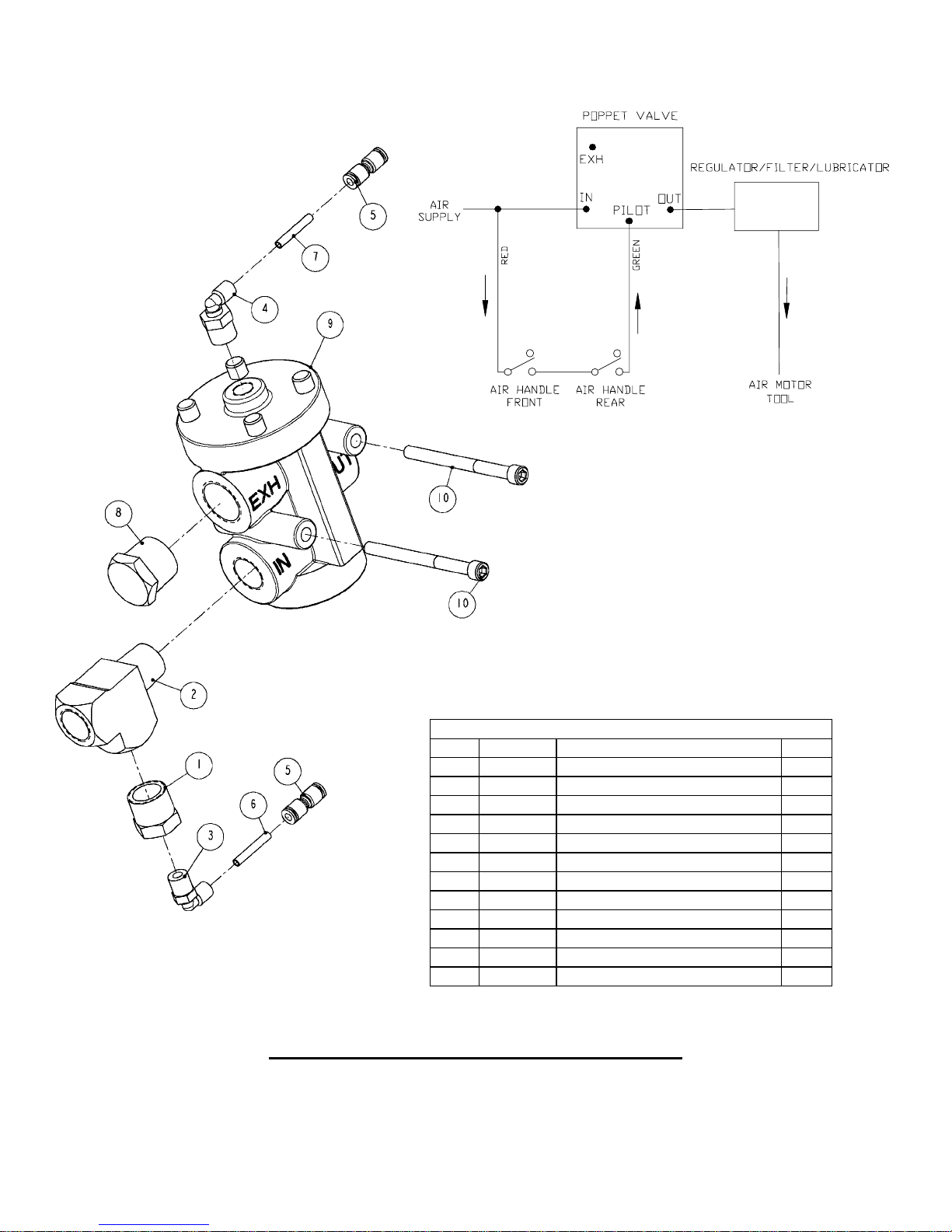

6001605: POPPET VALVE ASSEMBLY

ITEM PART # DESCRIPTION QTY

1 7003680 BUSHING 1
2 7004330 TEE, STREET 1
3 7036350 ELBOW 1
4 7036520 ELBOW 1
5 7037860 UNION 2
6 7300970 RED AIR TUBE 1
7 7300980 GREEN AIR TUBE 1
8 7802050 BREATHER VENT FILTER 1
9 7802500 POPPET VALVE 1

10 8211240 SCREW 2

Figure 5 6001605: POPPET VALVE ASSEMBLY

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

7 OF 21

6600530: AIR HANDLE, REAR

ITEM PART # DESCRIPTION QTY

1 6300770 VALVE PLUG 1
2 6541690 GUARD 1
3 6541720 RETAINER 1
4 6600340 HANDLE 1
5 6600350 BUSHING 1
6 6600360 VALVE STEM 1
7 6600500 LEVER 1
8 7000010 PLUG 2

9 7036510 ELBOW 2
10 7680080 O-RING 1
11 7680140 O-RING 1
12 8241050 SCREW 1
13 8415160 SCREW 1
14 8500150 NUT 1
15 8505160 WASHER 1
16 8620080 PIN 1
17 8890010 SPRING 1

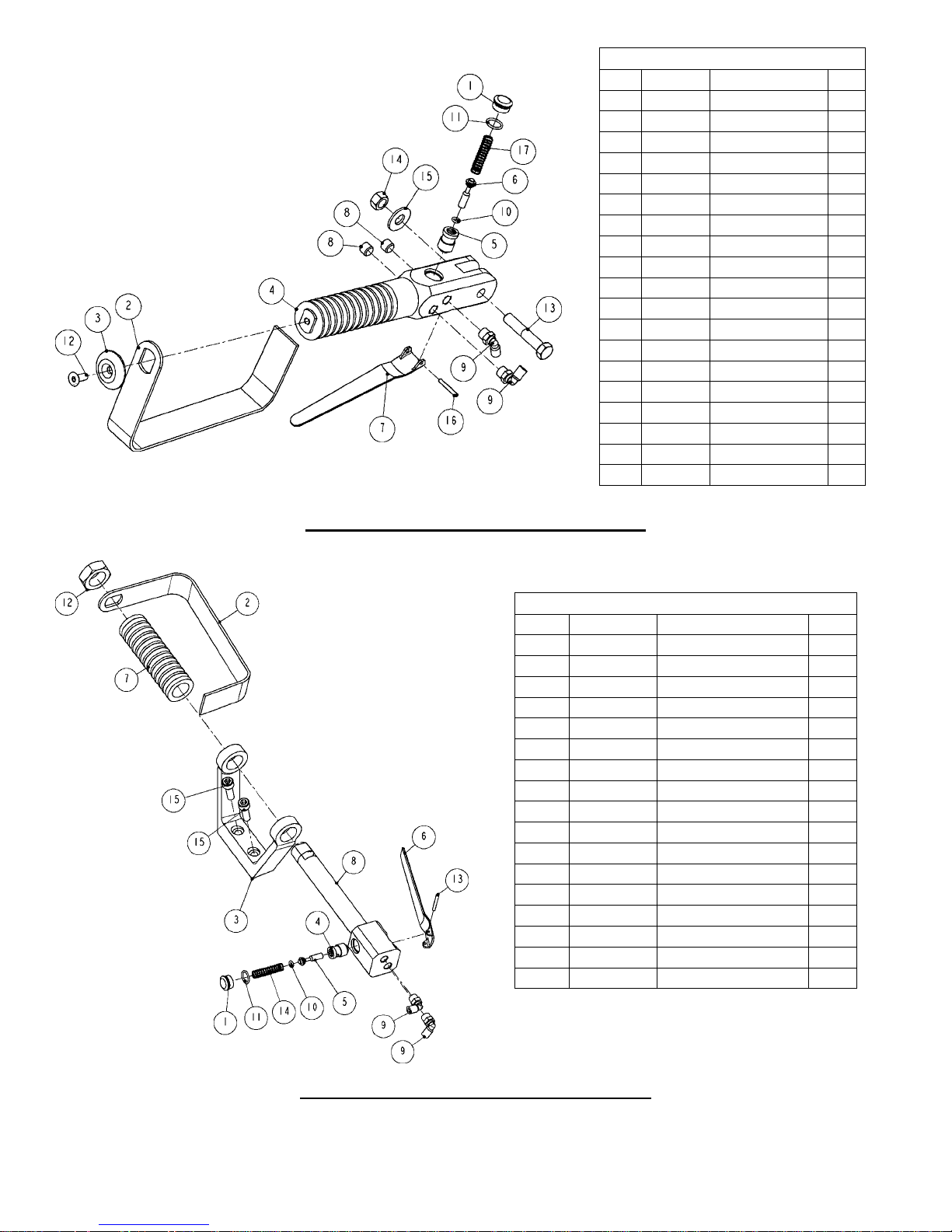

Figure 6 6600530: AIR HANDLE, REAR

6551340: AIR HANDLE, FRONT

ITEM PART # DESCRIPTION QTY

1 6300770 VALVE PLUG 1
2 6541690 GUARD 1
3 6551270 BRACKET 1
4 6600350 BUSHING 1
5 6600360 VALVE STEM 1
6 6600500 LEVER 1
7 6620350 SLEEVE 1
8 6620390 HANDLE 1

9 7036510 ELBOW 2
10 7680080 O-RING 1
11 7680140 O-RING 1
12 8500580 NUT 1
13 8620080 PIN 1
14 8890010 SPRING 1
15 9213080 SCREW 2

Figure 7 6551340: AIR HANDLE, FRONT

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

8 OF 21

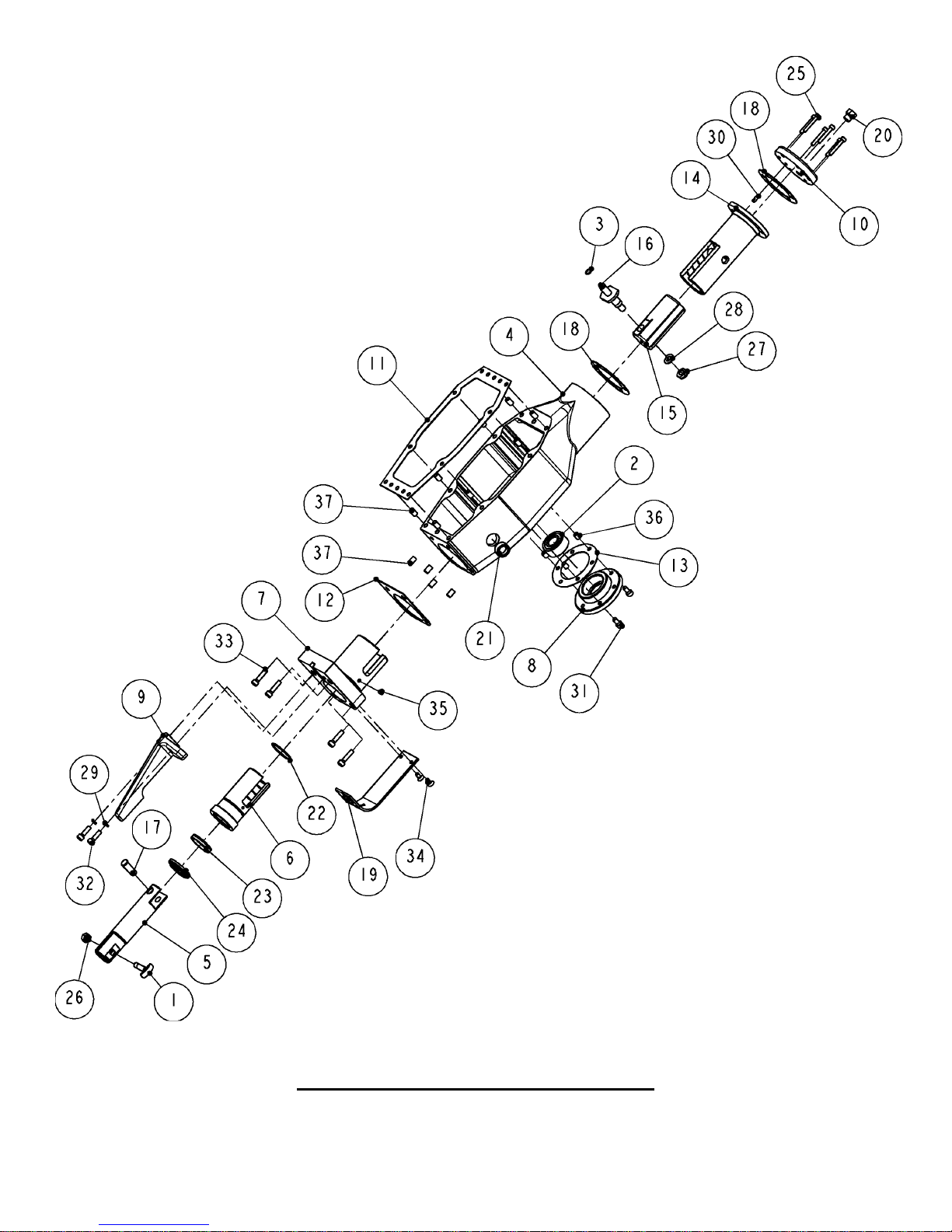

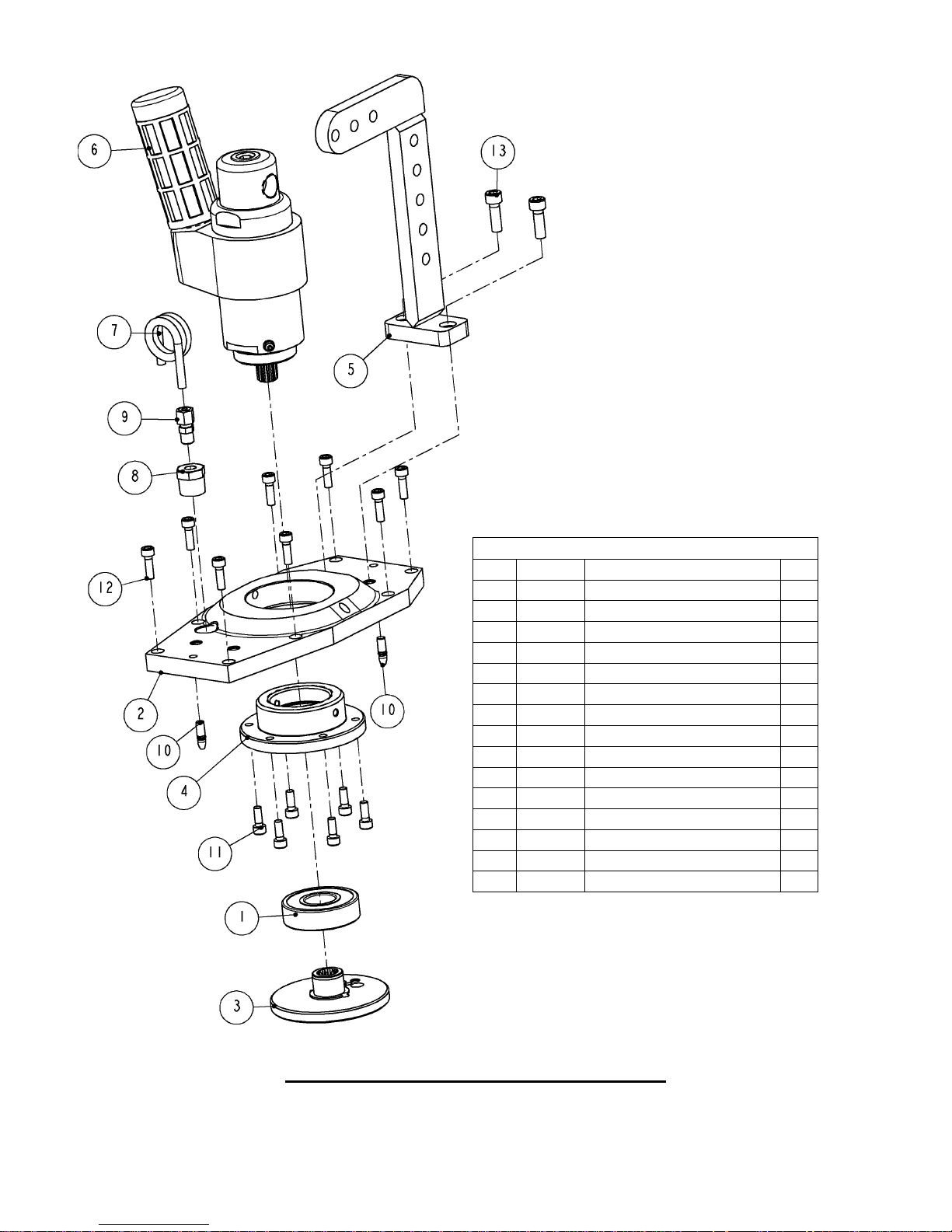

Figure 8 6552020: HOUSING ASSEMBLY

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

9 OF 21

6552020: HOUSING ASSEMBLY

ITEM PART # DESCRIPTION QTY

1 1052640 STEP BOLT 1
2 3520030 BEARING 1
3 5100390 RETAINING RING 1
4 6551100 HOUSING 1
5 6551150 SHAFT 1
6 6551160 BUSHING 1
7 6551170 BEARING HOUSING 1
8 6551180 FLANGE 1

9 6551210 GUIDE 1
10 6551220 FLANGE 1
11 6551230 GASKET 1
12 6551240 GASKET 1
13 6551250 GASKET 1
14 6551290 BUSHING 1
15 6551300 SHAFT 1
16 6551310 PIN 1
17 6551320 PIN 1
18 6551330 GASKET 2
19 6551400 GUIDE 1
20 7000210 PLUG 1
21 7240710 WINDOW 1
22 7680290 O-RING 1
23 7711140 SEAL 1
24 7711150 ROD WIPER 1
25 8210100 SCREW 6
26 8500130 NUT 1
27 8504870 NUT 1
28 8506160 WASHER 1
29 8506600 WASHER 2
30 8620250 PIN 1
31 9211040 SCREW 3
32 9211060 SCREW 2
33 9211080 SCREW 4
34 9239040 SCREW 2
35 9333000 SET SCREW 2
36 9803060 INSERT 3
37 9803150 INSERT 12

Figure 9 BOM FOR 6552020: HOUSING ASSEMBLY

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 10 of 21

6552010: DRIVE LINK

ITEM PART # DESCRIPTION QTY

1 3705550 BEARING 2
2 3705590 WASHER 4
3 6330110 FLANGE ­4 6551110 LINK 2
5 6551120 MIDDLE ECCENTRIC 1
6 6551130 FLANGE 1
7 6551200 JORNAL 2
8 6551440 BEARING 2
9 9211111 SCREW 4

10 9620520 PIN 4

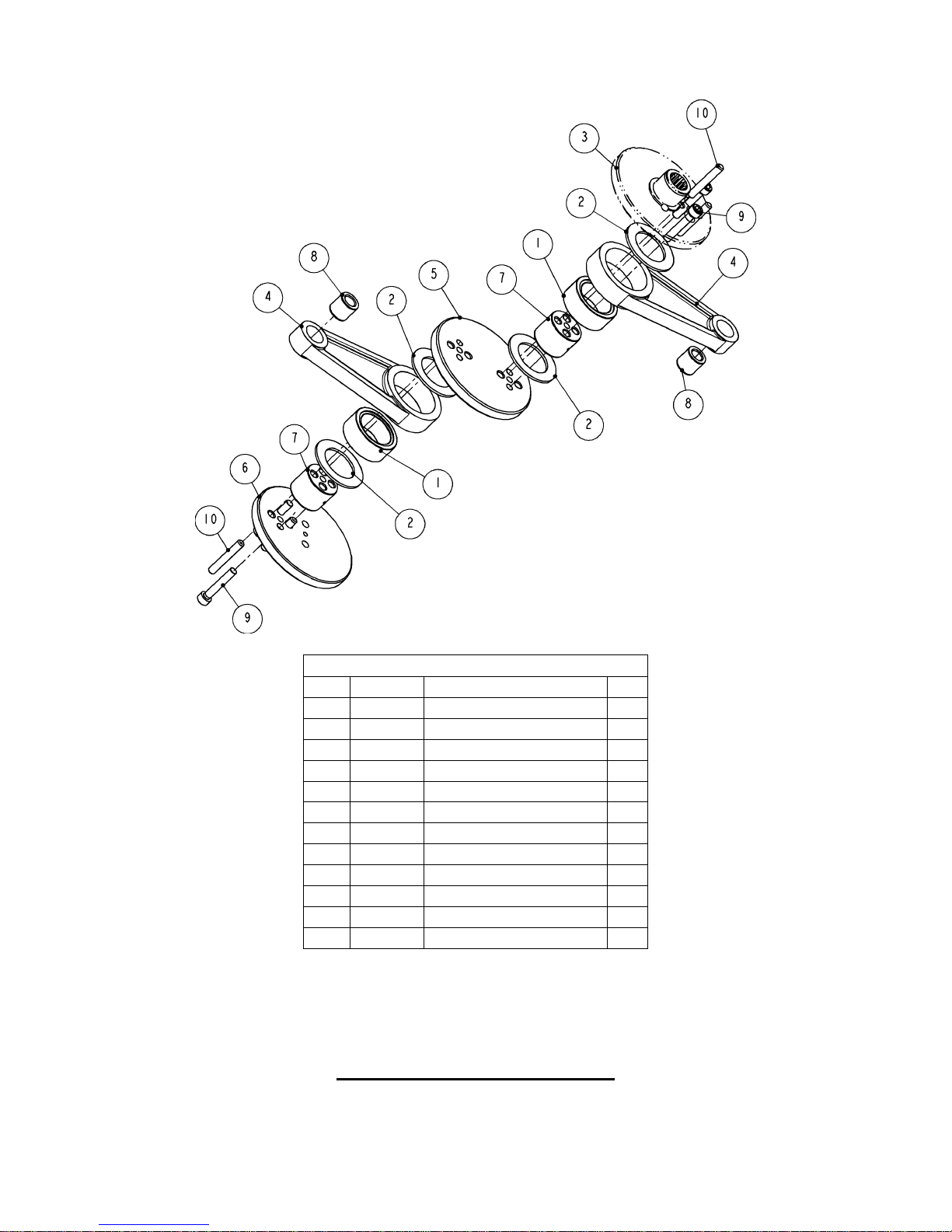

Figure 10 6552010: DRIVE LINK

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 11 of 21

6552030: DRIVE ASSEMBLY, AIR

ITEM PART # DESCRIPTION QTY

1 3303050 BEARING 1
2 6330100 COVER, HOUSING 1
3 6330110 FLANGE 1
4 6330120 FLANGE 1
5 6330140 HANGER 1
6 6330150 AIR MOTOR ASSEMBLY 1
7 6551390 TUBE 1
8 7003680 BUSHING 1

9 7011230 CONNECTOR 1
10 8622500 DOWEL PIN 2
11 9211050 SCREW 6
12 9211060 SCREW 8
13 9213080 SCREW 2

Figure 11 6552030: DRIVE ASSEMBLY, AIR

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 12 of 21

6330150; AIR MOTOR & GEAR CASE ASSEMBLY

ITEM PART # DESCRIPTION QTY

1 3072370 BEARING 2
2 3204030 BEARING 1
3 6000170 DRIVE SHAFT 1
4 6000660 HOUSING - AIR MOTOR 1
5 6000700 UPPER END PLATE 1
6 6000710 PIN 1
7 6000720 CYLINDER 1
8 6000730 PIN 1

9 6000740 ROTOR 1
10 6000750 ROTOR BLADES (SET OF 5) 5
11 6000760 LOWER END PLATE 1
12 6000940 DEFLECTOR 1
13 6001010 GEAR CASE ASSEMBLY 1
14 6001020 LONG GEAR SPINDLE 1
15 6320160 HEAD, AIR MOTOR 1
16 6330160 MUFFLER 1
17 7000040 PLUG 1
18 7680360 O-RING 2
19 8311030 SET SCREW 1

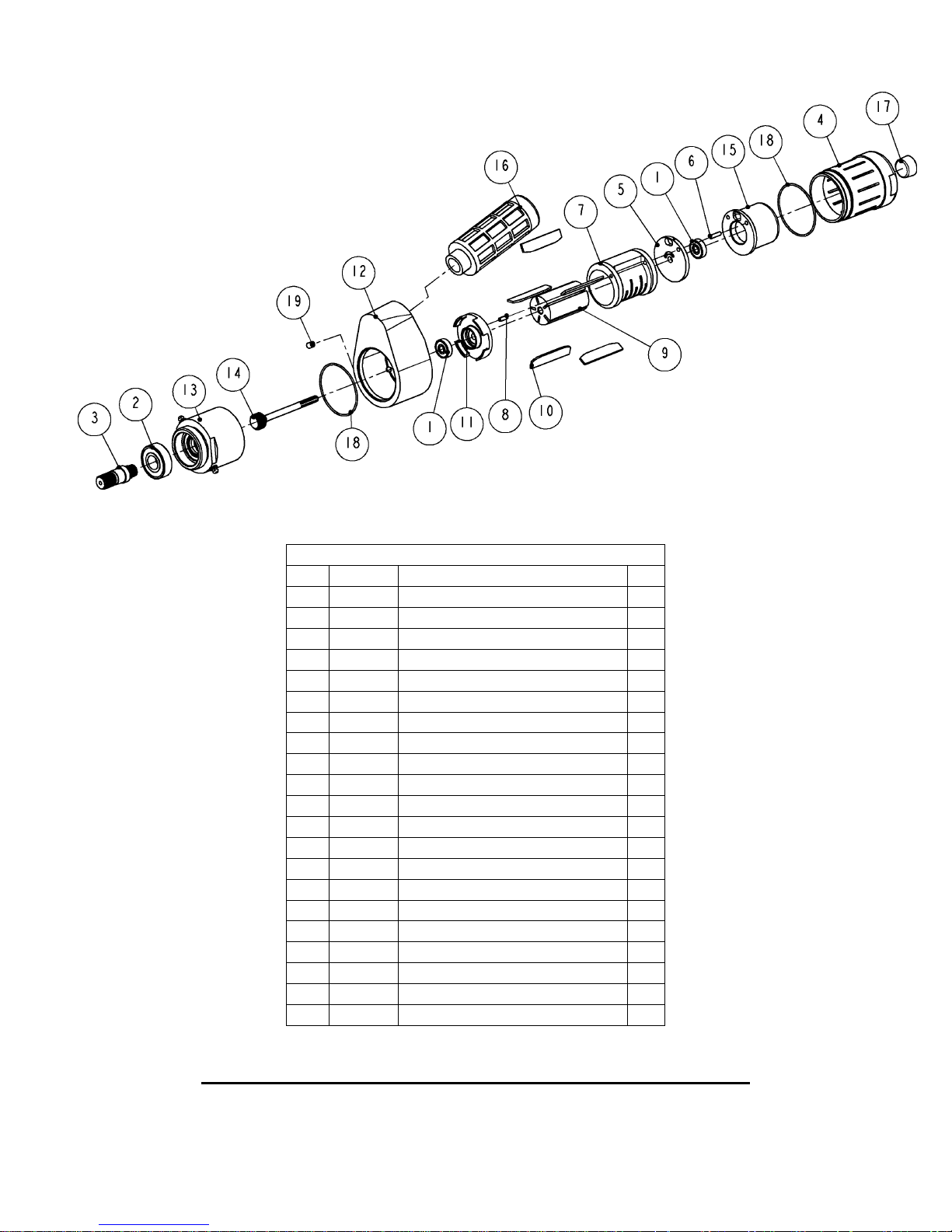

Figure 12 6330150: AIR MOTOR AND GEAR CASE ASSEMBLY

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 13 of 21

6001010: GEAR CASE ASSEMBLY

ITEM PART # DESCRIPTION QTY

1 6000860 GEAR CASE 1
2 6001030 GEAR CAGE 1
3 7017110 GREASE FITTING 2
4 7774100 SEAL 1

Figure 13 6001010: GEAR CASE ASSEMBLY

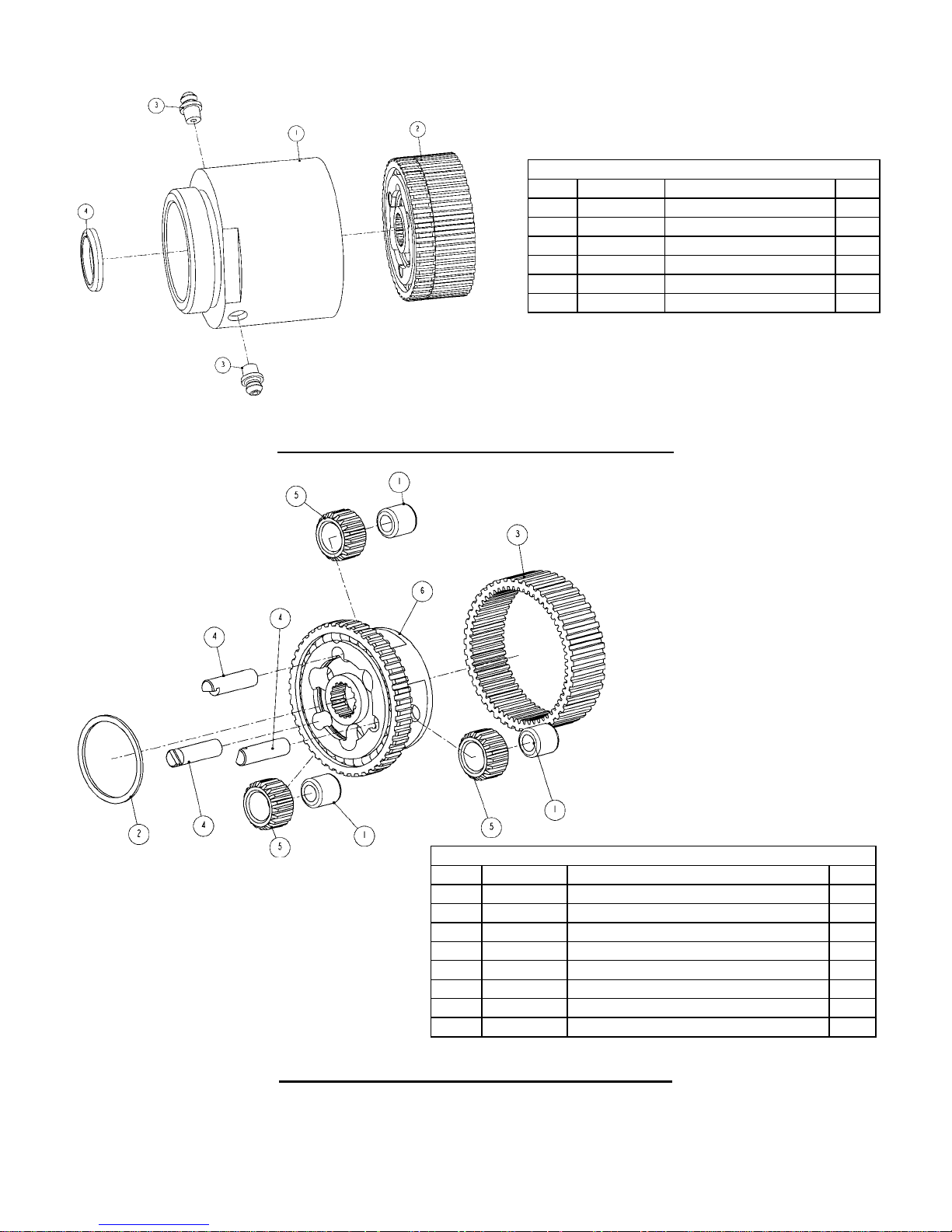

Figure 14 6001030: GEAR CAGE ASSEMBLY

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

6001030: GEAR CAGE ASSEMBLY

ITEM PART # DESCRIPTION QTY

1 3700470 NEEDLE BEARING 3
2 5601250 RETAINING RING 1
3 6000790 RING GEAR 1
4 6001040 PIN 3
5 6001050 IDLER GEAR 3
6 6001060 GEAR CAGE AND SPLINE RING 1

Page 14 of 21

[ENGLISH]

GENERAL INFORMATION

MODELS

“ABB-II” AIR BEEF BRISKET SAW

___________________________________________________________________________

SERVICE CENTERS

KENTMASTER LTD. (U.K) KENTMASTER MFG. CO., INC.

16 AVONBANK INDUSTRIAL CENTRE 1801 SOUTH MOUNTAIN AVE.
WEST TOWN ROAD MONROVIA, CALIFORNIA 91016
AVONMOUTH - BRISTOL BS11 9DE UNITED STATES OF AMERICA

UNITED KINGDOM

TELEPHONE: ++ 44- (0) 117- 9235035  TELEPHONE: [phone]

FAX: ++ 44- (0) 117- 9829010 FAX: [phone]

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 15 of 21

Y

ou have purchased a powerful tool that, if misused, can cause severe injury and
harm to your employees. You must instruct your employees in the safe and proper
use of this tool and to follow the safety procedures and instructions that have been
supplied by the manufacturer of this tool. Please follow the following instructions.

1. Instruct tool operators to test the tool each day before using it to be sure it does not malfunction.

Remove and repair any tool that malfunctions.

2. Instruct tool operators to immediately stop using a tool that malfunctions or is defective.

3. Instruct personnel to immediately remove all tools that malfunction. Be sure to disconnect tool from

power supply.

4. Instruct all personnel to stay clear of tool, and not to stand or walk in front of, or next to tool when in

use.

5. Point out to all personnel the dangers related to the misuse of tool and the importance of following

safety procedures and instructions.

6. Do not make, or allow others to make, alterations or modifications to this tool.
Replace all lost or illegible labels.

7. Follow all safety, installation and maintenance instructions provided with this tool. Establish proper
safety procedures in accordance with local and national requirements to prevent accidental energizing
of tool that can cause injuries.

8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety
instructions, notices and maintenance instructions you were originally provided. You can obtain
additional copies of the instructions from Kentmaster, free of charge upon request.

9. Give copies of instructions to: (A) Tool Operators

(B) Maintenance Supervisor
(C) Clean-up Supervisor

NOTICE TO EMPLOYER AND PURCHASER OF TOOL

NOTICE TO SAFETY DIRECTOR

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 16 of 21

GENERAL INFORMATION

COVERING: SAFETY PRECAUTIONS AND PLACING INTO SERVICE

AIR POWERED BEEF BRISKET SAW

READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING

THIS TOOL

_____________________________________________________________________________________________________

IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THIS INFORMATION INTO THE HANDS OF THE OPERATOR.

_____________________________________________________________________________________________________

PLACING INTO SERVICE

_____________________________________________________________________________________________________

= Hazards or unsafe practices which could result in severe personal injury, death or

! WARNING

substantial property damage.

= Hazards or unsafe practices which could result in minor personal injury, product or

! CAUTION

property damage.

= Important installation, operation or maintenance information.

! NOTICE

Installation, adjustment repair and maintenance of this tool must be made by trained
and qualified personnel.

Always disconnect power supply from tool before:
(A) Installing or removing blade from tool.
(B) Making repairs or adjustments to the tool.
(C) performing maintenance or cleanup work.

ONLY TRAINED AND QUALIFIED PERSONNEL ARE TO PERFORM MAINTENANCE

! WARNING

AND SERVICE TO THIS TOOL.

THE COMPRESSED AIR DISTRIBUTION SYSTEM MUST BE LARGE ENOUGH TO SUPPLY AN ADEQUATE VOLUME OF
CLEAN AND DRY COMPRESSED AIR TO THE TOOL.

! WARNING

! WARNING

INSTALLATION INSTRUCTIONS

MAINTENANCE

1. MAKE ALL NECESSARY LINE CONNECTIONS TO THE TOOL.

2. AN AIR FILTER-REGULATOR-LUBRICATOR (PART NO. 7200030) MUST BE INSTALLED IN AIR SUPPLY FOR

EACH TOOL.

3. FILL LUBRICATOR WITH KENTMASTER AIR MIST OIL (PART NO. 7903050). SET DRIP RATE ACCORDING TO
INSTRUCTIONS SUPPLIED. TURN ADJUSTMENT ON SIGHT FEED DOME TO INCREASE/DECREASE OIL
DELIVERY. MONITOR THE DEVICE BEING LUBRICATED AND READJUST IF NEEDED.

4. TOOL REQUIRES GREASING AT START OF EACH SHIFT. GREASE TWO (2) LOCATIONS USING KENTMASTER
GREASE GUN (PART NO. 4501470) AND GREASE (PART NO. 7903070).

5. TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE.

6. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL

MIST (PART 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND
PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 17 of 21

7. A BALANCER IS REQUIRED FOR OPERATION AND USE OF THIS TOOL. WEIGHT OF TOOL MUST FALL
WITHIN WEIGHT RANGE OF BALANCER.

8. INSTALL BALANCER ABOVE WORK AREA. BALANCER MUST HAVE SUFFICIENT VERTICAL TRAVEL SO
OPERATOR CAN REACH ENTIRE WORK AREA WITH TOOL WITHOUT STRAIN.

9. ADJUST BALANCER ACCORDING TO THE OPERATOR'S PREFERENCE AND COMFORT.

WE STRONGLY SUGGEST THAT AN ADDITIONAL SAFETY CHAIN BE USED TO CHAIN

! WARNING

BALANCER TO OVERHEAD TROLLEY. THIS ADDITIONAL MEASURE OF SAFETY WILL
HELP REDUCE INJURIES.

OPERATING INSTRUCTIONS

ONLY TRAINED PERSONNEL ARE TO OPERATE THIS TOOL.

! WARNING

1. HOLD TOOL FIRMLY AT BOTH TRIGGER HANDLES. SQUEEZE TRIGGERS SIMULTANEOUSLY TO ACTIVAT E

TOOL.

2. DO NOT EXERT EXCESSIVE PRESSURE. ALLOW TIME FOR THE TOOL TO CUT.

MAINTENANCE

ONLY TRAINED AND QUALIFIED PERSONNEL ARE TO PERFORM MAINTENANCE

! WARNING

AND SERVICE TO THIS TOOL.

1. FOLLOW PROCEDURES NO. 3 TO 6 OF INSTALLATION INSTRUCTIONS.

BLADE REMOVAL AND CLEANING.

ALWAYS DISCONNECT POWER SUPPLY FROM TOOL BEFORE INSTALLING OR

! WARNING

REMOVING BLADE FROM TOOL.

! WARNING

ALWAYS WEAR WIRE MESH GLOVES WHEN INSTALLING OR REMOVING BLADES FROM TOOL.

1. REMOVE NUT AND BOLT (ITEM NO. 1 AND 2, FIG. NO. 1).

2. REMOVE BLADE (ITEM NO. 3, FIG. NO. 1).

3. CLEAN ALL PARTS REMOVED WITH SOAP AND WATER.

4. SHARPEN OR REPLACE BLADES WHEN NECESSARY.

5. REASSEMBLE IN REVERSE ORDER.

SERVICE

1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN YOUR PREVENTIVE MAINTENANCE
PROGRAM.

2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL.

3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS

AND CUSTOMER SERVICE INFORMATION.

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 18 of 21

DECLARATION DE CONFORMITE -DECLARACION DE CONFORMIDAD- ERKLARUNG BEZUGLICH EINHALTUNG DER VORSCHRIFTEN

MANUFACTURED BY: KENTMASTER MFG CO., INC.

FABRIQUE PAR:

1801 SOUTH MOUNTAIN AVE.

FABRICADA POR:

MONROVIA, CALIFORNIA 91016

HERGESTELLTVON:
FABBRICATO DA:

UNITED STATES OF AMERICA

VERVAARDIGD DOOR:

TELEPHONE [phone] FAX [phone]

TYPE / SERIES: AIR BEEF BRISKET SAW

TYPE / SERIE:
TIPO / SERIE:
TYP / SERIE:
TIPO / SERIE:
TYPE / SERIE:

MODEL: ABB-II

MODELE:
MODELO:
MODELL:
MODELLO:
MODEL:

SERIAL NO. RANGE: XXXXX
N SERIE: • GAMA DE No. DE SERIE: • SERIEN-NR.-BEREICH: • NUMERI DI SERIE: • SERIENUMMERS:

This product complies with the following European Community Directives:
Ce produit est conforme aux directives de la Communaute europeenne suivantes:

Este producto cumple con las siguientes Directrices de la Comunidad Europea:
Dieses Produkt erfullt die folgenden Vorschriften der Europaischen Gemeinschaft:
Questo prodotto e conforme alle seguenti direttive CEE:
Dit produkt voldoet aan de volgende EG-richtlijnen:

89/392/EEC, 91/368/EEC, 93/44/EEC, 93/68/EEC

_______________________________________________________________________
The following Standards were used to verify compliance with the Directives:

Les normes suivantes ont ete utilisees pour verifier la conformite avec les Directives:
Las siguientes Normas se usaron para verificar el cumplimiento de las Directrices:
Folgende Normen wurden angewandt, um erfullung der vorschriften zu bestatigen:
Per verificare la conformita del prodotto alle direttive sono stati usati i seguenti standard:
De volgende normen zijn gebruikt om naleving van de richtlijnen te bevestigen:

EN 292
_______________________________________________________________________________________________________

RALPH K RUBIAN MONROVIA, CA . U.S.A A

Approved by: ________________________ Date: AUG - 1 - 1995

(Engineering Manager) (Directeur technique) (gerente de ingenieria) (verantwortlicher Konstruktionsleiter) (Responsabile tecnico) (ondersteunend technisch mangar)

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

DICHIARAZIONE DI CONFORMITA . CONFORMITEITSVERKLARING

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 19 of 21

Kentmaster Worldwide Location

Kentmaster Equipment (Aust) PTY.LTD.
Unit 2,24 Central Court
Browns Plains Qld. 4118

Australia

Telephone: [phone]
Fax: [phone]
[e-mail]
Kentmaster do Brasil, Ltda.
Av. Dr. Joao Teodoro No. 805
Bairro De Vila Rezende

13405-240 Piracicaba, SP,
Brazil

Telephone #1: (019) 3 413 3113
Telephone #2: [phone]

Fax: [phone]
[e-mail]
Kentmaster (IRL) LTD.
Benamore, Dublin Road.
Roscrea,
CO, Tipperary,
Ireland

Telephone: [phone]
Fax: [phone]
[e-mail]
Kentmaster Equipment (NZ) LTD.
5 Cooper Street

Havelock North
New Zealand

Telephone #1: (64) 6 8777 857
Telephone #2: 0800 KENTMASTER
Fax: [phone]

[e-mail]

Kentmaster South Africa (PTY) LTD.
Johannesburg - S. Africa

Unit 54 Sunnyrock Park
Sunrock Close, Germiston
South Africa

Telephone: [phone]
Fax: [phone]
[e-mail]
Kentmaster (UK ) LTD.
Unit 16 Avonbank Ind. Centre

West Town Rd, Avonmouth-Bristol,
BS11 9DE
England

Telephone: [phone]
Fax: [phone]
[e-mail]
Kentmaster Mfg. Co., Inc.
1801 South Mountain Ave.
Monrovia, CA, 91016
USA

Telephone #1: [phone]
Telephone #2: [phone]
Fax: [phone]
[e-mail]
Kentmaster Omaha
4417 South 139th Street
Omaha, NE, 68137
USA

Telephone #1: [phone]
Telephone #2: [phone]
Fax: [phone]
[e-mail]

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 20 of 21

INDEX

OPERATING AND SAFETY INSTRUCTIONS...................................................................................................................................2

OPERATING INSTRUCTIONS......................................................................................................................................................3

MAINTENANCE...............................................................................................................................................................................3

SERVICE................................................................................................................................................................................................4

PARTS BOOK.........................................................................................................................................................................................5

GENERAL INFORMATION...............................................................................................................................................................17

INSTALLATION INSTRUCTIONS .............................................................................................................................................17

MAINTENANCE.............................................................................................................................................................................17

OPERATING INSTRUCTIONS....................................................................................................................................................18

MAINTENANCE.............................................................................................................................................................................18

SERVICE..........................................................................................................................................................................................18

DECLARATION OF CONFORMITY.................................................................................................................................................19

Kentmaster Worldwide Location..........................................................................................................................................................20

INDEX...................................................................................................................................................................................................21

FIGURES - INDEX..............................................................................................................................................................................21

FIGURES - INDEX

Figure 1 MODEL ABB-II – BLADE REPLACMENT...........................................................................................................................4

Figure 2 MODEL “ABB-II” – MAIN ASSEMBLY...............................................................................................................................5

Figure 3 BOM FOR MODEL “ABB-II”.................................................................................................................................................6

Figure 4 6001607: POPPET VALVE, REGULATOR/FILTER/LUBRICATOR & AIR HOSE ..........................................................6

Figure 5 6001605: POPPET VALVE ASSEMBLY................................................................................................................................7

Figure 6 6600530: AIR HANDLE, REAR..............................................................................................................................................8

Figure 7 6551340: AIR HANDLE, FRONT ...........................................................................................................................................8

Figure 8 6552020: HOUSING ASSEMBLY...........................................................................................................................................9

Figure 9 BOM FOR 6552020: HOUSING ASSEMBLY......................................................................................................................10

Figure 10 6552010: DRIVE LINK........................................................................................................................................................11

Figure 11 6552030: DRIVE ASSEMBLY, AIR ...................................................................................................................................12

Figure 12 6330150: AIR MOTOR AND GEAR CASE ASSEMBLY..................................................................................................13

Figure 13 6001010: GEAR CASE ASSEMBLY..................................................................................................................................14

Figure 14 6001030: GEAR CAGE ASSEMBLY..................................................................................................................................14

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: [phone] FAX: [phone]

Page 21 of 21
