KENT SelectSweep, SelectSweep 56 100 874 Maintenance Manual

Page 1
Durable metal handle
Adjust main broom easily without tools
Easy-to-use lift out hopper

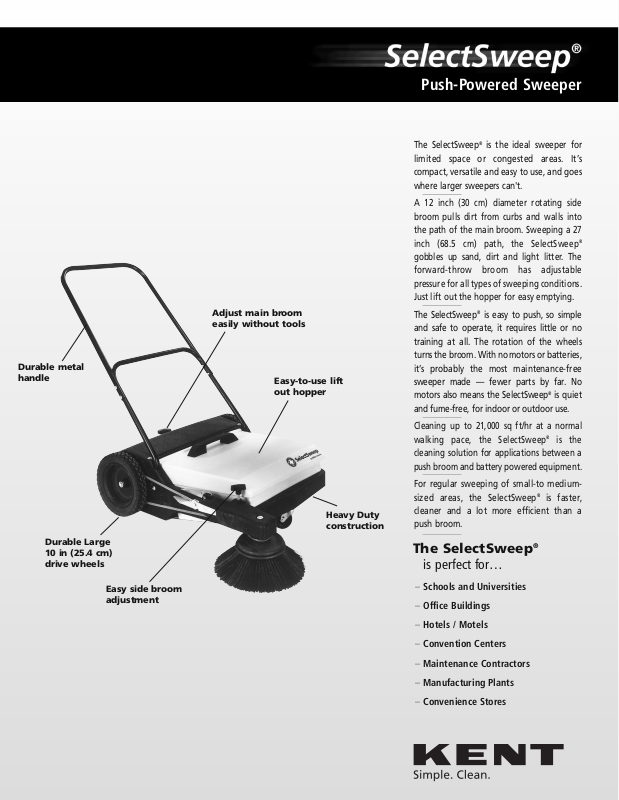

Push-Powered Sweeper
The SelectSweep®is the ideal sweeper for limited space or congested areas. It’s compact, versatile and easy to use, and goes where larger sweepers can't.
A 12 inch (30 cm) diameter rotating side broom pulls dirt from curbs and walls into the path of the main broom. Sweeping a 27 inch (68.5 cm) path, the SelectSweep gobbles up sand, dirt and light litter. The forward-throw broom has adjustable pressure for all types of sweeping conditions. Just lift out the hopper for easy emptying.
The SelectSweep®is easy to push, so simple and safe to operate, it requires little or no training at all. The rotation of the wheels turns the broom. With no motors or batteries, it’s probably the most maintenance-free sweeper made — fewer parts by far. No motors also means the SelectSweep®is quiet and fume-free, for indoor or outdoor use.
®
Durable Large 10 in (25.4 cm) drive wheels
Easy side broom adjustment
Heavy Duty construction
Cleaning up to 21,000 sq ft/hr at a normal walking pace, the SelectSweep
®
is the cleaning solution for applications between a push broom and battery powered equipment.
For regular sweeping of small-to medium­sized areas, the SelectSweep®is faster, cleaner and a lot more efficient than a push broom.
The SelectSweep
®
is perfect for…
– Schools and Universities
– Office Buildings
– Hotels / Motels
– Convention Centers
– Maintenance Contractors
– Manufacturing Plants
– Convenience Stores
Page 2
TECHNICAL SPECIFICATIONS
Sweeping Width 27 in (68.5 cm) w/Side Broom / 19 in (48.2 cm) w/o Side Broom
leaning Capacity / Area21,000 ft
C
2
(
Debris Collection Bin 1.4 ft3(40 L) polyethylene
Sweeper Brush 10 brush strips w/Perlon bristles – 8 in (20.3 cm) dia. x 19 in (48.2 cm)
Sweeper Broom 12 in dia. (30.4 cm) polypropylene bristles
Roller Brush Speed 250 rpm @ 185 ft/min (3.5 kph)
Wheels Two 10 in (25.4 cm) fixed, One 3 in (7.6 cm) caster
Pushing Force 4.8 lb (2.1 kg)
Housing and Frame Polyethylene & steel construction
Width 30 in (76.2 cm) w/Side Broom
Height at Handle 35.5 in (90 cm)
Length 43 in (109.2 cm) w/o Side Broom
Weight 49 lb (22.2 kg)
Part Number 56 100 874
Specifications are subject to change without notice.
2,000 m
2
per hour
)
ugged lightweight construction.
R Durable main components won't rust, chip, dent or crack, giving years of useful service.
The main and side brooms adjust easily without tools. The durable metal handle is constructed to last.
Standard Features
– Sweeping broom adjusts without tools
– Heavy-duty construction assures long machine life
– Bristle design insures maximum debris pick-up
The 1.4 ft3(40 L) hopper lifts
out easily for quick, one-step
emptying of dirt and debris,
with fewer trips to dump.
Adjustable side broom sends debris into main sweeping path.
14600 21st Avenue North Plymouth, Minnesota 55447-3408 www.kenteuroclean.com Phone 800-545-4372 Fax 866-261-4779
©2008 Kent is a registered trade name of Nilfisk-Advance, Inc. Form L1161K 7-08
240 Superior Boulevard Mississauga, Ontario, Canada L5T 2L2 www.kenteuroclean.com Phone 905-564-1149 or 800-668-8400 Fax 905-564-1030 or 800-263-5111
