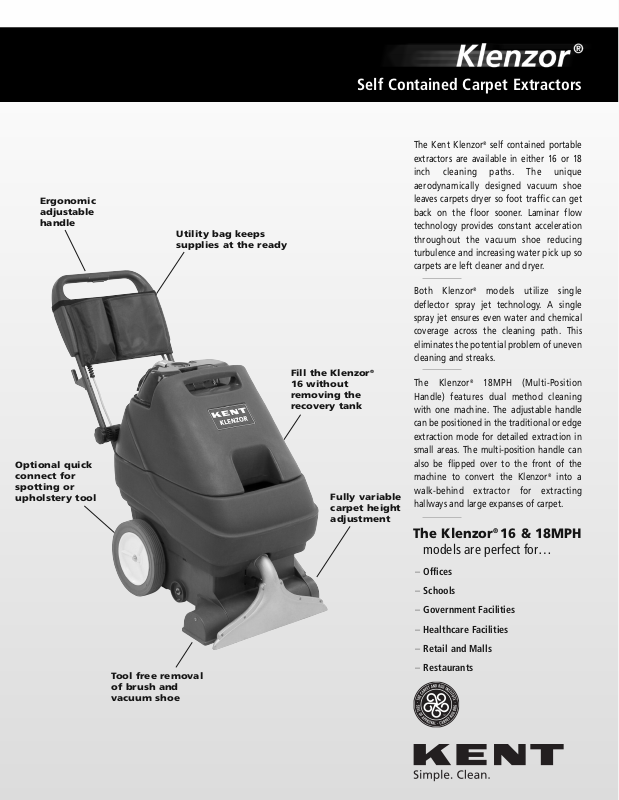

Page 1
Ergonomic
adjustable
handle
Optional quick
connect for
spotting or
upholstery tool
Utility bag keeps
supplies at the ready
Self Contained Carpet Extractors
Fill the Klenzor
16 without
removing the
recovery tank
Fully variable
carpet height
adjustment
The Kent Klenzor®self contained portable
extractors are available in either 16 or 18
inch cleaning paths. The unique
aerodynamically designed vacuum shoe
leaves carpets dryer so foot traffic can get
back on the floor sooner. Laminar flow
technology provides constant acceleration
throughout the vacuum shoe reducing
turbulence and increasing water pick up so
carpets are left cleaner and dryer.
Both Klenzor®models utilize single
deflector spray jet technology. A single
spray jet ensures even water and chemical
coverage across the cleaning path. This
eliminates the potential problem of uneven
cleaning and streaks.
®
The Klenzor®18MPH (Multi-Position
Handle) features dual method cleaning
with one machine. The adjustable handle
can be positioned in the traditional or edge
extraction mode for detailed extraction in
small areas. The multi-position handle can
also be flipped over to the front of the
machine to convert the Klenzor®into a
walk-behind extractor for extracting
hallways and large expanses of carpet.
The Klenzor®16 & 18MPH
models are perfect for…
Tool free removal
of brush and
vacuum shoe
– Offices
– Schools
– Government Facilities
– Healthcare Facilities
– Retail and Malls
– Restaurants
Page 2
TECHNICAL SPECIFICATIONS
Models Klenzor®16 Klenzor®18MPH
Cleaning Path 16 in (40.6 cm) 18 in (45.7 cm)
Solution Tank 7 gal (26.5 L) 11 gal (41.6 L)
Recovery Tank 5 gal (19 L) 8 gal (30.2 L)
Pump 60 psi 60 psi
Flow Rate 0.7 gpm 0.7 gpm
Vacuum Motor 1.5 hp, 3 stage 1.5 hp, 3 stage
Waterlift 117 in (297 cm) 117 in (297 cm)
Brush Motor 1/3 hp 1/3 hp
Brush Size/Cleaning Path 16 in (40.6 cm) 18 in (45.7 cm)
Vacuum Shoe Size 18 in (45.7 cm) 20 in (50.8 cm)
Power Cable 50 ft (15 m) 50 ft (15 m)
Min Machine Length 29.5 in (79 cm) 28 in (71 cm)
Machine Width 20 in (51 cm) 24 in ( 61 cm)
Tank Height 29.5 in (75 cm) 31.75 in (81 cm)
Weight
Net 92 lb (41.73 kg) 100 lb (45.36 kg)
Shipping 118 lb (53.52 kg) 170 lb (77.11 kg)
Part Number 56 265 004 56 265 005
ingle deflector jet technology
S
ensures even coverage without
overlaps or streaking.
Intuitive controls reduce training
and results in consistent
cleaning results.
Specifications are subject to change without notice.
Standard Features
– Single spray jet technology
– Tools-free vacuum shoe and brush removal
– Brush can be lifted off floor during storage
– Built in utility storage bag
– Ergonomically adjustable handle
– Constant acceleration laminar flow vacuum shoe
The unique
aerodynamically designed
vacuum shoe leaves carpets dryer
so foot traffic can get back on the floor sooner.
14600 21st Avenue North
Plymouth, Minnesota 55447-3408
www.kenteuroclean.com
Phone 800-545-4372
Fax 866-261-4779
240 Superior Boulevard
Mississauga, Ontario, Canada L5T 2L2
www.kenteuroclean.com
Phone 905-564-1149 or 800-668-8400
Fax 905-564-1030 or 800-263-5111
Recovery tank cover has built in
cyclonic foam buster.
Optional Hard Floor Tool Kit converts
the Klenzor
Brushes are available separately.
®
into an Auto Scrubber.
©2008 Kent is a registered trade name of Nilfisk-Advance, Inc. Form L1673K 8-08
