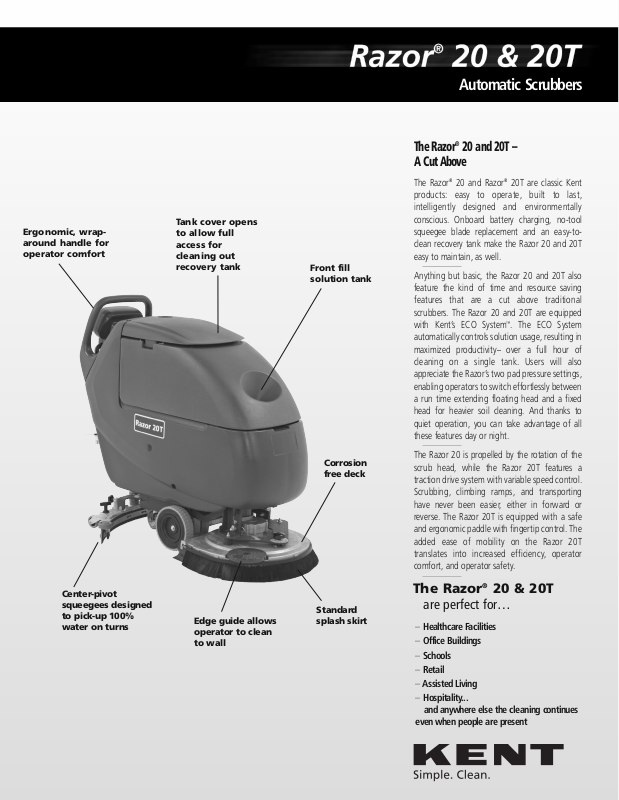

KENT 20, Razor 20T, Razor 20 Specifications

Ergonomic, wrap­around handle for
operator comfort

Tank cover opens
to allow full
access for
cleaning out
recovery tank

Front fill
solution tank

Automatic Scrubbers

The Razor®20 and 20T –
A Cut Above

The Razor®20 and Razor®20T are classic Kent
products: easy to operate, built to last,
intelligently designed and environmentally
conscious. Onboard battery charging, no-tool
squeegee blade replacement and an easy-to­clean recovery tank make the Razor 20 and 20T
easy to maintain, as well.

Anything but basic, the Razor 20 and 20T also
feature the kind of time and resource saving
features that are a cut above traditional
scrubbers. The Razor 20 and 20T are equipped
with Kent’s ECO System
automatically controls solution usage, resulting in
maximized productivity– over a full hour of
cleaning on a single tank. Users will also
appreciate the Razor’s two pad pressure settings,
enabling operators to switch effortlessly between
a run time extending floating head and a fixed
head for heavier soil cleaning. And thanks to
quiet operation, you can take advantage of all
these features day or night.

™

. The ECO System

Center-pivot
squeegees designed
to pick-up 100%
water on turns

Edge guide allows
operator to clean
to wall

Corrosion
free deck

Standard
splash skirt

The Razor 20 is propelled by the rotation of the
scrub head, while the Razor 20T features a
traction drive system with variable speed control.
Scrubbing, climbing ramps, and transporting
have never been easier, either in forward or
reverse. The Razor 20T is equipped with a safe
and ergonomic paddle with fingertip control. The
added ease of mobility on the Razor 20T
translates into increased efficiency, operator
comfort, and operator safety.

The Razor®20 & 20T

are perfect for…

– Healthcare Facilities
– Office Buildings
– Schools
– Retail
– Assisted Living
– Hospitality...

and anywhere else the cleaning continues

even when people are present

TECHNICAL SPECIFICATIONS

Model Razor®20 Razor®20T
Scrub HeadType Disc – BOTH MODELS
Scrub Path 20 in (50.8 cm) pad holder standard, brushes available – BOTH MODELS
Max Productivity@ 24,640 ft

2.8 mph(4.5 km/hr)
Scrub Pressures Two settings up to 57 lb (26 kg) standard; 70 lb (32 kg)

w

Scrub Head Speed 153 rpm – BOTH MODELS
Solution FlowRates

ECO System
variable up to 0.3 gal/min (1.1 L/min) – BOTH MODELS

DriveSystem Pad/Brush assist

SqueegeeWidth 29.9 in (75.9 cm) – BOTH MODELS
Dimensions (w/o squeegee)
Weights

Without Batteries 179 lb (81 kg) 212 lb (96 kg)

With Batteries 380 lb (172 kg) 400 lb (181 kg)
Voltage 24 V – BOTH MODELS
Power Source (2) 12 V batteries (wet-acid and maintenance free available) – BOTH MODELS
Onboard BatteryCharger 24 V wet-acid/maintenance free compatible – BOTH MODELS
Solution Tank 11.1 gal (42 L) – BOTH MODELS
RecoveryTank 11.1 gal (42 L) – BOTH MODELS
Scrub Motor 0.65 hp (480 W) – BOTH MODELS
Vacuum Motor 0.44 hp (330 W) – BOTH MODELS
Sound Level 65.8 dB A at operator’s position – BOTH MODELS
Approvals ETL, CSA,CE – BOTH MODELS
Part Number 56170035

™

L = 48.3 in (123 cm) / W = 21.3 in (54 cm) / H = 41.7 in (106 cm) – BOTH MODELS

56170036

2

(2,289 m2) – BOTH MODELS

ith optional extra pressure kit – BOTH MODELS

0.15 gal/min (0.55 L/min) – BOTH MODELS

0.3 hp (200 W) variable forward and reverse
Max speed 2.8 mph (4.5 km/hr), 16% gradeability

with two 105Ah wet-acid batt.
with two 98 Ah gel batt.

Specifications are subject to change without notice.

56170037
56170038

with two 105Ah wet-acid batt.
with two 98 Ah gel batt.

Easy access to batteries

Easy to use One-Touch scrubbing
control panel

Standard Features

– Onboard battery charger

– One-Touch scrubbing

– Two pad pressure settings

14600 21st Avenue North
Plymouth, Minnesota 55447-3408
www.kenteuroclean.com
Phone [phone]
Fax [phone]

240 Superior Boulevard
Mississauga, Ontario, Canada L5T 2L2
www.kenteuroclean.com
Phone [phone] or 800-668-8400
Fax [phone] or 800-263-5111

Razor®20T has ergonomic control
paddle with fingertip control

Center-pivot squeegee follows
turns to pick up dirty solution

©2008 Kent is a registered trade name of Nilfisk-Advance, Inc. Form L3010K 6-08

recyclable
