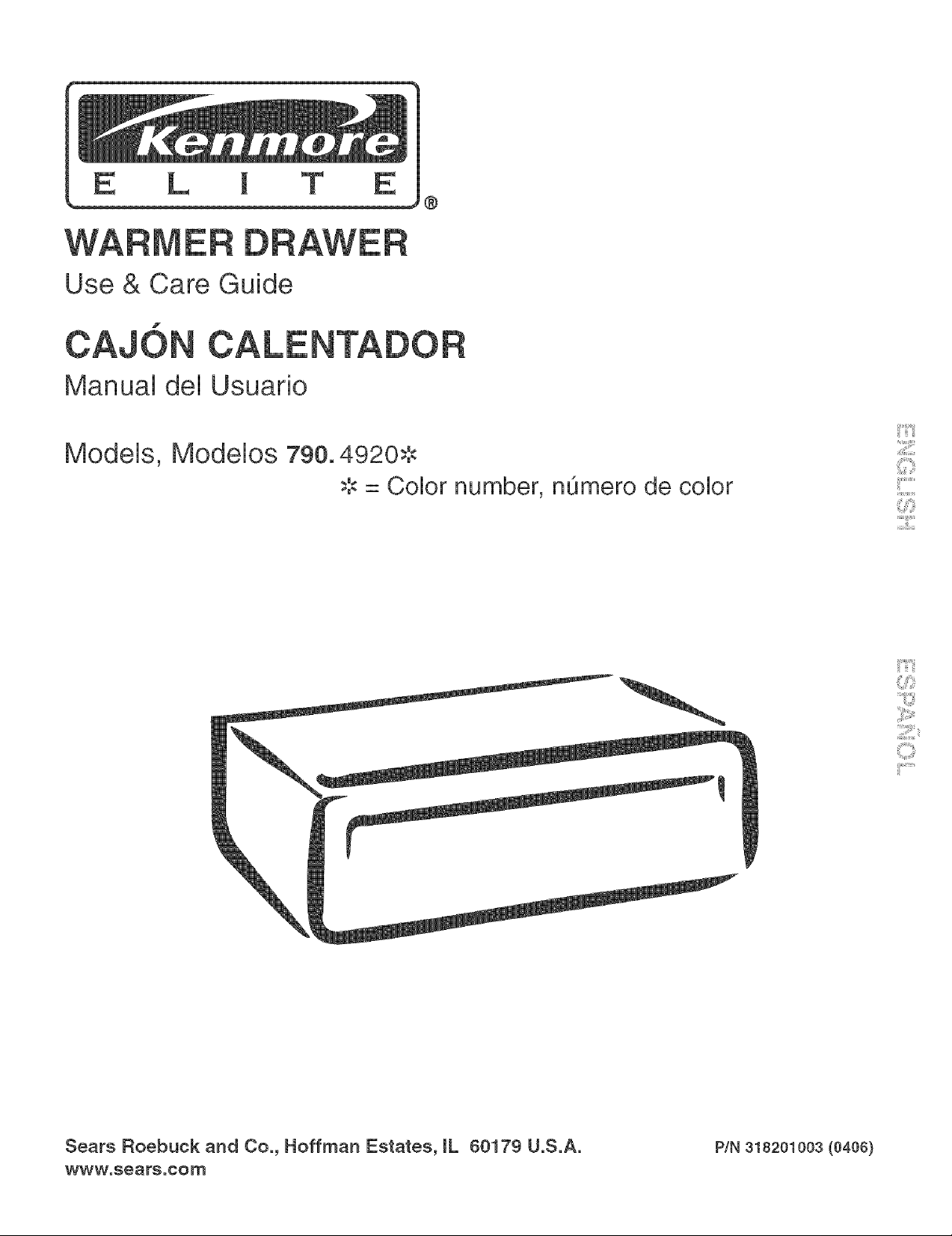

Kenmore Elite 79049203400, 79049209401, 79049209400, 79049204401, 79049204400 Owner’s Manual
...
Use & Care Guide
Manual del Usuario
Models, Modelos 790.4920_',."
.,. = Color number, numero de color
®
Sears Roebuck and Co., Hoffman Estates, mL 60179 U.S.A.
www.sears°com
P/N 318201003 (0406)
TabRe of Contents
Warmer Drawer Warranty ................................................ 2
Product Record ............................................................... 2
Seria! PJate Location ....................................................... 2
iMPORTANT SAFETY iNSTRUCTiONS ......................... 3-4
Protection Agreements ................................................... 5
Before setting Warmer Drawer Control ........................... 6
Setting Warmer Drawer control ..................................... 6=7
Operate the Warmer Drawer .......................................... 6
Undicator Hght ................................................................ 6
Thermostat controU........................................................ 7
Temperature seUection ................................................... 7
To warm serving bowUsand pUates................................. 7
Set the humidity controller ............................................ 7

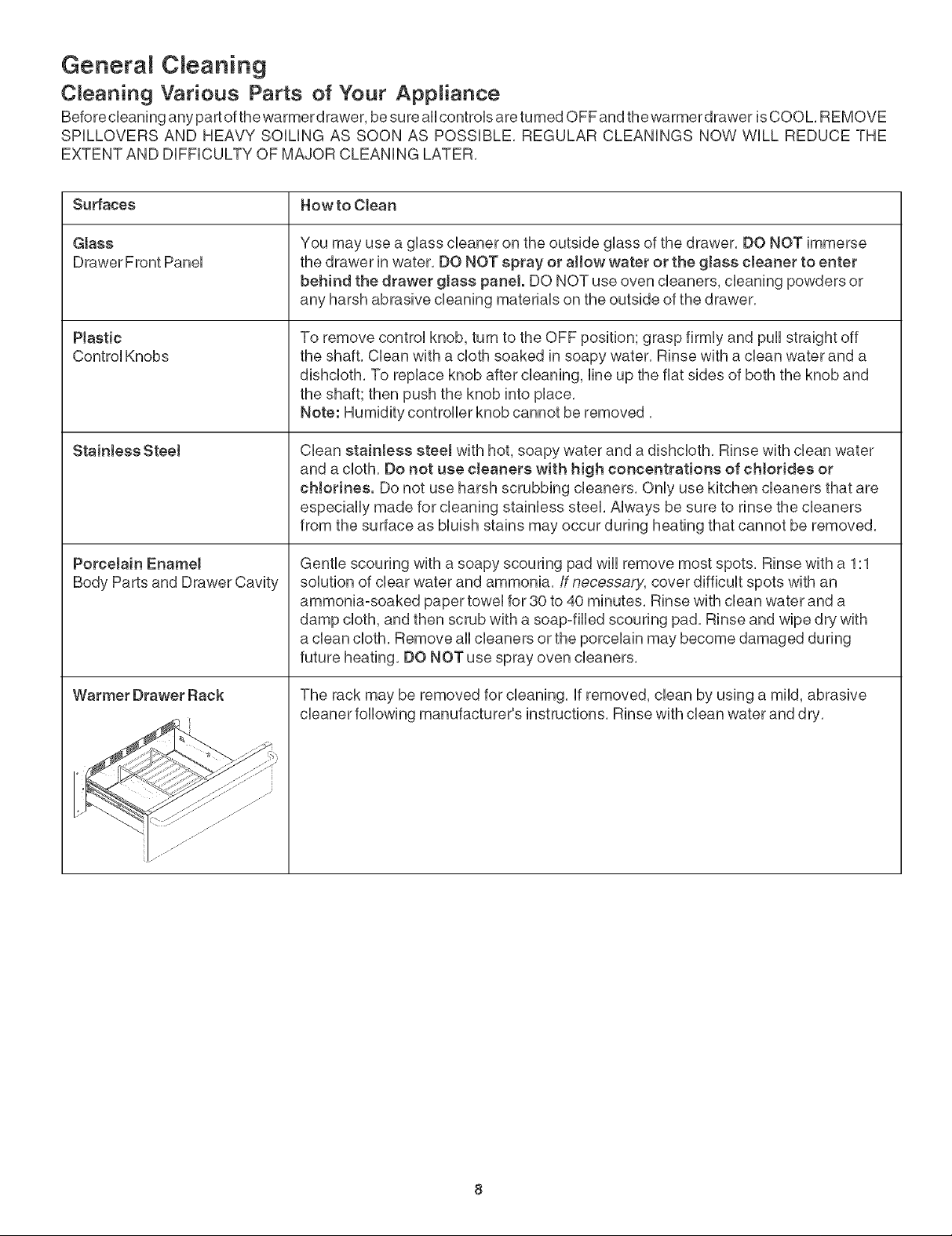

Genera! Care & Cteaning .............................................. 8-9
BeforeYou Call ................................................................ 9
Sears Service ................................................................. 10
Espa_ol .......................................................................... 11
Warmer Drawer Warranty
FULL ONEYEAR WARRANTY ON ALL PARTS
Uf,within one year from the date of installation, any part fails to function properly due to a defect in material or workmanship,
Sears will repair or replace it, at our option, free of charge,
If the product is subjected to other than private residential use, the above warranty is effective for only 90 days,
WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS AT 1-800-4-MY-HOME®.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state,
Sears Roebuck and Co,, Dept, 817WA Hoffman Estates, IL 60179
Product Record
In this space below, record the date of purchase, model
and serial number of your product, You will find the model
and serial number printed on the serial plate,
Model No, 790.
Serial No,
Date of purchase
Save these instructions and your sales receipt for future
reference,
Pmease carefully read and save these
instructions
This Use & Care Manual contains general operating
instructions for yourWarmer Drawer and feature information
for several models, Your product may not have all the
described features, The graphics shown are representative,
The graphics on your appliance may not look exactly like
those shown, Common sense and caution must be practiced
when installing, operating and maintaining any appliance,
Seria P ate Location
You will find the model and serial number printed on the
serial plate, The serial plate is located along the interior
right side trim and visible when the warmer drawer is
opened,
Remember to record the serial number for future reference,
SeriaJ Plate Location
important Safety instructions
Read aH instructions before using this appliance.
Save these instructions for future reference.
This manua] contains important safety symbob and instructions. Please pay attention to these symboB and foUUowaiU
instructions given
, Remove all tape and packaging before using the
appJiance. Destroy the carton and pUasticbags after
unpacking the appliance. Never allow children to play with
packaging material.
o Proper Installation--Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National ElectricaJ
Code ANSl/NFPA No. 70--latest edition in the U.S.A.,
or CSA 022.1, Part 1 in Canada, and tocaJ code
requirements. Install only per installation instructions
provided in this manual,
Sears Parts & Repair is the recommended repair service
for this appliance, Know how to disconnect the electrical
power to the drawer at the circuit breaker or fuse box in
case of an emergency,
o User Servicing--Do not repair or replace any part of
the appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician to reduce the risk of personal injury
and damage to the appliance,
o Never modify or aJter the construction of a drawer by
removing panels, wire covers, tocking ptates, or any
other part of the product.
To reduce the
o AIIWarmer
Drawers can tip,
* Injury to persons
could result,
o Install anti-tip
device packed with
warmerdrawer,
* See Installation
Instructions,
risk of tipping of the Warmer
Drawer, the drawer must be
secured by properly installed
anti-tip locking provided with the
drawer, To check if the locking
plates are installed properly,
grasp the handle of the open
drawer and see ifthe drawer will
slide out of the opening, Refer to
the installation instructions for
proper locking plate installation,
Storage in or on AppHance--FJammabte matedaJs
should not be stored in the drawer. This includes
paper, plastic and cloth items, such as cookbooks,
plasticware and towels, as well as flammable liquids, Do
not store explosives, such as aerosol cans, on or near
the warmer drawer, Flammable materials may explode
and result in fire or property damage,
Do not have children aJone. Children shouJd not be
teft a!one or unattended inthe area where an
appliance is in use. They should never be allowed to
sit or stand on any part of the appliance, _"_iii'iii
DO NOT TOUCH INTERIOR SURFACES OF THE
WARMER DRAWER. Surfaces may be hot even though
they are dark in color, During and after use, do not
touch, or let clothing or other flammable materials touch
these areas until they have had sufficient time to cool,
Wear Proper Apparel--Loose-fitting or hanging
garments shouM never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces,
Use Only Dry PothoMers--Moist or damp pothotders
on hot surfaces may result in burns from steam. Do
not let the potholders touch hot heating elements, Do
not use a towel or other bulky cloth instead of a
potholder,
o Do Not Heat Unopened Food Containers--Build-up
of pressure may cause the container to burst and
result in injury.
IMPORTANT--Do not attempt to operate the warmer
drawer during a power failure. If the power faits,
aJways turn the control off. If the drawer is not turned
off and the power resumes, the drawer may begin to
operate again, Food left unattended could spoil
Do not use the warmer drawer for storage.
Stepping, teaning or sitting on the door or
drawer can resuJt in serious injuries and may aJso
cause damage to the warmer drawer. Do not allow
children to climb or play around the drawer, An open drawer,
when hot, may cause burns,
Never use your appliance for warming
or heating the room.
important Safety instructions
HVlPORTANT mNSTRUCTmONSFOR USmNGYOU R o
WARMER DRAWER
o Protective Liners--Do not use aluminum foil to line
warmer drawer. Any other use of protective liners or
aluminum foil may result in poor performance or damage
to the appliance. Only use aluminum foil as
recommended for baking if used as a cover placed on the
food,
o Glazed Cooking Utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for use without breaking due to the
sudden change in temperature, Check the manufacturer's
recommendations,
o Use Care When Opening Warmer Drawer--Stand to the
side of the unit when opening the door of a hot drawer, Let
hot air or steam escape before you remove or replace
food in the warmer drawer,
o Placement of Warmer Drawer Racks--Always place
rack in desired location whib drawer is cool, if rack must
be moved wNe hot, use extreme caution, Use potholders
and grasp the rack with both hands to reposition, Do not
let potholders contact the hot element or interior of the
warmer drawer, Remove all utensils from the rack before
removing rack,
Kitchen cteaners/aerosoJs--Always follow the
manufacturer's recommended directions for use, Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and/or injury.
Do not cover the broiJer grid or oven bottom with
aluminum foit. Exposed fat and grease could ignite.
Do not touch a hot oven tight buJb with a damp ctoth.
Doing so could cause the bulb to break, Disconnect the
appliance or shut off the power to the appliance before
removing and replacing the bulb,
Protective liners--Do not use aluminum foil to line the
oven bottom, Only use aluminum foil as recommended in
this manual, improper installation of these liners may
result in risk of electric shock, or fire,
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires businesses
to warn customers of potential exposure to such
substances,
IMPORTANT INSTRUCTIONS FOR CLEANING YOU R
WARMER DRAWER
o Ctean the drawer regularJy to keep aHparts free of
grease that couJd catch fire, Do not allow grease to
accumulate, Greasy deposits could catch fire,
SAVETHESE NSTRUCT ONS
4
PROTECTION
AGREEMENTS
mnthe U.S.A.
Master Protection Agreercents
CongratuUations on making a smart purchase. Your new
Kenmore EHte®product is designed and manufactured for
years of dependabb operation. But like aHproducts, it
may require preventive maintenance or repair from time
to time. That's when having a Master Protection
Agreement can save you money and aggravation.
Purchase a Master Protection Agreement now and pro-
tect yourself from unexpected hassle and expense.
The Master Protection Agreement aUsoheUpsextend the
Hfeof your new product. Here's what's incDded in the
Agreement:
5_ Expert service by our 12,000 professional repair
specialists
5_ Unlircited service and no charge for parts and
labor on all covered repairs
[_ "No-brcon" guarantee = replacement
of your covered product if four or more product
failures occur within tweUve months
[_ Product replacercent if your covered product can't
be fixed
5_ Annuat Preventive Maintenance Check at your
request- no extra charge
5_ Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling
5_ Power surge protection against electrical damage
due to power fluctuations
5_ RentaJ reircbursercent if repair of your covered
product takes longer than promised
mnCanada
Maintenance Agreercents
Your purchase has added value because you can
depend on Sears HomeCentraPfor service. With over
2400 Service Technicians and more than a million parts
and accessories, we have the tools, parts, knowledge
and skills to ensure our pledge: We Service What We
Sell.
Your Kenmore Elitee*product is designed, manufactured
and tested to provide years of dependable operation.
But like all products, it may require service from time to
time. The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
The Sears Maintenance Agreement:
. Is your way to buy tomorrow's service at today's
price
. Eliminates repair bills resulting from normal wearand i{
tear ......
. Provides phone support from a Sears technician on
products requiring irchome repair
. Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running
condition.
Some Hrcitations apply. For more inforrcation about
Sears Canada Maintenance Agreements,
call 1-800-361-6665
Once you purchase the Agreement, a simple phone call
is all that it takes for you to schedule service. You can
call anytime day or night, or schedule a service
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase
for years to come. Purchase your Master Protection
Agreement today!
Some tircitations and excJusions apply.
For prices and additionaJ inforrcation call
1-800-827-6655,
Sears mnstaHation Service
For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800-4-MY-HOME ®
REV. 030509
Before Setting Warmer Drawer Contro
Arranging Warmer Drawer Rack Positions
Set the warmer drawer rack in the vertical position as shown below,
The rack can be used in 2 ways:
in the upright position to allow low profile food items to be placed both under
and on top of the rack (for example, rolls or biscuits on top of the rack and a
casserole dish under),
o in the downward position to allow you to place light weight food items and
empty dishware (for example, rolls or pastries and dinner plates).
Upright Position
Downward Position
Setting Warmer Drawer Contro
To Operate the Warmer Drawer
The purpose of the warmer drawer is to keep hot cooked foods at serving tempera-
ture. Always start with hot food. it is not recommended to heat cold food in the
warmer drawer,
All food placed in the warmer drawer should be covered with a lidor aluminum foil to
maintain moisture and softness, Do not cover crisp foods, Do not use plastic wrap
to cover food. Plastic may mett onto the drawer and be very difficult to ctean.
Use only dishware, utensils and cookware recommended for oven use in the warmer
drawer,
Always use potholders or oven mitts when removing food from the warmer drawer
as cookware and plates will be hot,
indicator Light
The indicator light is located below the thermostat control knob. it turns on when the
control is set, and stays on until the control is turned off. Make sure indicator light
is off when removing food from drawer.
Loading...
