Kenmore Elite 79048909001, 79048902001, 79048802100, 79048803100, 79048809100 Installation Guide

United States

iNSTALLATiONAND SERVICEMUST BEPERFORMED BYA QUALIFIED INSTALLER.

Canada

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

qS!

FOR YOUR SAFETY:Do not store or use gasoilne or other

flammable vapors and liquidsin the vicinity of this or any other appliance.

Your new wall oven has been designed to fit a limited variety of cutout sizes to make the job of installing easier. The
first step of your installation should be to measure your current cutout dimensions and compare them to the cutout
dimensions chart below for your model. You may find little or no cabinet work being necessary.

Do not remove

spacers (if equipped) on the
side walls and/or an the back of

1½" (3.8 crn)

Min.

- o1--

Electrical

Junction Box

NOTES:

1. Base must be capable of supporting 350 pounds (159kg).

2. Allow at least 21" (53.3 cm) clearance in front of oven for
door depth when it is open.

3. Dimension G (cutout depth) is critical to the proper
installation of the built-in oven. If the oven decorative

trim does not butt against the cabinet, or if noise is heard
on convection models, verify dimension G to assure it is
according to the required dimension.

PRO DUCT DIME NSION S

Needed (see note 4)

_4. Fora cutout height (H) between 441/2" (113cm) and

451/8'' (114.6cm) add a 2" (5cm) ,,vide wood shim of
appropriate height to each side of the opening under the
appliance side rails. Lifting the unit wilt allow you to hide
the cutout openings showing above the unit. The bottom

trim of the unit wilt hide the shims at the bottom.

_'5. Fora cutout height (H) between 451/8" (114.6cm) and

467/8" (118.1cm) you can order a larger bottom trim
through your Service Center.

Figure 1

MODEL I A I I C I

27" (68.6 cm) Walt Oven 27 (68.6) 45 9/T6(115.7) 24 5/8(62.5) 24_/2 (62.2)
30" (76.2 cm) Wall Oven 30 (76.2) 45 9/_6(115.7) 28_/4 (71.8) 241/2 (62.2)

f CUTOUT DIMENSIONS AND CABINET WIDTH

27" (68.6cm) Walt Oven 258/8 (65.1)
30" (76.2cm) Walt Oven 281/2(72.4)

257/8 (65.7)

29 (73.7)

23_/2 (59.7)
23_/2 (59.7)

44_/4 (112.4) 44_/2 (113)
44_/4 (112.4) 44_/2 (113)

27i/8 (68.9) Min
30i/8 (76.5) Min

All dimensionsare in inches (cm).
Printedin United States

P/N 318201546 (1011)Rev.A

English- pages 1-6

Espa_ol -paginas 7-12

ImportantNotesto the Installer

1. Read aii instructions contained in these installation
instructions before installing the combination oven.

2. Remove all packing material from the oven compartments
before connecting the electrical supply to the wail oven.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructions with the consumen

5. Oven door may be removed to facilitate installation.

6. THIS COMBINATION OVEN IS NOT APPROVED

FOR STACKABLE OR SIDE=BY=SIDE INSTALLATION.

Important Note to the Consumer

Keep these instructions with your Owner's Guide for future
reference. Do not discard oven removal tools found in the

literature bag.

IMPORTANT SAFETY
INSTRUCTIONS

* Be sure your combination oven is installed and

grounded properly by a quallfied installer or service
technician.

* This wall oven must be elecfrlcaily grounded in

accordance with local codes or, in their absence,

with the Natlonal Elecfrlcal Code ANSi/NFPA No.70=

latest edition in United Sates, or wlth CSA Standard
C22.1, Canadian Electrlcal Code, Part 1, in Canada.

Stepping, leaning or sitting on the door
of thls wall oven can result in serious injuries and can
also cause damage to the wall oven.

* Never use your wall oven for warming or heating

the room. Prolonged use of the wail oven without

adequate ventilation can be dangerous.

2. Electrical Requirements

This appliance must be supplied with the proper voltage and
frequency, and connected to an individual, properly grounded
branch circuit, protected by a circuit breaker or fuse. To
know the circuit breaker or fuse required by your model, see
the serial plate to find the wattage consumption and refer to
table A to get the circuit breaker or fuse amperage.

Appliance I I

Rating Watt s Circuit Circuit

24OV Recommended Recommended

Lessthan 4800W 20A 20A

4800W - 7200W 30A 30A
7200W - 9600W 40A 40A

9600W and + 50A 50A

Observe all governing codes and local ordinances
I A 3wire or 4wire single phase 120/240 or 120/208 Volt,

60 Hz AC only electrical supply is required on a separate
circuit fused on both sides of the line (red and black wires).

A time-delay fuse or circuit breaker is recommended. DO

NOT fuse neutral (white wire).

NOTE: Wire sizes and connections must conform with the
fuse size and rating of the appliance in accordance with the

American National Electrical Code ANSI/NFPA No. 70-{atest
edition, or with Canadian CSA Standard C22.1, Canadian

Electrical Code, Part 1,and local codes and ordinances.

wlfh this appliance. Such use may result in a fire,
electrlcal shock, or other personal injury. If you need a

longer power cord you can purchase a 10' (3 m) power cord
kit by calling the Service Center.

Protection App !ance Pr0tect_0n

Rating Watts

208V

Lessthan 4100W

4100W - 6200W

6200W - 8300W

8300Wand+

TabJe A

An extension cord should not be used

The electrlcal power to the oven must be
shut off while llne connections are being made. Failure

to do so could result in serious injury or death.

1. Carpentry

Refer to figure 1 for the dimensions applicable to your
appliance, and the space necessary to receive the
combination oven. The oven support surface may be solid
plywood or similar material, however the surface must be

leveled from side to side and from front to rear.

.

These appliances should be connected to the fused
disconnect (or circuit breaker) box through flexible

armored or nonmetallic sheathed cable. The flexible
armored cable extending from the appliance should be

connected directly to the junction box. The junction box
should be located as shown in Figure 1 and with as much
slack as possible remaining in the cable between the box
and the appliance, so it can be moved if servicing is ever
necessary.

3. A suitable strain relief must be provided to attach the
flexible armored cable to the junction box.

In cold weather shipping and storage
conditions, make sure that oven is in final location at least
three (3) hours before switching on power. Switching on
power while oven is still cold may damage the oven contro{s.

Electrical Shock Hazard

* Electrical ground is required on this appliance.

* Do not connect to the electrical supply until

appliance is permanently grounded.

* Disconnect power to the junction box before making

the electrical connection.

* This appliance must be connected to a grounded,

metallic, permanent wiring system, or a grounding
connector should be connected to the grounding
terminal or wire lead on the appliance.

* Do not use a gas supply line for grounding the

appliance.

Failure to do any of the above could result in a fire,

personal injury or electrical shock.

3. Electrical connection

If is the responsibility and obligation of the consumer to
contact a qualified installer to assure that the electrical
installation isadequate and is in conformance with the
National Electrical Code ANSI/NFPA No. 70-latest edition,
or with CSA Standard C22.1, Canadian Electrical Code, Part 1,

and local codes and ordinances.

(if your appliance is equipped with a

white neutral conductor.)

This appffance is manufactured with a white neutral
power supply and a frame connected copper wire.
The frame is grounded by connection of grounding

lead to neutral lead at the termination of the conduit,
if used in USA, in a new branch circuit installation

(1996 NEC), mobile home, recreational vehicles, where
local code do not permit grounding trough the neutral

(white) wire or in Canada, disconnect the white and
green lead from each other and use ground lead to

ground unit in accordance with local codes, connect
neutral lead to branch clrcult-neutral conductor in

usual manner see Figure 3. If your appliance is to
be connected to a 3 wire grounded junction box
(US only), where local code permit connecting the
appllance-groundlng conductor to the neutral (white)
see Figure 2.

NOTE TO ELI:CTRICJAN: The armored cable leads
supplied with the appliance are UL-recognized for connection

to larger gauge household wiring. The insulation of the leads
is rated at temperatures much higher than temperature
rating of household wiring. The current carrying capacity of
the conductor is governed by the temperature rating of the
insulation around the wire, rather than the wire gauge alone.

Risk of electrical shock (Failure to
heed this warning may result in electrocution or
other serious injury.) This appliance is equipped with
copper lead wire. If connection is made to aluminum
house wiring, use only connectors that are approved
for joining copper and aluminum wire in accordance

with the National Electrical Code and local code and
ordinances. When instafflng connectors having screws

which bear directly on the steel and/or aluminum
flexible conduit, do no tighten screws sufflclently to
damage the flexible conduit. Do not over bend or
excessively distort flexible conduit to avoid separation
of convolutions en exposure of internal wires.

DO NOT ground to a gas supply pipe. DO NOT connect
to electrical power supply until appliance is permanently
grounded. Connect the ground wire before turning on the

power.

Where local codes permit connecting the appffance-
grounding conductor to the neutral (whffe) wire (US
Only) (see figure 2):

1. Disconnect the power supply.

2. In the junction box:
Connect appliance and power supply cable wires as
shown in Figure 2.

Cable from Power Supply

White Wire

(Neutral) _ :::::.;::___

Wires IT Y-J_/\'_

..:.- unction

i "I,,. BoX

.....i J \White Wire

(Neutral)

Ground Wire _/ _-_{_

(Bare or Green Wire) _- "

Cable from appliance

Figure 2

3-WIRE GROUNDED JUNCTION BOX

U.L-Listed Conduit
Connector (or CSA listed)

If oven is used in a new branch circuit installation

(1996 NEC), mobile home, recreallonal vehicle, or
where local codes DO NOT permit grounding through
the neutral (white) wire, the appliance frame MUST

NOT be connected to the neutral wire of the 4-wire

electrical system. (see figure 3):

1. Disconnect the power supply.

2. Separate the green (or bare copper) and white appliance
cable wires.

3. In the junction box:
Connect appliance and power supply cable ,,vires as
shown in Figure 3.

Cable from Power Supply

Ground Wie--_ _-_

"X,[_.L_L>.I _ --'_-"---_ ,-White Wire

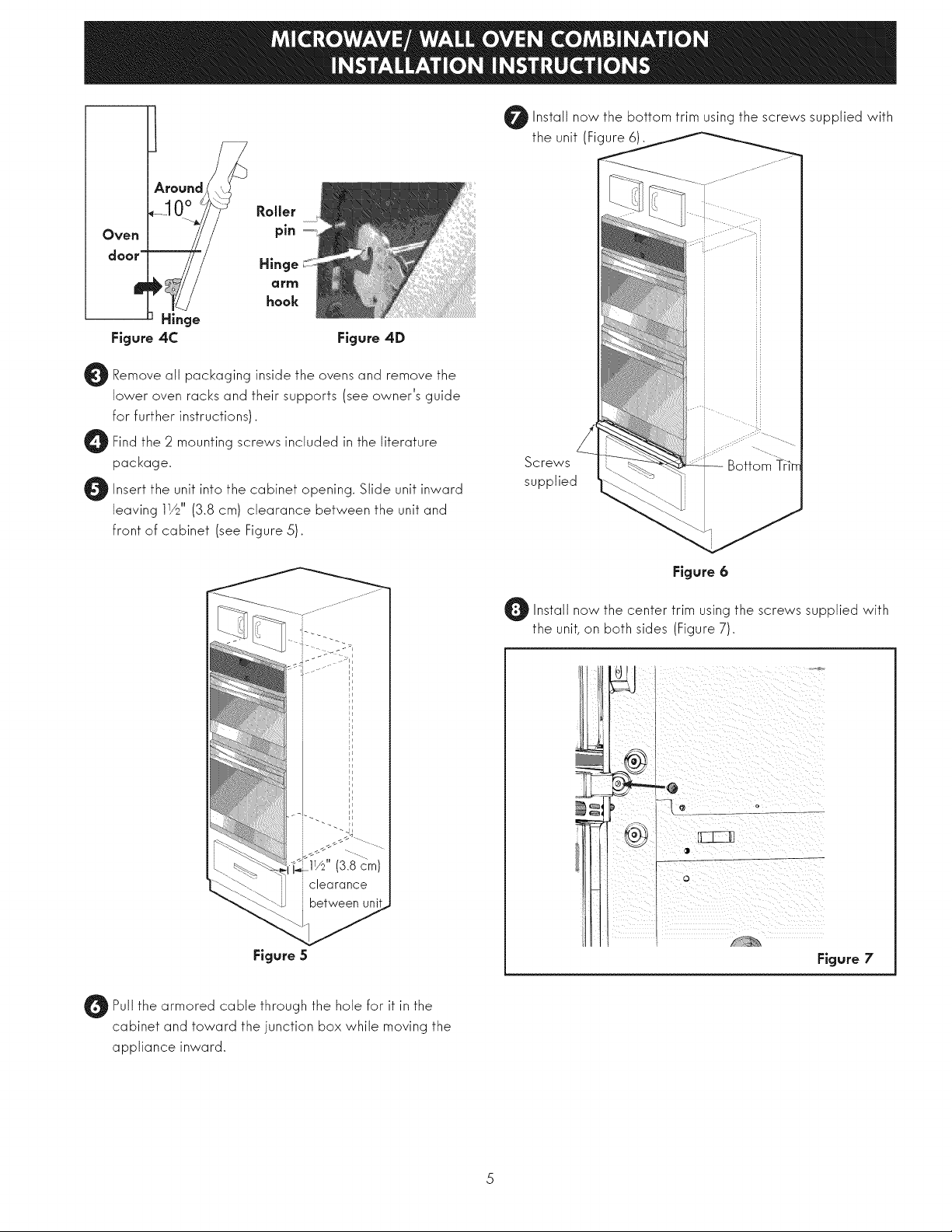

4. Cabinet Installation

Do not llft the oven by the door handle.

Heavy Weight Hazard

* Use 2 or more people to move and install wall oven.
* Failure to follow this instructlon can resuff in injury or

damage to the unff.

Unpack the wall Remove the bottom trim and the
center trim taped on the oven side panel.

O Remove the lower oven door to reduce the weight the

appliance and to facilitate its handling and its installation.

oven.

of

Wires--_' ,,'_ _

Ground Wire ' _/, Wire

(Bare or Oreen---_ _ i_

Wire) _ _ L_:_White Wire

4-WIRE GROUNDED JUNCTION BOX

Model and Serial Number Location
The serial plate is located along the interior side trim of the

oven and visible when the door is opened.
When ordering parts for or making inquires about your oven,

always be sure to include the model and serial numbers and a
lot number or letter from the serial plate on your oven.

/ L]

Junction Box i _]_,' U"_.L.-ListedConduit

_r4_ Connector (or CSA listed)

Cable from appliance

Figure 3

To Remove Oven Door.

1. Open oven door completely (horizontal with floor- See
Figure 4A).

2. Pullthe door hinge locks on both left and right door hinges
down from the oven frame completely towards the oven
door (See Figure 4B). A tool such as a small fiat-blade
screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle- See Figure 4C).

4. Close the door to the broil stop position (the oven door ,,viii
stop into this position iust before fully closing).

5. With the oven door in the broil stop position, lift the oven
door hinge arms over the roller pins located on each side of
the oven frame (See Figure 4D).

6. Proceed in reverse to replace the oven door. Make sure the
hinge supports are fully engaged before unlocking the hinge

levers.

NOTE: The oven door is very heavy. Be sure to have a firm grip
before lifting the oven door off the hinges. Use caution once
the door is removed. Do not lay door on its handle. This could

cause dents or scratches.

Door Hinge
locations

wffh oven
door fully

open

Figure 4B

4
