Kenmore Elite 11024942300, 11024942301, 11024944300, 11024944301, 11024946300 Owner’s Manual

...

E L ! T E

Three-Speed Timed Bleach

Automatic Washers

Lavadoras autom_ticas con tres velocidades

y distribuci6n temporizada de blanqueador

Laveuses automatiques _ trois vitesses

Distribution d'eau de Javel minut_e

Models/Modelos/Mod_les 110,24945, 24955, 24965

= color number, nt_mero de color, num6ro de couleur

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www, sears.com

8537202 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www, sears.ca

TABLEOF CONTENTS

PROTECTION

PROTECTION AGREEMENTS ....................................................... 2

in the U.S,A ................................................................................... 2

in Canada ..................................................................................... 3

WARRANTY ..................................................................................... 3

WASHER SAFETY ........................................................................... 4

INSTALLATION REQUIREMENTS ................................................ 5

Tools and Parts ............................................................................ 5

Location Requirements ................................................................ 5

Drain System ................................................................................ 6

Electrical Requirements ................................................................ 6

INSTALLATION INSTRUCTIONS .................................................. 7

Before You Start ........................................................................... 7

Remove Shipping Strap ............................................................... 7

Connect Drain Hose ..................................................................... 8

Connect the Inlet Hoses ............................................................... 8

Secure the Drain Hose ................................................................. 9

Level the Washer .......................................................................... 9

Complete Installation ................................................................. 10

FEATURES AND BENEFITS ....................................................... 10

WASHER USE ............................................................................ 11

Starting Your Washer ................................................................ 11

Selecting Wash/Spin Speeds .................................................... 12

Selecting a Cycle and Time ....................................................... 13

Rinse and Spin .......................................................................... 13

Drain and Spin ........................................................................... 13

Understanding Washer Cycles.................................................. 13

Normal Sounds .......................................................................... 14

LAUNDRY TIPS ............................................................................ 14

Loading ...................................................................................... 14

WASHER CARE ........................................................................... 14

Cleaning Your Washer ............................................................... 14

Water Inlet Hoses ...................................................................... 15

Vacation, Storage, and Moving Care ........................................ 15

TROUBLESHOOTING .................................................................. 15

AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore ®appliance is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect

yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new appliance. Here's what's included in the Agreement:

V' Expert service by our 12,000 professional repair specialists V' Unlimited service and no charge for parts and labor on all

covered repairs

V' "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve months

Product replacement if your covered product can't be fixed

Annual Preventive Maintenance Check at your request - no

extra charge

Fast help by phone - phone support from a Sears technician on products requiring in-home repair, plus convenient repair scheduling

Power surge protection against electrical damage due to power fluctuations

Rental reimbursement if repair of your covered product takes longer than promised

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That's the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and information, call 1-800-827-6655.

Sears Installation Service For Sears professional installation of home appliances, garage

door openers, water heaters, and other major home items, in the U.S.A. call f-800-4-MY-HOME ®.

Maintenance Agreements

Your purchase has added value because you can depend on Sears HomeCentraf _for service. With over 2,400 Service

Technicians and access to over 900,000 parts and accessories,

we have the tools, parts, knowledge and skills to back our pledge: We Service What We Sell.

Your Kenmore ®appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced.

The Sears Maintenance Agreement

• Guarantees tomorrow's service at today's price.

• Eliminates repair bills resulting from normal wear and tear.

• Covers non-technical and instructional service calls.

• Provides an annual Preventive Maintenance Check, at your request, to ensure that your appliance is in proper running

condition.

Some limitations apply. For information concerning Sears Home Central ®Maintenance Agreements, call

1-800-361-6665.

KENMORE ELITE

WASHER WARRANTY

Limited Lifetime Warranty on White Porcelain Basket

For the lifetime of the washer from the date of purchase, Sears will replace the white porcelain wash basket if it chips or rusts due to defective material or workmanship. After the first year, you will be charged for labor.

Limited 10-Year Warranty on Plastic Tub*

For the second through tenth year from the date of purchase, Sears will replace the plastic tub if it is defective in material or workmanship. After the first year, you will be charged for labor.

Limited 5-Year Warranty on Gearcase Parts*

For the second through fifth year from the date of purchase, Sears will replace any gearcase parts that are defective in material or workmanship. After the first year, you will be charged

for labor.

Limited 2-Year Warranty on SENSOR SMART TM Control Board

For two years from the date of purchase, Sears will replace the SENSOR SMART TM control board if it is defective in material or

workmanship. You will be charged for labor after the first year.

Full 1-Year Warranty on Mechanical and Electrical Parts

For one year from the date of purchase, when this washer is installed and operated according to the instructions that come

with it, Sears will repair or replace any of its mechanical or electrical parts if they are defective in material or workmanship.

Service must be provided by a Sears Service Department in the United States or Canada or an authorized agent.

Warranty Restriction

If this washer is operated for any purpose other than private family use, all warranty coverage is restricted to 90 days from the

date of purchase.

Travel or transportation expenses for customers who reside in

remote areas are not covered by this warranty.

Warranty Service

Warranty service is available by contacting the nearest Sears Service Center in the United States or Canada. This warranty

applies only while the product is in use in the United States or Canada.

This warranty gives you specific legal rights and you may also

have other rights which vary from state to state or province to province.

For Sears warranty information or to contact a Sears Service Center, please reference the service numbers located on the back page of this manual.

Sears, Roebuck and Co.

D/817WA, Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

* In Canada a different warranty may apply.

Product Record

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the

model and serial number label, as shown. Have this information available to help you quickly obtain

assistance or service when you contact Sears concerning your appliance.

Model number 110

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER" or

This is the safety alert symbol. "WARNING." These words mean:

You can be killed or seriously injured if you don't

immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions,

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic

precautions, including the following:

• Read all instructions before using the washer.

• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors

that could ignite or explode.

• Do not add gasoline, dry-cleaning solvents, or other flammable, or explosive substances to the wash water. These substances give off vapors

that could ignite or explode.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been

used for 2 weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not

been used for such a period, before using the washing machine, turn on all hot water faucets

and let the water flow from each for several minutes. This will release any accumulated

hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is

used near children.

• Before the washer is removed from service or discarded,

remove the door or lid.

• Do not reach into the washer if the drum, tub or agitator is moving.

• Do not install or store the washer where it will be exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in this manual or in published user-repair instructions

that you understand and have the skills to carry out.

• See "Electrical Requirements" for grounding instructions.

SAVE THESEINSTRUCTIONS

INSTALLATION

REQUIREMENTS

Assemble the necessary tools and supplies before beginning the washer installation. The parts supplied are in the washer basket.

Tools needed for connecting the drain hose and water inlet hoses:

• Pliers that open to 19/16in. (3.95 cm)

• Flashlight (optional)

Parts supplied:

Alternate Parts

Parts listed are available from your local Sears store or Sears Service Center. For further information, please call 1-800-4-MY-

HOME ®(1-800-469-4663}.

If You Have: You Will Need to Buy:

Laundry tub or Sump pump system (if not already standpipe taller available) than 96 in. (2.4 m)

1 in. (2.5 cm) 2 in. (5 cm) diameter to 1 in. (2.5 cm) diameter diameter standpipe adapter, Part No.

standpipe 3363920

Overhead sewer Standard 20 gaL (76 L) 39 in. (99 cm) tall

drain tub or utility sink, sump pump and connectors (available from local

plumbing suppliers)

3 4 5

1. Drain hose

2. Silver, double-wire hose clamp (for the bottom of the drain hose)

3. Yellow, single-wire hose clamp (for the top of the drain hose)

4. Water inlet hoses (2)

5. Flat water inlet hose washers (4)

Tools needed for securing the drain hose and leveling the washer.

• Adjustable or open end wrench %6in. (14 mm)

• Level

• Wood block

• Ruler or measuring tape Parts supplied:

1 2

1. Shipping strap with fastener

2. Front leveling feet with nuts (2)

Floor drain Siphon break, Part Number 285320;

additional drain hose, Part Number 3357090 and connector kit,

Part Number 285442

Water faucets 2 longer water fill hoses: beyond reach of 6 ft (1.8 m) Part Number 76314,

fill hoses 10 ft (3.0 m) Part Number 350008

Drain hose too Drain hose, Part No. 388423 and hose short kit, Part No. 285442

Drain hose that is Hose kit, Part No. 285442 too long

Lint clogged drain Drain protector, Part No. 367031

Selecting the proper location for your washer improves performance and minimizes noise and possible washer "walk."

Your washer can be installed in a basement, laundry room, closet, or recessed area. (See "Drain System.")

IMPORTANT: Do not install or store the washer where it will be exposed to the weather.

Proper installation is your responsibility.

You will need:

• A water heater set to deliver 120°F (49°C) water to the washer.

A grounded electrical outlet located within 4 ft (1.2 m) of where the power cord is attached to the back of the washer. (See "Electrical Requirements.")

Hot and cold water faucets located within 4 ft (1.2 m) of the hot and cold water fill valves, and water pressure of 5-100 psi (34.5-690 kPa). Washers with triple dispensers require 26-100 psi (138-690 kPa) for best performance.

A level floor with a maximum slope of 1 in. (2.5 cm) under entire washer. Installing the washer on carpeting is not

recommended.

• A sturdy floor to support the washer weight (washer, water and load) of 315 Ibs (143 kgs).

Do not store or operate your washer in temperatures at or below 32°F (0°C). Some water can remain in the washer and can cause damage in low temperatures. See "Washer Care" for winterizing

information.

Recessed area or closet installation

The dimensions shown are for the recommended spacing

allowed, except the closet door ventilation openings. The dimensions shown for the closet door ventilation openings are the minimum required.

-- _ 3"

48in2

+i 111+

_t 3.

-- _.6_)

1 2

1. Front view

2. Side view

3. Closet door with vents

• Additional spacing should be considered for ease of installation and servicing.

• Additional clearances may be required for wall, door and floor moldings.

• Additional spacing of 1 in. (2.5 cm) on all sides of the washer is recommended to reduce noise transfer.

If a closet door is installed, the minimum air openings in the top and bottom of the door are required. Louvered doors with air openings in the top and bottom are acceptable.

Companion appliance spacing should also be considered.

The top of the standpipe must be at least 39 in. (99 cm) high and no higher than 96 in. (244 cm) from the bottom of the washer.

Laundry tub drain system (view 1) The laundry tub needs a minimum 20 gal. (76 L) capacity. The top

of the laundry tub must be at least 39 in. (99 cm) above the floor and no higher than 96 in. (244 cm) from the bottom of the washer.

Floor drain system (view 2) The floor drain system requires a siphon break that may be

purchased separately. See "Alternate Parts." The siphon break must be a minimum of 28 in. (71 cm) from the

bottom of the washer. Additional hoses might be needed.

The washer can be installed using the standpipe drain system

(floor or wall), the laundry tub drain system, or the floor drain system. Select the drain hose installation method you need. See

"Alternate Parts."

(m©m)

Standpipe drain system - wall or floor (view I & 2)

The standpipe drain requires a minimum diameter standpipe of

2 in. (5 cm). The minimum carry-away capacity can be no less than 17 gaL (64 L) per minute. A 2 in. (5 cm) diameter to 1 in.

(2.5 cm) diameter standpipe adapter kit is available. See "Alternate Parts."

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong. Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

A 120-volt, 60-Hz., AC-only, 15- or 20-ampere, fused electrical supply is required. Time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided.

This washer is equipped with a power supply cord having a 3 prong grounded plug.

To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, ground-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the

ground path is adequate. Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the washer is properly grounded.

Do not have a fuse in the neutral or ground circuit.

INSTALLATION

INSTRUCTIONS

1.3 prong grounding plug

2. 3 prong grounding-type outlet

3. Ground prong

4. Power supply cord

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a mal- function or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resist- ance for electric current. This washer is equipped with a cord having an equipment-grounding conductor and a grounding plug.The plug must be plugged into an appropriate outlet that is properly installed and ground-

ed in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman

if you are in doubt as to whether the appliance is prop- erly grounded.

Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed

by a qualified electrician.

To prevent floor damage, set the washer onto cardboard

before moving across floor. Move the washer to within approximately 3 ft (90 cm) of the

final location.

Removing the shipping strap is necessary for smooth operation. If the shipping strap is not removed, the washer will make

excessive noise.

1. Do not cut yellow strap. Pull yellow strap firmly, until completely removed from washer. Depending on your model, there will be either two or three cotter pins on the end of the shipping strap when it is pulled out of the washer. The electrical plug is attached to this shipping strap.

2. Pull firmly to remove the end of the shipping strap that remains pinned to the back of the washer. This will release the rear self-leveling feet.

For a permanently connected washer:

This washer must be connected to a grounded metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on the appliance.

Cut the shipping strap about 16 in. (41 cm) from plug end. Look for the words "CUT HERE." Discard end with the cotter pins. Slide remainder of shipping strap from the power cord. You will use the remainder of the shipping strap later to

secure the drain hose.

16"

(41 cm)

For standpipe or laundry tub drain systems:

1. Open yellow, single-wire clamp with pliers and slide over hooked end of drain hose to secure the rubber and

corrugated sections together.

Proper connection of the drain hose will protect your floors from damage due to water leakage. To prevent the drain hose from coming off or leaking, it must be installed per the following

instructions. IMPORTANT: To ensure proper installation, this procedure must

be followed exactly.

1. Check the drain hose to see if it is the proper length.

2. Wet the inside of the straight end of the drain hose with tap water. DO NOT USE ANY OTHER LUBRICANT.

3. Squeeze ears of silver, double-wire clamp with pliers to open. Place clamp over the straight end of the drain hose 1/4in. (6 mm) from the end.

_1/4"

(6 ram)

4. Open clamp. Twist hose back and forth while pushing down onto drain connector at the bottom of the washer. Continue

until hose contacts the ribbed stop on the cabinet.

1. Hooked end

2. Drain hose

Put hooked end of drain hose into laundry tub or standpipe. Rotate hook to eliminate kinks.

To prevent drain water from going back into the washer:

• Do not straighten hooked end of drain hose. Do not force excess drain hose into standpipe. Hose should be secure, but loose enough to provide a gap of air.

• Do not lay excess drain hose in bottom of laundry tub.

For floor drain installation, see kit number required under "Alternate Parts."

1. Insert new flat washers (supplied) into each end of the inlet

hoses. Firmly seat the washers in the couplings.

5. Place clamp over area marked "CLAMR" Release clamp.

1/4"

(6 mm)

1. Drain Hose 3. Ribbed Stop

2. Clamp 4. Cabinet

1 2

1. Coupling

2. Washer

Connect the inlet hoses to the water faucets Make sure the washer basket is empty.

2. Attach the hose with the red coupling to the hot water faucet. Screw on coupling by hand until seated on the washer.

3. Attach the hose with the blue coupling to the cold water faucet. Screw on coupling by hand until seated on the

washer.

4. Using pliers, tighten the couplings with an additional two- thirds turn.

1. Drape the power cord over the console.

2. Remove any cardboard used to move washer.

3. Locate the remaining portion of shipping strap (not the end with the cotter pins) from step 3 of "Remove Shipping Strap."

NOTE: Do not overtighten. Damage to the valves can result.

Clear the water lines

5. Run water through both faucets and inlet hoses, into a bucket

or laundry tub, to get rid of particles in the water lines that might clog the inlet valve screens.

Connect the inlet hoses to the washer

6. Attach the hose with the red coupling to the HOT (bottom)

inlet valve. Attaching the red coupling first makes it easier to tighten connection with pliers. Screw on coupling by hand until seated on the washer. Using pliers, tighten the couplings

with an additional two-thirds turn. NOTE: Do not overtighten. Damage to the valves can result.

1. Cold water inlet valve (blue)

2. Hot water intet valve (red)

Remaining portion of Shipping Strap

4. Wrap the drain hose to the laundry tub leg or standpipe with the tie strap. Push fastener into the nearest hole in the shipping strap. (See illustration 1 or 2.)

2 3

If the washer faucets and the drain standpipe are recessed, put the hooked end of the drain hose in the standpipe. Tightly wrap the tie strap around the water inlet hoses and the drain hose. (See illustration 3.)

' ,I@ _428s_,eY

Properly leveling your washer prevents excessive noise and vibration.

Install the front leveling feet

1. Prop up the front of the washer about 4 in. (10.2 cm) with a wood block or similar object. The block needs to support the

weight of the washer.

2. Screw the lock nut onto each foot to within 1 in. (2.5 cm) of the base.

NOTE: The inlet valve may be on the right or the left side of the washer, depending on your model.

7. Attach the hose with the blue coupling to the COLD water (top) inlet valve. Screw on coupling by hand until seated on

the washer. Using pliers, tighten the couplings with an additional two-thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

Check for leaks

8. Turn on the water faucets and check for leaks. A small amount of water might enter the washer. You will drain this

later. NOTE: Replace inlet hoses after 5 years of use to reduce the

risk of hose failure. Record hose installation or replacement dates for future reference.

If you connect only one water hose, you must cap off the remaining water inlet port.

Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

1 "

(2.5 cm)

a. Screw the feet into the correct holes at the front corner of the

washer until the nuts touch the washer. NOTE: Do net tighten the nuts until the washer is level.

4. Tilt the washer back and remove the wood block. Gently lower the washer to the floor.

5. Slide to final location.

6. Tilt the washer forward until the rear of the washer is at least 4 in. (10.2 cm) off the floor. You may hear the self-adjusting rear feet click into place. Lower the washer to the floor.

7. Check the levelness of the washer by placing a level on the top edges of the washer, first side to side, then front to back.

If the washer is not level, move the washer out slightly, tip back, prop up the front of the washer with the wood block

and adjust the feet up or down as necessary. Repeat steps 5 through 8 until washer is level.

9. After the washer is in the final location and level, use a %ein. (14 mm) open-end wrench to turn the nuts on the feet tightly against the washer cabinet.

If the nuts are not tight against the washer cabinet, the washer may vibrate.

Check the electrical requirements. Be sure that you have the correct electrical supply and the recommended grounding method. (See "Electrical Requirements.")

Check to be sure all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.

Check to be sure you have all of your tools.

Check to be sure that the yellow shipping strap was removed from the back of the washer and used to secure the drain

hose.

Dispose/recycle all packaging materials.

Check to be sure the water faucets are on.

Check for leaks around faucets and inlet hoses.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong. Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

BENEFITS

Your new washer has many special features that contribute to proper cleaning and fabric care. Here are descriptions of the

features and their benefits: TOTAL CARE TM Agitator

The TOTAL CARETM Agitator moves in three directions to ensure proper cleaning. At the bottom of your washer the agitator vanes move back and forth to flex the fabric, loosening the soil. The upper portion of the agitator has vanes that push the clothes down in a spiraling pattern to the area of best cleaning action. A "rollover" motion displaces the clothes already at the bottom. For your largest loads, the TOTAL CARE TM Agitator responds with a vertical motion that senses the "large load" and guides items to

the bottom. KING SIZE TM Capacity

Your washer can handle full-sized loads of heavy work clothes, towels, or mixed items (see "Loading"). Loads with only a few items can have a lower water level setting and need less wash

time.

Ultra Rinse System

Your washer allows you to add an automatic second rinse to the Ultra Clean cycle and to the Permanent Press II cycle. Set the Rinse Options control on 2nd rinse before you start the washer. You can also select a "Rinse and Spin" option.

QUIET PAK TM II System The QUIET PAKTM System is designed to reduce water sounds

and ringing noises. The cabinet is insulated with three sound- damping materials for superior vibration and sound-damping

characteristics.

Timed Bleach Dispenser

The liquid chlorine bleach dispenser automatically dispenses bleach at the proper time in the cycle to ensure the cleanest and brightest loads. The dispenser is for liquid chlorine bleach only. Do not use this dispenser to add powdered chlorine or color-safe bleach to your washer load.

Wash/Spin Speeds

Six combinations of speeds are provided for wash action (of agitator) and spin motion (of basket). A Speeds selector control knob lets you select a wash/spin speed for different types of

fabrics and soil levels.

Water Level and Temperature

A Water Level control gives you the flexibility to save water when washing small loads. The Water Temperature control knob lets you select a wash and rinse water temperature setting based on the type of load you are washing. The settings for Automatic Temperature Control (ATC) take away the worry of undissolved detergent and ensure consistent cleaning results from season to

season with warm and cold washes.

8. Plug into a grounded 3 prong outlet.

9. Remove the protective film on the console and any tape remaining on the washer.

10. Read "Washer Use" in the Washer User Instructions.

11. To test your washer, measure 1/2 of the normal recommended amount of powdered or liquid detergent and pour it into the washer basket or detergent dispenser (on some models). Close the lid. Select any cycle, and then press START.Allow it to complete one whole cycle.

WASHER USE

WAIERLEVEL WASH I RINSE TEMP OPllONS SPEEDS/,_ffA_ ImN }

W_ml Q Wk_MI mNSE PJN_ su_/w QWI',_

Aur0/_w

--_ ONE 2NO DEUCA_ NO_L

S_g_ _g H_ PLUS kl_e D_f

PRL_H _y _INEmJCAI_ _l_W

ONLY

m_Z_WlSUUW

Fire Hazard

Never place items in the washer that are

dampened with gasoline or other flammable

fluids.

No washer can completely remove oil. Do not dry anything that has ever had any type of

oil on it (including cooking oils).

Doing so can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

The following is a guide to starting your washer. Periodic

references to other sections of this manual provide more detailed information.

1. Measure detergent and pour it into the washer.

PERMANENT PRESSII

• Toreduce wrinkling of permanent press clothes and some synthetic knits, use the Large Load setting to provide more space (see step 5).

2. (OPTIONAL STEP) Pour measured liquid chlorine bleach into the liquid chlorine bleach dispenser. Bleach will be dispensed automatically during the wash part of the cycle.

• Never use more than 1 cup (250 mL) for a full load. Use

less for a smaller load size.

• Follow the manufacturer's directions for safe use.

• To avoid spilling, use a cup with a pouring spout. Do not

let bleach splash, drip, or run down into the washer basket.

• Use only liquid chlorine bleach in this dispenser.

3. (OPTIONAL STEP) Pour measured liquid fabric softener into the liquid fabric softener dispenser. Softener is added automatically during the rinse portion of the cycle.

Drop a sorted load of clothes loosely into your washer.

• Load evenly to maintain washer balance. Mix large and small items.

• Items should move easily through the wash water. Overloading can cause poor cleaning.

Dilute liquid fabric softener by filling the dispenser with warm water until liquid reaches the bottom of the opening of the funnel-shaped portion of the dispenser.

• Do not spill or drip any fabric softener on the clothes.

• Use only liquid fabric softener in this dispenser.

4. Close the washer lid.

5. Turn the Water Level selector to the correct setting for your wash load and the type of fabric being washed.

• Choose a water level that allows the load to move freely

for best fabric care. See "Loading."

• You may change to a higher level setting after the washer

has started filling by turning the knob to a different setting.

To stop or restart your washer

• Tostop the washer at any time, push in the Cycle Selector Control (Timer) knob.

• To restart the washer, close the lid (if open) and pull out the Cycle Selector Control (Timer) knob.

This section describes the wash/spin speeds you can select with the Speeds control. Each speed setting is designed for different types of fabric and soil levels.

DELICA'I_ NORMAL

SLOW / SLOW SLOW / FAsr

o o

6, Set the Water Temperature selector to the correct setting for

the type of fabric and soils being washed. Use the warmest water safe for fabric, Follow garment label instructions.

Water Temp Use for

Hot Whites and pastels

Heavy soils

Warm Bright colors

Moderate to light soils

Cold Colors that bleed or fade

Light soils

NOTE: In wash water temperatures colder than 70°F (21°C), detergents do not dissolve well. Soils can be difficult to

remove. Some fabrics can retain wear wrinkles and have increased pilling (the formation of small lint-like balls on the

surface of garments). (OPTIONAL) An Automatic Temperature Control (ATC)

electronically senses and maintains a uniform water temperature by regulating incoming hot and cold water.

• Even in cold wash, some warm water is let into the washer to maintain a minimum temperature of 65°F (19°C).

• Warm wash is maintained at approximately 95°F (35°C),

• Warm rinse is maintained at approximately 70°F (21°C) for all warm rinse settings.

7. (OPTIONAL STEP) For a second rinse at the end of the Ultra Clean cycle or the Permanent Press II cycle, turn the Rinse Options selector to 2nd Rinse.

8. Set the Speeds Control knob according to the type of fabric in the load. See "Selecting Wash/Spin Speeds."

9. Push in the Cycle Selector Control (Timer) knob and turn it clockwise to the wash cycle you want. Reduce the wash time

when using a small load size setting. See "Selecting a Cycle and Time."

CASUAL o

sLOwI SLOW

HANDWASH

HANDWASHPLUS

FINEDEUCATES

IN'i_RMITi_NT

E_mASLOW/ SLOW

o o

Speeds Selector knob

HEAVYDUTY

O FAST/ FAST

HANG DRY

FASTI SLOW

Normal speed

This speed setting is for normally soiled cottons and linens, Setting combines slow speed agitation and fast spin speeds to shorten drying time,

Heavy Duty speed

This speed setting is for sturdy or heavily soiled loads. Setting combines fast speed agitation and fast spin speeds.

Hang Dry speed

This speed setting is for sturdy permanent press fabrics that will be line dried. Setting combines fast speed agitation and slow spin speeds to reduce wrinkling.

Handwash Plus Fine Delicates speed

Use this speed setting for hand washable and special-care items. The wash action has repeating periods of extra-slow speed agitation and soaking. Slow spin speeds help reduce wrinkling.

NOTE: Do not use this cycle for large items such as blankets. Some "Hand Wash" items, particularly wool, naturally shrink when washed. When still wet, block these items by gently stretching to original measurements. Allow the items to dry flat.

Handwash/Casual speed

This speed setting is for lingerie and loosely knit items. Setting combines extra-slow speed agitation for gentle soil removal and slow spin speeds to reduce wrinkling.

Delicate speed

This speed setting is for washable knit fabrics and permanent press fabrics. Setting combines slow speed agitation for gentle soil removal and slow spin speeds to reduce wrinkling.

Pull out the Cycle Selector Control (Timer) knob to start the washer.

This section describes the available wash cycles and will help

you make the best cycle selections for your wash loads. Each cycle is designed for different types of fabric and soil levels.

• The washer pauses briefly throughout each cycle. These pauses are normal. Refer to "Normal Sounds" to learn more about the sounds you may hear during a wash cycle.

• Refer to "Understanding Washer Cycles" to learn what happens during a wash cycle.

NOTE: Use the full time for heavy soil and sturdy fabrics. For light soil and delicate fabrics, use less time.

PERMANENT PRESSII

Cycle Selector Control (Timer) knob

Permanent Press II cycle

This cycle includes a load-cooling process that reduces wrinkling

compared to other cycles. Select up to 10 minutes of wash time. NOTE: When the timer reaches Pause, the washer will drain and

pause for no more than 2 minutes while some of the wash water is drained and replaced with rinse water.

Ultra Clean cycle

Use this cycle for most loads to get between 6 and 16 minutes of wash time.

Prewash cycle

Use this cycle to get up to 4 minutes of agitation to help remove heavy soils and stains that need pretreatment. Prewash cycle should be followed by an Ultra Clean or Permanent Press IIcycle with additional detergent added.

Auto Soak cycle

This cycle features 4 minutes of agitation followed by an

unlimited soak time to help remove heavy soils and stains that need pretreatment. You will need to reset the washer to a Spin setting to remove water. The Auto Soak cycle should be followed by an Ultra Clean, Permanent Press II, or Prewash cycle with additional detergent.

NOTE: Hot water is not recommended for soaking. It may set some stains.

A drain and spin may help shorten drying times for some heavy fabrics or special-care items by removing excess water.

1. Set Rinse Options Control (to One Rinse).

2. Set Speeds Control:

• For fast spin, use the Heavy Duty setting.

• For slow spin, use the Delicate setting.

3. Push in the Cycle Selector Control (Timer) knob and turn it clockwise to any of the Spin settings.

4. Pull out the Cycle Selector Control (Timer) knob. The washer drains, then spins.

When the Cycle Control knob is set to a number and pulled out, the washer fills (to the selected load size) before agitation and timing start. The washer begins agitating immediately after filling; agitation occurs with the washer lid down.

During agitation, the agitator creates a continuous rollover action that provides a thorough cleaning of the wash load.

After agitation starts, the Cycle Control knob turns clockwise until it points to an OFF area and the cycle ends.

NOTE: The washer pauses briefly throughout each cycle. These pauses are normal for washer operation.

WASH RINSE

1.Fill _ 1.Fill

time

2. Washselected ,_ 2. Rinse

agitation agitation

3. Drain_No L_J 3. Drain No

After using extra detergent in a cycle for heavily soiled clothes, or when washing special-care items, you may find that an extra rinse and spin is needed.

1. Set the controls for Water Level, Water Temperature, Options (to One Rinse), and Speeds.

2. Push in the Cycle Selector Control (Timer) knob and turn it clockwise to any of the rinse settings.

3. Pull out the Cycle Selector Control (Timer) knob. The washer fills to the selected water level, agitates, drains, and spins.

_j 5. Spin

ThePermanent Press cycle I rm I 6. Off partiallydrains, fills, agitates

briefly,and drains.

IILI

Your new washer may make sounds your old one didn't. Because the sounds might be unfamiliar, you may be concerned about

them. These sounds are normal.

During washing

When you select a small load size setting, your washer has a lower water level. This can cause a clicking sound from the upper part of the agitator.

During drain

If water is drained quickly from your washer (depending on your installation), you may hear air being pulled through the pump during the end of draining.

After drain and before spin

When the cycle changes from draining to spinning, you may hear gears engaging.

LAUNDRY TIPS

Loading suggestions (maximum size loads)

KING SIZE TM Capacity Plus Washer

Heavy Work Clothes

4 jeans 2 sweatpants 4 workpants 2 sweatshirts

4 workshirts

Towels 10 bath towels 14 washcloths 10 hand towels

Mixed Load

3 sheets (1 king, 2 twin) 9 T-shirts 4 pillowcases 9 shorts

3 shirts 10 handkerchiefs 3 blouses

Preparing clothes for washing Follow these recommendations to help you prolong the life of

your garments.

• Close zippers, snaps, and hooks to avoid snagging other items. Remove pins, buckles, and other hard objects to avoid scratching the washer interior. Remove non-washable trim

and ornaments.

• Empty pockets and turn them inside-out.

• Turn down cuffs; brush away lint and dirt.

• Turn synthetic knits inside-out to avoid pilling.

• Tie strings and sashes so they will not tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be washed promptly for best results.

Sorting

• Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together. Separate lint-givers (towels, chenille) from lint-takers (corduroy, synthetics, permanent press). When possible, turn lint-givers inside-out.

• Separate dark colors from light colors, color_ast items from noncolorfast items.

• Sort by fabric and construction (sturdy cottons, knits, delicate items).

Unloading

• Remove clothes from washer after the cycle is completed. Metal objects such as zippers, snaps, and buckles may rust if left in the washer basket for a long time.

WASHER CARE

Cleaning the exterior

Use a soft, damp cloth or sponge to wipe up any spills such as detergent or bleach. Occasionally wipe the outside of your washer to keep it looking new.

Cleaning the interior

Toclean your washer interior, add 1 cup (250 mL) of chlorine bleach and 1 scoop or capful of detergent into your dispenser, and run the washer through the Normal cycle using hot water. Repeat this process if necessary.

NOTE: Remove any hard water deposits using only cleaners labeled as washer safe.

Cleaning the liquid fabric softener dispenser (on some models):

1o Hold the top agitator section with one hand. Using the other

hand, rotate the dispenser clockwise until it stops (approximately 1/2in. [1.27 cm]). To remove, lift the dispenser

straight up. Using a rocking motion, separate the top and bottom sections of the dispenser. Wash three parts (the base,

the cone-shaped cup and the top) in warm water.

2. Making sure the pointed end of the cone-shaped cup is pointed toward the base, assemble the three parts by

pressing the top and bottom sections together.

3. Install the dispenser by sliding the two locking tabs on the bottom section of the dispenser into small slots on the top of the agitator. Rotate the dispenser counterclockwise until it stops (approximately 1/2in. [1.27 cm]).

NOTE: Ifyour model has a liquid fabric softener dispenser, do not wash clothes with this dispenser removed. Do not add detergent or bleach to this dispenser; it is for liquid fabric softener only.

Replace inlet hoses after five years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker.

Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washen If storing or moving your washer during freezing weather,

winterize it.

Non-use or vacation care:

Operate your washer only when you are at home. If you will be on vacation or not using your washer for an extended period of time. you should:

• Unplug washer or disconnect power.

• Turn off the water supply to the washer. This helps avoid accidental flooding (due to a water pressure surge) while you are away.

To winterize washer:.

1. Shut off both water faucets.

2. Disconnect and drain water inlet hoses.

3. Put 1 qt (1 L) of R.'7-type antifreeze in the basket.

4. Run washer on a cycle with extra spin time.

5. Unplug washer or disconnect power.

To use washer again:

1. Flush water pipes and hoses.

2. Reconnect water inlet hoses.

3. Turn on both water faucets.

4. Plug in washer or reconnect power.

5. Run the washer through any cycle with _/;_the normal recommended amount of detergent to clean out the

antifreeze.

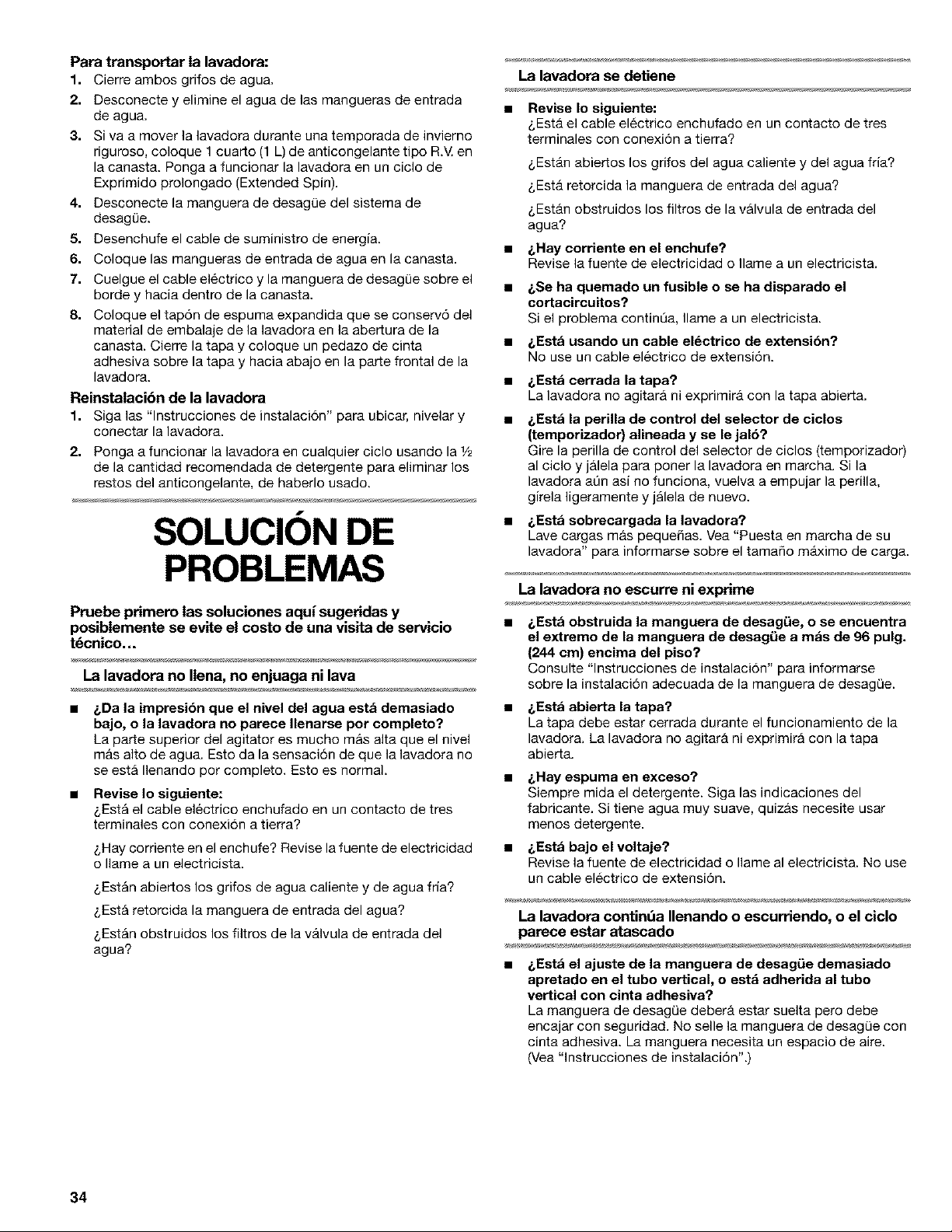

To transport the washer:.

1. Shut off both water faucets.

2. Disconnect and drain water inlet hoses.

3. If washer will be moved during freezing weather, put in 1 qt (1 L) of R.V.-type antifreeze in the basket. Run washer on a cycle with extra spin time.

4. Disconnect the drain from the drain system.

5. Unplug the power cord.

6. Place the inlet hoses into the basket.

7. Drape the power cord and drain hose over edge into the basket.

8. Place the expanded foam plug retained from the washer's shipping material into basket opening. Close the lid and put a piece of tape over the lid and down to the front of the washer.

Reinstalling the washer

1. Follow the "Installation Instructions" to locate, level and connect the washer.

2. Run the washer through any cycle with _/;_the normal recommended amount of detergent to clean out the

antifreeze, if used.

TROUBLESHOOTING

Firsttry the solutions suggested here and possibly avoid the cost of a service call...

Washer won't fill, rinse or wash

Does the water level seem too low, or does the washer appear to not fill completely?

The top of the agitator is much higher than the highest water

level. This creates a perception that the washer is not filling completely. This is normal.

• Checkthe following: Is the power cord plugged into a grounded 3 prong outlet?

Is there power at the plug? Check electrical source or call electrician.

Are the hot and cold water faucets turned on? Is the water inlet hose kinked?

Are the water inlet valve screens clogged?

Washer stops

• Checkthe following: Is the power cord plugged into a grounded 3 prong outlet?

Are the hot and cold water faucets turned on? Is the water inlet hose kinked?

Are the water inlet valve screens clogged?

• Is there power at the plug? Check electrical source or call electrician.

Has a fuse blown or has the circuit breaker tripped?

If problem continues, call electrician.

Are you using an extension cord?

Do not use an extension cord. Is the lid closed?

The washer will not agitate or spin with the lid open.

Is the Cycle Selector Control (Timer) knob lined up and pulled out?

Turn Cycle Selector Control (Timer) knob to cycle and pull out

to start washer. If washer still doesn't start, push knob back in, turn slightly to the right and pull out again.

Is the washer overloaded?

Wash smaller loads. See "Starting Your Washer" for maximum load size.

Washer won't drain or spin

Is the drain hose clogged, or the end of the drain hose more than 96 in. (244 cm) above the floor?

See "Installation Instructions" for proper installation of drain hose.

• Isthe lid open?

The lid must be closed during operation. The washer will not

agitate or spin with the lid open.

• • Is water bouncing off the tub ring or the load?

Is there excessive sudsing?

Always measure detergent. Follow manufacturer's directions. If you have very soft water, you may need to use less

detergent. Is your voltage low?

Check electrical source or call electrician. Do not use an extension cord.

Washer continues to fill or drain, or the cycle seems stuck

Does the drain hose fit too tightly in the standpipe, or is it

taped to the standpipe?

The drain hose should be loose yet fit securely. Do not seal

the drain hose with tape. The hose needs an air gap. (See "Installation Instructions.")

Washer makes noise

• Is the load balanced and the washer level? The wash load should be balanced. See "Starting Your

Washer" for maximum load size.

The washer must be level. The front feet should be properly

installed and the nuts tightened. Reset the rear leveling legs if needed. (See "Installation Instructions.")

Are the self-adjusting rear feet installed? Can you hear water spraying? This is part of the wash action. If water is drained quickly from the washer, you may hear air

being pulled through the pump. This happens during the end of draining. It is normal.

When the cycle changes from washing to draining or spinning, you may hear a noise as the drive system shifts.

This is normal.

• Are you washing items with metal snaps, buckles or

zippers?

You may hear metal items touching the basket. This is normal.

• Are you washing a small load?

You will hear more splashing sounds when washing small loads. This is normal.

• Is the washer installed on a solid floor?

Refer to the "Installation Instructions" for flooring requirements.

Washer leaks

• Checkthe following:

Are the fill hoses tight? Are the fill hose washers properly seated? Is the drain hose clamp properly installed? (See "Installation Instructions.")

• Is the sink or drain clogged?

Sink, floor drain and standpipe must be able to handle 17 gal. (64 L)of water per minute.

The wash load should be balanced and not overloaded. If not, the fill or spray rinses can bounce off the load.

The washer must be level. The front and rear feet should be properly installed and the nuts tightened. Reset the self-

adjusting rear feet if needed. (See "Installation Instructions.")

Did you pull the drain hose from the washer cabinet and install it in a standpipe or laundry tub?

(See "Installation Instructions.") Check household plumbing for leaks.

Washer basket is crooked

• Is the load balanced and the washer level? The wash load should be balanced.

The washer must be level. The front feet should be properly installed and the nuts tightened. Reset the rear leveling legs. if needed. (See "Installation Instructions.")

Dispensers clogged or leaking

• Are the laundry products in the correct dispenser?. Add the correct amounts of chlorine bleach or fabric softener

to the correct dispenser. Use only liquid chlorine bleach in the bleach dispenser.

Load too wet

• Did you use the right cycle for the load being washed? Select a control setting with a higher spin speed.

• Did you use a cold rinse? Cold rinses leave loads wetter than warm rinses. This is normal.

Residue or lint on load

• Did you sort properly? Sort lint givers (towels, chenille) from lint takers (corduroy, synthetics). Also sort by color.

Did you overload the washer? The wash load must be balanced. See "Starting Your Washer" for maximum load size. Lint can be trapped in the load if

overloaded. Wash smaller loads. Was paper or tissue left in pockets?

Did you use enough detergent? Follow manufacturer's directions. Use enough detergent to

hold the lint in the water. Is your water colder than 7O°F (21°0)?

Wash water colder than 70°F (21°C) may not completely dissolve the detergent.

Are you using a gentle wash cycle?

Consider using liquid detergent for slow speed cycles such as Handwash, Casual or Delicate.

Stains on load

Gray whites, dingy colors

• Didyou use enough detergent? Use enough detergent to remove soil and hold it in suspension.

Add the manufacturer's recommended amounts.

• Did you add fabric softener directly to the load? Use your fabric softener dispenser. Do not drip fabric softener

on clothes. Is there above average iron (rust) in water?.

You may need to install an iron filter. Did you properly sort the load?

Sort dark clothes from whites and lights. Did you unload the washer promptly?

To avoid dye transfer, unload the washer as soon as it stops.

Did you use a fabric softener dispensing ball? Use the fabric softener dispenser provided with the washer. Dispensing balls will not operate correctly with this washer.

Did you use powder detergent in a low speed cycle? Consider using liquid detergent.

Did you add detergent, chlorine bleach or fabric softener

too late inthe cycle?

Add detergent to your washer before loading the clothes. Chlorine bleach and fabric softener should be added to the

dispensers before starting the washer.

Load is wrinkled

• Did you unload the washer promptly? Unload the washer as soon as it stops.

• Did you use the right cycle for the load being washed? Use the Delicate cycle or another cycle with a low spin speed to reduce wrinkling.

• Did you overload the washer?.

The wash load must be balanced and not overloaded. Loads

should move freely during washing.

• Are the hot and cold water hoses reversed? Check to be sure the hot and cold water hoses are connected

to the right faucets. (See "Installation Instructions.")

• Did you properly sort the load? Dye transfer can occur when mixing whites and colors in a load. Sort dark fabrics from whites and lights.

• Was the wash temperature too low? Use hot or warm washes if safe for the load. Make sure your hot water system is adequate to provide a hot water wash.

Did you use enough detergent, or do you have hard water?

Use more detergent for washing heavy soils in cold or hard water. Water temperature should be at least 70°F (21°C) for soap to dissolve and work properly.

Garment damage

• Checkthe following: Were sharp items removed from pockets before washing?

Empty pockets, zip zippers, snap or hook fasteners before washing.

Were strings and sashes tied to prevent tangling? Were items damaged before washing?

Mend rips and broken threads in seams before washing.

• Did you overload the washer? See "Loading" for maximum load size.

Did you properly add chlorine bleach?

Do not pour chlorine bleach directly on load. Use your liquid chlorine bleach dispenser. Wipe up bleach spills. Undiluted bleach will damage fabrics. Do not place load items on top of the bleach dispenser when loading and unloading the washer.

• Did you follow the manufacturer's care label instructions?

Wash temperature is not what I selected

• Are the hot and cold water inlet hoses reversed? As washing progresses, the wash temperature will decrease

slightly for hot and warm washes. This is normal.

Load is tangled or twisted

• Did you overload the washer?. See "Starting Your Washer" for maximum load size. Loads should move freely during washing.

+ 39 hidden pages

Kenmore Elite 11024942300, 11024942301, 11024944300, 11024944301, 11024946300 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
