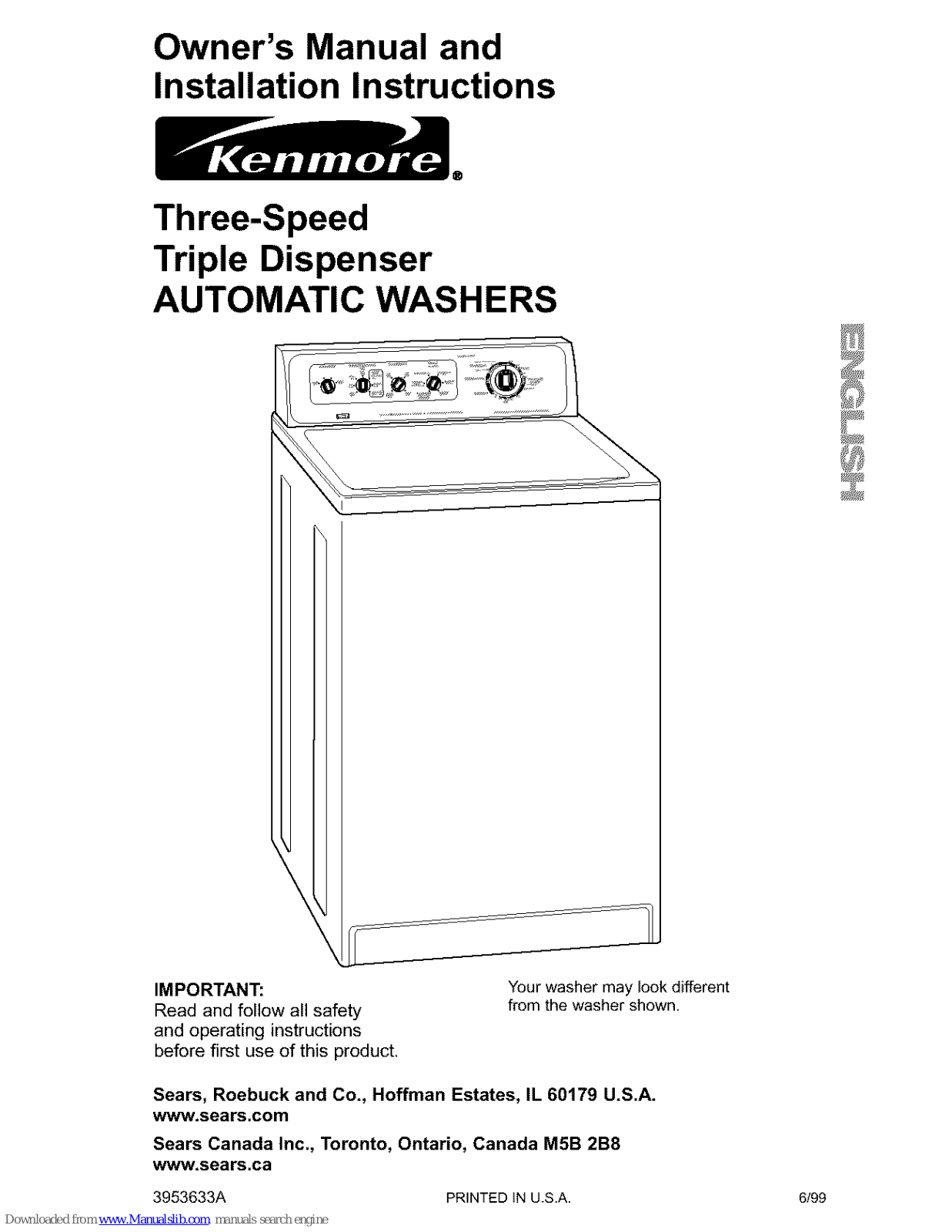

Kenmore Three-Speed Triple Dispenser Automatic Washers Owner's Manual & Installation Instructions

Owner's Manual and
Installation Instructions

Three-Speed
Triple Dispenser

®

AUTOMATIC WASHERS

IMPORTANT:

Read and follow all safety
and operating instructions

before first use of this product.

Your washer may look different
from the washer shown.

Sears, Roebuck and Co,, Hoffman Estates, IL 60179 U,S.A.

www.sears.com

Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8

www,sears.ca

3953633A PRINTED IN U.S.A. 6199

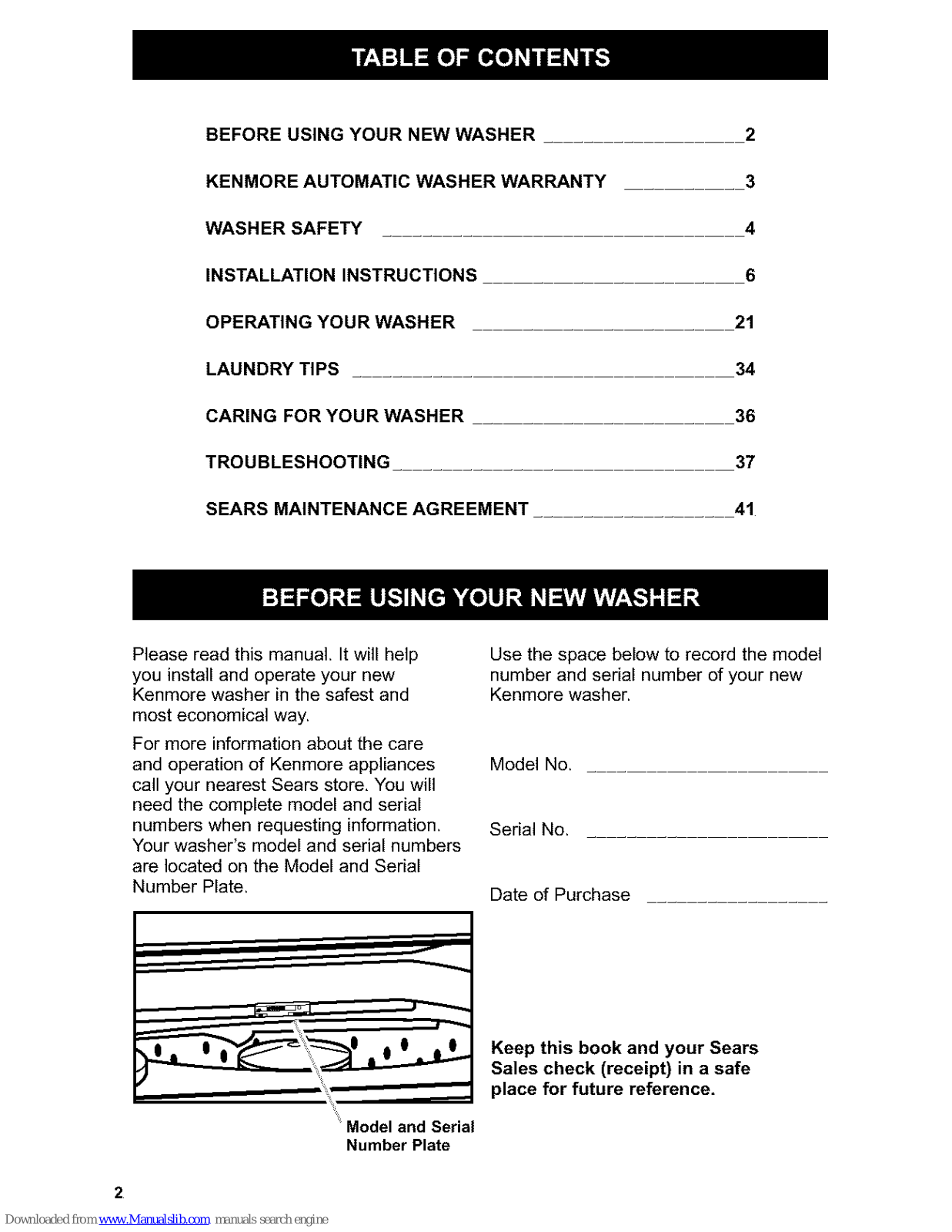

BEFORE USING YOUR NEW WASHER 2

KENMORE AUTOMATIC WASHER WARRANTY 3

WASHER SAFETY ..... 4

INSTALLATION INSTRUCTIONS ..... 6

OPERATING YOUR WASHER ..... 21

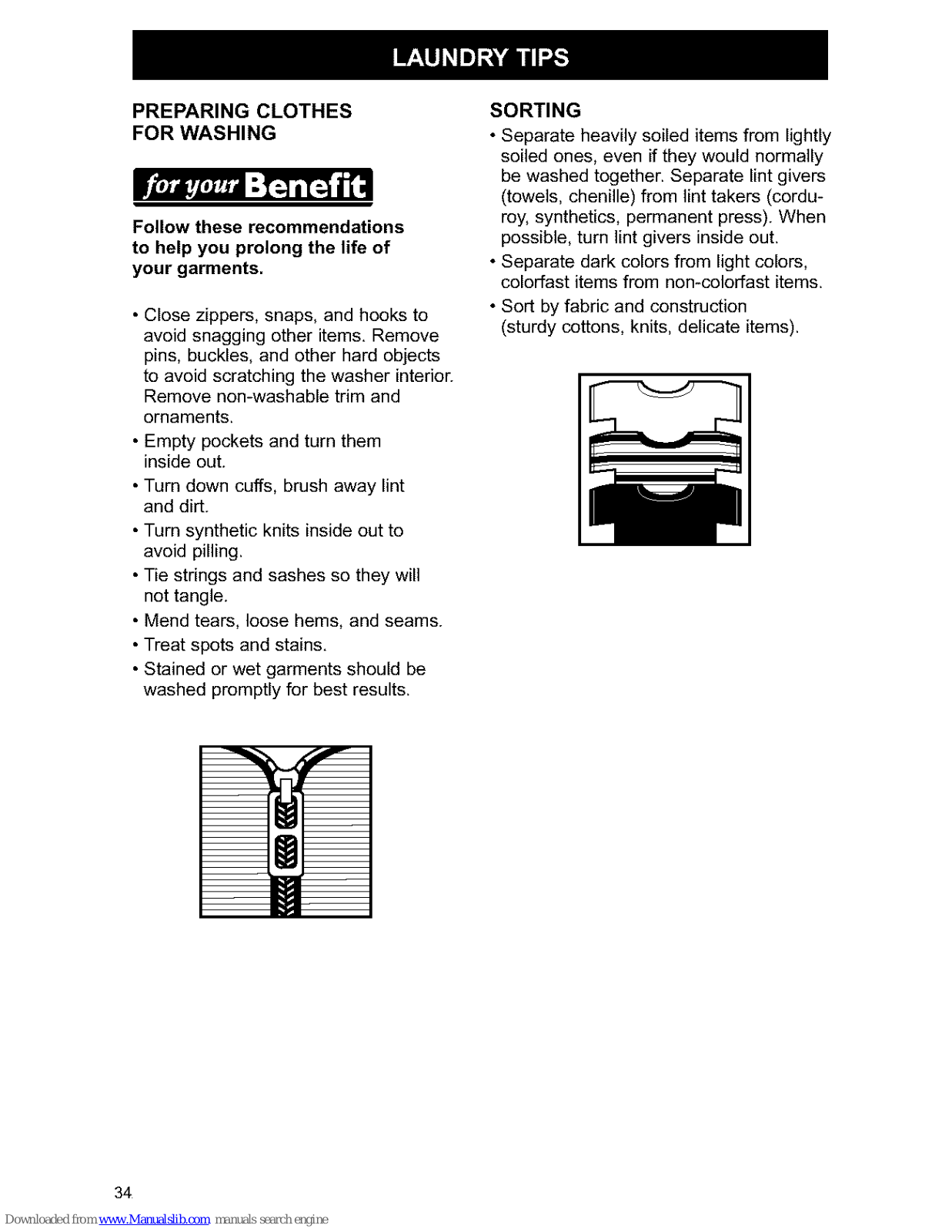

LAUNDRY TIPS ...... 34

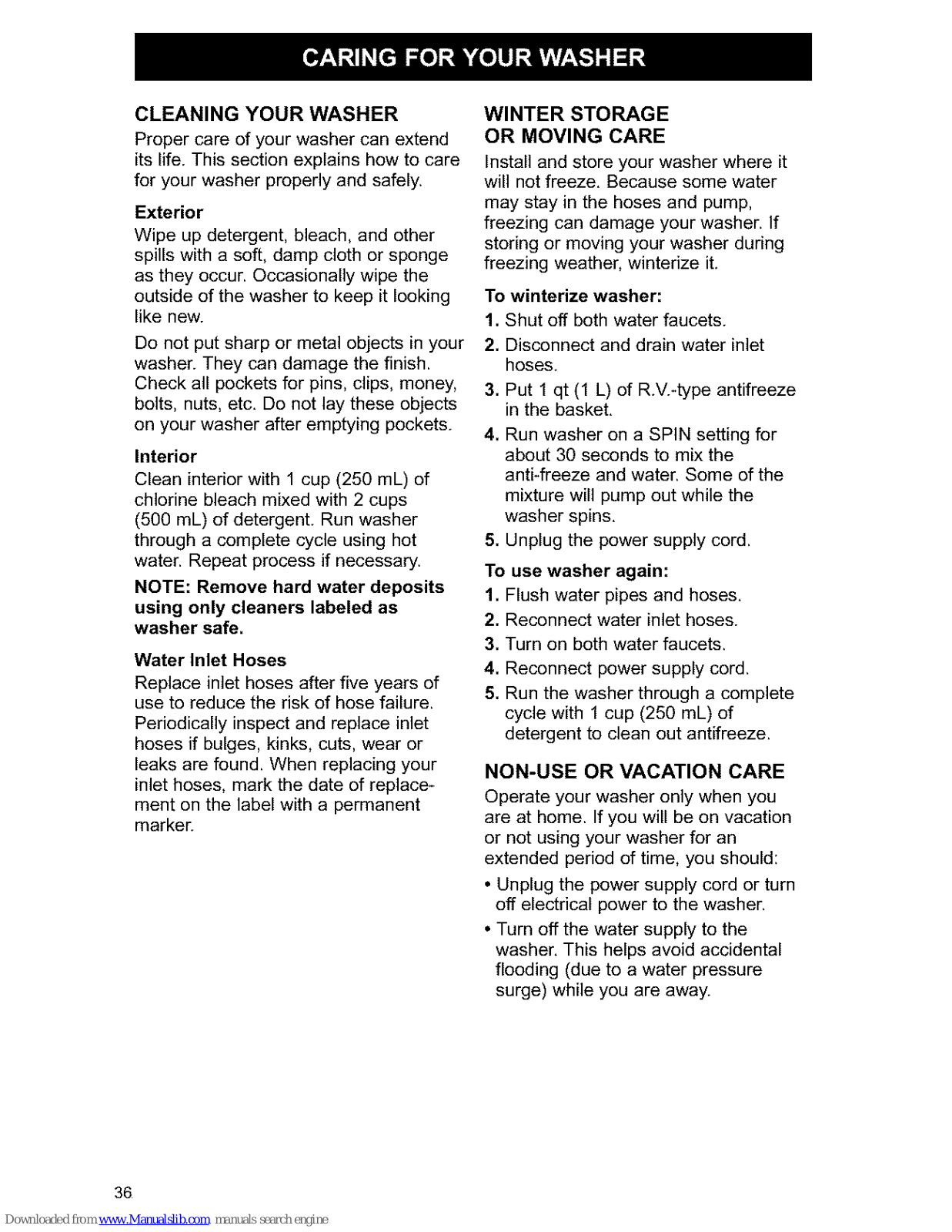

CARING FOR YOUR WASHER ...... 36

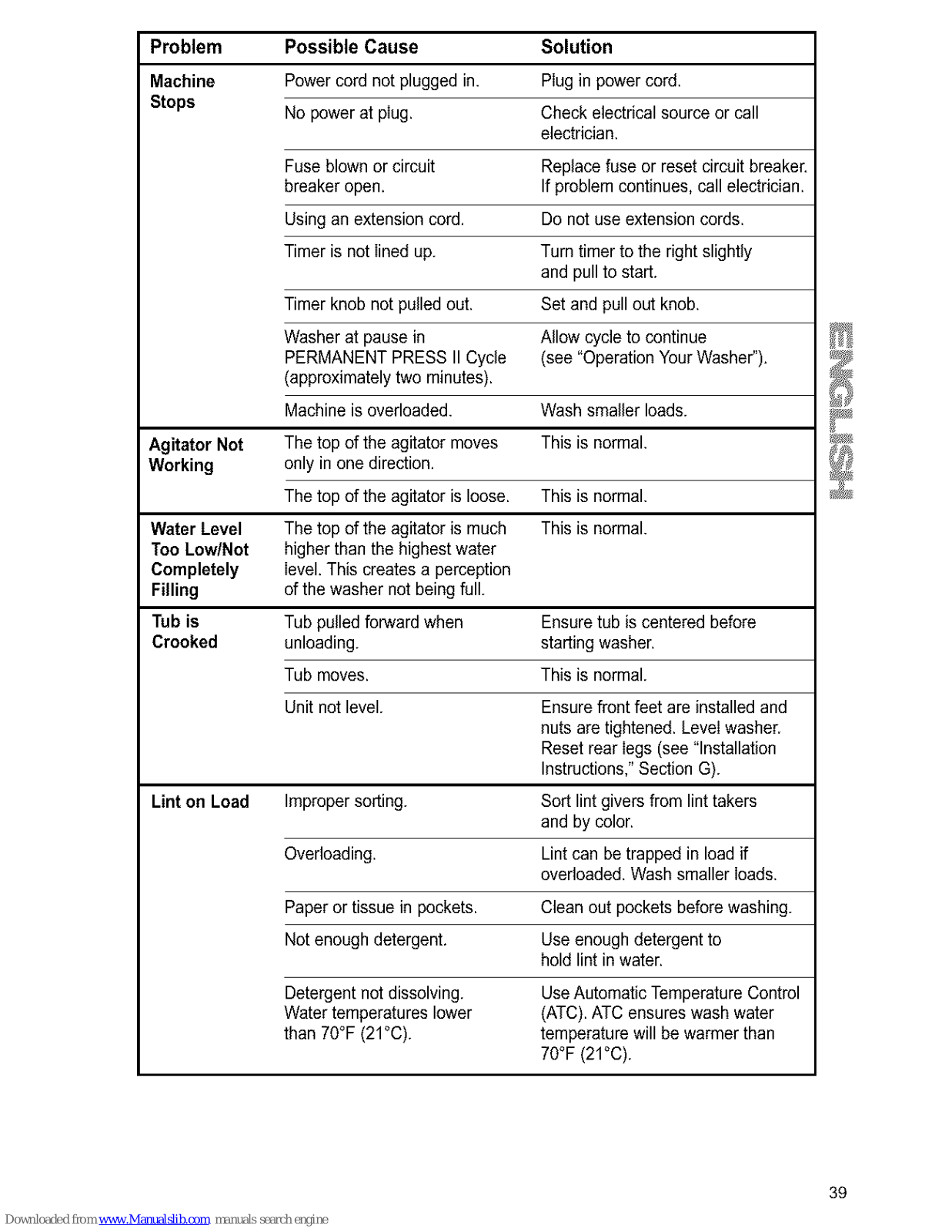

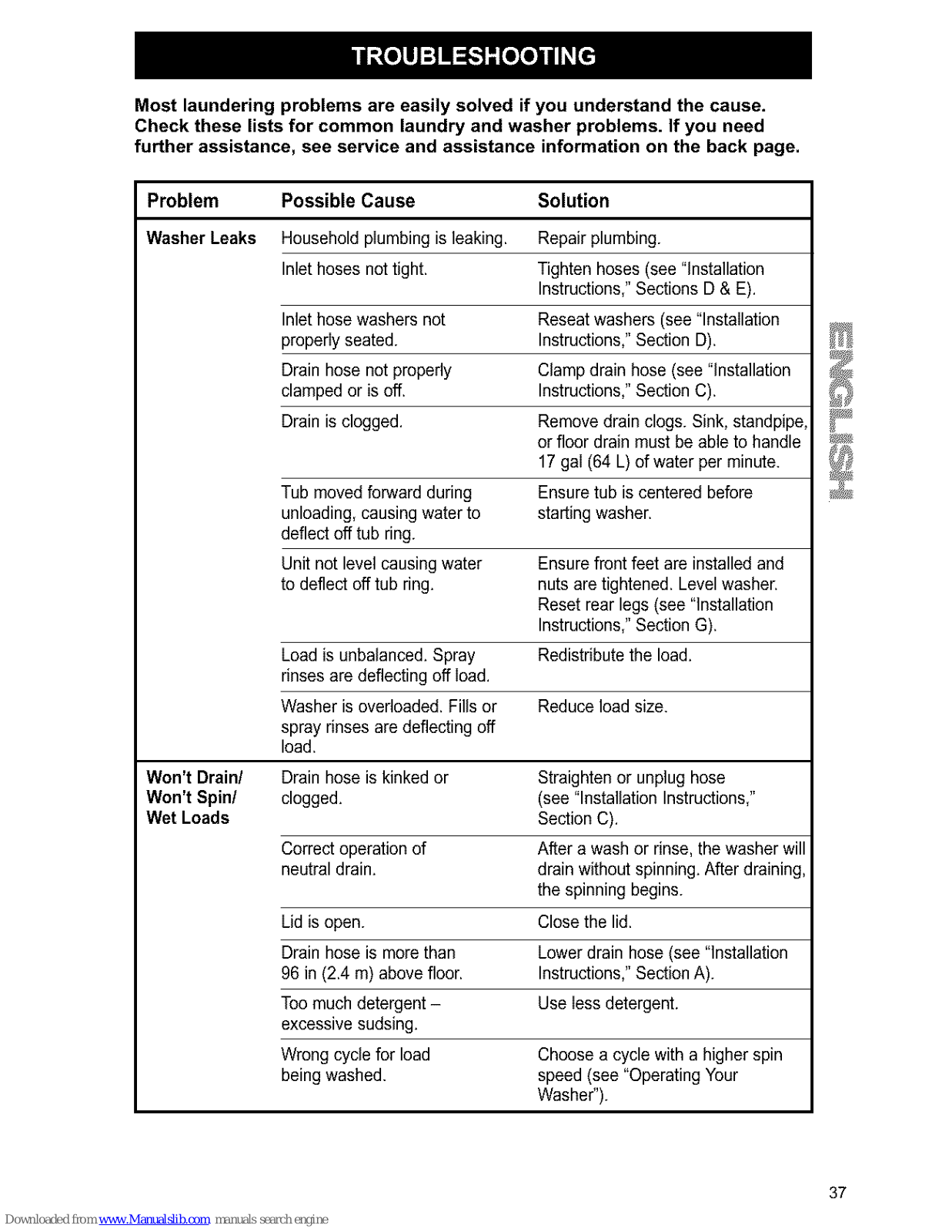

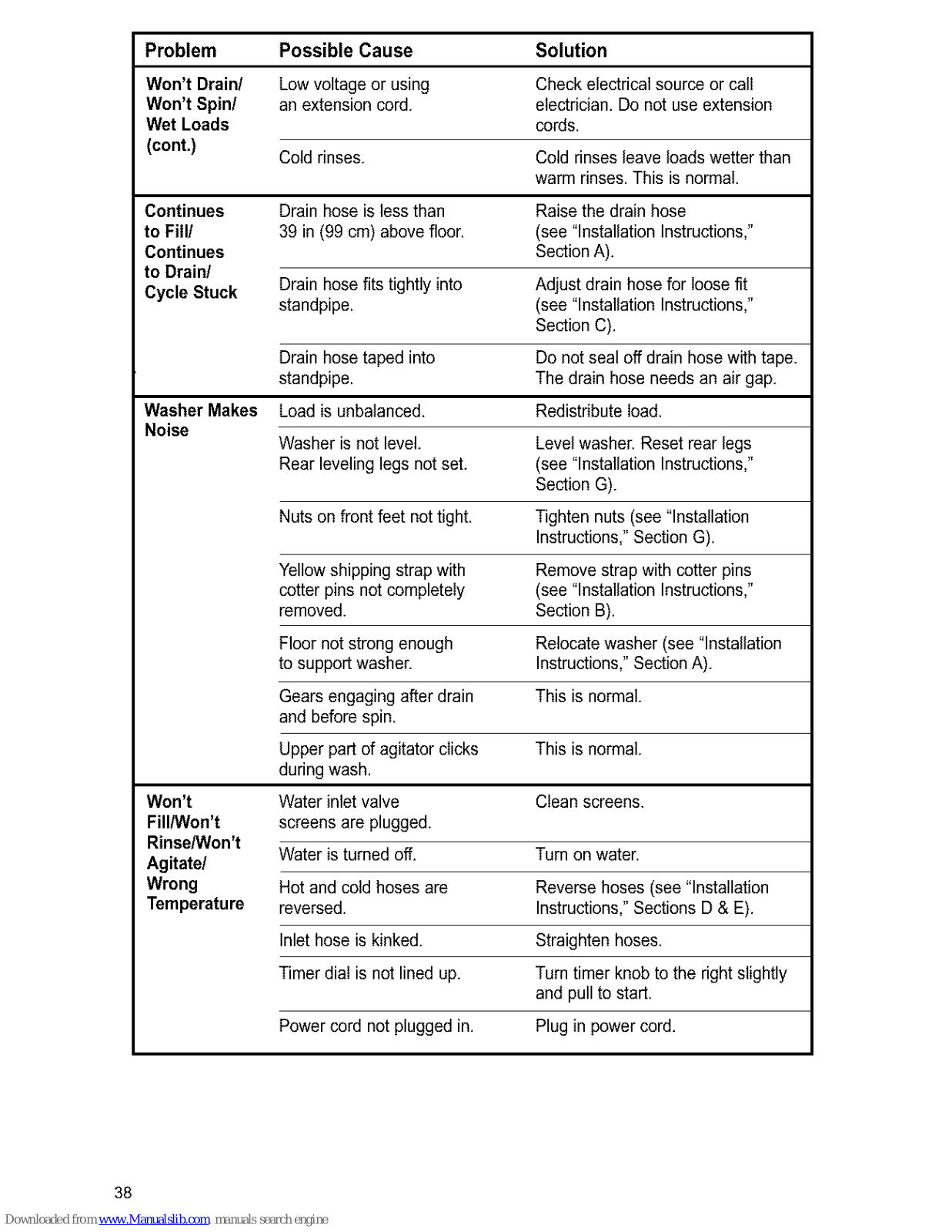

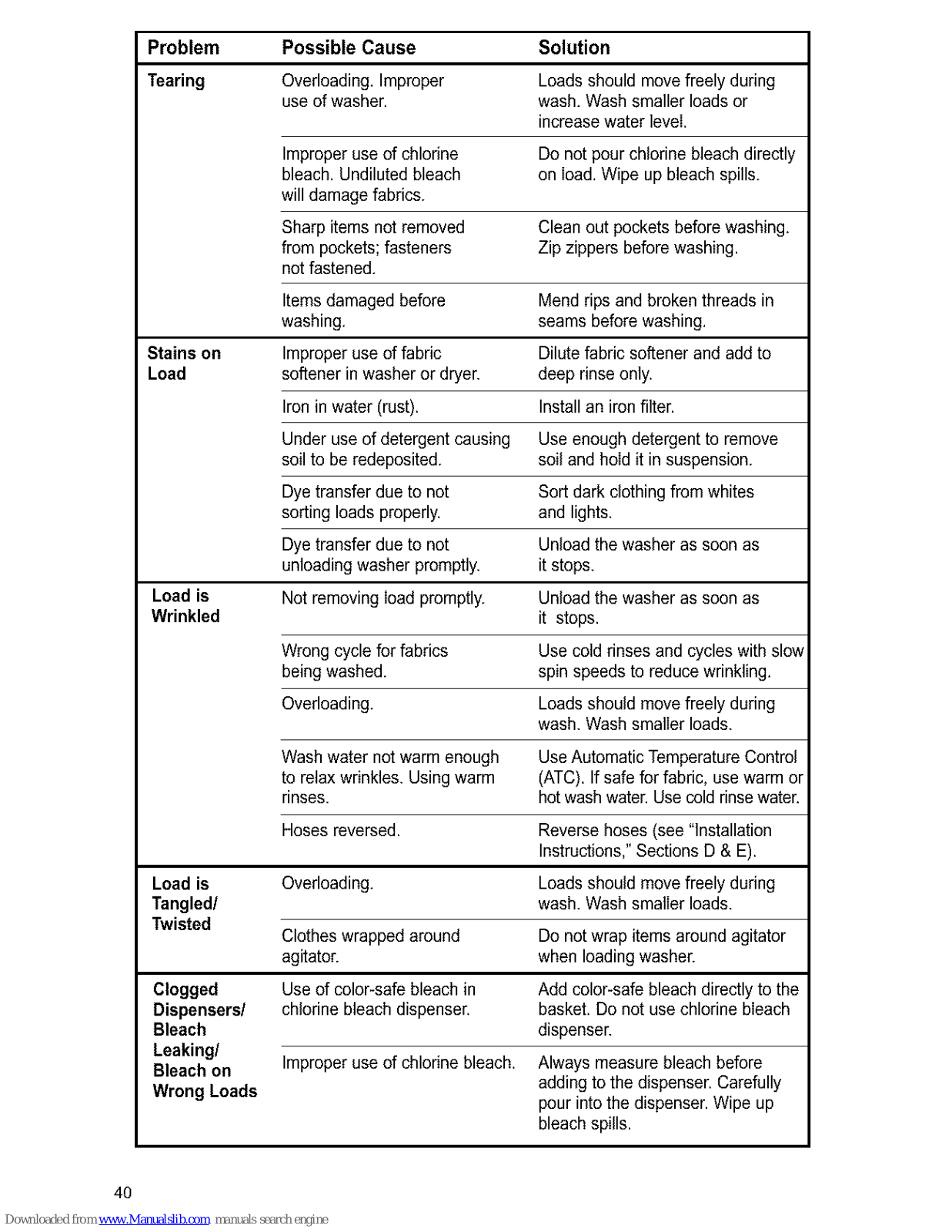

TROUBLESHOOTING ........ 37

SEARS MAINTENANCE AGREEMENT 41

Please read this manual. It will help
you install and operate your new

Kenmore washer in the safest and
most economical way.
For more information about the care
and operation of Kenmore appliances

call your nearest Sears store, You will
need the complete model and serial

numbers when requesting information.
Your washer's model and serial numbers

are located on the Model and Serial
Number Plate.

Use the space below to record the model
number and serial number of your new

Kenmore washer.

Model No.

Serial No.

Date of Purchase

Modeland Serial
Number Plate

Keep this book and your Sears
Sales check (receipt) in a safe
place for future reference,

2

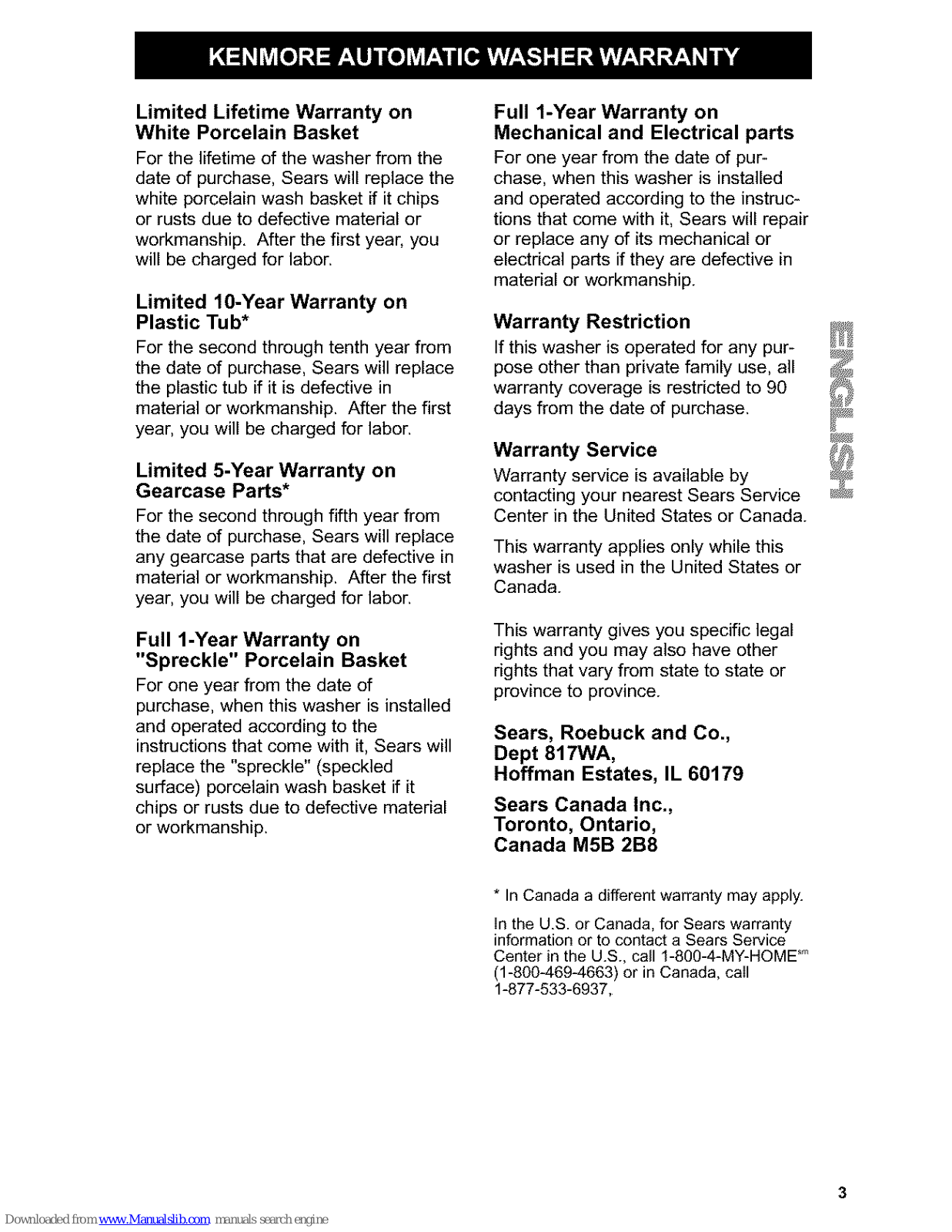

Limited Lifetime Warranty on
White Porcelain Basket

For the lifetime of the washer from the
date of purchase, Sears will replace the

white porcelain wash basket if it chips
or rusts due to defective material or

workmanship. After the first year, you
will be charged for labor.

Limited 10-Year Warranty on
Plastic Tub*

For the second through tenth year from
the date of purchase, Sears will replace
the plastic tub if it is defective in
material or workmanship. After the first
year, you will be charged for labor.

Limited 5-Year Warranty on
Gearcase Parts*

For the second through fifth year from
the date of purchase, Sears will replace
any gearcase parts that are defective in
material or workmanship. After the first
year, you will be charged for labor.

Full 1-Year Warranty on
"Spreckle" Porcelain Basket

For one year from the date of
purchase, when this washer is installed
and operated according to the

instructions that come with it, Sears will
replace the "spreckle" (speckled
surface) porcelain wash basket if it

chips or rusts due to defective material
or workmanship.

Full 1-Year Warranty on
Mechanical and Electrical parts

For one year from the date of pur_

chase, when this washer is installed
and operated according to the instruc*

tions that come with it, Sears will repair
or replace any of its mechanical or
electrical parts if they are defective in
material or workmanship.

Warranty Restriction

If this washer is operated for any pur_
pose other than private family use, all
warranty coverage is restricted to 90
days from the date of purchase.

Warranty Service

Warranty service is available by
contacting your nearest Sears Service

Center in the United States or Canada.
This warranty applies only while this

washer is used in the United States or
Canada.

This warranty gives you specific legal
rights and you may also have other
rights that vary from state to state or
province to province.

Sears, Roebuck and Co.,
Dept 817WA,

Hoffman Estates, IL 60179
Sears Canada Inc.,

Toronto, Ontario,
Canada M5B 2B8

* In Canada a different warranty may apply.

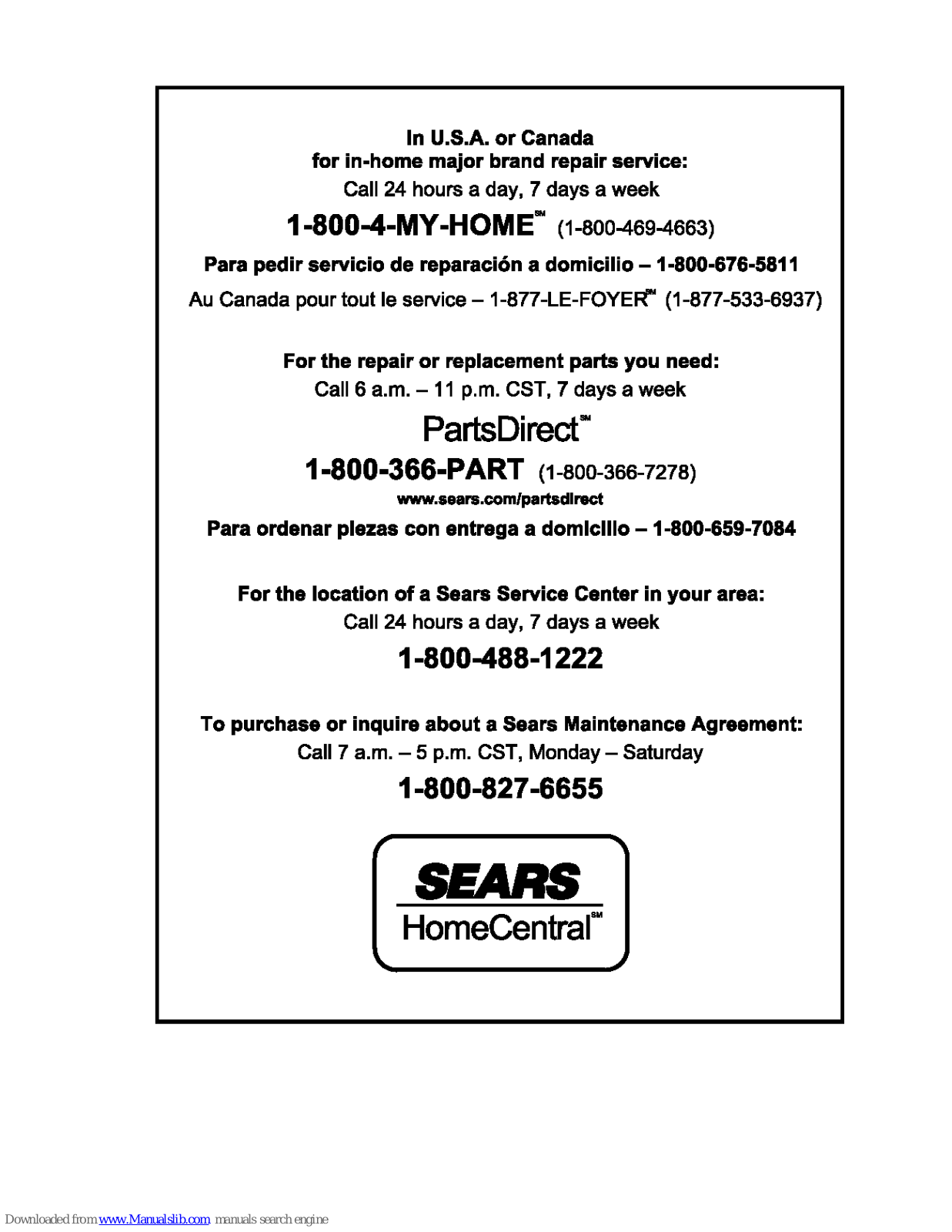

In the U.S. or Canada, for Sears warranty

information or to contact a Sears Service
Center in the U.S., call 1-890-4-MY-HOME ''

(1-800-469-4663) or in Canada, calI
1-877-533-6937,

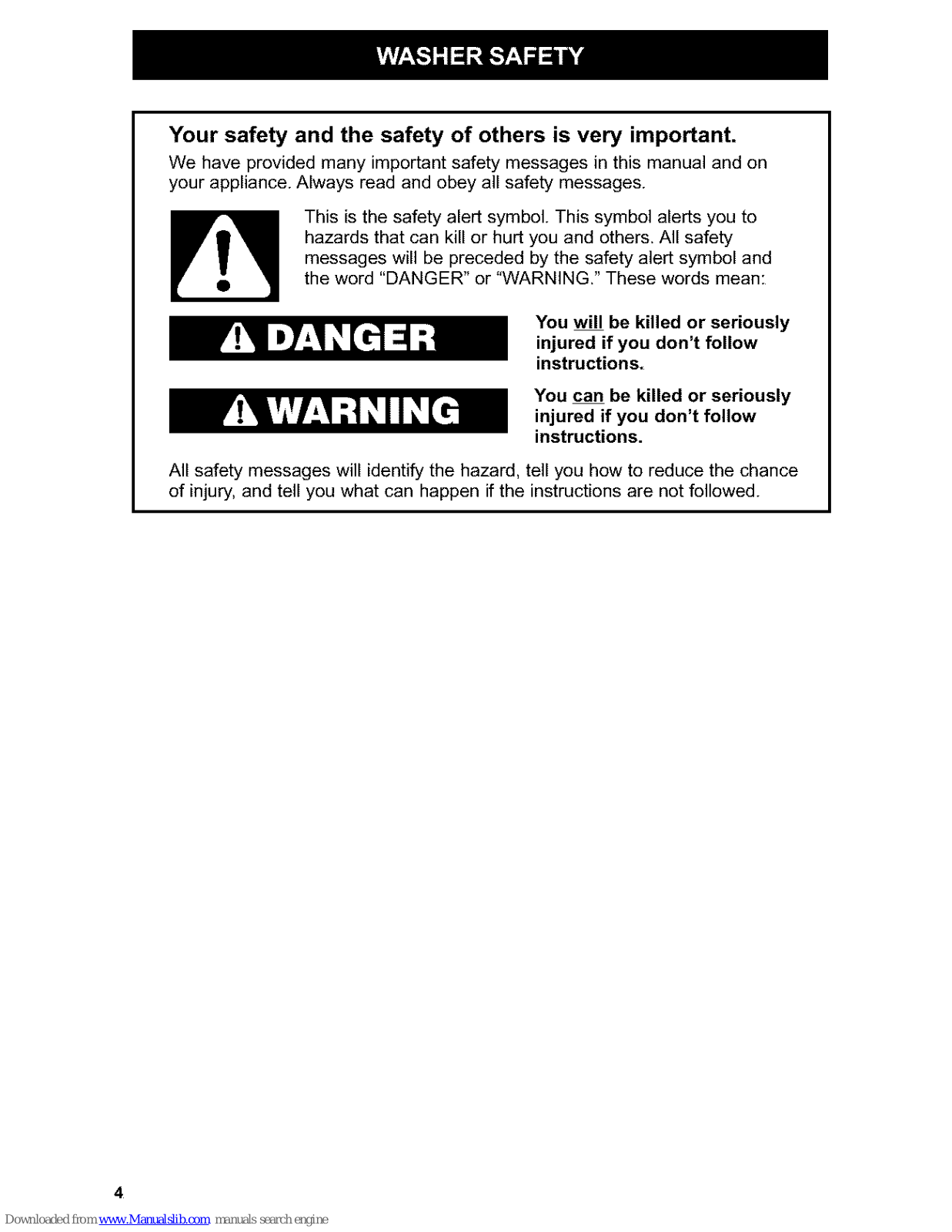

Your safety and the safety of others is very important.

We have provided many importantsafety messages inthis manual and on
your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to
hazards that can kill or hurt you and others. All safety
messages will be preceded by the safety alert symbol and

the word "DANGER" or "WARNING." These words mean:

You will be killed or seriously

injured if you don't follow
instructions.

You can be killed or seriously

injured if you don't follow
instructions.

All safety messages will identify the hazard, tell you how to reduce the chance
of injury, and tell you what can happen if the instructions are not followed.

4

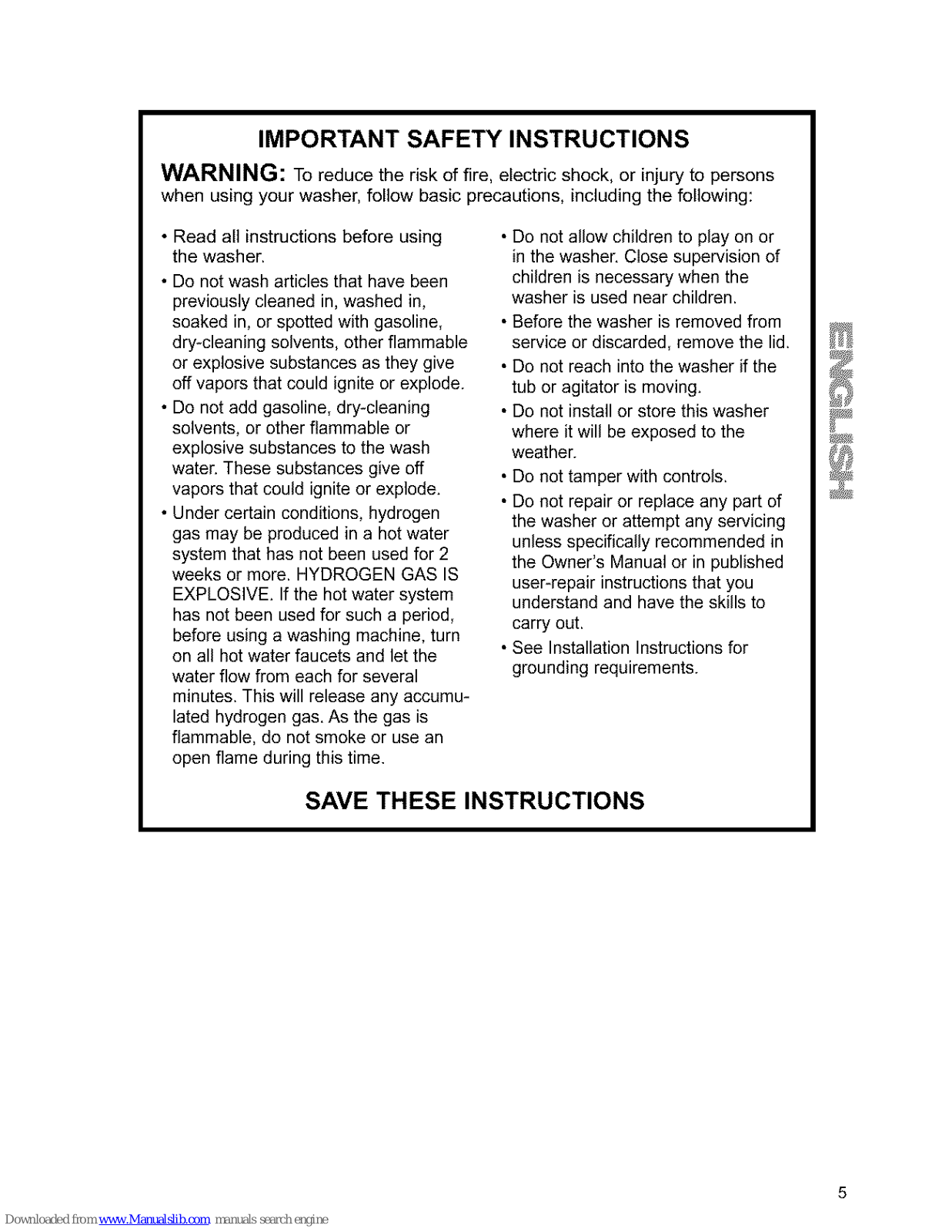

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons

when using your washer, follow basic precautions, including the following:

• Read all instructions before using
the washer.

• Do not wash articles that have been
previously cleaned in, washed in,

soaked in, or spotted with gasoline,
dry-cleaning solvents, other flammable
or explosive substances as they give
off vapors that could ignite or explode.

• Do not add gasoline, dry-cleaning
solvents, or other flammable or
explosive substances to the wash
water. These substances give off
vapors that could ignite or explode.

• Under certain conditions, hydrogen
gas may be produced in a hot water
system that has nat been used for 2

weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system

has not been used for such a period,
before using a washing machine, turn

on all hat water faucets and let the
water flow from each far several

minutes. This will release any accumu-
lated hydrogen gas. As the gas is
flammable, do not smoke or use an
open flame during this time.

• Do not allow children to play on or
in the washer. Close supervision of
children is necessary when the

washer is used near children.

• Before the washer is removed from
service or discarded, remove the lid,

• Do nat reach into the washer if the
tub or agitator is moving.

• Do nat install or store this washer
where it will be exposed to the

weather.

• Do nat tamper with controls,

• Do nat repair or replace any part of
the washer or attempt any servicing
unless specifically recommended in
the Owner's Manual or in published
user-repair instructions that you

understand and have the skills to
carry out,

• See Installation Instructions for
grounding requirements.

SAVE THESE INSTRUCTIONS

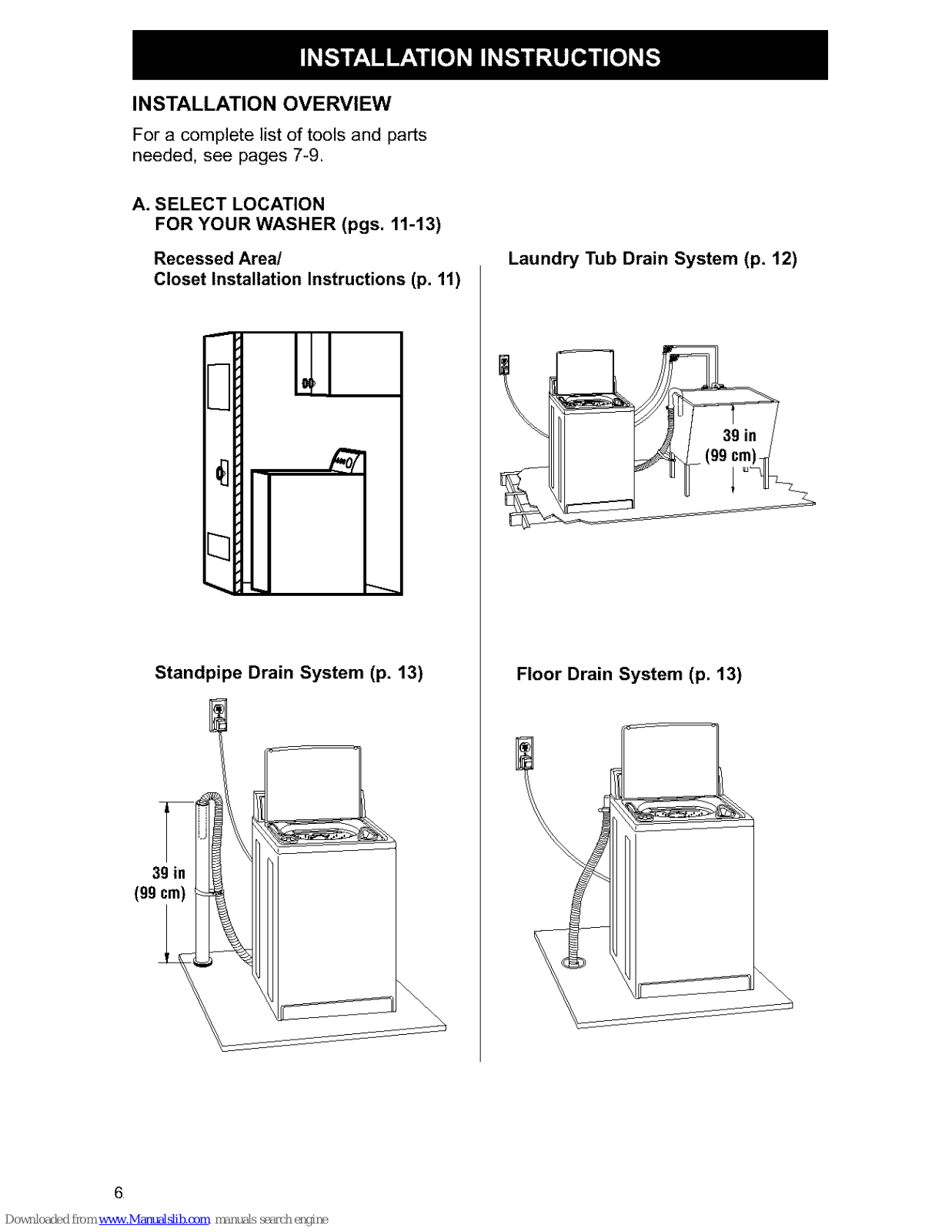

INSTALLATION OVERVIEW

For a complete list of tools and parts
needed, see pages 7-9.

A. SELECT LOCATION

FOR YOUR WASHER (pgs. 11-13)

Recessed Area/
Closet Installation Instructions (p. 11)

Standpipe Drain System (p, 13)

3gin

(ggcm)

Laundry Tub Drain System (p, 12)

Floor Drain System (p. 13)

6

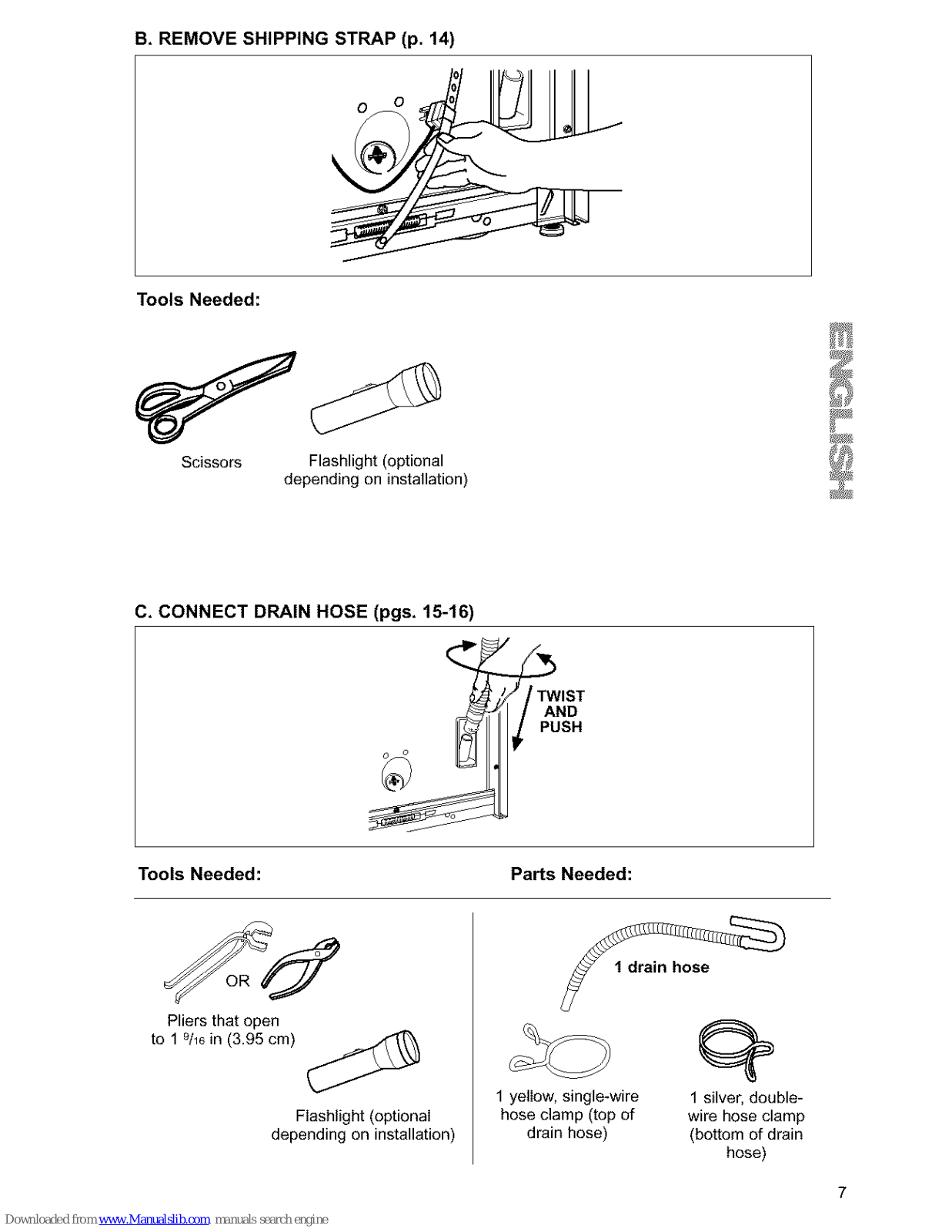

B, REMOVE SHIPPING STRAP (p. 14)

\

Tools Needed:

Scissors Flashlight (optional

depending on installation)

C, CONNECT DRAIN HOSE (pgs, 15-16)

_WIST

o _ _

Tools Needed: PaNs Needed:

Pliers that open

to 1 9/IGin (3.95 cm)

Flashlight (optional

depending on installation)

1 yellow, single-wire

hose clamp (top of

drain hose)

1 silver, double-

wire hose clamp

(bottom of drain

hose)

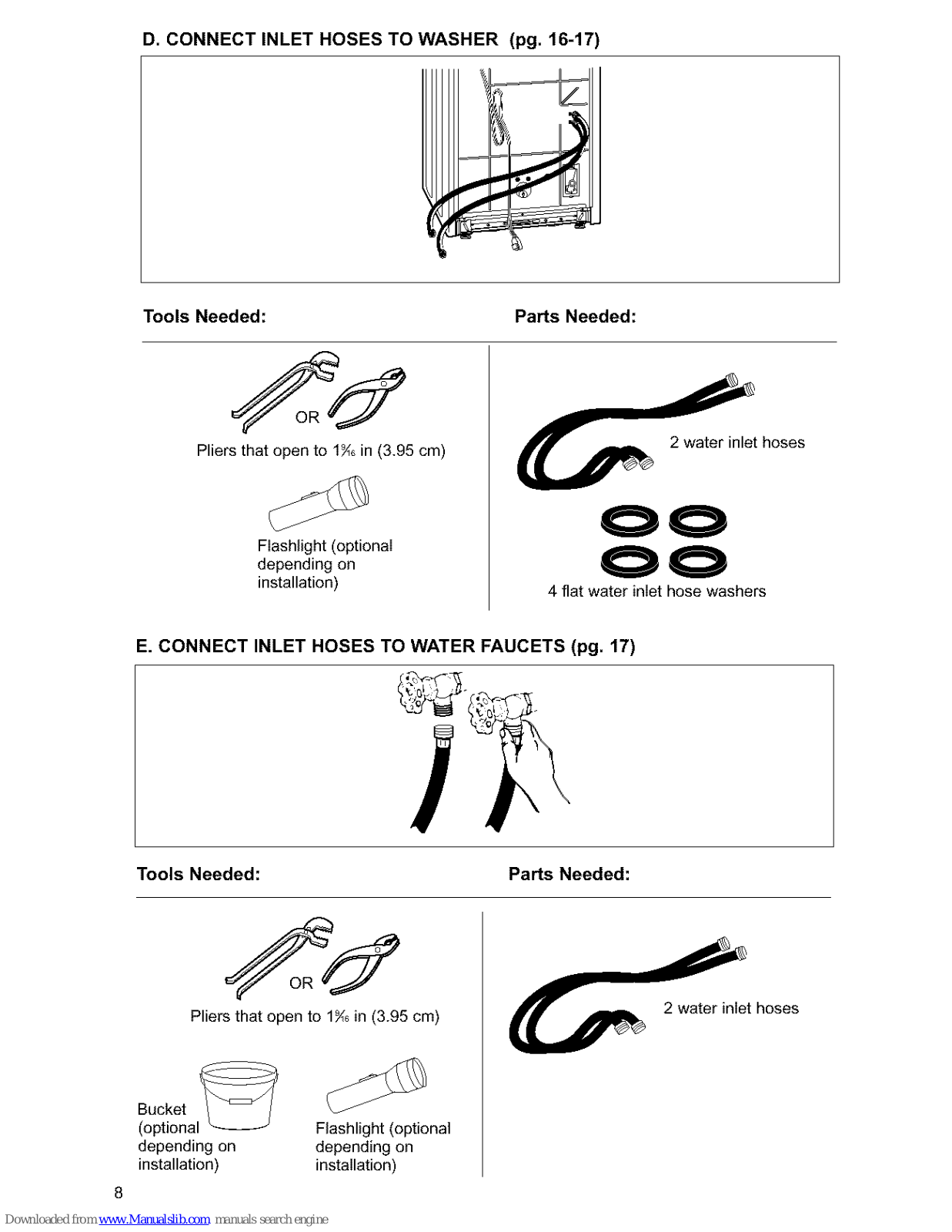

D. CONNECT INLET HOSES TO WASHER (pg. 16-17)

Tools Needed: Parts Needed:

Pliers that open to 1_, in (3.95 cm)

Flashlight (optionai
depending on
installation)

2 water inlet hoses

4 fiat water inlet hose washers

E. CONNECT INLET HOSES TO WATER FAUCETS (pg. 17)

Tools Needed: Parts Needed:

8

Pliers that open to 1_'0in (3.95 cm)

Bucket
(optional

depending on
installation)

Flashlight (optional
depending on
installation)

2 water inlet hoses

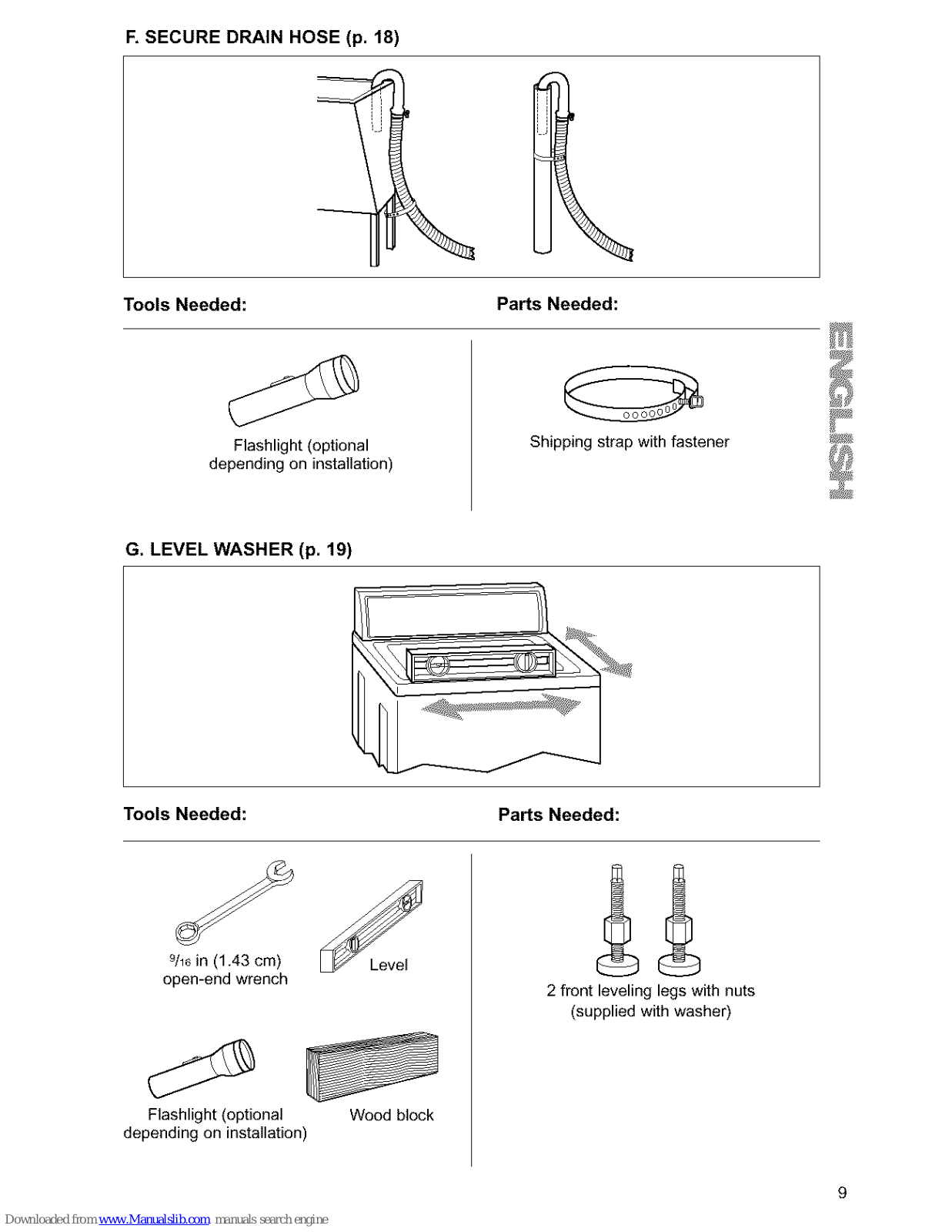

F, SECURE DRAIN HOSE (p. 18)

Tools Needed: Parts Needed:

Flashlight (optional

depending on installation)

Shipping strap with fastener

G. LEVEL WASHER(p. 19)

Tools Needed: Parts Needed:

9/16in (1.43 cm)

open-end wrench

Flashlight (optional

depending on installation)

Wood block

2 front leveling legs with nuts

(supplied with washer)

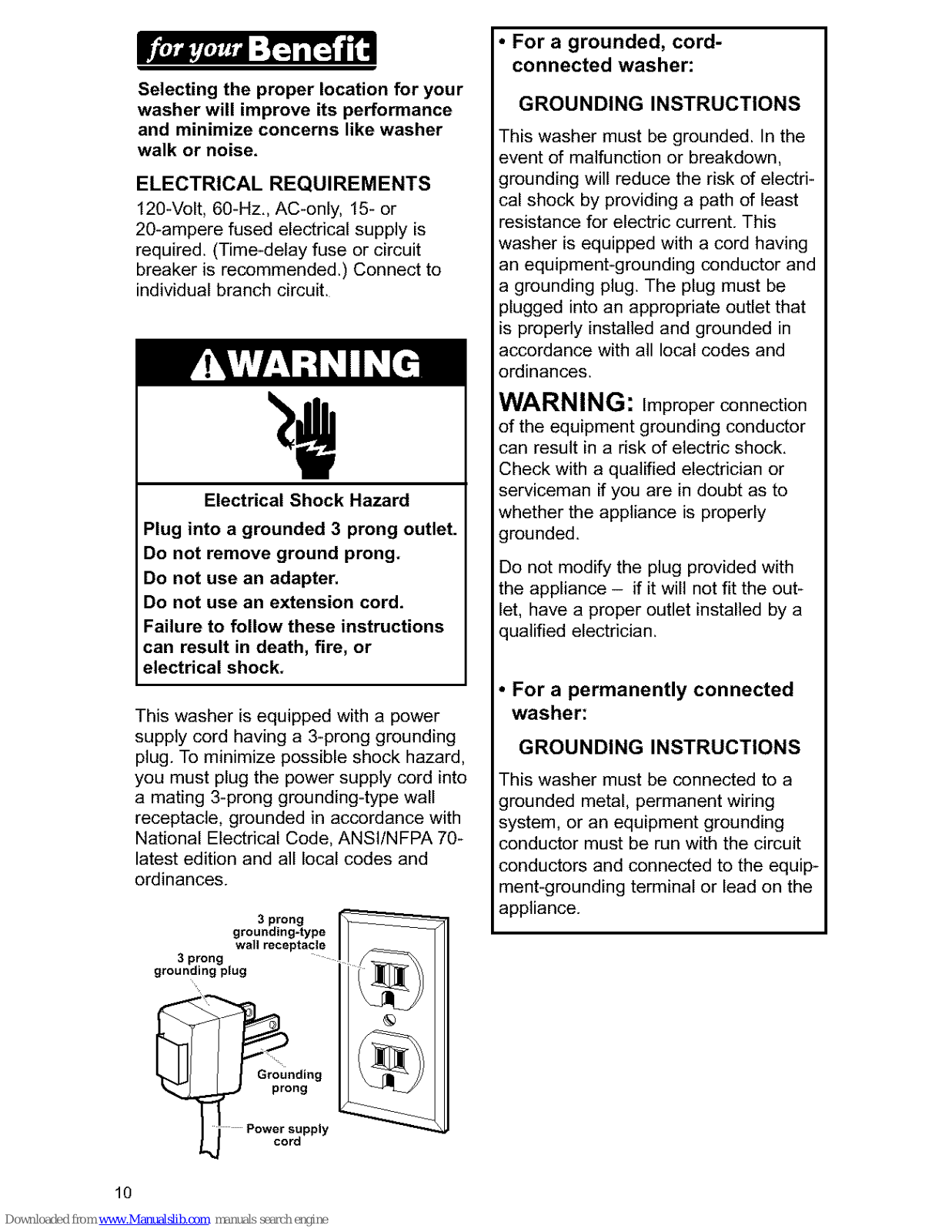

Selecting the proper location for your
washer will improve its performance

and minimize concerns like washer
walk or noise.

ELECTRICAL REQUIREMENTS

120-Volt, 60-Hz., AC-only, 15- or
20-ampere fused electrical supply is
required. (Time-delay fuse or circuit

breaker is recommended.) Connect to
individual branch circuit.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.
Failure to follow these instructions

can result in death, fire, or
electrical shock.

This washer is equipped with a power
supply cord having a 3-prong grounding
plug. To minimize possible shock hazard,

you must plug the power supply cord into

a mating 3-prong grounding4ype wall
receptacle, grounded in accordance with

National Electrical Code, ANSI/NFPA 70-
latest edition and all local codes and
ordinances.

3 prong

grounding*type

wall receptacle

3 prong

grounding plug

Grounding \ III //

ng

Power supply

cord

• For a grounded, cord-

connected washer:

GROUNDING INSTRUCTIONS

This washer must be grounded. In the
event of malfunction or breakdown,

grounding will reduce the risk of electri-
cal shock by providing a path of least
resistance for electric current. This

washer is equipped with a cord having

an equipment-grounding conductor and
a grounding plug. The plug must be

plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.

WARNING: Improper connection

of the equipment grounding conductor
can result in a risk of electric shock.

Check with a qualified electrician or
serviceman if you are in doubt as to

whether the appliance is properly
grounded.

Do net modify the plug provided with
the appliance - if it will not fit the out-

let, have a proper outlet installed by a
qualified electrician.

• For a permanently connected

washer:

GROUNDING INSTRUCTIONS

This washer must be connected to a
grounded metal, permanent wiring

system, or an equipment grounding
conductor must be run with the circuit

conductors and connected to the equip-
ment-grounding terminal or lead on the

appliance.

10

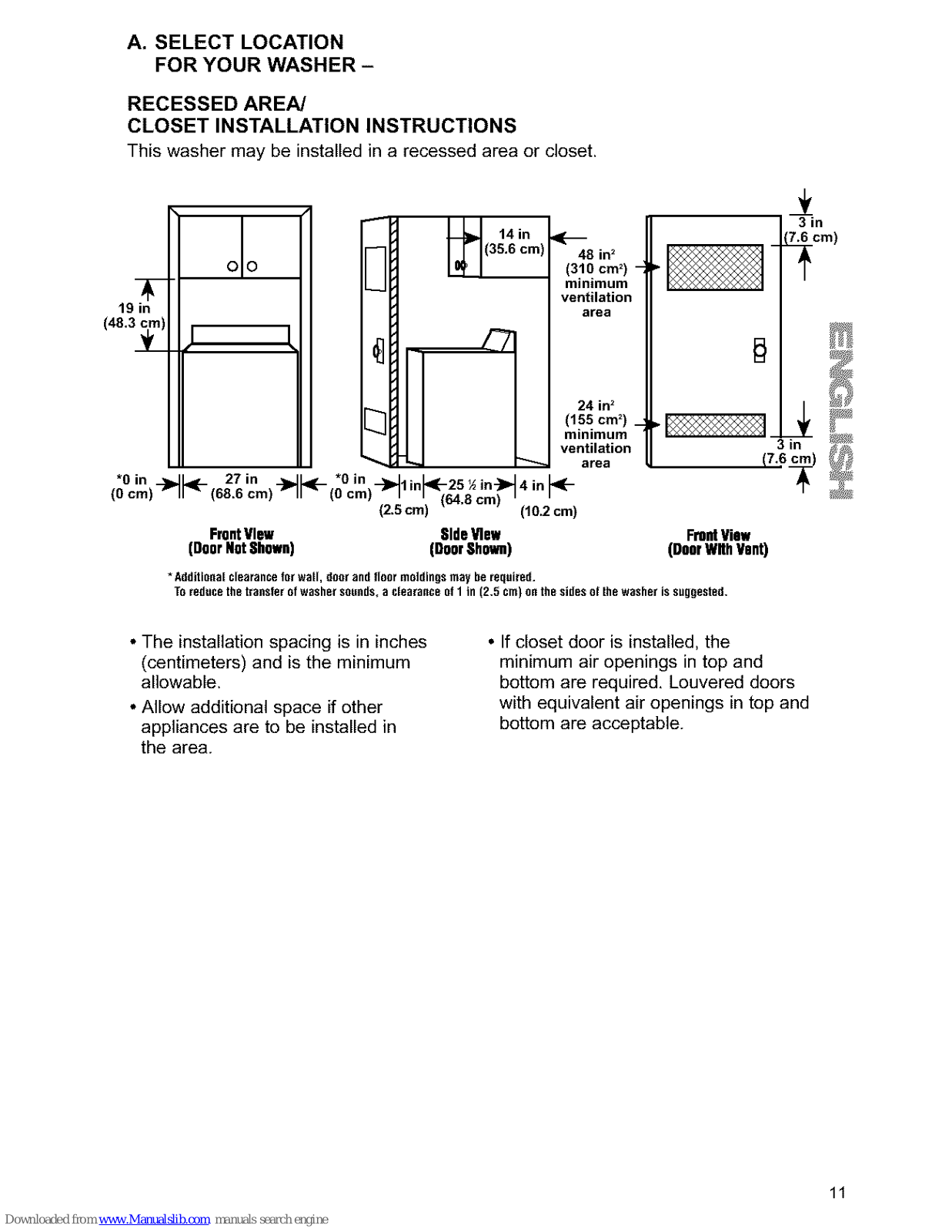

A. SELECT LOCATION

FOR YOUR WASHER -

RECESSED AREA]
CLOSET INSTALLATION INSTRUCTIONS

This washer may be installed in a recessed area or closet.

oo -

%-

19 in

*0in ___ 27in __ *0in __ . ___,:_,_l,n 251_m 4in" _--

(0 cm) (68.6 cm) (0 cm) 8 c

(2.5cm) " " (102cm)

FrontView SideView

(DoorNotShown) (DoorShown)

48 in _

(310 cm _) -

minimum

ventilation

area

24 in2

(155 cm _) _

minimum

ventilation

area

3in

cm)

in

FrontView

(DoorWHhVent)

* Additional clearance for wall, door and lloor moldings may be required.

Toreduce the tr_nsler of washer sounds, a clearance ol I tn (2.5 cm} on the sides ol lhe w_sher is suggested.

• The installation spacing is in inches
(centimeters) and is the minimum

allowable.

• Allow additional space if other

appliances are to be installed in
the area.

• Ifcloset door is installed, the
minimum air openings in top and
bottom are required, Louvered doors

with equivalent air openings in top and

bottom are acceptable.

11

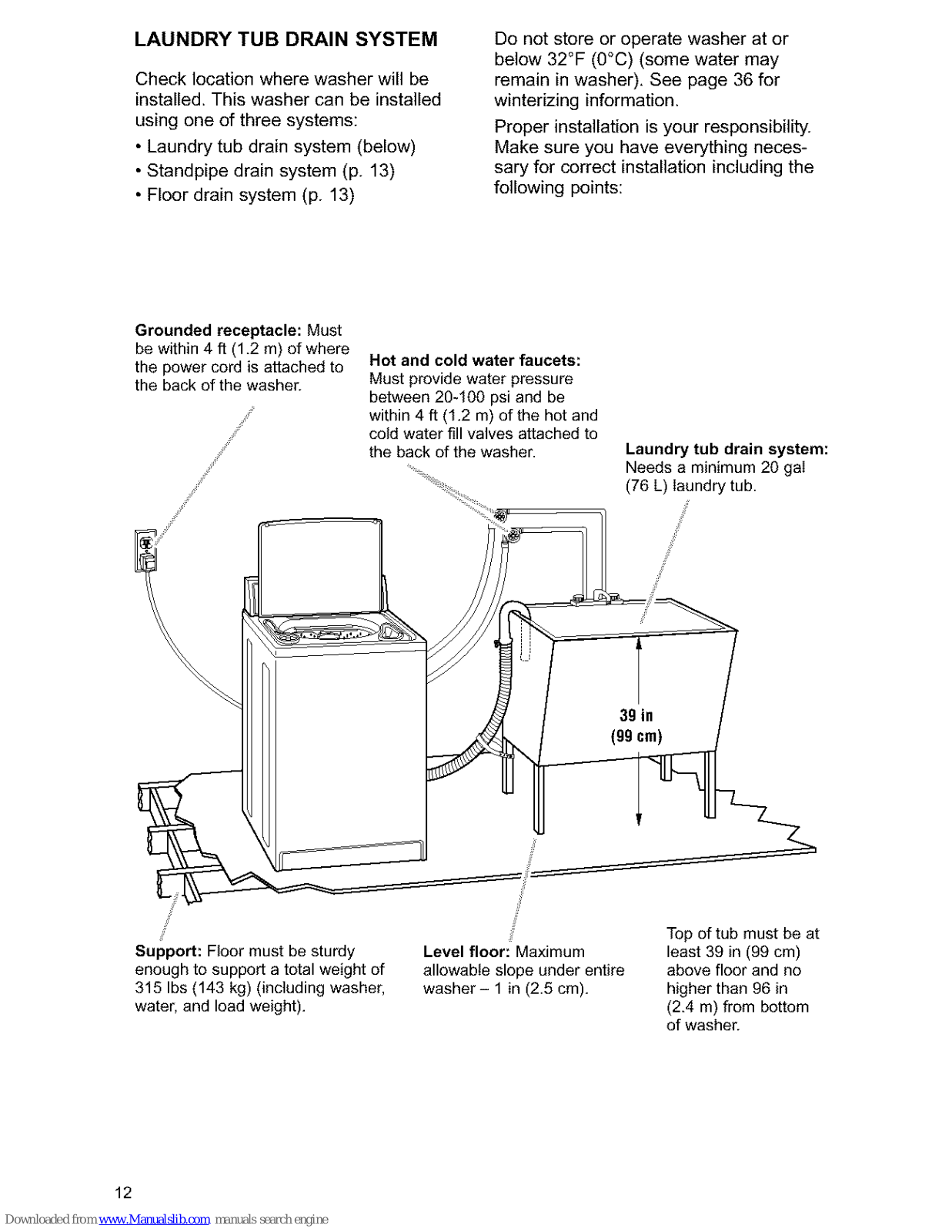

LAUNDRY TUB DRAIN SYSTEM

Check location where washer will be
installed. This washer can be installed

using one of three systems:

• Laundry tub drain system (below)

• Standpipe drain system (p. 13)

• Floor drain system (p. 13)

Do not store or operate washer at or
below 32°F (0°C) (some water may
remain in washer), See page 36 for

winterizing information.
Proper installation is your responsibility.

Make sure you have everything neces-
sary for correct installation including the

following points:

Grounded receptacle: Must
be within 4 ft (1.2 m) of where
the power cord is attached to

the back of the washer.

/

f

Hot and cold water faucets:

Must provide water pressure
between 20-100 psi and be

within 4 ft (1.2 m) of the hot and
cold water fill valves attached to

the back of the washer. Laundry tub drain system:

Needs a minimum 20 gaI

.... (76 L) laundry tub.

Support: Floor must be sturdy
enough to support a total weight of
315 Ibs (143 kg) (including washer,
water, and load weight).

Level floor: Maximum
allowable slope under entire

washer- 1 in (2.5 cm).

Top of tub must be at
least 39 in (99 cm)

above floor and no
higher than 96 in

(2.4 m) from bottom
of washer.

12

ALTERNATE LOCATIONS -

STANDPIPE AND FLOOR DRAIN SYSTEMS

Siphon break: Must be purchased

separately. See chart below.

39 in

(99 cm)

Standpipe drain system: Needs a 2 in (5 cm)

minimum diameter standpipe with minimum

carry-away capacity of 17 gal (64 L) per

minute. Top of standpipe must be at least
39 in (99 cm) above floor and no higher than
96 in (2.4 m) from bottom of washer.

s

Floor drain system: Requires a siphon
break, see chart below. A minimum carry-away
capacity of 17 gal (64 L) per minute is
required.

If you have: You will need to buy:
Laundry tub or standpipe Sump pump system

taller than 96 in (2.4 m) (if not already available)

1 in (2.5 m) diameter standpipe 2 in (5 cm) diameter to 1 in (2.5 cm)

diameter standpipe adapter, Part No.
3363920

Overhead sewer Standard 20 gal (76 L) 39 in (99 cm) tall

drain tub or utility sink and sump pump
(available from local plumbing suppliers)

Floor drain Siphon break, Part No. 285320;

additional drain hose, Part No. 3357090;
and Connector Kit, Part No. 285442

Parts listed are available from your local Sears store or Sears Service Center. In the United
States, call 1-800-366-PART (1-800-366-7278). in Canada, call 1-877-533-6937.

13

B. REMOVE SHIPPING STRAP

.irloiiu0J_,_,, :I_ 1[_ _I-,

Removing the shipping strap is
necessary for smooth operation.
If the shipping strap is not removed,

the washer will make excessive noise.

STEP 2. Pull firmly to remove the end
of the shipping strap that remains
pinned to the back of the washer, This

will release the rear self-leveling legs.

Pin

To prevent floor damage, set washer
onto cardboard before moving across

floor. Move washer close to its final

location.
STEP 1. Do not cut yellow strap. Pull

yellow strap firmly, until completely

removed from washer. Depending on

your model, there should be either two

or three cotter pins on the end of the
shipping strap when it is pulled out of

the washer. The electrical plug is

attached to this shipping strap,

Electricalplug

Shippingstrap

STEP 3. Cut the shipping strap about

16 in (40 cm) from plug end. Look for

the words "CUT HERE." Discard end
with the cotter pins, Slide remainder

of shipping strap from the electrical
plug, You will use this to secure the

drain hose.

PULL

Pin

14

C. CONNECT DRAIN HOSE

Proper connection of the drain hose
will protect your floors from damage

due to water leakage.

STEP 1. To prevent the drain hose from
coming off or leaking, it must be installed
per the following instructions:

IMPORTANT: To ensure proper installa-
tion, this procedure must be followed
exactly.

a. Wet the inside of the straight end of the

drain hose with tap water, DO NOT
USE ANY OTHER LUBRICANT.

b. Squeeze ears of silver, double-wire

clamp with pliers to open. Place clamp
over the straight end of the drain hose
V4in (6 mm) from the end.

y

d, Place clamp over area marked

"CLAME" Release clamp.

1T'_WlST

AND

PUSH

in

16turn)

c. Open clamp. Twist hose back and forth

while pushing down onto drain
connector at the bottom of the washer,

Continue until hose contacts the ribbed
stop on the cabinet.

{6F_n)_ Drain H°se _ _

_Clamp_

¼ in

(6 ram)

If you have: You will need to buy:
Drain hose that is too short Drain hose, Part No. 388423 and

hose kit, Part No. 285442

Drain hose that is too long Hose kit, Part No, 285442

A problem with lint clogging your drain Drain protector, Part No. 367031

Parts listed are available from your local Sears store or Sears Service Center. In the United

States, call 1-800-366-PART (1-800-366-7278). In Canada, call 1-877-533-6937.

15

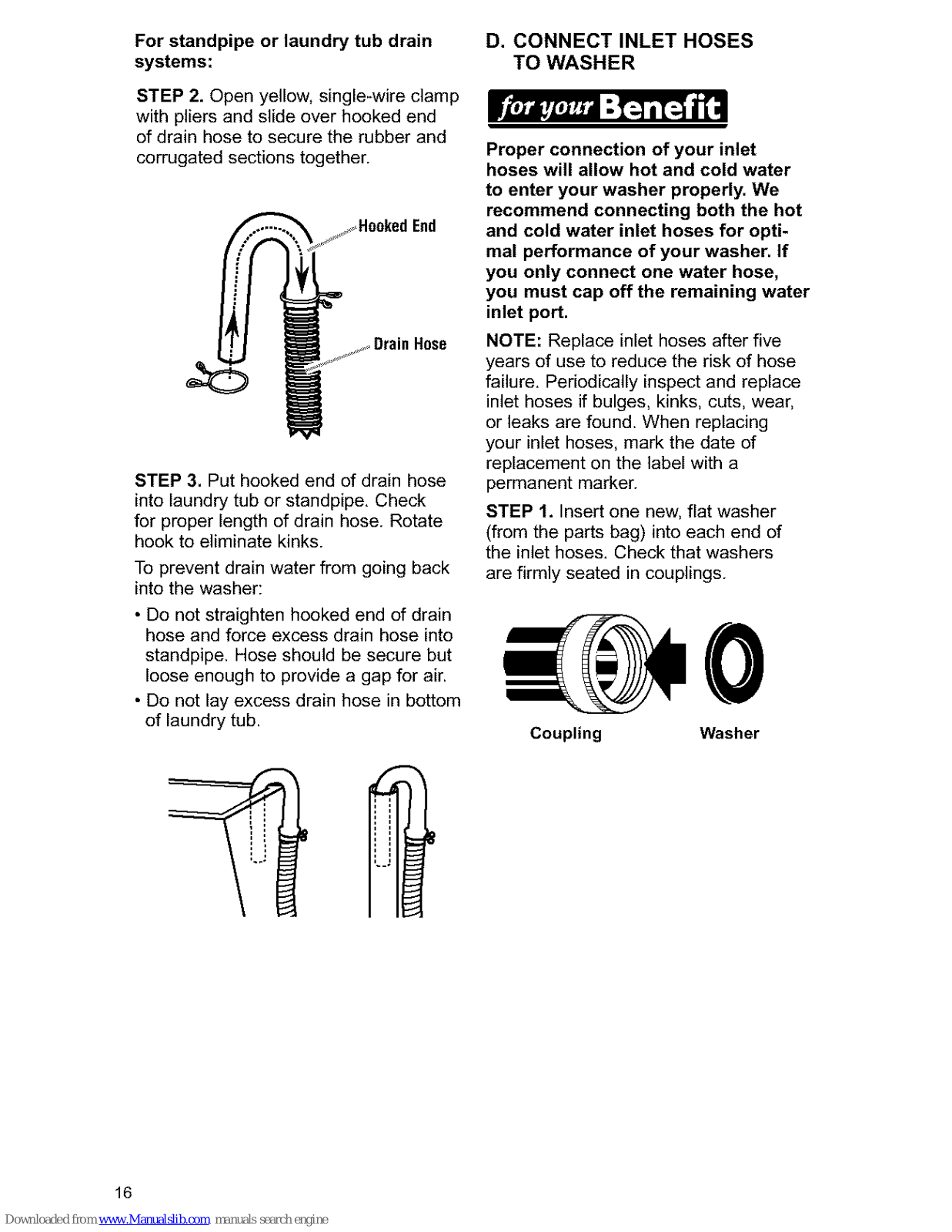

For standpipe or laundry tub drain

systems:

STEP 2. Open yellow, single-wire clamp
with pliers and slide over hooked end

of drain hose to secure the rubber and
corrugated sections together.

STEP 3. Put hooked end of drain hose
into laundry tub or standpipe, Check

for proper length of drain hose. Rotate

hook to eliminate kinks.

To prevent drain water from going back

into the washer:

• Do not straighten hooked end of drain
hose and force excess drain hose into

standpipe. Hose should be secure but
loose enough to provide a gap for air.

• Do not lay excess drain hose in bottom
of laundry tub.

D. CONNECTINLETHOSES

TO WASHER

Proper connection of your inlet
hoses will allow hot and cold water

to enter your washer properly. We
recommend connecting both the hot

and cold water inlet hoses for opti-
mal performance of your washer. If
you only connect one water hose,

you must cap off the remaining water
inlet port.

NOTE: Replace inlet hoses after five

years of use to reduce the risk of hose
failure, Periodically inspect and replace

inlet hoses if bulges, kinks, cuts, wear,
or leaks are found. When replacing

your inlet hoses, mark the date of
replacement on the label with a

permanent marker.
STEP 1. Insert one new, flat washer

(from the parts bag) into each end of
the inlet hoses, Check that washers

are firmly seated in couplings.

0

Coupling Washer

16

STEP 2. Attach the hose with the red
coupling to the hot water (bottom) inlet
valve. Attaching the red coupling first

makes it easier to tighten connection with

pliers. Screw on coupling by hand, Make
an additional two4hirds turn with pliers to
tighten coupling. DO NOT OVER-
TIGHTEN; this could damage the valves.

Cold Water
Inlet Valve

Water
Inlet

Valve

STEP 3. Attach the hose with the blue

coupling to the cold water (top) inlet

valve, Screw on coupling by hand, Make

an additional two-thirds turn with pliers to
tighten coupling. DO NOT OVER-

TIGHTEN; this could damage valves.

E. CONNECT INLET HOSES

TO WATER FAUCETS

STEP 1, Make sure washer basket is
empty. Run water through both faucets

into a bucket or laundry tub to get rid of
particles in the water lines that might

clog hoses, Determine which faucet is
hot and which is cold. Mark the hot

water faucet.

STEP 2. Attach the hose with the red
coupling to the hot water faucet, Screw

on coupling by hand. Make an additional
two-thirds turn with pliers to tighten
coupling, DO NOT OVERTIGHTEN;
this could damage the coupling,

STEP 3. Attach the hose with the blue
coupling to the cold water faucet.

Screw on coupling by hand. Make an
additional two-thirds turn with pliers to
tighten coupling. DO NOT OVER-
TIGHTEN; this could damage the
coupling.

STEP 4. Turn on water faucets and
check for leaks. A small amount of water

may enter the washer. You will drain this
later.

If you have: You will need to buy:

Water faucets beyond the 2 longer water fill hoses:

reach of water fill hoses 6 ft (1,8 m), Part No. 76314

10 ft (3.0 m), Part No. 350008

Parts listed are available from your local Sears store or Sears Service Center. In the United

States, call 1-800-366-PART (1-800-366-7278). In Canada, call 1-877-533-6937.

17

F. SECURE DRAIN HOSE

Securing the drain hose properly will

protect your floors from damage due

to water leakage,

STEP 1. Move washer to its final
location.

If the water faucets and drain standpipe

are recessed, put hooked end of drain

hose in standpipe. Tightly wrap the
shipping strap around the drain hose
and water inlet hoses (not the handles
or stems), Push fastener into the

nearest hole in the shipping strap.

I i

STEP 2. Locate the remaining piece
of shipping strap (not the end with the
cotter pins) from STEP 3 of "REMOVE
SHIPPING STRAR" Use it to wrap the
drain hose together with the laundry tub
or standpipe, Push fastener into the
nearest hole in the shipping strap.

Fastener

18

G. LEVEL WASHER

Leveling your washer properly pre-
vents excessive noise and vibration.

To install front legs:
STEP 1. Prop front of washer up about

4 in (10.2 cm), Use a wood block or
another object that will support the
weight of the washer. If washer was
placed against a wall, move the washer
out slightly before tipping it up.

STEP 2. With one of the legs in hand,
screw lock nut onto leg 3/8in (9,5 mm)
from top of leg base. This is the
recommended initial setting.

_8 in

(9.5 ram)

STEP 3. Screw leg into washer base by

hand until nut reaches washer base.
Repeat for other leg,

STEP 5. Move washer to its final

location.
STEP 6. Tilt washer forward until rear

of washer is at least 3 in (7.6 cm) off
floor. You may hear the self-adjusting
rear legs click into place. Lower washer

to floor. Check levelness of the washer

by placing a level on top of the washer,
first side-to_side; then front4o-back.

STEP 7. If washer is not level, prop
up the front of the washer and adjust
the legs up or down as necessary,

Lower washer and reset self-adjusting
rear legs (as in Step 6), Repeat Step 7
until the washer is level.

STEP 8. When washer is in its final

location and level, use a 9/_6in
(1.43 mm) open-end wrench to turn

nuts on front legs tightly against washer
cabinet. If nuts are not tight against
washer cabinet, the washer may vibrate.

STEP 4, Tilt washer backward until
front of washer is off the wood block.

Remove wood block. Gently lower
washer to floor.

19

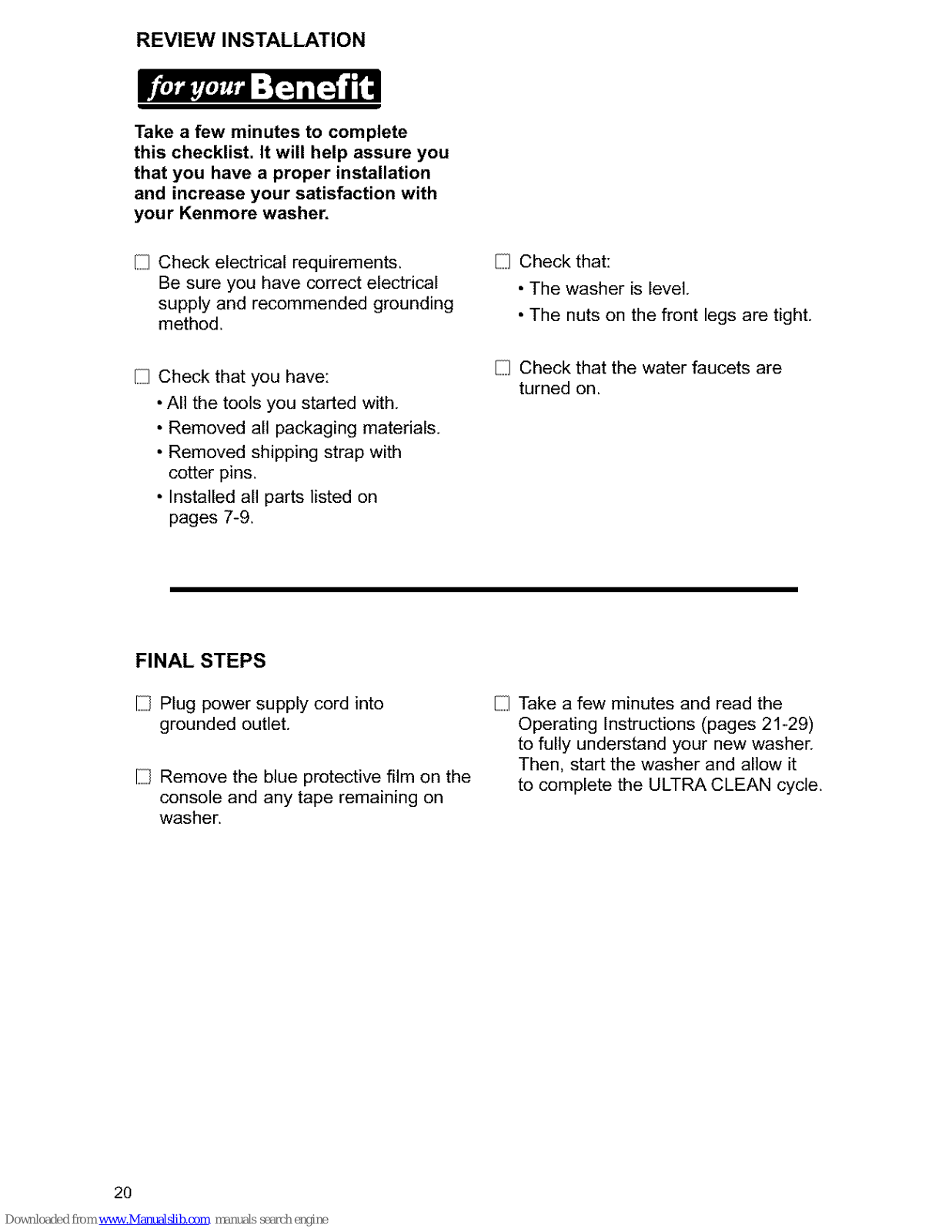

REVIEW INSTALLATION

Take a few minutes to complete
this checklist. It will help assure you
that you have a proper installation
and increase your satisfaction with
your Kenmore washer,

[ Check electrical requirements.

Be sure you have correct electrical
supply and recommended grounding

method.

[ Check that you have:

• All the tools you started with.

• Removed all packaging materials.

• Removed shipping strap with
cotter pins.

• Installed all parts listed on
pages 7-9.

[ Check that:

• The washer is level.

• The nuts on the front legs are tight.

[ Check that the water faucets are

turned on.

FINAL STEPS

I Plug power supply cord into

grounded outlet.

f Remove the blue protective film on the

console and any tape remaining on

washer.

[ Take a few minutes and read the

Operating instructions (pages 21-29)

to fully understand your new washen

Then, start the washer and allow it

to complete the ULTRA CLEAN cycle.

2O

_[seJa_IeJ_a ;I:_ n[_ _d

To get the maximum cleaning and

fabric care from your washer, please

read and follow these instructions,

LID INSTRUCTIONS

These instructions are found under the
lid of your washer.

Fire Hazard

Never place items in the washer
that are dampened with gasoline

or other flammable fluids.
No washer can completely

remove oil.
Do not dry anything that has

ever had any type of oil on it
(including cooking oils).

Doing so can result in death,
explosion, or fire.

NOTE: The drawings in this section

show the basic features of all models
covered by this manual. Refer to the

supplied "Feature Sheet" for your
washer's particular features.

POWDER or LIQUID
DETERGENT

Dissolves powder or liquid detergents
before applying to load. When desired
add powder or liquid color safe bleach

to this dispenser.

BLEACHLIQUIDCHLORINE

Dilutes liquid chlorine bleach and adds
it to the wash at the right time to prevent
bleach spotting. DO NOT ADD POWDER

OR LIQUID COLOR SAFE BLEACH TO
THIS DISPENSER.

FABRIC SOFTENER _ (_

Dilutes fabric softener and adds
it to the rinse at the correct time

to prevent softener staining.

continued on next page

21

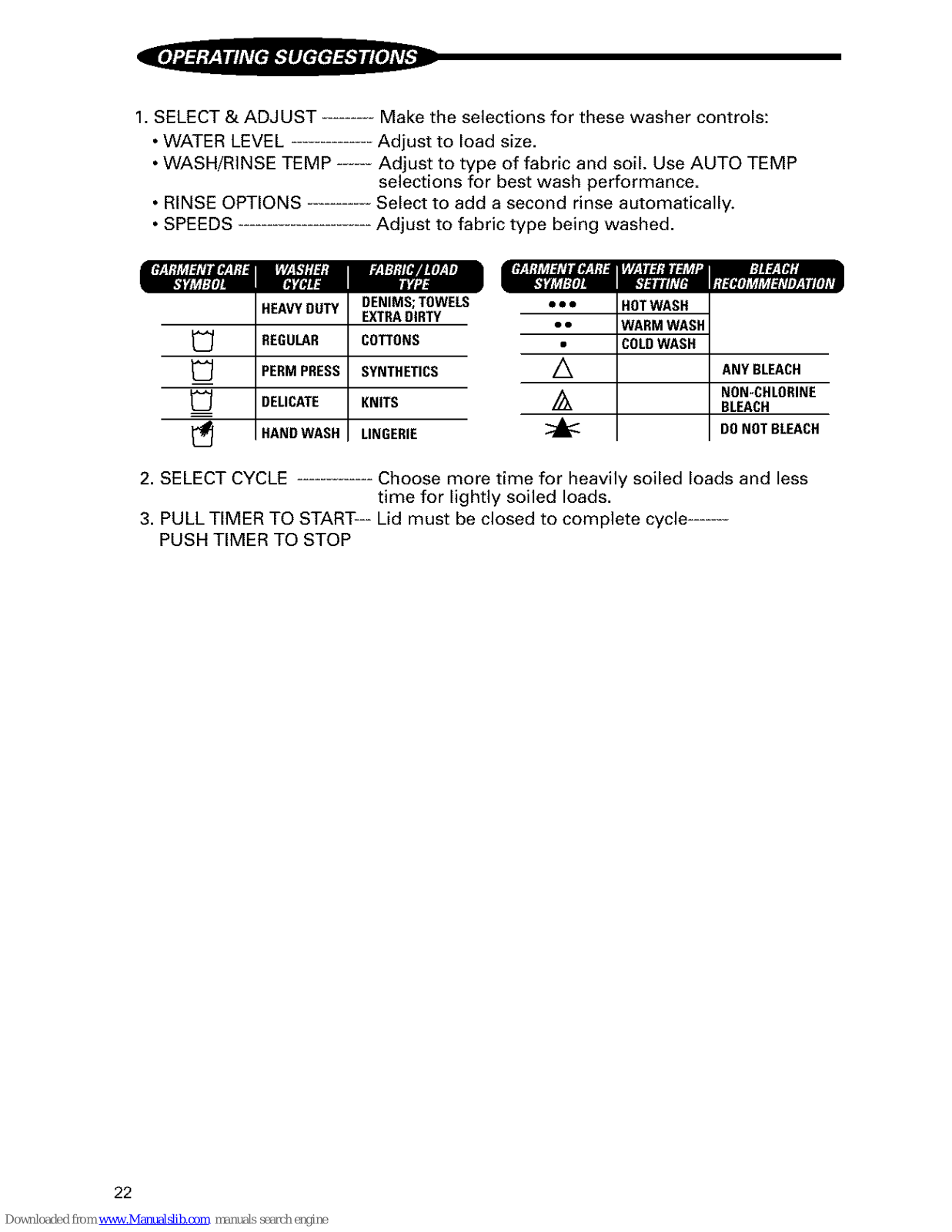

1. SELECT & ADJUST ......... Make the selections for these washer controls:

• WATER LEVEL Adjust to load size.

• WASH/RINSE TEMP ...... Adjust to type of fabric and soil Use AUTO TEMP

selections for best wash performance.

• RINSE OPTIONS ........... Select to add a second rinse automatically.

• SPEEDS Adjust to fabric type being washed.

r_f;7_r_la';tE_f;T_ i_l,__'lll."i_i iY_,f,7;T/_llrlT_,fl]l

U

HEAVYBUTY

REGULAR

PERM PRESS

DELICATE

HAND WASH

DENIMS; TOWELS • • •
EXTRABIRTY

COTTONS
SYNTHETICS
KNITS

LINGERIE

HOTWASH

ee WARM WASH

COLDWASH

,_ ANY BLEACH

,_ NON-CHLORINE

BLEACH

DO NOT BLEACH

2. SELECT CYCLE Choose more time for heavily soiled loads and less
time for lightly soiled loads.

3. PULL TIMER TO START--- Lid must be closed to complete cycle .......

PUSH TIMER TO STOP

22

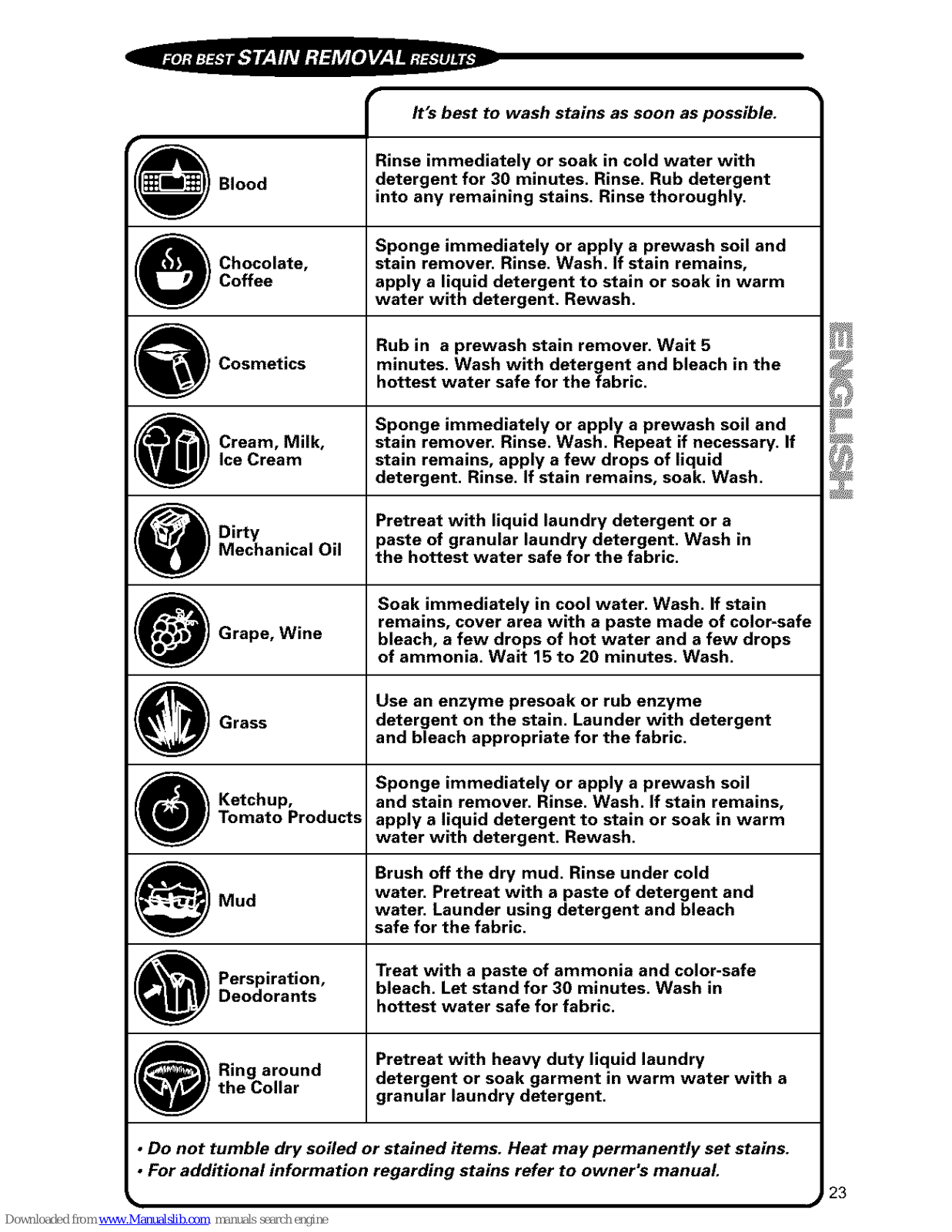

It's best to wash stains as soon as possible.

Rinse immediately or soak in cold water with

Blood detergent for 30 minutes. Rinse. Rub detergent

into any remaining stains. Rinse thoroughly.

_t, _ Chocolate, Sponge immediately or apply a prewash soll and

stain remover. Rinse. Wash. If stain remains,

_,_ Coffee apply a liquid detergent to stain or soak in warm

water with detergent. Rewash.

_ Rub in a prewash stain remover. Wait 5

Cosmetics minutes. Wash with detergent and bleach in the

hottest water safe for the fabric.

Sponge immediately or apply a prewash soil and

Cream, Milk, stain remover. Rinse. Wash. Repeat if necessary. If
Ice Cream stain remains, apply a few drops of liquid

detergent. Rinse. If stain remains, soak. Wash.

_ _ Dirty Pretreat with liquid laundry detergent or aW Mechanical Oil paste of granular laundry detergent. Wash inthe hottest water safe for the fabric.

_ _ Soak immediately in cool water. Wash. If stain

remains, cover area with a paste made of color=safe

Grape, Wine bleach, a few drops of hot water and a few drops

of ammonia. Wait 15 to 20 minutes. Wash.

_ Use an enzyme presoak or rub enzyme

Grass detergent on the stain. Launder with detergent

and bleach appropriate for the fabric.

_ _ _ Spongelmmedlatelyorapplyaprewashsoil

Ketchup, and stain remover. Rinse. Wash. If stain remains,

Tomato Products apply a liquid detergent to stain or soak in warm

water with detergent. Rewash.

Brush off the dry mud. Rinse under cold

Mud water. Pretreat with a paste of detergent and

water. Launder using detergent and bleach
safe for the fabric.

_ Perspiration, Treat with a paste of ammonia and color-safe

Deodorants bleach. Let stand for 30 minutes. Wash in

hottest water safe for fabric.

_Ring Pretreat with heavy duty liquid laundry

around

detergent or soak garment in warm water with a

_the Collar granular laundry detergent.

• Do not tumble dry soiled or stained items. Heat may permanently set stains.

• For additional information regarding stains refer to owner's manual.

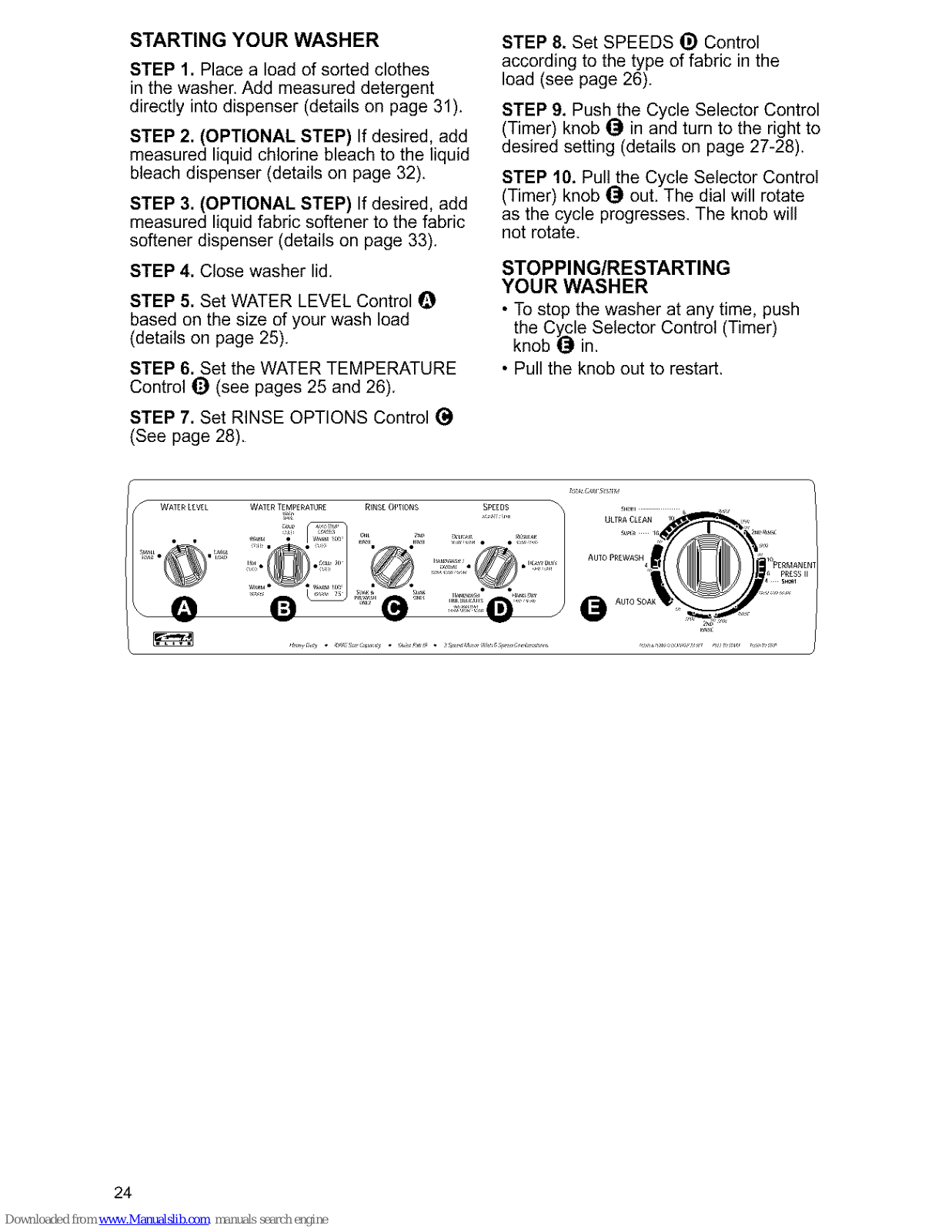

STARTING YOUR WASHER STEP 8. Set SPEEDS _) Control

according to the type of fabric in the
load (see page 26).

STEP 1. Place a load of sorted clothes
in the washer. Add measured detergent

directly into dispenser (details on page 31).
STEP 2. (OPTIONAL STEP) If desired, add

measured liquid chlorine bleach to the liquid
bleach dispenser (details on page 32).

STEP 3. (OPTIONAL STEP) If desired, add
measured liquid fabric softener to the fabric
softener dispenser (details on page 33),

STEP 4. Close washer lid,
STEP 5. Set WATER LEVEL Control O

based on the size of your wash load
(details on page 25).

STEP 6. Set the WATER TEMPERATURE
Control _ (see pages 25 and 26).

STEP 7. Set RINSE OPTIONS Control (_
(See page 28).

STEP 9. Push the Cycle Selector Control
(Timer) knob @ in and turn to the right to
desired setting (details on page 27-28).

STEP 10. Pul! the Cycle Selector Control
(Timer) knob @ out. The dial will rotate
as the cycle progresses. The knob will

not rotate.

STOPPING/RESTARTING

YOUR WASHER

• To stop the washer at any time, push
the Cycle Selector Control (Timer)

knob @ in.

• Pull the knob out to restart.

S WA_ERLt_L WA_ERTEMpeRAtURE R_t_StOf'T_OteS £EEBS _ _'_" __,_

24

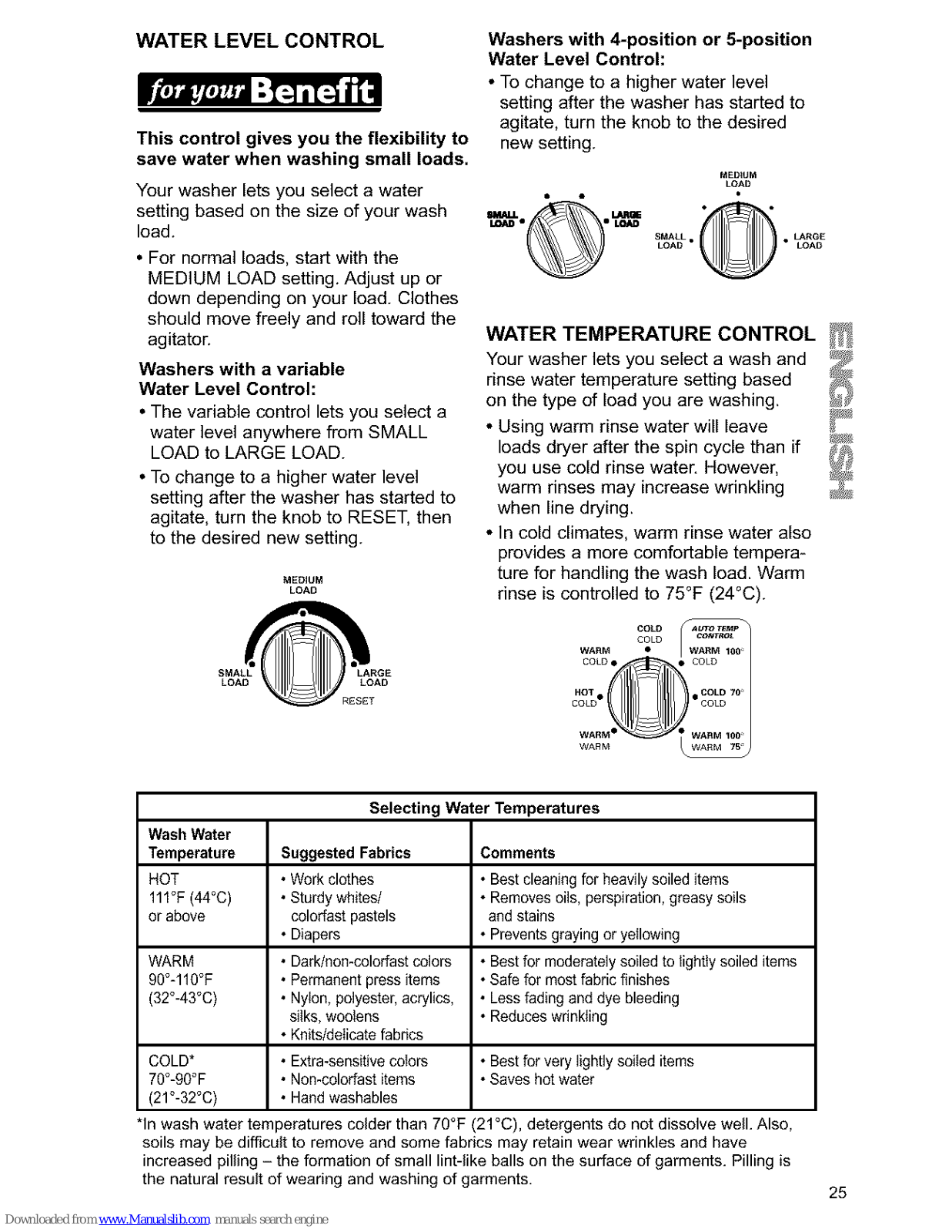

WATER LEVEL CONTROL

This control gives you the flexibility to
save water when washing small loads.

Your washer lets you select a water
setting based on the size of your wash

load.

• For normal loads, start with the
MEDIUM LOAD setting. Adjust up or

down depending on your load. Clothes
should move freely and roll toward the
agitator.

Washers with a variable
Water Level Control:

• The variable control lets you select a
water level anywhere from SMALL

LOAD to LARGE LOAD.

• To change to a higher water level
setting after the washer has started to

agitate, turn the knob to RESET, then
to the desired new setting.

MEDIUM

LOAD

Washers with 4-position or 5-position
Water Level Control:

• To change to a higher water level
setting after the washer has started to

agitate, turn the knob to the desired
new setting.

taED_UM

L_D

WATER TEMPERATURE CONTROL _
Your washer lets you select a wash and

rinse water temperature setting based
on the type of load you are washing.

• Using warm rinse water will leave
loads dryer after the spin cycle than if

you use cold rinse water, However,
warm rinses may increase wrinkling
when line drying.

• In cold climates, warm rinse water also
provides a more comfortable tempera*

ture for handling the wash load. Warm

rinse is controlled to 75°F (24°C).

COLO

COLD

WARM_•

COLD • • COLD

HOT• COLD 7O_,

COLD COLD

WAR

WARM

Selecting Water Temperatures
Wash Water
Temperature Suggested Fabrics Comments

HOT • Work clothes • Best cleaning for heavily soiled items

11I°F (44°C) • Sturdy whites/ • Removes oils, perspiration, greasy soils

or above colorfast pastels and stains

• Diapers • Prevents graying or yellowing

WARM • Dark/non-colorfast colors • Best for moderately soiled to lightly soiled items
90°-110°F • Permanent press items • Safefor most fabric finishes
(32°-43°C) • Nylon, polyester, acrylics, • Less fading and dye bleeding

sitks, woolens • Reduces wdnkting

• Knits/delicate fabrics

COLD* • Extra-sensitive colors • Best for very lightly soiled items
70°-90°F • Non-colorfast items • Saves hot water

(21°-32°C) • Hand washables

•In wash water tern )eratures colder than 70°F (21°C), detergents do not dissolve well. Also,
soils may be difficult to remove and some fabrics may retain wear wrinkles and have
increased pilling - the formation of small lint-like balls on the surface of garments. Pilling is
the natural result of wearing and washing of garments.

25

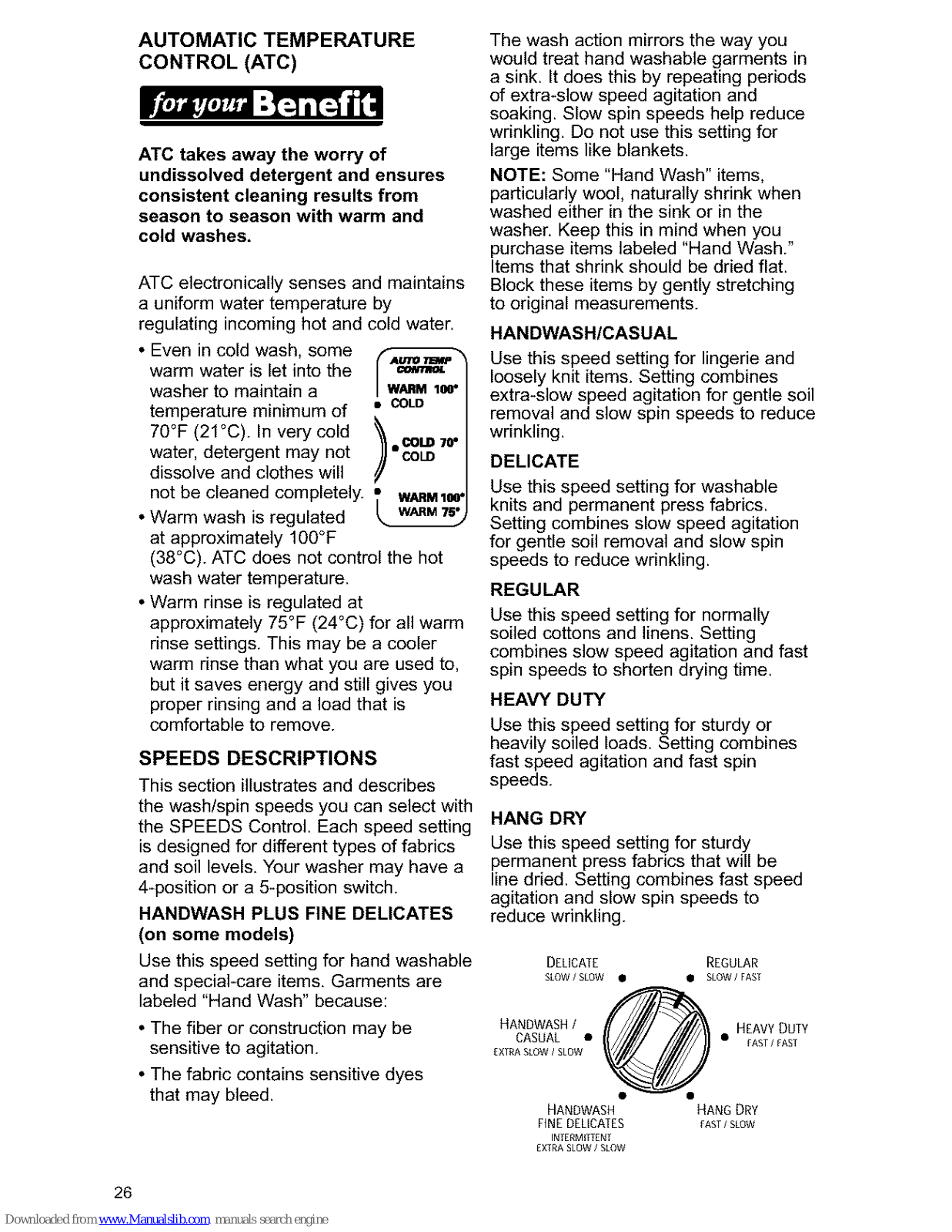

AUTOMATIC TEMPERATURE
CONTROL (ATC)

ATC takes away the worry of

undissolved detergent and ensures

consistent cleaning results from
season to season with warm and

cold washes,

ATC electronically senses and maintains
a uniform water temperature by
regulating incoming hot and cold water.

• Even in cold wash, some
warm water is let into the

washer to maintain a W_M 1_"
temperature minimum of COLD

70°F (21 °C). In very cold
water, detergent may not . _ 70"

i/

dissolve and clothes will
not be cleaned completely. W_M 1_

• Warm wash is regulated WARM75"
at approximately 100°F
(38°C). ATC does not control the hot
wash water temperature.

• Warm rinse is regulated at
approximately 75°F (24°C) for all warm
rinse settings. This may be a cooler
warm rinse than what you are used to,
but it saves energy and still gives you
proper rinsing and a load that is

comfortable to remove.

SPEEDS DESCRIPTIONS

This section illustrates and describes
the wash/spin speeds you can select with

the SPEEDS Control. Each speed setting

is designed for different types of fabrics
and soil levels, Your washer may have a
4-position or a 5-position switch.

HANDWASH PLUS FINE DELICATES
(on some models)

Use this speed setting for hand washable
and special-care items, Garments are

labeled "Hand Wash" because:

• The fiber or construction may be

sensitive to agitation.

• The fabric contains sensitive dyes

that may bleed.

The wash action mirrors the way you
would treat hand washable garments in
a sink. It does this by repeating periods
of extra-slow speed agitation and
soaking. Slow spin speeds help reduce
wrinkling. Do not use this setting for
large items like blankets.

NOTE: Some "Hand Wash" items,
particularly wool, naturally shrink when

washed either in the sink or in the
washer. Keep this in mind when you

purchase items labeled "Hand Wash."
Items that shrink should be dried flat.

Block these items by gently stretching
to original measurements.

HANDWASH/CASUAL

Use this speed setting for lingerie and
loosely knit items. Setting combines
extra-slow speed agitation for gentle soil
removal and slow spin speeds to reduce
wrinkling.

DELICATE

Use this speed setting for washable
knits and permanent press fabrics.
Setting combines slow speed agitation

for gentle soil removal and slow spin

speeds to reduce wrinkling.
REGULAR

Use this speed setting for normally
soiled cottons and linens. Setting
combines slow speed agitation and fast
spin speeds to shorten drying time.

HEAVY DUTY

Use this speed setting for sturdy or
heavily soiled loads. Setting combines

fast speed agitation and fast spin

speeds.

HANG DRY

Use this speed setting for sturdy
permanent press fabrics that will be
line dried. Setting combines fast speed
agitation and slow spin speeds to
reduce wrinkling.

DELICATE REGULAR

SLQW/ SLOW • • SLOW/ FAST

HANDWASH /

CASUAL • • HEAVY DUTY

fAST/ FAST

[XTRASLOW/ SLOW

HANDWASH HANG DRY

FINE DELICATES fAST/ SLOW

IN[ERMITTEN[

EXTRASLOW/ SLQW

26

SETTING YOUR CYCLE
SELECTOR (TIMER) CONTROL

Use this control to choose the
agitation time and to start the washer.

• For heavy soil and sturdy fabrics,
use more time,

• For light soil and delicate fabrics,
use less time.

PERMANENT PRESS II

:FJtlt' r

The PERMANENT PRESS II cycle
includes a load cooling process
that reduces wrinkling compared
to other cycles.

You can select up to 10 minutes of
wash time. Add detergent to dispenser
for PERMANENT PRESS II cycle.

NOTE: When the timer reaches PAUSE,
the washer will drain and pause for no

more than two minutes while some of the
wash water is drained and replaced with

rinse water.
ULTRA CLEAN

Use this cycle for most loads to get
between 6 and 16 minutes of wash

time. Add detergent to dispenser for
ULTRA CLEAN cycle.

AUTO PREWASH

Use this cycle to get up to 4 minutes
of agitation to help remove heavy soils

and stains that need pretreatment.

detergent to washer basket for

tAiCdcycle.When the prewash is complete, !_

add detergent and set a new wash cycle. _}

AUTO SOAK _

Th=scycle features 4 minutes of ag=tahon

followed by an unlimited soak time to help

remove heavy soils and stains that need
pretreatment. Add detergent to the

washer basket for this cycle. You will

need to reset the washer to a SPIN
setting to remove water. When the soak

is complete, add detergent (if water was
removed) and set a new wash cycle.

NOTE: We do not recommend hot water

for soaking. It may set some stains.

AUTO PREWASH4i

I°PERMANEN T

PR[SS lI

27

CYCLE/OPTIONS DESCRIPTIONS

You may add options to your wash cycle. The chart below shows you the proper set_
tings for your Cycle Selector Control (Timer) and RINSE OPTIONS Control. The Cycle
Selector Control needs to be set where you want the cycle to start and the RINSE
OPTIONS Control needs to be set where you want the cycle to stop. (Example: If you
want a second rinse added to the ULTRA CLEAN cycle, you would set the Cycle

Selector Control to ULTRA CLEAN O and the RINSE OPTIONS Control to 2ND

RINSE O.
CYCLE SELECTOR CONTROL (TIMER)

RINSE OPTIONS CONTROL

O

,o oP-wA,H4Sf(

_AUTO SOIK_'_

O

O

,/

.... o

IOpERMA/NENT

0 0

\,

ONE 2ND

PREWASH SOAK

ONLY ONLY

"0

Desired SetCycle Selector Set RinseOptions Add
WasherAction Control (Timer) On Control On Detergentto:

Washand Desiredwash ONE RINSE Q Dispenser
ONE RINSE cycle Q or O

Washeragitates,rinses,andspins.
Washand Desired wash 2ND RINSE Q Dispenser

2ND RINSE cycle O or O
Washeragitates,rinses,andspinsfollowedby aseconddeep rinse.

Rinse & Spin RINSE O ONERINSE Q De not add

detergent.

Washeragitates,drains,and spins.
Spin SPIN 0 ONERINSE Q Donot add

detergent.

Washerspins.
Soak Only AUTOSOAK O SOAK ONLY (_ Basket

(unlimitedsoaktime)

Washerwill alternateperiodsofagitationandsoakingfor a few minutes.
Clotheswill continueto soakforan unlimitedperiod.

Soak & Prewash AUTOSOAK O SOAK & PREWASH Basket
(24minutes) ONLY O

Washerwill alternateperiodsofagitationandsoaking.
CycleSelectorControl(Timer)will godirectly intotheAUTO PREWASHcycle.

PrewashOnly AUTO SOAK& PREWASH Basket

PREWASH • ONLY O

Washeragitates,drains,and spins.

NOTE:PrewashOnlyandSoak& Prewashshouldbefollowedbyamainwashcyclewithadditionaldetergent
added.SoakOnlyshouldbefollowedbyamainwashcyclewithoutadditionaldetergent.

28

UNDERSTANDING WHAT
HAPPENS IN EACH CYCLE

ULTRA CLEAN PERMANENT PRESS II

Fillto _ Fill to

selected level selected level

Wash Wash

selected time selected time

Drain - Partial

no spin Drain

Pause

Spin

• _ Fill for

Fill to cooldown

W

selected level •

Rinse

Wash

• _ Drain -

Drain - no spin

W

no spin •

• Spin

Spin

Off or

2ND RINSE

Fill to

selected level

Rinse

Drain -

no spin

Spin

Off or

2ND RINSE

AUTO PREWASH

Fill to

selected level

Wash

selected time

Drain -

no spin

Spin

Off (reset to

desired wash

cycle)

AUTO SOAK

Fill to

selected level

Agitate

Soak

(reset to SPIN to

drain washer)

29

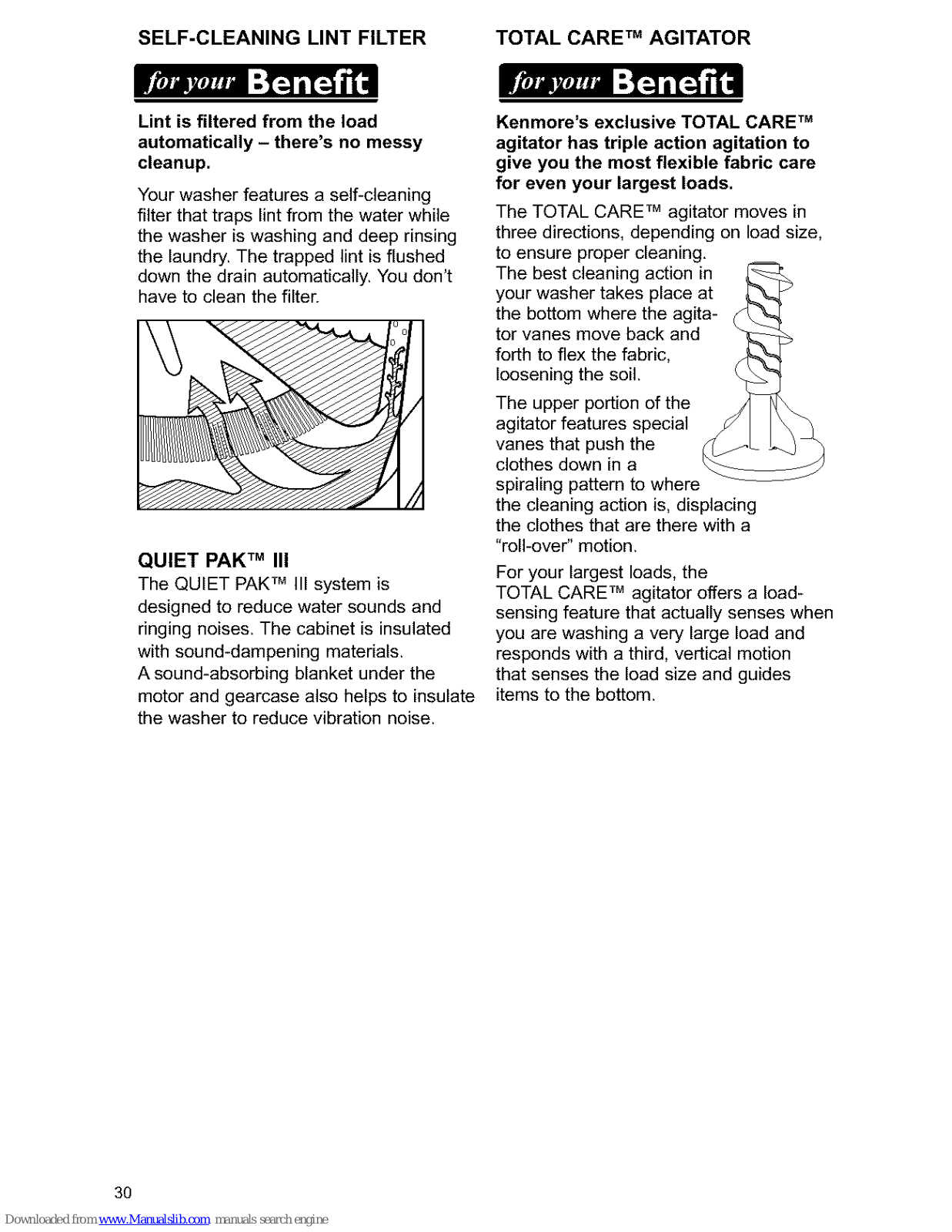

SELF-CLEANING LINT FILTER TOTAL CARE TM AGITATOR

Lint is filtered from the load
automatically - there's no messy

cleanup.

Your washer features a self-cleaning
filter that traps lint from the water while
the washer is washing and deep rinsing
the laundry. The trapped lint is flushed
down the drain automatically. You don't

have to clean the filter.

QUIET PAK TM III

The QUIET PAKTM III system is
designed to reduce water sounds and
ringing noises. The cabinet is insulated
with sound-dampening materials.
A sound*absorbing blanket under the
motor and gearcase also helps to insulate

the washer to reduce vibration noise.

Kenmore's exclusive TOTAL CARE TM

agitator has triple action agitation to
give you the most flexible fabric care
for even your largest loads.

The TOTAL CARE TM agitator moves in
three directions, depending on load size,
to ensure proper cleaning,
The best cleaning action in
your washer takes place at
the bottom where the agita-

tor vanes move back and

forth to flex the fabric,

loosening the soil.
The upper portion of the

agitator features special
vanes that push the

clothes down in a
spiraling pattern to where

the cleaning action is, displacing
the clothes that are there with a

"roll-over" motion.
For your largest loads, the

TOTAL CARE TM agitator offers a load-
sensing feature that actually senses when
you are washing a very large load and
responds with a third, vertical motion
that senses the load size and guides

items to the bottom.

3O

UNDERSTANDING NORMAL
WASHER SOUNDS

Your new washer may make sounds
that your old one didn't. Because the
sounds are unfamiliar, you may be

concerned about them,
The following describes some of the

normal sounds you may hear and what
causes them.

During Washing

When you select a small load size setting
for a small wash load, your washer has a

lower water level. With this lower water
level, you may hear a clicking sound from

the upper portion of the agitator.

During Drain

The rate that water is drained from your
washer depends on your installation, If
water is drained quickly from the washer,
you may hear air being pulled through the
pump. This happens during the end of
draining.

After Drain and Before Spin
When the cycle changes from draining

to spinning, you may hear a noise as the
gearcase shifts.

USING YOUR TRIPLE DISPENSER

The triple dispenser makes your
washer truly automatic by making it

unnecessary for you to return to the

washer during the cycle to put in
detergent, bleach, or fabric softener,

By using the triple dispenser, you will

achieve proper fabric care by ensuring
that detergent, bleach, and fabric

softener are introduced into the washer
at the proper time and properly diluted.

How It Works

The triple dispenser directs fresh water
from the washer inlet valve to the

dispensers.

USING THE DETERGENT

DISPENSER

This dispenser will automatically
dispense either liquid or powdered
detergents, You may add liquid or

powdered color-safe bleach to this

dispenser as well.

31

USING THE LIQUID CHLORINE
BLEACH DISPENSER

The liquid chlorine bleach dispenser
automatically dispenses bleach at the
proper time in the cycle to ensure the
cleanest and brightest loads.

Always measure liquid chlorine
bleach. Use a measuring cup. Do not

guess Do not pour directly from bottle.
Never use more than 1 cup (250 mL) for

a full load Use less with smaller loads
Follow manufacturer's directions for safe

use A cup with a pouring spout will help
you avoid spilling

After loading the washer, pour measured

liquid chlorine bleach carefully into the
dispenser

• Do not let bleach splash, drip, or run
down into washer basket Undiluted

bleach will damage any fabric it touches

• Start the washer. Bleach will be
dispensed automatically after the
detergent has had time to work.

NOTE: Do not use this dispenser to add
liquid or powdered color-safe bleach to

your wash load. The dispenser is for liq-
uid chlorine bleach only If desired, add

liquid or powdered color-safe bleach to
the detergent dispenser.

• Do not overfill. Look for the level
markings on the dispenser cover.

Dispenser holds 1 cup (250 mL) of
liquid chlorine bleach

j_

Liquidchlorine

bleachdispenser

32

USING THE LIQUID FABRIC
SOFTENER DISPENSER

After loading the washer, measure and
add the recommended amount of fabric

softener into the dispenser. Follow
manufacturer's directions.

• Do not overfill. Dispenser holds a
standard capful of fabric softener
(3 oz [94 mL]).

• Fabric softener is dispensed in 2nd
rinse if 2ND RINSE is selected.

NOTE: Undiluted fabric softener spilled
on fabric may result in spots that look

like oil stains.

Liquidfabric

softenerdispenser

If cleaning of the liquid fabric softener

dispenser is required:

Scrub with a brush using a liquid

laundry detergent solution. Never use
any cleaning fluids on dispenser parts
as this could cause damage to the

plastic.

33

PREPARING CLOTHES
FOR WASHING

Follow these recommendations
to help you prolong the life of

your garments.

• Close zippers, snaps, and hooks to

avoid snagging other items. Remove
pins, buckles, and other hard objects

to avoid scratching the washer interior.

Remove non-washable trim and
ornaments.

• Empty pockets and turn them
inside out.

• Turn down cuffs, brush away lint
and dirt.

• Turn synthetic knits inside out to
avoid pilling.

• Tie strings and sashes so they will
not tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be

washed promptly for best results.

SORTING

• Separate heavily soiled items from lightly
soiled ones, even if they would normally

be washed together. Separate lint givers
(towels, chenille) from lint takers (cordu-

roy, synthetics, permanent press). When
possible, turn lint givers inside out.

• Separate dark colors from light colors,
colorfast items from non-colorfast items.

• Sort by fabric and construction

(sturdy cottons, knits, delicate items).

|

34

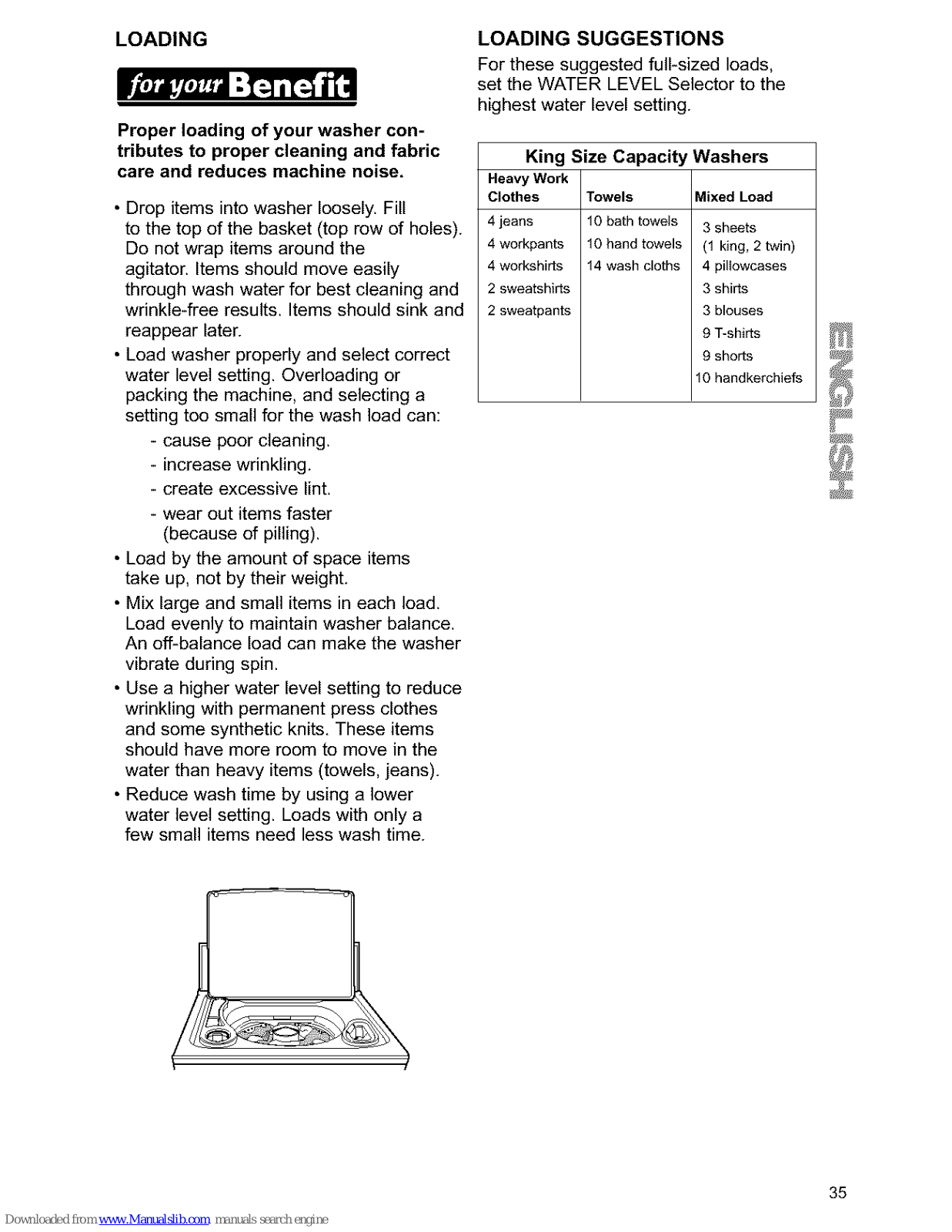

LOADING

Proper loading of your washer con-
tributes to proper cleaning and fabric

care and reduces machine noise,

• Drop items into washer loosely. Fill
to the top of the basket (top row of holes).

Do not wrap items around the
agitator. Items should move easily

through wash water for best cleaning and
wrinkle-free results. Items should sink and

reappear later.

• Load washer properly and select correct
water level setting. Overloading or

packing the machine, and selecting a
setting too small for the wash load can:

- cause poor cleaning.

- increase wrinkling.

- create excessive lint.

- wear out items faster
(because of pilling).

• Load by the amount of space items
take up, not by their weight.

• Mix large and small items in each load.

Load evenly to maintain washer balance.

An off-balance load can make the washer

vibrate during spin.

• Use a higher water level setting to reduce
wrinkling with permanent press clothes

and some synthetic knits. These items
should have more room to move in the

water than heavy items (towels, jeans).

• Reduce wash time by using a lower
water level setting. Loads with only a

few small items need less wash time.

LOADING SUGGESTIONS
For these suggested full-sized Ioads_

set the WATER LEVEL Selector to the
highest water level setting.

King Size Capacity Washers

Heavy Work
Clothes

4 jeans
4 workpants

4 workshirts
2 sweatshirts

2 sweatpants

Towels Mixed Load

10 bath towels 3 sheets
10 hand towels (1 king, 2 twin)
14 wash cloths 4 pillowcases

3 shirts

3 blouses
9 T-shirts
9 shorts

10 handkerchiefs

35

CLEANING YOUR WASHER
Proper care of your washer can extend

its life. This section explains how to care

for your washer properly and safely.

Exterior

Wipe up detergent, bleach, and other
spills with a soft, damp cloth or sponge

as they occur. Occasionally wipe the
outside of the washer to keep it looking

like new.
Do not put sharp or metal objects in your

washer. They can damage the finish.

Check all pockets for pins, clips, money,
bolts, nuts, etc, Do not lay these objects

on your washer after emptying pockets.

Interior

Clean interior with 1 cup (250 mL) of

chlorine bleach mixed with 2 cups

(500 mL) of detergent. Run washer

through a complete cycle using hot
water. Repeat process if necessary.

NOTE: Remove hard water deposits
using only cleaners labeled as

washer safe.
Water Inlet Hoses

Replace inlet hoses after five years of
use to reduce the risk of hose failure.

Periodically inspect and replace inlet
hoses if bulges, kinks, cuts, wear or
leaks are found. When replacing your
inlet hoses, mark the date of replace-

ment on the label with a permanent
marken

WINTER STORAGE
OR MOVING CARE

Install and store your washer where it

will not freeze. Because some water
may stay in the hoses and pump,

freezing can damage your washer. If
storing or moving your washer during

freezing weather, winterize it.

To winterize washer:

1. Shut off both water faucets.

2. Disconnect and drain water inlet
hoses.

3. Put 1 qt (1 L) of R,V.-type antifreeze
in the basket,

4. Run washer on a SPIN setting for

about 30 seconds to mix the
anti-freeze and water. Some of the

mixture will pump out while the
washer spins,

5. Unplug the power supply cord.

To use washer again:

1. Flush water pipes and hoses,

2. Reconnect water inlet hoses.

3. Turn on both water faucets.

4. Reconnect power supply cord.

5. Run the washer through a complete

cycle with 1 cup (250 mL) of
detergent to clean out antifreeze.

NON-USE OR VACATION CARE

Operate your washer only when you
are at home. If you will be on vacation
or not using your washer for an
extended period of time, you should:

• Unplug the power supply cord or turn

off electrical power to the washer.

• Turn off the water supply to the

washer, This helps avoid accidental

flooding (due to a water pressure

surge) while you are away.

36

Most laundering problems are easily solved if you understand the cause.
Check these lists for common laundry and washer problems. If you need

further assistance, see service and assistance information on the back page.

Problem Possible Cause Solution

Washer Leaks Household plumbing is leaking. Repair plumbing.

Inlet hoses not tight. Tighten hoses (see "Installation

Instructions,"Sections D & E).

Inlet hose washers not Reseat washers (see "Installation
properlyseated. Instructions,"Section D).

Drain hose not propedy Clamp drain hose (see "Installation
clamped or is off. Instructions,"Section C).

Drain is clogged. Remove drain clogs. Sink, standpipe,

or floor drain must be able to handle

17 gaI (64 L) of water per minute.

Tub moved forward during Ensure tub is centered before

unloading, causing water to starting washer.

deflect off tub ring.

Unit not level causing water Ensure front feet are installed and

to deflectoff tub ring. nuts aretightened. Level washer.

Reset rear legs (see "Installation
Instructions,"Section G).

Load is unbalanced. Spray Redistributethe load.
rinsesare deflecting off load.

Washer is ovedoaded. Fills or Reduceload size.
spray rinses are deflecting off

load.

Won't Drain/ Drain hose is kinked or Straightenor unplug hose
Won't Spin/ clogged. (see "Installation Instructions,"
Wet Loads SectionC).

Correct operation of After awash or rinse, the washer will
neutraldrain, drain without spinning. After draining,

the spinning begins.

Lidis open. Close the lid.
Drain hose is more than Lower drain hose (see "Installation

96 in (2.4 m) above floor. Instructions,"Section A).

Too much detergent - Use less detergent.

excessive sudsing.

Wrong cycle for load Choosea cycle with a higher spin

beingwashed, speed (see "Operating Your

Washer").

37

Problem Possible Cause Solution

Won't Drain/ Low voltage or using Check electrical source or calI
Won't Spin/ an extension cord. electrician. Do net use extension
Wet Loads cords.

(cont,) Cold rinses. Cold rinses leave loads wetter than

warm rinses. This is normal.

Continues Drain hose is less than Raise the drain hose
to Fiil/ 39 in (99 cm) above floor. (see "Installation Instructions,"

Continues Section A).
to Drain/

Cycle Stuck Drain hosefits tightly into Adjust drain hose for Ioose fit

standpipe. (see "Installation Instructions,"

Section C),

Drain hose taped into Do not seal off drain hose with tape.
standpipe. The drain hose needs an air gap.

Washer Makes Load is unbalanced. Redistribute Ioad.

Noise

Washer is not level. Level washer. Reset rear legs
Rear leveling legs not set. (see "Installation Instructions,"

Section G).

Nuts on front feet not tight. Tighten nuts (see "Installation

Instructions,"Section G).

Yellowshipping strapwith Remove strap with cotter pins
cotter pins not completeIy (see "Installation Instructions,"
removed. Section B).

Floor not strong enough Relocate washer (see "Installation
to support washer. Instructions,"Section A).

Gears engaging after drain This is normal.
and before spin.

Upper part of agitator cIicks This is normal.
during wash.

Won't Water inlet valve CIean screens.

Fill/Won't screens are plugged.

Rinse/Won't

Agitate/ Water is turned off. Turnonwater.

Wrong Hot and cold hoses are Reverse hoses (see"Installation
Temperature reversed, Instructions,"Sections D & E),

Inlet hose is kinked. Straighten hoses.

Timer diaI is not lined up. Turn timer knob to the rightslightly

and pull to start.

Power cord not plugged in, Plug in power cord.

38

Problem Possible Cause Solution
Machine Power cord not plugged in. PIugin power cord.

Stops No power at plug. Check electrical source or call

electrician.

Fuse blown or circuit Replace fuse or reset circuit breaker.
breaker open. If problem continues, call electrician.

Using an extension cord, Do not use extension cords.
Timer is notlined up. Turntimer to the right slightly

and pull to start.
Timer knob not pulled out, Set and pull out knob.
Washerat pause in Allow cycle to continue

PERMANENT PRESS IICycle (see "Operation YourWasher").
(approximatelytwo minutes).

Machine is overloaded. Wash smaller loads.

Agitator Not The top of the agitator moves This is normal.
Working only in one direction.

The top of the agitator is loose. This is normal.

Water Level The top of the agitator is much This is normal.
Too Low/Not higher than the highest water
Completely level.This creates a perception

Filling of the washer not being full.
Tub is Tub pulledforward when Ensuretub is centered before

Crooked unloading, starting washer.

Tub moves. This is normal.
Unit not level. Ensurefront feet are installed and

nuts are tightened. Level washer.

Reset rear legs (see "Installation

Instructions," Section G).

Lint on Load Improper sorting. Sort lint givers from lint takers

and by color.
Overloading. Lint can be trapped in load if

overloaded. Wash smaller loads.
Paper or tissue in pockets. Clean out pockets before washing.

Not enough detergent. Use enough detergent to

hold lint in water.
Detergent not dissolving. Use Automatic TemperatureControl

Watertemperatures lower (ATC). ATC ensures wash water
than 70°F (21°C). temperaturewill be warmer than

70°F (21°C).

39

Problem Possible Cause Solution

Tearing Overloading. Improper Loads should move freely during

use of washer, wash. Wash smaller loads or

increase water level

Improper use of chlorine Donot pour chlorine bleach directly
bleach. Undiluted bleach on Ioad.Wipe up bleach spills.
will damage fabrics.

Sharp items not removed Clean out pockets before washing.
from pockets; fasteners Zip zippers before washing.

not fastened.
Itemsdamaged before Mend rips and broken threads in

washing, seams before washing.

Stains on Improper use of fabric Dilutefabric softener and addto
Load softener in washer or dryer, deep rinseonly.

Iron in water (rust). Install an iron filter.
Under use of detergent causing Use enough detergent to remove

soil to be redeposited, soil and hoId it in suspension.
Dye transfer due to not Sort dark clothingfrom whites

sorting loads properly, and lights.
Dye transfer due to not Unload the washer as soon as

unloading washer promptly, it stops.

Load is Not removing Ioad promptly. Unloadthe washer as soon as

Wrinkled it stops.

Wrongcycle forfabrics Use cold rinses and cycles with slow
beingwashed, spin speeds to reduce wrinkling.

Overloading. Loads should move freely daring

wash. Wash smalIer loads.

Washwater notwarm enough Use Automatic TemperatureControl
to relaxwrinkles. Usingwarm (ATC).If safe for fabric, usewarm or

rinses, hotwash water.Use cold rinsewater.
Hoses reversed. Reverse hoses (see "Installation

Instructions," Sections D & E).

Load is Overloading. Loads should move freely daring
Tangled/ wash. Wash smalIer loads.

Twisted

Clothes wrapped around Do not wrap items around agitator
agitator, whenloading washer.

Clogged Use of color-safe bleach in Add color-safe bleach directly to the
Dispensers/ chlorine bleach dispenser, basket. Do not use chlorine bIeach
Bleach dispenser.
Leaking/

Bleach on Improper use of chlorine bleach. Always measure bleach before

Wrong Loads adding to the dispenser. Carefully

pour into the dispenser. Wipeup
bleachspills.

4O

KENMORE WASHERS

We Service What We Sell
"We Service What We Sell" is our
assurance you can depend on Sears

for service. Your Kenmore appliance has
added value when you consider that

Sears has service units nationwide,
staffed with professional technicians

trained on all appliances Sears sells.
They have the knowledge and skills,
tools, parts and equipment to ensure our
pledge to you that "We Service What We

Sell."
Maintain the value of your purchase with

a Sears Maintenance Agreement.
Kenmore appliances are designed, man-
ufactured and tested for years of
dependable operation. Yet any major
appliance may require service from time

to time. The Sears Maintenance
Agreement offers you an outstanding

service program for your product.

The Sears Maintenance Agreement

• Is your way to buy tomorrow's

service at today's prices.

• Eliminates repair bills resulting from
normal use.

• Allows for as many service calls as
required.

• Provides an annual Preventive
Maintenance Check at your request to

keep your Kenmore appliance in
proper running condition.

For more information, call

1-800-827-6655 (USA) or
1-877-533-6937 (Canada)

41

42

In U.S.A. or Canada

for in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME" (%800-469-4663)

Pars pedir servicio de reparaci6n a domicilio - 1-800-676-5811

Au Canada pour tout le service - 1-877-LE-FOYER" (1-877-533-6937)

For the repair or replacement parts you need:

Call 6 a.m. - 11 p.m. CST, 7 days a week

PartsDirect"

1-800-366-PART (1-800-366-7278)

www.seam.comlpartsdlrect

Para ordenar plezas con entrega a domlclllo - 1-800-659-7084

For the location of a Sears Service Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

To purchase or inquire about a Sears Maintenance Agreement:

Call 7 a.m. - 5 p.m. CST, Monday - Saturday

t-800-827-6655

I SEARS I
