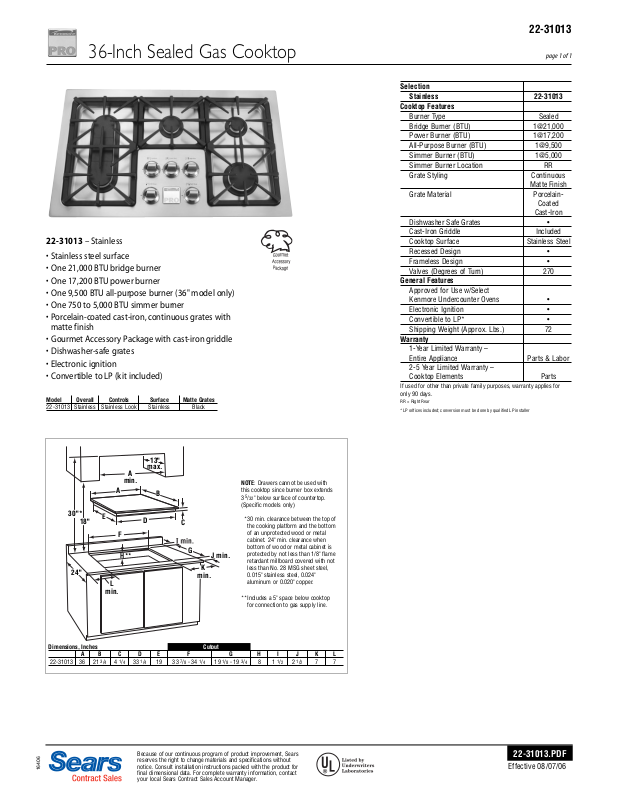

Kenmore Pro 36'' Gas Drop In Cooktop Specifications

22-31013

22-31013.PDF

Effective 08/07/06

16406

page 1 of 1

Selection

Stainless 22-31013

Cooktop Features

Burner Type Sealed
Bridge Burner (BTU) 1@21,000
Power Burner (BTU) 1@17,200
All-Purpose Burner (BTU) 1@9,500
Simmer Burner (BTU) 1@5,000
Simmer Burner Location RR
Grate Styling Continuous

Matte Finish

Grate Material Porcelain-

Coated

Cast-Iron
Dishwasher Safe Grates •
Cast-Iron Griddle Included
Cooktop Surface Stainless Steel
Recessed Design •
Frameless Design •
Valves (Degrees of Turn) 270

General Features

Approved for Use w/Select
Kenmore Undercounter Ovens •
Electronic Ignition •
Convertible to LP* •
Shipping Weight (Approx. Lbs.) 72

Warranty

1-Year Limited Warranty –
Entire Appliance Parts & Labor
2-5 Year Limited Warranty –
Cooktop Elements Parts

If used for other than private family purposes, warranty applies for
only 90 days.

RR = Right Rear
*LP orifices included; conversion must be done by qualified LP installer

36-Inch Sealed Gas Cooktop

22-31013 – Stainless

• Stainless steel surface

• One 21,000 BTU bridge burner

• One 17,200 BTU power burner

• One 9,500 BTU all-purpose burner (36" model only)

• One 750 to 5,000 BTU simmer burner

• Porcelain-coated cast-iron,continuous grates with
matte finish

• Gourmet Accessory Package with cast-iron griddle

• Dishwasher-safe grates

• Electronic ignition

• Convertible to LP (kit included)

Dimensions, Inches Cutout

AB C D E F G H I J KL

22-31013 36 213/44 1/4331/419 337/8- 341/4191/8- 193/4811/221/277

NOTE: Drawers cannot be used with
this cooktop since burner box extends
3

5

/32" below surface of countertop.

(Specific models only)

*30 min. clearance between the top of

the cooking platform and the bottom
of an unprotected wood or metal
cabinet. 24" min. clearance when
bottom of wood or metal cabinet is
protected by not less than 1/8" flame
retardant millboard covered with not
less than No. 28 MSG sheet steel,

0.015" stainless steel, 0.024"
aluminum or 0.020" copper.

**Includes a 5" space below cooktop

for connection to gas supply line.

Because of our continuous program of product improvement, Sears
reserves the right to change materials and specifications without
notice. Consult installation instructions packed with the product for
final dimensional data. For complete warranty information, contact
your local Sears Contract Sales Account Manager.

Model Overall Controls Surface Matte Grates

22-31013 Stainless Stainless Look Stainless Black

13"

max.

A

min.

A

30"*

24"

E

18"

F

H**

L

min.

B

D

C

G

K

min.

J min.
