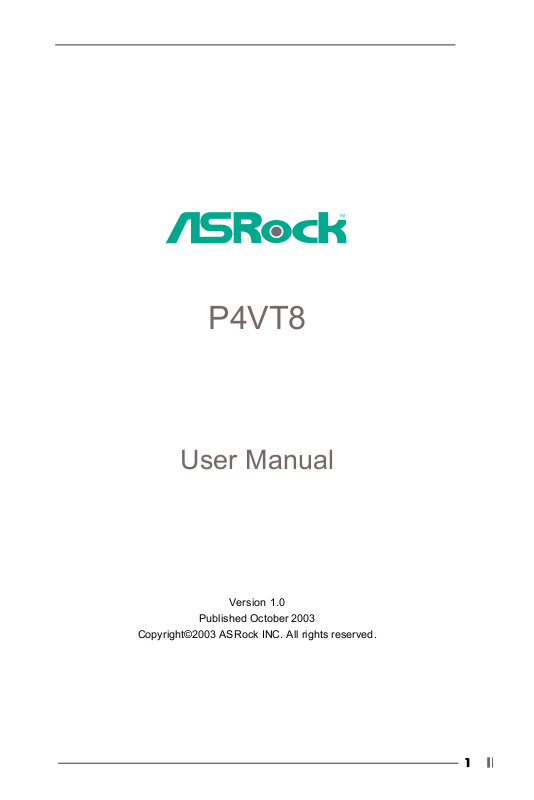

P4VT8

User Manual

Version 1.0

Published October 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

ASRock Website: http://www.asrock.com

ContentsContents

Contents

ContentsContents

1 Introduction1 Introduction

1 Introduction

1 Introduction1 Introduction

1.1 Package Contents .......................................................... 4

1.2 Specifications ................................................................ 5

1.3 Motherboard Layout ...................................................... 7

1.4 ASRock I/O PlusTM.......................................................... 8

2 Installation2 Installation

2 Installation

2 Installation2 Installation

2.1 Screw Holes ................................................................. 9

2.2 Pre-installation Precautions ........................................... 9

2.3 CPU Installation .............................................................. 10

2.4 Installation of CPU Fan and Heatsink ............................ 10

2.5 Installation of Memory Modules (DIMM) ......................... 11

2.6 Expansion Slots (PCI and AGP Slots) ........................... 12

2.7 Jumpers Setup .............................................................. 13

2.8 Connectors .................................................................... 14

2.9 Serial ATA (SATA) Hard Disks Installation ..................... 17

2.9.1 Installation of Windows 2000 / Windows XP ........ 18

2.9.2 RAID 0 / RAID 1 Configurations ............................. 18

2.9.2.1 Guide to Configure RAID 0 .......................... 19

2.9.2.2 Guide to Configure RAID 1 .......................... 20

3 BIOS Setup3 BIOS Setup

3 BIOS Setup

3 BIOS Setup3 BIOS Setup

3.1 BIOS Setup Utility ........................................................... 21

3.1.1 BIOS Menu Bar ....................................................... 21

3.1.2 Legend Bar ............................................................. 21

3.2 Main Menu ...................................................................... 22

3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 24

4 Software Support4 Software Support

4 Software Support

4 Software Support4 Software Support

4.1 Install Operating System ............................................... 25

4.2 Support CD Information ................................................. 25

4.2.1 Running Support CD ............................................... 25

4.2.2 Drivers Menu .......................................................... 25

4.2.3 Utilities Menu ........................................................... 25

4.2.4 ASRock “PC-DIY Live Demo” Program .................. 25

4.2.5 Contact Information ................................................ 25

AppendixAppendix

Appendix

AppendixAppendix

1. Advanced BIOS Setup Menu .......................................... 26

2. Security Setup Menu ....................................................... 30

3. Power Setup Menu .......................................................... 31

4. Boot Setup Menu ............................................................. 32

5. Exit Menu ......................................................................... 33

......................................................................................................

...................................................

......................................................................................................

..........................................................................................................

.....................................................

..........................................................................................................

.....................................................

..........................................................................................................

......................................................................................

...........................................

......................................................................................

......................................................................................................................

...........................................................

......................................................................................................................

4 4

9 9

21 21

25 25

26 26

Chapter 1 IntroductionChapter 1 Introduction

Chapter 1 Introduction

Chapter 1 IntroductionChapter 1 Introduction

Thank you for purchasing ASRock P4VT8 motherboard, a reliable motherboard pro-

duced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and support CD information. For advanced users’ reference, the Appen-

dix appearing on page 26 offers more advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

1.1 Package Contents1.1 Package Contents

ASRock P4VT8 Motherboard (ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm)

ASRock P4VT8 Quick Installation Guide

ASRock P4VT8 Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

Two Serial ATA (SATA) Cables

One Serial ATA (SATA) HDD Power Cable (Optional)

One ASRock I/O PlusTM Shield

One Game Port Bracket (Optional)

1.2 Specifications1.2 Specifications

1.2 Specifications

1.2 Specifications1.2 Specifications

Platform: ATX Form Factor (12.0-in x 7.5-in, 30.5-cm x 19.1-cm)

CPU: Socket 478 for Intel® Pentium® 4 / Celeron® processor

Chipsets: North Bridge:

VIA PT800, FSB @ 800/533/400 MHz,

with Hyper-Threading Technology ready

South Bridge:

VIA VT8237, supports USB 2.0, ATA 133, SATA 1.5Gb/s

Memory: 3 DDR DIMM slots: DDR1, DDR2, and DDR3

PC2100 (DDR266) for 3 DDR DIMM slots , Max. 3GB;

PC2700 (DDR333) for 2 DDR DIMM slots , Max. 2GB;

PC3200 (DDR400) for 1 DDR DIMM slots , Max. 1GB

IDE: IDE1: ATA 133 / Ultra DMA Mode 6;

IDE2: ATA 133 / Ultra DMA Mode 6;

Supports up to 4 IDE devices

Serial ATA: 2 SATA connectors, support up to 1.5Gb/s data transfer rate

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing (ASRock U-COP);

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1);

CPU fan tachometer; Chassis fan tachometer;

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 2)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 3)

ASRock I/O PlusTM: 1 PS/2 keyboard port, 1 PS/2 mouse port;

1 serial port: COM1;

1 parallel port: ECP/EPP support;

1 RJ 45 port;

6 default USB 2.0 ports;

Audio Jack: Line Out / Line In / Microphone

BIOS: AMI BIOS;

Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

Supports jumperfree;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98SE / ME / 2000 / XP compliant

CAUTION!

1. If the CPU is overheated, please check if the CPU fan on the motherboard

functions properly before you resume the system. To improve heat

dissipation, remember to spray thermal grease between the CPU and the

heatsink when you install the PC system.

2. Do NOT use a 3.3V AGP card on the AGP slot of P4VT8 motherboard!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft® Windows

XP SP1/2000 SP4. It may not work properly under Microsoft® Windows

98/ME. Please refer to Microsoft® official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although P4VT8 offers stepless control, it is not recommended to perform

over clocking. When the CPU frequency of P4VT8 is set to perform over

clocking, other clocks, such as PCI clock, AGP clock, and Memory clock

will also be overclocked proportionally. Frequencies other than the recom

mended CPU bus frequencies may cause the instability of the system or

damage the CPU and the motherboard.

1.3 Motherboard Layout1.3 Motherboard Layout

1.3 Motherboard Layout

1.3 Motherboard Layout1.3 Motherboard Layout

19.1cm (7.5 in)

PS/2

Mouse

PS/2

Keyboard

FSB800

DDR400

PGA478

VIA

PT800

Chipset

PCI 1

PCI 2

PCI 3

SATA

PCI 4

PCI 5

AGP1

AGP 8X

USB 2.0

ATA133

5.1 CH

P4VT8

GAME1

CLRCMOS1

PS2_USB_PWR1

CMOS

Battery

FLOPPY1

DDR1 (64/72bit, 184-pin module)

VT8237

USB67

DDR2 (64/72bit, 184-pin module)

VIA

DDR3 (64/72bit, 184-pin module)

SPEAKER1

IR1

IDE1 IDE2

SATA2

SATA1

CHA_FAN1

PLED PWRBTN

HDLED RESET

PANEL1

ATXPWR1

30.5cm (12 in)

7 8

16 17

CPU_FAN1

COM1

PARALLEL PORT

USB2.0

Ports

LAN

USB 2.0

Ports

Shared

USB4_5

USB2.0

Ports

LineIn

LineOut

JR1

MicIn

AUDIO1

JL1

AudioCODEC

LAN PHY

CD1

AUX1

28 27

26 25

I/O

Super

2MB BIOS

1 CPU Fan Connector (CPU_FAN1) 17 System Panel Connector (PANEL1)

2 CPU Heatsink Retention Module 18 Infrared Module Connector (IR1)

3 CPU Socket 19 USB 2.0 Header (USB67, Blue)

4 North Bridge Controller 20 PS2_USB_PWR1 Jumper

5 184-pin DDR DIMM Slots (DDR1- 3) 21 Game Connector (GAME1)

6 ATX Power Connector (ATXPWR1) 22 Flash Memory

7 Secondary IDE Connector (IDE2, Black) 23 PCI Slots (PCI1- 5)

8 Primary IDE Connector (IDE1, Blue) 24 LAN PHY

9 AGP Slot (AGP1) 25 AUDIO CODEC

10 South Bridge Controller 26 JL1 Jumper

11 Secondary Serial ATA Connector (SATA2) 27 JR1 Jumper

12 Primary Serial ATA Connector (SATA1) 28 Front Panel Audio Connector (AUDIO1)

13 Chassis Fan Connector (CHA_FAN1) 29 Internal Audio Connector: AUX1 (White)

14 Clear CMOS Jumper (CLRCMOS1) 30 Internal Audio Connector: CD1 (Black)

15 Floppy Connector (FLOPPY1) 31 Shared USB 2.0 Header (USB4_5, Blue)

16 Chassis Speaker Connector (SPEAKER 1)

1.4 ASRock I/O Plus1.4 ASRock I/O Plus

1.4 ASRock I/O Plus

1.4 ASRock I/O Plus1.4 ASRock I/O Plus

TMTM

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

8910

Chapter 2 InstallationChapter 2 Installation

Chapter 2 Installation

Chapter 2 InstallationChapter 2 Installation

P4VT8 is an ATX form factor (12.0-in x 7.5-in, 30.5 cm x 19.1 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to

ensure that the motherboard fits into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

2.1 Screw Holes2.1 Screw Holes

2.1 Screw Holes

2.1 Screw Holes2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions2.2 Pre-installation Precautions

2.2 Pre-installation Precautions

2.2 Pre-installation Precautions2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

2.3 CPU Installation2.3 CPU Installation

2.3 CPU Installation

2.3 CPU Installation2.3 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90o angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Step 1 Step 2, 3 Step 4

2.4 Installation of CPU Fan and Heatsink2.4 Installation of CPU Fan and Heatsink

2.4 Installation of CPU Fan and Heatsink

2.4 Installation of CPU Fan and Heatsink2.4 Installation of CPU Fan and Heatsink

Intel® Pentium®4 CPU requires larger heatsink and cooling fan. Thermal grease

between the CPU and the heatsink is also needed to improve heat dissipation.

Make sure that the CPU and the heatsink are securely fastened and in good

contact with each other. Then connect the CPU fan to the CPU_FAN

connector (CPU_FAN1, see page 7, No. 1). For proper installation, please

kindly refer to the instruction manuals of the CPU fan and heatsink vendors.

1010

2.5 Installation of Memory Modules (DIMM)2.5 Installation of Memory Modules (DIMM)

2.5 Installation of Memory Modules (DIMM)

2.5 Installation of Memory Modules (DIMM)2.5 Installation of Memory Modules (DIMM)

P4VT8 motherboard provides three 184-pin DDR (Double Data Rate) DIMM slots.

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

notch break

notch

break

The DIMM only fits in one correct orientation.

It will cause permanent damage to the motherboard and the DIMM

if you force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

snap back in place and the DIMM is properly seated.

1111

2.6 Expansion Slots (PCI and AGP Slots)2.6 Expansion Slots (PCI and AGP Slots)

2.6 Expansion Slots (PCI and AGP Slots)

2.6 Expansion Slots (PCI and AGP Slots)2.6 Expansion Slots (PCI and AGP Slots)

There are 5 PCI slots and 1 AGP slot on P4VT8 motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AGP slot: The AGP slot is used to install a graphics card.

The ASRock AGP slot has a special locking mechanism which can

securely fasten the graphics card inserted.

Do NOT use a 3.3V AGP card on the AGP slot of P4VT8

motherboard! It may cause permanent damage!

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Installing an expansion cardInstalling an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed in a

chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 4. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

1212

2.7 Jumpers Setup2.7 Jumpers Setup

2.7 Jumpers Setup

2.7 Jumpers Setup2.7 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose pin1

and pin2 are “Short” when jumper cap is

Short

Open

placed on these 2 pins.

Jumper Setting

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.7 item 20) +5VSB (standby) for PS/2

1_2

+5V

2_3

+5VSB

or USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided

by power supply.

JR1(see p.7 item 27)

JL1(see p.7 item 26)

JR1 JL1

Note: If the jumpers JL1 and JR1 are short, both the front panel and the rear panel

audio connectors can work.

Clear CMOS

CLRCMOS1

(see p.7 item 14)

2-pin jumper

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system

setup parameters. To clear and reset the system parameters to default setup,

please turn off the computer and unplug the power cord, then use a jumper

cap to short the pins on CLRCMOS1 for 3 seconds. Please remember to

remove the jumper cap after clearing the CMOS.

1313

2.8 Connectors2.8 Connectors

2.8 Connectors

2.8 Connectors2.8 Connectors

Connectors are NOT jumpers. DO NOT place jumper caps over

these connectors.

FDD Connector

(33-pin FLOPPY1)

(see p.7 item 15)

Pin1

FLOPPY1

the red-striped side to Pin1

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE Connector (Blue) Secondary IDE Connector (Black)

(39-pin IDE1, see p.7 item 8) (39-pin IDE2, see p.7 item 7)

PIN1

IDE1

connect the blue end

to the motherboard

PIN1

80-conductor ATA 66/100/133 cable

IDE2

connect the black end

to the IDE devices

Note: If you use only one IDE device on this motherboard, please set the IDE

device as “Master”. Please refer to the instruction of your IDE device vendor

for the details. Besides, to optimize compatibility and performance, please

connect your hard disk drive to the primary IDE connector (IDE1, blue) and

CD-ROM to the secondary IDE connector (IDE2, black).

Serial ATA Connectors These two Serial ATA (SATA)

(SATA1: see p.7 item 12) connectors support SATA data

(SATA2: see p.7 item 11) cables for internal storage

SATA2

SATA1

devices. The current SATA

interface allows up to 1.5 Gb/s

data transfer rate.

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA

hard disk or the SATA connector

on the motherboard.

1414

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(4-conductor) connector on each drive. Then

(Optional) connect the white end of SATA

connect to the SATA

HDD power connector

connect to the

power supply

power cable to the power

connector of the power supply.

USB_PWR

P-7

P-6

USB_PWR

P+7

P+6

GND

DUMMY

are not sufficient, this USB 2.0

header (USB67) is available to

support 2 additional USB 2.0

USB 2.0 Header ASRock I/O PlusTM provides you

(9-pin USB67) 6 default USB 2.0 ports on the

(see p.7 item 19) rear panel. If the rear USB ports

ports.

USB_PWR

P-5

P-4

USB_PWR

P+5

P+4

GND

DUMMY

front panel USB ports by

attaching the front panel USB

cable to this header (USB4_5),

Shared USB 2.0 Header This USB4_5 header is shared

(9-pin USB4_5) with the USB 2.0 ports 4,5 on

(see p.7 item 31) the rear panel. When using the

the rear panel USB ports 4,5

will not be able to function.

CD-L GND GND

CD-R

AUX-L

GND GND

AUX-R

IRTX

IRRX

+5V

GND

DUMMY

CD1

AUX1

tuner card, or MPEG card.

Infrared Module Connector This connector supports an

(5-pin IR1) optional wireless transmitting

(see p.7 item 18) and receiving infrared module.

Internal Audio Connectors These connectors allow you

(4-pin CD1, 4-pin AUX1) to receive stereo audio input

(CD1: see p.7 item 30) from sound sources such as

(AUX1: see p.7 item 29) a CD-ROM, DVD-ROM, TV

GND

+5VA

MIC-POWER

MIC

BACKOUT-R

BACKOUT-L

AUD-OUT-L

GND

AUD-OUT-R

control of audio devices.

Front Panel Audio Connector This is an interface for front

(9-pin AUDIO1) panel audio cable that allows

(see p.7 item 28) convenient connection and

1515

PLED+

PLED-

HDLED-

HDLED+

PWRBTN#

GND

RESET#

GND

DUMMY

System Panel Connector This connector accommo-

(9-pin PANEL1) dates several system front

(see p.7 item 17) panel functions.

Chassis Speaker Connector This connector allows you

(4-pin SPEAKER 1) to attach to an external

(see p.7 item 16) speaker.

Chassis Fan Connector Connect the fan cable to the

(3-pin CHA_FAN1) connector matching the black

+5V

SPEAKER

DUMMY

GND +12V CHA_FAN_SPEED

(see p.7 item 13) wire to the ground pin.

CPU Fan Connector Connect the fan cable to the

(3-pin CPU_FAN1) connector matching the black

CPU_FAN_SPEED

+12V

GND

(see p.7 item 1) wire to the ground pin.

ATX Power Connector Connect an ATX power

(20-pin ATXPWR1) supply to the connector.

(see p.7 item 6)

Game Connector Connect a Game cable to this

(15-pin GAME1)

(see p.7 item 21) bracket is installed.

+5V

JBB1

JBX

MIDI_OUT

JBY

JBB2

JAY

GND

JAX

JAB1

+5V

connector if the Game port

MIDI_IN

+5V

JAB2

Game cable with the

Game port bracket

(Optional)

1616

connect to the Game connector

2.9 Serial A2.9 Serial A

2.9 Serial A

2.9 Serial A2.9 Serial A

This motherboard adopts VIA VT8237 southbridge chipset that supports Serial ATA

(SATA) hard disks. You may install SATA hard disks on this motherboard for internal

storage devices. This section will guide you to install the SATA hard disks.

A (SAA (SA

A (SA

A (SAA (SA

A) Hard Disks InstallationA) Hard Disks Installation

A) Hard Disks Installation

A) Hard Disks InstallationA) Hard Disks Installation

Installing SAInstalling SA

Installing SA

Installing SAInstalling SA

STEP 1: Install the SATA hard disks into the drive bays.

STEP 2: Connect one end of the SATA data cable to the motherboard’s

STEP 3: Connect the other end of the SATA data cable to the master SATA

STEP 4: Connect one end of the second SATA data cable to the motherboard’s

STEP 5: Connect the other end of SATA data cable to the secondary SATA

A Hard DisksA Hard Disks

A Hard Disks

A Hard DisksA Hard Disks

primary SATA connector (SATA1).

hard disk.

secondary SATA connector (SATA2).

hard disk.

Making an SATA HDD driver diskette...

If you want to install Windows 2000 or Windows XP on your system while

you only have SATA HDDs on your system, you will need to make an SATA

HDD driver diskette before you start the OS installation.

How to make an SATA HDD driver diskette?

STEP 1: Insert the ASRock Support CD into your optical drive to boot your system.

(Do NOT insert any floppy diskette into the floppy drive at this moment!)

STEP 2: During POST at the beginning of system boot-up, press <F11> key, and then

a window for boot devices selection appears. Please select CD-ROM as the

boot device.

STEP 3: When you see the message on the screen, “Do you want to generate Serial

ATA driver diskette [Y/N]?”, press <Y>.

STEP 4: Then you will see these messages:

Please insert a diskette into the floppy drive

WARNING! Formatting the floppy diskette will

lose ALL data in it!

Start to format and copy files [Y/N]?

Please insert a floppy diskette into the floppy drive, and press <Y>.

STEP 5: The system will start to format the floppy diskette and copy SATA HDD drivers.

Once you have the SATA driver diskette ready, you may start to install Windows 2000

/ Windows XP on your system directly without setting the RAID configuration on your

system, or you may start to use VIA Tech RAID BIOS Utility to set RAID 0 / RAID 1

configuration before you install the OS.

1717

2.9.1 Installation of Windows 2000 / Windows XP2.9.1 Installation of Windows 2000 / Windows XP

2.9.1 Installation of Windows 2000 / Windows XP

2.9.1 Installation of Windows 2000 / Windows XP2.9.1 Installation of Windows 2000 / Windows XP

For the installation of Windows 2000 or Windows XP, please insert

Windows 2000 or Windows XP CD into the optical drive. Then remove the

floppy diskette, and reboot the system. At the very beginning, you will see

the message at the bottom of the screen, “Press F6 if you need to install a

third party SCSI or Raid driver....” At this moment, please press <F6> key

and follow the instructions of Windows 2000 or Windows XP for the proper

installation.

2.9.2 RAID 0 / RAID 1 Configurations2.9.2 RAID 0 / RAID 1 Configurations

2.9.2 RAID 0 / RAID 1 Configurations

2.9.2 RAID 0 / RAID 1 Configurations2.9.2 RAID 0 / RAID 1 Configurations

This motherboard adopts VIA VT8237 southbridge chipset that integrates

RAID controller supporting RAID 0 and RAID 1 with two independent Serial ATA

(SATA) channels. This section will introduce RAID 0, RAID 1, and the guide to

configure RAID 0 and RAID 1.

For optimal performance, please install identical drives of the same model and

capacity when creating a RAID set.

RAID 0RAID 0

RAID 0

RAID 0RAID 0

RAID 0 is called data striping that optimizes two identical hard disk drives to

read and write data in parallel, interleaved stacks. It will improve data access

and storage since it will double the data transfer rate of a single disk alone

while the two hard disks perform the same work as a single drive but at a

sustained data transfer rate.

1818

RAID 1RAID 1

RAID 1

RAID 1RAID 1

RAID 1 is called data mirroring that copies and maintains an identical image of

data from one drive to a second drive. It provides data protection and in-

creases fault tolerance to the entire system since the disk array management

software will direct all applications to the surviving drive as it contains a

complete copy of the data in the other drive if one drive fails.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Pre-installation PrecautionsPre-installation Precautions

1. Please use two new drives if you are creating a RAID 0 (striping) array for

performance.

2. You may use two new drives or use an existing drive and a new drive if you are

creating a RAID 1 (mirroring) array for protection (the new drive must be of

the same size or larger than the existing drive). If you use two drives of

different sizes, the smaller capacity hard disk will be the base storage size. For

example, if one hard disk has an 80GB storage capacity and the other hard disk

has 60GB, the maximum storage capacity for the RAID 1 set is 60GB.

3. Please verify the status of your hard disks.

2.9.2.1 Guide to Configure RAID 02.9.2.1 Guide to Configure RAID 0

2.9.2.1 Guide to Configure RAID 0

2.9.2.1 Guide to Configure RAID 02.9.2.1 Guide to Configure RAID 0

Please enter “VIA Tech RAID BIOS Utility” to set RAID 0 configuration.

STEP 1: Boot-up your computer.

STEP 2: During POST press <Tab> key to enter “VIA Tech RAID BIOS

Utility”.

STEP 3: Start the configuration from the option Create Array. Select the

option Create Array, then press <Enter> key.

STEP 4: Select the option Array Mode, then press <Enter> key to

display the pop-up menu of RAID system setting.

STEP 5: Select RAID 0 for performance from the menu and press

<Enter>.

From this point, you may choose to auto-configure the RAID

array by selecting Auto Setup for Performance or manually

configure the RAID array for striped sets. Please continue with

the next step if you want to manually configure the RAID array,

otherwise, proceed to step #5.3.

5.1

Select the option Select Disk Drives, then press <Enter>. Use

arrow keys to select disk drive(s), then press <Enter> to mark

selected drive. An asterisk is placed before the selected drive.

5.2

Select the option Block Size, then press <Enter> to set array

block size. A list of valid array block sizes are displayed on a

pop-up menu. Use arrow keys to move selection bar on items

and press <Enter> to select.

5.3

Select the option Start Create Process and press <Enter> to

setup hard disk for RAID system. Then the confirmation

message appears: The data on the selected disks will

be destroyed. Continue? (Y/N)

Press <Y> to confirm or <N> to return to the configuration options.

1919

2.9.2.2 Guide to Configure RAID 12.9.2.2 Guide to Configure RAID 1

2.9.2.2 Guide to Configure RAID 1

2.9.2.2 Guide to Configure RAID 12.9.2.2 Guide to Configure RAID 1

Please enter “VIA Tech RAID BIOS Utility” to set RAID 1 configuration.

STEP 1: Boot-up your computer.

STEP 2: During POST press <Tab> key to enter “VIA Tech RAID BIOS

Utility”.

STEP 3: Start the configuration from the option Create Array. Select the

option Create Array, then press <Enter> key.

STEP 4: Select the option Array Mode, then press <Enter> key to

display the pop-up menu of RAID system setting.

STEP 5: Select RAID 1 for data protection from the menu and press

<Enter>.

5.1

Select the option Select Disk Drives, then press <Enter>. Use

arrow keys to select disk drive(s), then press <Enter> to mark

selected drive. An asterisk is placed before the selected drive.

5.2

Select the option Start Create Process and press <Enter> to

setup hard disk for RAID system. Then the confirmation

message appears: Save the data on source disk to

mirror after creation? (Y/N)

Press <Y> to confirm or <N> to return to the configuration options.

You can find more configuration details in the Support CD. There are three

instruction files to illustrate the three types of configurations step by step.

1. If you wish to install the SATA hard disks alone without making RAID

setup, please refer to the file in the support CD:

.. \ RAID SETUP \ SATA.PDF

2. If you wish to install the SATA hard disks and set the array mode as

RAID 0, please refer to the file in the support CD:

.. \ RAID SETUP \ RAID 0.PDF

3. If you wish to install the SATA hard disks and set the array mode as

RAID 1, please refer to the file in the support CD:

.. \ RAID SETUP \ RAID 1.PDF

2020

Chapter 3 BIOS SetupChapter 3 BIOS Setup

Chapter 3 BIOS Setup

Chapter 3 BIOS SetupChapter 3 BIOS Setup

3.1 BIOS Setup Utility3.1 BIOS Setup Utility

3.1 BIOS Setup Utility

3.1 BIOS Setup Utility3.1 BIOS Setup Utility

This section explains how to use the BIOS Setup Utility to configure your system.

The Flash Memory on the motherboard stores the BIOS Setup Utility. You may run the

BIOS Setup Utility when you start up the computer. Please press <F2> during the

Power-On-Self-Test (POST) to enter the BIOS Setup Utility, otherwise, POST

continues with its test routines.

If you wish to enter the BIOS Setup after POST, restart the system by pressing

<Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis.

You may also restart by turning the system off and then back on.

The BIOS Setup Utility is designed to be user-friendly. It is a menu-driven program,

which allows you to scroll through its various sub-menus and select among the

predetermined choices.

Because the BIOS software is constantly being updated, the

following BIOS setup screens and descriptions are for reference

purpose only, and may not exactly match what you see on your

screen.

3.1.1 BIOS Menu Bar3.1.1 BIOS Menu Bar

3.1.1 BIOS Menu Bar

3.1.1 BIOS Menu Bar3.1.1 BIOS Menu Bar

The top of the screen has a menu bar with the following selections:

MAIN Sets up the basic system configuration

ADVANCED Sets up the advanced features

SECURITY Sets up the security features

POWER Configures Power Management features

BOOT Configures the default system device that is used

to locate and load the Operating System

EXIT Exits the current menu or the BIOS Setup

To access the menu bar items, press the right or left arrow key on the keyboard

until the desired item is highlighted.

3.1.2 Legend Bar3.1.2 Legend Bar

3.1.2 Legend Bar

3.1.2 Legend Bar3.1.2 Legend Bar

At the bottom of the Setup Screen is a legend bar. The following table lists the keys

in the legend bar with their corresponding functions.

2121

Navigation Key(s) Function Description

<F1> Displays the General Help Screen

<ESC> Jumps to the Exit menu or returns to the upper menu

from the current menu

/ Moves cursor up or down between fields

/ Selects menu to the left or right

+ / - Increases or decreases values

<Enter> Brings up a selected menu for a highlighted field

<F9> Loads all the setup items to default value

<F10> Saves changes and exits Setup

3.2 Main Menu3.2 Main Menu

3.2 Main Menu

3.2 Main Menu3.2 Main Menu

When you enter the BIOS Setup Utility, the following screen appears.

Advanced

Main

System Date System Time

Floppy Drives IDE Devices

BIOS Version Processor Type Processor Speed Cache Size Microcode Update TotalMemory

DDR1 DDR2 DDR3

F1:Help

Esc:Exit

AMIBIOS SETUPUTILITY -VERSION 3.31a

Security

Sep

10:07:40

P4VT8 BIOS P1.00 Pentium (R) 4 CPU

2400 MHz 512 KB F27/33 256 MB 256 MB / 166 MHz (DDR 333) None None

:Select Item :Select Menu

Power

4 2003 Thu

+/-:Change Values

Enter:Select

Boot

Exit

Sub-Menu

[ Setup Help ]

Month: Jan - Dec

Day: 01-31

Year:1980-2099

F9:Setup Defaults F10:Save &Exit

System Date [Month/Day/Year]

Set the system date that you specify. Valid values for month, day, and year are

Month: (Jan to Dec), Day: (1 to 31), Year: (up to 2099). Use keys to move

between the Month, Day and Year fields.

System Time [Hour:Minute:Second]

Set the system to the time that you specify. Use keys to move between

the Hour, Minute and Second fields.

Floppy Drives

Use this to set the type of floppy drives installed.

IDE Devices

Use this to configure IDE devices.

2222

TYPE

To set the type of the IDE device, first, please select “IDE Devices” on Main

menu and press <Enter> to get into the sub-menu. Then, select among

“Primary IDE Master”, “Primary IDE Slave”, “Secondary IDE Master”, and

“Secondary IDE Slave” to make configuration of its type. After making your

selections on this sub-menu, press <ESC> key to return to the upper menu,

in whcih the hard disk drive field will display the size of the hard disk drive

that you configured. Below are the configuration options.

Main

Primary IDE Master:

Type Cylinders Heads Write Precompensation Sectors Maximum Capacity LBA Mode Block Mode Fast Programmed I/O Modes 32 Bit Transfer Mode Ultra DMA Mode

F1:Help

Esc:Previous Menu

AMIBIOS SETUPUTILITY -VERSION 3.31a

Auto

0Mb Off Off Auto On Auto

:Select Item

+/-:Change Values

Enter:Select

Sub-Menu

[ Setup Help ]

Select how to set the parameters of drive,

Or Select [AUTO] to set all HDD parameters automatically.

F9:Setup Defaults F10:Save &Exit

[USER]: It allows user to manually enter the number of cylinders, heads,

and sectors per track for the drive.

Before attempting to configure a hard disk drive, make sure you

have the correct configuration information supplied by the drive

manufacturer. Incorrect settings may cause the system to fail

to recognize the installed hard disk.

[Auto]: Select [Auto] to automatically detect hard disk drive. If auto-

detection is successful, the BIOS Setup automatically fills in the

correct values for the remaining fields on this sub-menu. If the auto-

detection fails, it may due to that the hard disk is too old or too new.

If the hard disk was already formatted on an older system, the BIOS

Setup may detect incorrect parameters. In these cases, select [User]

to manually enter the IDE hard disk drive parameters.

After entering the hard disk information into BIOS, use a disk utility,

such as FDISK, to partition and format new IDE hard disk drives.

This is necessary so that you can write or read data from the hard

disk. Make sure to set the partition of the Primary IDE hard disk

drives to active.

2323

[CD/DVD]: This is used for IDE CD/DVD drives.

[ARMD]: This is used for IDE ARMD (ATAPI Removable Media Device),

such as MO.

Cylinders

This is used to configure the number of cylinders. Refer to the drive

documentation to determine the correct value.

Heads

This is used to configure the number of read/write heads. Refer to

the drive documentation to determine the correct values.

Write Pre-compensation

Enter Write Pre-compensation sector. Refer to the drive documentation to

determine the correct value.

Sectors

This is used to configure the number of sectors per track. Refer to the

drive documentation to determine the correct value.

Maximum Capacity

This field shows the drive’s maximum capacity as calculated by the BIOS

based on the drive information you entered.

LBA Mode

This allows user to select the LBA mode for a hard disk > 512 MB under

DOS and Windows; for Netware and UNIX user, select [Off] to disable the

LBA mode.

Block Mode

Set the block mode to [On] will enhance hard disk performance by reading

or writing more data during each transfer.

Fast Programmed I/O Modes

This allows user to set the PIO mode to enhance hard disk performance by

optimizing the hard disk timing.

32 Bit Transfer Mode

It allows user to enable 32-bit access to maximize the IDE hard disk data

transfer rate.

Ultra DMA Mode

Ultra DMA capability allows improved transfer speeds and data integrity

for compatible IDE devices. Set to [Disabled] to suppress Ultra DMA

capability.

3.3 Advanced, Security, Power, Boot, and Exit Menus3.3 Advanced, Security, Power, Boot, and Exit Menus

3.3 Advanced, Security, Power, Boot, and Exit Menus

3.3 Advanced, Security, Power, Boot, and Exit Menus3.3 Advanced, Security, Power, Boot, and Exit Menus

Detailed descriptions of these menus are listed in the Appendix. See page 26.

2424

Chapter 4 Software SupporChapter 4 Software Suppor

Chapter 4 Software Suppor

Chapter 4 Software SupporChapter 4 Software Suppor

4.1 Install Operating System4.1 Install Operating System

4.1 Install Operating System

4.1 Install Operating System4.1 Install Operating System

This motherboard supports various Microsoft® Windows® operating systems:

98 SE / ME / 2000 / XP. Because motherboard settings and hardware options vary,

use the setup procedures in this chapter for general reference only. Refer to your

OS documentation for more information.

4.2 Support CD Information4.2 Support CD Information

4.2 Support CD Information

4.2 Support CD Information4.2 Support CD Information

The Support CD that came with the motherboard contains necessary drivers and

useful utilities that enhance the motherboard features.

4.2.1 Running The Support CD4.2.1 Running The Support CD

4.2.1 Running The Support CD

4.2.1 Running The Support CD4.2.1 Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. The CD

automatically displays the Main Menu if “AUTORUN” is enabled in your computer.

If the Main Menu did not appear automatically, locate and double click on the file

ASSETUP.EXE from the BIN folder in the Support CD to display the menus.

4.2.2 Drivers Menu4.2.2 Drivers Menu

4.2.2 Drivers Menu

4.2.2 Drivers Menu4.2.2 Drivers Menu

The Drivers Menu shows the available devices drivers if the system detects

installed devices. Install the necessary drivers to activate the devices.

4.2.3 Utilities Menu4.2.3 Utilities Menu

4.2.3 Utilities Menu

4.2.3 Utilities Menu4.2.3 Utilities Menu

The Utilities Menu shows the applications software that the motherboard

supports. Click on a specific item then follow the installation wizard to install it.

4.2.4 ASRock PC-DIY Live Demo Program4.2.4 ASRock PC-DIY Live Demo Program

4.2.4 ASRock PC-DIY Live Demo Program

4.2.4 ASRock PC-DIY Live Demo Program4.2.4 ASRock PC-DIY Live Demo Program

ASRock presents you a multimedia PC-DIY live demo, which shows you how to

install your own PC system step by step. You can find the file through the

following path:

..\ MPEGAV \ AVSEQ01.DAT

To see this demo program, you can run Microsoft® Media Player® to play the file.

4.2.54.2.5

4.2.5

4.2.54.2.5

If you need to contact ASRock or want to know more about ASRock, welcome

to visit ASRock’s website at http://www.asrock.com; or you may contact your

dealer for further information.

Contact InformationContact Information

Contact Information

Contact InformationContact Information

2525

Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup

Appendix: Advanced BIOS Setup

Appendix: Advanced BIOS SetupAppendix: Advanced BIOS Setup

This section will introduce you the following BIOS Setup menus: “Advanced,”

“Security,” “Power,” “Boot,” and “Exit.”

1. Advanced BIOS Setup Menu1. Advanced BIOS Setup Menu

1. Advanced BIOS Setup Menu

1. Advanced BIOS Setup Menu1. Advanced BIOS Setup Menu

Advanced

Main

Spread Spectrum CPU Host Frequency

Actual Frequency CPU Ratio Selection DRAM Frequency

Chipset Configuration Resource

Configuration

Peripheral

Configuration

System Hardware Monitor

F1:Help

Esc:Exit

AMIBIOS SETUPUTILITY -VERSION 3.31a

Security

:Select Item :Select Menu

Power

Disabled

Auto 133MHz Locked Auto

+/-:Change Values

Enter:Select

Boot

Exit

Sub-Menu

[ Setup Help ]

<Enter> to enable or disable the feature of spread spectrum.

F9:Setup Defaults F10:Save &Exit

Spread Spectrum:

This field should always set to [Disabled] for better system stability.

CPU Host Frequency:

This shows current CPU host frequency of the installed motherboard.

CPU Ratio Selection:

CPU Ratio is the multiple that times the frontside bus frequency will equal

the core speed of the installed processor. Whether the option is open or locked

is determined by the installed processor.

DRAM Frequency:

If [Auto] is selected, the motherboard will detect the memory module(s) inserted

and assigns appropriate frequency automatically. You may also select other

value as operating frequency: [100MHz (DDR 200)], [133MHz (DDR 266)],

[166MHz (DDR 333)], [200MHz (DDR 400)].

2626

Chipset Configuration:

Advanced

Chipset Configuration

AGP Mode AGP Aperture Size AGP Fast Write PCI Delay Transaction

USB Controller USB Device Legacy Support

DRAM CAS# Latency Hyper-Threading Technology

AMIBIOS SETUPUTILITY -VERSION 3.31a

Auto

128MB Disabled Disabled

Enabled Disabled

Auto Auto

[ Setup Help ]

<Enter> to select AGP mode.

F1:Help

Esc:Previous Menu

:Select Item

+/-:Change Values

Enter:Select

Sub-Menu

F9:Setup Defaults F10:Save &Exit

AGP Mode: The default value of this feature is set to [Auto]. If you install an

8X-AGP card on this motherboard, you may select [Auto], [8X] or [4X]

as the AGP mode. If the installed AGP card is a 4X-AGP card, then you may

set the AGP mode as [Auto], [4X], [2X], or [1X].

AGP Aperture Size: It refers to a section of the PCI memory address range

used for graphics memory. It is recommended to leave this field at the

default value unless the installed AGP card’s specifications requires other

sizes.

AGP Fast Write: This allows you to enable or disable the feature of AGP fast

write protocol support.

PCI Delay Transaction: Enable PCI Delay Transaction feature will free the PCI

Bus when the CPU is accessing 8-bit ISA cards. Disable this feature

when using ISA cards that are not PCI 2.1 compliant.

USB Controller: Use this to enable or disable the use of USB controller.

USB Device Legacy Support: Use this to enable or disable the support to

emulate legacy I/O devices such as mouse, keyboard,... etc.

DRAM CAS# Latency:

This is used to adjust the means of memory accessing. Configuration options:

[Auto], [2T], [2.5T], [3T]. Please note that not all the DDR DIMMs can support

CAS latency=3T.

Hyper-Threading Technology:

To enable this feature, it requires a computer system with an Intel

Pentium®4 processor that supports Hyper-Threading technology and an

operating system that includes optimization for this technology, such as

Microsoft® Windows® XP. Set to [Auto] if using Microsoft® Windows® XP, or

Linux kernel version 2.4.18 or higher. This option will be hidden if the

current CPU does not support Hyper-Threading technology.

2727

Resource Configuration:

Advanced

Resource Configuration

PCI Latency Timer (PCI Clocks) Primary Graphics Adapter

F1:Help

Esc:Previous Menu

AMIBIOS SETUPUTILITY -VERSION 3.31a

PCI

:Select Item

+/-:Change Values

Enter:Select

Sub-Menu

[ Setup Help ]

<Enter> to select PCI clocks. Leave on default setting for the best PCI performance.

F9:Setup Defaults F10:Save &Exit

PCI Latency Timer (PCI Clocks): The default is 32. It is recommended to keep

the default value unless the inserted PCI expansion cards’ specifications

require other settings.

Primary Graphics Adapter: This allows you to select [AGP] or [PCI] as the

primary graphics adapter.

Peripheral Configuration:

Advanced

Peripheral Configuration

OnBoard FDC OnBoard Serial Port OnBoard Infrared Port OnBoard Parallel Port

Parallel Port Mode EPP Version Parallel Port IRQ Parallel Port DMA Channel

OnBoard Midi Port

Midi IRQ Select OnBoard Game Port OnBoard PATA-IDE OnBoard LAN OnBoard AC' 97 Audio

AMIBIOS SETUPUTILITY -VERSION 3.31a

Auto

Auto Disabled Auto ECP + EPP

1.9 Auto Auto Disabled 5 200h Enabled Enabled Auto

[ Setup Help ]

<Enter> to enable or disable the floppy drive controller.

2828

F1:Help

Esc:Previous Menu

:Select Item

+/-:Change Values

Enter:Select

Sub-Menu

F9:Setup Defaults F10:Save &Exit

OnBoard FDC: Use this to enable or disable floppy drive controller.

OnBoard Serial Port: Use this to set addresses for the onboard serial ports or

disable serial ports. Configuration options: [Auto], [Disabled], [3F8 / IRQ4 /

COM1], [2F8 / IRQ3 / COM2], [3E8 / IRQ4 / COM3], [2E8 / IRQ3 / COM4].

OnBoard Infrared Port: You may select [Enable] or [Disabled] for this

onboard infrared port feature.

OnBoard Parallel Port: Select Parallel Port address or disable Parallel Port.

Configuration options: [Auto], [Disabled], [378], [278].

Parallel Port Mode: Set the operation mode of the parallel port. The

default value is [ECP+CPP]. If this option is set to [ECP+EPP], it will

show the EPP version in the following item, “EPP Version”.

OnBoard Midi Port: Select address for Midi Port or disable Midi Port.

Configuration options: [Disabled], [330], [300], [290], [292].

Midi IRQ Select: Use this to select Midi IRQ.

OnBoard Game Port: Select address for Game Port or disable Game Port.

Configuration options: [Disabled], [200h], [208h].

OnBoard PATA-IDE: This allows you to enable or disable the onboard Parallel

IDE controller.

OnBoard LAN: This allows you to enable or disable the onboard LAN feature.

OnBoard AC’97 Audio: Select [Disabled], [Auto] or [Enabled] for the onboard

AC’97 Audio feature.

System Hardware Monitor: You can check the status of the hardware on your

system. It allows you to monitor the parameters for CPU temperature,

Motherboard temperature, CPU fan speed, and critical voltage.

Advanced

System Hardware Monitor

CPU Temperature M/B

Temperature

CPU FanSpeed Chassis FanSpeed Vcore

+ 3.30V + 5.00V + 12.00V

F1:Help

Esc:Previous Menu

AMIBIOS SETUPUTILITY -VERSION 3.31a

35C/ 95F 27C/ 82F 3110 RPM

0RPM

1.60 V

3.31 V

4.97 V

12.16 V

:Select Item

+/-:Change Values

Enter:Select

Sub-Menu

[ Setup Help ]

F9:Setup Defaults F10:Save &Exit

2929

2. Security Setup Menu2. Security Setup Menu

2. Security Setup Menu

2. Security Setup Menu2. Security Setup Menu

Advanced

Main

Supervisor Password User Password

Set SupervisorPassword Set UserPassword

Password Check

F1:Help

Esc:Exit

AMIBIOS SETUPUTILITY -VERSION 3.31a

Security

Clear Clear

[ Enter ]

Setup

:Select Item :Select Menu

Power

+/-:Change Values

Enter:Select

Boot

Exit

Sub-Menu

[ Setup Help ]

<Enter> to set the supervisor password.

F9:Setup Defaults F10:Save &Exit

Supervisor Password: This field shows the status of the Supervisor Password.

[Clear]: No password has been set.

[Set]: Supervisor password has been set.

User Password: This field shows the status of the User Password.

[Clear]: No password has been set.

[Set]: User password has been set.

Set Supervisor Password: Press <Enter> to set Supervisor Password. Valid

password can be a 1 to 6 alphanumeric characters combination. If you already

have a password, you must enter your current password first in order to

create a new password.

Set User Password: Press <Enter> to set User Password. Valid password can

be a 1 to 6 alphanumeric characters combination. If you already have a

password, you must enter your current password first in order to create a new

password.

Password Check: Select the check point for “Password Check”. Configuration

options: [Setup], [Always]. If [Setup] option is selected, the “Password Check”

is performed before BIOS setup. If [Always] option is selected, the “Password

Check” is performed before both boot-up and BIOS setup.

3030

3. Power Setup Menu3. Power Setup Menu

3. Power Setup Menu

3. Power Setup Menu3. Power Setup Menu

Advanced

Main

Suspend To RAM Repost Video on STR Resume Restore on AC / Power Loss Ring-In Power On PCI Devices Power On Keyboard Power On RTC Alarm Power On

RTC Alarm Date RTC Alarm Hour RTC Alarm Minute RTC Alarm Second

F1:Help

Esc:Exit

Security

:Select Item :Select Menu

AMIBIOS SETUPUTILITY -VERSION 3.31a

Power

Disabled Disabled

Power Off

Disabled Disabled Disabled Disabled 15 12 30 30

+/-:Change Values

Enter:Select

Boot

Exit

Sub-Menu

[ Setup Help ]

Set the power state after an unexpected AC /Power loss.

F9:Setup Defaults F10:Save &Exit

Suspend to RAM: This field allows you to select whether to auto-detect or disable

the Suspend-to-RAM feature. Select [Auto] will enable this feature if the system

supports it.

Repost Video on STR Resume: This feature allows you to repost video on STR

resume. It is recommended to enable this feature under Microsoft® Windows

98 / ME.

Restore on AC/Power Loss: This allows you to set the power state after an

unexpected AC/power loss. If [Power Off] is selected, the AC/power remains

off when the power recovers. If [Power On] is selected, the AC/power

resumes and the system starts to boot up when the power recovers.

Ring-In Power On: Use this to enable or disable Ring-in signals to turn on the

system from the power-soft-off mode.

PCI Devices Power On: Use this to enable or disable PCI devices to turn on the

system from the power-soft-off mode.

Keyboard Power On: Use this to enable or disable PS/2 keyboard to turn on the

system from the power-soft-off mode.

RTC Alarm Power On: Use this to enable or disable RTC (Real Time Clock) to

power on the system. If [Enable] is selected, you will need to fill the RTC Alarm

Date / Hour / Minute / Second sub-fields with the actual wake up time you desire.

3131

4. Boot Setup Menu4. Boot Setup Menu

4. Boot Setup Menu

4. Boot Setup Menu4. Boot Setup Menu

Advanced

Main

Quick Boot Mode Boot Up Num-Lock Boot To OS/2 Boot From Network

Boot Device Priority

F1:Help

Esc:Exit

AMIBIOS SETUPUTILITY -VERSION 3.31a

Security

Enabled

On No Disabled

:Select Item :Select Menu

Power

+/-:Change Values

Enter:Select

Boot

Exit

Sub-Menu

[ Setup Help ]

<Enter> to enable or disable the quick boot mode.

F9:Setup Defaults F10:Save &Exit

Quick Boot Mode: Enable this mode will speed up the boot-up routine by skipping

memory retestings. The default value is [Enabled].

Boot Up Num-Lock: If this is enabled, it will automatically activate the Numeric Lock

function after boot-up. The default value is [On].

Boot To OS/2: This enables boot-up to OS/2 operating system.

The default value is [No].

Boot From Network: Use this to enable or disable “boot from network” feature.

The default value is [Disabled].

Boot Device Priority: This allows you to set the boot device priority.

3232

5. Exit Menu5. Exit Menu

5. Exit Menu

5. Exit Menu5. Exit Menu

Advanced

Main

Exit Saving Changes Exit Discarding Changes Load Default Settings Discard Changes

F1:Help

Esc:Exit

AMIBIOS SETUPUTILITY -VERSION 3.31a

Security

[ Enter ]

[ Enter ] [ Enter ] [ Enter ]

:Select Item :Select Menu

Power

+/-:Change Values

Enter:Select

Boot

Exit

Sub-Menu

[ Setup Help ]

Exits and saves the changesinCMOSRAM.

F9:Setup Defaults F10:Save &Exit

Exit Saving Changes: After you enter the sub-menu, the message “Save current

settings and exit” will appear. If you press <ENTER>, it will save the current

settings and exit the BIOS SETUP Utility.

Exit Discarding Changes: After you enter the submenu, the message “Quit

without saving changes” will appear. If you press <ENTER>, you will exit the

BIOS Setup Utility without making any changes to the settings.

Load Default Settings: After you enter the submenu, the message “Load default

settings” will appear. If you press <Enter>, it will load the default values for all

the setup configurations.

Discard Changes: After you enter the sub-menu, the message “Load setup

original values” will appear. If you press <ENTER>, original values will be

restored and all changes are discarded.

3333

Kenmore P4VT8 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
