Kenmore Oasis HE 110.2806 Series, Oasis HE 110.2807 Series Use & Care Manual

™

Automatic Washers

Use & Care Guide

Lavadoras automáticas

Manual de uso y cuidado

Laveuses automatiques

Guide d’utilisation et d’entretien

Models/Modelos/Modèles 110.2806∗, 2807∗

∗ = color number, número de color, numéro de couleur

Designed to use only High Efficiency (HE) detergent

Diseñado para utilizar solamente detergente de alto rendimiento

Conçu pour l'utilisation d'un détergent haute efficacité seulement

W10026667A Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

Sears Roebuck and Co., Hoffman Estates, IL 60179, U.S.A. www.sears.com

TABLE OF CONTENTS

PROTECTION AGREEMENTS.......................................................2

WARRANTY.....................................................................................3

WASHER SAFETY...........................................................................3

INSTALLATION REQUIREMENTS ................................................4

Tools and Parts ............................................................................4

Location Requirements ................................................................5

Drain System ................................................................................5

Electrical Requirements................................................................6

INSTALLATION INSTRUCTIONS ..................................................6

Before You Start...........................................................................6

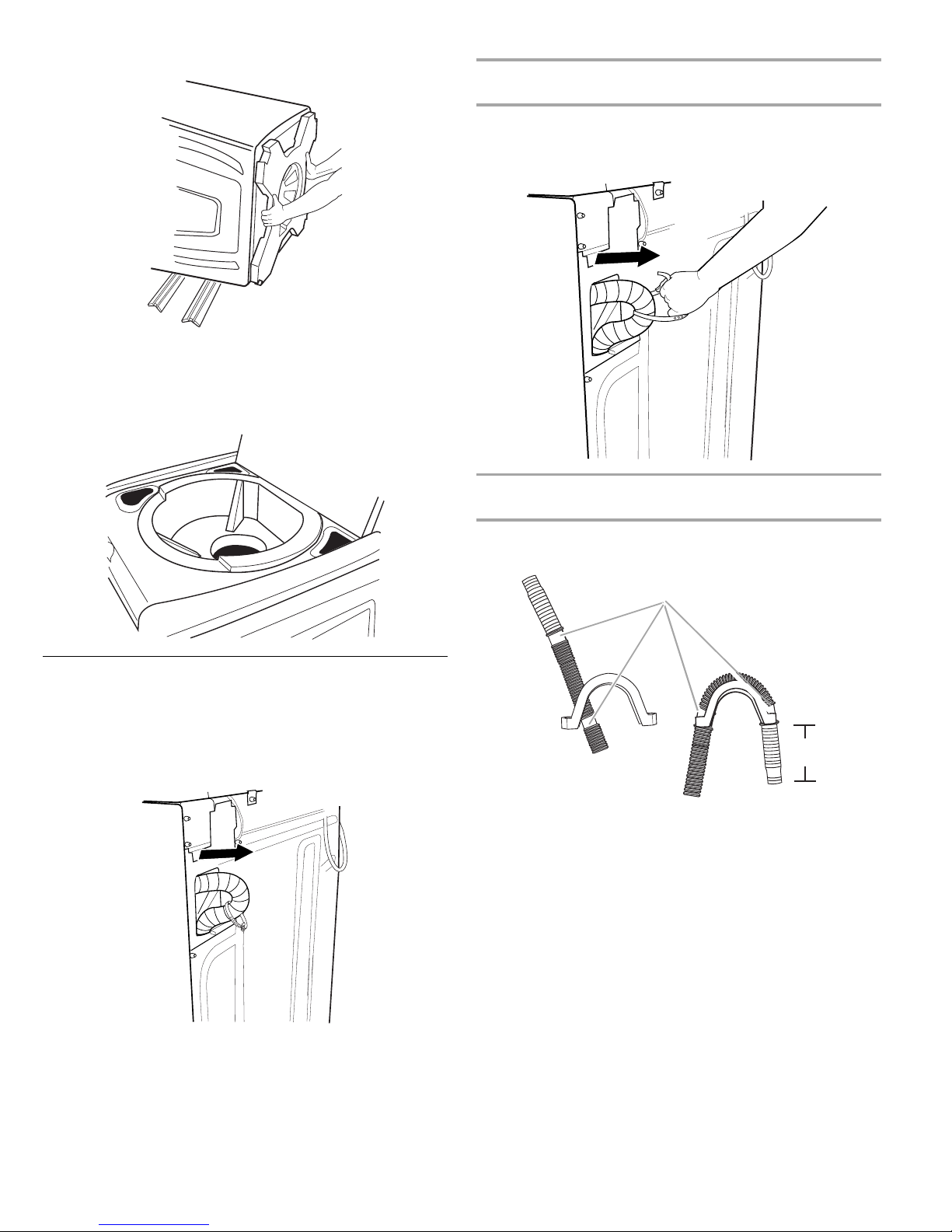

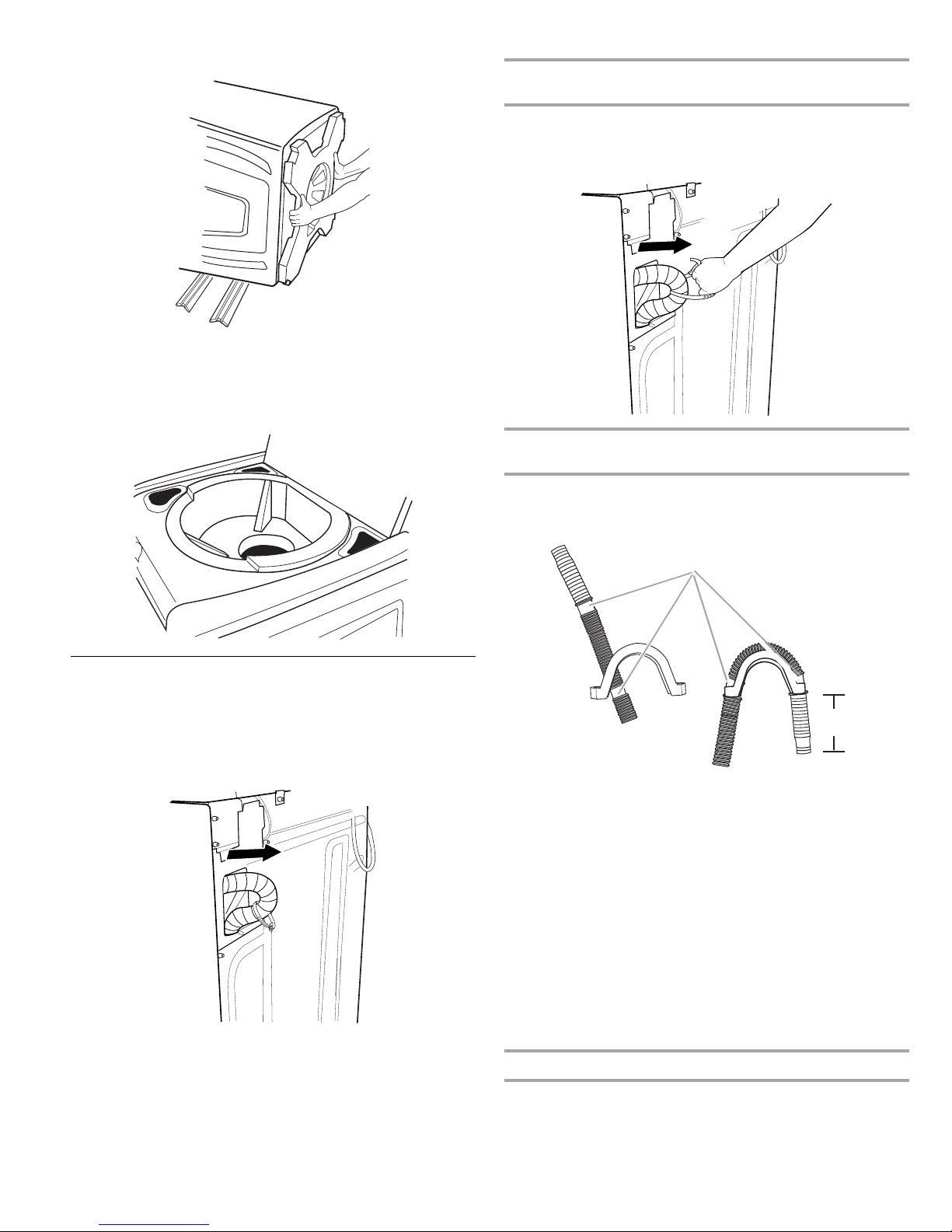

Remove Shipping Base and Packing Ring ..................................6

Connect Drain Hose.....................................................................7

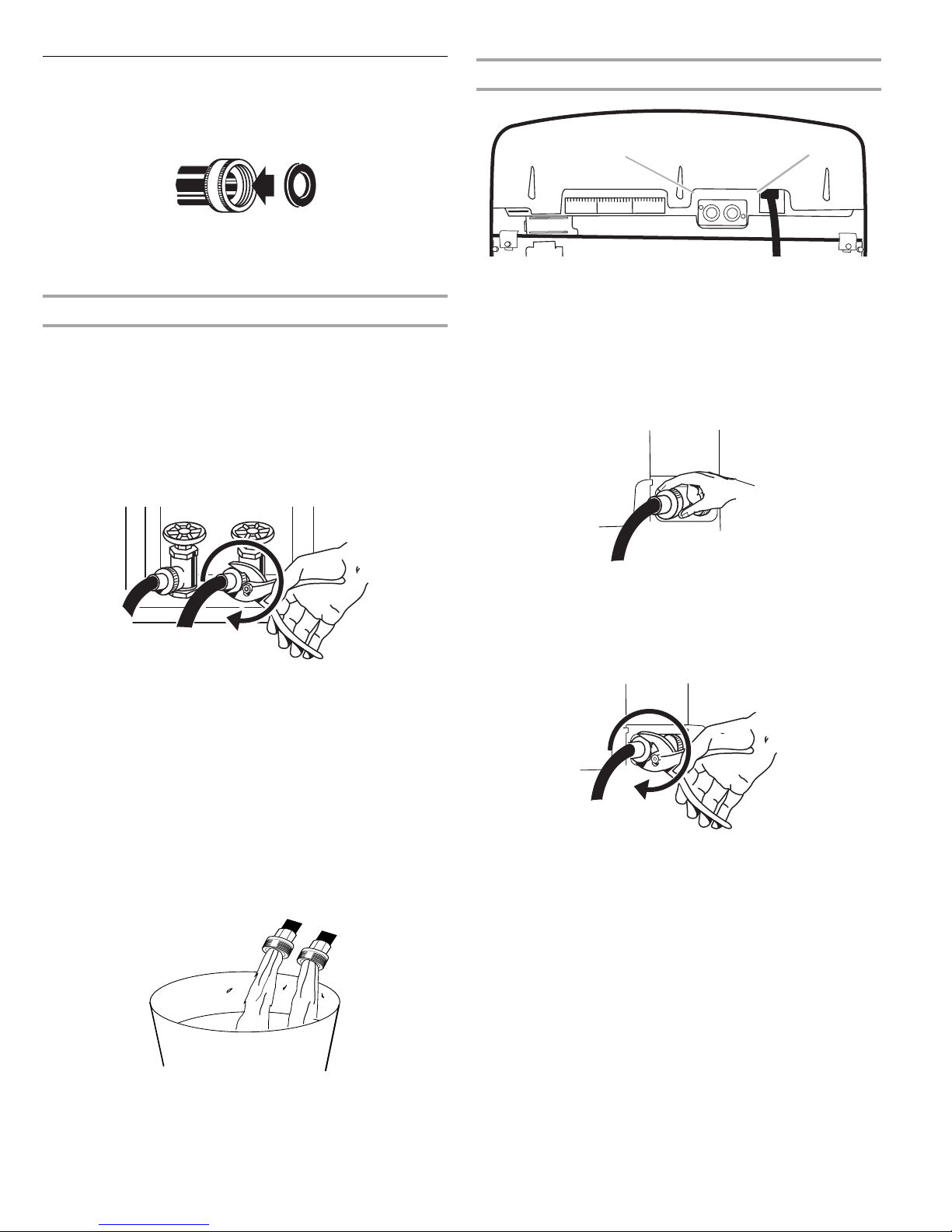

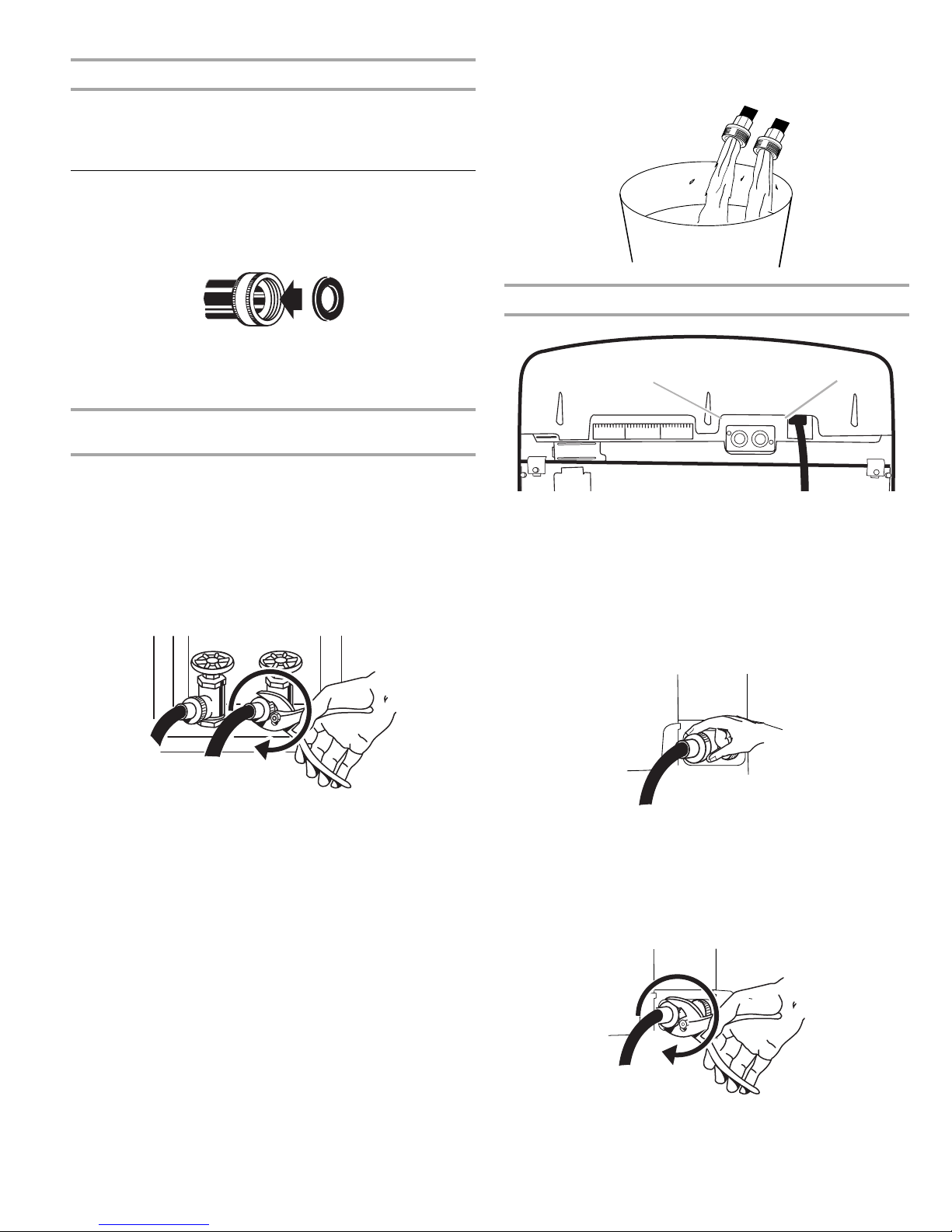

Connect the Inlet Hoses...............................................................8

Secure the Drain Hose .................................................................9

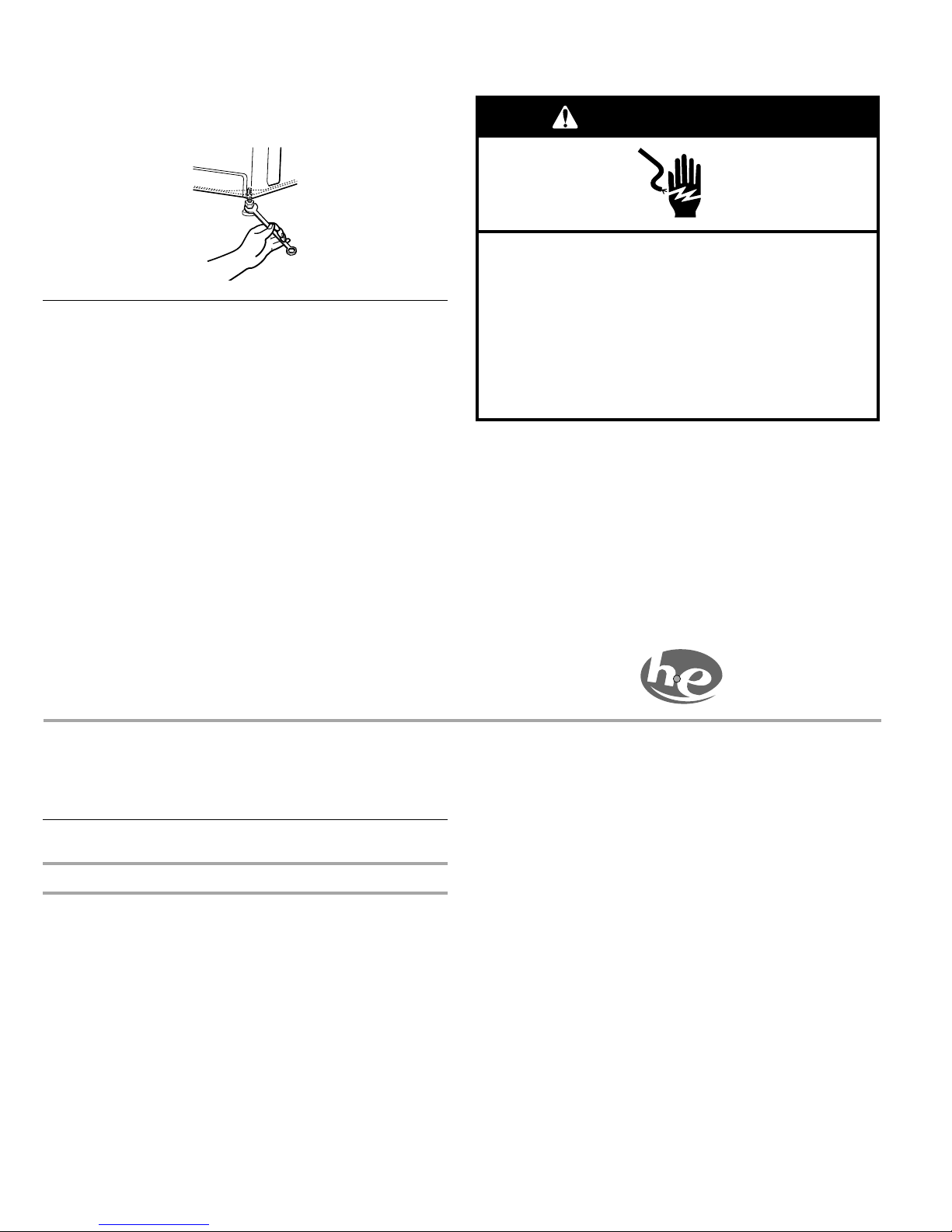

Level the Washer..........................................................................9

Complete Installation................................................................. 10

BENEFITS AND FEATURES ....................................................... 10

Benefits...................................................................................... 10

Features..................................................................................... 10

WASHER USE .............................................................................. 11

Starting Your Washer ................................................................ 11

PROTECTION AGREEMENTS

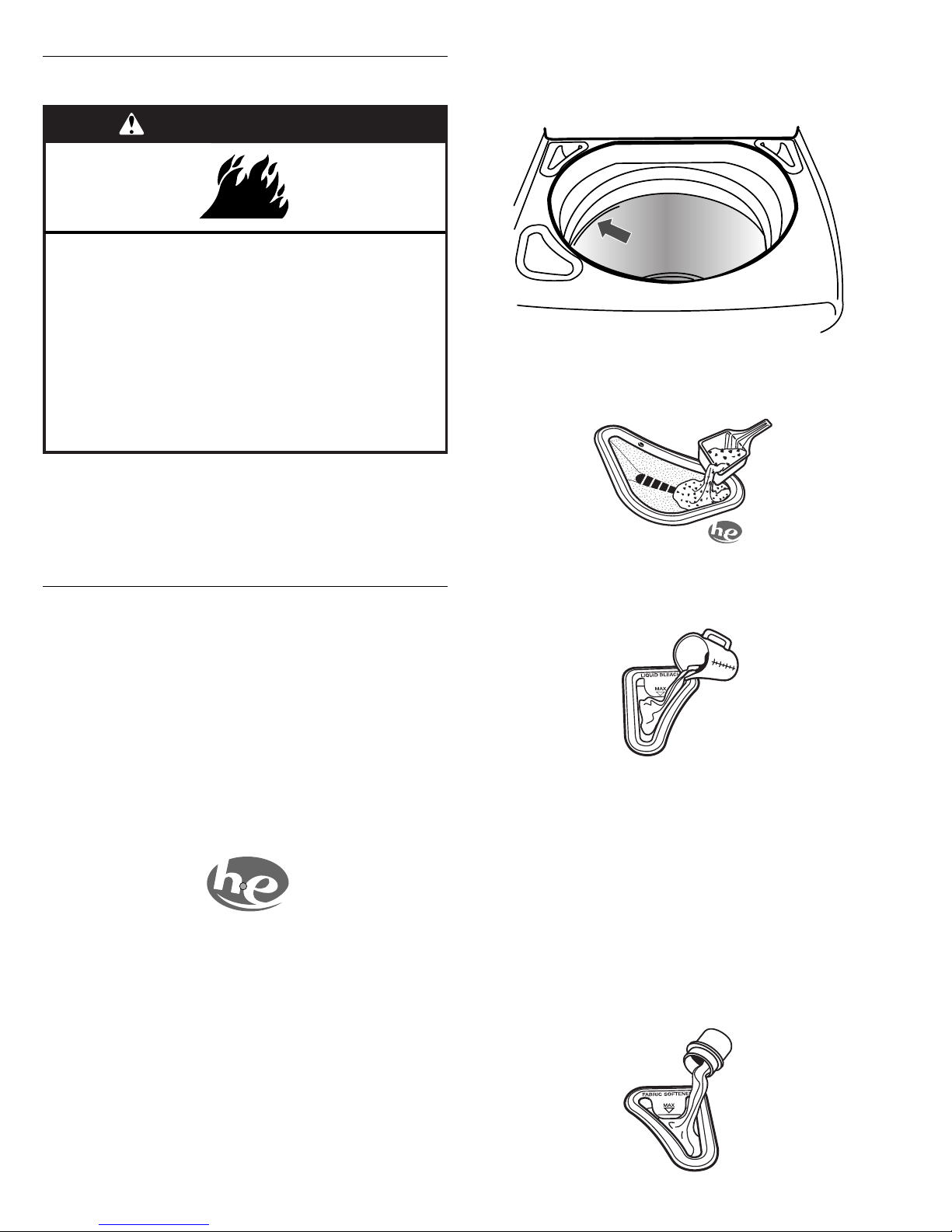

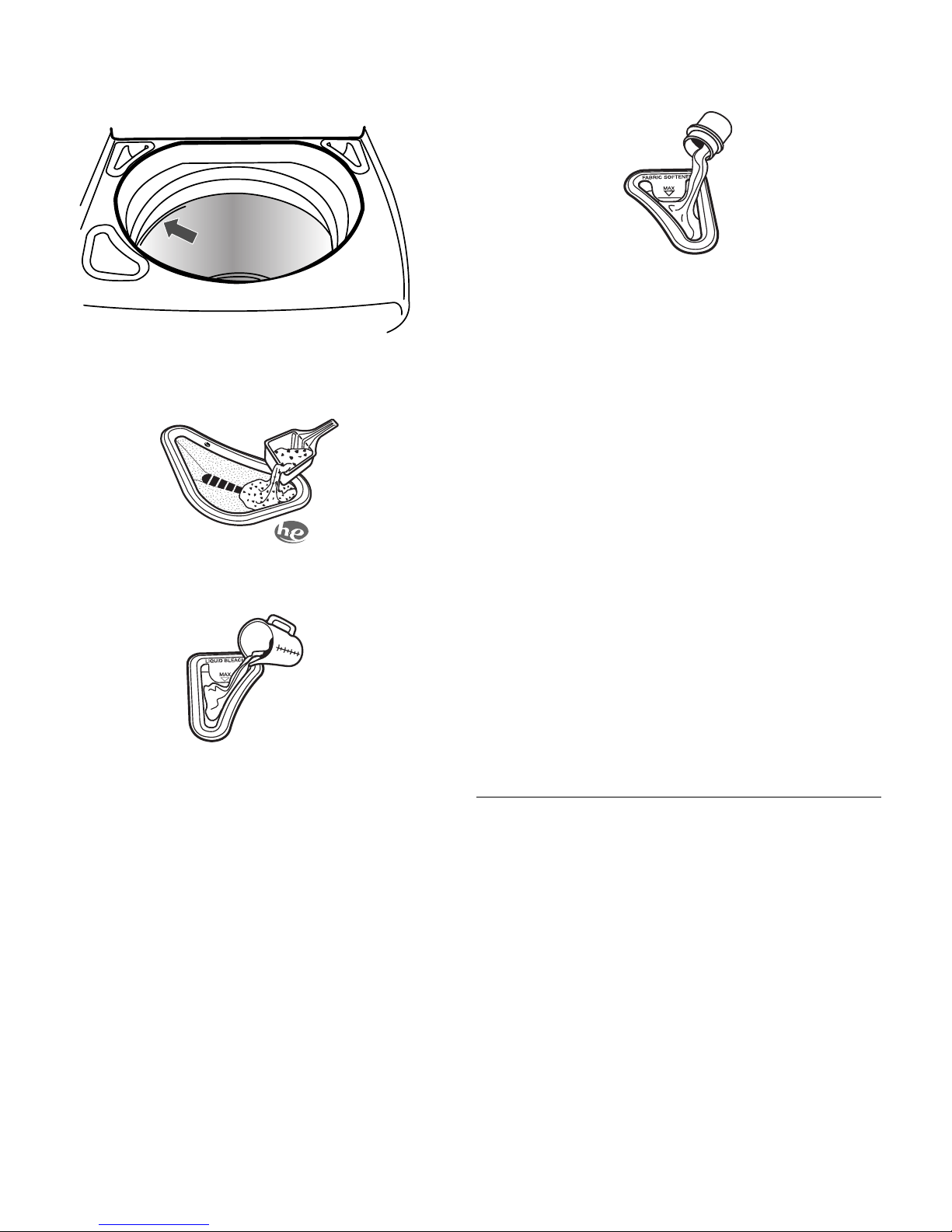

Using the Proper Detergent....................................................... 11

Pausing or Restarting the Washer............................................. 12

Stopping the Washer................................................................. 12

Changing Cycles, Modifiers, and Options ................................ 12

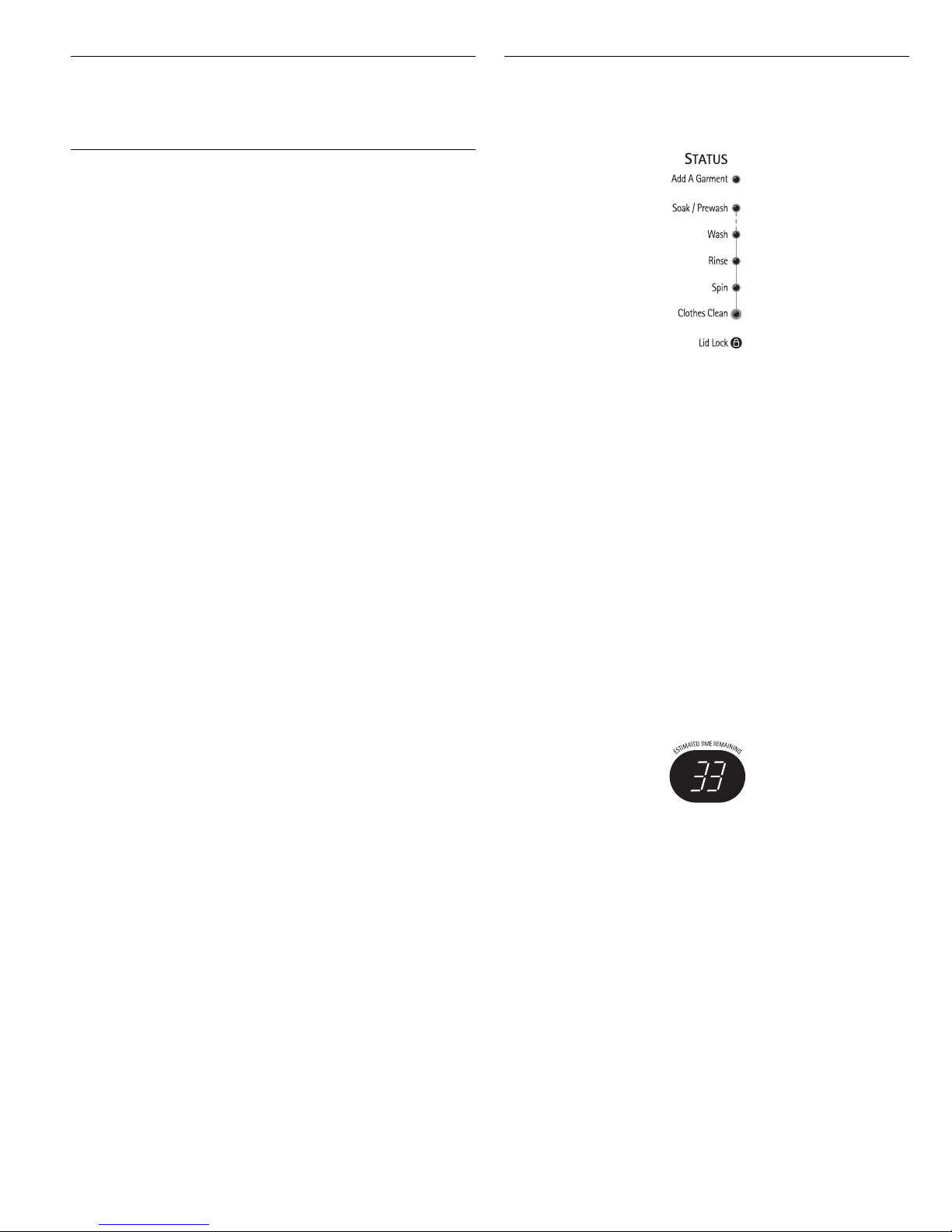

Status Lights.............................................................................. 13

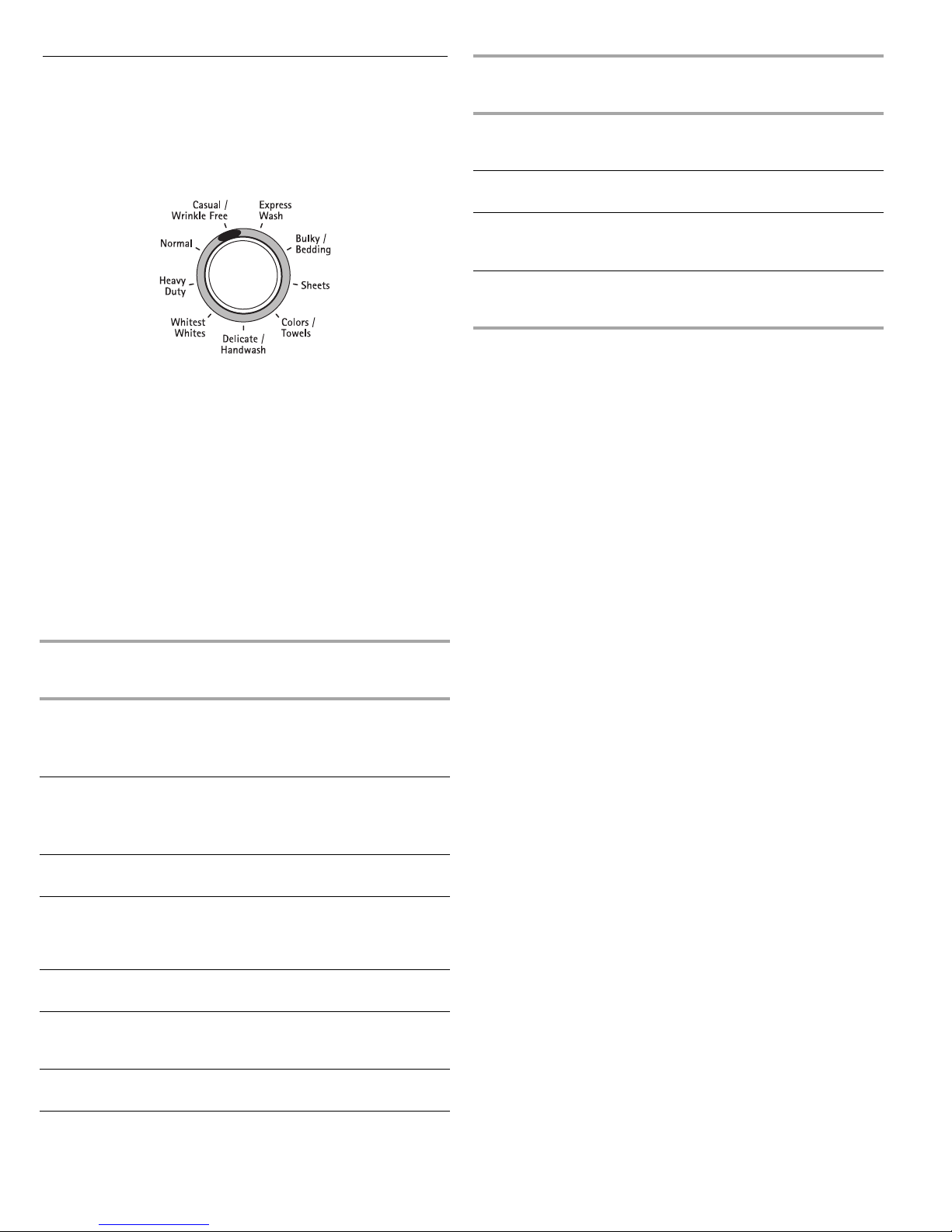

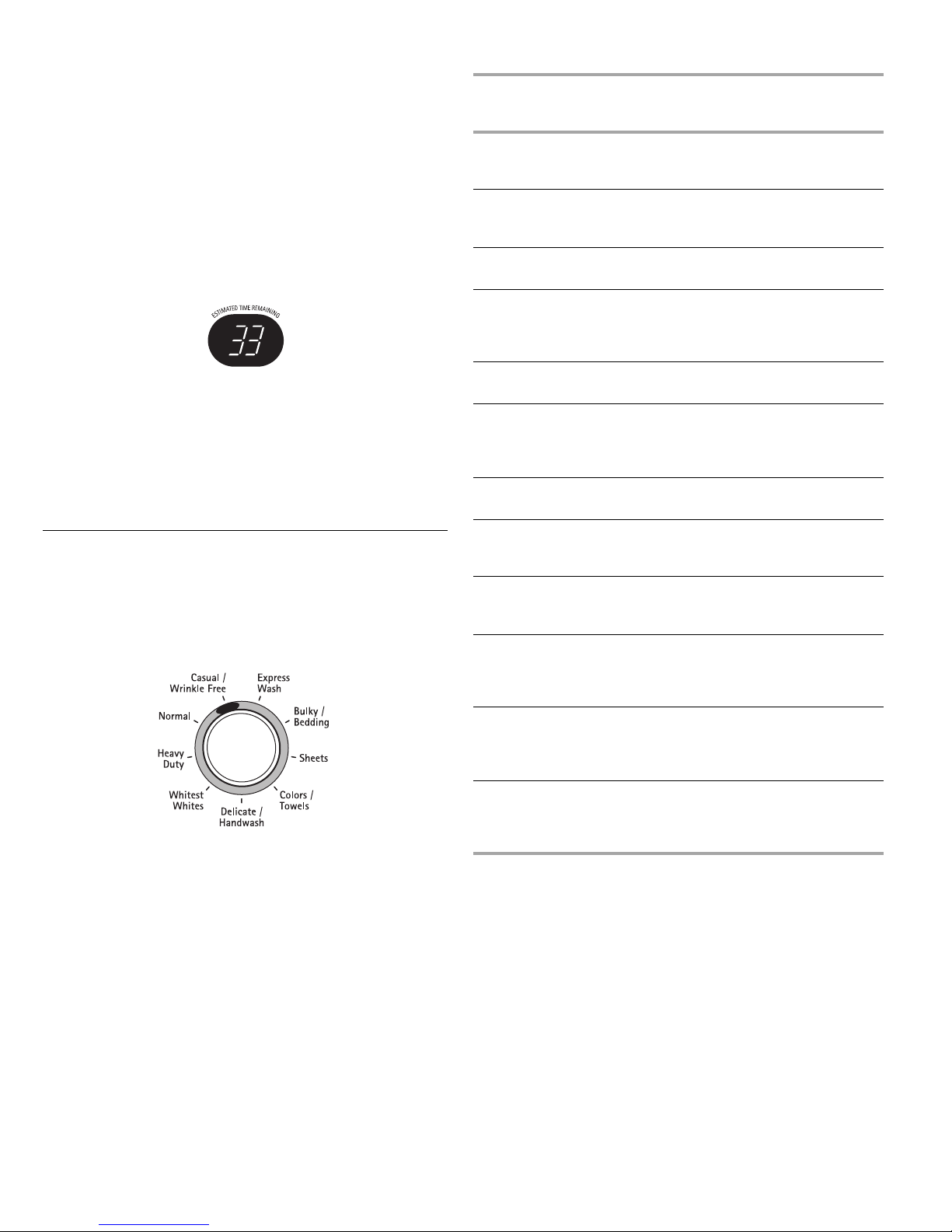

Cycles ........................................................................................ 13

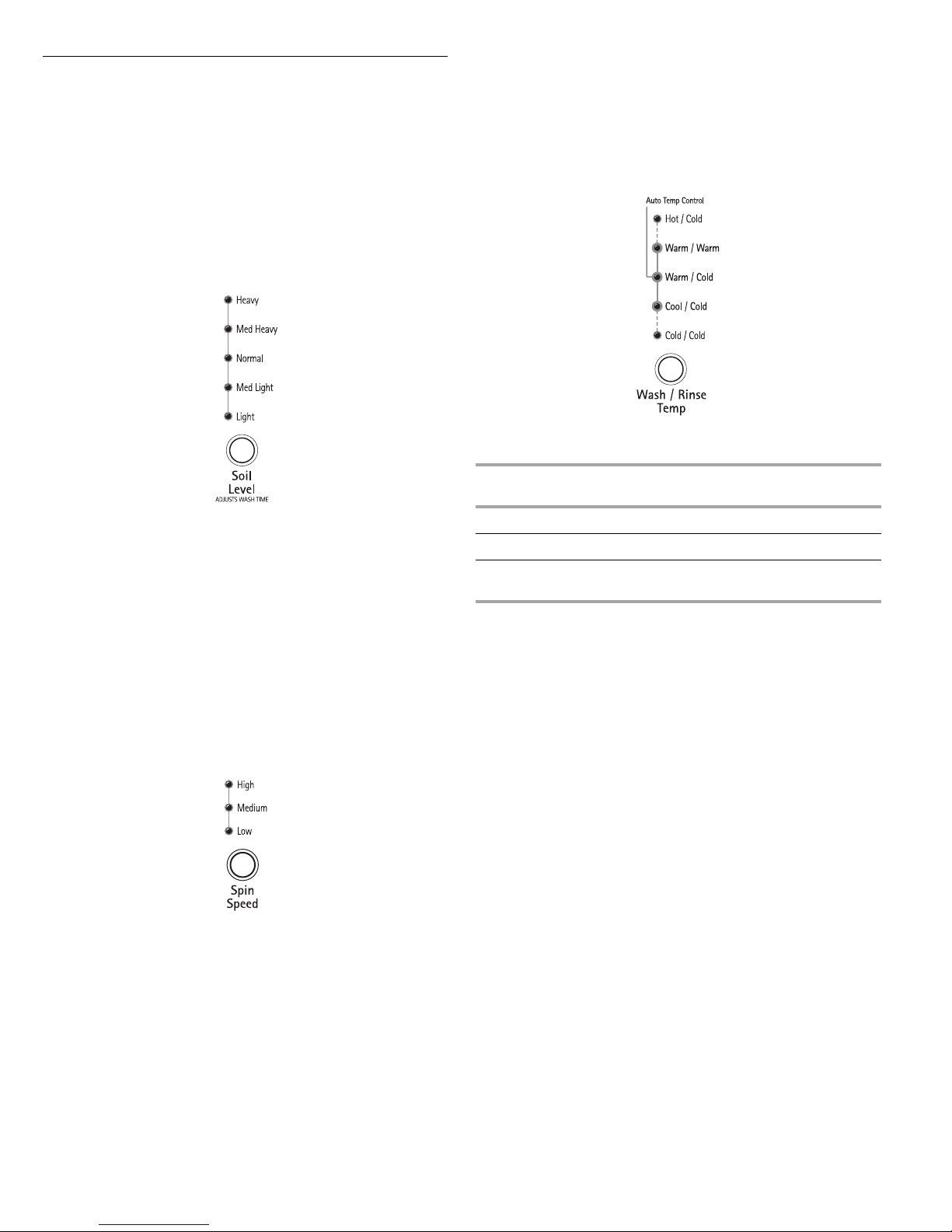

Modifiers .................................................................................... 15

Options ...................................................................................... 16

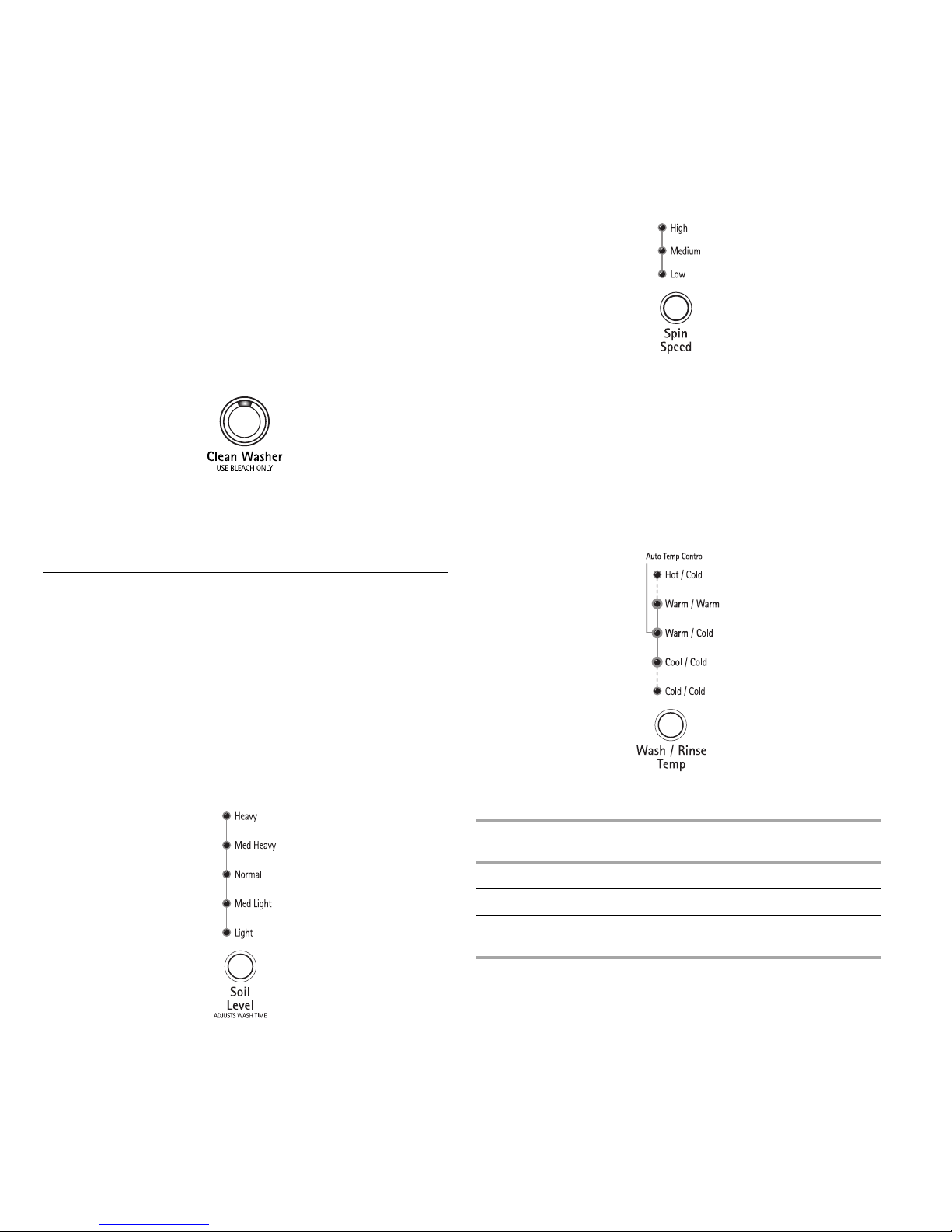

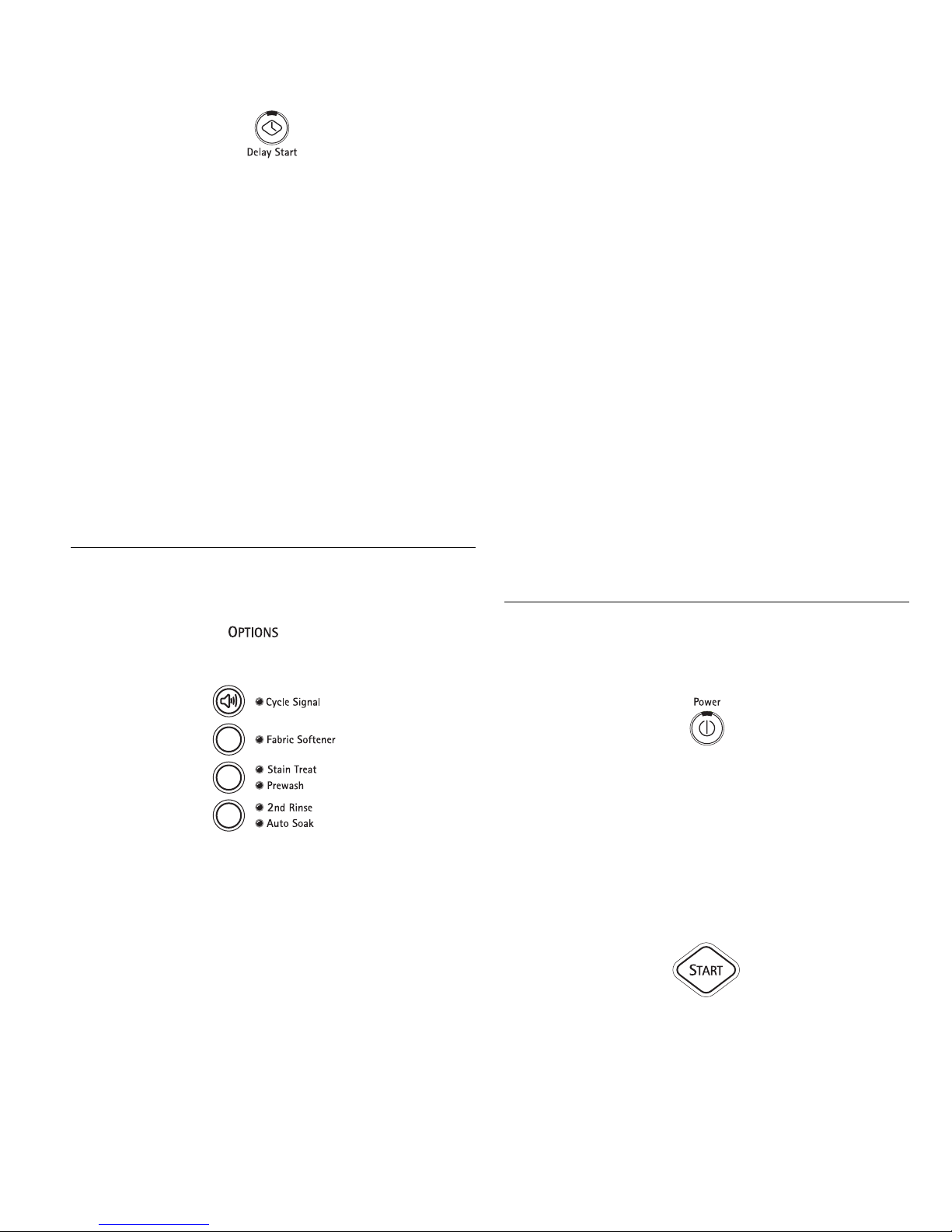

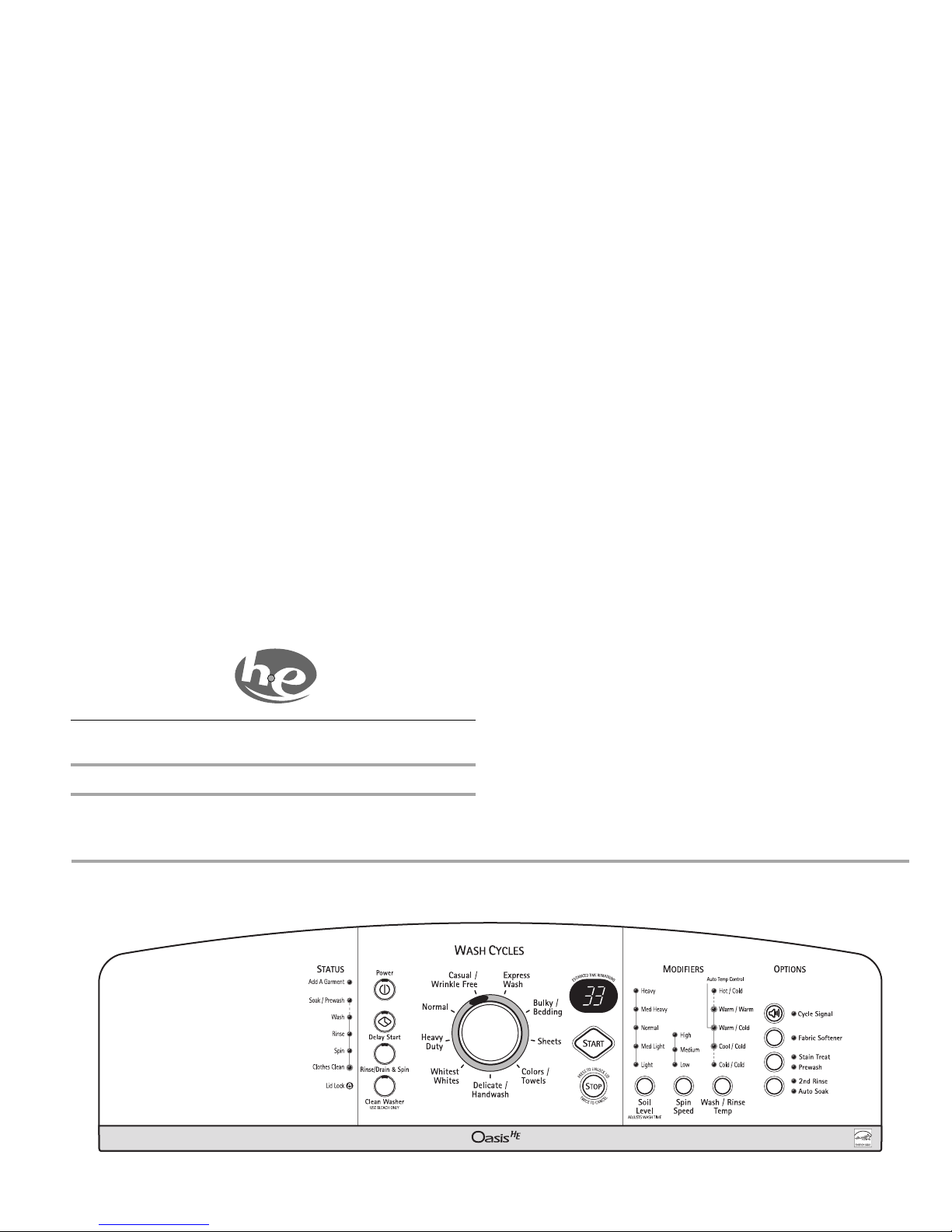

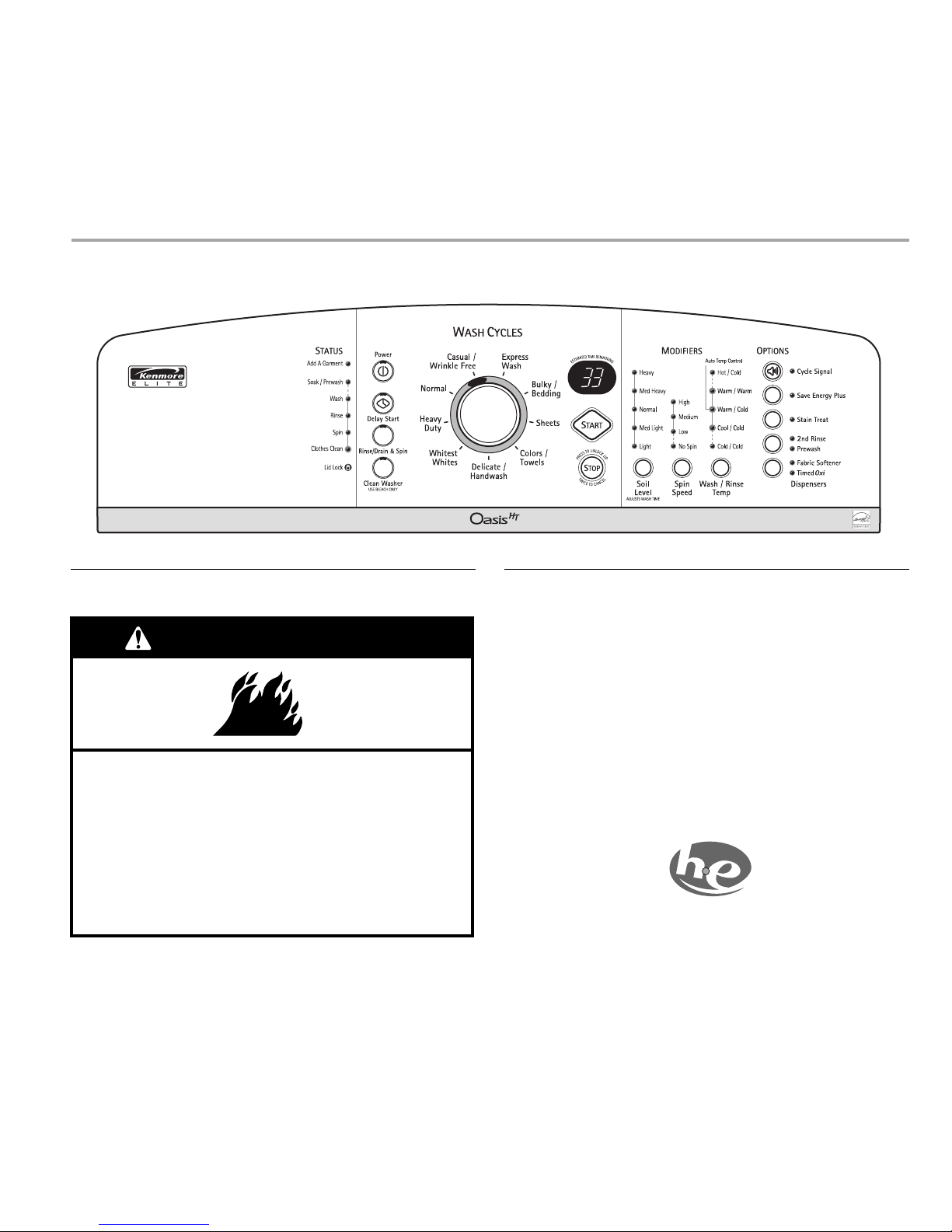

Operating Controls .................................................................... 16

Normal Sounds.......................................................................... 16

LAUNDRY TIPS............................................................................ 17

WASHER CARE............................................................................ 17

Cleaning Your Washer............................................................... 17

Water Inlet Hoses ...................................................................... 18

Vacation, Storage and Moving Care ......................................... 18

TROUBLESHOOTING.................................................................. 19

Washer and Components ......................................................... 19

Washer Operation ..................................................................... 20

Clothing Care............................................................................. 21

SERVICE NUMBERS ................................................................... 75

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

✓ Parts and labor needed to help keep products operating

✓ Expert service by a force of more than 10,000 authorized

✓ Unlimited service calls and nationwide service, as often as

✓ “No-lemon” guarantee – replacement of your covered

✓ Product replacement if your covered product can’t be fixed. ✓ Annual Preventive Maintenance Check at your request – no

✓ Fast help by phone – we call it Rapid Resolution – phone

product is designed and manufactured for years of

properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage— real protection.

Sears service technicians, which means someone you can trust will be working on your product.

you want us, whenever you want us.

product if four or more product failures occur within twelve months.

extra charge.

support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

✓ Power surge protection against electrical damage due to

power fluctuations.

✓ $250 Food Loss Protection annually for any food spoilage

that is the result of mechanical failure of any covered refrigerator or freezer.

✓ Rental reimbursement if repair of your covered product

takes longer than promised.

✓ 10% discount off the regular price of any non-covered repair

service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 18008276655.

*Coverage in Canada varies on some items. For full details

call Sears Canada at 18003616665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 18004MYHOME

KENMORE ELITE® APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME repair.

TEN-YEAR LIMITED WARRANTY ON STAINLESS STEEL DRUM

For ten years from the date of pur installed, operated and maintained according to all instructions supplied with the product, Sears will replace the stainless steel drum and/or plastic tub due to defective materials or workmanship. After the first year, customer assumes any labor costs associated with replacement of these parts.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP

1. Expenda

2. A se

3. A se

4. Dam

5. Dam

6. Damage to or failure of this product caused by the use of

7. Dam

AND PLASTIC TUB

chase, when this washer is

. SEARS WILL NOT PAY FOR:

ble items that can wear out from normal use,

including but not limited to filters, belts, light bulbs, and bags.

rvice technician to instruct the user in correct product

installation, operation or maintenance.

rvice technician to clean or maintain this product.

age to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

age to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

age to or failure of parts or systems resulting from unauthorized modifications made to this product.

to arrange for free

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer’s sole and exclusive r warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the Uni

ted States and Canada.

This warranty gives you have other rights which vary from state to state.

Dept.

oronto, Ontario, Canada M5B 2B8

specific legal rights, and you may also

Sears, Roebuck and Co.

817WA, Hoffman Estates, IL 60179

Sears Canada Inc.

emedy under this limited

PRODUCT RECORD

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label located on the product.

Have this information available to help service more quickly whenever you contact Sears concerning your appliance.

Model number __________________________________________________

Serial number___________________________________________________

Purchase date __________________________________________________

Save these instructions and your sales receipt for future reference.

you obtain assistance or

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You can be killed or seriously injured if you don't immediately follow instructions.

You

can be killed or seriously injured if you don't

instructions.

WARNING:

To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,

including the following:

IMPORTANT SAFETY INSTRUCTIONS

■ Read all instructions before using the washer.

■ Do not wash articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.

■ Do not add gasoline, dry-cleaning solvents, or other

flammable, or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

■ Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washing machine, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

■ Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer is used near children.

■ Before the washer is removed from service or discarded,

remove the door or lid.

■ Do not reach into the washer if the drum, tub or agitator is

moving.

■ Do not install or store the washer where it will be exposed to

the weather.

■ Do not tamper with controls.

■ Do not repair or replace any part of the washer or attempt any

servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.

■ See “Electrical Requirements” for grounding instructions.

Tools and Parts

Gather the required tools and parts before starting installation. The parts supplied are in the washer basket.

Tools needed for connecting the drain hose and water inlet hoses:

■ Pliers that open to

/16" (3.95 cm)

NOTE: R

eplace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates for future reference.

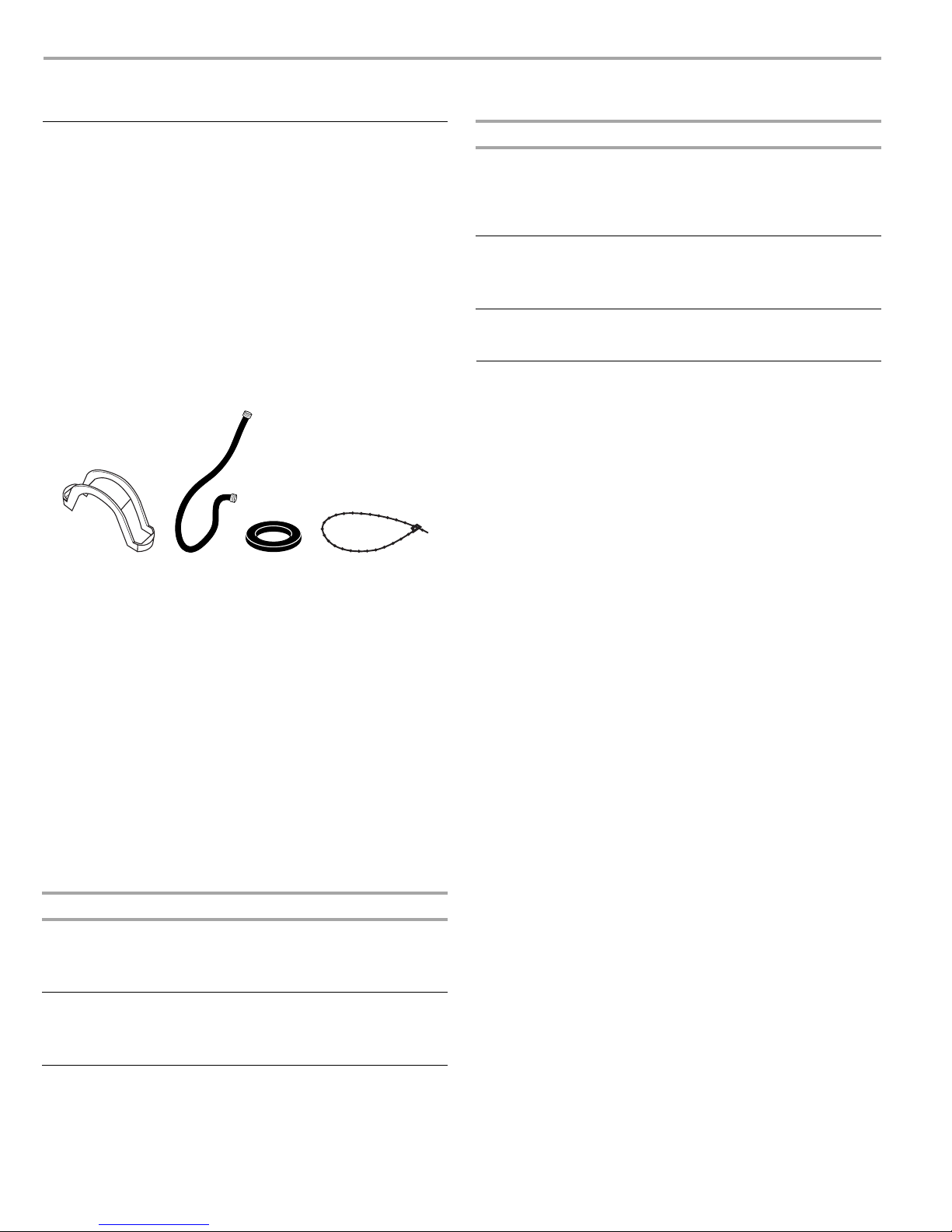

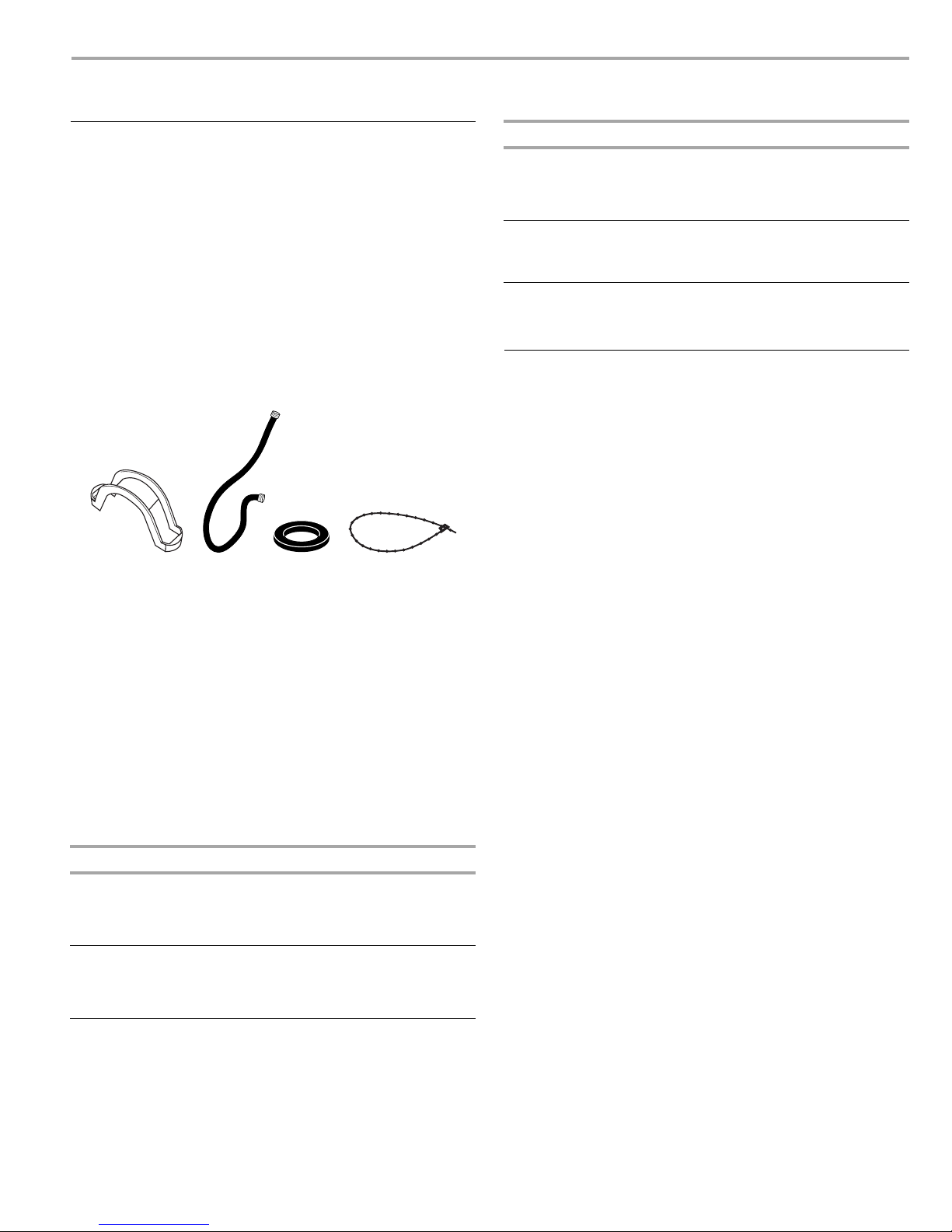

Parts supplied:

A. Drain hose form B. Water inlet hoses (2) C. Flat water inlet hose washers (4) D. Beaded tie strap

■ Flashlight (optional)

Tools needed for securing the drain hose and leveling

e washer:

■ Adjustable or open end

wrench

■ Level

/16" (14 mm)

■ Wood block

■ Ruler or measuring tape

Alternate Parts

Parts listed are available from your local Sears store or Sears Service Center. For further information, call 1-800-4-MY-HOME

(1-800-469-4663).

If You Have: You Will Need to Buy:

Laundry tub or standpipe taller

n 96" (2.4 m)

tha

1" (2.5 cm) di

ameter standpipe

Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall

Floor drain Siphon break, Part Number 285834;

Water faucets be

yond reach of fill

hoses

Sump pump system (if not already available)

2" (5 cm) diameter to 1" (2.5 cm) diameter standpipe adapter, Part Number 3363920 and connector kit Part Number 285835

rain tub or utility sink, sump pump and

d connectors (available from local plumbing suppliers)

additional drain

hose, Part Number 8318155 and connector kit, Part Number 285835

2 longer water fill hoses: 6 ft (1.8 m) Part Number 76314, 10 ft (3.0 m) Part Number 350008

If You Have: You Will Need to Buy:

Lint clogged drain Drain protector, Part Number 367031

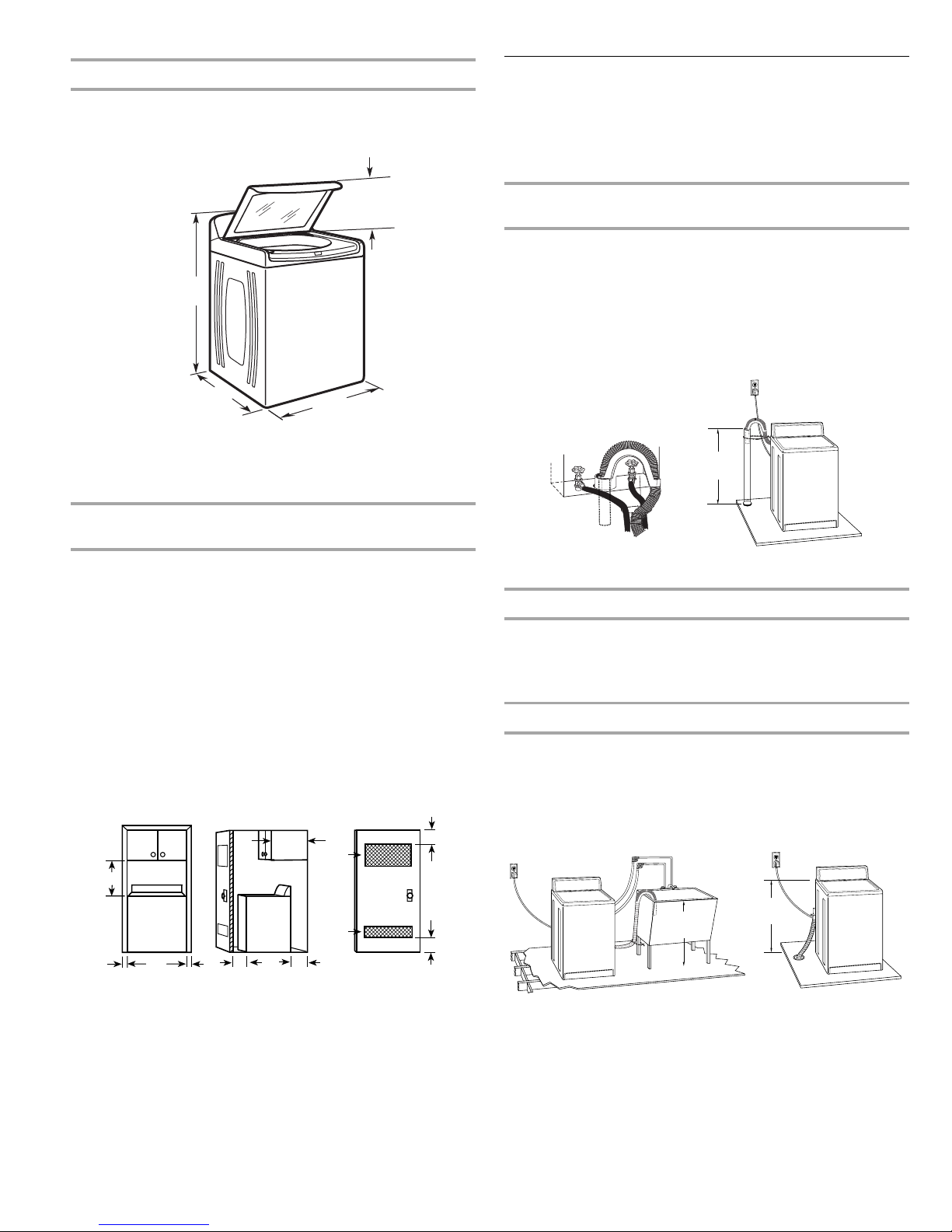

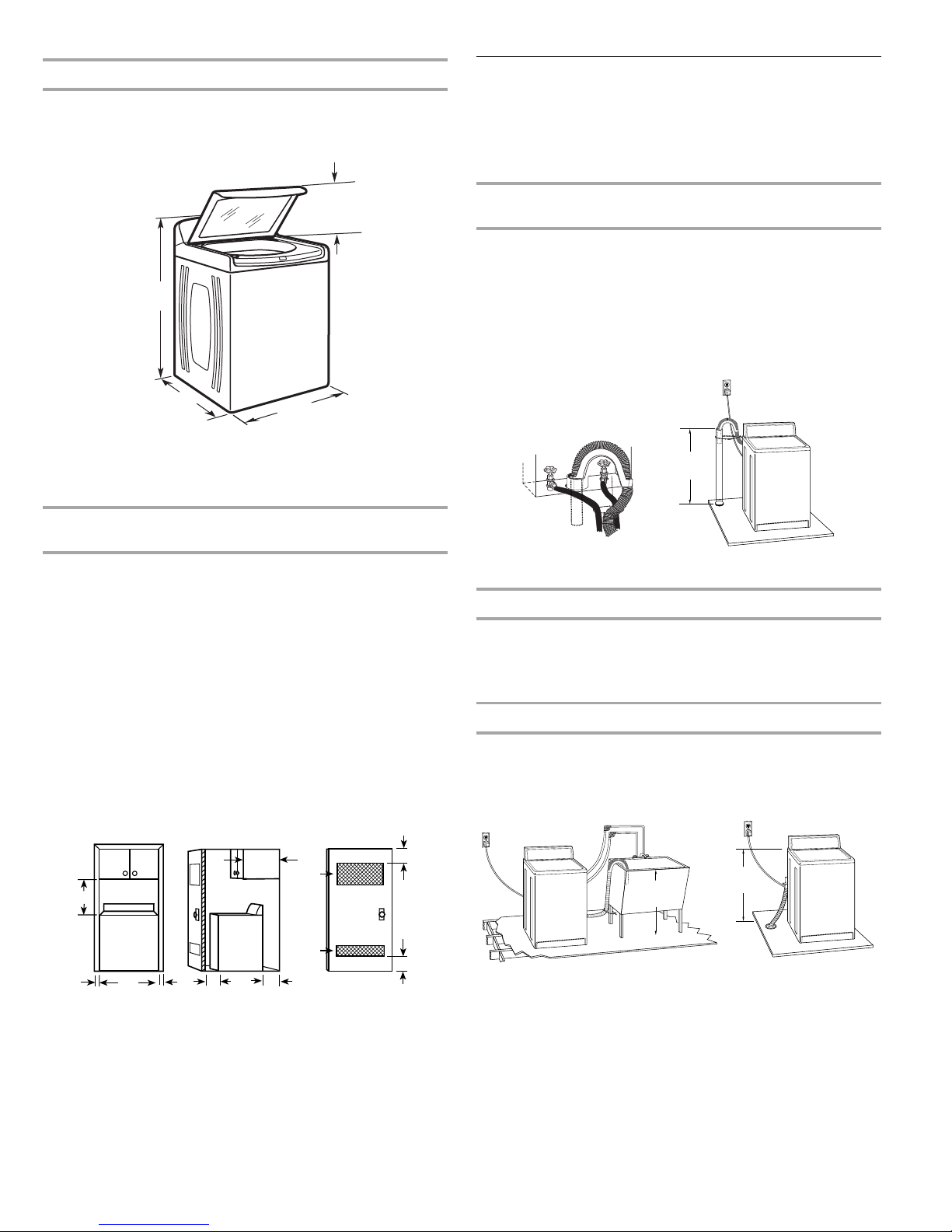

Location Requirements

Selecting the proper location for your washer improves performance and minimizes noise and possible washer “walk.”

Your washer can be installed in a basement, laundry room, closet, or recessed area. See “Drain System.”

IMPORTANT: exposed to the weather.

Proper installation is your responsibility.

You will need:

■ A water heater set to deliver 120°F (49°C) water to the

washer.

■ A grounded electrical outlet located within 4 ft (1.2 m) of

where the power cord is attached to the back of the washer. See “Electrical Requirements.”

■ Hot and cold water faucets located within 3 ft (90 cm) of the

hot and cold water fill valves, and water pressure of 20-100 psi (138-690 kPa) for best performance.

■ A level floor with a maximum slope of 1" (2.5 cm) under entire

washer. Installing the washer on carpeting is not recommended.

■ A sturdy floor to support the washer weight (washer, water

and load) of 315 lbs (143 kgs).

Do not store or operate your washer in temperatures at or below 32°F (0°C). Some w damage in low temperatures. See “Washer Care” for information on winterizing.

Do not install or store the washer where it will be

ater can remain in the washer and can cause

■ Additional spacing should be considered for ease of

installation and servicing.

■ Additional spacing should be considered on all sides of the

washer to reduce noise transfer.

■ For closet installation with a door, minimum ventilation

openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

■ Companion appliance spacing should also be considered.

3"*

(7.6 cm)

3"*

(7.6 cm)

17"*

(43.2 cm)

(2.5 cm)

27¹⁄₂"

(69.9 cm)

14"* max. (35.6 cm)

1"*

27"

(2.5 cm)

(68.6 cm)

5"* (12.7 cm)

A. Front view B. Side view C. Closet door with vents

48 in. *

(310 cm )

24 in. *

(155 cm )

*Required spacing

Drain System

The washer can be installed using the standpipe drain system (floor or wall), the laundry tub drain system, or the floor drain system. Select the drain hose installation method you need. See “Tools and Parts.”

Installation Clearances

The location must be large enough to allow the washer lid to open fully.

Washer Dimensions

20"

(50.8 cm)

43 ½"

(110.5 cm)

27"

(68.6 cm)

27½"

(69.9 cm)

*Most installations require a minimum 5" (12.7 cm) clearance behind the washer for inlet and drain hoses. See “Connect Drain Hose” and “Connect the Inlet Hoses.”

Installation spacing for recessed area and closet installations

Standpipe drain system—wall or floor (views A & B)

The standpipe drain requires a minimum diameter standpipe of 2" (5 cm). The minimum carry-away capa 17 gal. (64 L) per minute. A 2" (5 cm) diameter to 1" (2.5 cm) diame

ter standpipe adapter kit is available. See “Tools and

Parts.” The top of the standpipe must be at least 39" (99 cm) high and no

er than 96" (244 cm) from the bottom of the washer.

high

39"

(99 cm)

city can be no less than

Laundry tub drain system (view C)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be at least 39" (99 cm) above the floor an

d no higher than 96" (244 cm) from the bottom of the washer.

The following spacing dimensions are recommended for this washer. This washer has been tested for installation with spacing of 0" (0 cm) clearance on the sides. Recommended spacing should be considered for the following reasons:

Floor drain system (view D)

The floor drain system requires a siphon break that may be purchased separately. See “Tools and Parts.”

The siphon break must be a minimum of 28" (71 cm) from the bottom

of the washer. Additional hoses might be needed.

39"

(99 cm)

28"

(71 cm)

■ To minimize possible shock hazard, the cord must be

plugged into a mating, grounded 3 prong outlet, grounded in

cordance with local codes and ordinances. If a mating

ac outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.

■ If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the ground path is adequate.

■ Do not ground to a gas pipe.

■ Check with a qualified electrician if you are not sure the

washer is properly grounded.

■ Do not have a fuse in the neutral or ground circuit.

Electrical Requirements

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

■ A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical

supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided.

■ This washer is equipped with a power supply cord having a

3 prong grounding plug.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electric current. This washer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING:

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Improper connection of the equipment-

INSTALLATION INSTRUCTIONS

Before You Start

WARNING

Excessive Weight Hazard Use two or more people to move and install washer. Failure to do so can result in back or other injury.

NOTE: To avoid floor damage during installation, set the washer onto cardboard before moving across floor.

IMPORTANT:

■ Be sure the foam shipping base has been removed from the

bottom of the washer as directed in the Unpacking Instructions.

■ If foam shipping base has not been removed, be sure lid is

secured with tape before laying washer on its back.

■ Removing the foam shipping base is necessary for proper

operation.

Remove Shipping Base and Packing Ring

1. Place cardboard supports from shipping carton on floor

behind washer for support.

2. Secur

e the lid with tape.

3. Using 2 or more people, tip the washer onto its back and

)

place on cardboard supports.

emove foam shipping base.

4. R

5. Set washer upright.

6. Remove tape from lid. Open lid and remove foam packing

ring from washer tub. Keep foam packing ring in case you need to move the washer in the future.

Remove drain hose from washer cabinet

Pull the corrugated drain hose out of the washer by first grabbing the pull tie. Continue to pull the hose until the end emerges. Do not force excess drain hose back into the rear of the washer.

Laundry tub drain or standpipe drain

Connecting the drain hose form to the corrugated drain hose

Connect Drain Hose

Proper connection of the drain hose protects your floors from damage due to water leakage. Read and follow these instructions.

The drain hose is connected to your wa the washer cabinet.

sher and is stored inside

4.5"

(11.4 cm

A. Drain hose reliefs

1. Feed end of drain hose into one end of form. Place end of drain hose form into the drain hose relief.

2. Bend the hose over the top of the of the form. Attach the other end of the form into the other drain hose relief. The hose must extend 4½" (11.4 cm) beyond the form.

form and feed into the other end

To keep drain water from going back into the washer:

■ Do not force excess drain hose into standpipe. Hose should

be secure but loose enough to provide a gap for air.

■ Do not lay excess hose on the bottom of the laundry tub.

Floor drain

Do not install the drain hose form on to the corrugated drain hose. You may need additional parts. See Floor drain under “Tools and Parts.”

Connect the Inlet Hoses

1. Insert new flat washers (supplied) into each end of the inlet

hoses. Firmly seat the washers in the couplings.

Connect the inlet hoses to the washer

A. Coupling B. Washer

Connect the inlet hoses to the water faucets

Make sure the washer basket is empty.

2. Attach th

on coupling by hand until it is seated on the washer.

Attach the hose labeled cold to the cold water faucet. Screw on coupling by hand u

4. Using pliers, tighten the couplings with an additional

two-thirds turn.

e hose labeled hot to the hot water faucet. Screw

ntil it is seated on the washer.

Tighten the couplings with an additional two-thirds turn.

HOT

COLD

A. Hot water inlet valve B. Cold water inlet valve

1. Attach the hot water hose to the inlet valve labeled hot.

2. Attaching one hose coupling first makes it easier to tighten

the connection with pliers.

3. Screw on coupling by hand until it is seated on the washer.

HOT

COLD

4. Using pliers, tighten the coupling with an additional

two-thirds turn.

Do not overtighten or use tape or sealants on the

NOTE: valve. Damage to the valves can result.

NOTE: Do not overtighten or use tape or sealants on the valve. Damage to the valves can result.

Clear the water lines

■ Run water through both faucets and inlet hoses, into a

laundry tub, drainpipe or bucket, to get rid of particles in the water lines that might clog the inlet valve screens.

■ Check the temperature of the water to make sure that the hot

water hose is connected to the hot water faucet and that the cold water hose is connected to the cold water faucet.

COLD

HOT

5. Attach the cold water hose to the inlet valve labeled cold.

rew on coupling by hand until it is seated on the washer.

6. Sc

7. Usin

g pliers, tighten the coupling with an additional two-

thirds turn.

Do not overtighten or use tape or sealants on the

NOTE: valve. Damage to the valves can result.

Check for leaks

■ Turn on the water faucets and check for leaks. A small

amount of water might enter the washer. You will drain this in a later step.

Replace inlet hoses after 5 years of use to reduce the

NOTE: risk of hose failure. Record hose installation or replacement dates for future reference.

■ If you connect only one water hose, you must cap off the

remaining water inlet port.

■ Periodically inspect and replace hoses if bulges, kinks,

cuts, wear, or leaks are found.

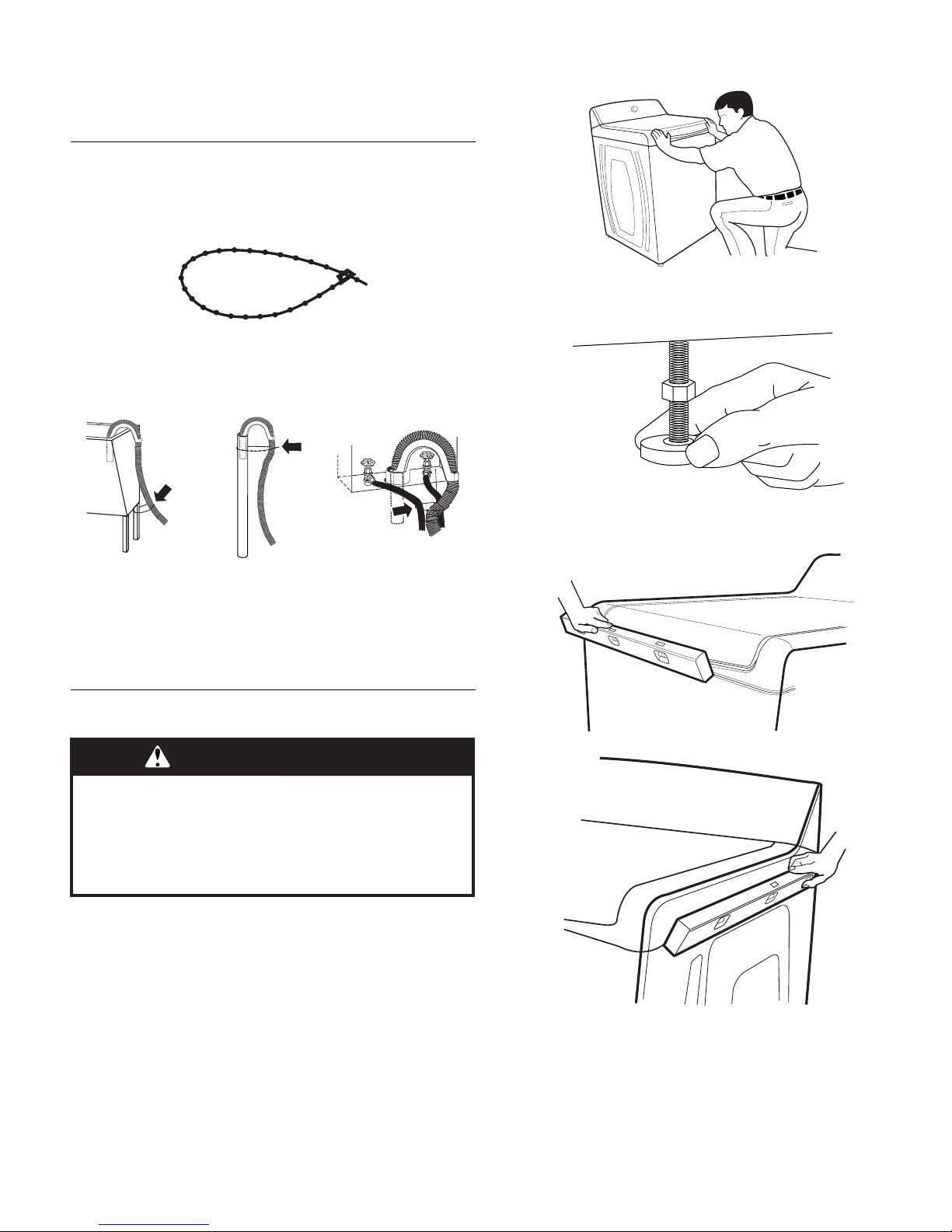

Secure the Drain Hose

1. Drape the power cord over the console.

2. Remove any cardboard used to move washer.

Beaded tie strap

3. Lower right front foot until it contacts the floor. By hand, firmly

rotate foot as much as an additional 1½ turns. The other three feet have been preset at the factory.

3. Fasten the drain hose to the laundry tub leg or drain

standpipe with the beaded tie strap. See view A or B.

If the washer faucets and the drain standpipe are recessed, put the formed end of the drain hose into the standpipe. Tightly wrap the tie strap around the water inlet hoses and the drain hose. See view C.

Level the Washer

WARNING

Excessive Weight Hazard Use two or more people to move and install washer. Failure to do so can result in back or other injury.

4. Check the levelness of the washer by placing a level in the

crease between the top of the washer and the cabinet, first on the front and then on the side.

CBA

Level the front.

One washer foot has been installed at a different height on your new washer. The other three feet were preset at the factory. Properly leveling your washer will minimize noise and vibration.

1. Slide

2. Push on upp

the washer to its final location.

er front panel to be sure the washer is on its rear

feet.

Level the side.

5. If the washer is not level, move the washer out slightly, tip

back, prop up the front of the washer on a wood block. Adjust the feet up or down as necessary by twisting the feet. Repeat steps 1 through 4 until washer is level.

6. Use a 9/16" or 14 mm open-end wrench to turn the locknut

counterclockwise on the foot tightly against the washer cabinet.

IMPORTANT: If the locknut is not tigh cabinet, the washer may vibrate.

t against the washer

Complete Installation

1. Check the electrical requirements. Be sure that you have the

correct electrical supply and the recommended grounding method. See “Electrical Requirements.”

2. Check th

go back through the steps to see which step was skipped.

3. Check that

4. Kee

relocation of the washer. Dispose of/recycle all packaging materials.

5. Check that

6. Check for leaks around faucets and inlet hoses.

at all parts are now installed. If there is an extra part,

you have all of your tools.

p the foam packing ring from the washer tub for future

the water faucets are on.

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

7. Plug into a grounded 3 prong outlet.

8. Remove any protective film or tape remaining on the washer.

ad “Washer Use.”

9. Re

To test and to clean your washer, measure manufacturer’s recommended amount of High Efficiency (HE) powdered or liquid detergent for a medium-size load and pour it into the detergent dispenser. Close the lid. Press POWER. Select a normal cycle and press START. Allow it to complete one whole cycle.

/2 of the detergent

Auto Water Level

This washer senses the load size and composition through a series of fills and wash motion. It then adjusts the water level for the best cleaning and rinsing performance. It eliminates the guesswork. The water level is just right for every wash load size. NOTE: You may notice during a cycle that the wash load is not completely submerged in water. This is normal for your washer.

Auto Temperature Control (ATC)

The Auto Temperature Control (ATC) on this washer electronically senses and maintains a uniform water temperature by regulating incoming water temperatures. Using ATC will help dissolve detergent.

INVIZIBLE™ Agitator

Your new washer works differently than most washers that you are accustomed to. The most striking difference is that the washer has an invisible agitator. It uses this new innovative agitator at the bottom of the wash basket to move your load through a mixture of water and detergent. The load is moved from the outside toward the middle with items coming up in the center and down on the outside edges.

Dispensers

The dispensers make your washer truly automatic. It is unnecessary for you to return to the washer during the cycle to add detergent, bleach, or fabric softener.

Laundry products are automatically added to the proper time in the wash cycle.

load at the

Spin Speeds

This washer is preset to automatically select the spin speed based on the cycle selected. Depending on your wash load, you can change the preset speeds. The spin speed on this washer is nearly twice as fast as that of a conventional washer. You may notice different sounds during a spin cycle because of this higher speed.

Stain Treat (CATALYST® Cleaning Action)

The Stain Treat option helps to ensure better soil and stain removal. Stain Treat reduces the need for pretreatment and is safe for all fabrics. Water flushes through the dispenser to dissolve the detergent. The detergent mixture is then sprayed onto the load while the washer spins at low speed. This cleaning action will last up to 5 minutes depending on the cycle selected. The washer then stops spinning, fills with water to the appropriate level and continues washing with the selected cycle.

BENEFITS AND

FEATURES

Your washer has several benefits and features that are

summarized here. Some items may not apply to your model.

Benefits

Gentlewash™ High-Efficiency Wash System

Your new top loading, high-efficiency washer saves you time by allowing you to do fewer, larger loads. It also conserves resources and also lowers your water and energy bills by using the following innovations.

High Efficiency (HE) Detergent

This washer is designed for High Efficiency (HE) detergent use only. HE detergents are made to produce the right amount of suds and give the best performance in low water wash systems.

Features

Innovative Features

Your new washer includes these features that help to reduce noise, increase the ease of use and improve wash performance.

Electronic Controls

Electronic controls with preset cycles are easy to use whether you are a beginner or an “expert.”

Quiet Operation

This washer is insulated with sound-dampening materials to reduce washer operation sounds and noises.

Suspension System

To reduce washer “vibration,” “walk,” and “out-of-balance” conditions, your new washer combines:

■ 4 Spring damper struts to isolate vibration

■ Balance ring at the top and bottom of the wash basket to

minimize vibration

■ Operating software designed to sense and correct off-

balance loads

Clean Washer Cycle

This washer features an easy-to-use Clean Washer cycle that thoroughly cleans the inside of your washing machine using higher water volumes in combination with liquid chlorine bleach.

Stainless Steel Basket

The stainless steel basket is corrosion resistant and enables higher spin speeds for more water extraction, reducing drying time.

WASHER USE

Force Filter Wash/Rinse System

This washer filters 100% of the wash and rinse water. The water is filtered then recirculated. The force filter traps sand and dirt, flushing them down the drain, so they are not redeposited onto the clean clothes.

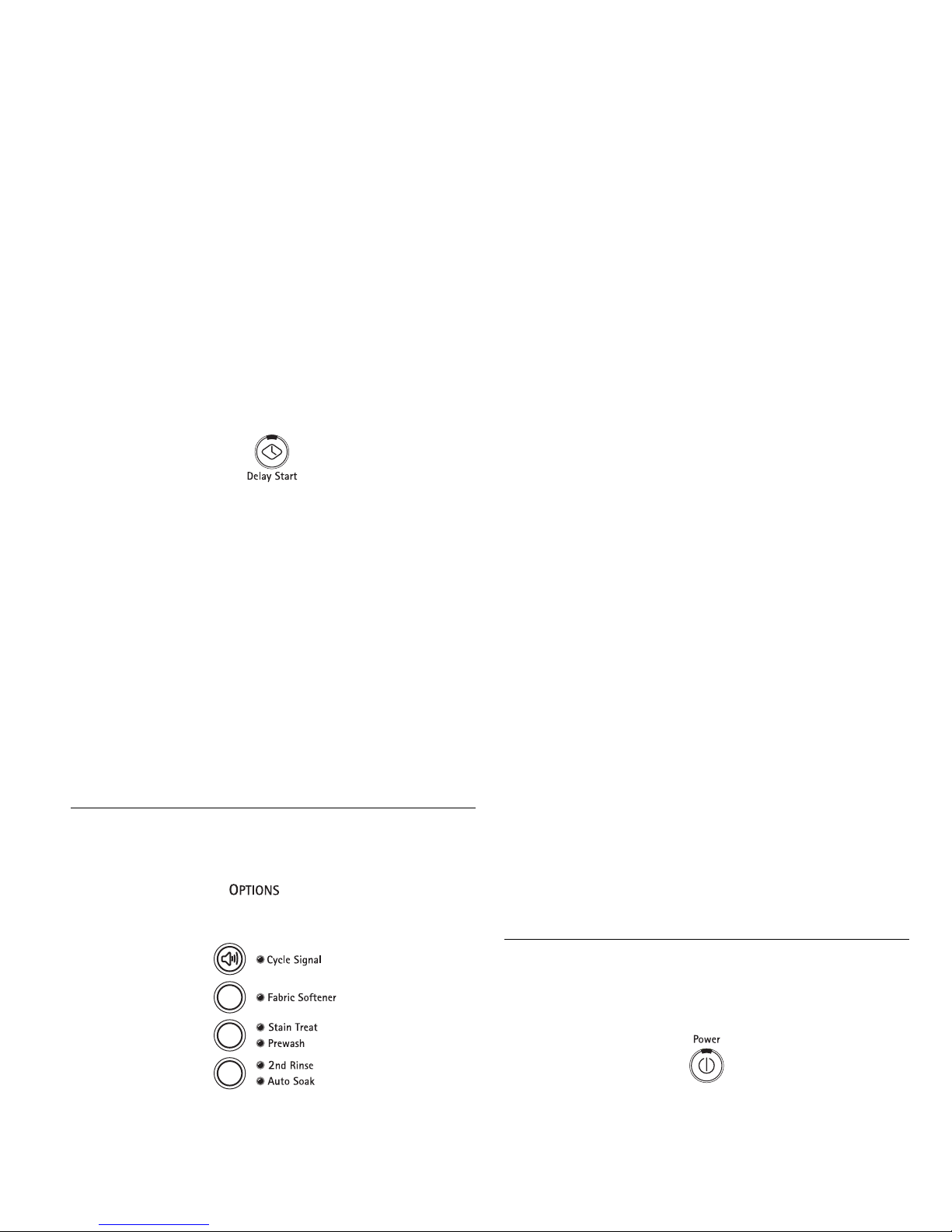

Delay Start

Delay Start allows you to load your washer and pause the start of the cycle for up to 13 hours.

End of Cycle Signal

The End of Cycle Signal produces an audible sound when the wash cycle is finished. This signal is helpful when you are removing items from the washer as soon as it stops.

Spray Rinse

This washer is designed to save water by rinsing the load with a spray rinse instead of a deep water rinse on some cycles. When using fabric softener, always select Fabric Softener or 2nd Rinse from the options.

NOTE: Your washer model may vary from the model shown.

Starting Your Washer

WARNING

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

No washer can completely remove oil. Do not dry anything that has ever had any type of oil on

it (including cooking oils). Doing so can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

The following is a guide to starting your washer. Periodic

eferences to other sections of this manual provide more detailed

r information.

Using the Proper Detergent

Use only High Efficiency detergents. The package for this type of detergent will be marked “HE” or “High Efficiency.” system, along with less water, will create too much sudsing with a regular non-HE detergent. Using regular detergent will likely result in washer errors, longer cycle times, and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew.

HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer's instructions to determine the amount of detergent to use. Remember, concentrated detergent such as 2x or higher will use less detergent based on load size.

Use only “HE” High Efficiency detergent.

1. Place a load of sorted clothes into the washer. See “Laundry

Tips.”

This wash

■ Load evenly to maintain washer balance. Mix large and

small items.

■ For best performance, load garments in loose heaps

evenly around the basket wall. Do not load above the stainless steel portion of the basket, as shown.

2. Pour measured powdered or liquid High Efficiency (HE)

detergent into the detergent dispenser. Do not put detergent directly into the wash tub or onto clothes in the washer.

Use Only

■ The fabric softener is dispensed in the rinse cycle. If 2nd

Rinse is selected, the fabric softener will be dispensed during the 2nd Rinse.

■ Do not use fabric softener dispensing balls in this washer.

Dispensing balls will not operate correctly with this washer.

■ Do not spill or drip any fabric softener onto the clothes.

■ At the end of the cycle, a small amount of water may be

left in the dispenser. This is normal.

NOTE:

Use only liquid fabric softener in this dispenser.

5. Close

6. P

7. Sel

the washer lid.

ress POWER. This turns on the washer display.

ect a Wash Cycle. See “Cycles.”

8. Adjust the Modifiers, if desired. See “Modifiers.”

9. Select

10. Sel

desired Options. See “Options.”

ect Delay Start, if desired. See “Delay Start” in the

“Modifiers” section.

ess START. The wash cycle begins, and the display shows

11. Pr

the estimated remaining time. The lid will lock. NOTE: If

you do not press Start within 5 minutes of pressing

Power, the washer automatically shuts off.

Pausing or Restarting the Washer

3. Add liquid chlorine bleach to the bleach dispenser, if needed.

Chlorine bleach is automatically dispensed at the proper time during the wash cycle.

■ Do not overfill. Do not dilute. Do not use more than 1 cup

(250 ml) for a full load. Use less with a smaller load size.

■ Follow the garment and chlorine bleach manufacturer’s

directions for proper use.

■ To avoid spilling, use a cup with a pouring spout. Do not

let bleach splash, drip, or run down into the washer basket.

■ At the end of the cycle, a small amount of water may be

left in the dispenser. This is normal.

4. Pour me

asured liquid fabric softener into the fabric softener

dispenser, if desired.

■ If you are using fabric softener, be sure to select Fabric

Softener from the options to assure proper dispensing.

■ Do not overfill. Do not dilute. The dispenser holds 3 oz

(94 mL), or a capful of fabric softener.

Add A Garment

You can place additional clothing in the wash when the “Add A Garment” status light is glowing without sacrificing wash performance.

To add a garment or pause the washer at any time

1. Press STOP once.

ait until the Lid Lock light turns off, then open the lid.

2. W

3. Add items.

To restart the washer

1. Close the lid and press START.

o unlock the lid after the Add A Garment period, press STOP

2. T

once. Pressing STOP twice will cancel the wash cycle.

Stopping the Washer

You can stop the wash cycle and drain the tub by pressing the STOP button twice or the POWER button once.

Changing Cycles, Modifiers, and Options

You can change Cycles, Modifiers, and Options anytime before Start is pressed. Not all Modifiers and Options are available for all cycles.

■ A short tone sounds when a change is selected.

■ Three short tones sound if an unavailable combination is

selected. The last selection will not be accepted.

Changing Cycles during the wash cycle

1. Press STOP twice to cancel the cycle. The washer will drain.

ess POWER.

2. Pr

lect the desired wash cycle.

3. Se

4. Select

5. Pr

The washer restarts at the beginning of the new cycle. NOTE: If

washer, the washer automatically shuts off.

the desired Modifiers and Options.

ess START.

you do not press Start within 5 minutes of pausing the

Changing Modifiers and Options during the wash cycle

You can change a Modifier or Option anytime before the selected Modifier or Option begins. You must:

ess STOP once.

1. Pr

ect the desired Modifiers and/or Options.

2. Sel

3. Press START.

To manually drain the washer and spin the load

1. Press STOP twice to cancel the wash cycle and drain the

washer.

ess POWER.

2. Pr

ess RINSE/DRAIN & SPIN.

3. Pr

ess 2nd RINSE.

4. Pr

5. Press START.

When the spin is complete, the lid unlocks. Items can be

emoved from the washer.

Cycles

Turn the knob to choose the correct wash cycle for the type of load you are washing. When the knob points to a cycle, the indicator light for the cycle will glow. If the preset cycle setting for the Modifiers and Options are suitable for your wash load, you may press START to begin the wash cycle.

Status Lights

These lights show which portion of the cycle the washer is operating. They also indicate when you can add other garments to the wash load.

Clothes Clean

The Clothes Clean light stays on until the lid is opened or the Stop or Power button is pressed.

Lid Lock

When the Lid Lock status light glows, the washer lid is locked. NOTE: You must wait until the Lid Lock light turns off before the

lid can be opened.

Indicator lights

An indicator light shows which Cycle, Modifiers, and Options you have selected.

Estimated Time Remaining

Cycle time in minutes will appear in the display while you are making selections. The total cycle time will appear, including an estimated time for drain and fill times.

NOTES:

■ The time is an estimation only and may vary depending on

load size, cycle, modifiers, and options selected.

■ You may notice the time adjusting during the cycle. This is

normal.

■ The cycle time may be extended if oversudsing occurs or the

load is unbalanced.

Preset Cycle Settings

For ease of use, preset cycle settings provide the recommended fabric care settings for each cycle.

To use the preset cycle settings:

1. Press POWER.

2. Select the cycle you want by turning the knob. The preset

cycle settings will be displayed (see following chart). NOTE: The preset cycle times may vary slightly depending on

your model.

ess START. The wash cycle will begin.

3. Pr

Preset Cycle Settings

Cycle Preset

Minutes

Whitest Whites 79 Heavy Hot/Cold

Heavy Duty 69 Heavy Hot/Cold

Normal 41 Normal Warm/Cold

Casual/Wrinkle Free 44 Medium

Express Wash 33 Light Warm/Warm

Bulky/Bedding 52 Normal Warm/Cold

Sheets 49 Normal Warm/Cold

Colors/Towels 45 Normal Cool/Cold

Delicate/Handwash 36 Light Cool/Cold

Rinse & Spin 24 Not

Drain & Spin 14 Not

Clean Washer 60 Not

*Cycle time in minutes will appear in the display while you are

making sele estimated time for drain and fill times.

NOTE: Overloading can cause poor cleaning. See “Starting Your Washer.”

ctions. The total cycle time will appear, including an

Load only to the top of the stainless steel basket.

Soil Level* Wash/Rinse

Te mp

(No ATC)

ght

applicable

licable

app

Warm/Cold

Cold/Cold

Not applicable

Whitest Whites

This cycle introduces liquid chlorine bleach to the load at the proper time for improved whitening of your heavily soiled white fabrics. Cycle combines high-speed wash action and high-speed spin. The default option setting for this cycle is 2nd Rinse to thoroughly remove detergent and bleach. For maximum soil and stain removal, liquid chlorine bleach should be used.

Heavy Duty

Use this cycle for heavily soiled cotton or sturdy items. Cycle combines high-speed wash action and high-speed spin. Stain Treat is a preset cycle setting for this cycle, but it may be turned off. See “Changing Cycles, Modifiers and Options.” This cycle uses a spray rinse to maximize water efficiency.

■ The fabric contains sensitive dyes that may bleed.

NOTE: Some “Handwash” items Keep this in mind when you purchase items labeled “Handwash.” Items that shrink should be dried flat. When these items are still wet, “block” them by gently stretching to the original measurements.

naturally shrink when washed.

Rinse/Drain & Spin

The Rinse & Spin and Drain & Spin cycles are selected with the same button.

Normal

Use this cycle for normally soiled cottons and mixed fabric loads. Cycle combines high-speed wash action and high-speed spin. This cycle uses a spray rinse to maximize water efficiency.

Casual/Wrinkle Free

Use this cycle to wash loads of no-iron fabrics such as sport shirts, blouses, casual business clothes, permanent press and blends. This cycle uses medium-speed wash action, a mediumspeed spin and a cool down process to reduce wrinkling.

Express Wash

Use this cycle to wash a few lightly soiled items that are needed in a hurry. This short cycle combines high-speed wash action and high-speed spin for the best cleaning and shortened dry times. This cycle uses a spray rinse to maximize water efficiency.

Bulky/Bedding

This cycle is designed for oversized items that do not easily absorb water, such as comforters, pillows and poly-filled jackets. This cycle gently washes these nonabsorbent items in a preset water level to avoid damage. This cycle starts with a soak to thoroughly saturate your large item. This is followed by medium wash action and medium spin speeds to maintain load balance.

NOTE: Due to the preset water level, using this cycle for items other than those described above will create an unbalanced load.

Sheets

Use this cycle for sheets, pillowcases and blankets. The wash action of this cycle is designed to help keep large items from tangling and balling up.

IMPORTANT: For heaps evenly around the basket wall. Do not load above the stainless steel portion of the basket.

best performance, load garments in loose

Colors/Towels

Use this cycle for lightly soiled, colored clothing or towels. This cycle uses medium speed wash action and high speed spin.

Delicate/Handwash

Use this cycle to wash lightly soiled special care garments or for items labeled as “Machine Washable Wool or Silk.” (Check label instructions to make sure that the garment is washable.) This cycle uses intermittent-low speed wash action and low-speed spin for the gentlest fabric care with less wrinkling.

When washing waterproof/water-resistant items such as plastic lin

ed mattress pads, shower curtains, tarps, jackets, or sleeping bags, select the lowest spin speed setting available for the cycle and washer model being used.

Garments are labeled “Handwash” because:

■ The fiber construction may be sensitive to wash action.

Rinse & Spin

This option performs a rinse only followed by a high-speed spin. The time display will include an estimate of how long it will take to fill and drain the washer.

When to use Rinse & Spin:

■ For loads that need rinsing only.

■ For completing a cycle after the power has been off.

To use Rinse & Spin setting:

ess RINSE/DRAIN & SPIN button once. The Rinse & Spin

1. Pr

indicator light, along with the Spin Speed, Water Temperature and 2nd Rinse lights will glow. You may change the Spin Speed and Water Temperature modifiers only.

NOTE: A Rinse & Spin cycle time of approximately 24 minutes will appear in the Estimated Time Remaining display

ess START.

2. Pr

Drain & Spin

An extra drain and spin may help shorten drying times for some heavy fabrics or special-care items. Drain & Spin may also be used for draining the washer after canceling a cycle or completing a cycle after a power failure.

To use Drain & Spin setting:

1. Press RINSE/DRAIN & SPIN button once. The Rinse & Spin

indicator light, along with the Spin Speed, Water Temperature and 2nd Rinse lights will glow. You may change the Spin Speed modifier only.

ess 2nd RINSE to deselect Rinse & Spin. The 2nd Rinse

2. Pr

and Water Temperature lights will shut off to indicate that a Drain & Spin cycle has been selected.

NOTE: A appear in the Estimated Time Remaining display.

3. Pr IMPORTANT: W

moment, the lid will unlock, lock again, and then the Drain & Spin cycle will continue. This is normal.

Drain & Spin time of approximately 14 minutes will

ess START.

ater will dispense in the washer for a

Clean Washer

Use the Clean Washer cycle once a month to keep the inside of your washer fresh and clean. This cycle uses a higher water level in combination with liquid chlorine bleach to thoroughly clean the inside of your washing machine. See “Cleaning Your Washer.”

IMPORTANT: Do not add detergent to this cleaning cycle. Use only liquid chlorine bleach. Do not place garments or other items in the washer during the Clean Washer cycle. Use this cycle with an empty wash tub.

Modifiers

Modifiers allow you to further customize your cycles and save energy.

Soil Level (Wash Time)

Soil level is preset for each cycle. See “Preset Cycle Settings” in “Cycles.” As you press the Soil Level pad, the cycle time (minutes) will increase or decrease in the Estimated Time Remaining display. To get the minimum wash time, press the pad until the indicator light next to Light illuminates. This is the shortest wash time available for that cycle.

Wash/Rinse Temp

Select a water temperature based on the type of load you are washing. Use the warmest wash water safe for fabrics. Follow garment label instructions.

Warm rinses leave the loads drier and more comfortable to

ndle. However, warm rinses may increase wrinkling. Cold

ha rinses may help with wrinkling and save energy.

Temperature Guide

Wash Water Temperature Suggested Fabrics

Hot Whites and pastels

Warm Bright colors

Cold Darker colors that bleed or fade

■ For most loads, use the time recommended in the preset

cycle settings.

■ For heavy soil and sturdy fabrics, press SOIL LEVEL to select

more wash time, if needed.

■ For light soil and delicate fabrics, press SOIL LEVEL to select

less wash time, if needed.

Spin Speed

This washer automatically selects the spin speed based on the cycle selected. The preset speeds can be set at a higher or lower spin speed to match the clothes load. Spin speeds may vary by cycle.

In wash water temperatures colder than 60°F (15.6°C),

NOTE: detergents do not dissolve well. Soils may be difficult to remove.

Auto Temp Control

Auto Temp Control (ATC) electronically senses and maintains a uniform wash and rinse water temperature. ATC regulates incoming hot and cold water. The ATC is automatically turned On when a cycle is selected. (See “Preset Cycle Settings” in “Cycles.”)

ATC is available with Warm/Warm, Warm/Cold and Cool/Cold sett

ings. The water temperature in the Hot/Cold and Cold/Cold settings depend on the water temperature at the water inlet faucets.

■ ATC ensures consistent cleaning.

■ Heated water consumes the largest amount of energy that a

washer uses.

■ Today’s detergents work well at temperatures above 60°F

(15.6°C).

Delay Start

You can use the Delay Start feature to delay the start of a wash cycle for up to 13 hours (depending on your model).

1. Loa

2. Close the washer lid.

3. Pr

4. Select

5. Press DELAY START. 1H (one hour) will be displayed in the

d the washer and fill the dispensers.

ess POWER.

the desired Cycle, Modifiers and Options.

time display window. The indicator light for Delay Start will

glow.

6. For a longer delay time, press DELAY START. The Start time

will increase by 1-hour steps.

7. Press START. The countdown to the wash cycle will show in

the time display window, and the Delay Start indicator light will begin to flash.

NOTE: The Start i is chosen. You must press Start to initiate a countdown for the cycle to begin.

To change the Delay Start time:

■ Press STOP.

■ Press DELAY START to select the desired delay time.

■ Press START to begin the countdown.

To cancel Delay Start:

Press START again to begin the cycle right away, or press STOP

twice to cancel the cycle.

ndicator light will not flash when Delay Start

■ When Auto Soak is selected, the washer saturates the

load with water and detergent then pauses to allow the detergent to work on soils. The pause is followed by a slow-speed spin. The washer pauses and spins six times before advancing to the desired wash cycle. Auto Soak adds approximately 12 minutes to the wash cycle.

Fabric Softener

The Fabric Softener option must be selected if liquid fabric softener is added to the fabric softener dispenser, unless a 2nd Rinse is selected. This option flushes the dispenser at the right time in a deep water rinse for optional distribution. This option may also be selected if a spray rinse is not desired.

Operating Controls

Options

Use these pads to select the desired options for your wash cycle..

Cycle Signal

The End of Cycle Signal produces an audible sound when the wash cycle is finished. This signal is helpful when you are removing items from the washer as soon as it stops. The End of Cycle Signal is on when option is lit.

Stain Treat/Prewash

■ This option provides enhanced cleaning action for tough

stains. The Heavy Duty cycle automatically includes Stain Treat. Choosing Stain Treat will add approximately 5 minutes to a cycle. Stain Treat should be started on a dry load only and should not be selected after the tub has started filling with water. Stain Treat may be selected as an option on all other cycles.

■ When Prewash is selected, the washer fills to the desired

water level. It then alternates between 1 minute of wash action and a 1-minute pause period three consecutive times with an extended pause to end the cycle. When Prewash is complete, the washer advances to the selected wash cycle. The Prewash option extends your wash time by approximately 11 minutes.

2nd Rinse/Auto Soak

Press the option button for 2nd Rinse/Auto Soak until your desired choice is highlighted.

■ 2nd Rinse can be selected to aid in the removal of

detergent or bleach residue from garments. This option provides an additional rinse with the same water temperature as the first rinse. This is the default rinse setting for the Whitest White cycle. Fabric softener will be dispensed in the 2nd rinse.

Power

Press POWER to turn the washer on or off.

Start

Press START to start your washer after a cycle has been selected. Be sure all desired Modifiers and Options have been selected. The lid must be closed for the washer to start.

IMPORTANT: W moment, the lid will unlock, lock again, and then the cycle will continue. This is normal.

ater will be dispensed in the washer for a

Stop

Press STOP once to pause or stop the washer at any time. Press START to continue the cycle. Press STOP twice to turn off the washer. Press STOP once to unlock the lid and add a garment.

Normal Sounds

Your new washer may make sounds your old one didn’t. Because the sounds might be unfamiliar, you may be concerned about them. These sounds may be normal.

During washing

If you select the Stain Treat option, you will hear a spin/spray noise at the start of the cycle.

During drain

If water is drained quickly from your washer (depending on your installation), you may hear air being pulled through the pump during the end of draining.

During wash and spin

This washer does not have a transmission. The motor provides direct drive for wash and spin. You will hear sounds that are different from those of a conventional washer.

LAUNDRY TIPS

Preparing clothes for washing

Follow these recommendations to help you prolong the life of your garments.

■ Use only High Efficiency detergents. The package for this type

of detergent will be marked “HE” or “High Efficiency.” wash system, along with less water, will create too much sudsing with a regular non-HE detergent. Using regular detergent will likely result in washer errors, longer cycle times, and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer's instructions to determine the amount of detergent to use. Remember, concentrated detergents such as 2x or higher will use less detergent based on load size.

Use only “HE” High Efficiency detergent.

■ Close zippers, snaps, and hooks to avoid snagging other

items. Remove pins, buckles, and other hard objects to avoid scratching the washer interior. Remove non-washable trim and ornaments.

■ Empty pockets and turn them inside out.

■ Turn down cuffs; brush away lint and dirt.

■ Turn synthetic knits inside out to avoid pilling.

■ Tie strings and sashes so they will not tangle.

■ Mend tears, loose hems, and seams.

■ Treat spots and stains.

■ Stained or wet garments should be washed promptly for best

results.

This

Sorting

■ Separate heavily soiled items from lightly soiled ones, even if

they would normally be washed together. Separate lint-givers

(towels, chenille) from lint-takers (corduroy, synthetics,

permanent press). When possible, turn lint-givers inside out.

■ Separate dark colors from light colors, colorfast items from

noncolorfast items.

■ Sort by fabric and construction (sturdy cottons, knits, delicate

items).

■ Separate bulky, nonabsorbent items such as comforters,

pillows and poly-filled jackets. Use the Bulky/Bedding cycle

for these items.

■ Separate sheets, pillowcases, and blankets and use the

Sheets cycle for these items. For best performance, load

rments in loose heaps evenly around the basket wall. Do

not load above the stainless steel portion of the basket.

■ When washing waterproof/water-resistant items such as

plastic lined mattress pads, shower curtains, tarps, jackets,

or sleeping bags, select the lowest spin speed setting

available for the cycle and washer model being used.

Cycle Options

■ For additional performance enhancements to desired cycle,

select options such as Stain Treat, Fabric Softener and 2nd

Rinse.

Loading/Unloading

■ For best performance, load garments in loose heaps evenly

around the basket wall. Do not load above the stainless steel

portion of the basket.

■ Remove clothes from washer after the cycle is completed.

Metal objects such as zippers, snaps, and buckles may rust if

left in the washer basket for a long time.

WASHER CARE

Cleaning Your Washer

Washer Maintenance Procedure

This washer has a special cycle that uses higher water volumes in combination with liquid chlorine bleach to thoroughly clean the inside of the washing machine.

NOTES:

■ Read these instructions completely before beginning the

cleaning process.

■ It is recommended that you allow the cleanout cycle to

complete without interruptions. If necessary, the cleanout cycle may be cancelled by pressing the STOP button twice.

IMPORTANT: If th Spin cycle to ensure that all remaining bleach is rinsed from the washer.

Begin procedure

1. Open the washer lid and remove any items from the washer.

2. Add

liquid chlorine bleach to the bleach dispenser.

e cleanout cycle is cancelled, run a Rinse &

■ Add 1 cup (250 mL) liquid chlorine bleach to the bleach

dispenser. NOTE: Do

not add any detergent to this cleaning cycle.

Use of more than 1 cup (250 mL) of bleach will cause

oduct damage over time.

3. Close t

4. Pr

5. Pr

■ The Estimated Time Remaining display will show

he lid. ess POWER. ess CLEAN WASHER.

approximately 60 minutes.

ess START.

6. Pr

■ The cycle will begin and water will dispense in the washer for

a moment and pause, then the lid will lock and the cycle will continue.

■ Once the cleaning cycle has begun, allow the cycle to

complete. An estimated cycle time will appear on the display.

■ If the procedure does not sufficiently improve the machine

freshness, evaluate your installation and usage conditions for other causes.

Always do the following to maintain washer freshness

■ Use only High Efficiency (HE) detergent for your wash loads.

Cleaning the exterior

Use a soft damp cloth or sponge to wipe up any spills. Occasionally wipe the outside of your washer to keep it looking new. Use mild soap and water. Do not use abrasive products.

Water Inlet Hoses

Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, mark the date of replacement

label with a permanent marker.

on the

Vacation, Storage and Moving Care

Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washer. If storing or moving your washer during freezing weather, winterize it.

Non-use or vacation care:

Operate your washer only when you are at home. If you will be on vacation or not using your washer for an extended period of time, you should:

■ Unplug washer or disconnect power.

■ Turn off the water supply to the washer. This helps avoid

unintended flooding (due to a water pressure surge) while you are away.

To winterize washer:

1. Shut off both water faucets.

connect and drain water inlet hoses.

2. Dis

3. Put 1 qt (1 L) of R.V.-type antifreeze in the basket.

n washer on the Rinse & Spin setting for about 30 seconds

4. Ru

to mix the antifreeze and remaining water.

5. Unplug washer or disconnect power.

To use washer again:

1. Flush water pipes and hoses. Reconnect water inlet hoses.

Turn on both water faucets.

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

2. Plug in washer or reconnect power.

3. Run the washer through the Bulky/Bedding cycle to clean the

washer and remove the antifreeze, if used. Use only High Efficiency (HE) detergent. Use ½ the manufacturer's recommended amount for a medium-size load.

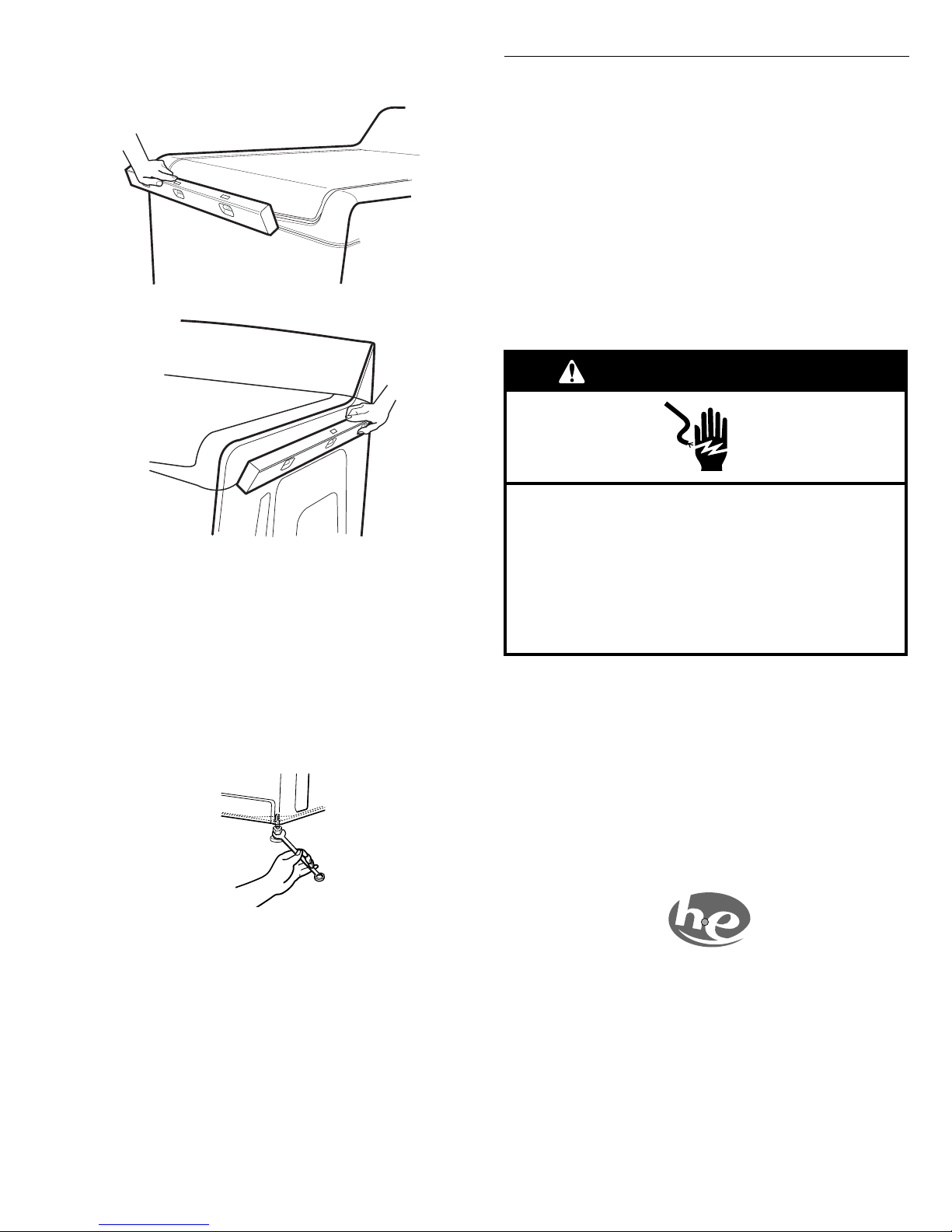

To transport the washer:

1. Shut off both water faucets.

2. Disconnect and drain water in

3. If the washer will be moved during freezing weather, put 1 qt

(1 L) of R.V.-type antifreeze in the basket. Run washer on the Rinse & Spin an

tifreeze and remaining water.

4. Disconnect the drain

5. Unplug the

6. Place the inlet hoses into the basket.

rape the power cord and drain hose over edge into the

7. D

basket.

8. Plac

e foam packing ring from the original shipping materials in the top of washer. If you do not have the original foam packing ring, place heavy blankets, towels, etc. into basket opening. Close the lid and put a piece of tape over the lid and down to the front of the washer. Keep lid taped until the washer is placed into the new location.

setting for about 30 seconds to mix the

from the drain system.

power cord.

Reinstalling the washer

1. Follow the “Installation Instructions” to locate, level and

connect the washer.

2. Run the washer through the Bulky/Bedding cycle to clean the

washer and remove the antifreeze, if used. Use only High Efficiency (HE) detergent. Use ½ the manufacturer's recommended amount for a medium-size load.

let hoses.

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost of a service call...

Washer and Components

Washer displaying code messages

■ “LF” (Washer is taking too long to fill)

Check the following:

Are the water inlet hoses kinked or clogged? Are the water inlet valve screens clear? Is the drain hose installed properly? See “Connect the Drain Hose.” Press STOP to clear display.

■ “Ld” (Washer is taking too long to drain water from

the wash tub)

Check the following: Is the drain hose kinked or clogged? Is the drain hose installed properly? See “Connect the Drain Hose.”

Press STOP to clear display.

■ “uL” (Unbalanced Load)

If the load is unbalanced, the washer will display this code

hile running an imbalanced load correction routine at the

w end of the wash cycle and before the final spin. If the code remains and the wash cycle dial is flashing after the recovery routine has stopped, open lid and redistribute the load. Close lid and press START.

NOTE:

For best performance, load garments in loose heaps evenly around the basket wall. Do not load above the stainless steel portion of the basket.

■ “oL” (Over Load)

Is the washer overloaded? The washer h and begin the wash cycle. If the washer is overloaded, it will drain any water and detergent that was added during the fill. To correct the overload, remove several items and add detergent. Close lid and press START.

■ “Sd” (Suds Detected)

Did you use regular detergent?

Regular or hand-washing detergents are not recommended for this washer

. Use only High Efficiency (“HE”) detergent.

Did you add too much detergent?

Always measure detergent. Follow detergent manufacturer’s dir

ections. Remember, concentrated detergents such as 2x

or higher will use less detergent based on load size. If excessive suds are detected, the washer will display this

while running a suds reduction correction routine at the

code end of the wash cycle. The suds reduction routine removes extra suds and assures proper rinsing of your garments. If the code remains and the wash cycle dial is flashing after the recovery routine has stopped, re-select your desired cycle using cold water. Press START. Do not add detergent.

■ “lid” (Lid Opened)

Is the lid open? Close the lid to clear the display. If the lid r

emains open for more than 10 minutes, water in the wash

tub will drain.

as attempted to fill

■ “HC” (Cold and Hot hoses switched)

This code will appear at the end of the wash cycle to indicate th

at the cold and hot water inlet hoses are switched. See

“Connect the Inlet Hoses.”

■ “dL” (Door/Lid cannot lock)

Indicates lid is not locked. Check for items caught in the lid keep

ing it from closing. Press STOP once to clear the code.

■ “dU” (Door/Lid cannot unlock)

Is there excessive weight on the lid, such as a basket of laundry? Excessive weight

will keep the lid from unlocking.

Press STOP once to clear the code.

■ “F##” code

Press STOP once to clear code. Press START. If code appears

again, call for service.

Noisy, vibrating, off-balance

■ Is the washer level? Does the washer rock when pushed

against the corners?

The washer must be level. The front and rear feet must be in firm contact with the floor. Check that the locknuts are tightened. See “Level the Washer.”

■ Is the floor flexing, sagging or not level?

Flooring that flexes or is uneven can contribute to noise and

tion of the washer. A

vibra under the washer will reduce the sounds. See “Location Requirements.”

■ Did you load the washer as recommended?

For best performance, load garme around the basket wall. Do not load above the stainless steel portion of the basket.

■ Is the load balanced?

Evenly distribute the load in the washer basket and make sur

e the height of the load does not exceed the top of the stainless steel portion of the basket. See “Starting Your Washer.”

■ Do you hear clicking or other noises when the cycle

changes from washing to draining or spinning?

When the drive system shifts or the washer basket settles between cycles you may hear noises that are different from your previous washer. These are normal washer noises.

■ Is the washer gurgling or humming?

When the washer drains, the pump will make a continuous hum

ming with periodic gurgling or surging sounds as the final

amounts of water are removed. This is normal.

■ Are you washing a small load?

You will hear more splashing sounds when washing loads. This is normal.

■ The washer basket moves while washing.

This is normal.

■ Can you hear water spraying? This is part of the wash

action.

■ Are you washing items with metal snaps, buckles or

zippers?

You may hear metal items touching the basket. This is normal.

/4" (1.9 cm) piece of plywood

nts in loose heaps evenly

small

■ Did you select the Bulky/Bedding cycle?

Use the Bulky/Bedding cycle only for

oversized, nonabsorbent items such as comforters, pillows or poly-filled jackets. Other items will create an unbalanced load in this cycle.

Washer leaks

■ Are the fill hoses tight?

■ Are the fill hose washers properly seated?

Check both ends of each hose. See “Connect the Inlet Hoses.”

■ Did you pull the drain hose from the washer cabinet and

install it in a standpipe or laundry tub?

The drain hose should be pulled from the washer cabinet and secured to the drainpipe or laundry tub. See “Connect Drain Hose” and “Secure the Drain Hose.”

■ Is the sink or drain clogged?

Sink and drainpipe must be able to ca of water per minute. If sink or drainpipe is clogged or slow, water can back up out of drainpipe or sink.

■ Is water splashing off the tub ring or the load?

The wash load should be balanced and not overloaded. If the

sh load is unbalanced or overloaded, incoming water can

wa deflect off the load.

■ Is the washer properly installed?

The washer must be level. The fe installed and the nuts tightened. See “Level the Washer.”

■ Did you select Stain Treat option and use a hand-washing

detergent?

Regular or hand-washing detergents are not recommended for this washer. Use only High Efficiency (“HE”) detergent.

■ Check household plumbing (laundry tubs, faucets,

drainpipe, water pipes) for leaks.

rry away 17 gal. (64 L)

et should be properly

Wash load odor

■ Are you using too much or too little detergent?

Follow the detergent manufacturer’s recommendation for c

orrect amount for the load size, and soil level for your load. Remember, concentrated detergents such as 2x or higher will use less detergent based on load size.

■ Do you remove clothing from your washer as soon as the

cycle finishes?

Unload the washer as soon as it stops to avoid prolonged moist conditions.

■ Are your clothes thoroughly dry before putting them

away?

Always make sure wash loads are thoroughly dry before putting them away.

■ Do you use the hottest water safe for the clothing?

Some soils and stains are only released with warmer water.

ning soils and stains on clothing can lead to odors.

Remai

Washer Operation

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Dispenser operation

■ Are the laundry products in the correct dispensers?

Add the correct amounts of deter

gent (powdered or liquid),

bleach, or fabric softener to the correct dispenser.

■ Is there water remaining in the bottom of a dispenser?

Did the dispenser drain properly?

A small amount of water may be l

eft in a dispenser at the end

of the cycle. This is normal.

Washer odor

■ Are you running the Clean Washer cycle with bleach on a

regular basis?

Cleaning your washer on a regular basis helps avoid odor ca

using residue from building up.

■ Are you using HE detergent?

Use of non-HE detergent can cause a film residue which can r

esult in odor on your washer and on your load.

Washer won’t fill, rinse or agitate; washer stops

■ Is the power cord plugged into a grounded 3 prong

outlet?

Plug power cord into a grounded 3 prong outlet.

■ Are you using an extension cord?

Do not use an extension cord.

■ Is there power at the plug?

Check electrical source or call electrician.

■ Is the indicator on the Cycle Control knob properly lined

up with a cycle?

Turn the Cycle Control knob to the right slightly.

■ Are the water inlet valve screens clogged?

Turn off the water and remove inlet hoses from the washer. R

emove any accumulated film or particles. Reinstall hoses,

turn on water and check for leaks.

■ Are the hot and cold water faucets turned on?

Turn on the water.

■ Is the water inlet hose kinked?

Straighten the hoses.

■ Does the water level seem too low, or does the washer

appear to not fill completely?

The Auto Water Level feature senses the size of the load and adds the correct amount of water for the load size. You may notice during a cycle that the wash load is not completely submerged in water. This is normal and necessary for clothes to move.

■ Has a household fuse blown, or has a circuit breaker

tripped?

Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

■ Is the washer in a normal pause in the cycle?

The washer may pause during certain cycles. Allow

the cycle

to continue.

■ Is the washer overloaded?

Wash smaller loads. See “Starting Your Washer” for maximum load size.

■ Is there oversudsing?

Cancel the current cycle. Press RINSE/DRAIN & SPIN to drain

e load. Re-select your desired cycle and press START. Do

th not add detergent. Use cold water.

■ Is the lid open?

The lid must be closed during operation. The

washer will not

operate with the lid open.

■ Did you add more items to the load once the washer

started? Once the load is wet, there may appear to be space for more items. Do not add more than 1 or 2 garments after the cycle has started.

For best results determine load size with dry items

only.

Wash/Rinse temperature

■ Are the hot and cold water inlet hoses reversed?

If the hot and cold water inlet hos

es are reversed, the washer will display an “HC” error code at the end of the cycle. See “Connect the Inlet Hoses.”

■ Are you washing many loads?

As your frequency of loads washed increases, the water

mperature may decrease for hot and warm temperatures.

te This is normal.

■ Do you have an ENERGY STAR washer?

The wash water temperatures may feel cooler

to you than

those of your previous washer. This is normal.

■ Does the wash water temperature feel lower than usual?

As washing progresses, the wash

temperature will decrease

slightly for hot and warm washes. This is normal. To reduce wrinkling, the warm rinse

is regulated to be cooler

than the warm wash.

Excessive sudsing

■ Did you use a non-HE detergent?

Regular or hand-washing detergents are not recommended f

or this washer. Use only High Efficiency (“HE”) detergent. Remember, concentrated detergents such as 2x or higher will use less detergent based on load size.

Washer continues to fill or drain, or the cycle seems stuck

■ Is the top of drain hose lower than the control knobs on

washer?

The top of the drain hose must be at least 39" (99 cm) above the floor. See “Drain System.”

■ Does the drain hose fit too tightly in the standpipe, or is it

taped to the standpipe?

The drain hose should be loose yet fit securely. Do not seal the drain hose with tape. The hose needs an air gap. See “Installation Instructions.”

Washer won’t drain or spin; water remains in washer

■ Is the drain hose clogged, or the end of the drain hose

more than 96" (244 cm) above the floor?

See “Drain System.”

■ Is the lid open?

The lid must be closed during operation. The operate with the lid open.

■ Is there excessive sudsing?

Always measure detergent. Follow detergent manufacturer’s

ections. If you have very soft water, you may need to use

dir less detergent. Use only High Efficiency (“HE”) detergent. Remember, concentrated detergents such as 2x or higher will use less detergent based on load size.

washer will not

■ Is there excessive sudsing?

Always measure detergent. Follow detergent manufacturer’s dir

ections. If you have very soft water, you might need to use

less detergent. Selecting a Fabric Softener or 2nd Rinse option will help flush

excess

suds from your washer.

Cycle did not run Stain Treat option

■ Did you select the Stain Treat option?

The Stain Treat option must be selected for it to be included in a wa

sh cycle.

■ The Stain Treat option is a preset cycle setting in the Heavy

Duty cycle and may be added to other cycles.

Clothing Care

Load too wet

■ Did you use the right cycle for the load being washed?

Select a higher spin speed.

■ Did you use a cold rinse?

Cold rinses leave loads wetter than warm rinses. This is normal.

■ Did you wash an extra large load?

A large unbalanced load could result in a reduced spin speed

d wet clothes at the end of the cycle. Evenly distribute the

an load around the basket wall and do not load above the stainless steel portion of the basket. Select Drain and Spin to remove excess water from the load.

Residue or lint on load

Stains, gray whites, dingy colors

■ Did you add detergent to the dispenser?

For best results, use the dispenser to dissolve the detergent.

■ Did you sort properly?

Sort lint givers (towels, chenille) from lint takers (corduroy, synthetics). Also sort by color.

■ Did you overload the washer?

The wash load must be balanced and not overloaded. Clothes should move freely. Lint or powdered detergent can be trapped in the load if overloaded. Wash smaller loads. See “Starting Your Washer” for maximum load size.

■ Did you use enough detergent?

Follow detergent manufacturer’s directions. Use enough detergent to hold the lint in the water.

■ Did you line dry your clothing?

If so, you can expect some lint on the clothing. The air movement and tumbling of a dryer removes lint from the load.

■ Was paper or tissue left in pockets?

■ Is your water colder than 60°F (15.6°C)?

Wash water colder than 60°F (15.6°C) may not completely dissolve the detergent.

■ Did you use the proper Soil Level and Wash Cycle for the

load?

Reducing wash time (duration) and wash speed are ways to reduce lint.

■ Did you select a cycle with a spray rinse?

Heavy Duty, Normal, and Express Cycles are preset with a spray rinse to maximize water efficiency. For loads with particulates such as sand or lint, a 2nd Rinse option can be added to all cycles to aid in the removal of particulates, detergent, and bleach residues.

Load is wrinkled, twisted or tangled

■ Did you unload the washer promptly?

Unload the washer as soon as it stops.

■ Did you use the right cycle for the load being washed?

To reduce wrinkling, tangling and twisting, select a cycle with low wash speeds, such as Delicate/Handwash or Casual/ Wrinkle Free, or select a lower spin speed.

■ Did you overload the washer?

The wash load must be balanced and not overloaded. Loads should move freely during washing to reduce wrinkling, tangling and twisting.

■ Was the wash water warm enough to relax wrinkles?

If safe for the load, use warm or hot wash water. Use cold rinse water.

■ Are the hot and cold water hoses reversed?

Check that the hot and cold water hoses are connected to the correct faucets. If the hot and cold water inlet hoses are reversed, the washer will display an “HC” error code at the end of the cycle. See “Connect the Inlet Hoses.” A hot rinse followed by spin will cause wrinkling.

■ Did you properly sort the load?

The transfer of dye can occur when mixing whites and colors in a load. Sort dark clothes from whites and lights.

■ Was the wash temperature too low?

Use hot or warm washes if safe for the load. Make sure your hot water system is adequate to provide a hot water wash.

■ Did you use enough detergent, or do you have hard

water?

Use more detergent for washing heavy soils in cold or hard water. Water temperature should be at least 60°F (15.6°C) for soap to dissolve and work properly. For best performance, use the detergent manufacturer's recommended amounts.

■ Did you follow the manufacturer’s directions when adding

detergent and fabric softener?

Measure detergent and fabric softener. Use enough detergent to remove soil and hold it in suspension. Do not dilute fabric softener.

■ Is there above average iron (rust) in water?

You may need to install an iron filter.

■ Did you add detergent to the dispenser?

For best results, use the dispenser to dissolve the detergent.

■ Did you add fabric softener directly to the load?

Use your fabric softener dispenser. Do not drip fabric softener onto clothes.

■ Did you use a fabric softener dispensing ball?

Use the fabric softener dispenser provided with the washer. Dispensing balls will not operate correctly with this washer.

■ Did you unload the washer promptly?

To avoid the transfer of dye, unload the washer as soon as it stops.

■ Did you add detergent, chlorine bleach or fabric softener

too late in the cycle?

Detergent, chlorine bleach, and fabric softener should be added to the dispensers before starting the washer.

■ Did you use Express Wash on a large load?

Express Wash is designed to wash only a few items for best results.

■ For additional performance enhancements, select option

such as Stain Treat, Fabric Softener and 2nd Rinse to desired cycle.

■ For heavily soiled garments, select an Extra Rinse to assure

stains, soils, and detergents are thoroughly rinsed from the load.

Garments damaged

Load not rinsed

■ Were sharp items removed from pockets before washing?

Empty pockets, zip zippers, snap

or hook fasteners before

washing to avoid snagging and tearing of load.

■ Were strings and sashes tied to avoid tangling?

Straps and strings can easily become

entangled in the load,

causing strain on seams and tearing.

■ Were items damaged before washing?

Mend rips and broken threads in seams befor

■ Did you overload the washer?

e washing.

The wash load must be balanced and not overloaded. Loads should move fr

eely during washing. Be sure not to load above

the stainless portion of the basket.

■ Did you add chlorine bleach properly?

Do not pour chlorine bleach directly onto load. Wipe up bleach spills. Undiluted bleach w

ill damage fabrics. Do not place load items on top of the bleach dispenser when loading and unloading the washer (on some models). Do not use more than the manufacturer's recommended amount for a full load. Do not dilute.

■ Did you follow the garment manufacturer’s care label

instructions?

■ Did you use the proper detergent?

Regular or non-HE hand-washing detergents are not r

ecommended for this washer. Use only High Efficiency

(“HE”) detergent.

■ Did you follow the manufacturer’s directions when adding

detergent and fabric softener?

Always measure detergent and fabric softener carefully. Follow de

tergent manufacturer’s directions. If you have very soft water, you might need to use less detergent. Remember, concentrated detergents such as 2x or higher will use less detergent based on load size.

Selecting a Fabric Softener or Extra Rinse option will help fl

ush excess suds from your washer.

■ Did you select the Fabric Softener button?

If liquid fabric softener is added to the

dispenser, the Fabric

Softener option must be selected.

■ Was the Water Save Spray Rinse selected?

This spray rinse optimizes the water

used for rinsing the load. If extra rinsing is needed due to skin sensitivities, a high sudsing detergent, or particulates in the load, such as sand or lint, select the Extra Rinse option.

+ 53 hidden pages

Kenmore Oasis HE 110.2806 Series, Oasis HE 110.2807 Series Use & Care Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
