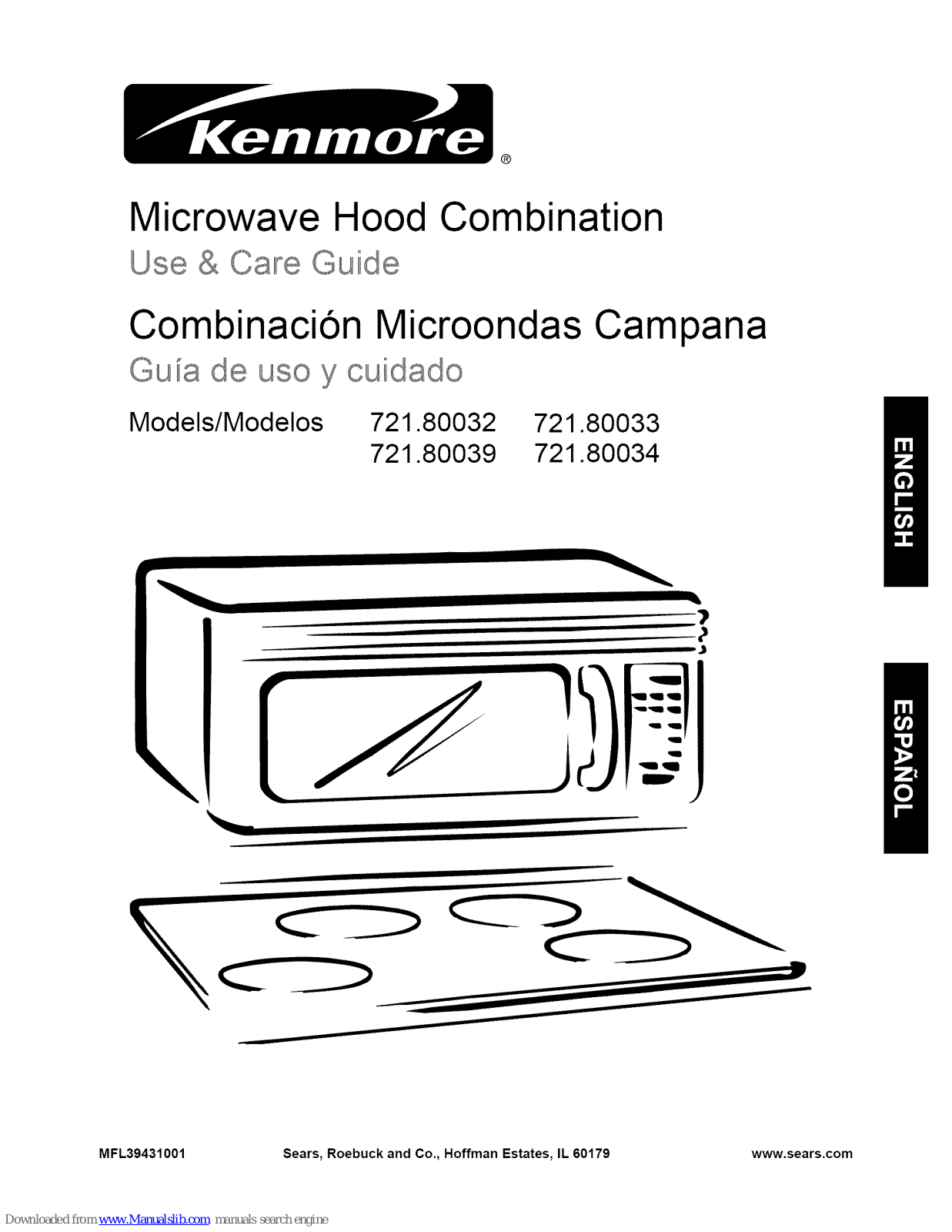

Kenmore MICROWAVE HOOD COMBINATION 721.80033, 721.80032, 721.80034, 721.80039 Use & Care Manual

Download

Microwave

Use & Ca,re Guide

Hood Combination

Combinacion Microondas

Guia de uso y cuidado

Models/Modelos 721.80032

721.80039

Campana

721.80033

721.80034

MFL39431001 Sears, Roebuck and Co., Hoffman Estates, IL 60179 www.sears.com

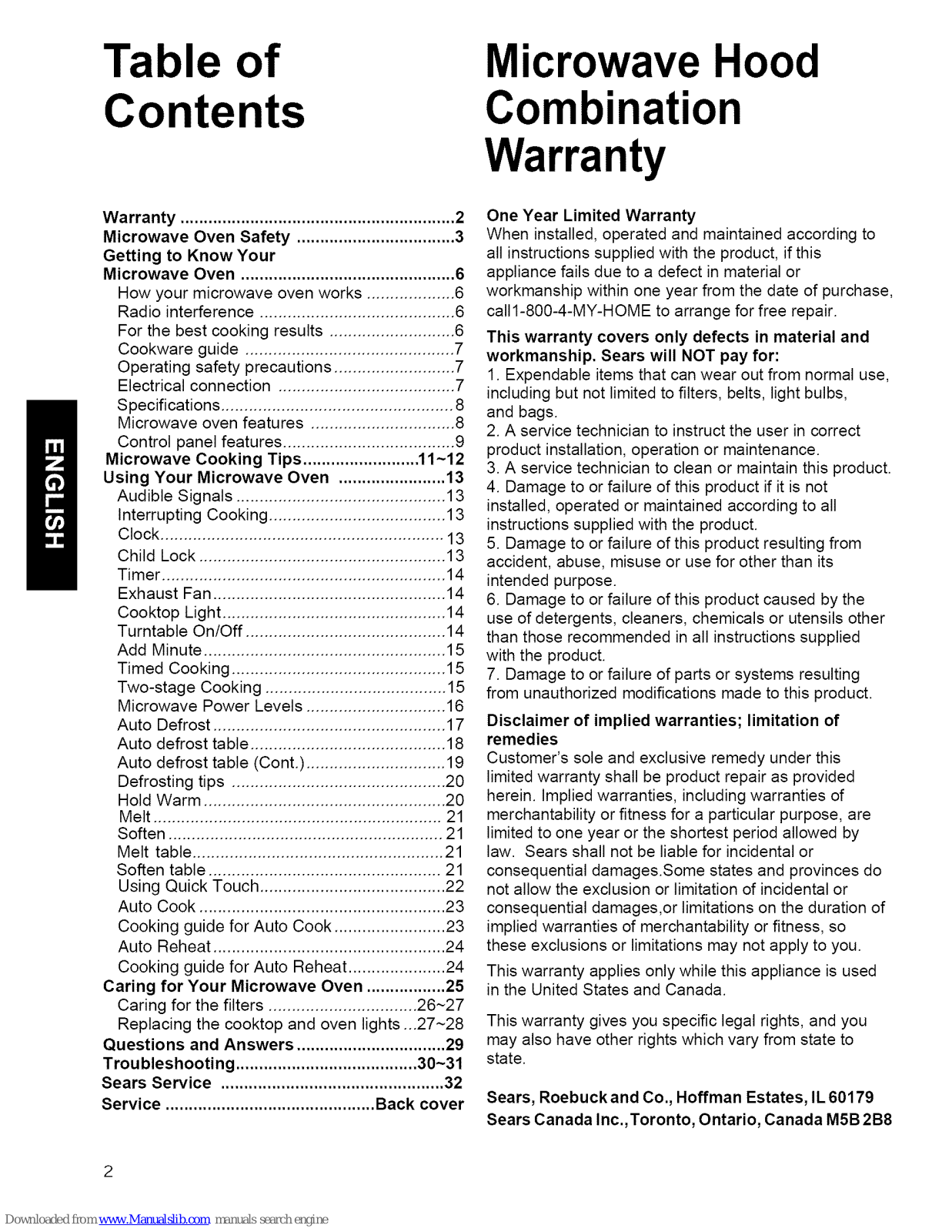

Table of Contents

Warranty ........................................................... 2

Microwave Oven Safety .................................. 3

Getting to Know Your

Microwave Oven .............................................. 6

How your microwave oven works ................... 6

Radio interference .......................................... 6

For the best cooking results ........................... 6

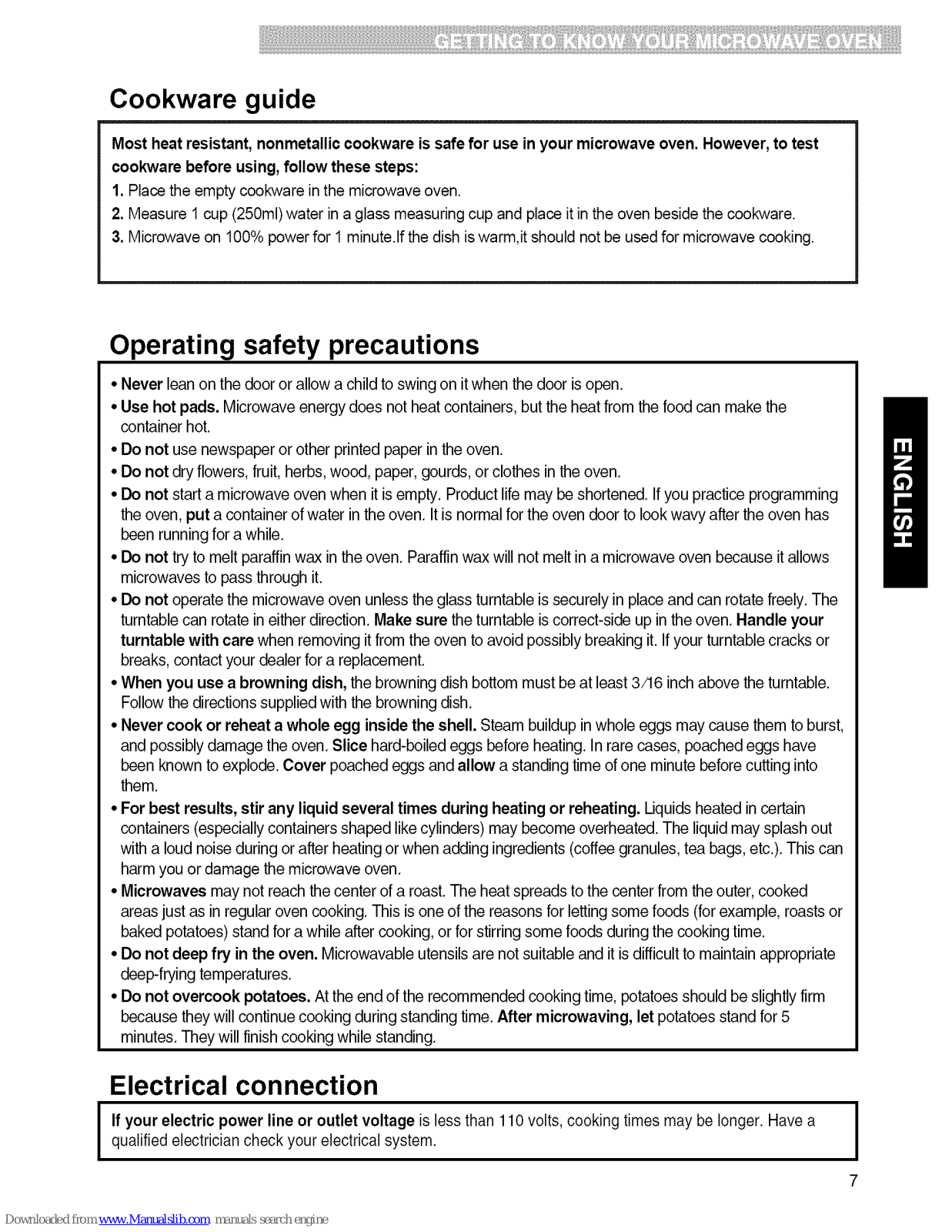

Cookware guide ............................................. 7

Operating safety precautions .......................... 7

Electrical connection ...................................... 7

Specifications .................................................. 8

Microwave oven features ............................... 8

Control panel features ..................................... 9

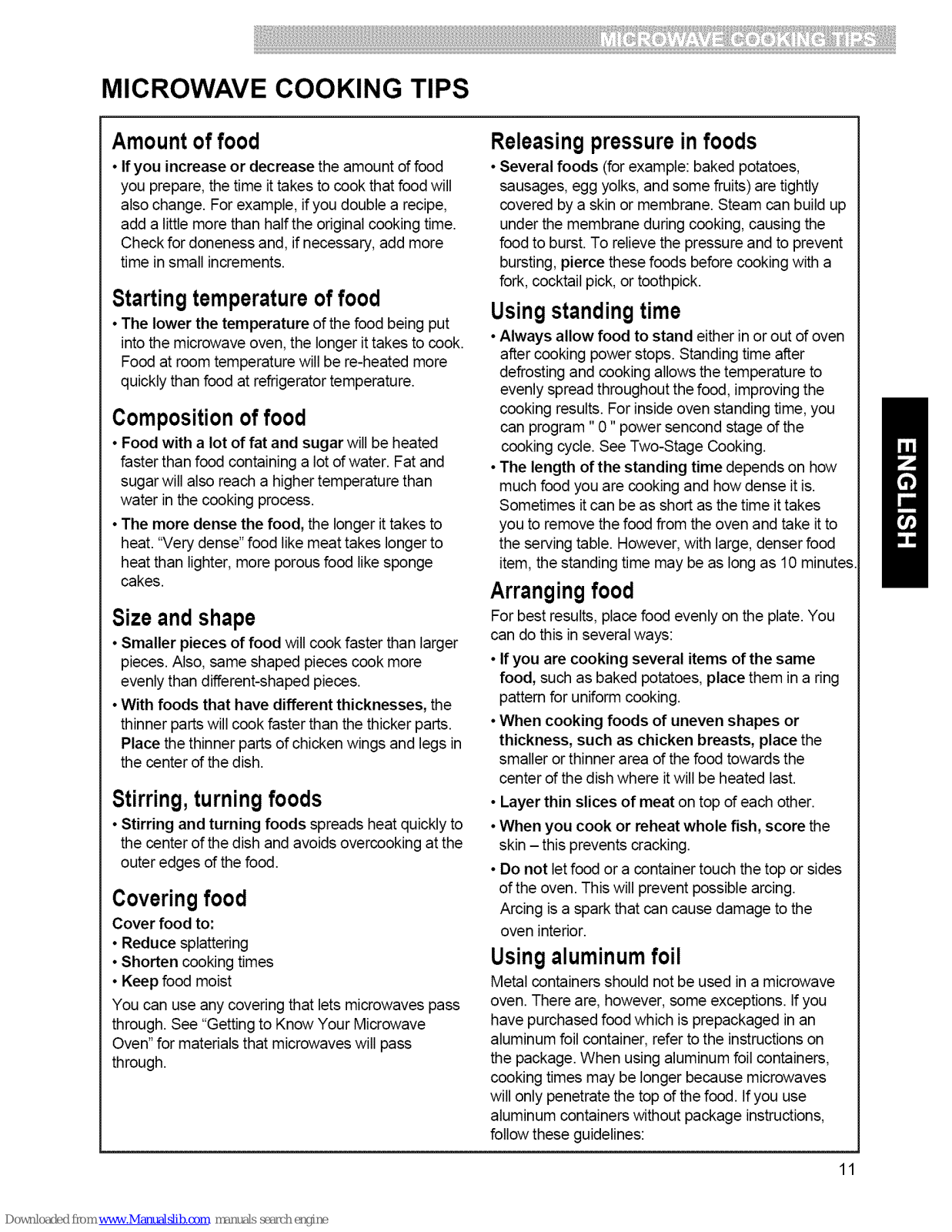

Microwave Cooking Tips ......................... 11-12

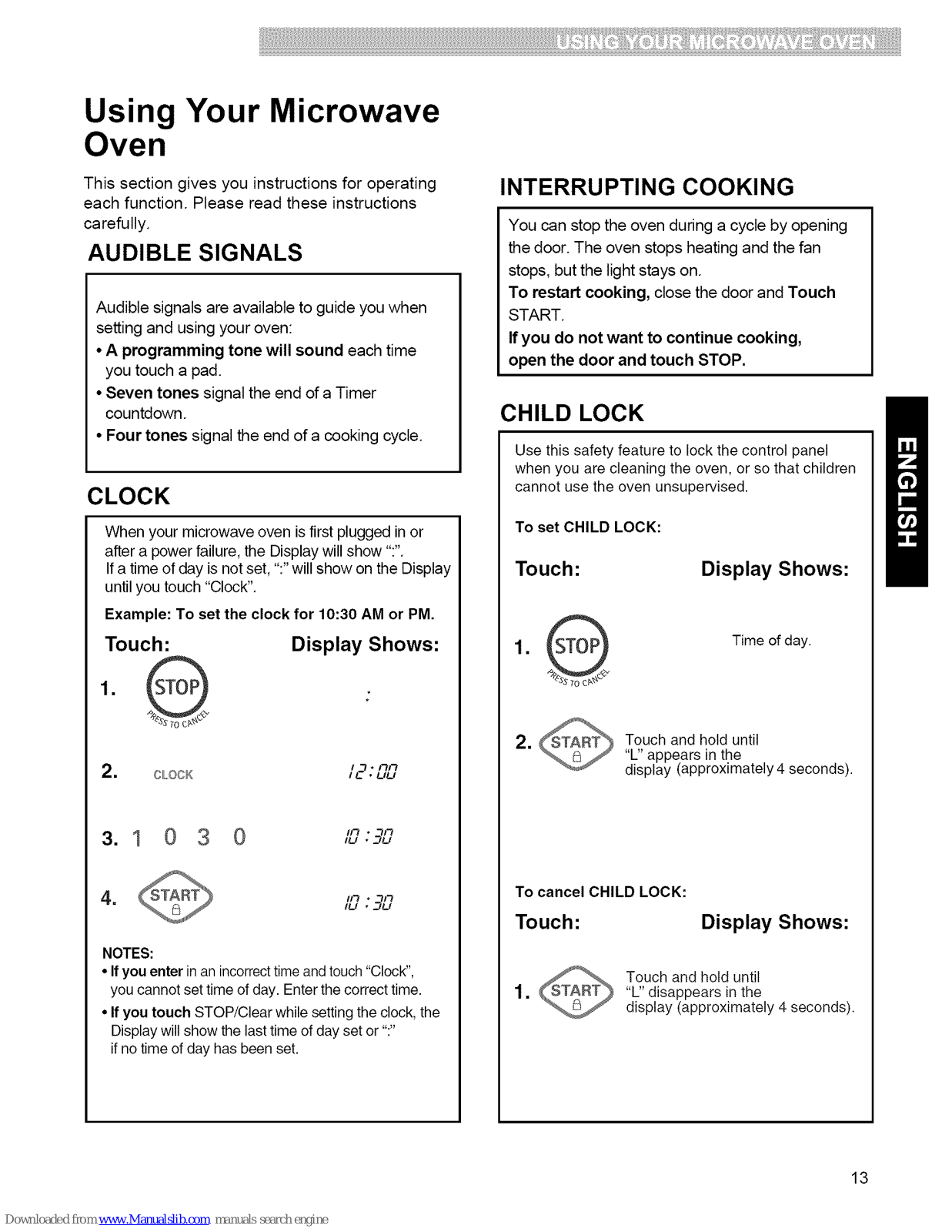

Using Your Microwave Oven ....................... 13

Audible Signals ............................................. 13

Interrupting Cooking ...................................... 13

Clock ............................................................. 13

Child Lock ..................................................... 13

Timer ............................................................. 14

Exhaust Fan .................................................. 14

Cooktop Light ................................................ 14

Turntable On/Off ........................................... 14

Add Minute .................................................... 15

Timed Cooking .............................................. 15

Two-stage Cooking ....................................... 15

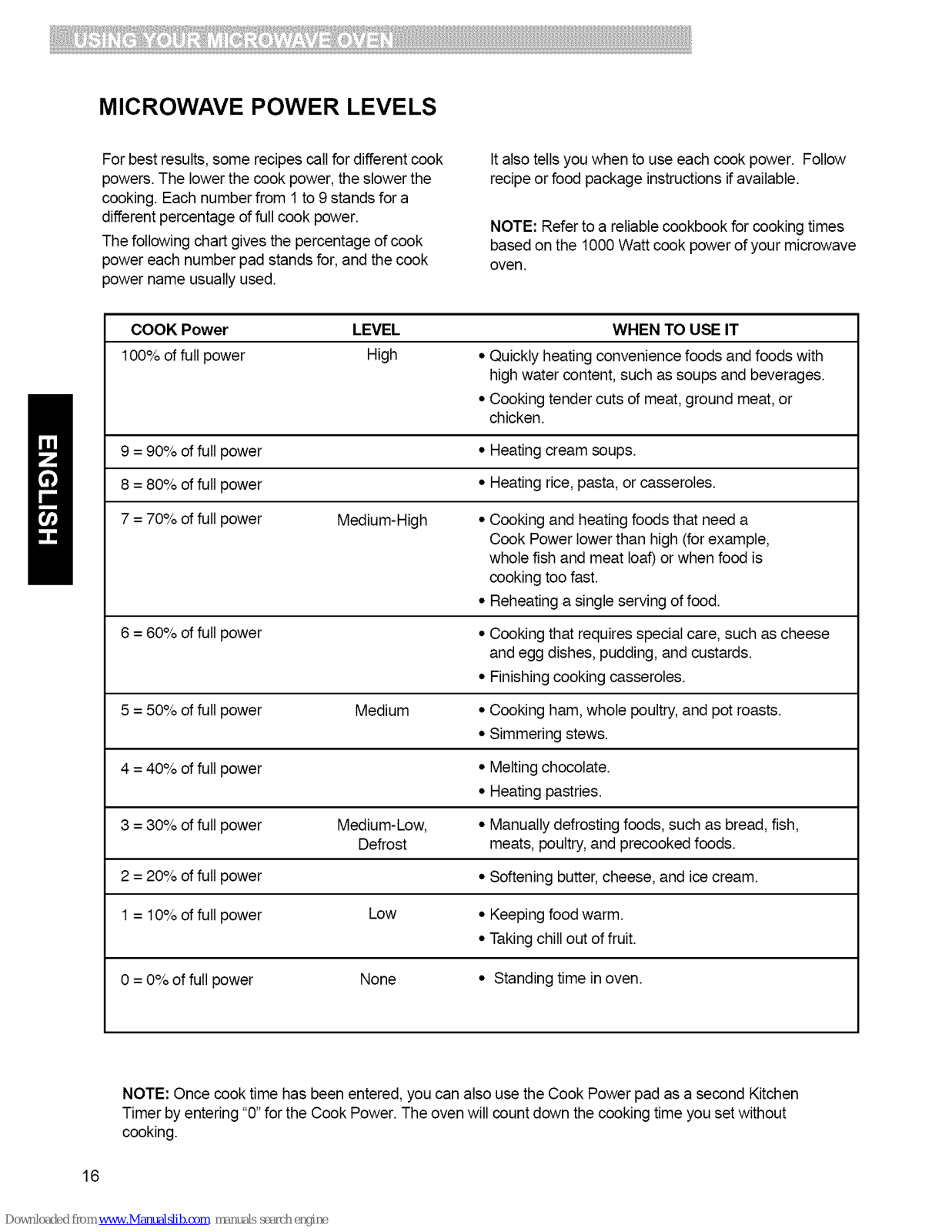

Microwave Power Levels .............................. 16

Auto Defrost .................................................. 17

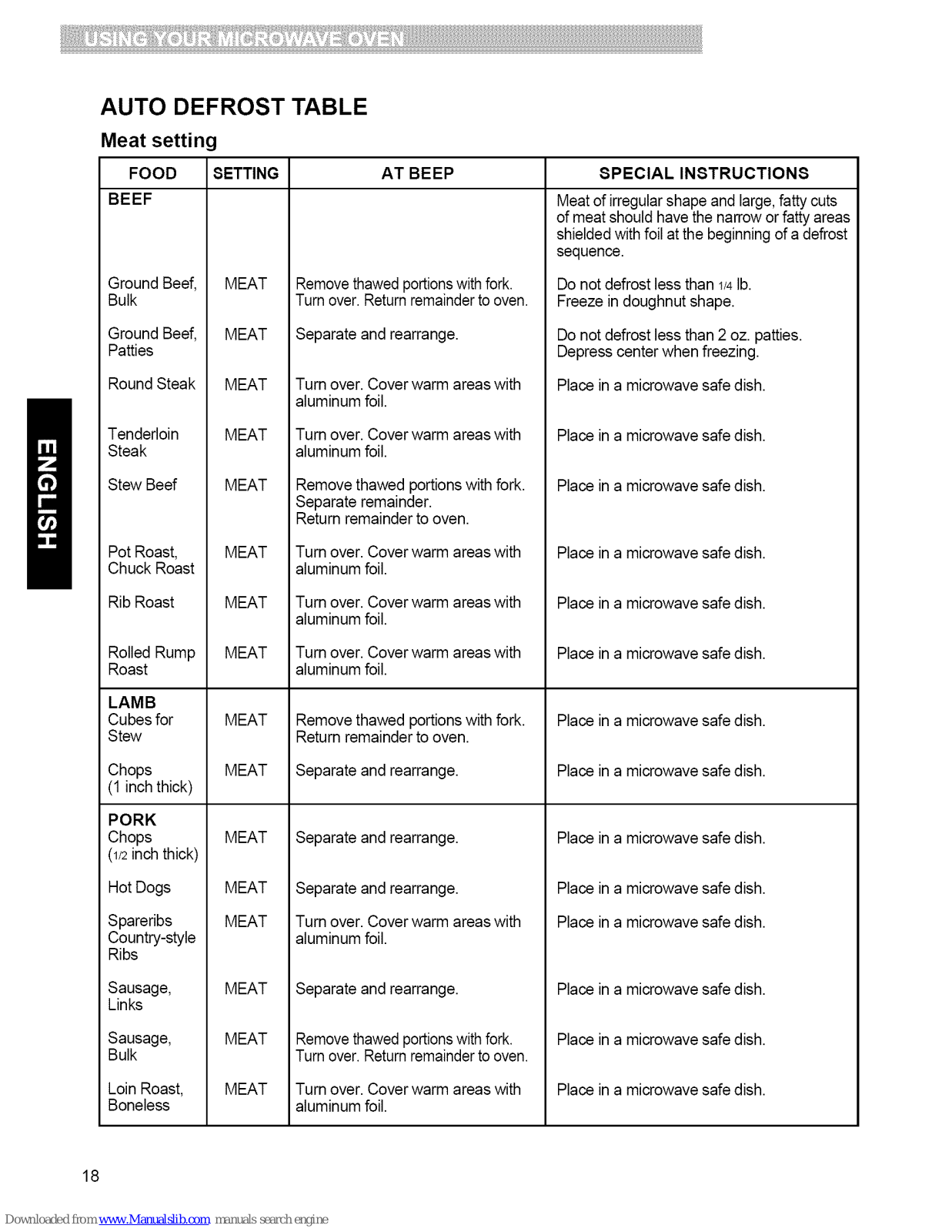

Auto defrost table .......................................... 18

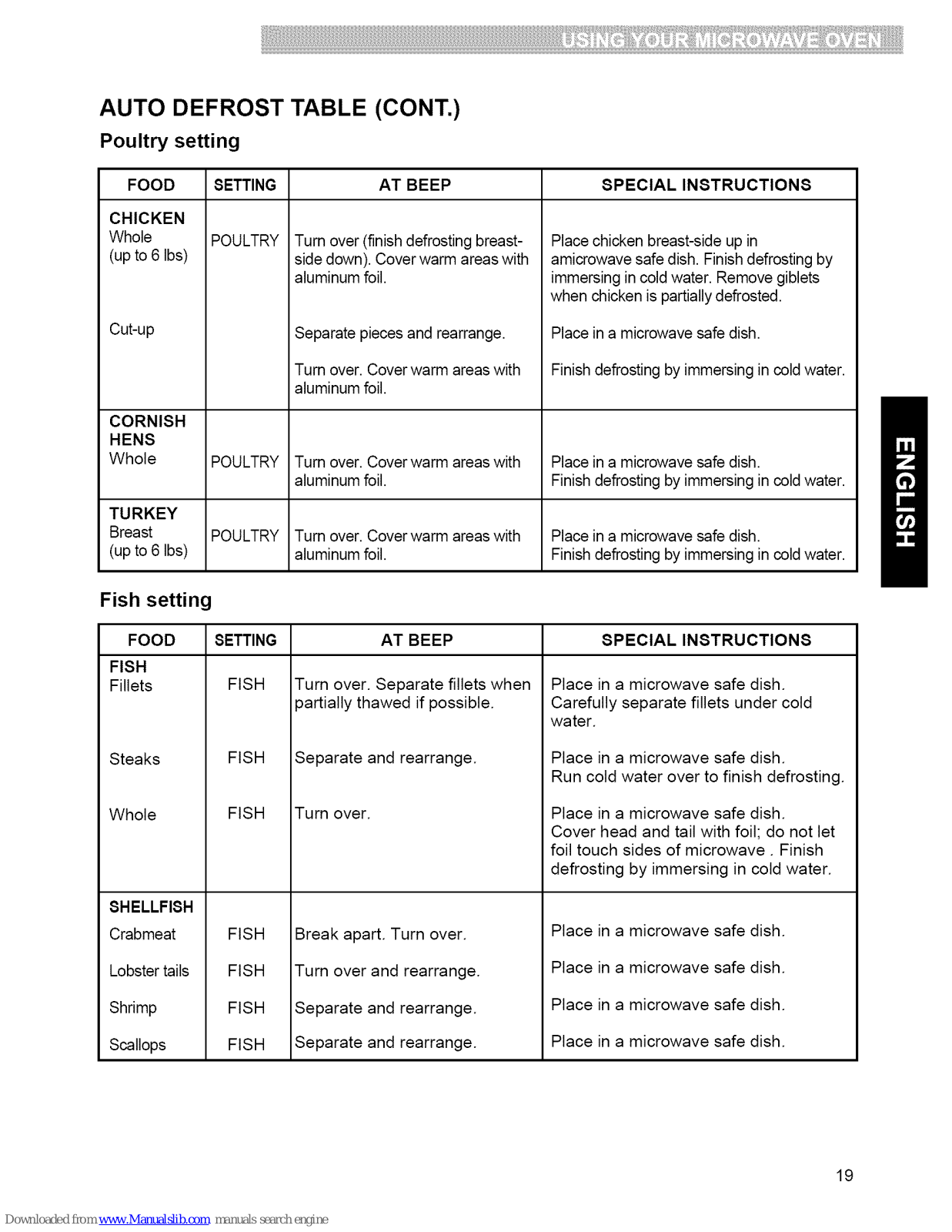

Auto defrost table (Cont.) .............................. 19

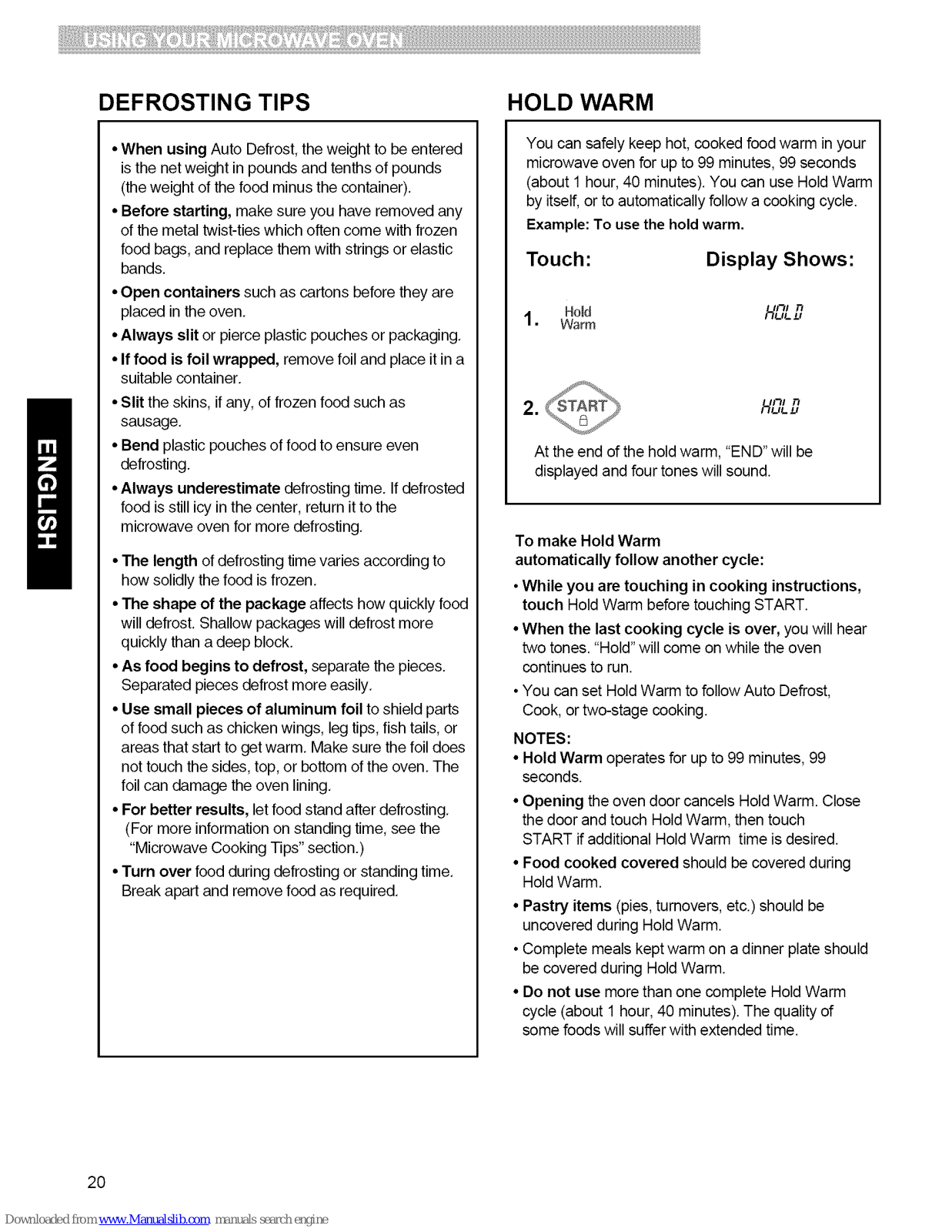

Defrosting tips .............................................. 20

Hold Warm .................................................... 20

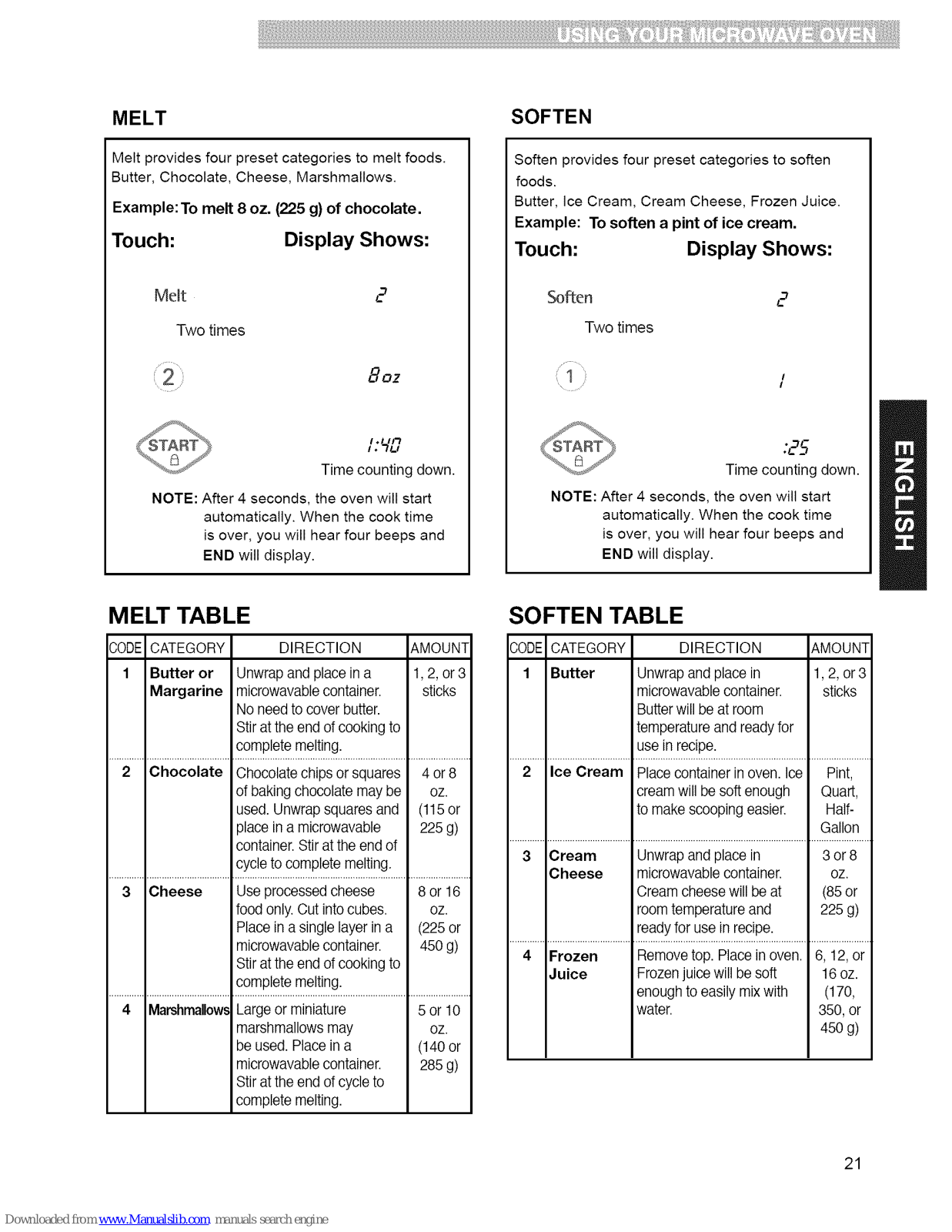

Melt .............................................................. 21

Soften ........................................................... 21

Melt table ...................................................... 21

Soften table .................................................. 21

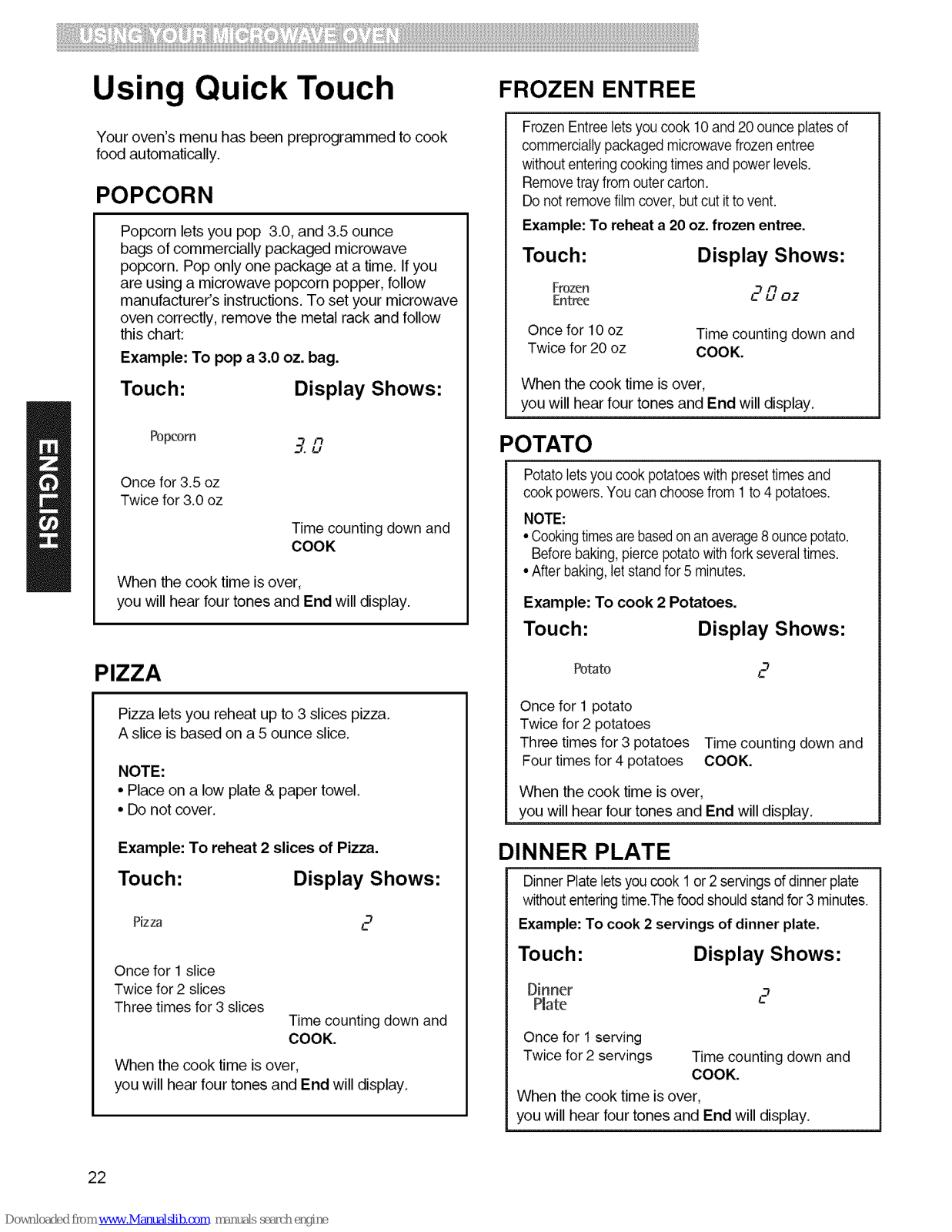

Using Quick Touch ........................................ 22

Auto Cook ..................................................... 23

Cooking guide for Auto Cook ........................ 23

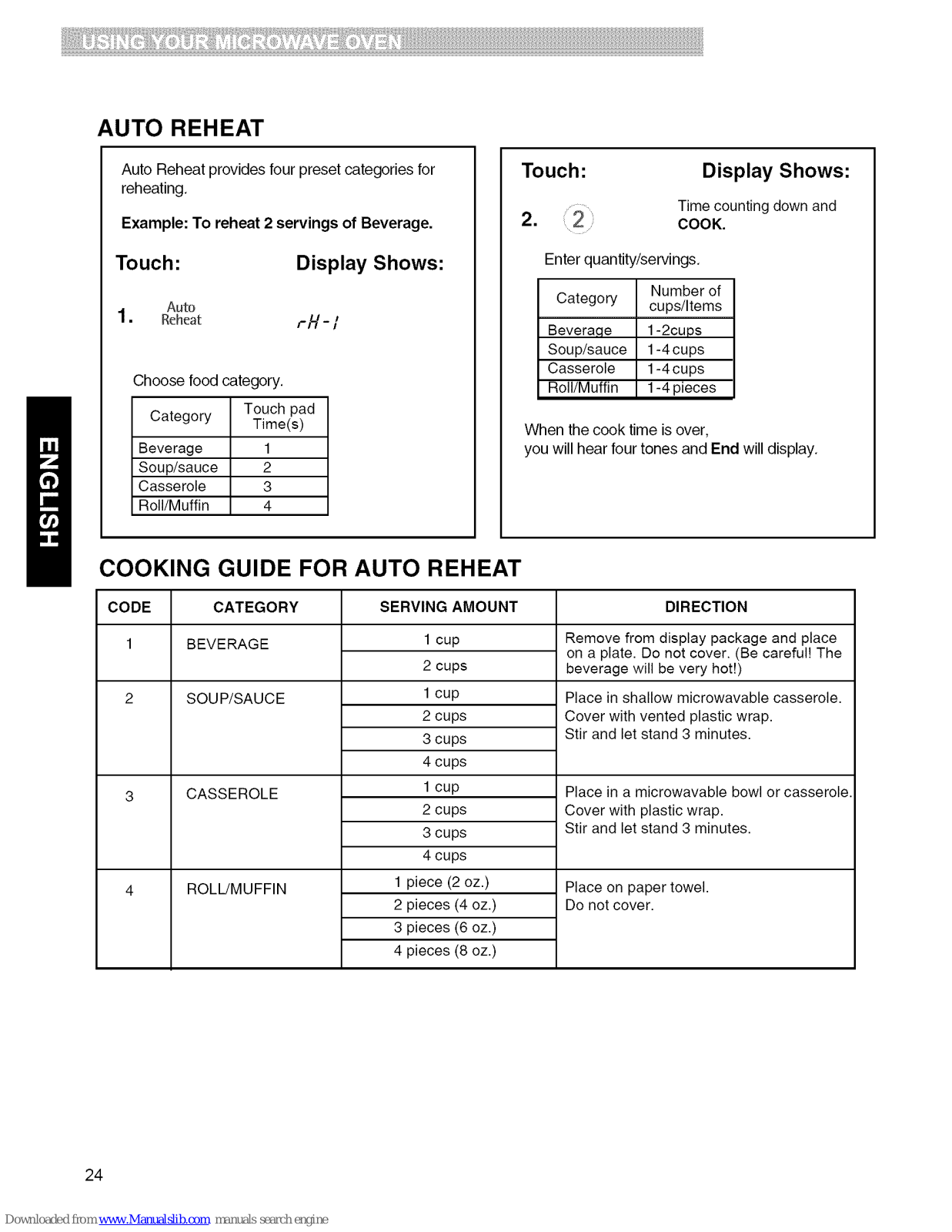

Auto Reheat .................................................. 24

Cooking guide for Auto Reheat ..................... 24

Caring for Your Microwave Oven ................. 25

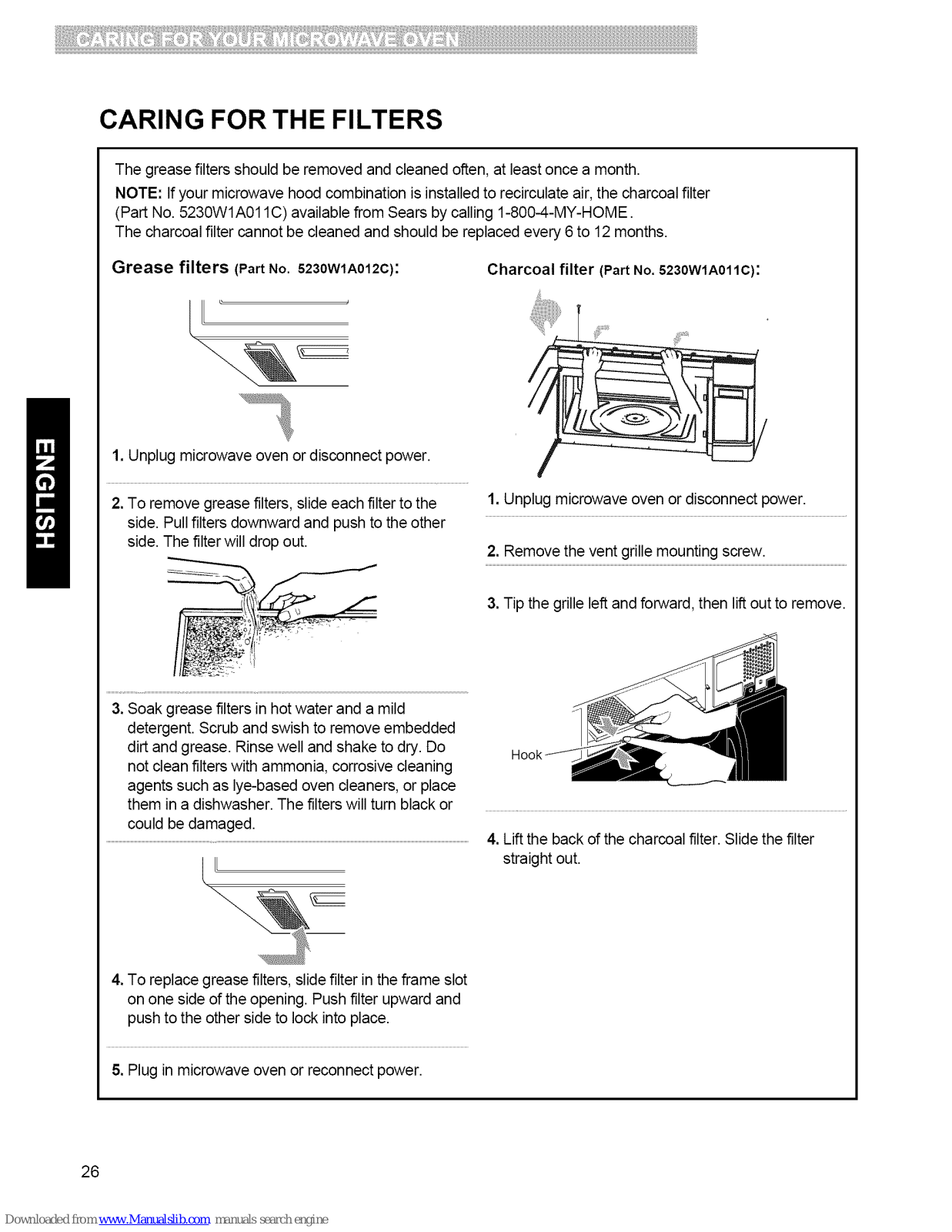

Caring for the filters ................................ 26~27

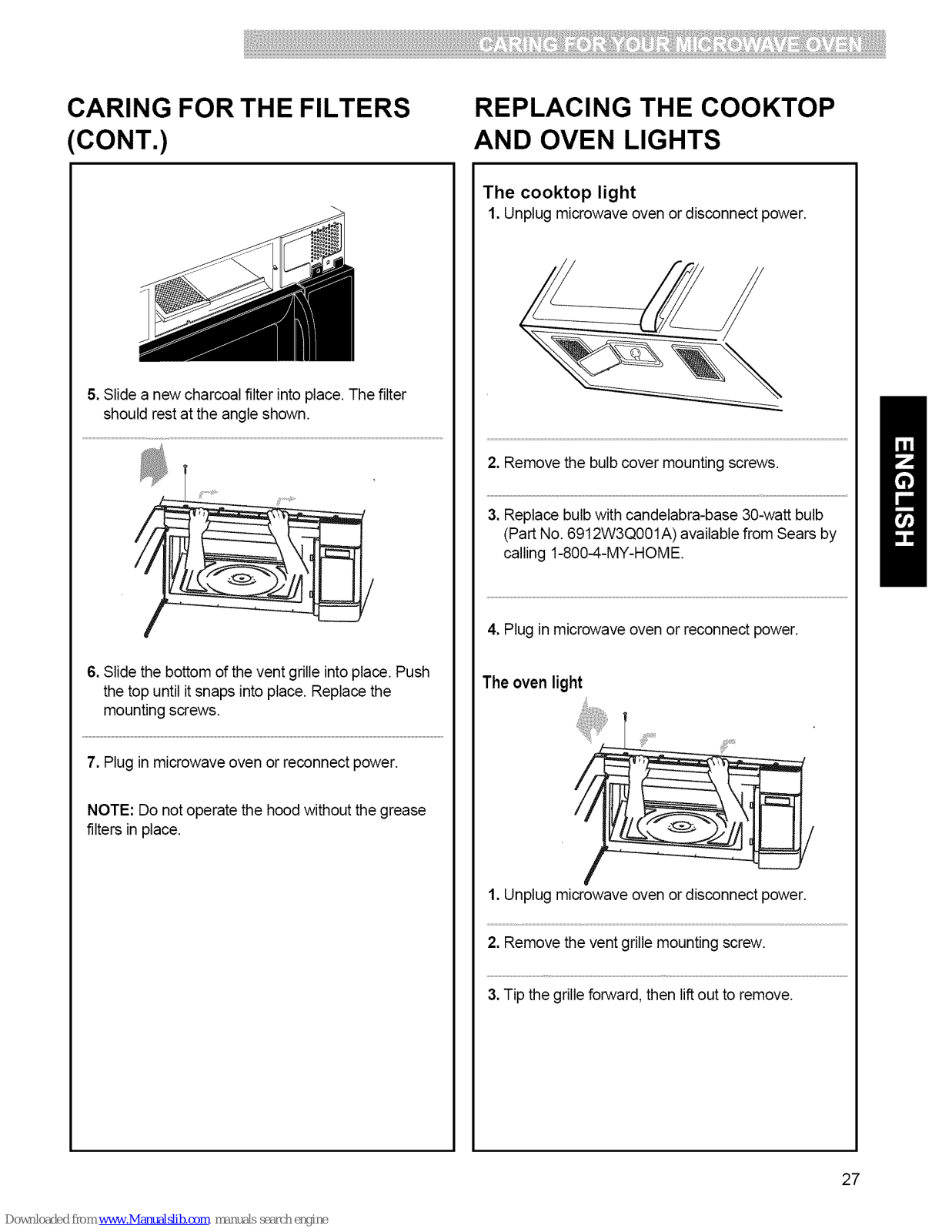

Replacing the cooktop and oven lights ...27~28

Questions and Answers ................................ 29

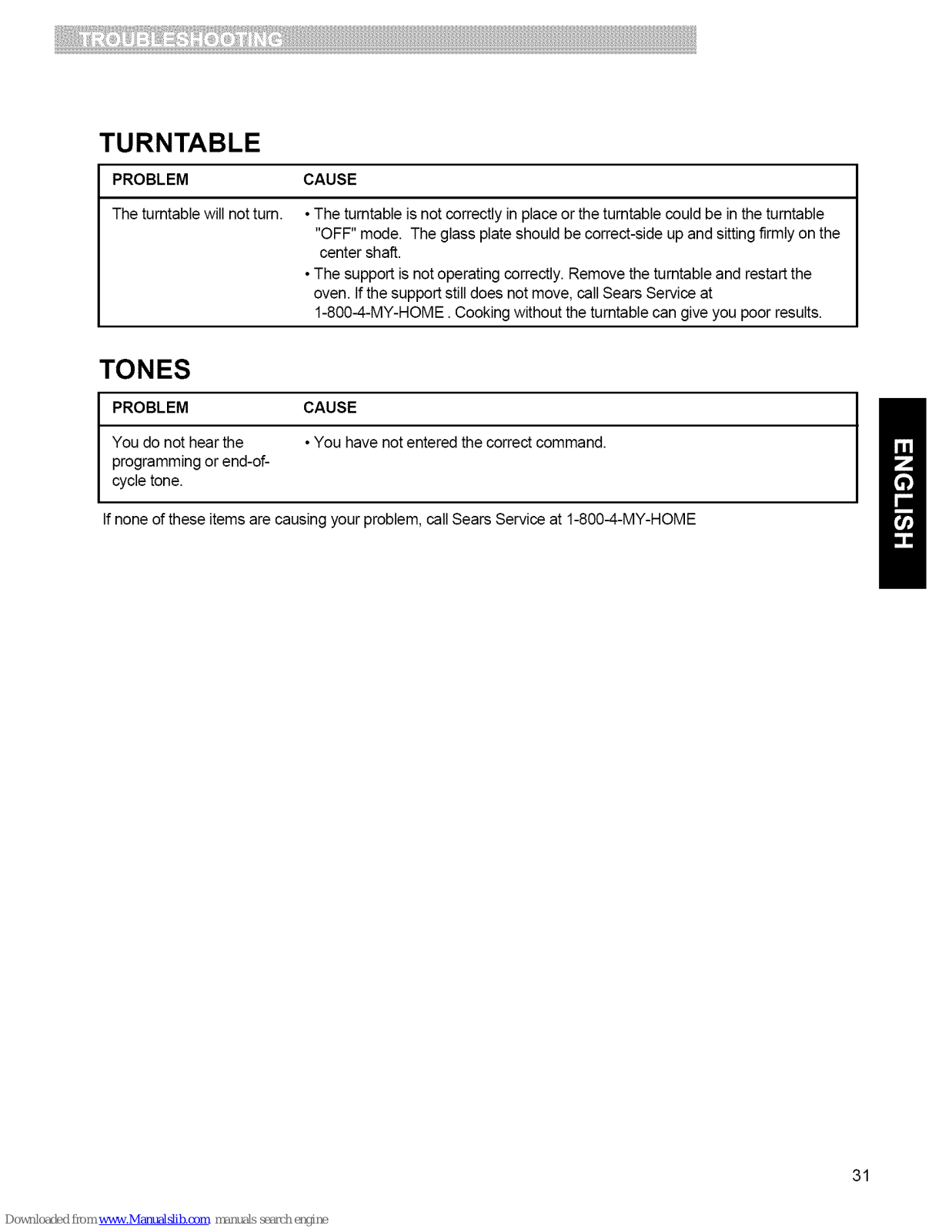

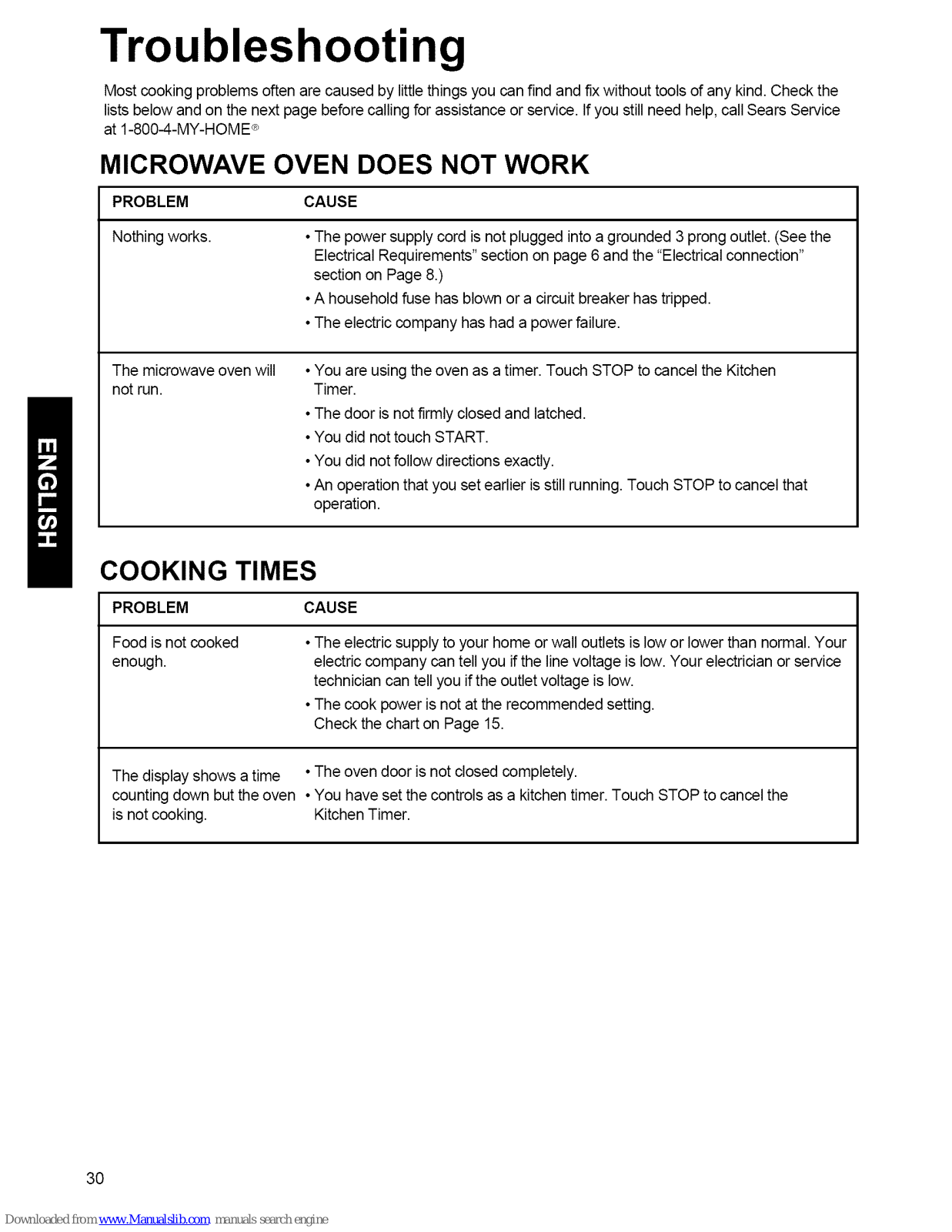

Troubleshooting ....................................... 30-31

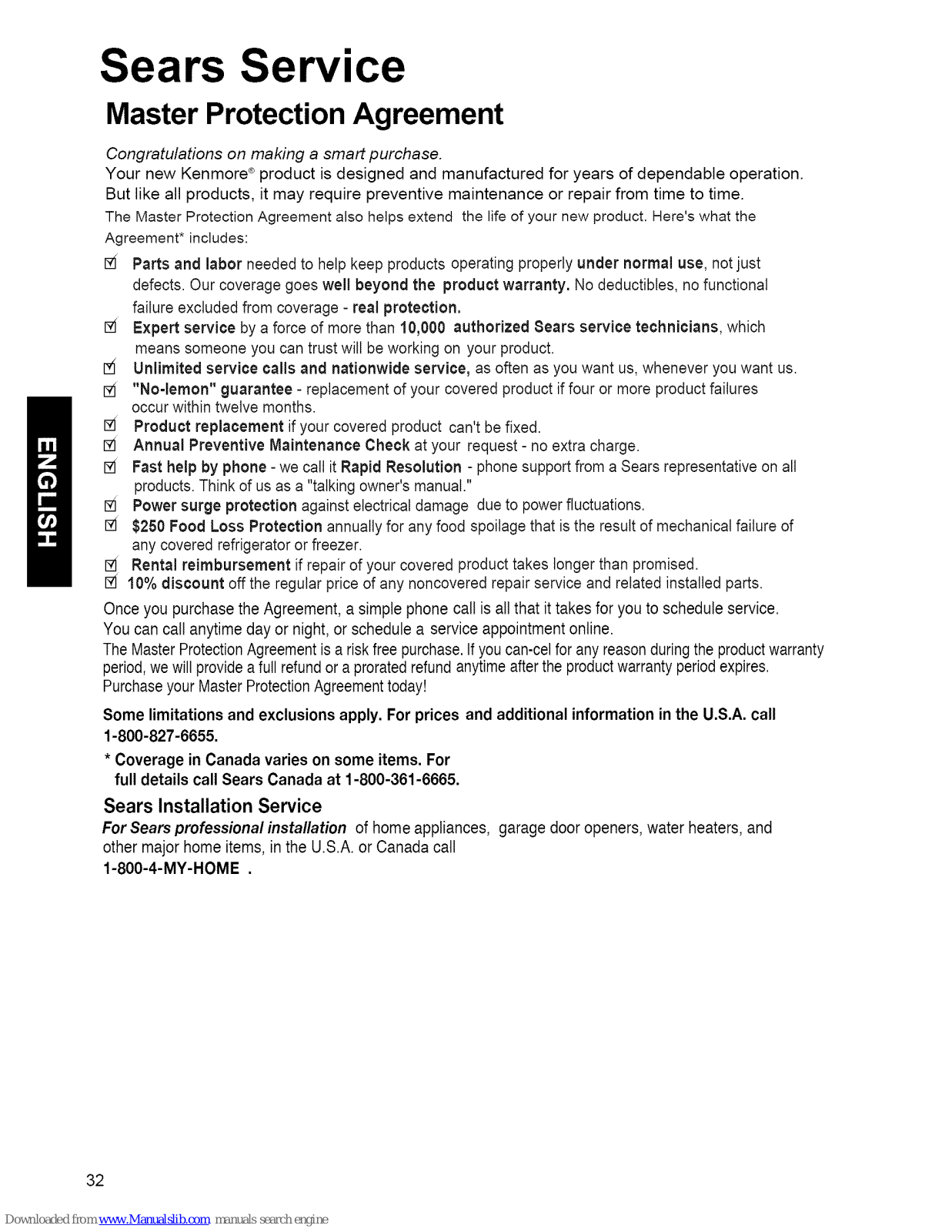

Sears Service ................................................ 32

Service ............................................. Back cover

MicrowaveHood

Combination

Warranty

One Year Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase,

calI1-800-4-MY-HOME to arrange for free repair. This warranty covers only defects in material and

workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs,

and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all

instructions supplied with the product.

5. Damage to or failure of this product resulting from

accident, abuse, misuse or use for other than its

intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other

than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting

from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of

merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or

consequential damages.Some states and provinces do

not allow the exclusion or limitation of incidental or

consequential damages,or limitations on the duration of

implied warranties of merchantability or fitness, so

these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used

in the United States and Canada.

This warranty gives you specific legal rights, and you

may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Hoffman Estates, IL60179 Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8

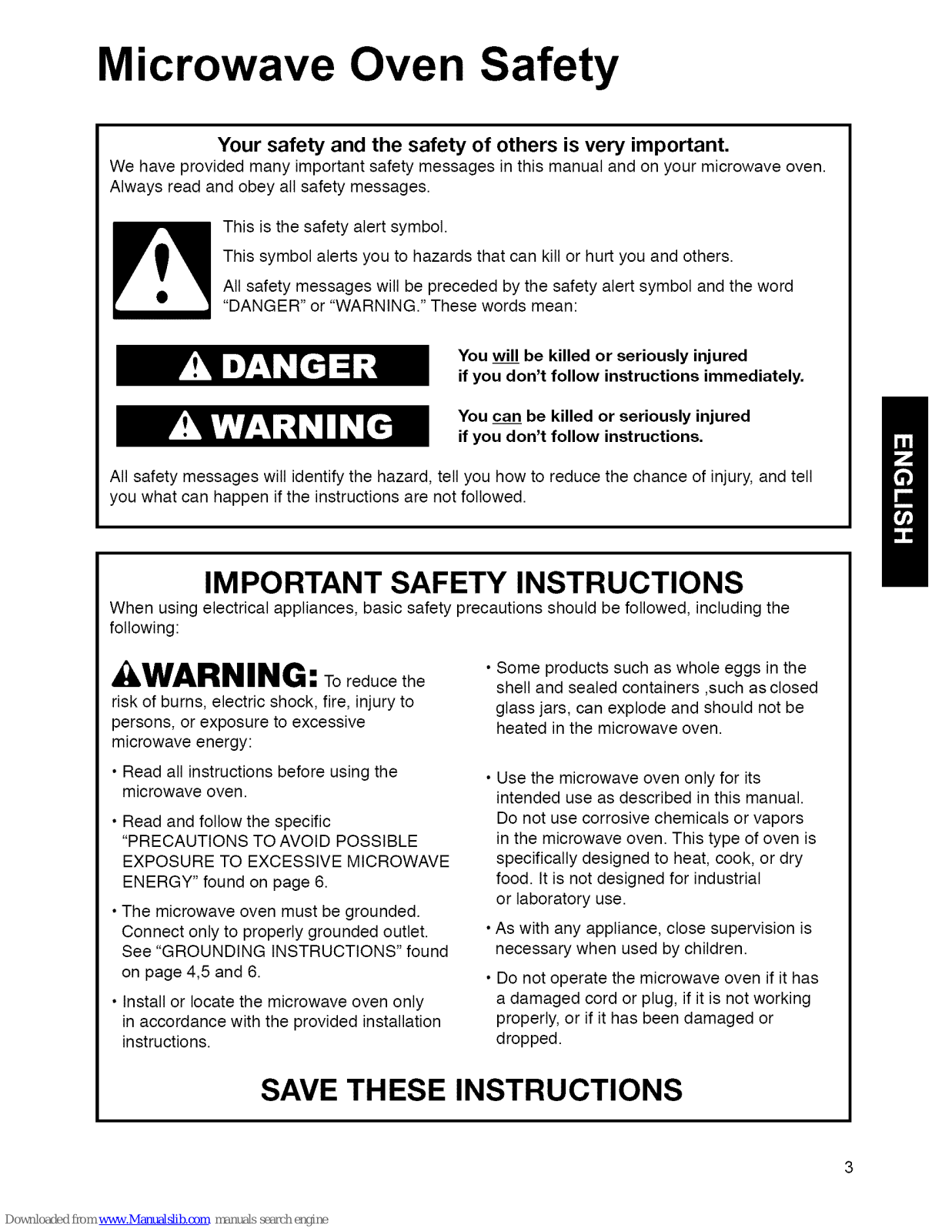

Microwave Oven Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your microwave oven. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the word

"DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions immediately.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

a,WARNING: Toreducethe

risk of burns, electric shock, fire, injury to persons, or exposure to excessive

microwave energy:

• Read all instructions before using the microwave oven.

• Read and follow the specific *'PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 6.

• The microwave oven must be grounded. Connect only to properly grounded outlet.

See "GROUNDING INSTRUCTIONS" found on page 4,5 and 6.

• Install or locate the microwave oven only in accordance with the provided installation

instructions.

• Some products such as whole eggs in the shell and sealed containers ,such as closed glass jars, can explode and should not be

heated in the microwave oven.

• Use the microwave oven only for its intended use as described in this manual.

Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

•As with any appliance, close supervision is necessary when used by children.

• Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

SAVE THESE INSTRUCTIONS

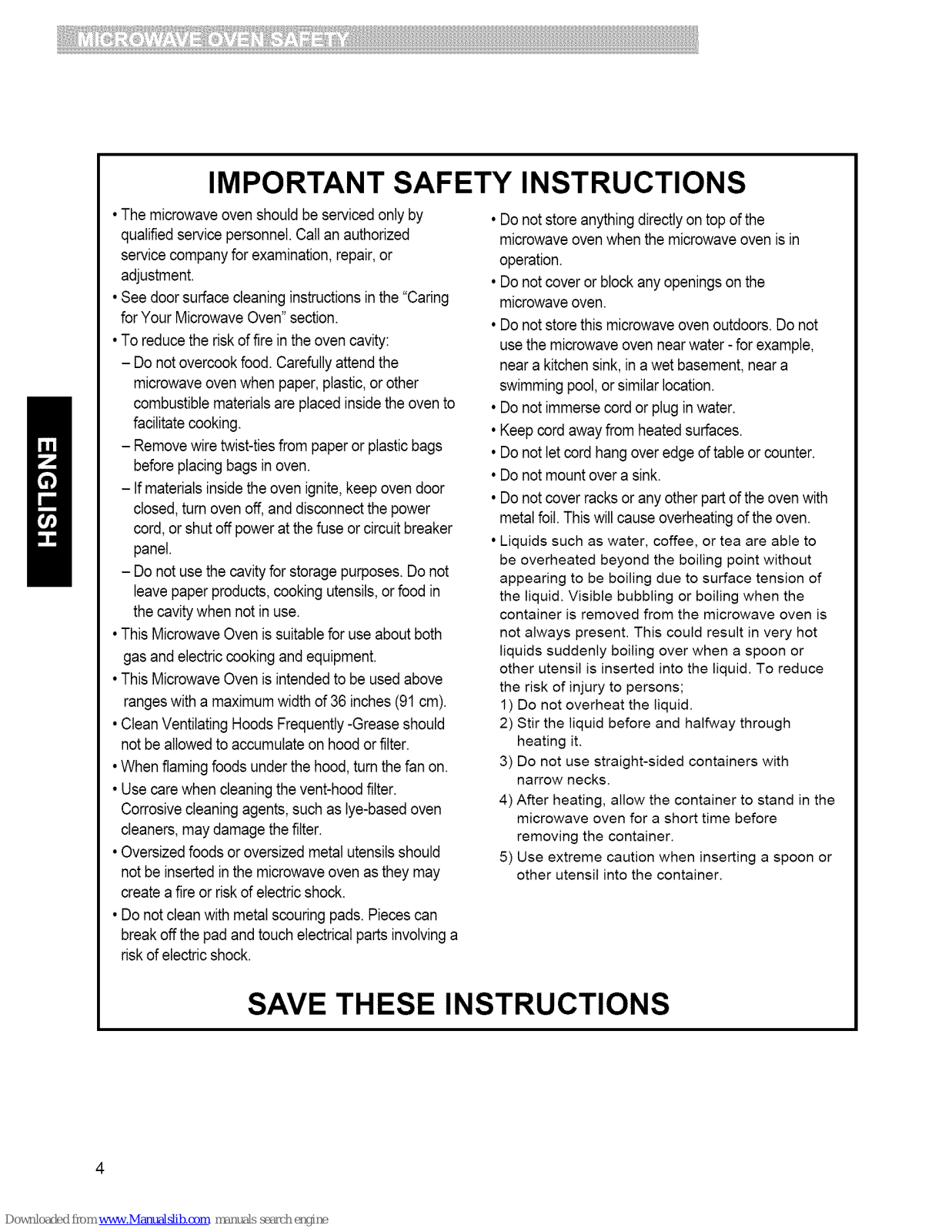

IMPORTANT SAFETY INSTRUCTIONS

•Themicrowaveovenshouldbe servicedonly by qualifiedservicepersonnel.Callan authorized servicecompanyforexamination,repair,or adjustment.

•See doorsurfacecleaninginstructionsinthe"Caring forYour MicrowaveOven"section.

•To reducethe riskoffirein theovencavity:

- Do notovercookfood. Carefullyattendthe

microwaveovenwhen paper,plastic,orother combustiblematerialsareplaced insidethe ovento

facilitatecooking.

- Removewiretwist-tiesfrom paperor plasticbags

beforeplacingbagsinoven.

- If materialsinsidetheovenignite,keepovendoor

closed,turn ovenoff,anddisconnectthepower cord,orshutoffpoweratthe fuseor circuitbreaker panel.

- Do notuse thecavityfor storagepurposes.Donot

leavepaperproducts,cookingutensils,orfood in

the cavitywhennotin use.

•This MicrowaveOvenissuitableforuseaboutboth

gasandelectriccookingandequipment.

•This MicrowaveOvenis intendedtobe usedabove

rangeswitha maximumwidthof36 inches(91cm).

•CleanVentilatingHoods Frequently-Greaseshould notbe allowedtoaccumulateon hoodorfilter.

•Whenflamingfoodsunderthehood, turnthe fanon.

• Usecarewhencleaningthe vent-hoodfilter. Corrosivecleaningagents,such aslye-basedoven

cleaners,maydamagethefilter.

•Oversizedfoodsoroversizedmetalutensilsshould notbe insertedin themicrowaveovenastheymay

createafire or riskof electricshock.

• Donotcleanwithmetalscouringpads.Piecescan breakoffthepad andtouchelectricalparts involvinga

riskof electricshock.

• Do not store anything directly on top of the microwave oven when the microwave oven is in

operation.

• Do not cover or block any openings on the microwave oven.

• Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example,

near a kitchen sink, in awet basement, near a swimming pool, or similar location.

• Do not immerse cord or plug in water.

• Keep cord away from heated surfaces.

• Do not let cord hang over edge of table or counter.

• Do not mount over a sink.

• Do not cover racks or any other part of the oven with metal foil. This will cause overheating of the oven.

• Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the

container is removed from the microwave oven is not always present. This could result in very hot

liquids suddenly boiling over when a spoon or other utensil is inserted into the liquid. To reduce

the risk of injury to persons;

1) Do not overheat the liquid.

2) Stir the liquid before and halfway through

heating it.

3) Do not use straight-sided containers with

narrow necks.

4) After heating, allow the container to stand in the

microwave oven for a short time before removing the container.

5) Use extreme caution when inserting a spoon or

other utensil into the container.

SAVE THESE INSTRUCTIONS

_!!!!_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_!i'i:i!iii!!iii!!i!i!iiiii:i!!!ii!!ii!!!ii!i!iii!i!'i_!iii!!!i_':__!!iii!ii'!_!!_!!!!!ii!!,i!ii!i!!ii!!ii!ii!!!!!i:ii_ii!!iiii!!_!iiiii_!!!!!iiiiii!!:iiiiiiiii!'i!!i!i!iii:,iii!i:i_iiii!!!!!i!!:!!

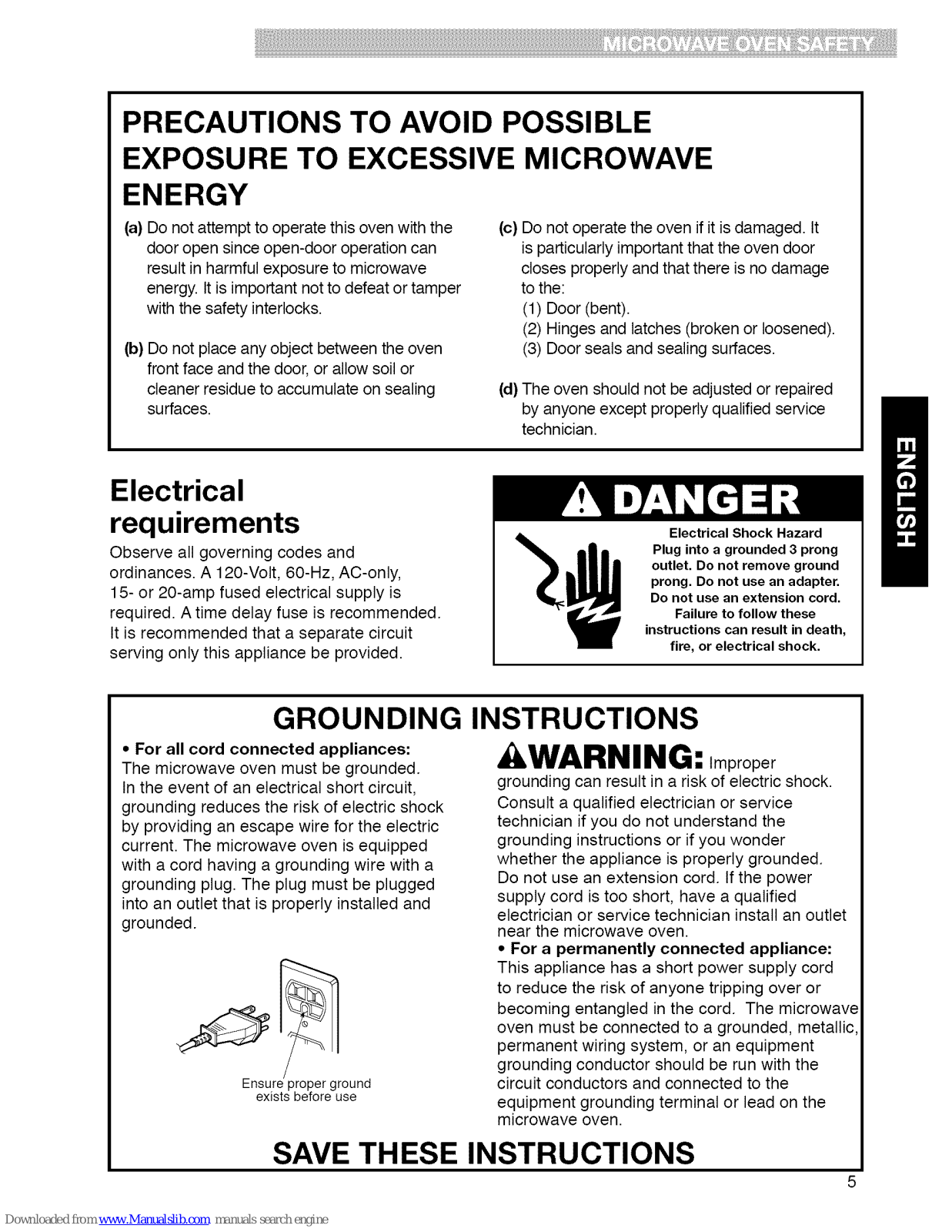

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven withthe

door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven

front face and the door, or allow soil or cleaner residue to accumulate on sealing

surfaces.

is particularly important that the oven door closes properly and that there is no damage

to the:

(1) Door (bent). (2) Hinges and latches (broken or loosened). (3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired

by anyone except properly qualified service

technician.

Electrical

requirements

Observe all governing codes and ordinances. A 120-Volt, 60-Hz, AC-only,

15- or 20-amp fused electrical supply is required. A time delay fuse is recommended.

It is recommended that a separate circuit

serving only this appliance be provided.

Electrical Shock Hazard

Plug into a grounded 3 prong

outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord.

Failure to follow these

instructions can result in death,

fire, or electrical shock.

GROUNDING INSTRUCTIONS

• For all cord connected appliances: The microwave oven must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the electric

current. The microwave oven is equipped with a cord having a grounding wire with a

grounding plug. The plug must be plugged into an outlet that is properly installed and

grounded.

_re_round

exists before use

_kWARNING: Improper

grounding can result in a risk of electric shock. Consult a qualified electrician or service

technician if you do not understand the grounding instructions or if you wonder

whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified

electrician or service technician install an outlet near the microwave oven.

• For a permanently connected appliance: This appliance has a short power supply cord

to reduce the risk of anyone tripping over or becoming entangled in the cord. The microwave oven must be connected to a grounded, metallic.

permanent wiring system, or an equipment grounding conductor should be run with the

circuit conductors and connected to the equipment grounding terminal or lead on the

microwave oven.

SAVE THESE INSTRUCTIONS

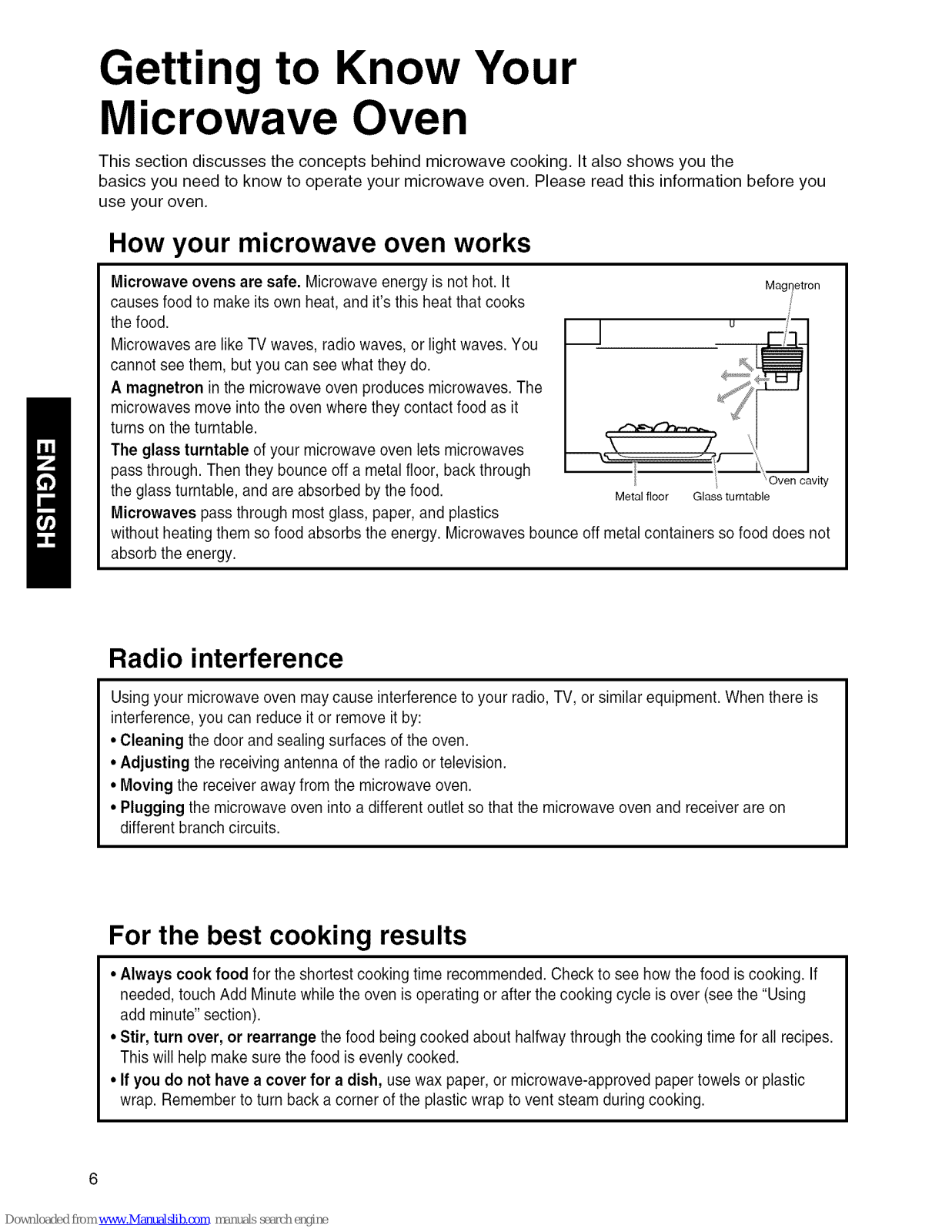

Gettin to Know Your Microwave Oven

This section discusses the concepts behind microwave cooking. It also shows you the basics you need to know to operate your microwave oven. Please read this information before you

use your oven.

How your microwave oven works

Microwave ovens are safe. Microwave energy is not hot. It Magnetron causes food to make its own heat, and it's this heat that cooks

the food. Microwaves are like TV waves, radio waves, or lightwaves. You

cannot see them, but you can see what they do. A magnetron in the microwave oven produces microwaves. The

microwaves move into the oven wherethey contact food as it turns on the turntable.

The glass turntable of your microwave oven lets microwaves pass through. Then they bounce off a metal floor, backthrough ovencavity

the glass turntable, and are absorbed bythe food. Metalfloor Glassturntable Microwaves pass through most glass, paper, and plastics

without heating them so food absorbs the energy. Microwaves bounce off metal containers so food does not absorb the energy.

Radio interference

Using your microwave oven may cause interference to your radio,TV, or similar equipment. When there is interference, you can reduce it or remove it by:

• Cleaning the door and sealing surfaces of the oven.

• Adjusting the receiving antenna of the radio or television.

• Moving the receiver away from the microwave oven.

• Plugging the microwave oven into a different outlet so that the microwave oven and receiver are on different branchcircuits.

For the best cooking results

• Always cook food for the shortest cooking time recommended. Checkto see how the food is cooking. If needed, touch Add Minute while the oven is operating or after the cooking cycle is over (see the "Using add minute" section).

• Stir, turn over, or rearrange the food being cooked about halfwaythrough the cooking time for all recipes. This will help makesure the food is evenly cooked.

• If you do not have a cover for adish, use wax paper, or microwave-approved paper towels or plastic wrap. Remember to turn back acorner of the plastic wrap to vent steam during cooking.

Cookware guide

Most heat resistant, nonmetallic cookware is safe for use in your microwave oven. However, to test

cookware before using,follow these steps:

1. Placethe empty cookware in the microwave oven.

2. Measure 1cup (250ml)water ina glass measuring cup and place itin the oven beside the cookware.

3. Microwave on 100% powerfor 1minute.Ifthe dish iswarm,it should not be usedfor microwave cooking.

Operating safety precautions

• Never lean on the door or allow a childto swing on it when thedoor is open.

• Use hot pads. Microwave energydoes notheat containers, but the heatfrom thefood can make the container hot.

• Do not use newspaper or other printed paper inthe oven.

• Do not dryflowers, fruit,herbs, wood, paper,gourds, or clothes in theoven.

• Do not starta microwave oven when it is empty. Productlife may be shortened. Ifyou practice programming the oven, put a container ofwater in the oven. Itis normal forthe oven door to look wavy after the oven has been runningfor a while.

• Do not tryto melt paraffin wax in theoven. Paraffin wax will not melt in a microwave oven because itallows microwaves to pass through it.

• Do not operatethe microwave oven unless the glass turntable is securely in placeand can rotate freely.The turntable can rotate in either direction.Make sure the turntable is correct-side up in the oven. Handle your turntable with care when removing it from the oven to avoidpossibly breaking it. If your turntablecracks or breaks, contact your dealer fora replacement.

• When you use abrowning dish, the browning dish bottom must be at least 3/16 inchabove the turntable.

Followthe directions supplied with the browning dish.

• Never cook or reheat a whole egg inside the shell. Steam buildup in whole eggs may cause them toburst, and possibly damage the oven. Slice hard-boiled eggs beforeheating.In rare cases, poachedeggs have

been known to explode. Cover poached eggs and allow a standing time ofone minute beforecutting into them.

• For best results, stir any liquid several times during heating or reheating. Liquidsheated in certain containers (especiallycontainersshaped likecylinders) may become overheated. The liquidmay splashout with a loudnoiseduring or after heating or when adding ingredients (coffeegranules, tea bags, etc.). This can harm you or damage the microwave oven.

• Microwaves may not reach thecenter ofa roast.The heatspreadsto the center from theouter, cooked areasjust as in regular oven cooking. This is one of the reasons for letting some foods (forexample, roastsor

baked potatoes)stand fora while after cooking,or forstirring some foods duringthe cooking time.

• Do not deep fry in the oven. Microwavableutensils are not suitable and itis difficultto maintain appropriate deep-frying temperatures.

• Do not overcook potatoes. At the end of the recommended cooking time, potatoesshould be slightlyfirm because they will continue cooking during standing time. After microwaving, let potatoes stand for 5 minutes. They will finish cooking while standing.

Electrical connection

I If yourelectric power line or outlet voltage is less than 110 volts, cooking times may be longer. Have a

qualified electrician check your electrical system.

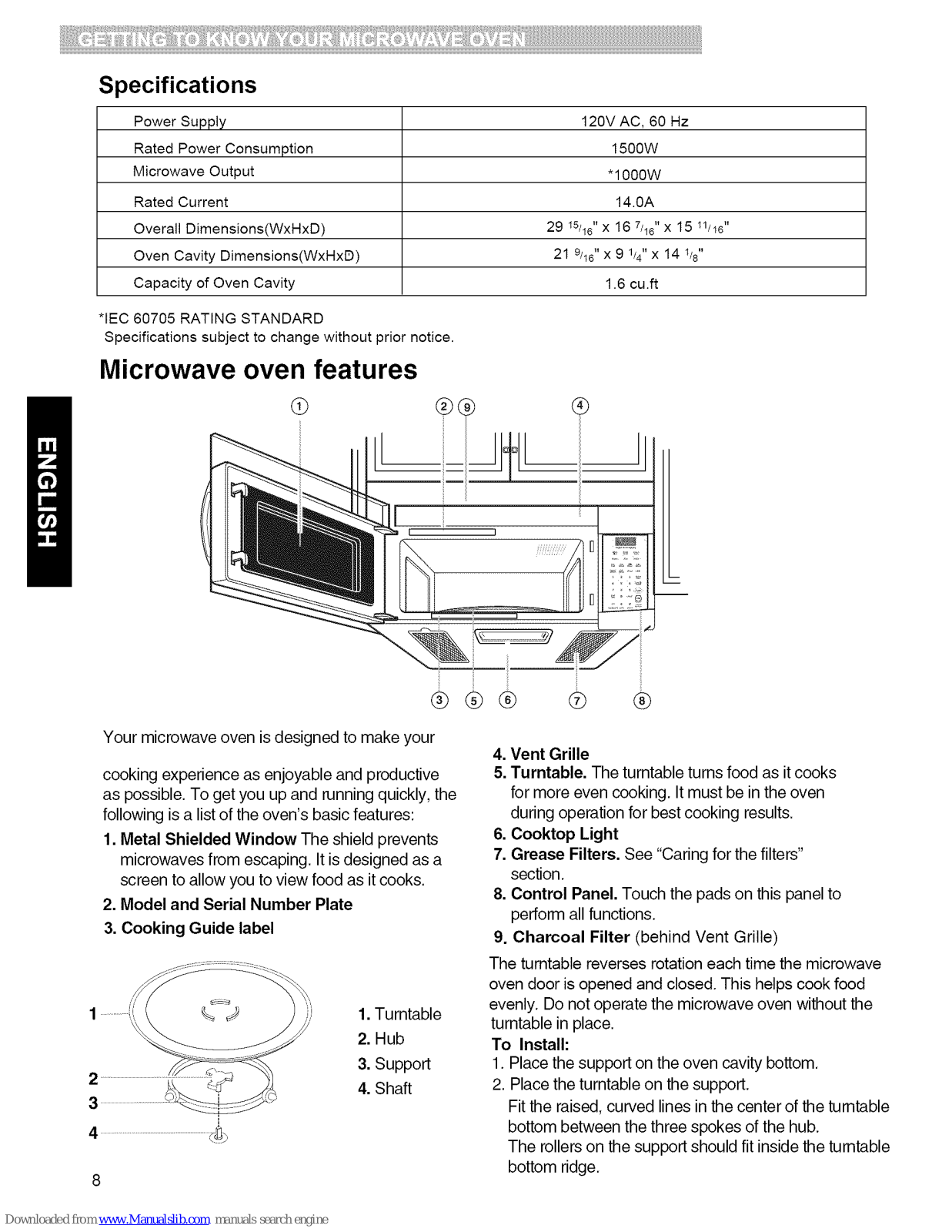

Specifications

Power Supply Rated Power Consumption

Microwave Output

Rated Current Overall Dimensions(WxHxD)

Oven Cavity Dimensions(WxHxD)

Capacity of Oven Cavity

*IEC 60705 RATING STANDARD

Specifications subject to change without prior notice.

Microwave oven features

120V AC, 60 Hz

1500W

*1000W

14.0A

29 I5/I6" x 16 7/I6" X 15 11/16"

21 9/16" X 9 1/4"x 14 1/8"

1.6 cu.ft

®® ®

Your microwave oven is designed to make your cooking experience as enjoyable and productive

as possible. To get you up and running quickly, the following is a list of the oven's basic features:

1. Metal Shielded Window The shield prevents microwaves from escaping. Itis designed as a screen to allow you to view food as itcooks.

2. Model and Serial Number Plate

3. Cooking Guide label

1.Turntable

2. Hub

3. Support

4. Shaft

®® ® ®

4. Vent Grille

5.Turntable. The turntable turns food as it cooks

for more even cooking. It must be in the oven during operation for best cooking results.

6. Cooktop Light

7. Grease Filters. See "Caring for the filters" section.

8. Control Panel. Touch the pads on this panel to perform allfunctions.

9. Charcoal Filter (behind Vent Grille) The turntable reverses rotation each time the microwave oven door is opened and closed. This helps cook food

evenly. Do not operate the microwave oven without the

turntable in place. To Install:

1. Place the support on the oven cavity bottom.

2. Place the turntable on the support. Fit the raised, curved lines in the center of the turntable

bottom between the three spokes of the hub. The rollers on the support should fit inside the turntable bottom ridge.

i iiiiiii Z! Z!!ii!!iiiiliii:iii!!!!ili iiiiiii ! ! !!ii!!i

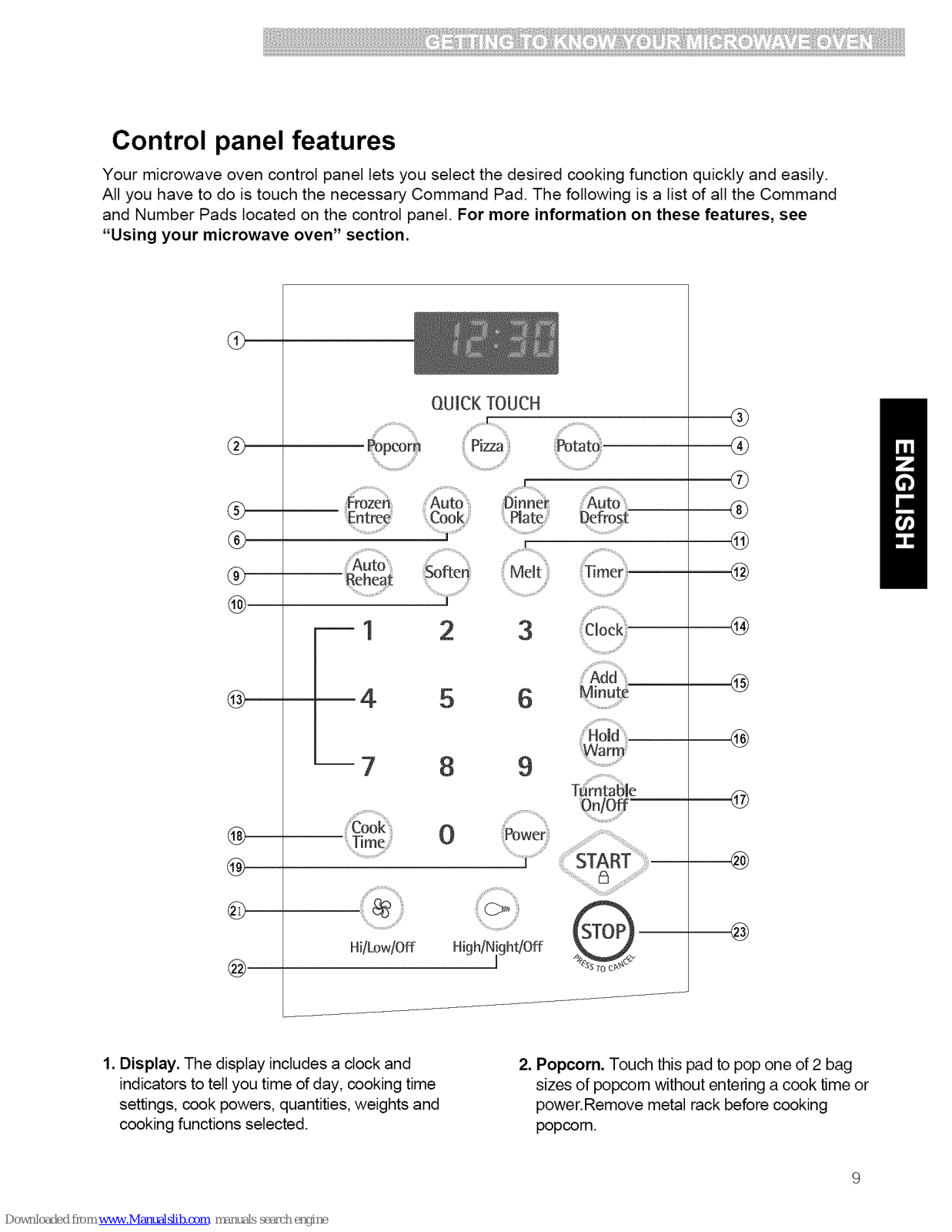

Control panel features

Your microwave oven control panel lets you select the desired cooking function quickly and easily. All you have to do is touch the necessary Command Pad. The following is a list of all the Command and Number Pads located on the control panel. For more information on these features, see "Using your microwave oven" section.

QUICKTOUCH

4 5 6

--7 8 9

i!!Time<i

Hi/Low/Off

eo_e< .......

............,............r...

High/N,ght/Off xsroc__

® ®

@ @

1.Display. The display includes a clock and indicators to tell you time of day, cooking time settings, cook powers, quantities, weights and cooking functions selected.

2. Popcorn. Touch this pad to pop one of 2 bag sizes of popcorn without entering a cook time or power.Remove metal rack before cooking popcorn.

i!iiiii!iiiii!!i ii!!!i !iiiii iiiiill''il!i'!ji !!ilJi!!!iiiiiiii !iiliiii!!!i!ii!iiii l''ii!!!i!iii !!li! !iii!!i!ili !!lii iiii !iiili!

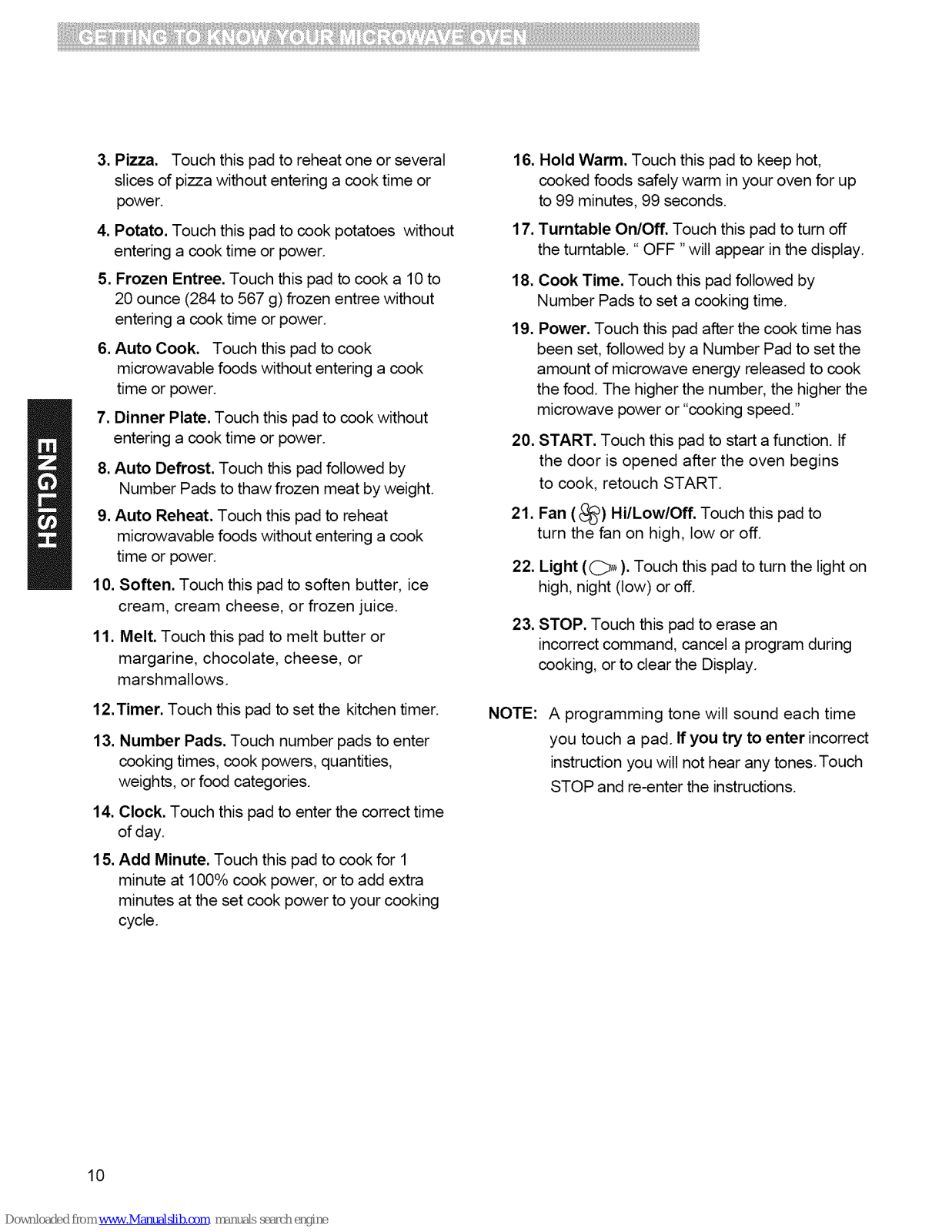

3. Pizza. Touch this pad to reheat one or several slices of pizza without entering a cook time or

power.

4. Potato. Touch this pad to cook potatoes without entering a cook time or power.

5. Frozen Entree. Touch this pad to cook a 10to 20 ounce (284 to 567 g) frozen entree without entering a cook time or power.

6. Auto Cook. Touch this pad to cook

microwavable foods without entering a cook time or power.

7. Dinner Plate. Touch this pad to cook without entering a cook time or power.

8. Auto Defrost. Touch this pad followed by

Number Pads to thaw frozen meat by weight.

9. Auto Reheat. Touch this pad to reheat

microwavable foods without entering a cook time or power.

10. Soften. Touch this pad to soften butter, ice cream, cream cheese, or frozen juice.

11. Melt. Touch this pad to melt butter or margarine, chocolate, cheese, or

marshmallows.

12.Timer. Touch this pad to set the kitchen timer.

13. Number Pads. Touch number pads to enter cooking times, cook powers, quantities, weights, orfood categories.

14. Clock. Touch this pad to enter the correct time

of day.

15. Add Minute. Touch this pad to cook for 1 minute at 100% cook power, or to add extra minutes at the set cook power to your cooking cycle.

16. Hold Warm. Touch this pad to keep hot, cooked foods safely warm in your oven for up

to 99 minutes, 99 seconds.

17. Turntable On/Off. Touch this pad to turn off the turntable." OFF "will appear in the display.

18. Cook Time. Touch this pad followed by Number Pads to set a cooking time.

19. Power. Touch this pad after the cook time has

been set, followed by a Number Pad to set the amount of microwave energy released to cook the food. The higher the number, the higher the microwave power or "cooking speed."

20. START. Touch this pad to start afunction. If the door is opened after the oven begins

to cook, retouch START.

21. Fan (_) Hi/Low/Off. Touch this pad to

turn the fan on high, low or off.

22. Light (O_). Touch this pad to turn the light on high, night (low) or off.

23. STOP. Touch this pad to erase an incorrect command, cancel a program during cooking, or to clear the Display.

NOTE:

A programming tone will sound each time

you touch a pad. Ifyou try to enter incorrect

instruction you will not hear any tones.Touch STOP and re-enter the instructions.

i!iii ii!iiii !ii!ii!!!!!!!!!!!!!!!ijiWi!iijii!iii!ii!i!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!'ii i;ii !iiii'i!!iii!:!i!!! ii i i!liiiiil! ;iii l ili il!!i!Iii¸i! !!i"illi J l!i!II II !!IIWIII',I,iiii' ii!!!!!l!!iiiii!iiii

MICROWAVE COOKING TIPS

Amount of food

• Ifyou increase or decrease the amount of food you prepare, thetime ittakes to cook that food will also change. For example, ifyou double a recipe,

add a little more than halfthe original cooking time. Check for doneness and, if necessary,add more

time insmall increments.

Starting temperature of food

•The lower the temperature ofthe food being put into the microwave oven, the longer it takes tocook.

Foodat room temperaturewill be re-heated more

quickly thanfood at refrigerator temperature.

Composition of food

• Food with a lot of fat and sugar will be heated fasterthan food containing a lotof water. Fat and

sugarwill also reach a highertemperature than water in thecooking process.

•The more dense the food, the longer ittakes to heat. "Very dense"food likemeat takes longer to

heat than lighter, more porousfood like sponge cakes.

Size and shape

•Smaller pieces of food will cook faster than larger pieces.Also, same shaped pieces cook more evenly than different-shaped pieces.

•With foods that have different thicknesses, the thinner partswill cook fasterthan the thicker parts.

Place the thinner partsof chicken wings and legs in the center of thedish.

Stirring,turning foods

•Stirring and turning foods spreadsheatquicklyto the center of thedish and avoids overcooking atthe outer edges of the food.

Covering food

Cover food to:

• Reduce splattering

•Shorten cooking times

• Keepfood moist

You can use any covering that letsmicrowaves pass through. See "Getting to KnowYour Microwave

Oven"for materialsthat microwaves will pass through.

Releasingpressure in foods

•Several foods (forexample:baked potatoes, sausages, egg yolks, and some fruits)are tightly covered by a skinor membrane. Steam can build up

under the membrane during cooking, causing the food to burst.To relieve the pressureand to prevent

bursting, pierce these foods beforecooking with a fork,cocktail pick,or toothpick.

Using standing time

•Always allow food to stand eitherin or out ofoven after cooking power stops. Standing time after

defrosting and cooking allows the temperature to evenly spread throughout the food, improving the

cooking results. Forinside oven standing time, you can program"0" power sencond stage of the

cooking cycle. SeeTwo-Stage Cooking.

•The length of the standing time depends on how much food you are cookingand howdense it is.

Sometimes it can be as short asthe time ittakes you to remove thefood from the oven and take itto

the serving table. However,with large,denser food item, the standing time may be as long as 10 minutes.

Arranging food

For best results, placefood evenly on the plate. You can do this in several ways:

•If you are cooking several items of the same food, such as baked potatoes, place them in a ring

pattern for uniform cooking.

•When cooking foods of uneven shapes or thickness, such as chicken breasts, place the

smaller or thinner area of the food towardsthe center of the dishwhere itwill be heated last.

• Layer thin slices of meat on top of each other.

•When you cook or reheat whole fish, score the skin - this preventscracking.

•Do not letfood or a container touch the top or sides of the oven. This will prevent possible arcing. Arcing isa spark that can cause damage to the

oven interior.

Using aluminum foil

Metal containers should notbe used in a microwave oven. There are, however,some exceptions. If you

have purchased foodwhich is prepackaged in an aluminum foil container,refer to the instructionson

the package.When using aluminum foil containers, cooking times may be longer because microwaves

will only penetrate the top ofthe food. If you use

aluminum containers without package instructions,

follow these guidelines:

MICROWAVE COOKING TIPS (CONT.)

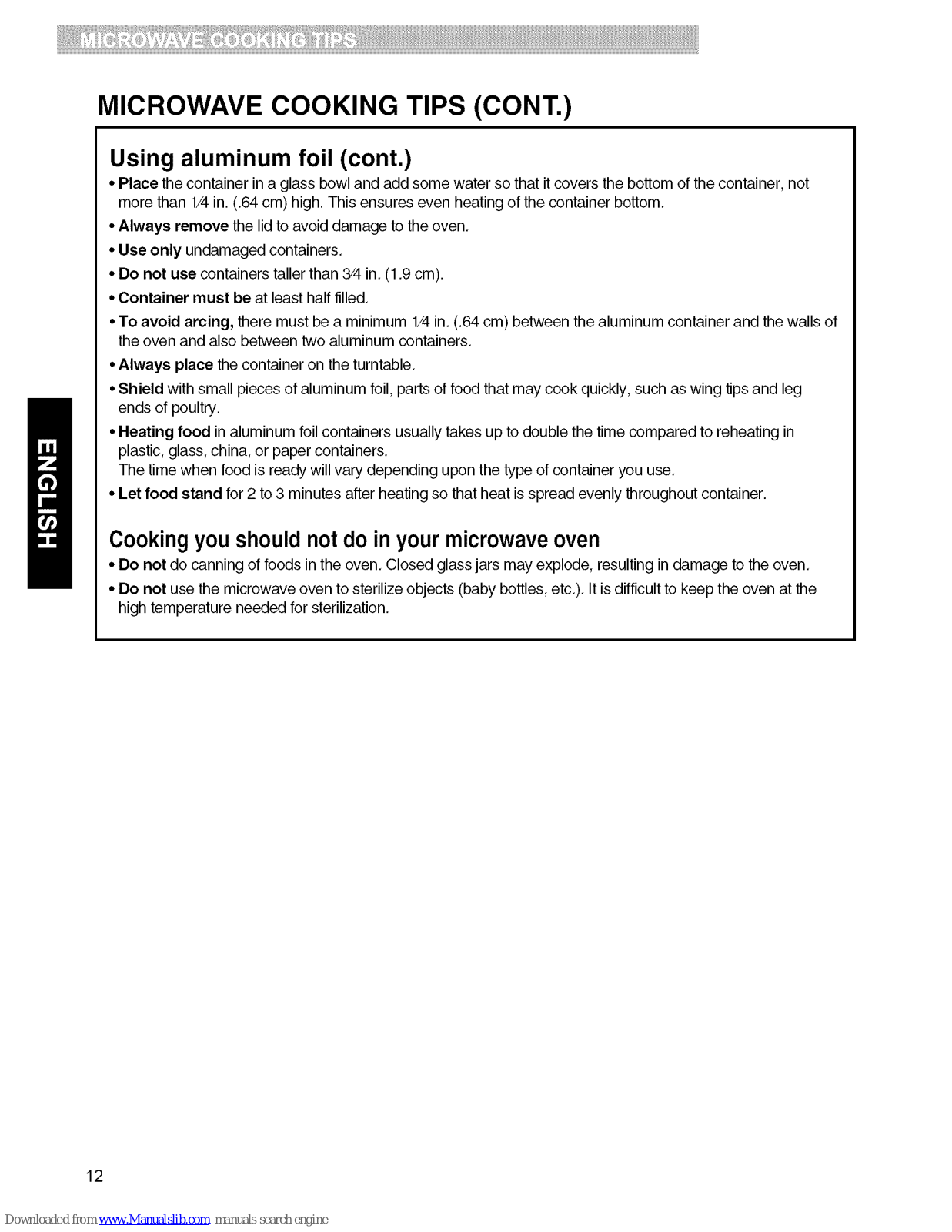

Using aluminum foil (cont.)

• Place the container in a glass bowl and addsome water so that it coversthe bottom of thecontainer, not more than 1/4in, (.64 cm) high, This ensures even heating ofthe container bottom.

• Always remove the lid toavoid damage to the oven,

• Use only undamaged containers,

• Do not use containers tallerthan 3/4 in. (1.9cm),

• Container must be at least half filled,

• To avoid arcing, there must be a minimum 1/4in, (.64cm) between the aluminum container and thewalls of theoven and also between two aluminum containers.

• Always place thecontainer on theturntable,

• Shield withsmall pieces ofaluminum foil, parts of food that may cook quickly, such as wing tips and leg endsof poultry.

• Heating food in aluminum foil containers usually takes up to double the time compared to reheating in plastic,glass, china, or paper containers, Thetime when food is readywill vary dependingupon the type of container you use,

• Let food stand for2 to3 minutes after heatingso that heat isspread evenly throughout container.

Cooking you should not do in your microwaveoven

• Do not do canning of foods in the oven, Closed glassjars may explode, resulting in damage tothe oven,

• Do not usethe microwave ovento sterilize objects (babybottles, etc,), It is difficultto keep the oven at the high temperature needed for sterilization,

Using Your Microwave

Oven

This section gives you instructions for operating each function. Please read these instructions

carefully.

AUDIBLE SIGNALS

Audible signals are available to guide you when setting and using your oven:

• A programming tone will sound each time you touch a pad.

• Seven tones signal the end eta Timer

countdown.

• Four tones signal the end of a cooking cycle.

CLOCK

When your microwave oven is firstplugged inor after a power failure, the Displaywill show ":".

Itatime of day is not set, ":"will show on the Display

untilyou touch "Clock".

Example: To set the clock for 10:30 AM or PM.

Touch: Display Shows:

1. Q

ssro c_,_

". CIL©CK i C • uu

3. 1 0 3 0 "_'_"_IU . ==?U

4,= //'_ * -I/'_

tu . ="_u

NOTES:

• If you enter in an incorrecttime andtouch "Clock", you cannot set time of day. Enter the correct time.

• If you touch STOP/Clear while setting the clock, the Display will show the last time of day set or ":" if no time of day has been set.

INTERRUPTING COOKING

You can stop the oven during a cycle by opening the door. The oven stops heating and the fan

stops, but the light stays on. To restart cooking, close the door and Touch

START.

Ifyou do not want to continue cooking,

open the door and touch STOP.

CHILD LOCK

Use this safety feature to lock the control panel when you are cleaning the oven, or so that children cannot use the oven unsupervised.

To set CHILD LOCK:

Touch:

Display Shows:

Time of day.

Touch and hold until "L" appears in the

display (approximately 4 seconds).

To cancel CHILD LOCK:

Touch: Display Shows:

Touch and hold until "L" disappears in the

display (approximately 4 seconds).

i2:iii!ii2!i!ii!iiliii:!!!!iiii:iiii!!iii ii il;!iiiii iii2ili2

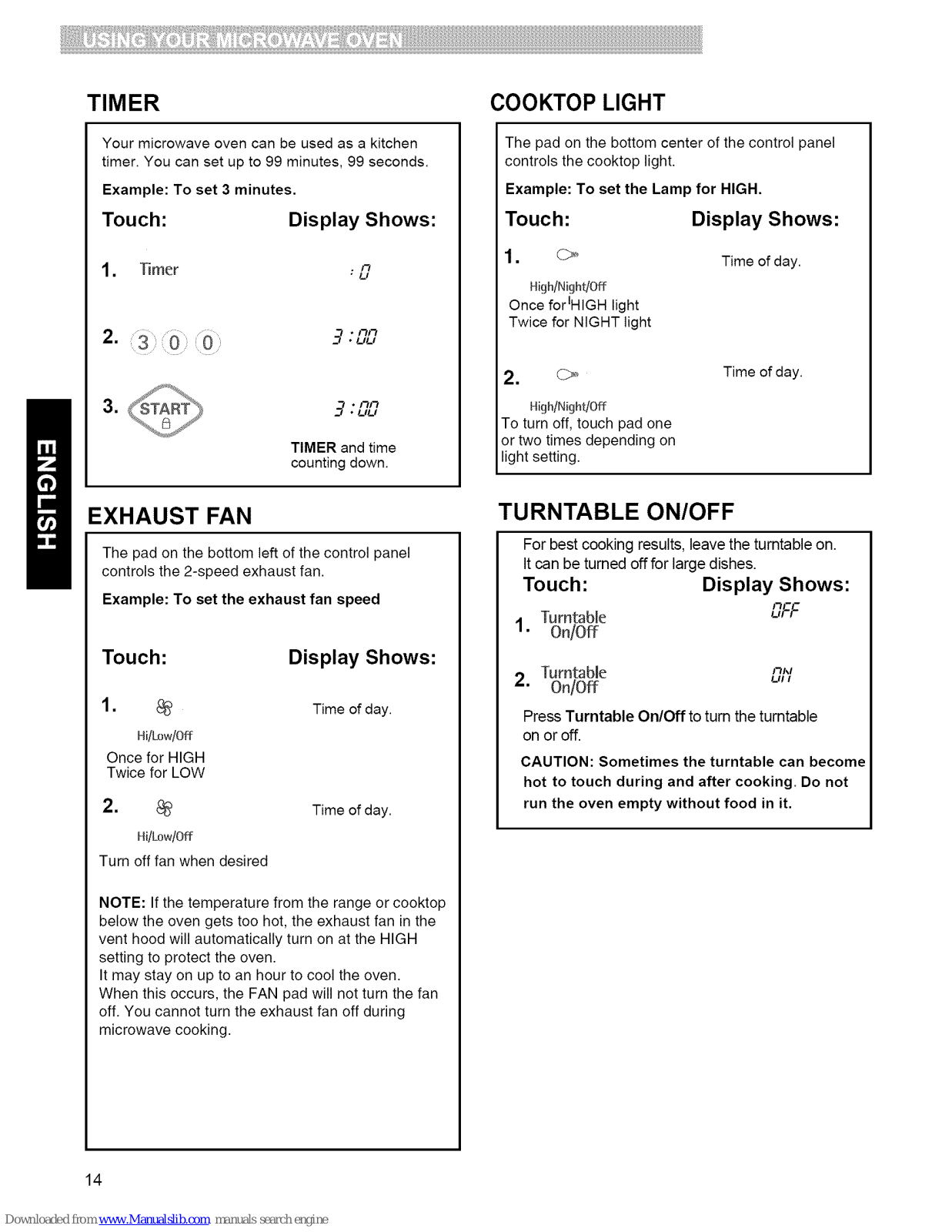

TIMER

Your microwave oven can be used as a kitchen timer. You can set up to 99 minutes, 99 seconds.

Example: To set 3 minutes.

Touch: Display Shows:

1. Timer . n

2. 3 : 0 -#.'nnuu

• /D/D

3" UU

TIMER and time

counting down.

COOKTOP LIGHT

The pad on the bottom center of the control panel controls the cooktop light.

Example: To set the Lamp for HIGH.

Touch:

= (_'

High/Night/Off

Once forIHIGHlight

Twice for NIGHT light

Display Shows:

Time of day.

High/Night/Off To turn off, touch pad one or two times depending on light setting.

Time of day.

EXHAUST FAN

The pad on the bottom left of the control panel controls the 2-speed exhaust fan.

Example: To set the exhaust fan speed

Touch:

Display Shows:

1. _ Time of day.

Hi/Low/Off

Once for HIGH Twice for LOW

2. _ Time of day.

HE!Low/Off

Turn off fan when desired

NOTE: If the temperature from the range or cooktop below the oven gets too hot, the exhaust fan in the vent hood will automatically turn on at the HIGH setting to protect the oven.

It may stay on up to an hour to cool the oven. When this occurs, the FAN pad will not turn the fan off. You cannot turn the exhaust fan off during microwave cooking.

TURNTABLE ON/OFF

For best cooking results, leave the turntable on. It can be turned offfor large dishes.

Touch: Display Shows:

Turntable OFF

1. On/Off

Turntable nJ,i

2. On/Off Ul,

Press Turntable On/Off to turn the turntable on or off.

CAUTION: Sometimes the turntable can become

hot to touch during and after cooking. Do not run the oven empty without food in it.

lii!!iii'!iii i iiiiii!ii!'i?i ii 'i!i!,il:i!iiii'iiii!!!il!i! !!:iiii!iiii!ii i!iii:i!i!ii!: : 'i iilli!!iill¸iiii:iiiii:ii! !:::i'!lil i i:!!i!'iiiiiY!i

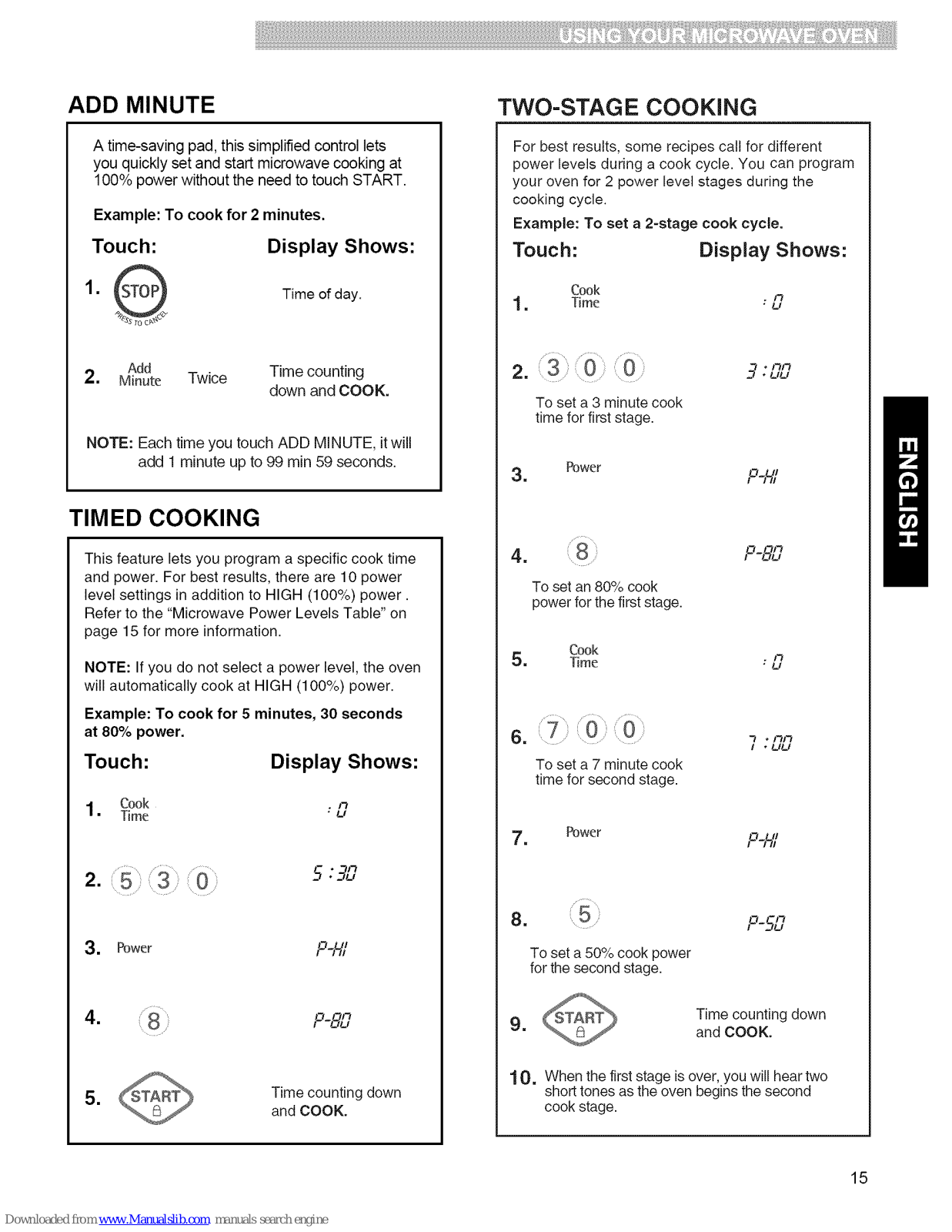

ADD MINUTE

A time-saving pad, this simplifiedcontrol lets

you quicklyset and start microwave cooking at 100% power without the need to touch START.

Example: To cook for 2 minutes.

Touch: Display Shows:

1. _0_ Time of day.

Add Time counting

2. Minute Twice

down and COOK.

NOTE: Each time you touch ADD MINUTE, itwill

add minute up to 99 min 59 seconds.

TIMED COOKING

This feature lets you program a specific cook time and power. For best results, there are 10 power level settings in addition to HIGH (100%) power.

Refer to the "Microwave Power Levels Table" on

page 15 for more information.

NOTE: If you do not select a power level, the oven

will automatically cook at HIGH (100%) power.

Example: To cook for 5 minutes, 30 seconds

at 80% power.

Touch: Display Shows:

1. Cook . n

Time • u

2. ':5::' 3:0

3. Power P-h'/

4. 8 F-'-r.,.,an

5. Time counting down and COOK.

TWO-STAGE COOKING

For best results, some recipes call for different power levels during a cook cycle. You can program

your oven for 2 power level stages during the cooking cycle.

Example: To set a 2-stage cook cycle.

Touch: Display Shows:

Cook

1, Time " un

2. 3 :: ; 0 ::

To set a 3 minute cook time for first stage.

=_ * UU

3. Power

p-,_f

To set an 80% cook

power for the first stage.

O 31R

Cook

5, Time

• L*'

6. :0

To set a 7 minute cook time for second stage.

I * uu

7. Power P-hf

! -_3U

To set a 50% cook power for the second stage.

Time counting down9, and COOK.

10. When the first stage is over, you will heartwo short tones as the oven begins the second

cook stage.

i!iii ii!iiii ii !ilil!il!l!!! lii i i! ' iii i !iiii:i!ii i! !ii

MICROWAVE POWER LEVELS

For best results, some recipes callfor different cook powers.The lower the cook power,the slower the

cooking. Each numberfrom 1 to 9 stands for a differentpercentage offull cook power.

Thefollowing chart gives the percentage of cook power each number pad stands for, and the cook

power name usually used.

Italso tells you when to use each cook power. Follow recipeor food package instructionsif available.

NOTE: Refer to a reliablecookbook for cooking times basedon the 1000Watt cook power of your microwave

oven.

COOK Power LEVEL WHEN TO USE IT

100% offull power High • Quickly heating convenience foods and foods with

high water content,such as soups and beverages.

• Cooking tender cuts of meat, ground meat,or chicken.

9 = 90% offull power • Heatingcream soups. 8 = 80% offull power • Heating rice, pasta,or casseroles.

7 = 70% offull power Medium-High • Cookingand heating foods that need a

Cook Power lower than high (for example, whole fish and meat loaf)or when food is cooking too fast.

• Reheatinga single serving offood.

6 = 60% offull power • Cooking that requires special care, such as cheese

and egg dishes, pudding, and custards.

• Finishingcooking casseroles.

5 = 50% offull power Medium • Cooking ham, whole poultry,and pot roasts.

• Simmering stews.

4 = 40% offull power • Melting chocolate.

• Heating pastries.

3 = 30% offull power Medium-Low, • Manually defrosting foods, such as bread,fish,

Defrost meats, poultry,and precooked foods.

2 = 20% offull power • Softening butter,cheese, and ice cream.

1= 10% of full power Low • Keepingfood warm.

• Takingchill out offruit.

0 = 0% of full power None • Standingtime in oven.

NOTE: Once cook time has been entered, youcan also use the Cook Power pad as a second Kitchen Timer by entering "0"for the Cook Power. The oven will count down the cooking time you set without

cooking.

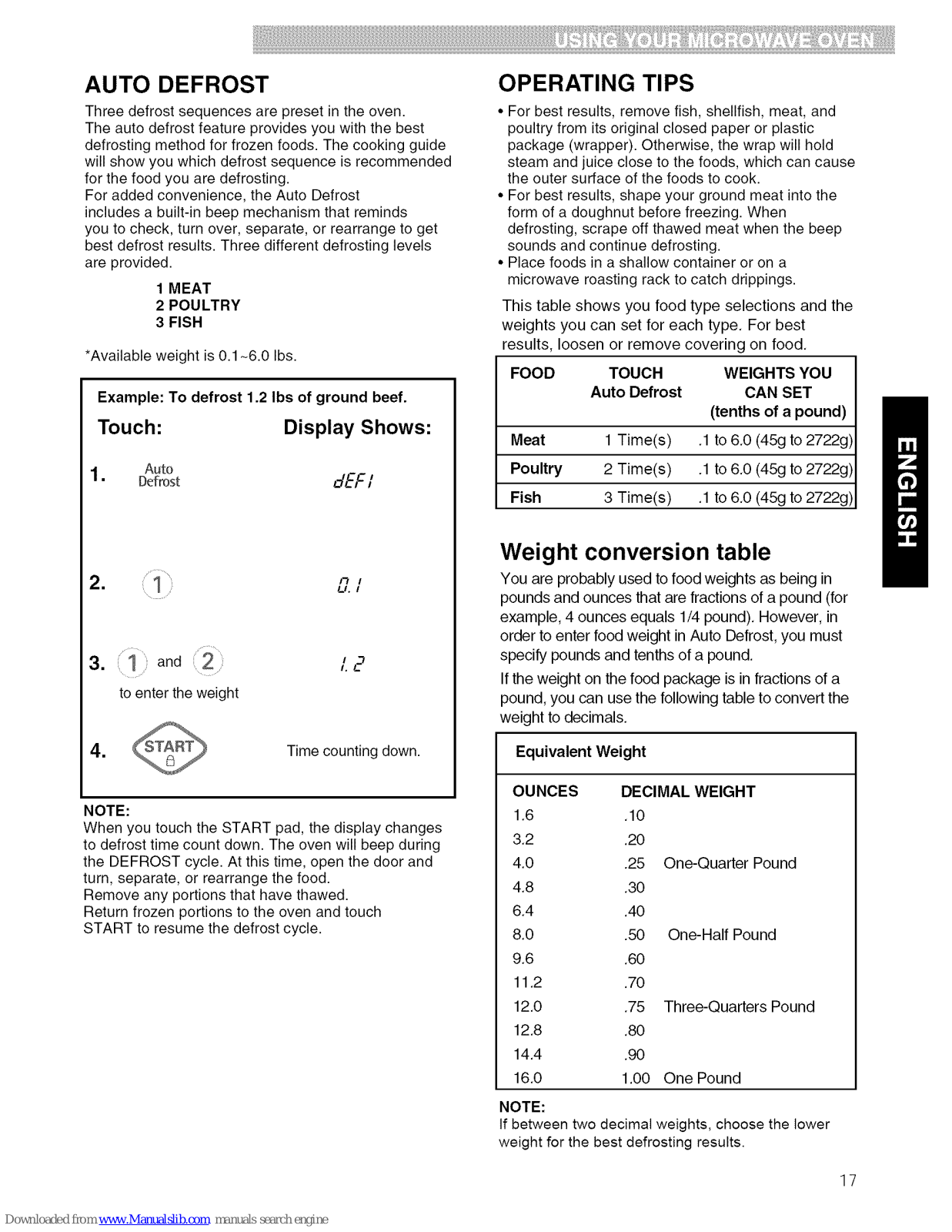

AUTO DEFROST

Three defrost sec uences are preset in the oven. The auto defrost feature provides you with the best

defrosting method for frozen foods. The cooking guide will show you which defrost sequence is recommended for the food you are defrosting.

For added convenience, the Auto Defrost

includes a built-in beep mechanism that reminds you to check, turn over, separate, or rearrange to get

best defrost results. Three different defrosting levels

are provided.

1 MEAT 2 POULTRY 3 FISH

*Available weight is 0.1-6.0 Ibs.

Example: To defrost 1.2 Ibs of ground beef.

Touch: Display Shows:

1. Auto

Oefi'ost dEFI

1 i:' n ,

t_l. I

3. :i and:2

to enter the weight

,'.,£

4. Time counting down.

NOTE:

When you touch the START pad, the display changes to defrost time count down. The oven will beep during the DEFROST cycle. At this time, open the door and turn, separate, or rearrange the food.

Remove any portions that have thawed. Return frozen portions to the oven and touch START to resume the defrost cycle.

OPERATING TIPS

• For best results, remove fish, shellfish, meat, and poultry from its original closed paper or plastic package (wrapper). Otherwise, the wrap will hold steam and juice close to the foods, which can cause

the outer surface of the foods to cook.

• For best results, shape your ground meat into the form of a doughnut before freezing. When defrosting, scrape off thawed meat when the beep sounds and continue defrosting.

• Place foods in a shallow container or on a microwave roasting rack to catch drippings.

This table shows you food type selections and the weights you can set for each type. For best

results, loosen or remove covering on food,

FOOD TOUCH WEIGHTS YOU

Auto Defrost CAN SET

(tenths of a pound) Meat 1 Time(s) .1 to 6.0 (45g to 2722g) Poultry 2 Time(s) .1 to 6.0 (45g to 2722g) Fish 3 Time(s) .1 to 6.0 (45g to 2722g)

Weight conversion table

You are probably used to food weights as being in

pounds and ounces that are fractions of a pound (for example, 4 ounces equals 1/4 pound). However, in order to enter food weight in Auto Defrost, you must

specify pounds and tenths of a pound.

If the weight on the food package is in fractions of a

pound, you can use the following table to convert the weight to decimals.

Equivalent Weight

OUNCES DECIMAL WEIGHT

1.6 .10

3.2 .20

4.0 .25 One-Quarter Pound

4.8 .30

6.4 .40

8.0 .50 One-Half Pound

9.6 .60

11.2 .70

12.0 .75 Three-Quarters Pound

12.8 .80

14.4 .90

16.0 1.00 One Pound

NOTE:

If between two decimal weights, choose the lower

weight for the best defrosting results.

AUTO DEFROST TABLE

Meat setting

FOOD SETTING AT BEEP

BEEF

Ground Beef, Bulk

Ground Beef,

Patties Round Steak

Tenderloin Steak

Stew Beef

Pot Roast,

Chuck Roast

Rib Roast

Rolled Rump Roast

LAMB

Cubes for Stew

Chops (1 inch thick)

PORK

Chops (1/2inchthick)

Hot Dogs

Spareribs Country-style

Ribs

Sausage, Links

Sausage, Bulk

Loin Roast, Boneless

MEAT

MEAT MEAT

MEAT

Removethawedportionswithfork.

Turnover.Returnremainderto oven. Separate and rearrange.

Turn over. Cover warm areas with aluminum foil.

Removethawed portions with fork.

Separate remainder.

Return remainderto oven.

Turn over. Cover warm areas with aluminum foil.

Removethawed portions with fork. Return remainderto oven.

Separate and rearrange.

Separate and rearrange. Turn over. Cover warm areas with

aluminum foil.

Separate and rearrange.

Removethawedportionswithfork.

Turnover.Returnremainderto oven. Turn over. Cover warm areas with

aluminum foil.

SPECIAL INSTRUCTION8

Meat of irregularshape and large,fattycuts of meatshould have the narrowor fattyareas shieldedwithfoil atthe beginningof a defrost sequence.

Donot defrostless than 1/4lb. Freeze indoughnut shape.

Donot defrostless than 2 oz.patties. Depresscenter when freezing.

Placein a microwave safe dish.

Placein a microwave safe dish. Placein a microwave safe dish.

Placein a microwave safe dish.

i iiiiii!!ii:

AUTO DEFROST TABLE (CONT.)

Poultry setting

FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS

CHICKEN Whole

(up to 6 Ibs)

Cutup

POULTRY

Turn over (finishdefrosting breast- sidedown). Cover warm areaswith

aluminum foil.

Separate pieces and rearrange. Turn over. Cover warm areaswith

aluminum foil.

Placechicken breast-side up in amicrowave safe dish. Finishdefrosting by immersing in coldwater. Removegiblets

when chicken is partiallydefrosted.

Place in a microwave safe dish.

Finish defrosting byimmersing in cold water.

CORNISH

HENS

Whole POULTRY Turn over. Cover warm areaswith Place in a microwave safedish.

aluminum foil. Finish defrosting byimmersing in cold water.

TURKEY Breast POULTRY Turn over. Cover warm areaswith Place in a microwave safe dish.

(up to 6 Ibs) aluminum foil. Finish defrosting byimmersing in cold water.

Fish setting

FOOD SETTING SPECIAL INSTRUCTIONS

FISH Fillets FISH

Steaks

Whole

SHELLFISH Crabmeat

Lobster tails

Shrimp Scallops

FISH

AT BEEP

Turn over. Separate fillets when partially thawed if possible.

Separate and rearrange.

FISH Turn over.

FISH FISH

Break apart. Turn over. Turn over and rearrange. Separate and rearrange.

Separate and rearrange.

Place in a microwave safe dish. Carefully separate fillets under cold

water.

Place in a microwave safe dish. Run cold water over to finish defrosting.

Place in a microwave safe dish. Cover head and tail with foil; do not let

foil touch sides of microwave. Finish

defrosting by immersing in cold water.

Place in a microwave safe dish. Place in a microwave safe dish.

DEFROSTING TIPS HOLD WARM

•When using Auto Defrost,the weight to be entered is the netweight in pounds and tenths of pounds

(theweight of the food minus the container).

• Before starting, make sure you have removed any of the metal twist-tieswhich often come with frozen

food bags, and replace them with stringsor elastic bands.

•Open containers such as cartons beforethey are placed in the oven,

•Always slit or pierce plasticpouches or packaging,

•If food is foil wrapped, remove foil and placeit in a suitable container.

•Slit the skins, if any, of frozen food such as sausage,

• Bend plastic pouches of food toensure even defrosting.

•Always underestimate defrostingtime. If defrosted food isstill icy in the center, returnitto the

microwave oven for more defrosting,

• The length of defrosting timevaries accordingto

howsolidly the food is frozen.

• The shape of the package affectshow quickly food will defrost. Shallow packageswill defrost more

quickly than a deep block.

• As food begins to defrost, separate the pieces.

Separated pieces defrostmore easily,

• Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips,fish tails, or

areas that start to getwarm, Makesure thefoil does

nottouch the sides, top, or bottomof the oven, The

foil can damage the oven lining,

• For better results, let food stand after defrosting,

(For more informationon standing time,see the

"Microwave Cooking Tips" section.)

• Turn over food during defrosting or standing time.

Breakapart and remove food as required,

You can safely keep hot, cooked food warm in your microwave oven for up to 99 minutes, 99 seconds

(about 1 hour, 40 minutes). You can use Hold Warm by itself, or to automatically follow a cooking cycle.

Example: To use the hold warm.

Touch:

Display Shows:

HoN _nJn

/_/J/_ LI

1. Warm

_/J/_ LI, 11"31R

At theend of the holdwarm, "END"will be

displayed and four tones will sound.

To make Hold Warm

automatically follow another cycle:

• While you are touching in cooking instructions,

touch Hold Warm before touching START.

•When the last cooking cycle is over, youwill hear two tones."Hold" will come on while the oven

continuesto run.

• You can set HoldWarm tofollow Auto Defrost, Cook,or two-stage cooking.

NOTES:

• Hold Warm operates for up to 99 minutes, 99 seconds.

• Opening theoven door cancels HoldWarm. Close thedoor and touch HoldWarm, then touch

START ifadditional HoldWarm time is desired.

• Food cooked covered should be covered during HoldWarm.

• Pastry items (pies,turnovers, etc.) should be uncovered during HoldWarm.

• Complete meals kept warm on a dinner plate should be covered during HoldWarm.

• Do not use more than one complete Hold Warm cycle (about 1 hour,40 minutes).The quality of

some foods will sufferwith extended time.

i!iii !!!! ii' !i iliiii!!!i'ili"i;i!!!'ii!liii!

MELT

Melt provides four preset categories to melt foods.

Butter, Chocolate, Cheese, Marshmallows.

Example: To melt 8 oz. (225 g) of chocolate.

Touch: Display Shows:

Melt 2

Two times

2 : 8oz

I:_'8

Time counting down.

NOTE: After 4 seconds, the oven will start

automatically. When the cook time

is over, you will hear four beeps and

END will display.

SOFTEN

Soften provides four preset categories to soften

foods.

Butter, Ice Cream, Cream Cheese, Frozen Juice.

Example: To soften a pint of ice cream.

Touch: Display Shows:

Soften 2

Two times

:2'_-;

Time counting down.

NOTE: After 4 seconds, the oven will start

automatically. When the cook time

is over, you will hear four beeps and

END will display.

MELT TABLE

3ODE CATEGORY DIRECTION AMOUN]

1 Butter or Unwrap and place in a 1, 2, or 3

Margarine microwavable container, sticks

No need to cover butter. Stir at the end of cooking to complete melting.

2 Chocolate Chocolate chips or squares 4 or 8

of baking chocolate may be oz. used. Unwrap squares and (115or

)lace in a microwavable 225g)

container. Stir at the end of cycle to complete melting.

3 Cheese Use processed cheese 8 or 16

food only.Cut into cubes, oz.

Place in a single layer in a (225or microwavable container. 450g)

Stir at the end of cooking to complete melting.

4 Marshmallow,.Largeor miniature 5 or 10

marshmallows may oz. be used. Place ina (140 or microwavable container. 285g)

Stir at the end of cycle to complete melting.

SOFTEN TABLE

CODE CATEGORY DIRECTION AMOUNT

1 Butter Unwrap and place in 1,2, or 3

microwavable container, sticks Butterwill be at room temperature and ready for use in recipe.

2 Ice Cream Place container in oven. Ice Pint,

cream will be soft enough Quart, to make scooping easier. Half-

Gallon

3 Cream Unwrap and place in 3or 8

Cheese microwavable container, oz,

Cream cheese will be at (85or room temperature and 225g) ready for use in recipe.

4 Frozen Remove top. Place in oven. 6, 12, or

Juice Frozen juice will be soft 16 oz.

enough to easily mix with (170, water. 350, or

450 g)

Using Quick Touch

Your oven's menu has been preprogrammedto cook food automatically.

POPCORN

Popcorn lets you pop 3.0, and 3.5 ounce bags ofcommercially packaged microwave

popcorn, Pop onlyone package at a time, Ifyou are using a microwavepopcorn popper, follow manufacturer's instructions.To set your microwave

oven correctly,remove the metalrack and follow this chart:

Example: To pop a 3.0 oz. bag.

Touch:

Display Shows:

Popcorn 3.L7

Once for 3.5 oz Twice for 3.0 oz

Time counting down and

COOK

When the cook time is over, youwill hear four tones and End will display.

PIZZA

Pizzaletsyou reheatup to3 slices pizza,

A slice is basedon a 5 ounce slice,

NOTE:

• Placeon a lowplate & paper towel.

• Do notcover.

Example: To reheat 2 slices of Pizza.

Touch: Display Shows:

Pizza

Once for 1 slice Twice for 2 slices Three times for 3 slices

Time counting down and COOK.

When the cook time isover, you will hear four tones and End will display.

FROZEN ENTREE

FrozenEntreeletsyoucook10and20ounceplatesof

commerciallypackagedmicrowavefrozenentree withoutenteringcookingtimesandpowerlevels.

Removetrayfromoutercarton. Donot removefilmcover,butcutittovent.

Example: To reheata 20 oz. frozen entree.

Touch: Display Shows:

Frozen

Entree

Once for 10 oz Twice for 20 oz

Time counting down and COOK.

When the cook time is over, youwill hear four tones and End will display,

POTATO

Potatoletsyoucookpotatoeswithpresettimesand

cookpowers.Youcanchoosefrom1to 4 potatoes.

NOTE:

•Cookingtimesarebasedonanaverage8ouncepotato.

Beforebaking,piercepotatowithforkseveraltimes.

•Afterbaking,letstandfor5 minutes. Example: To cook 2 Potatoes.

Touch: Display Shows:

Potato

Once for 1 potato Twice for 2 potatoes

Three times for 3 potatoes Time counting down and

Four times for 4 potatoes COOK.

When thecook time is over, youwill hear four tones and End will display,

DINNER PLATE

DinnerPlateletsyoucook1or2 servingsof dinnerplate withoutenteringtime.Thefoodshouldstandfor 3 minutes.

Example:To cook 2 servingsof dinnerplate.

Touch: Display Shows:

Dinner

Plate

Once for 1serving Twice for 2 servings Time counting down and

COOK.

When the cook time is over, you will hear four tones and End will display.

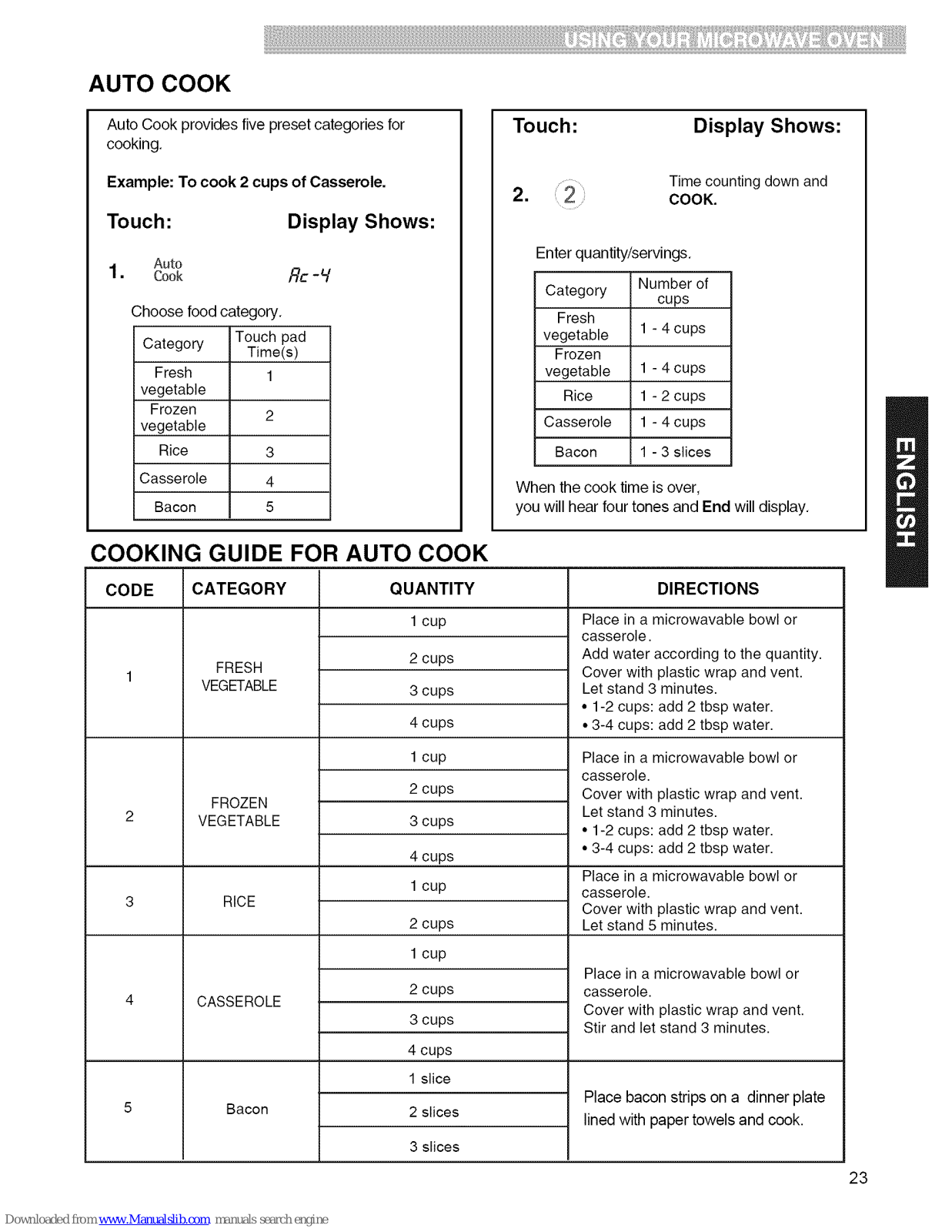

AUTO COOK

Auto Cook provides five presetcategories for cooking,

Example: To cook 2 cups of Casserole.

Touch: Display Shows:

Auto

1. Cook Rc-_1

Choose food category,

Touch pad

Category Time(s)

Fresh 1

vegetable

Frozen 2

vegetable

Rice 3

Casserole 4

Bacon 5

Touch:

Display Shows:

Time counting down and COOK.

Enterquantity/servings.

Category Number of

cups

Fresh

vegetable 1 - 4 cups

Frozen

vegetable 1 - 4 cups

Rice 1 - 2 cups

Casserole 1 - 4 cups

Bacon 1 - 3 slices

When thecook time is over, youwill hear four tones and End will display.

COOKING GUIDE FOR AUTO COOK

CODE CATEGORY DIRECTIONS

FRESH

VEGETABLE

FROZEN

VEGETABLE

RICE

CASSEROLE

Bacon

QUANTITY

1 cup

2 cups

3 cups 4 cups

1 cup 2 cups 3 cups

4 cups

1 cup

2 cups

1 cup

2 cups 3 cups

4 cups

1 slice

2 slices

3 slices

Place in a microwavable bowl or

casserole. Add water according to the quantity.

Cover with plastic wrap and vent.

Let stand 3 minutes.

• 1-2 cups: add 2 tbsp water.

• 3-4 cups: add 2 tbsp water. Place in a microwavable bowl or

casserole. Cover with plastic wrap and vent.

Let stand 3 minutes.

• 1-2 cups: add 2 tbsp water.

• 3-4 cups: add 2 tbsp water. Place in a microwavable bowl or

casserole. Cover with plastic wrap and vent.

Let stand 5 minutes.

Place in a microwavable bowl or

casserole. Cover with plastic wrap and vent.

Stir and let stand 3 minutes.

Placebacon strips on a dinner plate

lined with papertowels and cook.

AUTO REHEAT

Auto Reheat provides four preset categories for

reheating,

Example: To reheat 2 servings of Beverage.

Touch: Display Shows:

Auto

1. Reheat f'H - /

Choose food category.

Touch pad

Category Time(s)

Beverage 1 Soup/sauce 2 Casserole 3 Roll/Muffin 4

Touch:

Display Shows:

Time counting down and COOK.

Enterquantity/servings.

Category Number of

cups/Items

Bevera.qe 1-2cups Soup/sauce 1-4 cups

Casserole 1-4 cups Roll/Muffin 1-4 pieces

When the cook time isover, youwill hear fourtones and End will display,

COOKING GUIDE FOR AUTO REHEAT

CODE CATEGORY SERVING AMOUNT DIRECTION

1 BEVERAGE

SOU P/SAUCE

CASSEROLE

ROLL/MUFFIN

1 cup

2 cups

1cup

2 cups 3 cups

4 cups

1cup

2 cups 3 cups 4 cups

1 piece (2 oz.)

2 pieces (4 oz.) 3 pieces (6 oz.)

4 pieces (8 oz.)

Remove from display package and place

on a plate. Do not cover. (Be careful! The beverage will be very hot!)

Place in shallow microwavable casserole. Cover with vented plastic wrap.

Stir and let stand 3 minutes.

Place in a microwavable bowl or casserole. Cover with plastic wrap.

Stir and let stand 3 minutes.

Place on paper towel. Do not cover.

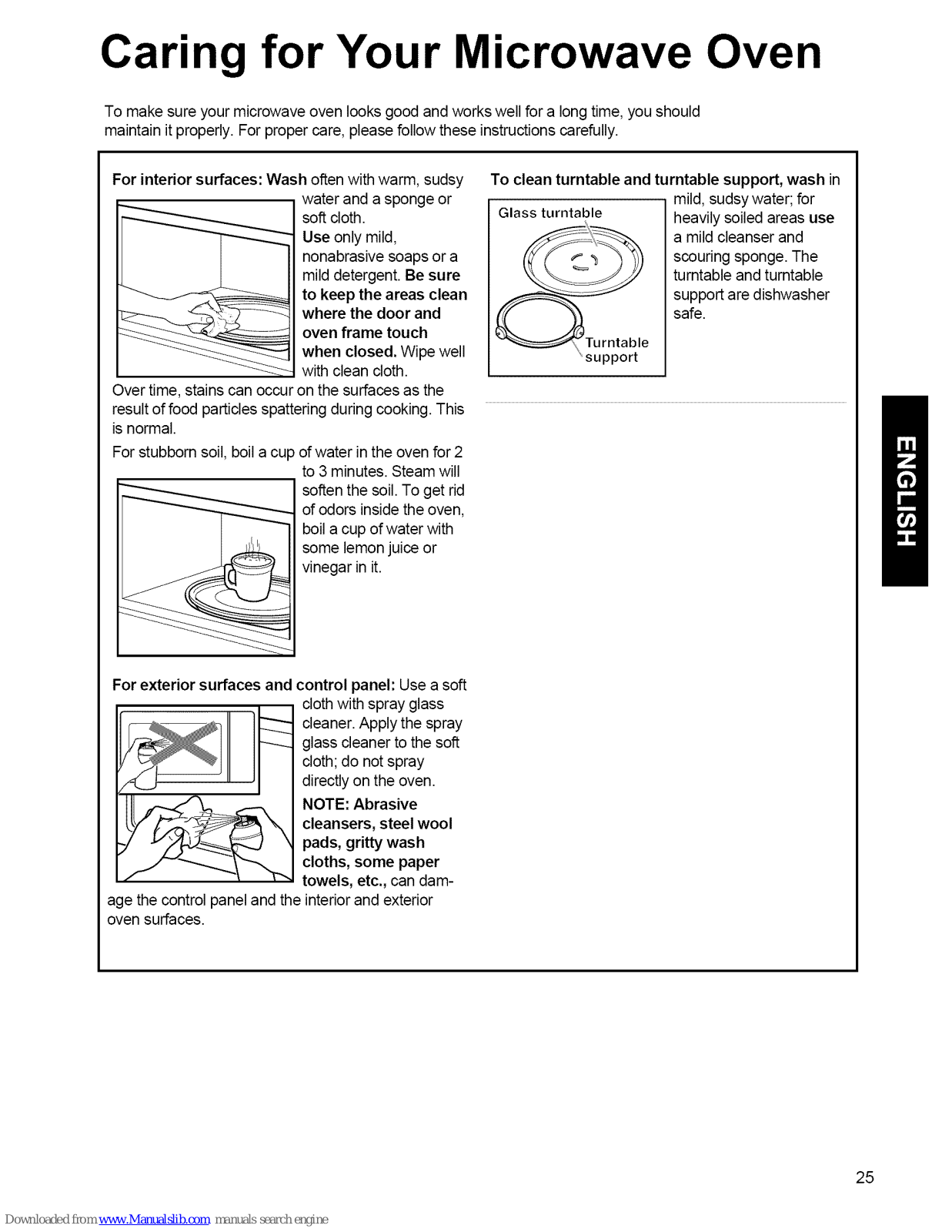

Caring for Your Microwave Oven

To make sure your microwave oven looks good and works well for a longtime, you should maintain it properly. Forproper care, please follow these instructionscarefully.

For interior surfaces: Wash often with warm, sudsy

water and asponge or soft cloth.

Use only mild, nonabrasivesoaps or a milddetergent. Be sure

to keep the areas clean where the door and

oven frame touch when closed. Wipe well

with clean cloth. Over time,stains can occur on the surfaces as the result offood particlesspatteringduring cooking. This

is normal. For stubborn soil, boil a cup of water in the oven for 2

to 3 minutes. Steam will

soften the soil. To get rid

of odors insidethe oven,

boila cup ofwater with some lemon juice or vinegar in it.

To clean turntable and turntable support, wash in

mild, sudsywater; for

Glass turntable heavily soiled areas use

a mild cleanser and scouring sponge. The

turntable and turntable support are dishwasher

safe.

\support

For exterior surfaces and control panel: Use a soft

age the control panel and the oven surfaces.

cloth with spray glass cleaner. Apply the spray

glass cleaner to the soft cloth; do not spray

directlyon the oven.

NOTE: Abrasive cleansers, steel wool

pads, gritty wash cloths, some paper towels, etc., can dam-

interiorand exterior

CARING FOR THE FILTERS

The grease filters should be removed and cleaned often, at least once a month.

NOTE: If your microwave hood combination is installed to recirculate air, the charcoal filter (Part No. 5230W1A011C) available from Sears by calling 1-800-4-MY-HOME.

The charcoal filter cannot be cleaned and should be replaced every 6 to 12 months.

Grease filters (Part No. 5230W1A012C):

Charcoal filter (Part No. 5230W1A011C):

1. Unplugmicrowave ovenor disconnect power.

2. To remove grease filters, slide eachfilterto the side. Pullfilters downward and push tothe other

side. The filter will drop out.

..........

1. Unplugmicrowave oven or disconnect power.

2. Removethe vent grille mounting screw.

3. Tip the grille left and forward, then lift out to remove.

3. Soak grease filtersin hotwater and a mild

detergent. Scrub and swish to remove embedded dirt and grease. Rinsewell and shake to dry. Do

not cleanfilters with ammonia, corrosive cleaning agents such as lye-based oven cleaners, or place

them in a dishwasher. The filterswill turn black or could be damaged.

....................................................................................................................................................................................................................................................................................................................................................................................4,Lift the back of the charcoal filter, Slidethe filter

IlL straight out.

4. To replace greasefilters, slide filter intheframe slot on one side of the opening. Push filter upward and

push to the otherside to lock into place.

5. Plug in microwave oven or reconnectpower.

CARING FOR THE FILTERS (CONT.)

REPLACING THE COOKTOP

AND OVEN LIGHTS

5. Slide a new charcoal filter into place. The filter

should rest at the angle shown.

6. Slide the bottomof the vent grille into place. Push thetop until itsnaps into place. Replace the

mounting screws.

7. Plug in microwaveoven orreconnect power.

NOTE: Do notoperate the hood without the grease filtersin place.

The cooktop light

1. Unplug microwave oven or disconnect power.

2. Removethe bulb cover mounting screws.

3. Replace bulb with candelabra-base 30-watt bulb (PartNo. 6912W3Q001A)available from Sears by

calling 1-800-4-MY-HOME.

4. Plug in microwave ovenor reconnect power.

The oven light

1. Unplug microwave oven or disconnect power.

2. Remove the vent grille mounting screw.

3.Tip the grille forward, then liftout to remove.

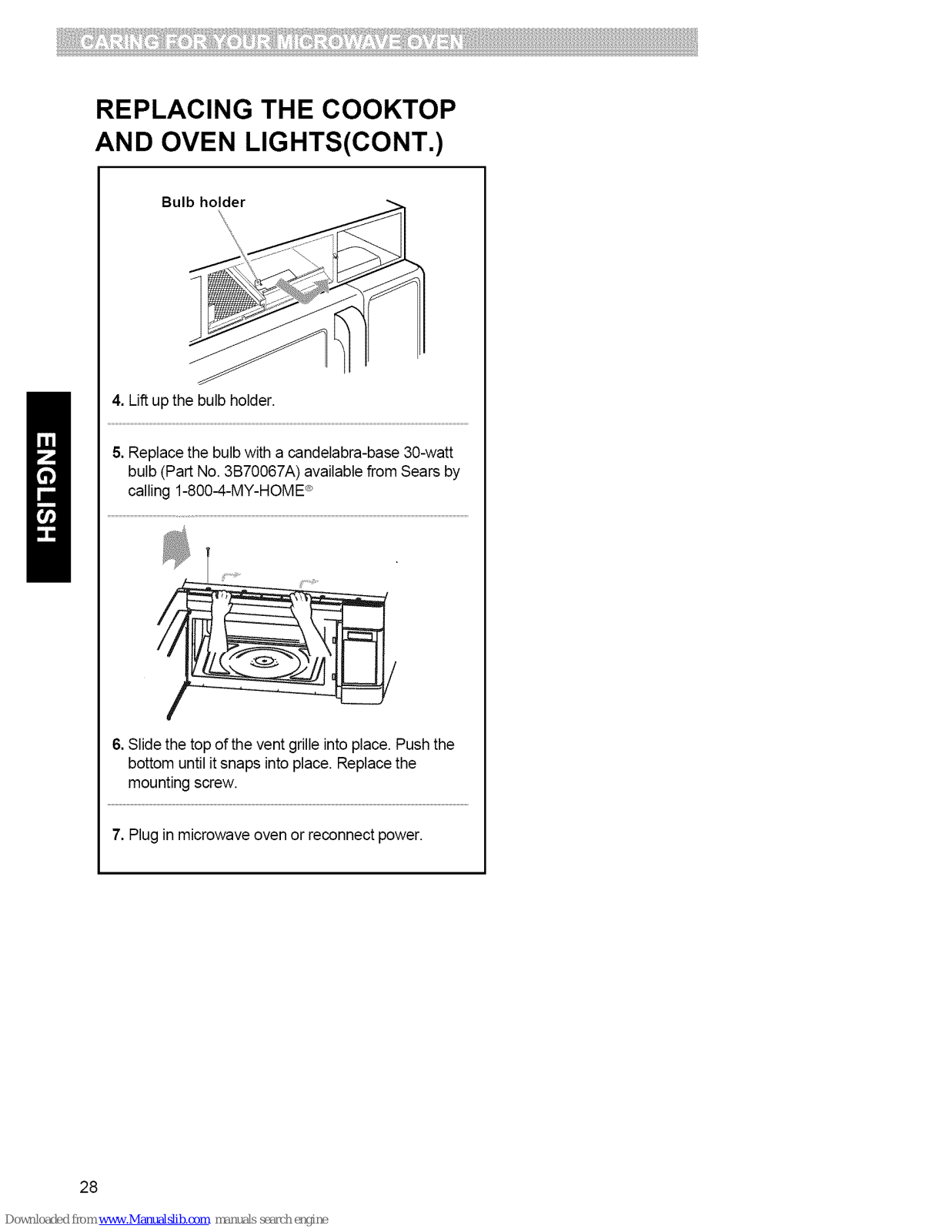

REPLACING THE COOKTOP

AND OVEN LIGHTS(CONT.)

Bulb holder

4. Lift up the bulb holder.

5. Replace the bulb with a candelabra-base 30-watt

bulb (Part No. 3B70067A) available from Sears by

calling 1-800-4-MY-HOME®

6. Slidethe top of the vent grille into place. Push the bottom untilitsnaps into place. Replace the

mounting screw.

7. Plug in microwave oven or reconnect power.

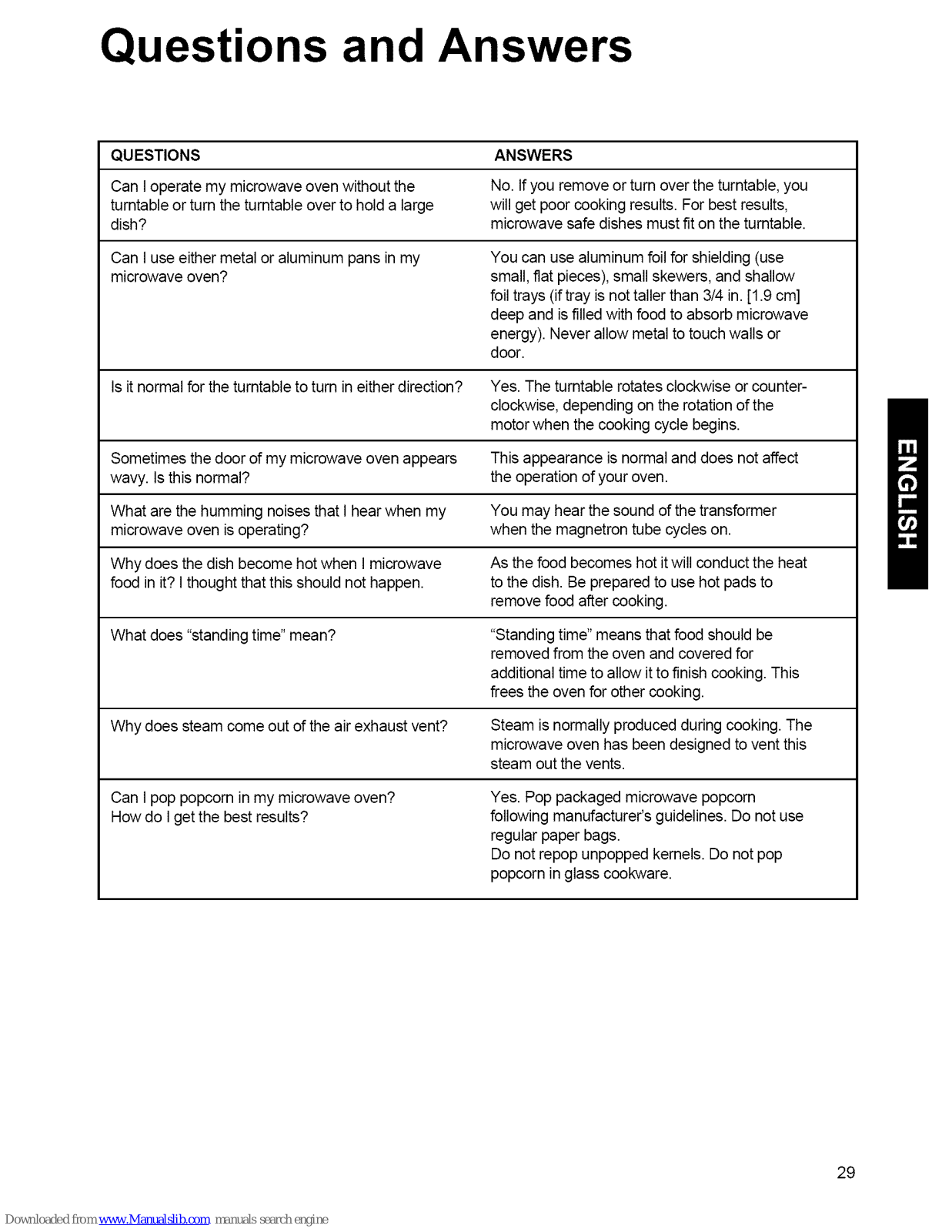

Questions and Answers

QUESTIONS ANSWERS

Can I operate my microwave oven without the No. Ifyou remove or turn overthe turntable, you turntable or turn the turntable overto hold a large will get poor cooking results. For best results,

dish? microwave safe dishes mustfit on the turntable. Can I use eithermetal or aluminum pansin my

microwave oven?

You can use aluminum foil for shielding(use small,flat pieces),small skewers, and shallow

foil trays (iftray isnot tallerthan 3/4in. [1.9 cm]

deep and isfilledwith food toabsorb microwave energy). Never allow metal to touch walls or

door.

Is it normalfor the turntable to turn in eitherdirection? Yes. The turntable rotatesclockwise or counter-

clockwise, depending on the rotation of the motor when the cooking cycle begins.

Sometimes the door of my microwave oven appears Thisappearance is normaland does not affect wavy. Isthis normal? the operationof your oven.

What are the humming noisesthat I hearwhen my Youmay hear the sound of the transformer microwave oven isoperating? when the magnetron tube cycles on.

Why does thedish become hotwhen I microwave As the food becomes hotitwill conduct the heat food in it? Ithought that this should not happen, to the dish. Beprepared to use hot pads to

remove food after cooking.

What does "standing time" mean? "Standingtime" means that food should be

removed from the oven and covered for additionaltime to allow it to finish cooking. This

frees the oven for other cooking.

Why does steamcome out of the air exhaust vent? Steamis normally produced during cooking. The

microwave oven has been designed to vent this steam outthe vents.

Can I pop popcorn in my microwave oven? Yes. Pop packagedmicrowave popcorn How do Igetthe best results? following manufacturer's guidelines. Do not use

regular paper bags. Do not repop unpopped kernels. Do not pop

popcorn in glass cookware.

Troubleshooting

Most cooking problems often are caused by littlethings you canfind and fix without tools of any kind. Check the listsbelow and on the next page beforecallingfor assistance or service. Ifyou still need help,call Sears Service

at 1-800-4-MY-HOME_

MICROWAVE OVEN DOES NOT WORK

PROBLEM CAUSE

Nothing works. • The powersupply cord isnot plugged intoa grounded 3 prong outlet. (See the

ElectricalRequirements" section on page 6 and the "Electricalconnection"

section on Page 8.)

•A household fuse has blown or a circuit breaker has tripped.

•The electric company has had a power failure.

The microwave oven will not run.

•You are using the oven as a timer. Touch STOP to cancel the Kitchen Timer.

•The door is not firmly closed and latched.

•You did nottouch START.

•You did notfollow directions exactly.

•An operation that you set earlier is still running.Touch STOP to cancel that operation.

COOKING TIMES

PROBLEM CAUSE

Food is notcooked enough.

•The electric supply to your home or wall outlets islow or lower than normal. Your electric company can tellyou if the line voltage is low. Your electricianor service

technician can tellyou if the outlet voltage is low.

•The cook power is not at the recommended setting. Check the chart on Page 15.

The display shows a time • The oven door is notclosed completely. counting down butthe oven • You have set the controls asa kitchentimer. Touch STOP tocancel the is notcooking. KitchenTimer.

TURNTABLE

PROBLEM CAUSE

The turntablewill not turn.

•The turntable is not correctly in place or the turntable could be in the turntable

"OFF" mode. The glass plate should be correct-side up and sitting firmlyon the

center shaft.

•The support is not operating correctly. Removethe turntable and restartthe oven. If thesupport still does notmove, call Sears Service at

1-800-4-MY-HOME. Cookingwithout the turntable can give you poor results.

TONES

PROBLEM CAUSE

You do not hear the • You have not entered the correct command. programming or end-of-

cycle tone.

Ifnone ofthese items are causing your problem, call Sears Service at 1-800-4-MY-HOME

Sears Service

Master Protection Agreement

Congratulations on making a smart purchase.

Your new Kenmore ®product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time.

The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement* includes:

Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage - real protection.

1_ Expert service by a force of more than 10,000 authorized 8ears service technicians, which

means someone you can trust will be working on your product.

I_i Unlimited service calls and nationwide service, asoften as you want us, whenever you want us. F-ti "No-lemon" guarantee - replacement of your covered product if four or more product failures

occur within twelve months.

Product replacement if your covered product can't be fixed. Annual Preventive Maintenance Check at your request - no extra charge. Fast help by phone -we call it Rapid Resolution - phone support from a Searsrepresentativeon all

products. Think of usas a "talking owner'smanual." Power surge protection against electricaldamage due to powerfluctuations.

r71 $250Food Loss Protection annuallyfor anyfood spoilage that isthe result of mechanical failure of

any covered refrigerator or freezer.

F1 Rental reimbursement if repair of your covered product takes longer than promised.

10% discount off the regular price of any noncovered repair service and related installed parts.

Onceyou purchase the Agreement, a simple phone call is all that ittakes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The MasterProtectionAgreementis a riskfree purchase.Ifyou can-celfor any reasonduringthe productwarranty

period,we willprovideafull refundor a proratedrefundanytimeafterthe productwarrantyperiodexpires. Purchaseyour MasterProtectionAgreementtoday!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call

1-800-827-6655. * Coverage in Canada varies on some items. For

full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call

1-800-4-MY-HOME .

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

For expert home solutions advice: www.managemyhome.com

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

Call anytime, day or night

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n Au Canada pour service en fran_ais:

a domicilio, y para ordenar piezas: 1-800-LE-FOYER Mc

1-888-SU-HOGAR ® (1-800-533-6937)

(1-888-784-6427) www.sears.ca

SeSLrS

® Registered Trademark / TMTrademark / ' Service Mark of Sears Brands, LLC

TM SM

® Marca Registrada / ' Marca de F_brica / ' Marca de Servicio de Sears Brands, LLC

_1cMarque de commerce / Marque d_pos_e de Sears Brands, LLC ® Sears Brands, LLC

Kenmore MICROWAVE HOOD COMBINATION 721.80033, 721.80032, 721.80034, 721.80039 Use & Care Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
