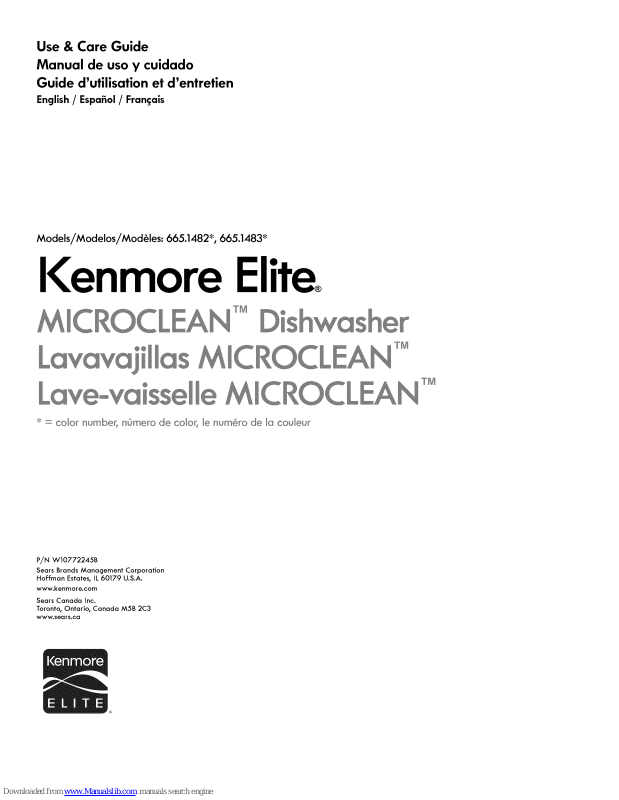

Kenmore Microclean Use & Care Manual

Use & Care Guide
Manual de uso y cuidado

Guide d'utilisation et d'entretien

English / Espafiol / Fran_ais

Models/Modelos/Mod_les: 665.1482", 665.1483"

I(enmore Elite

TM

L °s12_ MIC

P/N W10772245B
Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com

Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3

www.sears.ca

TM

TM

TABLEOF CONTENTS

PROTECTION AGREEMENTS ................................................... 2

WARRANTY ............................................................................. 3

DISHWASHER SAFETY ............................................................ A

PARTS AND FEATURES............................................................ 6

START-UP/QUICK REFERENCE............................................... 7

360 ° POWERWASH ® PLUS........................................................ 8

DISHWASHER EFFICIENCY TIPS .............................................. 8

DETERGENT AND RINSE AID .................................................. 8

Detergent ............................................................................................8

Rinse Aid ..............................................................................................9

LOADING ............................................................................... 10

Loading for Best Cleaning and Drying Performance ................10

Top Rack Loading .............................................................................11

Bottom Rack Loading ...................................................................... 13

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore ® product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money and

aggravation.
The Master Protection Agreement also helps extend the life of

your new product. Here's what the Agreement* includes:
II' Parts and labor not just for repairing defects, but to help

keep products operating properly under normal use. Our
coverage goes well beyond the product warranty. No

deductibles, no functional failure excluded from coverage -
real protection.

Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you can

trust will be working on your product.
Unlimited service calls and nationwide service, as often as

you want us, whenever you want us.

IJ"No-lemon" guarantee- replacement of your covered

product if four or more product failures occur within twelve
months.

I/Product replacement if your covered product can't be fixed.
_Annual Preventive Maintenance Check at your request - no

extra charge.
Fast help by phone - we call it Rapid Resolution - phone

support from a Sears representative on all products. Think of
us as a "talking owner's manual."

DISHWASHER USE .................................................................. 16

Cycles and Options Information ................................................. 16

Dishwasher Control Section ........................................................... 18

Dishwasher Feedback Section ......................................................18

Canceling A Cycle ..........................................................................18

Changing A Cycle After Dishwasher Is Started ......................... 19

Adding A Dish After Dishwasher Is Started ............................... 19

WASHING SPECIAL ITEMS..................................................... 20

DISHWASHER CARE ............................................................... 21

Cleaning .............................................................................................21

Dishwasher Maintenance Procedure ...........................................22

Drain Air Gap ..................................................................................22

Vacation or Extended Time Without Use .................................22

TROUBLESHOOTING ............................................................. 23

SERVICE NUMBERS ............................................. BACK COVER

I/Power surge protection against electrical damage due to

power fluctuations.

I/$2,50 Food Loss Protection annually for any food spoilage

that is the result of mechanical failure of any covered
refrigerator or freezer.

I/Rental reimbursement if repair of your covered product takes

longer than promised.

I/'25% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. You can call anytime

day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you

cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after
the product warranty period expires. Purchase your Master

Protection Agreement today!

Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details call

Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the

U.S.A. call 1-844-553-6667, and in Canada
call 1-800-469-4663.

2

I(ENMORE ELITELIMITED WARRANTY

WITH PROOF OF SALE the following warranty coverage
applies when this appliance is correctly installed, operated and

maintained according to all supplied instructions. In all cases
replacement units or parts are warranted only for the unexpired

portion of the warranty period from the original date of sale.
FOR ONE YEAR from the date of sale this appliance is

warranted against defects in material or workmanship. A
defective appliance will receive free repair or replacement at

option of seller.
FOR TWO YEARS from the date of sale all parts of this

appliance are warranted against defects in material or
workmanship. If a part is defective within the first year, a new

part will be supplied and installed at no charge. If a part is
defective after the first year, a new part will be supplied but not

installed at no charge. You are responsible for the labor cost of
part installation after the first year from the date of sale.

FOR FIVE YEARS from the date of sale, all parts of the upper or
lower dish rack are warranted against rust due to defects in

material or workmanship. If a rack part rusts from defects within
the first year, a new part will be supplied and installed at no

charge. If a rack part rusts from defects after the first year, a
new part will be supplied but not installed at no charge. You are

responsible for the labor cost of part installation after the first
year from the date of sale.

FOR AS LONG AS IT IS USED from the date of sale, the
stainless steel tub and inner door panel of this appliance are

warranted against leaks due to rust-through. If a tub or panel
rusts through within the first year, a new part will be supplied

and installed at no charge. If a tub or panel rusts through after
the first year, a new part will be supplied but not installed at no

charge. You are responsible for the labor cost of part
installation after the first year from the date of sale.

For warranty coverage details to obtain free repair or
replacement, visit the web page: www.kenmore.com/warranty

All warranty coverage applies for only 90 DAYS from the sale
date in the United States, and is void in Canada, if this

appliance is ever used for other than private household
purposes.

Thiswarranty covers ONLY defects in material and
workmanship, and will NOT pay for..

1. Expendable items that can wear out from normal use,

including but not limited to filters, belts, bags or screw-in
base light bulbs.

2. A service technician to clean or maintain this appliance, or
to instruct the user in correct appliance installation,

operation and maintenance.

3. Service calls to correct appliance installation not performed
by Sears authorized service agents, or to repair problems

with house fuses, circuit breakers, house wiring, and
plumbing or gas supply systems resulting from such

installation.

4.

Damage to or failure of this appliance resulting from
installation not performed by Sears authorized service

agents, including installation that was not in accord with
electrical, gas or plumbing codes.

5. Damage to or failure of this appliance, including
discoloration or surface rust, if it is not correctly operated

and maintained according to all supplied instructions.

6. Damage to or failure of this appliance, including
discoloration or surface rust, resulting from accident,

alteration, abuse, misuse or use for other than its intended
purpose.

7. Damage to or failure of this appliance, including
discoloration or surface rust, caused by the use of

detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.

8. Damage to or failure of parts or systems resulting from
unauthorized modifications made to this appliance.

9. Service to an appliance if the model and serial plate is
missing, altered, or cannot easily be determined to have the

appropriate certification logo.

Disclaimer of implied warranties_ limitation of remedies
Customer's sole and exclusive remedy under this limited

warranty shall be product repair or replacement as provided
herein. Implied warranties, including warranties of

merchantability or fitness for a particular purpose, are limited to
one year on the appliance, two years on appliance parts, five

years on dish racks, and for as long as used on the tub and inner
door panel, or the shortest period allowed by law. Seller shall

not be liable for incidental or consequential damages. Some
states and provinces do not allow the exclusion or limitation of

incidental or consequential damages, or limitation on the
duration of implied warranties of merchantability or fitness, so

these exclusionsor limitations may not apply to you.
This warranty applies only while this appliance is used in the

United States or Canada _.
This warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.

In-home repair service is not available in all Canadian

geographical areas, nor will this warranty cover user or servicer
travel and transportation expenses if this product is located in a

remote area (as defined by Sears Canada Inc.) where an
authorized servicer is not available.

Sears Brands Management Corporation

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada MSB 2C3

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.

This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or

This is the safety alert symbol.
"WARNING." These words mean:

You can be killed or seriously injured if you don't
immediately follow instructions.

You can be killed or seriously injured if you don't

follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WAR NING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.

• Use the dishwasher only for its intended function.

• Use only detergents or rinse agents recommended for
use in a dishwasher, and keep them out of the reach

of children.

• When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal; and

2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries.

• Do not wash plastic items unless they are marked
"dishwasher safe" or the equivalent. For plastic items

not so marked, check the manufacturer's
recommendations.

• Do not touch the heating element during or

immediately after use.

• Do not operate the dishwasher unless all enclosure
panels are properly in place.

Do not tamper with controls.
Do not abuse, sit on, or stand on the door, lid, or dish

racks of the dishwasher.
To reduce the risk of injury, do not allow children to

play in or on the dishwasher.
Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not been
used for such a period, before using the dishwasher

turn on all hot water faucets and let the water flow
from each for several minutes. This will release any

accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.

Remove the door or lid to the washing compartment
when removing an old dishwasher from service or
discarding it.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or
other reproductive harm,

4

Tip Over Hazard

Do not use dishwasher until completely installed.
Do not push down on open door.

Doing so can result in serious injury or cuts.

Electrical Shock Hazard

Electrically ground dishwasher.
Connect ground wire to green ground connector

in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in

death, fire, or electrical shock.

GROUNDING INSTRUCTIONS

• For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event

of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance for electric current. The
dishwasher is equipped with a cord having an

equipment-grounding conductor and a
grounding plug. The plug must be plugged into

an appropriate outlet that is installed and
grounded in accordance with all local codes and

ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified

electrician or service representative if you are in
doubt whether the dishwasher is properly

grounded. Do not modify the plug provided with
the dishwasher; if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.

• For a permanently connected dishwasher:
The dishwasher must be connected to a
grounded metal, permanent wiring system, or an

equipment-grounding conductor must be run
with the circuit conductors and connected to the

equipment-grounding terminal or lead on the
dishwasher.

SAVE THESE INSTRUCTIONS

Install where dishwasher is sheltered from the elements.
Avoid possible rupture of fill valve from freezing. Such
ruptures are not covered by the warranty. See the "Vacation

or Extended Time Without Use" section.

Install and level dishwasher on a floor that will hold the
weight and in an area suitable for its size and use.

Remove all shipping plugs from hoses and connectors (such
as the cap on the drain outlet) before installing. See the

Installation Instructions for complete information.

Upper level wash

ULTRA FLOW water feed
Model and serial number label

Water inlet opening

Heating element

Rinse aid dispenser reduces

spotting and improves drying.

PARTS AND FEATURES

TurboZone ®provides a concentrated
wash on the back of the lower dish

rack to power clean stuck-on foods
without soaking or scubbing.

Smooth Motion Rack TM system

TurboZone ®Reach provides
corner-to-corner cleaning on the

upper rack with spray jets that
power clean deep inside the
bottoms of bowls and glasses,

360 ° PowerWash ® Plus

provides reversing action,
additional spray coverage

and corner cleaning.

Overfill protection float

MicroClean TM Wash System removes

soil from water and improves cleanin(

Detergent dispenser ...............................................................................................................................................

action and cleans itself automatically.

Fold down tines

Cup shelf

TOP RACK

Fold-down tines

Knife holder

...........................Control Panel

Stemware clips

Upper rack handle

One-Hand Adjuster
handle and bar

..................Silverware basket

6

Lower rack handle

BOTTOM RACK

START-UP/QUICK REFERENCE

Dwing, Rinse d is ial.

You must use a drying agent
such as rinse aid for good /

drying performance (sample
included). Rinse aid along with

the SmartDry TM option will

provide best drying and avoid

excessive moisture in the
dishwasher interior.

I:; SmartDry I

ress Wash, When you n_ fast resuJ_:

High Efficiency dishwashers run longer to save

water and energy just as driving a car slower
saves on gas. When you need fast results, the

Express Wash will clean your dishes using
slightly more water and energy. For improved
drying, select the SmartDry TM option to add

additional time to dry.

m

Express

Wash

PressSTART/RESUME eve time

youadd a dish'

Tostart and resume a cycle, press START/
RESUME and close the door within 3

seconds. If the door is not closed within 3 F -I_ . m l--_
seconds, the Start/Resume button LED will _START I CAN
flash and the cycle will not start. £EPEATLASTCYCLE

IMPORTANT: If anyone opens the door
(as, to add a dish, even during the Delay

Hours option), the Start/Resume button
must be pressed each time and the door

closed within 3 seconds to resume the
cycle.

NOTE: For best results, press the button
with the flat part of the finger instead of

with your fingertip.

RESUME m DRAIN

CELI

SmartWash ® HEprovides optimal results using
only the amount of water and energy needed.

The SmartWash ®HEand Pots & Pans cycles
are recommended for tough soil.

When the TurboZone _

option is selected, it

provides a

concentrated wash

on the back of the

lower dish rack for
hard-to-clean dishes.

Place these dishes

with the soiled

surface of the dish

toward the

TurboZone ®spray
nozzles in the lower

rack of the

dishwasher.

hack of

dishwasher

m

Turbo

Zone

It is possible to use too much detergent in your dishwasher. This
can lead to etching of your dishes. See "Detergent and Rinse

Aid" to determine the amount of detergent needed based on
your water hardness. Using high quality dishwasher detergent

tablets or packs have been proven better than powder, liquid
or gel detergents to reduce filming on your dishes.

The window allows you to see
the interior LED lights come on

to signal the end of the cycle.
The interior lights will go out

automatically after 10 minutes
of inactivity. The interior LED

lights will also come on every

time that you open the door,

making it easier to load and

unload the dishwasher.

360 ° POWERWASH ®PLUS

The 360 ° Powerwash ® Plus system offers advanced cleaning technology providing optimal water coverage. This technology enables
the spray arms to turn in both directions while detecting if there are any items obstructing the spray arm from spinning. When the
spray arms are obstructed the system will detect and force the spray arm to rotate in the opposite direction allowing complete

coverage of the dishwasher load. The 360 ° Powerwash ® Plus does not spin freely like a traditional spray arm; it is motorized to spin
at just the right speed to thoroughly clean your dishes.

DISHWASHER EFFICIENCY TIPS

Hot water dissolves and activates the dishwasher detergent. Hot water also dissolves grease on dishes and helps glasses dry spot-
free. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water

temperature is too low.

Additional efficiency tips

• To save water, energy and time, only scrape dishes. Do not rinse dishes before putting them into the dishwasher.

• Use a delay feature to run your dishwasher during off-peak hours. Local utility providers recommend avoiding heavy usage of
energy at certain times of day.

• During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen.

• Use a rinse aid to improve drying.

DETERGENTAND RINSE AID

\\\\\

NOTE: If you do not plan to run a wash cycle soon, run a rinse
cycle. Do not use detergent.

• Use automatic dishwasher detergent only. Add powder,
liquid or tablet detergent just before starting a cycle.

• Fresh automatic dishwasher detergent results in better
cleaning. Store tightly closed detergent container in a cool,

dry place.

Premeasured Detergents

Many detergents now come in premeasured forms (gel packs,
tablets, or powder packs). These forms are suitable for all

hardness and soil levels. Always place premeasured detergents
in main compartment of the dispenser and slide lid to close.

To close lid To open lid

Place selected detergent in
the dispenser. Place finger, as

shown, and slide lid closed.
Pressfirmly until it clicks.

Using high quality dishwasher detergent tablets or packs has
been proven better than powder, liquid or gel detergents at

reducing filming on dishes. Using tablets and packs over time
will start to reduce or eliminate white film. Also, by using a rinse

aid you can minimize repeat buildup of white film.

Push OPEN, as shown, and the
lid will slide open.

Rinse Aid

J

Powders and Gels

Water Soil Pre-Wash Main Wash
Hardness Level Compartment* Compartment

Soft Light None "Soft" fill line

(0-4 grains Normal None "Soft" fill line
per U.S.

gallon) Heavy Full "Soft" fill line

Medium Light None "Soft" fill line
(5-9 grains Normal Full "Soft" fill line

per U.S.
gallon) Heavy Full Full_

Hard Light Full FuIP _

(10-14 grains Normal Full FulP _
per U.S.

gallon) Heavy Full FulP _

_The prewash compartment is on top of the sliding door of

the dispenser.
_A full main wash compartment contains 2 Tbsp. (30 ml)
IMPORTANT: Extremely hard water mineral deposits (15 grains

per U.S. gallon or more) can cause damage to your dishwasher
and make it difficult to achieve good results. A water softener is

recommended to avoid damage and achieve good results. You
may bring your water samples to Sears to check hardness level.

NOTE: Follow instructions on the package when using other
dishwasher detergent types.

IMPORTANT: Your dishwasher is designed to use rinse aid. The
use of rinse aids greatly improves drying by allowing water to
drain from the dishes after the final rinse. They also keep water

from forming droplets that can dry as spots or streaks.
Filling the dispenser

The dispenser holds 5 oz. (150 mL) of rinse aid. Under most
conditions this will last 1to 3 months.

0 Full

@

(_ Add

To add rinse aid open the rinse aid dispenser lid by gently
pushing in the center of the lid with your thumb and pulling

up on the edge.

2.

Pour rinse aid into the opening until the dispenser is full. Do
not overfill.

3.

Clean up any spilled rinse aid. Spilled rinse aid can create
excessive suds.

4. Then, close the dispenser by pushing down gently on the lid.
NOTE: Indicator reads correct fill level when door is completely

opened.
Rinse Aid Setting

Your rinse aid dispenser is adjustable. For most water conditions,
the factory setting will give good results. If you have hard water

and notice calcium buildup on your dishware, you may want to
try a higher setting. If you notice foam in your dishwasher, use a

lower setting.

I £ 4L

To adjust the setting
Turn the arrow adjuster to a higher setting to increase the

amount of rinse aid.

Le_>dsg f@"Be_,t C e,sm sg _;md Dpij_t_g _" _

dishware

6

, _ ,n,,,i,iii:;:ii,i_:i/ II

Jl_l i U'I"ill':_'!,

LOADING

Ang/ed surfaces

spin freely.

Separating c///ow.s water flow.

toward the lower back.

Separated

So//facing TurboZone _ spray,iets

10

Rack Lo4;; di

Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots. To avoid
damage to your delicate items, be sure china, crystal, stemware and other similar items do not touch during dishwasher operation.

Load lightweight and dishwasher-safe plastic items only in the top rack.

lO p/ace setting/oad 12 p/ace setting/oad

One,Hand Adjuster

To adjust the height of the upper rack using the One-Hand
Adjuster:

1. Pull the upper rack fully out of the dishwasher. Make sure the
lower rack is pushed fully into the dishwasher.

2. Press the handle downward until it stops. You will hear
2 clicking sounds. This assures that both sides of the rack

are locked.

3. Release the handle.

4. To adjust the height of the upper rack again,
repeat Steps I - 3.

NOTE: If one side of the rack is tilted down, lift the rack on the
side tilted down. You will hear a clicking sound when the rack

returns to level.

The row of tines on the left-hand and right-hand sides of the top
rack can be adjusted to make room for a variety of dishes.

Adjust rack height

Level rack

11

Fold down the extra shelf on either side of the top rack to hold
additional cups or long items, such as utensils and spatulas.

Use the stemware clips to hold stemware more securely.

Cup shelves Stemware clips

P_mova bJe

Top Rack (for smooth Motion RackT M)

The removable top rack allows you to wash larger items such as
pots, roasters, and cookie sheets in the bottom rack.

IMPORTANT: Remove dishes prior to removing the top rack from
the dishwasher.

To remove the rack:
Togain access to the removable tabs on the tracks/rails, pull the

upper rack forward about halfway out of the tub.
On one side, press the tab on the track in and pull up the front

end of the rack out of the track. Then repeat this step on the
other side to completely remove the front end of the rack.

Then remove the back end of the rack, by pulling the back end
out with a slightly forward then upward motion.

To replace the rack:

Pull the tracks forward about halfway out of the tub.
Along the sides of the racks are round attachment tabs. Align the

rack's back end attachment tabs with the cutout in the track. Push
down into place.

Pull the tracks completely out, and align the rack's front end
attachment tabs with the cutout in the track. Push down into

place. You will hear a snap when the front end of the rack is
secured into place on each side.

Removal

12

The bottom rack is best suited for plates, pans, casseroles, and utensils. See recommended loading patterns shown.
Load small items in the bottom rack only if they are secured in place.

Load plates, soup bowls, etc., between tines.
Load bowls securely between the rows of tines. Ensure that there is space between dishes so that the spray will reach all surfaces.

Load heavily soiled items facing the spray.
NOTE: Ensure that detergent dispenser is not blocked by tall items such as cookie sheets or cutting boards placed at the left-hand

front of rack. See "Start Up/Quick Reference" section.

lO p/ace setting bed 12 p/ace setting bed

You can fold down one row of tines at the back of the bottom
rack in order to accommodate larger dishware.

Keep this tine row in the 60° position (A) when using the
TurboZond _ option.

IMPORTANT: When moving the tine row to the flat position, fold
the tine row toward the front of the dishwasher (B).

13

IMPORTANT: For proper performance, only one row of items may face the TurboZone ®spray jets.
You must select the TurboZone ®wash option to utilize this wash feature.

Load pans, casserole dishes, etc., with the soiled surfaces facing the TurboZone ®spray jets. TurboZone ®wash area is located at the
back of the lower dish rack.

Place the fold-down fine row in the 60 ° position when using the TurboZone ®option.

m

Turbo

Zone

Back of
dishwasher

You can wash larger items such as pots, roasters, and cookie
sheets in the bottom rack by removing the top rack. See "Top

Rack Loading" section.

To load knives that are too large for the silverware basket, use
the knife holder located on the left-hand side of the bottom

rack. Place knives in the holder as shown.

Your silverware basket can be split into three segments.
Removing one section will increase your capacity in the

TurboZone ® loading area.
You can remove the covered side baskets to place in the top

rack. Use for small delicate items such as baby bottle caps,
nipples and small baking utensils, etc.

14

Use suggested loading patterns, as shown, to better clean your
silverware.

Use the slots in the covers to keep your silverware separated for
optimum wash. See illustration at right.

NOTE: If your silverware does not fit into the designated slots,
flip the covers up and mix silverware types to keep them

separated. Load knives down, forks up, and alternate spoons,
as illustrated, for best cleaning results.

15

DISHWASHER USE

cvcE_s OPTIONS

P_ns Wash Gentle Was}, Rinse Hours Zon_ sh p

eo_s & Normal China Express Quick Delay w^s_l_G _A_ITIZ_ Turbo _ em San_ Smart

l

Cycles

SmartWash ®_ cycle

The most advanced and versatile cycle. This cycle senses the soil amount and toughness of
soil. This cycle is optimized to achieve outstanding cleaning with minimal water and energy.

Pots & Pans

Works best on your toughest items, such as casseroles with baked-on food residue. Use with
TurboZone ®option (on some models) to get the best baked-on soil cleaning.

Normal Wash

This cycle with only the Smart Dry TM option selected, and without other options selected, is
recommended to completely wash and dry a full load of normally soiled dishes. The energy
usage label is based on this cycle and option combination.

China Gentle
Provides a light wash and gentle dry for delicate items such as china and crystal.

Express Wash

To save water and energy, high efficiency dishwashers use advanced filtration which may
result in longer cycle times (in some cases over 2 hours). When you need fast results, the

Express Wash cycle will clean your dishes using slightly more water and energy. Then, towel
dry dishes for immediate use. Select Smart Dry TM if you want to add a drying option.

Quick Rinse

Use for rinsingdishes, glasses, and silverware that will not be washed right away.
Do not use detergent.

Estimated Time*

Displayed:

H:MM

2:40

3:03

2:29

2:22

0:57

0:15

Range of

Water Usage

Gallons

(Liters)

3.8 to 5.3

(14.3 to 20.2)

4.3

(16.3)

2.7 to 5.3

(10.4 to 20.2)

2.7 to 5.3

(10.4 to 20.2)

4.3

(16.3)

2.1

(8.1)

*This is the approximate cycle time obtained with 120°F (49°C) hot water available at the dishwasher. Increase in time results from

low temperature of the incoming water.

Options

TurboZone®and TurboZone® Reach
In the back of the lower rack, rotating jets

spray water into your casserole or other
dishes to eliminate the need for soaking and
scrubbing of dirty, baked on food soils.

On the front of the upper rack, get corner-to-
corner cleaning with spray jets that power

clean deep inside the bottoms of bowls
and glasses.

For your toughest items, use the TurboZone _
option with the Pots & Pans cycle. See loading

information.

16

Can be selected

with

SmartWash ®HE

Pots & Pans

Normal Wash

What it does

Directs all of the cleaning
power of the dishwasher to

the TurboZone _areas during
certain times in the wash

cycle.

Added time

to cycle

0:05 to 2:00

Added

Water **

Gallons

(Liters)

0 to 2.6

(0 to 9.8)

Options

Can be selected

with

What it does

Added time

to cycle

Added

Water **

Gallons

(Liters)

Hi Temp Wash

Raises main wash temperature to improve
cleaning for loads containing tough, baked

on food.

Sani Rinse

Sanitizes dishes and glassware in accordance

with NSF International NSF/ANSI Standard

184 for Residential Dishwashers. Certified
residential dishwashers are not intended for

licensed food establishments. Only sanitizing
cycles have been designed to meet the

requirements of the NSF/ANS1184
performance standard for soil removal and

for sanitization efficacy. There is no intention,
either directly or indirectly, that all cycles on

a NSF/ANS1184 certified dishwasher meet
the NSF/ANS1184 performance standard for

soil removal and for sanitization efficacy.
The Sani Rinse indicator indicates at the end

of the cycle whether the Sani Rinse option

was successfully completed. If the indicator
does not activate, it is probably due to the

cycle being interrupted.

Smart Dry TM
Turnsthe heat element on at the end of the

wash cycle. Use rinse aid with or without the
Smart Dry TM option for best drying results.

Plastic items are less likely to deform when
loaded in the top dish rack.

Smart Dry TM Plus

Smart Dry TM Plus is used with Smart Dry TM to
extend the heated drying time. For the very

best drying performance, use rinse aid and

the Smart Dry TM Plus option.

SmartWash ®HE

Pots & Pans

Normal Wash

SmartWash ®HE

Pots & Pans

Normal Wash

Top Rack Only

Bottom Rack Only

Available with any

cycle except Quick

Rinse

Raises the main wash
temperature from 120°F

(49°C) to 140°F (60°C).

Increases the main wash

temperature from 120°F
(49°C) to 140°F (60°C) and
the final rinse from 140°F

(60°C) to 155°F (68°C).

Turns the heat element on at
the end of the wash cycle.

The Smart Dry TM Plus option
must be selected for any cycle

and will momentarily flash for
cycles that do not allow it.

0:00 to 0:30

0:10 to 2:00

0:11 to 0:48

0:42 to 1:20

0 to 2.6

(0 to 9.8)

0 to 2.6

(0 to 9.8)

Top Rack Only
For added convenience, use for washing a

small load of dishes in the top rack to help
keep the kitchen continuously clean.

Bottom Rack Only

For added convenience, use for washing a
small load of dishes in the bottom rack to

help keep the kitchen continuously clean.

_The maximum additional water used for any combination of options is 2.6 gal. (9.8 L).

Available with any

cycle

Cannot be used with

TurboZone option

®

Available with any

cycle

Cannot be used with

TurboZone option

®

Slightly faster wash for
smaller loads

Slightly faster wash for
smaller loads

Saves up to

0:07

Saves up to

0:24

17

Delay Hours

Use this option to run your dishwasher during off-peak hours. Local utility providers recommend using energy during off-peak
hours when possible.

To delay the start:

1. Select a wash cycle and options.

2. Press DELAY HOURS to choose the number of hours to be delayed.

3. Press START/RESUME.
NOTE: Anytime the door is opened for more than 5 seconds (such as, to add a dish), the Start/Resume button must be pressed

again to resume the delay countdown.

Control Lock Option

Use the Control Lock option to avoid unintended use of the dishwasher between cycles or unintended cycle and option changes
during a cycle. When Lock On is lit, all buttons are disabled. The dishwasher door can still be opened/closed while the controls

are locked.

To turn on Control Lock

Press and hold SANI RINSE for 3 seconds. A message on the LCD will confirm that the controls are locked. If you press any pad
while your dishwasher is locked, the LCD will display a message indicating the controls are locked.

NOTE: The dishwasher cannot start if the control is locked.

To turn off Control Lock

NOTE: You may need to disable Sleep Mode by pressing either START/RESUME or CANCEL/DRAIN, or by opening and closing
the door before you are able to turn off Control Lock.

Press and hold SANI RINSE for 3 seconds. The light turns off. A message on the LCD will confirm that the controls are unlocked.

Cycle Indicators and Time Display

_VASHING SANITIZED

DRYING COMPLETE

The indicators glow when the dishwasher is washing, drying, complete, and/or sanitized. They also glow

when the control is locked and/or the delay option is selected.

The Status Display is used to follow the progress of the dishwasher cycle and to show other information.
Estimated cycle time is displayed in hours and minutes as you make cycle and option selections. After you

WASHING _ SANITIZED

DRYING COMPLETE

start the dishwasher, the display counts down the time.

When you select the Delay option, the time display will give the number of hours followed by an "H".

Selecting Cycles and Options

1. To repeat the same cycle/options used on previous cycle, press START/RESUME once to show which selections you used. To
change cycle, select desired cycle.

2. Select the desired options, then press START/RESUME to start the cycle. Not all options are available for every cycle. If an
invalid option is selected for a given cycle, the lights will flash.

Turning the Sound On and Off

Pressand hold HI TEMP WASH for 3 seconds to toggle sound On and Off. The sound will not deactivate for cycle interruption or
service required messages. A screen on the Text LCD will confirm when the sound has been turned Off or On.

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.

2. Press and hold the CANCEL/DRAIN button until the Cancel/Drain light turns on.

3. Close the door. The dishwasher starts a drain cycle if water remains in bottom of dishwasher. Let the dishwasher drain completely.
The Cancel/Drain light turns off after 2 minutes.

18

_9 $_'_VsF@$_'_@___:_

You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure.

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.

2. Check whether the detergent dispenser cover is still closed. If it is open, you will need to refill the detergent dispenser before
restarting your new cycle.

3. Press and hold CANCEL/DRAIN twice to reset the control.

4. Select new cycles and options.

5. Press START/RESUME.

You may add a dish during the first few minutes of the cycle.

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.

2. Add the dish or other items to the load.

3. Press START/RESUME.

4. Close the door. (The door must be closed within 3 seconds of pressing Start/Resume or the cycle will not resume).

19

WASHING SPECIAL ITEMS

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.

Material . Dishwasher Safe? . Comments

Aluminum Yes

Disposable Aluminum No

Bottles and Cans No

Cast Iron No

China/Stoneware Yes

Crystal Yes

Gold No

Glass Yes

Hollow-Handle Knives No

Pewter, Brass, Bronze, and No
Copper

High water temperature and detergents can affect finish and color of
anodized aluminum.

Do not wash disposable aluminum pans in the dishwasher. These might shift
during washing and transfer black marks to dishes and other items.

Wash bottles and cans by hand. Labels attached with glue can loosen and
clog the wash system and reduce washing performance.

Seasoning will be removed and then will rust.

Always check manufacturer's recommendations before washing. Antique,
hand-painted, or over-the-glaze patterns may fade. Gold leaf can discolor

or fade.

Always check manufacturer's recommendations before washing. Some
types of leaded crystal can etch with repeated washing.

Gold-colored flatware will discolor.

Milk glass material yellows with repeated dishwasher washing.
Handles of some knives are attached to the blade with adhesives which can

loosen if washed in the dishwasher.

High water temperatures and detergent can discolor or pit the finish.

Disposable Plastics No
Plastics Yes

Stainless Steel Yes

Sterling Silver or Silver Plate Yes

Tin No

Wooden Ware No

Large Casserole Section Yes

Cannot withstand high water temperatures and detergents.

Always check manufacturer's recommendations before washing. Plastic
items may vary in their ability to withstand high temperatures and

detergents. It is recommended that lightweight items such as lids and butter
dishes be placed in the upper rack only. Sturdy items such as coolers and

high-chair trays may be placed in the lower rack. When washing plastic
items in the lower rack, it is recommended not to use the SmartDry TM

option.

Run a rinse cycle if not washing immediately. Prolonged contact with food
containing salt, vinegar, milk products, or fruit juice can damage finish.

Run a rinse cycle if not washing immediately. Prolonged contact with food
containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can

damage finish. Do not wash Sterling Silver silverware with Stainless Steel
silverware because electrolytic action will discolor and pit the metals where

they touch.
Not recommended

Wash by hand. Always check manufacturer's instructions before washing.
Untreated wood can warp, crack, or lose its finish.

There may be certain casserole dishes that may not fit in front of the
Turbo7one ® feature in the back of the lower dish rack. Adjust the tines as
necessary to load the large dishes.

2O

DISHWASHER CARE

Cleaning the exterior In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all

that is necessary to keep the outside of your dishwasher looking nice and clean. If
your dishwasher has a stainless steel exterior, a stainless steel cleaner is

recommended.

Cleaning the interior

Hard water minerals can cause a white film to build up on the inside surfaces,
especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. You may want to wear rubber
gloves. Do not use any type of cleanser other than dishwasher detergent because it

may cause foaming or sudsing.

To clean interior

Make a paste with powdered dishwasher detergent on a damp sponge and clean.
OR

Use liquid automatic dishwasher detergent and clean with a damp sponge.
OR

See the vinegar rinse procedure in "Cloudy or spotted dishware" in "Troubleshooting"
section.

NOTE: Run a normal cycle with dishwasher detergent after cleaning the interior.

21

lXs she ° @n s }ce educe

To help avoid hard water residue in your dishwasher, use affresh ®+dishwasher cleaner (recommended) once a month as part of
routine maintenance, affresh ®dishwasher cleaner is effective in all dishwasher brands.

IMPORTANT:

• Read these instructions and the instructions found on the affresK _ product package completely before beginning the
cleaning process.

• Load your dishwasher (preferably with dishes affected by filming/hard water).

• Place tablet in main wash compartment of detergent dispenser.

• Select cycle/option best for heavily soiled dishes and start dishwasher.

NOTE: Recommended to use a premeasured detergent tablet or pack for regular daily use.

Some state or local plumbing codes require the addition of a drain air gap between a
built-in dishwasher and the home drain system. Check the drain air gap when your

dishwasher is not draining well.
The drain air gap is usually located on top of the sink or counter top near the

NOTE: The drain air gap is an external plumbing device that is not part of your
dishwasher. The warranty provided with your dishwasher does not cover service costs

directly associated with the cleaning or repair of the external drain air gap.

To clean the drain air gap Clean the drain air gap periodically to ensure proper drainage of your dishwasher.

With most types, you lift off the chrome cover. Unscrew the plastic cap. Then check
for any soil buildup. Clean if necessary.

To reduce the risk of property damage • If you will not be using the dishwasher during the summer months, turn off the

water and power supply to the dishwasher.

• Make sure the water supply lines are protected against freezing conditions. Ice
formations in the supply lines can increase water pressure and damage your
dishwasher or home. Damage from freezing is not covered by the warranty.

• When storing your dishwasher in the winter, avoid water damage by having your
dishwasher winterized by authorized service personnel.

¢® affresh is a registered trademark of Whirlpool.

22

CHECK THESE POINTS TO HELP SAVE YOU TIME AND MONEY.

I

PROBLEM ......... SOLUTION

TROUBLESHOOTING

DISHWASHER DOES NOT RUN

DETERGENT REMAINS IN THE
DISPENSER OR

TABLETIS ON BOTTOM
OF TUB

CYCLE RUNS TOO LONG

DISHWASHER NOT DRYING

WILL NOT FILL

NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle.
If the Start/Resume light is blinking, push START/RESUME and close the door within 3 seconds.

Be sure the door is closed and latched. If the upper rack is uneven, lift the rack on the side tilted
down. An uneven rack can keep the door from closing.

Check that there is not an interference with large casserole dishes and the wash system at the
back of the dishwasher. Adjust loading as necessary to ensure door is closed and latched.

Be sure you have selected a cycle. (See "Cycles and Options Information.")
Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped.

If lights other than Start/Resume blink and the unit will not run, you will need to call for service.

Check for dishware such as cookie sheets, cutting boards, or large containers, etc., that may be
blocking the detergent dispenser from opening properly.

Be sure your detergent is fresh and lump free.
Be sure the cycle has completed (green light is on). If it has not completed, you will need to

resume the cycle by pressing START/RESUME and closing the door within 3 seconds.
NOTES.

• To use less water and reduce energy consumption you will encounter cycles that typically run
for up to 3 hours.

• A water heater setting of 120°F (49°C) is best. The dishwasher will delay longer while heating
cooler water.

• Some options will add time to the cycle. (See "Cycles and Options Information" section.) The
SmartDry TM and SmartDry TM Plus options together add a total of 45 minutes.

Try the Express Wash cycle.
Run the hot water at a faucet close to the dishwasher before selecting and starting the cycle.

NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous
surface which tends to collect water droplets. Towel drying may be necessary.

Use of rinse aid along with the SmartDry TM option is needed for proper drying.
Proper loading of items can affect drying. (See specific loading instructions within this guide.)

Glasses and cups with concave bottoms hold water. This water may spill onto other items
when unloading.

• Unload the bottom rack first.

• Locate these items on the more slanted side of the rack for improved results.

Be sure the water is turned on to the dishwasher.
Check that the float is free from obstructions. (See "Parts and Features.")

Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate
properly or may not fill with water.

WATER REMAINS IN THE TUB/
WILL NOT DRAIN

Be sure the cycle has completed (the green light is on). If it has not, you will need to resume the
cycle by pressing START/RESUME and closing the door within 3 seconds.

If dishwasher is connected to a food waste disposer, be sure the knockout plug has been
removed from the disposer inlet.

Check for kinks in the drain hose.
Check for food obstructions in the drain or disposer.

Check your house fuse or circuit breaker.

23
