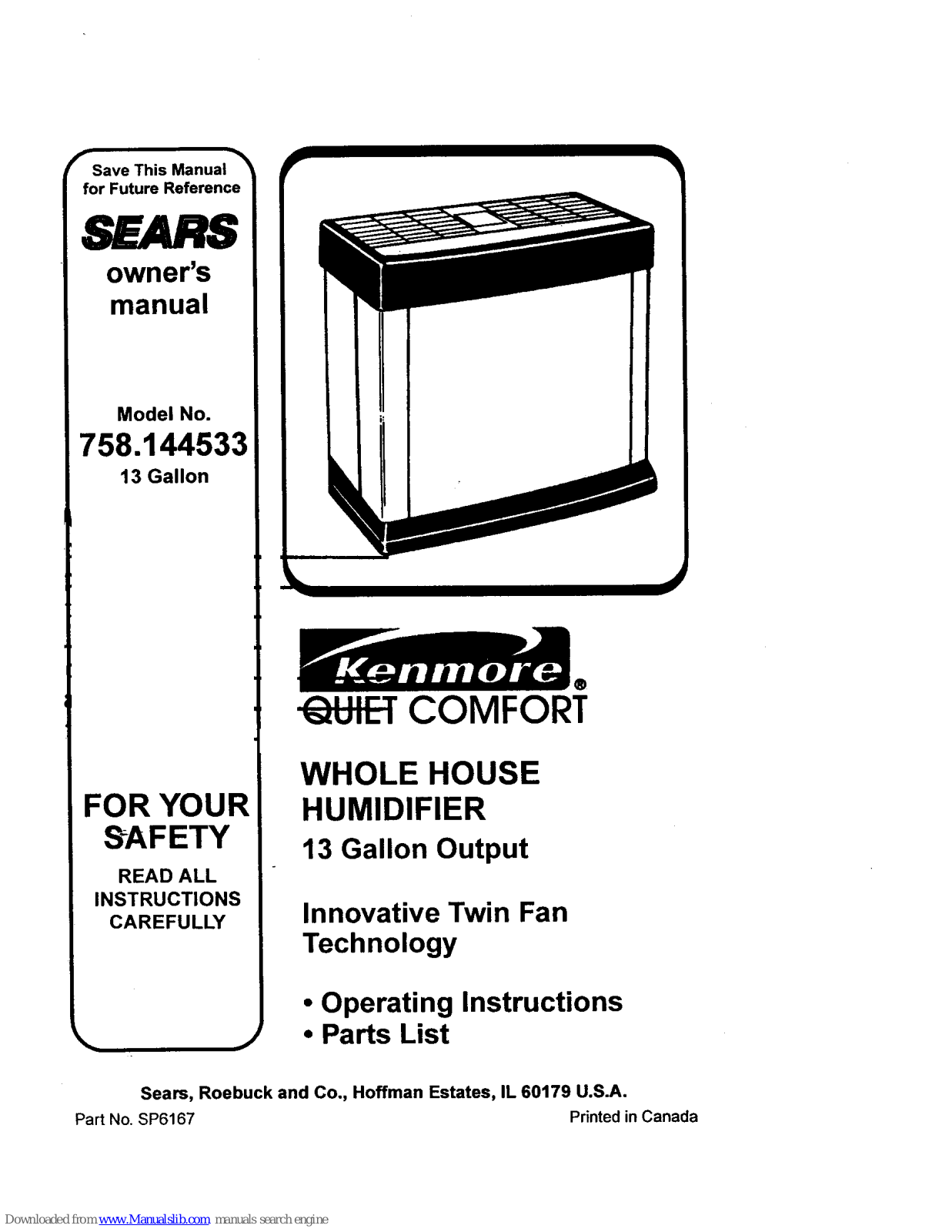

Kenmore KEMORE 758.144533, QUIET COMFORT 758.144533 Owner's Manual

f/_ Save This Manual

for Future Reference

owner's

manual

Model No.

758.144533

13 Gallon

FOR YOUR

S_AFETY

READ ALL

INSTRUCTIONS

CAREFULLY

COMFOR

WHOLE HOUSE

HUMIDIFIER

13 Gallon Output

Innovative Twin Fan

Technology

• Operating Instructions

• Parts List

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Part No. SP6167 Printed in Canada

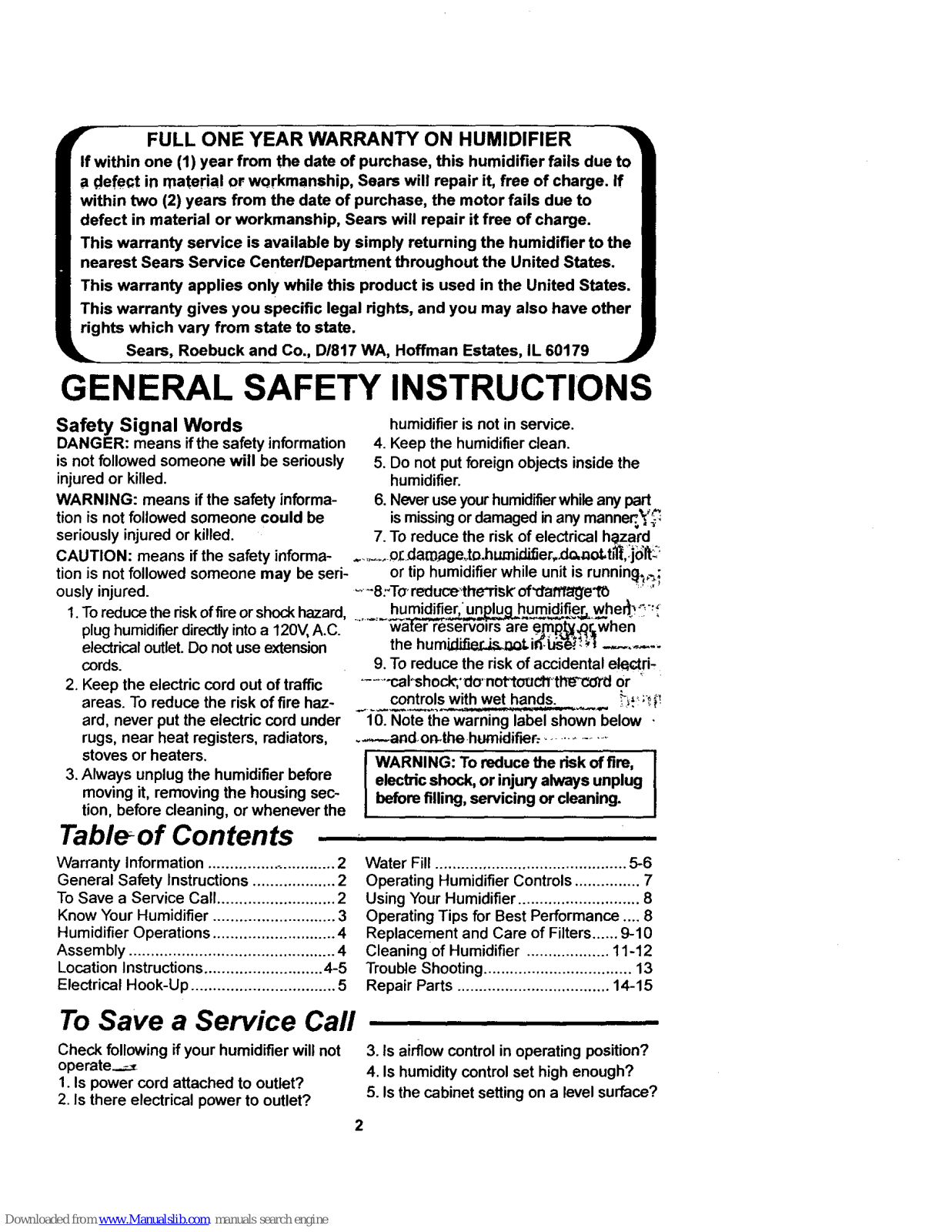

FULL ONE YEAR WARRANTY ON HUMIDIFIER

If within one (1) year from the date of purchase, this humidifier fails due to
a defect in material or wQrkmanship, Sears will repair it, free of charge. If
within two (2) years from the date of purchase, the motor fails due to
defect in material or workmanship, Sears will repair it free of charge.

This warranty service is available by simply returning the humidifier to the
nearest Sears Service Center/Department throughout the United States.

This warranty applies only while this product is used in the United States.
This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., 13/8t7 WA, Hoffman Estates, IL 60179 _1

GENERAL SAFETY INSTRUCTIONS

Safety Signal Words

DANGER: means ifthe safety information
is not followed someone will be seriously
injured or killed.

WARNING: means if the safety informa-
tion is not followed someone could be

seriously injured or killed.
CAUTION: means if the safety informa-

humidifier is not in service.

4. Keep the humidifier clean.

5. Do not put foreign objects inside the
humidifier.

6. Never use your humidifier while any pa_
is missing or damaged in any rnanne_,_

7. To reduce the risk of electrical h_zard

....... 0_:damage,.t_.humidiSer._._ot.t_, ij_l_:?

tion is not followed someone may be seri- or tip humidifier while unit is running,i, i
ously injured. _ _-8:'To"reduce'the'risk" of'datl"Pa_'tO

1. To reducethe risk offire or shock hazard, humidifier,unpluQ humidifier, wher_',:f

plug humidifier directly into a 120V, A.C. "........ w'_a'fE_se"-"_olrsar"_"_"_=_.my_,_'r,"when "

electrical outlet. Do not use extension the humidif._,L_J_t,i_'il_v_. _-_] -,,-.-..,_-.

9. To reduce the risk of accidental el_ctri,

...... -cal_shock';,'do'notloucITt_d or '

controls with wet hands. _ ,_ ,"_

10. Note the warning label shown below •

..---and on-the humidifier: .............

cords.

2. Keep the electric cord out of traffic

areas. To reduce the risk of fire haz-
ard, never put the electric cord under

rugs, near heat registers, radiators,
stoves or heaters.

3. Always unplug the humidifier before

moving it, removing the housing sec-

tion, before cleaning, or whenever the

Table'of Contents

WARNING: To reduce the risk of firs, I

electric shock, or injury always unplug

I

before filling, servicing or cleaning.

Warranty Information ............................. 2

General Safety Instructions ................... 2

To Save a Service Call ........................... 2

Know Your Humidifier ............................ 3

Humidifier Operations ............................ 4

Assembly ............................................... 4

Location Instructions ........................... 4-5

Electrical Hook-Up ................................. 5

Water Fill ............................................ 5-6

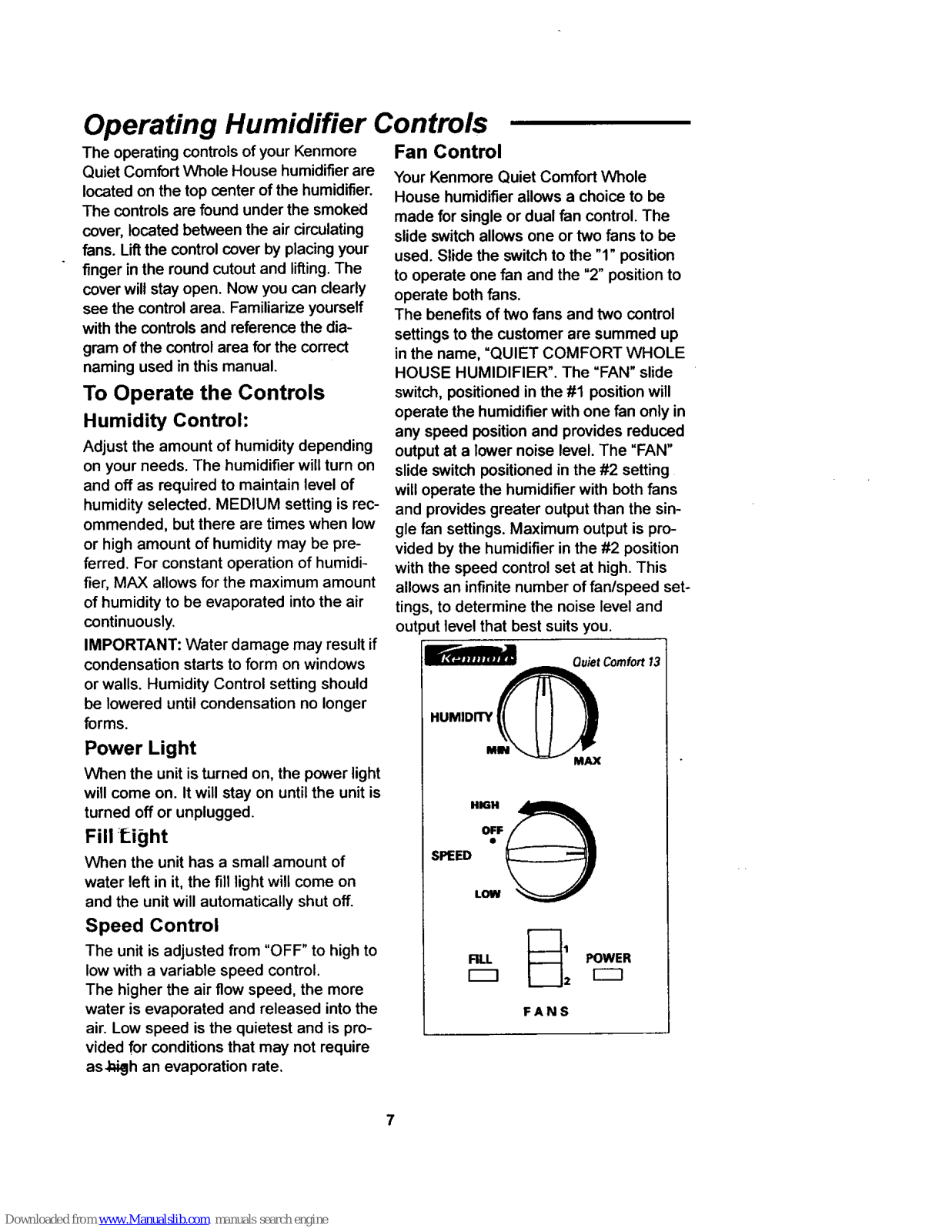

Operating Humidifier Controls ............... 7

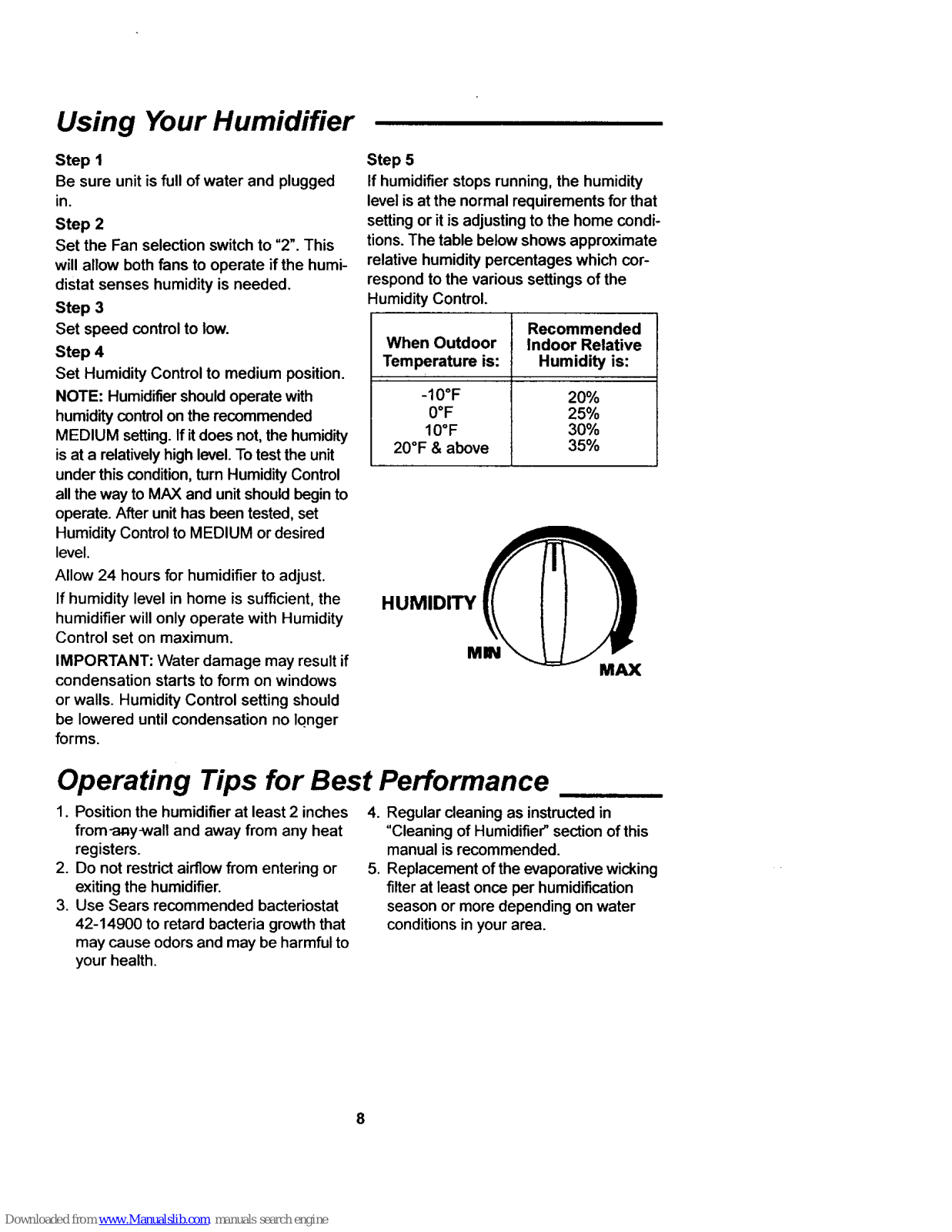

Using Your Humidifier ............................ 8

Operating Tips for Best Performance.... 8

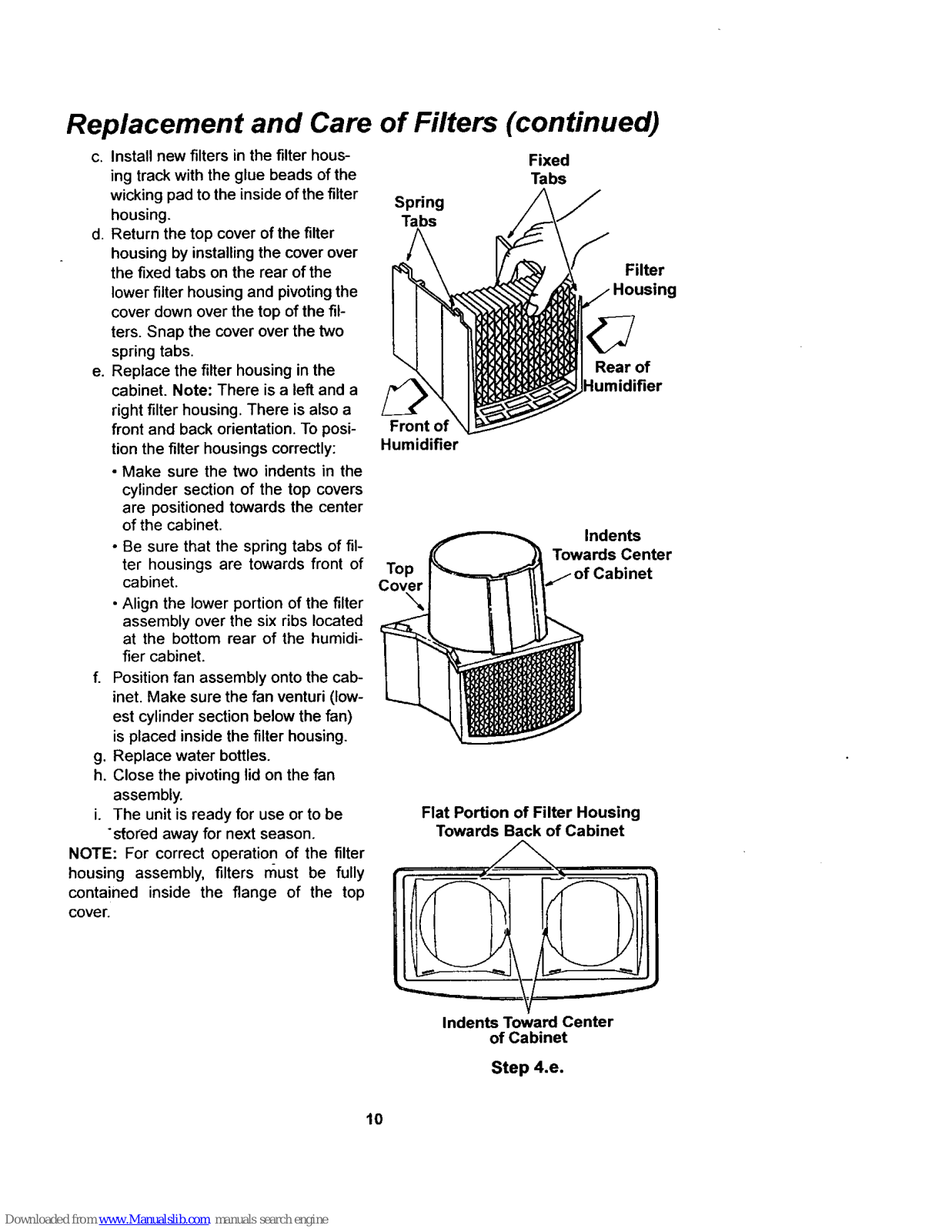

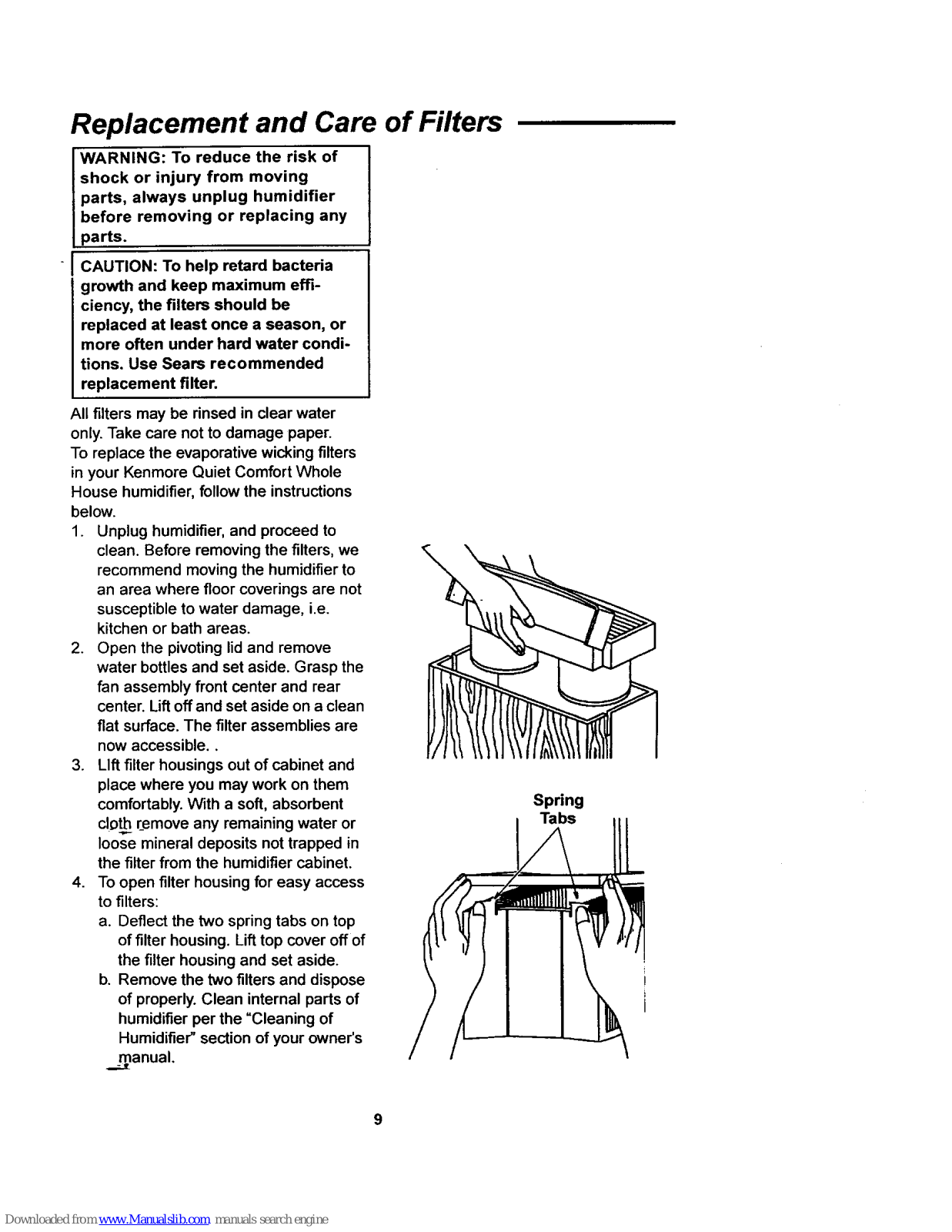

Replacement and Care of Filters ...... 9-10

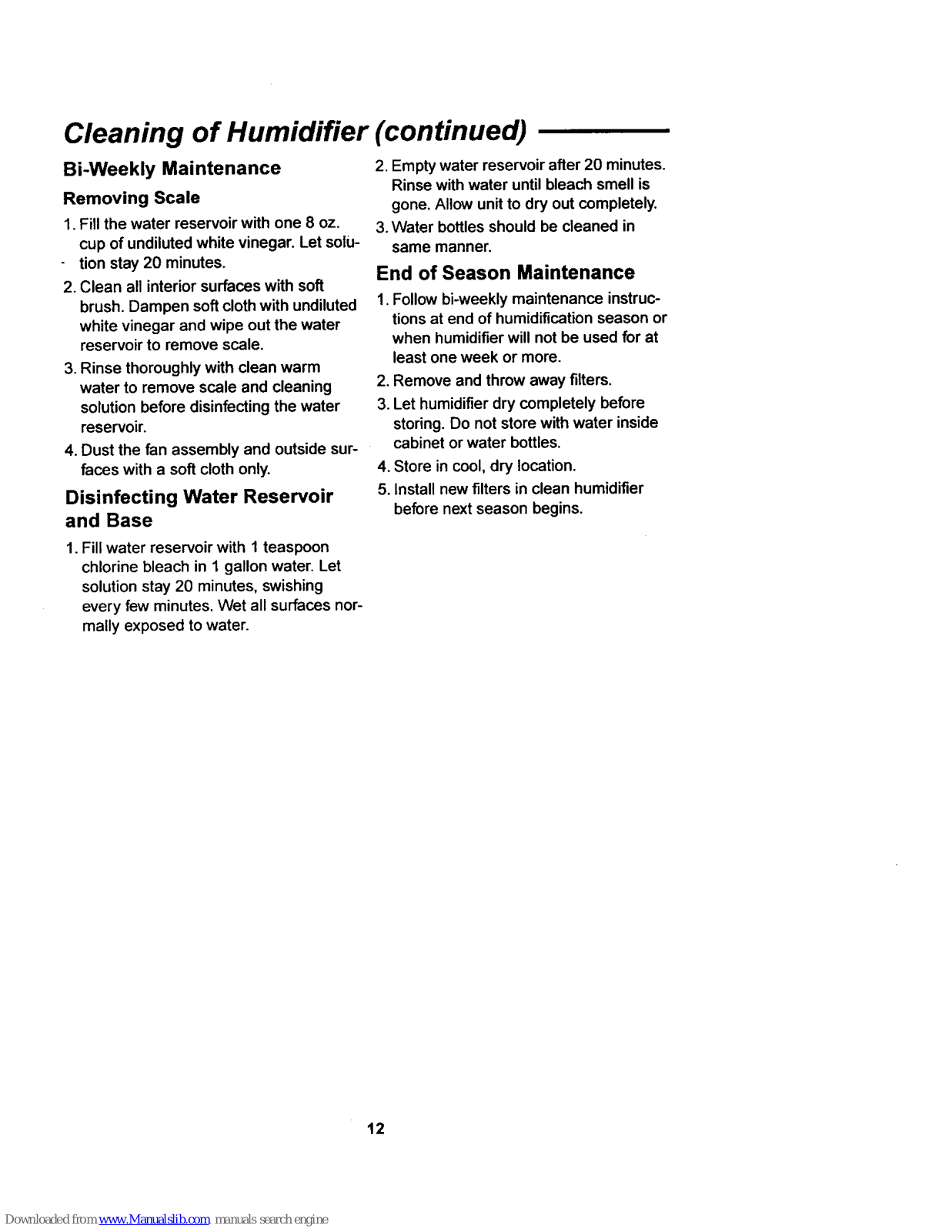

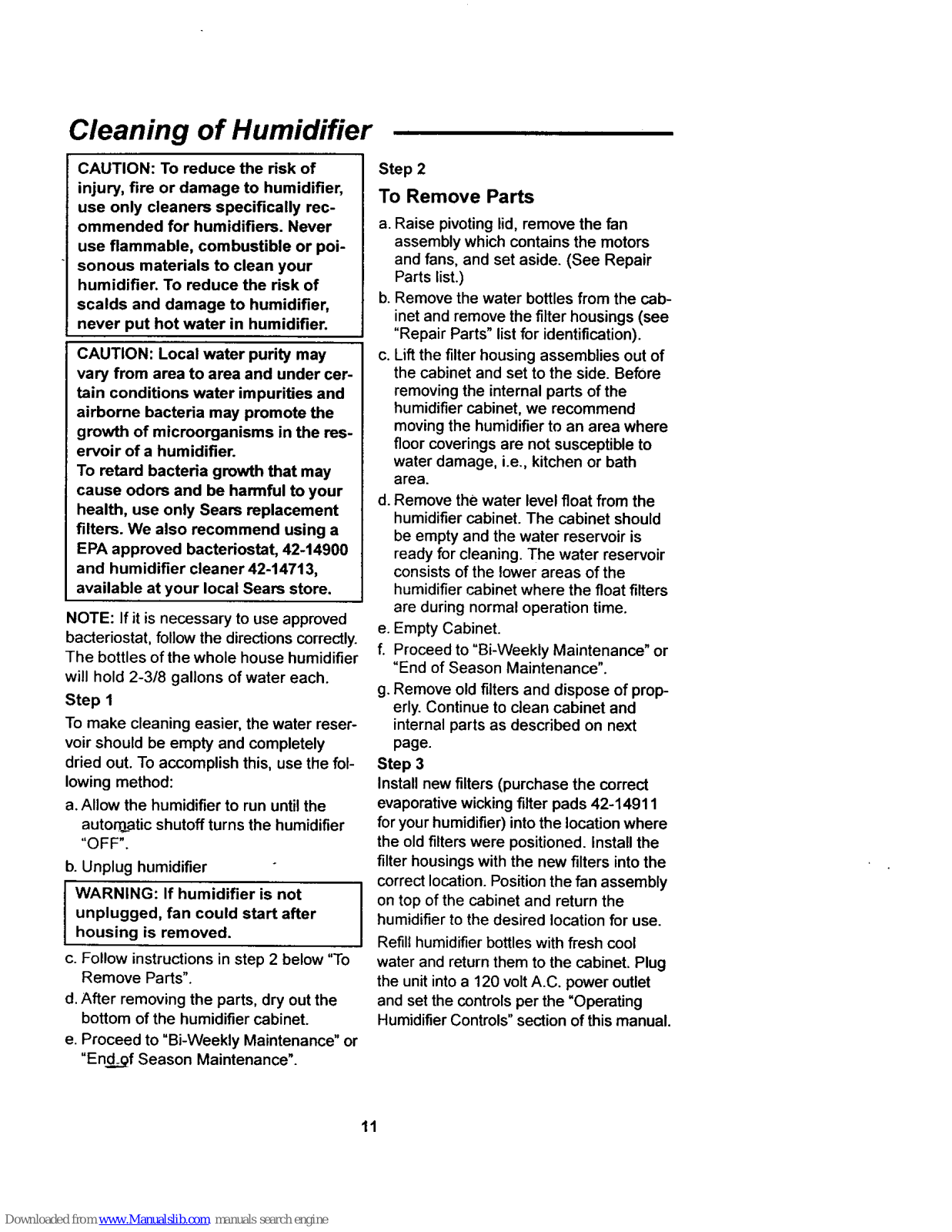

Cleaning of Humidifier ................... 11-12

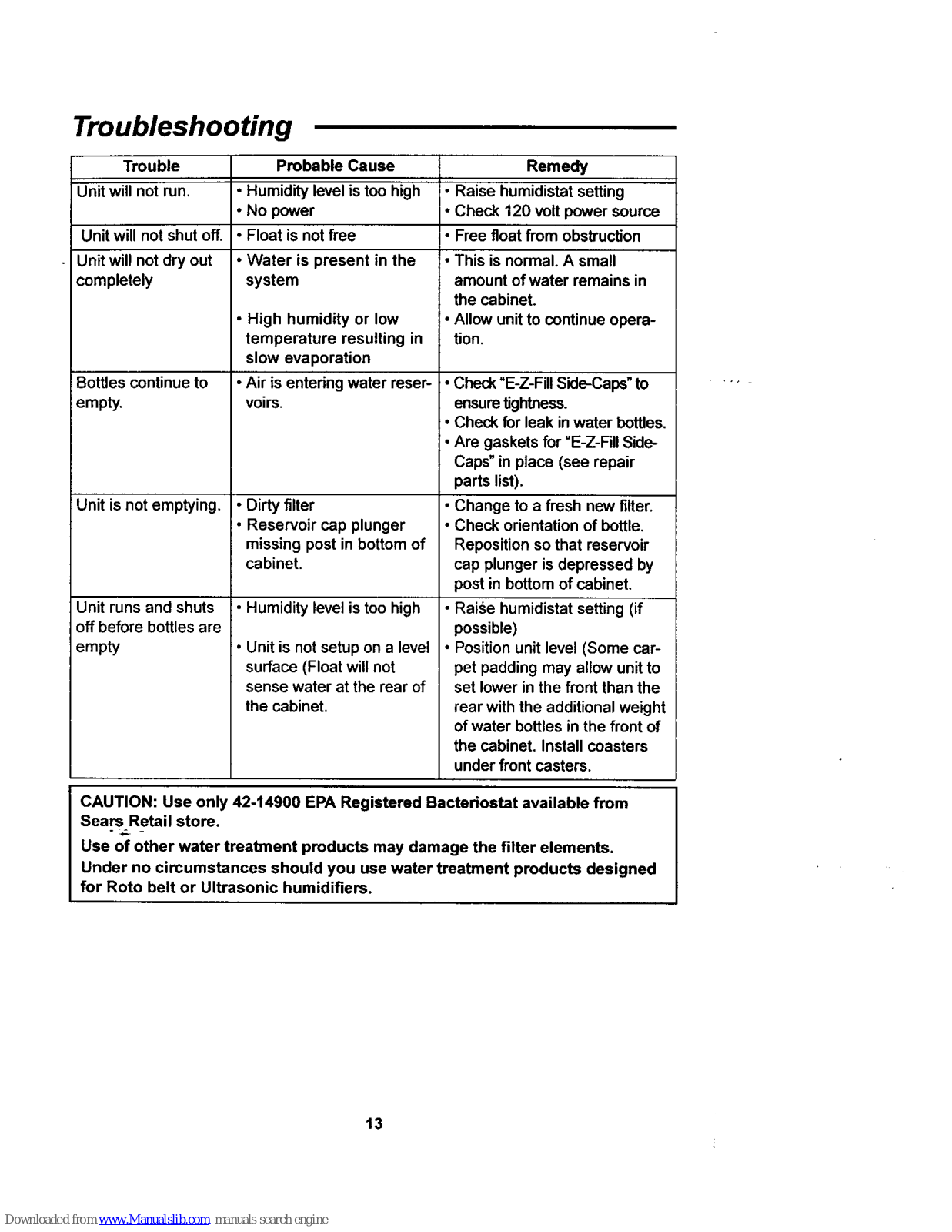

Trouble Shooting .................................. 13

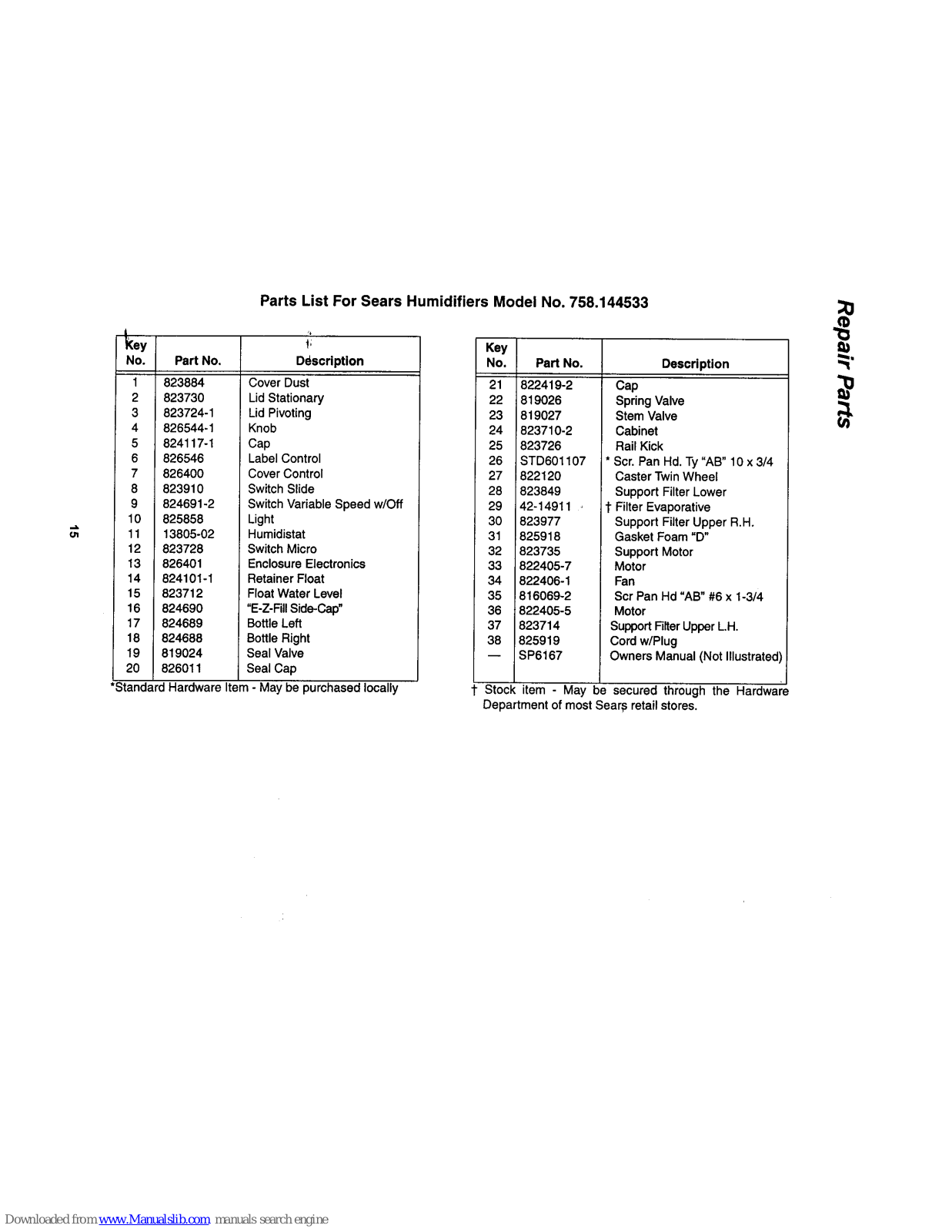

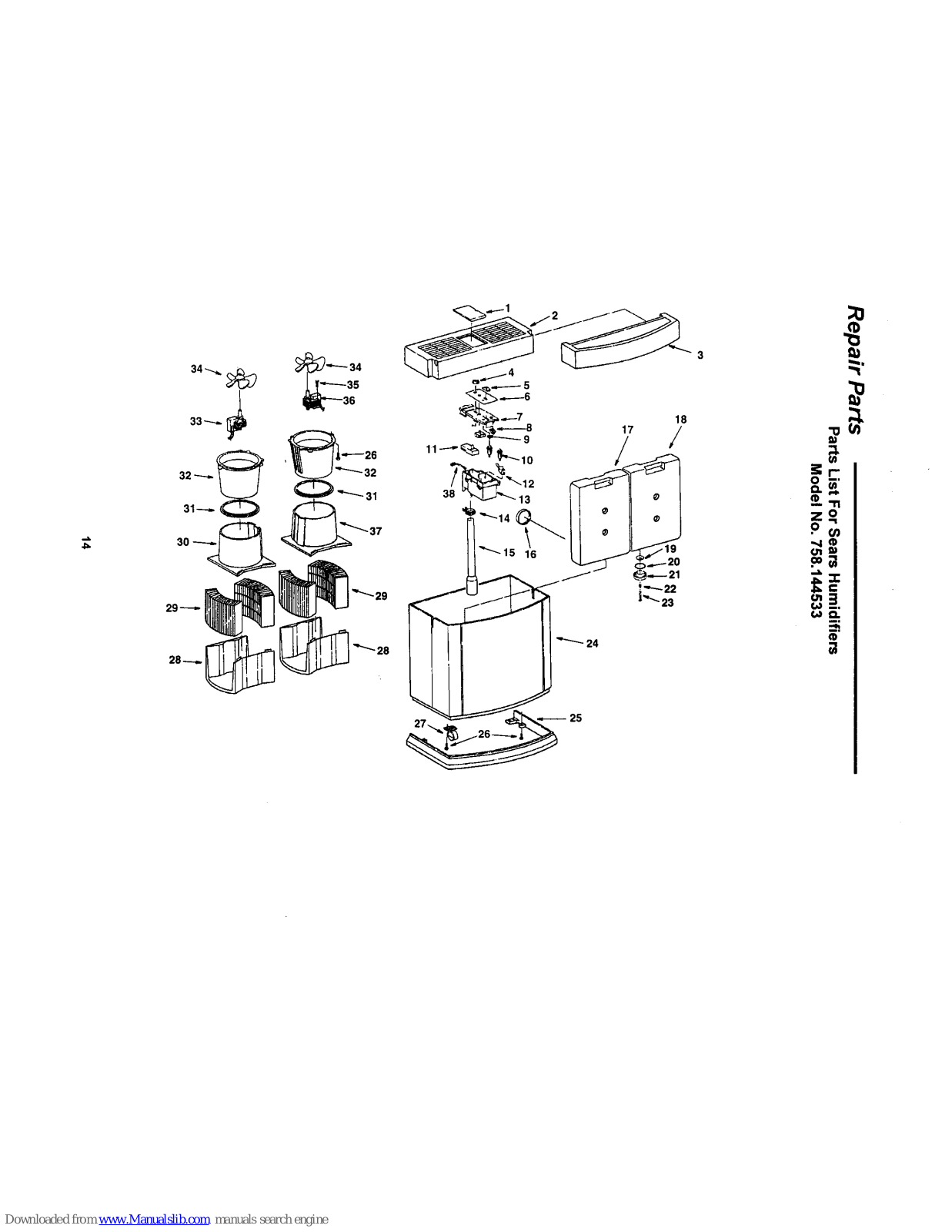

Repair Parts ................................... 14-15

To Save a Service Call

Check following if your humidifier will not
operate_

1. Is power cord attached to outlet?

2. Is there electrical power to outlet?

3. Is airflow control in operating position?

4. Is humidity control set high enough?

5. Is the cabinet setting on a level surface?

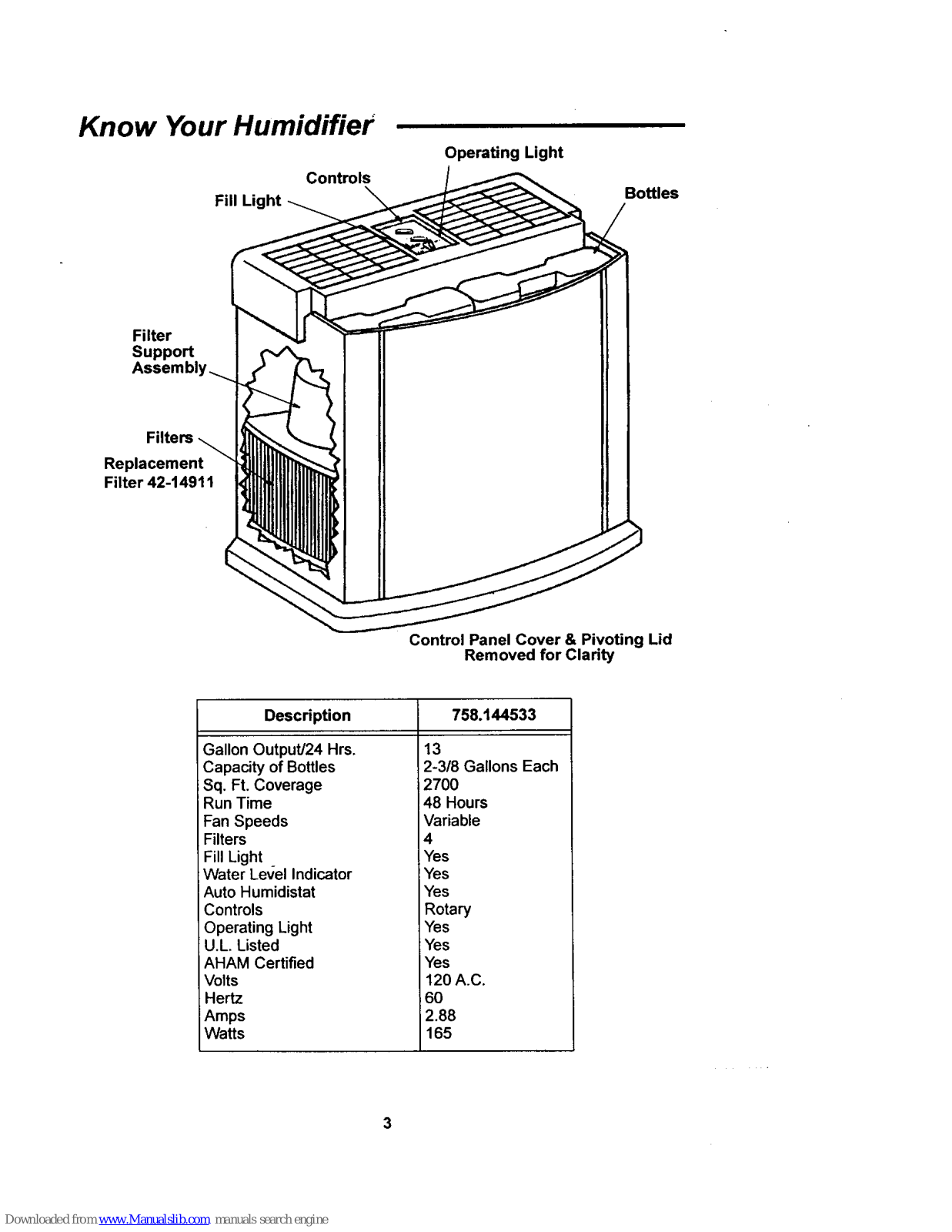

Know Your Humidifier

Controls

Fill Light

Operating Light

Bottles

Filter

Support

Filters
Replacement
Filter 42-t4911

Control Panel Cover & Pivoting Lid

Removed for Clarity

Description 758.144533

Gallon Output/24 Hrs.
Capacity of Bottles
Sq. Ft. Coverage

Run Time
Fan Speeds

Filters
Fill Light

Water Level Indicator
Auto Humidistat

Controls
Operating Light

U.L Listed

AHAM Certified
Volts

Hertz

Amps
Watts

13

2-3/8 Gallons Each
2700

48 Hours
Variable
4
Yes
Yes
Yes

Rotary

Yes
Yes
Yes

120 A.C.
60

2.88
165

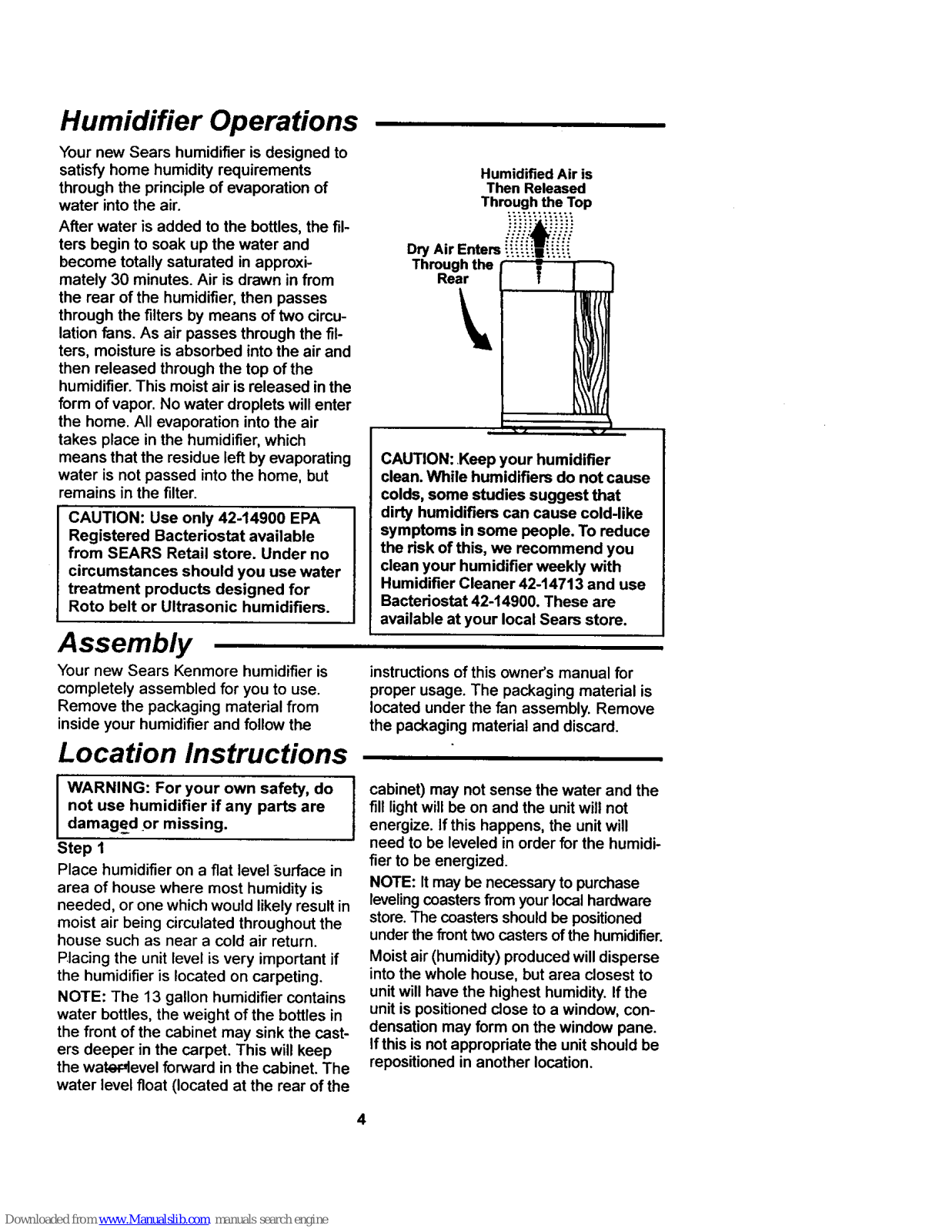

Humidifier Operations

Your new Sears humidifier is designed to
satisfy home humidity requirements

through the principle of evaporation of
water into the air.

After water is added to the bottles, the fil-
ters begin to soak up the water and

become totally saturated in approxi-

mately 30 minutes. Air is drawn in from
the rear of the humidifier, then passes
through the filters by means of two circu-

lation fans. As air passes through the fil-
ters, moisture is absorbed into the air and

then released through the top of the

humidifier. This moist air is released in the
form of vapor. No water droplets will enter

the home. All evaporation into the air
takes place in the humidifier, which

means that the residue left by evaporating
water is not passed into the home, but

remains in the filter.

CAUTION: Use only 42-14900 EPA

Registered Bacteriostat available

from SEARS Retail store. Under no
circumstances should you use water

treatment products designed for
Roto belt or Ultrasonic humidifiers.

Assembly

Your new Sears Kenmore humidifier is

completely assembled for you to use.
Remove the packaging material from
inside your humidifier and follow the

Humidified Air is

Then Released

Through the Top

Dry Air Enters ..:_-;_ --:..".

Through the

Rear

Location Instructions

CAUTION: .Keep your humidifier
clean. While humidifiers do not cause

colds, some studies suggest that
dirty humidifiers can cause cold-like

symptoms in some people. To reduce
the risk of this, we recommend you
clean your humidifier weekly with

Humidifier Cleaner 42-14713 and use
Bacteriostat 42-14900. These are

available at your local Sears store.

instructions of this owner's manual for
proper usage. The packaging material is

located under the fan assembly. Remove
the packaging material and discard.

WARNING: For your own safety, do

not use humidifier if any parts are
damaged or missing.

Step I

Place humidifier on a fiat level _urface in
area of house where most humidity is

needed, or one which would likely result in
moist air being circulated throughout the
house such as near a cold air return.
P.lacing the unit level is very important if

the humidifier is located on carpeting.

NOTE: The 13 gallon humidifier contains

water bottles, the weight of the bottles in
the front of the cabinet may sink the cast-
ers deeper in the carpet. This will keep

the wate_evel forward in the cabinet. The
water level float (located at the rear of the

I

cabinet) may not sense the water and the

fill light will be on and the unit will not

energize, if this happens, the unit will
need to be leveled in order for the humidi-

fier to be energized.

NOTE: It may be necessary to purchase
leveling coasters from your local hardware
store. The coasters should be positioned
under the front two casters of the humidifier.

Moist air (humidity) produced will disperse
into the whole house, but area closest to

unit will have the highest humidity. If the
unit is positioned close to a window, con-

densation may form on the window pane.
If this is not appropriate the unit should be
repositioned in another location.

4

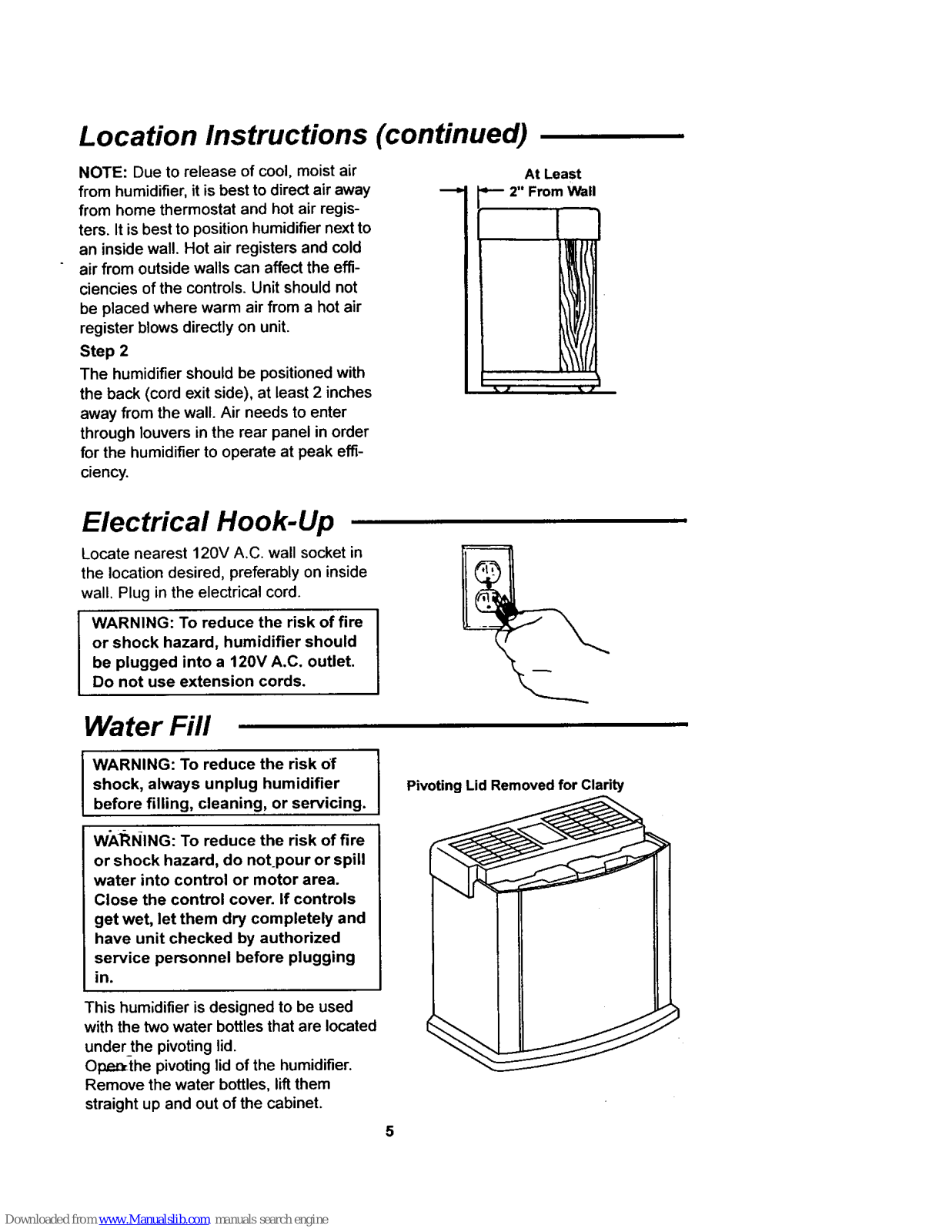

Location Instructions (continued)

NOTE: Due to release of cool, moist air
from humidifier, it is best to direct air away
from home thermostat and hot air regis-
ters. It is best to position humidifier next to
an inside wall. Hot air registers and cold

air from outside walls can affect the effi-

ciencies of the controls. Unit should not
be placed where warm air from a hot air

register blows directly on unit.

Step 2
The humidifier should be positioned with
the back (cord exit side), at least 2 inches
away from the wall. Air needs to enter

through louvers in the rear panel in order
for the humidifier to operate at peak effi-

ciency.

At Least

2" From Wall

Electrical Hook-Up

Locate nearest 120V A.C. wall socket in
the location desired, preferably on inside
wall. Plug in the electrical cord.

I ARNING: To reduce the risk of fire

or shock hazard, humidifier should

be plugged into a 120V A.C. outlet.
Do not use extension cords.

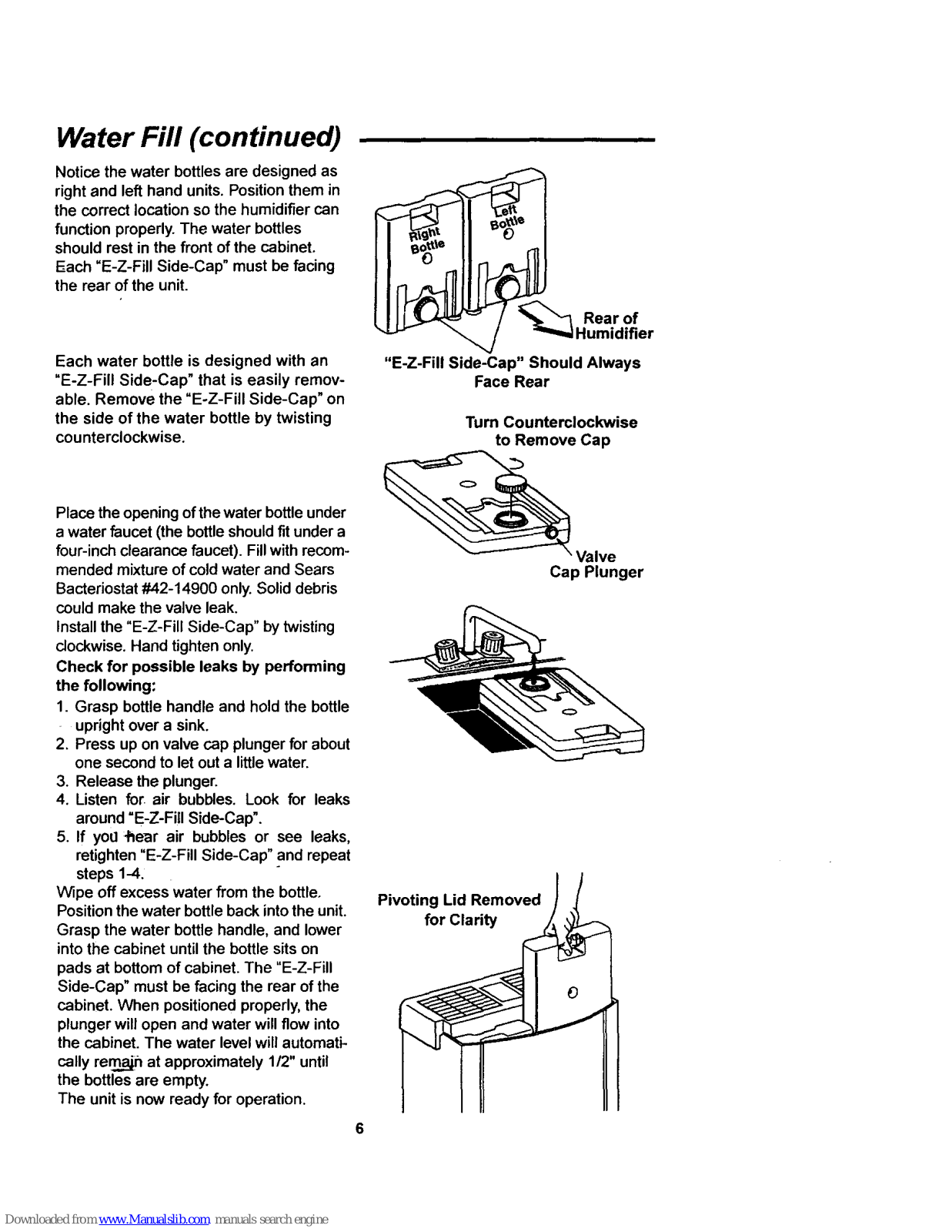

Water Fill

WARNING: To reduce the risk Of

shock, always unplug humidifier

before filling, cleaning, or servicing.

W'A]_I_ING: To reduce the risk of fire

or shock hazard, do not_pour or spill

water into control or motor area.

Close the control cover. If controls
get wet, let them dry completely and

have unit checked by authorized
service personnel before plugging

in.

This humidifier is designed to be used
with the two water bottles that are located

under the pivoting lid.
Op_the pivoting lid of the humidifier.

Remove the water bottles, lift them
straight up and out of the cabinet.

Pivoting Lid Removed for Clarity

5
