Kenmore JE570 Installation Manual
0
1
2
0
1
2
ith your Kenwood Centrifugal
W
Juicer you can enjoy the delicious,
atural taste of the freshest juice -
n
rom your own choice of fruit and
f
vegetables. And being a Kenwood,
it's easy to use. So enjoy a
healthier lifestyle with your
Kenwood Centrifugal Juicer.
safety
●
Read all instructions.
●
Do not use the juicer if the
filter is damaged.
●
DO NOT operate the juicer
without the pulp collector
fitted.
●
Never put the motor unit, cord or
plug in water – you could get an
electric shock.
●
Switch off and unplug:
●●
before fitting or removing parts
●●
before cleaning
●●
after use.
●
Never use a damaged juicer. Get it
checked or repaired: see 'Service
and customer care'.
●
Only use the pusher supplied.
Never put your fingers in the feed
tube. Unplug before unblocking
the feed tube.
●
Before removing the lid, switch off
and wait for the filter to stop.
●
Never let the cord touch hot
surfaces or hang down where a
child could grab it.
●
Don't touch moving parts.
●
Never leave the juicer on
unattended.
●
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of
the appliance by a person
responsible for their safety.
●
hildren should be supervised to
C
ensure that they do not play with
he appliance.
t
●
nly use the appliance for its
O
intended domestic use. Kenwood
will not accept any liability if the
appliance is subject to improper
use, or failure to comply with these
instructions.
before plugging in
●
Make sure your electricity supply is
the same as the one shown on the
underside of your juicer.
Important – UK only
●
The wires in the cord are coloured
as follows:
Blue = Neutral, Brown = Live.
●
The appliance must be protected
by a 3A approved (BS1362) fuse.
Note:
●
For non-rewireable plugs the fuse
cover MUST be refitted when
replacing the fuse. If the fuse cover
is lost then the plug must not be
used until a replacement can be
obtained. The correct fuse cover is
identified by colour and a
replacement may be obtained from
your Kenwood Authorised Repairer
(see Service).
●
If a non-rewireable plug is cut off it
must be DESTROYED
IMMEDIATELY. An electric shock
hazard may arise if an unwanted
non-rewireable plug is
inadvertently inserted into a 13A
socket outlet.
●
This appliance conforms to EC
directive 2004/108/EC on
Electromagnetic Compatibility and
EC regulation no. 1935/2004 of
27/10/2004 on materials intended
for contact with food.
before using for the first
time
1 Remove all packaging.
2 Wash the parts: see 'Cleaning'.

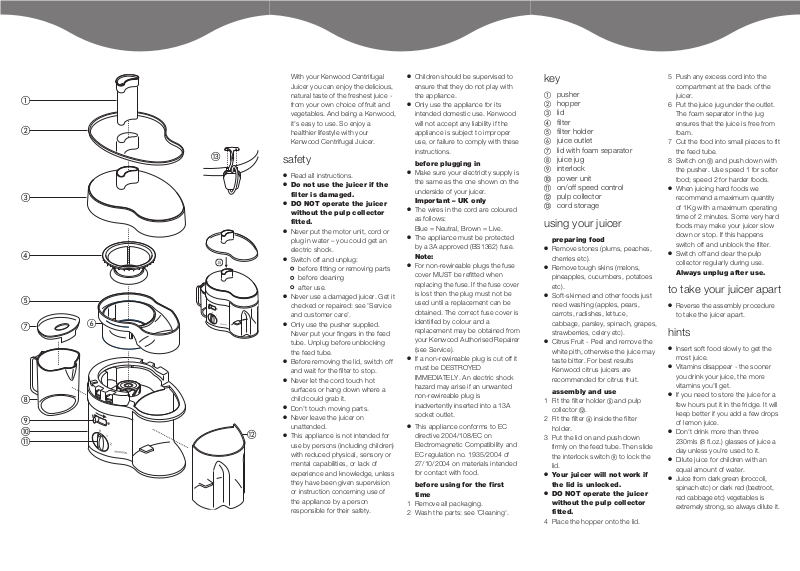

key
pusher
hopper
lid
filter
filter holder
juice outlet
lid with foam separator
juice jug
interlock
power unit
on/off speed control
pulp collector
cord storage
using your juicer
preparing food
●
Remove stones (plums, peaches,
cherries etc).
●
Remove tough skins (melons,
pineapples, cucumbers, potatoes
etc).
●
Soft-skinned and other foods just
need washing (apples, pears,
carrots, radishes, lettuce,
cabbage, parsley, spinach, grapes,
strawberries, celery etc).
●
Citrus Fruit - Peel and remove the
white pith, otherwise the juice may
taste bitter. For best results
Kenwood citrus juicers are
recommended for citrus fruit.
assembly and use
1 Fit the filter holder
collector
2 Fit the filter
holder.
3 Put the lid on and push down
firmly on the feed tube. Then slide
the interlock switch
lid.
●
Your juicer will not work if
the lid is unlocked.
●
DO NOT operate the juicer
without the pulp collector
fitted.
and pulp
.
inside the filter
to lock the
Push any excess cord into the
5
compartment at the back of the
uicer.
j
Put the juice jug under the outlet.
6
The foam separator in the jug
ensures that the juice is free from
foam.
7 Cut the food into small pieces to fit
the feed tube.
8 Switch on
and push down with
the pusher. Use speed 1 for softer
food; speed 2 for harder foods.
●
When juicing hard foods we
recommend a maximum quantity
of 1Kg with a maximum operating
time of 2 minutes. Some very hard
foods may make your juicer slow
down or stop. If this happens
switch off and unblock the filter.
●
Switch off and clear the pulp
collector regularly during use.
Always unplug after use.
to take your juicer apart
●
Reverse the assembly procedure
to take the juicer apart.
hints
●
Insert soft food slowly to get the
most juice.
●
Vitamins disappear - the sooner
you drink your juice, the more
vitamins you'll get.
●
If you need to store the juice for a
few hours put it in the fridge. It will
keep better if you add a few drops
of lemon juice.
●
Don't drink more than three
230mls (8 fl.oz.) glasses of juice a
day unless you're used to it.
●
Dilute juice for children with an
equal amount of water.
●
Juice from dark green (broccoli,
spinach etc) or dark red (beetroot,
red cabbage etc) vegetables is
extremely strong, so always dilute it.
4 Place the hopper onto the lid.
0
1
2
●
ruit juice is high in Fructose (fruit
F
ugar), so people with diabetes or
s
low blood sugar should avoid
rinking too much.
d
cleaning
●
Before cleaning, unplug your
juicer.
●
If the filter is too tight to remove,
wait a few minutes until it loosens
up.
●
We don't recommend washing
any of the parts in the dishwasher.
●
Some foods, eg carrot, will
discolour the plastic. Rubbing with
a cloth dipped in vegetable oil
helps remove discolouring.
motor unit
●
Wipe with a damp cloth, then dry.
filter
●
Clean using a soft brush.
●
Check the filter regularly for
signs of damage. Do not use
if the filter is damaged.
Refer to “service and
customer care”
pulp collector, lid, pusher,
hopper
●
Wash, then dry.
other parts
●
Wash in hot soapy water, then
dry.
Note: The hopper can be inverted
for storage on the juicer .
service
●
f the cord is damaged it must, for
I
safety reasons, be replaced by
KENWOOD or an authorised
KENWOOD repairer.
If you need help with:
●
using your juicer or
●
servicing or repairs (in or out of
guarantee)
call Kenwood customer care on
023 9239 2333. Have your
model number ready - it's on
the underside of your juicer.
●
spares and attachments
call 0870 2413653.
other countries
●
Contact the shop where you
bought your juicer.
●
Made in China.
guarantee
If your juicer goes wrong within
one year from the date you bought
it, we will repair or where
necessary replace it free of
charge provided:
●
you have not misused, neglected
or damaged it;
●
it has not been modified (unless by
Kenwood);
●
it is not second-hand;
●
it has not been used
commercially;
●
you have not fitted a plug
incorrectly; and
●
you supply your receipt to
show when you bought it.
IMPORTANT INFORMATION
FOR CORRECT DISPOSAL OF
THE PRODUCT IN
ACCORDANCE WITH EC
DIRECTIVE 2002/96/EC.
At the end of its working life, the
product must not be disposed of as
urban waste.
It must be taken to a special local
authority differentiated waste collection
centre or to a dealer providing this
service.
Disposing of a household appliance
separately avoids possible negative
consequences for the environment
and health deriving from
inappropriate disposal and enables
the constituent materials to be
recovered to obtain significant
savings in energy and resources. As
a reminder of the need to dispose of
household appliances separately, the
product is marked with a crossed-out
wheeled dustbin.
This guarantee does not affect
your statutory rights.
Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK
Head Office Address:
JE570 series
www.kenwoodworld.com
Made in China
56991/3
