Kenmore IntelliSoft 350 Series Owner's Manual

PRINTED IN U.S.A. Part No. 7282598 (Rev. D 10/18/06)

• Warranty

• Installation

• Start Up / Setting Timer

• How It Works

• Care Of

• Specifications

• Repair Parts

Water Softeners

With Deluxe Valve

Sears, Roebuck and Co., 3333 Beverly Road, Hoffman Estates, IL 60179 USA

www.KenmoreWater.com

Repair or Parts ? Call toll free 1-800-366-7278

See back cover for other Sears service numbers.

Caution: Read and follow all safety rules and operating instructions before first use of this product.

MODEL NOS.

IntelliSoft 350 Series 625.383560

IntelliSoft 350 Series 625.393560

OWNER'S MANUAL

SAVE THIS MANUAL

Use the plastic bag and tie provided, to hang manuals nearby the softener for future reference.

Questions ? Visit www.KenmoreWater.com or call toll free 1-800-426-9345 (M - F, 7AM - 8 PM CST)

Systems Tested and Certified by NSF International against

NSF/ANSI Standard 44 for softener performance.

Questions? Call The Kenmore Water Line 1-800-426-9345

WARRANTY ON WATER SOFTENER

ONE YEAR LIMITED WARRANTY ON WATER SOFTENER

When installed, operated and maintained according to all instructions supplied with the product, if this Kenmore appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®to arrange for free repair.

TEN YEAR LIMITED WARRANTY AGAINST LEAKS

When installed, operated and maintained according to all instructions supplied with the product, if the water softener tank or salt storage drum develops a leak within ten years from the date of purchase, call 1-800-4MY-HOME

to arrange for free tank or drum replacement. After the first year you must pay an initial trip

charge.

All warranty coverage does not include water softener resin, which is an expendable item.

If this water softener is ever used for other than private family purposes, all warranty coverage applies for only 90 days from the date of purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. A service technician to instruct the user in correct product installation, operation or maintenance.

2. A service technician to clean or maintain this product.

3. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions supplied with the product.

4. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

5. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

6. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

TABLE OF CONTENTS

Safety Guides ................................................................................................................................................. 4

Unpack and Check Shipment ........................................................................................................................ 5

Plan Your Installation: Tools Needed, Materials Needed ........................................................................... 6-10

Install Inlet/Outlet Adapters or Bypass Valves, Three Way Valves ...........................................................11-12

Install Softener and Connect Pipes................................................................................................................13

Connect Valve and Salt Tank Drains..............................................................................................................14

Leak Test ........................................................................................................................................................15

Electrical Requirements .................................................................................................................................16

Install Covers and Restart Water Heater .......................................................................................................17

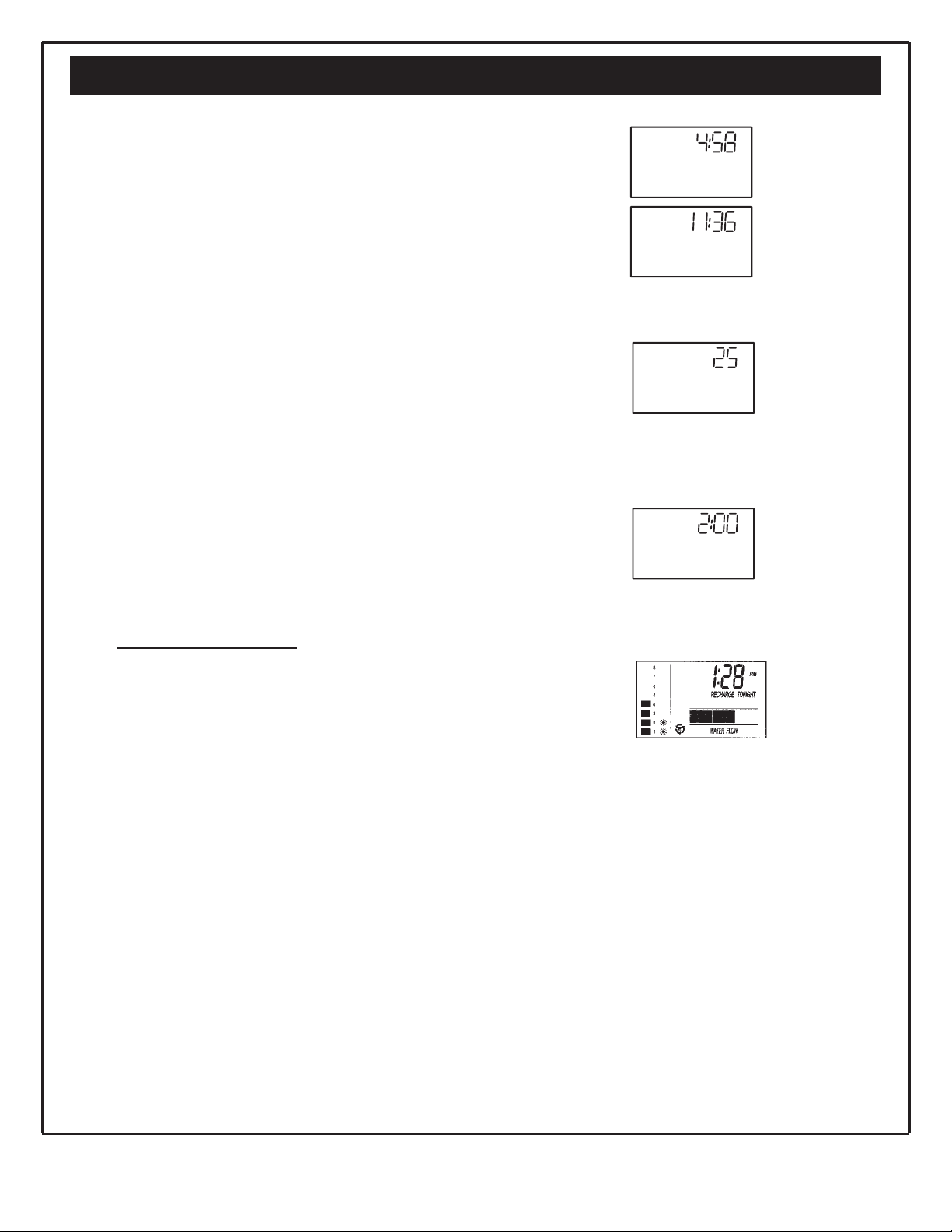

Program the Timer ....................................................................................................................................17-18

Sanitize the Water Softener ...........................................................................................................................19

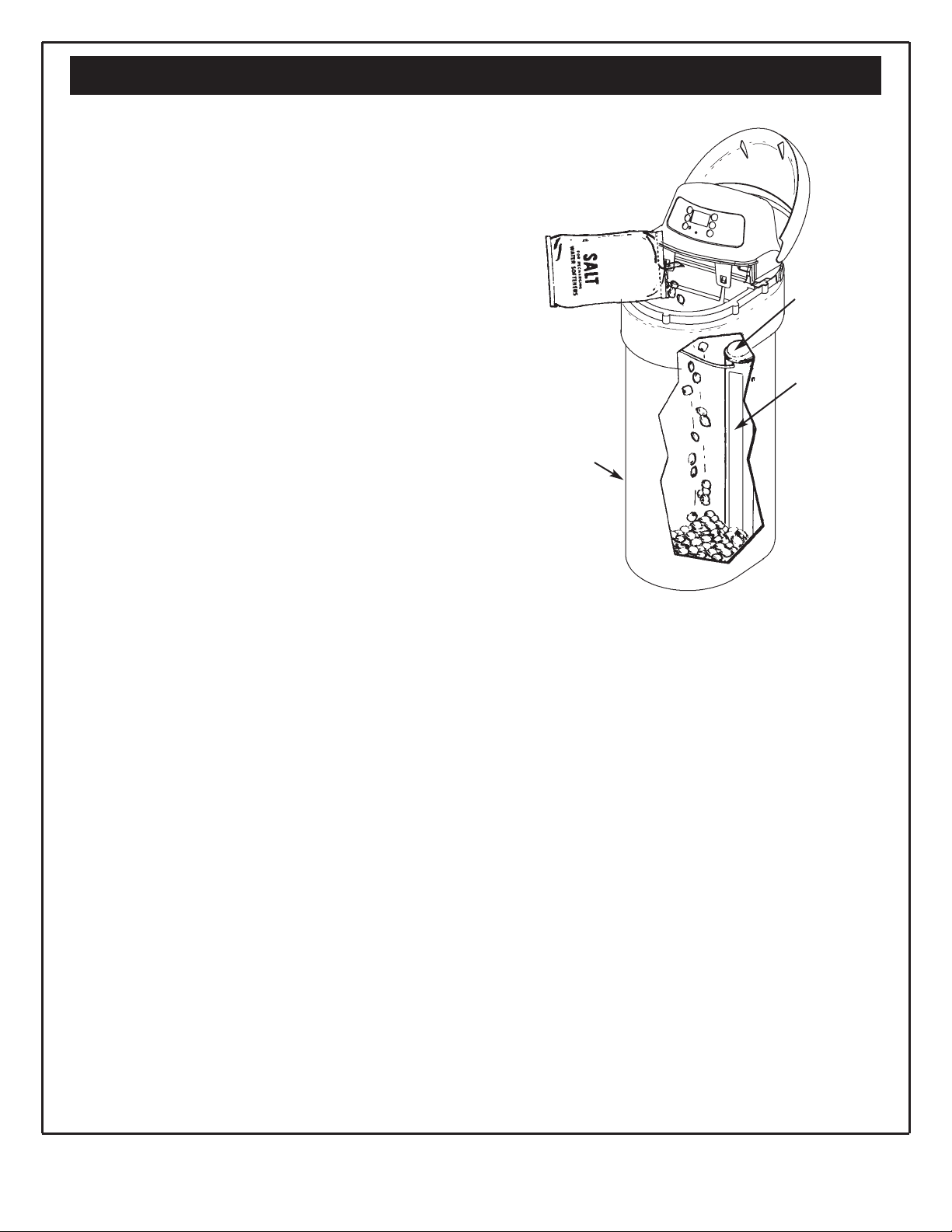

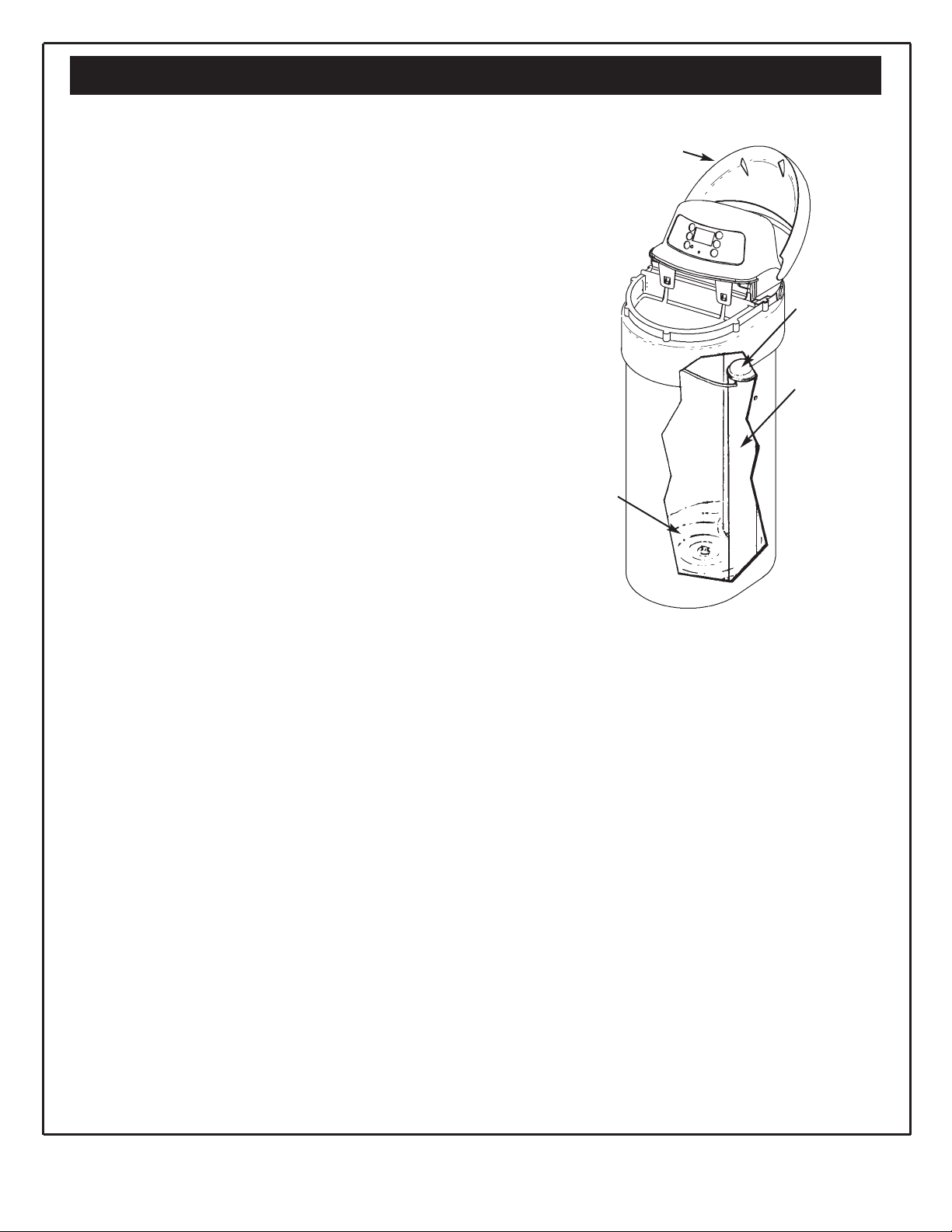

Add Salt to Storage Tank................................................................................................................................20

Install Checklist ..............................................................................................................................................21

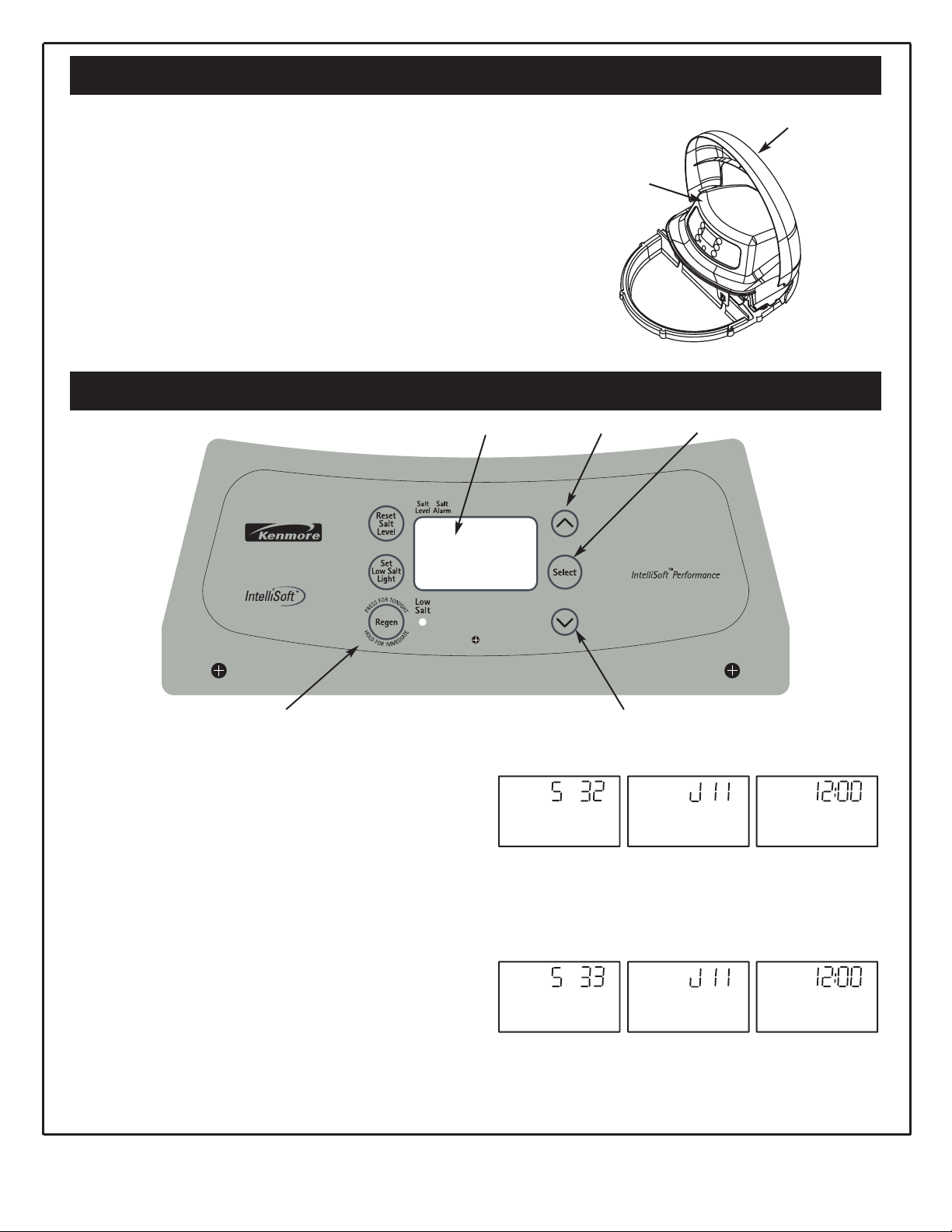

Faceplate Timer Features .........................................................................................................................22-25

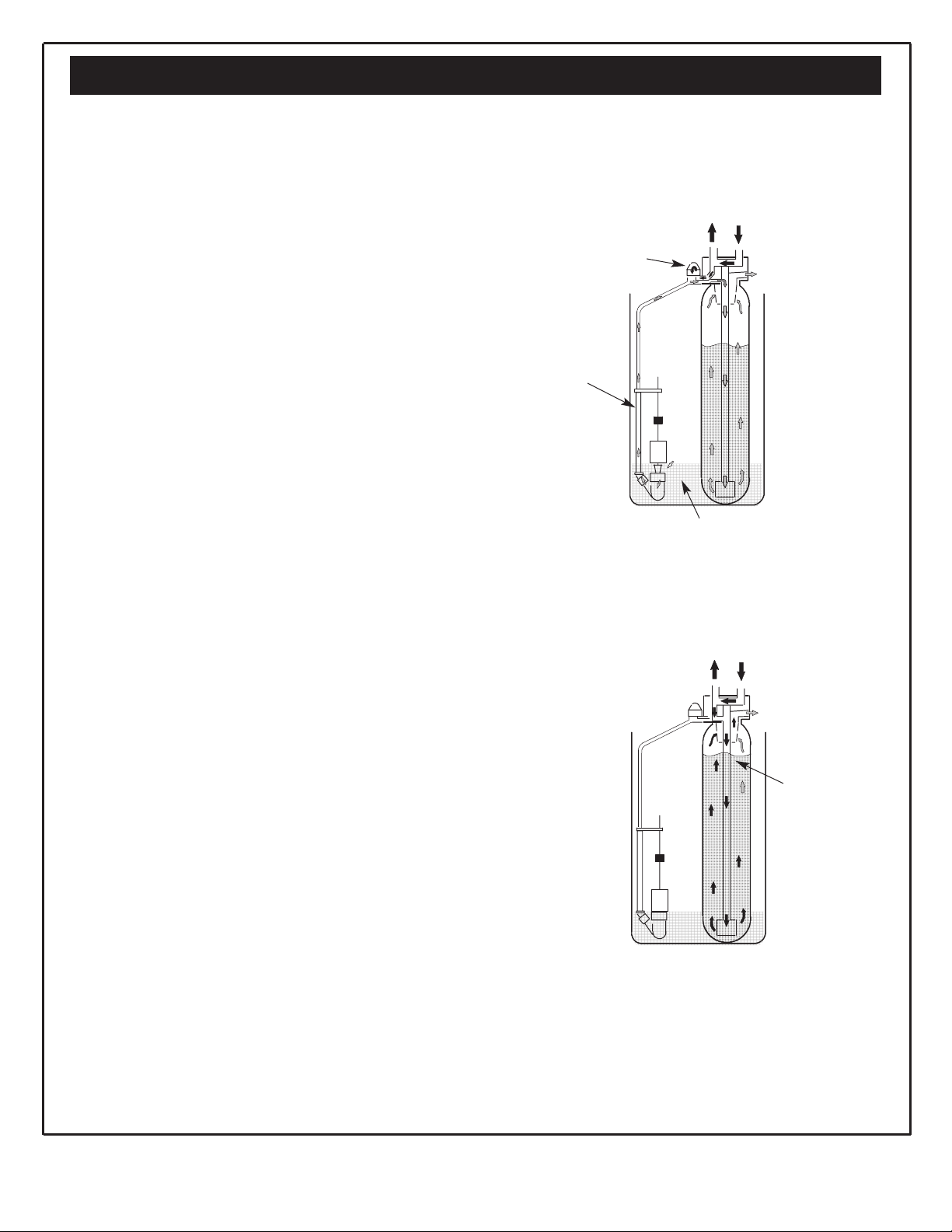

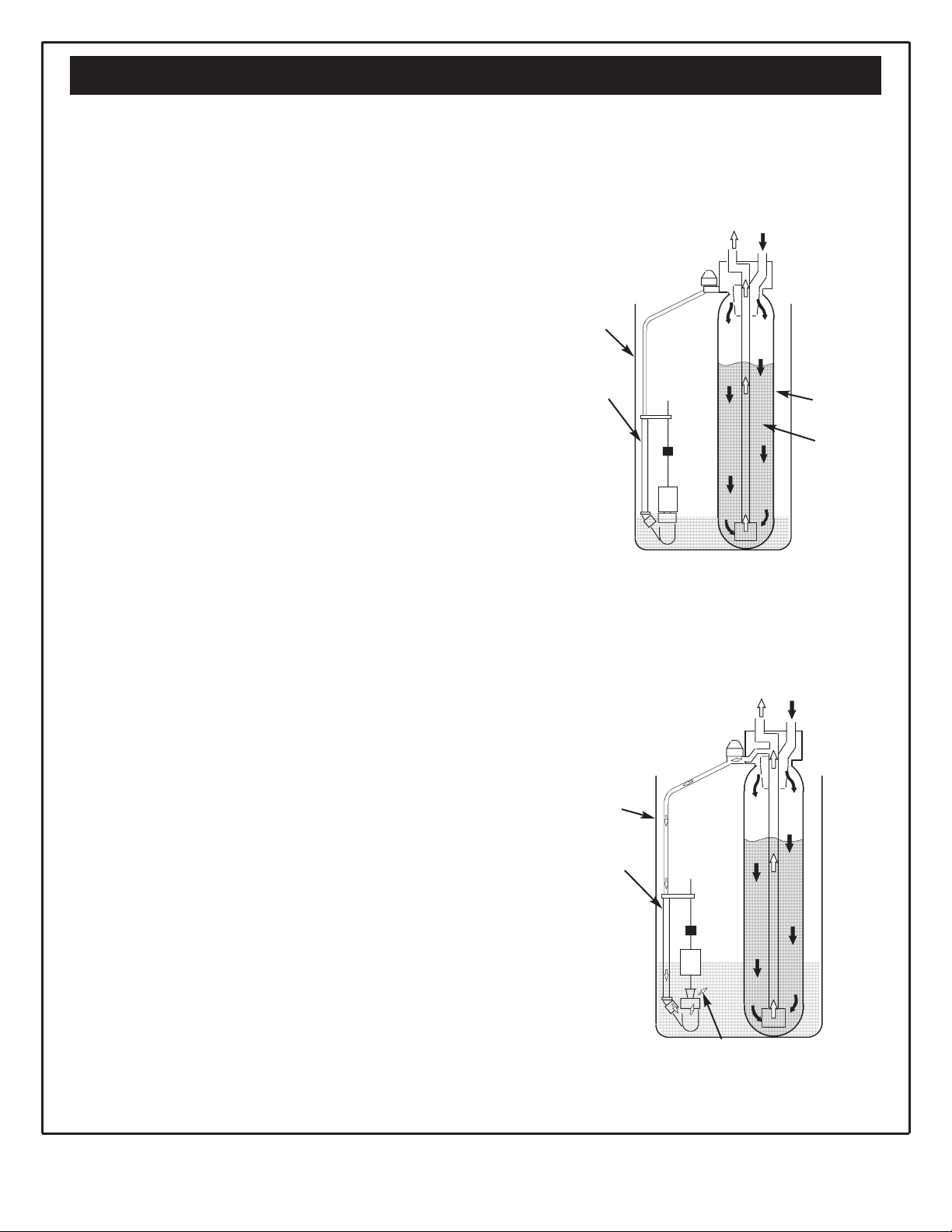

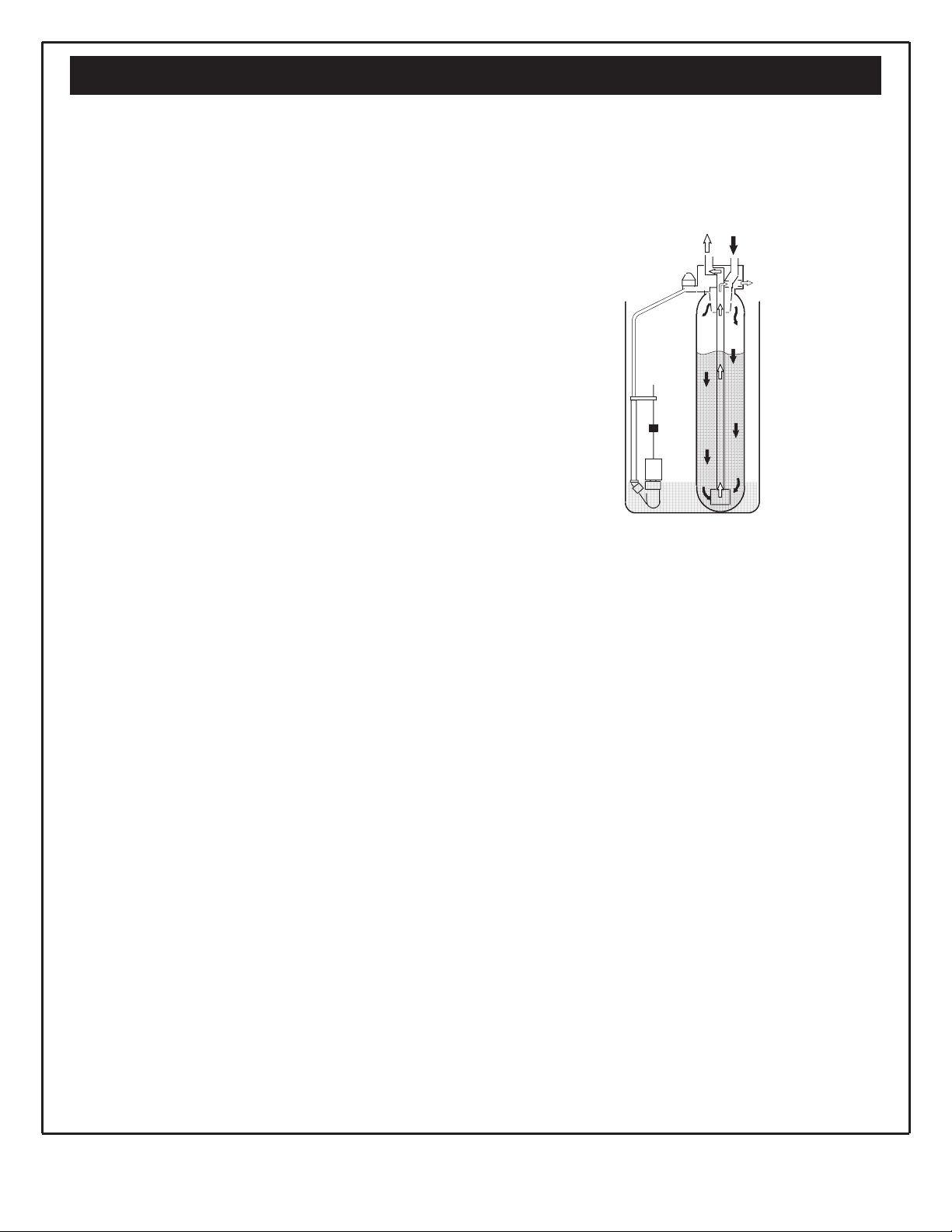

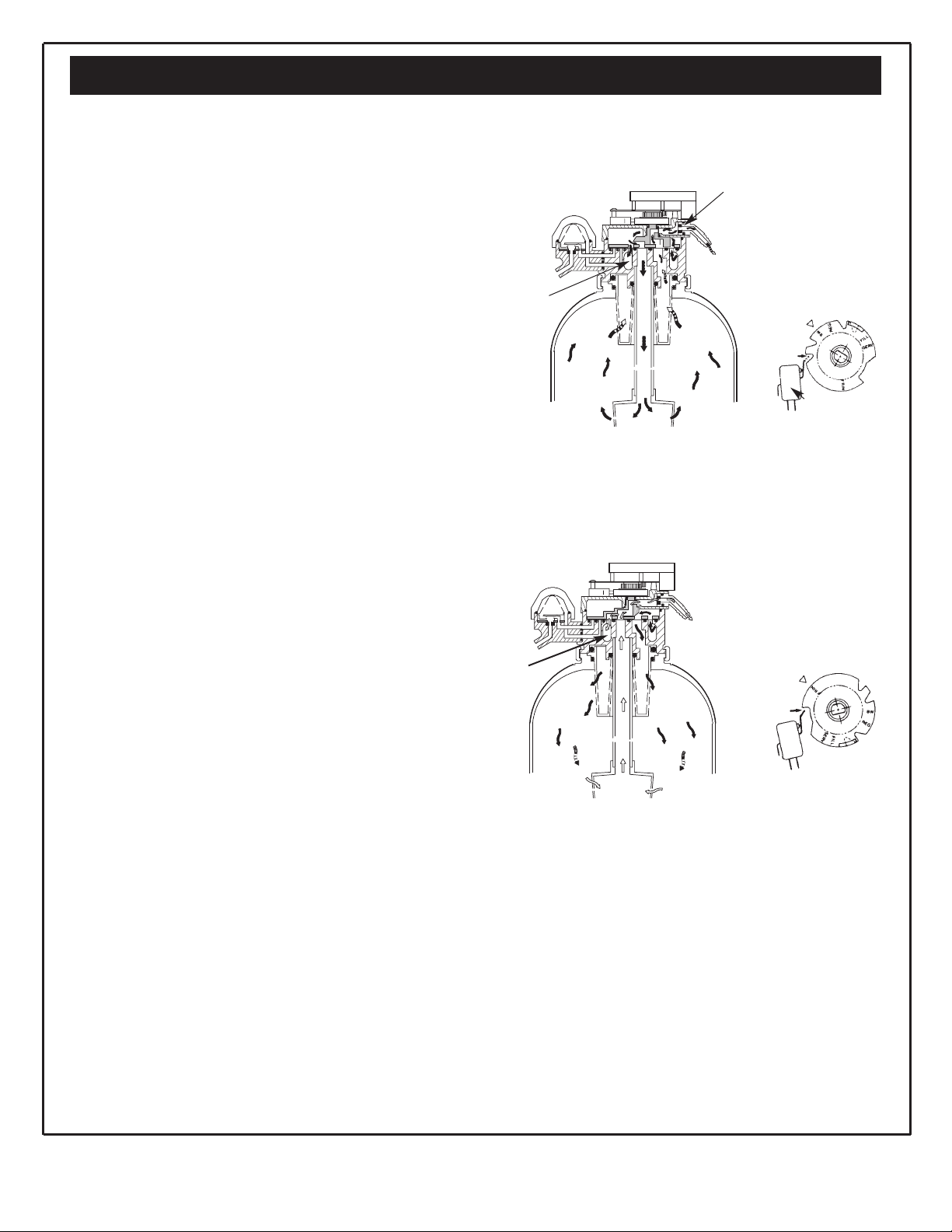

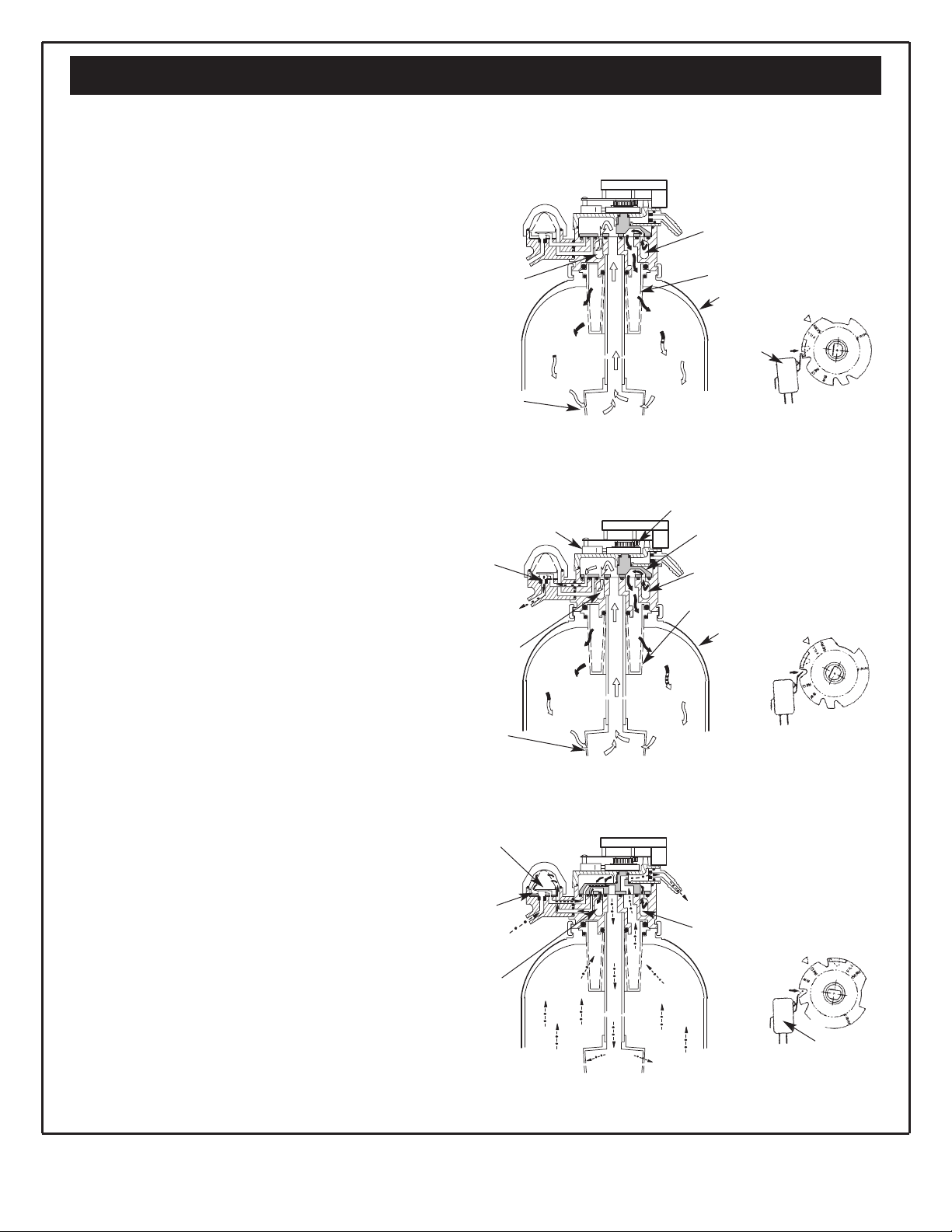

How Your Water Softener Works ..............................................................................................................26-28

Care of Your Water Softener.....................................................................................................................29-32

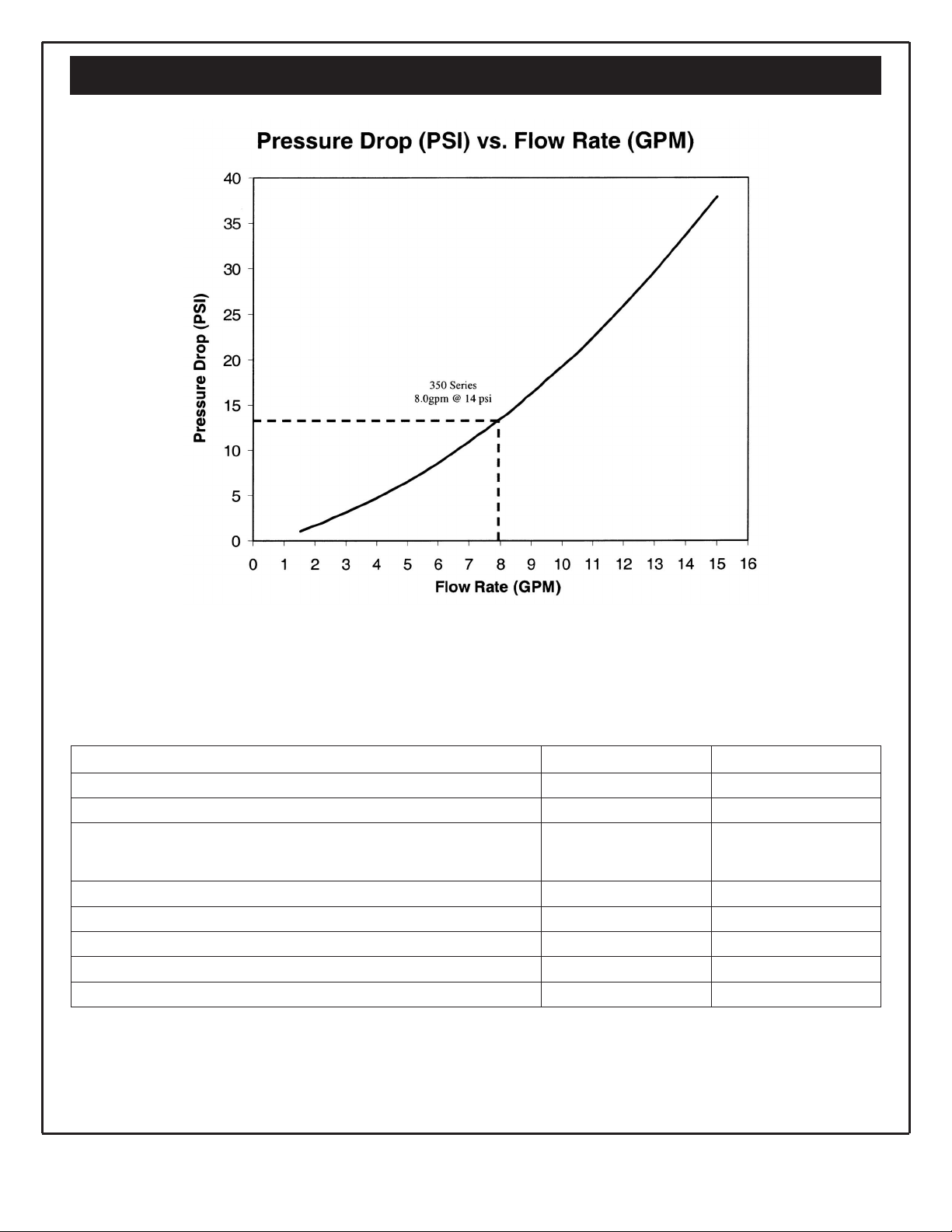

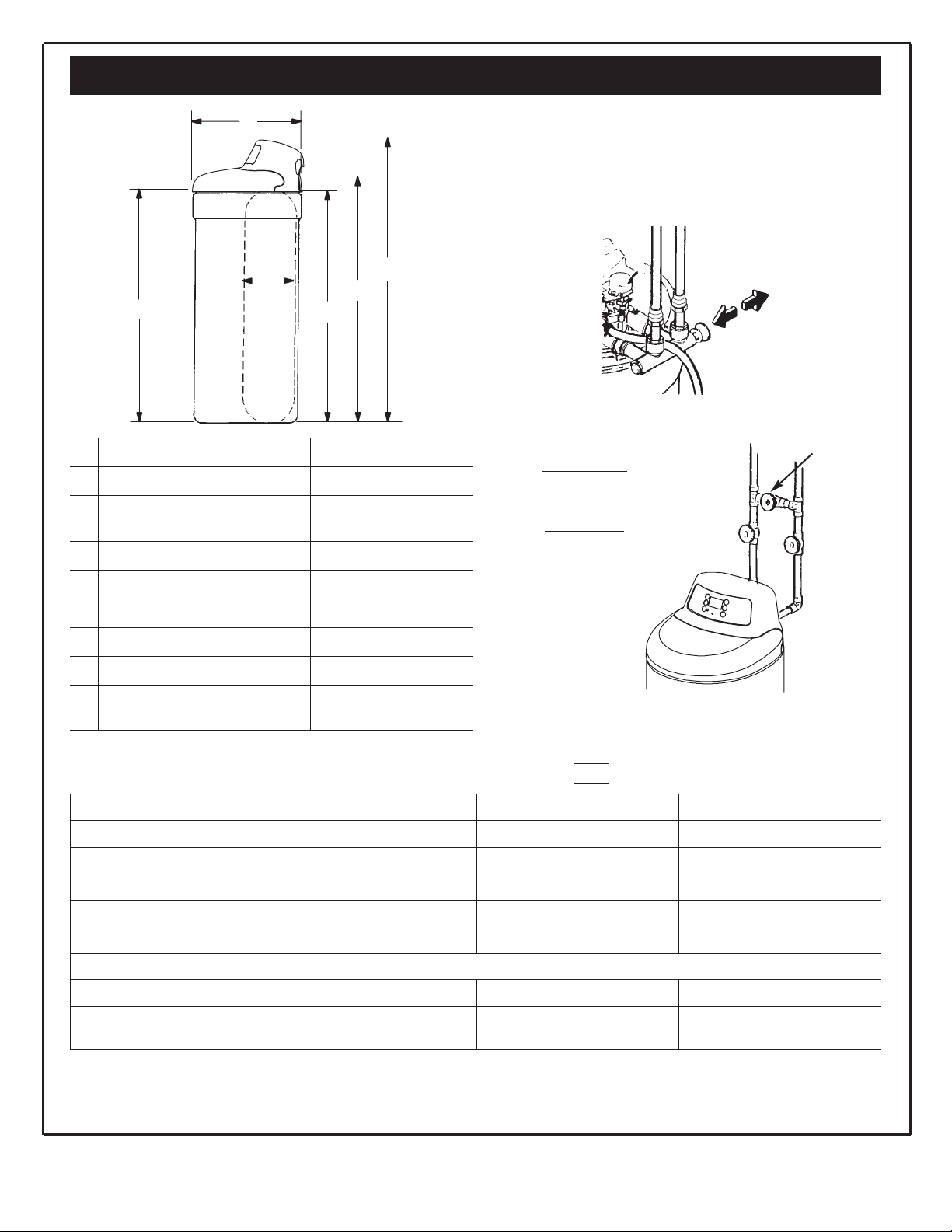

Specifications ............................................................................................................................................33-34

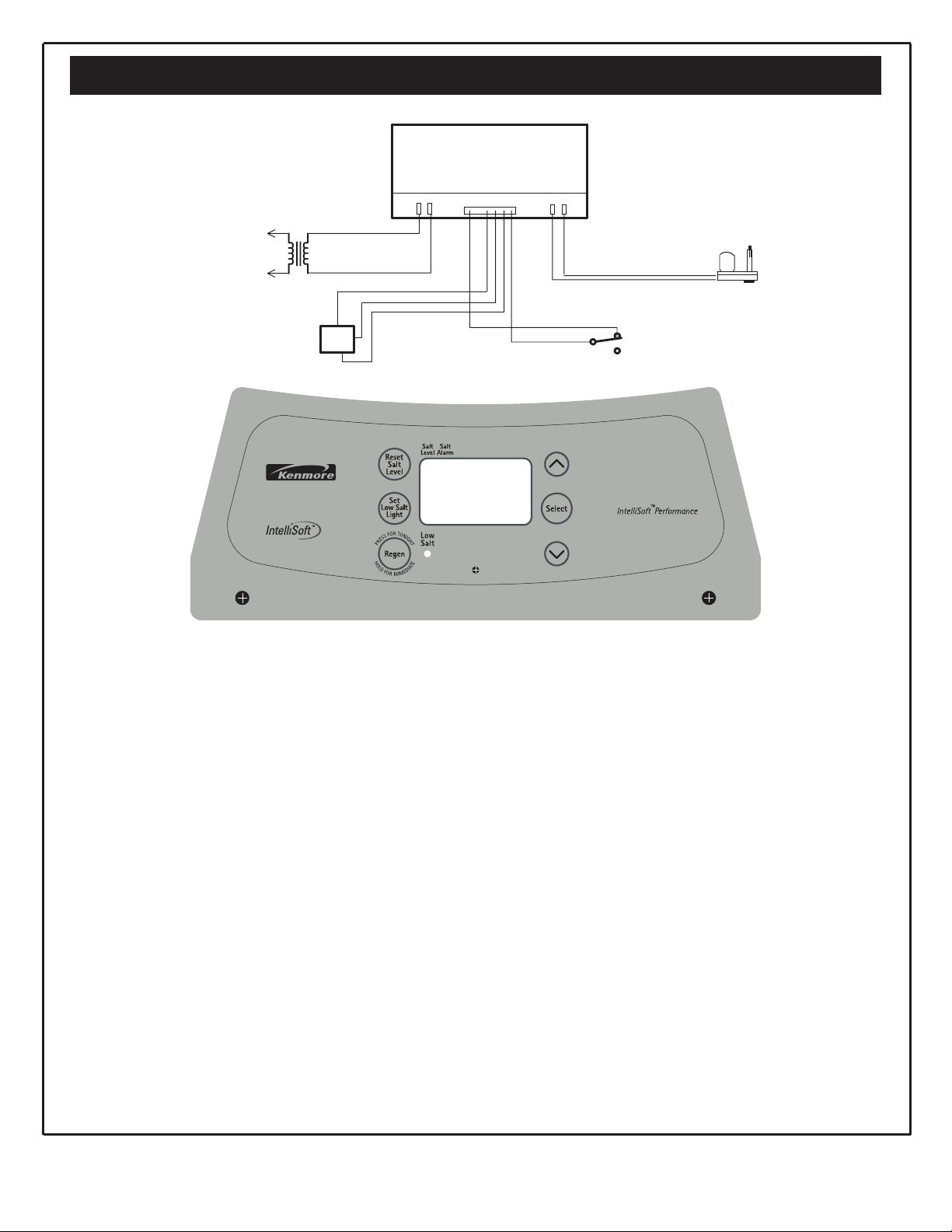

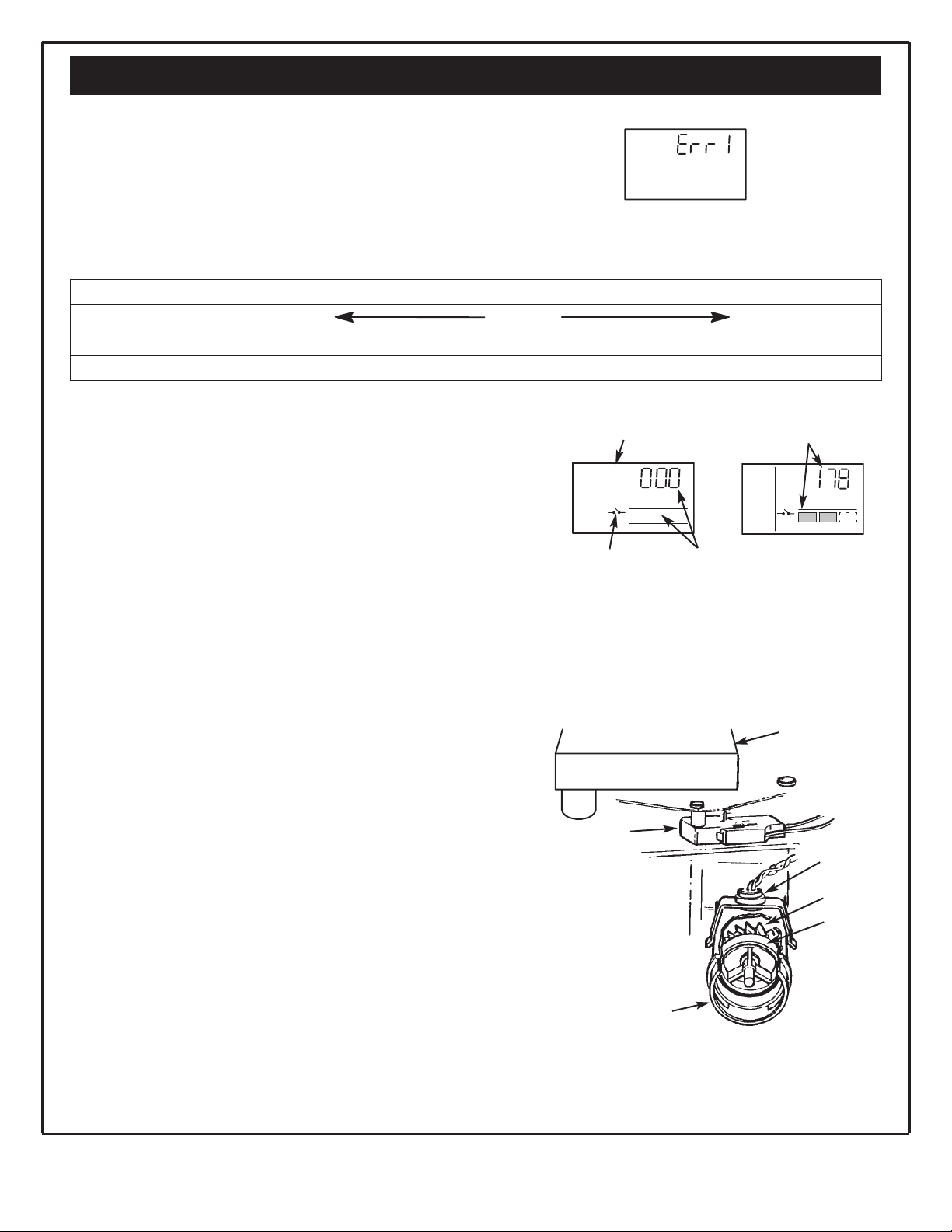

Service Tech Information...........................................................................................................................35-41

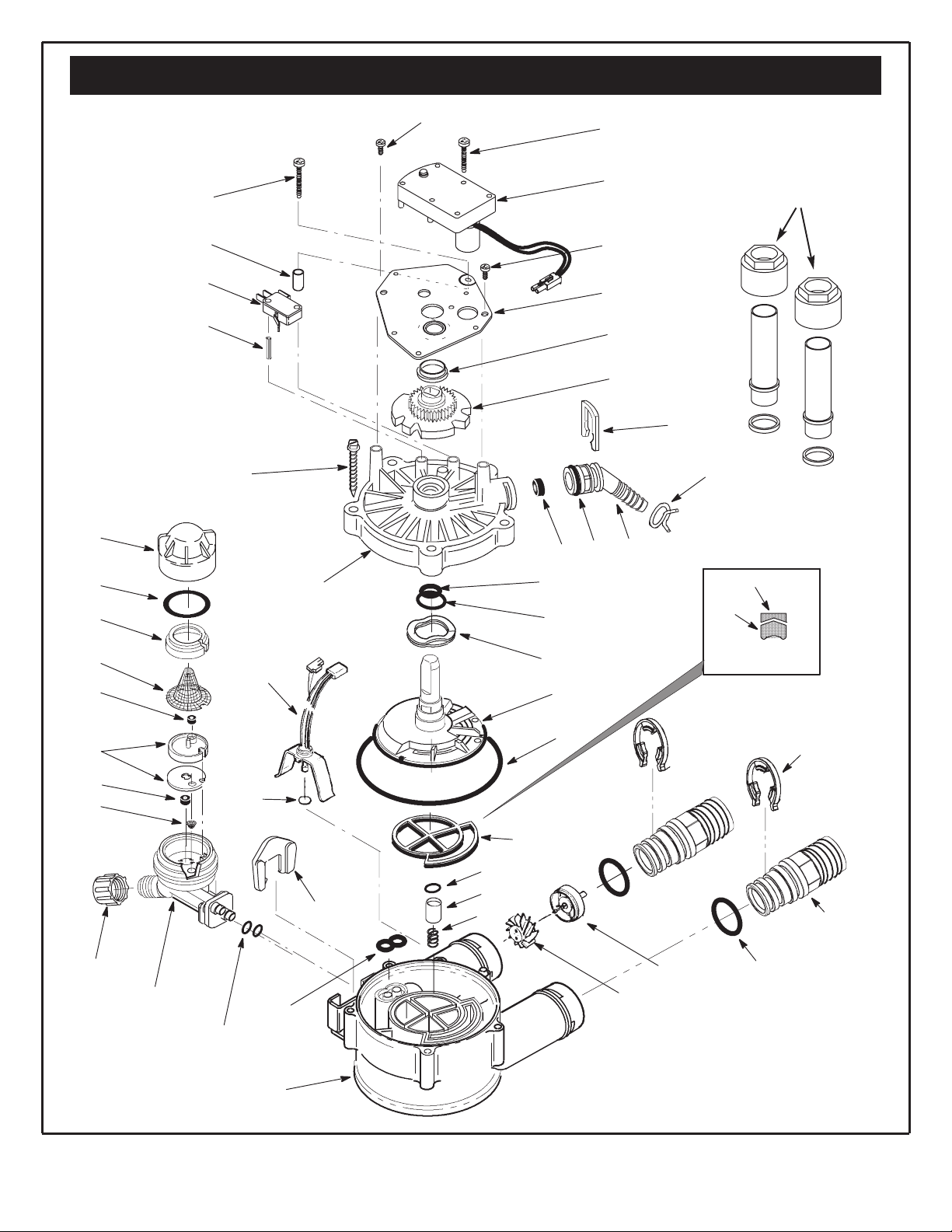

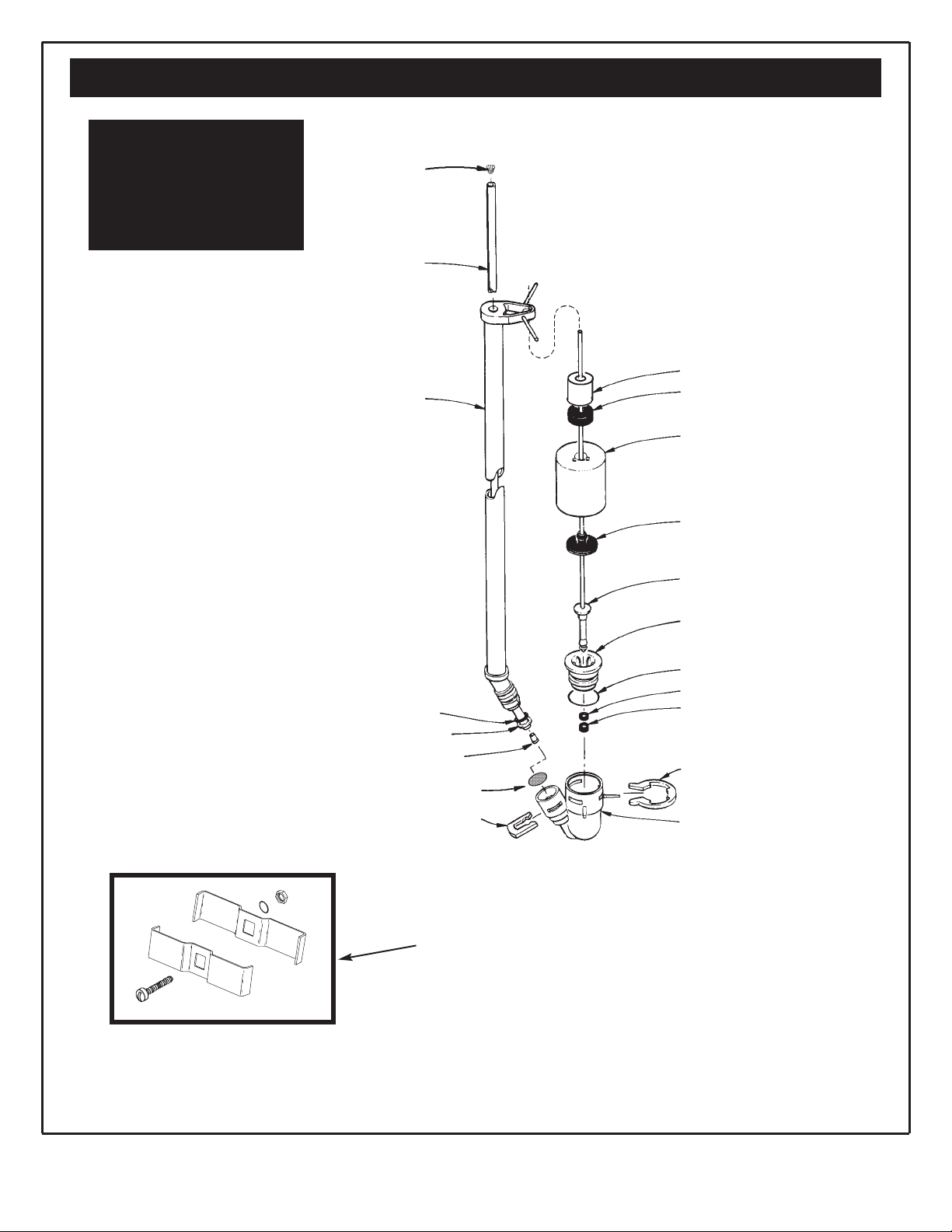

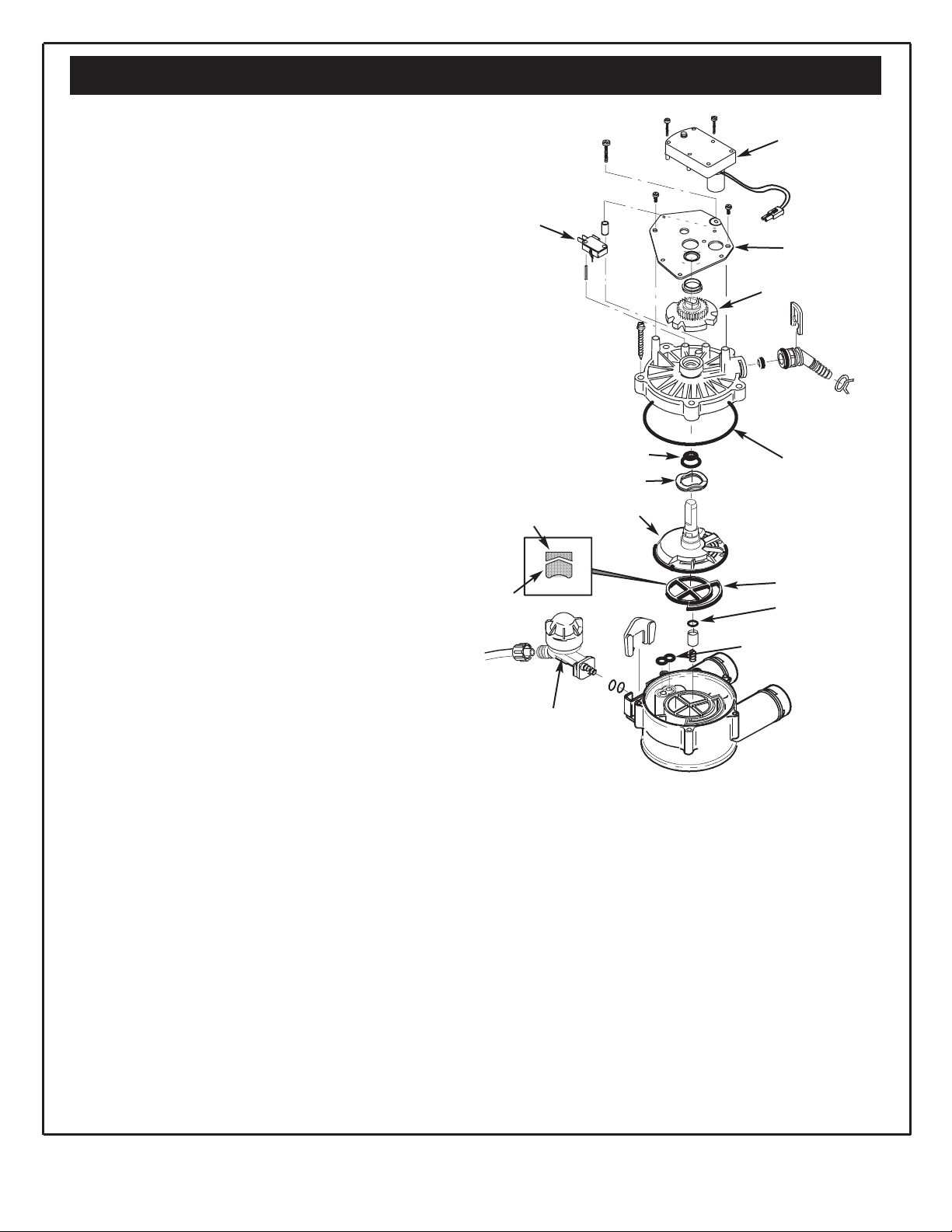

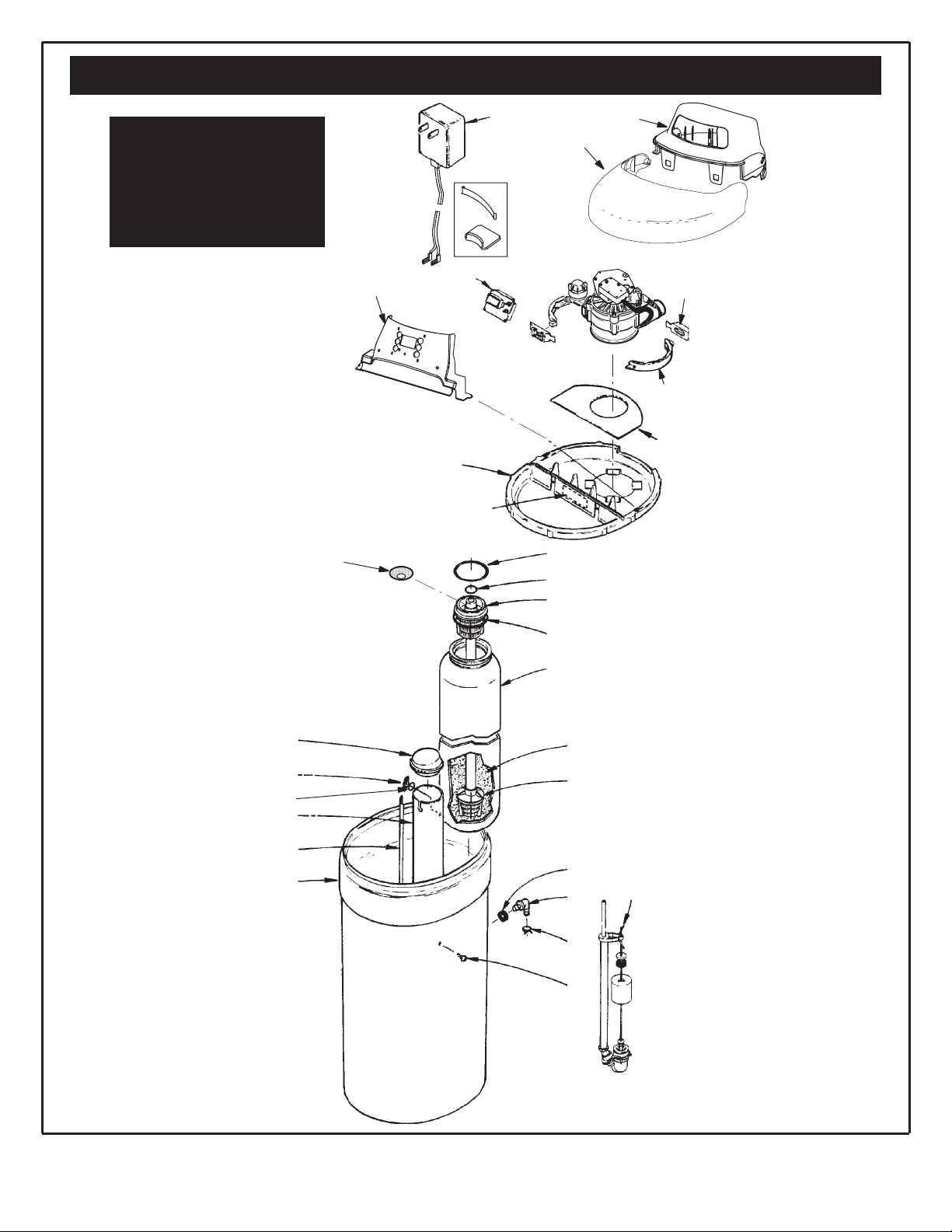

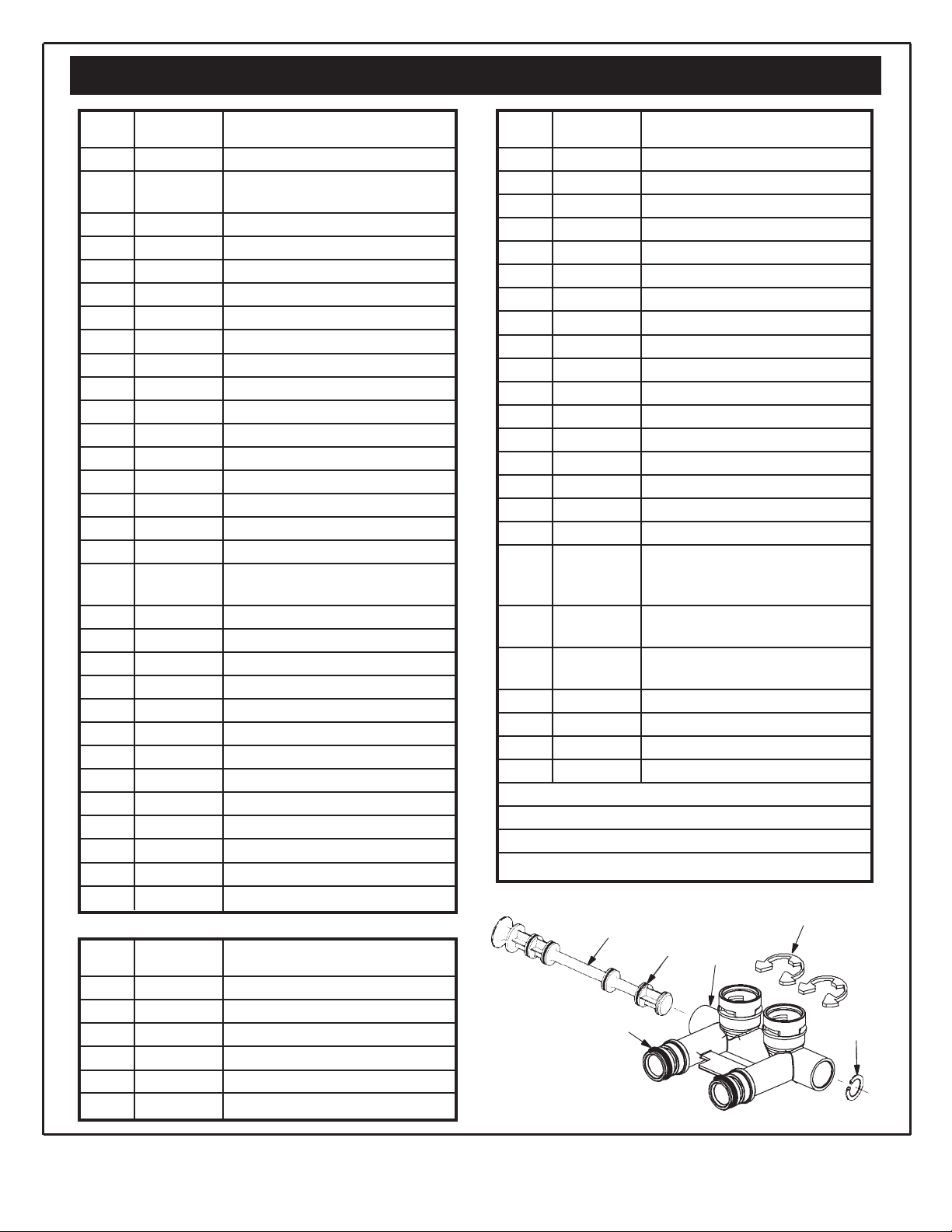

Exploded Views and Parts Lists................................................................................................................42-47

Sears Tech Support .........................................................................................................................Back Cover

Questions?

Call the Kenmore Water Line at 1-800-426-9345

or visit KenmoreWater.com

For repair or replacement parts, call toll-free 1-800-366-7278

See back cover for other Sears service numbers.

Questions? Call The Kenmore Water Line 1-800-426-9345

FACTS AND FIGURES TO KEEP

Fill in the blanks below and keep this book in a safe place so you always have these facts.

Water Softener Model No.*____________________________________

Serial Number ______________________________________________

Date Installed_______________________________________________

Water Hardness _____________________________ Grains Per Gallon

Iron Content _________________________________ Parts Per Million

pH______________________ Taste and/or Odor ________________

Water Pressure ___________________________ Pounds/Square Inch

Water Flow Rate ___________________________ Gallons Per Minute

* The model number is on the rating decal, located on the rim, under the salt hole cover.

Rating

Decal

Salt Hole Cover

Safety Guides

Y Read all steps, guides and rules carefully before installing and using your new water softener.

Follow all steps exactly to correctly install. Failure to follow them could cause personal injury or property damage. Reading this book will also help you to get all of the benefits from your water softener.

Y Your Kenmore Water Softener will remove hardness minerals from water. This is measured in

grains per gallon (gpg). It will also remove some clear water iron*. This is measured in parts per million(ppm). See the specifications page for the maximum limits of hardness and iron removal.

Y A water softener will not improve other water problems such as acidity, tastes and odors, or

iron other than clear water iron. lt will not purify contaminated water, or make unsafe water safe to drink.

Y Check with your local public works department for plumbing, electric and sanitation codes.

You must follow their guides as you install your softener. Use only LEAD FREE SOLDER AND FLUX, as required by federal and state codes, when installing soldered copper plumbing.

Y Protect the softener and piping from freezing. Damage from freezing voids the softener war-

ranty. See how to protect from freezing on page 31.

CAUTION: Please read and comply with the following guides to prevent damage to the softener or other property, personal injury, or possible fatal shock.

Y This softener works on 24 volts only. Be sure to use only the transformer included.

Plug it into a nominal 120V, 60 cycle household outlet that is grounded and properly protected by an overcurrent device such as a circuite breaker or fuse. If transformer is replaced, use only the authorized service Class II, 24 volt, 10 VA transformer.

Y Unplug the transformer right away if the power cable should become damaged or frayed.

Make repairs, or replace the transformer, before plugging back into the power outlet.

Y Always unplug the softener from electrical power before removing outer valve covers.

Y This system is not intended to be used for treating water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the system.

* The capacity to reduce clear water iron is substantiated by WQA test data.

European Directive 2002/96/EC requires all electrical and electronic equipment to be disposed of according to Waste Electrical and Electronic Equipment (WEEE) requirements. This directive or similar laws are in place nationally and can vary from region to region. Please refer to your state and local laws for proper disposal of this equipment.

Unpack and Check Your Carton

FIG. 1

Questions? Call The Kenmore Water Line 1-800-426-9345

Packing List

INSPECT SHIPMENT

Your water softener is shipped complete in one carton. Use care when handling the softener. DO NOT turn upside down. DO NOT drop, or set on sharp objects that could make a hole in the bottom. The water softener is heavy, do not try to lift it or move more than is necessary.

Remove all items from your shipping carton. Check all items against the packing list below. Note any items lost or damaged in shipment.

Note any damage to the shipping carton. Refer to the exploded view and parts list in the back of the manual for the part names and numbers of missing or damaged items.

Contact the store where purchased if problems exist.

PARTS DESCRIPTIONS

Nozzle

Assembly

Valve

Assembly

Face Plate

Cover (Main)

Brinewell

Cover

Brinewell

Brine Valve

Resin

Tank

Salt Hole

Cover

(Open)

Salt

Storage

Tank

Ground Clamp Kit

Drain Elbow

(installed on unit)

Tube Clamp

Clips (2)

Drain Tubing

Tube Adaptor

Grommet

O-Ring Seals (2)

SMALL PARTS

Bypass Valve

Installation

Adaptors (2)

owner’s manual

Plan Your Installation

PLAN YOUR INSTALLATION

It is recomended to read through the entire manual before beginning your installation. Follow all steps exactly. Reading this manual will also help you get all the benefits from your system.

TOOLS NEEDED:

• Safety glasses

• Flathead screw driver

• Phillips screw driver

• Adjustable slip joint pliers

• Tape measure or ruler

Safety Glasses Flathead Screwdriver Phillips Screwdriver Adjustable Slip Joint Pliers Tape Measure or Ruler

SOLDERED COPPER

• Tubing Cutter

• Propane Torch

• Solid Core LEADFREE Solder

• Paste Flux

• Emery Cloth

• or Sandpaper

THREADED PIPE

• Hacksaw or Pipe Cutter

• Pipe Wrenches

• Pipe Threading Tool

• Pipe Joint Compound approved for use on potable water

CPVC OR PVC PLASTIC

• Hacksaw

• Adjustable Wrench

• Primer and Solvent Cement approved for use on potable water-

ADDITIONAL TOOLS NEEDED FOR THE FOLLOWING INSTALLATIONS:

Questions? Call The Kenmore Water Line 1-800-426-9345

FIG. 2

THE PROPER ORDER TO INSTALL WATER TREATING EQUIPMENT

(Shows sequence of equipment only. Seldom, if ever, would all items be needed.)

Sediment or Taste & Odor Cartridge Filter

Cold, soft water

Hot, soft water

Water

Heater

*Taste &

Odor Filter

Water

Softener

Iron

Filter

Neutralizer Clarifying

Filter

Sediment

Cartridge Filter

(Optional Location)

Blending

Tank

Pressure or

Captive Air

Tank

Solution

Dispensing

System

Well Water

Hard Water to

Outside Faucets

City Water Supply

Well Water Supply

Kitchen or Bathroom

Cold Faucet

• Always put an Iron Filter BEFORE the water softener.

• Always put a Neutralizer BEFORE an Iron Filter, etc., as shown. * A Taste & Odor Filter may be used before or after the water

softener.

Plan Your Installation

Typical Installation

1. Place as close as possible but always after, the pressure tank (well water) or water meter (city water). See Fig. 3.

2. Place as close as possible to a water drain such as a floor drain, laundry tub, sump or standpipe. See Fig. 3.

3. Connect to the house main water pipe BEFORE THE WATER HEATER. See Fig. 3. Temperature of

water going through the softener must not be more than 120°F (49°C). Hot water will damage

inner softener parts. To reduce the risk of hot water backup, piping between the softener and water

heater should be as long of a run as possible.

4. Keep outside faucets on hard water to save soft water and salt. See Fig. 3.

5. Do not install in a place where the softener could freeze. Damage caused by freezing voids the warranty by Sears, Roebuck and Co.

6. Put the softener in a place where water damage is least likely to occur if it develops a leak. Sears or the manufacturer will not repair or pay for water damage.

7. A grounded, 120V electrical outlet is needed within 10 feet of the softener. See Fig. 3. This is to plug in the transformer. The softener has a 10 foot power cable. Be sure the outlet and transformer are in an inside place, to protect from wet weather. Use a continuously “live” outlet, which cannot be accidentally switched off.

8. When installing in an outside location, you must take the steps necessary to assure the softener, installation plumbing, and wiring, are protected from the elements, contamination, vandalism, etc.

9. Keep the softener out of direct sunlight. The sun’s heat can melt plastic parts.

WHERE TO INSTALL THE WATER SOFTENER

Review the following points before you choose a place to put your softener.

Questions? Call The Kenmore Water Line 1-800-426-9345

FIG. 3

Outside faucet

(Hard Water)

Outside Faucet

(Hard Water)

To Faucet

Soft, Cold Water

Soft, Hot

Water

Hard

Water to

House

R.O. Storage Tank

Reverse Osmosis

system

Water

Softener

Water Heater

Soft water

to Reverse

Osmosis

System

Shut-off

Valve

Reverse

Osmosis

Drain

Hard Water Line

Main

Shutoff

Valve

Air Gap

Water Meter

Floor Drain

Plan Your Installation

Suggested Slab Foundation Installation

Plug the softener transformer into an inside, 120 volt 60Hz electrical outlet. If an outside outlet is used, be sure it has approved weather protection.

Run drain tubing to laundry tub or p-trap inside home, if possible. Otherwise, run to a dry well.

WATERSOFTENER

(install in garage, car port,

or other sheltered area)

bathroom

kitchen

For outside hard water, trench underground as needed.

outside

-soft

outside

-soft

outside

- hard

outside

- hard

water heater

water in

bypass

valve

Questions? Call The Kenmore Water Line 1-800-426-9345

Your House Main Water Pipe

Left

Right

120V - 60Hz

Electrical

Outlet

Valve Outlet Side

Valve Inlet

Inlet

Outlet

To Water Softener

Raw Water

Soft Water

Main Water Pipe

CROSS-OVER

* In what direction does the water flow?

Be sure to plan “IN” and “OUT” piping so water flow is to the softener valve inlet. Plan a crossover if flow is from left to right.

DRAW IN YOUR PIPES AND FITTINGS

Draw the plans for your “IN” and “OUT” piping here. Include all pipe, fittings and accessories you will use.

Make a list of all materials you will need and buy them before you begin to install the water softener.

FIG. 5

FIG. 4

PIPE, FITTINGS, OTHER MATERIALS NEEDED

You must first decide how to run “in” and “out” pipes to the softener. Look at your house main water pipe at the point you will connect the softener. Is the pipe soldered copper, glued plastic, or threaded galvanized or brass? What is the pipe size? What kind of pipe and fittings is it easiest for you to work with, and what tools do you have?

Now look at the common plans for “in” and “out” piping on soldered copper. See Fig. 6. Use it as a guide to plan what materials you will need. Get all the materials you will need before you start.

Use Fig. 5 to make a plan drawing for your specific installation. “In” and “out” fittings included with the softener are 1” NPT threaded adaptors. You should maintain the same, or larger, pipe size as the water supply pipe, up to the softener inlet and outlet. Use copper, brass, galvanized or PVC plastic pipe and fittings for the “in” and “out” pipes. Be sure to check local codes.

Note: If converting from galvanized to copper pipe use approved dielectric insulating connectors.

ALWAYS install the bypass valve (that is included with the unit) or a three valve bypass. See Fig. 9 to13. Bypass valves let you turn off water to the softener if needed for repairs, but still have water in the house pipes.

Drain tubing (3/8” inside diameter), is needed for the valve and salt tank drains. See Fig. 16. If a rigid valve drain is needed to comply with plumbing codes, you can buy the parts needed (see Fig. 16) to change the softener to a 1/2 inch minimum copper tubing drain.

Questions? Call The Kenmore Water Line 1-800-426-9345

Plan Your Installation

FIG. 6

OUT

1” NPT sweat adaptor (2)*

Valve Inlet

Bypass Valve

1” NPT adaptor

2 of each included

clip

SOLDERED

*NOTE:

For plumbing connection, buy 2 sweat adaptors and plumb directly to the inlet - outlet adaptors. Threads on the inlet - outlet adaptors are 1” NPT.

CAUTION: DO ALL SOLDERING BEFORE CONNECTING SWEAT ADAPTORS TO INLET-OUTLET ADAPTORS OR BYPASS VALVE.

Valve Inlet

1” NPT adaptor

1” NPT sweat adaptor (2)*

Use teflon tape, pipe joint compound or both.

Read Before Beginning Installation

BEFORE INSTALLING CHECKS & TESTS

Your water supply needs to be checked for chemical analysis, water pressure and water flow rate. To accomplish this, complete the following steps:

Check Water’s Chemical Analysis: Sears sells a complete line of water treating equipment to correct various water problems. To be sure you have the proper type and size equipment, You must have your water tested. Your Sears store can give you a water test results for hardness, iron and acidity, and tell you what equipment you need. Simply take at least a 4 oz. sample of your water to Sears, and they will test it while you wait. If you need help to get your water tested, or if you have other questions about your water, ask at your Sears store.

NOTE: Add these readings to the Facts and Figure table on page 3.

Check Your Water Pressure: For your softener to work right, a water pressure of no lower than 20 pounds per square inch (psi) is needed in the house water pipes. The highest pressure allowed in the water pipes is 125 psi. If pressure is over 125 psi, buy and install a pressure reducing valve in the water inlet pipe to the softener.

NOTE: If water pressure during the day is 100 psi or more, pressure during the night may go over 125 psi. Adding a pressure reducing valve may reduce the flow.

NOTE: Add these readings to the Facts and Figure table on page 3.

If you have a well water system, look at the pressure gauge to find the water pressure. Call your local water department if you have city water. They will tell you what the water pressure is where you live.

NOTE: Add these readings to the Facts and Figure table on page 3.

Check your water flow rate: A water flow of at least 3 gallons per minute is needed. A lower flow will keep your softener from working as well as it should. Complete the following steps to make an easy check of your flow rate.

1. Fully open two cold water faucets close to the point water enters the house.

2. With both faucets open, fill a gallon container at one faucet while looking at a watch or clock to see how many seconds it takes.

3. Empty the container and go to the second faucet (be sure BOTH faucets are still on). Fill the gallon container at the second faucet and see how many seconds it takes.

4. Turn off both faucets. Now add the number of seconds it took to fill the container at both faucets.

5. A total of 90 seconds, or less, means the system flow rate is good.

NOTE: Add these readings to the Facts and Figure table on page 3.

NOTE: Codes in the state of Massachusetts require installation by a licensed plumber. For installation, use plumbing code 248CMR of the Commonwealth of Massachusetts.

Questions? Call The Kenmore Water Line 1-800-426-9345

FIG. 9

INSTALLING BYPASS VALVE, AND/OR

INLET AND OUTLET THREADED ADAPTORS

Clip (2)

Valve Outlet

Included with Softener

Valve Inlet

ASSEMBLE INLET OUTLET ADAPTORS, OR PLASTIC BYPASS VALVE

Complete the following steps to assemble the adaptors or bypass valve.

1. Close the shutoff valve on the house main water pipe, near the water meter or pressure tank, to turn off the water. See Fig. 7.

2. Shut off the gas or electric supply to the water heater. See Fig. 7.

3. Open the highest and lowest water faucets in yourhouse. This will let water drain from the pipes. Close faucets after water has drained.

4. Remove the main cover. See Fig. 8. Pull outward on two (2) tabs to release.

The salt hole cover remains attached to the main cover when removed. Set both covers aside so they will not get scratched or broken.

INSTALL SEARS BYPASS VALVE AND / OR THE INLET OUTLET THREADED ADAPTORS

NOTE: If you will not install the bypass valve because you will have a three (3) valve bypass, skip steps 6 & 7, but do steps 5 and 8.

5. Visually check and remove any foreign materials from the valve inlet and outlet ports. See Fig. 9. Carefully remove the two large plastic clips (you will use them). Check to be sure the turbine and turbine support are firmly in place. See Fig. 10.

BYPASS VALVE:

6. Put a light coating of silicone grease on the o-ring seals and slide onto the bypass valve.

7. Push the bypass valve into the softener valve as far as it will go. Snap the two large holding clips into place,

from the top down as shown. See Fig. 11.

CAUTION: Be sure the clips snap firmly into place so the bypass valve will not pull out. See Fig. 11.

INLET AND OUTLET THREADED ADAPTORS:

8. Put a light coating of silicone grease on the o-ring seals and slide into the threaded adaptors. Push the adaptors into the valve inlet and outlet ports, or bypass valve ports, as far as they will go. Both adaptors are the same and fit either port. Snap the two large holding clips

into place, as shown. See Fig. 11.

CAUTION: Be sure the clips snap firmly into place so the tubes will not pull out. See Fig. 11.

Install Plastic Bypass Valve

FIG. 8

Salt Hole Cover

Cover (Main)

FIG. 7

Shutoff

Valve

Shutoff

Valve

Pressure Tank

Well

Pump

Water Meter

Electrical

Panel

Gas

Valve

Questions? Call The Kenmore Water Line 1-800-426-9345

Install 3-Valve Bypass

INSTALLING 3 VALVE BYPASS AND PIPES

Complete the following steps to install the three (3) valve bypass:

• Cut the house main water pipe where you will connect the softener.

• Loosely put together pipe, fittings, and the three (3) valves.

• Place valve(s) within easy reach.

When all pipe, fittings and valves make a good fit together, tighten all threaded joints (use pipe dope on outside threads), or solder all sweat joints.

3 VALVE BYPASS

Softener Inlet

FIG. 13

Questions? Call The Kenmore Water Line 1-800-426-9345

Install Plastic Bypass Valve

BYPASS VALVE TURNED DOWNWARD

OUT

Turn bypass valve upside down to connect to floor level plumbing.

FIG. 12

FIG. 10

FIG. 11

INSTALLING HOLDING CLIPS

Black Clip

Cross Section of Valve

Inlet or Outlet

Bypass Valve or Installation Adaptor

Clip Snaps into Place

Between Larger Diameter Rings

O-Ring

Before installing the bypass valve, or copper tube, be sure the turbine and support are firmly in place in the valve outlet port.

Turbine Support

Sensor Port

Turbine

Locate Water Softener and Connect Pipes

MOVE SOFTENER INTO PLACE

Grip under ridge

to move softener.

Plywood

Shims

TYPICAL SOLDERING

CONNECTIONS

Main Water Pipe

Hard Water

1. Cut pipe to correct length.

2. Solder (WHEN COOL, do Step 3).

3. Put threaded adaptor into bypass valve port.

4. Solder NOTE: To be certain heat will not travel down the pipe and into the bypass valve (or installation adaptors), wrap the bottom of the pipe and the bypass valve in a wet rag.

POSITION SOFTENER INTO PLACE

Complete the following steps to position the softener.

1. Grip under the ridge on the salt tank sidewall.

2. Carefully rock back and forth into position.

3. Move the softener into position.

4. Place on a level and smooth surface. If needed, put a piece of 3/4” plywood, at least 17'' x 20'', under the tank. Then put spacers under the plywood to level the softener. See Fig. 14.

NOTE: Do not put shims or spacers directly under the tank, without the plywood. The weight of the softener, when full of salt and water, may cause the tank to puncture or break at the shim or spacer.

CONNECT THE SOFTENER

Refer to your plan drawing. See Fig. 5. Measure, cut (thread if needed) and put all pipe and fittings together up to the main water pipe, or to the bypass valve(s) you installed in the previous step.

CAUTION: Never solder fittings while connected to nonmetallic parts. Wait until soldered pipe has cooled before connection. See Fig. 15.

CAUTION: Be careful when putting pipe fittings together. Do not cross thread, and do not overtighten.

FIG. 14

FIG. 15

Questions? Call The Kenmore Water Line 1-800-426-9345

Connect Valve and Salt Tank Drains

CONNECT THE VALVE DRAIN HOSE

Take a length of 3/8” inside diameter drain tubing and attach one end to the drain fitting. See Fig. 16. Use a tube clamp to hold it in place. Put the other end of the tubing over a floor drain, into a laundry tub, standpipe, or other suitable drain. Check your local codes.

Leave an air gap of about 1-1/ 2'' between the end of the hose and the drain. This gap is needed so you don’t get a backflow of sewer water into the softener. Do not put the end of the hose into the drain or connect without the air gap.

Place and support the hose so it does not kink or have sharp bends. Secure the hose end so water pressure does not cause the hose to “whip”. Tie or wire it in place. Do not pinch the hose shut. The softener will

not work if this drain hose is pinched, plugged, closed or restricted in any way. Direct drain flow

down into drain from drain line as flow could possibly over shoot the drain cover.

Keep the hose lower than the drain fitting. In some homes, to get to a drain you must raise the hose and run it overhead. If you need an overhead drain, do not raise the hose more than 8' above the floor. A copper drain tube is best to use.

COPPER DRAIN TUBE: Local plumbing codes may require the use a copper valve drain tube. A copper

tube is also best to use for an overhead drain. Use a copper drain tube if the softener is installed outside, or in the sunlight. Heat from the sun can soften, flatten and close up some kinds of tubes.

To adapt a copper drain tube to the softener, buy a compression fitting (1/4'' female pipe threads x 1/2'' O.D. tube) and tubing from your local hardware store.

CONNECT SALT TANK OVERFLOW TUBING

1. Locate the rubber grommet, tube adaptor and tube clamp (see Fig. 16) that are in the parts bag.

2. Push the grommet into the hole in the salt tank wall so half is inside and half is outside.

3. Push the bigger end of the tube adaptor into the grommet.

4. Push one end of a length of 3/ 8'' I.D. tubing onto the tube adaptor, using the tube clamp to hold it in place.

5. Put the other end of the tubing over the floor drain.

IMPORTANT: Overflow water must run downward through the tubing. Do not raise the tubing higher than the grommet and tube adaptor. See Fig. 16.

IMPORTANT: Do not connect to the valve drain hose you installed in step 1. Both drains must have a separate hose or tube.

NOTE: Overflow drain tubing is available from Sears. See parts list in back of manual.

Questions? Call The Kenmore Water Line 1-800-426-9345

Tube Clamp

Drain Fitting

Grommet

Tube Adaptor

Tube Clamp

1/4 NPT Threads

Barbs

1/2” Outside Diameter

Copper Tube

(Not furnished)

Comp Fitting. 1/4 NPT x

1/2 in. O.D. Tube

(Not furnished)

Clip

Cut Barbs from Drain

Fitting (Pull clip and

remove fitting from valve.)

1-1/2”

Air Gap

STANDPIPE

1-1/2” Air Gap

LAUNDRY TUB

FLOOR DRAIN

1-1/2”

Air Gap

Tie or Wire

Tubing in Place

Valve Drain Hose

To drain point other than floor drain. Support tubing in place as needed.

Overflow Drain Tubing

NOTE: Overflow drain tubing is available from Sears, Item No. 42-3433 (20 ft).

FIG. 16

Leak Test

LEAK TEST

To check for leaks, complete the following steps:

CAUTION: To avoid water or air pressure damage to softener inner parts, and to flush pipe chips or other residue from the water pipes, be sure to do the following steps exactly as instructed.

1. Fully open two cold, soft water faucets near the softener.

2. Look at the pictures in Fig. 18 and 19 to determine your kind of bypass valve(s). Place bypass valve(s) in “bypass” position. On a single valve, slide the stem inward to bypass. On a three (3) valve system, close the inlet and outlet valves and open the bypass valve.

3. Fully open the house main water pipe shutoff valve. Observe steady water flow from both open faucets.

4. Place bypass valve(s) in SERVICE EXACTLY as follows: Keep soft water faucets open. a. Single Bypass Valve: Slowly, slide pull the valve stem outward toward service, pausing several times to allow the softener to pressurize slowly. b. Three Valve Bypass: Fully close the bypass valve and open the outlet valve. Slowly, open the inlet valve, pausing several times to allow the softener to pressurize slowly.

5. After about three minutes, open a hot water

faucet for about one minute, or until all air is expelled, then close.

6. Close both cold water faucets.

7. Check your plumbing work for leaks and fix right away if any are found. Be sure to observe previ-

ous caution notes.

NOTE: If this procedure is performed on a new softener, water coming from the taps may initially be discolored. This normally occurs the first time water runs through the resin bed. The discolored water is not harmful, and the discoloration will not last more than a few minutes.

HOUSE MAIN WATER

SHUTOFF VALVES

Shutoff Valve

Water Meter

Shutoff Valve

Pressure Tank

Well Pump

SINGLE BYPASS

Pull Stem Outward

For Service

Push Inward

For Bypass

VALVE BYPASS

FOR SERVICE

Close bypass valve.

Open inlet & outlet

valves.

FOR BYPASS

Open bypass valve.

Close inlet & outlet

valves.

Outlet

Valve

Bypass Valve

Inlet

Valve

FIG. 18

FIG. 19

FIG. 17

Questions? Call The Kenmore Water Line 1-800-426-9345

Note: Stem may be installed in either direction. The end with writing should be pulled out for service position.

+ 33 hidden pages
