Kenmore HE 4 110.8586, 110.8587, Elite HE4 110.8586, Elite HE4 110.8587 Use And Care Manual

Electric Dryer

Secadora El_ctrica

Models/Modelos 110.8586#:, 8587#:

= color number/nemero de color

iiiiii!Jiiiiiiiiiii!il

8562129A Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

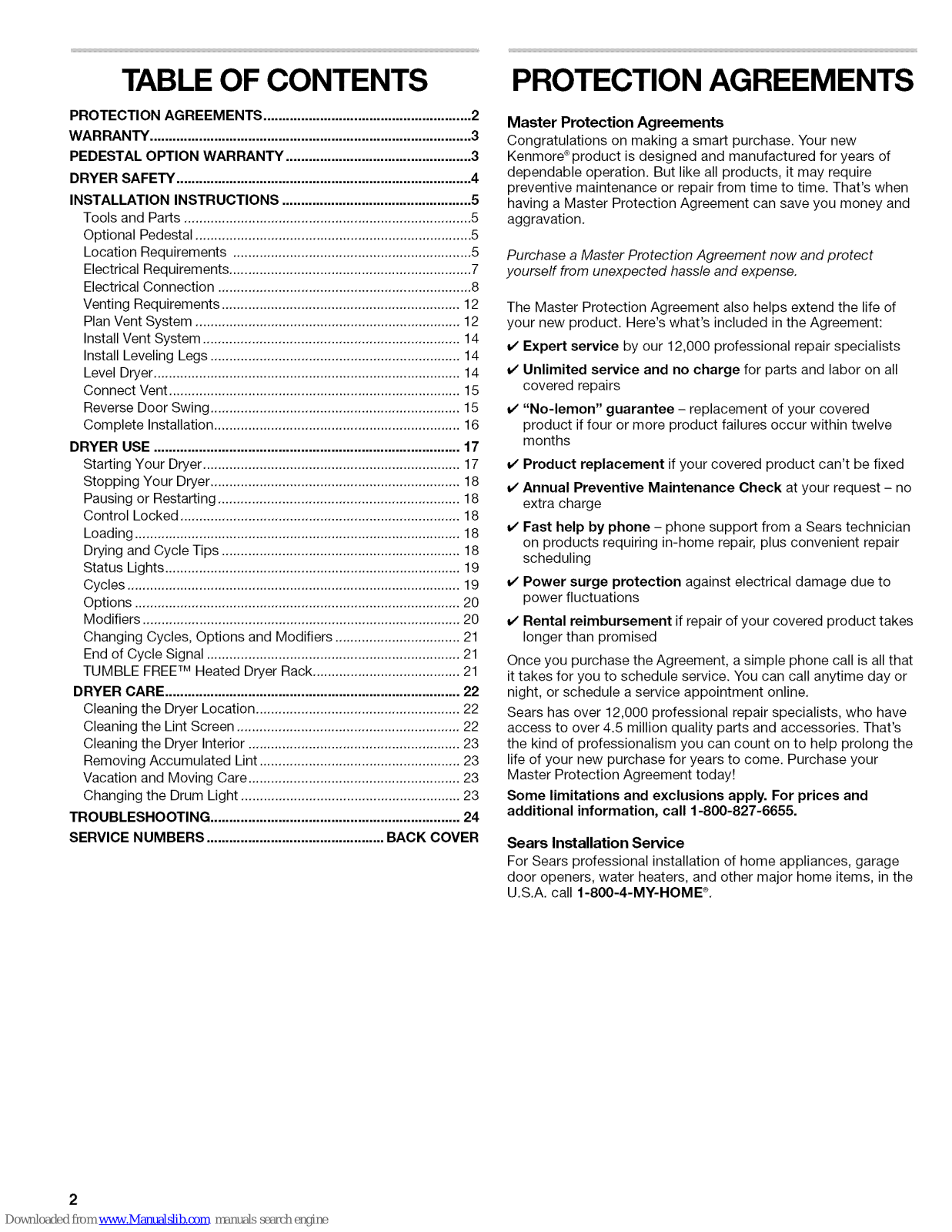

TABLEOF CONTENTS

PROTECTION AGREEMENTS ....................................................... 2

WARRANTY ..................................................................................... 3

PEDESTAL OPTION WARRANTY ................................................. 3

DRYER SAFETY .............................................................................. 4

INSTALLATION INSTRUCTIONS .................................................. 5

Tools and Parts ............................................................................ 5

Optional Pedestal ......................................................................... 5

Location Requirements ............................................................... 5

Electrical Requirements ................................................................ 7

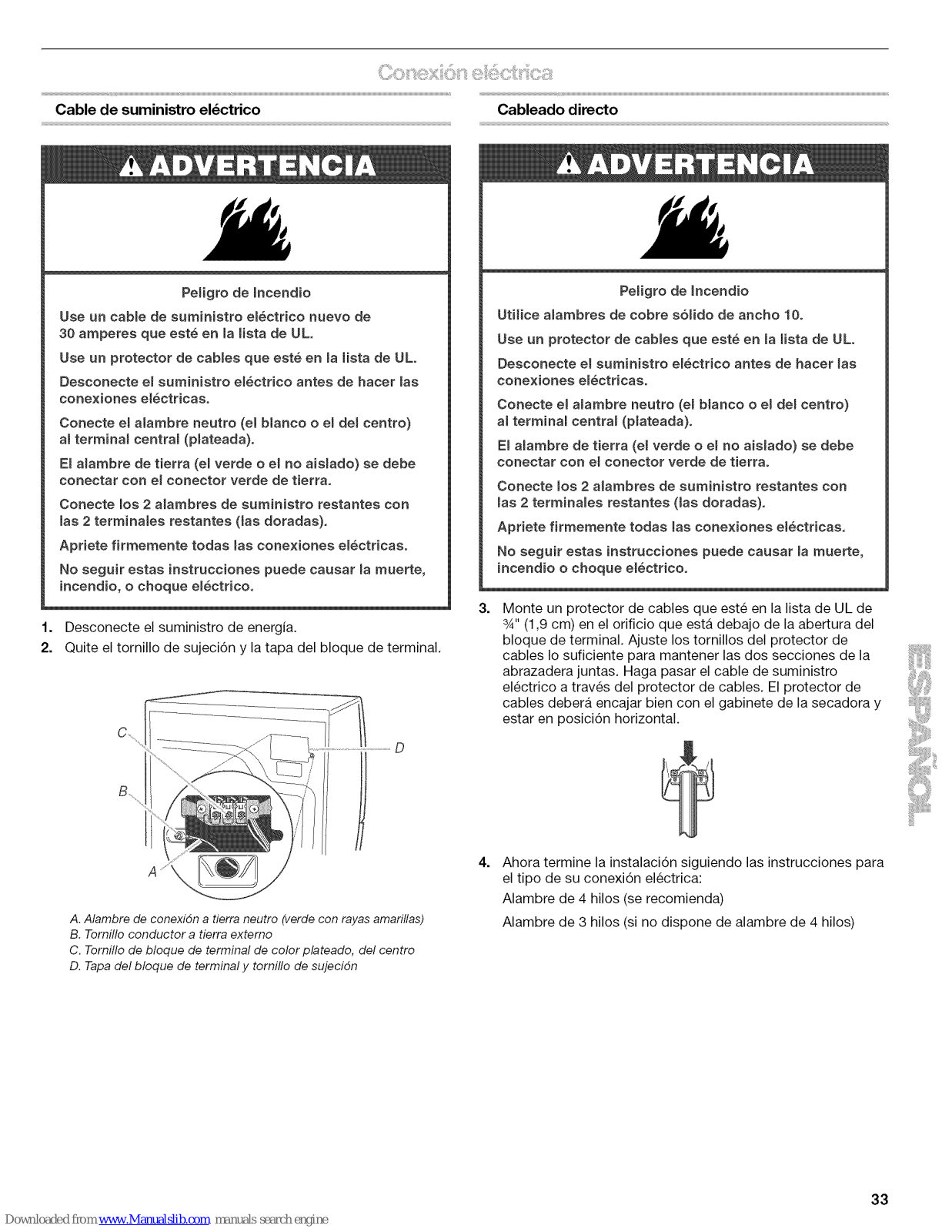

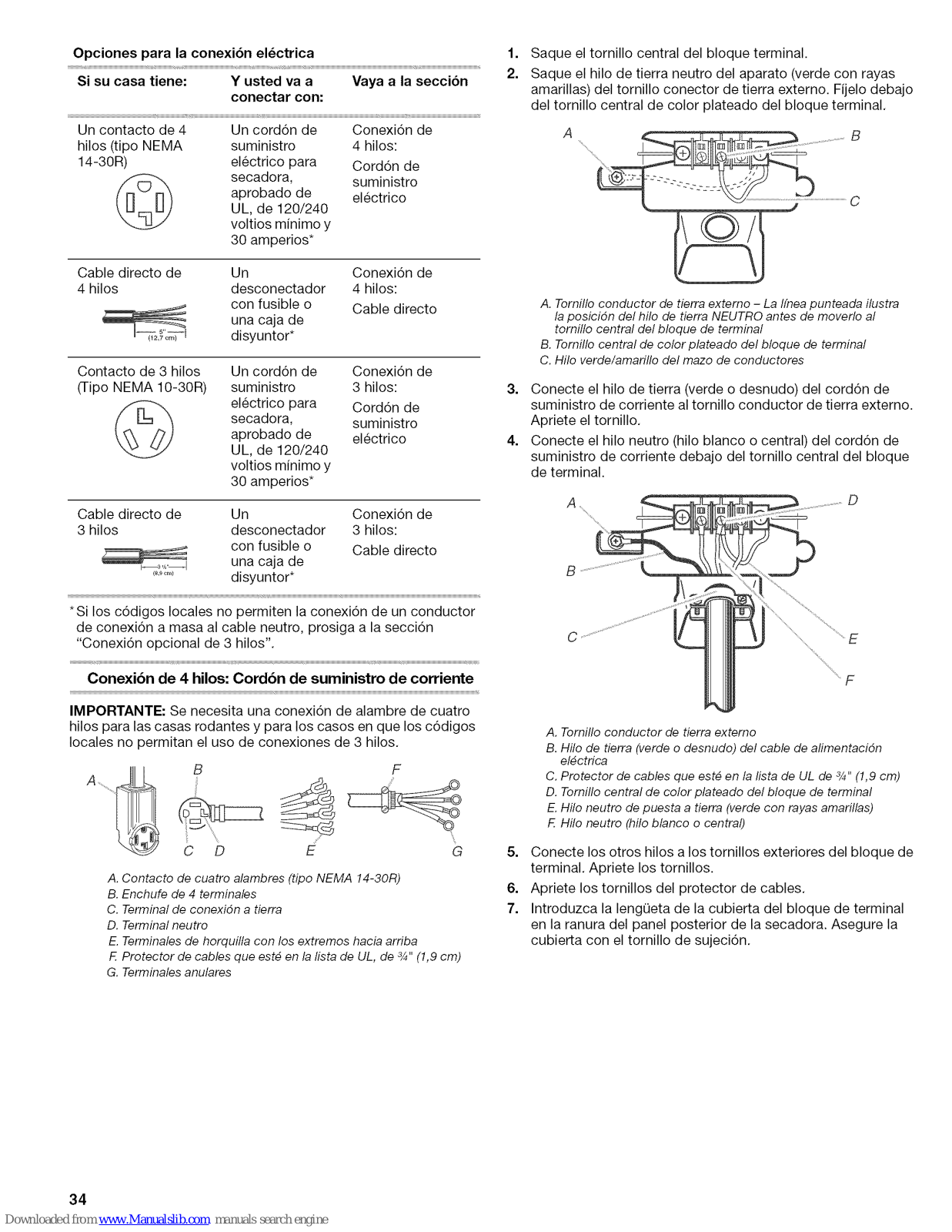

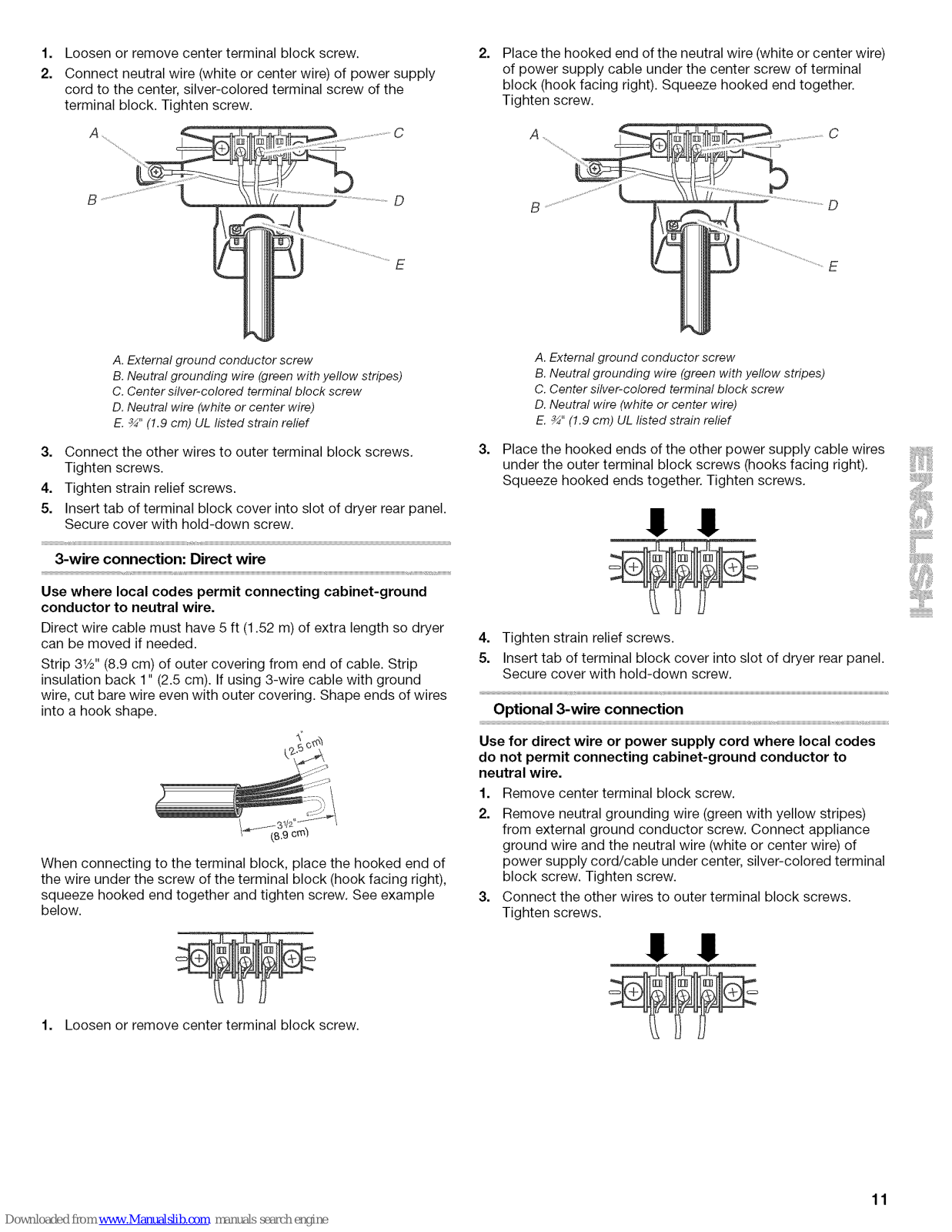

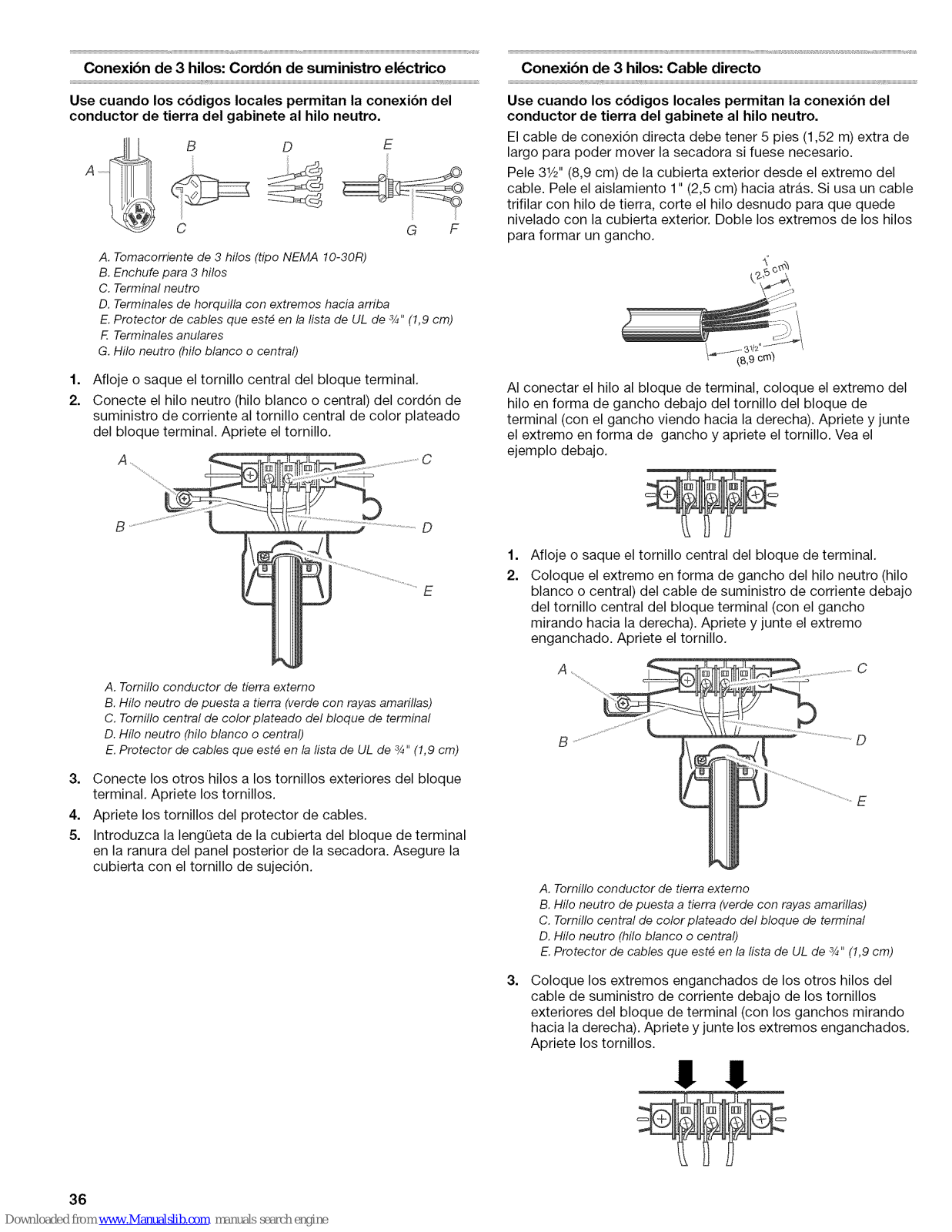

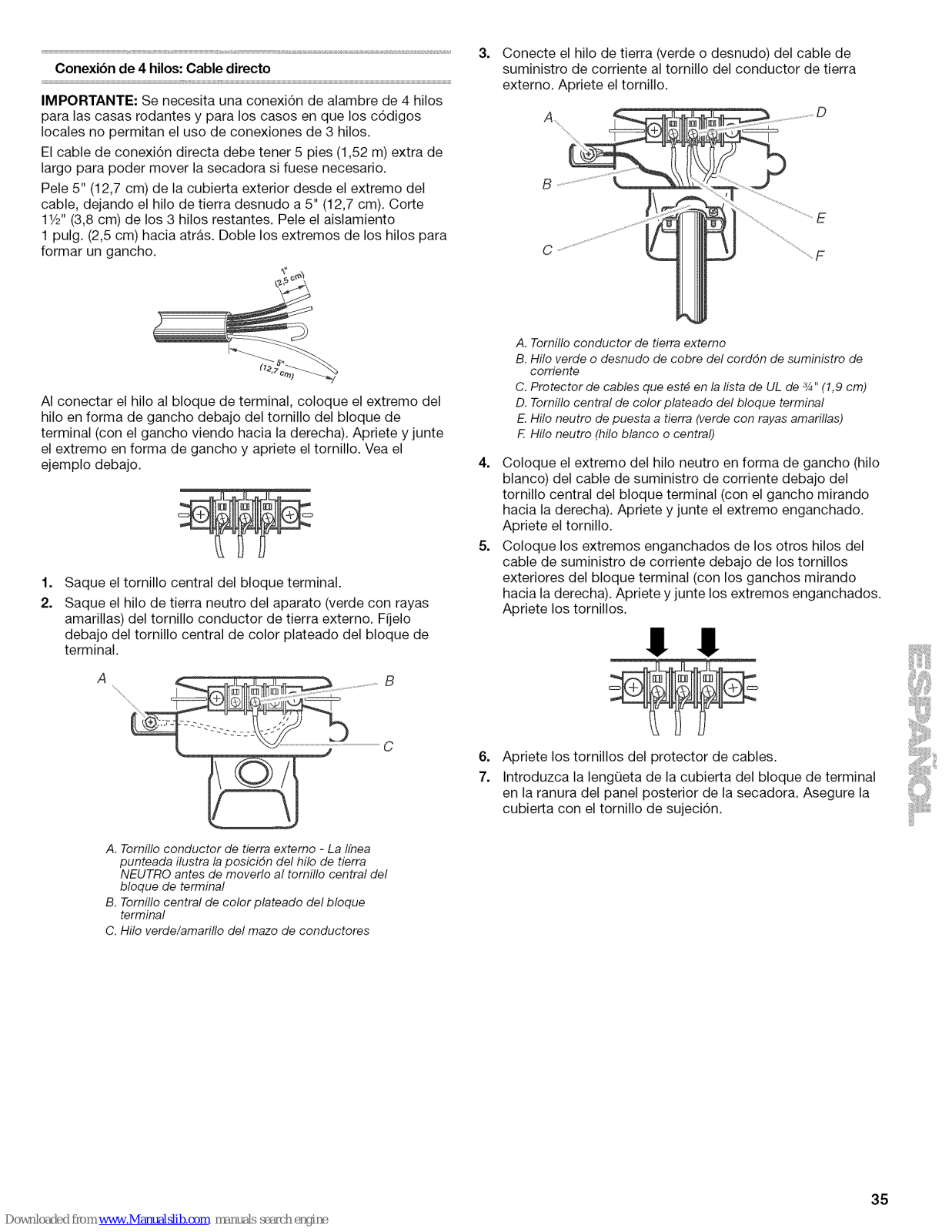

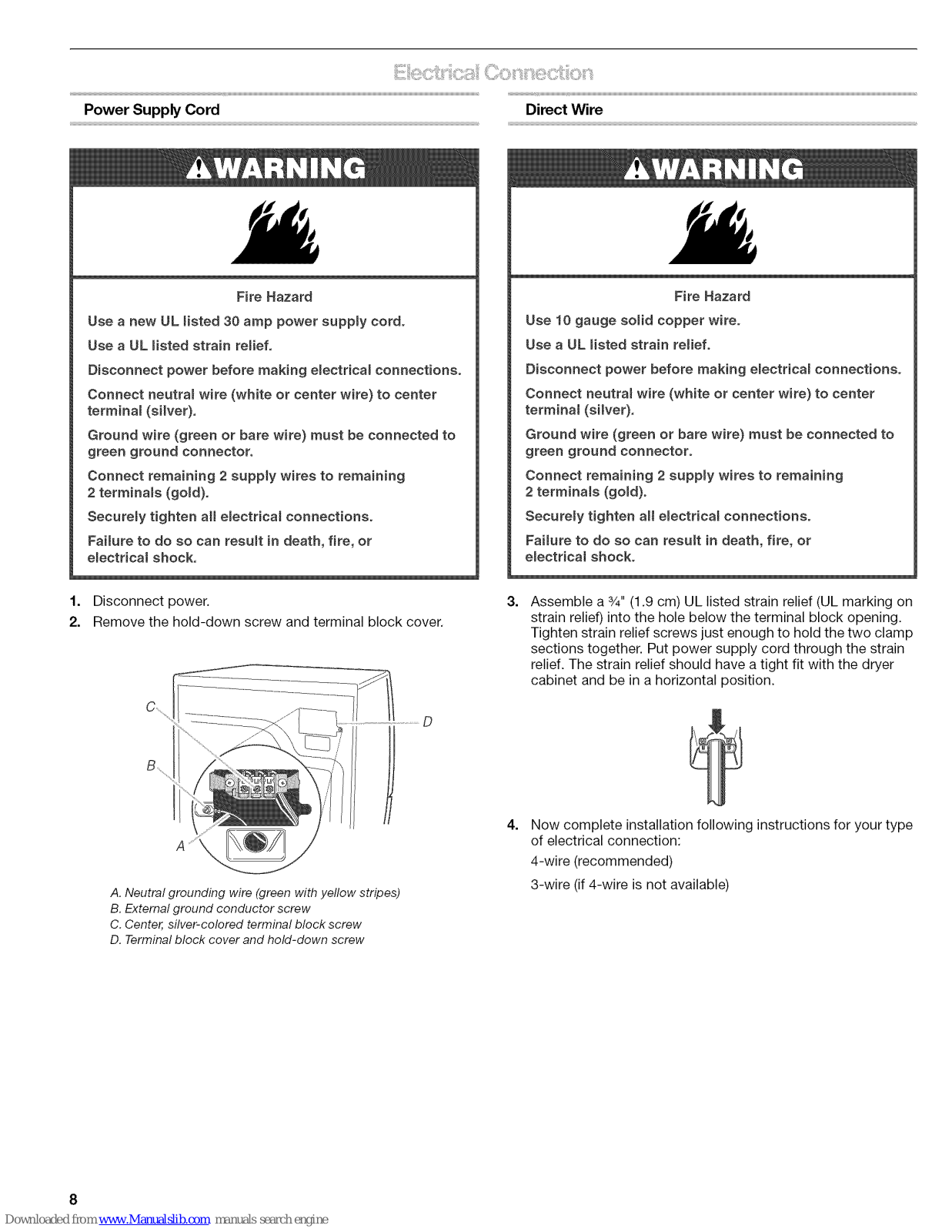

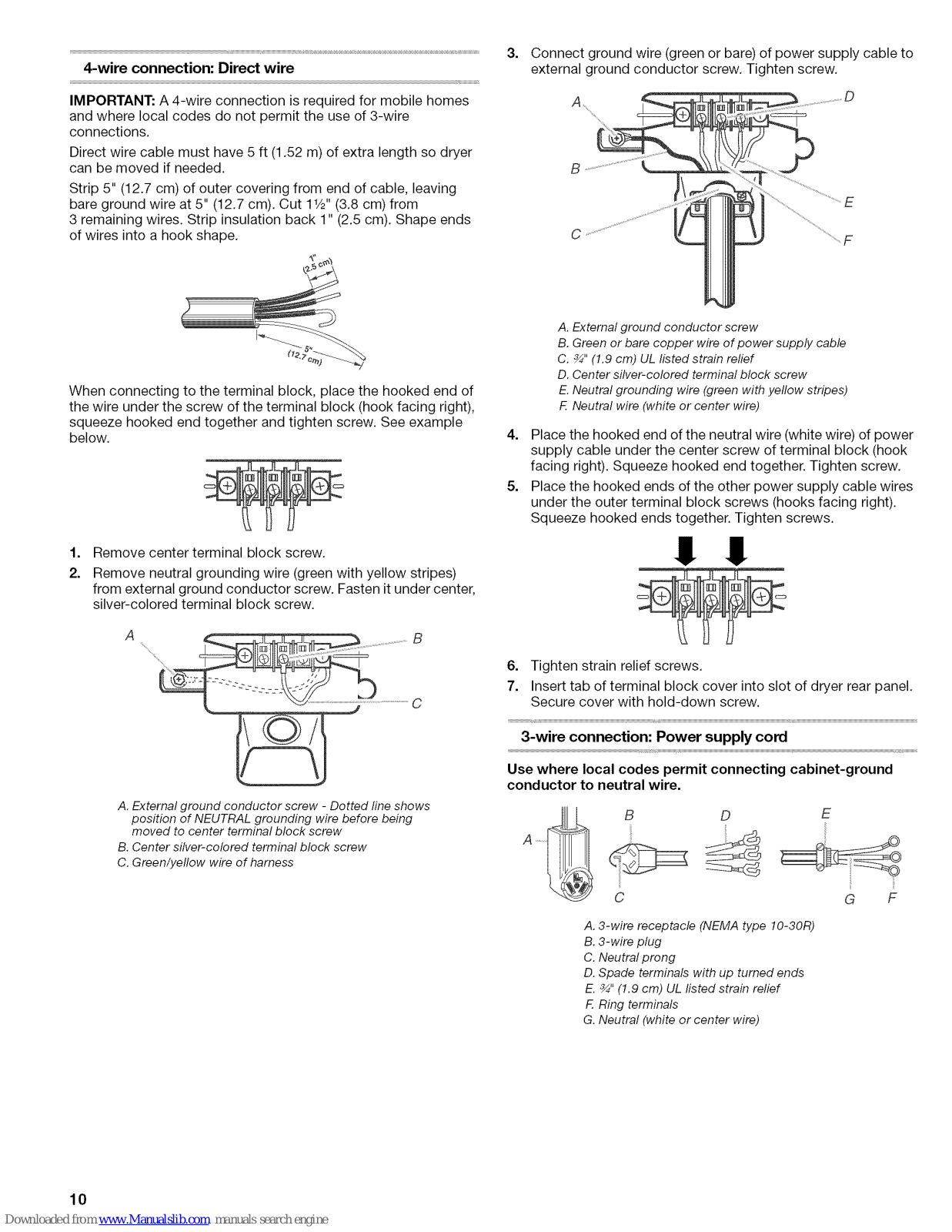

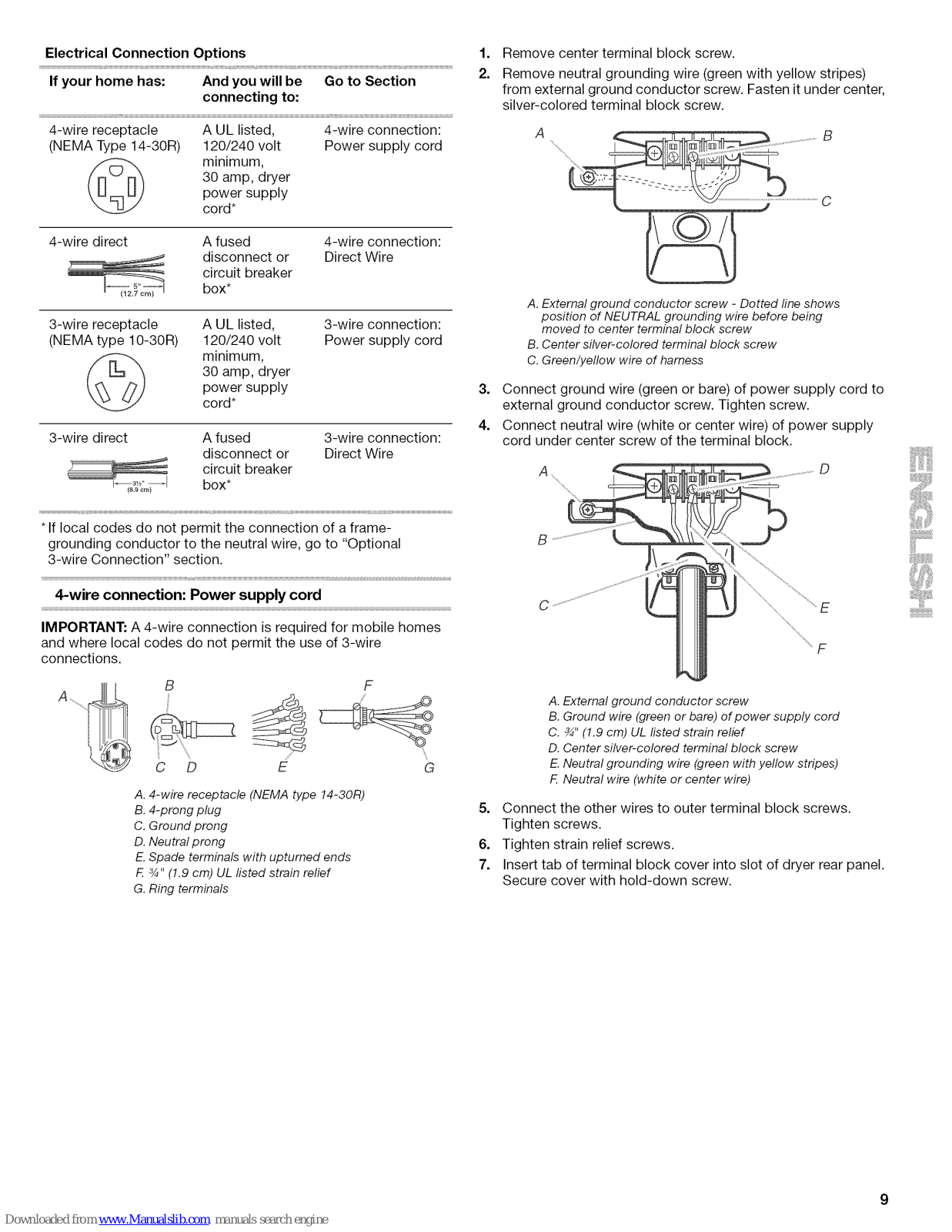

Electrical Connection ................................................................... 8

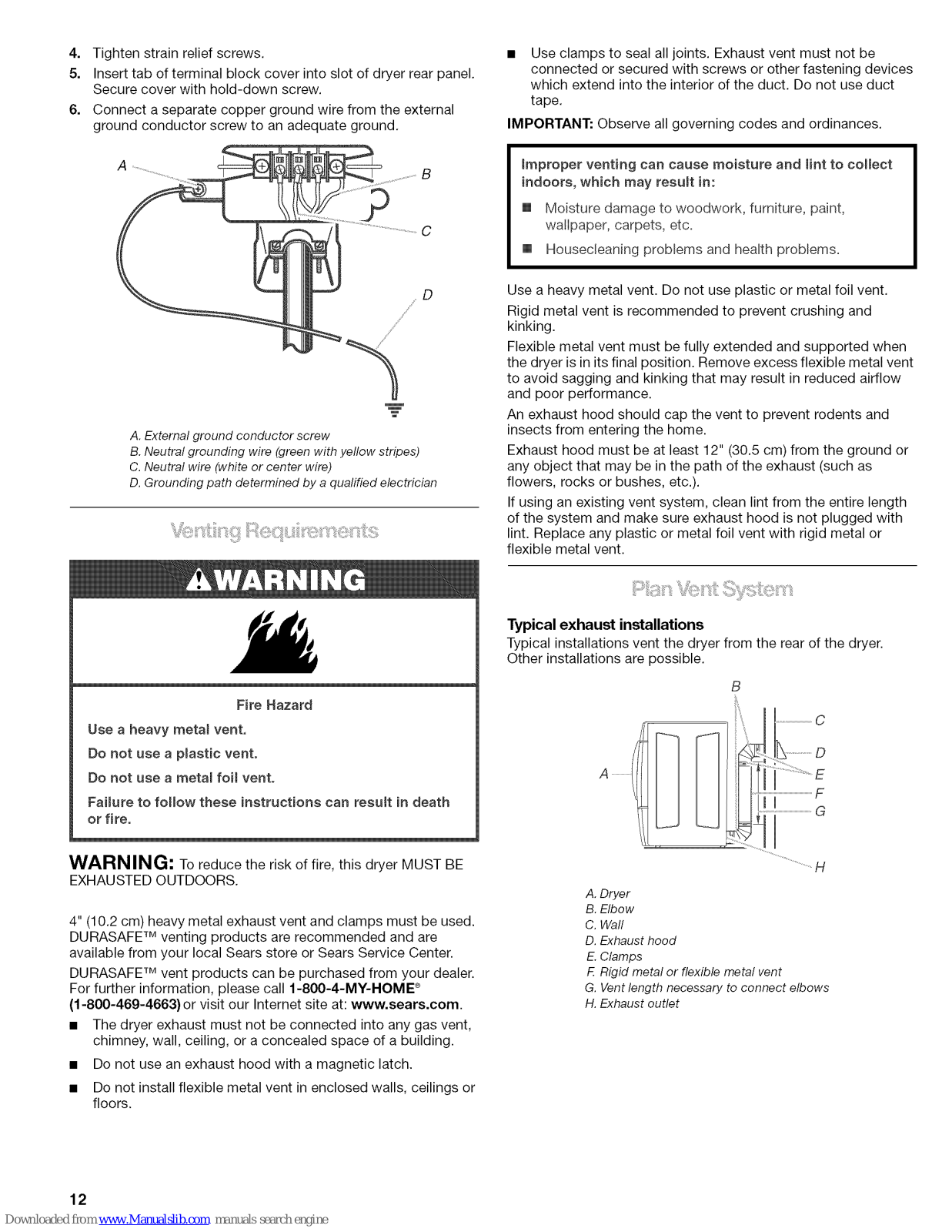

Venting Requirements ............................................................... 12

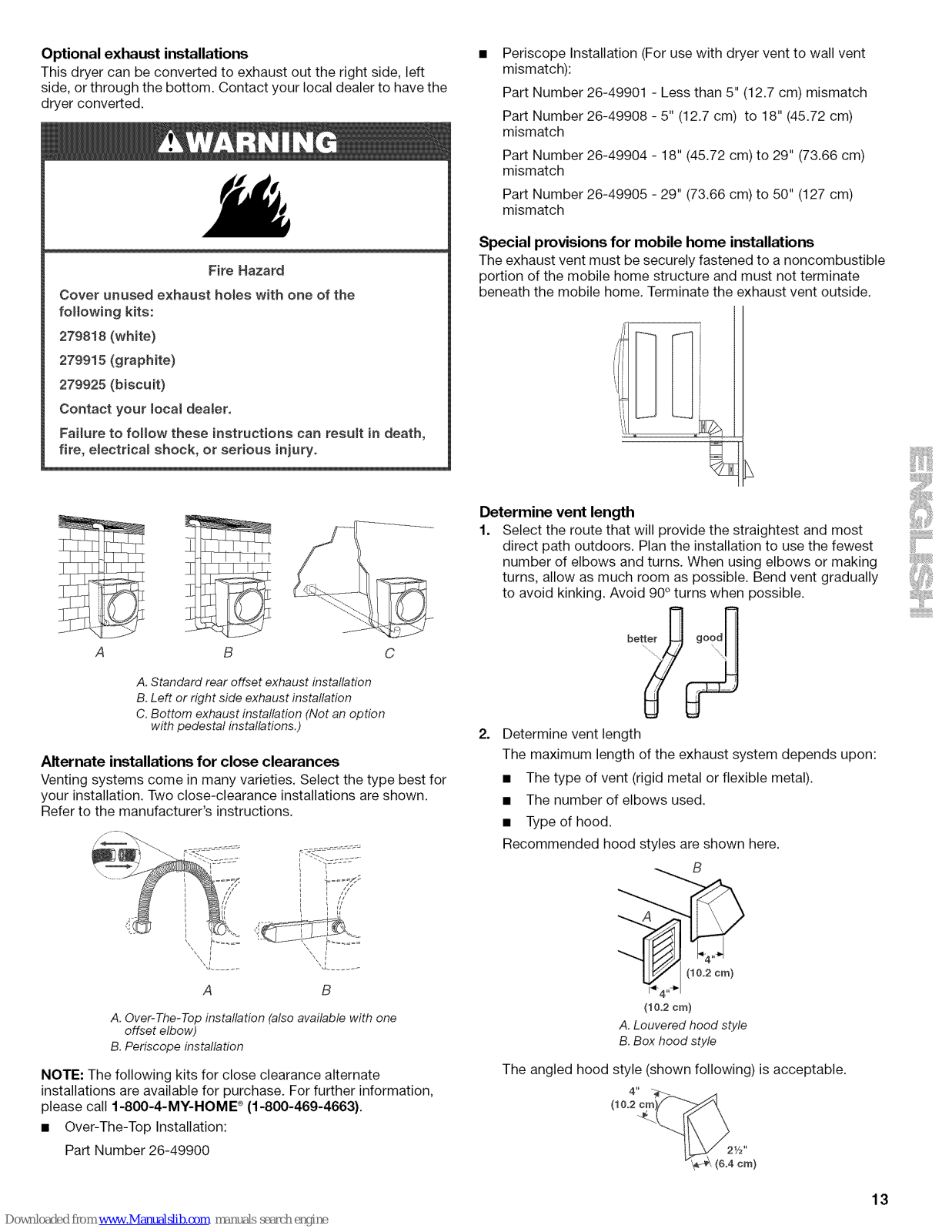

Plan Vent System ...................................................................... 12

Install Vent System .................................................................... 14

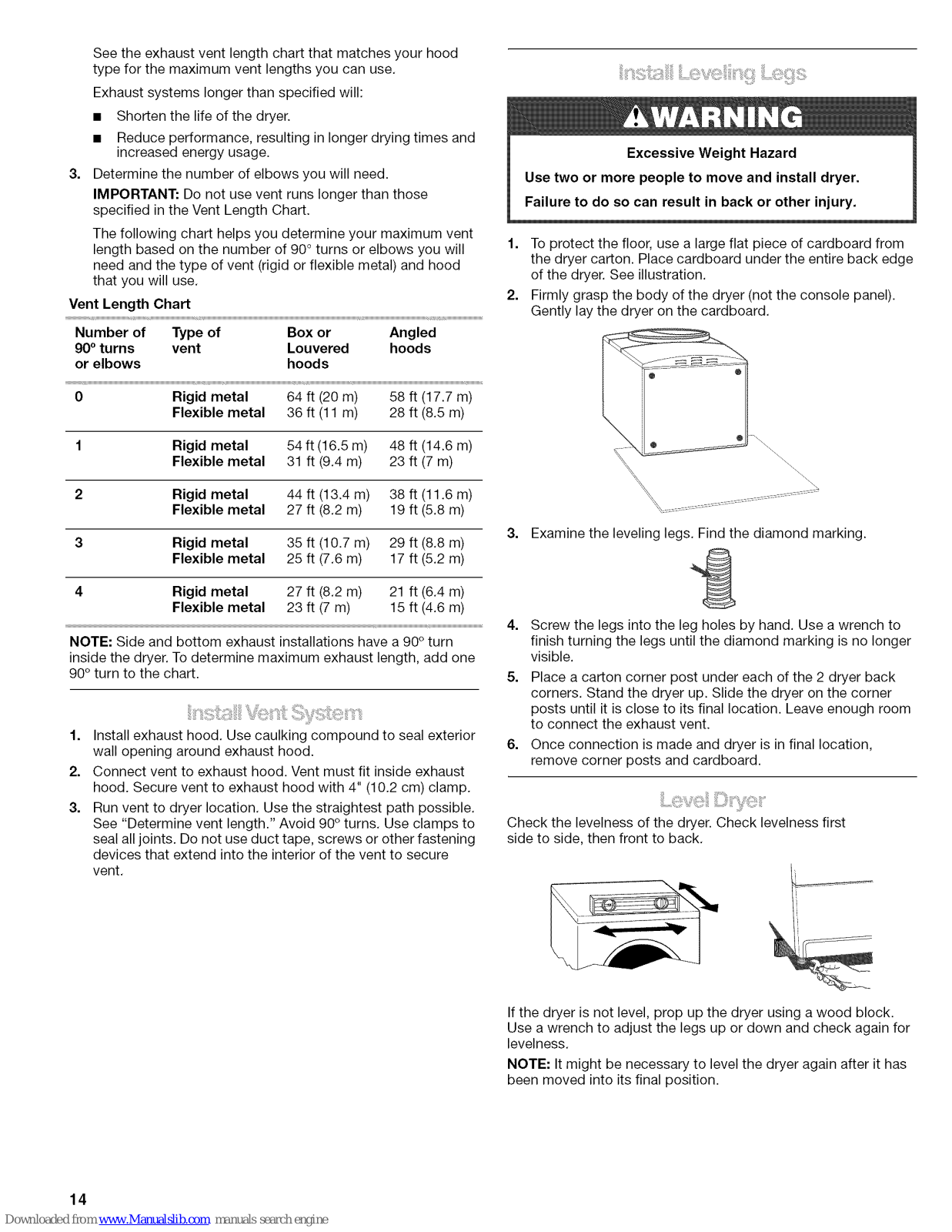

Install Leveling Legs .................................................................. 14

Level Dryer ................................................................................. 14

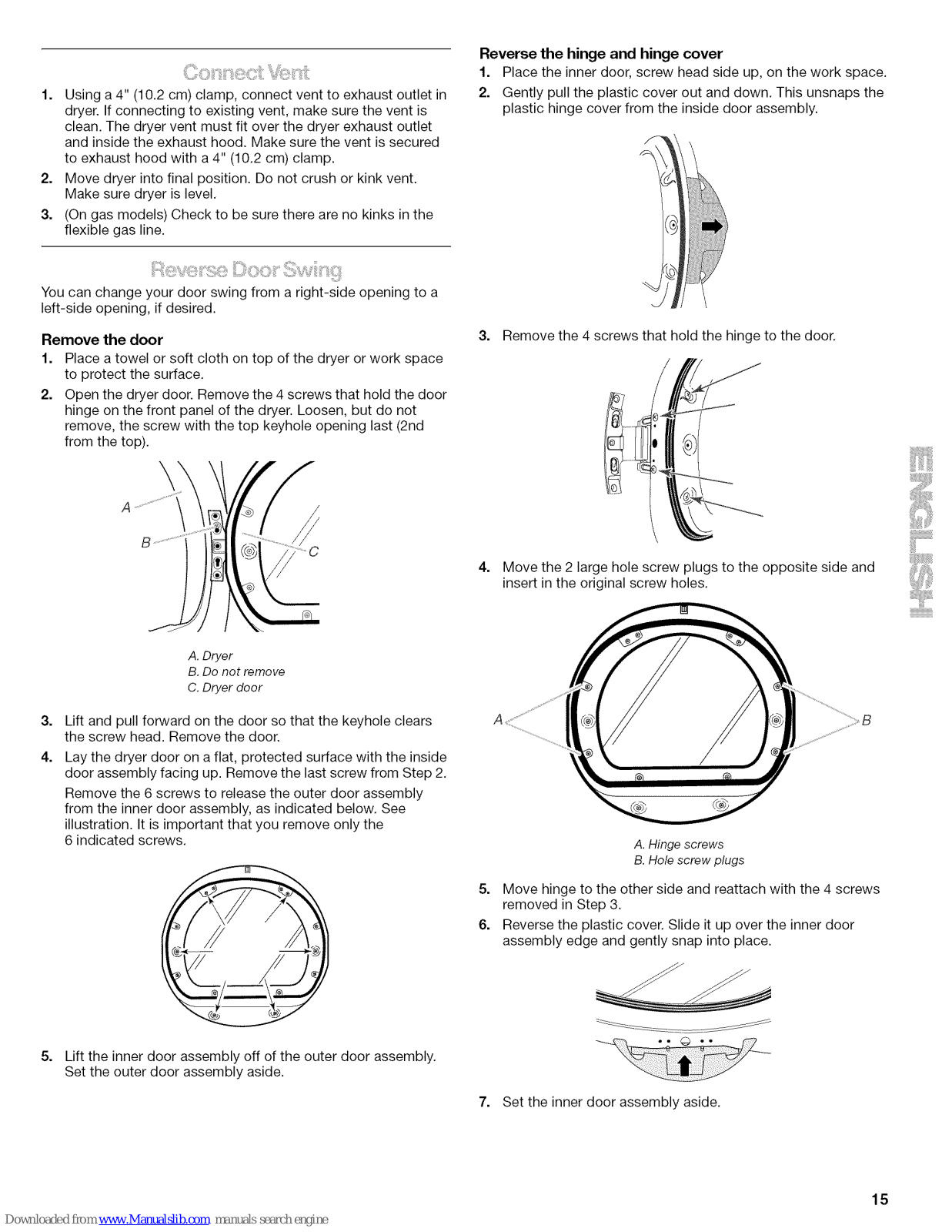

Connect Vent ............................................................................. 15

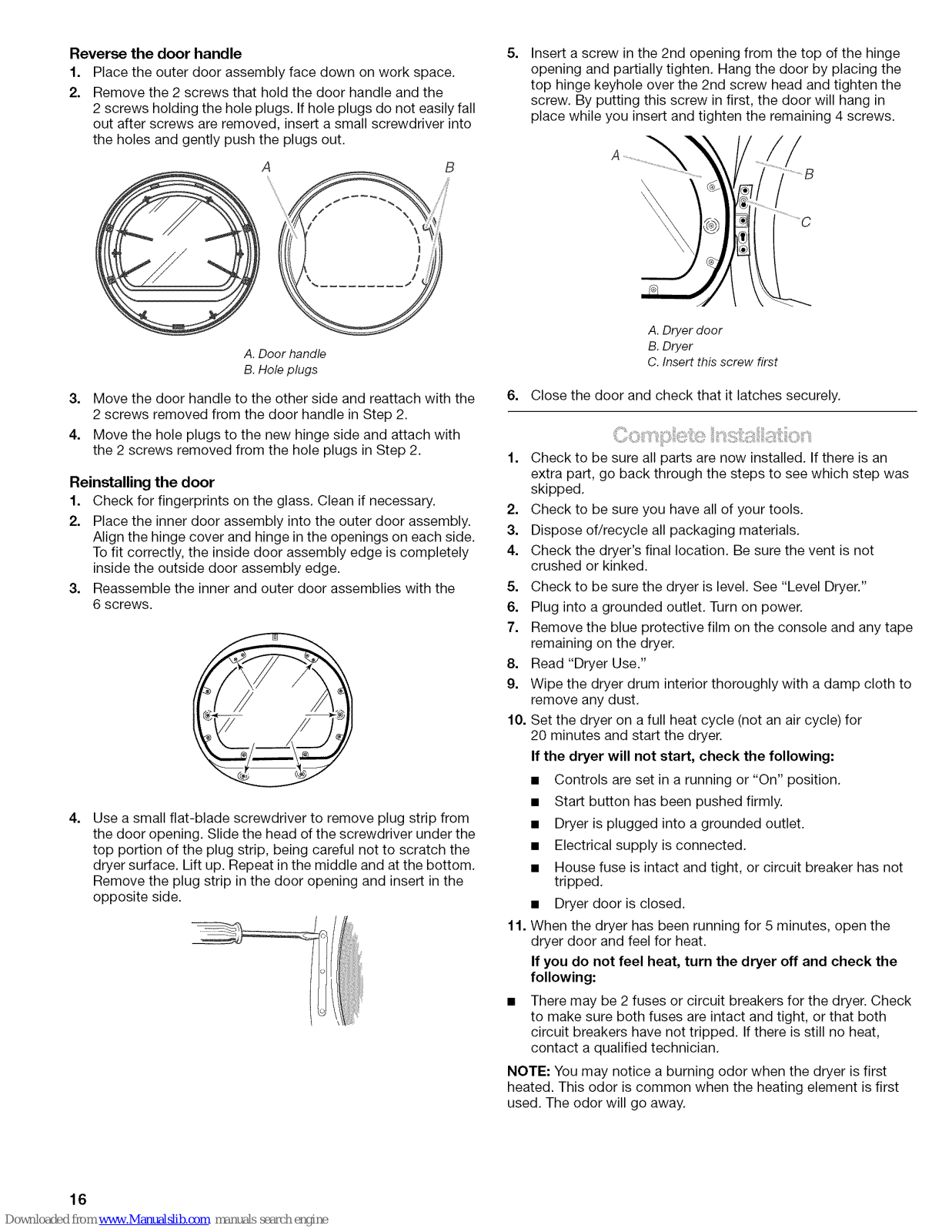

Reverse Door Swing .................................................................. 15

Complete Installation ................................................................. 16

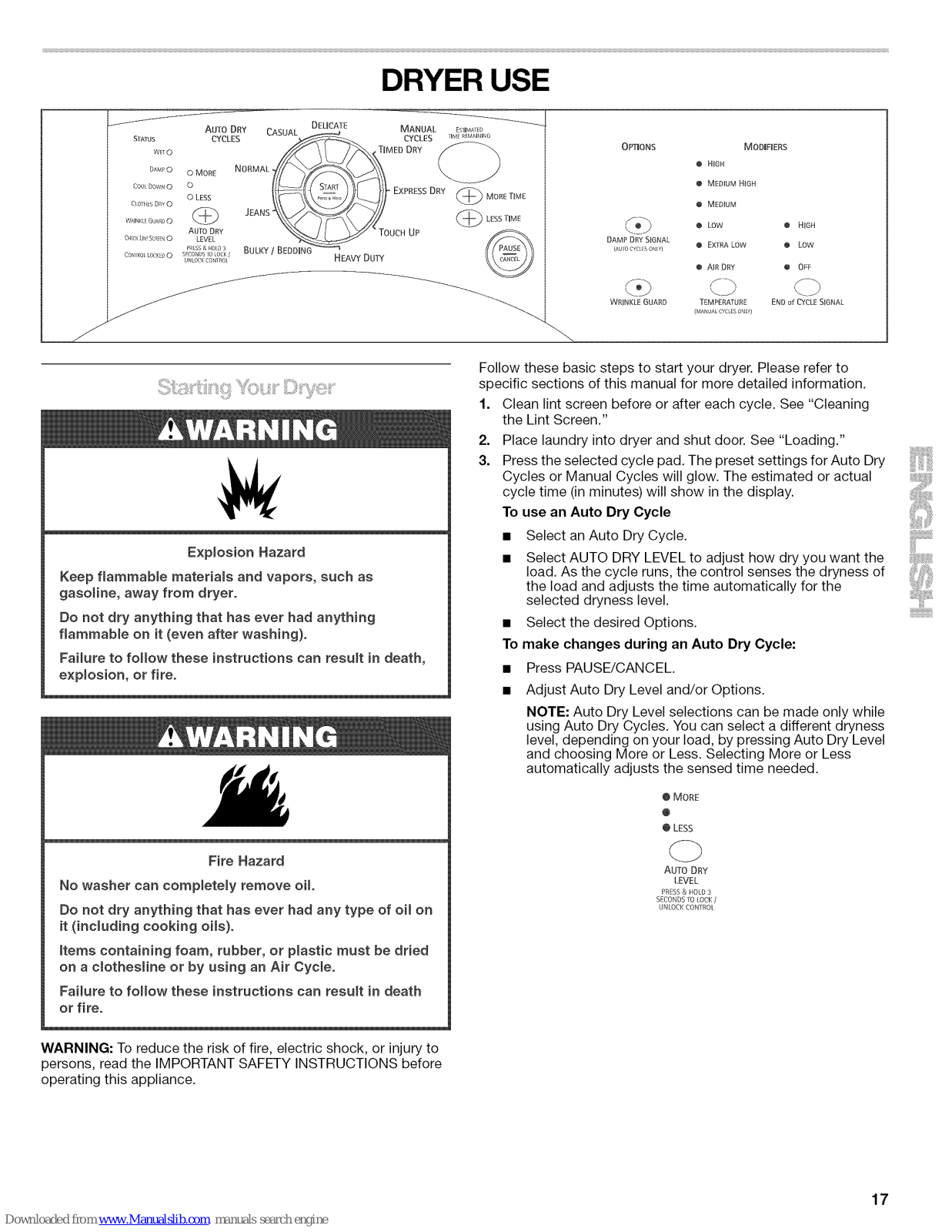

DRYER USE ................................................................................. 17

Starting Your Dryer .................................................................... 17

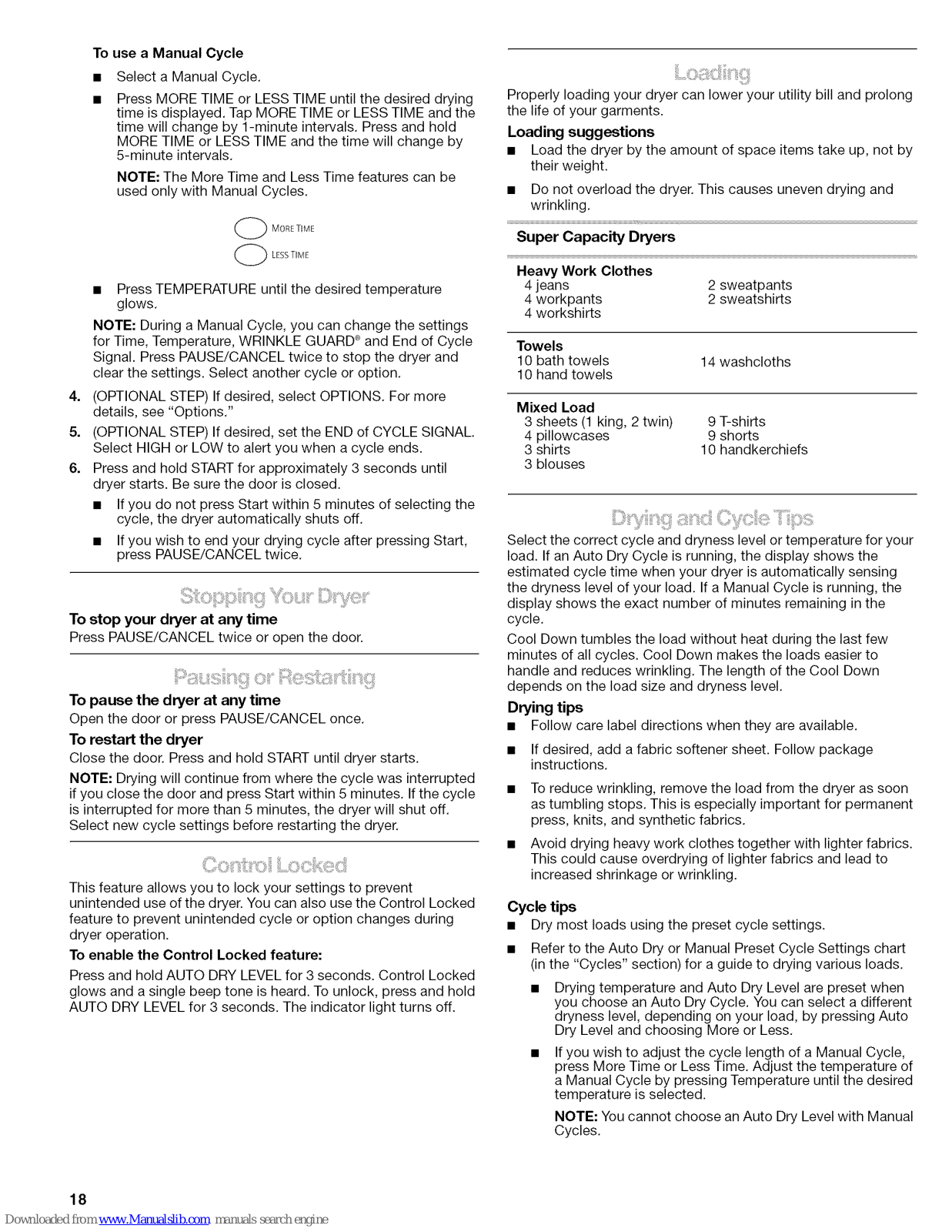

Stopping Your Dryer .................................................................. 18

Pausing or Restarting ................................................................ 18

Control Locked .......................................................................... 18

Loading ...................................................................................... 18

Drying and Cycle Tips ............................................................... 18

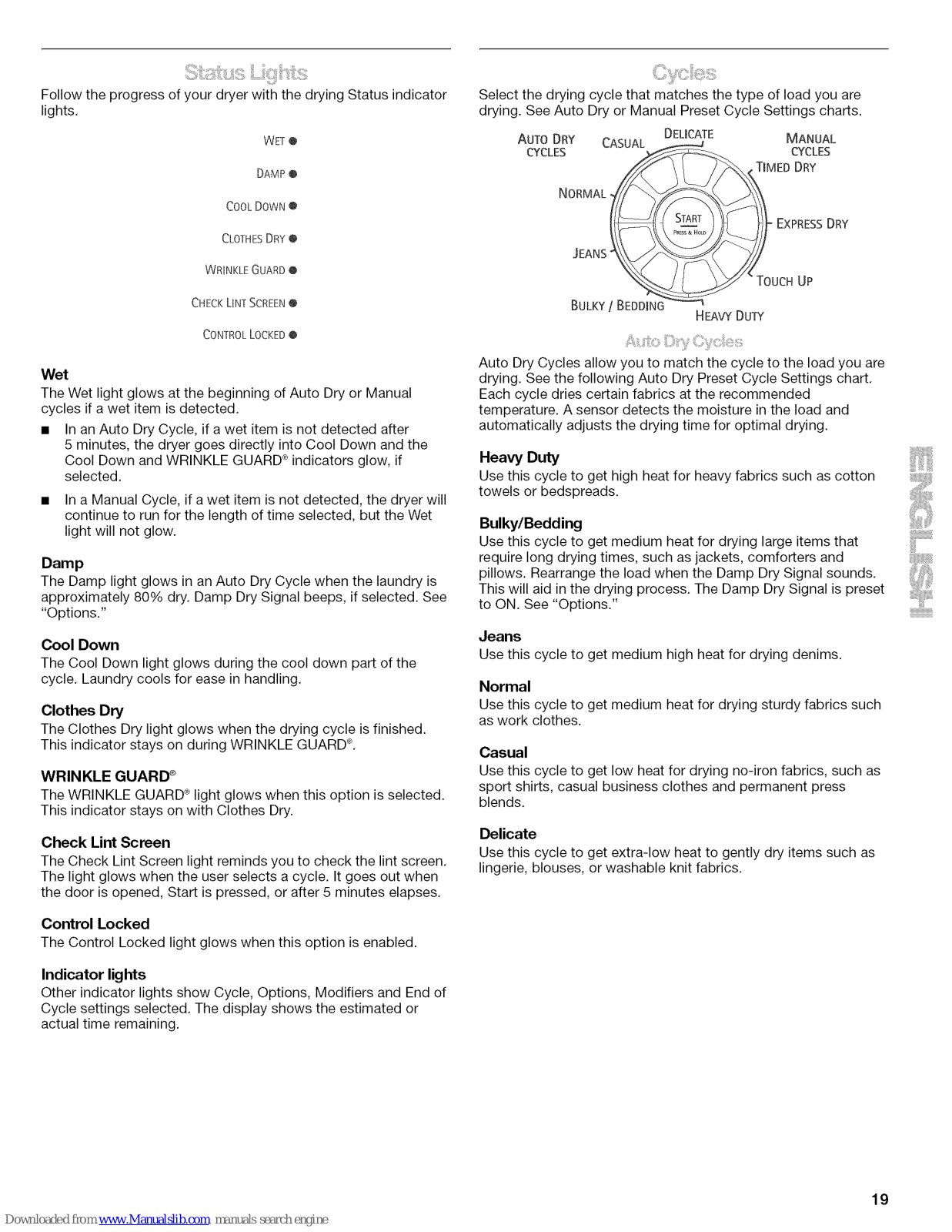

Status Lights .............................................................................. 19

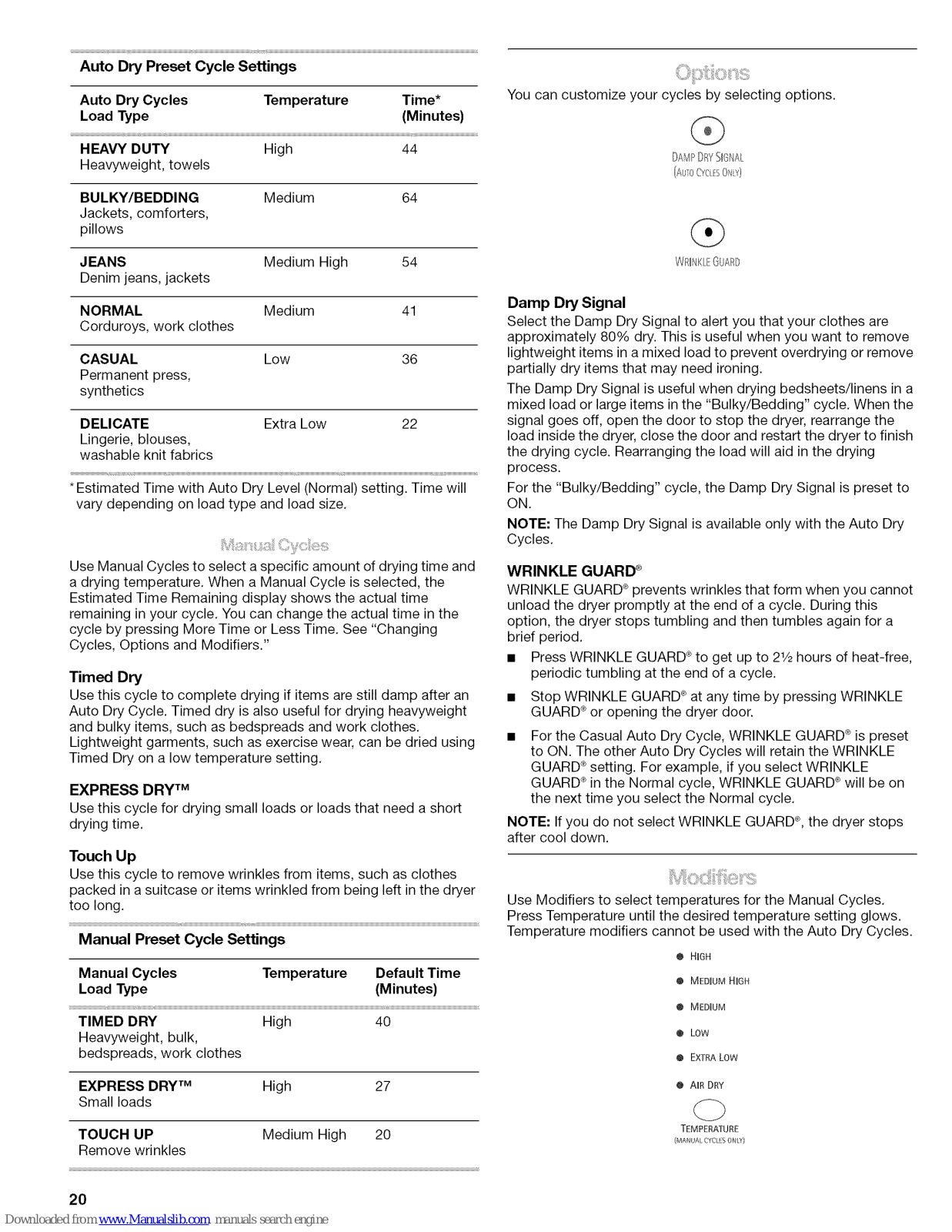

Cycles ........................................................................................ 19

Options ...................................................................................... 20

Modifiers .................................................................................... 20

Changing Cycles, Options and Modifiers ................................. 21

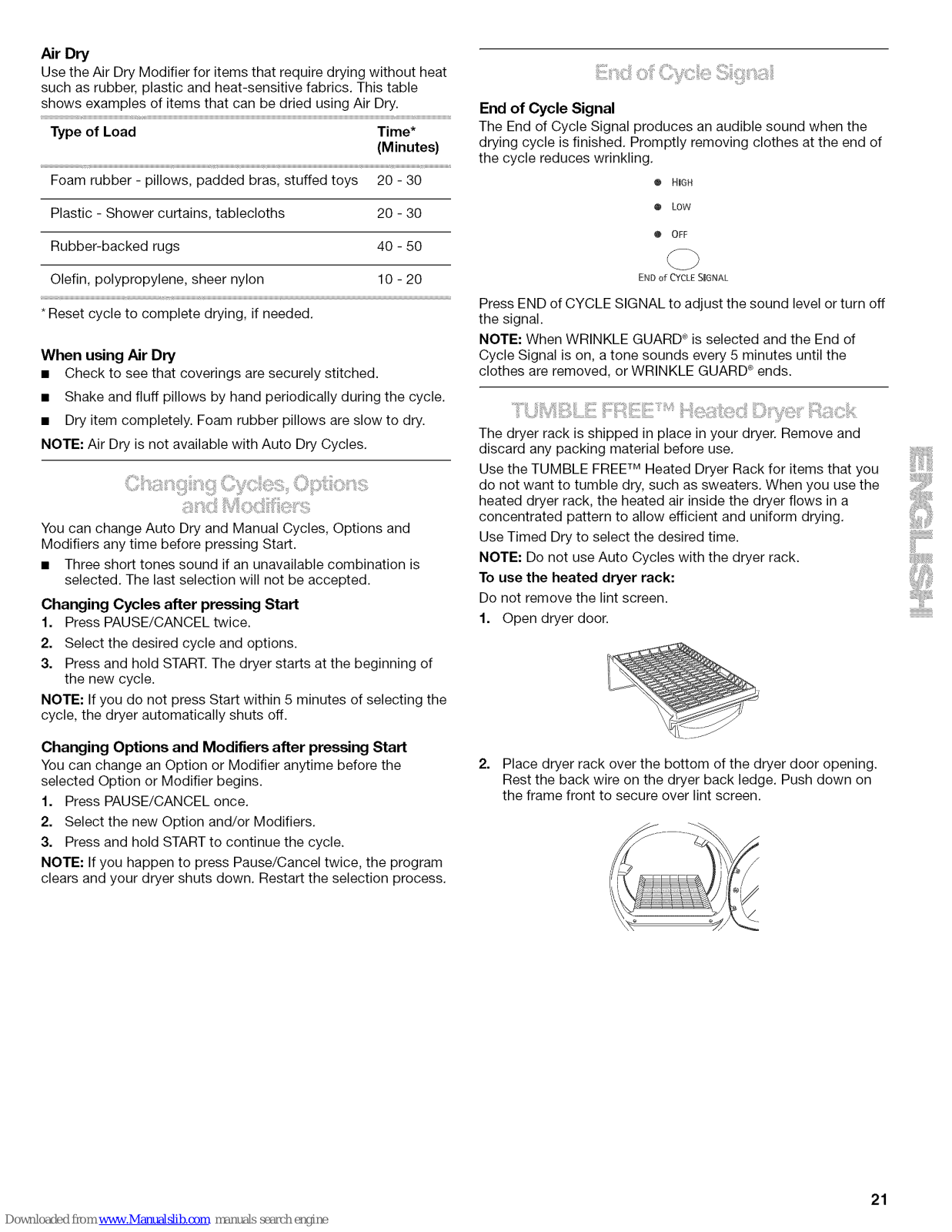

End of Cycle Signal ................................................................... 21

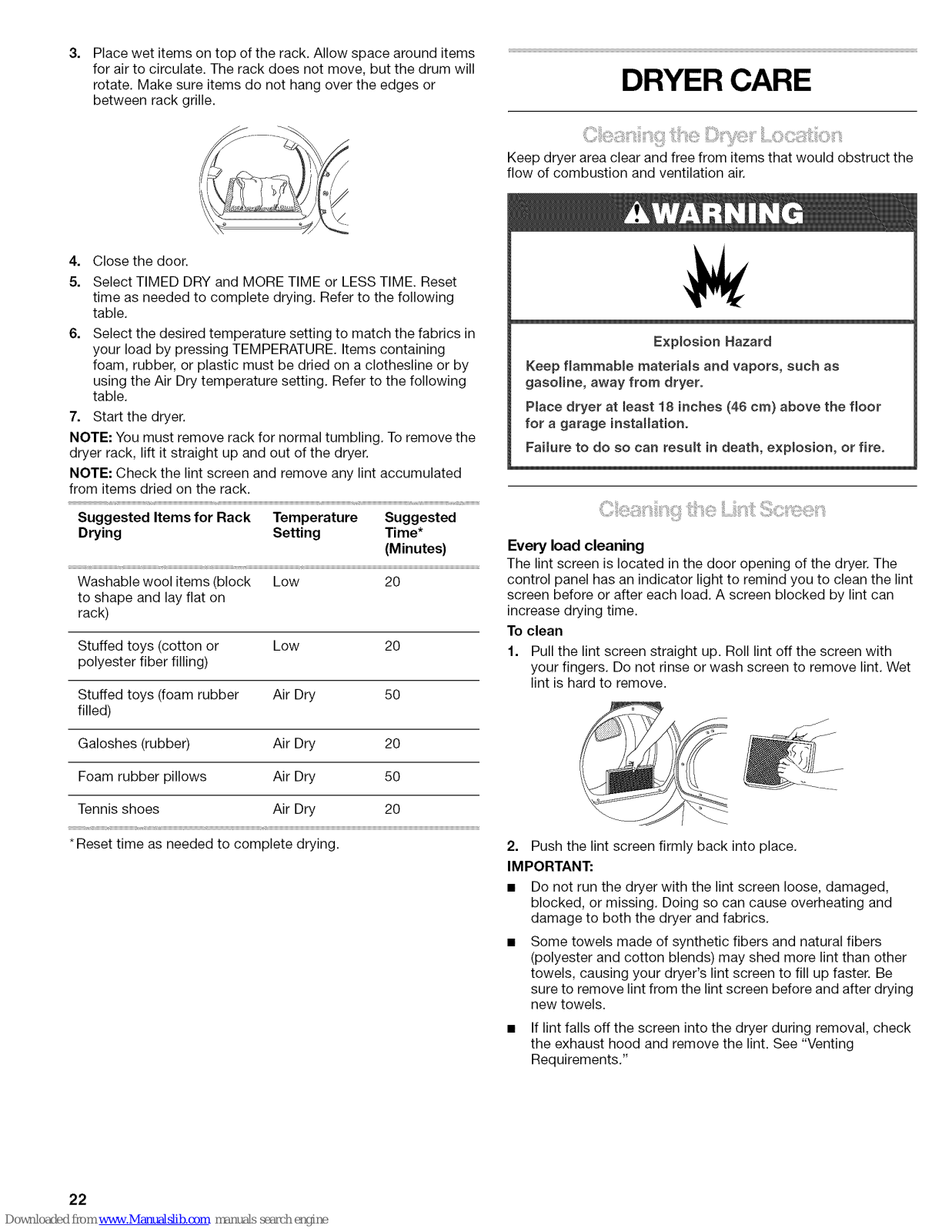

TUMBLE FREETM Heated Dryer Rack ....................................... 21

DRYER CARE .............................................................................. 22

Cleaning the Dryer Location ...................................................... 22

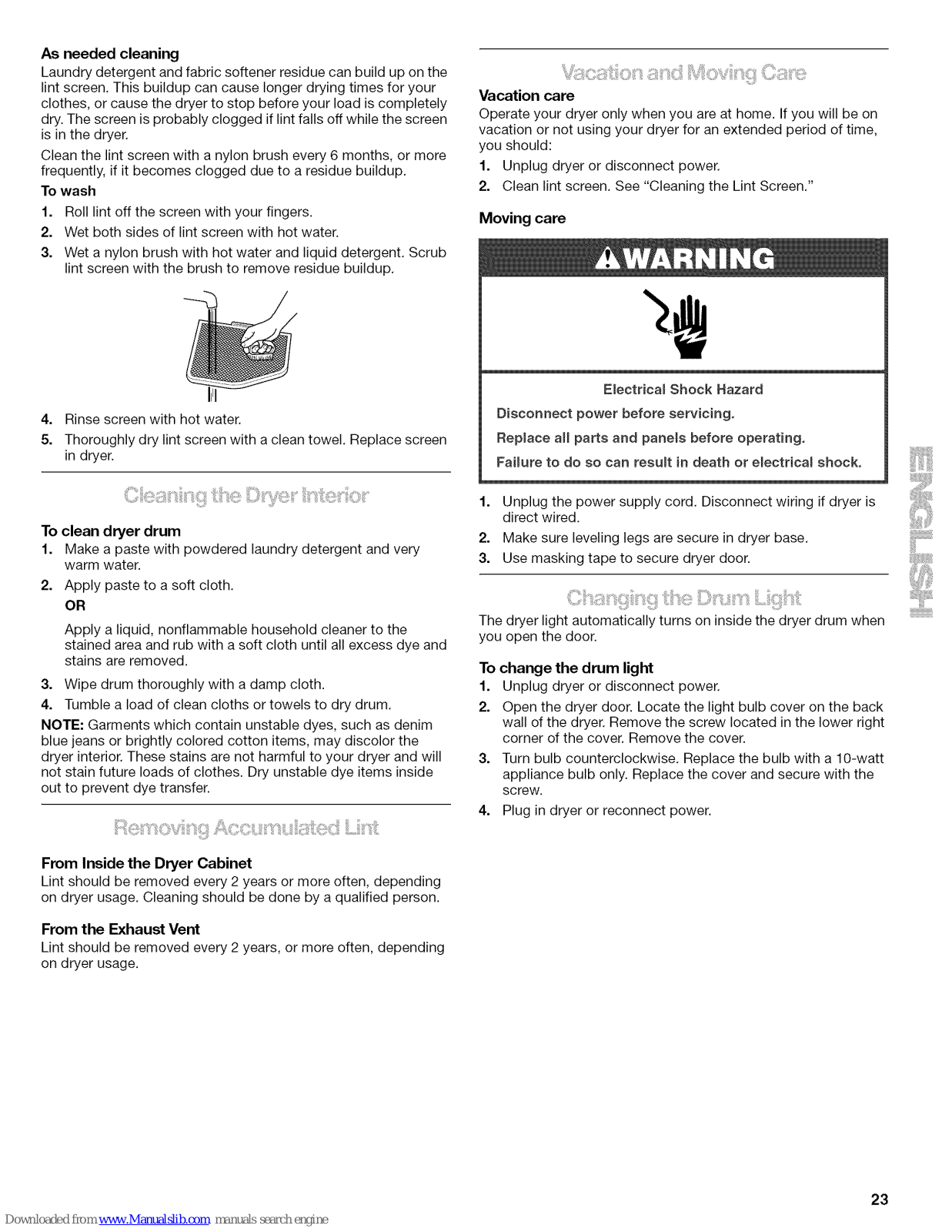

Cleaning the Lint Screen ........................................................... 22

Cleaning the Dryer Interior ........................................................ 23

Removing Accumulated Lint ..................................................... 23

Vacation and Moving Care ........................................................ 23

Changing the Drum Light .......................................................... 23

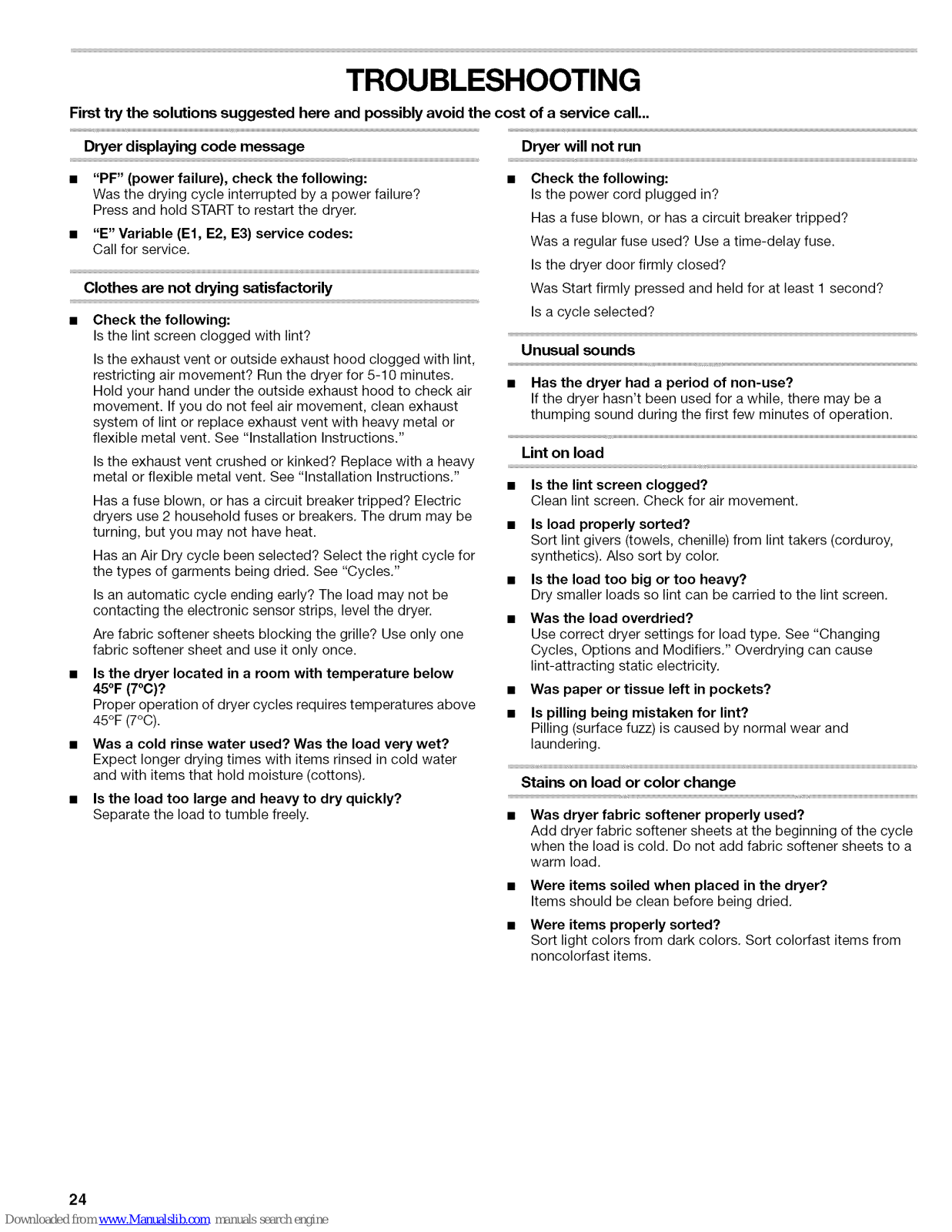

TROUBLESHOOTING .................................................................. 24

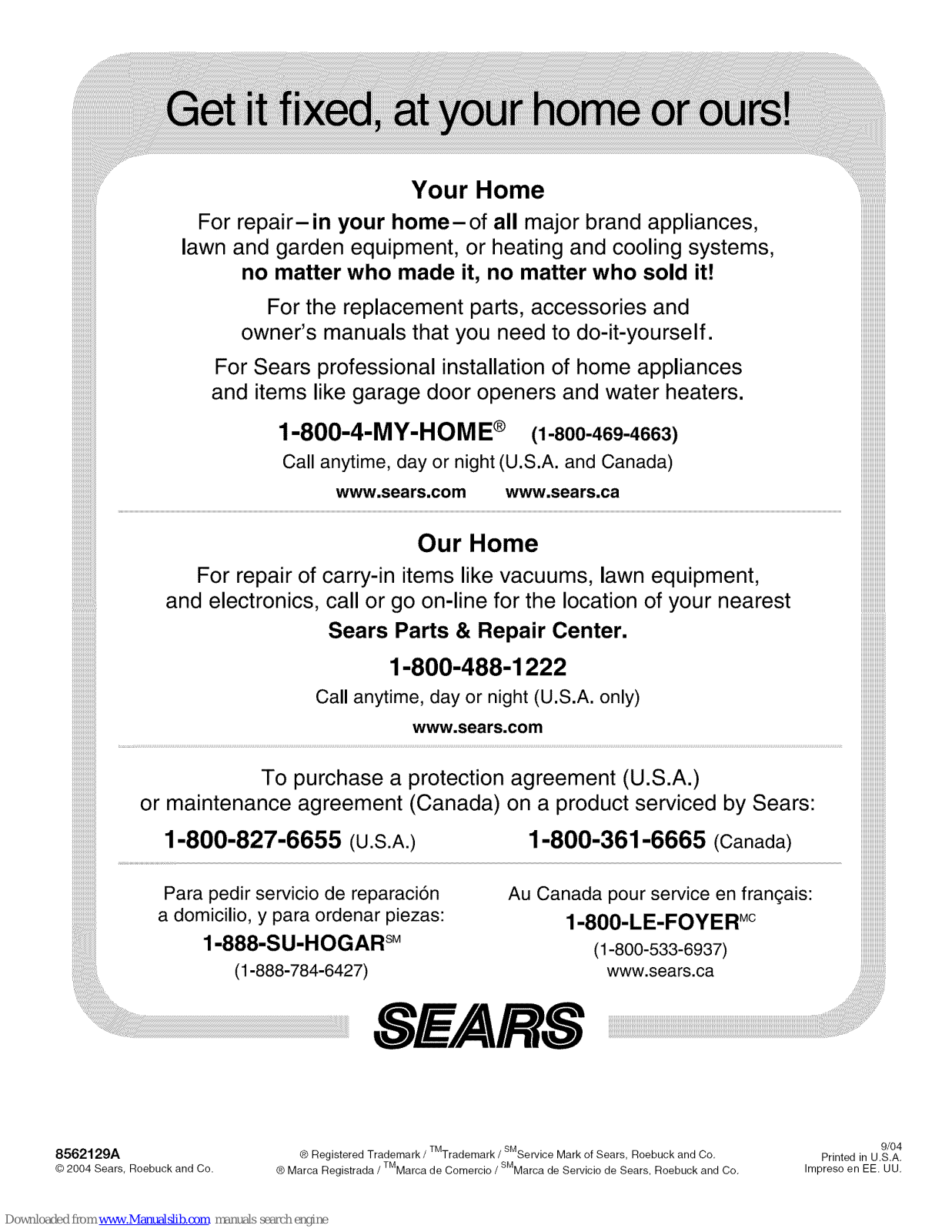

SERVICE NUMBERS ............................................... BACK COVER

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore ®product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new product. Here's what's included in the Agreement:

v' Expert service by our 12,000 professional repair specialists v' Unlimited service and no charge for parts and labor on all

covered repairs

v' "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve months

v' Product replacement if your covered product can't be fixed v' Annual Preventive Maintenance Check at your request - no

extra charge

v' Fast help by phone - phone support from a Sears technician

on products requiring in-home repair, plus convenient repair scheduling

v' Power surge protection against electrical damage due to

power fluctuations

v' Rental reimbursement if repair of your covered product takes

longer than promised

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That's

the kind of professionalism you can count on to help prolong the

life of your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information, call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME ®.

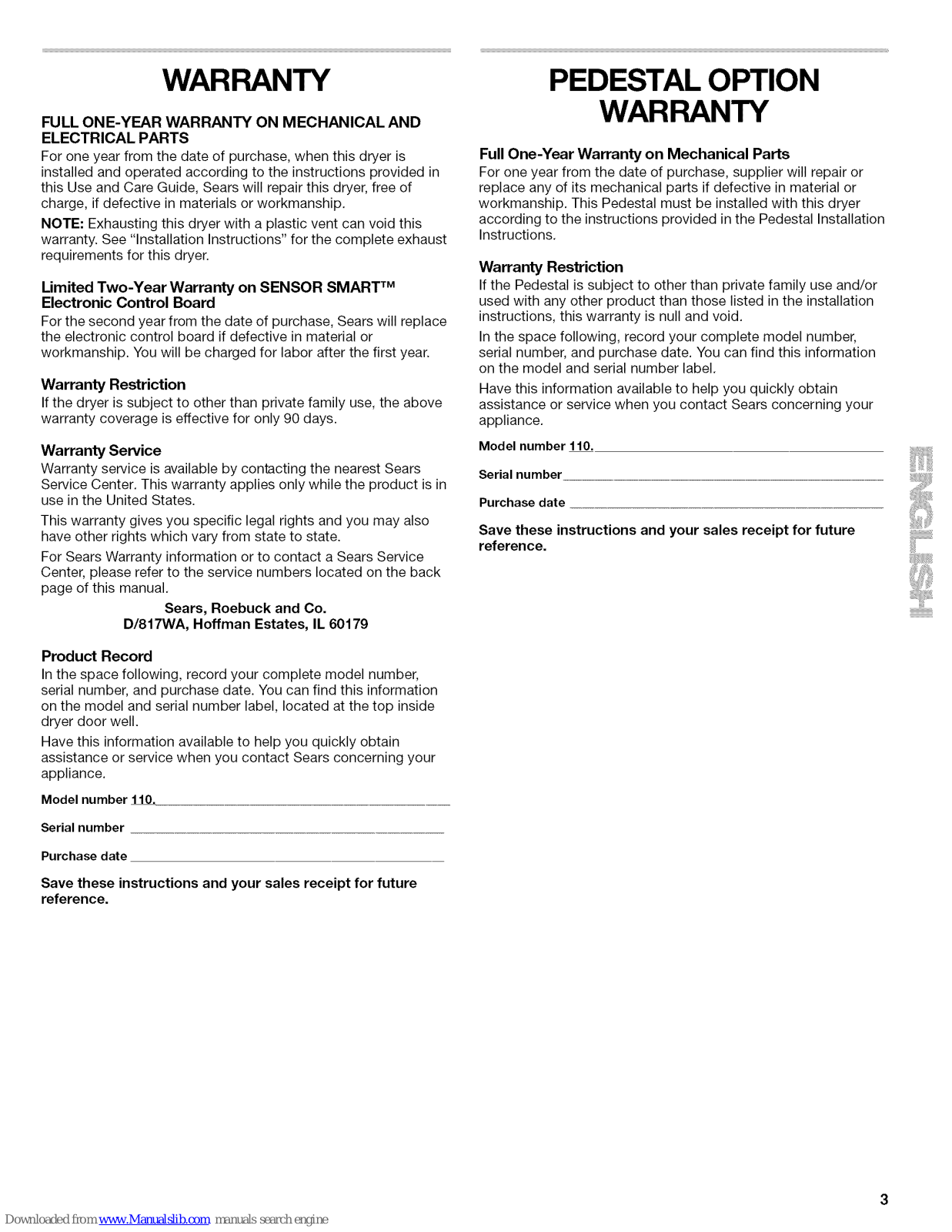

WARRANTY

FULL ONE-YEAR WARRANTY ON MECHANICAL AND ELECTRICAL PARTS

For one year from the date of purchase, when this dryer is installed and operated according to the instructions provided in this Use and Care Guide, Sears will repair this dryer, free of charge, if defective in materials or workmanship.

NOTE: Exhausting this dryer with a plastic vent can void this warranty. See "Installation Instructions" for the complete exhaust requirements for this dryer.

Limited Two-Year Warranty on SENSOR SMART TM Electronic Control Board

For the second year from the date of purchase, Sears will replace the electronic control board if defective in material or

workmanship. You will be charged for labor after the first year.

Warranty Restriction

If the dryer is subject to other than private family use, the above warranty coverage is effective for only 90 days.

Warranty Service

Warranty service is available by contacting the nearest Sears Service Center. This warranty applies only while the product is in

use in the United States. This warranty gives you specific legal rights and you may also

have other rights which vary from state to state. For Sears Warranty information or to contact a Sears Service

Center, please refer to the service numbers located on the back page of this manual.

Sears, Roebuck and Co.

D/817WA, Hoffman Estates, IL 60179

Product Record

In the space following, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label, located at the top inside dryer door well.

Have this information available to help you quickly obtain assistance or service when you contact Sears concerning your appliance.

Model number 110.

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

PEDESTAL OPTION

WARRANTY

Full One-Year Warranty on Mechanical Parts

For one year from the date of purchase, supplier will repair or replace any of its mechanical parts if defective in material or workmanship. This Pedestal must be installed with this dryer according to the instructions provided in the Pedestal Installation

Instructions.

Warranty Restriction

If the Pedestal is subject to other than private family use and/or used with any other product than those listed in the installation instructions, this warranty is null and void.

In the space following, record your complete model number, serial number, and purchase date. You can find this information

on the model and serial number label. Have this information available to help you quickly obtain

assistance or service when you contact Sears concerning your appliance.

Model number 110.

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

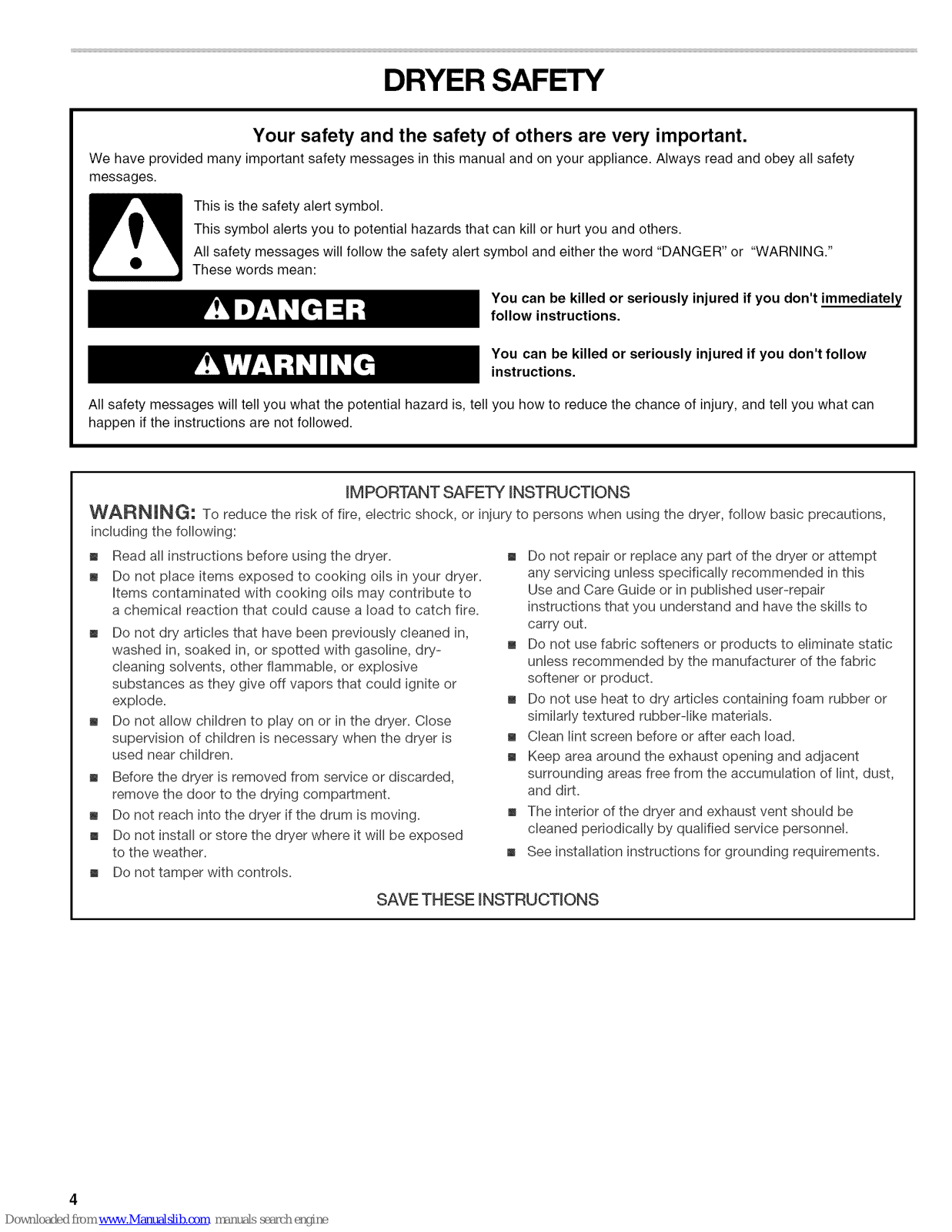

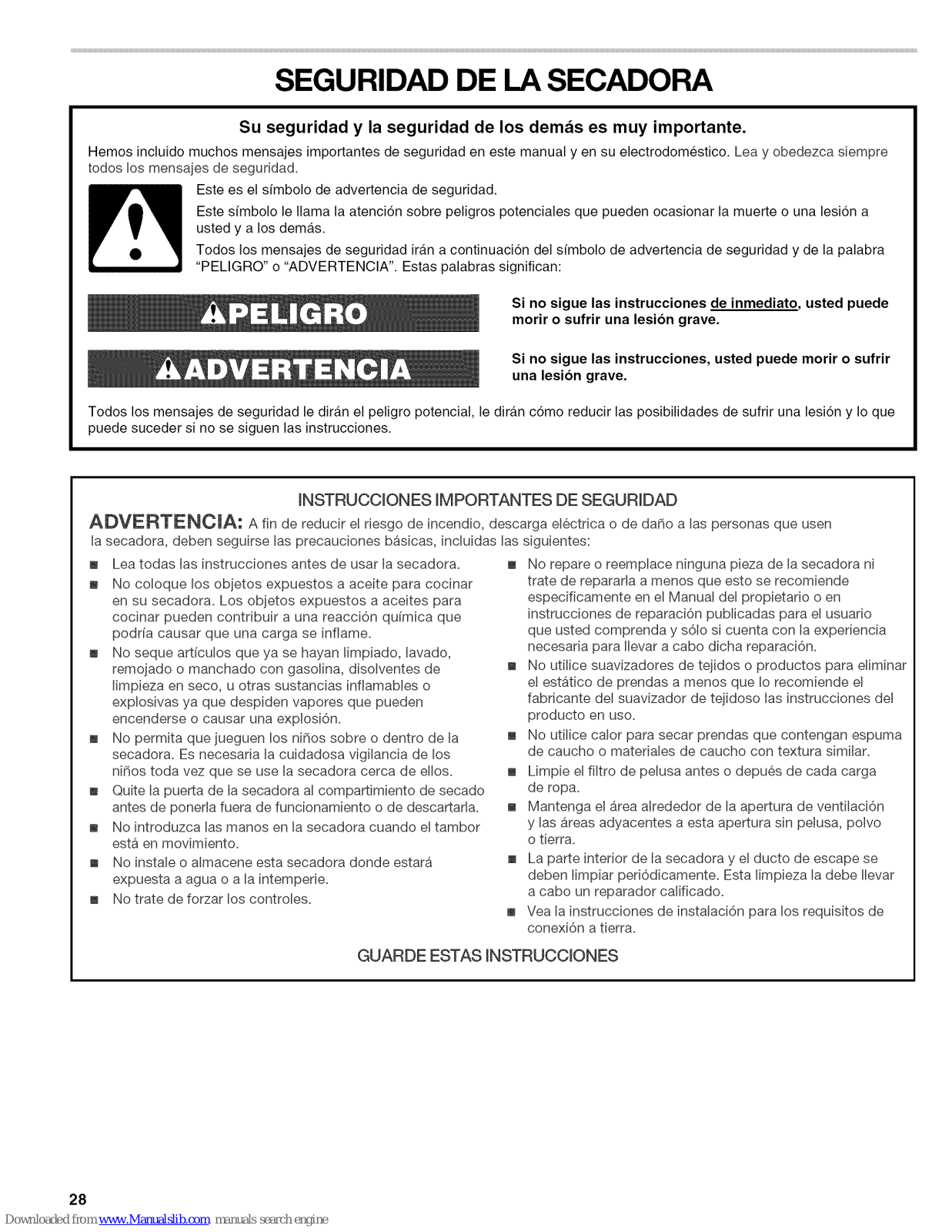

DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

iMPORTANT SAFETY iNSTRUCTiONS

WARNUNG: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,

including the following:

m Read all instructions before using the dryer. m Do not place items exposed to cooking oils in your dryer.

Htems contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

m Do not dry articles that have been previously cleaned in,

washed in, soaked in, or spotted with gasoline, dry= cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode=

m Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is used near children.

m Before the dryer is removed from service or discarded,

remove the door to the drying compartment.

m Do not reach into the dryer if the drum is moving. m Do not install or store the dryer where it will be exposed

to the weather.

m Do not tamper with controls.

m Do not repair or replace any part of the dryer or attempt

any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.

m Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric softener or product.

m Do not use heat to dry articles containing foam rubber or

similariy textured rubber-like materials.

,, Clean lint screen before or after each load. m Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust, and dirt.

The interior of the dryer and exhaust vent should be cleaned periodicaily by qualified service personnel.

See installation instructions for grounding requirements.

SAVE THESE INSTRUCTIONS

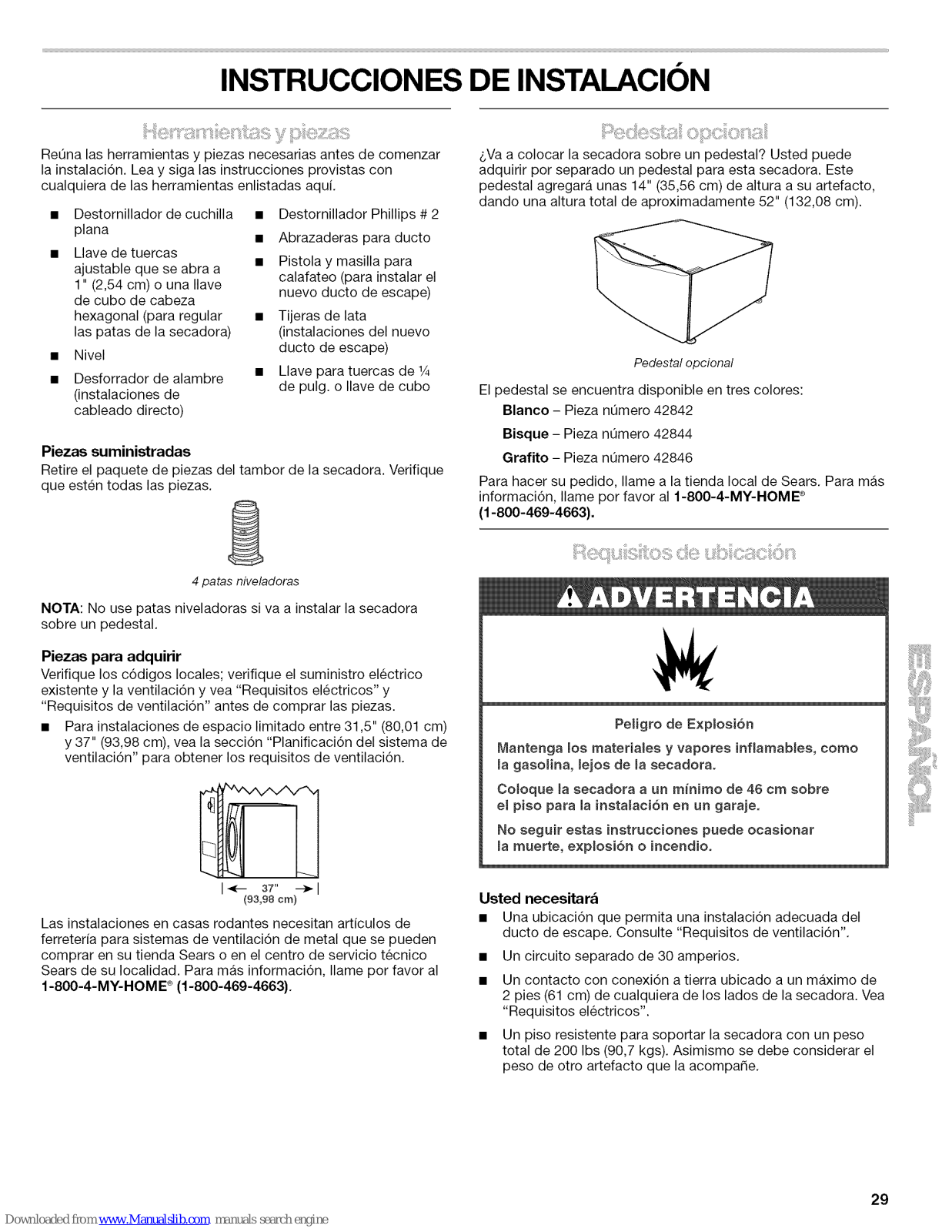

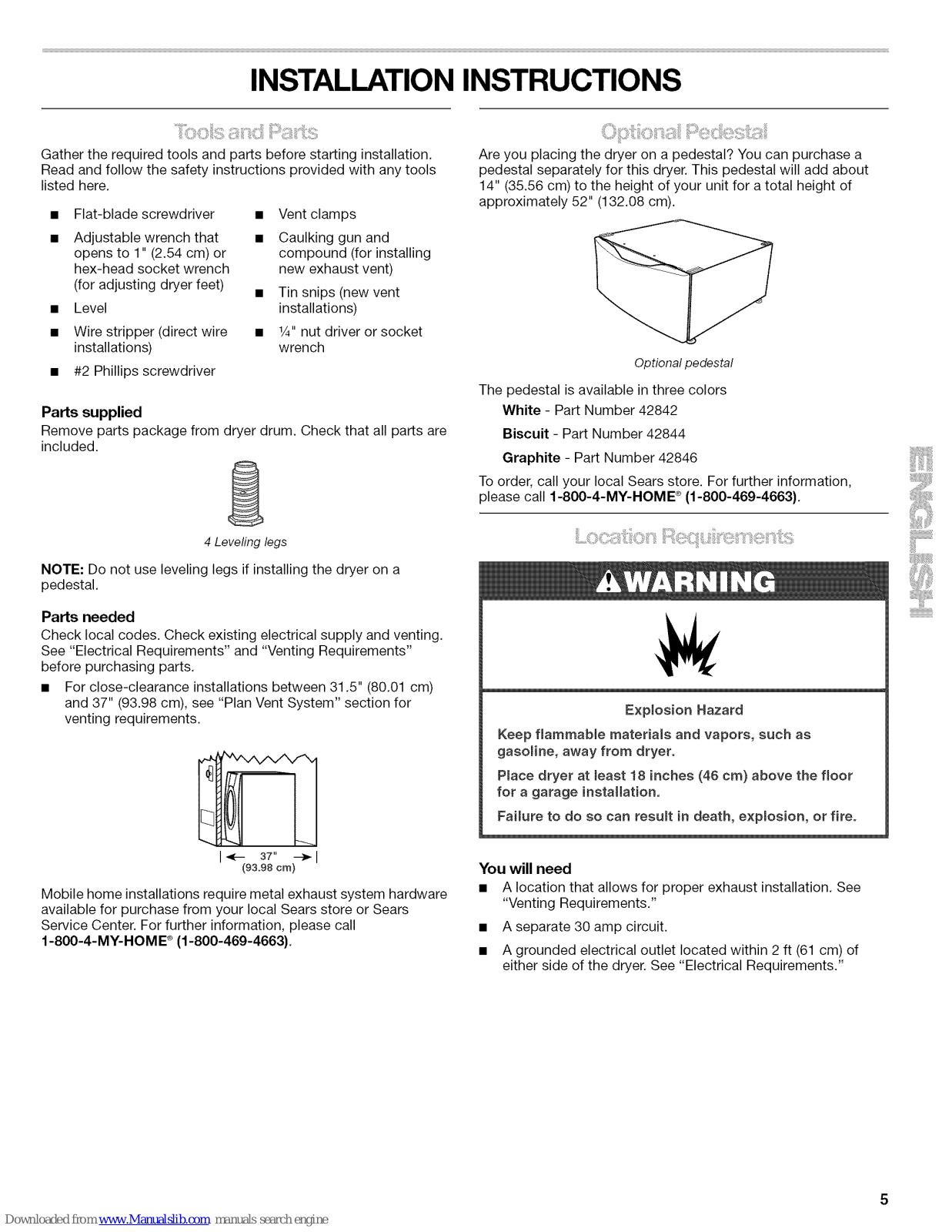

INSTALLATION INSTRUCTIONS

Gather the required tools and parts before starting installation. Read and follow the safety instructions provided with any tools

listed here.

• Flat-blade screwdriver • Vent clamps

• Adjustable wrench that • Caulking gun and opens to 1" (2.54 cm) or compound (for installing hex-head socket wrench new exhaust vent)

(for adjusting dryer feet) • Tin snips (new vent

• Level installations)

• Wire stripper (direct wire • 1A"nut driver or socket installations) wrench

• #2 Phillips screwdriver

Parts supplied

Remove parts package from dryer drum. Check that all parts are included.

4Leveling legs

NOTE: Do not use leveling legs if installing the dryer on a pedestal.

Parts needed

Check local codes. Check existing electrical supply and venting. See "Electrical Requirements" and "Venting Requirements" before purchasing parts.

• For close-clearance installations between 31.5" (80.01 cm) and 37" (93.98 cm), see "Plan Vent System" section for venting requirements.

I_- 37" --_1

(93.98 cm)

Mobile home installations require metal exhaust system hardware available for purchase from your local Sears store or Sears Service Center. For further information, please call 1-80O-4-MY-HOME ®(1-800-469-4663).

Are you placing the dryer on a pedestal? You can purchase a pedestal separately for this dryer. This pedestal will add about 14" (35.56 cm) to the height of your unit for a total height of approximately 52" (132.08 cm).

Optional pedestal

The pedestal is available in three colors

White - Part Number 42842 Biscuit - Part Number 42844

Graphite - Part Number 42846

To order, call your local Sears store. For further information, please call 1-80O-4-MY-HOME ®(1-800-469-4663).

Explosion Hazard

Keep flammable materials and vapors, such as gasomine, away from dryer.

Pmacedryer at Beast 18 inches (46 cm) above the floor

for a garage installation.

Failure to do so can resumt in death, expmosion, or fire.

You will need

• A location that allows for proper exhaust installation. See "Venting Requirements."

• A separate 30 amp circuit.

• A grounded electrical outlet located within 2 ft (61 cm) of either side of the dryer. See "Electrical Requirements."

• Asturdyfloortosupportthetotaldryerweightof200Ibs (90.7kg).Thecombinedweightofacompanionappliance

shouldalsobeconsidered. Alevelfloorwithamaximumslopeof1"(2.5cm)underentire

dryer.(Ifslopeisgreaterthan1"[2.5cm],installExtended DryerFeetKit,PartNo.279810.)Clothesmaynottumble properlyandautomaticsensorcyclesmaynotoperate correctlyifdryerisnotlevel.

• Foragarageinstallation,youwillneedtoplacethedryerat least18"(46cm)abovethefloor.Ifusingapedestal,youwill needanadditional6"(15.24cm).

Donotoperateyourdryerattemperaturesbelow45°F(7°C).At lowertemperatures,thedryermightnotshutoffattheendofan automaticcycle.Dryingtimescanbeextended.

Thedryermustnotbeinstalledorstoredinanareawhereitwill beexposedtowaterand/orweather.

Checkcoderequirements.Somecodeslimit,ordonotpermit, installationofthedryeringarages,closets,mobilehomes,or sleepingquarters.Contactyourlocalbuildinginspector.

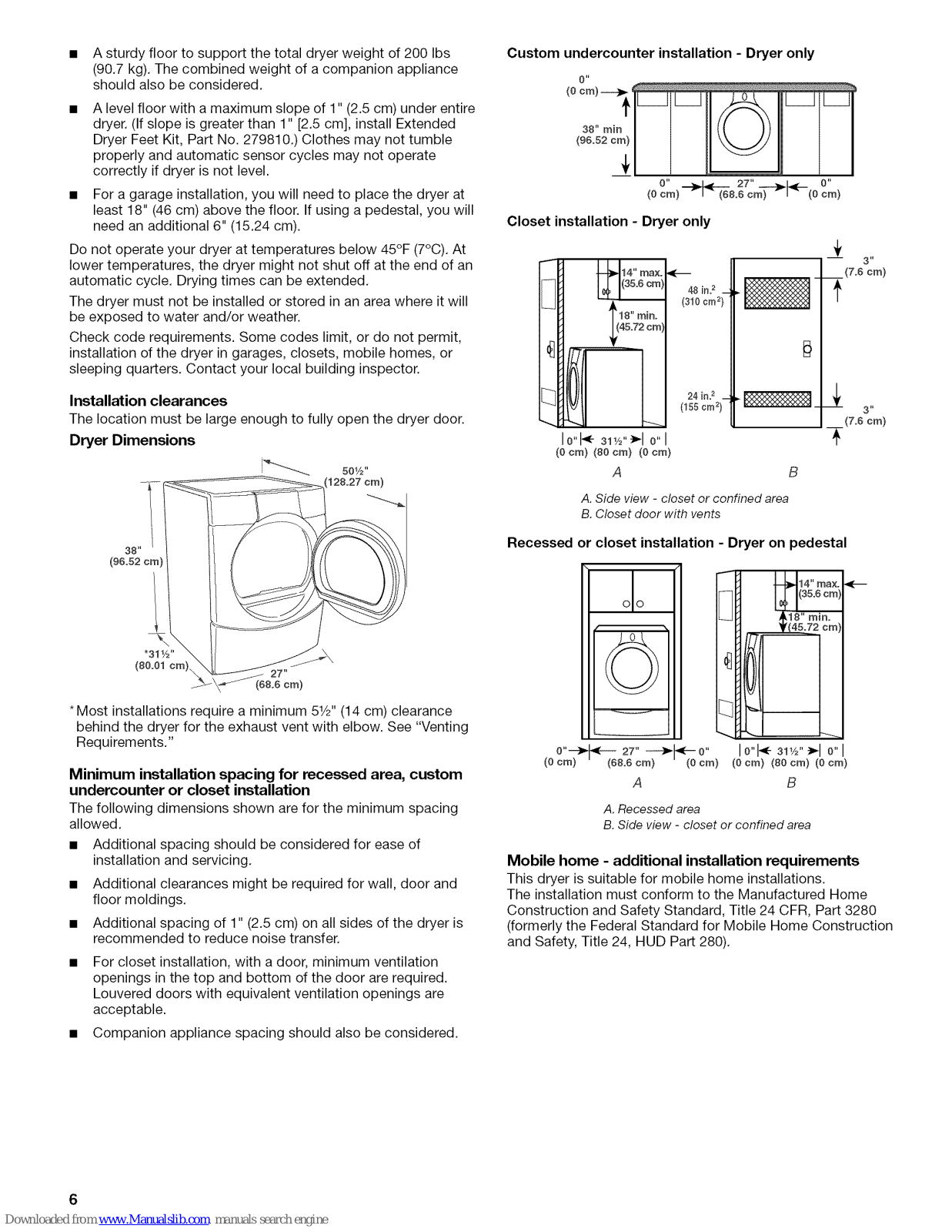

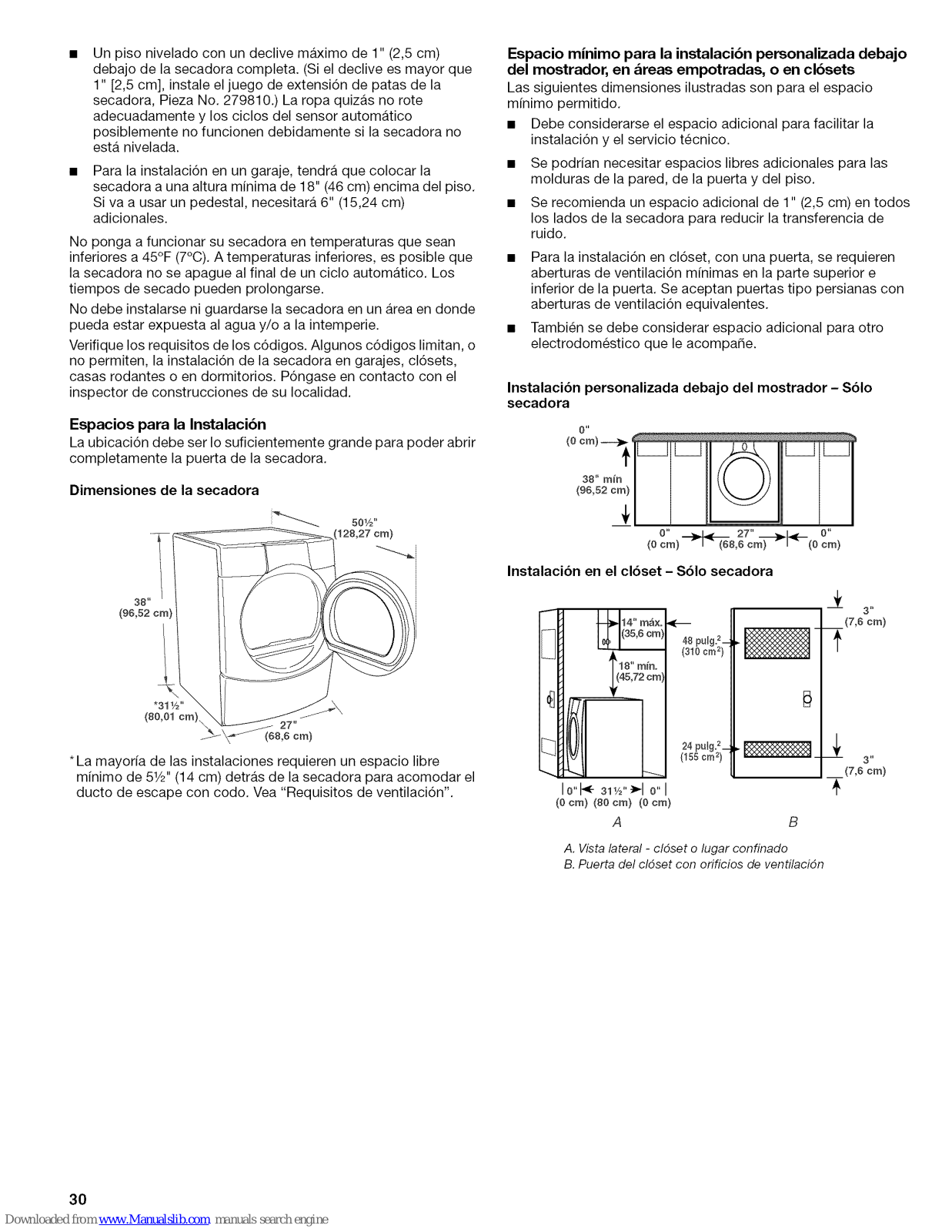

Installation clearances

The location must be large enough to fully open the dryer door.

Dryer Dimensions

i_'-----. 68v="

128.27 crn)

*Most installations require a minimum 51/2'' (14 cm) clearance

behind the dryer for the exhaust vent with elbow. See "Venting Requirements."

Minimum installation spacing for recessed area, custom undercounter or closet installation

The following dimensions shown are for the minimum spacing allowed.

• Additional spacing should be considered for ease of installation and servicing.

• Additional clearances might be required for wall, door and floor moldings.

• Additional spacing of 1" (2.5 cm) on all sides of the dryer is recommended to reduce noise transfer.

For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

• Companion appliance spacing should also be considered.

Custom undercounter installation - Dryer only

98"rein I I ml

(96.52 c_._

O" _ 27" ---_1_-- O"

(0 Ore) " I " (68.8 ere) " I - (0 ere)

Closet installation - Dryer only

4 in? _

crr_2)

Io"l* 31'/2"_'1 o"l

(ocre) (80cre) (ocre)

A B

A. Side view - closet or confined area B. Closet door with vents

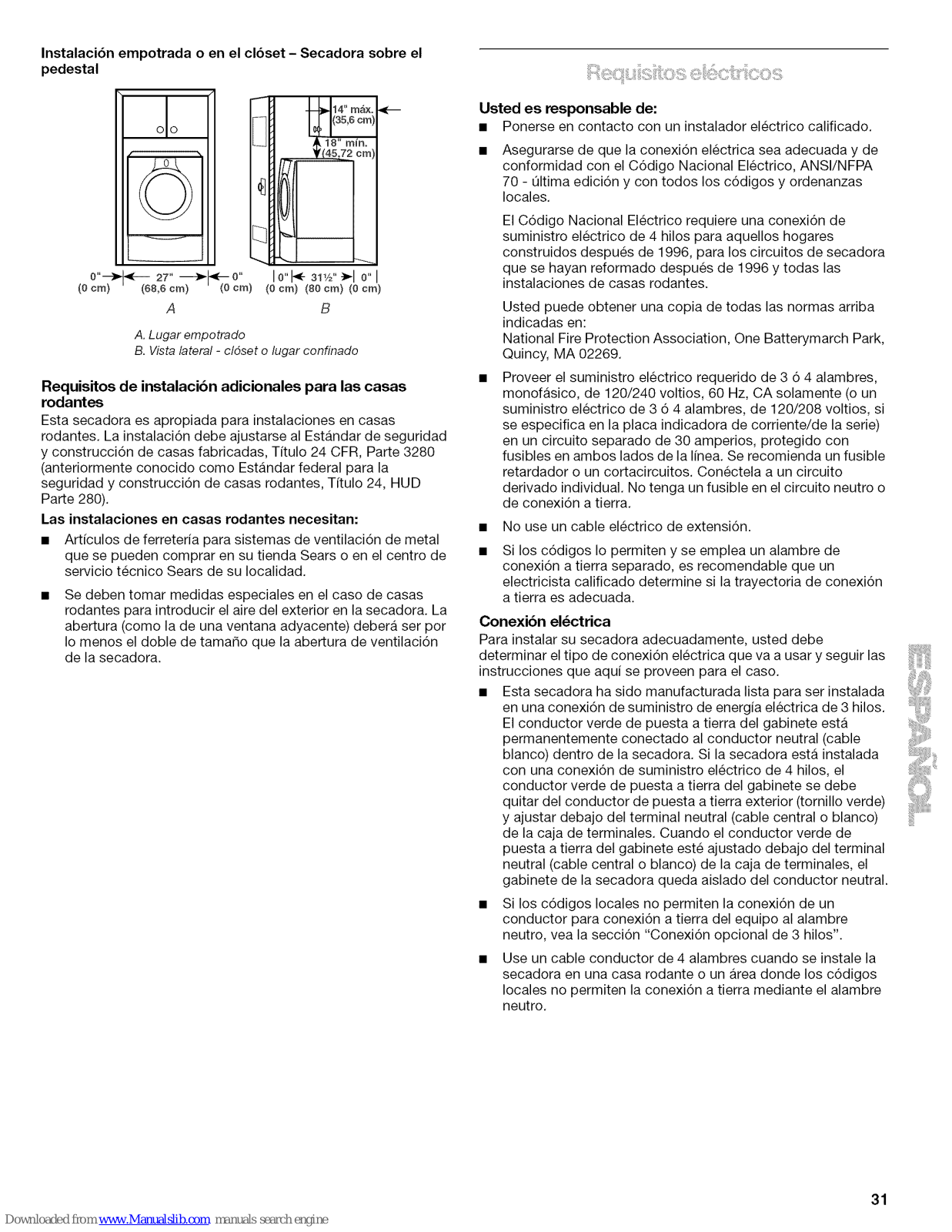

Recessed or closet installation - Dryer on pedestal

-- 3"

(7.8 cre)

A. Recessed area B. Side view - closet or confined area

(7.8 cre)

Mobile home - additional installation requirements

This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280).

Mobile home installations require:

• Metal exhaust system hardware which is available for purchase from your local Sears store or Sears Service Center.

Special provisions must be made in mobile homes to introduce outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.

It is your responsibility

• To contact a qualified electrical installer.

• To be sure that the electrical connection is adequate and in conformance with the National Electrical Code, ANSI/NFPA

70-latest edition and all local codes and ordinances. The National Electric Code requires a 4-wire supply

connection for homes built after 1996, dryer circuits involved in remodeling after 1996, and all mobile home installations.

A copy of the above code standards can be obtained from: National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269.

Tosupply the required 3 or 4 wire, single phase, 120/240-volt, 60-Hz., AC-only electrical supply (or 3 or 4 wire, 120/208-volt electrical supply, if specified on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect

to an individual branch circuit. Do not have a fuse in the neutral or grounding circuit.

• Do not use an extension cord.

• If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Electrical Connection

To properly install your dryer, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

• This dryer is manufactured ready to install with a 3-wire electrical supply connection. The green cabinet-grounding conductor is permanently connected to the neutral conductor (white wire) within the dryer. If the dryer is installed with a 4-wire electrical supply connection, the green cabinet- grounding conductor must be removed from the external ground conductor screw (green screw), and secured under the neutral terminal (center or white wire) of the terminal block. When the green cabinet-grounding conductor is secured under the neutral terminal (center or white wire) of the terminal block, the dryer cabinet is isolated from the

neutral conductor.

• If local codes do not permit the connection of a cabinet ground conductor to the neutral wire, see "Optional 3-wire

connection section.

• Use a 4-wire conductor cord when the dryer is installed in a mobile home or an area where local codes do not permit grounding through the neutral.

If using a power supply cord: Use a UL listed power supply cord kit marked for use with

clothes dryers. The kit should contain:

• A UL listed 30 amp power supply cord, rated 120/240-volt minimum. The cord should be type SRD or SRDT and be at least 4 ft (1.22 m) long. The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends.

• A UL listed strain relief.

If your outlet looks like this:

4-wire receptacle (14-30R)

Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord, at least 4 ft (1.22 m) long, must have 4, 10-gauge copper wires and match a 4-wire receptacle of NEMA Type 14-30R. The ground wire (ground conductor) may be either green or bare. The neutral conductor must be identified by a white

cover.

If your outlet looks like this:

3-wire receptacle (10-30R)

Then choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire power supply cord, at least 4 ft (1.22 m) long, must have 3, 10-gauge copper wires and match a 3-wire receptacle of NEMA Type 10-30R.

If connecting by direct wire:

Power supply cable must match power supply (4-wire or 3-wire) .....

and be:

• Flexible armored cable or nonmetallic sheathed copper cable _'_; (with ground wire), protected with flexible metallic conduit. All

current-carrying wires must be insulated.

• 10-gauge solid copper wire (do not use aluminum).

• At least 5 ft (1.52 m) long.

GROUNDING INSTRUCTIONS

m For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer uses a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged

into an appropriate outlet that is properly installed and grounded in accordance with atI local codes and ordinances.

m For a permanently connected dryer: This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-grounding

conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on

the dryer. WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the ptug on the power supply cord: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

Power Supply Cord Direct Wire

Fire Hazard

Use a new UL misted 30 amp power suppmy cord. Use a UL misted strain remief,

Disconnect power before making emectrical connections. Connect neutraB wire (white or center wire) to center

terminal (silveO,

Ground wire (green or bare wire) must be connected to green ground connector,

Connect remaining 2 supply wires to remaining 2 terminams (gored).

Securemy tighten aiBemectricat connections. Failure to do so can resumt in death, fire, or

emectrical shock,

1. Disconnect power.

2. Remove the hold-down screw and terminal block cover,

Fire Hazard

Use 10 gauge somid copper wire. Use a UL misted strain relief=

Disconnect power before making emectricamconnections. Connect neutraB wire (white or center wire) to center

terminal (silver),

Ground wire (green or bare wire) must be connected to green ground connector.

Connect remaining 2 suppmy wires to remaining 2 terminals (gored).

SecureBy tighten aH emectrical connections. FaiBure to do so can resuJt in death, fire, or

emectrical shock.

3. Assemble a 3/,,,(1.9 cm) UL listed strain relief (UL marking on strain relief) into the hole below the terminal block opening.

Tighten strain relief screws just enough to hold the two clamp sections together. Put power supply cord through the strain

relief. The strain relief should have a tight fit with the dryer cabinet and be in a horizontal position.

A. Neutral grounding wire (green with yellow stripes) B. External ground conductor screw C. Center, silver-colored terminal block screw

D. Terminal block cover and hold-down screw

Now complete installation following instructions for your type of electrical connection:

4-wire (recommended) 3-wire (if 4-wire is not available)

Electrical Connection Options

If your home has: And you will be Go to Section

connecting to:

4-wire receptacle A UL listed, 4-wire connection: (NEMA Type 14-30R) 120/240 volt Power supply cord

minimum,

30 amp, dryer power supply

cord*

4-wire direct A fused 4-wire connection:

disconnect or Direct Wire circuit breaker box*

3-wire receptacle A UL listed, (NEMA type 10-30R) 120/240 volt

minimum,

30 amp, dryer power supply

cord*

3-wire connection:

Power supply cord

3-wire direct A fused 3-wire connection:

disconnect or Direct Wire circuit breaker

_;_,,_1 box*

* If local codes do not permit the connection of a frame-

grounding conductor to the neutral wire, go to "Optional 3-wire Connection" section.

4-wire connection: Power supply cord

IMPORTANT: A 4-wire connection is required for mobile homes

and where local codes do not permit the use of 3-wire connections.

A. 4-wire receptacle (NEMA type 14-30R) B. 4-prong plug C. Ground prong D. Neutral prong

E.Spade terminals with upturned ends F. s_" (1.9 cm) UL listed strain relief

G. Ring terminals

Remove center terminal block screw. Remove neutral grounding wire (green with yellow stripes)

from external ground conductor screw. Fasten it under center, silver-colored terminal block screw.

A. External ground conductor screw - Dotted line shows

position of NEUTRAL grounding wire before being

moved to center terminal block screw

B. Center silver-colored terminal block screw C. Green/yellow wire of harness

3. Connect ground wire (green or bare) of power supply cord to

external ground conductor screw. Tighten screw.

4. Connect neutral wire (white or center wire) of power supply cord under center screw of the terminal block.

A. External ground conductor screw B. Ground wire (green or bare) of power supply cord

C. _" (1.9 cm) UL listed strain relief D. Center silver-colored terminal block screw

E.Neutral grounding wire (green with yellow stripes)

Neutral wire (white or center wire)

5. Connect the other wires to outer terminal block screws. Tighten screws.

6. Tighten strain relief screws.

7. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.

4-wire connection: Direct wire

IMPORTANT: A 4-wire connection is required for mobile homes and where local codes do not permit the use of 3-wire connections.

Direct wire cable must have 5 ft (1.52 m) of extra length so dryer can be moved if needed.

Strip 5" (12.7 cm) of outer covering from end of cable, leaving bare ground wire at 5" (12.7 cm). Cut 11/2'' (3.8 cm) from 3 remaining wires. Strip insulation back 1" (2.5 cm). Shape ends of wires into a hook shape.

When connecting to the terminal block, place the hooked end of the wire under the screw of the terminal block (hook facing right), squeeze hooked end together and tighten screw. See example

below.

Remove center terminal block screw. Remove neutral grounding wire (green with yellow stripes)

from external ground conductor screw. Fasten it under center, silver-colored terminal block screw.

A. External ground conductor screw - Dotted line shows

position of NEUTRAL grounding wire before being

moved to center terminal block screw B. Center silver-colored terminal block screw C. Green/yellow wire of harness

3. Connect ground wire (green or bare) of power supply cable to external ground conductor screw. Tighten screw.

A. External ground conductor screw B. Green or bare copper wire of power supply cable C. ¾" (1.9 cm) UL listed strain relief

D. Center silver-colored terminal block screw

E.Neutral grounding wire (green with yellow stripes) F. Neutral wire (white or center wire)

Place the hooked end of the neutral wire (white wire of power supply cable under the center screw of terminal block (hook facing right). Squeeze hooked end together. Tighten screw.

Place the hooked ends of the other power supply cable wires under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.

!! !!

6. Tighten strain relief screws.

7. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.

3-wire connection: Power supply cord

Use where local codes permit connecting cabinet-ground conductor to neutral wire.

D E

A. 3-wire receptacle (NEMA type !0-30R)

B. 3-wire plug C. Neutral prong D. Spade terminals with up turned ends E. _" (1.9 cm) UL listed strain relief

E Ring terminals

G. Neutral (white or center wire)

Loosen or remove center terminal block screw. Connect neutral wire (white or center wire) of power supply

cord to the center, silver-colored terminal screw of the terminal block. Tighten screw.

Place the hooked end of the neutral wire (white or center wire) of power supply cable under the center screw of terminal block (hook facing right). Squeeze hooked end together. Tighten screw.

A. Externalground conductor screw

B.Neutral grounding wire (green with yellow stripes)

C. Centersilver-colored terminal block screw D. Neutral wire (white or center wire)

E._" (1.9cm) UL Iisted strain relief

3. Connect the other wires to outer terminal block screws. Tighten screws.

4. Tighten strain relief screws.

5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.

3-wire connection: Direct wire

Use where local codes permit connecting cabinet-ground conductor to neutral wire.

Direct wire cable must have 5 ft (1.52 m) of extra length so dryer can be moved if needed.

Strip 31/2'' (8.9 cm) of outer covering from end of cable. Strip insulation back 1" (2.5 cm). If using 3-wire cable with ground wire, cut bare wire even with outer covering. Shape ends of wires into a hook shape.

When connecting to the terminal block, place the hooked end of the wire under the screw of the terminal block (hook facing right),

squeeze hooked end together and tighten screw. See example below.

1. Loosen or remove center terminal block screw.

A. External ground conductor screw

B. Neutral grounding wire (green with yellow stripes)

C. Center silver-colored terminal block screw D. Neutral wire (white or center wire)

E. _" (1.9 cm) UL Iisted strain relief

3. Place the hooked ends of the other power supply cable wires

under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.

!! !!

4. Tighten strain relief screws.

5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.

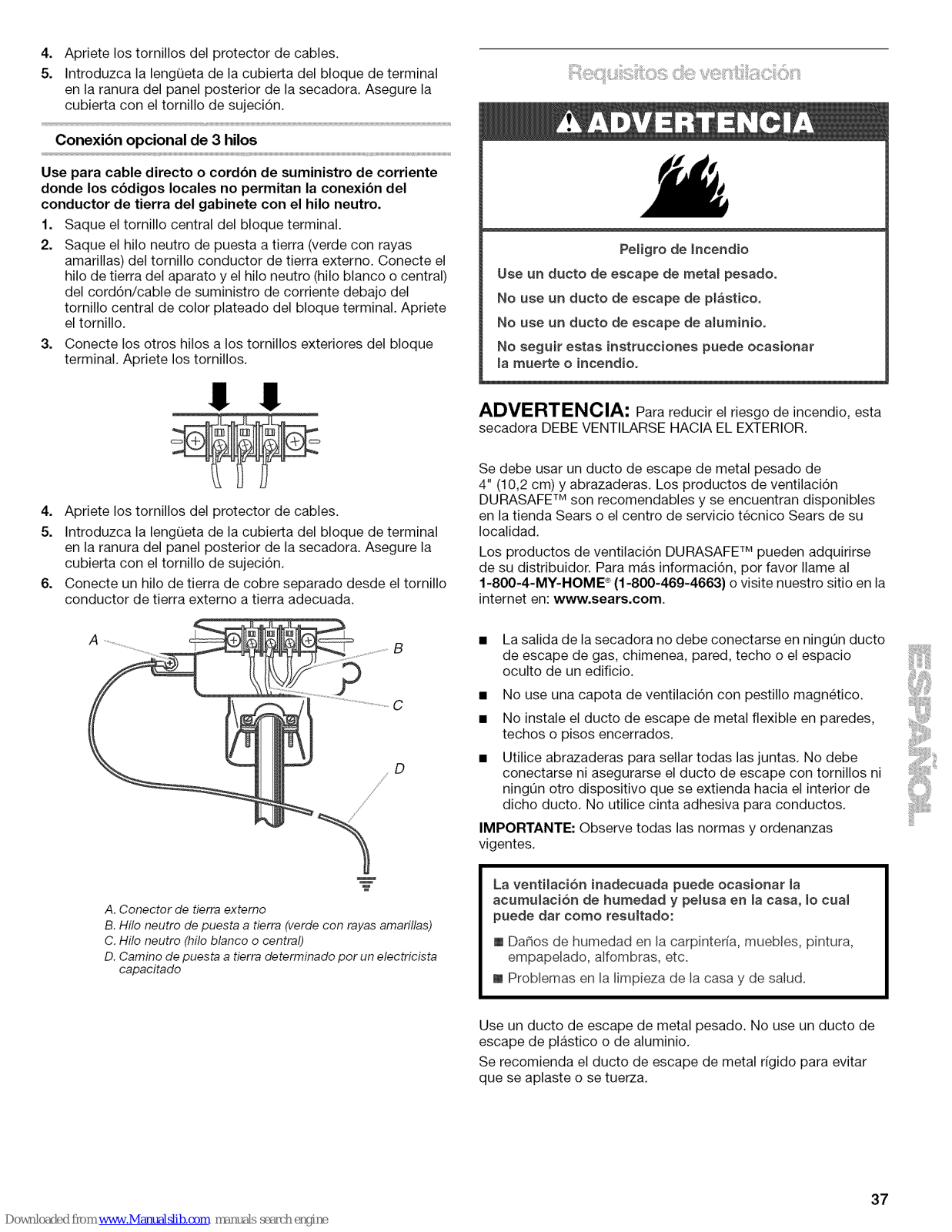

Optional 3-wire connection

Use for direct wire or power supply cord where local codes do not permit connecting cabinet-ground conductor to

neutral wire.

1. Remove center terminal block screw.

2. Remove neutral grounding wire (green with yellow stripes) from external ground conductor screw. Connect appliance ground wire and the neutral wire (white or center wire) of power supply cord/cable under center, silver-colored terminal block screw. Tighten screw.

3. Connect the other wires to outer terminal block screws. Tighten screws.

!! !!

4. Tighten strain relief screws.

5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.

6. Connect a separate copper ground wire from the external ground conductor screw to an adequate ground.

2 ¸¸

A. Externalground conductor screw

B.Neutral grounding wire (green with yellow stripes) C. Neutral wire (white or center wire) D. Grounding path determined by a qualified electrician

Use clamps to seal all joints. Exhaust vent must not be connected or secured with screws or other fastening devices

which extend into the interior of the duct. Do not use duct tape.

IMPORTANT: Observe all governing codes and ordinances.

improper venting can cause moisture and lint to cotlect indoors, which may resumt in:

[] Moisture damage to woodwork, furniture, paint,

wallpaper, carpets, etc=

[] Housecleaning problems and health problems.

Use a heavy metal vent. Do not use plastic or metal foil vent. Rigid metal vent is recommended to prevent crushing and

kinking.

Flexible metal vent must be fully extended and supported when the dryer is in its final position. Remove excess flexible metal vent to avoid sagging and kinking that may result in reduced airflow

and poor performance. An exhaust hood should cap the vent to prevent rodents and

insects from entering the home.

Exhaust hood must be at least 12" (30.5 cm) from the ground or

any object that may be in the path of the exhaust (such as flowers, rocks or bushes, etc.).

If using an existing vent system, clean lint from the entire length

of the system and make sure exhaust hood is not plugged with

lint. Replace any plastic or metal foil vent with rigid metal or flexible metal vent.

Fire Hazard

Use a heavy metal vent. Do not use a pmastic vent. Do not use a metam foil vent. Faimureto fotiow these instructions can result in death

or fire.

WARNING: To reduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS.

4" (10.2 cm) heavy metal exhaust vent and clamps must be used. DURASAFF Mventing products are recommended and are available from your local Sears store or Sears Service Center.

DURASAFE TM vent products can be purchased from your dealer. For further information, please call 1-800-4-MY-HOME ® (1-800-469-4663} or visit our Internet site at: www.sears.com.

• The dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, or a concealed space of a building.

• Do not use an exhaust hood with a magnetic latch.

• Do not install flexible metal vent in enclosed walls, ceilings or floors.

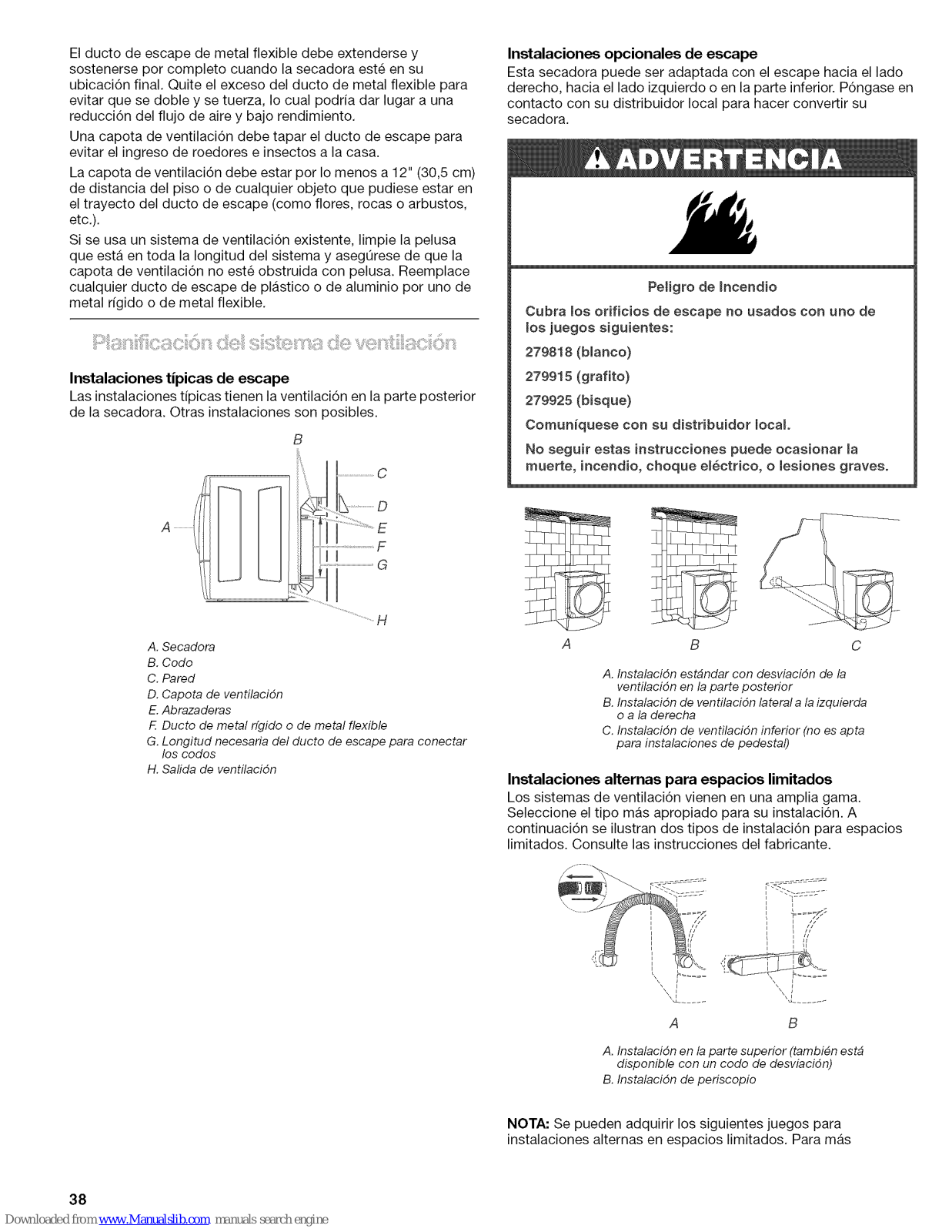

Typical exhaust installations

Typical installations vent the dryer from the rear of the dryer.

Other installations are possible.

...... C

.....................................H

A. Dryer B. Elbow

C. Wall D. Exhaust hood

E. Clamps E Rigid metal or flexible metal vent

G. Vent length necessary to connect elbows H. Exhaust outlet

Optional exhaust installations This dryer can be converted to exhaust out the right side, left

side, or through the bottom. Contact your local dealer to have the dryer converted.

Fire Hazard

Cover unused exhaust holes with one of the

following kits:

279818 (white) 279915 (graphite) 279925 (biscuit)

Contact your Iocat dealer, Failure to follow these instructions can resumt in death,

fire, electrical shock, or serious injury.

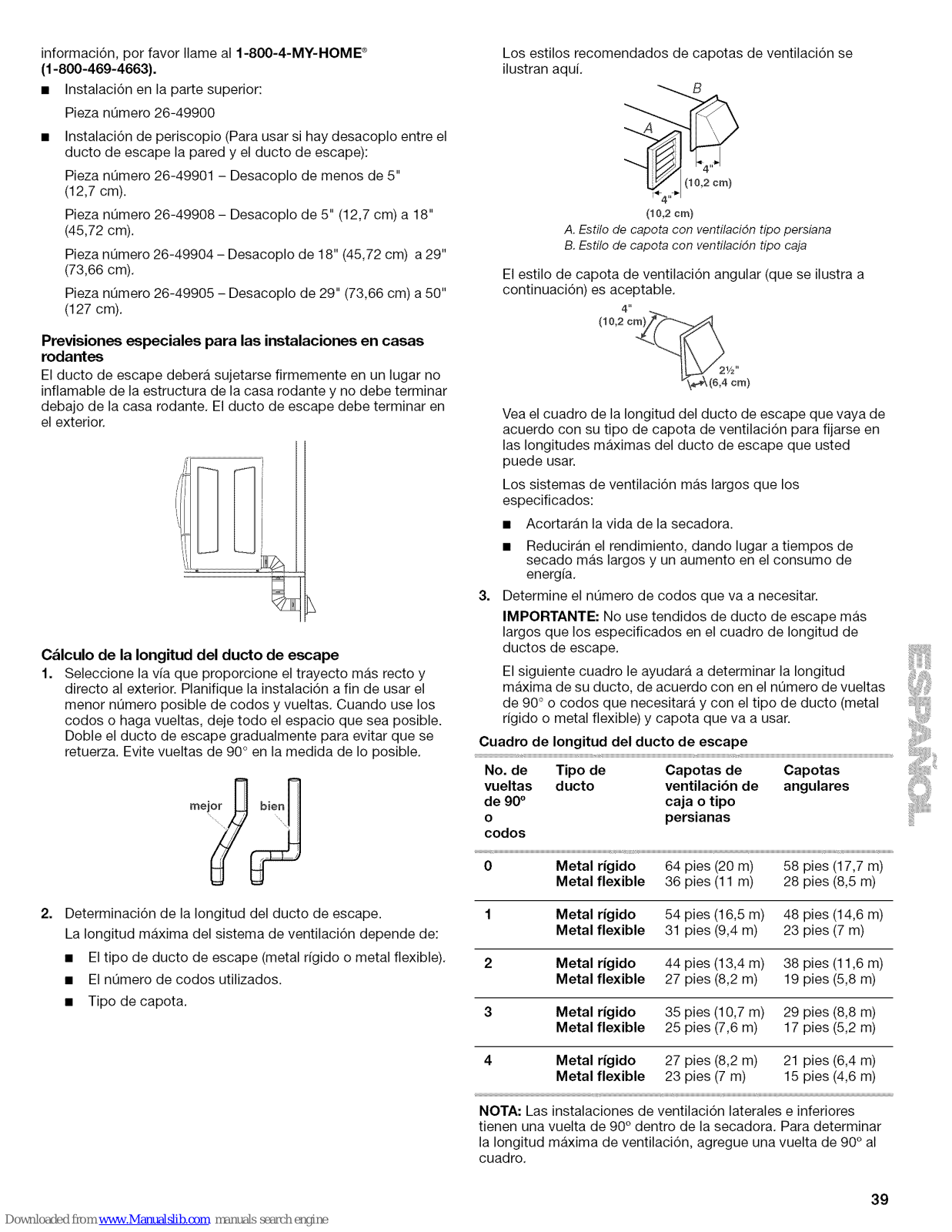

Periscope Installation (For use with dryer vent to wall vent mismatch):

Part Number 26-49901 - Less than 5" (12.7 cm) mismatch Part Number 26-49908 - 5" (12.7 cm) to 18" (45.72 cm)

mismatch Part Number 26-49904 - 18" (45.72 cm) to 29" (73.66 cm)

mismatch Part Number 26-49905 - 29" (73.66 cm) to 50" (127 cm)

mismatch

Special provisions for mobile home installations The exhaust vent must be securely fastened to a noncombustible

portion of the mobile home structure and must not terminate beneath the mobile home. Terminate the exhaust vent outside.

A B

A. Standard rear offset exhaust installation

B. Left or right side exhaust installation C. Bottom exhaust installation (Not an option

with pedestal installations.)

Alternate installations for close clearances

Venting systems come in many varieties. Select the type best for your installation. Two close-clearance installations are shown.

Refer to the manufacturer's instructions.

A B

A. Over-The-Top installation (also available with one

offset elbow)

B. Periscope installation

NOTE: The following kits for close clearance alternate installations are available for purchase. For further information, please call 1-800-4-MY-HOME ®(1-800-469-4663).

• Over-The-Top Installation: Part Number 26-49900

Determine vent length

1. Select the route that will provide the straightest and most direct path outdoors. Plan the installation to use the fewest number of elbows and turns. When using elbows or making turns, allow as much room as possible. Bend vent gradually to avoid kinking. Avoid 90° turns when possible.

2. Determine vent length The maximum length of the exhaust system depends upon:

• The type of vent (rigid metal or flexible metal).

• The number of elbows used.

• Type of hood. Recommended hood styles are shown here.

(10_2 cm)

A.Louvered hood style B.Box hood style

The angled hood style (shown following) is acceptable.

(10.2 c

See the exhaust vent length chart that matches your hood type for the maximum vent lengths you can use. _::;

Exhaust systems longer than specified will:

• Shorten the life of the dryer.

• Reduce performance, resulting in longer drying times and increased energy usage.

Determine the number of elbows you will need. IMPORTANT: Do not use vent runs longer than those

specified in the Vent Length Chart. The following chart helps you determine your maximum vent

length based on the number of 90° turns or elbows you will need and the type of vent (rigid or flexible metal) and hood that you will use.

Vent Length Chart

Number of Type of Box or Angled

go° turns vent Louvered hoods or elbows hoods

0 Rigid metal 64 ft (20 m) 58 ft (17.7 m)

Flexible metal 36 ft (11 m) 28 ft (8.5 m)

1 Rigid metal 54 ft (16.5 m) 48 ft (14.6 m)

Flexible metal 31 ft (9.4 m) 23 ft (7 m)

2 Rigid metal 44 ft (13.4 m) 38 ft (11.6 m)

Flexible metal 27 ft (8.2 m) 19 ft (5.8 m)

3 Rigid metal 35 ft (10.7 m) 29 ft (8.8 m)

Flexible metal 25 ft (7.6 m) 17 ft (5.2 m)

4 Rigid metal 27 ft (8.2 m) 21 ft (6.4 m)

Flexible metal 23 ft (7 m) 15 ft (4.6 m)

NOTE: Side and bottom exhaust installations have a 90° turn inside the dryer. To determine maximum exhaust length, add one

90° turn to the chart.

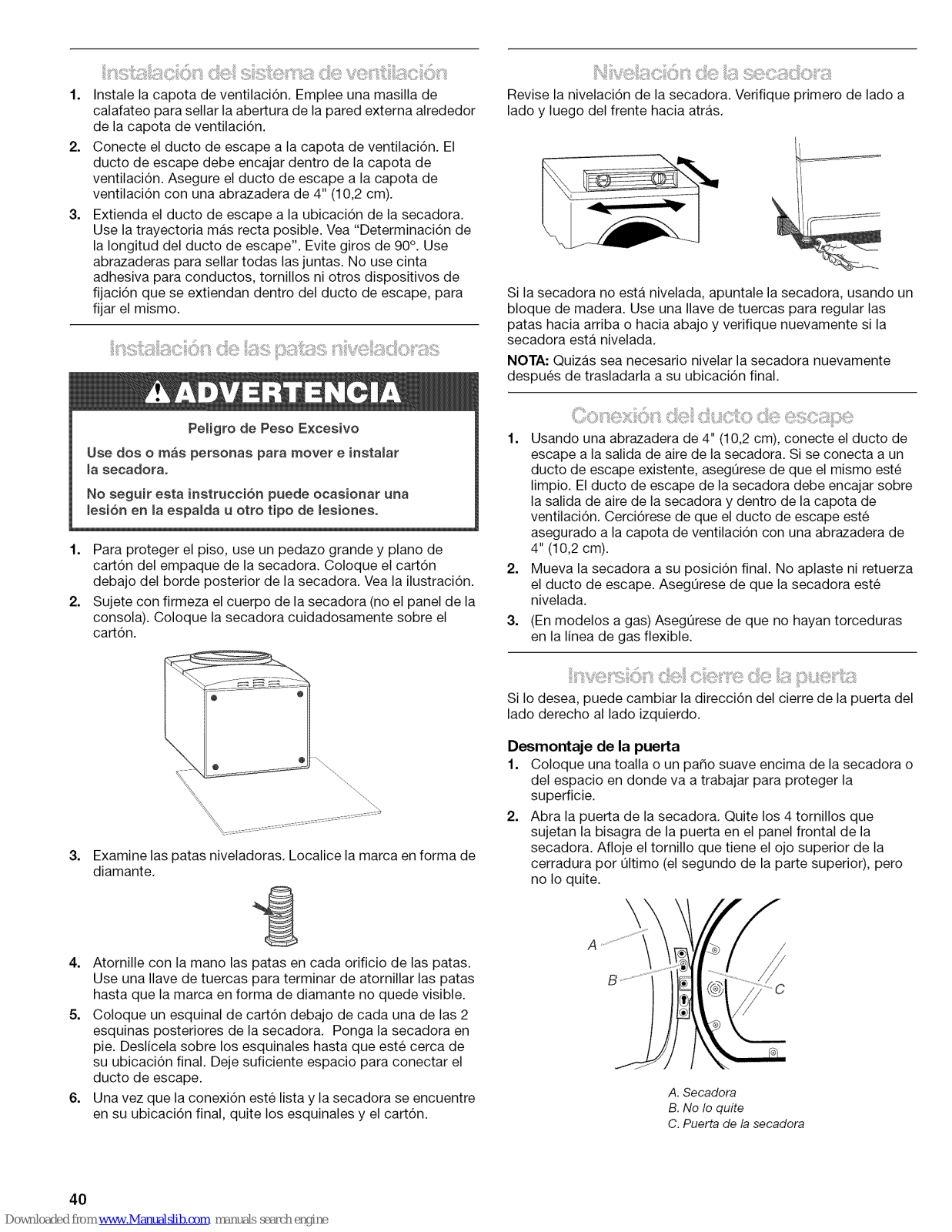

Install exhaust hood. Use caulking compound to seal exterior

wall opening around exhaust hood. Connect vent to exhaust hood. Vent must fit inside exhaust

hood. Secure vent to exhaust hood with 4" (10.2 cm) clamp. Run vent to dryer location. Use the straightest path possible.

See "Determine vent length." Avoid 90° turns. Use clamps to seal all joints. Do not use duct tape, screws or other fastening

devices that extend into the interior of the vent to secure vent.

To protect the floor, use a large flat piece of cardboard from the dryer carton. Place cardboard under the entire back edge

of the dryer. See illustration. Firmly grasp the body of the dryer (not the console panel).

Gently lay the dryer on the cardboard.

Examine the leveling legs. Find the diamond marking.

4. Screw the legs into the leg holes by hand. Use a wrench to finish turning the legs until the diamond marking is no longer

visible.

5. Place a carton corner post under each of the 2 dryer back corners. Stand the dryer up. Slide the dryer on the corner posts until it is close to its final location. Leave enough room

to connect the exhaust vent.

6. Once connection is made and dryer is in final location, remove corner posts and cardboard.

Check the levelness of the dryer. Check levelness first side to side, then front to back.

If the dryer is not level, prop up the dryer using a wood block. Use a wrench to adjust the legs up or down and check again for

levelness. NOTE: It might be necessary to level the dryer again after it has

been moved into its final position.

1. Using a 4" (10.2 cm) clamp, connect vent to exhaust outlet in dryer. If connecting to existing vent, make sure the vent is clean. The dryer vent must fit over the dryer exhaust outlet

and inside the exhaust hood. Make sure the vent is secured to exhaust hood with a 4" (10.2 cm) clamp.

2. Move dryer into final position. Do not crush or kink vent. Make sure dryer is level.

3. (On gas models) Check to be sure there are no kinks in the flexible gas line.

::::,,,:: :

You can change your door swing from a right-side opening to a left-side opening, if desired.

Remove the door

1. Place a towel or soft cloth on top of the dryer or work space to protect the surface.

2. Open the dryer door. Remove the 4 screws that hold the door hinge on the front panel of the dryer. Loosen, but do not remove, the screw with the top keyhole opening last (2nd from the top).

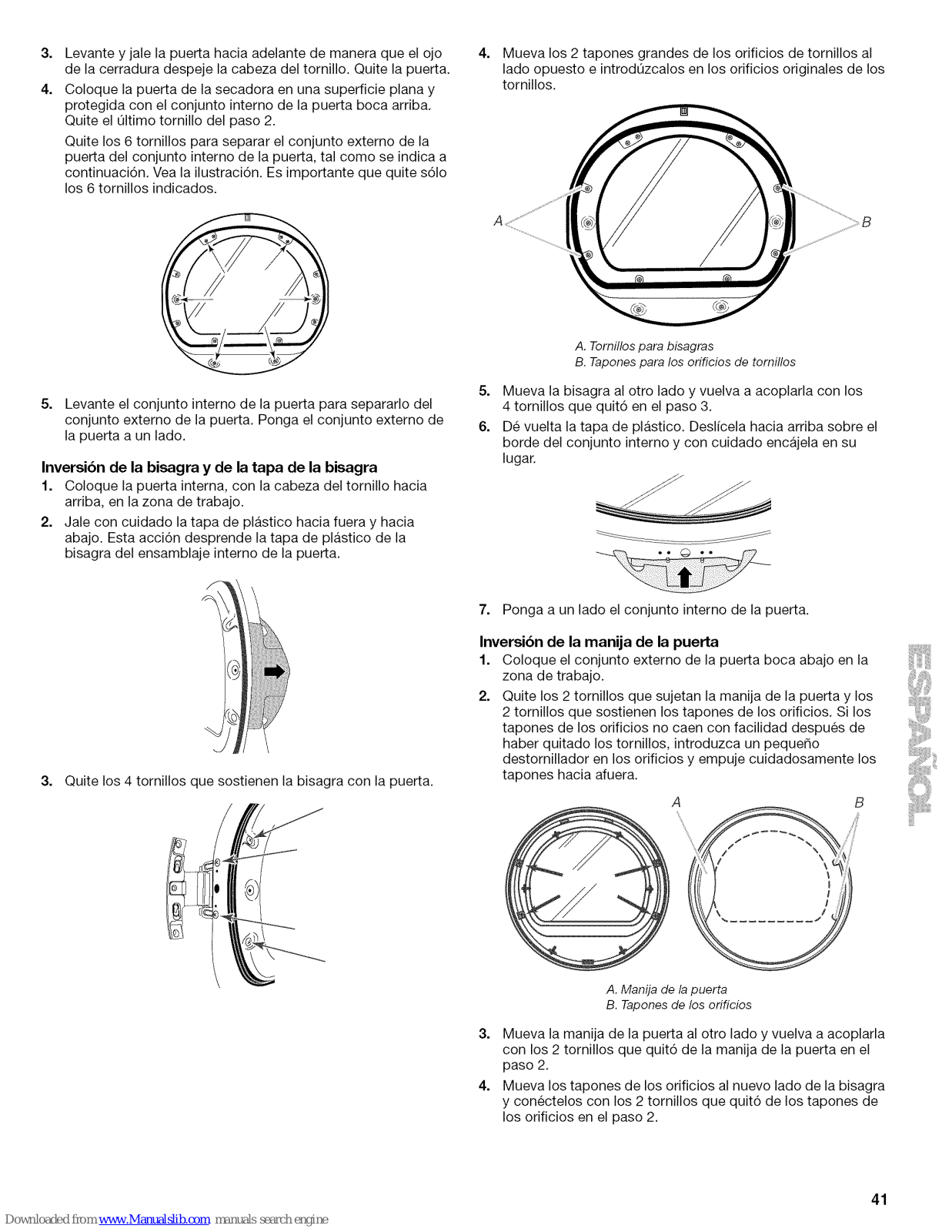

Reverse the hinge and hinge cover

1. Place the inner door, screw head side up, on the work space.

2. Gently pull the plastic cover out and down. This unsnaps the plastic hinge cover from the inside door assembly.

3. Remove the 4 screws that hold the hinge to the door.

4. Move the 2 large hole screw plugs to the opposite side and insert in the original screw holes.

A. Dryer B. De net remove

C. Dryer door

Lift and pull forward on the door so that the keyhole clears the screw head. Remove the door.

Lay the dryer door on a flat, protected surface with the inside door assembly facing up. Remove the last screw from Step 2.

Remove the 6 screws to release the outer door assembly from the inner door assembly, as indicated below. See illustration. It is important that you remove only the

6 indicated screws.

Lift the inner door assembly off of the outer door assembly. Set the outer door assembly aside.

A. Hinge screws

B. Hole screw plugs

5. Move hinge to the other side and reattach with the 4 screws removed in Step 3.

6. Reverse the plastic cover. Slide it up over the inner door assembly edge and gently snap into place.

7. Set the inner door assembly aside.

Reverse the door handle

1. Place the outer door assembly face down on work space.

2. Remove the 2 screws that hold the door handle and the 2 screws holding the hole plugs. If hole plugs do not easily fall

out after screws are removed, insert a small screwdriver into the holes and gently push the plugs out.

A B

A. Door handle B. Hole plugs

3. Move the door handle to the other side and reattach with the

2 screws removed from the door handle in Step 2.

4. Move the hole plugs to the new hinge side and attach with the 2 screws removed from the hole plugs in Step 2.

Reinstalling the door

1. Check for fingerprints on the glass. Clean if necessary.

2. Place the inner door assembly into the outer door assembly. Align the hinge cover and hinge in the openings on each side. Tofit correctly, the inside door assembly edge is completely inside the outside door assembly edge.

3. Reassemble the inner and outer door assemblies with the 6 screws.

Use a small flat-blade screwdriver to remove plug strip from the door opening. Slide the head of the screwdriver under the top portion of the plug strip, being careful not to scratch the dryer surface. Lift up. Repeat in the middle and at the bottom. Remove the plug strip in the door opening and insert in the opposite side.

Insert a screw in the 2nd opening from the top of the hinge opening and partially tighten. Hang the door by placing the top hinge keyhole over the 2nd screw head and tighten the screw. By putting this screw in first, the door will hang in place while you insert and tighten the remaining 4 screws.

A. Dryer door

B. Dryer

C. Insert this screw first

6. Close the door and check that it latches securely.

1. Check to be sure all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.

2. Check to be sure you have all of your tools.

3. Dispose of/recycle all packaging materials.

4. Check the dryer's final location. Be sure the vent is not crushed or kinked.

5. Check to be sure the dryer is level. See "Level Dryer."

6. Plug into a grounded outlet. Turn on power.

7. Remove the blue protective film on the console and any tape remaining on the dryer.

8. Read "Dryer Use."

9. Wipe the dryer drum interior thoroughly with a damp cloth to remove any dust.

10. Set the dryer on a full heat cycle (not an air cycle) for 20 minutes and start the dryer.

If the dryer will not start, check the following:

• Controls are set in a running or "On" position.

• Start button has been pushed firmly.

• Dryer is plugged into a grounded outlet.

• Electrical supply is connected.

• House fuse is intact and tight, or circuit breaker has not

tripped.

• Dryer door is closed.

11. When the dryer has been running for 5 minutes, open the dryer door and feel for heat.

If you do not feel heat, turn the dryer off and check the following:

• There may be 2 fuses or circuit breakers for the dryer. Check to make sure both fuses are intact and tight, or that both circuit breakers have not tripped. If there is still no heat, contact a qualified technician.

NOTE: You may notice a burning odor when the dryer is first heated. This odor is common when the heating element is first used. The odor will go away.

+ 36 hidden pages

Kenmore HE 4 110.8586, 110.8587, Elite HE4 110.8586, Elite HE4 110.8587 Use And Care Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
