Kenmore Elite 795.5186, Elite 795.5185 User Manual

Download

Use & Care Guide Manual de Uso y Cuidado

English / Español

795.5185*,Models/Modelos:

795.5186*

Side-by-Side Refrigerator

Refrigerador de Dos Puertas

* = color number, número de color

P/N MFL63288307-1 Sears Brands Management Corporation

+RçPDQ(VWDWHV,/86$

www.kenmore.com www.sears.com

Sears Canada Inc. Toronto, Ontario, Canada M5B 2C3 www.sears.ca

TABLE OF CONTENTS

Warranty............................................................................. 3

Protection Agreements Important Safety Instructions Electrical & Grounding Requirements Parts and Features

..............................................4

................................ 5

.............. 7

....................................................... 8

Refrigerator Installation .............................. 9-14

Unpacking the Refrigerator .............................9

Installation

.................................................................... 10

Removing/Replacing Your Refrigerator and

Freezer Handles and Doors

...........................11-13

Leveling and Door Alignment ......................14

Using Your Refrigerator .................................. 15

Setting the Controls ....................................... 15

Control Panel Features

............................................15

Automatic Icemaker......................................17

Food Storage Guide .....................................19

Refrigerator Section

Water and Ice Dispenser ............................. 20

Refrigerator/Freezer Door Bins....................21

Freezer Section

Ice Storage Bin .............................................. 24

Water Filter ..................................................... 25

Care And Cleaning ......................................... 29

Outside ........................................................... 29

Inside Walls ................................................... 29

Door Liner And Gaskets ............................... 29

Plastic Parts .................................................... 29

Condenser Coils ............................................. 29

LED Light Replacement ................................ 30

Power Interruptions ....................................... 30

When You Go On Vacation ........................ 30

When You Move ............................................ 30

Connecting the Water Line ............................ 31

Troubleshooting Guide ................................... 34

Diagnostics

........................................................ 42

Service ....................................... Back Cover

Refrigerator Drawers and Cover ..................21

Refrigerator/Freezer Shelves

GRAB-N-GO ..................................................23

.............................22

WARRANTY

REFRIGERATOR WARRANTY

KENMORE ELITE LIMITED WARRANTY

WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions. v FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A

defective appliance will receive free repair or replacement at option of seller. This warranty coverage applies for only 90 days from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than private household purposes.

FOR FIVE YEARS from the date of sale, the sealed refrigerant system of this appliance is warranted against defects

in material or workmanship. If a system part is defective wiWKLQWKHoUVW\HDUDQHZSDUWZLOOEHVXSSOLHGDQGLQVWDOOHG

DWQRFKDUJH,IDV\VWHPSDUWLVGHIHFWLYHDIWHUWKHoUVWyear, a new part will be supplied but not installed at no

charge. You are responsible for the labor cost of part instDOODWLRQDIWHUWKHoUVW\HDUIURPWKHGDWHRIVDOH7KLV warranty coverage applies for only one year from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than private household purposes.

v FOR TEN YEARS from the date of sale, the linear compressor of this appliance is warranted against defects in

material or workmanship. If the compressor is defective wiWKLQWKHoUVW\HDUDQHZRQHZLOOEHVXSSOLHGDQGLQVWDOOHG

DWQRFKDUJH,IWKHFRPSUHVVRULVGHIHFWLYHDIWHUWKHoUVW year, a new one will be supplied but not installed at no charge. You are responsible for the labor cost of part instDOODWLRQDIWHUWKHoUVW\HDUIURPWKHGDWHRIVDOH7KLV warranty coverage applies for only two years from the sale date in the United States, and is void in Canada, if the appliance is ever used for other than private household purposes.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, inclXGLQJEXWQRWOLPLWHGWRoOWHUVEHOWVEDJVRUVFUHZLQEDVH light bulbs. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation,

2. operation and maintenance.

Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.

Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and

5. maintained according to all supplied instructions.

Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.

Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

Damage to or failure of parts or systems resulting from unaXWKRUL]HGPRGLoFDWLRQVPDGHWRWKLVDSSOLDQFH

Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the

DSSURSULDWHFHUWLoFDWLRQORJR

Disclaimer of implied waranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as

SURYLGHGKHUHLQ,PSOLHGZDUUDQWLHVLQFOXGLQJZDUUDQWLHVRIPHUFKDQWDELOLW\RUoWQHVVIRUDSDUWLFXODUSXUSRVHDUH OLPLWHGWRRQH\HDURQWKHDSSOLDQFHoYH\HDUVRQWKHVHDOHGV\VWHPDQGWHQ\HDUVRQWKHOLQHDUFRPSUHVVRURU

the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the

GXUDWLRQRILPSOLHGZDUUDQWLHVRIPHUFKDQWDELOLW\RUoWQHVVVRWKHVHH[FOXVLRQVRUOLPLWDWLRQVPD\QRWDSSO\WR\RX

This warranty applies only while this appliance is used in the United States or Canada*. 7KLVZDUUDQW\JLYHV\RXVSHFLoFOHJDOULJKWVDQG\RXPD\Dlso have other rights which vary from state to state. * ,QKRPHUHSDLUVHUYLFHLVQRWDYDLODEOHLQDOO&DQDGLDQJHographical areas, nor will this warranty cover user or servicer

travel and transportation expenses if this product is locatedLQDUHPRWHDUHDDVGHoQHGE\6HDUV&DQDGD,QFZKHUH

an authorized servicer is not available.

Sears Brands Management Corporation, Hoç man Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore Elite product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

• Parts and labor not just for repairing defects, but to help keep products operating properly under normal use. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage— real protection.

• Expert service by experienced service technicians trusted in millions of homes every year.

• Unlimited service calls and nationwide service, as often as you want us, whenever you want us.

• “No-lemon” guarantee – replacement of your covered product after three separate product failures occur within twelve months and a fourth repair is required. Includes free delivery and installation, if necessary, of replacement product.

• Product replacement if your covered product can’t be

xed.

• Power surge protection against electrical damage due

uctuations.

• $300 Food Loss Protection for any food spoilage that

is the result of mechanical failure of any covered refrigerator or freezer.

• Service Promise: $50 LIoUVWDWWHPSWUHSDLURI\RXU

covered product can’t be accomplished and product is not usable while awaiting further repair service.

• GLVFRXQWRç the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund or a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information in the U.S.A. call 1-800-827-6655.

* Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

• Annual Preventive Maintenance Check at your request

– no extra charge.

• Fast help by phone ecivres a morf troppus enohp –

agent on all products to help troubleshoot problems. Think of us as a “talking owner’s manual.”

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-844-553-6667, and in

Canada call 1-800-469-4663.

PRODUCT RECORD

cation label located on the interior liner of the refrigerator compartment. Have these

items of information available whenever you contact Sears concerning your product.

Model No.___________________ Date of Purchase ___________________

Serial No.___________________

Save these instructions and attach your sales receipt for future reference.

nd the model and

IMPORTANT SAFETY INSTRUCTIONS

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

WARNING

Indicates an imminently hazardous situation which, if not avoided,

CAUTION

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

To reduce the risk of  re, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug  rmly and pull it straight out from the outlet.

• Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

• Do not modify or extend the power cord length. It could cause electric shock or  re.

• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.

• The insulation in this unit contains cyclopentane or a pentane-like gas which is  ammable and requires a special elimination process. Before discontinuing use of this refrigerator, contact local authorities to arrange for safe disposal of the unit.

may result in minor or moderate injury, or product damage.

WARNING

• DO NOT store or use gasoline or other  ammable vapors and liquids in the vicinity of this or any other appliance.

• DO NOT store explosive substances such as aerosol cans containing  ammable propellants in this appliance.

• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

• Keep  ngers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making any repairs.

NOTE: It is strongly recommended that any service be performed by a quali ed technician.

SAVE THESE INSTRUCTIONS

WARNING

• Before service is performed on the interior LED lighting, unplug the refrigerator or turn o power at the circuit breaker or fuse box.

NOTE: The refrigerator and freezer compartment lights are LED interior lighting, and service should be performed by a quali ed technician.

WARNING: Setting either or both controls to the OFF

position does not remove power to the light circuit.

• When you are  nished, reconnect the refrigerator to the electrical source and reset the controls (Thermostat, Refrigerator Control, and or Freezer Control, depending on the model) to the desired setting.

• This refrigerator must be properly installed in accordance with the Attention Installer Instructions that were taped to the front of the refrigerator.

• After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

• DO NOT touch the automatic ice making mechanism while the refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:

…You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold—below 4°C.

…Thawed ground meats, poultry or  sh that have any o -odor or o -color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating quality of foods, particularly fruits, vegetables and prepared foods. The eating quality of red meats is a ected less than that of many other foods. Use refrozen foods as soon as possible to save as much of their quality as you can.

WARNING: This product contains chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

DANGER: RISK OF CHILD ENTRAPMENT

Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. If you are getting rid of your old refrigerator, please follow the instructions at right to help prevent accidents (child entrapment and su ocation).

Children should be supervised to ensure that they do not play with the appliance.

BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER:

• Take o the doors.

• Leave the shelves in place so that children may not easily climb inside

CFC/HCFC DISPOSAL

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chloro uorocarbons or hydrochloro uorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.

ELECTRICAL & GROUNDING REQUIREMENTS

IMPORTANT: Please read carefully. TO CONNECT ELECTRICITY

WARNING

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit checked by a quali ed electrician to make sure the outlet is properly grounded.

If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a quali ed technician. If you intentionally release refrigerant, you may be subject to  nes and imprisonment under provisions of environmental legislation.

USE OF EXTENSION CORDS

WARNING: Do not use extension cords or ungrounded (two-prong) adaptors. Because of potential safety hazards under certain conditions, the use of an extension cord is not recommended. However, if you still elect to

use an extension cord, it is absolutely necessary that it be a UL-listed (USA), 3-wire grounding type appliance extension cord having a grounding type plug and outlet, and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance needed for the back of the refrigerator.

3-prong grounding type wall receptacle

3-prong grounding plug

Ensure proper ground exists before use.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts, 60 Hz, AC only, and fused at 15 amperes (minimum). This provides the best performance and also prevents overloading house wiring circuits which could cause a  re hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned o with a switch or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded three-prong wall outlet.

CAUTION

• Do not bend the power cord excessively or place heavy

articles on it.

• Connect the power plug in the proper position with the

cord hanging down.

• When moving the refrigerator, be careful not to roll

over or damage the power cord.

• If the power cord is damaged, have it replaced

immediately by the manufacturer or its service agent.

• Do not insert the power plug with wet hands.

• Do not insert your hands into the area under the

bottom of the appliance.

• Make sure that the power plug is not squashed or

damaged by the back of the refrigerator.

WARNING

Replacing Electrical Cord

To avoid hazard, damaged power cords must be replaced by the manufacturer or its service agent or a similarly quali ed technician. Do not operate the appliance with a damaged power cord.

PARTS AND FEATURES

Use this page to become more familiar with the parts and features of the refrigerator. NOTE: erent models. The refrigerator you have purchased may have some or all of the items

listed below. The locations of the features shown below m ay not match your model.

Automatic Icemaker

Freezer Light (LED)

Freezer Shelves

Freezer Door Bins

Freezer Drawers

Refrigerator Light (LED)

Water Filter

Refrigerator Shelves

GRAB-N-GO

Refrigerator Drawers

Refrigerator Door Bins

REFRIGERATOR INSTALLATION

WARNING WARNING

Excessive Weight Hazard:

Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury.

UNPACKING THE REFRIGERATOR

Remove tape and any temporary labels from the refrigerator before using. Do not remove any labels, the model and serial number label, or the Tech Sheet that is located under the front of the refrigerator, behind the base grille.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish

ngers. Wipe with warm

water and dry.

ammable

uids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of the refrigerator. Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage needs.

Excessive Weight Hazard:

The refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect WKHpoor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to

oor damage could occur.

WARNING

Explosion Hazard:

ammable materials and vapors, such as

gasoline, away from the refrigerator. Failure to do so

re, explosion, or death.

NOTE:

This appliance is intended to be used in household and similar applications such as:

ces and other working

environments

• farm houses and by clients in hotels, motels and other residential environments

• bed and breakfast environments

• catering and similar non-retail applications.

This product is not to be used for special purposes such as the storage of medicine or test materials, or for use on ships, etc.

REFRIGERATOR INSTALLATION

WARNING

Be careful when you work with the hinge, stopper, etc. You may be injured. To avoid risk of injury or electrical shock, do not put hands or metal objects into the air vents or bottom opening of the refrigerator.

INSTALLATION

The refrigerator should always be plugged into its own individual properly grounded electrical outlet rated for 115 Volts, 60 Hz, AC only, and fused at 15 amperes (minimum). This provides the best performance and also prevents overloading house wiring circuits which could cause a hazard from overheated wires. It is recommended that a separate circuit serving only this appliance be provided.

1. To avoid noise and vibration, the unit must be

leveled and installed on a solidly constructed poor. If required, adjust the leveling legs to compensate for unevenness of the higher than the rear to aid in door closing. Leveling legs can be turned easily by tipping the cabinet slightly. Turn the leveling legs counterclockwise to raise the unit or clockwise to lower it. (See LEVELING AND DOOR ALIGNMENT.)

NOTE: Installing on carpeting, soft tile surfaces, a platform or weakly supported structure is not recommended.

WARNING

Shock Hazard:

To reduce the risk of electric shock, do not install the refrigerator in a wet or damp area.

3. Select a place where a water supply can be easily

connected for the automatic icemaker.

NOTE: The water pressure must be between 20 and 120 psi ( 138 – 827 kPa )on models without a water

4. Too small of a distance from adjacent items may

result in lowered freezing capability and increased electricity consumption charges. Allow at least 24 inches (61 cm) in front of the refrigerator to open the doors.

2. Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C). If the temperature around the appliance is too low or high,

ected.

2” (5.08 cm)

REFRIGERATOR INSTALLATION

NOTE: Removing the doors is the recommended procedure when it is necessary to move the refrigerator through a

narrow opening. If it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the

illustrations on this page.

Removing Refrigerator Handle

Loosen the set screws with a / in. (2.5 mm) Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be tightened or removed, use a ¼ in. (6.4 mm) Allen wrench.

Mounting fasteners

Set screw

Allen wrench

HOW TO REPLACE REFRIGERATOR DOOR HANDLE

NOTE: Handle appearance may vary from the

illustrations on this page.

Replacing Refrigerator Door Handle

Place the handle on the door by  tting the handle footprints over the mounting fasteners and tightening the set screws with a / in (2.5 cm) Allen wrench.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a ¼ in. (6.4 mm) Allen wrench.

Mounting Fasteners

REFRIGERATOR INSTALLATION

Figure 1

wire harness

hinge cover

upper

hinge

hinge lever

upper hinge

lower hinge

Enough for

the water feed tube

to be completely

pulled out

REMOVING AND REPLACING REFRIGERATOR DOORS

WARNING

Excessive Weight Hazard:

Use two or more people to remove and install the refrigerator doors. Failure to do so can result in back or other injury.

WARNING

Electrical Shock Hazard

• Disconnect the electrical supply to the refrigerator before installing. Failure to do so could result in serious injury or death.

• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. You may be injured or receive an electrical shock.

1. Open the door. Remove the top hinge cover screw. at blade screwdriver to pry back the hooks

(not shown) of the hinge cover from the top of the refrigerator cabinet. Lift up the cover.

3. Disconnect all the wire harnesses.

4. Rotate the hinge lever counterclockwise (1). Lift the

upper hinge free of the hinge lever latch (2).

Removing the left (freezer) door with water line connection

Pull up the water feed tube while pressing the collet down

gure below.

NOTE: If a tube end is deformed or abraded, trim the part away. Disconnecting the tube under the door causes

ow out. Put a

large container at the end of the tube to prevent water

oor.

NOTE: Water hoses should be cut with a clean, straight edge to avoid leaks.

CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

5. Lift the door from the lower hinge pin, being careful

to pull the water lines through the lower hinge pin.

6. Place the door, inside facing up, on a non-scratching

surface. Be careful not to damage the water feed tube.

Not Straight Damaged Stretched

REFRIGERATOR INSTALLATION

wire harness

hinge lever

upper

hinge

lower hinge

Removing the right (refrigerator) door

1. Open the door. Remove the top hinge cover screw.

2. Use a  at blade screwdriver to pry back the hooks (not shown) of the hinge cover from the top of the refrigerator cabinet. Lift up the cover. Disconnect all wire harnesses.

Reinstalling the left (freezer) door

1. Feed the water tubes through the lower hinge pin and place the door onto the lower hinge pin. Water hoses should be behind the leg to prevent damage.

2. Fit top hinge over the hinge lever latch and into place. Rotate the lever clockwise to secure the hinge.

3. Connect all the wire harnesses.

4. Hook the tab on the door switch side of the cover under the edge of the wire opening in the cabinet top. Position the cover into place. Insert and tighten the cover screw.

5. Reconnect the water tubes by inserting the tubes into the connectors. The tube is inserted correctly when only one guide line is showing out of two.

3. Rotate the hinge lever clockwise (1). Lift the top hinge free of the hinge lever latch (2).

CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

4. Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a non-scratching surface.

Reinstalling the right (refrigerator) door

1. Place the door onto the lower hinge pin.

2. Fit the upper hinge over the hinge lever latch and into place. Rotate the lever counterclockwise to secure the hinge.

3. Reconnect all wire harnesses. Hook the tab on the switch side of the cover under the edge of the wire opening in the cabinet top. Position the cover into place. Insert and tighten the cover screw.

Collet

Tube

Insert Line

REFRIGERATOR INSTALLATION

LEVELING

After installing, plug the refrigerator’s power cord into a 3-prong grounded outlet and push the refrigerator into the

onal position.

Your refrigerator has two front leveling legs—one on the right and one on the left. Adjust the legs to alter the tilt from front-to-back or side-to-side. If your refrigerator seems unsteady, or you want the doors to close more easily, adjust the refrigerator’s tilt using the instructions below:

NOTE: Tools Required: / ” (18mm) wrHQFKRUp at blade screwdriver.

1. Turn the leveling leg counterclockwise to raise that side

of the refrigerator or clockwise to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator.

Left leveling

leg

dierence

Height

dierence

PRESS & HOLD

CHANGE FILTER

2. Open both doors again and check to make sure that

they close easily. If the doors do not close easily, tilt the refrigerator slightly more to the rear by turning both leveling legs counterclockwise. It may take several more turns, and you should turn both leveling legs the same amount.

DOOR ALIGNMENT

If the doors are still uneven after the refrigerator has been leveleGo nish adjusting the doors by following the instructions below.

Adjusting tools: 5/16” (8mm) wrench and 3/4” (19mm) wrench

Height

dierence

Height

dierence

keeper nut

PRESS & HOLD

CHANGE FILTER

Down

Adjustment

hinge pin

Tool for

adjustment

NOTE: Having someone push backward against the top of

of the leveling legs.

This makes it easier to adjust the legs.

Height

dierence

Right leveling leg

CHANGE FILTER

PRESS & HOLD

Height

dierence

Using a 3/4” (19mm) wrench, turn the keeper nut clockwise to loosen the keeper nut.

Using a 5/16” (8mm) wrench, turn the adjustment hinge pin clockwise or counterclockwise to level the refrigerator and freezer door.

After leveling the door, turn the keeper nut counterclockwise to tighten it.

CAUTION: Do not overtighten the door adjustment

screw. The hinge pin can be pulled out. (The adjustable range of height is a maximum of 2” [5 cm]).

USING YOUR REFRIGERATOR

SETTING THE CONTROLS

The refrigerator control functions as the thermostat for the entire appliance (refrigerator and freezer sections). The colder the setting, the longer the compressor will run to keep the temperature colder. The freezer control adjusts

ow from the freezer to the refrigerator. Setting the freezer control to a lower temperature keeps more cold air in the freezer compartment to make it colder.

AIRFLOW

Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections. Be sure not to block vents while

and may cause the refrigerator temperature to become

diagram below.)

CONTROL PANEL FEATURES

Temperature

t The Refrigerator Temp Control ranges from 30°F to

46°F (1°C to 8°C). Press the Refrigerator Temp button

to cycle through the available temperature settings one increment at a time. The recommended temperature for the refrigerator compartment is 37°F (3°C).

t The Freezer Temp Control range is from -6°F to 8°F

(-21°C to -13°C). Press the Freezer Temp button to

cycle through the available temperature settings one increment at a time. The recommended temperature for the freezer compartment is 0°F (-18°C).

NOTE: When changing control settings, wait 24 hours before making additional adjustments. The controls are set correctly when milk or juice is as cold as you would like

rm. If the temperature in either compartment is too cold or too warm, change the setting one increment at a time. Wait 24 hours for the change to stabilize before adjusting again.

IMPORTANT:

Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To prevent odor transfer and dried out food, wrap or cover foods tightly. (See the Food Storage Guide section for details.)

NOTE: If you close the refrigerator door, you may see the freezer door open and close again due to pressure from

ow.

PRIOR TO USE

dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers, shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours

ow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

Temperature Mode Switch Function (°F <->°C)

If you want to convert °F to °C or vice versa, press and hold the Freezer Temp. and Refrigerator Temp. buttons at

ve seconds.

Ice & Water Dispenser

Select Water, Crushed Ice or Cubed Ice by pressing the ICE & WATER button to the selection desired. The Water, Crushed Ice or Cubed Ice icon will light up to indicate the selection.

Selecting this icon indicates that cubed ice will be dispensed when the dispenser pad is activated.

Selecting this icon indicates that water will be dispensed when the dispenser pad is activated.

Selecting this icon indicates that crushed ice will be dispensed when the dispenser pad is activated.

To dispense water or ice, gently push your cup against the dispenser pad.

NOTE: Hold your cup in place for a couple of seconds after dispensing ice or water so the last few drops go in

oor.

USING YOUR REFRIGERATOR

Accela Ice

v When you p ress and hold the Ice Maker button for

approximately three seconds, the Accela Ice icon on the display panel will illuminate and will continue for

KRXUV7KHIXQFWLRQZLOODXWRPDWLFDOO\VKXWRçDIWHU

24 hours.

v You can stop this function manually by pressing and

holding the Ice Maker button for three seconds or more.

v This function increases both ice making and freezing

capabilities.

Water Filter Reset

lter indicator turns on, you need

lter. After changing the water

lter, press and hold the Filter Reset button for three

. You need

lter approximately every six

months.

Door Alarm

v When power is connected to the refrigerator, the door

alarm is activated. This function cannot be deactivated.

v When either the refrigerator or freezer door is left

open for more than 60 seconds, the alarm tone will sound to let you know that the door is open.

v When you close the door, the door alarrm will stop.

Con tro l Lock

v The Control Lock button deactivates the controls and

dispenser functions. When power is initially connected to the refrige ratorWKH/RFNIXQFWLRQLVRç

v If you want to activate the Lock function to lock other

buttons, press and hold the Control Lock button for three seconds or more. The Control Lock indicator will turn on and the Lock function is now enabled.

v When the Lock function is activated, no other buttons

will work. The dispenser pad is also deactivated.

v To disable the Lock function, press and hold the Control

Lock button for approximately three seconds.

A white light illuminates the dispenser area whenever the dispenser pad is engaged. The dispenser area can also be illuminated by mood light, which is activated by pressing the Light button. When the Mood Light is activated, the indicator light above the Light button turns on.

CAUTION

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store.

To deactivate:

With either refrigerator door opened, press and hold the Refrigerator Temp. and Accela Ice buttons

ve seconds. The control panel

will beep and the temperature settings will display

rm that Demo Mode is deactivated. Use the

same procedure to activate the Demo Mode.

Adjusting Cont rol Settings

Give the refrigerator time to cool down completely

nal adjustments. It is best to wait 24 hours to let the normal settings (recommended in the Temperature section) stabilize before making r any changes. If you need to adjust the temperature in the refrige rator or freezer, start by adjusting the refrigerator temperature and allow 24 hours for the temperature to stabilize again. If it is still too warm or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide.l Always remember to wait at least 24 hours between adjustments.

CONDITION/REASON RECOMMENDED A DJ USTMENT

REFRIGERATOR section too warm.

v Door opened often. v Large amount of food

added.

v Room temperature very warm.

FREEZER section too warm/ice not made fast enough.

v Door opened often. v Large amount of food added. v Very cold (55°F (13°C)) room

temperature. (Compressor does not cycle often enough.)

v Heavy ice usage. v Air vents blocked by items.

REFRIGERATOR section too cold.

v Controls not set correctly for

your conditions.

FREEZER section too cold.

v Controls not set correctly for

your conditions.

v Set the REFRIGERATOR

con trol one degree colder; wait 24 hours for th e new setting to take

ect before making

another adjustment.

v Set the FREEZER control

one degree colder; wait 24 hours for the new setting to take full

ect before making

another adjustment.

v Move items out of air

stream.

v Set th e REFRIGERATOR

con trol one d egree warm er; wait 24 hou rs for th e new sett ing to take

ect before makin g

anot her adjus tme nt.

v Set the FREEZER control

one degree warmer; wait 24 hours for the new setting to take full

ect before making

another adjustment.

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to the dispenser. The icemaker will produce 7 cubes per cycle

-approximately 70-120 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.

refrigerator to b egin making ice. Wait 72 hours for full ice production to occur.

USING YOUR REFRIGERATOR

WARNING

Personal Injury Hazard

Avoid contact with the moving parts of the ejector mechanism, or the heating element that releases

automatic ice making mechanism while the refrigerator is plugged in.

full, the in-door ice bin holds approximately 6 to 8 (1216 oz) glasses of ice.

the automatic icemaker, press the Ice Maker button on the display. To turn on the automatic icemaker, press the button again.

120 psi (138 to 827 kPa) on models without a water

amount and size of ice cubes.

WHEN YOU SHOULD TURN THE ICEMAKER OFF

for several

hours.

minutes.

NOTE: The ice bin should be emptied when the Ice Maker button is set to OFF.

NORMAL SOUNDS YOU MAY HEAR

lcemaker

Automatic Shuto

Arm

WARNING: Connect to a potable water supply only.

PREPARING FOR VACATION

Set the Ice Maker button on the display to OFF and shut

the water supply to the refrigerator.

NOTE:

Maker button is set to OFF. If the ambient temperature will drop below freezing, have

DTXDOLoHGWHFKQLFLDQGUDLQWKHZDWHUVXSSO\V\VWHPWR

The ice bin should be emptied any time the Ice

if it has not yet been hooked up to water. To stop the

the icemaker.

NOTE: Keeping the icemaker on before the water line is connected can damage the icemaker.

lls.

by ruptured water lines or connections.

USING YOUR REFRIGERATOR

AUTOMATIC ICEMAKER (continued)

CAUTION

rst ice and water dispensed may include particles

or odor from the water supply line or the water tank.

rst few batches of ice (about 24 cubes). This is also necessary if the refrigerator has not been used for a long time.

v Never store beverage cans or other items in the ice

bin for the purpose of rapid cooling. Doing so may damage the icemaker or the containers may burst.

lter

and water supply. If the problem continues, contact a

ed service center. Do not use the

ice or water until the problem is corrected.

v Keep children away from the dispenser. Children may

play with or damage the controls.

v The ice passage may become blocked with frost if only

crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula. Dispensing cubed ice can also help prevent frost buildup.

v Never use thin crystal glass or crockery to collect ice.

Such containers may chip or break resulting in glass fragments in the ice.

lling it with water or other beverages. Splashing may occur if ice is dispensed into a glass that already contains liquid.

v Never use a glass that is exceptionally narrow or

deep. Ice may jam in the ice passage and refrigerator

ected.

v Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice from dispensing.

v To avoid personal injury, keep hands out of the ice

door and passage.

v Never remove the dispenser cover.

the water supply and contact Sears Home Service in U.S.A. call 1-844-553-6667, and in Canada call 1-800-469-4663.

USING YOUR REFRIGERATOR

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Items How to

Butter or margarine

Cheese

Milk

Eggs

Fruit

Leafy vegetables

Keep opened butter in a covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.

Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Wipe milk cartons. For best storage, place milk on interior shelf, not on door shelf.

Store in original carton on interior shelf, not in door bin.

Wash, let dry, and store in refrigerator in plastic bags or in a drawer. Do not wash or hull fruit until you are ready to use it. Sort and keep fruit in its original container, in a refrigerator drawer, or store in a completely closed paper bag on a refrigerator shelf.

Remove store wrapping and trim

bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in refrigerator drawer.

STORING FROZEN FOOD NOTE: Check a freezer guide or a reliable cookbook

for further information about preparing food for freezing or food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs. of food per cubic foot of freezer space). Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (how airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy.

Packaging

Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If it does, you could have food odor and taste transfer throughout the refrigerator and could also dry out frozen food.

Packaging recommendations:

tting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps ed freezer-grade self-sealing plastic bags

Follow package or container instructions for proper freezing methods.

Vegetables with skins (carrots, peppers)

Fish

Leftovers

Ice Cream When storing frozen food like ice

Place in plastic bags or plastic container and store in drawer.

sh the

same day purchased. Cover leftovers with plastic wrap or

aluminum foil, or store in plastic containers with tight lids.

cream for a long period, place it on the freezer shelf, not in the door bins.

Do not use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

CAUTION: Do not keep beverage cans or plastic

food containers in the freezer compartment. They may break or burst if they freeze.

USING YOUR REFRIGERATOR

REFRIGERATOR SECTION

WATER AND ICE DISPENSER

To dispense cold water, push on the dispenser switch with a glass.

WARNING: Do no t put you r

ngers up the ice chute opening.

Doing so can result in severe injury.

CAUTION: Do not dispense ice

ne china or crystal glasses.

China or crystal can break.

Some dripping may occur after dispensing. Hold your cup beneath the dispenser for a few seconds after dispensing to catch all of the drops.

NOTE : The dispenser is equipped with a light that turns on when the dispenser pad is engaged.

USING YOUR REFRIGERATOR

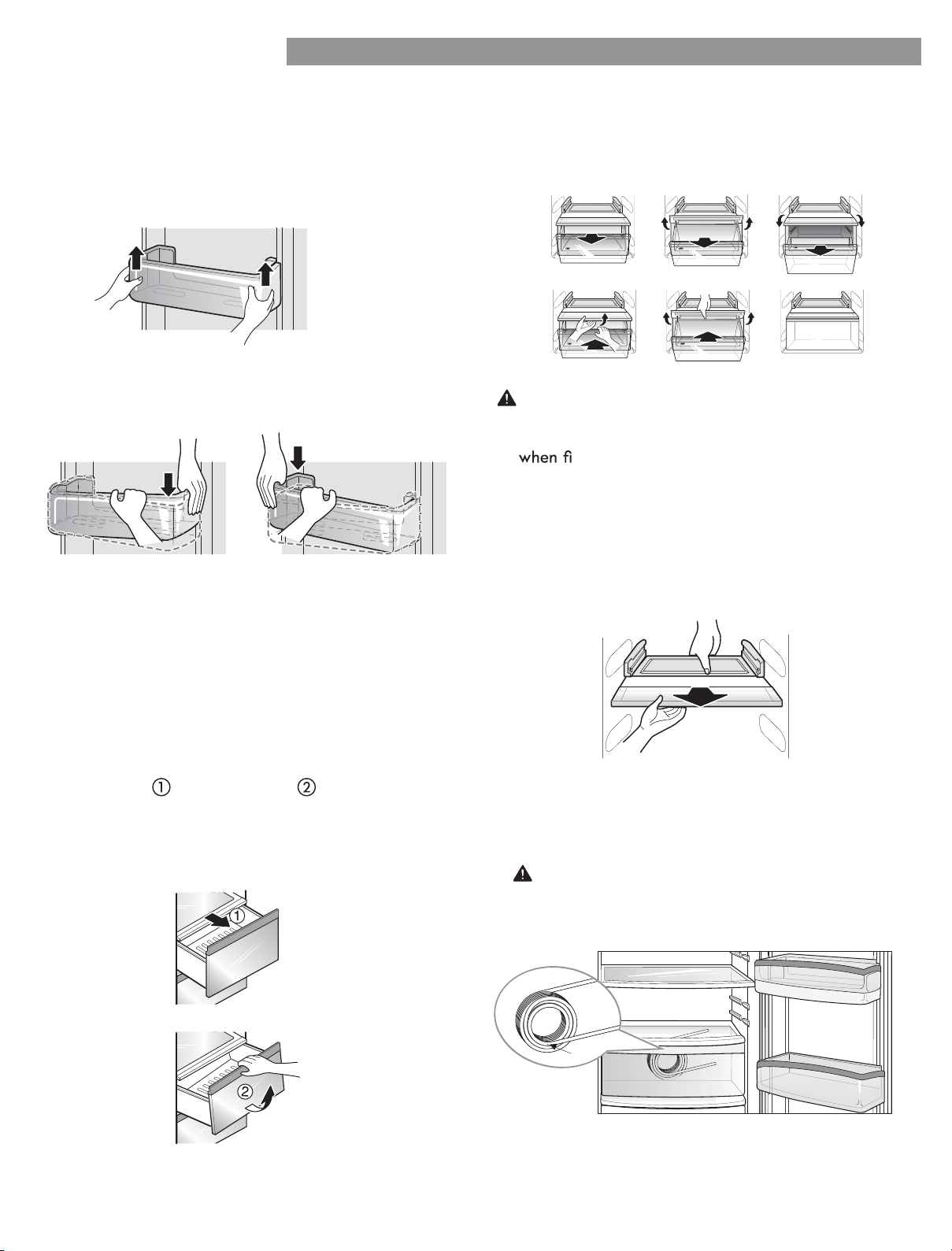

REFRIGERATOR/FREEZER DOOR BINS

The refrigerator and freezer feature bins which can easily be arranged to store packaged products.

To remove, holding both sides, lift the door bin and pull it out.

To replace the bin, slide it in above the desired support and push down one side at a time until it snaps into place.

NOTE: When removing or installing the lower refrigerator drawer, lift the cover to help remove or insert the drawer.

CAUTION:

• Use both hands to assemble and disassemble the refrigerator drawers. The compartments are heavy

lled with food and may cause injury if

dropped.

• Open the refrigerator door fully when disassembling or reassembling the refrigerator drawers.

To remove the cover—hold the cover with both hands and pull it out.

REFRIGERATOR DRAWERS AND COVER

The refrigerator drawers allow for better conservation of fruits and vegetables.

To remove the refrigerator drawers—pull out the drawer to full extension out.

, lift the front up , and pull straight

To install—slightly tilt up the front, insert the drawer into the frame and push it back into place.

NOTE: Remove the refrigerator drawers before removing the cover.

CAUTION: You will see the water tank while

removing the refrigerator drawer. Do not remove the water tank or water leakage may occur. The water tank is not a removable part.

Tank

USING YOUR REFRIGERATOR

REFRIGERATOR/FREEZER SHELVES

The shelves in your refrigerator and freezer are adjustable to meet your individual storage needs.

Adjusting the shelves to  t items of dierent heights will make  nding the exact item you want easier. Doing so will also reduce the amount of time the refrigerator doors are open which will save energy.

IMPORTANT: Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

NOTE: Glass shelves are heavy. Use special care when removing them.

Detaching the shelf

Assembling the shelf

Tilt the front of the shelf up and guide the shelf into the slots at a desired height. Slide the shelf in then lower the front of the shelf.

CAUTION: Make sure that shelves are level from one

side to the other. Failure to do so may result in the shelf falling or spilling food.

Remove all items from the shelf. Lift the front of the shelf slightly to disengage the rail stops.

Pull the shelf forward about halfway, keeping the front of the shelf slightly lifted.

Holding the shelf with both hands, tilt the shelf and pull it out.

USING YOUR REFRIGERATOR

GRAB-N-GO

The GRAB-N-GO compartment allows for easy access to commonly used food items. The outer GRAB-N-GO door includes three additional door bins.

GRAB-N-GO Compartment

To access the GRAB-N-GO compartment, lightly press the button on the right refrigerator door handle until you hear a

Press until

you hear

the "Click"

sound

click to open the door. There is no need to grip the handle when opening the GRAB-N

-GO compartment.

CAUTION:

Remove contents from GRAB-N-GO case

before disassembly.

1 To remove the GRAB-N-GO case, lift up and pull out. 2 To replace the GRAB-N-GO case, line the tabs on

the GRAB-N-GO Case with the slots on the door and push down until it snaps into place.

GRAB-N-GO Door Bins

The GRAB-N-GO inner and outer door bins are removable for easy cleaning.

GRAB-N-GO Case

To open the GRAB-N-GO case, pull evenly on the marked area to pop it open. The GRAB-N-GO Case is removable for easy cleaning and adjustment.

1 To remove the door bins, lift up and pull out. 2 To replace the door bins, slide the door bin in above

the desired support and push down until it snaps into place.

USING YOUR REFRIGERATOR

FREEZER SECTION

ICE STORAGE BIN

The ice bin stores the ice cubes made by the icemaker. If you need to remove the ice storage bin, do so as follows:

NOTE: Use both hands to remove the ice bin to avoid dropping it.

Lift the ice storage bin slightly shown in the  gure.

 and pull it out  as

WATER FILTER

v Approximately every 6 months.

lter indicator turns on.

v When the water dispenser output decreases. v When the ice cubes are smaller than normal.

WATER FILTER

lter:

1. Remove the old water olter.

Press the push button to open the

lter cover.

NOTE: lter causes a small amount of water (around 1 oz. or 25 cc) to drain. Place

lter cover to

lter upright,

once it is removed, to prevent any remaining water from

lter.

Pull the water

lter downward and pull out. Make sure to

lter down completely before pulling it out of the manifold hole.

lter out of its packing and remove the protective cover from the o-rings. With the

lter tabs in the horizontal position, push the

lter into the manifold hole until it stops.

lter.

Rotate the water

lter up into position and close the cover. The cover will click when closed correctly.

3. lter is replaced, dispense 2.5

ush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

NOTE: lter, visit a Sears store or call U.S.A. 1-844-553-6667, and in Canada call 1-800-469-4663. You may also purchase online at www.sears.com

NOTE: $ZDWHUoOWHULVQRWQHFHVVDU\WRRSHUDWHWKLV

refrigerator.

,QVWDOODZDWHUoOWHUWRLPSURYHWKHTXDOLW\RIWKHLFHDQG

water dispensed.

WATER FILTER

Performance Data Sheet

Use Replacement Cartridge: ADQ7361340

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as speci ed in NSF/ANSI Standard 42 and Standard 53.

System tested and certi ed by NSF International against NSF/ANSI Standard 42 and Standard 53 for the reduction of substances listed below.

Contaminant Reduction

Chlorine Taste and Odor 2.0 mg/L 2.0 mg/L ± 10% 97.5% 0.05 mg/L N/A  50%

Nominal Particulate Class I, , 0.5 to < 1.0 m

Asbestos 170 MFL

Atrazine 0.0087 mg/L 0.009 mg/L ± 10% 94.2% 0.003 mg/L 0.003 mg/L N/A

Benzene 0.017 mg/L 0.015 mg/L ± 10% 97% 0.005 mg/L 0.005 mg/L N/A

Carbofuran 0.073 mg/L 0.08 mg/L ± 10% 98.8% 0.001 mg/L 0.04 mg/L N/A

Lindane 0.002 mg/L 0.002 mg/L ± 10% 98.8% 0.00002 mg/L 0.0002 mg/L N/A

P-Dichlorobenzene 0.263 mg/L 0.225 mg/L ± 10% 99.6% 0.001 mg/L 0.075 mg/L N/A

Toxaphene 0.015 mg/L 0.015 mg/L ± 10% 93.5% 0.001 mg/L 0.003 mg/L N/A

2,4-D 0.25 mg/L 0.210 mg/L ± 10% 99.5% 0.012 mg/L 0.07 mg/L N/A

Lead pH @6.5 0.150 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A

Average In uent

5,600,000

pts/mL

NSF speci ed Challenge

Concentration

At least 10,000 particles/mL 99.3% 73,000 pts/ml N/A 85%

to 108 MFL;  bers greater

than 10 m in length

Avg %

Reduction

>99% < 1 MFL N/A 99%

Average Product Water Concentration

Max Permissible

Product Water Concentration

NSF Reduction Requirements

Lead pH @8.5 0.150 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A

Mercury @ pH 6.5 0.006 mg/L 0.006 mg/L ± 10% 96.5 0.0002 mg/L 0.002 mg/L N/A

Mercury @ pH 8.5 0.0062 mg/L 0.006 mg/L ± 10% 86.9 0.0081 mg/L 0.002 mg/L N/A

Cyst* 120,000 cysts/L Minimum 50,000 cysts/L 99.99% <1 cyst/L N/A 99.95%

* Based on the use of Cryptosporidium parvum oocysts

WATER FILTER

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 lpm)

Water Supply

Community or private well -

Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

Capacity 200 gallons (757 liters)

cation 14-3015.

ed by California

Department of Public Health and replacement parts, see Performance Data Sheet.

It is essential that the manufacturer’s recommended

lter replacement requirements be carried out for the product to perform as advertised.

NOTE: While the testing was performed under standard laboratory conditions, actual performance may vary.

Replacement Cartridge: T

lter, visit your local Sears store or in the U.S.A. call 1-844-553-6667, and in Canada call 1-800-469-4663. You may also purchase online at www.sears.com

Product distributed in the United States by Sears Brands

man Estates, IL 60179.

WARNING

To reduce the risk associated with choking: Do not

allow children under 3 years of age to have access to small parts during the installation of this product.

To reduce the risk associated with ingestion of contaminants: Do not use with water that is

microbiologically unsafe or of unknown quality without adequate disinfection before and after the system.

ed for cyst reduction may be used on

lterable cysts. EPA

Establishment Number 070595-MEX-001

CAUTION

To reduce the risk associated with property damage due to water leakage:

v Read and follow the Water Filter instructions before

installation and use of this system.

v Installation and use MUST comply with all state and

local plumbing codes.

v Do not install if water pressure exceeds 120 psi (827

kPa). Contact a plumbing professional if you are uncertain of how to check your water pressure.

v Do not install where water hammer conditions may

occur. If water hammer conditions exist, you must install a water hammer arrester. Contact a plumbing professional if you are uncertain of how to check for this condition.

v Do not install on hot water supply lines.

The maximum operating water temperature of this

lter system is 100°F (38°C).

lter from freezing. Do not operate

refrigerator in ambient conditions below 55°F. Drain

lter when storing unit in temperatures below

40°F (4.4°C).

lter must be replaced every

six months, at the rated capacity, or if a noticeable

ow rate occurs.

v Do not install systems in areas where ambient

temperatures may go above 110ºF (43.3ºC).

ow prevention device is installed on a water system, a device for controlling pressure due to thermal expansion must be installed.

ttings are secure and free

from leaks.

WATER FILTER

Water Treatment Device

Certificate Number

201909-

Date Issued: December 15, 2009

Manufacturer:

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:

Microbiological Contaminants and Turbidity

Organic Contaminants

2,4-D Reduction Atrazine Benzene Carbofuran Lindane p-Dichlorobenzene Toxaphene

Sears Roebuck and Co.

Inorganic/Radiological Contaminants

so ts eb sAst sy C

Lead

Mercury

Rated Service Capacity:

200 gal

Rated Service Flow:

Conditions of Certification:

0.5 gpm

WARNING

CARE AND CLEANING

INSIDE WALLS (allow freezer to warm up so the cloth will not stick)

To help remove odors, you can wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

Explosion Hazard

Use non- ammable cleaner. Failure to do so can result in  re, explosion, or death.

Both the refrigerator and freezer sections defrost automatically; however, clean both sections about once a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves, crispers,

etc. Refer to sections in Using Your Refrigerator for removal instructions.

• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust protection. Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax). Apply wax with a clean, soft cloth.

CAUTION: While cleaning the inside, do not spray water.

DOOR LINERS AND GASKETS

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

PLASTIC PARTS (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use window sprays, abrasive cleansers, or  ammable  uids. These can scratch or damage the material.

CONDENSER COILS

Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

CARE AND CLEANING

LED LIGHT REPLACEMENT

WARNING

Electrical Shock Hazard

Before service is performed on the interior LED lighting, unplug the refrigerator or turn o power at the circuit breaker or fuse box.

Setting either or both controls to the OFF position does not remove power to the light circuit.

NOTE: The refrigerator and freezer compartment lights are LED interior lighting, and service should be performed by a quali ed technician.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep all

refrigerator doors closed to help foods stay cold and frozen.

2. If the power will be out for more than 24 hours, remove

all frozen food and store it in a frozen food locker.

WHEN YOU GO ON VACATION

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean, wipe and dry thoroughly.

4. Take out all removable parts, wrap them well

and tape them together so they do not shift and rattle during the move. Refer to the USING YOUR REFRIGERATOR section for removal instructions.

5. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the leveling legs all the way so they do not scrape the  oor. See the DOOR ALIGNMENT section.

6. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back and refer to the REFRIGERATOR INSTALLATION section for preparation instructions.

If you choose to leave the refrigerator on while you are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Turn o the icemaker and empty the ice bin.

If you choose to turn the refrigerator o before you leave,

follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFF. See the SETTING THE CONTROLS section.

3. Clean the refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors

to prop them open far enough for air to get in. This stops odor and mold from building up.

CONNECTING THE WATER LINE

BEFORE YOU BEGIN

This water line installation is not covered by the refrigerator warranty. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and can lead to water leakage or  ooding. Call a quali ed plumber to correct water hammer before installing the water supply line to the refrigerator.

CAUTION: To prevent burns and product damage, only

connect the refrigerator water line to a cold water supply. Connect to a potable water supply only.

If you use your refrigerator before connecting the water line, make sure the Ice Maker button is set to OFF.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

WATER PRESSURE Connect to the cold water supply. The water pressure

must be between 20 and 120 psi (138 to 827 kPa) on models without a water  lter and between 40 and 120 psi (276 to 827 kPa) on models with a water  lter.

If a reverse osmosis water  ltration system is connected to your cold water supply, this water line installation is not covered by the refrigerator warranty. Follow the following instructions carefully to minimize the risk of expensive water damage.

If a reverse osmosis water  ltration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (2.8 kgf/cm of 7 oz capacity).

If the water pressure from the reverse osmosis system is less than 21 psi or 1.5 kgf/cm2 (takes more than 4.0 sec to  ll a cup of 7 oz capacity):

• Check to see if the sediment  lter in the reverse osmosis

• Allow the storage tank on the reverse osmosis system to

• If the issue concerning water pressure from reverse

• All installations must be in accordance with local

CAUTION: Wear eye protection during installation to prevent injury.

~ 4.2 kgf/cm2, less than 2.0~3.0 sec. to  ll a cup

system is blocked. Replace the  lter if necessary.

re ll after heavy usage.

osmosis remains, call a licensed, quali ed plumber.

plumbing code requirements.

WHAT YOU WILL NEED

• Copper Tubing, ¼ in. outer

diameter, to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square.

• To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then, add 8 feet (2.4 m). Be sure there is su cient extra tubing (about 8 feet [2.4 m] coiled into 3 turns of about 10 in. [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

• Power drill.

• ½ in. or adjustable wrench.

• Flat blade and Phillips head screwdrivers.

• Two ¼ in. outer diameter compression nuts and 2 ferrules (sleeves) to

connect the copper tubing to the shuto valve and the refrigerator water valve.

• If your existing copper water line has a  ared  tting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut o the  ared  tting with a tube cutter and then use a compression  tting.

• Shuto valve to connect to the cold water line. The

shuto valve should have a water inlet with a minimum inside diameter of / in. at the point of connection to the COLD WATER LINE. Saddle-type shuto valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

NOTE: A Self Piercing Saddle Type Water Valve should not be used.

WARNING

Electrical Shock Hazard

When using any electrical device (such as a power drill) during installation, be sure the device is battery powered, double insulated or grounded in a manner that will prevent the hazard of electric shock.

CONNECTING THE WATER LINE

INSTALLATION INSTRUCTIONS

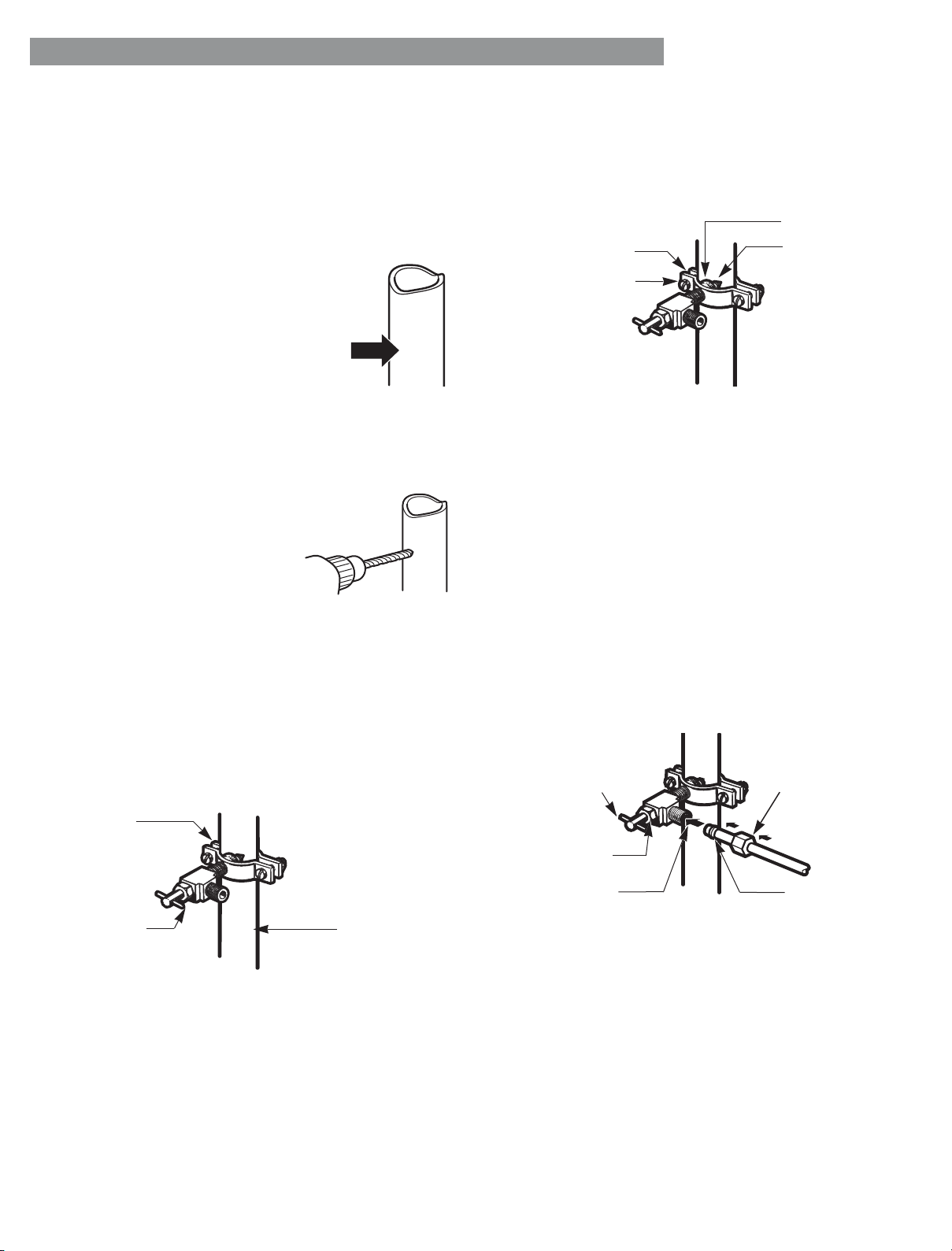

Install the shuto valve on the nearest frequently used drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing o any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a ¼ in. hole in the water pipe using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Be careful not to allow water to drain into the drill. Failure to drill a ¼ in. hole may result in reduced ice production or smaller cubes.

NOTE: The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only copper tubing NDA tubing #49595 or 49599 or Cross Link Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

Fasten the shuto valve to the cold water pipe with the pipe clamp.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten clamp or you may crush the

tubing.

Washer

Pipe Clamp

Clamp Screw

6. ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or

oor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is su cient extra tubing (about

8 feet coiled into 3 turns of about 10 in. diameter) to allow the refrigerator to move out from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Pla

ce the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shuto valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Saddle-Type Shuto Valve

Inlet End

Compression Nut

Pipe Clamp

Saddle-Type Shuto Valve

NOTE: Commonwealth of Massachusetts Plumbin Codes illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

248CMR shall be adhered to. Saddle valves are

Vertical Cold Water Pipe

Packing Nut

Outlet Valve

NOTE:

Codes 248CMR shall be adhered to. Saddle valves are illegal and their use is not permitted in Massachusetts. Consult with your licensed plumber.

IMPORTANT : Use only new water hose-sets, do not reuse old water hose -sets

Commonwealth of Massachusetts Plumbing

Ferrule (sleeve)

CONNECTING THE WATER LINE

8. FLUSH OUT THE TUBING

Turn the main water supply on and  ush out the tubing until the water is clear.

Shut the water o at the water

valve after about one quart of water has been  ushed through the tubing.

9. CONNECT THE TUBING TO THE REFRIGERATOR

NOTE: Before making the connection to the

refrigerator, be sure that the refrigerator power cord is not plugged into the wall outlet.

1. Remove the plastic  exible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto the

end of the tubing as shown.

3. Insert the end of the copper tubing into the connection

as far as possible. While holding the tubing, tighten the  tting.

Back of refrigerator

Tubing Clamp

¼” (6.35 mm) Tubing

10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

CAUTION: Check to see if leaks occur at the water line connections.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

¼” (6.35 mm) Compression Nut

Ferrule (Sleeve)

Refrigerator Connection

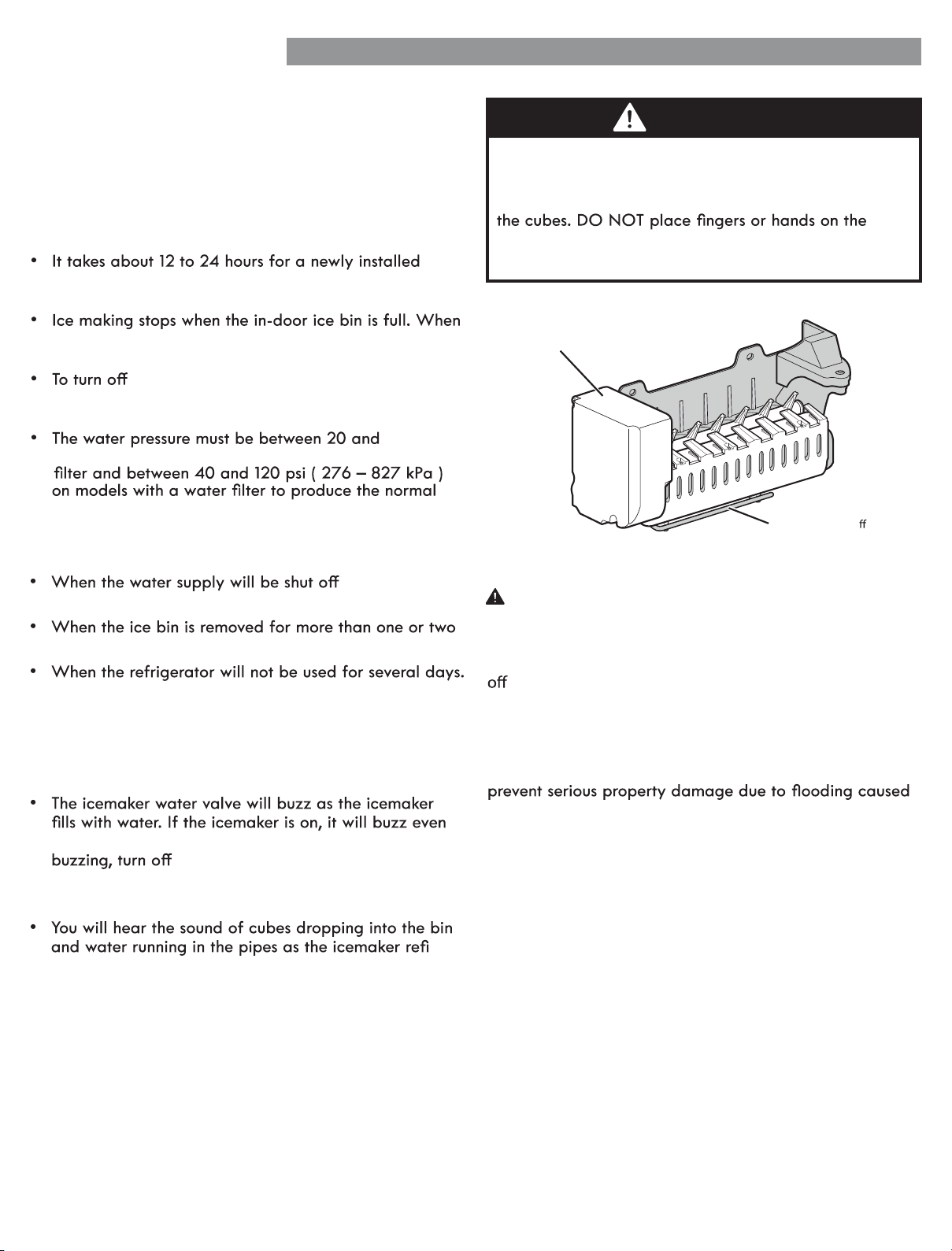

12. START THE ICEMAKER

Set the Ice Maker button to ON.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (–9°C) or below. It will then begin operation automatically if the Ice Maker button is set to ON.

TROUBLESHOOTING GUIDE

COOLING

Before conducting troubleshooting, make sure that the following basic requirements are met:

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 40-120 psi (276 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

Electrical Ratings

Problem Possible Causes Solutions

Refrigerator and Freezer section are not cooling.

115 Volts, 60 Hz, AC only, and fused at 15 amperes (minimum).

The power supply cord is unplugged. Firmly plug the cord into a live outlet with the proper

voltage.

Refrigerator is set to demo mode. Demo Mode allows the lights and control display to

work normally while disabling cooling to save energy while on the showroom  oor. Refer to the Setting the Controls section for instructions on how to disable Demo Mode.

Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each

compartment may rise slightly. Wait 30 minutes and con rm the proper temperature has been restored once the defrost cycle has completed.

Refrigerator was recently installed. It may take up to 24 hours for each compartment to

reach the desired temperature.

Cooling System runs too much.

Refrigerator was recently relocated. If the refrigerator was stored for a long period of time

or moved on its side, it is necessary for the refrigerator to lay upright for 24 hours before connecting it to power.

Refrigerator is replacing an older model.

Refrigerator was recently plugged in or power restored.

Door opened often or a large amount of food / hot food was added.

Doors are not closed completely. Firmly push the doors shut. If they will not shut all the

Refrigerator is installed in a hot location.

Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean the

Modern refrigerators require more operating time but use less energy due to more e cient technology.

The refrigerator will take up to 24 hours to cool completely.

Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to  nd, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)

way, see the Doors will not close completely or pop open section in Parts & Features Troubleshooting.

The compressor will run longer under warm conditions. At normal room temperatures (70°F or 21ºC) expect your compressor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110°F (43ºC).

condenser cover and vents. Do not remove the panel covering the condenser coil area.

Problem Possible Causes Solutions

Refrigerator or Freezer section is too warm.

TROUBLESHOOTING GUIDE

COOLING

Refrigerator was recently installed. It may take up to 24 hours for each compartment to

reach the desired temperature.

Air vents are blocked. Rearrange items to allow air to  ow throughout the

compartment. Refer to the Air ow diagram in the Using Your Refrigerator section.

Doors are opened often or for long periods of time.

Unit is installed in a hot location. The refrigerator should not be operated in

When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the e ect, reduce the frequency and duration of door openings.

temperatures above 110ºF (43ºC).

Interior moisture buildup.

A large amount of food or hot food was added to either compartment.

Doors not closed correctly. See the Doors will not close correctly or pop open

Temperature control is not set correctly.

Defrost cycle has recently completed. During the defrost cycle, the temperature of each

Doors are opened often or for long periods of time.

Doors not closed correctly. See the Doors will not close correctly section in the

Weather is humid. Humid weather allows additional moisture to enter the

Defrost cycle recently completed. During the defrost cycle, the temperature of each

Food is not packaged correctly. Food stored uncovered or unwrapped, and damp

Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this e ect.

section in Parts & Features Troubleshooting. If the temperature is too warm, adjust the control one

increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.

compartment may raise slightly and condensation may form on the back wall. Wait 30 minutes and con rm the proper temperature has been restored once the defrost cycle has completed.

Troubleshooting section.

compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.

compartment may raise slightly and condensation may form on the back wall. Wait 30 minutes and con rm that the proper temperature has been restored once the defrost cycle has completed.

containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.

TROUBLESHOOTING GUIDE

COOLING/ICE & WATER

Problem Possible Causes Solutions

Food is freezing in the refrigerator compartment.

Frost or ice crystals form on frozen food (outside of package).

Refrigerator or Freezer section is too cold.

Frost or ice crystals on frozen food (inside of sealed package).

Food with high water content was placed near an air vent.

Refrigerator temperature control is set incorrectly.

Refrigerator is installed in a cold location.

Door is opened frequently or for long periods of time.

Door is not closing properly. Refer to the Doors will not close correctly or pop

Incorrect temperature control settings. If the temperature is too cold, adjust the control one

Condensation from food with a high water content has frozen inside of the food package.

Food has been left in the freezer for a long period of time.

Rearrange items with high water content away from air vents.

If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.

When the refrigerator is operated in temperature below 41°F (5°C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperature below 55°F (13°C).

When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the e ect, reduce the frequency and duration of door openings.

open section in the Troubleshooting section.

increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.

This is normal for food items with a high water content.

Do not store food items with high water content in the freezer for a long period of time.

Icemaker is not making enough ice.

Demand exceeds ice storage capacity.

House water supply is not connected, valve is not turned on fully, or valve is clogged.

Water  lter has been exhausted. It is recommended that you replace the water  lter:

Low house water supply pressure. The water pressure must be between 20 and 120 psi

Reverse Osmosis  ltration system is used.

Tubing connecting refrigerator to house supply valve is kinked.

The icemaker will produce approximately 100 cubes in a 24 hour period.

Connect the refrigerator to a cold water supply with adequate pressure and turn the water shuto valve fully open.

If the problem persists, it may be necessary to contact a plumber.

• Approximately every 6 months.

• When the water  lter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

(138 - 827 kPa) on models without a water  lter and between 40 and 120 psi (276 - 827 kPa) on models with a water  lter.

If the problem persists, it may be necessary to contact a plumber.

Reverse osmosis  ltration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to Water Pressure section.)

The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water  ow. Straighten or repair the water supply line and arrange it to prevent future kinks.

Problem Possible Causes Solutions

Icemaker is not making enough ice (continued).

Dispensing water slowly.

TROUBLESHOOTING GUIDE

ICE & WATER

Doors are opened often or for long periods of time.

Doors are not closed completely. If the doors are not properly closed, ice production

The temperature setting for the freezer is too warm.

Water  lter has been exhausted. It is recommended that you replace the water  lter:

Reverse osmosis  ltration system is used.

If the doors of the unit are opened often, ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature. Lowering the refrigerator temperature can help, as well as not opening the doors as frequently.

will be a ected. See the Doors will not close completely or pop open section in Parts & Features Troubleshooting for more information.

The recommended temperature for the freezer compartment for normal ice production is 0°F. If the freezer temperature is warmer, ice production will be a ected.

• Approximately every 6 months.

• When the water  lter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal. Reverse osmosis  ltration systems can reduce the water

pressure below the minimum amount and result in icemaker issues.

If the problem persists, it may be necessary to contact a plumber.

Low house water supply pressure. The water pressure must be between 20 and 120 psi

(138 - 827 kPa) on models without a water  lter and between 40 and 120 psi (276 - 827 kPa) on models with a water  lter.

If the problem persists, it may be necessary to contact a plumber.

Not dispensing ice. Doors are not closed completely. Ice will not dispense if any of the refrigerator doors

are left open.

Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the cubes

to stick together over time, which will prevent them from properly dispensing. Check the ice bin for ice cubes clumping/sticking together. If they are, break up the ice cubes to allow for proper operation.

The delivery chute is clogged with frost or ice fragments.

The dispenser display is locked. Press and hold the Lock button for three seconds to

Ice bin is empty. It may take up to 24 hours for each compartment to

Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil. Dispensing cubed ice can also help prevent frost or ice fragment buildup.

unlock the control panel and dispenser.

reach the desired temperature and for the icemaker to begin making ice. Make sure that the shuto (arm/ sensor) is not obstructed.

Once the ice supply in the bin has been completely exhausted, it my take up to 90 minutes before additional ice is available, and approximately 24 hours to completely re ll the bin.

TROUBLESHOOTING GUIDE

ICE & WATER

Problem Possible Causes Solutions

Icemaker is not making ice.

Refrigerator was recently installed or icemaker recently connected.

Icemaker not turned on. Locate the Ice Maker button on the display and

The ice detecting sensor is obstructed. Foreign substances or frost on the ice-detecting sensor

The refrigerator is not connected to a water supply or the supply shuto valve is not turned on.

Icemaker shuto (arm or sensor) obstructed.

It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice.

con rm that it is set to ON.

can interrupt ice production. Make sure that the sensor area is clean at all times for proper operation.

Connect refrigerator to the water supply and turn the water shuto valve fully open.

If your icemaker is equipped with an ice shuto arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shuto sensor, make sure that there is a clear path between the two sensors.

Not dispensing water.

Reverse osmosis water  ltration system is connected to your cold water supply.

New installation or water line recently connected.

The dispenser panel is locked. Press and hold the Lock button for three seconds to

The dispenser is not set for water dispensing.

Refrigerator or freezer doors are not closed properly.

Water  lter has been recently removed or replaced.

Tubing connecting refrigerator to house supply valve is kinked.

The house water supply is not connected, the valve is not turned on fully, or the valve is clogged.

Reverse osmosis  ltration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Water Pressure section.)

Dispense 2.5 gallons (9.5 l) of water ( ush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon (9.5 l) amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

unlock the control panel and dispenser. The dispenser can be set for ice or water. Make

certain that the control panel is set for the proper operation. Press the Water button on the control panel to dispense water.

Water will not dispense if any of the refrigerator doors are left open.

After the water  lter is replaced, dispense 2.5 gallons (9.5 l) of water ( ush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon (9.5 l) amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Connect refrigerator to the water supply and turn the water shuto valve fully open.

If the problem persists, it may be necessary to contact a plumber.

Problem Possible Causes Solutions

Ice has bad taste or odor.

TROUBLESHOOTING GUIDE

ICE & WATER

Water supply contains minerals such as sulfur.

Icemaker was recently installed. Discard the  rst few batches of ice to avoid discolored

Ice has been stored for too long. Ice that has been stored for too long will shrink,

The food has not been stored properly in either compartment.

A water  lter may need to be installed to eliminate taste and odor problems.

NOTE: In some cases, a  lter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.

or bad tasting ice.

become cloudy, and may develop a stale taste. Throw away old ice and make a new supply.

Rewrap the food. Odors may migrate to the ice if food is not wrapped properly.

Dispensing warm water.

Water has bad taste or odor.

Icemaker is making too much ice.

The interior of the refrigerator needs to be cleaned.

The ice storage bin needs to be cleaned.

Refrigerator was recently installed. Allow 24 hours after installation for the water storage

The water dispenser has been used recently and the storage tank was exhausted.

Dispenser has not been used for several hours.

Refrigerator is connected to the hot water supply.

Water supply contains minerals such as sulfur.

Water  lter has been exhausted. It is recommended that you replace the water  lter:

Refrigerator was recently installed. Dispense 2.5 gallons (9.5 l) of water ( ush for

Icemaker shuto (arm/sensor) is obstructed.

See the Care and Cleaning section for more information.

Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it.

tank to cool completely. Depending on your speci c model, the water storage

capacity will range from approximately 20 to 30 oz (0.6 - 0.9 liter).

If the dispenser has not been used for several hours, the  rst glass dispensed may be warm. Discard the  rst 10 oz (0.3 liter).

Make sure that the refrigerator is connected to a cold water pipe.

WARNING: Connecting the refrigerator to a hot

water line may damage the icemaker. A water  lter may need to be installed to eliminate

taste and odor problems.

• Approximately every 6 months.

• When the water  lter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon (9.5 l) amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.

Empty the ice bin. If your icemaker is equipped with an ice shuto arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shuto sensor, make sure that there is a clear path between the two sensors. Reinstall the ice bin and wait 24 hours to con rm proper operation.

TROUBLESHOOTING GUIDE

NOISE

Problem Possible Causes Solutions

Clicking The defrost control will click when

the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and o .

Rattling Rattling noises may come from the

 ow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator.

Refrigerator is not resting solidly on the  oor.

Refrigerator with linear compressor was jarred while running.

Normal Operation

Floor is weak or uneven or leveling legs need to be adjusted. See the Door Alignment section.

Normal Operation

Whooshing Evaporator fan motor is circulating

air through the refrigerator and freezer compartments.

Air is being forced over the condenser by the condenser fan.

Gurgling Refrigerant  owing through the

cooling system.

Popping Contraction and expansion of the

inside walls due to changes in temperature.

Sizzling Water dripping on the defrost heater

during a defrost cycle.

Vibrating If the side or back of the refrigerator

is touching a cabinet or wall, some of the normal vibrations may make an audible sound.

Dripping Water running into the drain pan

during the defrost cycle.

Pulsating or HighPitched Sound

Your refrigerator is designed to run more e ciently to keep your food items at the desired temperature. The high e ciency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy e cient than previous models. While the refrigerator is running, it is normal to hear a pulsating or highpitched sound.

Normal Operation

To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.

Normal Operation

Problem Possible Causes Solutions

Doors will not close correctly or pop open.

TROUBLESHOOTING GUIDE

PARTS AND FEATURES

Food packages are blocking the door open.

Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position.

The doors were removed during product installation and not properly replaced.

Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation

Rearrange food containers to clear the door and door shelves.

Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Using Your Refrigerator section for more information.

Remove and replace the doors according to the

Removing and Replacing Refrigerator Handles and Doors section.

section to level refrigerator.

Doors are di cult to open.

Refrigerator wobbles or seems unstable.

Lights do not work. A light bulb has burned out.

The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.

Door was recently closed. When you open the door, warmer air enters the

Leveling legs are not adjusted properly.

Floor is not level. It may be necessary to add shims under the leveling

NOTE: The refrigerator compartment lamp is LED interior lighting, and service should be performed by a  ed technician.

Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.

refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.

Refer to the Leveling and Door Alignment section.

legs or rollers to complete installation. Refer to the Light Bulb Replacement section.

Diagnostics

Diagnostics (on some models)

Should you experience any problems with your refrigerator, it has the capability of transmitting data via your telephone to the Diagnostics Team. This gives you the capability of speaking directly to our trained specialists. The specialist records the data transmitted from your machine and uses it to analyze the

ective diagnosis.

If you experience problems with your refrigerator, in the U.S.A. call 1-844-553-6667, and in Canada call 1-800- 469-4663. Only use the Diagnostics feature when instructed to do so by the Diagnostics Team. The transmission sounds that you will hear are normal and sound similar to a fax machine.

Diagnostics cannot be activated unless your refrigerator is connected to power. If your refrigerator is unable to turn on, then troubleshooting must be done without using Diagnostics.

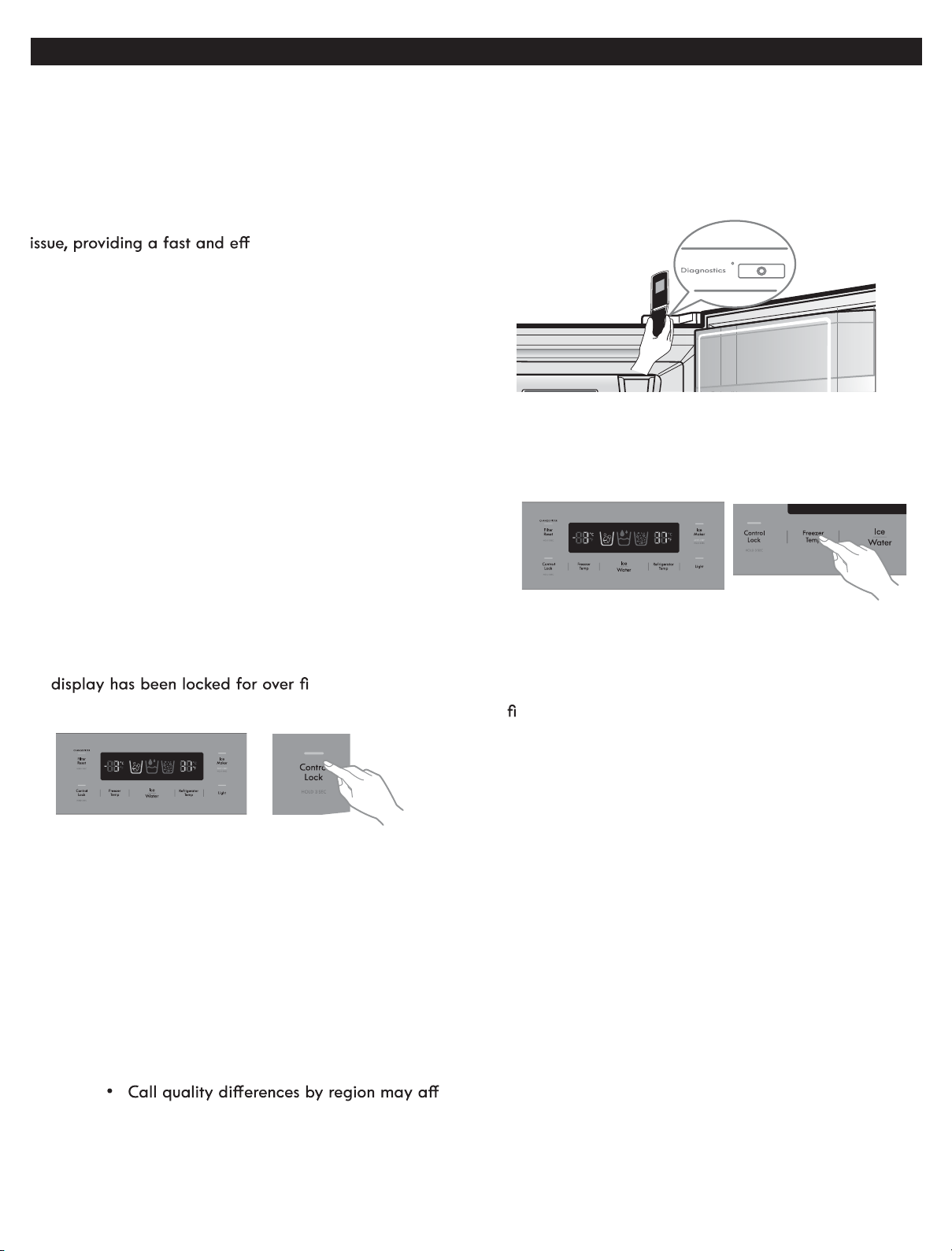

Using Diagnostics

3. Hold the mouthpiece of your phone in front of the

speaker that is located on the right hinge of the refrigerator door, when instructed to do so by the call center.

4. Press and hold the Freezer Temp button for three

seconds while continuing to hold your phone to the speaker.

First, call in U.S.A 1-844-553-6667, and in Canada call

1-800-469-4663. If the number of the phone you are

XVLQJLVRQoOHLVDVVRFLDWed with your refrigerator, you will be quickly relayed to a Diagnostics Team agent. Only use the Diagnostics feature when

instructed to do so by the Diagnostics Team agent.

1. Lock the display. To lock the display, press and hold

the Control Lock button for three seconds. (If the

ve minutes, you

must deactivate the lock and then reactivate it.)

2. Open the right refrigerator door.

5. After you hear three beeps, release the Freezer Temp

button.

6. Keep the phone in place until the tone transmission has

nished. The display will count down the time. Once the countdown is over and the tones have stopped, resume your conversation with the specialist, who will then be able to assist you in using the information transmitted for analysis.

NOTE:

v For best results, do not move the phone while the tones are being transmitted. v If the call center agent is not able to get an accurate recording of the data, you may be asked to

try again.

ect the Diagnostics function.

v For best results, use Diagnostics with a landline phone. v Bad call quality may result in poor data transmission from your phone to the machine, which could

cause Diagnostics to malfunction.

NOTES

Kenmore

For Sears Home Services in-home repair

of all Kenmore major appliances.

For the replacement parts, accesories and

Use &Care Guides that you need to do-it-yourself.

For professional installation of major home appliances

and items like air conditioners water heaters.

1-844-553-6667

www.kenmore.com

In Canada 1-800-469-4663

www.sears.ca

Call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222

To purchase a protection agreement on a serviceable product:

1-800-827-6655 (U.S.A)

a domicilio, y ordenar piezas:

1-888-SU-HOGAR

(1-888-784-6427)

www.kenmore.com

(U.S.A) 1-800-469-4663 (Canada)

1-800-361-6665 (Canada)

Au Canada pour service en français:Para pedir servicio de reparación

1-800-LE-FOYER

(1-800-533-6937)

www.sears.ca
