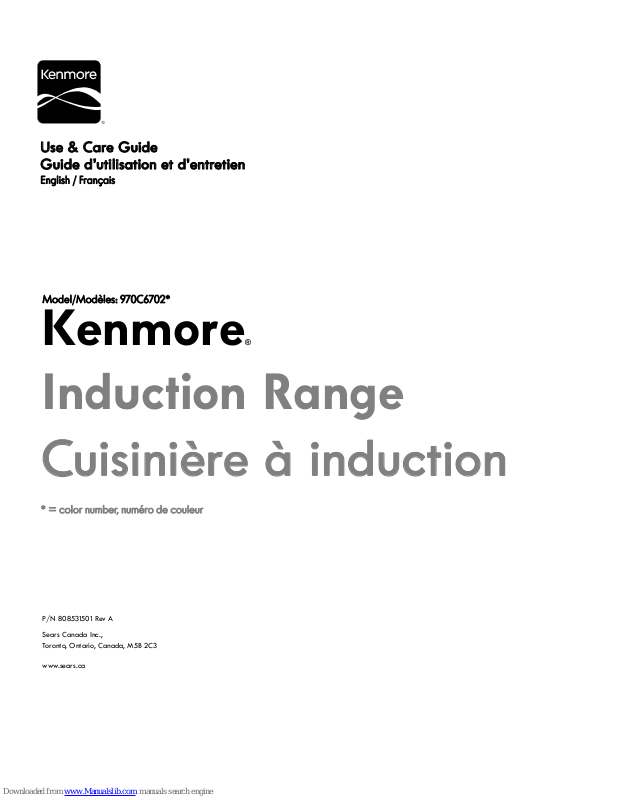

Use & Care Guide Guide d’utilisation et d’entretien

English / Français

Model/Modèles: 970C6702*

Kenmore®

Induction Range

Cuisinière à induction

* = color number, numéro de couleur

P/N 808531501 Rev A

Sears Canada Inc., Toronto, On tario, Canada, M5B 2C3

www.sears.ca

Table of Contents

Kenmore One Year Limited Warranty .................................................. 2

Parts and Repair Service.............................................................................. 3

Before Setting Surface Controls............................................................... 11

Benefits of Induction Surface Cooking .................................................11

Induction Cookware .................................................................................11

Home Canning ..........................................................................................12

Induction Cooking Zones............................................................................. 13

Pan Sensing ...............................................................................................13

Cooktop Display Windows ....................................................................14

Setting Surface Controls............................................................................. 15

Operating Induction Cooking Zones .....................................................15

Cooktop Operational Noises .................................................................16

Warm Zone ...............................................................................................16

Before Setting Oven Controls ................................................................... 17

Oven Vent Location .................................................................................17

Removing, Replacing, and Arranging Oven Racks ............................17

Oven Controls ............................................................................................. 18

Minimum and Maximum Control Settings ............................................19

Setting Clock .............................................................................................19

Changing Temp Display to Fahrenheit (ºF) or Celsius (ºC) ...............20

Setting Bake ..............................................................................................22

Setting Cook Time ....................................................................................23

Setting Delay Start ..................................................................................23

Convection Bake .......................................................................................24

Setting Convection Roast ........................................................................25

Setting Broil ...............................................................................................26

Setting Slow Cook ...................................................................................27

Warm & Hold™ ......................................................................................27

Setting the Sabbath Feature .................................................................28

Adjusting Oven Temperatures ...............................................................29

Restoring Factory Default Settings .......................................................30

Recipe Recall ............................................................................................30

Self Clean ..................................................................................................31

Steam Clean .............................................................................................33

Care & Cleaning ......................................................................................... 34

Cooktop Maintenance .............................................................................35

Cooktop Cleaning ....................................................................................35

Replacing Oven Light ..............................................................................36

Removing and Replacing the Lift-Off Oven Door .............................37

Before You Call ........................................................................................... 38

Oven Baking .............................................................................................38

Solutions to Common Problems ..............................................................39

Kenmore One Year Limited Warranty

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective product will receive free repair or replacement at option of seller. To arrange for warranty service, call 1-8004-MY-HOME®.

If this appliance is ever used for other than private family purposes, this warranty is void.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.

2. A service technician to instruct the user in correct product installation, operation or maintenance, or to clean or maintain this appliance.

3. Service calls to correct appliance installation not originally performed by Sears or Sears authorized service agents, nor to repair problems

with house fuses, circuit breakers, house wiring, plumbing or gas supply systems resulting from such installation.

4. Damage to or failure of this appliance if it is not installed, operated or maintained according to all supplied instructions.

5. Damage to or failure of this appliance resulting from accident, alteration, abuse, misuse, use for other than its intended purpose, or, if not orig-

inally performed by Sears or Sears authorized service agents, improper installation or installation not in accordance with electrical, gas or plumbing codes.

6. Damage to or failure of this appliance caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all

instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.

8. Discoloration or surface rust, which are conditions that can be the result of normal use, accident or improper maintenance.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be appliance repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in Canada*.

This warranty gives you specific legal rights, and you may also have other rights which vary from province to province.

*In Canada, in-home repair service is not available in all areas, nor will this warranty cover user or servicer travel and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available. Also, Sears Canada will not service an appliance if the model and serial plate is missing, altered or cannot easily be determined to have the Canadian certification logo.

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

Parts and Repair Service

Sears Parts and Repair Services

WE’RE THERE FOR YOU LONG AFTER THE SALE

*Select product assortment sold online; for full product availability please call the number provided.

To purchase replacement parts and product accessories, call 1.800.4.MY.HOMETM (1.800.469.4663), visit Sears.ca/parts, or visit your nearest Sears Parts and Repair store. Delivery to your home is available.

We recommend the following accessories to help extend the life of your product while saving you time and money.

In-home or in-shop service is available for all major brands.

Call 1.800.4.MY.HOME

Sears.ca/parts_

MAJOR APPLIANCES:

And a whole lot more! We have access to over 1 million parts and accessories!

REFRIGERATORS

Water & Air Filters

Ice Maker Stainless Steel Water Line

Thermometers

Environmentally Friendly Appliance Cleaners

VACUUMS:

Bags

Belts

Hoses

Wands, Brushes & Nozzles

Filters

LAWN & GARDEN:

Tune-up Kits, Oil & Fuel Stabilizers

Filters

Blades

Belts

Spark Plugs, Shear Bolts & Shear Pins

HEATING & COOLING:

Furnace & Air Conditioning Filters Humidifier Media Pads

Thermostats Durasept Humidifier Cleaner

DISHWASHERS

Stainless Steel Hoses

Clamps & Dishwasher Fittings

Dishwasher Installation Kits

LAUNDRY

Rubber & Stainless Steel Hoses

Ducts, Clamps, Vent Kits & Dryer Vent Cleaning

Brushes

Filters & Heating Elements

STOVES

Range Hood Filters

Elements

Bulbs

Smooth Top Cleaning Kits

Parts and Repair Service

1000

10%

PRODUCT RECORD

In this space below, record the date of purchase, model, and serial number of your product. You will find the model and serial number printed on an identification plate. See

Figure 1 for serial plate location.

Model No. __________________________

Serial No. ___________________________

Date of Purchase _____________________

Save sales receipt for future reference.

Figure 1: Serial plate location

To locate the serial plate, open storage drawer (some models) or warmer drawer (some models). The serial plate is attached to the lower right oven frame.

IMPORTANT SAFETY INSTRUCTIONS

Tip Over Hazard

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of the range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

Range leveling leg

Anti-tip bracket

• A child or adult can tip the range and be killed.

• Verify the anti-tip device has been installed to ﬂoor or wall.

• Ensure the anti-tip device is re-engaged to ﬂoor or wall when the range is moved.

• Do not operate the range without the anti-tip device in place and engaged.

• Failure to follow these instructions can result in death or serious burns to children and adults.

Read all instructions before using this appliance.

This manual contains important safety symbols and instructions. Pay attention to these symbols and follow all instructions given.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the hazard type.

DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

- Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.

hazardous situation which, if not avoided, may result in minor or moderate injury.

Important: Indicates installation, operation, maintenance, or valuable information that is not hazard related.

the door or drawers of a range can result in serious injuries and also cause damage to the appliance. Do not allow children to climb or play around the range. The weight of a child on an open over door may cause the range to tip, resulting in serious burns or other injury.

containers. Build-up of pressure may cause container to burst and result in injury.

- Indicates a potentially

Stepping, leaning, or sitting on

Do not heat unopened food

Save these instructions for future reference.

Do Not Leave Children Alone Children should not be left alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer, or lower double oven.

Do not store items of interest to

children in the cabinets above a range or on the backguard of the range. Children climbing on the range to reach items could be seriously injured.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Persons with a pacemaker or similar medical device should exercise caution using or standing near an induction unit while it is in operation, as the electromagnetic field may affect the working of the pacemaker or similar medical device. It would be advisable to consult your Doctor or the pacemaker or similar medical device manufacturer about your particular situation.

This appliance has been tested and found to comply with the limits pursuant to Canadian ICES-001. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving

antennae.

• Increase the distance between the unit

and receiver.

• Connect the unit into an outlet or a circuit

different from that to which the receiver is connected.

Never cover any slots, holes, or passages in the oven bottom or cover an entire oven rack with materials, such as aluminum foil. Aluminum foil linings may trap heat, causing a fire hazard.

Wear proper apparel. Loosefitting or hanging garments should never be worn while using this appliance. Do not let clothing or other flammable materials come into contact with hot surfaces.

When heating fat or grease, watch it closely. Grease may catch fire if it becomes too hot.

Do not use water or flour on grease fires. Smother fire or flame or use dry chemical or foam-type extinguisher. Cover the fire with a pan lid or use baking soda.

Use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholders touch hot cooking areas. Do not use towels or other bulky cloths.

Storage In or On Appliance—

Flammable materials should not be stored in an oven, near surface units or in the storage drawer, warmer drawer or lower oven. This includes paper, plastic, and cloth items, such as cookbooks, plastic ware, and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the oven.

Important: Important Safety Notice - The California Safe Drinking Water and Toxic Enforcement Act requires the governor of California to publish a list of substances known to cause cancer, birth defects, or other reproductive harms, and it requires businesses to warn customers of potential exposures to such substances.

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Read and follow the below instructions and precautions for unpacking, installing, and servicing your appliance:

• Remove all tape and packaging before

using the range. Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

• Proper Installation—Be sure your

appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70 latest edition and local electrical code requirements. Install only per installation instructions provided in the literature package for this range.

• Never modify or alter the construction of

a range by removing the leveling legs, panels, wire covers, anti-tip brackets/ screws, or any other part of the range.

• User Servicing—Do not repair or replace

any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician. This reduces the risk of personal injury and damage to the range.

• Ask your dealer to recommend a qualified

technician and an authorized repair service. Know how to disconnect the power to the oven at the circuit breaker or fuse box in case of an emergency.

• Remove the oven door from any unused

range if it is to be stored or discarded.

• Do not attempt to operate the range

during a power failure. If the power fails, always turn off the range. If the range is not turned off and the power resumes, the range will begin to operate again. Once the power resumes, reset the clock and oven function.

• Cold temperatures can damage the electronic control. When using this appliance for the first time, or when the appliance has not been used for an extended period of time, be sure the appliance has been in temperatures above 32ºF (0ºC) for at least 3 hours before turning on the power to the appliance.

• Be sure to have an appropriate foam-type fire extinguisher available, visible, and easily located near the appliance.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Never use your appliance for warming or heating the room.

• Use care when opening oven door, lower oven door, or warmer drawer (some models). Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

• Keep oven vent ducts unobstructed. The oven vent is located below the backguard. Touching surfaces in this area when the oven is on may cause severe burns. Do not place plastic or heat-sensitive items on or near the oven vent. These items can melt or ignite.

• Placement of Oven Racks - Always place oven racks in desired location while oven is cool. If rack must be moved while oven in hot, use extreme caution and do not let potholder contact hot heating element in oven. Use potholders and grasp the rack with both hands to reposition. Remove all bakeware and utensils before moving the rack.

• Do not use a broiler pan without its insert. Broiler pans and inserts allow dripping fat to drain away from the high heat of the broiler. Do not cover the broiler insert with aluminum foil; exposed fat and grease could ignite.

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

• Protective Liners - Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.

• Do not cook food on the oven bottom. Always cook in proper bakeware and always use the oven racks.

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating unit. Place a pan of food on the surface element unit before turning it on, and turn the element off before removing the pan.

• Improper cookware may break due to sudden changes in temperature. Check the cookware manufacturer’s recommendations for cooktop use.

• Use proper pan size — This appliance is equipped with induction cooking zones of different sizes. Select utensils specifically manufactured and approved for induction cooking that have flat bottoms that match the induction cooking zone size. Proper relationship of utensil to cooking zone will also improve efficiency.

• Utensil handles should be turned inward and not extend over adjacent surface elements — To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

• Never leave surface elements unattended at high heat settings — Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

• Glazed cooking utensils — Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature. Check the manufacturer’s recommendations for cook top use.

• When flaming foods under a ventilating hood, turn the fan on.

• Do not use decorative surface burner covers. If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

Before manually cleaning any

part of the range, be sure all controls are turned off and the range is cool. The range may be hot and can cause burns.

• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area around each surface element. Do not allow grease to accumulate.

• Always follow the manufacturer’s recommended directions for use of kitchen cleaners and aerosols. Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

• Clean ventilating hoods frequently. Grease should not be allowed to accumulate on the hood or filter. Follow the manufacturer’s instructions for cleaning hoods.

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR SELF-CLEANING OVENS

• Clean only the parts listed in this manual. Before using self-clean, remove the broiler pan, any food, utensils, and bakeware from the oven. Remove oven racks unless otherwise instructed.

• Do Not Use Oven Cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

• Do Not Clean Door Gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

• Some birds are extremely sensitive to the fumes given off during the self-clean cycle of any oven. Move birds to another well-ventilated room.

DO NOT TOUCH SURFACE

HEATING UNITS, OR SURFACE COOKING ELEMENTS, AREAS NEAR THESE SURFACE HEATING UNITS, OR INTERIOR SURFACE OF THE OVEN. Both surface heating and oven heating elements may be hot even though they are dark in color. Areas near surface cooking units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the cook top, surfaces facing the cook top, the oven vent openings and surfaces near these openings, oven door and oven door window.

IMPORTANT INSTRUCTIONS FOR CERAMIC-GLASS COOKTOP MODELS

• Do not cook on broken cook top — If cook top should break, cleaning solutions and spillovers may penetrate the broken cook top and create a risk of electric shock. Contact a qualified technician immediately.

• Clean cook top with caution — If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

GROUNDING INSTRUCTIONS

For models factory-equipped with a power cord:

Avoid fire hazard or electrical shock. Failure to follow this warning may cause serious injury, fire, or death.

For personal safety, this appliance must be properly grounded. For maximum safety, the power cord must be plugged into an electrical outlet that is the correct voltage, is correctly polarized and properly grounded in accordance with local codes.

Power supply cord with 4-prong grounding plug

Figure 2: Power supply with 4-prong grounding plus

240V grounded wall receptacle

It is the personal responsibility of the consumer to have the appropriate outlet with the correct, properly grounded wall receptacle installed by a qualified electrician.

See the installation instructions packaged with this appliance for complete installation and grounding instructions.

Save these instructions for future reference.

Before Setting Surface Controls

left rear

cooking zone (2)

right rear

cooking zone (3)

right front

cooking zone (4)

left front

cooking zone (1)

radiant

warm zone

Benefits of Induction Surface Cooking

Fast and efficient - The induction cooking zones heat faster while using less energy. Induction power levels are quick to boil and efficient when simmering.

A cooler cooktop - A unique feature of the induction cooking zones is whether turned on or off, the cooking zones remain cooler than radiant type elements. Virtually no wasted heat is produced because the heat begins with the presence of cookware.

Easy cleanups - The cooler cooking zones make cleanup easier. Spills resist sticking or burning, so they wipe up easily.

Magnetic detector - The cooking zone has a sensor that automatically detects whether or not cookware is magnetic. This will reduce accidental turn-ons.

Pan size detection - The pan size recognition sensor automatically detects and adapts the induction cooking zones to the pan sizes in use for consistent, more even cooking.

More responsive - The induction cooking zones are more responsive than their electric or gas counterparts because the pan is what heats. This type of cooking heats easier and will be just as responsive when reducing to a simmer.

Induction Cookware

Important note:

Before using the induction cooking zones, be sure to carefully read and follow these cookware recommendations and the instructions in the “Pan Sensing” section.

Induction cooktops allow the flexibility to use a wide range of cookware. Induction cooking only requires the cookware to be magnetic. Induction-specific cookware may be purchased.

The cooking zones will not activate if the cookware is not constructed with a base magnetic material. To check if the cookware base material is suitable, use a magnet to test (Figure 4). If a magnet sticks to the bottom of the cookware, the material type is correct.

About the Induction Cooktop

The cooktop is equipped with four differently-sized induction cooking zones and a radiant heat warm zone.

Figure 3: Induction cooking zones

Induction cooking heats the pan directly, and heating will only begin when cookware is properly placed on the cooking zones.

Figure 4: Cookware verification

For best results, only use high quality heavy gauge cookware on the induction cooking zones. Follow all the manufacturer’s recommendations when using cookware made for induction cooking.

Induction Cookware Types

The most common induction cookware types available are:

Stainless steel - Generally, excellent for induction cooking. Is durable, easy to clean, and resists staining. Not all stainless steel cookware is magnetic. Check before purchase or use.

Cast iron - Good for induction cooking. Cooks evenly. Do not slide cast iron cookware on cooktop. Cast iron cookware with a rough bottom will scratch a ceramic cooktop

Porcelain-enameled metal - Heating characteristics vary depending on quality of base material. Porcelain-enamel coating must be smooth to avoid scratching ceramic cooktop. Test with a magnet before purchase or use.

Before Setting Surface Controls

When Using the Cooking Zones

• Be sure to use cooktop cookware made with a magnetic base material.

• Use quality cooktop cookware with heavier bottoms for better heat distribution.

• Cookware should have flat bottoms that make good contact with the entire cooking zone area. Check for flatness by rotating a ruler across the bottom of the cookware (Figure 5).

Figure 5: Check for level-bottomed cookware

• Be sure cookware is properly balanced and does not tilt from a heavy handle.

• Be sure that the pan size matches the amount of food to be prepared. The size and type of cookware used will influence the setting needed for best cooking results.

• Never let cookware boil dry. This may cause permanent damage to the cooktop, such as breakage, fusion, or marring.

• Use cookware that meets the minimum and maximum cookware size requirements for each cooking zone.

Hot Cookware and Residual Heat

Unlike radiant surface elements, the cooking zones will not glow red when they are hot. The glass surface may be hot from residual heat transferred from the cookware and burns may occur. Do not touch hot cookware or pans directly with hands. Always use oven mitts or pot holders to protect hands from burns.

The type and size of cookware, cooking duration, the number of cooking zones in use, and their power level settings are all factors that will affect the amount of heat that will spread beyond the cooking zones.

The induction cooking zones and areas surrounding the cooking zones may become hot enough to cause burns. Be sure to read all cautions.

Important note:

Some accessories are made to straddle cooking zones. Never straddle a cooking utensil over two different surface cooking zones heating at the same time unless it designed for straddling. This will cause uneven heating results and could cause the ceramic cooktop to fracture.

Home Canning

Canning can generate large amounts of steam. Use extreme caution to prevent burns. Always raise the lid to vent steam away from you. Safe canning requires that harmful micro-organisms are destroyed and the jars are sealed completely. When canning in a water bath canner, a gentle but steady boil must be maintained continuously for the required time.

Be sure to read and observe all the following points when home canning with your appliance. Check with the United States Department of Agriculture (USDA) website (www.usda.gov) and be sure to read all the information they have available as well as follow their recommendations for home canning procedures.

• Use only quality flat bottom canners when home canning.

Use a straight-edge to check canner bottom.

• Use only a completely flat bottom canner with no ridges

that radiate from the bottom center when home canning using a range with a ceramic glass cooktop.

• Make sure the diameter of the canner does not exceed 1

inch beyond the cooking zone markings. Use smaller diameter canners on ranges with ceramic glass or open coil electric cooktops.

• Start with hot tap water to boil water quickly.

• Use the highest heat setting when first bringing the water to

a boil. Once boiling, reduce heat to lowest possible setting to maintain that boil.

• Use tested recipes and follow instructions carefully. Check

with your local Cooperative Agricultural Extension Service or a manufacturer of glass jars for the latest canning information.

• It is best to can small amounts and light loads.

• Do not leave water bath or pressure canners on high heat

for an extended amount of time.

• Alternate surface units between each batch to allow the

units and surrounding surfaces to cool down. Try to avoid canning on the same burner unit all day.

Induction Cooking Zones

Pan Sensing

The cooking zone sensors located below the cooktop surface require that certain cookware conditions are met before the induction cooking zones can operate.

If a cooking zone is activated and no cookware is detected, the zone display will flash with the last power level setting (Figure 6). If improper cookware is used, the cooking zones may not heat.

Figure 6: Flashing error message

The conditions that generate a flashing message are illustrated in Figure 7. Use Figure 7 as a guide to help to correct the problem before attempting to reactivate any of the cooking zones.

If the problem or problems are not corrected, the cooking zone will automatically turn off after three minutes.

Important note:

It is recommended that you lower the requested power level setting before correcting the pan sensing message.

Correct

Cookware base material has good magnetic characteristics.

Cookware centered correctly on cooking zone.

Flat pan bottom and straight sides.

Pan size meets or exceeds the recommended minimum size for cooking zone.

Incorrect

Cookware base material is nonmagnetic.

Cookware not centered on cooking zone.

Curved or warped pan bottoms or sides.

Pan does not meet the minimum size required (too small) for cooking zone.

Pan Sensing on the Induction Cooking Zones

The cooktop graphics are guides to minimum and maximum pan size for each cooking zone.

Minimum Pan Size

Induction cooking zones require a minimum pan size in order to activate. The gap in the lines on each cooking zone indicates the smallest pan size (Figure 8).

If a pan that is induction-capable is centered properly but is too small, the display will flash and the pan will not heat. Select a larger pan that meets the minimum size requirement for that cooking zone or use a different cooking zone (Figure 9).

Maximum Recommended Pan Size

The ends of the lines on the cooktop graphics indicate the recommended maximum pan size for that zone (Figure 9).

It is recommended to not use pans with bottoms that extend more than 1/2” (13 mm) beyond any of the longer lines for each cooking zone.

The cookware must make full contact with the ceramic glass surface. Cookware should not rest on or touch the metal edges of the cooktop.

Pan rests completely and is level on the cooktop surface.

Pan is properly balanced.

Figure 7: Troubleshooting guide

Figure 8: Minimum pan size markings

Pan bottom rests on cooktop edge.

Heavy handle tilts pan.

Figure 9: Maximum pan size markings

Induction Cooking Zones

Cooktop Display Windows

The range backguard provides a digital window for each of the cooking zones located on the cooktop. Power levels and messages are easily monitored and controlled using the window displays in combination with the corresponding control knobs.

Available Power Level Settings

The cooktop control (Figure 10) will display power levels ranging from Pb (Figure 11), Hi (Figure 15) to Lo (Figure 12).

The settings between 9.5 (Figure 16) and 1.5 (Figure 17) decrease and increase in 0.5 increments.

Use Table 1 to determine the correct power level setting for the type of food you are preparing.

Power Boost Power Level (Pb)

When setting an induction cooking zone for the highest setting (to the POWER BOOST position), the display will initially show Pb (Power Boost) power level for up to 10 minutes. After 10 minutes, the cooking zone will automatically return to the Hi setting (Figure 15). The Pb setting is only available immediately after activating a cooking zone by turning the knob to the highest setting (to the POWER BOOST position).

Hot Surface Window Message (HE)

After using an induction cooking zone, the cooktop may become very hot. After turning any cooking zone off, the cooktop may remain hot for some time. The corresponding Hot Element (HE) message will remain on until the cooktop has cooled (Figure 14).

Figure 10: Cooktop control knobs

Figure 11: Power Boost

Figure 15: High setting

ESEC Error Indicator Message (Er)

An error message will be displayed (flashing Er) (Figure 13) at power up (or after a power failure) if any of the surface control knobs were left in the ON positions. If a power failure should occur, be sure to set all of the four surface control knobs to the OFF position. This will reset the surface controls.

Be sure to reset the clock by referring to the “Setting Clock” heading on page 19. Once the surface controls have been set to the OFF positions and the clock has been set with the correct time of day, the surface controls should return to normal operation. If the surface controls do not function and the Er message remains in any display after following these procedures, contact an authorized servicer for assistance.

Lockout Window Message (- -)

The (- -) message will appear whenever the Lockout, Self-clean or Sabbath feature is active (Figure 18). Refer to the “Setting

Oven Lockout” heading on page 21 for more details.

Important:

The induction cooking zones will not operate when the oven is set for Sabbath mode. For more details on the Sabbath feature, see the “Setting the Sabbath Feature” on page 28.

Figure 12: Low setting

Figure 13: Error message

Figure 14: Hot element

indicator

Figure 16: Increment setting

Figure 17: Increment setting

Figure 18: Cooktop lockout

indicator

Setting Surface Controls

Operating Induction Cooking Zones

Start most surface cooking on a higher setting and then adjust to a lower setting to finish cooking.

The suggested settings may vary slightly depending on the cookware design, quality, and amount of food being prepared (Table 1).

Be sure to use quality cookware that is constructed with magnetic base material and meets the minimum and maximum pan size requirements.

To operate induction cooking zones:

Unlike radiant surface elements, induction cooking zones do not glow red. The glass surface may be hot from residual heat transferred from the cookware and burns may occur. Do not touch hot cookware or pans directly with hands. Always use oven mitts or pot holders to handle cookware.

1. Place induction cookware on the desired cooking zone.

2. To activate the cooking zone, push in and turn the control

knob in either direction to the desired setting.

3. Adjust the power level by turning the knob. This will

decrease or increase the power level. Power levels 9.5 through 1.5 decrease and increase by 0.5 increments. Lo is the lowest power level available.

Do not place flammable items (plastic salt and pepper shakers, spoon holders, plastic wrappings, etc.) on the cooktop when in use. These items could melt or ignite if placed too close to hot cookware.

The cooking zones may appear to have cooled after they have been turned off. The glass surface may still be hot from residual heat and burns may occur if the cooktop is touched before it has cooled sufficiently.

Pan Preheat Recommendations

Induction cooking may decrease the amount of time required to preheat a cooking utensil compared to cooking on a radiant element cooktop or gas surface burner.

Whenever using the cooktop or oven, always pay close attention to all food items cooking and remain attentive until all the cooking is complete.

Important note:

Remember that induction surface cooking will initially heat the cooking utensil very quickly.

Important:

• The HE (hot element) message will appear in the display

windows once a heating element or cooking zone is turned off and will remain on until the heating surface area or areas have cooled sufficiently.

4. Once cooking is complete, turn the control knob to OFF and remove cookware.

Table 1: Suggested cooking zone power level settings

Settings Type of cooking

Power boost (Pb) Use to start heating pans that contain

large amounts of food or to bring large pans of water to boil

High (8.0-Hi) Start most foods, bring water to a boil,

pan broiling

Medium high (5.0-8.0) Continue a rapid boil, fry, deep fat fry

Medium (4.0-5.0) Maintain a slow boil, thicken sauces and

gravies or steam vegetables

Medium Low (2.0-4.0) Keep foods cooking, poach, stew

Low (Lo - 2.0) Keep warm, melt, simmer

The suggested power level settings shown in Table 1 are based on cooking

with medium sized pans with lids. Be sure to make any further setting adjustments needed for best surface cooking results.

The size and type of utensil used, as well as the amount and type of food

being cooked, will influence the setting needed for best cooking results.

• Do not allow aluminum foil, or any material that can melt, to make contact with the ceramic glass cooktop. If these items melt, they may damage the ceramic cooktop.

• The pan sensor will detect if the cookware is moved from the center of any active induction cooking zone, and the cookware will no longer heat. The affected cooking zone display window will flash until the cookware is moved back to the center of the cooking zone. If the cookware is properly centered on the cooking zone, the zone will resume heating. The cooking zone will remember the power level setting for up to three minutes before the cooking zone will automatically shut off.

Setting Surface Controls

Cooktop Operational Noises

The electronic processes involved in induction cooking may create some background noises. You may hear a slight buzzing sound when cooking on the cooktop. These noises are part of the induction cooking process and are considered normal.

Some cookware will buzz depending on the construction or base material. The buzz may be more noticeable if the contents of the pan are cold. As the pan heats, the noise will decrease. The noise will also decrease if the power level setting is reduced.

Important note:

When using the induction cooktop, operational noises are more noticeable while cooking at the Pb level. Very loud noises are not part of normal induction cooking.

Warm Zone

The purpose of the warm zone is to keep foods at serving temperatures and to warm oven-safe dishware. Cover all food on the warm zone with a lid to maintain quality. Always start with hot food. Do not heat cold food with the warm zone. For best results when warming pastries or breads, the cover should have an opening to allow moisture to escape. Do not use plastic wrap to cover food. Plastic may melt onto the surface and be difficult to remove. Use only dishware, utensils, and cookware recommended for oven and cooktop use.

To set the warm zone control:

Food Poisoning Hazard. Do not heat cold food on the warm zone. Doing so can result in food poisoning or sickness.

The warm zone is radiant heat, but it will not glow red when it is hot. To avoid possible burns, always use potholders or oven mitts when moving food to and from the warm zone because cookware and plates will be hot.

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may still be hot and burns may occur if the glass surface is touched before it has cooled.

Do not place flammable items (plastic salt and pepper shakers, spoon holders, plastic wrappings, etc.) on top of the range when it is in use. These items could melt or ignite. Pot holders, towels, or wooden spoons could catch fire if placed too close to the surface elements.

Warm Zone Temperature Selection

If a particular food is not listed, start with the medium heat level and adjust as needed (Table 2). Most foods can be kept at serving temperatures by using the medium heat level.

Figure 19: Warm zone control

Table 2: Warm zone recommended food settings

Food Item Heating Level

Breads/Pastries LO (Low)

Casseroles LO (Low)

Dinner Plates with Food LO (Low)

Eggs LO (Low)

Gravies LO (Low)

Meats MED (Medium)

Sauces MED (Medium)

Soups (cream) MED (Medium)

Stews MED (Medium)

Vegetables MED (Medium)

Fried Foods HI (High)

Hot Beverages HI (High)

Soups (liquid) HI (High)

1. Place cookware on the warm zone.

2. Push in and turn the warm zone’s control knob to the desired

setting, indicated by the semi-circle line around the knob. You may turn the knob either way (left or right) to activate the burner. (The warm zone indicator light will turn on).

3. When finished, turn the control knob to the OFF position.

Before Setting Oven Controls

oven vent location

at oven rack

at handle oven rack

bottom oven rack

oset oven rack

Oven Vent Location

The oven vent is located under the left side of the control panel. When the oven is on, warm air passes through this vent. This venting is necessary for proper air circulation in the oven and good baking results. Do not block oven vent. Steam or moisture may appear near the oven vent; this is normal.

Figure 20: Do not block oven vent location

Protective Liners — Do not use aluminum foil to line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock or fire.

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior and exterior, as well as the oven racks, will become very hot which can cause burns.

Removing, Replacing, and Arranging Oven Racks

To Arrange - Always arrange the oven racks when the oven is cool (prior to operating the oven).

To Remove - Pull the oven rack straight forward until it reaches the stop position. Lift up front of oven rack slightly and slide out.

To Replace - Place the oven rack on the rack guides on both sides of oven walls. Tilt the front of oven rack upward slightly and slide the oven rack back into place. Be sure oven racks are level before using.

Figure 21: Oven rack types

Oven Rack Descriptions

• Flat oven racks (or the flat handle oven rack) may be used for most cooking needs and may be placed in most oven rack positions.

• The offset oven rack (some models) provides additional stepdown positions from the standard flat rack design. The offset design positions the base of the rack about 1/2 of a rack position lower than the flat rack and may be used in most oven rack positions.

• To maximize oven cooking space, place the bottom oven rack (some models) in the lowest rack position for baking or roasting large cuts of meat.

Oven Controls

1. Bake - Use to start a normal Bake function.

2. Broil - Use to select Broil function.

3. Convec Bake - Use to select the Convection Bake function.

4. Convec Convert - Use to select the Convection Convert

function.

5. Convec Roast - Use to select Convection Roast function.

6. Slow Cook - Use to select Slow Cook function.

7. LIGHT - Use to turn internal oven light on and off.

8. 0-9 keypad - Use to enter oven temperatures and times.

9. START - Use to start oven functions.

10. Up / Down arrows - Use to adjust settings, temperature,

and times, lock the oven door and the cooktop.

11. STOP - Use to cancel any oven function previously entered except clock and timer.

12. Timer ON/Off - Use to set and cancel the timer.

13. Add 1 Minute - Use to add one minute to the timer. This

works with the kitchen timer and does not affect any cook time or start time functions.

14. Cook Time - Use to set a specific amount of time needed for cooking. Automatically cancels cooking process at end of set time.

Important note:

The oven control works with both the numeric keypad and the Up / Down arrow keys. For cooking functions (Bake, Broil, Convec Bake, Convec Convert, Convec Roast, and Slow Cook) as well as for the Timer ON/OFF and the CLOCK functions, you may press the Up / Down arrows to adjust the temperature in addition to (or instead of) using the digital keys. Regardless of the method you choose, always press the START key to initiate the function.

Please be aware that the Up / Down arrows will not operate with the Add 1 Minute and Warm & Hold functions. If an arrow key is pressed in an attempt to program any given function that is invalid, the control will sound a triple beep.

15. Delay Start - Use with Bake, Convection Bake, Convection Convert, and Self Clean functions to program a delayed start time.

16. Self Clean - Use to select 2, 3, or 4 hr Self-Clean cycle.

17. Warm & Hold - Use to keep cooked food warm and at

serving temperature for up to 3 hours.

18. CLOCK - Use to set time of day.

Oven Controls

Minimum and Maximum Control Settings

All of the features listed have minimum and maximum time and temperature settings that may be entered into the control. An entry acceptance beep will sound each time a key is touched. An entry error tone (three short beeps) will sound if the entry of the temperature or time is below the minimum allowable setting or above the maximum setting for the cooking feature. The error tone will also sound any time a key is pressed if the entry is determined to be an invalid selection.

Table 3: Minimum and maximum control settings

Feature Min. Temp or Time Max. Temp or Time

Bake

Broil

Timer

Self Clean

Warm & Hold

Cook Time

Delay Time 12 Hr.

Delay Time 24 Hr.

Convec Bake

Convec Roast

Clock 12 Hr.

Clock 24 Hr.

Slow Cook

170°F (77°C) 500°F (260°C)

400°F (205°C) 550°F (288°C)

1 minute 11 hrs. 59 mins.

2 Hours 4 Hours

170°F (77°C) 3 Hours

1 Minute 11:59

1:00 12:59

0:00 23:59

170°F (77°C) 500°F (260°C)

1:00 12:59

0:00 23:59

LO 225°F (108°C) HI 275°F (134°C)

Important note:

The clock cannot be changed when a Cook Time, Self Clean, Delay Start, or cooking feature is active.

Setting Timer

The minute timer allows you to track your cooking times without interfering with the cooking process. The timer may be set from a minimum time of 1 minute to a maximum of 11 hours and 59 minutes.

To set timer for 5 minutes:

1. Press Timer ON/OFF.

2. Enter 5 using numeric keypad or press the Up arrow key until 5 appears in the display.

3. Press START to start the timer. When set time ends, END will show in the display and the control will sound a beep three times every 30 seconds until Timer ON/OFF key is pressed.

To cancel the timer when active, press Timer ON/OFF again.

Important note:

• The timer does not start or stop the cooking process. It serves as an extra minute timer that will beep when the set time has run out. The timer may be used alone or while using any of the other oven functions.

• When timer is set for more than 1 hour it will display hours and minutes until 1 hour remains. When less than 1 hour remains, the display counts down in minutes and seconds. With less than 1 minute remaining, only seconds will display.

• If the timer is active during a cooking process, the timer will show in the display. To view the status of any other active oven function, press the key of the cooking function once and it will appear in the display for a few seconds.

Setting Clock

When the appliance is first powered up, 12:00 will flash in the display (Figure 22). The time of day must first be set before operating the oven.

Figure 22: 12:00 in display before setting the clock

To set clock to 1:30:

1. Press .

2. Enter 1 3 0 using numeric keypad or press the Up / Down arrow keys until 130 appears in the display.

3. Press START.

Add 1 Minute

Use the Add 1 Minute feature to set additional minutes to the timer. Each press of the key will add 1 additional minute. If Add 1 Minute is pressed when the timer is not active, the timer will activate and begin counting down from 1 minute.

To add 2 minutes to the timer:

Press Add 1 Minute twice.

Oven Controls

Setting 12 Hour or 24 Hour Display Mode

The clock display mode allows you to select 12 hr or 24 hr modes. The factory pre-set clock display mode is 12 hours.

To set 12 hr or 24 hr display mode:

1. Press and hold for 6 seconds.

2. Press the Up / Down arrow keys to toggle between 12 Hr day or 24 Hr day display modes (Figure 23).

3. Press START to accept the choice.

Figure 23: 12 Hr dAy and 24 Hr dAy settings

Changing Between Continuous Bake Setting or 12 Hour Energy Saving

The oven control has a factory preset built-in 12 Hour Energy Saving feature that will turn off the oven if the oven is left on for more than 12 hours. The control may be programmed to override this feature to bake continuously.

To change between continuous bake or 12 hour energy saving feature:

1. Press and hold Timer ON/OFF for 6 seconds

2. Press the Up / Down arrow keys to toggle between 12 Hour OFF or Stay On feature (Figure 24).

3. Press START to accept choice.

Changing Temp Display to Fahrenheit (ºF) or Celsius (ºC)

The electronic oven control is set to display °F when shipped from the factory. The display may be changed to show either °F or ºC oven temperatures.

To change temperature display mode from °F to °C or from °C to °F:

1. Press and hold Broil for 6 seconds.

2. Once F (or C) appears in the display, press the Up / Down arrow keys to toggle between Fahrenheit and Celsius temperature display modes (Figure 25).

3. Press START to accept the choice.

Important note:

The oven temperature display cannot be changed during the cooking process or if a Delay Start has been set or Self Clean is active.

Figure 25: Display showing Fahrenheit and Celsius

Setting Silent or Audible Control mode

Silent mode allows the oven control to operate without audible tones. The control may be programmed for silent operation and later reset to operate with all the normal audible tones.

To set for silent or audible mode:

1. Press and hold Delay Start for 6 seconds.

Figure 24: 12 hr energy saving (L) and continuous setting (R)

2. Press the Up / Down arrow keys to toggle between bEEP On or bEEP OFF (Figure 26).

3. Press START to accept the choice.

Figure 26: Display showing audible and silent operation

Oven Controls

Setting Oven Lockout

The Oven Lockout function also locks the cooktop on this model.

To activate the oven lockout features:

1. Be sure oven door is completely closed.

2. Press and hold both the Up / Down arrow keys for 3 seconds. The motor driven door latch mechanism will begin locking the oven door automatically. Do not open the oven door. Allow about 15 seconds for the oven door to completely lock. Once door is locked, the word DOOR with a lock icon will appear in the display.

To cancel the oven lockout feature:

1. Press and hold both the Up / Down arrow keys for 3 seconds. The motor door latch will begin unlocking the oven door automatically. Do not open the oven door. Allow about 15 seconds for the oven door to completely unlock.

2. When the word DOOR with a lock icon no longer displays, the oven door may be opened, and the oven control keypad will be available for use.

Important note:

• To avoid damage to the oven door latching mechanism, do not attempt to open or close the oven door whenever the word DOOR with a lock icon is displayed.

• If a control key is pressed when oven lockout is active, the control will triple beep indicating the key action is not available when the oven lockout feature is active.

Operating Oven Lights

The interior oven lights will automatically turn on when the oven door is opened. Oven lights will not operate during a self clean cycle.

Press to turn the interior oven lights on and off whenever the oven door is closed.

The interior oven lights are located on the rear wall of the oven interior and are covered with a glass shield. The glass shield protects the bulb from high temperatures and should always be in place whenever the oven is in use.

To replace the interior oven light, see “Replacing Oven Light” on

page 36.

Oven Controls

Setting Bake

Use the bake feature whenever the recipe calls for baking using normal temperatures. A reminder tone will sound indicating when the set bake temperature is reached and to place the food in the oven.

Bake may be set for any oven temperature between 170°F (77°C) and 500°F (260°C).

To set Bake for oven temperature of 425°F:

Always use pot holders or oven mitts when using the oven. When cooking the oven interior, oven racks, and cooktop will become very hot which can cause burns.

1. Press Bake.

2. Enter 4 2 5 using numeric keypad or press the Up arrow key

until 4 2 5 appears in the display.

3. Press START. The word BAKE will appear on the display.

To cancel Bake at any time, press STOP.

Baking tips

• For cakes, pastries, and breads, use the convection bake

function for best results when using multiple racks (“Convec-

tion Bake” )

• Allow at least 2 inches (5 cm) of space between bakeware

for proper air circulation.

• Dark or dull pans absorb more heat than shiny bakeware,

resulting in dark or overbrowning of foods. It may be necessary to reduce the oven temperature or cook time to prevent overbrowning of some foods. Dark pans are recommended for pies. Shiny pans are recommended for cakes, cookies, and muffins.

• Glass cookware is a slow heat conductor. May require

reducing oven temperature.

• Minimize opening of the oven door. Opening the door will

reduce the temperature in the oven.

Figure 27: Baking on multiple levels

Figure 28: Oven rack positions

Important note:

The oven will bake no longer than 12 hours. If you wish to bake for a longer period, see “Setting Cook Time” on page 23 for detailed information.

• Fully preheat the oven before cooking items like cookies,

biscuits, and breads.

• When using any single rack, position the rack so that the

food is in the center of the oven.

• For best results when baking cakes or cookies using two

oven racks, place racks in positions 3 and 6 (Figure 28) and

place pans as shown in Figure 27.

Oven Controls

Setting Cook Time

Use Cook Time to set the amount of time needed for baking. The oven will turn on immediately and stop automatically after the set cook time ends.

To program oven to bake with oven default temperature of 350°F and to shut-off after 30 minutes:

Food Poisoning Hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat, or poultry should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins and should be removed promptly when finished cooking.

1. Press Cook Time.

2. Enter 3 0 using numeric keypad or press the Up arrow key

until 3 0 appears in the display.

3. Press START to accept.

4. Press Bake.

5. Press START. The word BAKE will appear on the display.

When the programmed cook time ends:

End will appear in the display window, and the oven will shutoff automatically (Figure 29). The oven control will beep three times every 30 seconds as a reminder until STOP is pressed.

Setting Delay Start

Delay Start sets a delayed starting time to oven cooking or cleaning functions. Prior to setting a delay start, be sure the time of day is set correctly.

To progr a m oven fo r a Dela y S t art beginning at 5:30, to shut-off automatically after 50 minutes and for baking at 375°F:

Always use pot holders or oven mitts when using the oven. When cooking the oven interior, oven racks, and cooktop will become very hot which can cause burn

1. Press Cook Time.

2. Enter 5 0 using numeric keypad or press the Up arrow key

until 5 0 appears in the display.

3. Press START to accept.

4. Press Delay Start.

5. Enter 5 3 0 using numeric keypad or press the Up arrow key

until 5 3 0 appears in the display.

6. Press START to accept.

7. Press Bake.

8. Enter 3 7 5 using numeric keypad or press the Up arrow key

until 3 7 5 appears in the display.

Figure 29: Display showing cooking has ended

Important note:

• The Cook Time feature may be set with Bake, Convection Bake, Convection Roast, and Slow Cook. Cook Time or Delay Start will not operate with the Broil function.

• The maximum Cook Time setting is 11 hours and 59 minutes unless oven is set for continuous cooking.

To change the oven temperature or cook time after baking has started:

1. Press Bake (for oven temperature) or Cook Time.

2. Press or and release when the desired temperature or cook time setting appears in the display. When the cook time runs out, End will appear in the display. The oven control will beep three times every minute until STOP is pressed.

9. Press START.

When the programmed cook time ends:

End will appear in the display window, and the oven will shut off automatically (Figure 29). The oven control will beep three times every 30 seconds as a reminder until STOP key is pressed.

Important note:

Delay Start may be set using a 24 hr clock. To set clock for 24 Hr operation, See “Setting 12 Hour or 24 Hour Display Mode” on page 20 for more information. The Delay Start feature may be used with Convection Bake, Convection Roast, Convection Convert, Bake, Slow Cook, and Self Clean functions. Delay Start or Cook Time will not operate with the Broil function.

Oven Controls

7 6

Convection Bake

Benefits of convection cooking include:

• Foods can cook up to 25 to 30% faster.

• Multiple rack baking.

• When using convection, use cookware or pans with low sides. This allows the air to circulate around the food evenly.

Convection functions use a fan to circulate the oven's heat uniformly and continuously around the oven. This improved heat distribution allows for fast, even cooking and browning results. It also gives better baking results when using two oven racks at the same time. Heated air flows around the food from all sides, sealing in juices and flavors. Breads and pastry brown more evenly. Most foods baked in a standard pan will cook faster and more evenly with the convection feature. Convec Bake may be set for any oven temperature between 170°F (77°C) and 500°F (260°C).

To set Convection Bake with a default oven set temperature of 350°F:

1. Press Convec Bake.

2. Press START.

To cancel Convection Bake at any time, press STOP.

Figure 31: Baking on multiple levels

Baking tips

• For cakes, pastries, and breads, use the convection bake

function for best results when using multiple racks.

• Fully preheat the oven before cooking items like cookies, biscuits, and breads.

• When using any single rack, position the rack so that the food is in the center of the oven.

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven temperature and cook time to prevent overbrowning of some foods. Dark bakeware is recommended for pies. Shiny bakeware is

recommended for cakes, cookies, and muffins.

• Glass cookware may require reduced temperatures.

• Use pans or cookware with low sides. This allows the air to

circulate around food evenly.

Figure 30: Air movement using convection

Important notes:

• If the oven door is opened when Convec Bake is active, the convection fan will stop rotating until the oven door is closed.

• When using Convec Bake, cook time reductions may vary depending on the amount and type of food being cooked.

• Unless the recipe is written for convection cooking, reduce oven temperature 25°F from recipe’s recommended oven temperature. Follow the remainder of the recipe’s instructions using the minimum recommended cook time.

• When using two oven racks, place in positions 3 and 6 (Figure 30) and place bakeware as shown in Figure 31.

• When cooking with three oven racks, place racks on positions 2, 4, and 6.

Oven Controls

Setting Convection Roast

The Convection Roast function combines a cook cycle with the convection fan to roast meats and poultry. Meats cooked using the Convection Roast function will be juicier, and poultry will be crisp on the outside while staying tender and moist on the inside.

Convection Roast may be set for any oven temperature between 170°F (77°C) and 500°F (260°C).

Suggestions for Convection Roast:

• Preheating is not necessary when roasting foods using Convection Roast. Since Convection Roast cooks food faster, reduce the cook time by 25% from the recommended cook time of your recipe. If necessary, increase cooking time until the desired doneness is obtained.

• The broiler pan will catch grease drippings, and the grid will help prevent splatters. The roasting rack will hold the meat. Use the offset rack on rack position 1.

• Do not cover foods when dry roasting because this will prevent the meat from browning properly.

To set Convection Roast with a default oven set temperature of 350°F:

1. Press Convec Roast.

2. Press START.

To cancel Convection Roast at any time, press STOP.

Important note:

• If the oven door is opened when any convection function is active, the convection fan will stop rotating until the oven door is closed.

• It is not recommended to roast chicken on a roasting rack. Use a deep pan instead.

Setting Convection Convert

Pressing the Convection Convert key automatically converts the cooking temperature entered for any standard baking recipe to the lower temperature required for convection baking.

When Convection Convert is used with a timed Convection Bake setting of 20 minutes or more, the Convection Convert function will display a CF message as a reminder to check food when the bake time is 75% complete (Figure 32). At this time the oven control will sound one long beep at regular intervals until the set cook time has finished.

To add Convection Convert to Convection Bake function using default oven set temperature of 350°F:

1. Press Convec Bake.

2. Press Convec Convert.

To cancel Convection Convert at any time, press STOP.

To program oven for Convection Convert with oven default temperature of 350°F and to shut-off after 30 minutes:

1. Press Convec Bake.

2. Press START.

3. Press Cook Time.

4. Enter 3 0 using numeric keypad or press the Up arrow key until 3 0 appears in the display.

5. Press START.

6. Press Convec Convert.

To cancel Convection Convert at any time, press STOP.

To program oven for Convection Convert with recipe temperature of 425°F and to shut-off after 30 minutes:

1. Press Convec Bake.

2. Enter 4 2 5 using numeric keypad or press the Up arrow key until 4 2 5 appears in the display.

3. Press START.

4. Press Cook Time.

5. Enter 3 0 using numeric keypad or press the Up arrow key until 3 0 appears in the display.

6. Press START.

7. Press Convec Convert. Set bake temperature will convert to a lower temperature and begin baking process.

To cancel Convection Convert at any time, press STOP.

Important note:

• Convection Convert may only be used with the Convection Bake function and with a minimum of 20 minutes cook time.

• When using Convection Convert feature, Cook Time reductions may vary depending on the oven set temperature.

• The convection fan will begin rotating once Convection Bake, Convection Roast, or Convection Convert has been activated.

• If the oven door is opened when any convection function is active, the convection fan will stop rotating until the oven door is closed.

Figure 32: Check Food reminder shown in display.

Oven Controls

Setting Broil

Use the Broil function to cook meats that require direct exposure to radiant heat for optimum browning results. The Broil feature is factory preset to broil at 550°F. The Broil function temperature may be set at any temperature between 400°F (205°C) and 550°F (288°C).

To set Broil with the default broil oven temperature of 550°F:

1. Arrange the oven racks when cool. For optimum browning results, preheat oven for 2 minutes before adding food. Press Broil.

2. Position bakeware in oven. Leave door open at the broil stop position (Figure 33).

3. Press START. To set to a lower broil temperature, press and hold the Down arrow key until the desired temperature is reached. The lowest setting the oven control will accept for Broil is 400°F. To adjust the Broil temperature, press Broil again and then the Up or Down arrow key to set the desired temperature.

4. Broil on one side until food is browned; turn an broil other side until done to your satisfaction.

5. When finished broiling, press STOP.

6. To cancel Broil at any time, press STOP.

Important notes:

• Broiling is direct heat cooking and will produce smoke. If smoke is excessive, place food further away from the broil element

• Always arrange oven racks when the oven is cool.

• For best results when broiling, use a broil pan with broil pan insert designed to drain the fat from the food and help avoid spatter and reduce smoking (Figure 34). To purchase them, call Sears at 1800-4-MY-HOME (1-800-4663) and order broil pan kit

5304442087.

• When broiling, always pull the oven rack out to the stop position before turning or removing food

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, oven racks, and cooktop will become very hot which can cause burns.

Should an oven fire occur, close the oven door and turn the oven off. If the fire continues, use a fire extinguisher. Do not put water or flour on fire. Flour may be explosive.

Figure 33: Broil stop position

Figure 34: Broiler pan/insert Figure 35: Rack positions

Table 4: Suggested Broil Settings

Food Doneness Rack Position Setting

Steak, 1 inch thick Rare

Pork Chops, 3/4 inch thick Medium

Chicken, bone-in Chicken, boneless

Fish Well 5th 550°F (288°C) as directed 170°F (77°C)

Shrimp Well 4th 550°F (288°C) as directed 170°F (77°C)

Hamburger, 1 inch Rare

1. Cook times are suggestions and should only be used as a guide; depending on your preference you may increase or decrease cooking times and change

2. Consuming raw or undercooked meats, poultry, seafood or shellfish may increase your risk of foodborne illness.

3. Use the offset or half racks (if available) in the top position.

rack positions. If the food you are cooking is not listed in the table, follow your recipe and watch the food closely.

Medium

Medium-well

Well

Well 5th 450°F (232°C) 25

Medium

Medium-well

7th

7th 5th or 6th 5th or 6th

7th

5th

7th

7th 5th or 6th

550°F (288°C) 4

550°F (288°C) 8

550°F (288°C) 4

Cook time in minutes

1st side 2nd side

8 10 11

6 12

6 8

4 6

Internal Temperature

135°F (57°C) 145°F (63°C) 160°F (71°C)

170°F (77°C)

145°F (63°C)

170°F (77°C)

170°F (77°C) 170°F (77°C)

135°F (57°C) 145°F (63°C) 160°F (71°C)

Oven Controls

Setting Slow Cook

The Slow Cook feature cooks foods more slowly and at lower oven temperatures for longer periods of time.

Two Slow Cook settings are available: high (Hi) and low (Lo). The high setting is best for cooking foods between 4 and 5 hours. The low setting is best for cooking foods up to 9 hours or longer.

Tips for best results when using Slow Cook:

• Completely thaw all frozen foods before cooking.

• When using a single oven rack, place in oven rack position 2 or 3. Position racks to accommodate the size of various bakeware when cooking multiple food items.

• Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the Slow Cook time may need to be extended.

• Cover to keep foods moist or use a loose or vented type cover to allow foods to turn crisp or brown.

• Roasts may be left uncovered so browning can occur. Cook times will vary depending on the weight, fat content, bone, and the shape of the roast. Preheating the oven will not be necessary when using the Slow Cook feature.

• Add any cream or cheese sauces during the last hour of cooking.

Important note:

• Slow Cook may be used with additional settings of Cook Time and Delay Start.

• The maximum cook time for Slow Cook function is 11 hours and 59 minutes unless the control has been changed to the continuous bake mode.

To set S l o w C o o k :

Food poisoning hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when finished cooking.

1. Position bakeware in oven and close oven door.

2. Press Slow Cook. HI will appear in the display, indicating

the default temperature setting is for high.

3. If a low setting is needed,

the low setting.

4. Press

START to activate Slow Cook.

To cancel Slow Cook at any time, press

press the Down arrow key to select

STOP.

Warm & Hold™

Warm & Hold should only be used with foods that are already at serving temperatures. Warm & Hold will keep cooked foods warm and ready for serving for up to 3 hours after cooking has finished. After 3 hours the Warm & Hold will shut-off automatically. Warm & Hold will keep the oven temperature at 170° F (77°C).

To set W a rm & H o l d:

1. If needed, arrange oven racks and place cooked food in oven.

2. Press Warm & Hold. Hold WARM will appear in the display. (If no other keys are touched within 25 seconds the request for Warm & Hold will clear.)

3. Press

To turn Warm & Hold off at any time, press

To add Warm & Hold to turn ON after baking 45 minutes with a set temperature of 425°F:

more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when finished cooking.

1. Press Cook Time.

2. Enter 4 5 using numeric keypad.

3. Press

4. Press Bake and enter 425 on numeric keypad.

5. Press

6. Press Warm & Hold. Hold WARM will appear in the

7. Press

Important note:

• Warm & Hold will maintain the oven temperature at 170° F

• Warm & Hold may be set when finished cooking or may be

START. Warm & Hold will automatically turn on and

then turn off after 3 hours unless cancelled.

STOP.

Food poisoning hazard. Do not let food sit for

START.

START to accept.

display.

START. When the cook time is over, the Warm & Hold

will automatically turn ON. The Warm & Hold function will automatically turn OFF after 3 hours.

(77°C) for 3 hours.

added to automatically turn on after cooking using Cook Time. Delay Start may also be added.

Oven Controls

Setting the Sabbath Feature

(for use on the Jewish Sabbath and Holidays)

For further assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at www.star-k.org.

This appliance provides special settings for use when observing the Jewish Sabbath/Holidays. Sabbath mode disables all audible tones or visual display changes on the oven control. Bake heating is the only cooking feature available while in the Sabbath mode. Oven controls are locked during Sabbath mode.

You must first set the Bake feature and temperature(s) needed for the oven, the Cook Time, and Delay Start options (if needed). Any settings made prior to setting the Sabbath mode will be visible in the displays. The Cook Time option, if set prior to the Sabbath mode, will give one audible alert at the end of Cook Time.

The Sabbath mode will override the factory preset 12 hour energy saving mode, and the appliance will stay on until the cooking features are cancelled. If any of the cooking features are cancelled when the appliance is in the Sabbath mode, no audible or visual indicators will be available to verify the cancellation.

If the oven interior lights are needed, be sure to activate them prior to setting the Sabbath mode. Once the oven light is turned on and the Sabbath mode is active, the oven light will remain on until the Sabbath mode is turned off and the oven lights are turned off. The oven door will not activate the interior oven lights when the oven door is opened or closed.

It is recommended that any oven temperature modification made within an active Sabbath mode be followed with two presses of the START key. This will insure the oven remains on even if an attempt is made to set the oven temperature outside of its temperature range. If the oven temperature is set outside of the temperature range, the oven will default to the nearest available temperature. Try to set the desired oven temperature again.

To program oven to Bake with default oven temperature of 350°F and activate the Sabbath feature:

1. Be sure the clock is set with the correct time of day.

2. Arrange oven racks, place bakeware in oven, and close oven door.

3. Press Bake.

4. Press

START.

5. If Cook Time or Delay Start are not needed, skip this step and continue to step 6. If a Cook Time or Delay Start are desired enter the times at this point. See “Setting Cook

Time” and “Setting Delay Start” on page 23 for detailed

instructions.

6. Press and hold Cook Time and Delay Start simultaneously for about 3 seconds to set the Sabbath feature. Once the feature is set, SAb will appear in the display indicating the oven is properly set for the Sabbath feature (Figure 36).

Figure 36: Oven set for Sabbath baking.

Important note:

• Do not attempt to activate any other oven function except Bake while the Sabbath feature is active. The following keys will function correctly when the Sabbath feature is active: 0-9 number keypad, Bake,

START, and STOP. All other keys

should not be used once the Sabbath feature is active.

• You may change the oven temperature once baking has started. Press Bake, use the numeric keypad to enter the oven temperature change (170°F to 500F°), and press

START

(for Jewish Holidays only).

• Remember that the oven control will no longer provide audible tones or display any further changes when the Sabbath feature is active.

• Remember the oven will shut-off automatically after completing a Cook Time, Delay Start, or Warm & Hold and therefore may only be used once during the Sabbath/ Jewish Holidays.

• If a Delay Start time longer than 11 hours and 59 minutes is desired, set the oven control for the 24 hour day display mode setting. For detailed instructions, see “Setting 12 Hour

or 24 Hour Display Mode” on page 20 for more informa-

tion.

Oven Controls

To turn the oven off and keep the Sabbath feature active:

Press

STOP.

To turn off the Sabbath feature:

Press and hold both Cook Time and Delay Start simultaneously for at least 3 seconds to turn the Sabbath feature off. The control will provide an acceptance tone, and SAb will disappear from the display. The oven is no longer programmed for the Sabbath feature.

What to do during a power failure or power interruption after the Sabbath feature was activated:

Should you experience a power failure or interruption, the oven will shut-off. When power is restored the oven will not turn back on automatically. The oven will remember that it is set for the Sabbath, and the oven display will show the message SF for Sabbath failure (Figure 37).

Figure 37: Display showing Sabbath failure

The food may be safely removed from the oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath/Holidays. After the Sabbath observance turn off the Sabbath feature. Press and hold both Cook Time and Delay Start keys for at least 3 seconds simultaneously to turn the Sabbath feature off. SF will disappear from the display, and the oven may be used with all normal functions.

Adjusting Oven Temperatures

Your appliance has been factory calibrated and tested to ensure accurate baking temperatures. For the first few uses, follow your recipe times and temperature recommendations carefully. If you think the oven is cooking too hot or too cool for your recipe times, you may adjust the control so the oven cooks hotter or cooler than the oven temperature displayed.

The oven temperature may be increased as much as +35°F (+19°C) or decreased -35°F (-19°C) from the factory calibrated settings.

To increase (+) or decrease (-) the oven temperature by 20°F:

1. Press and hold Bake until the control produces an audible tone (about 6 seconds). The factory offset temperature of 0 (zero) should appear in the display.

2. Enter 2 0 using numeric keypad.

3. To offset the oven by -20°F, press the Down arrow key until the display reads -20.

4. Press

Important note:

• Oven temperature adjustments will not change the Broil or

• Do not use oven thermometers such as those found in

START to accept change.

Self Clean function temperatures.

grocery stores to check the temperature settings inside your oven. These oven thermometers may vary as much as 20 to 40°F degrees from actual temperatures.

Important:

The induction cooktop will not operate when the oven is set for Sabbath Day feature. The cooktop displays will show the cooktop lockout - - messages whenever the Sabbath Day feature is active.

• The oven temperature adjustment may be made if your oven control is set to display temperatures in °C (Celsius). Minimum and maximum settings for Celsius range from plus (+)19°C to minus (-) 19°C.

Oven Controls

Restoring Factory Default Settings

Your appliance was set with predetermined (default) oven control settings. Over time, users may have made changes to these settings. The following options may have been modified since the appliance was new:

• 12 or 24 hr display mode

• Continuous bake or 12 hour energy savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

• Any saved recipes

To restore oven control to factory default settings:

If you choose to restore any of the options to a

factory default setting using this method, all of the above user settings will be restored to the factory default settings. This includes the oven temperature offset that will reset to (0) zero.

1. Press and hold 7 on numeric keypad until acceptance tone sounds (about 6 seconds).

2. Press

START. The control has been reset with the default

settings.

Recipe Recall

Use the Recipe Recall feature to record and recall your favorite baking recipe settings. This feature stores and recalls different recipe settings using Bake, Conv Bake, and Conv Roast Recipe Recall may be programmed for any baking temperature between 170°F (77°C) and 500°F (260°C).

To store a Bake recipe. The recipe in this example is for a Bake at 325°F with a cook time of 45 minutes:

1. Press Bake.

2. Press 3 2 5 using the numeric keys to enter oven tempera-

ture.

3. Press

4. Press Cook Time.

5. Press 4 5 using numeric keys to enter cook time.

6. Press and hold

7. Press

Important note: The oven will automatically start heating with the recorded recipe unless

To recall recipe stored in the example shown above. Recipe is for bake at 325°F for 45 minutes:

1. Position cookware in oven and close door.

2. Press Bake. (If recipe was stored using another cooking

START.

START until a tone sounds (about 3 seconds).

The tone indicates that the recipe setting has been recorded for future recall.

STOP.

STOP is pressed at this time.

feature press that instead.).

3. Press

START. The oven will begin to cook with the

programmed recipe. If Cook Time was recorded this feature will also recall the cooking time.

To cancel Recipe Recall at anytime press

STOP.

To erase a stored recipe:

1. Press the function where the recipe is stored.

2. Press

START.

3. Press Cook Time, enter 0 (zero) and hold start key for 3 seconds until you hear the acceptance tone.

Important note:

• The Recipe Recall stores Bake, Conv Bake, Conv Roast, Slow Cook, Cakes Breads and Preheat settings. This feature will not work with Delay Start settings.

• If a recalled recipe includes Cook Time the oven will automatically shut-off when the Cook Time is finished.

Oven Controls

Self Clean

A self cleaning oven cleans itself with high temperatures (well above normal cooking temperatures), which eliminate soils completely or reduces them to a fine powdered ash you can wipe away afterwards with a damp cloth. This function can be programmed for any duration between 2 and 4 hours. Use the numeric keypad or the Up / Down arrow keys. Each arrow key pressed changes the time by 1 minute up or down. Press START.

Read before starting Self Clean. Be sure to read all following caution and important statements before starting a self clean cycle.

Do not leave small children unattended near

appliance. During self clean cycle, the outside of the oven can become very hot and cause burns if touched.

Do not line the oven walls, racks, oven bottom, or any part of the range with aluminum foil. This will cause permanent damage to the oven interior and destroy heat distribution, and will met to the oven interior.

Do not force the oven door open. This will damage the automatic door locking system. Use caution when opening the oven door after the self clean cycle ends. The oven may still be very hot and cause burns. To avoid possible burns, stand to side of oven when opening door to allow steam or hot air to escape.

The health of some birds is extremely sensitive to fumes given off during the self clean cycle of any range. Move birds to a well ventilated room.

Important notes:

• Completely remove all oven racks and any accessories

from oven cavity to avoid damage to oven racks. If the oven racks are not removed they may discolor. Remove all items from the oven and cooktop including cookware, utensils, and any aluminum foil. Aluminum foil will not withstand high temperatures from a self clean cycle and will melt.

• Do not use oven cleaners or oven protective coatings in or around any part of the oven interior. Clean any soil from the oven frame, the door liner outside the oven door gasket, and the small area at the front center of the oven bottom (Figure 38). These areas heat sufficiently to burn soil on. Clean using soap and water prior to starting Self Clean.

• Remove any excessive spills. Any spills on the oven bottom should be wiped up and removed before starting a Self Clean cycle. To clean use hot, soapy water and a cloth. Large spills can cause heavy smoke or fire when subjected to high temperatures. Do not allow food spills with high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices, or pie fillings) to remain on the surface as they may leave a dull spot even after cleaning.

• Do not clean the oven door gasket. The woven material in the gasket is essential for a good seal. Care should be taken not to rub, damage, or remove the oven door gasket. Doing so could cause damage to the door gasket and compromise the performance of the oven.

• The kitchen area should be well ventilated using an open window, ventilation fan, or exhaust hood during the first Self Clean cycle. This will help eliminate the normal odors.

• Do not attempt to open the oven door when the OVEN LOCK indicator light is flashing. Allow about 15 seconds for the motorized door latch mechanism to completely lock or unlock the oven door.

Figure 38: Areas to clean and to avoid

• When the clean time finishes, the oven door will remain locked until the range has cooled sufficiently. In addition to the clean time that was programmed, you must allow about 1 additional hour for the oven to cool before you will be able to open the oven door.

Oven Controls

Setting Self Clean

To set s e l f cl e a n :

1. Be sure the oven is empty and all oven racks are removed. Remove all items from the oven. Be sure oven door is completely closed.

2. Press Self Clean and the default 3 hour clean time will appear in the display. You may accept the default 3 hour clean time by going to step 3, or choose a different clean time. Press Self Clean and use the numeric keypad or Up / Down arrow keys to select any time between 2 hours and 4 hours. Once you have the desired clean time selected proceed to Step 3.

3. Press

As soon as Self Clean becomes active, a motor driven lock mechanism will begin locking the oven door automatically. Do not attempt to open the oven door (allow 15 seconds for the lock mechanism to lock the oven).

Once the oven door has locked, CLEAN will appear in the display indicating Self Clean has started.

When Self Clean is finished:

Use caution when opening the oven door after self cleaning. The oven may still be very hot and can cause burns. To avoid possible burns stand to the side of the oven when opening the oven door to allow hot air or steam to escape.

1. CLEAN message will turn off, and Hot will appear in display

2. Once the oven has cooled down (about 1 hour) and Hot is

3. When the oven interior has completely cooled, wipe away

START to activate Self Clean.

window.

no longer displayed, the oven door may be opened.

any residue or powdered ash with a damp cloth or paper towel.

Setting Delay Start Self Clean

To start a delay Self Clean with default clean time of 3 hours and a start time of 9:00 o’clock:

1. Be sure the clock is set with the correct time of day, the oven is empty, and all oven racks are removed. Be sure oven door is completely closed.

2. Press Delay Start.

3. Using numeric keypad, enter 9 0 0 or press the Up arrow key until 9 0 0 appears in the display.

4. Press

5. Press Self Clean.

6. Press

If it becomes necessary to stop Self Clean when active:

1. Press

2. If Self Clean has heated the oven to a high temperature,

3. Before restarting Self Clean, be sure to read important

Important note:

• If your clock is set with the (default) 12 hr display mode, the

• If Self Clean was active and then interrupted by a power

• If the oven temperature was high enough when Self Clean

START to accept

START.

STOP.

allow enough time for the oven to cool.

notes below.

Delay Start for a Self Clean can only be programmed to start up to 11 hours and 59 minutes after the time showing in the display (be sure to set the clock to current time before programming a delay start). To set a Delay Start Self Clean to begin 12 or more hours (maximum is 23 hours and 59 minutes) after the time of setting, be sure to first set the control in the 24 Hr display mode.

failure or cancelled before the oven was thoroughly cleaned, it may be necessary to run another Self Clean cycle.

was interrupted the oven control may not allow another Self Clean cycle to be set for up to 4 hours.

Oven Controls

Steam Clean

Steam cleaning works best for spot cleaning and light soils on the oven bottom. Steam clean may also be used before manu-

ally cleaning the oven or before Self Clean to help loosen soils on the oven bottom.

To set the controls for steam clean:

Do not set the cleaning temperature higher than the temperature listed in these instructions. Higher temperatures will dry the steam too soon and may lead to burns or serious injury when cleaning.

Do not attempt to wipe out the oven before the cooling off period or attempt to shorten the cooling off period. Doing so may lead to burns or other serious injury when cleaning.

Do not add ammonia, oven cleaners, or any other household cleaners or chemicals to the water used for steam cleaning.

1. Oven should be at room temperature. Remove all racks and

oven accessories.

2. Scrape or wipe loose debris from the oven bottom.

3. Pour 8 oz (235 ml) of distilled or filtered water onto the

oven bottom (Figure 39). Close the oven door.

11. Stand to the side of the range out of the way of escaping vapor

when opening the oven door.

12.

Wipe oven cavity and bottom. Do not clean oven door gasket

(Figure 40).

Figure 40: Do not clean the oven door gasket

To stop the steam cleaning cycle at any time, press STOP.

Important notes:

• Always stay close to the oven when steam cleaning, so you can hear the timer alert.

• For best results, wipe out oven immediately after the cooldown period is complete.

• Removal of especially stubborn or baked-on soils may require a manual cleaning or a self clean cycle. See

“Setting Self Clean” on page 32.

Figure 39: Pour water onto the oven bottom

4. Press Bake.

5. Enter 170ºF (77ºC) using the arrow keys and press START.

6. Set the minute timer for 10 minutes.

7. Allow the oven to heat. Do not open the oven door while the

oven is heating.

8. An alert will sound when the timer is finished. Press Timer ON/Off to stop the timer and press

STOP to return to the

clock.

9. Set the minute timer for 10 minutes to allow for a cool-down period. Do not attempt to wipe out the oven before a 10 minute cool-down period.

10. An alert will sound when the timer is finished. Press Timer ON/Off to stop the timer.

• Some condensation or water vapor may appear close to

the oven vent, and some water may remain on the oven bottom. This is normal. Wipe with a soft cloth or sponge when the cool-down period is complete.

• The oven gasket may become damp; do not wipe dry. Open door to broil position and allow to air dry.

• Local water sources often contain minerals (hard water) and will leave deposits on the oven cavity surfaces. If this occurs, wipe cavity surfaces with diluted vinegar or lemon juice. Use distilled or filtered water.

• If the door is opened during steam cleaning or cool-down period, steam will escape and the oven may be more difficult to clean. Keep oven door closed during steam cleaning.

Care & Cleaning

Table 5: Cleaning recommendations

Surface Type Recommendation

Control knobs Painted body parts Painted decorative trim Aluminum, plastic or vinyl trim

Control panel Control keypad membrane Decorative trim (some models)

Porcelain enamel parts and door liner

Oven interior For oven interior remove excessive spillovers from oven cavity bottom before starting Self Clean.

Oven racks Remove oven racks from oven cavity before cleaning. Clean by using a mild, abrasive cleaner

For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30-60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any of these materials; they can scratch. To remove control knobs, turn to OFF position. Grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides of both knob and shaft, then push knob into place.

Before cleaning the control panel, turn all controls off, activate oven lockout (on some models), and if needed remove any knobs from panel. Do not use abrasive cleaners on any of these materials; they can scratch. Clean using hot, soapy water and a cloth or sponge. Be sure to squeeze excess water from cloth or sponge before wiping control panel, especially when wiping around the controls area. Excess water in or around the controls may cause damage to the appliance. When rinsing, use clean water and a cloth or sponge and be sure to squeeze excess water from cloth or sponge before wiping the control panel.

Gentle scrubbing with a soapy non-abrasive scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammoniasoaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-filled non-abrasive scouring pad. Rinse and wipe dry with a clean cloth. Do not allow food spills with high sugar or acid content (milk, tomatoes, sauerkraut, fruit juices, or pie filling) to remain on the surface; they may cause a dull spot even after cleaning.

Clean any soils from oven frame and door liner outside the oven door gasket. For important cleaning precautions, read all the instructions in“Self Clean” on page 31.

following manufacturer’s instructions. Rinse with clean water, dry and then replace in oven.

Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well.

You may use a glass cleaner on the outside glass of the oven door. Do not immerse the door in water. Do not spray or allow water or the glass cleaner to enter the door vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door.

Ceramic cooktop Do not use spray cleaners on the cooktop. See “Cooktop Maintenance” on page 35.

Stainless Steel (some models) Always rub in direction of metal grain to avoid damaging. Do not use cleaners with high

concentrations of chlorides or chlorine. Do not use harsh scrubbing cleaners. Polish with a lintfree cloth. Always be sure to wipe excess cleaner/polish off from the metal surface as bluish stains may occur during future oven heating that cannot be removed. Clean heavier soils with hot, soapy water and a cloth or sponge. Rinse and dry using clean water and a cloth.

Care & Cleaning

Cooktop Maintenance

Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or sponge. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface.

Do not:

• Slide anything metal or glass across the cooktop (Figure 41).

• Use cookware with dirt or dirt build up on bottom; replace with clean cookware before using.

• Use your cooktop as a cutting board or work surface in the kitchen.

• Drop heavy or hard objects on the ceramic glass cooktop, they may cause it to crack.

Cooktop Cleaning

Do not use a cooktop cleaner on a hot cooktop.

The fumes can be hazardous to your health, and can chemically damage the ceramic-glass surface.

Before cleaning the cooktop, be sure the

controls are turned to OFF and the cooktop is cool. The glass surface could be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive cloth or sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive cleaning tool, applying pressure as needed. Do not use the pad you use to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface (Figure 42). Remove loosened soils with cooktop cleaning cream and buff surface clean.

Figure 41: Do not slide cookware across cooktop

30°

Figure 42: Cooktop cleaning

Plastic or foods with a high sugar content need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface elements off, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

Care & Cleaning

glass shield

oven interior

light bulb

rear oven cavity

Do not use the following on the cooktop (Figure 43):

• Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the cooktop which can burn and cause discoloration.

Important note:

Damage to the ceramic glass cooktop may occur if you use an abrasive type cleaning pad. Only use cleaning products that have been specifically designed for ceramic glass cooktops.

• Aluminum foil - Use of aluminum foil on a hot cooktop can damage the cooktop. Do not use thin aluminum cooking utensils or allow aluminum foil to touch the surface elements under any circumstances.

• Aluminum utensils - The melting point of aluminum is much lower than that of other metals. Care must be taken when aluminum pots or pans are used on the cooktop. If aluminum pans are allowed to boil dry when using the cooktop, not only will the utensil be damaged or destroyed, but it may fuse to, break, or mark the ceramic glass surface, permanently damaging the cooktop surface.

Replacing Oven Light

To replace the interior oven light bulb:

The interior oven light bulb is located at the rear oven cavity and is covered with a glass shield. The glass shield must be in place whenever the oven is in use (Figure 44).

Figure 43: Cleaning products to avoid

General Cleaning

Refer to Table 5 for more detailed information about cleaning specific parts of the range.

Before manually cleaning any part of the range, be sure all controls are turned off and the range is cool. The range may be hot and can cause burns.

Ammonia must be rinsed before operating the oven. Provide adequate ventilation.

Aluminum foil and utensils

Never cover any slots, holes, or passages in the oven bottom or cover an entire oven rack with materials such as aluminum foil. Aluminum foil linings may trap heat, causing a fire hazard.

line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

Protective Liners — Do not use aluminum foil to

Figure 44: Replacing the oven light

Be sure the range is unplugged and all parts are cool before replacing oven light. Wear a leather-faced glove for protection against possible broken glass.

1. Turn electrical power off at the main source or unplug the

appliance.

2. Remove interior oven light shield.

3. Replace bulb with a new T-4 type 40 Watt Halogen

appliance bulb. Please note: do not allow your fingers to touch the new bulb when replacing. This will shorten the life of the new bulb. Use a paper towel to cover the new bulb when installing.

4. Replace glass interior oven light shield.

5. Turn power back on again at the main source (or plug the

appliance back in).

6. Be sure to reset the time of day on the clock.

Removing and Replacing the Lift-Off Oven Door

about 10°

hinge

oven door

roller

hinge

arm

To avoid possible injury when removing or replacing the oven door, follow the instructions below carefully and always hold the oven door with both hands positioned away from the door hinge area.

The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down.

To remove the oven door:

1. Open oven door completely (horizontal with floor -

Figure 45).

2. Pull the door hinge locks on both left and right door hinges

down from the oven frame completely towards the oven door (Figure 46). A tool such as a small flat-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Figure 47).

4. Close the door to the broil stop position (the oven door will

stop into this position just before fully closing).

Care & Cleaning

Oven door hinge locations

Figure 45: Oven hinge locations

5. With the oven door in the broil stop position, lift the oven

door hinge arms over the roller pins located on each side of the oven frame (Figure 48).

To replace oven door:

1. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Figure 47).

2. Holding the oven door at the same angle as the removal

position, seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (Figure 48). The hook of the hinge arms must be fully seated onto the roller pins.

3. Fully open the oven door (horizontal with floor - Figure 45).

4. Push the door hinge locks up towards and into the oven

frame on both left and right oven door hinges (Figure 46) to the locked position; then, close the oven door.

Special Care Instructions

Most oven doors contain glass that can break. Follow these recommendations:

• Do not close the oven door until all the oven racks are fully

in place inside the oven cavity.

• Do not hit the glass with pots, pans, or any other object.

Figure 46: Hinge lock/unlock positions

Figure 47: How to remove door

• Scratching, hitting, jarring, or stressing the glass may

weaken its structure causing an increased risk of breakage at a later time.

Figure 48: Hinge pin locations

Before You Call

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies, pastries, et cetera. There is no need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions

Baking Problems Causes Corrections

Cookies and biscuits burn on the bottom.

Cakes too dark on top or bottom

Cakes not done in center • Oven too hot.

Cakes not level. • Oven not level.

• Cookies and biscuits put into oven before the preheating time is completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too fast.

• Cakes put in oven before preheating time is completed.

• Rack position too high or too low.

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Glass cookware slow heat conductor.

• Pan too close to oven wall or rack overcrowded.

• Pan warped.

• Allow oven to preheat to desired temperature before placing food in oven.

• Choose pan sizes that will permit 2” to 4” of air space (5.1 cm o 10.2 cm) on all sides when placed in the oven.

• Use a medium weight baking sheet.

• Allow oven to preheat to the selected temperature before placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F (13°C) lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1 cm to

10.2 cm (2” to 4”) of space on all sides of pan.

• Reduce temperature and increase cook time or use shiny bakeware.

• Place a marked glass measuring cup filled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the oven.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance on all sides of each pan in the oven.

Foods not done when cooking time is over.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too frequently.

• Do not use pans that are dented or warped.

• Set oven temperature 25°F (13°C) higher than suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except the ones to be used for baking.

• Open oven door only after shortest recommended baking time.

• Make sure to allow 2” to 4” of clearance between all pans and racks, allowing for even air flow.

Before You Call

Solutions to Common Problems

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the problem listed:

Problem Solution

Poor baking results • Many factors affect baking results. Make sure the proper oven rack position is used.

Center food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. If you feel the oven is too hot or cool, see

“Adjusting Oven Temperatures” on page 29.

Appliance is not level. • Be sure floor is level, strong, and stable enough to adequately support range.

• If floor is sagging or sloping, contact a carpenter to correct the situation.

• Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of appliance until the rack is level.

• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square and have sufficient room for appliance clearance.

Cannot move appliance easily. Appliance must be accessible for service.

Entire appliance does not operate. • Make sure power cord is plugged properly into outlet.

Oven portion of appliance does not operate.

Surface element is too hot or not hot enough.

Surface element does not heat or does not heat evenly.

• Cabinets not square or are built in too tightly. Contact builder or installer to make appliance accessible.

• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over carpet.

• Electrical power outage. Check house lights to be sure. Call your local electric company for service outage information.

• Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See back cover).

• The time of day is not set. The time of day must first be set in order to operate the oven. See “Setting Clock” on page 19.

• Be sure the oven controls are set properly for the desired function. See the “Oven

Controls” starting on page 18 and review instructions for the desired cooking function in

this manual or see “Entire appliance does not operate” in this checklist.

• Incorrect induction cooktop power level setting. Adjust power level setting higher or lower as needed.

• Be sure the correct surface control knob is turned on for element needed.

• Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight cookware. Flat pans heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy and medium-weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.

Oven light does not work. • Be sure the oven light is secure in the socket. Also see “Replacing Oven Light” on

page 36.

Before You Call

Oven smokes excessively when broiling.

• Incorrect setting. Follow the “Setting Broil” instructions on page 26.

• Be sure oven door is opened to broil stop position when broiling.

• Meat too close to the broil element. Reposition the broil rack to provide proper clearance between the meat and the element. Preheat the broil element for searing.

• Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to prevent curling, but do not cut into lean.

• Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently. Old grease or food spatters cause excessive smoking.

Flames inside oven or smoking from oven vent.

• Excessive spillovers in oven. For example, this will happen for pie spillovers or large amounts of grease left on the oven bottom. Wipe up excessive spillovers before starting oven. If flames or excessive smoke are present, follow “Setting Broil” on page 26.

Oven control panel beeps and displays any F code error.

• Oven control has detected a fault or error condition. Press STOP to clear the error code. Try Bake or Broil function. If the F code error repeats, remove power from appliance, wait 5 minutes, and then repower appliance and set clock with the correct time of day. Try Bake or Broil function again. If the fault recurs, press STOP to clear and call 1-800-4-MYHOME® for assistance (See back cover).

Self Clean does not work. • Oven control not set properly. Review the “Self Clean” instructions on page 31.

Soil not completely removed after Self Clean.

• Self Clean was interrupted. Review the “Self Clean” instructions on page 31.

• Excessive spillovers on oven bottom. Remove before starting Self Clean.

• Failure to clean soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. These areas are not in the selfcleaning area, but get hot enough to burn on residue. Clean these areas before the selfcleaning cycle is started. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

Oven racks discolored. • Oven racks left in oven cavity during Self Clean. Always remove oven racks from oven

cavity before starting a self-clean cycle. Clean by using a mild, abrasive cleaner following manufacturer's instructions. Rinse with clean water, dry and replace in oven.

Convection fan does not rotate. • Oven door is open. Convection fan will turn off if oven door is opened when Convection

is active. Close oven door.

Scratches or abrasions on cooktop surface.

• Coarse particles such as salt or hardened soils between cooktop and utensils can cause scratches. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time.

• Cleaning materials not recommended for ceramic-glass cooktop have been used. Apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a nonabrasive cloth or sponge. For more information, see “Cooktop Maintenance” on page 35.

• Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.

Metal marks on the cooktop. • Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

cooktop surface. Apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number

40079). Buff with a non-abrasive cloth or sponge. For more information, see “Cooktop

Maintenance” on page 35.

Brown streaks or specks on cooktop surface.

• Boilovers are cooked onto surface. Use razor blade scraper to remove soil. For more information, see “Cooktop Maintenance” on page 35.

Before You Call

Areas of discoloration with metallic sheen on cooktop surface.

Induction cooking zone does not heat cookware or does not heat evenly.

Cooking zones do not glow when heating.

• Mineral deposits from water and food. Remove using the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or sponge.

• Be sure the correct surface control is activated for the cooking zone.

• Be sure to use the correct cookware material type for induction cooking. Use cookware specifically identified by the manufacturer to use for induction cooking. If you’re not sure, use a magnet to test whether the cookware type will work. If a magnet sticks to the bottom of the cookware, the material type is correct for induction cooking.

• Be sure to read about pan-sensing in the Induction Cooking section and correct any pansensing issues in the checklist provided.

• Use quality heavier gauge cookware.

• The induction cooking zones do not glow even when they are hot. Induction cooking uses electromagnetic energy to induce heat directly to the cookware.

424712 10.20.08 SR Printed in the U.S.A.
