30" Radiant
Electric Cooktop
Cubierta para Cocinar
El_ctdca Radiante de 30"
Models, Mode!os 911.4240!, 42701, 42702, 42704, 42709
Ill
Z
r"
w
¢e
i"11
¢e
Z!
0
229C4020P257-2 Sears, Roebuck and Co.,
(SR-10488) Hoffman Estates, IL 60179 U.S.A.
WWWoSears.com
ELECTRICRADIANTCOOl(TOP
TABLEOFCONTENTS
Cooktop Safety .......... 3-4
Protecting the Cooktop .... 5
Features of Your Cooktop .... 6
Removal of Packaging Tape 6
Radiant Cooktop Cooking , , 7
Cooking Zones ........... 7
Cooking Utensils and
Woks ..................... 7
Checking Your Cookware 7
Cookware Performance ....... 7
Radiant Coils ................ 8
Temperature Limiter ..... 8
Home Canning Tips ....... 8
Control Settings ......... 8
Dual Cooking Zone ...... 8
Glass-Ceramic Cooktop .... 9-1 l
Normal Cleaning ........ 9-10
Potential for
Permanent Damage ..... 10
Precautions ............ 11
Removable Knobs .......... 11
Before Calling For
Service ............. 12-13
Warranty ...................... 14
Consumer Service
Numbers .............. 28
For your convenience and future reference, please write down your model
and serial numbers in the space provided. The model and serial numbers
of your cooktop can be found on a tag underneath the unit.
MODEL NUMBER: SERIAL NUMBER:
................. [[[ [ [ [Iq [ i
© Sears, Roebuck and Co
2
IMPORTANTSAFETYINSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read all instructions before using this appliance. When using gas or
electrical appliances, basic safety precautions should be followed,
including the following:
• ALWAYS KEEP cooking zones free
from things that win burn Food,
wooden utensils, and grease buildup
could catch fire Plastic utensils
could melt and canned foods could
IMPORTANT: To insure safety for
yourself, family and home, please read
your Use and Care Guide carefully
Keep it handy for reference Pay close
attention to Safety Sections BE SURE
your appliance is installed and
grounded by a qualified technician°
• DO NOT leave children alone or
unattended near an appliance
in use,
° TEACH CHILDREN not to play
with controls or any part of the
appliance, and not to sit, climb or
stand on any part of the appliance,
° CAUTION: NEVER STORE items
of interest to children in cabinets
above the appliance Children
climbing on the appliance could be
seriously injured,
° KEEP THIS book for later use
* NEVER TRY to repair or replace
any part of the appliance unless
instructions are given in this
manual, All other work should be
done by a qualified technician
o ALWAYS KEEP combustible wall
coverings, curtains, dishcloths,
towels, potholders, and other linens
a safe distance from the appliance
explode Your appliance should
never be used as a storage area
° NEVER HEAT unopened food
containers Pressure buildup can
cause the container to burst and
cause injury
• NEVER LEAVE jars or cans of fat
or drippings on your cooktop
° ALWAYS KEEP your appliance
clear of things that will burn
(gasoline and other flammable
vapors or liquids)
° NEVE R TRY to clean a hot surface
Some cleaners produce noxious
fumes, and wet cloths or sponges
could cause steam burns
° NEVER WEAR loose-fitting clothing
when using your appliance
• NEVER USE a towel or other bulky
cloth as a potholder Make sure the
potholder is dry Moist potholders
and wet cloths or sponges could
cause steam burns DO NOT let
potholders touch hot cooking zones
° DO NOT touch cooking zones or
surfaces near them= These may be
hot enough to cause burns even
though they are dark in color
During and after use, do not touch
or let clothing or flammable material
contact the cooking zones until
they have had time to cool
3
IMPORTANTSAFETY
INSTRUCTIONS
• ONLY CERTAIN kinds of (heat
proof) glass or ceramic cookware
can be used for cooktop cooking
Make sure the cookware you
choose to use is designed for
ceoktop cooking, without breaking
due to sudden changes in
temperatures
,, ALWAYS USE care when touching
the cooking zones. They will retain
heat after the cooktop has been
turned off
• COOKWARE USED for cooktop
cooking should be flat on the
bottom and large enough to
cover the heating area being used
This improves heating efficiency
Undersized utensils expose the
element and may result in direct
contact or ignition of clothing. The
proper size utensil will also improve
efficiency
. NEVER leave surface units
unattended at high heat settings
Boilovers result in smoking or
greasy spills that could catch fire
• ALWAYS turn utensil handles
inward and away from other surface
units to reduce the risk of burns,
ignition, unintended contact and
spillage.
• NEVER cook on a broken cooktop;
cleaning solutions and spillage
could penetrate it and create the
risk of electrical shock or fire
Contact a qualified technician for
repairs.
° LARGE SCRATCHES OR
IMPACTS to glass cooktops can
lead to broken or shattered glass
° NEVER use your appliance for
warming or heating the room.
• CLEAN ventilating hoods frequently
Do not allow grease to accumulate
on the hood or filter
• WHEN PREPARING flaming foods
under the hood, turn the ventilation
fan on.
° USE extreme caution when moving
a pan of hot faL Wait until the fat
is coo!
READ AND UNDERSTAND THIS
INFORMATION NOW!
Be sure everyone in your home
knows what to do in case of fire.
Never use water on a grease fire;
it will only spread the flames.
COOKTOP GREASE FIRE:
Never pick up a flaming pan...
1. Turn off the surface elements
2. Smother the flames with a tightly
fitting lid, baking soda or use
a dry chemical, foam or haton type
extinguisher
4
OPERATION
,i, ii U'H'"III I
ProtectingtheCooktop
• DO NOT slide cookware across
your cooktop
• DO NOT use a dishtowel or sponge
to clean or wipe your cooktop
° DO NOT use scouring powders
or metal cleaning pads on your
cooktop,
° DO NOT apply your cooktop
cleaning creme to the cooktop
surface if the surface is hot
• READ the instruction label on the
cooktop cleaning creme bottle
before attempting to clean the
surface of your cooktop
° AFTER cleaning the cooktop
surface, be sure to wipe off any
residue that may be left from the
creme with a dry paper towel
° FOR MAJOR spills, turn the surface
control knob to OFF. Use a dry
paper towel to wipe up spill, then
use a razor scraper (held with a
potholder) at a 45 ° angle against
the surface of the cooktop to
scrape remaining spill from the
hot cooking zone,
surface controls are
CAUTION: When the
turned off, the Hot
Surface Indicator light
will remain lit until the cooktop
surface has cooled to
approximately 150°F. The glass
ceramic surface will retain heat
after the indicator light goes out.
Use caution until the cool{top
surface has had time to cool.
_-- Hiiiiwiiiiii, i1!1
Sugar spills (such as jellies, fudge,
candy syrups) or melted plastic can
cause pitting of the cooktop surface
unless the spill is removed while it is
still hot Special care should be taken
when removing hot substances
Follow these instructions carefully and
remove soil while spill is hot
1. Turn off all surface units Remove
hot pans
2. Wearing an oven mitt:
a. Use the razor scraper to move
the spill to a cool area on the
cooktop
b. Remove the spilt with paper
towels
.
Any remaining spitlover should be
left until the surface of the cooktop
has cooled
4_
Don't use the surface units again
until all of the residue has been
completely removed
• DO NOT cook directly on the
surface of the glass
• DO NOT use the cooktop as
a cutting board
5
OPERATION
i 7¸

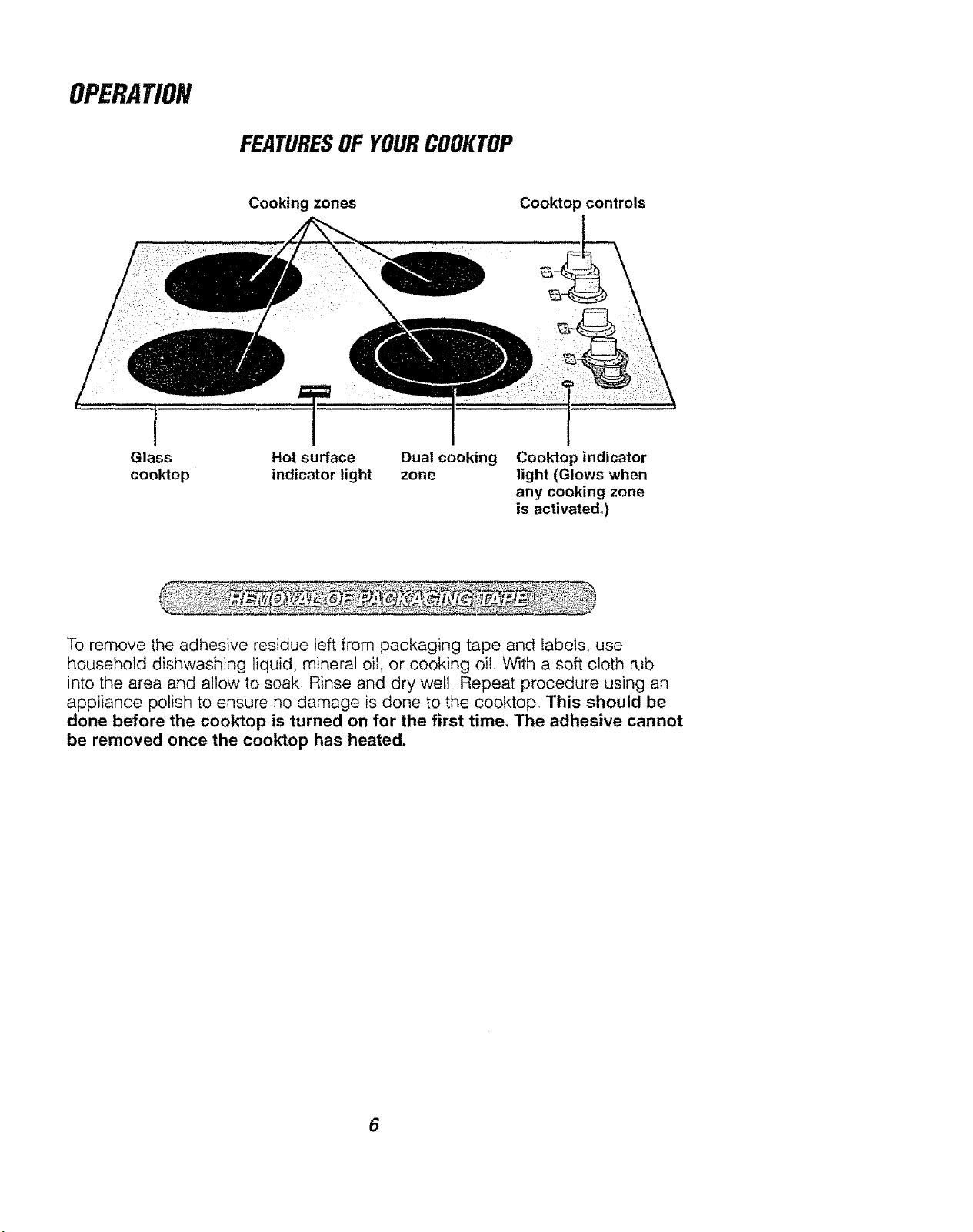

FEATURESOF YOURCOOKTOP
Cooking zones Cooktop controls
Glass Hot surface Dual cooking
cooktop indicator light zone
To remove the adhesive residue left from packaging tape and labels, use
household dishwashing liquid, mineral oil, or cooking oil With a soft cloth rub
into the area and allow to soak Rinse and dry well, Repeat procedure using an
appliance polish to ensure no damage is done to the cooktop, This should be
done before the cooktop is turned on for the first time. The adhesive cannot
be removed once the cooktop has heated.
Cooktop indicator
light (Glows when
any cooking zone
is activated.)
OPERATION
Radiant Cooktop Cooking
Before you use the cooktop for the
first time, clean it with Cooktop
Cleaning Creme ® This will leave
a protective coating
f
The cooking zones are shown by the
outline on the glass The sign near
each control knob shows you which
radiant zone is turned on by the knob
Use pans and woks that are flat on
the bottom The size of the pan
should match the size of the cooking
zone as closely as possible,
Size of
of Pan
Pans should be
flat on bottom.
Wok Cooking
We recommend that you use only a
flat-bottomed wok They are available
at your local retail store.
Do not use w0ks that have support
rings Use of these types of woks,
with or without the ring in place,
can be dangerous
Placing the ring over the surface unit
will cause a buildup of heat that will
damage the cooktop Do not try to
use such woks without the ring You
could be seriously burned if the wok
is tipped over,
_----Cooking
Zone
Use only flat-bottomed wokso
If you don't know if _,_,_
your cookware is flat
on the bottom, try this
test Turn your pan
upside down on the countertop and
place the edge of a ruler flat against
the surface of the pan Rotate the
ruler in a full circle, checking as you
turn for any space between the two
surfaces The bottom of the pan and
the edge of the ruler should fit flush
against each other all the way across
Stainless Steel: Highly recommended
for use with your new cooktop
Especially good with a clad bottom
Aluminum: Heavyweight aluminum
cookware recommended
Cast Iron: Cast-iron cookware that
is completely covered with porcelain
enamel is recommended Cast iron
that is not covered with porcelain
enamel may scratch the glass
ceramic surface of the cooktop
Copper Bottom: Has good
performance, but it can leave a
residue on the cooktop surface if
allowed to boil dry
Glass-Ceramic or Stoneware:
Usable Check for rough edges or
burrs which may scratch the cooktop
surface
7
OPERATION
RadiantCooktopCooking
When the knobs are turned on, coils
beneath the glass radiate heat through
the glass to the cooking utensil, It wilt
take a few moments for the coils to
heat, as they do, a red glow can be
seen below the surface of the cooktop
HI Used for quick starts, such as
bringing water to a boil,.
MED Used for stow boil and sauteing
LO Used for steaming foods or
keeping cooked foods at
serving temperature
1. Push down to
turn the knob
Every radiant surface unit has a
temperature limiter,
The temperature timiter protects the
glass cooktop from getting too hot
The temperature limiter may cycle
the units off for a time if:
* The pan boils dry
o The pan bottom is not flat
oThe pan is off center
. There is no pan on the unit
1. Be sure the canner is centered
over the cooking zones
2. Make sure the canner is flat on
the bottom
3. Use recipes and procedures from
reputable sources., These are
available from manufacturers
such as Bali® and Kerr ®, and
the Department of Agriculture
Extension Service
4. Use caution, while canning, to
prevent burns from steam or heat,
2. Set on or
between marks
for desired heat
The UNIT ON indicator light will glow
when any cooking zone is activated
The right front cooking zone has two
sizes
Large 9" cooking
zone setting
Small 6" cookin,
zone setting
• To use the large 9" cooking zone,
push to turn the small control knob
to the duel setting
• To use the small 6" cooking zone,
push to turn the small control knob
to the single small setting
8

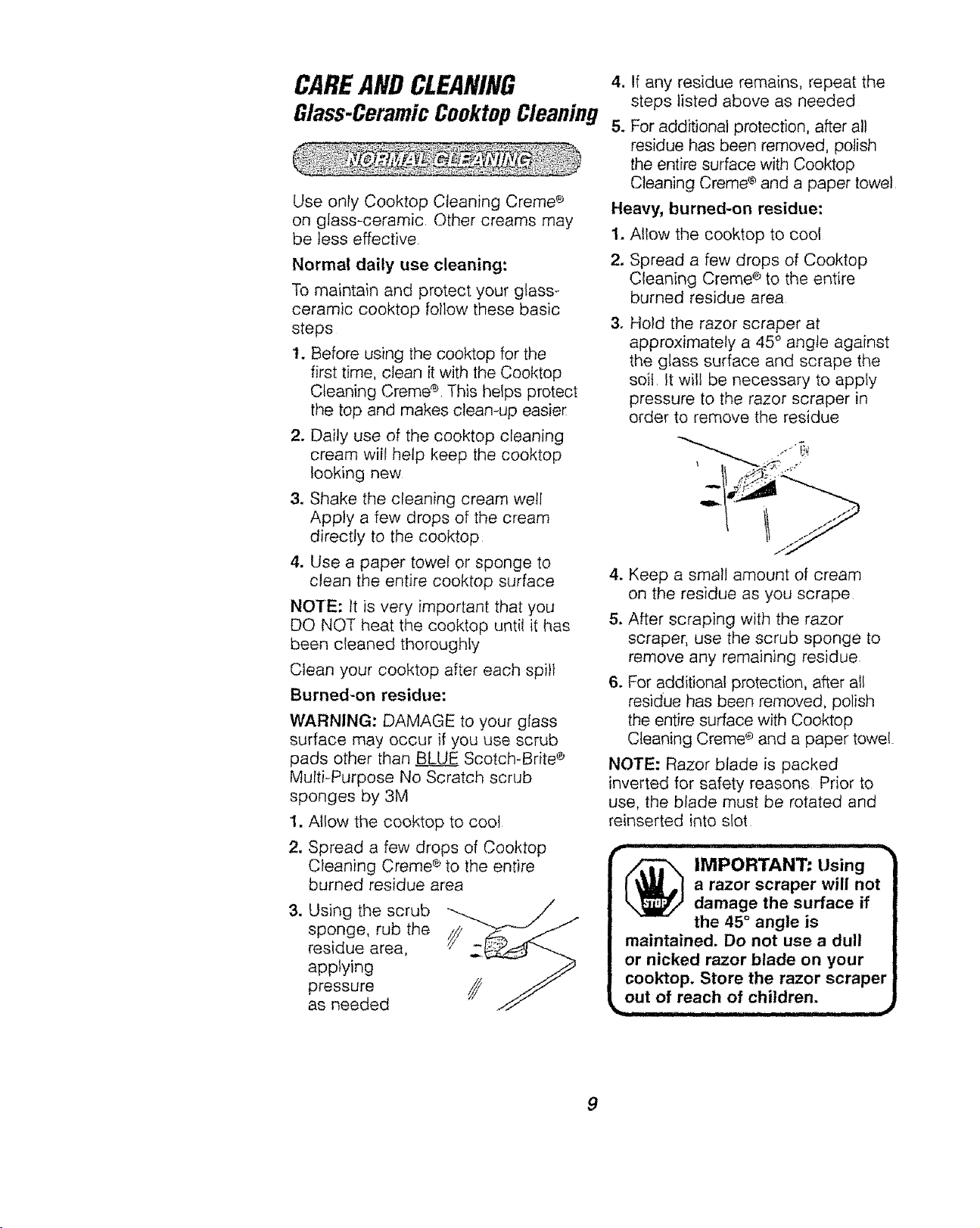

CAREANDCLEANING
Glass-CeramicCooktopCleaning
Use only Cooktop Cleaning Creme ®
on glass-ceramic Other creams may
be fess effective
Normal daily use cleaning:
To maintain and protect your gtass_
ceramic cooktop follow these basic
steps
1. Before using the cooktop for the
first time, clean it with the Cooktop
Cleaning Creme ® This helps protect
the top and makes clean-up easier
2. Daily use of the cooktop cleaning
cream will help keep the cooktop
looking new
3. Shake the cleaning cream well
Apply a few drops of the cream
directly to the cooktop
4. Use a paper towel or sponge to
clean the entire cooktop surface
NOTE: It is very important that you
DO NOT heat the cooktop until it has
been cleaned thoroughly
Clean your cooktop after each spill
Burned-on residue:
WARNING: DAMAGE to your glass
surface may occur if you use scrub
pads other than BLUE Scotch-Brite ®
Multi-Purpose No Scratch scrub
sponges by 3M
1. Mow the cooktop to coot
2. Spread a few drops of Cooktop
Cleaning Creme ® to the entire
burned residue area
3. Using the scrub
sponge, rub the
residue area,
applying
pressure
as needed
4. If any residue remains, repeat the
steps listed above as needed
5. For additional protection, after ali
residue has been removed, polish
the entire surface with Cooktop
Cleaning Creme ® and a paper towel
Heavy, burned-on residue:
1. Allow the cooktop to cool
2. Spread a few drops of Cooktop
Cleaning Creme e to the entire
burned residue area
,
Hold the razor scraper at
approximately a 45 ° angle against
the glass surface and scrape the
soil it will be necessary to apply
pressure to the razor scraper in
order to remove the residue
4. Keep a small amount of cream
on the residue as you scrape
5. After scraping with the razor
scraper, use the scrub sponge to
remove any remaining residue
6. For additional protection, after all
residue has been removed, polish
the entire surface with Cooktop
Cleaning Creme e and a paper towel
NOTE: Razor blade is packed
inverted for safety reasons Prior to
use, the blade must be rotated and
reinserted into slot
a razor scraper will not
IMPORTANT; Using
damage the surface if
the 45 ° angle is
maintained. Do not use a dull
or nicked razor blade on your
cooktop. Store the razor scraper
out of reach of children.
9
CAREANDCLEANING
Glass-CeramicCooktopCleaning
Metal marks and scratches:
1. Be careful not to slide pots and
pans across your cooktop It wilt
leave metal markings on the
cooktop surface
These marks are removable using
the cleaning cream with a scrub
sponge and/or razor scraper
2. If pots with a thin overlay of
aluminum or copper are allowed
to boil dry, the overlay may leave
black discoloration on the cooktop
This should be removed immediately
before heating again or the
discoloration may be permanent
WARNING: Carefully check the
bottom of pans for roughness that
would scratch the cooktop
Cooktop seat:
To clean the cooktop sea! around the
edges of the glass, lay a wet cloth on
it for a few minutes, then wipe clean
with nonabrasive cleaners
Damage from sugary spills and
melted plastic:
1. Turn off all surface units Remove
hot pans
2. Wearing an oven mitt:
a. Use the razor scraper to move
the spill to a cool area on the
cooktep
b. Remove the split with paper
towels
3. Any remaining spiilover should be
left until the surface of the cooktop
has cooled
4. Don't use the surface units again
until alt of the residue has been
completely removed
NOTE: If pitting or indentation in the
glass surface has already occurred,
the cooktop glass will have to be
replaced in this case, service will
be necessary
10
CAREANDCLEANING
Glass.CeramicCooktopCleaning
• Most cleaners contain ammonia,
chemicals and abrasives that
damage the surface of your
cooktop Use only the Cooktop
Cleaning Creme ® for proper
cleaning and protection of your
glass-ceramic surface
° ff you slide aluminum or copper
bottom cookware across the
surface of the cooktop, they may
leave metal markings which appear
as scratches Use the razor scraper
and cooktop creme to remove these
marks Failure to remove this
residue immediately may leave
permanent marks
° If pots with a thin overlay of
aluminum, copper or enamel boil
dry, bonding with the glass-ceramic
surface of the cooktop may occur
This black discoloration should be
removed immediately or it could
become permanent
- Use of glass cleaner may leave an
iridescent film on the cooktop
Cleaning creme wilt remove this film
- Water stains (mineral deposits)
are removable using the creme or
full strength white vinegar
• Do not use a dull or nicked razor
blade on your cooktop
° Do not use abrasive cleaners or
abrasive scouring pads on your
cooktop
- Plastic mesh pads, such as Dobie ÷
may be used
To order additional Cooktop Cleaning
Creme ®, call your nearest Sears
Service Center or Retail Store and
ask for Stock No 40079
All control knobs may be removed
for easy cleaning by pulling the knob
straight off the stem Be sure that the
knob is in the OFF position before
removal
HINT: Slip a thin cloth (such as a
handkerchief) or a piece of string
under and around the knob edge
and pul! up
CAUTION: Read these instructions
carefully before replacing the knobs.
Replacing the knobs improperly will
damage the knobs and the spring
clips on the stems. If this happens,
the knobs will fit loosely.
To replace the knob:
1. The knob stem has a groove in
each side The groove on one side
has a spring clip The other groove
is clear (see illustration)
2. Check the inside of the knob and
find the molded rib
3. Replace the knob by fitting the
molded rib inside the knob into
the clear groove on the stem
Molded rib
Clear Spring
groove_clip
11
BEFORECALLINGFORSERVICE
To save you time and money, before making a service call, check the fist below
for any problem you may feel you have with the performance of your cooktop
If the problem is something you cannot fix, use the Consumer Service Numbers
located at the back of this manual When making any calls, have the Model
No., Serial No., Repair Parts List, Use and Care Guide and the Date of
Purchase available.
PROBLEM
rH,HI H,, ,,,, ,, I,H II I I,,,
Tiny scratches or
metal marks (may
appear as cracks)
or abrasions on
the cooktop.
POSSIBLE CAUSE POSSIBLE SOLUTION
,, i i1,, i ,, im ii i IHI i, IH i i ,
a. Incorrect cleaning a. Use only Cooktop
methods being used, Cleaning Creme ®
b_
Cookware with rough
bottoms being used or
coarse particles (salt,
sand, etc ) between the
cookware bottom and
cooking surface
Metal markings on Sliding or scraping metal
the cooktop surface utensils and cookware
(may appear as across cooktop surface
scratches).
Areas of a. Improper cookware a.
discoloration being used
or dark streaks
on the cooktop
surface.
b_
Food spiitovers not b.
cleaned before next use
C.
Incorrect cleaning c.
methods being used.
Plastic melted to
the surface.
Hot cooktop came into
contact with plastic
placed on the hot cooktop
b. Make sure the cooktop
surface and bottom of
cookware are clean
before using Use
cookware with smooth
bottoms Tiny scratches
are not removable but
wilt become less
visible in time as a
resu!t of cleaning:
Use recommended
cleaning procedure
to clean the cooktop
surface.
Marks from a{u'm;nurn ........
and copper, as welt as
mineral deposits from
water or food, can be
removed with the
cooktop cleaning cream
See the Care and
Cleaning section
Use recommended
cleaning procedures.
See the "Glass surface -
potential for permanent
damage" section in the
Care and Cleaning
section of this manual.
Pitting (or indentation)
of the cooktop.
Hot sugar mixture
spilled on the cooktop
12
Call a qualified
technician for
replacement.
BEFORECALLINGFORSERVICE
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
,,.,q ,,,, • t
Cooktop zone Improper operation Be sure the knob is
does not work. of control. ,,pushed in wh!le turning.
, n u , n q, ,, , , ,,,, u,n ,, ,, ,11 1,,n ,,,u, =
Counter unit does No power to counter unit Check household circuit
not work; totally breaker or fuse.
inoperative,
Foods cook slowly. Improper cookware Use pans that have
fiat bottoms and tight
fitting lids (if applicable)
Pans should match
cooking zone size.
Read the Radiant
Cooktop Cooking
section for complete
information
13
RADIANTCOOKTOPWARRANTY
oNEYEA,WARRAN.O.ALLPARTS
if,withinoneyearfromthedateofinstallation,anypartiailstoJunctionproperlydueto adeledin
materiatorworkmanship,Searswil!repairor replaceit, atouroption,lreeof charge
LIMITEDWARRANTYONRADIANTGLASSANDRADIANTSURFACEUNITSFORSECOND
THROUGHFIFTHYEAR:
Forthestartelthesecondyear,fromthedateofinstallation,throughthefifthyear,fromthedate
ofinstallation,Searswiltrepairorreplace,at ouroption,theradiantglassorradiantsurfaceunits
(youwill beresponsiblefor anylabor),ifanyofthefollowingdefectsoccur:
e Crackingel theradiantglasscooktopduetothermatshock
',,Discolorationoftheradiantglasscooktop
wWear-offofthepatternontheradiantglasscooktop
• Bum-cutofanyoftheradiantsurfaceunits
Ifthisproductissubjectedto otherthanprivatefamilyuse,theabovewarrantiesareeffectivefor
only90days
WARRANTYSERVICEISAVAILABLEBYCONTACTINGTHENEARESTSEARSSERVICECENTER
INTHEUNITEDSTATES
Thiswarrantygivesyouspecificfegatrights,andyoumayaisohaveotherrightswhichvaryfrom
statelc state,
SearsRoebuckandCo Dept,817WAHoffmanEstates,IL60179
j,,,,,,,,, , ,,,, ,, , ,,,,_,_
To Further Add To The Value Of Your Cooktop,
Buy a Sears Maintenance Agreement.
Years of Ownership Coverage 1st Year 2nd Year 3rd Year "_
,,, ...... _....... ,..................... ,.......
1. Replacement of Defective Parts other
than Radiant Glass and Radiant W MA MA
Surface Units
2. Radiant Gtass and Radiant Surface
unitParts W W W
3. Labo_- W MA MA
!,,,.,4. Annual Preventive Maintenance .................... .... MA..__
Check at your request MA MA
W- Warranty MA- Maintenance Agreement
KenmoreAppliancesaredesigned,manufacturedandtestedforyearsof dependableoperation
Yet,anyappliancemayrequireservicefromtimeto time TheSearsMaintenanceAgreement
offersyouan outstandingserviceprogramlot yourproduct.
ThetableaboveshowstheadditionalbenefitsaSearsMaintenanceAgreementofferscompared
to aSearsWarranty
ContactyourSearsSalesAssociateor LocalSearsServiceCenlerto purchasea Sears
MaintenanceAgreemenL
14
Loading...
