Page 1
Kenmore
Electric Dryer
Models 8907*
Code No. : DC68-02865A-02
Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3 www.sears.ca
Page 2
TABLE OF CONTENTS PROTECTION AGREEMENTS
TABLE OF CONTENTS
PROTECTION AGREEMENTS........................................................... 2
KENMORE APPLIANCE WARRANTY
DRYER SAFETY.............................................................................4
INSTALLATION INSTRUCTIONS
Tools and Parts.........................................................................5
Optional Accessories................................................................. 5
Location Requirements
Electrical Requirements..............................................................8
Venting Requirements
Plan Vent System
Install Vent System
Connect Vent..........................................................................11

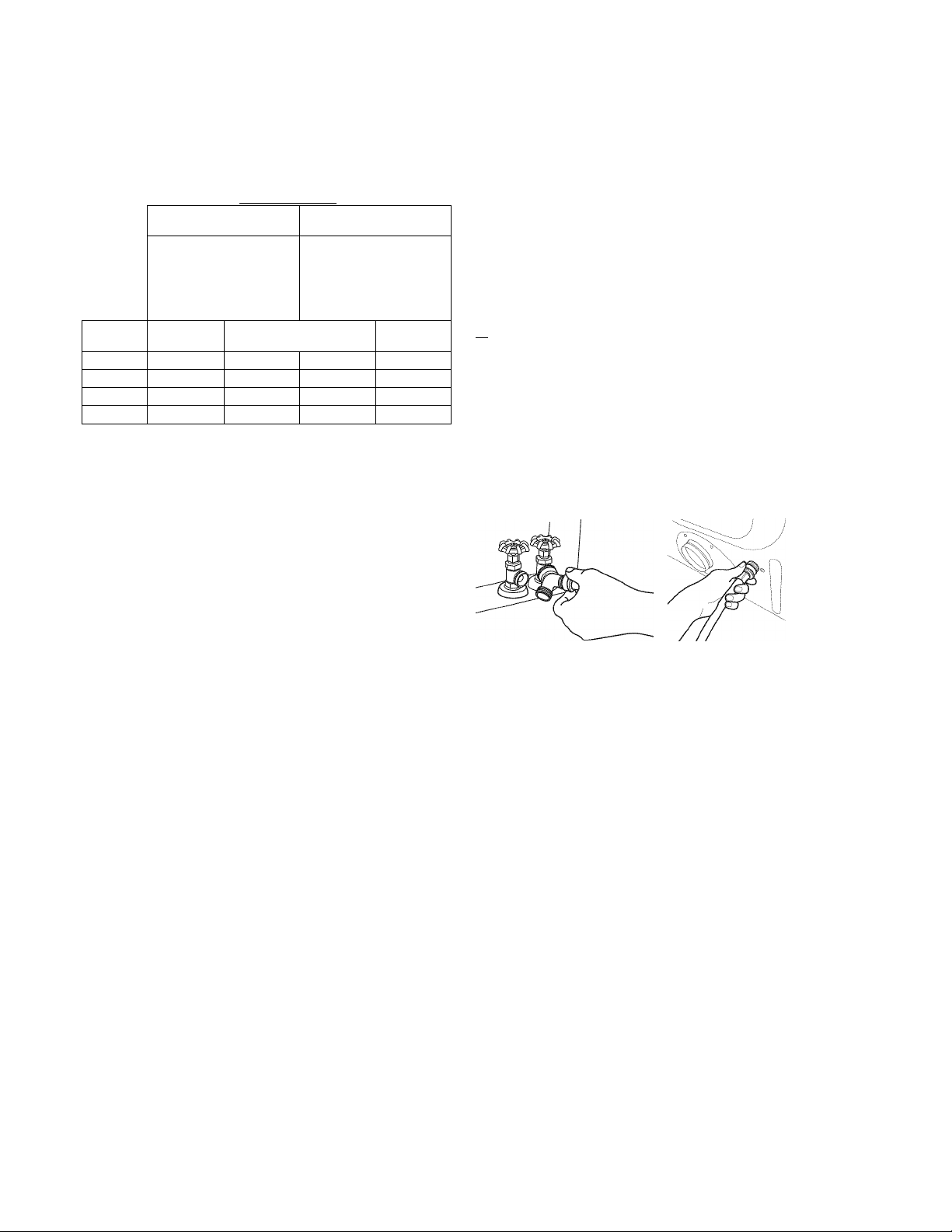

Connecting the Inlet Hose......................................................... 11
Level Dryer

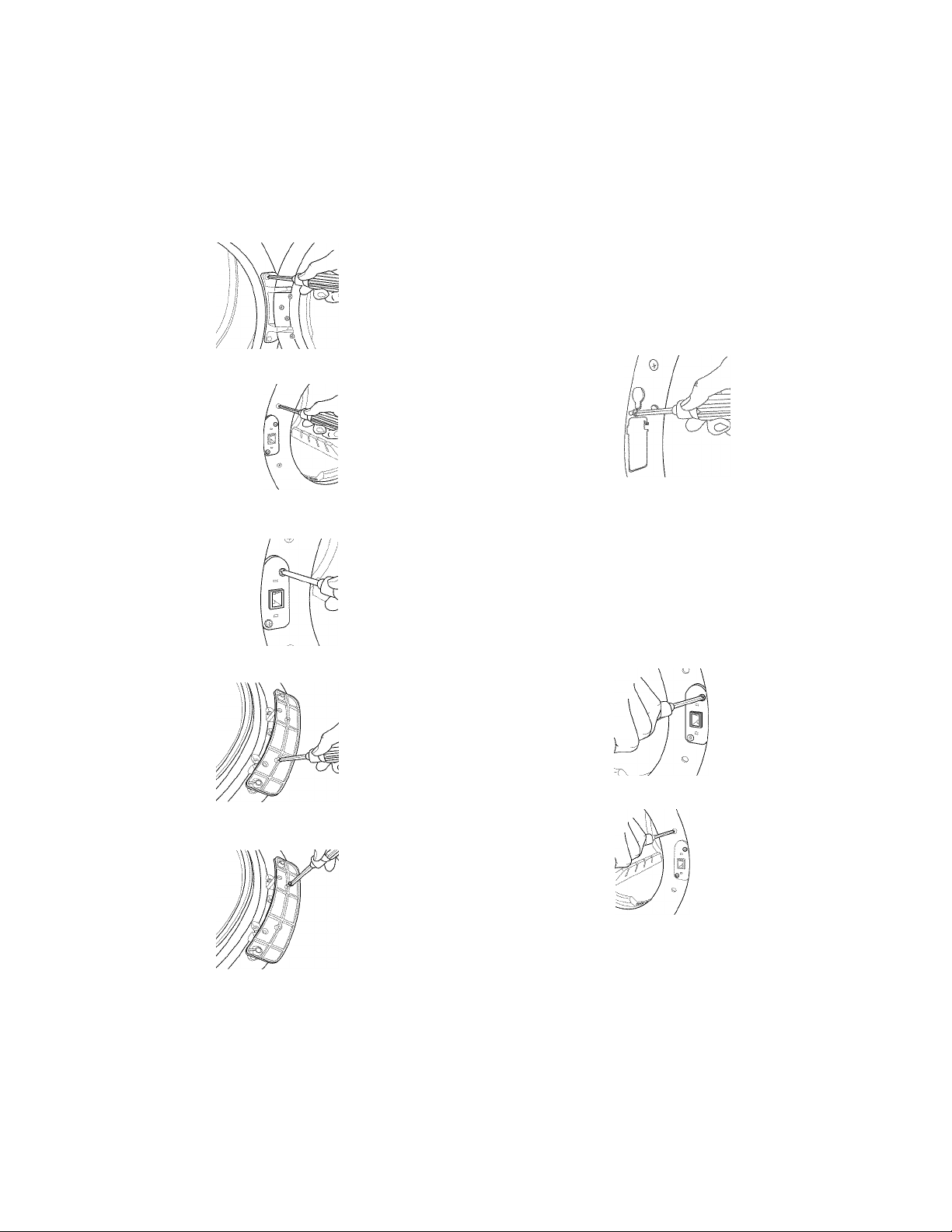

Reverse Door Swing
Installation Check List.............................................................. 14
DRYER USE
DRYER CARE............................................................................... 19
SPECIAL LAUNDRY TIPS................................................................20
TROUBLESHOOTING
SERVICE NUMBER.....................................................BACK COVER
.................................................................................
Starting Your Dryer..................................................................15
Cycles...................................................................................16
Options.................................................................................16
Drying Rack........................................................................... 18
Cleaning the Dryer Location......................................................19
Removing Accumulated Lint......................................................20
Cycle Chart
Information Codes
Check these points if your dryer.................................................22
Dryer Results
...................................................................
..................................................
.......................................................
..............................................................
...............................................................
....................................................................
.................................................................
............................................................................
................................................................
...........................................................................
...................................................................
..................................................................
.........................................................................
10
11
12
13
21
22
22
23
Master Protection Agreements
2
Congratulations on making a smart purchase. Your new
Kenmore product is designed and manufactured for years of
dependable operation. But like all products, it may require
3
preventive maintenance or repair from time to time. That’s when
having a Master Protection Agreement can save you money and
aggravation.
5
The Master Protection Agreement also helps extend the life of
your new product. Here’s what the Agreement* includes:
6
✓ Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
9
15
goes well beyond the product warranty. No deductibles,
no functional failure excluded from coverage— real
protection.
✓ Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you can
trust will be working on your product.
✓ Unlimited service calls and nationwide service, as often
as you want us, whenever you want us.
✓ “No-lemon” guarantee - replacement of your covered
product if four or more product failures occur within twelve
months.
✓ Product replacement if your covered product can’t be fixed.
✓ Annual Preventive Maintenance Check at your request
- no extra charge.
✓ Fast help by phone - we call it Rapid Resolution - phone
support from a Sears representative on all products. Think of
us as a “talking owner’s manual.”
us as a laiMiig owner s manual.
✓ Power surge protection against electrical damage
power fluctuations.
✓ $250 Food Loss Protection annually for any food spoilage
that is the result of mechanical failure of any covered
refrigerator or freezer.
✓ Rental reimbursement if repair of your covered product
takes longer than promised.
✓ 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after
the product warranty period expires. Purchase your Master
Protection Agreement today!
‘Coverage in Canada varies on some items. For full details
call Sears Canada at 1 -800-361 -6665.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
Canada call 1-800-4-MY-HOME®.
due to
Page 3
KENiViORE APPLIANCE WARRANTY
ONE YEAR LIMITED WARRANTY
When installed, operated and maintained according to all
instructions supplied with the product, if this appliance fails due
to a defect in material or workmanship within one year from the
date of purchase, call 1-800-4-MY-HOME® to arrange for free
repair.
If this appliance is used for other than private family purposes,
this warranty applies for only 90 days from the date of purchase.
THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL
AND WORKMANSHIP. SEARS WILL NOT PAY FOR:
1. Expendable items that can wear out from normal use,
including but not limited to filters, belts, light bulbs, and
bags.
2. A service technician to instruct the user in correct product
installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed,
operated or maintained according to all instructions supplied
with the product.
5. Damage to or failure of this product resulting from accident,
abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of
detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from
unauthorized modifications made to this product.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF
REMEDIES
Customer’s sole and exclusive remedy under this limited
warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness
for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental
or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential
damages, or limitations on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may
not apply to you.
This warranty applies only while this appliance is used in the
Canada.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Sears Canada Inc.
Toronto, Ontario, Canada MSB 2C3
PRODUCT RECORD
In the space below, record your complete model number, serial
number, and purchase date. Model plate is located on the lower
part of the door opening and on the rear right side of the unit.
Have this information available to help you obtain assistance or
service more quickly whenever you contact Sears concerning
your appliance.
Model number .
Serial number _
Purchase date.
Save these instructions and your sales receipt for future
reference.
PEDESTAL PRODUCT RECORD
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label located on the product.
Have this information available to help you obtain assistance or
service more quickly whenever you contact Sears concerning
your pedestal.
Model number .
Serial number
Purchase date_______________________________________________
Save these instructions and your sales receipt for future
reference.
_______________________________________________
__________________________________
__________________________________
Page 4
DRYER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manuai and on your appiiance. Aiways read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
A
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
These words mean:
You can be killed or seriously injured if you don’t immediately
follow instructions.
You can be killed or seriously injured if you don’t follow
instructions.
A WARNING - Risk of Fire
Clothes dryer installation must be performed by a qualified installer.
Install the clothes dryer according to the manufacturer’s instructions and local codes.
Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct Is installed, it must be of a
specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of
fire.
To reduce the risk of severe injury or death, follow all installation instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
Read all instructions before using the dryer.
Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, drycleaning
solvents, or other flammable or explosive substances as
they give off vapors that could ignite or explode.
Do not allow children to play on or in the dryer. Close
supervision of children Is necessary when the dryer Is used
near children.
Before the dryer Is removed from service or discarded,
remove the door to the drying compartment.
Do not reach into the dryer if the drum Is moving.
Do not install or store the dryer where it will be exposed to
the weather.
Do not tamper with controls.
Do not repair or replace any part of the dryer or attempt any
servicing unless specifically recommended in this Use and
Care Guide or in published user-repair instructions that you
understand and have the skills to carry out.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
Clean lint screen before or after each load.
Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
The interior of the dryer and exhaust vent should be cleaned
periodically by qualified service personnel.
See installation instructions for grounding requirements.
SAVE THESE INSTRUCTIONS
[BETTER]592-89075-02865A-02_EN.indd 4 2011-03-23 ¿AAÜ 9:48:59
Page 5
INSTALLATION INSTRUCTIONS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Pliers Cutting knife Nut drivers
Mobile home installations require metal exhaust system
hardware available for purchase from your local Sears store or
Sears Service Center. For further information, please call 1-8004-MY-HOME® (1-800-469-4663).
Pedestal
You have the option of purchasing a pedestal for this dryer. You
may select a 14”(35.5cm) pedestal. Remember that the pedestal
will add to the total height of the unit. The pedestals are available
in several colors.
Level
Parts supplied
Remove parts package from dryer drum. Check that all parts are
included.
flat-blade
screwdriver
Duct tape
□
MANUAL-BOOK
(DC68-02865A)

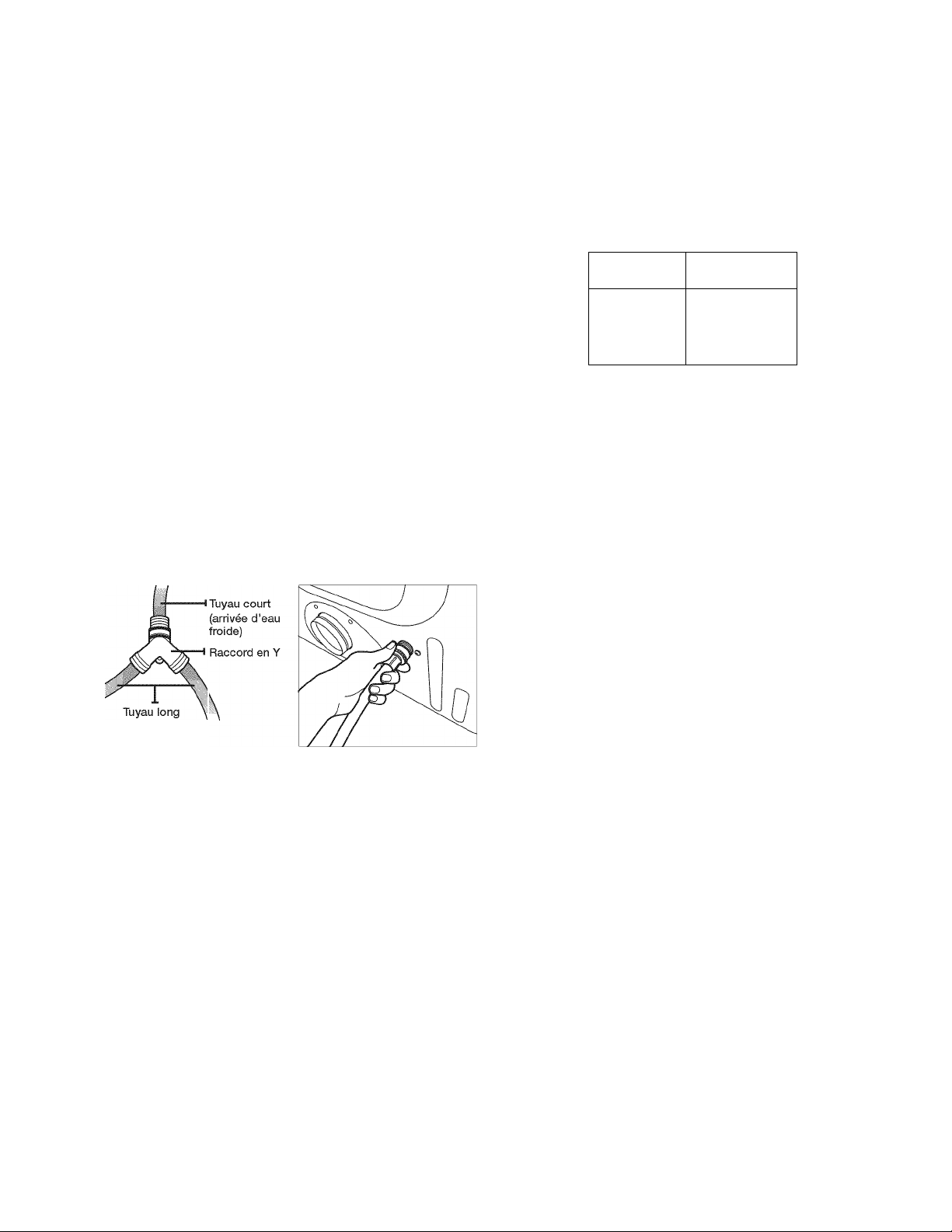

“Y”-CONNECTOR
(DC97-15103A)
DIE-RACK DRY
(DC61-02773A)
HOSE WATER
(DC97-15692A)
To order, call your local Sears store. For further information,
please call 1-800-4-MY-HOME® (1-800-469-4663).
Pedestal Height
14"(35.5cm)
14"(35.5cm) Tango Red 19109
Stacking Kit
Are you planning to stack your Kenmore washer and dryer?
To do so , purchase an optional stacking kit (Model:18888) from
your local Sears store or Sears Service Center.
Follow instructions included with the kit.
Side Vent Kit
Use the Side Vent Kit (Model : 18004) for venting directly on
either side or on the bottom.
Follow instructions included with the kit.
Color
Night Sky Blue
Model Number
19106
o
Vent cap Elbow Duct Back-Left
''C’d ''^'0
SHORT INLET HOSE
(DC97-15249A)
NOTE: Do not use leveling legs supplied with dryer if installing
on a pedestal..
[BETTER]592-89075-02865A-02_EN.indd 5 2011-03-23 ¿ÁÁÜ 9:49:04
RUBBER WASHER
(DC62-40178A)
Duct Back-Right Duct Front Duct Front-Bottom
Page 6
U/
Explosion Hazard
Keep flammable materials and vapors, such as gasoline,
away from dryer.
Place dryer at least 18 inches (46 cm) above the floor for
a garage installation.
Failure to do so can result in death, explosion, or fire.
You will need
■ A location that allows for proper exhaust installation. See
“Venting Requirements.”
■ A separate 30-amp circuit.
■ If you are using a power supply cord, a grounded electrical
outlet located within 2 ft (61 cm) of either side of the dryer.
See “Electrical Requirements.”
■ A sturdy floor to support the total dryer weight of 200 lbs
(90.7 kg). The combined weight of a companion appliance
should also be considered.
■ A level floor with a maximum slope of 1" (2.5 cm) under entire
dryer. If slope is greater than 1", clothes may not tumble
properly and automatic sensor dry cycles may not operate
correctly.
■ For a garage installation, you will need to place the dryer at
least 18" (46 cm) above the floor. If you are using a pedestal,
you will need 18" (46 cm) to the bottom of the dryer.
Do not operate your dryer at temperatures below 45°F (7°C). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. Drying times can be extended.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
installation clearances
The location must be large enough to allow the dryer door to
open fully.
*
Dryer Dimensions
c; 49”(124.5cm)
D: 29.4”(74.7cm)
* Most installations require a minimum 5" (12.7 cm) clearance
behind the dryer for the exhaust vent with elbow. See “Venting
Requirements.”
Installation spacing for recessed area or closet installation
The following spacing dimensions are recommended for this
dryer. This dryer has been tested for spacing of 0" (0 cm)
clearance on the sides and rear. Recommended spacing should
be considered for the following reasons:
■ Additional spacing should be considered for ease of
installation and servicing.
■ Additional clearances might be required for wall, door and
floor moldings.
■ Additional spacing should be considered on all sides of the
dryer to reduce noise transfer.
■ For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
■ Companion appliance spacing should also be considered.
Custom undercounter installation - Dryer only
* Required spacing
[BETTER]592-89075-02865A-02_EN.indd 6 2011-03-23 ¿AAll 9:49:10
Page 7

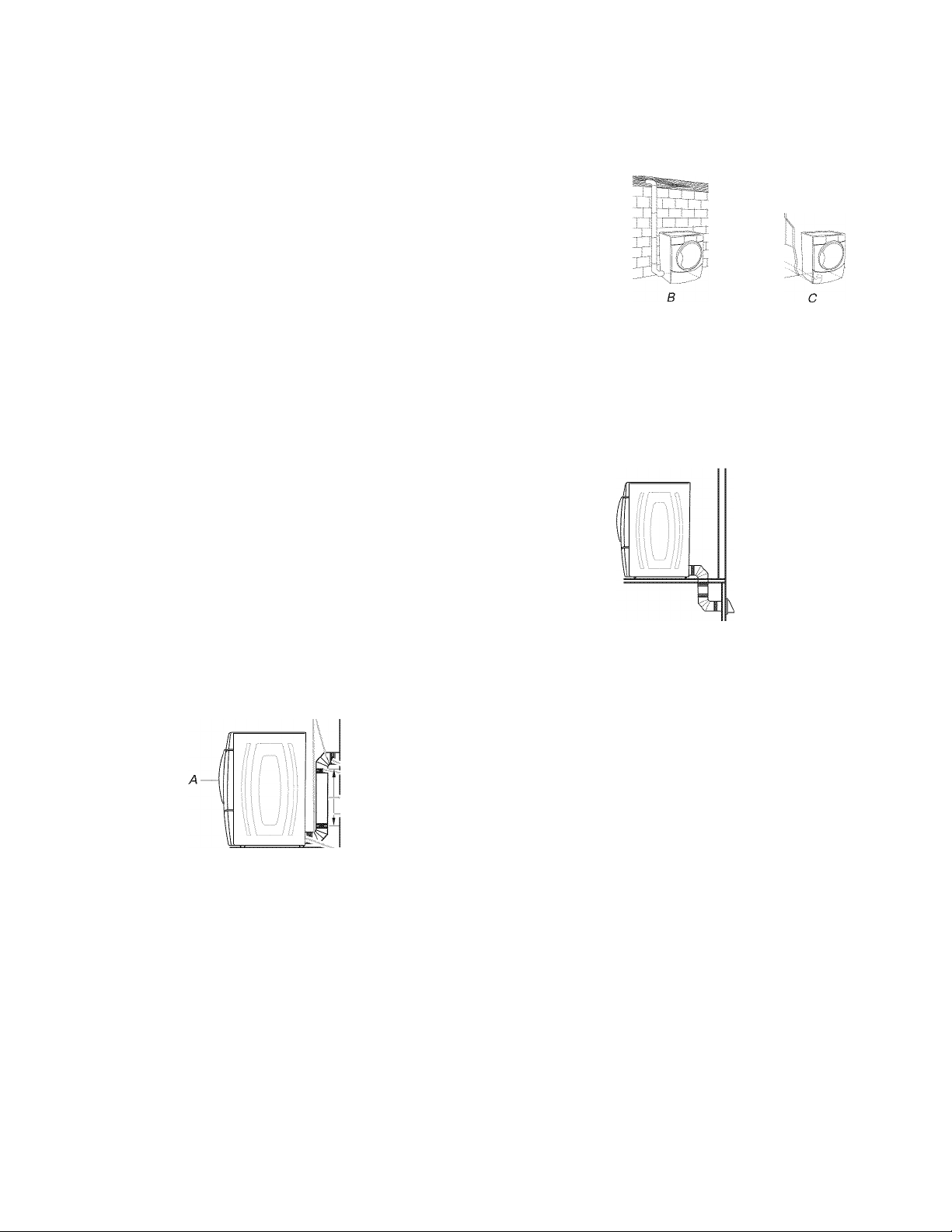

Closet installation - Dryer only
A. Side view - cioset or confined area
B. Cioset door with vents
* Required spacing
** For side or bottom venting, 2" (5.1 cm) spacing is aiiowed.
Recessed or closet installation - Dryer on pedestal
Recommended installation spacing for recessed or closet installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
jL
Required spacing
6"‘(15.2cm)
A. Recessed area
B. Side view - cioset or confined area
’ Required spacing
'* For side or bottom venting, 2" (5.1 cm) spacing is aiiowed.
installation spacing for cabinet installation
■ For cabinet instaiiation, with a door, minimum ventiiation
openings in the top of the cabinet are required.
---------
5^ 29.4"
' Required spacing
'* For side or bottom venting, 2" (5.1 cm) spacing is allowed.
5'/i"
(Hen (2.5 cm)
* Required spacing
** For venting out the side, 2" (5.1 cm) spacing is aiiowed.
Mobile home - additional installation requirements
The instaiiation of the Dryer in mobiie homes must conform to
the Manufactured Home Construction and Safety Standard Titie
24 CFR, Part 32-80 {formeriy the Fédérai Standard for Mobiie
Home Construction and Safety, Titie 24, HUD (Part 280), 1975}
for the United States) or CSA Standards Z240 (for Canada).
When instaiiing a Dryer in a mobiie home, provisions for
anchoring the Dryer to the fioor must be made. Locate an area
that has adequate fresh air.
A minimum of 72 in^ (183 cm^ of unobstructed space is
required.
Ail mobile home installations must be exhausted to the outside
with the exhaust duct termination securely fastened to the
mobile home structure, using materials that will not support
combustion.
The exhaust duct may not terminate underneath the mobile
home.
See Exhausting section for more information.
Mobile home installations require:
■ Metal exhaust system hardware, which is available for
purchase from your local Sears store or Sears Service
Center.
■ Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
[BETTER]592-89075-02865A-02_EN.indd 7 2011-03-23 ¿AAÜ 9:49:12
Page 8
Electrical Shock Hazard
Plug into a grounded 4 prong outlet.
Failure to do so can result in death or electrical shock.
It is your responsibility
■ To contact a qualified electrical installer.
■ To be sure that the electrical connection Is adequate and
in conformance with the Canadian Electrical Code, C22.1latest edition and all local codes. A copy of the above
codes standard may be obtained from: Canadian Standards
Association,
Canada.
■ To supply the required 4 wire, single phase, 120/240 volt, 60
Hz., AC only electrical supply on a separate 30-amp circuit,
fused on both sides of the line. A time-delay fuse or circuit
breaker is recommended. Connect to an individual branch
circuit.
■ This dryer is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-30R
wall receptacle. The cord is 5 ft (1.52 m) in length. Be sure
wall receptacle is within reach of dryer’s final location.
178 Rexdale Blvd., Toronto, ON M9W 1R3
GROUNDING INSTRUCTIONS
■ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer is equipped with a cord having an equipment
grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
WARNING: improper connection of the equipment
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with the
dryer: if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
■ For Gas Models
Your Dryer has a cord with an equipment-grounding
conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with your Dryer - if it
doesn’t fit the outlet, have a proper outlet installed by a
qualified electrician.
NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING
LINES, GAS LINES, OR HOT WATER PIPES.
SAVE THESE INSTRUCTIONS
D D
4-wire receptacle 14-30R
■ Do not use an extension cord.
If you are using a replacement power supply cord, it is
recommended that you use Power Supply Cord Replacement
Part Number DC96-00762A. For further information, please call
1-800-4-MY-HOME® (1 -800-469-4663).
[BETTER]592-89075-02865A-02_EN.indd 8 2011-03-23 ¿AAll 9:49:13
Page 9
JÉ

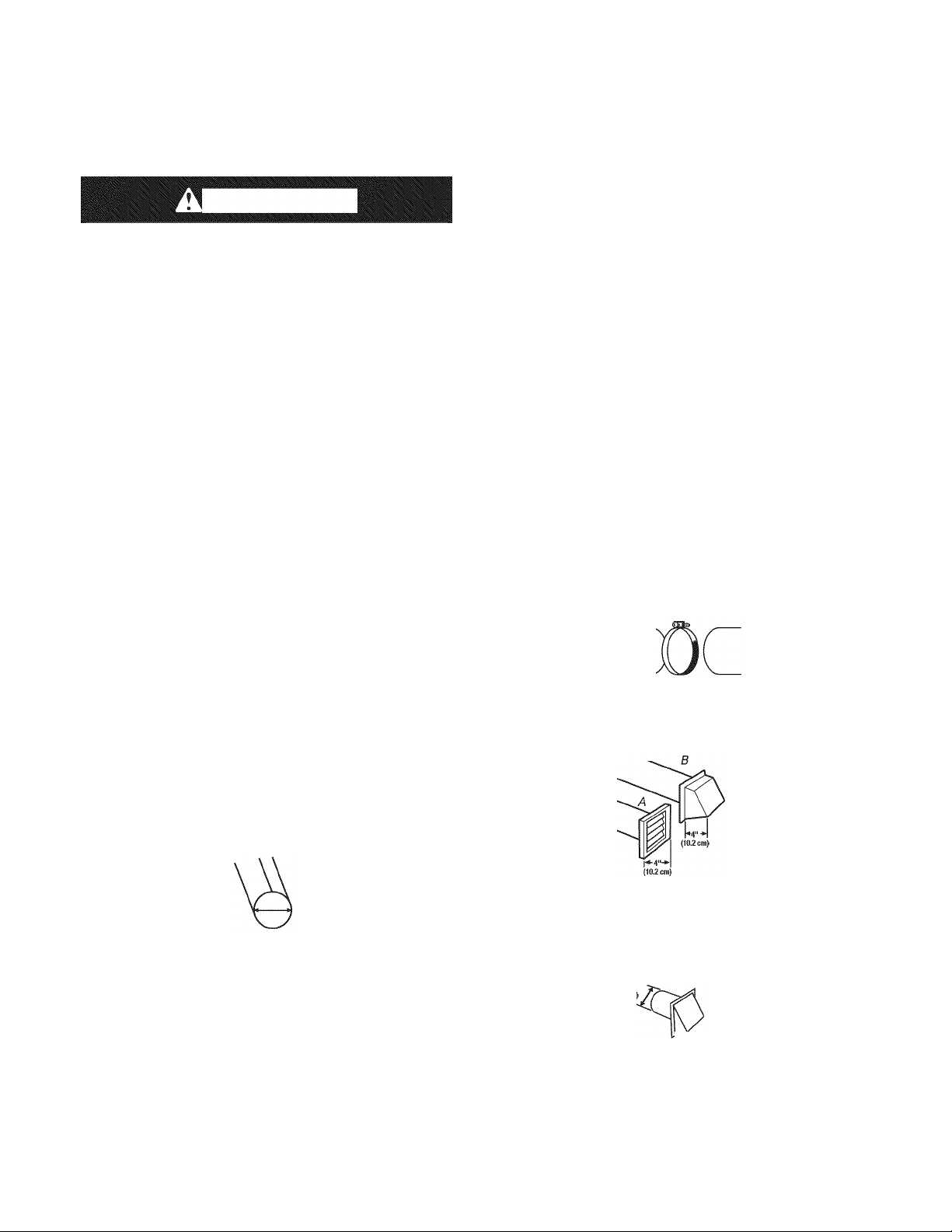

Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death or
fire.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
The dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling or a concealed space of a building.
Please read the following instructions carefully before installing
the dryer. These instructions should be kept for future reference.
If using an existing vent system
■ Clean lint from the entire length of the system and make sure
exhaust hood is not plugged with lint.
■ Replace any plastic or metal foil vent with rigid or flexible
heavy metal vent.
■ Review Vent system chart. Modify existing vent system if
necessary to achieve the best drying performance.
If this is a new vent system
Flexible metal vent
■ Flexible metal vents are acceptable only if accessible for
cleaning.
■ Flexible metal vent must be fully extended and supported
when the dryer is in its final location.
■ Remove excess flexible metal vent to avoid sagging
and kinking that may result in reduced airflow and poor
performance.
■ Do not install flexible metal vent in enclosed walls, ceilings
floors.
Elbows
45° elbows provide better airflow than 90° elbows.
BetterGood
Clamps
■ Use clamps to seal all joints.
■ Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into the interior of the
duct. Do not use duct tape.
3
Clamp
Exhaust
Recommended hood styles are shown here.
Vent material
■ Use a heavy metal vent. Do not use plastic or metal foil vent.
■ 4" (10.2 cm) heavy metal exhaust vent and clamps must be
used.
A. Louvered hood style
B. Box hood style
4" (10.2 cm) heavy metal exhaust vent
Rigid metal vent
■ For best drying performance, rigid metal vents are
recommended.
■ Rigid metal vent is recommended to avoid crushing and
kinking.
[BETTER]592-89075-02865A-02_EN.indd 9 2011-03-23 ¿AAÜ 9:49:15
The angled hood style (shown here) is acceptable.
An exhaust hood should cap the vent to keep rodents and
insects from entering the home.
(10.2 cm:
Q 2>4"
'**'(6.4 cm)
Page 10
I Exhaust hood must be at least 12" (30.5 cm) from the ground
or any object that may be in the path of the exhaust (such as
flowers, rocks or bushes, snow line, etc.).
I Do not use an exhaust hood with a magnetic latch.
Improper venting can cause moisture and lint to collect
indoors, which may result in:
■ Moisture damage to woodwork, furniture, paint,
wallpaper, carpets, etc.
■ Housecleaning problems and health problems.
LOCATION CONSIDERATIONS
The dryer should be located where there Is enough space at
the front for loading the dryer, and enough space behind for the
exhaust system. This dryer Is factory-ready for rear exhaust. To
exhaust out the bottom, left or right (for gas dryer, bottom or
left), contact your local dealer to have the dryer converted. It’s
important to make sure the room has enough fresh air. The dryer
must be located where there Is no air-flow obstruction.
THE DRYER MUST NOT BE INSTALLED OR STORED IN
AND AREA WHERE IT WILL BE EXPOSED TO WATER AND
/OR WATHER. THE DRYER AREA IS TO BE KEPT CLEAR
OF COMBUSTIBLE MATERIALS, GASOLINE, AND OTHER
FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES
COMBUSTIBLE LINT. THE AREA AROUND THE DRYER
SHOULD BE KEPT LINT-FREE.
Optional exhaust installations
This dryer can be converted to exhaust out the right side, left
side, or through the bottom. Contact your local dealer to have
the dryer converted.
A. Standard rear offset exhaust Installation
B. Left or right side exhaust Installation
C. Bottom exhaust Installation (not an option with
pedestal Installations)
Special provisions for mobile home installations
The exhaust vent must be securely fastened to a
noncombustible portion of the mobile home structure and must
not terminate beneath the mobile home. Terminate the exhaust
vent outside.
Choose your exhaust installation type
Recommended exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
C
I
D
E
F
G
H
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood H. Exhaust outlet
£ Clamps
F. Rigid metal or flexible metal vent
G. Vent length necessary to connect elbows
I I
Determine vent path
■ Select the route that will provide the straightest and most
direct path outdoors.
■ Plan the installation to use the fewest number of elbows and
turns.
■ When using elbows or making turns, allow as much room as
possible.
■ Bend vent gradually to avoid kinking.
■ Use the fewest 90° turns possible.
Determine vent length and elbows needed for best drying
performance
■ Use the following Vent system chart to determine type of
vent material and hood combinations acceptable to use.
■ NOTE: Do not use vent runs longer than those specified in
the Vent system chart. Exhaust systems longer than those
specified will:
■ Shorten the life of the dryer.
■ Reduce performance, resulting in longer drying times and
increased energy usage.
The Vent system chart provides venting requirements that will
help to achieve the best drying performance.
10
[BETTER]592-89075-02865A-02_EN.indd 10 2011-03-23 ¿AAÜ 9:49:16
Page 11
Vent system chart
NOTE: Side and bottom exhaust installations have a 90° turn
inside the dryer. To determine maximum exhaust length, add one
90° turn to the chart.
ELECTRIC AND GAS DRYER
Weather Hood Type
Recommended Use only for short-run
installation
%
4” (1 0 .1 6 cm )
No. of 90°
elbows
0
1
2
3
Do not use non-metallic flexible duct.
Rigid Metallic
Flexible*
24 .4 m (80 ft.) 12 .4 m (41 ft.) 22 .6 m (74 ft.) 10 .1 m ( 33 ft.)
20 .7 m (68 ft.) 11 .2 m ( 37 ft.) 18 .9 m (62 ft.) 8.8 m (29 ft.)
17 .4 m (57 ft.) 10.1 m (33 ft.) 15 .5 m ( 51 ft.) 7.6 m (25 ft.)
14 .3 m (47 ft.) 9.0 m (29 ft.) 12 .5 m (41 ft.) 6.5 m (21 ft.)
Install exhaust hood. Use caulking compound to seal exterior
wall opening around exhaust hood.
Connect vent to exhaust hood. Vent must fit inside exhaust
hood. Secure vent to exhaust hood with 4" (10.2 cm) clamp.
Run vent to dryer location. Use the straightest path possible.
See “Determine vent path” in “Plan Vent System.” Avoid 90°
turns. Use clamps to seal all joints. Do not use duct tape,
screws or other fastening devices that extend into the interior
of the vent to secure vent.
2.5” (6 .3 5 cm )
Rigid Metallic
Flexible*
METHOD1
The dryer must be connected to the cold water faucet using the
new inlet hoses. Do not use old hoses.
1. If space permits, attach the brass female end of the “Y”
connector to the cold water faucet.
2. Turn the cold water faucet off.
3. Attach the straight end of long hose to “Y’ connector.
4. Using pliers, tighten the coupling with an additional twothirds turn.
{^\ Do not overtighten, as it may damage the coupling.
5. Attach angled end of long hoses to fill the valve at the
bottom of the dryer’s rear frame. Screw on coupling by hand
until it is seated on fill valve connector.
6. Using pliers, tighten the coupling with an additional twothirds turn.
m Do not overtighten, as it may damage the coupling.
7. Check that the water faucets are on.
8. Check for leaks around “Y” connector, faucets and hoses.
1. Using a 4" (10.2 cm) clamp, connect vent to exhaust outlet
in dryer. If connecting to existing vent, make sure the vent is
clean. The dryer vent must fit over the dryer exhaust outlet
and inside the exhaust hood. Check that the vent is secured
to exhaust hood with a 4" (10.2 cm) clamp.
2. Move dryer into its final location. Do not crush or kink vent.
3. (On gas models) Check that there are no kinks in the flexible
gas line.
4. Once the exhaust vent connection is made, remove the
corner posts and cardboard.
11
[BETTER]592-89075-02865 A-02_EN.indd 11 2011-03-23 ¿AAll 9:49:17
Page 12
Method2
The dryer must be connected to the cold water faucet using the
new inlet hoses. Do not use old hoses.
1. If “Y” connector cannot be attached directly to the cold
water faucet, the short hose must be used.
2. Turn the cold water faucet off.
3. Attach short inlet hose to cold water faucet.
Screw on coupling by hand until it Is seated on the faucet.
4. Using pliers, tighten the coupling with an additional twothirds turn.
Do not overtighten, as it may damage the coupling.
5. Attach ‘Y” connector to brass male end of small hose. Screw
on coupling by hand until it Is seated on connector.
6. Using pliers, tighten the coupling with an additional two-
thirds turn.
Do not overtighten, as it may damage the coupling.
7. Attach angled end of long hoses to the fill valve at the
bottom of the dryer rear frame. Screw on coupling by hand
until it is seated on fill valve connector.
S. Using pliers, tighten the coupling with an additional two-
thirds turn.
[m Do not overtighten, as it may damage the coupling.
9. Check that the water faucets are on.
10. Check for leaks around “Y” connector, faucets and hoses.
To set the dryer to the same height as the washer, fully retract
the leveling feet by turning them counterclockwise, then loosen
the legs by turning them clockwise
Adjust the leveling feet only as much as necessary to level the
dryer. Extending the leveling feet more than necessary can
cause the dryer to vibrate.
\
' J
\
- f
J
Retract fully Then loosen
12
[BETTER]592-89075-02865A-02_EN.indd 12 2011-03-23 ¿AAll 9:49:18
Page 13
1. Unplug the power cord.
2. Remove two door hinge screws.
3. Lift the door and remove it.
4. Remove a screw on the Frame Front
8. Reattach the holder lever.
9. Reattach the screws in the remaing holes.
5. Remove the two screws on the opposite side of the door
hinge.
6. Remove two screws from the holder lever.
7. Remove a screw from the door hinge.
10. Reinsert the screw in the other hole.
11. Reinsert the screw (Step 4) on the Frame Front
12. Place the door on the other side and reattach it to the dryer.
13
[BETTER]592-89075-02865A-02_EN.indd 13 2011-03-23 ¿AAÜ 9:49:20
Page 14
1. Check that all parts are now Installed. If there Is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Be sure the water faucets are on.
5. Check for leaks around “Y”-connector, faucet and hoses.
6. Check the dryer’s final location. Be sure the vent Is not
crushed or kinked.
7. Check that the dryer Is level. See “Level Dryer.”
S. For power supply cord Installation, plug Into an outlet.
9. Remove the blue protective film on the door and any tape
remaining on the dryer.
10. Read “Dryer Use.”
11. Wipe the dryer drum Interior thoroughly with a damp cloth to
remove any dust.
12. If you live In a hard water area, use of a water softener Is
recommended to control the buildup of scale through the
water system In the dryer. Over time, the buildup of lime
scale may clog different parts of the water system, which will
reduce product performance. Excessive scale buildup may
lead to the need for certain part replacement or repair.
13. Select a Timed Dry heated cycle, and start the dryer. Do not
select the Air Only Temperature setting.
If the dryer will not start, check the following:
■ Controls are set In a running or “On” position.
■ Start button has been pushed firmly.
■ Dryer Is plugged Into an outlet and/or electrical supply Is
connected.
■ Household fuse Is Intact and tight, or circuit breaker has
not tripped.
■ Dryer door Is closed.
This dryer automatically runs an Installation diagnostic routine at
the start of Its first cycle.
NOTE: You may notice a burning odor when the dryer Is first
heated. This odor Is common when the heating element Is first
used. The odor will go away.
14
[BETTER]592-89075-02865A-02_EN.indd 14 2011-03-23 ¿AAll 9:49:20
Page 15
Models: 8907*
DRYER USE
Séchage à capteur
Normal
______
Heavy Duty—
Grande Rendement
Perm Press—.
Perm Press
Délicates—.
Délicats
Sanitize
----
-
Programme minuté
— Timed Dry
Séchage à Minuterie
-
---
Air Fluff
Flux d'air
Cycles a vapeurs
,— Refresh
.—Touch-Up
Anti-froissement
U/
M
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, No washer can completely remove oil.
away from dryer.
Do not dry anything that has ever had anything (including cooking oils).
flammable on it (even after washing).
Failure to follow these instructions can result in death. on a clothesline or by using an Air Cycle.
explosion, or fire.
Do not dry anything that has ever had any type of oil on it
Items containing foam, rubber, or plastic must be dried
Failure to follow these instructions can result in death or
fire.
Fire Hazard
Power
Mise en Marche
(1)
Start/Pause
WARNING: To reduce the risk of fire, electric shock, or injury
to persons, read the IMPORTANT SAFETY INSTRUCTIONS
before operating this appliance.

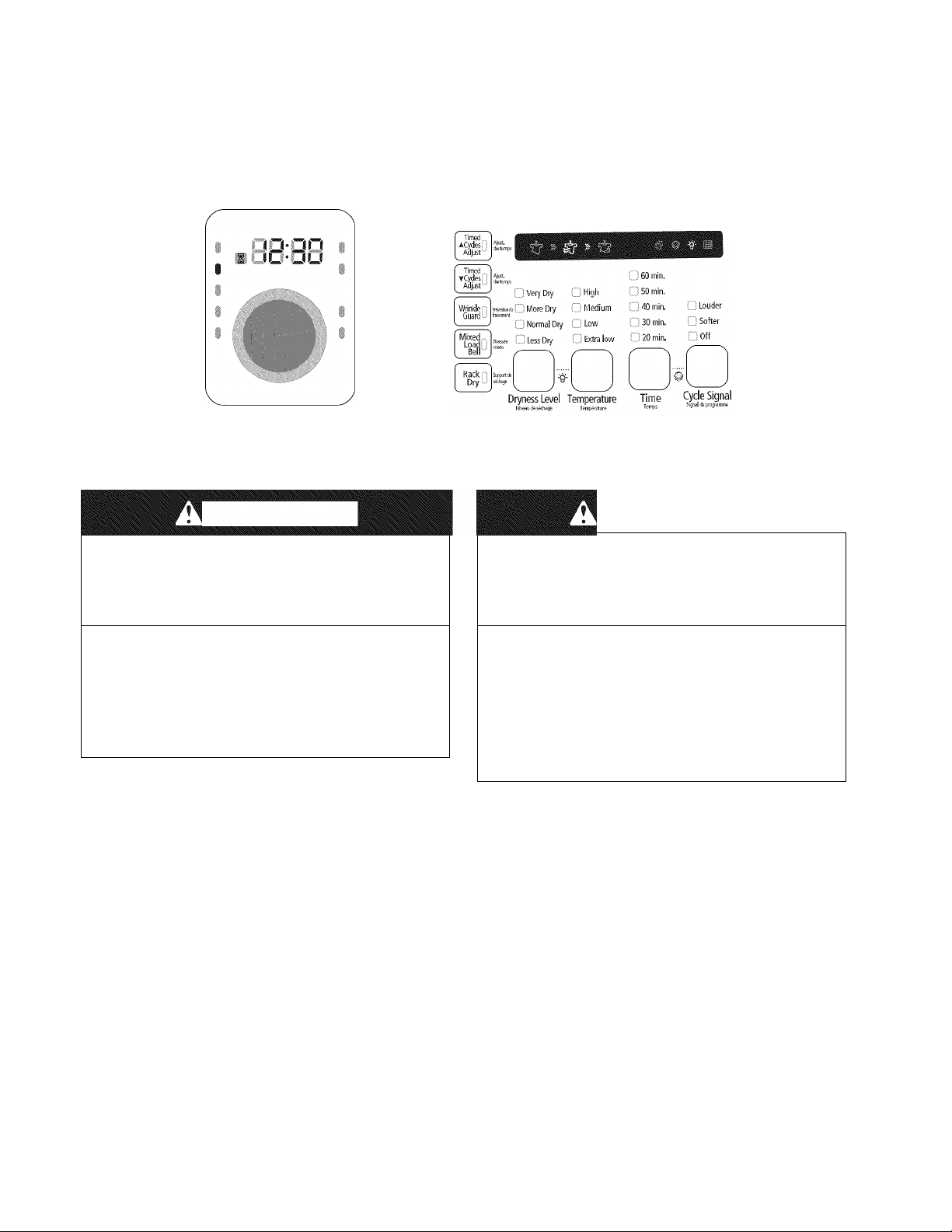

Follow these basic steps to start your dryer. Please refer to
specific sections of this manual for more detailed information.
1. Clean lint screen before each load. See “Cleaning the Lint
Screen.”
2. Place laundry in dryer and shut door.
3. To select a cycle, rotate the Cycle Selector dial to the desired
cycle. The indicator light by the cycle name will illuminate.
The Normal, Heavy Duty, Perm Press and Délicates cycles
are Sensor Dry cycles. Sensor Dry automatically senses
the moisture in the load and shuts the dryer off when the
selected dryness level (very dry to less dry) is reached.
Under Sensor Dry, the estimated time remaining will vary
depending on the following variables:
- Type of fabric being dried.(i.e., towels, iight cottons)
- Mixed loads
- Wetness of the load being dried
- Selected Dryness Level(i.e., More Dry, Normal Dry, Less Dry)
15
[BETTER]592-89075-02865A-02_EN.indd 15 2011-03-23 ¿AAÜ 9:49:21
Page 16
Refresh
Models : 8907*
Séchage à capteur
Normal
-----
Normai
Heavy Duty—
Grande Rendement
Perm Press—.
Perm Press
Délicates—.
DéSicats
Sanitize
-----
Stsriiisation
-
-
Programme minute
— Timed Dry
Séchage à Minuterie
-
---
Air Fluff
Flux d'air
Cycles à vapeurs
,— Refresh
RafiaTdiissement
.—Touch-Up
Anti-froissement
Normal
Use this cycle to dry loads such as cotton, underwear, and linen.
Heavy Duty
Use this cycle to get high heat for heavy fabrics such as jeans,
corduroys, or work clothes.
Perm Press
Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent
press fabrics automatically.
This cycle Is best for smoothing out wrinkles and reducing odors
from loads consisting of one to four dry Items. In this cycle
a small amount of water Is sprayed Into the dryer drum after
several minutes of tumbling with heat.
Touch
Up
This cycle will release wrinkles from Items that have been left
In the dryer too long. In this cycle a small amount of water Is
sprayed Into the dryer drum after several minutes of tumbling
with heat.
\W\ Overloading the dryer may not yield the same results.

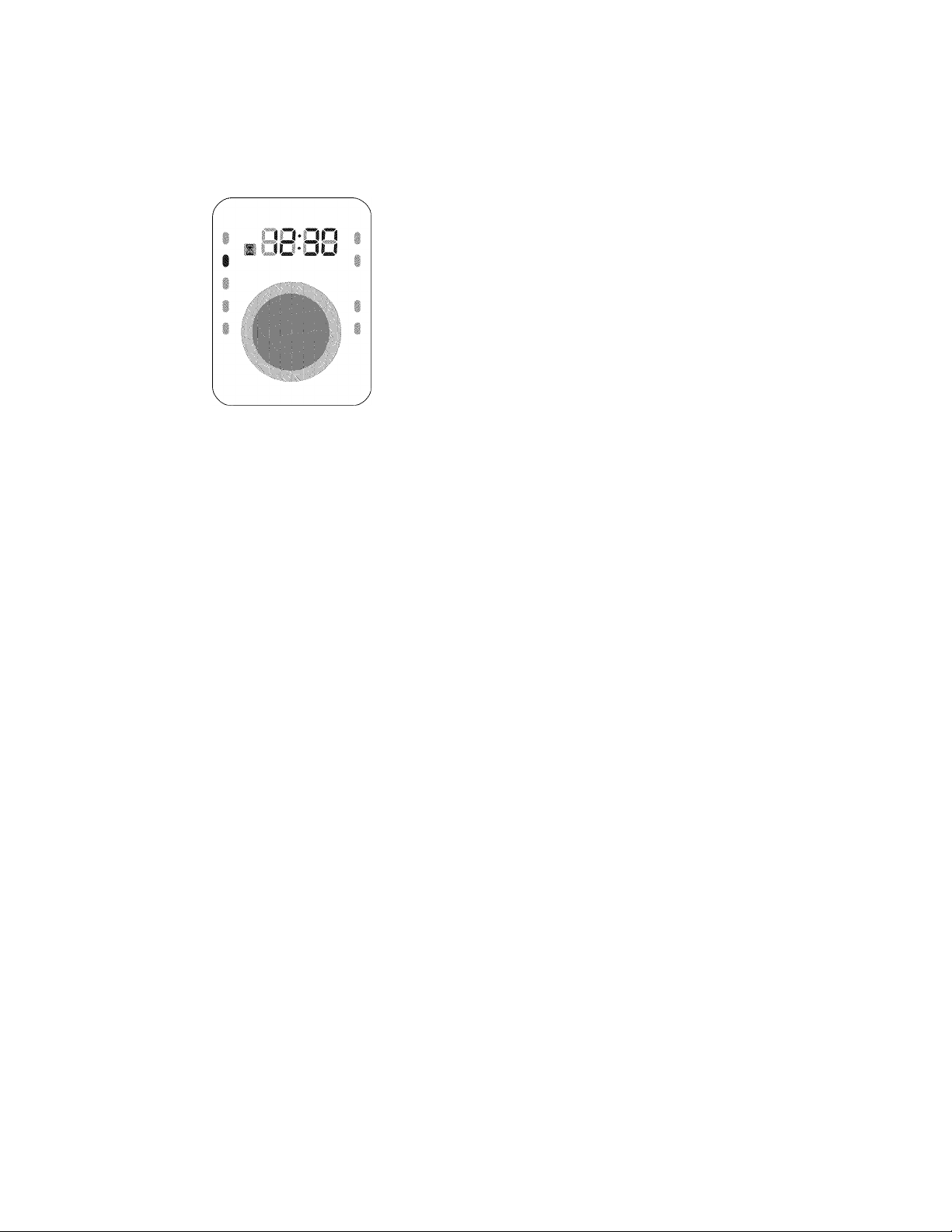

Digital Graphic Display
The display window shows the estimated time remaining in the
cycle after the Start/Pause button Is pressed. The estimated
time remaining may fluctuate as the cycle progresses.
If you select a course, the Indicator lights for the cycles to be
performed are turned on. (E.g. If you select Normal, the Drying
and Cooling Indicator lights are turned on.)
When the operation begins, the Indicator light of the
corresponding cycle blinks and if the cycle Is complete, the
Indicator light Is turned off.
If you press the ‘Pause’ button during an operation, the Indicator
light that was blinking turns on permanently.
When a cycle Is complete,
passed, (I> the door Is opened and then closed, or ® the Power
button or the Start button Is pressed.
‘END’
disappears if ® 5 minutes have
Délicates
The Delicates cycle Is designed to dry heat-sensitive items at a
low drying temperature.
Sanitize
This course allows you to sanitize garments by permeating high
temperature heat deep into the fabric during the drying cycle.
Use this course to keep your bedding and curtains clean through
sanitization.
Timed Dry
Time Dry allows you to select the desired cycle time in minutes.
Turn the Cycle Selector dial to Time Dry, then press the Adjust
Time up arrow to set the drying time.
Press the arrow repeatedly to scroll through the time settings.
Air Fluff
The Air Fluff cycle tumbles the load in room temperature air.
Dryness Level Selection Button
To select the dry level in the Normal, Heavy Duty, or other
Sensor Dry cycles, press the Dryness Level button. An indicator
light will illuminate next to the desired dryness level.
Press the button repeatedly to scroll through the settings. Larger
or bulkier loads may require the Very Dry or More Dry setting for
complete dryness.
The Less Dry setting Is best suited for lightweight fabrics or for
leaving some moisture in the clothing at the end of the cycle.
Use for items that lay flat or hang to dry.
Dryness Level
Niveau de sédiage
16
[BETTER]592-89075-02865A-02_EN.indd 16 2011-03-23 ¿AAü 9:49:22
Page 17
Temp Selection Button
To select the correct temperature for the load, press the Temp
button. An Indicator light will Illuminate next to the desired
temperature. Press the button repeatedly to scroll through the
settings.
Temperature
Tempèratuie
■ High - For sturdy cottons or those labeled Tumble Dry.
■ Medium - For permanent press, synthetics, lightweight
cottons, or Items labeled Tumble Dry Medium.
■ Low - For heat sensitive Items labeled Tumble Dry Low or
Tumble Dry Warm.
■ Extra Low - Provides the lowest heated dry temperature
possible.
Time Selection Button
When using Manual Dry cycles, time can be adjusted by
pressing the time selection button.
During the Sensory Dry cycle, the time light Indicator Is off
because exact drying times are determined by fluctuating
humidity levels.
Time
Cycle Signal Selection Button
When the cycle Is complete, a chime will sound.
When the Wrinkle Guard option Is selected, the chime will sound
intermittently.
Adjust the volume of the chime or turn it off by pressing the
Signal button.
Press the button repeatedly to scroll through the choices.
Wrinkle Guard
Wrinkle Guard provides approximately 90 minutes of intermittent
tumbling in unheated air at the end of the cycle to reduce
wrinkling. Press the Wrinkle Guard button to activate this feature.
The indicator light above the pad will illuminate when Wrinkle
Guard Is selected.
The load Is dry, and can be removed at any time during the
Wrinkle Guard cycle.
Mixed Load Bell
This Is an alarm that notifies the user when the average
dry level Is damp dry (80% dried). This Is useful when the
laundry contains various types of clothing you do not want
to dry completely. An alarm sounds for five (5) seconds while
continuing to perform the cycle.
This function can only be selected in the Sensor Dry course, and
the dry level can only be selected from among Normal Dry, More
Dry, and Very Dry.
Mixec
Loac
Bel
Brassée
mixte
Rack Dry
Rack Dry Is available at Time Dry cycle. Temperature will be set
only to Extra Low. (See next page for detail.)
When the cycle Is complete, a chime will sound.
When the Wrinkle Guard option Is selected, the chime will sound
intermittently.
Supportile
séchage
Start/Pause selection Button
Press to pause and restart programs.
Start/Pause
Dèiiiarrei/ Pause
r
Cyde Signal
Signdte programme
Wl
Adjust Time
Time can be added or subtracted from the automatically set
times in the Manual Dry cycles (Time Dry, Air Fluff cycles).
To add or subtract time from the cycle, press the Adjust Time
arrow pad up or down until the desired time is displayed.
Timed _
Adjust^
Timed
Adjust^
AjusL
du temps
Ajust.
dll temps
ACydesfl
VCydesn
Power button
Press once to turn your Dryer on, press again to turn it off.
If your dryer Is left on for more than 10 minutes without any
buttons being touched, the power automatically turns off.
Power
Mise en Marche
(!)
V
____
y
17
[BETTER]592-89075-02865A-02_EN.indd 17 2011-03-23 ¿AAÜ 9:49:24
Page 18
Child Lock
A function to prevent children from playing with your dryer.
Setting/Releasing
If you want to set or release the Child Lock, press both the Time
and Cycle Signal buttons simultaneously for 3 seconds.
How to Set:
1. It can be set while your dryer is running.
2. Once you set the Child Lock function, no button, except for
the Power button, will respond until you release the Child
Lock function.
3. The Child Lock indicator will be lit.
NOTES:
1. If the dryer is powered on again, the Child Lock function
stays on.
2. To release that function, follow the instructions above.
NOTE: When other buttons, except for the Power button, do not
respond, check the Child Lock indicator.
r
V
Time Cycle Signal
%
J
V
Signa de programme
)
Drum Light

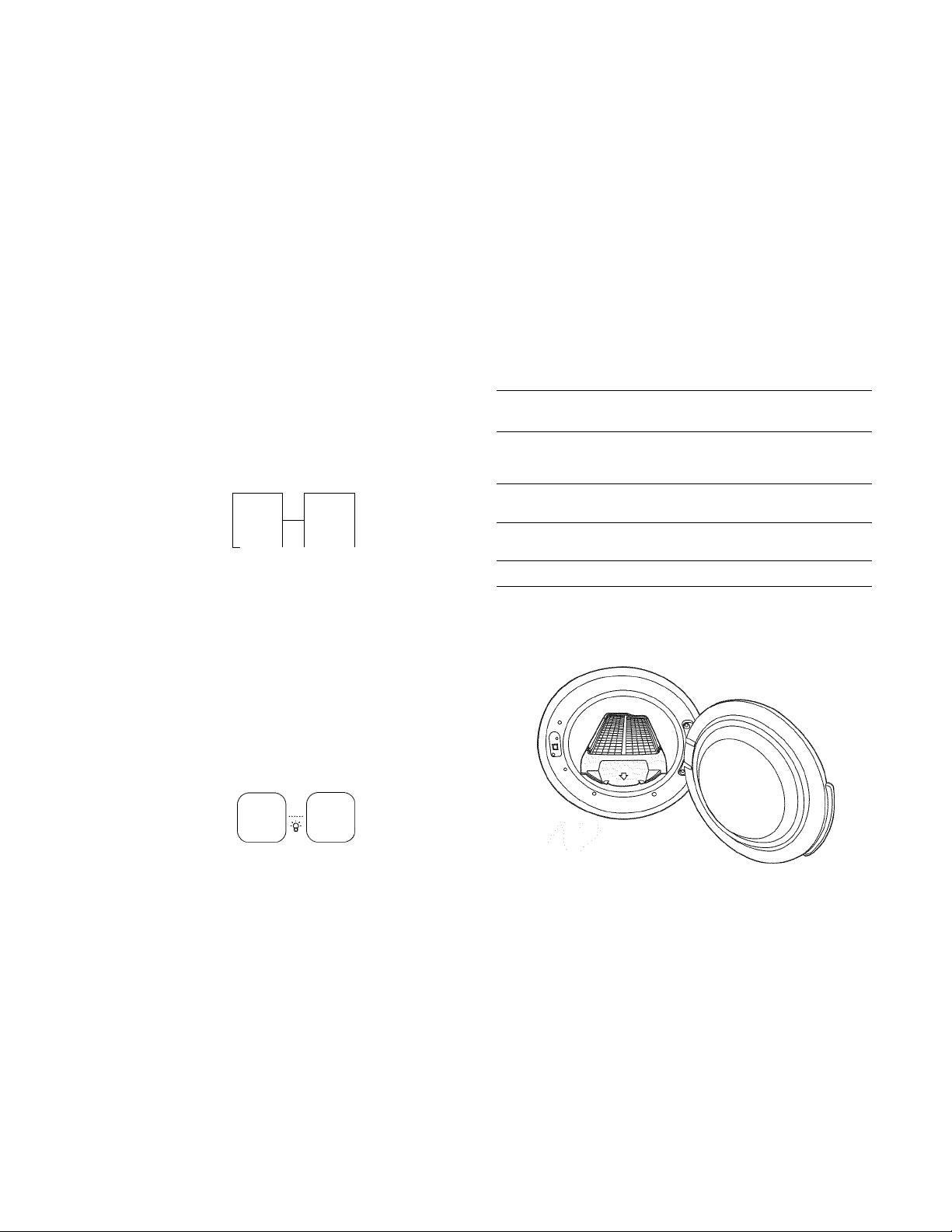

Installing the drying rack
1. Open the Dryer door.
2. Position drying rack in tumbler, placing the front lip of the
drying rack on the top of the lint filter.
3. Place the rear legs in the two recessed areas of the dryer’s
back wall then push down the middle of the drying rack to
fix.
4. Place the items to be dried on the rack, leaving space
between them so air can circulate.
5. Close the Dryer door.
6. Use the Time Dry cycle. Select the time according to the
moisture and weight of the items. Start the Dryer. It may be
necessary to reset the timer if a longer drying time is needed.
SUGGESTED ITEMS SUGGESTED TEMP.
SETTINGS
Washable sweaters
Extra Low
(block to shape and lay flat on
rack)
Stuffed toys
Extra Low
(cotton or polyester fiberfilled)
Stuffed toys
Air Fluff
(foam or rubber-filled)
Foam rubber pillows Air Fluff
Sneakers Air Fluff
Lights the dryer drum while the dryer is running.
Setting/Releasing
If you want to set or release the Drum Light, press both the Dry
Level and Temp, buttons simultaneously.
It can be set while your dryer is not only running but also when it
is stopped.
If you do not turn the Drum Light off within 5 minutes of turning it
on, it is automatically turned off.
Dryness Level Temperature
WARNING: Drying foam rubber, plastic, or rubber on a heat
setting may cause damage to the item and lead to a fire hazard.
NOTE: You must remove dryer rack for normal tumbling. To
remove the dryer rack, lift it straight up and out of the dryer.
18
[BETTER]592-89075-02865A-02_EN.indd 18 2011-03-23 ¿AAÜ 9:49:25
Page 19
DRYER CARE
Clean the lint filter
■ After each load.
■ To shorten drying time.
■ To operate more energy efficiently.
NOTE: Do not operate your Dryer without the lint filter in place.
Load the dryer properly
■ Place only one washload in your Dryer at a time.
■ Mixed loads of heavy and lightweight fabrics will dry
differently, which may result in lightweight fabrics being dry
while heavy fabrics remain damp at the end of a drying cycle.
■ Add one or more similar items to your Dryer when only one
or two articles of clothing need drying. This improves the
tumbling action and drying efficiency.
■ Overloading restricts tumbling action, resulting in uneven
drying as well as excessive wrinkling of some fabrics.
Getting started
1. Load your Dryer loosely - DO NOT overload.
2. Close the door.
3. Select the appropriate cycle and options for the load.
4. Press the Start/Pause button.
5. The Dryer indicator light will illuminate.
6. The estimated cycle time will appear in the display. The time
may fluctuate to better indicate drying time remaining in the
cycle.
NOTES:
■ When the cycle is completed, the Door Lock light will go out
and “End” will appear in the display.
■ Pressing Power cancels the cycle and stops your Dryer.
■ The Drying, Cooling, and Wrinkle Prevent indicator lights will
illuminate during those portions of the cycle.
WARNING: Do not place anything on top of your dryer while it
is running.
Tumbler
Remove any stains such as crayon, ink, or fabric dye (from new
items such as towels or jeans) with an all purpose cleaner.
Tumble old towels or rags to remove any excess stain or
cleaning substance.
Once these steps are followed, stains may still be visible, but
should not transfer to subsequent loads.
Stainless steel tumbler
To clean the stainless steel tumbler, use a damp cloth with a
mild, non-abrasive cleaner suitable for stainless steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
Dryer exterior
Clean with a soft, damp cloth. Do not use abrasive substances.
Protect the surface from sharp objects.
Dryer exhaust system
Should be inspected and cleaned yearly to maintain optimum
performance.
The outside exhaust hood should be cleaned more frequently to
ensure proper operation.
'Ft
Explosion Hazard
Keep flammable materials and vapors, such as gasoline,
away from dryer.
Place dryer at least 18 inches (46 cm) above the floor for
a garage installation.
Failure to do so can result in death, explosion, or fire.
Control panel
Clean with a soft, damp cloth. Do not use abrasive substances.
Do not spray cleaners directly on the panel.
The control panel finish may be damaged by some laundry pre
treatment soil and stain remover products.
Apply such products away from your Dryer and wipe up any
spills or overspray immediately.
19
[BETTER]592-89075-02865A-02_EN.indd 19 2011-03-23 ¿AAÜ 9:49:26
Page 20
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often, depending
on dryer usage. Cleaning should be done by a qualified person.
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending
on dryer usage.
Non-Use or Vacation Care
Operate your dryer only when you are at home. If you will be on
vacation or not using your dryer for an extended period of time,
you should:
1. Unplug dryer.
2. Clean lint screen. See “Clean the lint filter.”
Moving care
For power supply cord-connected dryers:
1. Unplug the power supply cord.
2. Make sure leveling legs are secure in dryer base.
3. Use masking tape to secure dryer door.
For direct-wired dryers:
SPECIAL LAUNDRY TIPS
Please follow the care label or manufacturer’s instructions
for drying special items.
If care label instructions are not available, use the following
information as a guide.
Bedspreads & Comforters
■ Follow the care label instructions or dry on the Normal cycle
and High temperature.
■ Make sure the item Is thoroughly dry before using or storing.
■ May require repositioning to ensure even drying.
Blankets
■ Use Normal cycle and dry only one blanket at a time for best
tumbling action.
■ Make sure the item Is thoroughly dry before using or storing.
Curtains & Draperies
■ Use the Perm Press cycle and Low or Extra Low temperature
to help minimize wrinkling.
■ Dry these in small loads for best results and remove as soon
as possible.
Cloth Diapers
■ Use the Normal cycle and the High temperature settings for
soft, fluffy diapers.
Down-filled Items (jackets, sleeping bags, comforters, etc.)
■ Use the Normal cycle and the Low or Extra Low temperature
setting.
■ Adding a couple of dry towels shortens drying time and
absorbs moisture.
Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)
■ DO NOT dry on a heat setting. Use the Air Fluff cycle (no
heat).
■ WARNING - Drying a rubber item with heat may damage it or
be afire hazard.
Pillows
■ Use the Normal cycle.
■ Add a couple of dry towels to help the tumbling action and to
fluff the item.
■ DO NOT dry kapok or foam pillows in the Dryer.
Use the Air Fluff cycle.
Plastics (shower curtains, outdoor furniture covers, etc.)
■ Use the Air Fluff cycle or the Time Dry cycle and the Low or
Extra Low temperature settings depending on the care label
instructions.
[BETTER]592-89075-02865A-02_EN.indd 20 2011-03-23 ¿AAu 9:49:26
Page 21
Things to avoid:
I Fiberglass items (curtains, draperies, etc.).
I Woolens, unless recommended on the label.
I Vegetable or cooking oil-soaked items.
Sensor Dry
Manual Dry
Steam Cycles
Cycle
Default Drying Cooling
Temp control Sensor dry level Time Time Time Time
Normal High (Medium) Normal dry 00:42 00:39 00:03
Heavy Duty High (No change) Normal dry 00:58 00:55 00:03
Perm Press Medium (No change) Normal dry 00:32 00:29 00:03
Délicates Low (No change) Normal dry 00:27 00:24 00:03
Sanitize High (No change) Very dry 01:00 00:55 00:05
Time Dry High
Air Fluff
No change
Refresh High (No change)
Touch up Medium (No change)
-
-
-
-
00:40 00:37 00:03
00:20
-
00:15 00:14 00:01
00:20 00:17 00:03
Wrinkle
Guard
01:30
00:20
21
[BETTER]592-89075-02865A-02_EN.indd 21 2011-03-23 ¿AAÜ 9:49:26
Page 22
TROUBLESHOOTING
First try the solutions suggested here and possibly avoid the cost of a service call...
Dryer displaying code message Doesn’t run.
“tS”, “tO”, “tE” - Clogged Lint Screen. Vent is restricted.
Clean the screen or vent.
If the problem continues call for service.
“dO”, “dE” - Door is not closed properly to run the dryer.
Close the door and then restart.
If the problem continues call for service.
“dF” - Door is not closing properly.
Call for service.
“bE”, “bE2” - Button stuck for more than 75 secs.
Make sure a button Is NOT being pressed continuously. Try
restarting the cycle.
If the problem continues call for service.
“od” - Invalid Dry time.
Call for service.
“hE” - Invalid heating Temp when running the dryer.
Call for service.
“Et” - EEPROM is not communicating properly.
Try restarting the cycle.
If the problem continues call for service.
“FE” - Invalid power source Frequency.
Try restarting the cycle.
If the problem continues call for service.
“9E” - Communication error between SUB PBA and MAIN PBA.
Call for service.
I Be sure the door Is latched shut.
I Be sure the power cord Is plugged into a live electrical outlet.
I Check the home’s circuit breaker and fuses.
I Press the Start/Pause button again if the door Is opened
during the cycle.
Doesn’t heat.
I Check the home’s circuit breaker and fuses.
I Select a heat setting other than Air Fluff.
I On a gas dryer, check that the gas supply Is on.
I Clean the lint filter and exhaust duct.
I Dryer may have moved into the cool-down phase of the
cycle.
Doesn’t dry.
I Check all of the above, plus...
I Be sure the exhaust hood outside the home can open and
close freely.
I Check exhaust system for lint buildup. Ducting should be
inspected and cleaned annually.
I Use a 4" rigid metal exhaust duct.
I Do not overload. 1 wash load = 1 dryer load.
I Sort heavy items from lightweight items.
I Large, bulky items like blankets or comforters may require
repositioning to ensure even drying.
I Check that the washer Is draining properly to extract
adequate water from the load.
I Load may be too small to tumble properly. Add a few towels.
is noisy.
I Check the load for objects such as coins, loose buttons,
nails, etc. Remove promptly.
I It Is normal to hear the dryer gas valve or heating element
cycle on and off during the drying cycle.
I Be sure the Dryer Is leveled properly as outlined in the
installation instruction.
I It Is normal for the Dryer to hum from the high velocity of air
moving through the dryer drum and exhaust system.
[BETTER]592-89075-02865A-02_EN.indd 22 2011-03-23 ¿AAu 9:49:26
Page 23
Dries unevenly.
I
Seams, pockets, and other similarly heavy areas may not
be completely dry when the rest of the load has reached the
selected dryness level. This is normal. Select the More Dry
setting if desired.
I
If one heavy item Is dried with a lightweight load, such as
one towel with sheets, it Is possible that the heavy item will
not be completely dry when the rest of the load has reached
the selected dryness level. Sort heavy items from lightweight
items for best drying results.
Has an odor.
I
Household odors from painting, varnishing, strong cleaners,
etc. may enter the dryer with the surrounding room air. This
is normal as the Dryer draws the air from the room, heats it,
pulls it through the tumbler, and exhausts it outside.
I
When these odors linger in the air, ventilate the room
completely before using the Dryer.
Shuts off before load is dry
I
Dryer load is too small. Add more items or a few towels and
restart the cycle.
I
Dryer load is too large. Remove some items and restart the
dryer.
Lint on clothes
Make sure the lint filter is cleaned before every load. With
some loads that produce high amounts of lint, it may be
necessary to clean the filter during the cycle.
Some fabrics are lint producers (for example, a fuzzy white
cotton towel)and they should be dried separately from
clothes that are lint trappers(for example, a pair of lack linen
pants)
Divide larger loads into smaller loads for drying
Check pockets thoroughly before washing and drying
clothes.
Garments still wrinkled after Wrinkle-Care
Clothes are not drying satisfactorily, drying times are too long, or load is too hot
I Is the lint screen clogged with lint?
Lint screen should be cleaned before each load.
M
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death or
fire.
Is the exhaust vent or outside exhaust hood clogged with
lint, restricting air movement?
Run the dryer for 5-10 minutes. Hold your hand under the
outside exhaust hood to check air movement. If you do not
feel air movement, clean exhaust system of lint or replace
exhaust vent with heavy metal or flexible metal vent. See
“Venting Requirements.”
Are fabric softener sheets blocking the lint screen grille?
Use only one fabric softener sheet, and use it only once.
Is the exhaust vent the correct length?
Check that the exhaust vent is not too long or has too many
turns. Long venting will increase drying times. See “Plan Vent
System.”
Is the exhaust vent diameter the correct size?
Use 4" (10.2 cm) diameter vent material.
I Small loads of 1 to 4 items work best.
I Load fewer garments.Load similar-type garments.
Odors remain in clothing after Refresh.
I Fabrics containing strong odors should be washed in a
normal cycle.
Water drips from nozzle when Steam-Care starts
I This Is steam condensation. The dripping water will stop after
a short time.
Sprayed water is not visible during Steam-Care
Keep flammable materials and vapors, such as gasoline,
away from dryer.
Place dryer at least 18 inches (46 cm) above the floor for
a garage installation.
Failure to do so can result in death, explosion, or fire.
U/
Explosion Hazard
I Sprayed water is difficult to see when the door is closed
[BETTER]592-89075-02865A-02_EN.indd 23 2011-03-23 ¿AAii 9:49:26
Page 24
I Is the dryer located in a room with temperature below
45T (7®C)?
Proper operation of dryer cycles requires temperatures
above 45° F (7°C).
I Is the dryer located in a closet?
Closet doors must have ventilation openings at the top and
bottom of the door. The front of the dryer requires a minimum
of 1" (2.5 cm) of airspace, and, for most installations, the
rear of the dryer requires 5" (12.7 cm). See “Installation
Instructions.”
I Has an air dry cycle been selected?
Select the right cycle for the types of garments being dried.
See “Modifiers.”
I Is the load too large and heavy to dry quickly?
Separate the load to tumble freely.
I Are clothes coming out of the Refresh cycle with damp or
wet spots?
Under certain environmental or installation conditions you
may experience underdrying. Select the Touch Up cycle (20
min. default time), which can be customized by selecting
High temperature and/or additional cycle time by pressing
the Timed Cycle Adjust More Time button.
Cycle time too short
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
I Is the automatic cycle ending early?
The load may not be contacting the sensor strips. Level the
dryer.
Change the dryness level setting on Automatic Cycles.
Increasing or decreasing the dryness level will change the
amount of drying time in a cycle.
Do not use a dryer rack with an automatic cycle.
Loads are wrinkled
I
Was the load removed from dryer at the end of the cycle?
Select Touch Up Cycle to tumble the load with water and
heat to help smooth out wrinkles from a load left in the dryer.
I
Was the dryer overloaded?
Dry smaller loads that can tumble freely. Smaller loads of
1 -4 garments yield best results with Refresh Cycle. Results
may also vary depending on fabric type. This cycle is best
for reducing wrinkles and odors from loads consisting of
wrinklefree cotton, cotton polyester blends, common knits
and synthetics.
I
Loads are still wrinkled following SteamCare cycle?
Make sure water is connected to the dryer. Check that water
inlet hose is connected to both the faucet and dryer’s water
inlet valve. Check that the water supply is turned on. This
cycle is best for smoothing out wrinkles and reducing odors
from loads consisting of wrinkle-free cotton, cotton polyester
blends, common knits and synthetic garments.
NOTE: Refer to garment care label instructions. Dry clean
only garments are not recommended.
Odors
I
Have you recently been painting, staining or varnishing in
the area where your dryer is located?
If so, ventilate the area. When the odors or fumes are gone
from the area, rewash and dry the clothing.
I
Is the dryer being used for the first time?
The new electric heating element may have an odor. The
odor will be gone after the first cycle.
I
Is water connected to the dryer?
Check that water inlet hose is connected to both the faucet
and dryer’s water inlet valve. Check that the water supply is
turned on.
I
To remove odors left in garments after wearing, select Steam
Refresh for small loads of 1 -4 garments. This cycle is best for
reducing wrinkles and odors from loads consisting of wrinkle
free cotton, cotton polyester blends, common knits and
synthetics.
Lint on load
I
Is the lint screen clogged?
Clean lint screen. Check for air movement.
Stains on load or drum
I
Was dryer fabric softener properly used?
Add dryer fabric softener sheets at the beginning of the
cycle.
Fabric softener sheets added to a partially dried load can
temporarily stain your garments. Do not use fabric softener
sheets with SteamCare cycles.
I
Drum stains are caused by dyes in clothing (usually blue
jeans). This will not transfer to other clothing.
24
[BETTER]592-89075-02865A-02_EN.indd 24 2011-03-23 ¿AAll 9:49:27
Page 25
[BETTER]592-89075-02865A-02_EN.indd 25 2011-03-23 ¿AAü 9:49:27
Page 26
Get it fixed, at your home or ours!
Your Home
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and owner’s manuals
that you need to do-it-yourself.
For Sears professional installation of home appliances and
items like garage door openers and water heaters.
1-800-4-MY-HOME® (1-800-469-4663)
Call anytime, day or night (Canada)
www.sears.ca
To purchase a protection agreement (Canada)
on a product serviced by Sears:
1 -800-361 -6665 (Canada)
<g> 2009 Sears Brands LLC
Au Canada pour service en français:
1-800-LE-FOYER“c
(1-800-533-6937)
www.sears.ca
©Registered Trademark / Trademark / Service Mark of Sears Brands LLC,
under licensee by Sears Canada.
3/10
Printed in Korea
[BETTER]592-89075-02865A-02_EN.indd 26 2011-03-23 ¿AAÜ 9:49:27
