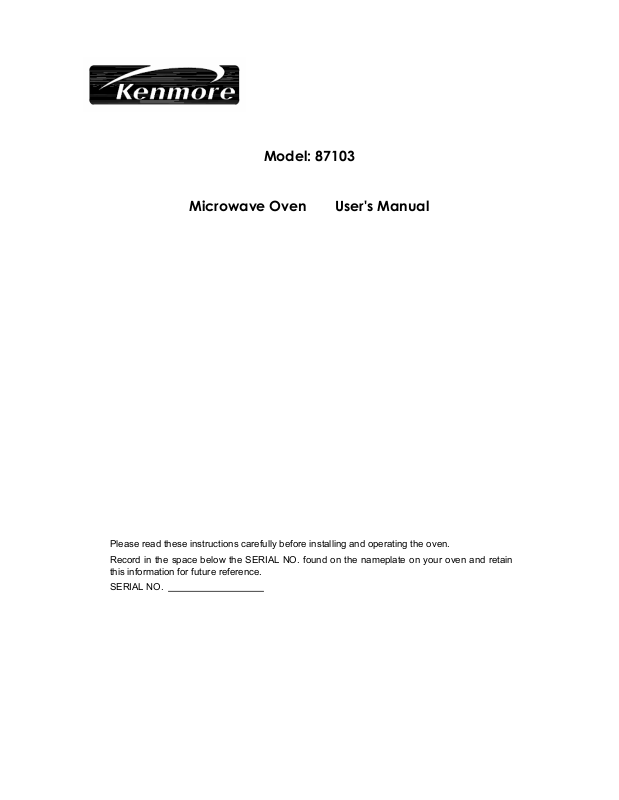

Kenmore 87103 User Manual

Model: 87103

Microwave Oven User's Manual

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

SERIAL NO.

PPRREECCAAUUTTIIOONNSS TTOO AAVVOOIIDD PPOOSSSSIIBBLLEE EEXXPPOOSSUURREE TTOO

EEXXCCEESSSSIIVVEE MMIICCRROOWWAAVVEE EENNEERRGGYY

1. Do not attempt to operate this oven with the door-open since open-door operation can

result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

2. Do not place any object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is particularly important that the oven door

close properly and that there is no damage to the:

a. Door (bent),

b. Hinges and latches (broken or loosened),

c. Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except properly qualified

service personnel.

CONTENT

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ...................1

IMPORTANT SAFETY INSTRUCTIONS

INSTALLATION GUIDE.........................................................................................................3

GROUNDING INSTRUCTIONS ............................................................................................3

UTENSILS GUIDE ................................................................................................................4

COOKING TECHNIQUES.....................................................................................................5

SPECIFICATIONS.................................................................................................................6

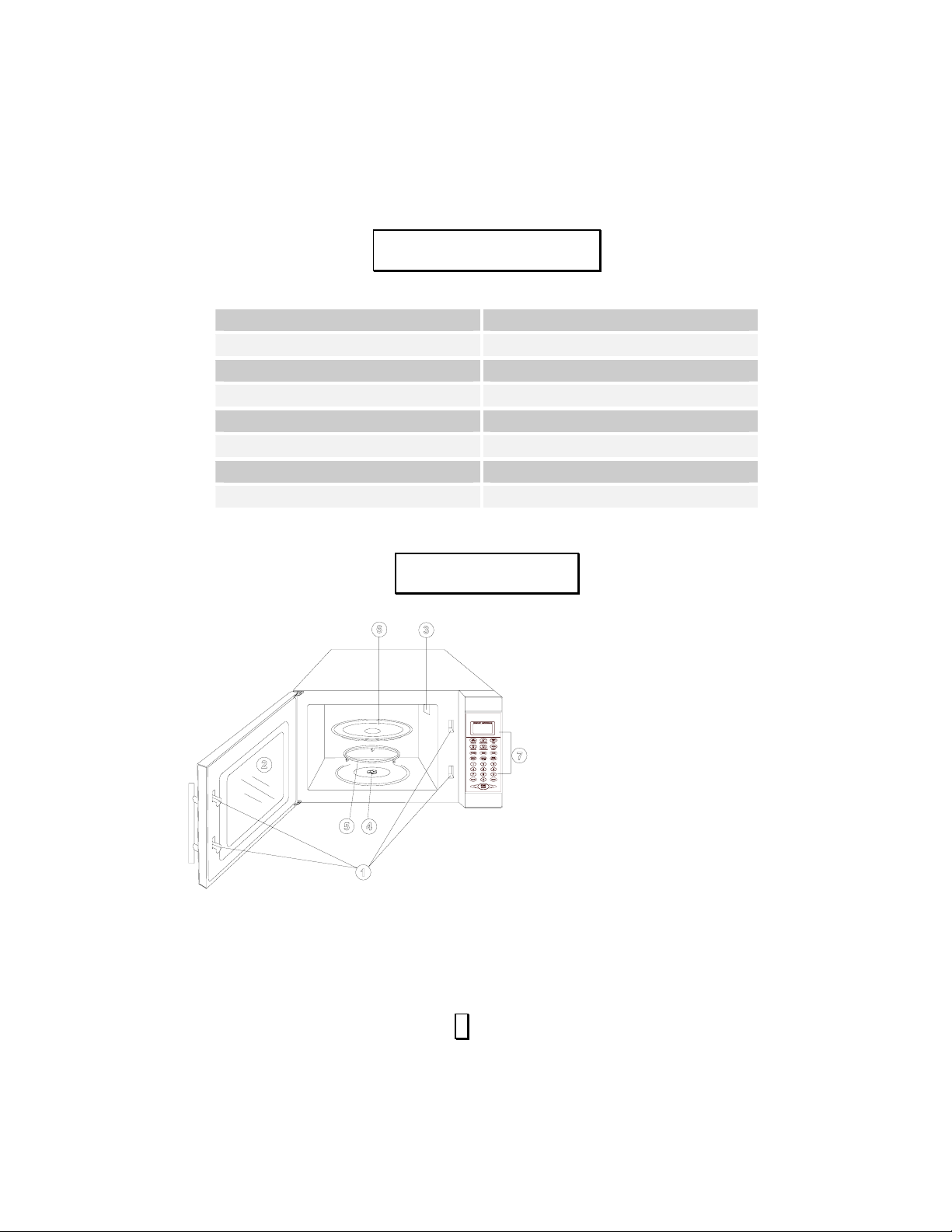

PART NAMES .......................................................................................................................6

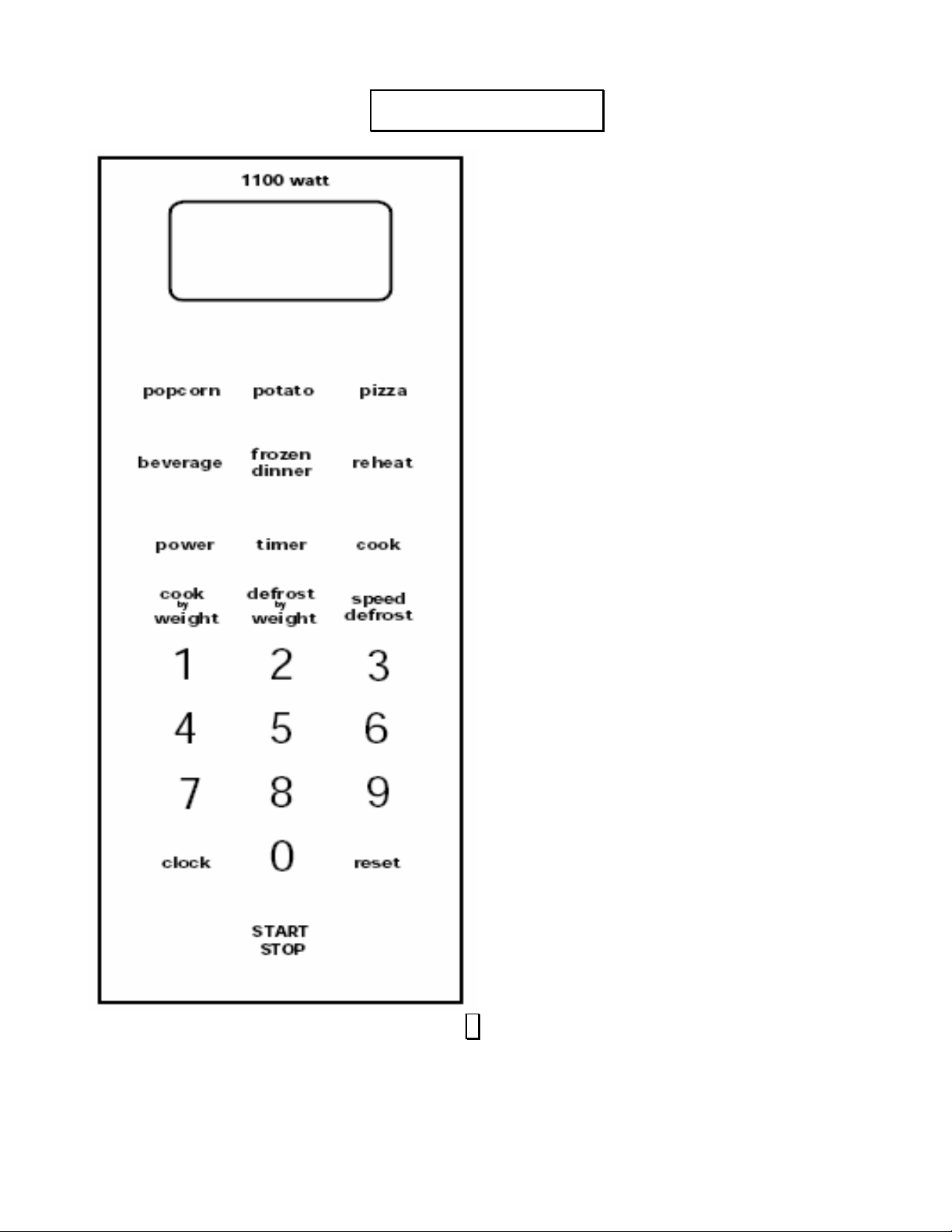

CONTROL PANEL ................................................................................................................7

OPERATION INSTRUCTIONS .............................................................................................8

Setting the clock ............................................................................................................8

Setting the timer ............................................................................................................8

Setting a cooking program ............................................................................................8

Speed defrost................................................................................................................9

Cook by weight..............................................................................................................9

Defrost by weight...........................................................................................................9

Setting child lock .........................................................................................................10

QUICK COOK SETTINGS ..................................................................................................10

POPCORN ..................................................................................................................10

BAKED POTATO.........................................................................................................10

PIZZA ..........................................................................................................................11

BEVERAGE.................................................................................................................11

FROZEN DINNER.......................................................................................................11

REHEAT ...................................................................................................................... 11

CLEANING AND CARE.......................................................................................................12

BEFORE YOU CALL FOR SERVICE..................................................................................12

WARRANTY……………………………………………………………………………………….13

..........................................................................................2

IIMMPPOORRTTAANNTT S

AFFEETTYY IINNSSTTRRUUCCTTIIOONNSS

When using electrical appliances, basic safety precautions should be followed, including the following:

WAR NING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the

appliance.

2. Read and follow the specific

"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 1.

3. This appliance must be grounded. Connect

only to properly grounded outlet. See "grounding instructions " on page 3.

4. Install or locate this appliance only in

accordance with the provided installation instructions.

5. Some products such as whole eggs and

sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven.

6. Use this appliance only for its intended use

as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is

necessary when used by children.

8. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend

appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

b. Remove wire twist-ties from paper or

plastic bags before placing bag in oven.

c. If materials inside the oven should ignite,

keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel.

d. Do not use the cavity for storage purposes.

Do not leave paper products, cooking utensils or food in the cavity when not in use.

9. Liquids, such as water, coffee, or tea are

able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person:

a. Do not overheat the liquid.

b. Stir the liquid both before and halfway

through heating it.

c. Do not use straight-sided containers with

narrow necks.

d. After heating, allow the container to stand

in the microwave oven for a short time before removing the container.

e. Use extreme care when inserting a spoon

or other utensil into the container.

10. Do not heat oil or fat for deep-frying. It is

difficult to control the temperature of oil in a microwave oven.

11. Pierce foods with heavy skins such as

potatoes, whole squash, apples and chestnuts before cooking.

12. The contents of feeding bottles and baby

jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

13. Cooking utensils may become hot because

of heat transferred from the heated food. Potholders may be needed to handle the utensil.

14. Do not cover or block any openings on the

appliance.

15. Do not store or use this appliance outdoors.

Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

16. Do not operate this appliance if it has a

damaged cord or a plug, if it is not working properly or if it has been damaged or dropped.

17. Do not immerse cord or plug in water. Keep

cord away from heated surface. Do not let

SAVE THESE INSTRUCTIONS

cord hang over edge of table or counter.

18. Use only thermometers, which are

specifically designed for use in microwave ovens.

19. Do not operate any heating or cooking

appliance beneath this appliance.

20. Be certain the glass tray and roller rings

are in place when you operate the oven.

IINNSSTTAALLLLAATTIIOONN GGUUIIDDEE

1. Make sure that all the packing materials

are removed from the inside of the door.

2. Check the oven for any damage, such

as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven but contact qualified service personnel.

3. This microwave oven must be placed

on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat,

moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must

have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet on which oven stands.

6. Do not operate the oven without glass

tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is

undamaged and does not run under the oven or over any hot or sharp surface.

8. The socket must be readily accessible

so that it can be easily unplugged in an emergency.

GGRROOUUNNDDIINNGG IINNSSTTRRUUCCTTIIOONNSS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

separate circuit serving only the oven be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.

EXTENSION CORD

ELECTRICAL REQUIREMENTS

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. It is recommended that a grounding plug and a 3-slot receptacle that will accept the plug on the microwave oven. The marked

rating of the extension cord shall be equal to or greater than the electrical rating of the appliance,

1. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade

SAVE THESE INSTRUCTIONS

2. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

RADIO OR TV INTERFERENCE

Should there be any interference caused by the microwave oven to your radio or TV, check that

the microwave oven is on a different circuit, relocat the radio or TV as far away from the oven as feasible or check position and signal of receiving antenna.

Notes:

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

UUTTEENNSSIILLSS GGUUIIDDEE

This section lists which utensils can be used in the microwave, which ones have limited use for short periods, and which ones should not be used in the microwave.

RECOMMENDED

Microwave browning dish — Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.

Microwaveable plastic wrap — Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.

Paper towels and napkins — Use for short-term heating and covering; these absorb excess moisture and prevent spattering. Do not use recycled paper towels, which may contain metal and could ignite.

Glass and glass-ceramic bowls and dishes — Use for heating or cooking.

Paper plates and cups — Use for short-term heating at low temperatures. Do not use recycled paper, which may contain metal and could ignite.

Wax paper — Use as a cover to prevent spattering.

Thermometers — Use only those labeled

"Microwave Safe" and follow all directions. Check the food in several places. Conventional thermometers may be used on microwave food once the food has been removed from the oven.

LIMITED USE

Aluminum foil — Use narrow strips of foil to prevent overcooking of exposed areas. Using too much foil can damage your oven, so be careful. You should keep distance of 1 inch (2.54cm) between aluminum foil and cavity.

Ceramic, porcelain, and stoneware— Use these if they are labeled "Microwave Safe". If they are not labeled, test them to make sure they can be used safely.

Plastic — Use only if labeled "Microwave Safe". Other plastics can melt.

Not Recommended

Glass jars and bottles — Regular glass is too thin to be used in a microwave. It can shatter and cause damage and injury.

Paper bags — These are a fire hazard, except for popcorn bags that are designed for
