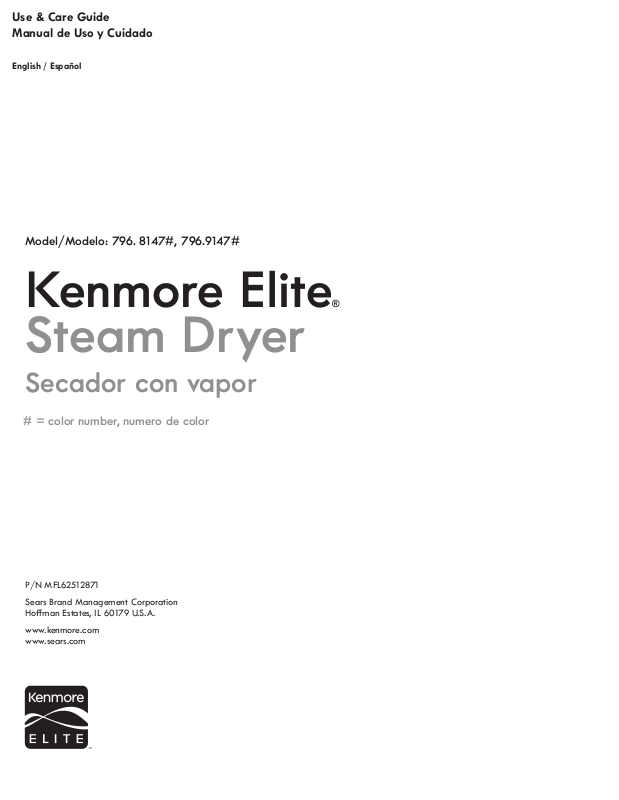

Use & Care Guide
Manual de Uso y Cuidado
English / Español
Model/Modelo: 796. 8147#, 796.9147#
Kenmore Elite® Steam Dryer
Secador con vapor
# = color number, numero de color
P/N MFL62512871
Sears Brand Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
TABLE OF CONTENTS |
|
|
IMPORTANT SAFETY INSTRUCTIONS..................... |
|
3-6 |
GROUNDING REQUIREMENTS.................................... |
|
4 |
FEATURES AND BENEFITS |
|
|
Key Parts and Components ........................................ |
|
7 |
INSTALLATION INSTRUCTIONS |
|
|
Key Dimensions and Specifications ........................... |
|
8 |
Location Requirements ................................................. |
|
8 |
Choose the Proper Location ....................................... |
|
8 |
Clearances .................................................................... |
|
8 |
Installation with Optional Pedestal Base |
|
|
or Stacking Kit .............................................................. |
|
9 |
Optional Accessories ................................................... |
|
9 |
Connecting Gas Dryers ............................................ |
|
10 |
Gas Requirements (Gas Models Only) ............... |
|
10-11 |

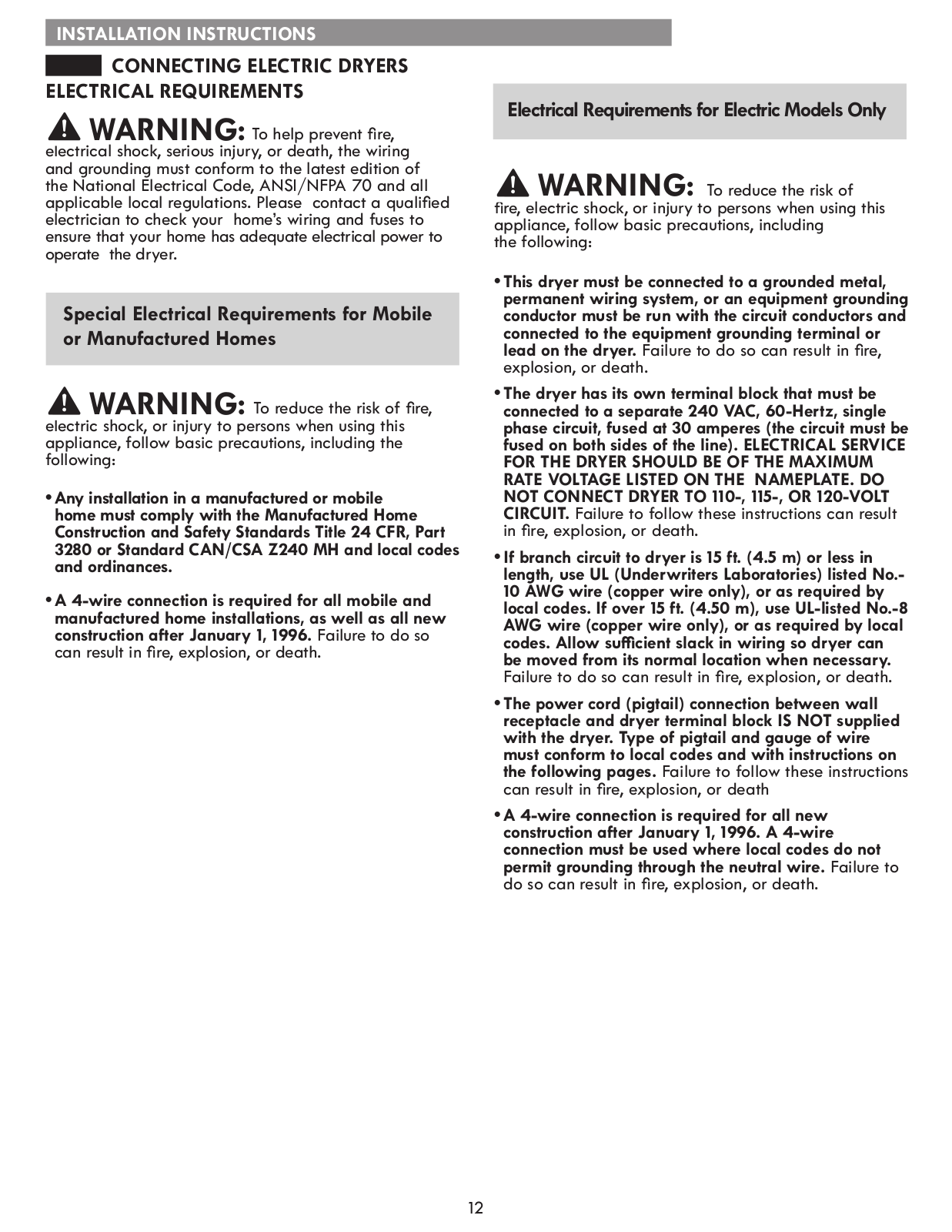

Electrical Requirements ..................................... |
|
10&12 |

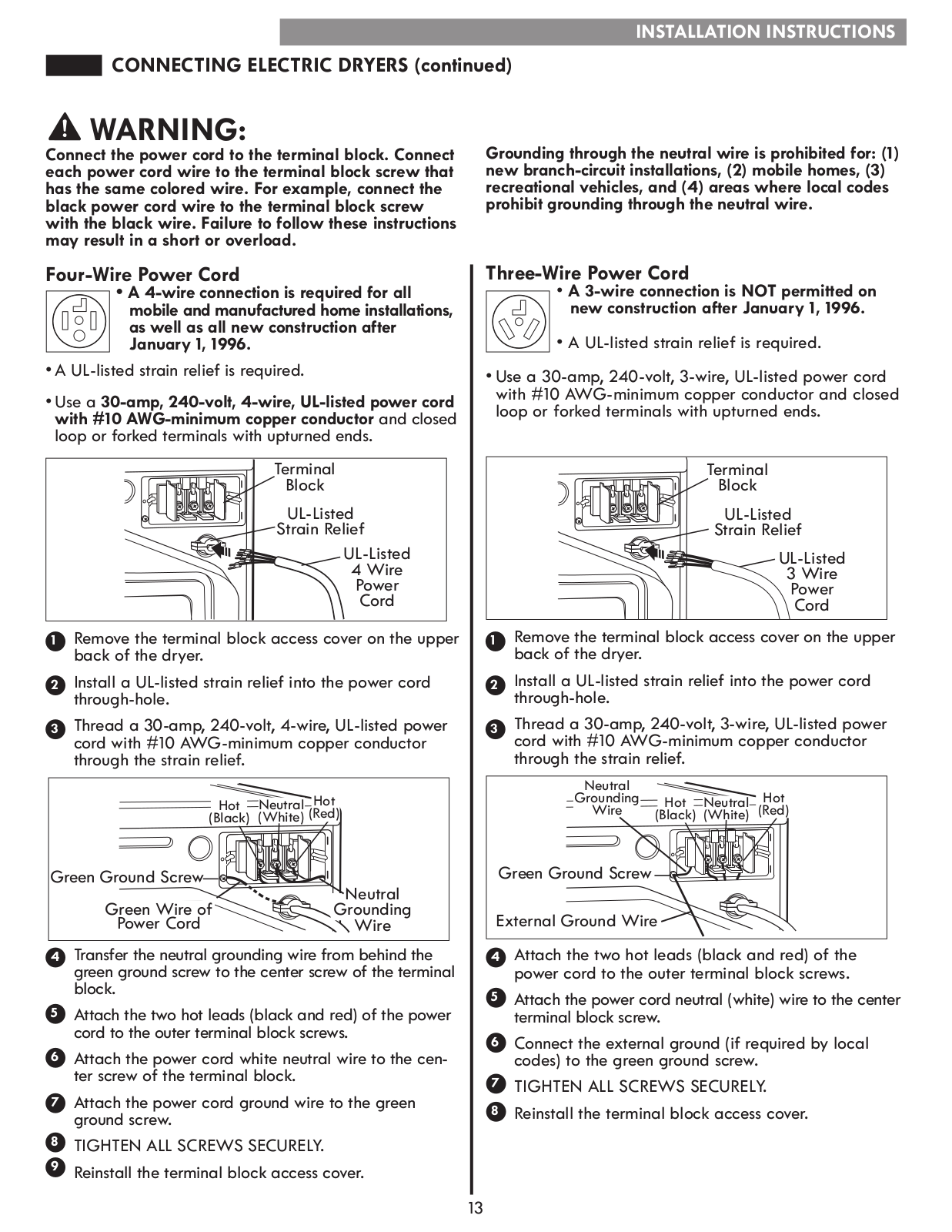

Connecting Electrical Dryers .............................. |
|
12-13 |

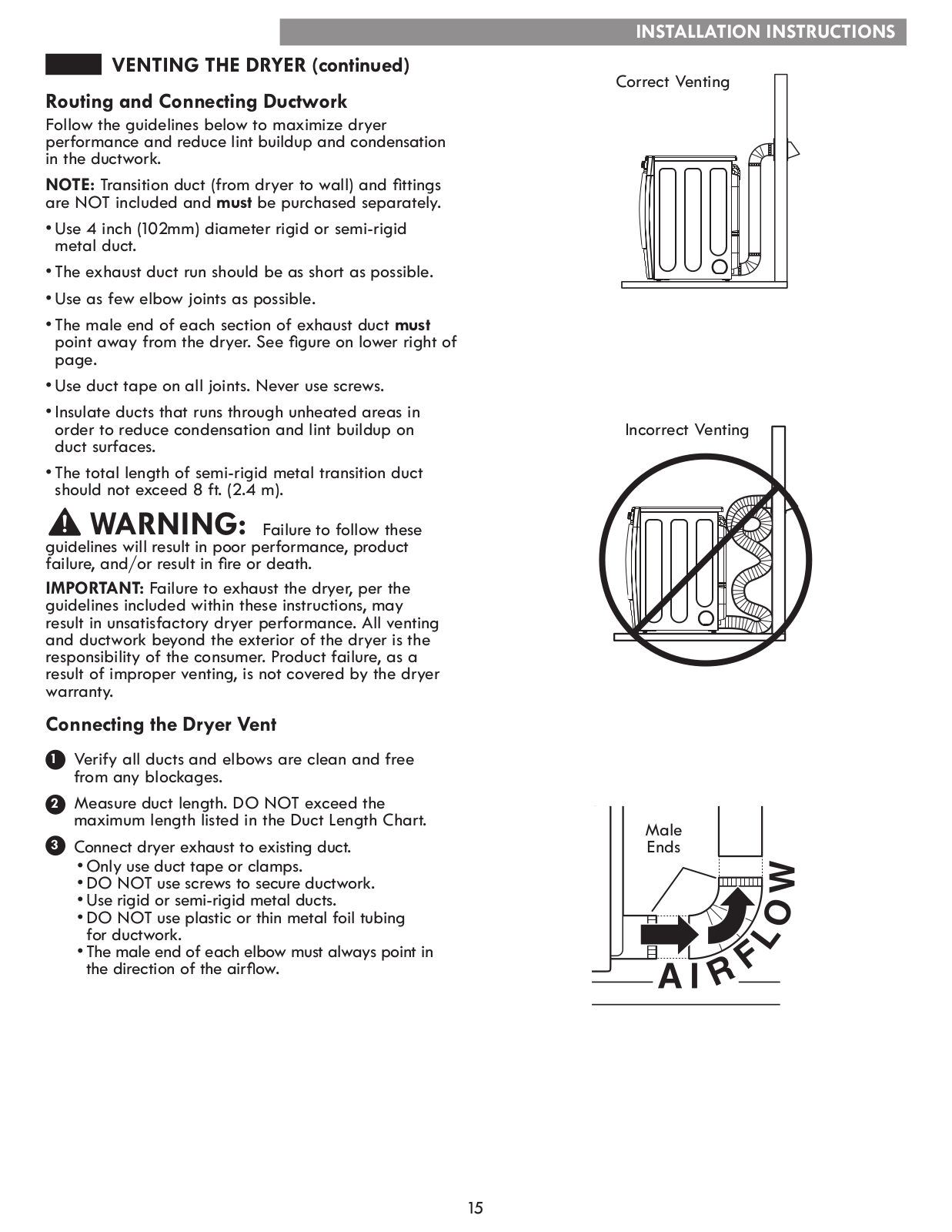

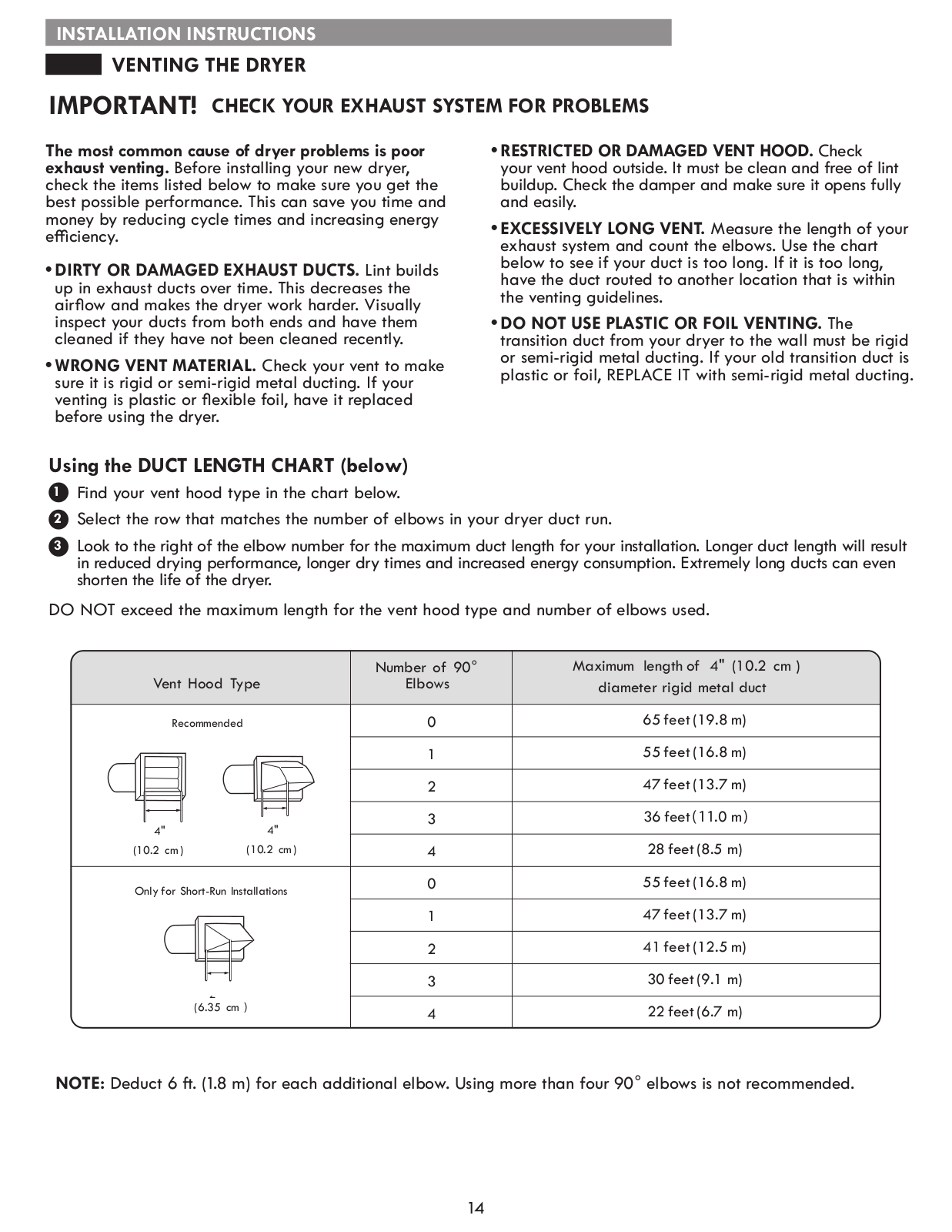

Venting the Dryer ................................................. |
|
14-15 |

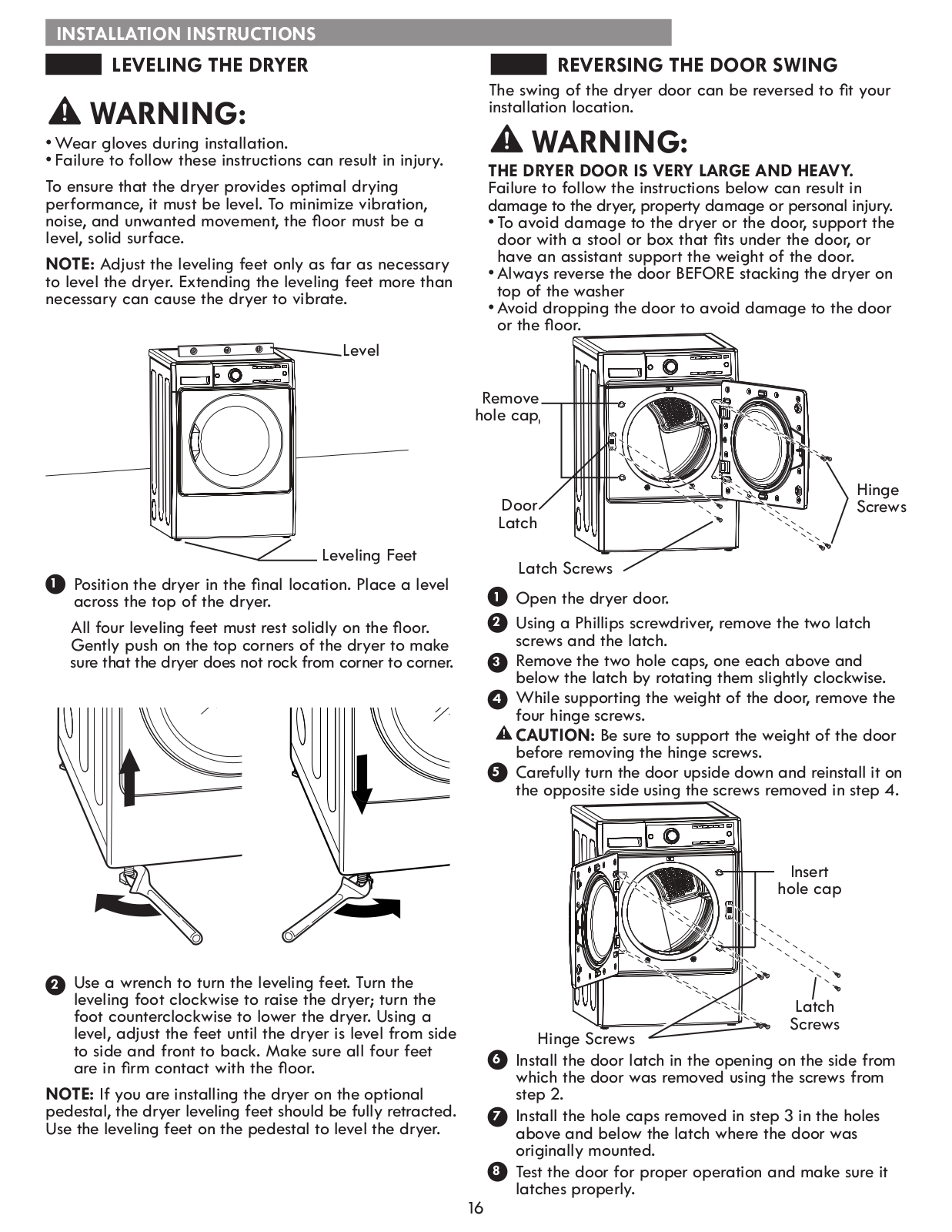

Leveling the Dryer ..................................................... |
|
16 |
Reversing the Door Swing ........................................ |
|
16 |

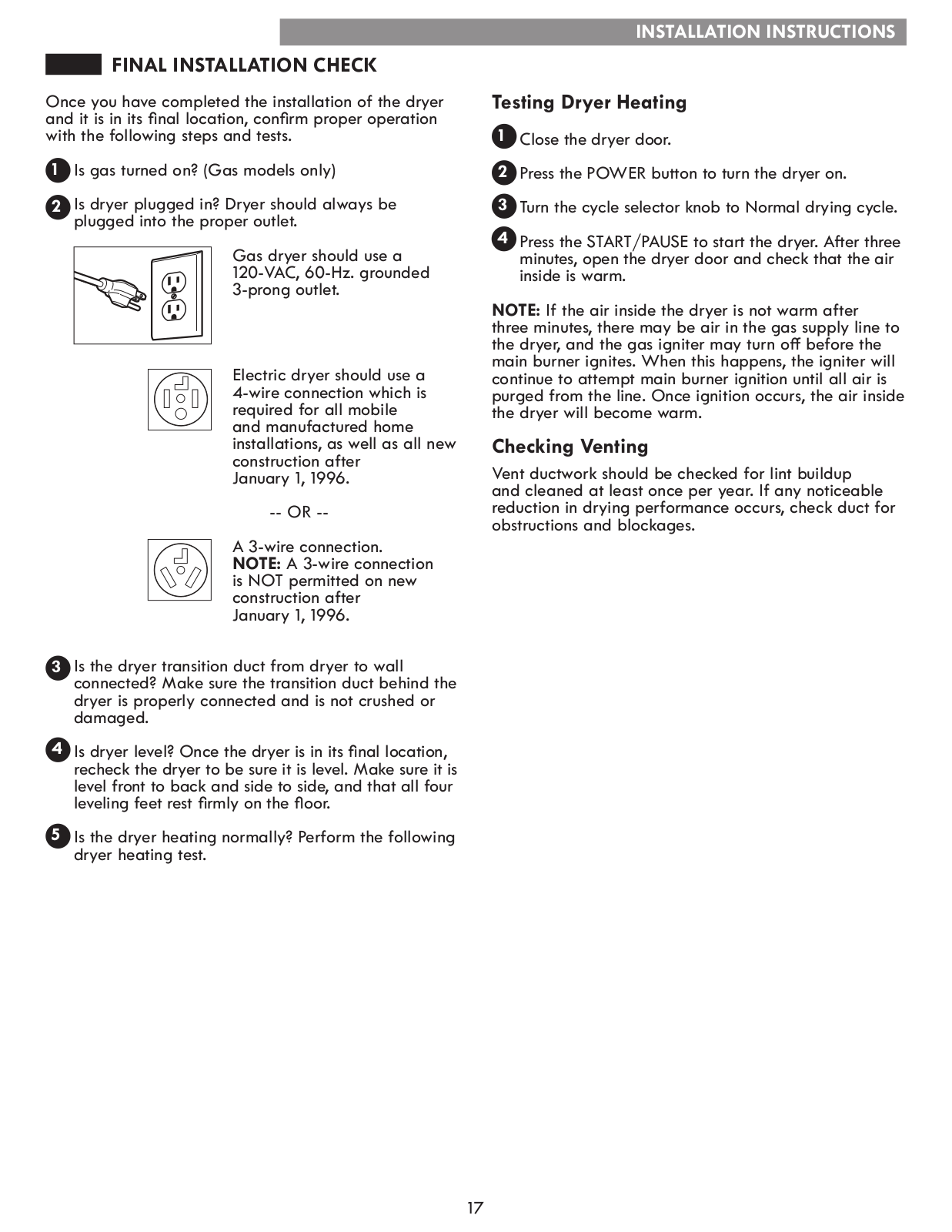

Final Installation Check ............................................ |
|
17 |
HOW TO USE |
|
|

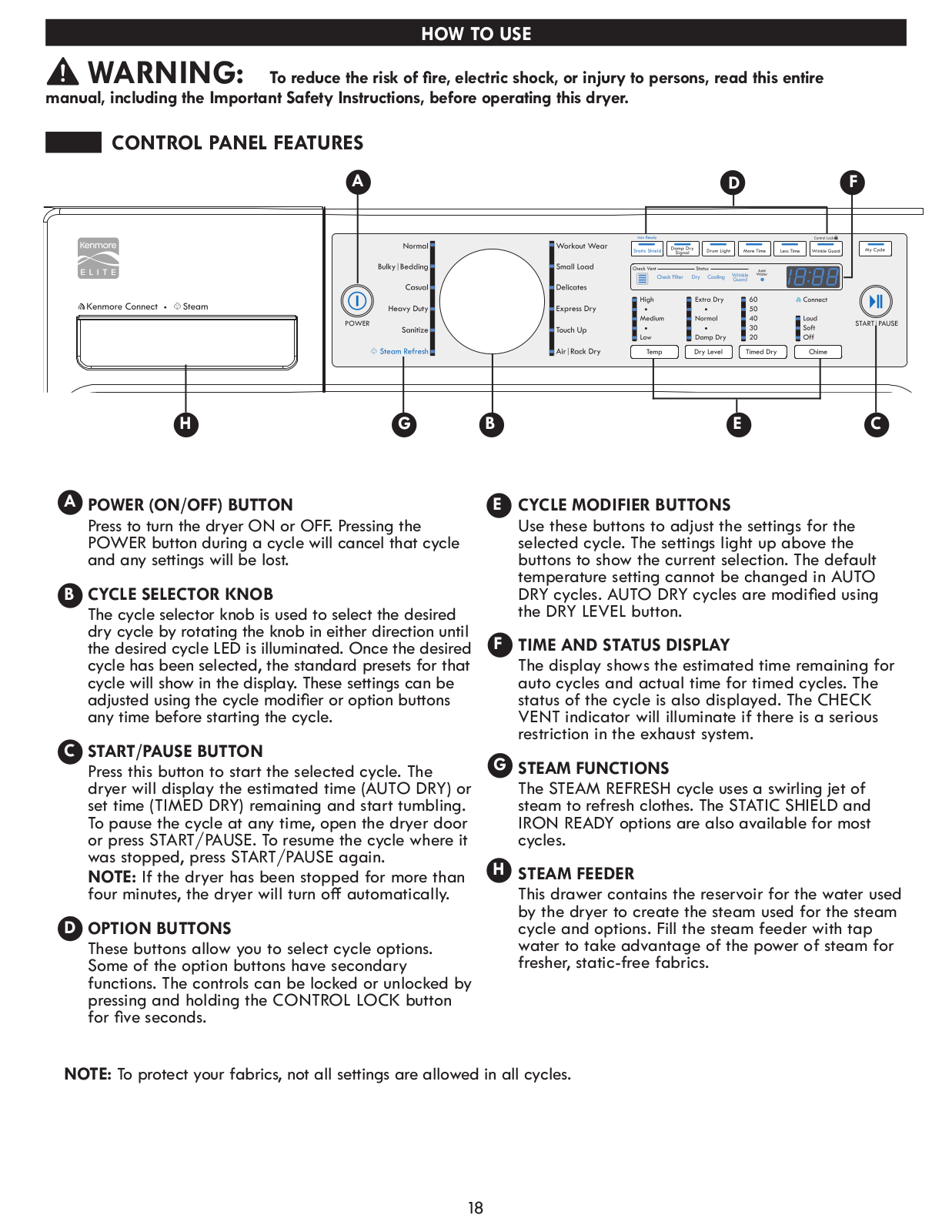

Control Panel Features .............................................. |
|
18 |

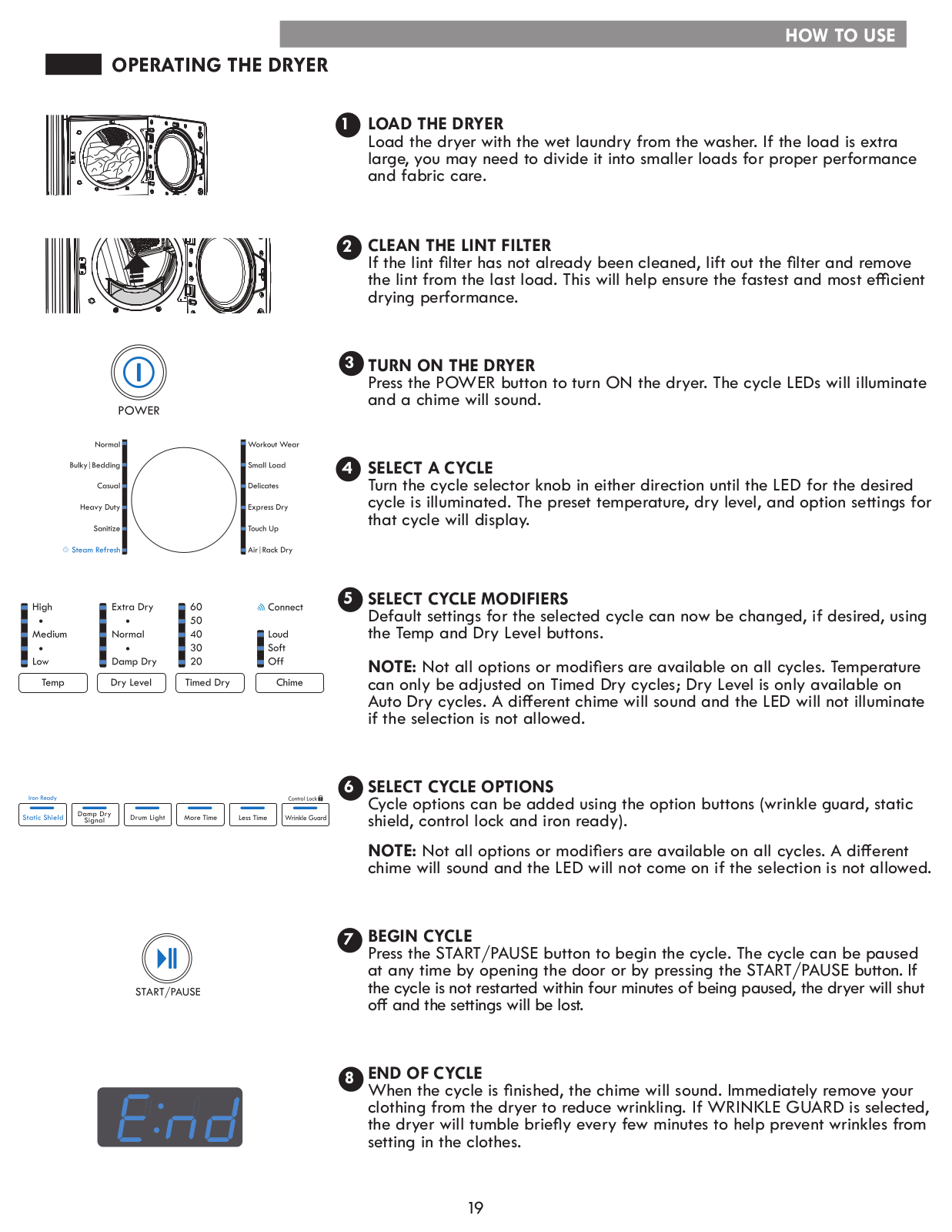

Operating the Dryer ................................................. |
|
19 |

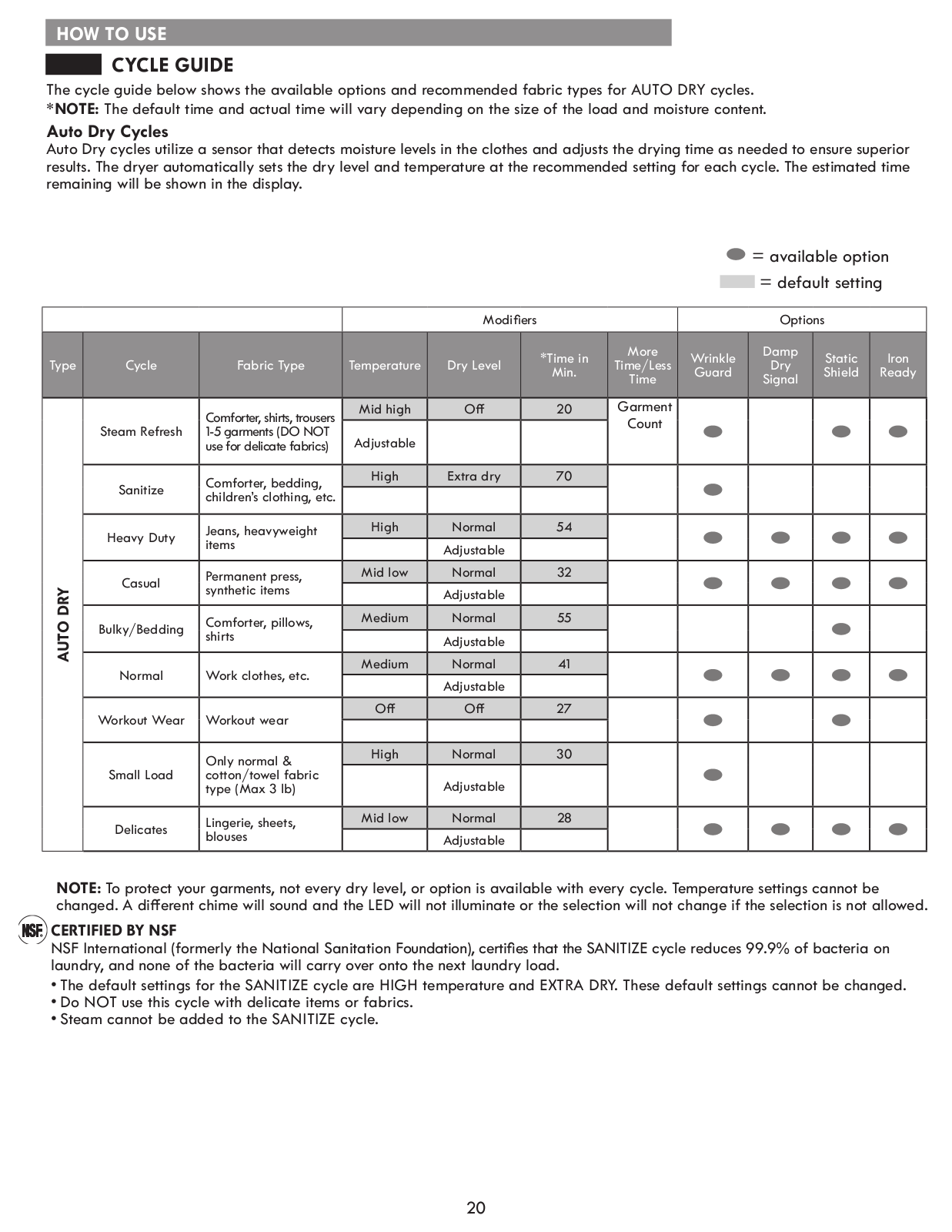

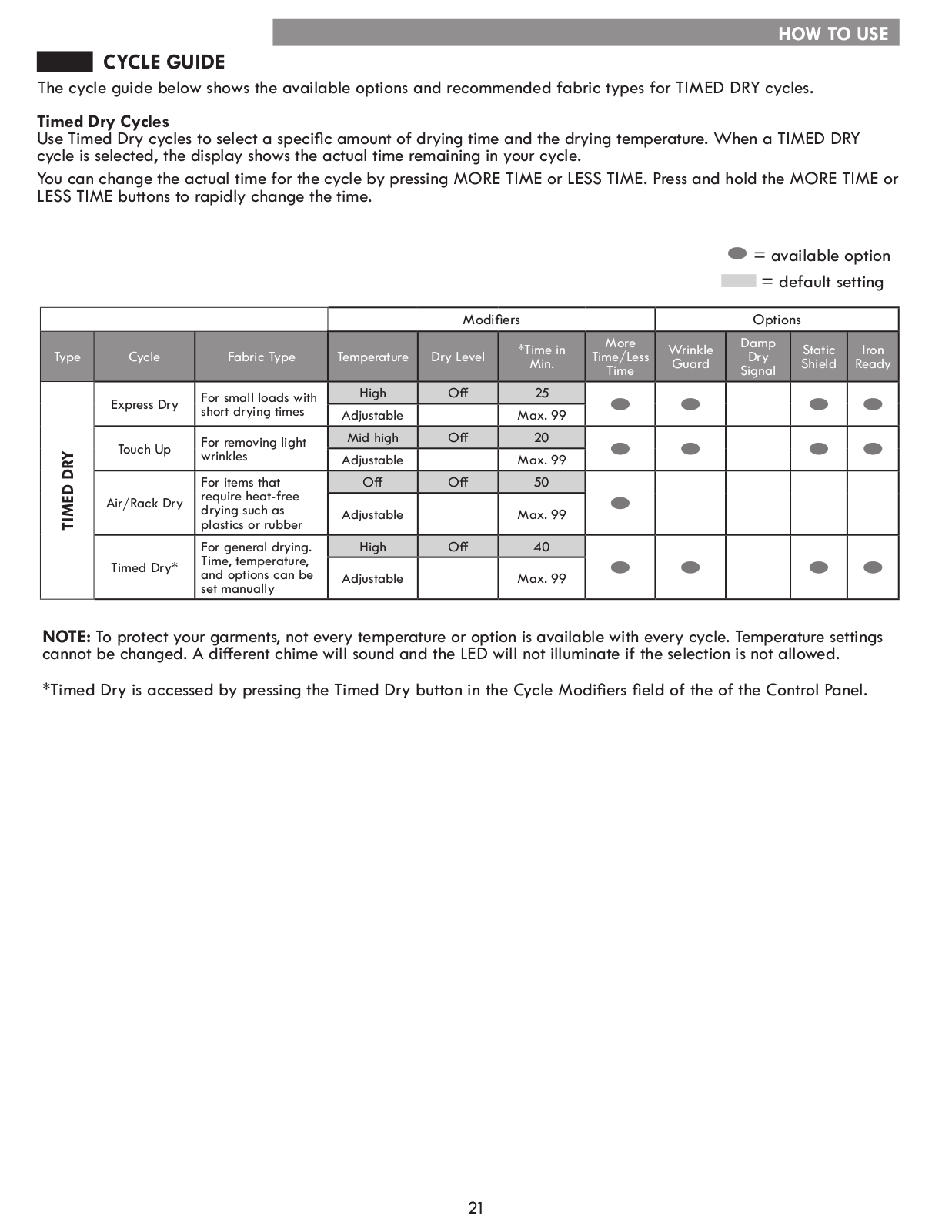

Cycle Guide ......................................................... |
|
20-21 |

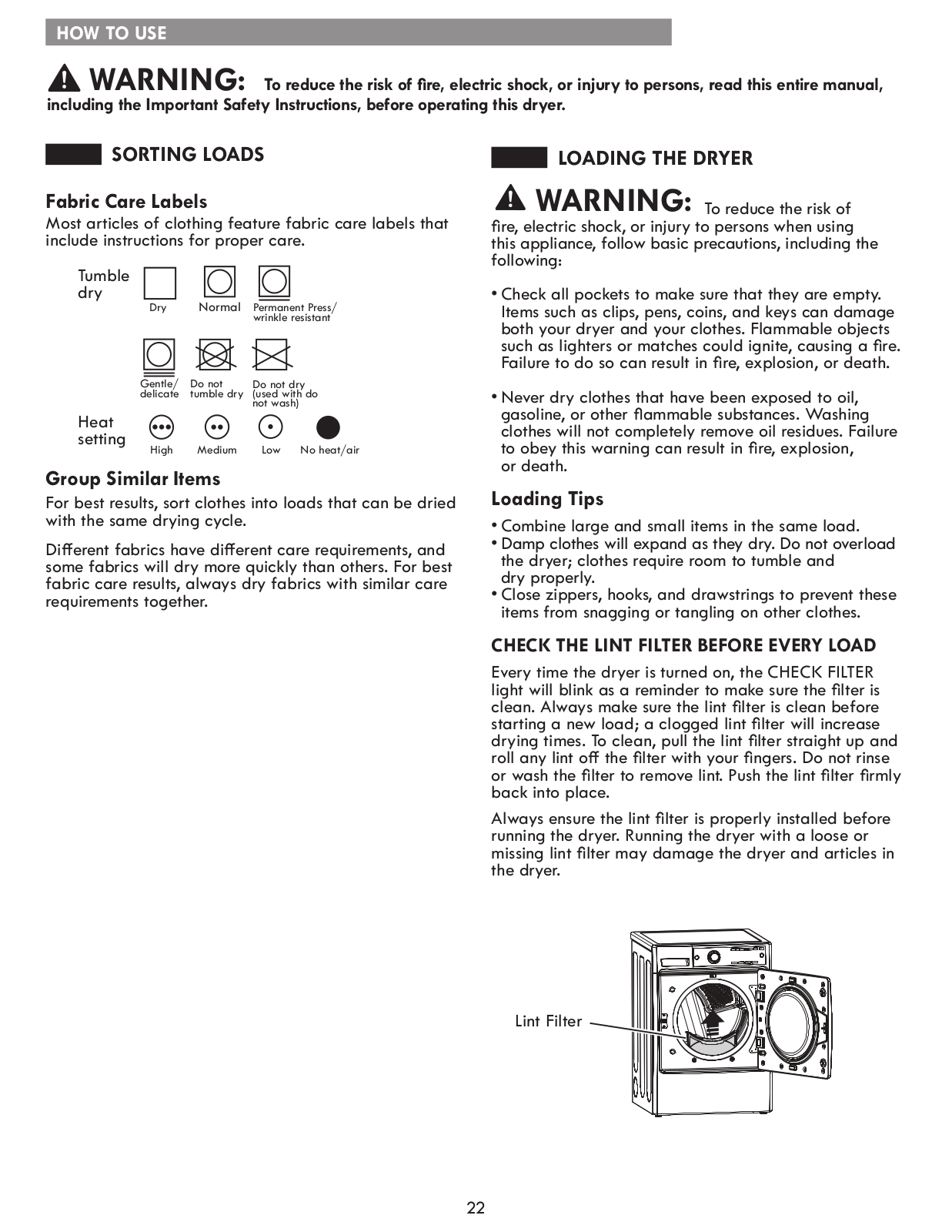

Sorting Loads ............................................................. |
|
22 |
Loading the Dryer ..................................................... |
|
22 |

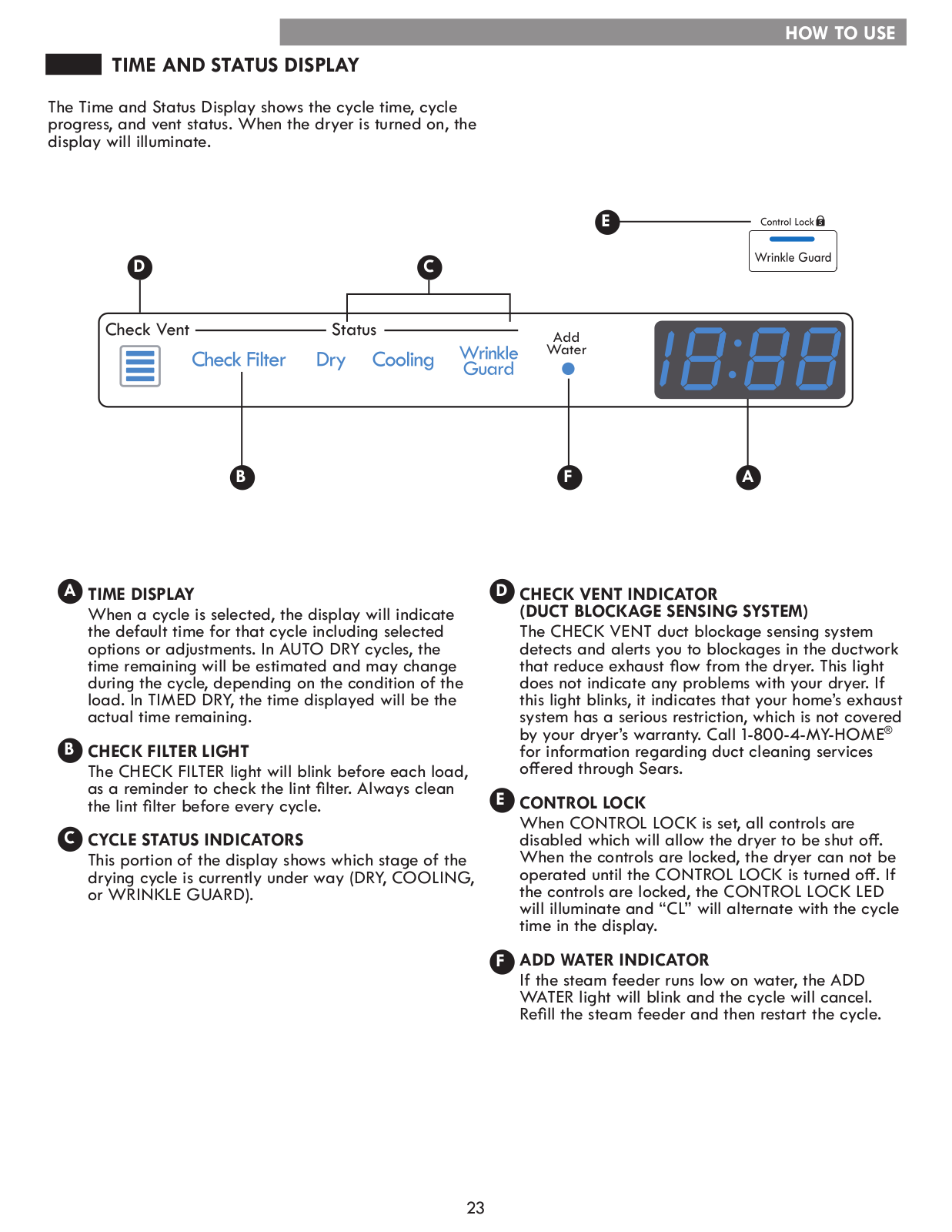

Time and Status Display ........................................... |
|
23 |

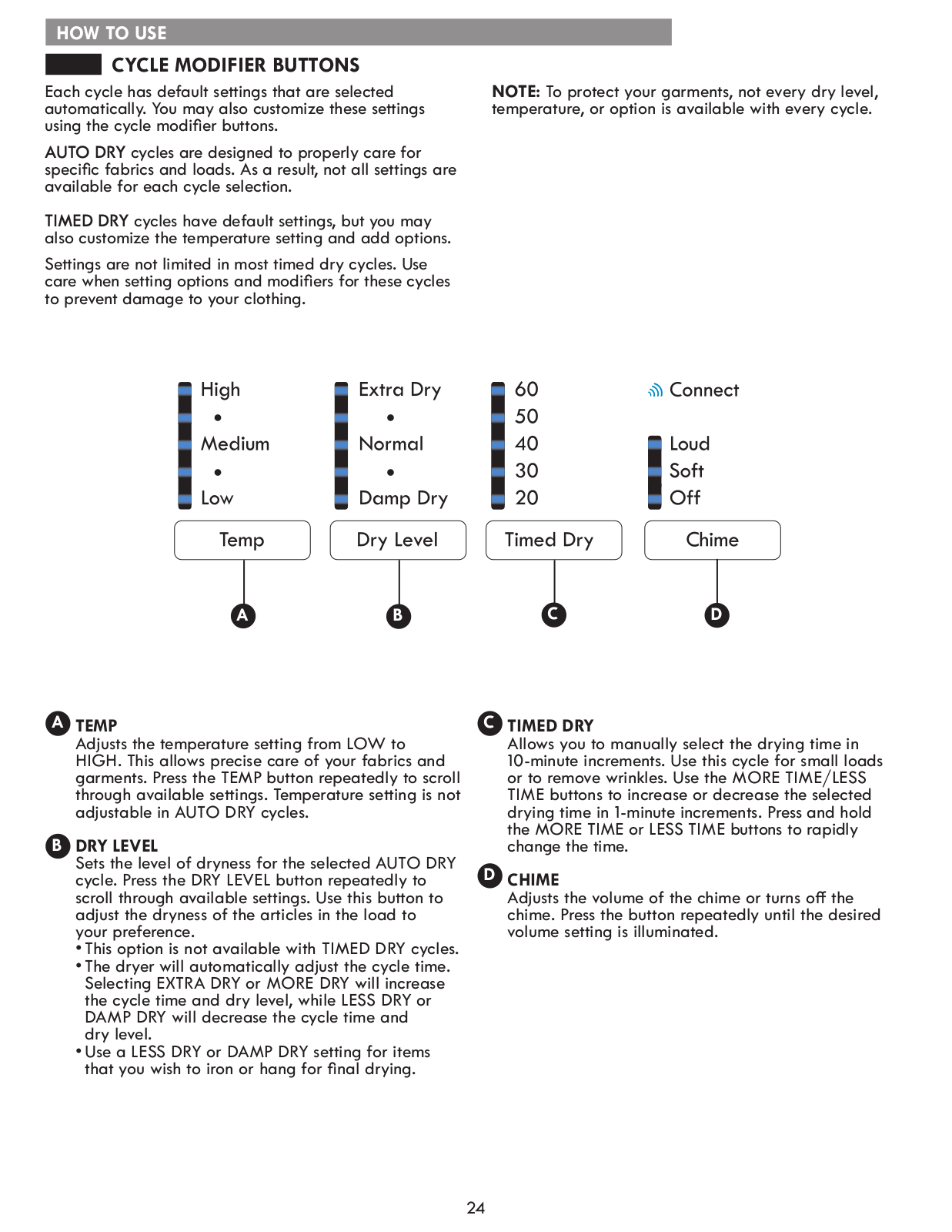

Cycle Modifier Buttons ............................................. |
|
24 |

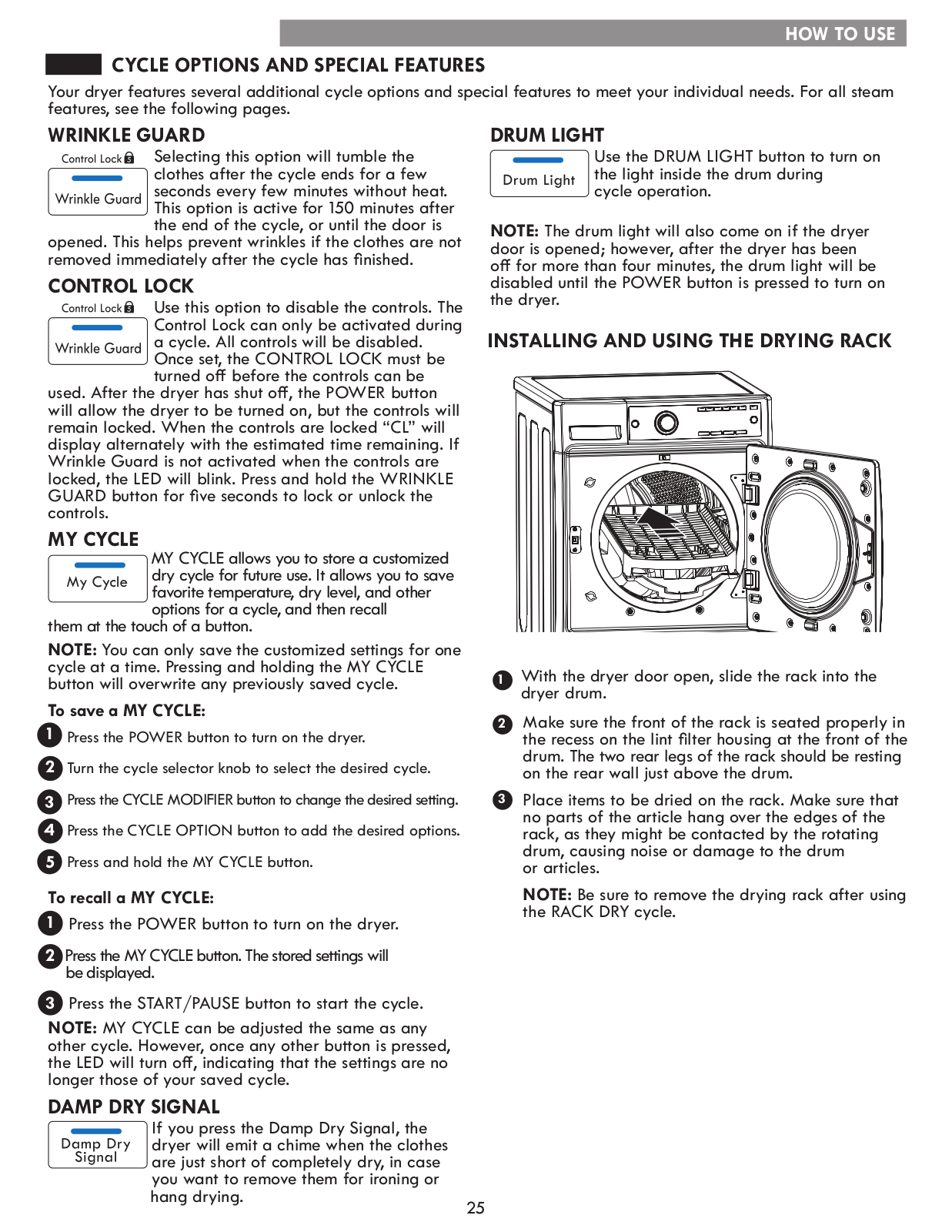

Cycle Options and Special Features ...................... |
|
25 |
Wrinkle Guard .................................................... |
|
25 |
Control Lock ......................................................... |
|
25 |
My Cycle .............................................................. |
|
25 |
Damp Dry Signal.................................................. |
|
25 |
Drum Light ............................................................ |
|
25 |

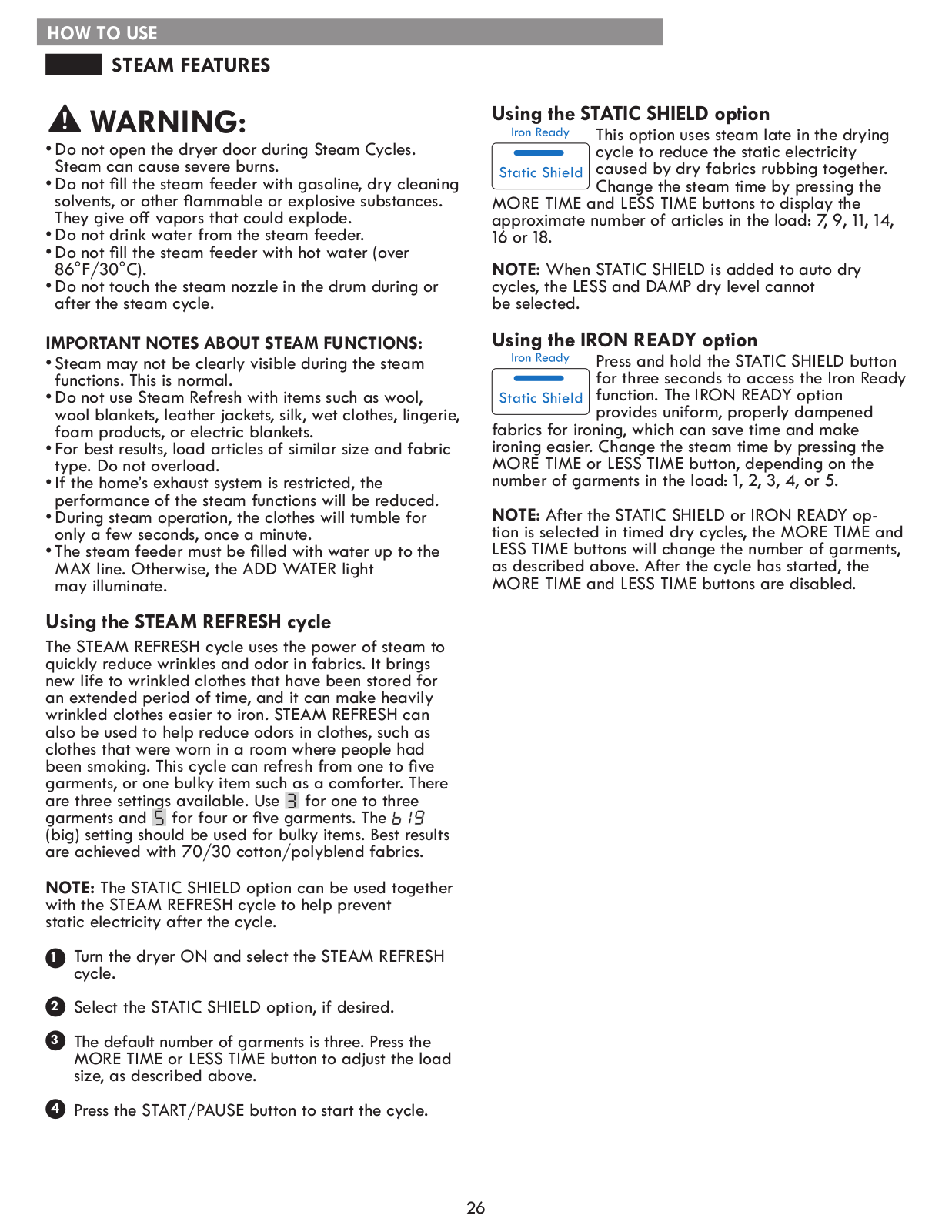

Steam Features ................................................... |
|
26-27 |
Important Notes About Steam Functions |
........ 26 |
|
Using the STEAM REFRESH Cycle .................... |
|
26 |
Using the STATIC SHIELD Option .................... |
|
26 |
Using the IRON READY Option ....................... |
|
26 |

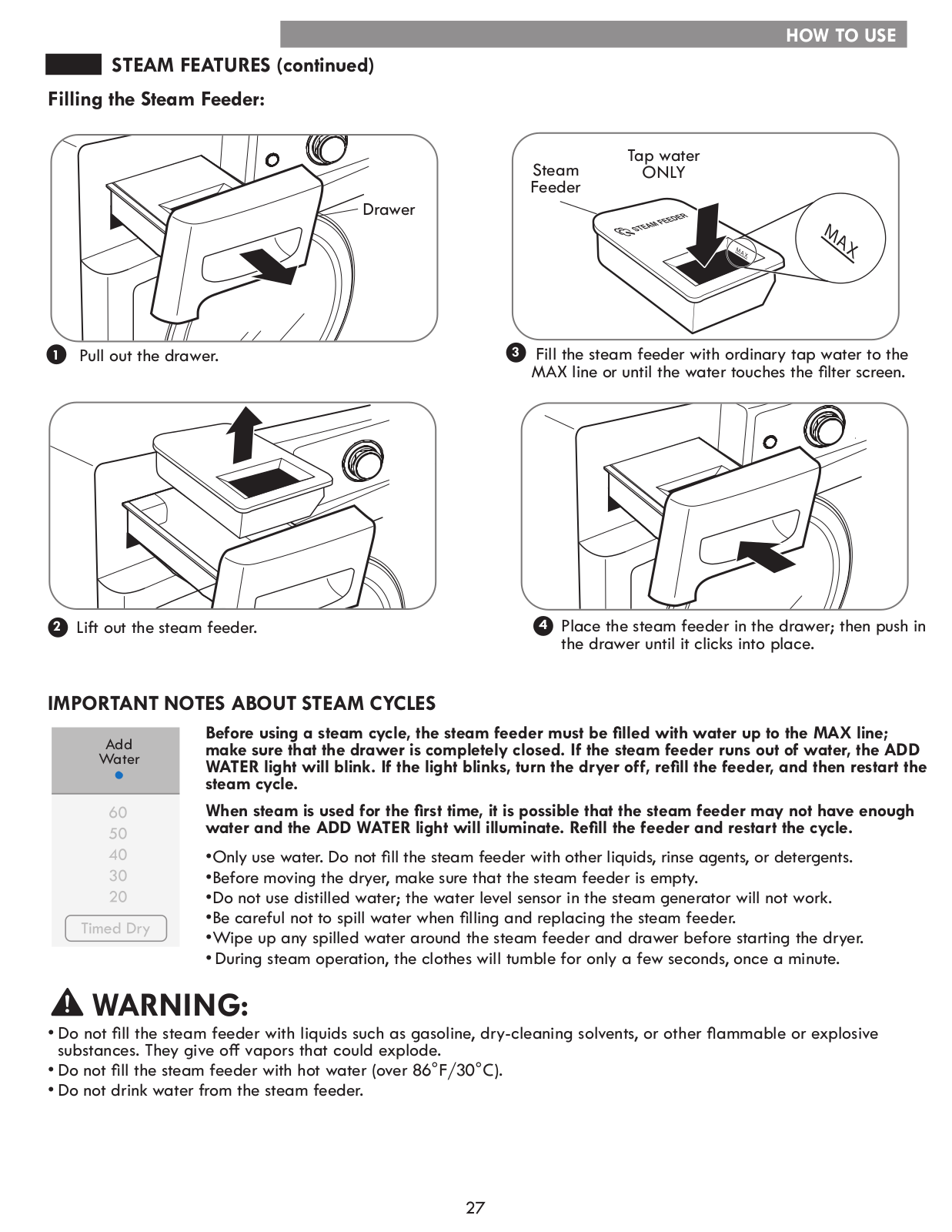

Filling the Steam Feeder ................................... |
|
27 |
Important Notes about Steam Cycles ............. |
27 |
|
USER MAINTENANCE INSTRUCTIONS |
|
|

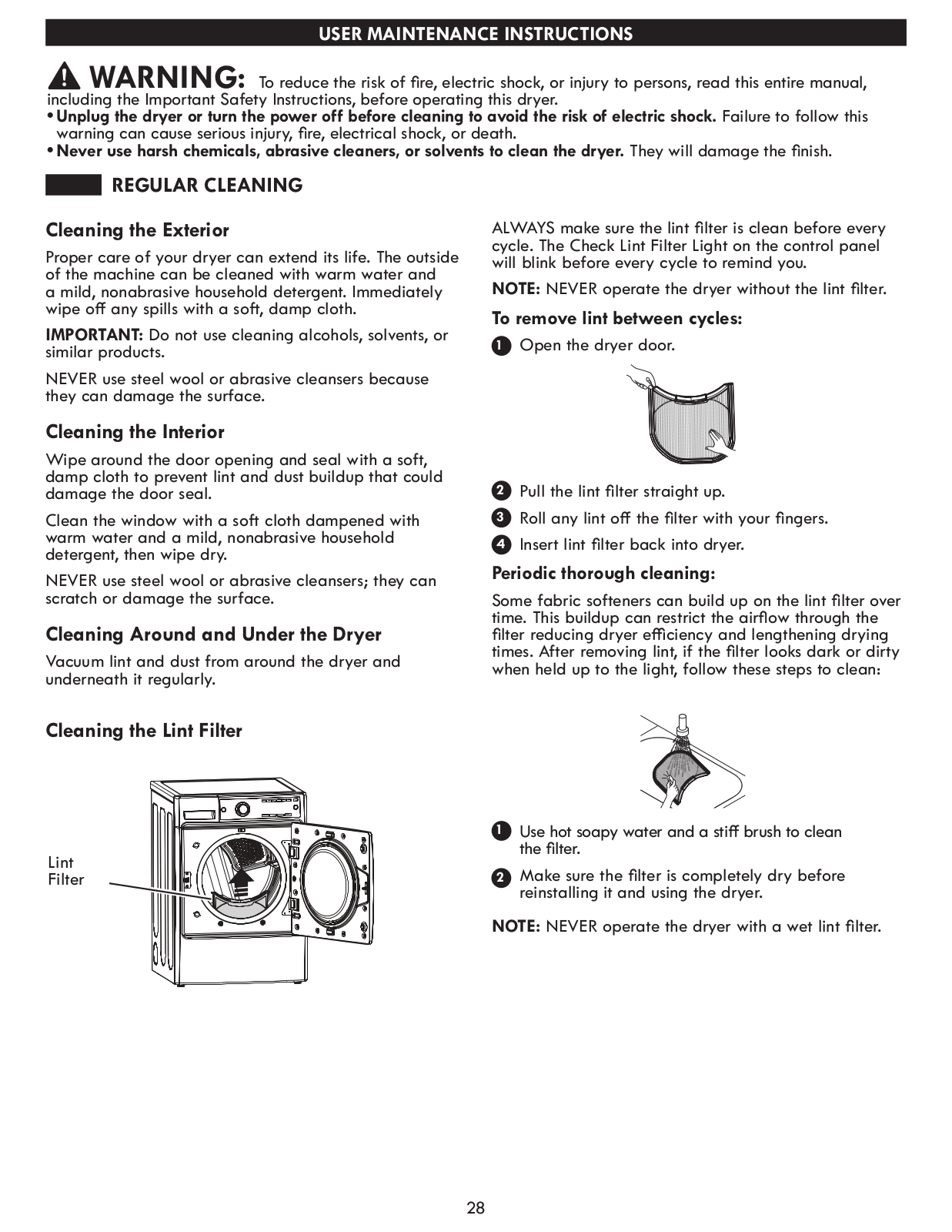

Regular Cleaning ...................................................... |
|
28 |
Cleaning the Exterior .......................................... |
|
28 |
Cleaning the Interior ........................................... |
|
28 |
Cleaning Around and Under the Dryer ........... |
28 |
|
Cleaning the Lint Filter ...................................... |
|
28 |

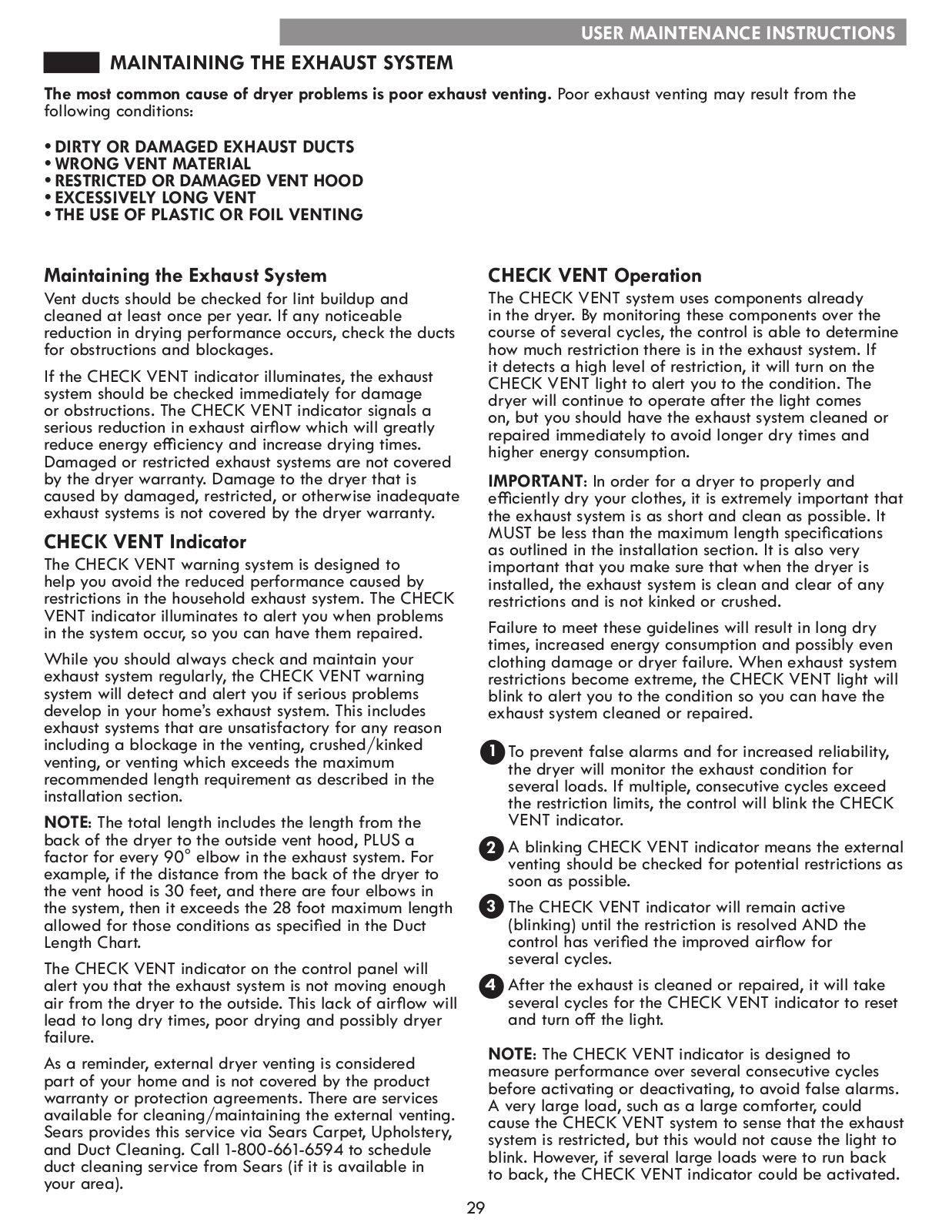

Maintaining the Exhaust System............................. |
|
29 |

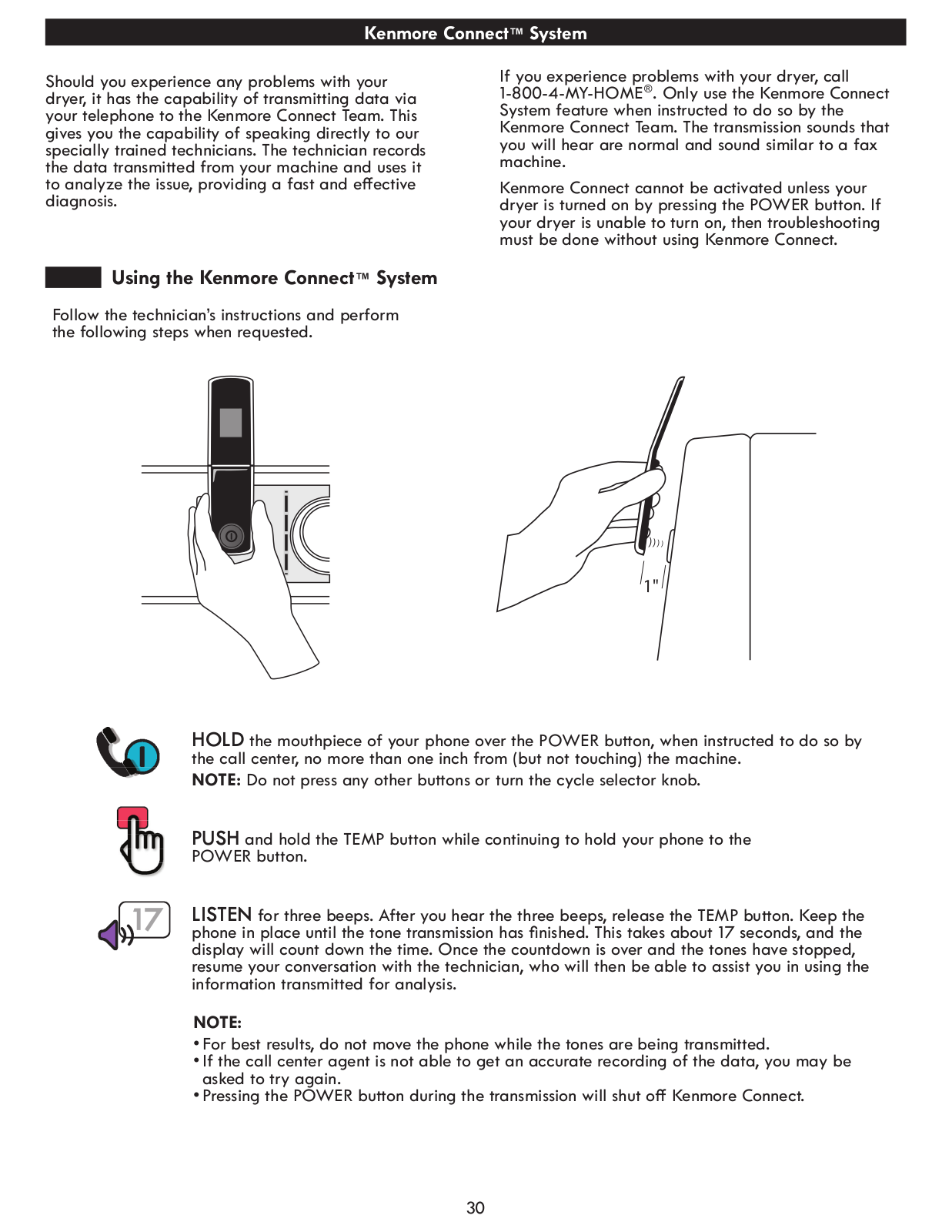

KENMORE CONNECT................................................. |
|
30 |

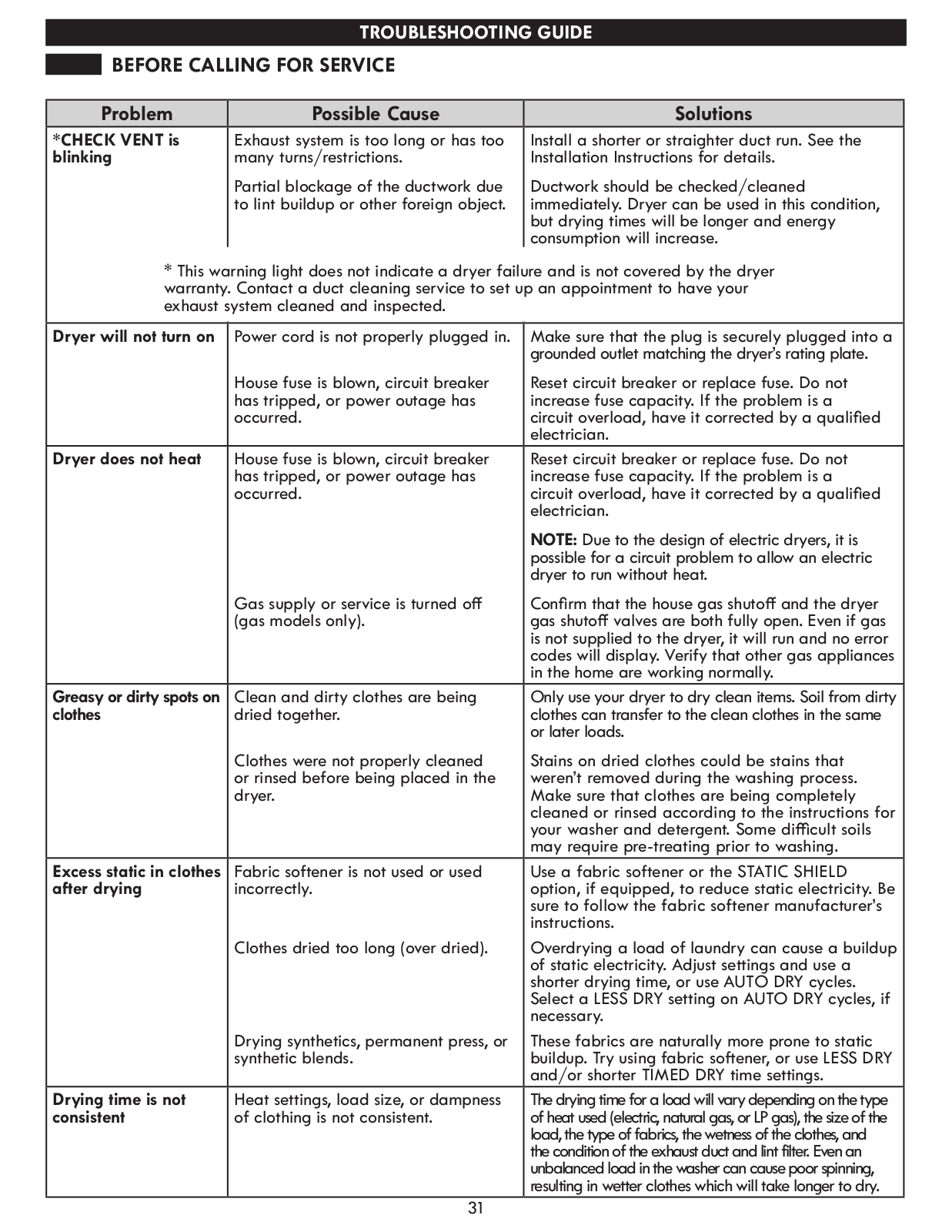

TROUBLESHOOTING GUIDE |
|
|

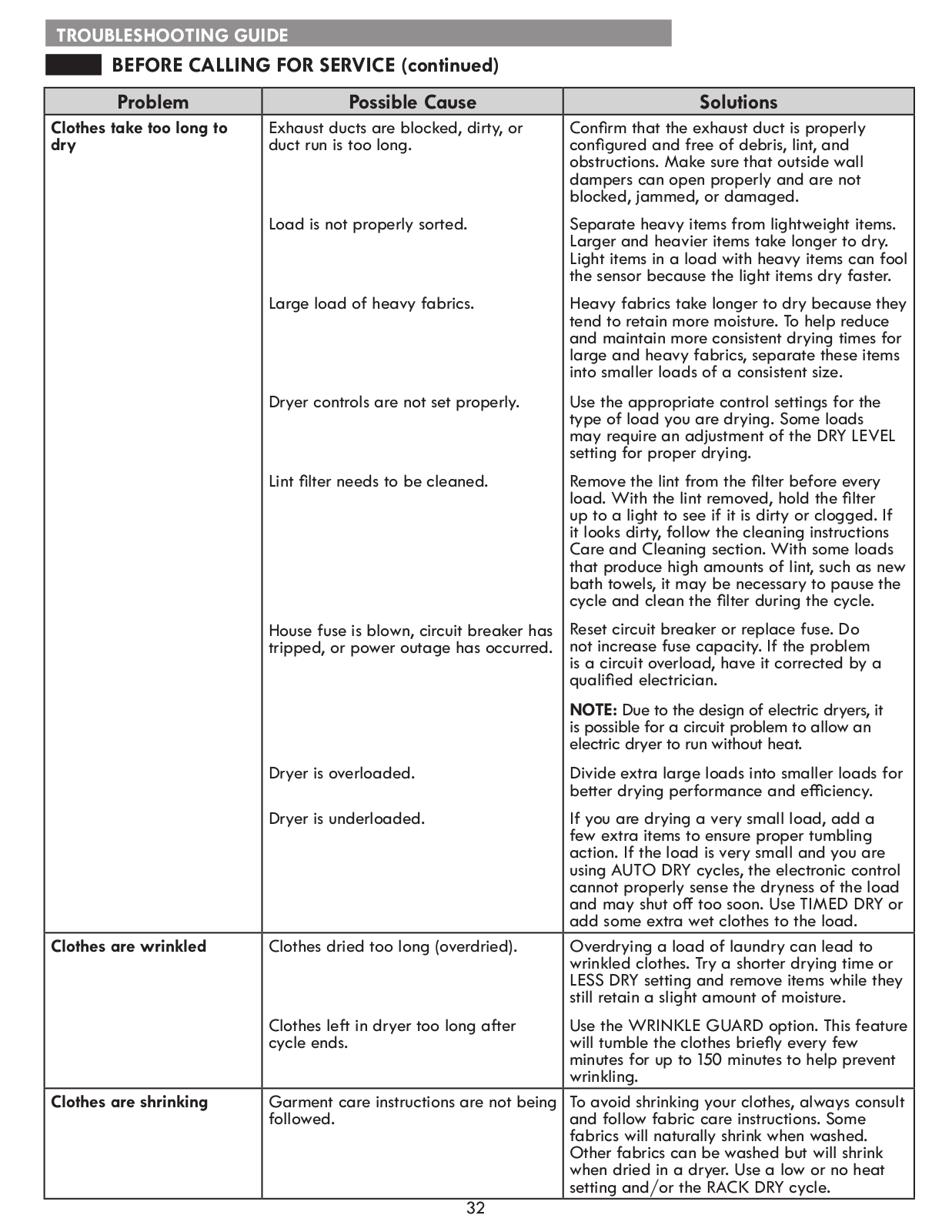

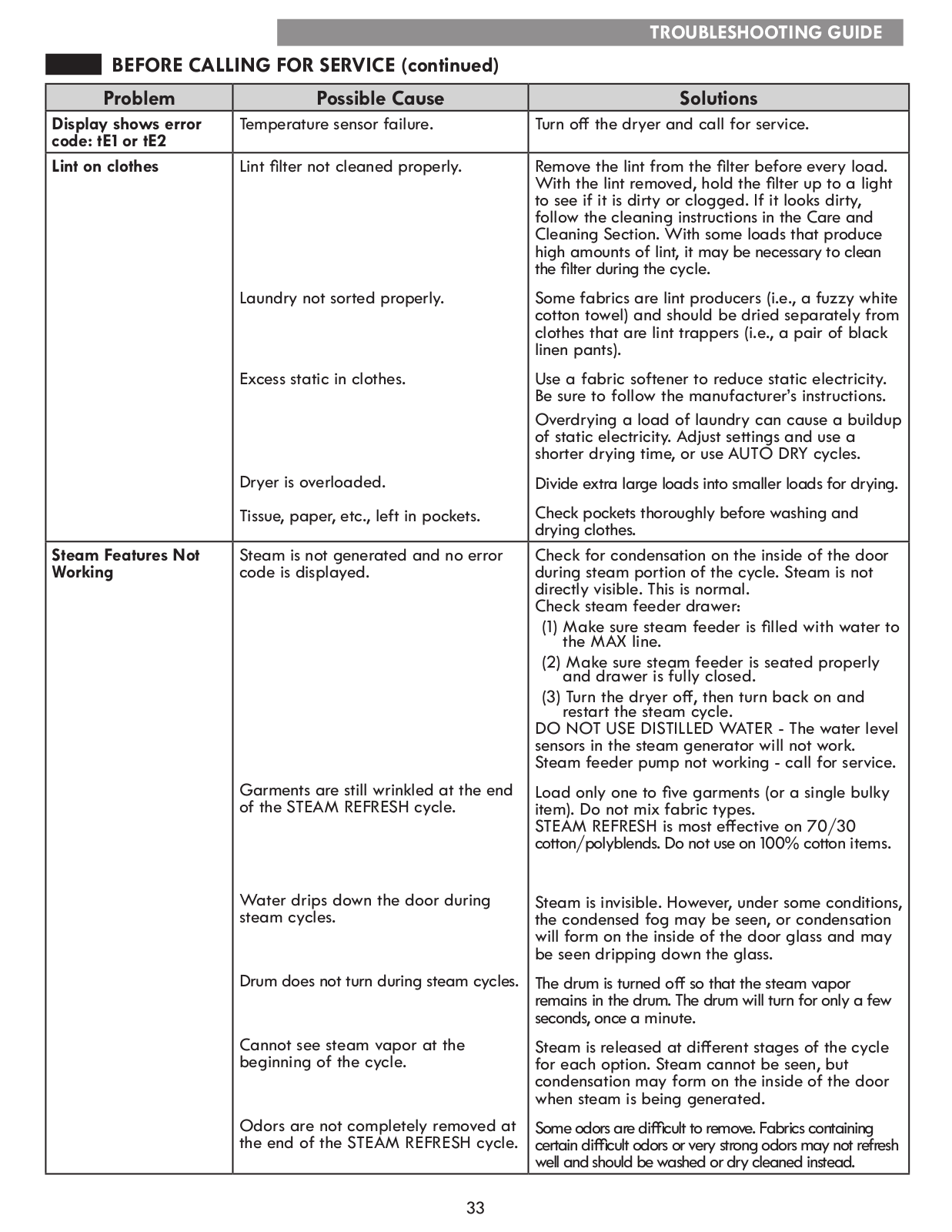

Before Calling for Service .................................. |
|
31-33 |

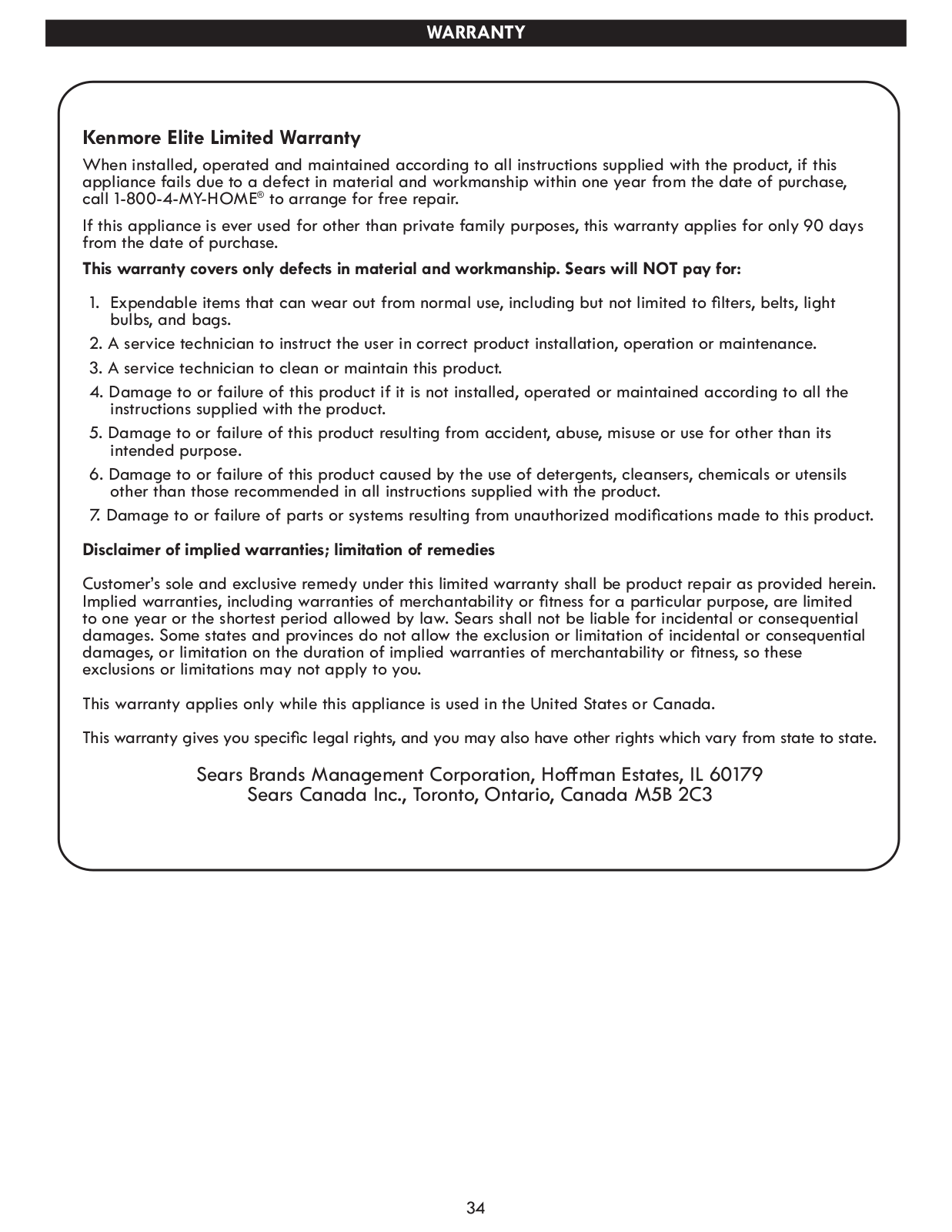

WARRANTY ................................................................... |
|
34 |
SERVICE........................................................... |
Back Cover |
|
PRODUCT RECORD
In the space below, record the date of purchase, model, and serial number of your product. You will find the model and serial number printed on an identification plate located inside the dryer door. Have these items of information available whenever you contact Sears concerning your product.
Model No.
Date of Purchase
Serial No.
Save these instructions and your sales receipt for future reference.
PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:
•Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty.
No deductible, no functional failure excluded from coverage – real protection.
•Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can trust will be working on your product.
•Unlimited service calls and nationwide service, as often as you want us, whenever you want us.
•“No-lemon” guarantee – replacement of your covered product if four or more product failures occur within 12 months.
•Product replacement if your covered product can not be fixed.
•Annual Preventive Maintenance Check at your request
– no extra charge.
•Fast help by phone – we call it Rapid Resolution.
Phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”
•Power surge protection against electrical damage dueto power fluctuations.
•$250 food loss protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.
•Rental reimbursement if repair of your covered product takes longer than promised.
•10% discount off the regular price of any non-covered repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call at any time day or night or schedule a service appointment online.
The Master Protection Agreement is a risk-free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund, or a prorated refund anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
For prices and additional information in the U.S.A. call 1-800-827-6655.
*Coverage in Canada varies on some items.
For full details call Sears Canada at 1-800-361-6665. Sears Installation Service
For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call:
2 1-800-4-MY-HOME®.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING. These words mean:
DANGER: Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury,
or loss of life.
•Do not install a clothes dryer with flexible plastic venting materials. If a flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance or any other appliances.
•Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
•Install the clothes dryer according to the manufacturer’s instructions and local codes.
•Save these instructions.
WHAT TO DO IF YOU SMELL GAS:
1.Do not try to light a match or cigarette, or turn on any gas or electrical appliance.
2.Do not touch any electrical switches. Do not use any phones in your building.
3.Clear the room, building, or area of all occupants.
4.Immediately call your gas supplier from a neighbor’s phone. Carefully follow the gas supplier’s instructions.
5.If you cannot reach your gas supplier, call the fire department.
SAVE THESE INSTRUCTIONS
3
IMPORTANT SAFETY INSTRUCTIONS
BASIC SAFETY PRECAUTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
•Read all instructions before using the dryer.
•Before use, the dryer must be properly installed, as described in this manual.
•Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
•Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
•Do not reach into the dryer if the drum or any other part is moving.
•Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.
•Do not tamper with controls.
•Before the dryer is removed from service or discarded, remove the door to the drying compartment.
•Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.
•Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
•Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
•Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
•The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.
•Do not install or store the dryer where it will be exposed to the weather.
•Always check the inside of the dryer for foreign objects.
•Clean the lint filter before or after each load.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT
This act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects, or other reproductive harm and requires businesses to warn customers of potential exposure to such substances. Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.
GROUNDING REQUIREMENTS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance must be connected to a grounded metal, permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance. Electrical shock can result if the dryer is not properly grounded.
4
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
•Properly ground dryer to conform with all governing codes and ordinances. Follow details in the installation instructions. Electrical shock can result if the dryer is not properly grounded.
•Before use, the dryer must be properly installed as described in this manual. Electrical shock can result if the dryer is not properly grounded.
•Install and store the dryer where it will not be exposed to temperatures below freezing or exposed to
the weather.
•All repairs and servicing must be performed by an authorized service technician unless specifically recommended in this Use & Care Guide. Use only authorized factory parts. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
•To reduce the risk of electrical shock, do not install the dryer in humid spaces. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.
•Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuits can melt, creating risk of electrical shock and/or fire hazard.
•Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in death, fire, explosion, burns, or death.
•Place dryer at least 18 inches above the floor for a garage installation. Failure to do so can result in fire, explosion, burns, or death.
•Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of suffocation.
•Do not install near items that produce heat or open flame such as stoves or cooking ovens. Failure to follow this warning can cause product deformation, smoke and fire.
•Do not place candles or cigarettes on top of the product. Failure to follow this warning can cause product deformation, smoke and fire.
•Remove all protective vinyl film from the product.
Failure to do so can cause product deformation, smoke and fire.
Exhaust/Ducting:
•Gas dryers MUST be exhausted to the outside. Failure to follow these instructions can result in fire or death.
•The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fire hazard.
•Use only rigid metal or flexible metal 4 inch diameter duct inside the dryer cabinet or for exhausting to the outside. Use of plastic or other combustible ductwork can cause a fire. Punctured ductwork can cause a fire if it collapses or becomes otherwise restricted in use or during installation.
•Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in fire or death.
•The exhaust duct must be 4 inches (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer.
Failure to follow these instructions can result in fire or death.
•Rigid or semi rigid metal ducting is recommended for use between the dryer and the wall. In special installations when it is impossible to make a connection with the above recommendations, a UL listed flexible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect drying time. Failure to follow these instructions can result in fire or death.
•DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. For complete details, follow the Installation Instructions. Failure to follow these instructions can result in fire or death.
5
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS FOR STEAM FUNCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
•Do not open the dryer door during steam cycles.
Failure to follow these instructions can result in a burn hazard.
•Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. Failure to follow these instructions can result in fire or death.
•Do not fill the steam feeder with gasoline, drycleaning solvents, or other flammable or explosive substances. Failure to follow these instructions can result in fire or death.
•Do not touch the steam nozzle in the drum during or after the steam cycle. Failure to follow these instructions can result in a burn hazard.
•Do not fill the steam feeder with hot water (over 86°F/30°C). Failure to follow these instructions can result in a burn hazard.
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
•Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or damage to the dryer, the electrical power cord must be plugged into a properly grounded outlet.
•For personal safety, this dryer must be properly grounded. Failure to do so can result in electrical shock or injury.
•Refer to the installation instructions in this manual for specific electrical requirements for your model.
Failure to follow these instructions can create an electrical shock hazard and/or a fire hazard.
•This dryer must be plugged into a properly grounded outlet. Electrical shock can result if the dryer is not properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions can create an electrical shock hazard and/or a fire hazard.
•The dryer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
•Never unplug your dryer by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. The power cord can be damaged, resulting in a risk of fire and electrical shock.
•Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord can melt, creating electrical shock and/or fire hazard.
•When installing or moving the dryer, be careful not to pinch, crush, or damage the power cord. This will prevent injury and prevent damage to the dryer from fire and electrical shock.
SAVE THESE INSTRUCTIONS
6
FEATURES AND BENEFITS
KEY PARTS AND COMPONENTS
There are several important components that are referenced in this manual.
AEASY-TO-USE CONTROL PANEL
Rotate the cycle selector knob to select the desired dry cycle. Add cycle options or adjust settings with the touch of a button.
BTIME AND STATUS DISPLAY
The easy-to-read LED display shows cycle status and estimated time remaining.
CCYCLE MODIFIERS
Adjust the cycle settings such as temperature and dry level with the touch of a button.
NOTE: Not all settings are available for all cycles.
DSTEAM FEEDER
This drawer contains the reservoir for the water used by the dryer to create steam for the STEAM REFRESH cycle and other steam features.
ECHECK VENT
(Duct Blockage Sensing System)
The Check Vent (Duct blockage sensing system) detects and alerts you to blockages in the exhaust system that reduce airflow from the dryer. Maintaining clean exhaust system ducts improves operating efficiency and helps minimize service calls, saving you money.
FULTRA-CAPACITY STAINLESS STEEL DRUM WITH DRUM LIGHT
The ultra-large stainless steel drum offers superior durability. The drum light can be turned on during a cycle by using the DRUM LIGHT button on the control panel. The light also comes on when the door is opened, if the control is ON.
GEASY-ACCESS REVERSIBLE DOOR
The wide-opening, see-through glass door provides easy access for loading and unloading. Door swing can be reversed to adjust for installation location.
HFRONT-MOUNT LINT FILTER
The front-mount lint filter allows for easy access and cleaning between loads.
ILEVELING FEET
Four leveling feet (two in front, and two in back) adjust to improve dryer stability on uneven floors.
A A
B
E
C
D
F
H
G
I
Power Cord |
Terminal Block |
|
Location |
||
Access Panel |
||
(Gas Models) |
||
(Electric Models) |
||
|
||
|
|
Exhaust Duct
Gas Connection Outlet
Location
(Gas Models)
Rear of Dryer
7
INSTALLATION INSTRUCTIONS
KEY DIMENSIONS AND SPECIFICATIONS
|
Description |
Dryer (Gas and Electric) |
|
|
Electrical Requirements |
Refer to the rating label |
|
|
Gas Requirements* NG: |
4–10.5 inches WC (Water Column) |
|
|
Gas Requirements* LP: |
8–13 inches WC |
|
|
Dimensions |
27 in. (W) X 30 1/4 in. (D) X 38 in. (H), 52 ¼ in. (D with door open) |
|
|
|
68.6 cm (W) X 76.7 cm (D) X 96.5 cm (H), 132.7 cm (D with door open) |
|
|
Net Weight |
Electric : 147 lb. (66.7 kg) Gas : 150.5 lb. (68.3 kg) |
|
|
|
|
|
|
Drying Capacity |
IEC 7.4 cu. ft. |
|
|
|
|
|
|
*Gas Models Only |
|
|
LOCATION REQUIREMENTS
IMPORTANT: Read all installation instructions completely before installing and operating your dryer. It is important that you review this entire manual before installing and using your dryer. It contains detailed instructions concerning electrical connections, gas connections and exhaust requirements.
CHOOSE THE PROPER LOCATION
•Store and install the dryer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.
•Choose a location with a solid, level floor.
•If the dryer is being installed in a garage, place the dryer at least 18 inches (45.7cm) above the floor.
•Properly ground the dryer to conform with all governing codes and ordinances.
•To reduce the risk of electric shock, do not install the dryer in damp or wet locations.
IMPORTANT: If you are installing your dryer in a manufactured or mobile home, please refer to the
Special Electrical Requirements for Mobile or Manufactured Homes section.
CLEARANCES
•Most installations require a minimum 5 ½ inch (14 cm) clearance behind the dryer for the exhaust ducting.
•Allow minimum clearances of at least 1 inch (2.5 cm) on the sides and back to minimize vibration and noise.
•Allowing additional clearance for installation and servicing is recommended.
•Be sure to allow for wall, door, or floor moldings that may increase the required clearances.
•Allow at least 21 inches (53.3 cm) in front of the dryer to open the door.
Standard Installation – Side View
20 1/8 in. |
|
(56.2 cm) |
|
(10 cm) |
30 1/4 in. |
|
(76.7 cm) |
52 ¼ in.
(132.7 cm)
Standard Installation – Front View
4 in. |
|
|
(10 cm) |
|
|
1 in. |
|
1 in. |
(2.5 cm) |
27 in. |
(2.5 cm) |
|
|
|
|
(68.6 cm) |
|
3" (7.6 cm)
Vent
48 sq. in.
(310 sq. cm. )
Vent
24 sq. in.
(155 sq. cm. )
3" (7.6 cm)
Additional instructions for closet installations:
The closet door must allow for sufficient airflow. Refer to the diagram above for minimum vent opening requirements. A louvered door is also acceptable.
8
INSTALLATION INSTRUCTIONS
INSTALLATION WITH OPTIONAL PEDESTAL BASE OR STACKING KIT
IMPORTANT: If you are installing your dryer using an optional pedestal base or stacking kit, refer to the instructions included with the accessory.
Required Dimensions for |
Required Dimensions for |
Installation with Pedestal |
Installation with Stacking Kit |
6 in.
(15.2 cm)
52 ½ in. |
76 in. |
(133.4 cm) |
(193 cm) |
30 1/4 in. |
4 in. |
|
|
(10 cm) |
|
|
|
(76.7 cm) |
1 in. |
|
1 in. |
|
27 in. |
||
|
(2.5 cm) |
(2.5 cm) |
|
|
(68.6 cm) |
OPTIONAL ACCESSORIES
Use a pedestal to make laundry easier to reach.
White = 796.51022 Ginger = 796.51028 Chili Pepper = 796.51029
Use the stacking kit to mount the dryer on top of the washer to save floor space.
White = D26 17002 Ginger = D26 17008 Chili Pepper = D26 17009
Use the side vent kit for venting directly to either side or to the bottom. Gas dryers can only vent to
the left.
Kit # D26-49670
Use the LP conversion kit for changing the dryer gas connections from natural gas (NG) to propane gas (LP).
Part No. 383EEL3002D
NOTE: Installation of the LP conversion kit must be performed by a qualified service technician.
9
INSTALLATION INSTRUCTIONS
CONNECTING GAS DRYERS
GAS REQUIREMENTS (GAS MODELS ONLY)
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including
the following:
•Gas supply requirements: As shipped from the factory, this dryer is configured for use with natural gas (NG). It can be converted for use with propane (LP) gas. Gas pressure must not exceed 8 inches water column for (NG), or 13 inches water column for (LP).
•A qualified service or gas company technician must connect the dryer to the gas service. Failure to follow these instructions can result in fire, explosion, or death.
•Isolate the dryer from the gas supply system by closing its individual manual shutoff valve during any pressure testing of the gas supply. Failure to do so can result in fire, explosion, or death.
•Supply line requirements: Your laundry room must have a rigid gas supply line to your dryer. In the
United States, an individual manual shutoff valve MUST be installed within at least 6 ft. (1.8 m) of the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1 or Canadian gas installation code CSA
B149.1. A ⅛ inch NPT pipe plug must be installed.
Failure to do so can result in fire, explosion, or death.
•If using a rigid pipe, the rigid pipe should be ½ inch IPS. If acceptable under local codes and ordinances and when acceptable to your gas supplier, ⅜ inch approved tubing may be used where lengths are less than 20 ft. (6.1 m). Larger tubing should be used for lengths in excess of 20 ft. (6.1 m). Failure to do so can result in fire, explosion, or death.
•Connect the dryer to the type of gas shown on the nameplate. Failure to do so can result in fire, explosion, or death.
•To prevent contamination of the gas valve, purge the gas supply of air and sediment before connecting the gas supply to the dryer. Before tightening the connection between the gas supply and the dryer, purge remaining air until the odor of gas is detected.
Failure to do so can result in fire, explosion, or death.
•DO NOT use an open flame to inspect for gas leaks. Use a noncorrosive leak detection fluid. Failure to do so can result in fire, explosion, or death.
•Use only a new AGAor CSA-certified gas supply line with flexible stainless steel connectors. Failure to do so can result in fire, explosion, or death.
•Securely tighten all gas connections. Failure to do so can result in fire, explosion, or death.
•Use Teflon tape or a pipe-joint compound that is insoluble in propane (LP) gas on all pipe threads.
Failure to do so can result in fire, explosion, or death.
•DO NOT attempt any disassembly of the dryer; disassembly requires the attention and tools of an authorized and qualified service technician or
company. Failure to follow this warning can result in fire, explosion, or death.
ELECTRICAL REQUIREMENTS FOR
GAS MODELS ONLY
•Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to follow this warning can result in fire, explosion, or death.
•For personal safety, this dryer must be properly grounded. Failure to follow this warning can result in fire, explosion, or death.
•The power cord of this dryer is equipped with a 3-prong (grounding) plug which mates with a
standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Failure to follow this warning can result in fire, explosion, or death.
•This dryer must be plugged into a 120-VAC, 60-Hz. grounded outlet protected by a 15-ampere fuse or circuit breaker. Failure to follow this warning can result in fire, explosion, or death.
•Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can result in fire, explosion, or death.
3-prong grounding type wall receptacle
Ensure proper ground exists before use.
3-prong grounding
plug
10
CONNECTING GAS DRYERS (continued)
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including
the following:
•Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
Failure to do so can result in fire, explosion, or death.
•Use only a new stainless steel flexible connector and a new AGA-certified connector. Failure to do so can result in fire, explosion, or death.
•A gas shutoff valve must be installed within 6 ft. (1.8 m) of the dryer. Failure to do so can result in fire, explosion, or death.
•The dryer is configured for natural gas when shipped from the factory. Make sure that the dryer is equipped with the correct burner nozzle for the type of gas being used (natural gas or propane gas).
Failure to do so can result in fire, explosion, or death.
Connecting the Gas Supply
NOTE: This dryer is configured from the factory set for natural gas (NG). If dryer is to be used with propane (LP) gas, it must be converted by a qualified
service technician.
1Make sure that the gas supply to the laundry room is turned OFF and the dryer is unplugged. Confirm that the type of gas available in your laundry room is appropriate for the dryer.
2Remove the shipping cap from the gas fitting at the back of the dryer. Be careful not to damage the threads of the gas connector when removing the shipping cap.
3Connect the dryer to your laundry room’s gas supply using a new flexible stainless steel connector with a ⅜ inches NPT fitting.
NOTE: DO NOT use old connectors.
4Securely tighten all connections between the dryer and your laundry room’s gas supply.
5Turn on the gas supply.
6Check all pipe connections (both internal and external) for gas leaks with a noncorrosive leak-detection fluid.
7Proceed to Venting the Dryer.
INSTALLATION INSTRUCTIONS
•If necessary, the correct nozzle (for the LP nozzle kit, order part number 383EEL3002D) should be installed by a qualified technician and the change should be noted on the dryer. Failure to do so can result in fire, explosion, or death.
•All connections must be in accordance with local codes and regulations. Failure to do so can result in fire, explosion, or death.
•Gas dryers MUST exhaust to the outdoors. Failure to do so can result in fire, explosion, or death.
⅜3/8"in.NPNPTGasGas |
⅛1/8"inNP. NPTPipePipePlugPlug |
|
|
Connection |
|
Gas Supply
AGA/CSA-Certifiedrtified Shutoffff VValve
AGA/CSA-
Stainless Steel Flexible
Stainless Steel
ConnectorFl xible Connector
High-Altitude Installations
The BTU rating of this dryer is AGA-certified for elevations below 10,000 feet.
If your gas dryer is being installed at an elevation above 10,000 feet, it must be derated by a qualified technician or gas supplier.
11
Loading...
