Kenmore 796.4172 User Manual

Use & Care Guide Manual de Uso y Cuidado

English / Español

Model/Modelo: 796.4172#

Kenmore Elite®

high

Para obtener los mejores resultados, deberá utilizarse un detergente HE para lavadoras de alta

baja espuma.

ency

Front-Loading

Automatic Washer

Lavadora automática de carga frontal

# = color number, numero de color

P/N MFL62526856

Sears Brand Management Corporation Homan Estates, IL 60179 U.S.A.

www.kenmore.com www.sears.com

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ......................... 3-5

GROUNDING REQUIREMENTS ...................................... 5

FEATURES AND BENEFITS

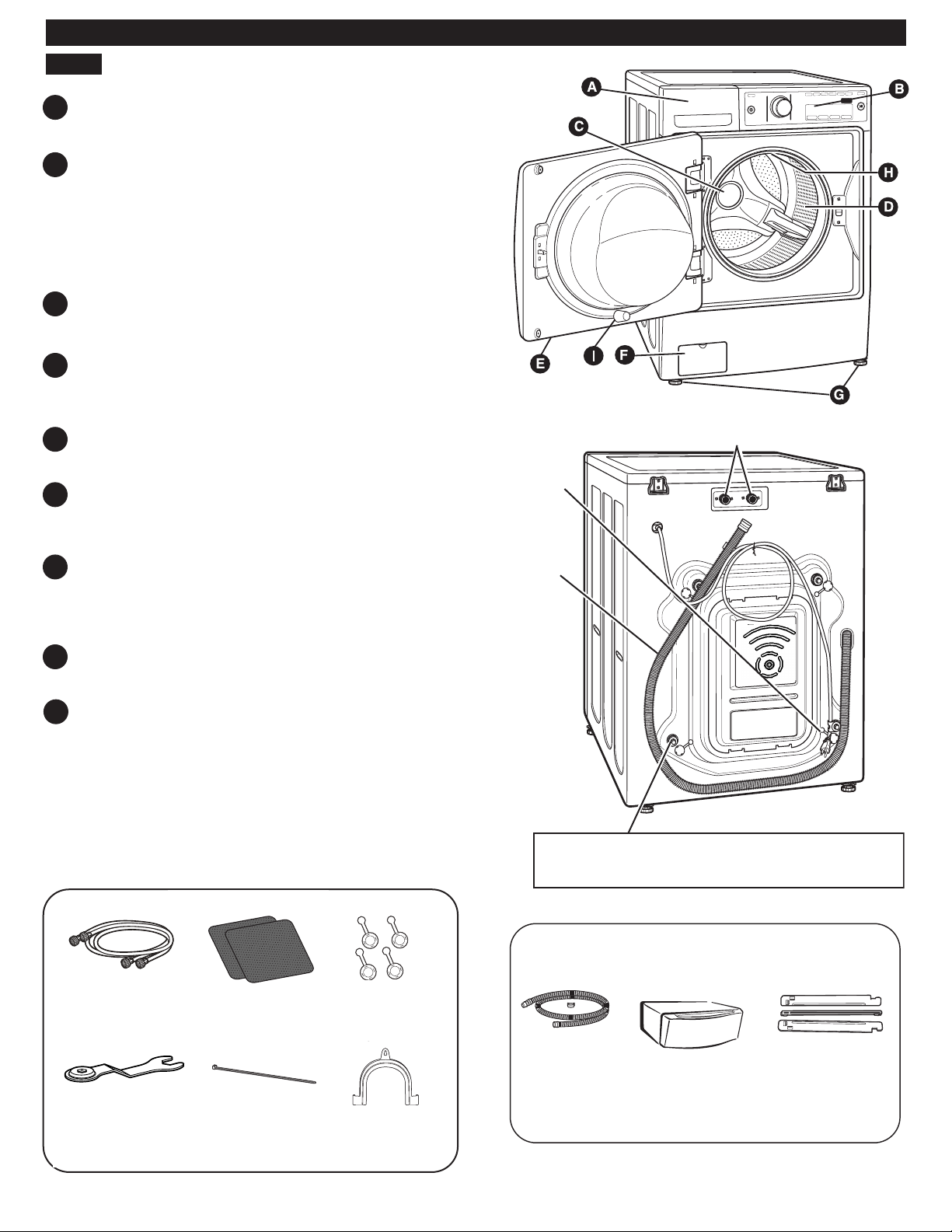

Key Parts and Components .................................................6

Included Accessories ........................................................... 6

Optional Accessories ...........................................................6

INSTALLATION REQUIREMENTS

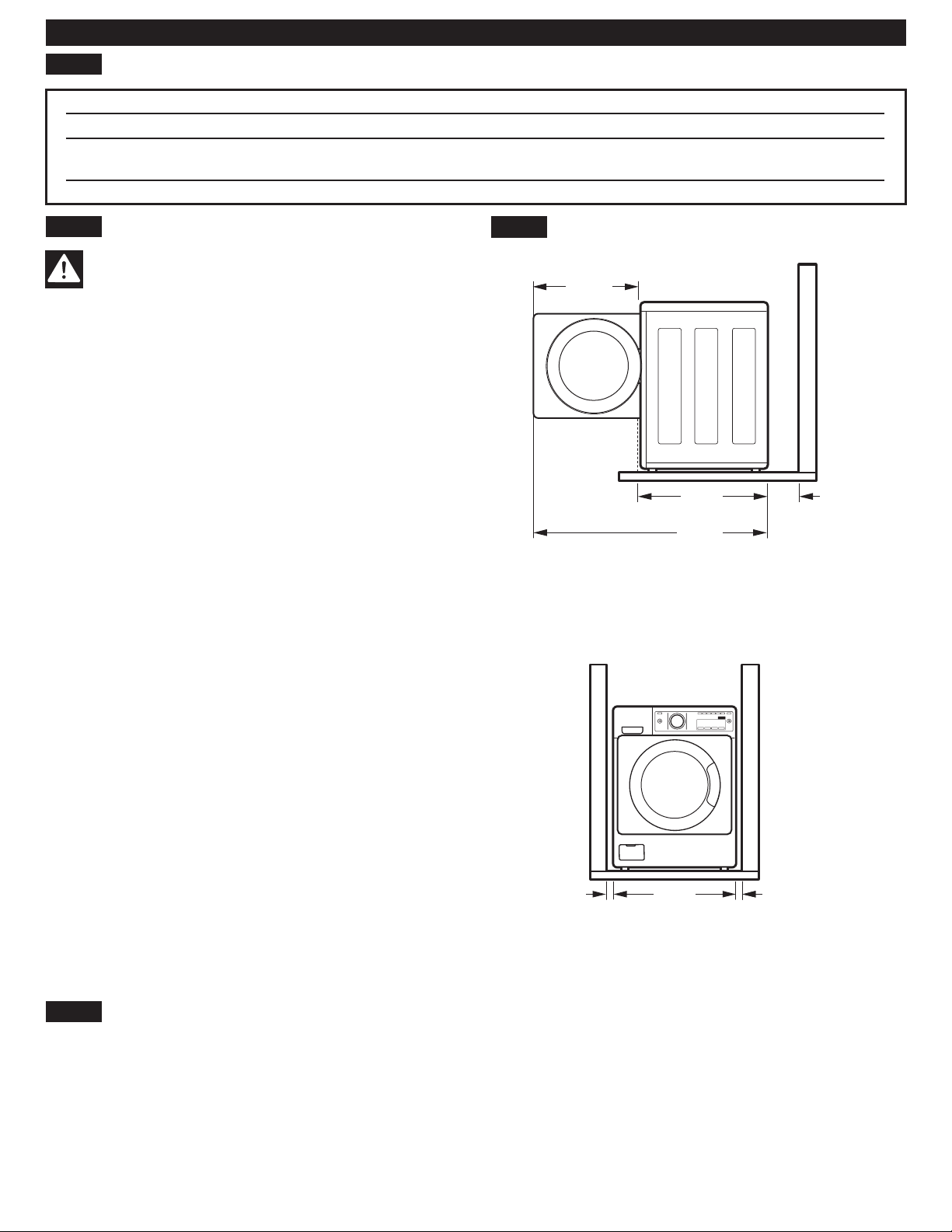

Key Dimensions and Specications ...................................7

Choose the Proper Location ...............................................7

Flooring ..................................................................................7

Clearances ............................................................................7

INSTALLATION INSTRUCTIONS

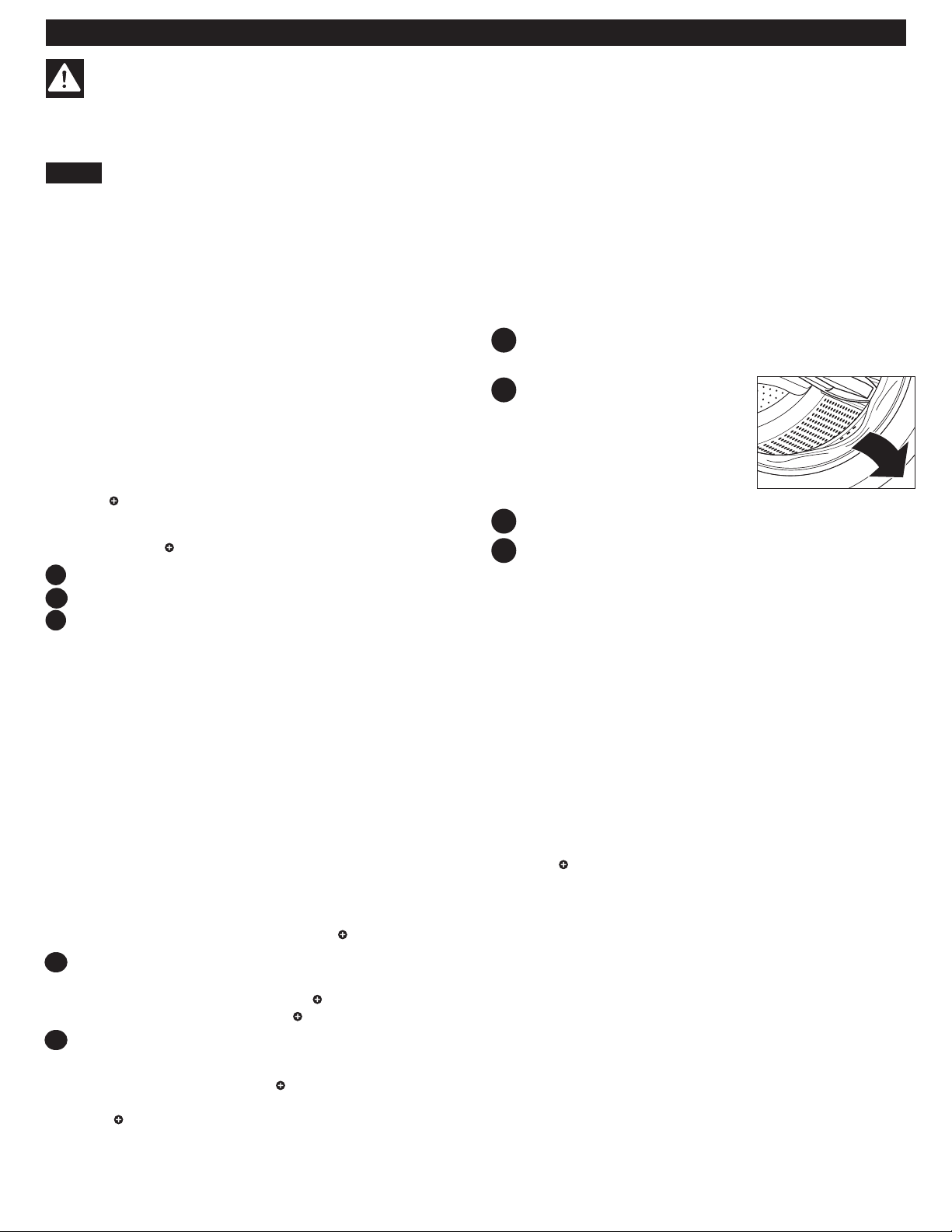

Unpacking and Removing Shipping Bolts ......................... 8

Connecting the Water Lines ................................................9

Connecting the Drain Hose ............................................... 10

Connect to the Power Supply .............................................10

Leveling the Washer ........................................................... 11

Installation of Non-Skid Pads (optional) ...........................11

HOW TO USE

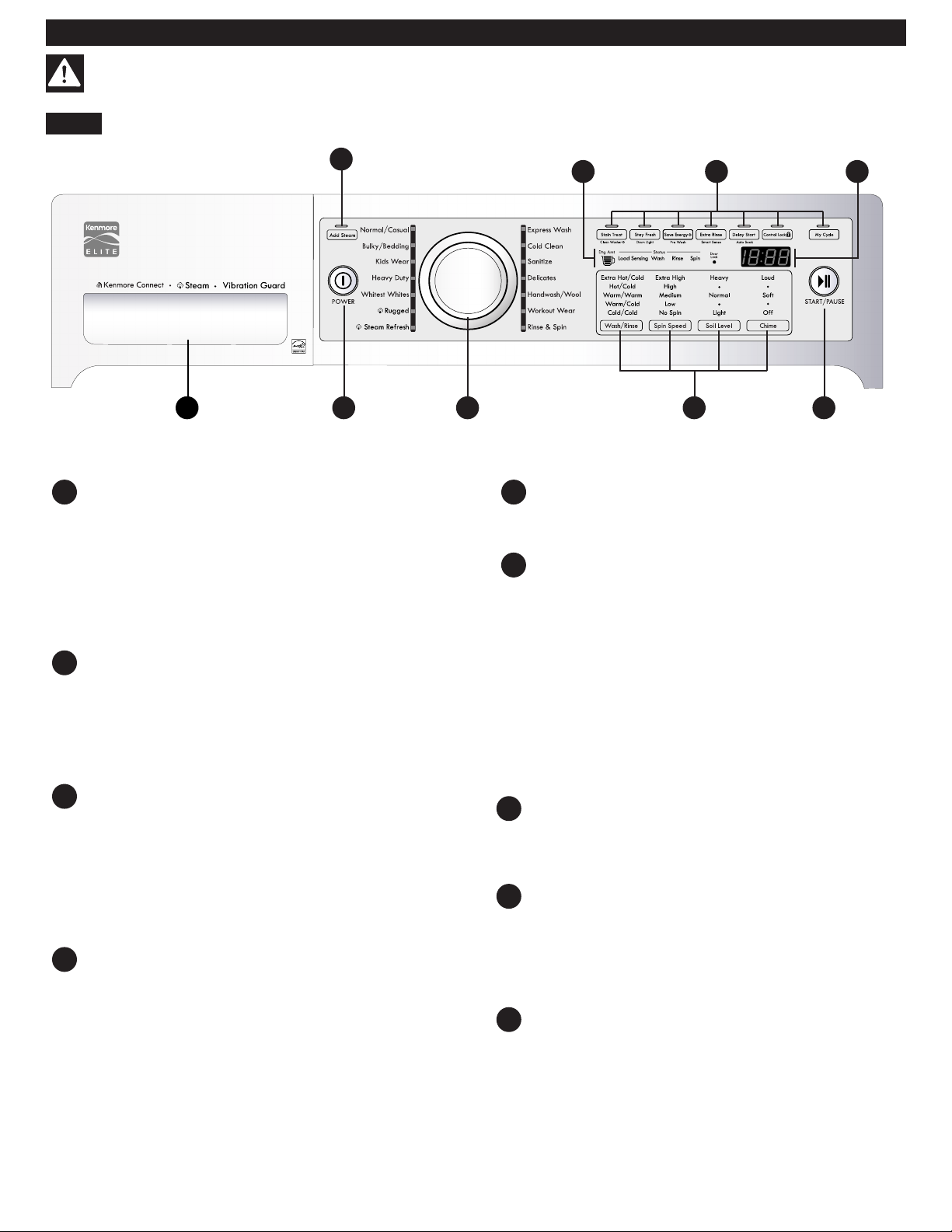

Control Panel Features ........................................................ 12

Operating the Washer Using Detergent

Amount Indicator ...................................................................13

Cycle Guide .................................................................... 14-15

Sorting Wash Loads ............................................................ 16

About the Dispenser Drawer ..............................................17

Detergent and Dispenser Use .............................................18

Time and Status Display .................................................... 19

Cycle Modier Buttons .......................................................20

Steam Cycles and Options ................................................ 21

Add Steam Option ..........................................................21

Steam Refresh Cycle........................................................ 21

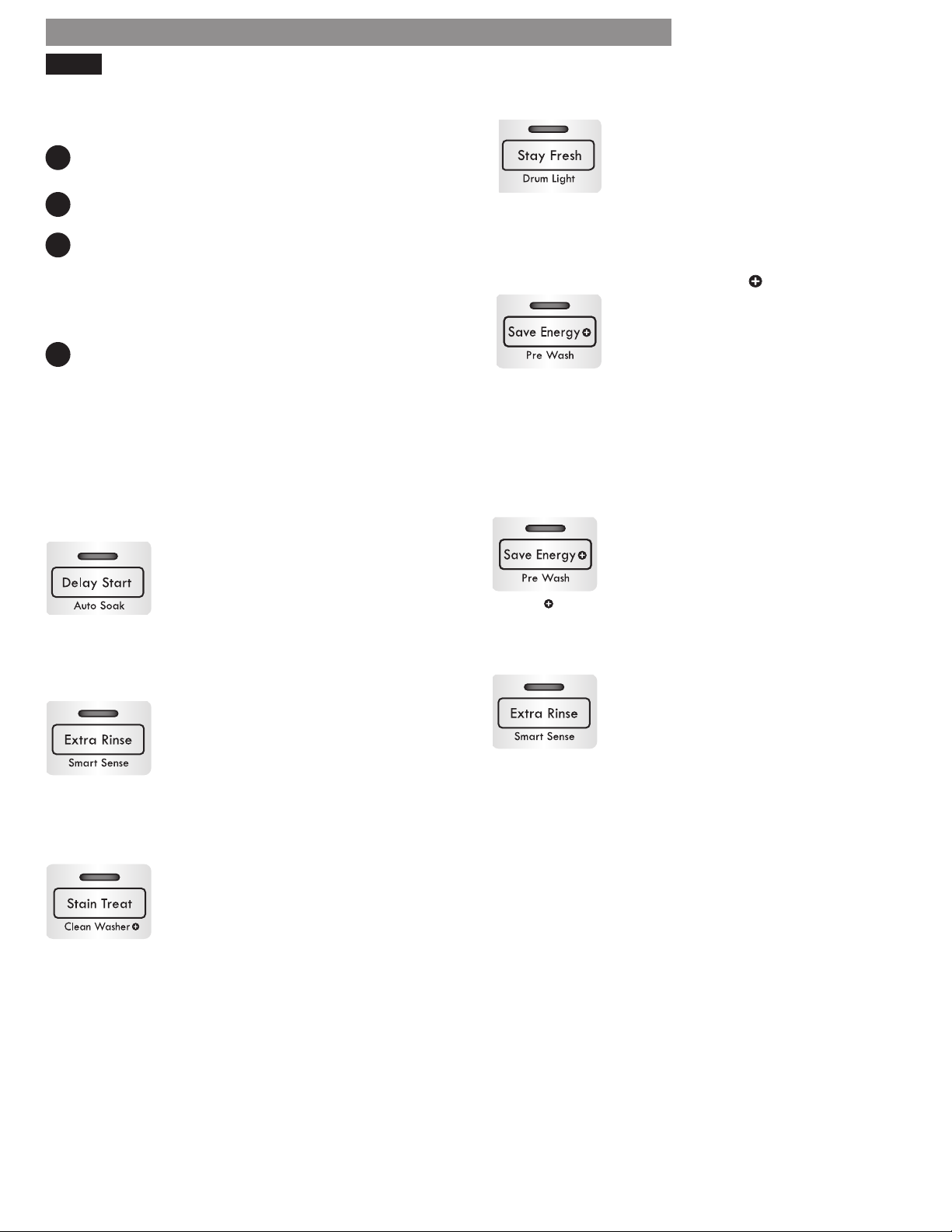

Option Buttons .................................................................... 22

Delay Start .......................................................................22

Extra Rinse ....................................................................... 22

Stain Treat ........................................................................22

Stay Fresh......................................................................... 22

Save Energy .................................................................22

Pre-Wash .......................................................................... 22

Smart Sense ..................................................................... 22

Special Functions .................................................................23

Control Lock ......................................................................23

Clean Washer .............................................................. 23

MyCycle ............................................................................23

Drum Light ....................................................................... 23

Auto Soak .........................................................................23

CARE AND CLEANING

Regular Cleaning .......................................................... 24-25

Cleaning the Exterior ..................................................... 24

Care and Cleaning of the Interior ................................24

Clean Washer .............................................................24

Door Seal and Glass Cleaning ......................................24

Removing Mineral Buildup............................................. 24

Storing the Washer ........................................................ 25

Cleaning the Dispenser .................................................. 25

Maintenance ..................................................................26-27

Cleaning the Water Inlet Filters ....................................26

Cleaning the Drain Pump Filter .....................................27

KENMORE CONNECT™ System.........................................28

TROUBLESHOOTING GUIDE

Normal Sounds You May Hear .........................................29

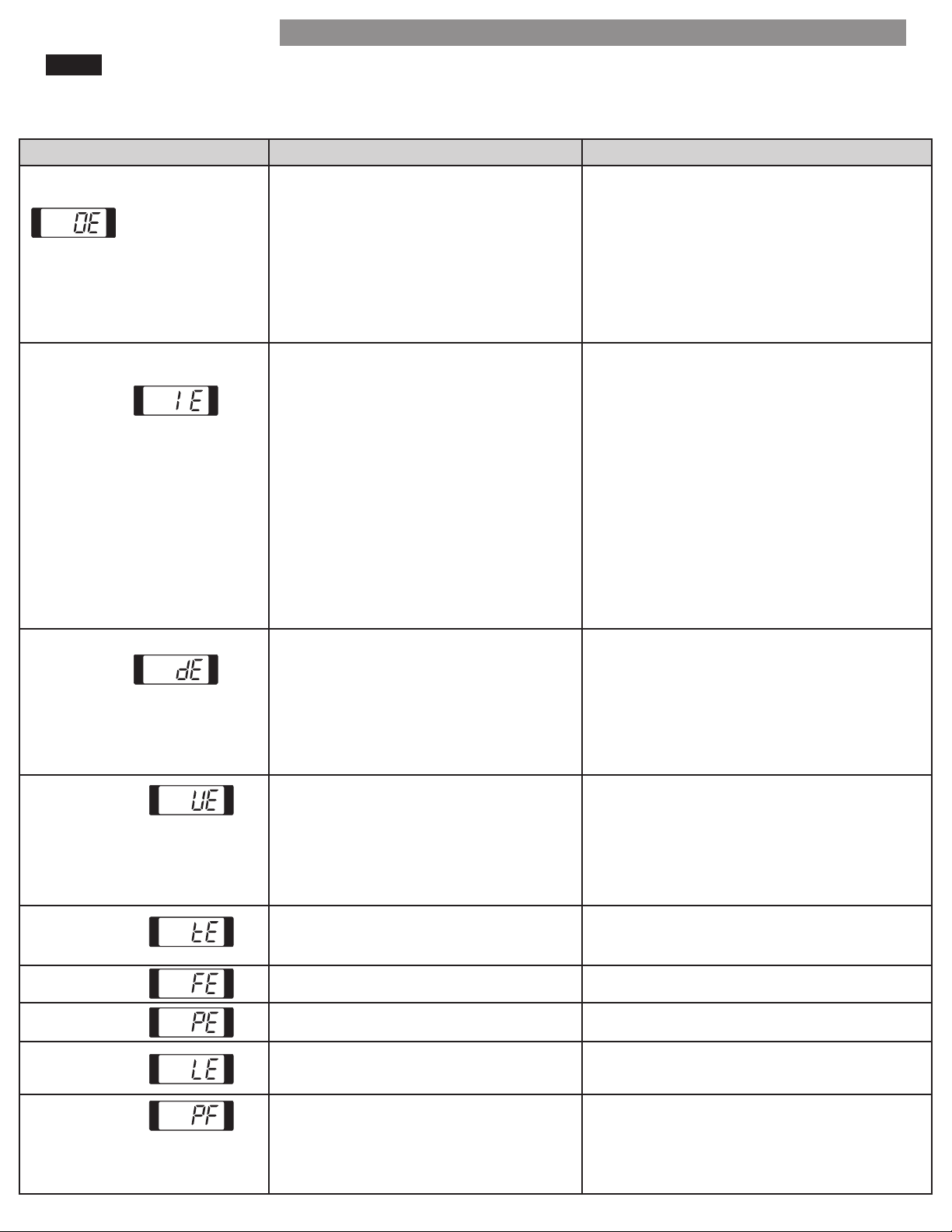

Before Calling for Service ........................................... 29-31

WARRANTY ................................................................. 32

PRODUCT RECORD

In the space below, record the date of purchase, model, and serial number of your product. You will nd the model and serial number printed on an identication plate located inside the washer door. Have these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase Serial No. Save these instructions and your sales receipt for future

reference.

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

• Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductible, no functional failure excluded from coverage – real protection.

• Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can trust will be working on your product.

• Unlimited service calls and nationwide service, as often as you want us, whenever you want us.

•“No-lemon”guarantee– replacement of your covered product if four or more product failures occur within twelve months.

•Productreplacementif your covered product can not be xed.

• Annual Preventive Maintenance Check at your request – no extra charge.

• Fast help by phone – we call it Rapid Resolution. Phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

• Power surge protection against electric damage due power uctuations.

• $250 food loss protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.

• Rental reimbursement if repair of your covered product takes longer than promised.

• 10% discount o the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call at any time day or night or schedule a service appointment online.

The Master Protection Agreement is a risk-free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund, or a prorated refund any time after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call: 1-800-4-MY-HOME®.

SAFETY MESSAGES

There are many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death.

All safety messages will follow the safety alert symbol and either the word DANGER or WARNING. These words mean:

Failure to follow these safety instructions may result in property damage and/or serious bodily harm or death.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

• Before use, the washer must be properly installed as described in this manual.

• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry cleaning solvents, or other ammable or explosive substances, as they give o vapors that could ignite or explode.

• Do not add gasoline, dry cleaning solvents, or other ammable or explosive substances to the wash water. These substances give o vapors that could ignite or explode.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn ON all hot water faucets and let the water ow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is ammable, do not smoke or use an open ame during this time.

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children.

• Before the washer is removed from service or discarded, remove the door to prevent children from climbing inside.

• Do not install or store the washer where it will be exposed to the weather or freezing temperatures.

• Do not tamper with controls.

• Do not repair or replace any part of the washer or attempt any servicing other than as described in this manual. We strongly recommend that any service be performed by a qualied technician.

• See Installation Instructions for grounding requirements.

• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.

• Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch re.

• Use fabric softeners or products to eliminate static only as recommended by the manufacturer.

• This washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.

• Turn OFF the water faucets and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.

• Packaging material can be dangerous for children. There is a risk of suocation. Keep all packaging from children.

• Always check the inside of the washer for foreign objects before loading laundry. Keep the door closed when not in use.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

•Unplugthewasherbeforecleaning to avoid the risk of

electric shock.

• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage

the nish.

• Do not put oily or greasy rags or clothing on top of the washer. These substances give o vapors that

could ignite the materials.

• Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after

laundering and may catch re.

• Disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this

WARNING

• Refer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions are

packed in the washer for the installer’s reference. If the washer is moved to a new location, have it checked and reinstalled by a qualied service technician. Failure to follow this warning can cause serious injury, re, electric shock, or death.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to follow this warning can cause serious injury, re, electric shock, or death.

• For personal safety, this appliance must be properly grounded. Failure to follow this warning can cause serious injury, re, electric shock, or death.

• The power cord of this appliance is equipped with a

3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility

of electric shock hazard from this appliance.

• This washer must be plugged into a 120VAC, 60Hz grounded outlet. Failure to follow this warning can

cause serious injury, re, electric shock, or death.

• Have the wall outlet and circuit checked by a

qualied electrician to make sure the outlet is properly grounded. Failure to follow this warning can cause

serious injury, re, electric shock, or death.

• Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can cause

serious injury, re, electric shock, or death.

• Do not install on carpet. Install the washer on a solid oor. Failure to follow this warning can cause serious leak damage.

• Do not remove grounding prong. Do not use an

adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow these warnings can

cause serious injury, re, electric shock, or death.

appliance from the power supply. Failure to follow this warning can cause serious injury, re, electric shock, or death.

• Do not combine detergents, fabric softeners, and/or other laundry products from dierent manufacturers for use in a load, unless specied on the fabric label.

• Do not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when using laundry products. Incorrect usage can produce

poisonous gas, resulting in serious injury or death.

• Do not reach into the washer while parts are moving. Before loading, unloading, or adding items, push in the cycle selector knob and allow the drum to coast to a complete stop before reaching inside. Failure to follow

this warning can cause serious injury, re, electric shock or death.

• The washer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best

performance and also prevents overloading house wiring circuits which could cause a re hazard from overheated wires.

• Never unplug your washer by pulling on the power cord. Always grip plug rmly and pull straight out

from the outlet. Failure to follow this warning can cause serious injury, re, electric shock, or death.

• Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. Consult with a

qualied service technician. Failure to follow this warning can cause serious injury, re, electric shock, or death.

• When installing or moving the washer, be careful not to pinch, crush, or damage the power cord. Failure

to follow this warning can cause serious injury, re, electric shock, or death.

• The washer must be installed and electrically grounded by a qualied service technician in accordance with local codes to prevent shock hazard

and assure stability during operation.

• The washer is heavy. Two or more people may be needed to install and move the appliance. Failure

to do so can result in damage to property or serious bodily injury.

• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this

warning can cause serious leak damage.

• To reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this

warning can cause serious injury, re, electric shock, or death.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: RISK TO CHILDREN

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failure to comply with these warnings could result in serious personal injury.

• Destroy the carton, plastic bag, and other packing materials after the washer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers. Failure to comply with these warnings could result in serious personal injury.

WARNING

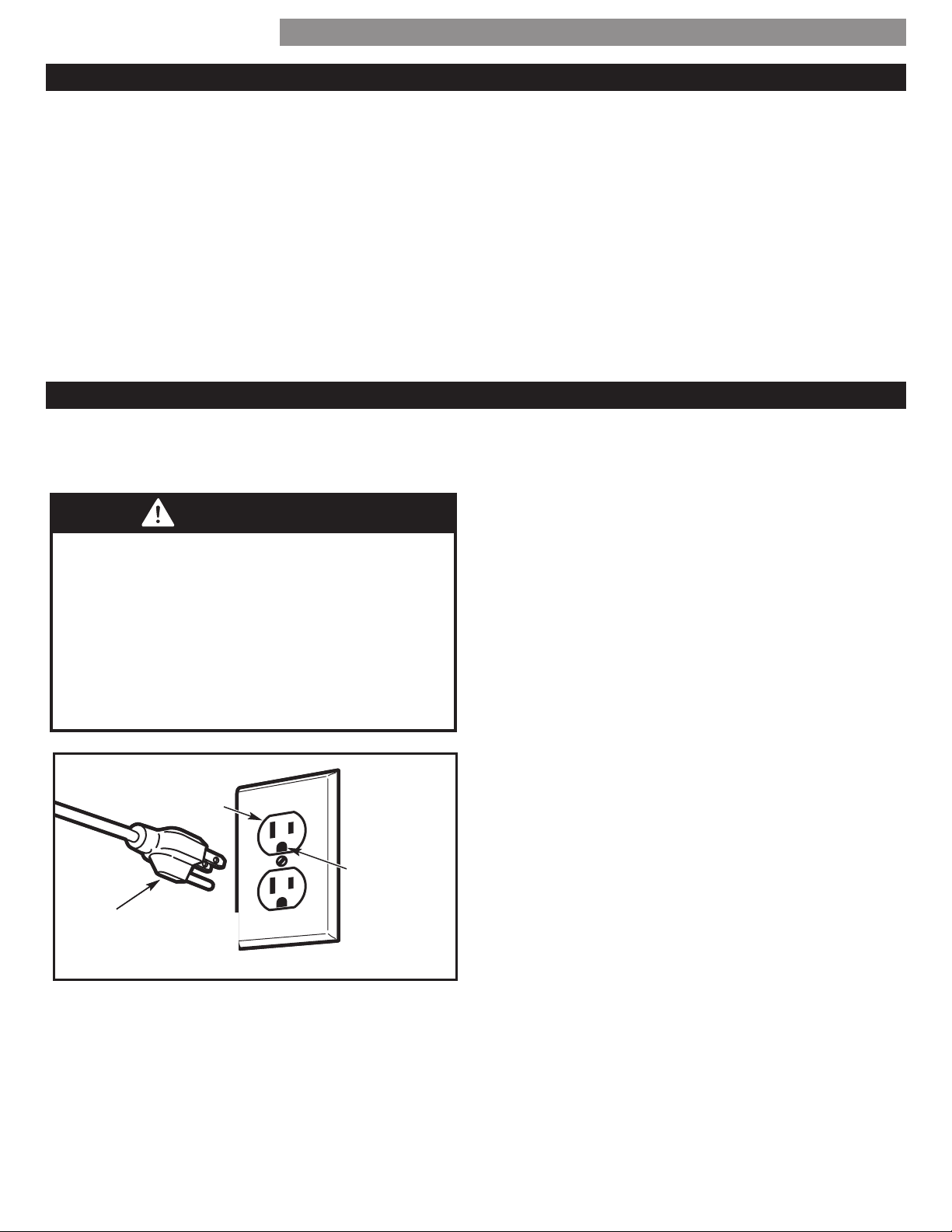

GROUNDING REQUIREMENTS

IMPORTANT: Please read carefully. TO CONNECT ELECTRICITY

WARNING

Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualied electrician or service technician if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it does not t the outlet, have a proper outlet installed by a qualied electrician. Failure to follow these warnings can cause serious injury, re, electric shock, or death.

• Keep laundry products out of children’s reach. To prevent personal injury, observe all warnings on product labels. Failure to comply with these warnings could result in serious personal injury.

• Before your washer is removed from service or discarded, remove the door to the washing compartment to avoid the danger of children or small animals getting trapped inside. Failure to do so can result in serious personal injury or death.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

3-prong grounding type wall receptacle

3-prong grounding plug

Ensure proper ground exists before use.

FEATURES AND BENEFITS

KEY PARTS AND COMPONENTS

DETERGENT DISPENSER

There are four compartments. One each for prewash, main wash, liquid bleach, and liquid fabric softener.

GLASS TOUCH CONTROL PANEL

The smooth glass touch panel allows you to make your selections with just a light touch of the button. The easy-toread LED display shows cycle options, settings, cycle status, and estimated time remaining during operation. NOTE: Sensors in the washer automatically detect the size of the wash load to optimize washing time, based on the selected cycle and options.

DIRECT-DRIVE MOTOR

The direct-drive motor provides improved performance and reliability while increasing energy eciency. (Motor is not visible.)

LARGE-CAPACITY STAINLESS STEEL DRUM

The ultra-large stainless steel drum oers extreme durability and is tilted to improve eciency and allow easier access for large items.

EASY-ACCESS LOCKING DOOR

The extra-large door locks during operation. The door will not open until it is safe to do so.

FILTER ACCESS PANEL

Provides easy access to the drain pump lter, which allows you to clean the lter or retrieve lost items without a service call.

LEVELING FEET

Four leveling feet (two in the front and two in the back) adjust to improve washer stability on uneven oors. Feet are adjusted and locked in place using the adjusting wrench included with the washer.

HIGH-EFFICIENCY STEAM CYCLES

During high-eciency steam cycles, hot steam interacts with fabrics to help remove tough stains.

DOOR MAGNET

Safely and conveniently keeps the door ajar with the door magnet. There are two door closed positions, fully closed and slightly ajar. In the latter position, the door is only closed to the door magnet to keep the door slightly open when the washer isn’t in use. This will promote air circulation and allow the interior of the machine to dry. To use this feature, close the door just until it contacts the door magnet.

Included Accessories

Cold and Hot Water Inlets

Power

Cord

Drain

Hose

Rear of Washer

Shipping Bolts/Retainers (4)

NOTE: Bolts/Retainers MUST be removed prior to operation. Keep for future use (refer to page 8).

Hot and Cold Water Hoses

Wrench (for removing

shipping bolts and

adjusting and

locking leveling feet)

Wrench appearance may vary.

Non-skid pads

(for securing

Tie Strap

drain hose

Caps (4)

(for covering

shipping bolt holes)

Elbow Bracket

(for securing

drain hose

Optional Accessories

Drain Hose Extension

P/N 5215ER2002K

Pedestal

WDP3RW (White) WDP3R (Wild Cherry Red) WDP3R (Platinum)

Stacking kit (For dryer)

D26 17002 (White) D26 17008 (Ginger) D26 17009 (Chili pepper)

INSTALLATION REQUIREMENTS

KEY DIMENSIONS AND SPECIFICATIONS

Description Front-Loading Washer Rated Voltage/Frequency 120VAC, 60Hz Dimensions 26 ¼ in. (W) X 30 ⅓ in. (D) X 38 15/16 in. (H), 54 ⅜ in. (D, door open)

66.8 cm (W) X 76.8 cm (D) X 98.5 cm (H), 138.1 cm (D, door open) Net Weight 215.8 lbs (97.9 Kg)

CHOOSE THE PROPER LOCATION

WARNING

• This washer is heavy. Two or more people are required when moving and unpacking the washer.

Failure to do so may result in damage to property or serious bodily harm.

• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this

warning can cause serious injury, re, electric shock, or death.

• Properly ground washer to conform with all electric governing codes and ordinances (refer to page 5).

Failure to follow this warning can cause serious injury, re, electric shock, or death.

• To reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this warning

can cause serious injury, re, electric shock, or death.

• To ensure proper air ow, do not block the large

opening on the bottom of the washer with carpeting or other materials.

• Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow this warning can cause serious

injury, re, electric shock, or death.

PowerOutlet

• The power outlet must be within 60 in. (1.5 m) of either side of the washer.

• The appliance and outlet must be positioned so that the plug is easily accessible.

• Do not overload the outlet with more than one appliance.

• The outlet must be grounded in accordance with current wiring electric codes and regulations.

• Time-delay fuse or circuit breaker is recommended.

NOTE: It is the personal responsibility and obligation of the product owner to have a proper outlet installed by a qualied service technician.

CLEARANCES

241/8"

(61.3 cm )

/3"

(76.8 cm )

/8"

(138.1 cm )

To ensure sucient clearance for water lines and airow, allow minimum clearances of at least 1 in. (2.5 cm) at the sides and 4 in. (10 cm) behind the unit. Be sure to allow for wall, door, or oor moldings that may increase the required clearances.

(2.5 cm )

261/4"

(66.8 cm )

1" (2.5 cm )

Allow at least 21 ¼ in. (54 cm) in front of

the washer to open the door.

4" (10 cm )

FLOORING

• To minimize noise and vibration, the washer MUST be installed on a solidly constructed oor. See the NOTE to your right.

• Allowable slope under the entire washer is a maximum 1 in. dierence from side to side or from front to back.

• Installing on carpeting and soft tile surfaces is not recommended.

• Never install the washer on a platform or weakly supported structure.

NOTE: The oor must be strong and rigid enough to support the weight of the washer, when fully loaded, without exing or bouncing. If your oor has too much ex, you may need to reinforce it to make it more rigid. A oor that is adequate for a top-loading washer may not be rigid enough for a front loading washer, due to the dierence in the spin speed and direction. If the oor is not solid, your washer may vibrate and you may hear and feel the vibration throughout your house.

INSTALLATION INSTRUCTIONS

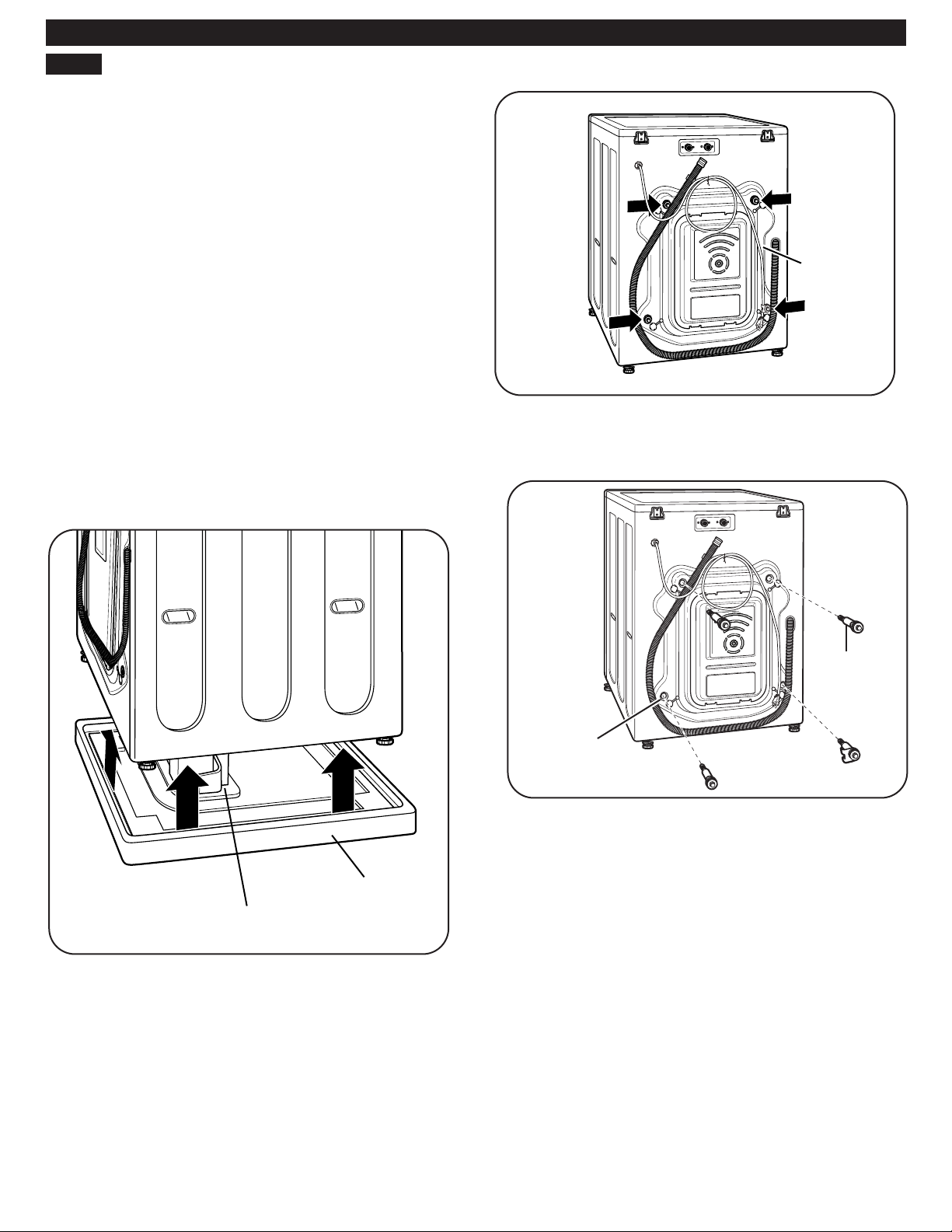

UNPACKING AND REMOVING SHIPPING BOLTS

When removing the washer from the carton base, be sure to remove the foam drum support in the middle of the carton base. See drawing below.

If you must lay the washer down to remove the base packaging materials, always protect the side of the washer and lay it carefully on its side. DO NOT lay the washer on its front or back.

To prevent internal damage during transport, the washer is equipped with four shipping bolts and plastic retainers.

IMPORTANT:

• These shipping bolts and retainers MUST NOT be

removed until just before moving the washer into its nal position.

• These bolts and retainers MUST be removed before

operating the washer.

• Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washer.

NOTE: The power cord is secured to the back of the washer with a shipping bolt to help prevent operation with shipping bolts in place.

Shipping Bolts

Power Cord

1. Starting with the bottom two shipping bolts, use the

wrench (included) to fully loosen all four shipping bolts by turning them counterclockwise.

Foam Tub Support

Carton Base

Shipping Bolts

Hole Cap

2. Remove the bolt assemblies by wiggling them

slightly while pulling.

3. Locate the four hole caps included in the accessory

pack and install them in the shipping bolt holes.

NOTE: Save the bolt assemblies for future use. To prevent damage to internal components, DO NOT transport the washer without reinstalling the shipping bolts.

CONNECTING THE WATER LINES

• IMPORTANT: Use new hoses when installing the

washer. Do NOT reuse old hoses.

• IMPORTANT: Use ONLY the inlet hoses provided with

this washer. Aftermarket hoses are not guaranteed to t or function correctly. Other hoses may not tighten correctly and could cause leaks. Subsequent damage to product or property will not be covered under the terms of the product warranty.

• Water supply pressure must be between 14.5 psi and 116 psi (100~800 kPa). If the water supply pressure is more than 116 psi, a pressure reducing valve must be installed.

• Periodically check the hose for cracks, leaks, and wear, and replace the hose if necessary.

• Make sure that the water lines are not stretched, pinched, crushed, or kinked.

• The washer should never be installed or stored in a location subject to freezing temperatures. Damage to the water lines and internal mechanisms of the washer can result. If the washer was exposed to freezing temperatures prior to installation, allow it to stand at room temperature for several hours before use and check for leaks prior to operation.

INSTALLATION INSTRUCTIONS

3. Always run a gallon or two of water through each

inlet hose to ush dirt, scale and other debris out of the water lines. Doing so will help prevent future problems with clogged lter screens, and will also allow you to verify which hose is hot and which is cold.

Rubber Seal

Water Hose (to water inlet on washer)

Rubber Seal

Water Hose (to tap)

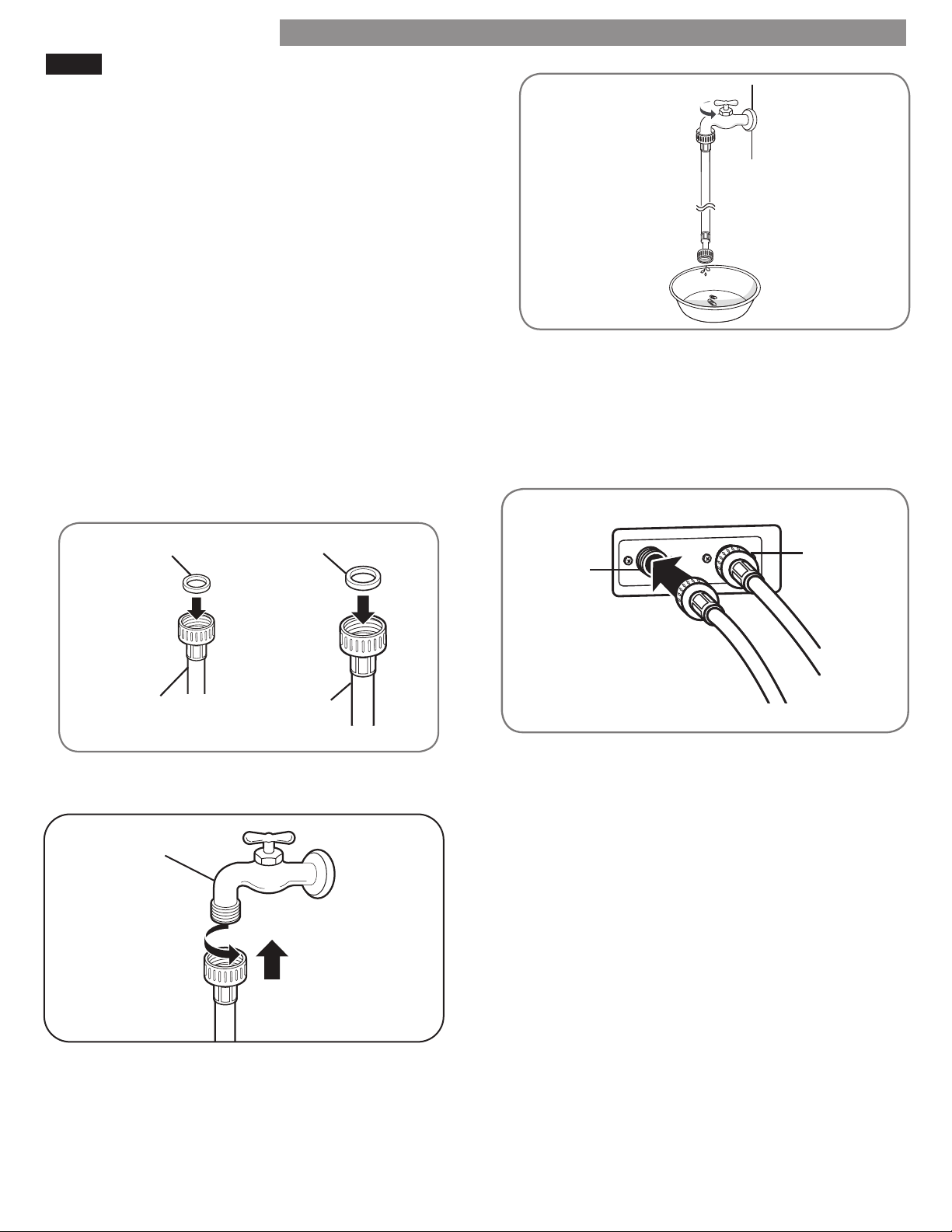

1. Inspect the threaded tting on each hose and make

sure there is a rubber seal in place in both ends.

Water Faucet

Hot

Cold

Water

Inlet

Hot

Water

Inlet

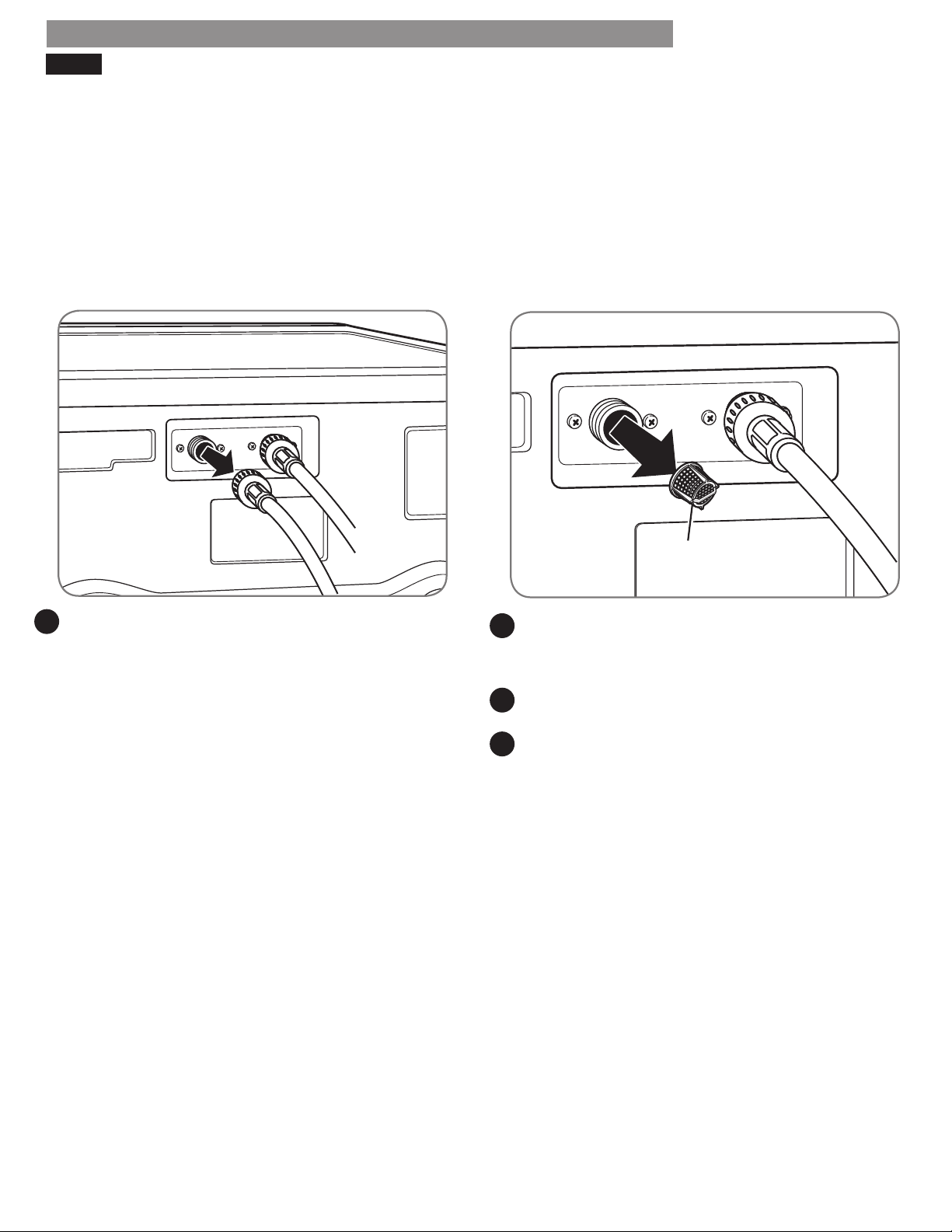

4. Attach the (red) hot water line to the hot water inlet on the back of the washer. Attach the (blue) cold water line to the cold water inlet on the back of the washer. Tighten the ttings securely.

NOTE: When installing the hoses onto the water inlet valves, be careful not to cross-thread the hose ttings. DO NOT overtighten the hoses; this could cause damage to internal components, the valve or the hose gasket. Overtightening could result in property damage from leaks.

2. Connect the water supply hoses to the HOT and

COLD water faucets tightly by hand and then tighten another ⅔ turn with pliers.

INSTALLATION INSTRUCTIONS

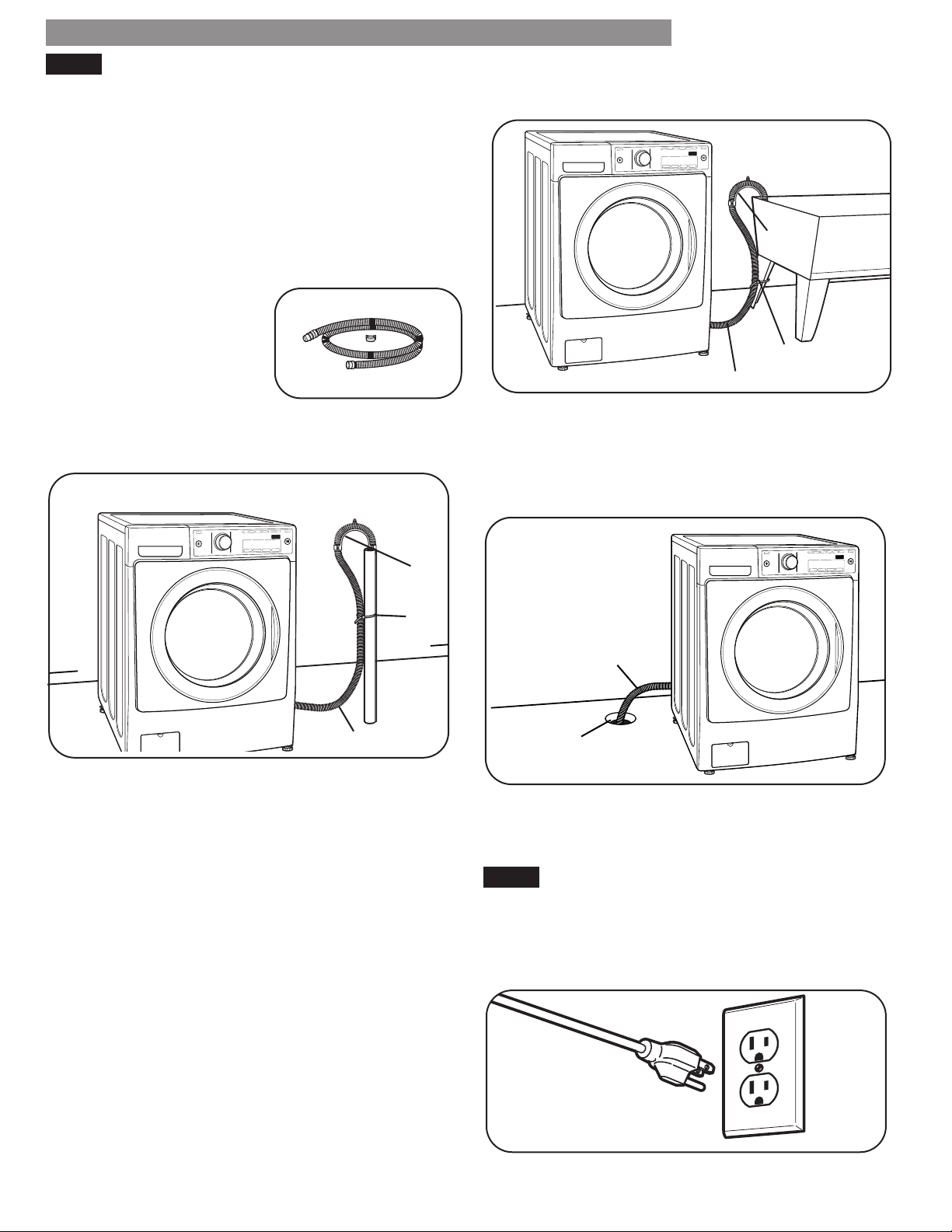

CONNECTING THE DRAIN HOSE

• The drain hose should always be properly secured. Failure to properly secure the drain hose can result in ooding and property damage.

• Do not install the end of the drain hose higher than 96 in. (243.8 cm) above the bottom of the washer.

• The drain must be installed in accordance with any applicable local codes and regulations.

• Make sure that the drain hose is not stretched, pinched, crushed, or kinked.

NOTE:

A drain hose extension kit is

Drain Hose Extension

available if the drain hose is not long enough. Do not extend the drain hose more than 6 feet, as this will cause poor draining, which will result in poor wash

P/N 5215ER2002K

and spin performance.

Option1:Standpipe

Elbow Bracket

Option2:LaundryDrum

Utility Sink

Elbow

Bracket

Tie Strap

Drain Hose

The elbow bracket should be installed near the end of the drain hose. Hang the end of the drain hose over the side of the utility sink. Use a tie strap to secure the drain hose in place.

Option3:FloorDrain

Elbow

Bracket

Tie

Strap

Drain Hose

Install the end of the drain hose into the elbow bracket. Do not extend the drain hose more than 4 inches past the end of the elbow bracket. Use a tie strap to secure the drain hose in place.

NOTE:

• Total height of the hose end should not exceed 96 in. (243.8 cm) from the bottom of the washer.

• The drain hose should be inserted no more than 8–12 inches into the standpipe. Inserting more than 8-12 inches can cause mold or microorganisms to spread to the inside of the washer.

Drain Hose

Floor Drain

Insert the end of the drain hose into the oor drain. If possible, secure the hose to prevent it from moving or coming out of the drain.

CONNECT TO THE POWER SUPPLY

Washer should be plugged into a 120-VAC, 60-Hz grounded 3-prong outlet (refer to page 5). Plug in the washer.

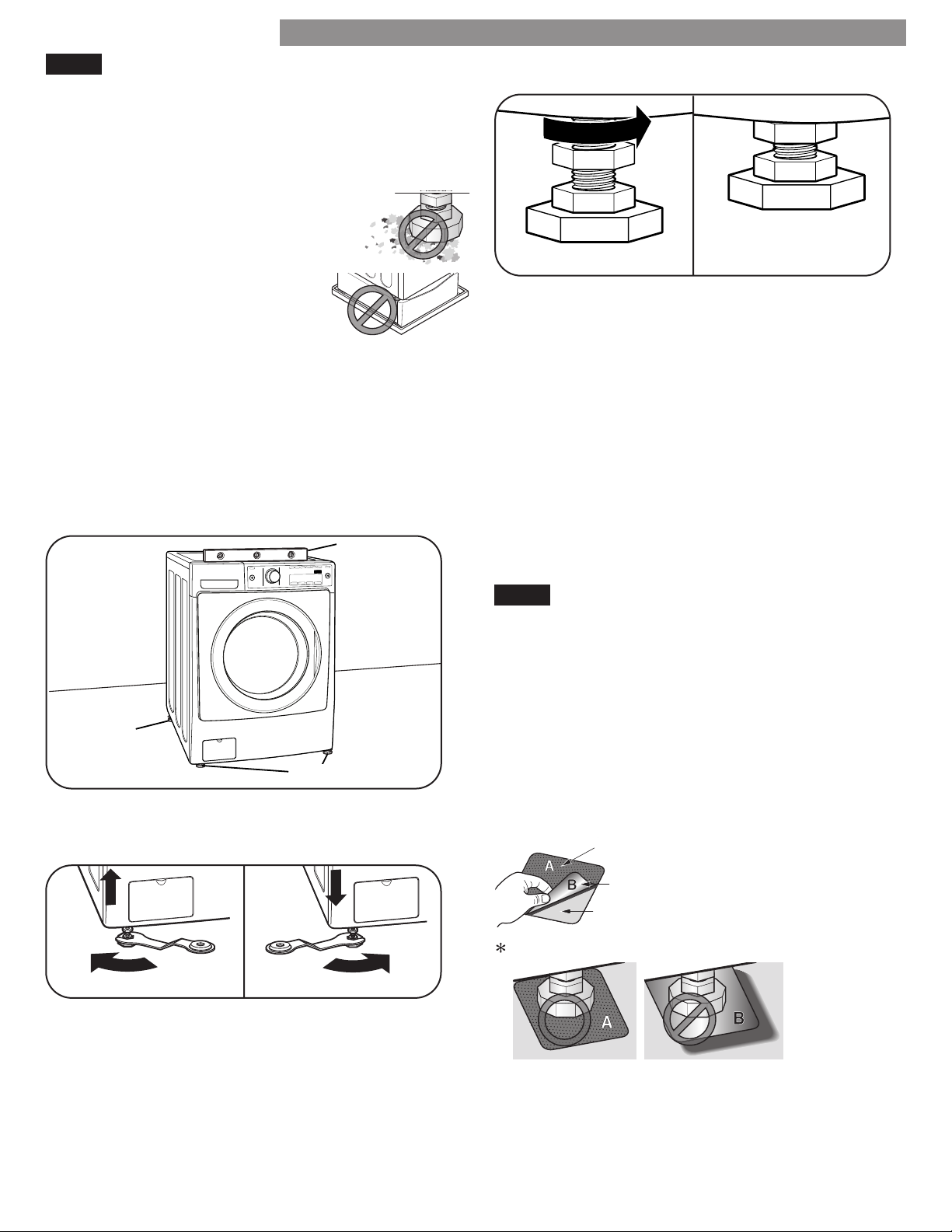

LEVELING THE WASHER

Non-skid pads

The drum of your new washer spins at very high speeds. To minimize vibration, noise, and unwanted movement, the oor must be a level, solid surface.

NOTE: Adjust the leveling feet only as far as necessary to level the washer. Extending the leveling feet more than necessary can cause the washer to vibrate.

NOTE: Before installing the washer, make sure that the oor is clean, dry and free of dust, dirt, water and oils so the washer feet cannot slide easily. Leveling feet that move or slide on the oor can contribute to excess vibration and noise due to poor contact with the oor. See INSTALLATION OF NON-SKID PADS for more information.

NOTE: If a drip pan must be used, make sure to follow the instructions provided with the drip pan and make sure the leveling feet are adjusted for rm and even contact with the pan. Use of drip pans and failure to properly level the machine may result in increased vibration and noise during operation.

All four leveling feet must rest solidly on the oor. Rock the washer from corner to corner to make sure that all four leveling feet are in rm and even contact with the oor.

Level

INSTALLATION INSTRUCTIONS

Tighten all 4 lock nuts

securely using the

wrench.

3. Once the washer is level from side to side and front to back, use the adjusting wrench to tighten all four lock nuts securely to prevent the legs from getting out of adjustment during operation. Make sure that all four leveling feet are in rm contact with the oor.

NOTE: To make sure that the washer is properly level, run the washer with a test load: place a medium-sized load of laundry in the machine. Then, press POWER, select RINSE & SPIN, and press the START/PAUSE button.

See the following sections for additional information on cycle selection and operation. Verify that the washer does not rock or vibrate excessively during the spin cycle. If the washer vibrates or shakes, adjust the leveling feet, while the washer is spinning, until the vibrations are reduced.

Leveling

Feet

Leveling Feet

1. Position the washer in its nal location, taking special care not to pinch, strain, or crush the water and drain lines. Place a level across the top of the washer.

Raise Lower

2. Loosen the locknuts on all four leveling feet with

the wrench until you can adjust the feet (wrench appearance may vary). Use the wrench to turn the feet clockwise to raise the washer, and counterclockwise to lower the washer. Using a level, adjust the feet until the washer is level from side to side and front to back. Make sure that all four feet are in rm contact with the oor.

NOTE: If you are installing the washer on the optional pedestal, the washer leveling feet should be fully retracted. Use the leveling feet on the pedestal to level the washer.

INSTALLATION OF NON-SKID PADS (optional)

Some oor surfaces are too slippery to prevent the washer from moving on the oor during heavily unbalanced loads. While it is normal for an occasional load to be out of balance, excess noise and vibration can result from the washer moving out of position. If these conditions are encountered, follow the instructions below for installation of the non-skid pads. These pads will help prevent the washer from moving during heavy, out of balance conditions, thereby reducing noise and vibration.

This side up

Stick adhesive side to floor

Remove backing

Place the pads under both front feet.

HOW TO USE

To reduce the risk of re, electric shock, or injury to persons, read and follow this

WARNING:

entire Use & Care Guide, including the Important Safety Instructions, before operating this washer.

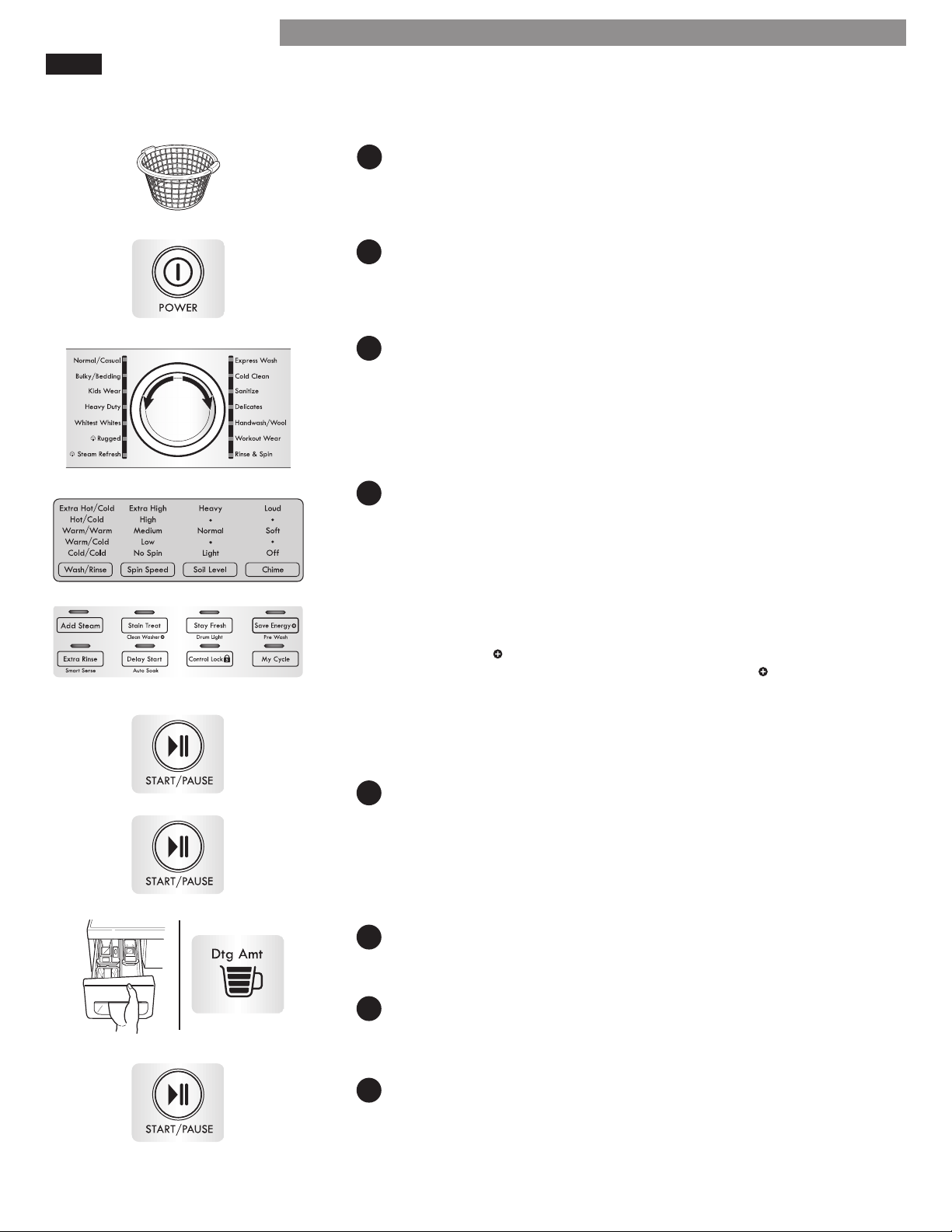

CONTROL PANEL FEATURES

I A

A E

POWER (ON/OFF) BUTTON

Press to turn the washer ON. Press again to turn the washer OFF.

NOTE: Pressing the POWER button during a cycle will cancel that cycle and any load settings will be lost. The door will unlock after a brief pause, unless the water level or temperature is too high.

CYCLE SELECTOR KNOB

Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets will appear in the display. These settings can be adjusted using the cycle setting buttons anytime before starting the cycle (refer to pages 14 and 15).

B CD

F E G

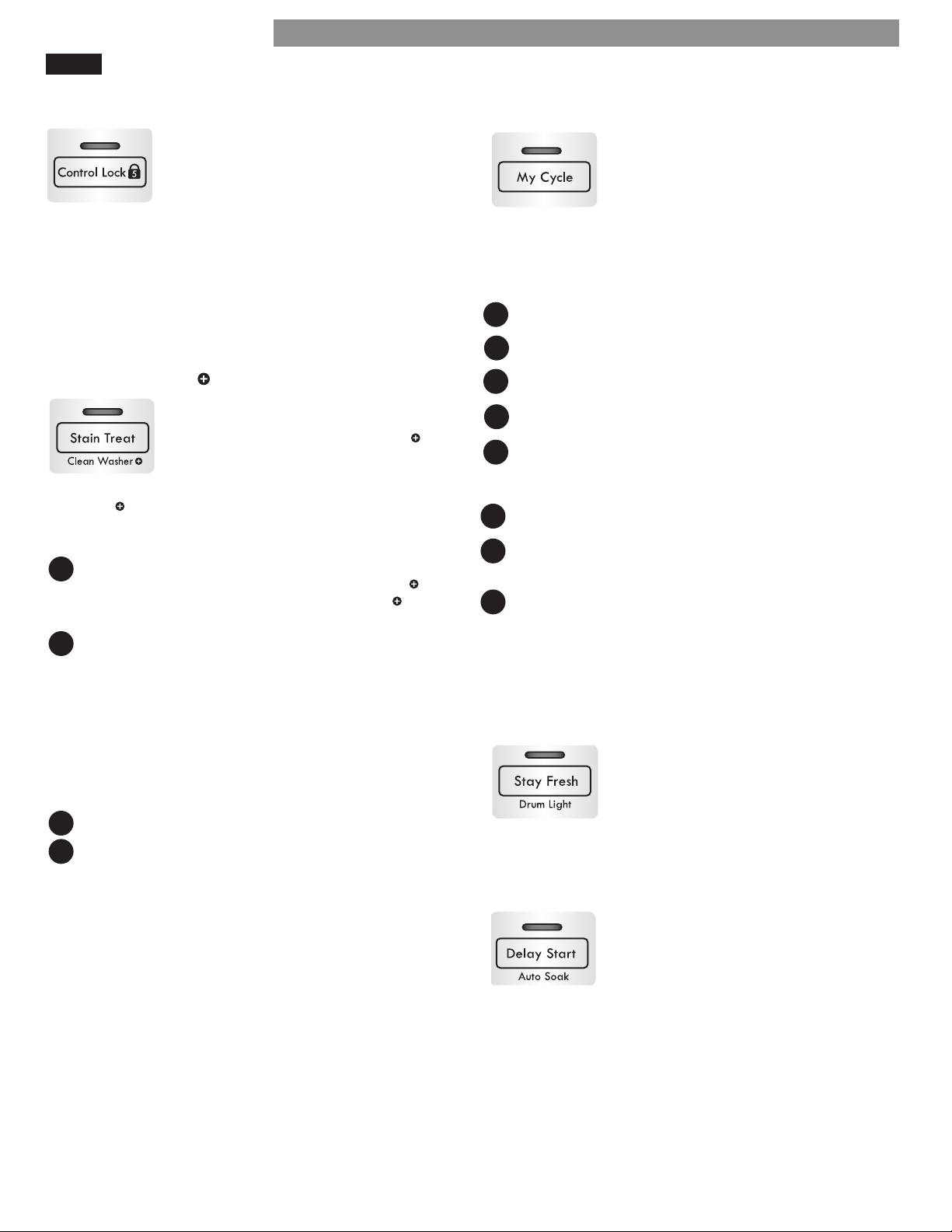

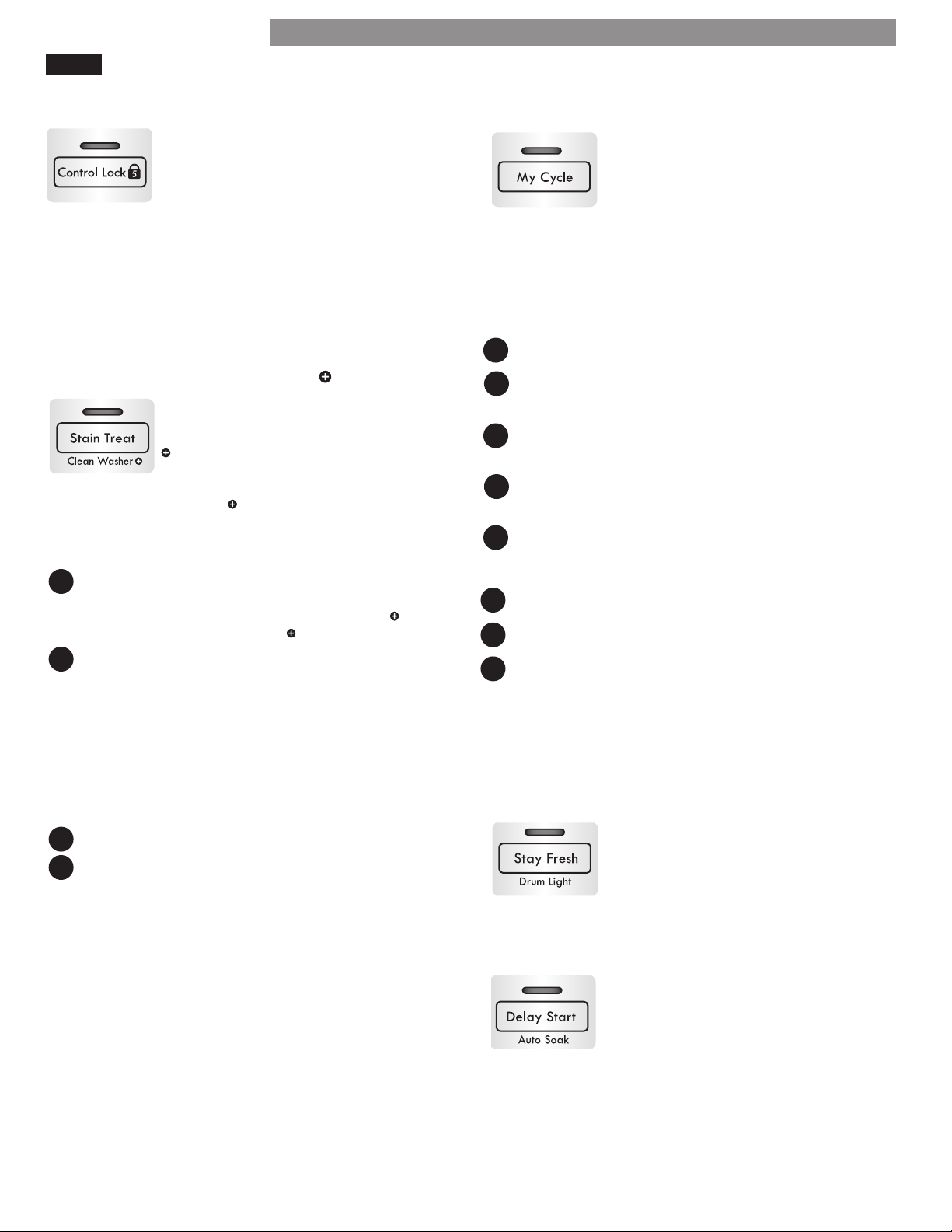

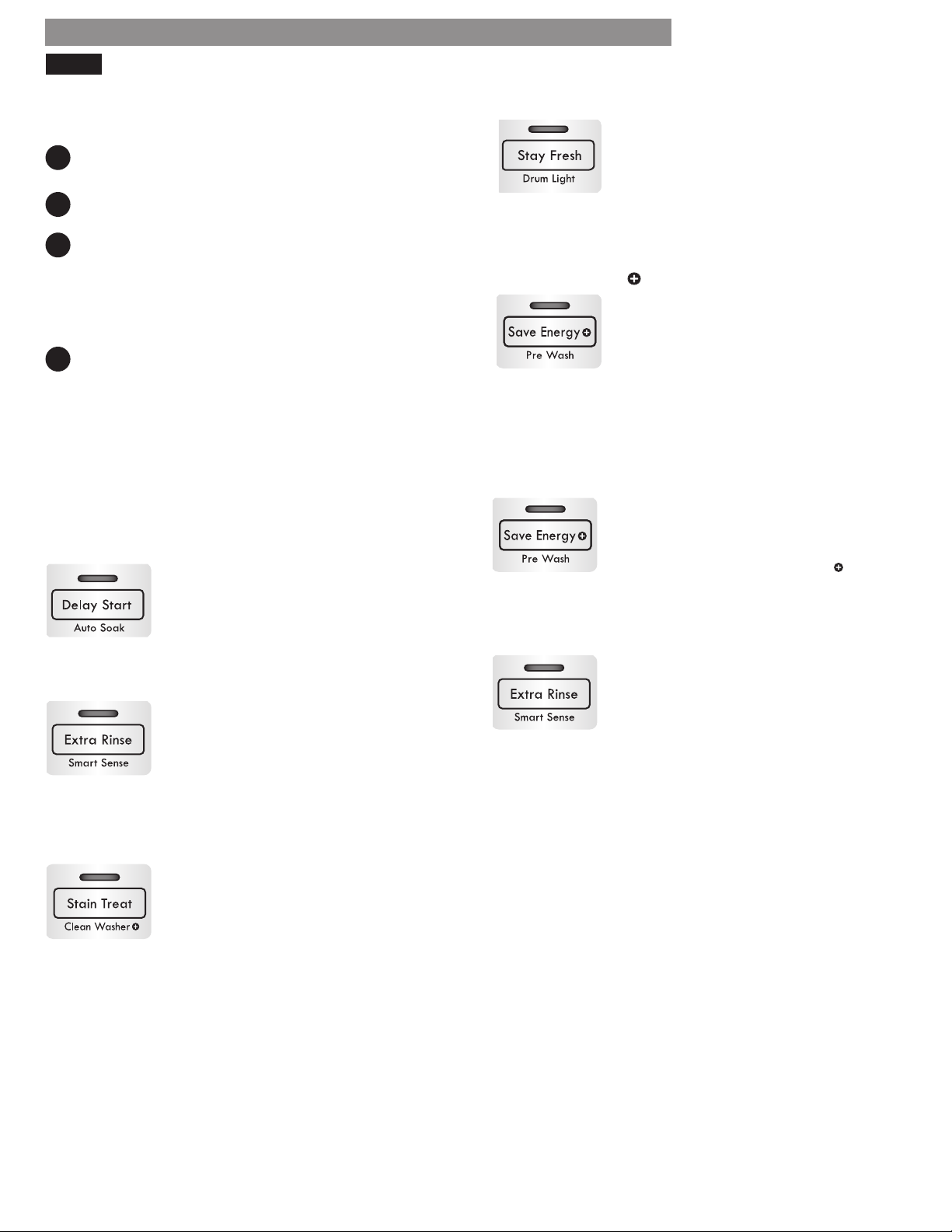

SPECIAL CYCLE AND OPTION BUTTONS

These buttons are used to activate special cycles or options (refer to pages 22 and 23).

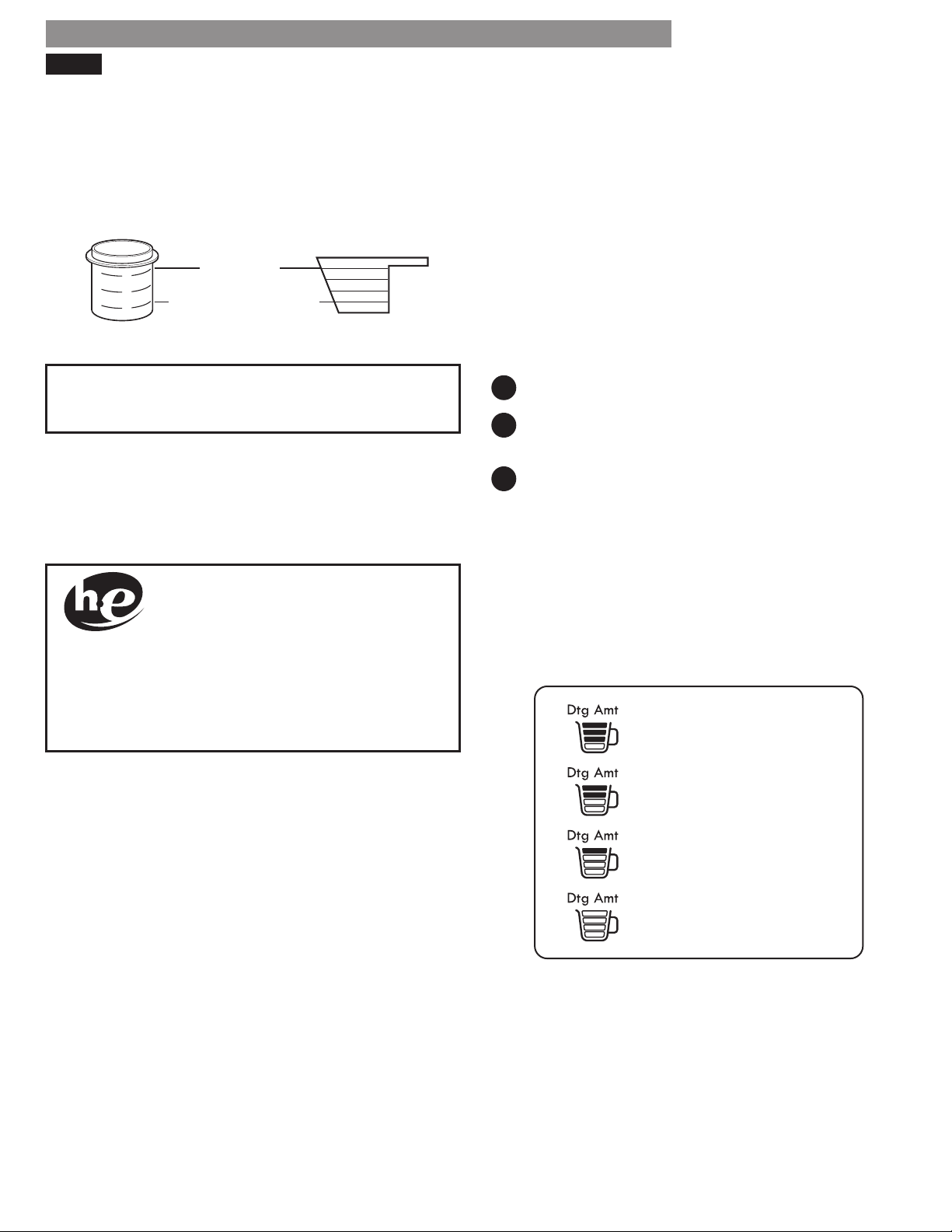

DETERGENT AMOUNT INDICATOR (Dtg. Amt.)

The detergent amount indicator bars light up to indicate the size of dry load sensed by washer control. Follow the detergent manufacturer’s recommendations for amount of detergent to use based on load size. Indicator will not be accurate if any wet clothes are placed in the washer.

NOTE: The detergent amount indicator icon does not represent an actual detergent measuring cup or cap. This feature is not available on all cycles (refer to pages 14 and 15).

START/PAUSE BUTTON

Press this button to start the selected cycle. If the washer is running, use this button to pause the cycle without losing the current settings.

NOTE: If you do not press the START/PAUSE button within four minutes of selecting a cycle, the washer automatically turns OFF.

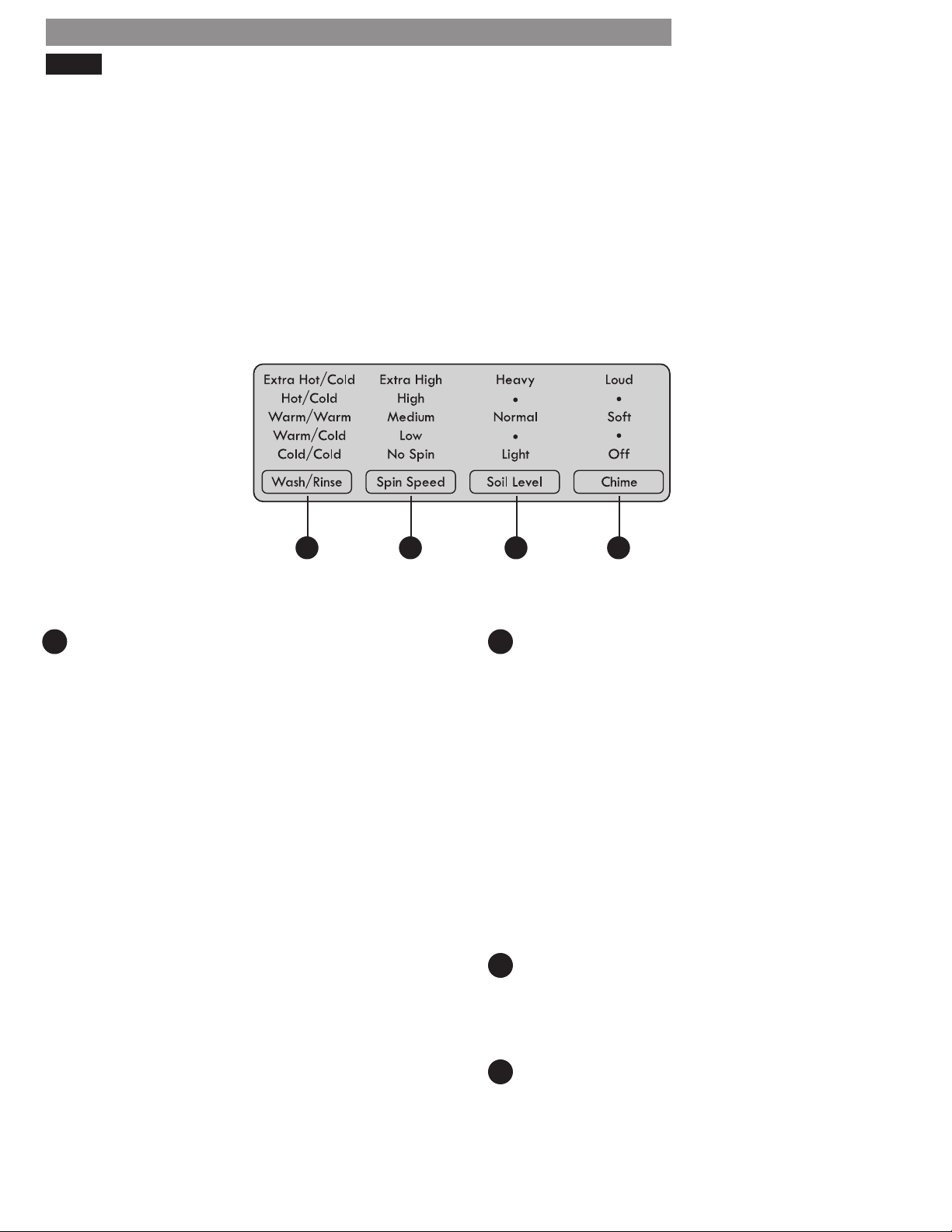

CYCLE MODIFIER BUTTONS

Use these buttons to adjust the settings for the selected cycle. The settings light up above the buttons to show the current selection (refer to page 20).

NOTE: To protect your clothing, not all settings are available on all cycle selections (refer to pages 14 and 15).

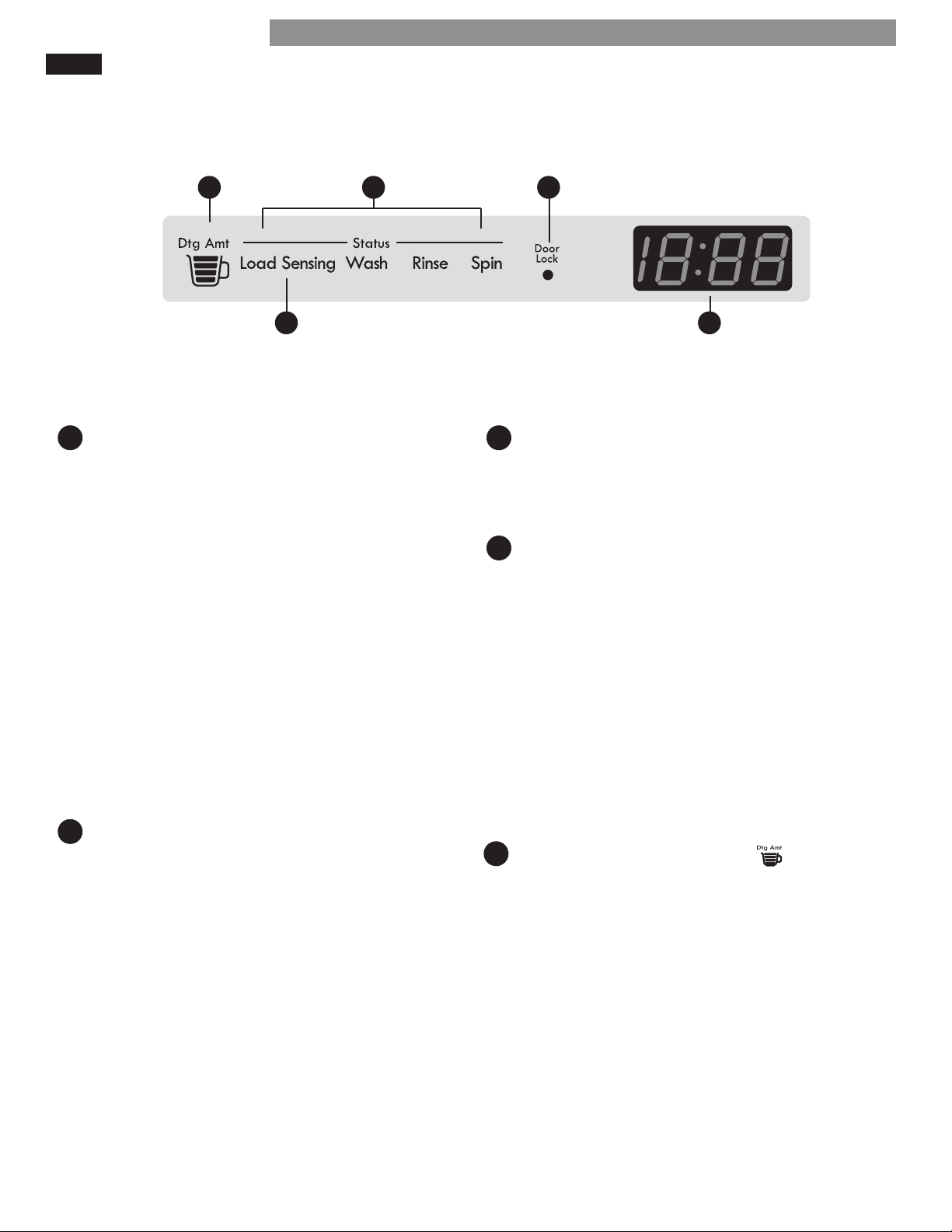

TIME AND STATUS DISPLAY

The display shows the cycle status, door lock status and estimated time remaining (refer to page 19).

ADD STEAM BUTTON

Press the ADD STEAM button to add steam to the selected cycle for added cleaning power.

NOTE: The steam option is not available on all cycles (refer to page 21).

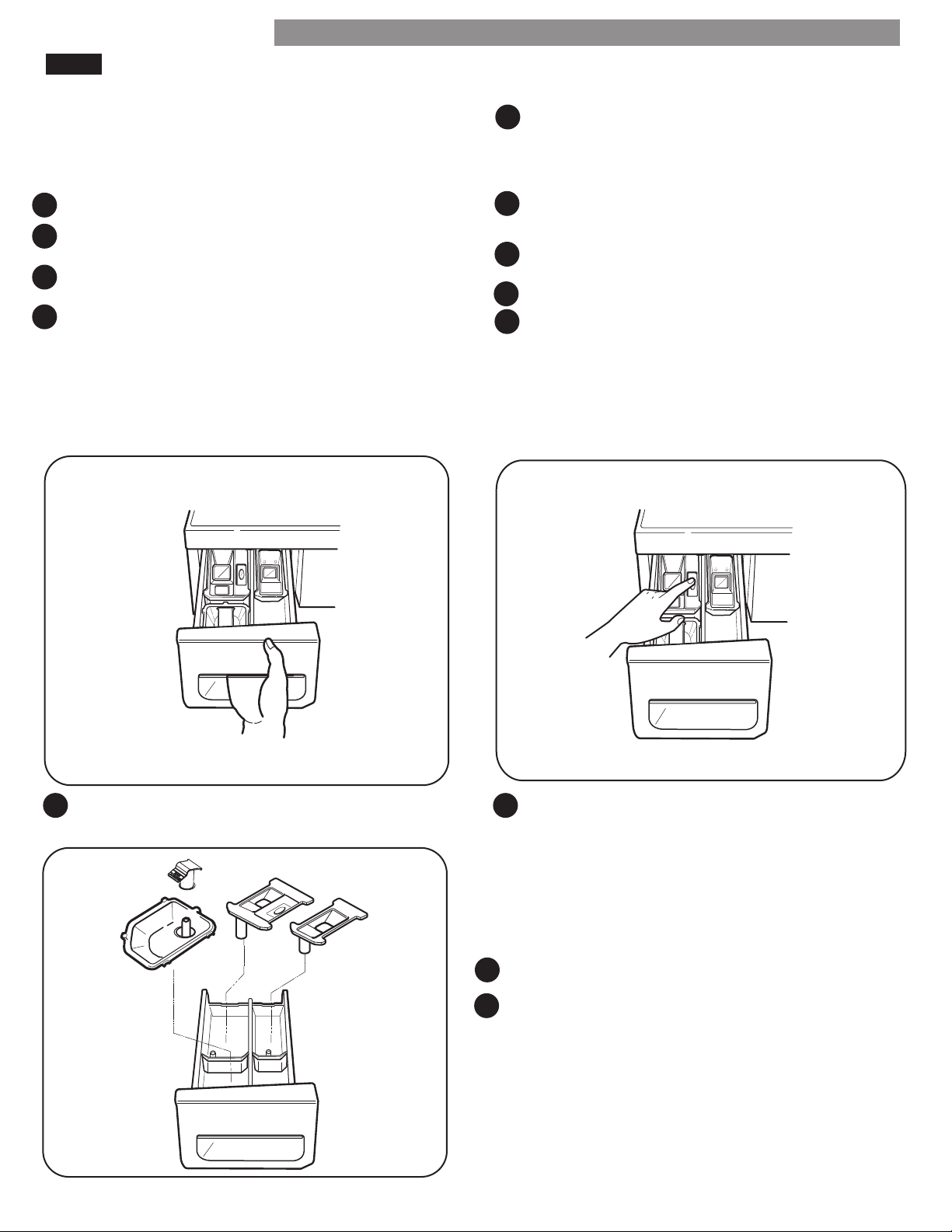

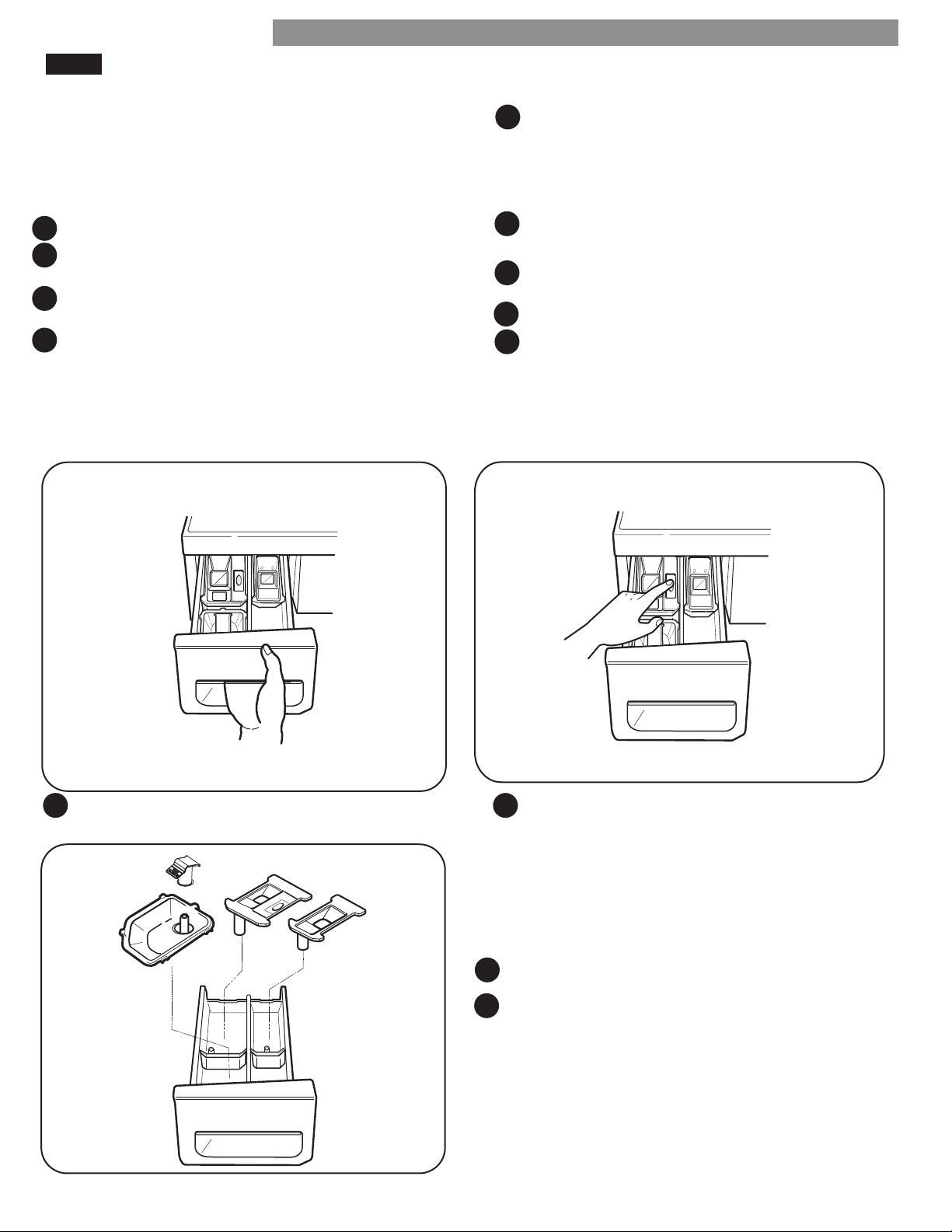

DISPENSER DRAWER

This drawer contains the compartments for detergent and additives (refer to pages 17 and 18).

HOW TO USE

OPERATING THE WASHER USING DETERGENT AMOUNT INDICATOR

IMPORTANT: DO NOT add detergent before beginning the wash cycle (step 5 below) when using detergent amount indicator.

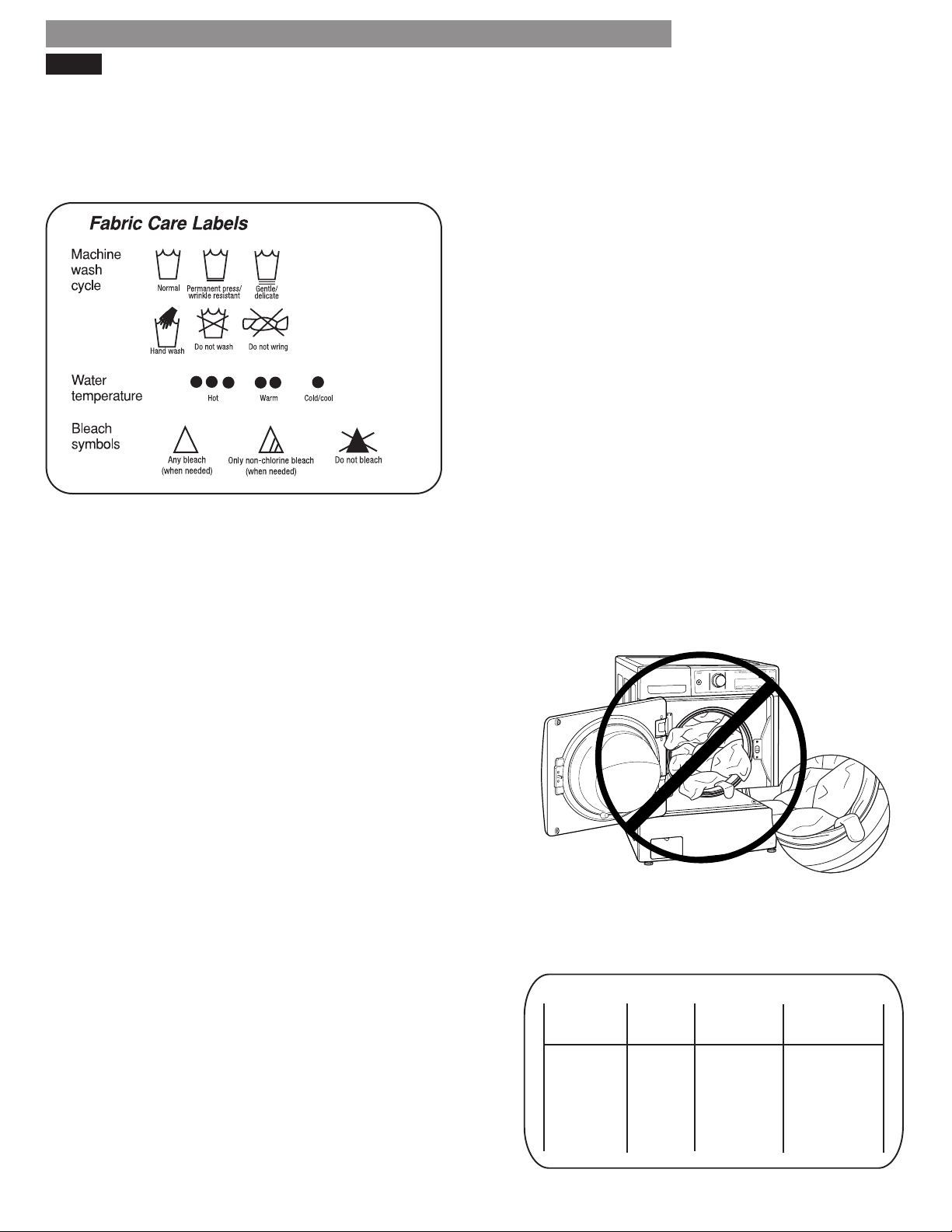

SORT LAUNDRY AND LOAD WASHER

Sort laundry by fabric type, soil level, color and load size, as needed. Open the door and load selected items into the washer (refer to page

16).

TURN ON THE WASHER

Press the POWER button to turn ON the washer. The lights around the cycle selector knob will illuminate and a chime will sound (refer to page

12).

SELECT A CYCLE

Turn the cycle selector knob in either direction to select the desired cycle. The preset Wash/Rinse temperature, Spin Speed, Soil Level, and Option settings for that cycle will be shown (refer to page 12).

SELECT CYCLE MODIFIERS & OPTIONS

Default settings for the selected cycle can now be changed if desired. Use the cycle modier buttons (refer to page 20: Wash/Rinse, Spin Speed, Soil Level, and Chime).

NOTE: To protect your fabrics, not all modiers are available on all cycles. Cycle options can also be added by using the option buttons (refer to pages 21–23: Add Steam, My Cycle, Stain Treat, Stay Fresh, Save Energy , Extra Rinse, Delay Start, Control Lock, Clean Washer , Drum Light, Pre-Wash, Smart Sense and Auto Soak).

NOTE: Not all options are available on all cycles. A dierent chime will sound and the LED will not come on if the selection is not allowed.

BEGIN CYCLE

Press the START/PAUSE button to begin the cycle. The door will lock, and the washer will briey tumble the load without water to measure its weight. Washer will stop tumbling and the detergent amount indicator bar(s) will light up indicating the size of the load. One bar indicates a Light load and four bars indicate a Heavy load. One bar indicates a Small load, two bars Medium, three bars Large, and four bars an Extra-Large load.

PAUSE CYCLE

When the detergent amount indicator lights up, press the START/PAUSE button to pause the cycle.

ADD DETERGENT

Add High-Eciency (HE) detergent to the detergent dispenser drawer based on the number of illuminated bars in the detergent amount indicator (refer to page 18).

RESUME CYCLE

Press the START/PAUSE button to resume the wash cycle.

NOTE: If you choose not to use the detergent amount indicator feature, add detergent before Step 5 (BEGIN CYCLE).

HOW TO USE

CYCLE GUIDE

The cycle guide below shows the default settings, available options and recommended fabric types for each cycle. Allowable modier adjustments are shown below the default setting for each cycle.

Display

Time

(Min.)

45-60 Yes Yes

65 No Yes

86-103 Yes Yes

89-103 Yes Yes

66-83 Yes Yes

90-105 Yes Yes

20 No Yes

Load

Sensing

Wash

Motion

Wash/Rinse Temperature

Warm/Cold High Normal

Hot/Cold

Cold/Cold

Warm/Cold Low Normal

Warm/

Warm

Hot/Cold

Cold/Cold

Hot/Cold High Heavy

Cold/Cold

Warm/Cold

Warm/

Warm

Warm/Cold

Warm/

Warm

Hot/Cold

Cold/Cold

Hot/Cold High Normal

Cold/Cold

Warm/Cold

Warm/

Warm

Spin

Speed

Extra High

No Spin

Low

Medium

Medium No Spin

Extra High

No Spin

Low

Medium

Extra High

No Spin

Low

Medium

High

Extra High

No Spin

Low

Medium

High

Extra High

No Spin

Low

Medium

Soil

Level

Heavy

Light

Heavy

Light

Normal

Heavy

Light

Normal

Heavy

Light

Add

Steam

Extra Rinse

Stain Treat

Cycle

Normal/

Casual

Bulky/

Bedding

Kids

Wear

Heavy

Duty

Whitest

Whites

Rugged

Steam

Refresh

Fabric or

Load Type

Cotton, linen, towels, shirts, sheets, jeans, mixed loads

Large items such as blankets and comforters

Specically designed to clean and thoroughly rinse kids wear

Heavily soiled cotton fabrics

Heavily to normally soiled white cottons

Heavily soiled hard and thick items such as jeans and construction work wear

Dress shirts,

blouses (load

up to ve garments)

Auto Soak

= Available Option

= Default Setting

Save Energy

PreWash

Smart Sensor

NOTE:

• To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle. A chime will sound and the LED will not light if the selection is not allowed.

• The washer automatically adjusts the wash time for the amount of laundry, water pressure, water heating time and other operating conditions.

• These cycles use various wash motions to enhance cleaning and/or fabric care performance. The wash motions may sound dierent at dierent stages of the wash cycle. This is normal.

• The recommended load size for the Sanitize cycle is 10 lbs.

HOW TO USE

CYCLE GUIDE (continued)

The cycle guide below shows the default settings, available options and recommended fabric types for each cycle. Allowable modier adjustments are shown below the default setting for each cycle.

Display

Time

(Min.)

15 No Yes

50-68 Yes Yes

98-113 Yes Yes

43 No Yes

57 No Yes

63 No Yes

20 No No

Load

Sensing

Wash

Motion

Wash/Rinse

Temperature

Hot/Cold

Cold/Cold

Warm/Cold

Warm/Warm

Cold/Cold High Normal

Extra Hot/

Cold

Cold/Cold Medium Normal

Warm/Cold

Warm/Warm

Warm/Cold Low Normal

Warm/Warm

Cold/Cold

Warm/Cold Medium Normal

Warm/Warm

Cold/Cold

Cold/Cold High

Spin

Speed

Extra

High

No Spin

Low

Medium

High

Extra

High

No Spin

Low

Medium

High Normal

Extra

High

No Spin

Low

Medium

No Spin

Low

No Spin Light

No Spin

Low

Extra

High

No Spin

Low

Medium

Soil

Level

Light

Normal

Heavy

Light

Heavy

Light

Heavy

Light

Heavy

Light

Add

Steam

Extra Rinse

Stain Treat

Cycle

Express

Wash

Cold Clean

Sanitize

Delicates

Handwash/

Wool

Workout

Wear

Rinse and

Spin

Fabric or

Load Type

Lightly soiled clothing and small loads

Small loads of cotton, linen, towels, shirts, sheets, jeans, mixed loads

Heavily soiled items, such as work clothes, diapers, etc.

Dress shirts/ blouses, nylons, sheer or lacy garments

Items labeled “hand washable”

Permanent press, synthetic items

Loads that only need to be rinsed

= Available Option

= Default Setting

Auto Soak

Save Energy

PreWash

Smart Sensor

NOTE:

• The washer automatically adjusts the wash time for the amount of laundry, water pressure, water heating time and other operating conditions.

• These cycles use various wash motions to enhance cleaning and/or fabric care performance. The wash motions may sound dierent at dierent stages of the wash cycle. This is normal.

• The recommended load size for the Sanitize cycle is 10 lbs.

HOW TO USE

SORTING WASH LOADS

Fabric Care Labels

Many articles of clothing include a fabric care label. Using the chart below, adjust the cycle and option selections to care for your clothing according to the manufacturer’s recommendations.

GroupingSimilarItems

For the best washing results, and to reduce the possibility of damage to clothing, care should be taken to sort the clothing into loads that are made up of similar items. Mixing dierent fabric types and/or soil levels can result in poor wash performance, color transfer or discoloration, fabric damage or linting. Fabrics should be sorted into groups as described below.

LoadingtheWasher

• Check all pockets to make sure that they are empty. Items such as clips, matches, pens, coins, and keys can damage both your washer and your clothes.

• Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.

• Pretreat heavily stained areas for best results.

• Combine large and small items in a load. Load large items rst.

• Large items should not be more than half of the total wash load.

• The drum should not be tightly packed with items. The door of the washer should close easily.

• To prevent an out-of-balance load, do not wash single items. Add one or two similar items to the load. Large, bulky items, such as a blanket, comforter, or bedspread, should be washed individually.

• Do not wash or spin waterproof items, such as rain coats, sleeping bags, etc.

• When unloading the washer, check under the door seal for small items.

NOTE: Make sure that the door seal area is clear when closing the door. Overloading the washer can cause items to get caught between the door and the seal. This can damage both the items and the seal.

Colors

Sort articles by color. Wash dark clothes together in a separate load from light colors or whites. Mixing dark clothes with light clothes can result in dye transfer or discoloration of the lighter clothes.

Soil Level

Wash heavily soiled clothing together. Washing lightly soiled clothing in the same load with heavily soiled clothing could result in poor wash performance for the lightly soiled clothing.

Fabric Type

Delicate articles should not be mixed with heavier or sturdier fabric types. Washing delicates in a load with heavy fabrics can result in damage to the more delicate fabrics. Washing heavier fabrics in a delicate load can result in poor wash performance for the heavier fabrics and possible damage to the delicates.

Lint Type

Some fabrics attract and bind lint to them while others give o lint in the laundry process. Avoid mixing these lint collectors and lint producers in the same load. Mixing these fabrics will result in pilling and linting on the lint collectors. (For example, lint collector – knit sweater; lint producer – terrycloth towels.)

• DO NOT OVERLOAD THE DRUM

• MAKE SURE CLOTHING IS NOT CAUGHT IN THE DOOR GASKET

Sort Laundry...

by Colors Whites

Lights Darks

by Soil Heavy

Normal Light

by Fabric Delicates

Easy Care Sturdy

by Lint Lint Producer

Lint Collector

HOW TO USE

ABOUT THE DISPENSER DRAWER

The automatic dispenser consists of four compartments which hold:

• Liquid chlorine bleach.

• Liquid fabric softener.

• Liquid or powdered detergent for prewash.

• Liquid or powdered detergent and color-safe bleach for main wash.

Pre-Wash Detergent Compartment

Add liquid or powdered detergent to this compartment when using the Pre-Wash option. Always use HighEciency (HE) detergent with your washing machine.

The amount of detergent added for the Pre-Wash option should be ½ the amount recommended for the main wash cycle. For example, if the main wash cycle requires ½ measure of detergent, add ¼ measure to the Pre-Wash compartment.

NOTE: If using liquid detergent for the main wash when using the Pre-Wash option, the liquid detergent cup accessory must be used in the main wash dispenser. This will prevent the main wash liquid detergent from being dispensed immediately.

Liquid Chlorine Bleach Compartment

Main Wash Detergent Compartment

Liquid Fabric Softener Compartment

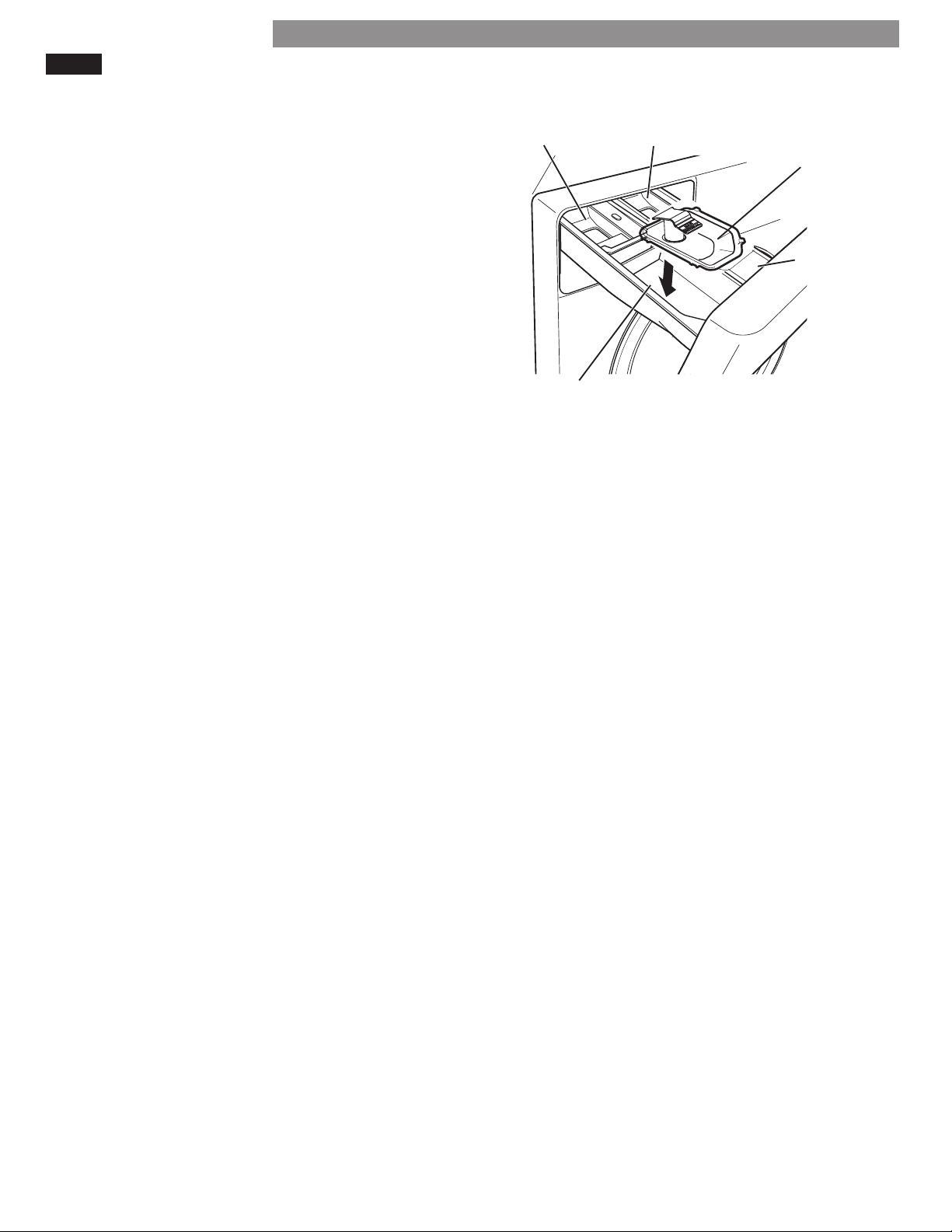

Liquid Detergent Cup

Prewash Detergent Compartment

Liquid Bleach Compartment

This compartment holds liquid chlorine bleach, which is dispensed automatically at the proper time during the wash cycle.

• Do not add powdered or liquid color-safe bleach to this compartment. The bleach compartment is designed to dispense liquid chlorine bleach only. Powdered or liquid color-safe bleach will not dispense properly.

• Always follow the manufacturer’s recommendations when adding bleach. Do not exceed the maximum ll line since this can cause the bleach to be dispensed immediately, causing damage to fabrics. Using too much bleach can damage fabrics.

• Never pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can occur.

Main Wash Detergent Compartment

This compartment holds laundry detergent for the main wash cycle. The detergent is added to the load at the beginning of the cycle. Always use High-Eciency (HE) detergent with your washing machine. Either powdered or liquid detergent may be used.

Never exceed the manufacturer’s recommendations when adding detergent. Using too much detergent can result in detergent buildup in clothing and the washer.

NOTE: Liquid or powdered color-safe bleach may be added to the main wash compartment with detergent of the same type. DO NOT add liquid or powdered color-safe bleach to the bleach dispenser. DO NOT mix liquid and powdered cleaning agents within the same compartment.

Fabric Softener Compartment

This compartment holds liquid fabric softener, which is automatically dispensed during the nal rinse cycle.

Never exceed the manufacturer’s recommendations when adding softener. Using too much fabric softener can result in buildup in clothing and the washer. Either powdered or liquid fabric softener may be used.

• Always follow the manufacturer’s recommendations when adding fabric softener. Do not exceed the maximum ll line. Using too much fabric softener may stain clothes.

• Dilute concentrated fabric softeners with warm water. Do not exceed the maximum ll line.

• Never pour fabric softener directly onto the load or into the drum.

HOW TO USE

DETERGENT AND DISPENSER USE

AWordAboutDetergents

High-Eciency (HE) detergents produce fewer suds, dissolve more eciently to improve washing and rinsing performance, and help to keep the interior of your washer clean. Using detergent that is not HE may cause oversudsing and unsatisfactory performance which could result in error codes, cycle failure, and machine damage.

Maximum

Normal Load Amount

Liquid

Detergent

For proper wash performance, always measure the detergent using the measurements provided by the detergent manufacturer.

The normal amount of HE detergent needed, for average loads, is less than ½ of the recommended maximum. Use less detergent for soft water, light soil or smaller loads. Never use more than the maximum amount recommended by the detergent manufacturer.

Powdered

Detergent

Designed to use only High-Eciency (HE) detergent

IMPORTANT: Your washing machine is designed for use

with only High-Eciency (HE) detergents. HE detergents are formulated specically for front-load washers and contain suds-reducing agents. Always look for the HE symbol when purchasing detergent.

DetergentAmount

Use the detergent amount indicator to help determine the correct amount of detergent to use.

Bars light up to indicate the size of the dry load sensed by the washer control. Follow the detergent manufacturer’s recommendations for the amount of detergent based on load size. The indicator will not be accurate if any wet clothes are placed in the washer.

NOTE: The detergent amount indicator icon does not represent an actual detergent measuring cup or cap.

FillingtheDispenser

To add detergent, bleach, and fabric softener to the automatic dispenser:

Open the dispenser drawer.

Load the laundry products into the

appropriate compartments.

Close the drawer before starting the cycle.

NOTE: It is normal for a small amount of water to

remain in the bleach and softener compartments at the end of the cycle.

IMPORTANT: Do not place or store laundry products,

such as detergent, bleach, or liquid fabric softener, on top of your washer or dryer. Wipe up any spills immediately. These products can damage the nish and controls.

1 bar = small load

IMPORTANT: Not all detergents are the same. Pay careful attention to the amount of detergent used to avoid oversudsing, poor rinsing and detergent buildup in clothing, and residue buildup that can contribute to odors in the machine. NEVER use a cup or scoop other than the one supplied by the manufacturer of the detergent you are using. Never use more than the maximum amount of detergent recommended by the manufacturer.

Always measure the detergent amount. While HE detergents are designed for this type of washing machine, be careful when measuring the detergent. For most normal loads, no more than ¼ to ½ of cap or scoop of HE detergent should be used.

NOTE: Extra care must be exercised when using 2X and 3X concentrated detergents because even a little bit extra

can contribute to the problems mentioned above. NOTE: Detergents designated as HE compatible may not

provide optimal results.

2 bars = medium load

3 bars = large load

4 bars = extra-large load

HOW TO USE

CE D

TIME AND STATUS DISPLAY

The time and status display shows the estimated time remaining, cycle progress, and door lock status.

B A

A C

ESTIMATED TIME REMAINING

When the START/PAUSE button is pressed, the washer will automatically detect the load size for cycles that use load sensing. The control will then optimize the wash and rinse times, based on the selected cycle, modiers and options. When the load size has been determined, the display will change from dashes (- - -) to the estimated time for that cycle. For non-load sensing cycles, the estimated time will display when the cycle is selected.

NOTE:

• The time shown is only an estimate. For example, the time displayed may pause for a period of time while the machine is heating the water or balancing the load. Under certain conditions, the machine can pause for extended periods of time.

• Estimated time is based on normal operating conditions. Several external factors (load size, room temperature, incoming water temperature, etc.) also aect the length of estimated time vs. actual time.

LOAD-SENSING INDICATOR

At the beginning of cycles that use the load sensing feature, the LOAD SENSING light will blink while the load size is being measured. Once the size has been determined, the control adjusts the cycle for optimum performance. Estimated time remaining will not display until the load size has been determined, and may be dierent for each load.

CYCLE STATUS INDICATOR

These status LEDs illuminate to indicate which stage of the cycle is currently running. A blinking light indicates the active stage of the cycle. When that stage is complete, the light will remain steady.

DOOR LOCK INDICATOR

Indicates that the door is locked. The washer door will lock while the washer is operating. The door can be unlocked by pressing START/PAUSE to pause the washer.

NOTE:

• If the temperature in the washer is too high, the door cannot be unlocked until the washer has cooled.

• If the water level is too high, the door will not unlock. To drain the water, press POWER, then press the SPIN SPEED button without selecting a cycle. Press START/PAUSE and the water will drain and the clothes will spin out. Do not try to force the door open, as it will damage the door.

DETERGENT AMOUNT INDICATOR

The detergent amount indicator displays the suggested amount of detergent for the load. Fewer lit bars indicate a smaller load; therefore, less detergent should be used (refer to page 18).

HOW TO USE

CYCLE MODIFIER BUTTONS

Each cycle has default settings that are selected automatically. You may also customize these settings using the cycle modier buttons. Press the button for the desired modier until the indicator light for the desired value is lit. The washer automatically adjusts the water level for the type and size of wash load for best results and maximum eciency. Due to the high-eciency nature of this product, water levels may be much lower than expected. This is normal operation and cleaning/ rinsing performance will not be compromised.

A B C D

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle. A chime will sound and the LED will not light if a selection is not allowed (refer to pages 14 and 15).

A B

WASH/RINSE

Wash/Rinse selects the wash and rinse temperature combination for the selected cycle. Press the Wash/ Rinse button until the indicator light for the desired setting is lit.

• Your washer features a heating element to boost the hot water temperature for Extra Hot settings. This provides improved wash performance at normal water heater settings.

• Select the water temperature suitable for the type of load you are washing. Follow the garment fabric care labels for best results.

• Warm rinses are regulated at approximately 86°F (30°C).

• Warm rinses leave the clothes dryer than cold rinses, but will result in increased energy consumption and greater wrinkling of clothes.

• Cold rinses use less energy. The actual rinse temperature depends on the temperature of the cold water at the faucet.

SPIN SPEED

Higher spin speeds extract more water from clothes, reducing drying time and saving energy.

Press the SPIN SPEED button until the desired speed is selected. Some fabrics, such as delicates, require a slower spin speed. To protect your clothing, not all spin speeds are available for all cycles.

The Drain & Spin cycle:

1. Press the POWER button to turn ON the washer.

2. Press the SPIN SPEED button to select the desired

spin speed. For drain only, select the NO SPIN option.

3. Press the START/PAUSE button. The water will drain and the clothes will tumble before the spin routine begins.

SOIL LEVEL

Adjusting the soil level setting will modify the cycle to allow more time for heavily soiled clothes or less time for lightly soiled clothes. Press the SOIL LEVEL button until the desired soil level is selected.

CHIME

Press repeatedly to adjust the volume of the chime and keypad tones. You may turn the end-of-cycle chime and keypad tones ON or OFF with the CHIME button.

STEAM CYCLES AND OPTIONS

HOW TO USE

ADDSTEAMOption

STEAM cycles include the Steam Refresh,

Normal/Casual, Bulky/Bedding, Kids Wear, Heavy Duty, Rugged and Whitest Whites. Adding steam to these cycles provides improved cleaning performance while reducing energy and water consumption. By using a hot steam spray and cooler water, fabrics get the cleaning benets of a super hot wash, without the energy usage or potential damage to fabrics.

ToADDSTEAMtoacycle:

Turn ON the washer and turn the cycle selector knob to

select a cycle that allows the steam option.

Press the ADD STEAM button. The washer will automatically adjust the cycle settings.

Set any other desired options.

Press the START/PAUSE button to start the cycle.

CAUTION:

The door may be very warm during steam cycles. This is normal.

Do not attempt to override the door lock mechanism or reach into the washer during a steam cycle. Steam can cause severe burns.

IMPORTANT NOTES ABOUT STEAM CYCLES:

• Steam may not be visible during the steam cycles. This is normal.

• Do not use steam with delicate fabrics such as wool, silk, or easily discolored fabrics.

UsingtheSTEAMREFRESHCycle

STEAM REFRESH uses the power of steam alone to help reduce wrinkles and odor in fabrics. Use it to reduce wrinkles in clothes that have been stored for an extended period of time or that have been left in the drum for too long; and reduce odor in clothes that have been worn in a smoky area. Steam also makes ironing easier.

TousetheSTEAMREFRESHcycle:

Load up to ve garments and close the door.

Turn ON the washer and turn the cycle selector knob to

select the STEAM REFRESH cycle. The number three (default setting) will appear in the display to indicate three garments.

Press the ADD STEAM button until the display number matches the number of garments loaded.

NOTE: If there is any moisture inside the drum from a previous wash cycle, wipe the drum dry with a towel before adding clothing. No other options need to be selected.

Press the START/PAUSE button to start the cycle.

After the STEAM REFRESH cycle is complete, the washer will tumble the clothes for up to 30 minutes to prevent clothes from becoming wrinkled again.

The clothing may feel slightly damp after removing from the STEAM REFRESH cycle. If desired, hang clothes on a hanger for a few minutes before wearing.

• The STEAM REFRESH cycle is not recommended for use with 100% cotton clothing. Best results are achieved with 70/30 cotton/polyblend fabrics.

• Remove stains from clothing before using the STEAM REFRESH cycle; the high heat could cause stains to set in permanently.

• Do not use STEAM REFRESH with the following Items: wool, blankets, leather jackets, silk, wet clothes, lingerie, foam products, or electric blankets.

• Best results are achieved when articles are of similar size and fabric type. Do not overload the washer.

+ 47 hidden pages
