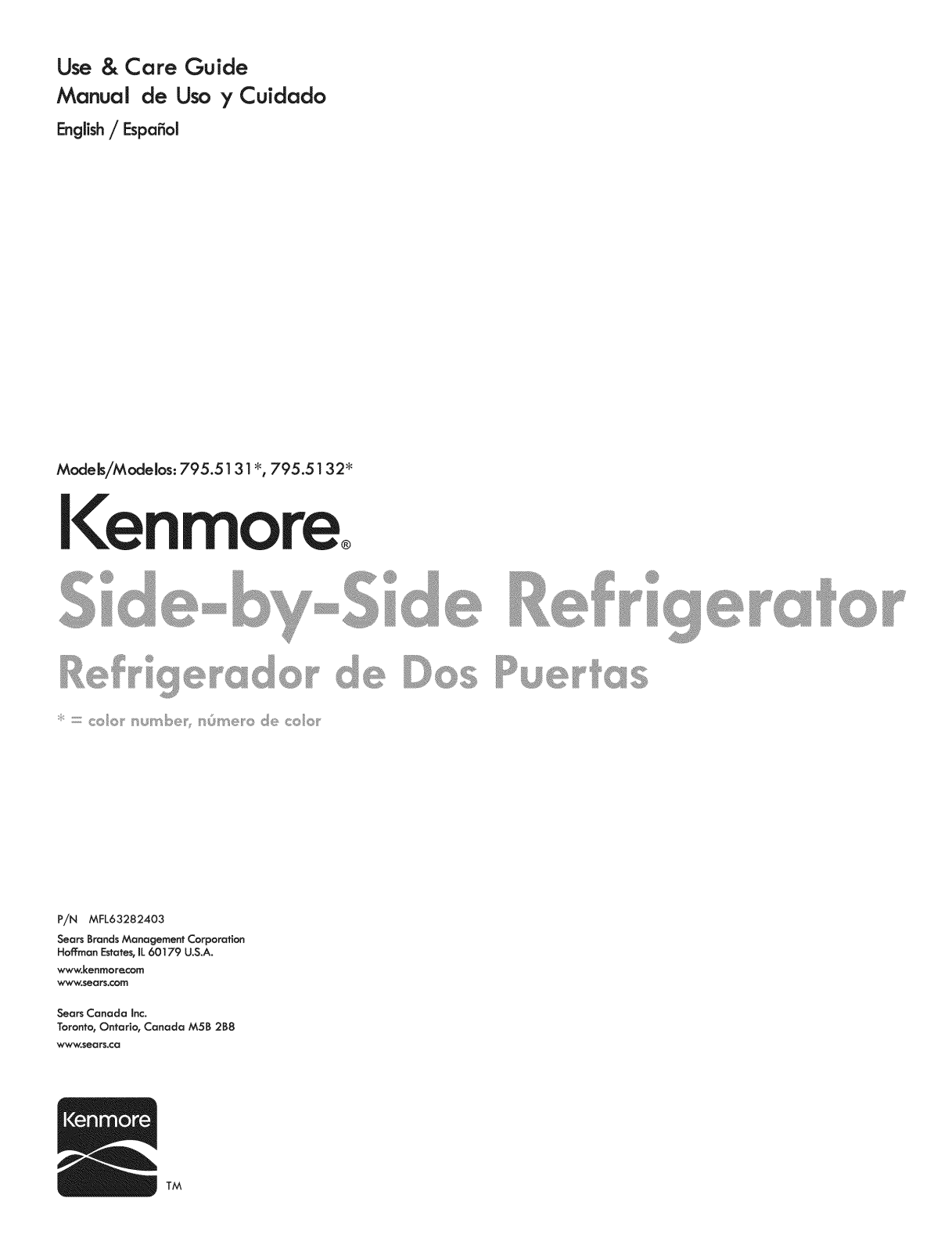

Kenmore 795.5131 User Manual

Use & Care Guide
Manual de Uso y Cuidado

English / Espafiol

Models/Modelos: 795.5131 _, 795.5132 _

Kenmoreo

P/N MFL63282403
Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.
www.kenmorecom

_v%v.sea rs.com

Sears Canada inc.
Toronto, Ontario, Canada M5B 2B8

www.sears.co

TM

WARRANTY

PROTECTION AGREEMENTS

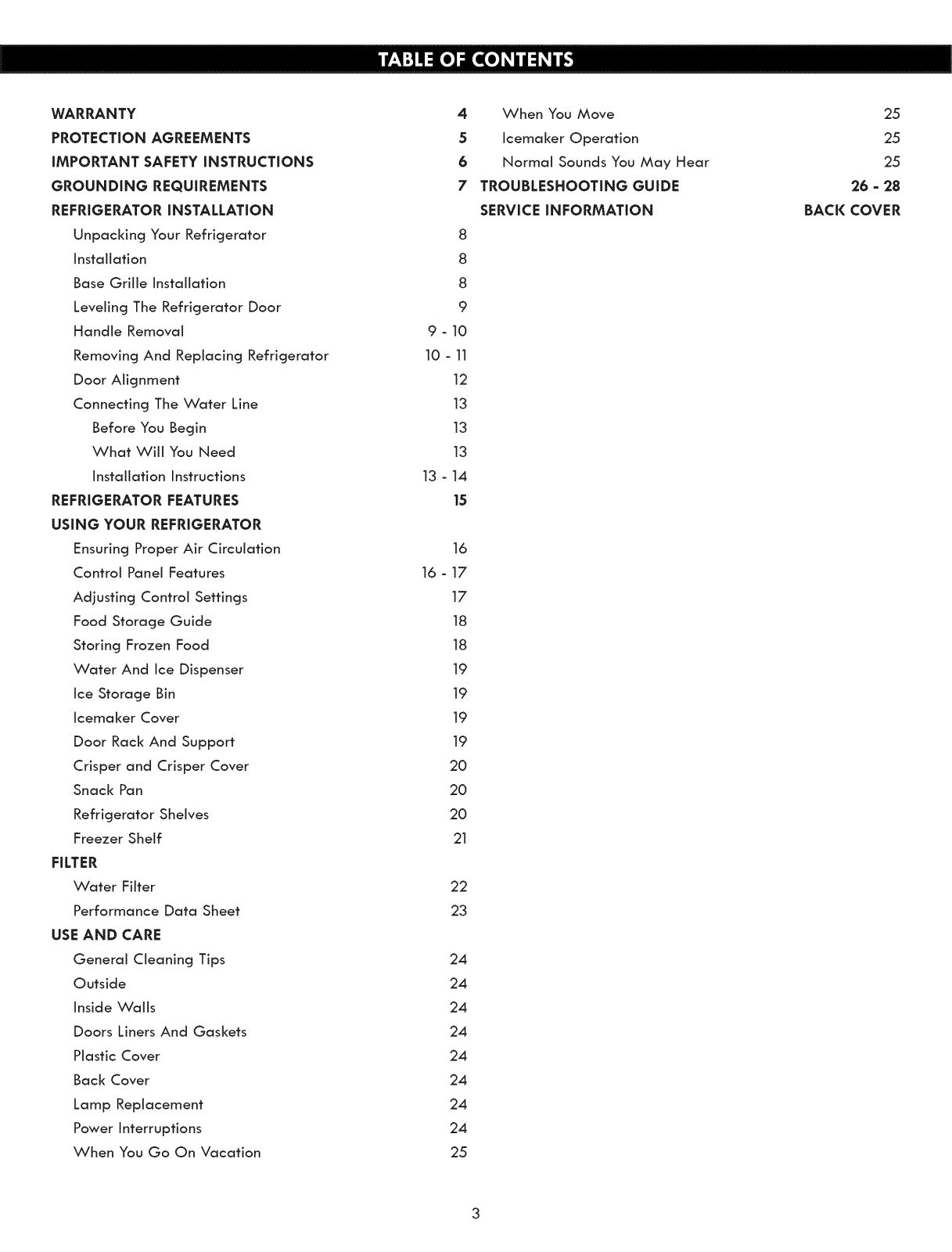

IMPORTANT SAFETY INSTRUCTIONS

GROUNDING REQUIREMENTS

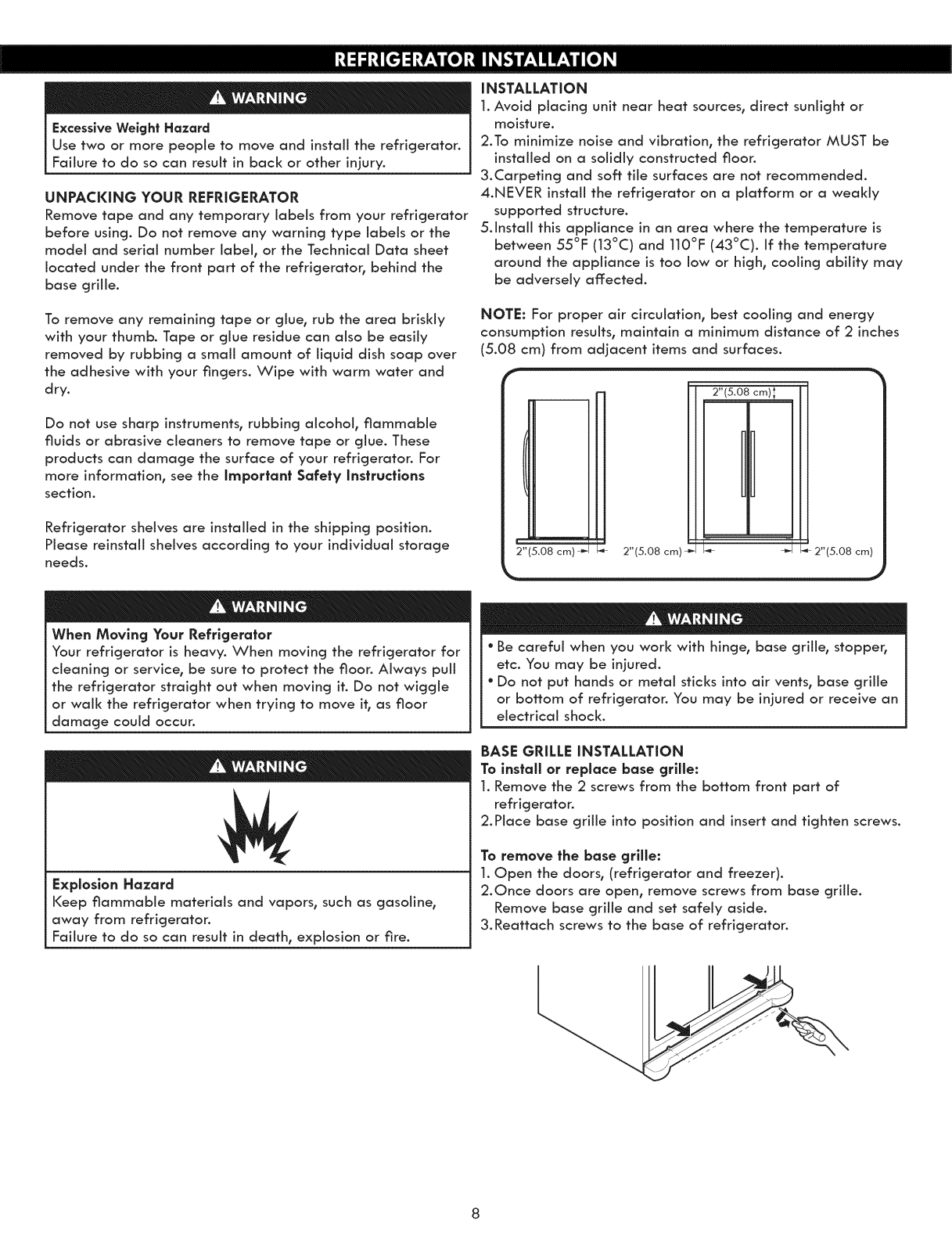

REFRIGERATOR INSTALLATION

Unpacking Your Refrigerator
Installation

Base Grille Installation

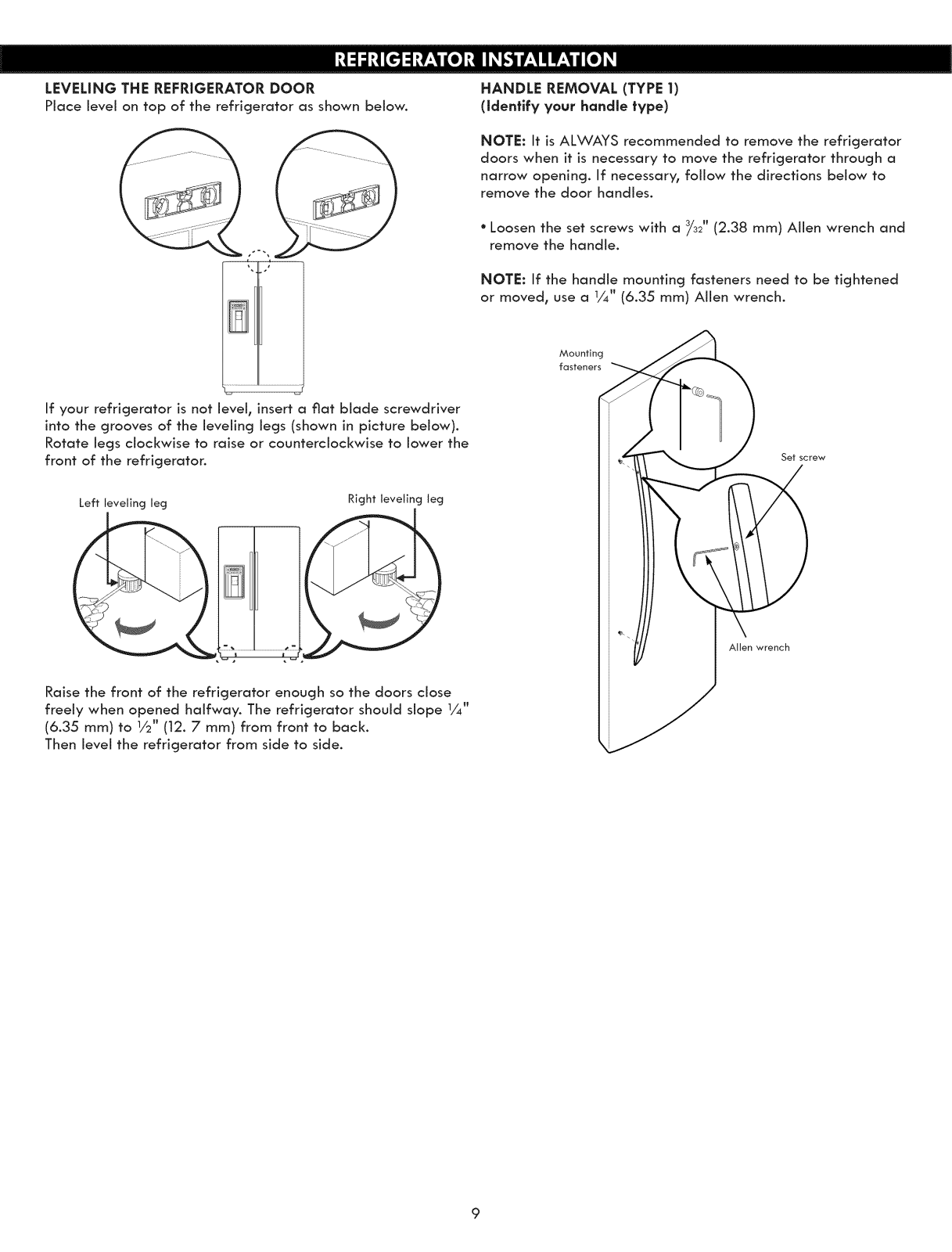

Leveling The Refrigerator Door

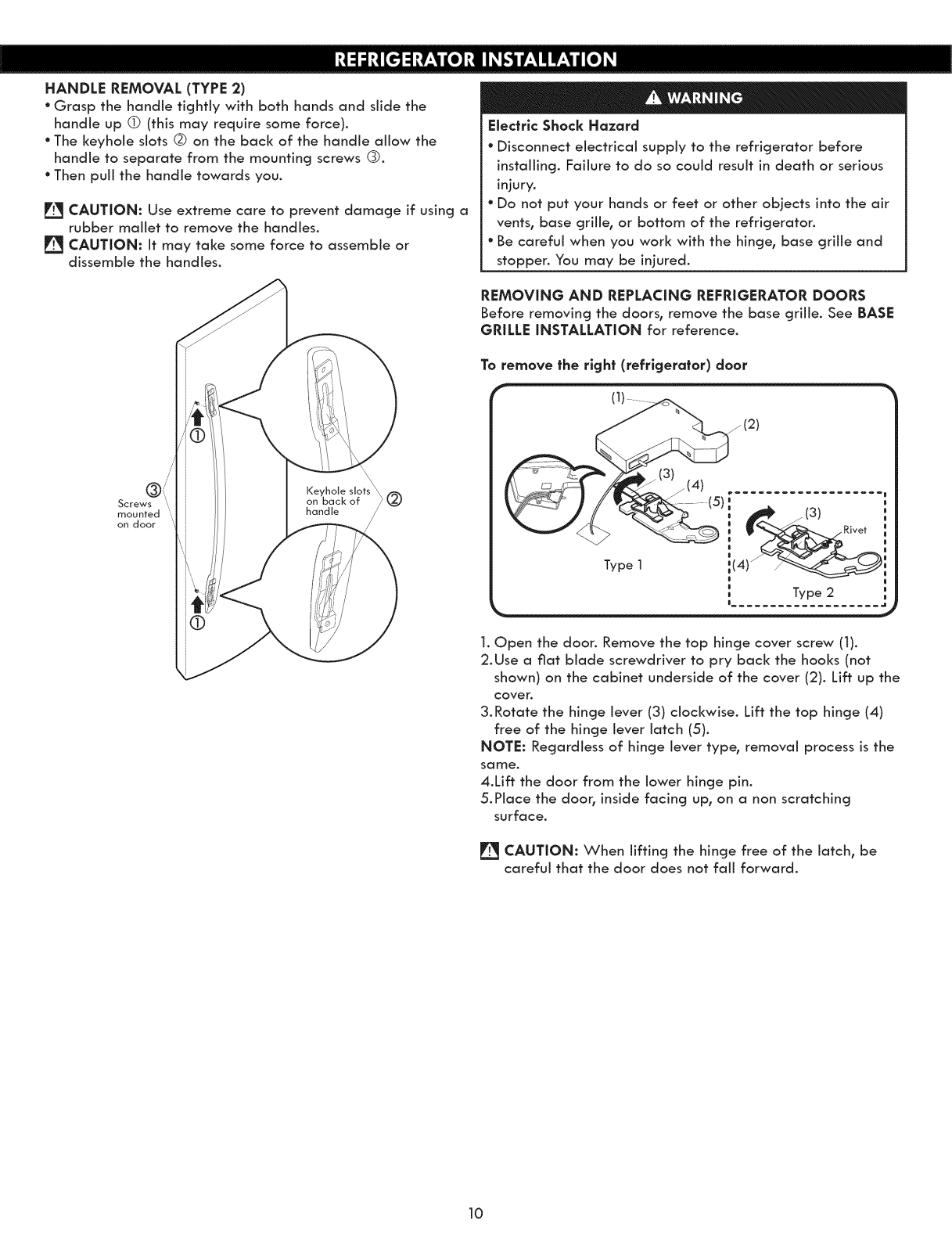

Handle Removal

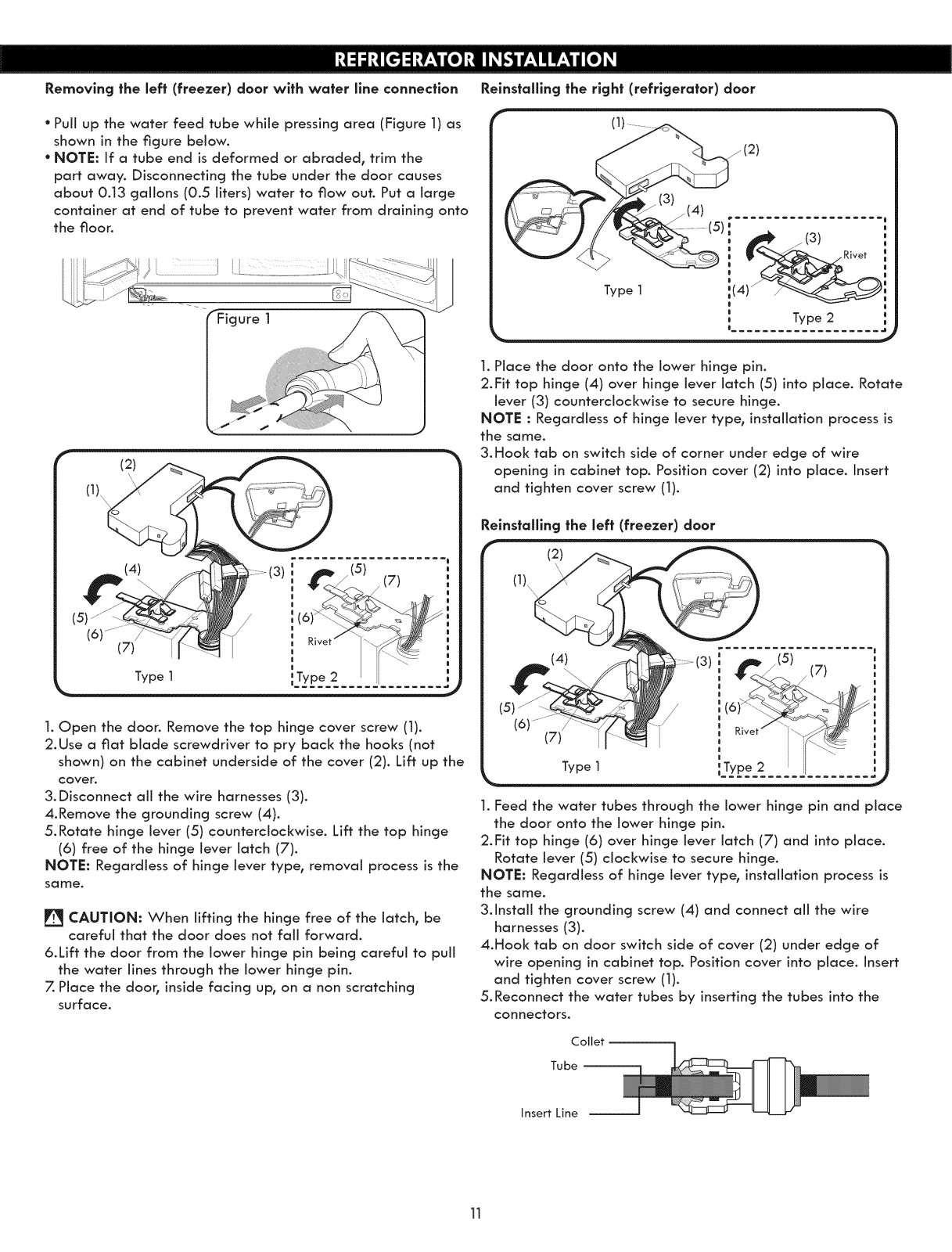

Removing And Replacing Refrigerator

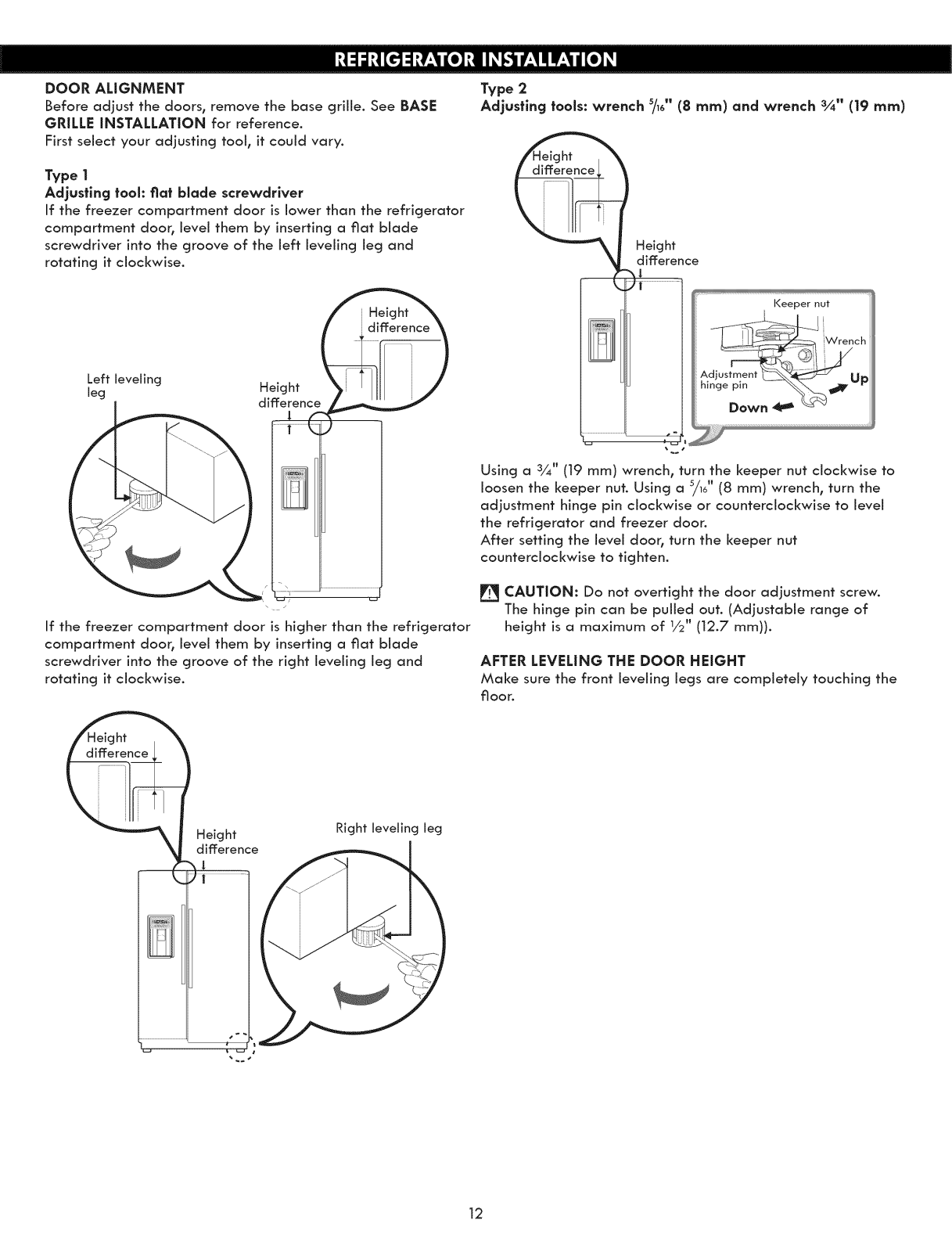

Door Alignment

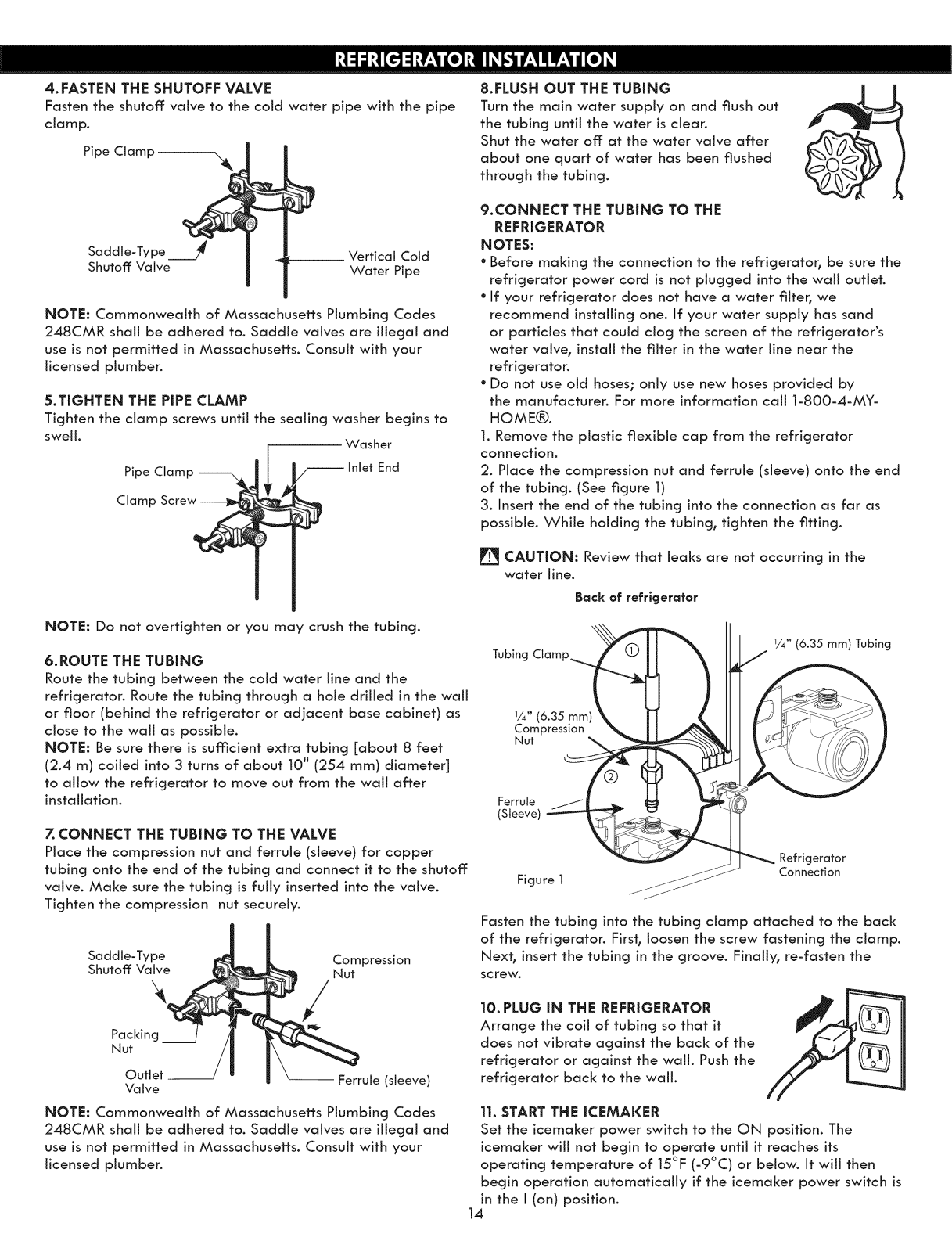

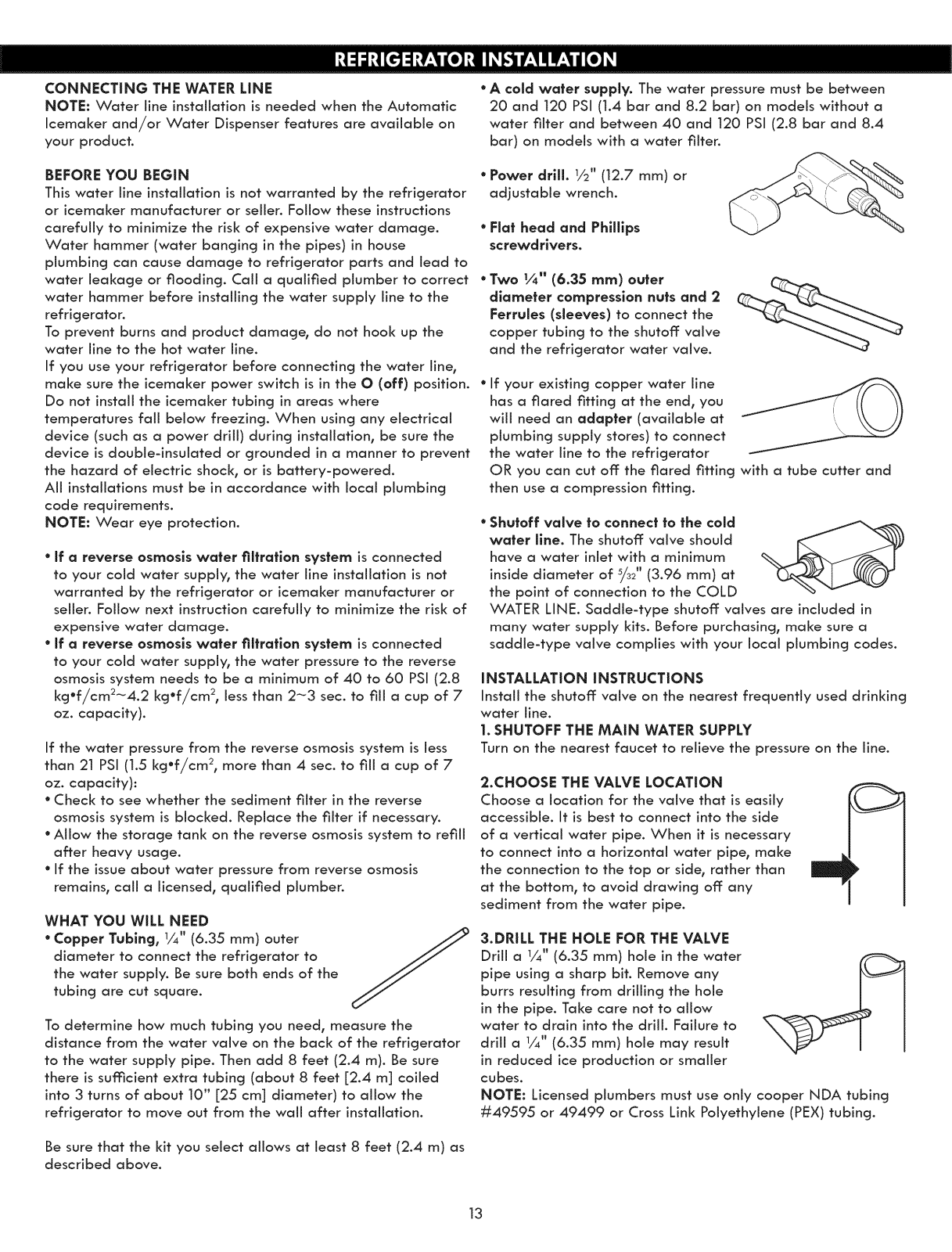

Connecting The Water Line

Before You Begin

What Will You Need

Installation Instructions

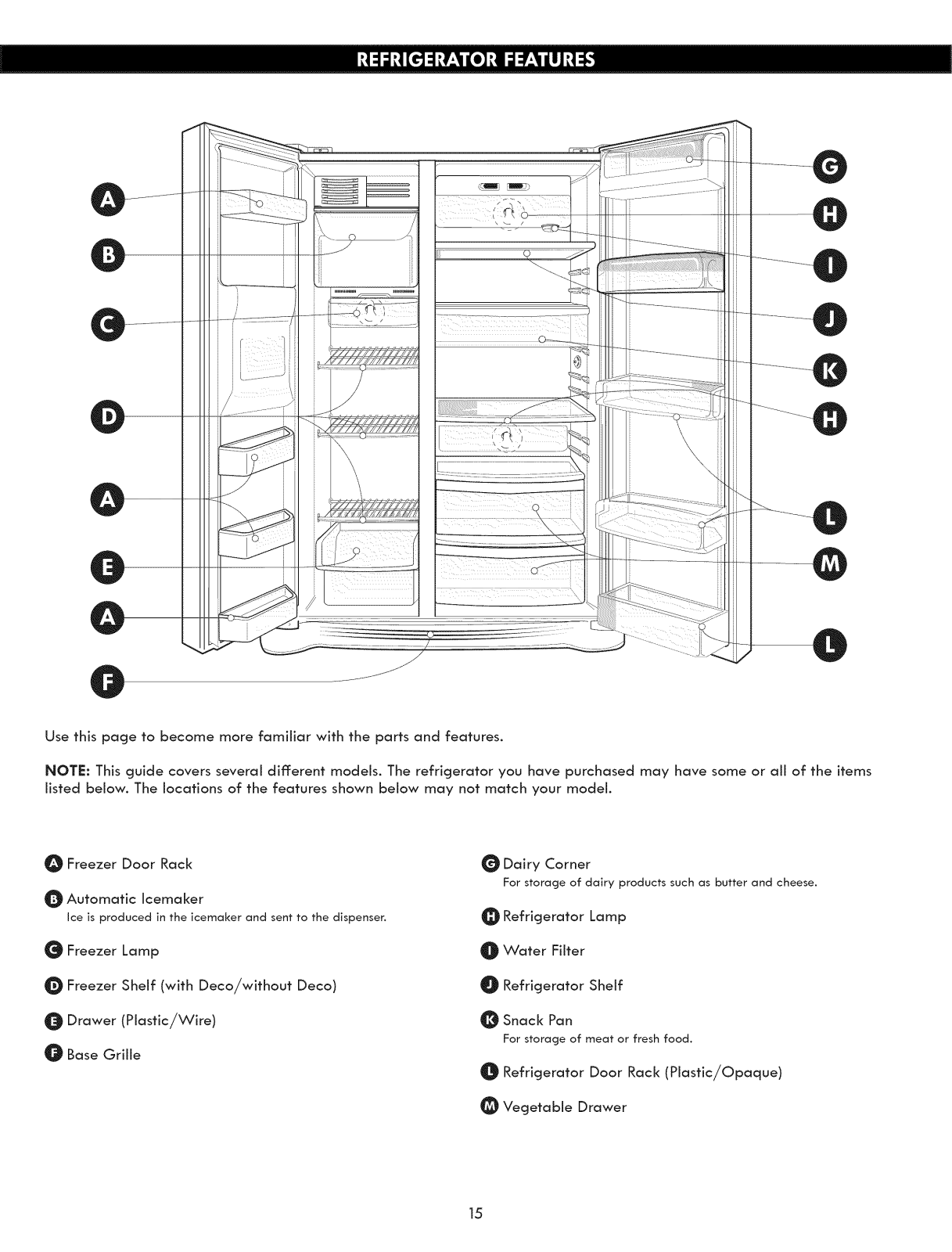

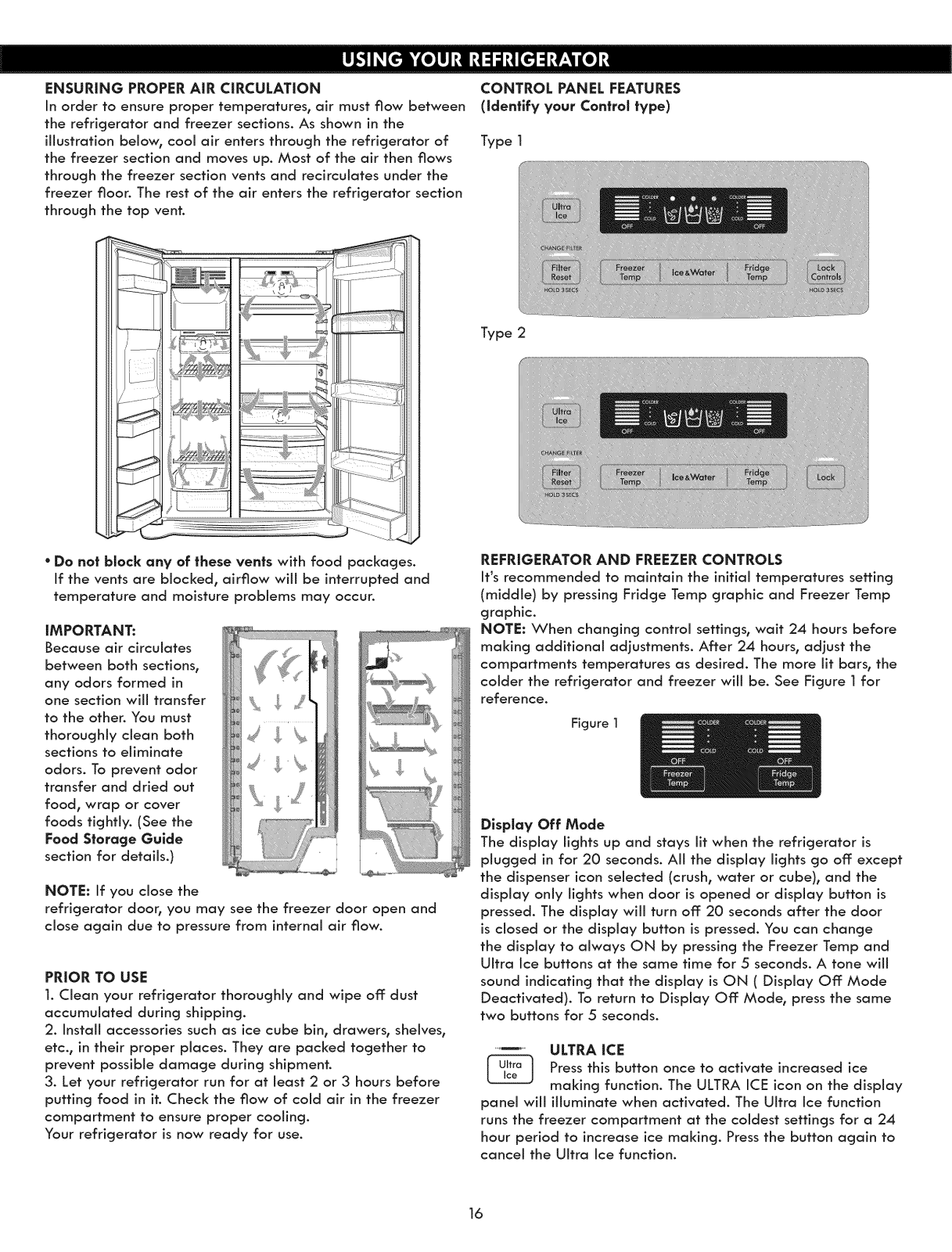

REFRIGERATOR FEATURES

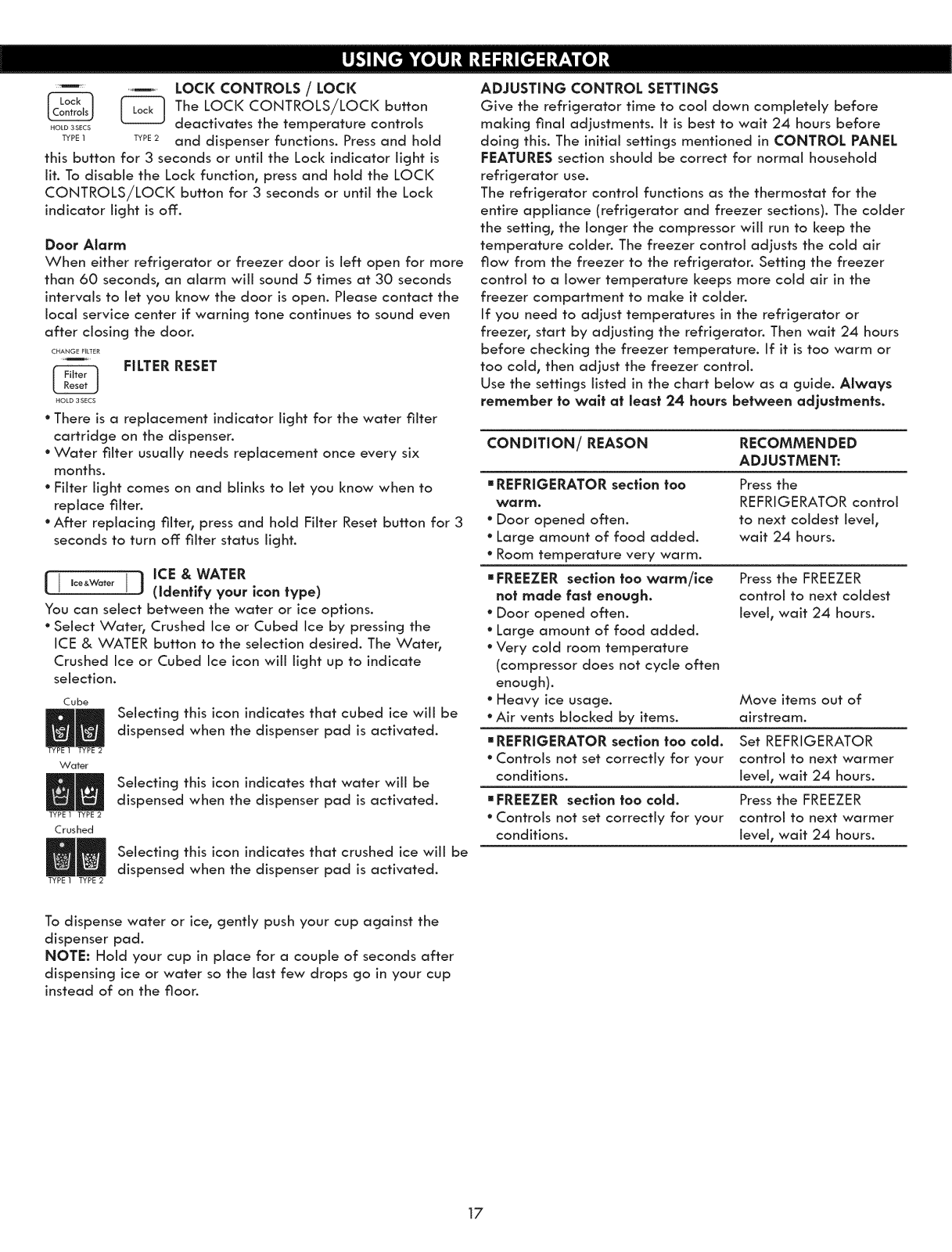

USING YOUR REFRIGERATOR

Ensuring Proper Air Circulation

Control Panel Features
Adjusting Control Settings

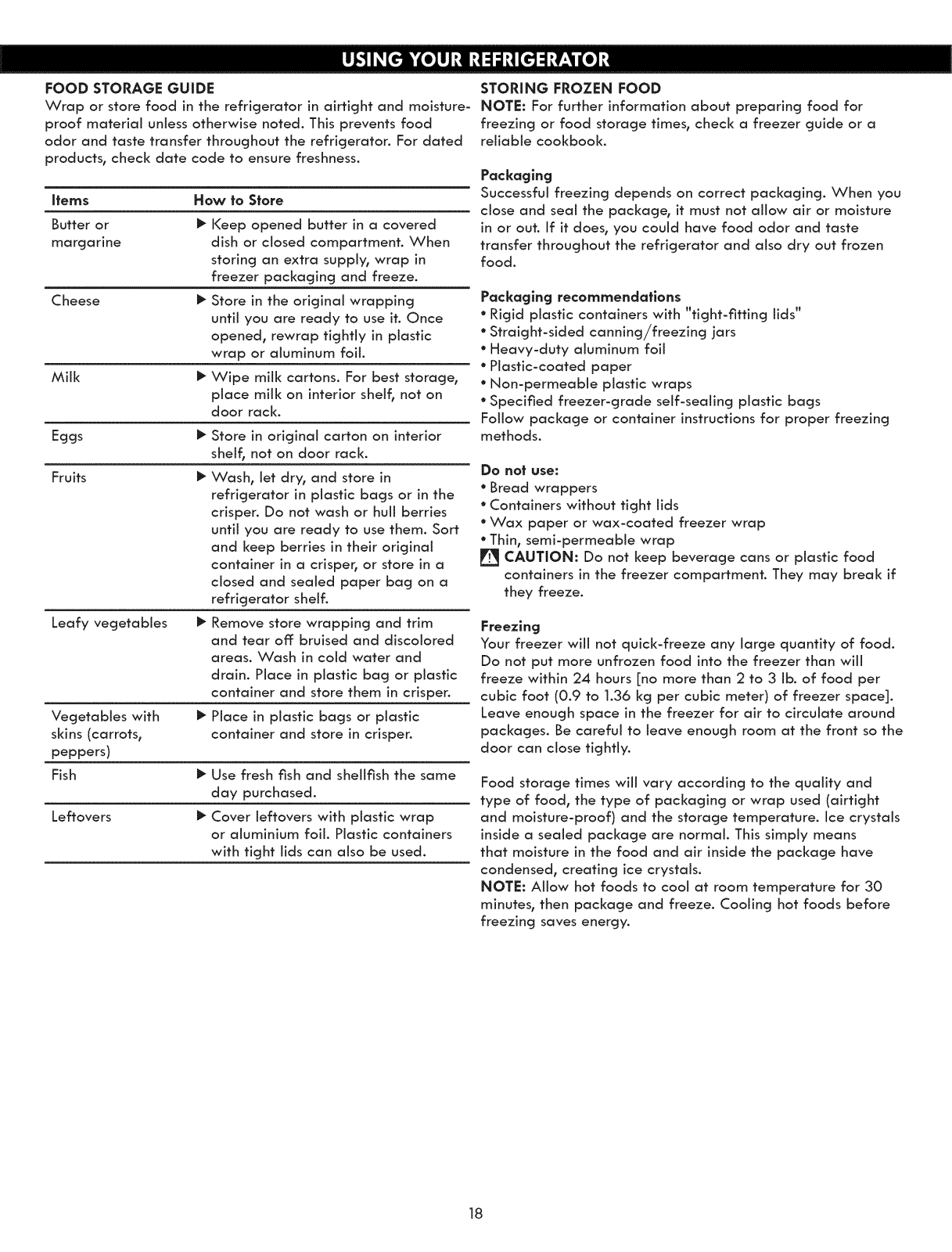

Food Storage Guide

Storing Frozen Food

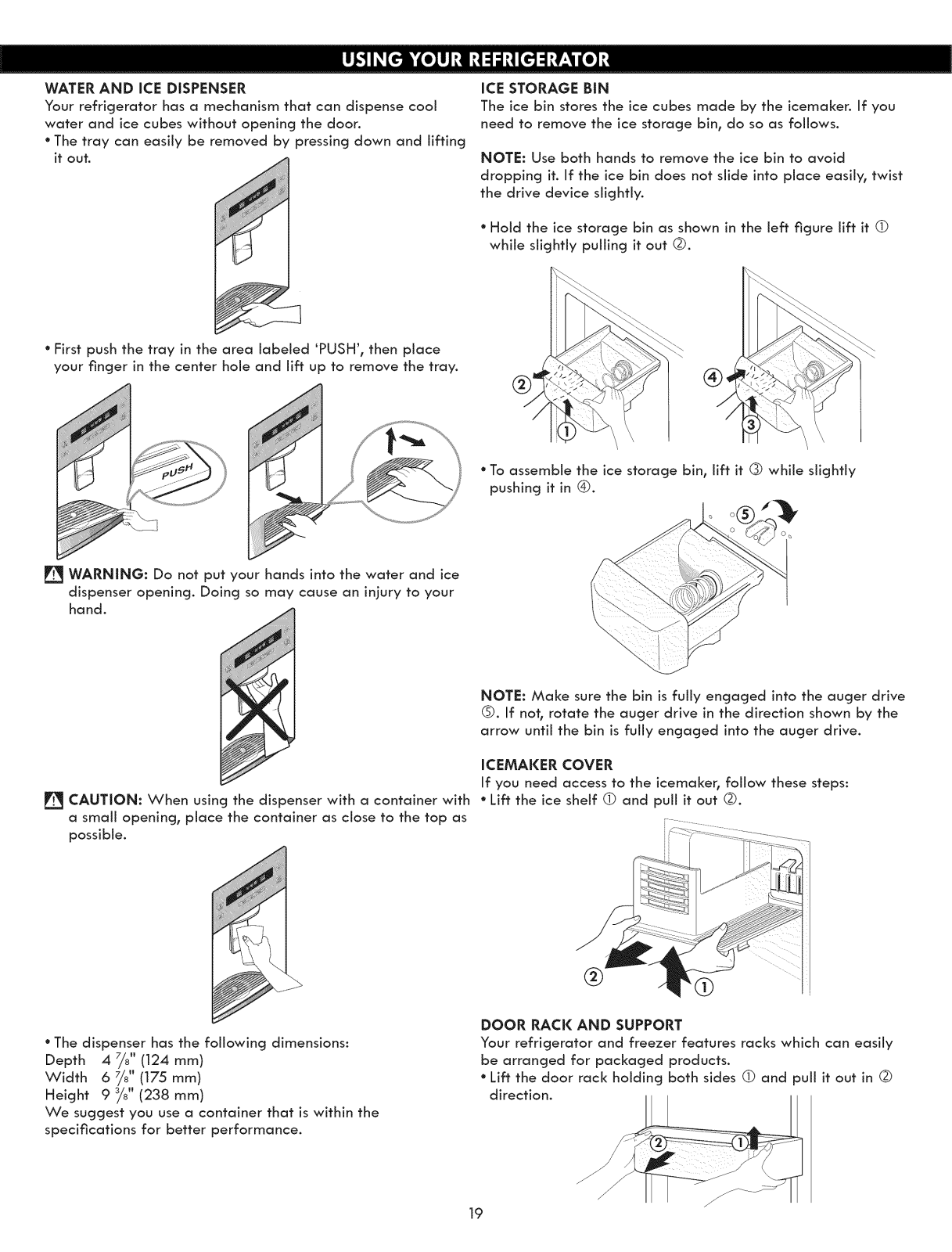

Water And Ice Dispenser

Ice Storage Bin
Icemaker Cover

Door Rack And Support

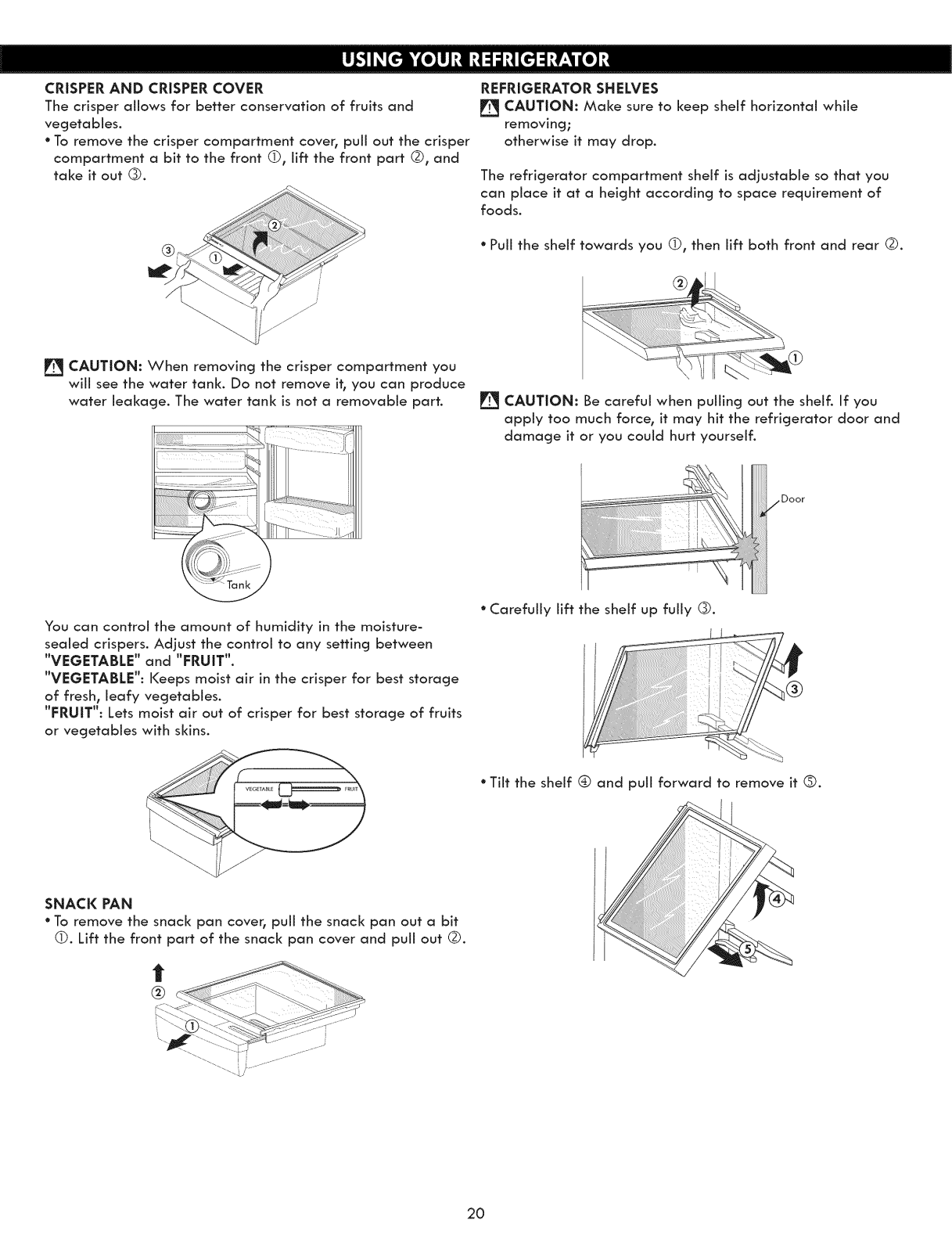

Crisper and Crisper Cover
Snack Pan

Refrigerator Shelves

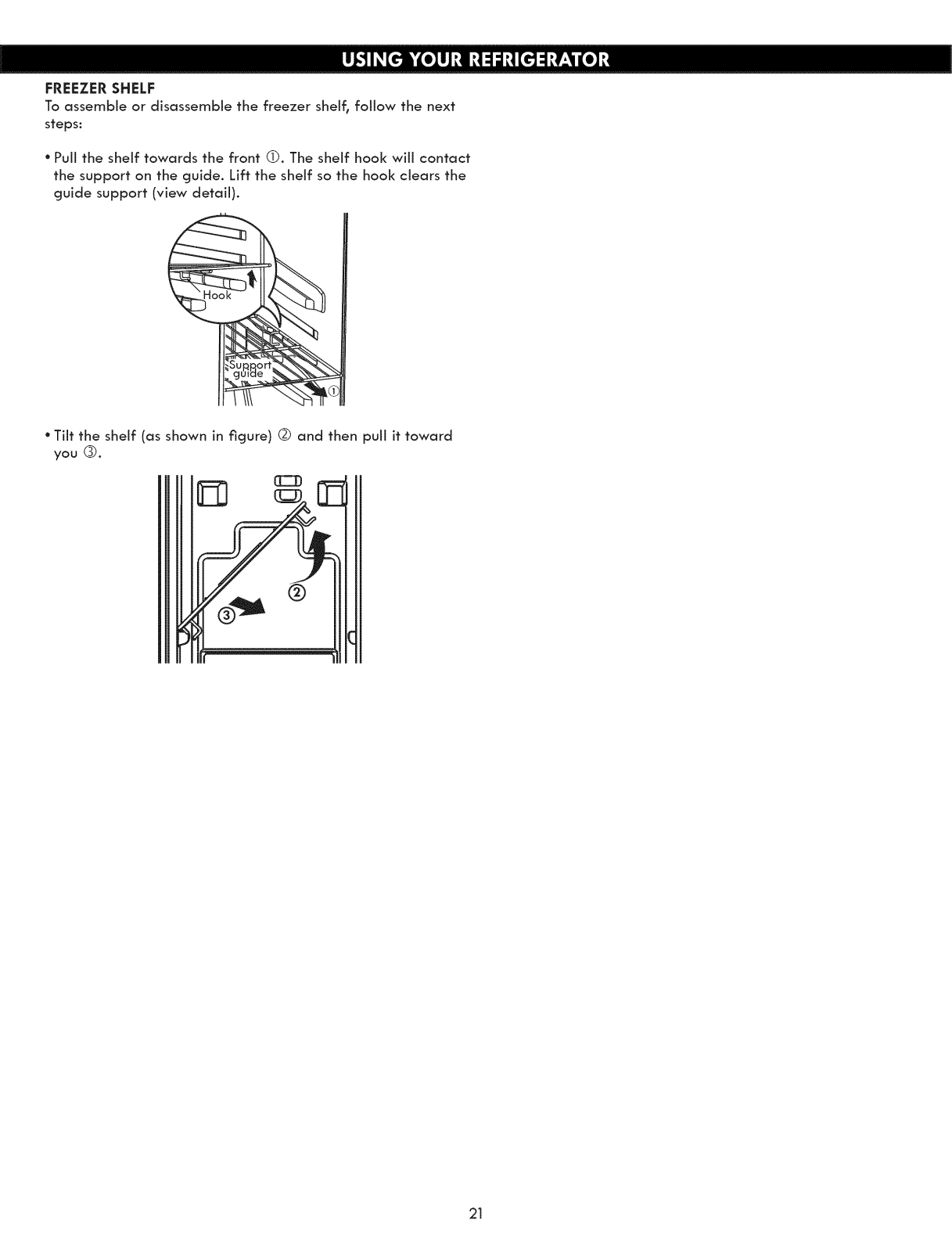

Freezer Shelf

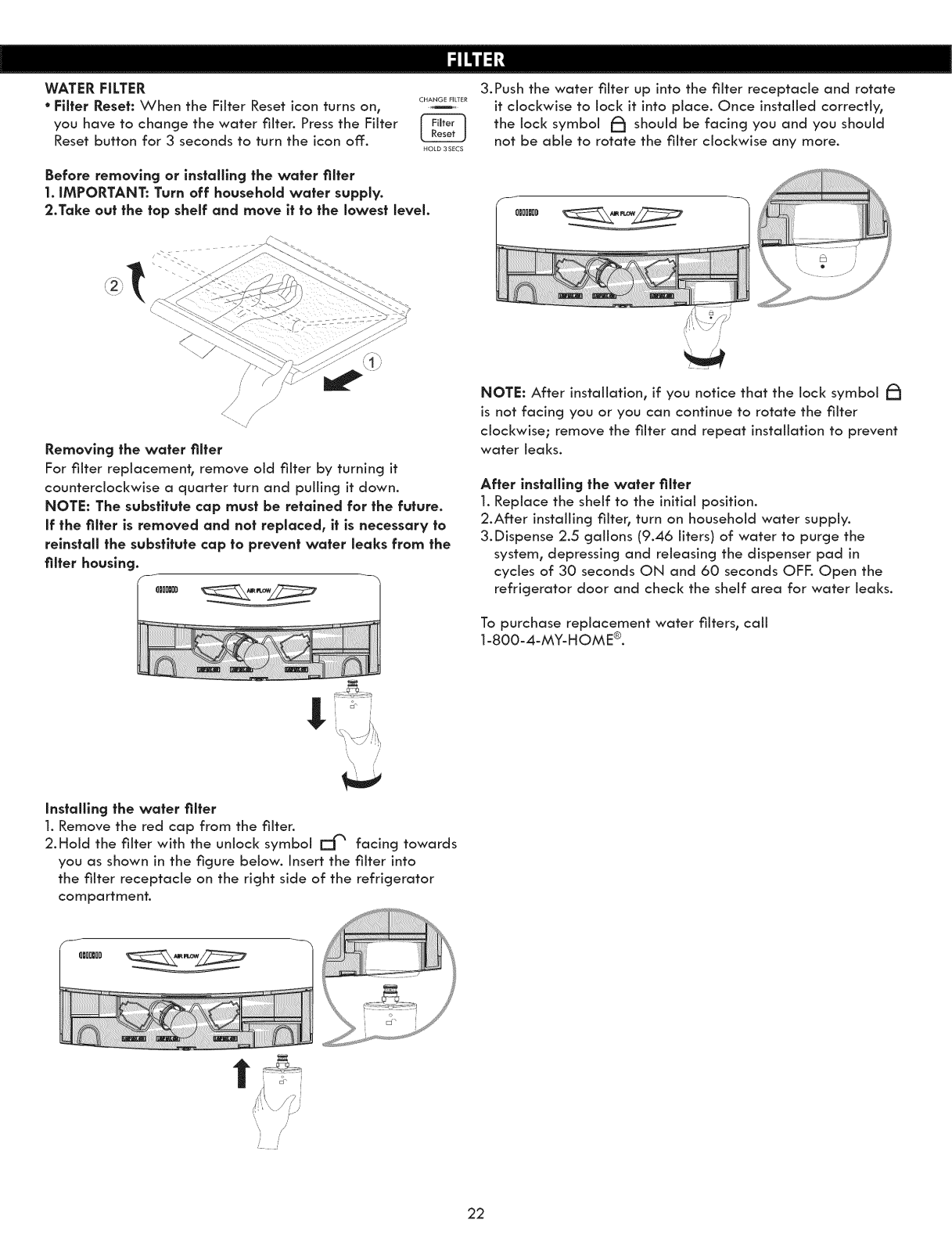

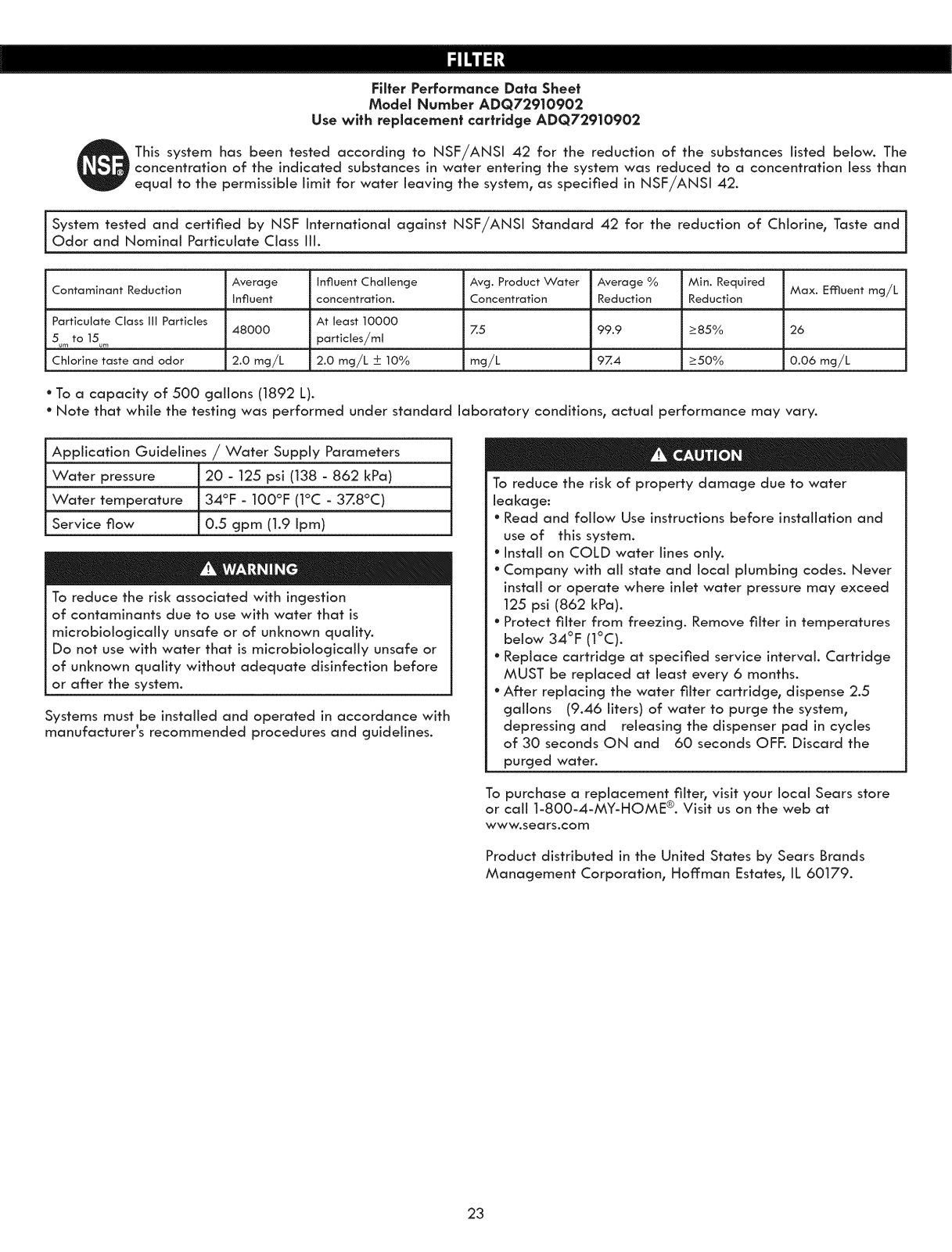

FILTER

Water Filter

Performance Data Sheet

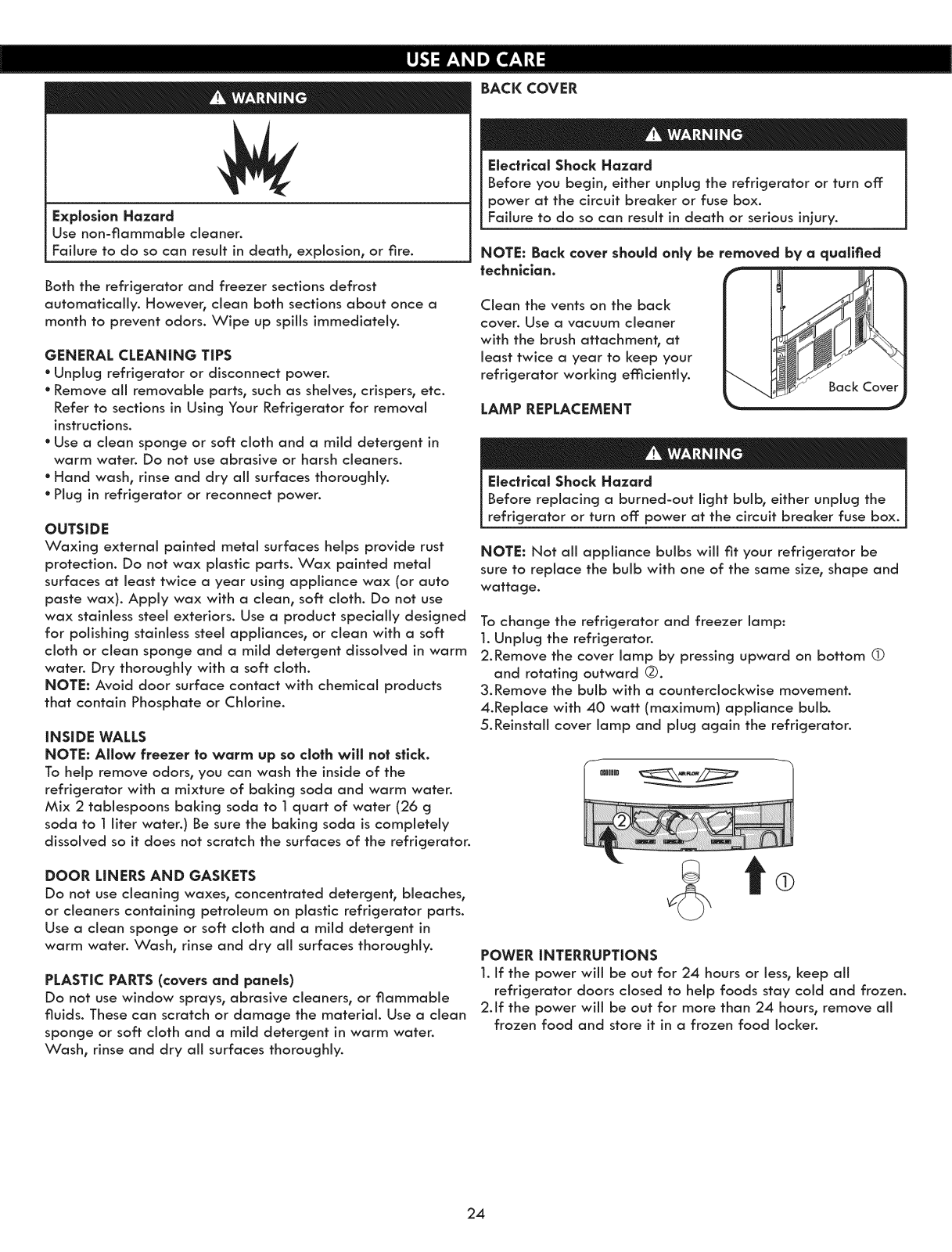

USE AND CARE

General Cleaning Tips
Outside

Inside Walls
Doors Liners And Gaskets

Plastic Cover
Back Cover

Lamp Replacement
Power Interruptions

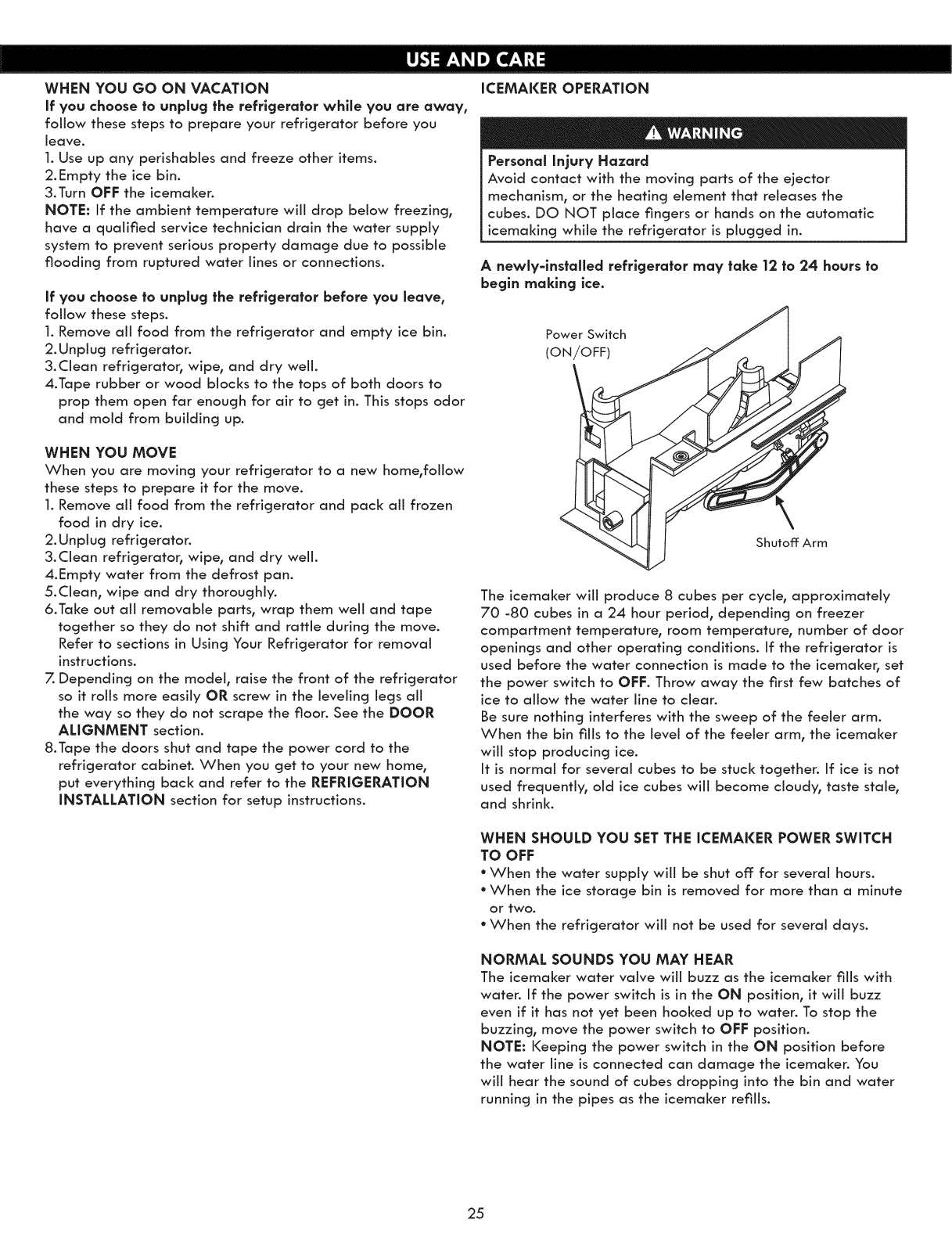

When You Go On Vacation

4 When You Move

5 Icemaker Operation
6 Normal Sounds You May Hear

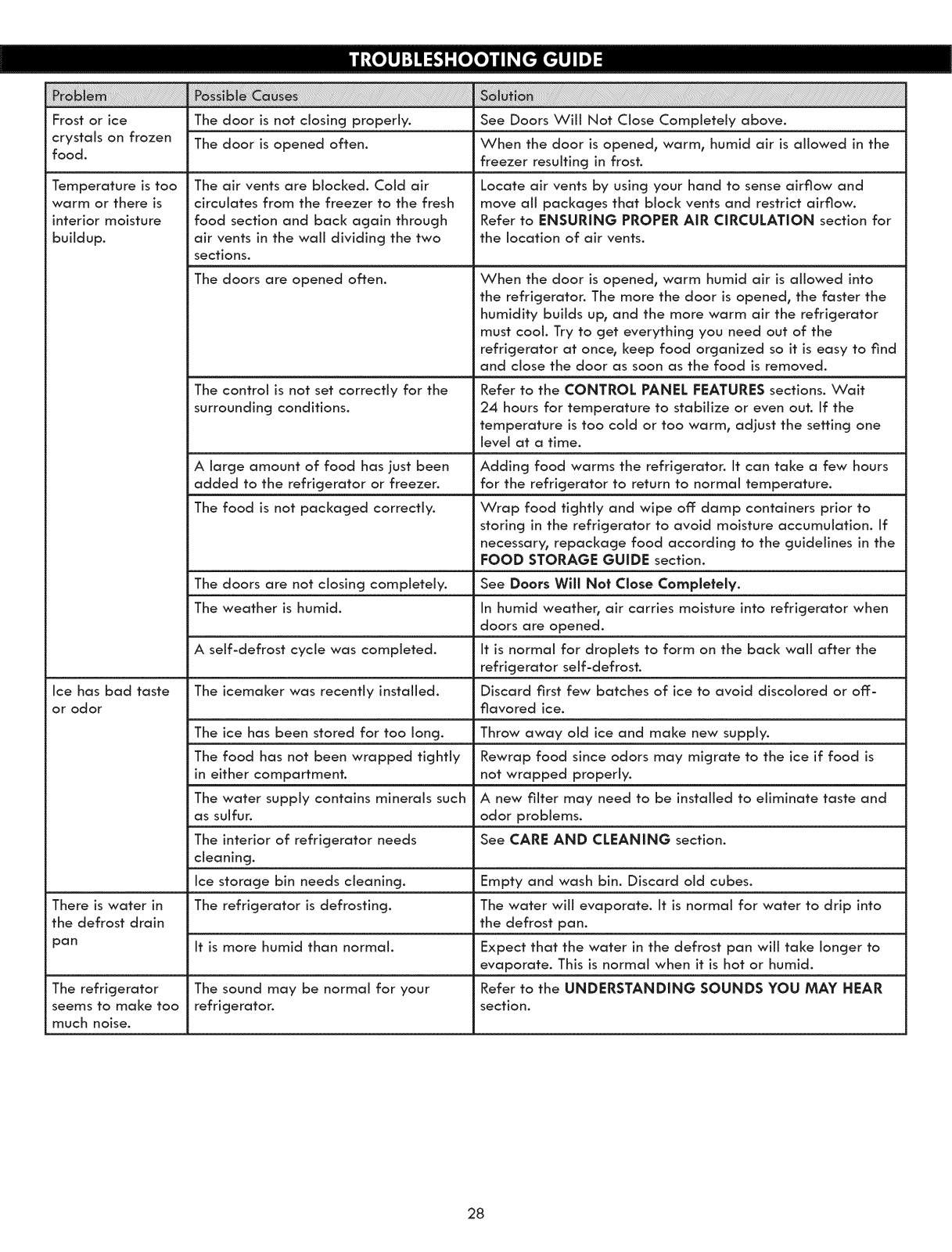

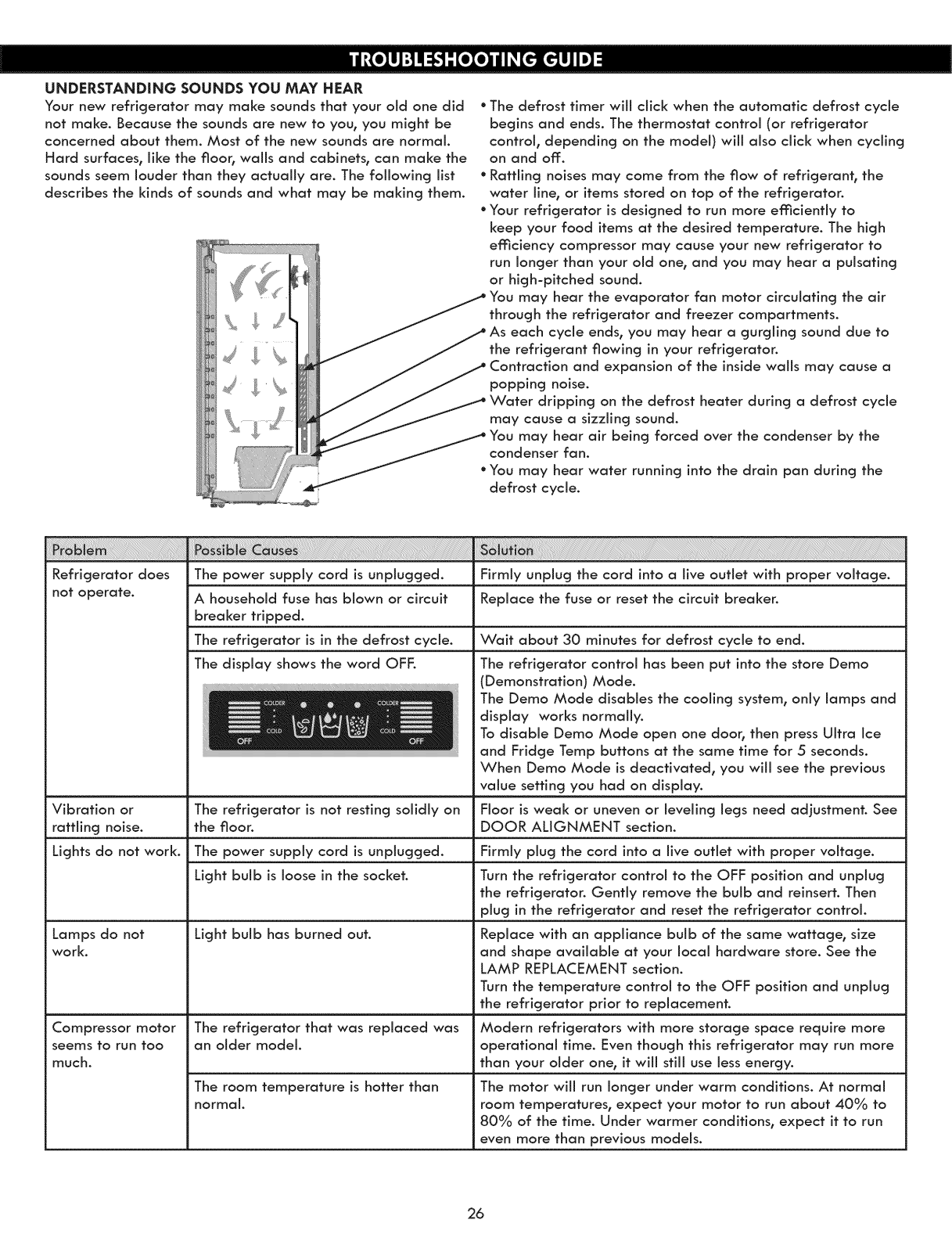

7 TROUBLESHOOTING GUIDE

SERVICE INFORMATION
8
8

8

9

9 - 10

10 - 11

12
13
13

13

13 - 14

15

16

16 - 17

17
18
18

19
19
19
19

20
20
20

21

22
23

24
24

24
24

24
24
24
24

25

25
25

25

26 =28

BACK COVER

SIDE=BY=SIDEREFRIGERATOR

f

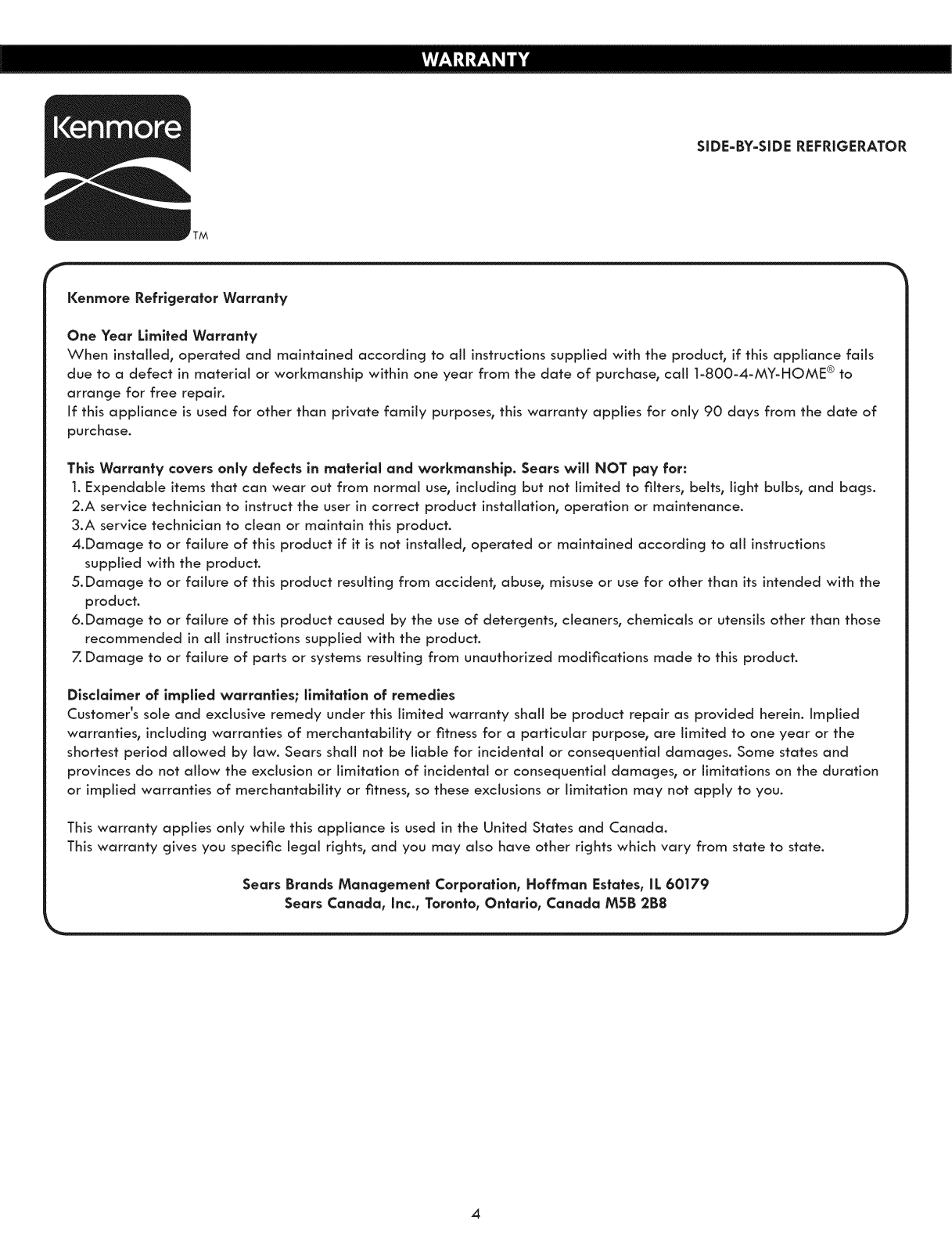

Kenmore Refrigerator Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails
due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to

arrange for free repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.

This Warranty covers only defects in materlal and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2.A service technician to instruct the user in correct product installation, operation or maintenance.

3.A service technician to clean or maintain this product.

4.Damage to or failure of this product if it is not installed, operated or maintained according to aii instructions
supplied with the product.

5.Damage to or failure of this product resulting from accident_ abuse, misuse or use for other than its intended with the
product.

6.Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in aii instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclalmer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and

provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration
or implied warranties of merchantability or fitness, so these exclusions or limitation may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada, inc., Toronto, Ontario, Canada MSB 2B8

4

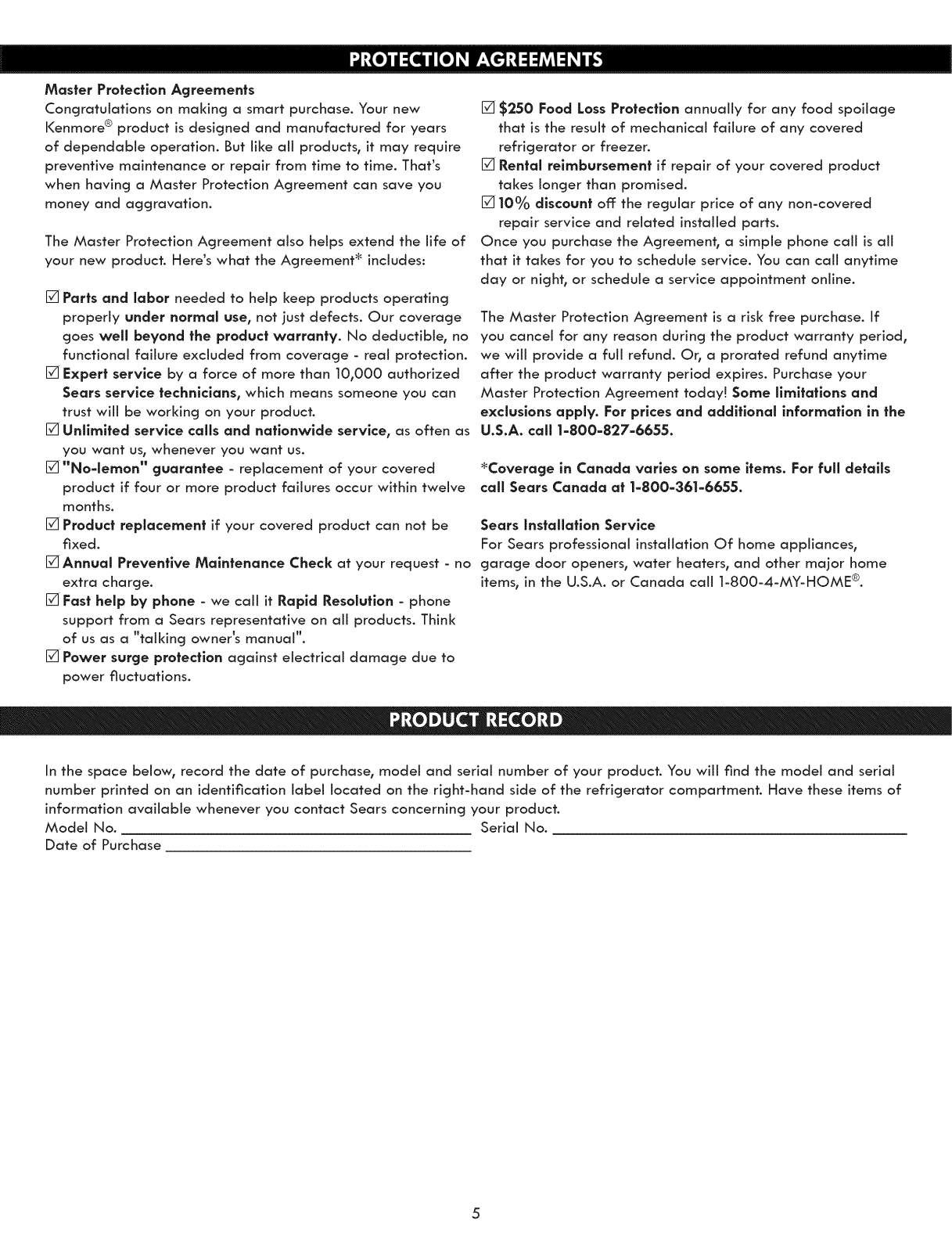

MasterProtection Agreements

Congratulations on making a smart purchase. Your new

Kenmore ® product is designed and manufactured for years

of dependable operation. But like all products, it may require

preventive maintenance or repair from time to time. That's

when having a Master Protection Agreement can save you

money and aggravation.

The Master Protection Agreement also helps extend the life of
your new product. Here's what the Agreement _ includes:

[] Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductible, no
functional failure excluded from coverage - real protection.

[] Expert service by a force of more than 10,000 authorized

Sears service technicians, which means someone you can

trust will be working on your product.

[] Unlimited service calls and nationwide service, as often as

you want us, whenever you want us.

[]"No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve
months.

[] Product replacement if your covered product can not be

fixed.

[]AnnuaN Preventive Maintenance Check at your request - no

extra charge.

[]Fast help by phone - we call it Rapid Resolution - phone

support from a Sears representative on all products. Think
of us as a "talking owner's manual'.

[] Power surge protection against electrical damage due to

power fluctuations.

[] $250 Food Loss Protection annuafly for any food spoilage

that is the result of mechanical failure of any covered

refrigerator or freezer.

[] Rental reimbursement if repair of your covered product

takes longer than promised.

[] 10% discount off: the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone carl is all
that it takes for you to schedule service. You can call anytime

day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If
you cancel for any reason during the product warranty period,
we wiii provide a fuji refund. Or, a prorated refund anytime
after the product warranty period expires. Purchase your
Master Protection Agreement today! Some limitations and
excluslons apply. For prices and additional information in the

U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details
call Sears Canada at 1-800-361-6655.

Sears Instaffatlon Service
For Sears professional installation Of home appliances,

garage door openers, water heaters, and other major home
items, in the U.S.A. or Canada carl ]-800-4-MY-HOME ®.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and serial

number printed on an identification label located on the right-hand side of the refrigerator compartment. Have these items of

information available whenever you contact Sears concerning your product.

Model No. Serial No.

Date of Purchase

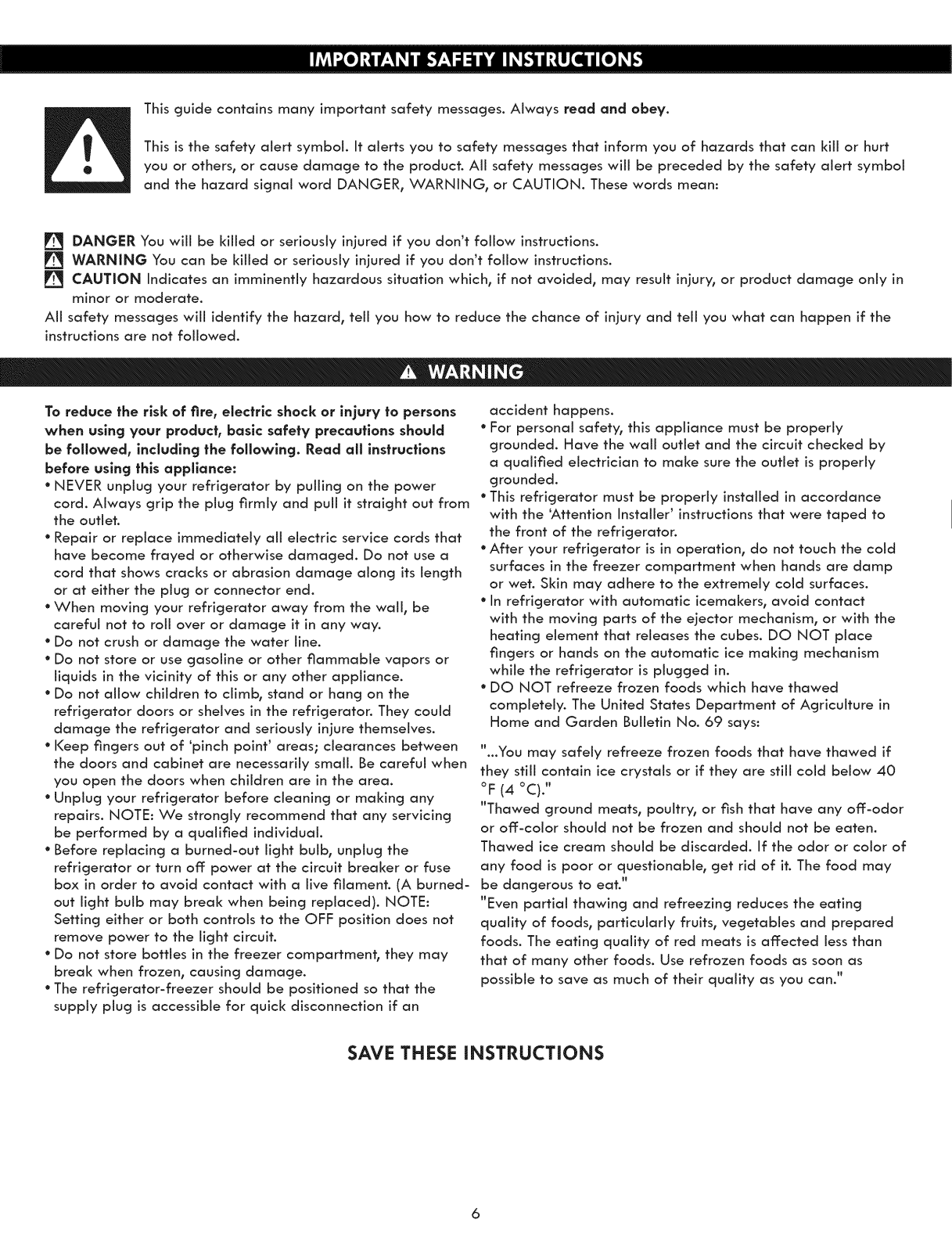

Thisguidecontainsmanyimportant safety messages. Always read and obey.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt
you or others, or cause damage to the product. All safety messages will be preceded by the safety alert symbol
and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER You will be killed or seriously injured if you don't follow instructions.

WARNING You can be killed or seriously injured if you don't follow instructions.

CAUTION Indicates an imminently hazardous situation which, if not avoided, may result injury, or product damage only in

minor or moderate.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if the
instructions are not followed.

To reduce the risk of fire, electric shock or injury to persons

when using your product, basic safety precautions should

be followed, including the following. Read all instructions
before using this appliance:

* NEVER unplug your refrigerator by pulling on the power

cord. Always grip the plug firmly and pull it straight out from
the outlet.

° Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its length
or at either the plug or connector end.

° When moving your refrigerator away from the wall, be

careful not to roll over or damage it in any way.

° Do not crush or damage the water line.
° Do not store or use gasoline or other flammable vapors or

liquids in the vicinity of this or any other appliance.

° Do not allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.

° Keep fingers out of 'pinch point' areas; clearances between

the doors and cabinet are necessarily small. Be careful when
you open the doors when children are in the area.

° Unplug your refrigerator before cleaning or making any

repairs. NOTE: We strongly recommend that any servicing
be performed by a qualified individual.

° Before replacing a burned-out light bulb, unplug the

refrigerator or turn off: power at the circuit breaker or fuse
box in order to avoid contact with a live filament. (A burned-

out light bulb may break when being replaced). NOTE:
Setting either or both controls to the OFF position does not
remove power to the light circuit.

° Do not store bottles in the freezer compartment, they may

break when frozen, causing damage.

° The refrigerator-freezer should be positioned so that the

supply plug is accessible for quick disconnection if an

accident happens.

* For personal safety, this appliance must be properly

grounded. Have the wall outlet and the circuit checked by
a qualified electrician to make sure the outlet is properly

grounded.

° This refrigerator must be properly installed in accordance

with the 'Attention Installer' instructions that were taped to
the front of the refrigerator.

° After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp
or wet. Skin may adhere to the extremely cold surfaces.

° In refrigerator with automatic icemakers, avoid contact

with the moving parts of the ejector mechanism, or with the

heating element that releases the cubes. DO NOT place
fingers or hands on the automatic ice making mechanism

while the refrigerator is plugged in.

° DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture in
Home and Garden Bulletin No. 69 says:

"...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold below 40

°F (4 °C)."
"Thawed ground meats, poultry, or fish that have any off-odor

or off-color should not be frozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of

any food is poor or questionable, get rid of it. The food may
be dangerous to eat."
"Even partial thawing and refreezing reduces the eating
quality of foods, particularly fruits, vegetables and prepared
foods. The eating quality of red meats is affected less than
that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can."

SAVE THESE INSTRUCTIONS

6

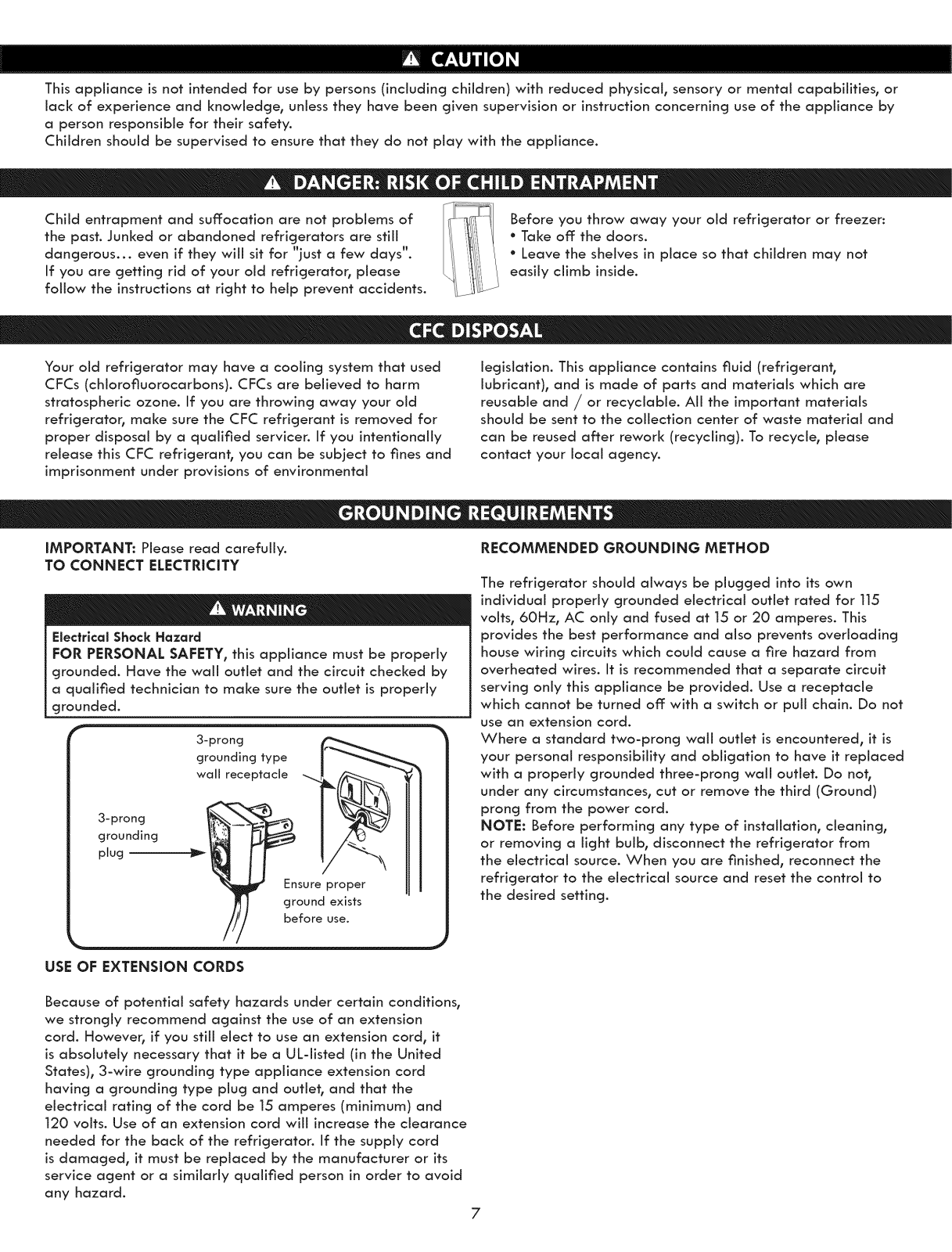

Thisapplianceisnotintendedfor usebypersons(includingchildren)withreducedphysical,sensoryormentalcapabilities,or

Jackofexperience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still

dangerous.., even if they wiii sit for "just a few days".

If you are getting rid of your old refrigerator, please

follow the instructions at right to help prevent accidents.

Your old refrigerator may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric ozone. If you are throwing away your old

refrigerator, maize sure the CFC refrigerant is removed for
proper disposal by a qualified servicer. If you intentionally
release this CFC refrigerant, you can be subject to fines and

imprisonment under provisions of environmental

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be properly
grounded. Have the wall outlet and the circuit checked by
a qualified technician to maize sure the outlet is properly
grounded.

3-prong
grounding type
wall receptacle

3-prong
grounding
plug

Ensure proper
ground exists

before use.

Before you throw away your old refrigerator or freezer:
° Take off the doors.

• Leave the shelves in place so that children may not
easily climb inside.

legislation. This appliance contains fluid (refrigerant,
lubricant), and is made of parts and materials which are

reusable and / or recyclabie. All the important materials
should be sent to the collection center of waste material and

can be reused after rework (recycling). To recycle, please
contact your local agency.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for 115
volts, 60Hz, AC only and fused at 15 or 20 amperes. This
provides the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard from
overheated wires. It is recommended that a separate circuit
serving only this appliance be provided. Use a receptacle
which cannot be turned off with a switch or puii chain. Do not

use an extension cord.
Where a standard two-prong wail outlet is encountered, it is

your personal responsibility and obligation to have it replaced
with a properly grounded three-prong wail outlet. Do nob
under any circumstances, cut or remove the third (Ground)
prong from the power cord.
NOTE: Before performing any type of installation, cleaning,
or removing a light bulb, disconnect the refrigerator from
the electrical source. When you are finished, reconnect the
refrigerator to the electrical source and reset the control to
the desired setting.

USEOF EXTENSION CORDS

Because of potential safety hazards under certain conditions,
we strongly recommend against the use of an extension
cord. However, if you still elect to use an extension cord, it
is absolutely necessary that it be a UL-listed (in the United
States), 3-wire grounding type appliance extension cord

having a grounding type plug and outieh and that the
electrical rating of the cord be 15 amperes (minimum) and

120 volts. Use of an extension cord wiii increase the clearance

needed for the back of the refrigerator. If the supply cord
is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid

any hazard.

7

Excessive Weight Hazard

Use two or more people to move and install the refrigeraton
Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator

before using. Do not remove any warning type labels or the

model and serial number label, or the Technical Data sheet

located under the front part of the refrigerator, behind the

base grille.

INSTALLATION

1.Avoid placing unit near heat sources, direct sunlight or
moisture.

2.To minimize noise and vibration, the refrigerator MUST be

installed on a solidly constructed floor.

3.Carpeting and soft tile surfaces are not recommended.

4.NEVER install the refrigerator on a platform or a weakly

supported structure.

5.Install this appliance in an area where the temperature is
between 55°F (13°C) and 110°F (43°C). If the temperature

around the appliance is too low or high, cooling ability may

be adversely affected.

To remove any remaining tape or glue, rub the area briskly
with your thumb. Tape or glue residue can also be easily

removed by rubbing a small amount of liquid dish soap over
the adhesive with your fingers. Wipe with warm water and
dry.

Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage

needs.

When Moving Your Refrigerator
Your refrigerator is heavy. When moving the refrigerator for
cleaning or service, be sure to protect the floor. Always pull
the refrigerator straight out when moving it. Do not wiggle
or wall< the refrigerator when trying to move it, as floor
damage could occur.

NOTE: For proper air circulation, best cooling and energy
consumption results, maintain a minimum distance of 2 inches
(5.08 cm) from adjacent items and surfaces.

2"(5.08 cm)i

(

2"(5.08cm) _" _ 2"(5.08cm) -_ _-2"(5.08cm)

" Be careful when you work with hinge, base grille, stopper,

etc. You may be injured.

° Do not put hands or metal sticks into air vents, base grille

or bottom of refrigerator. You may be injured or receive an
electrical shock.

BASE GRILLE INSTALLATION
To install or replace base grille:

1. Remove the 2 screws from the bottom front part of
refrigeraton

2. Place base grille into position and insert and tighten screws.

ExpNoslon Hazard
Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
Failure to do so can result in death, explosion or fire.

To remove the base grille:

1.Open the doors, (refrigerator and freezer).

2.Once doors are open, remove screws from base grille.
Remove base grille and set safely aside.

3.Reattach screws to the base of refrigerator.

LEVELING THE REFRIGERATOR DOOR
Place JeveJ on top of the refrigerator as shown below.

If your refrigerator is not level, insert a fiat blade screwdriver

into the grooves of the leveling legs (shown in picture below).

Rotate legs clockwise to raise or counterclockwise to lower the

front of the refrigerator.

HANDLE REMOVAL (TYPE 1)
(identify your handle type)

NOTE: It is ALWAYS recommended to remove the refrigerator
doors when it is necessary to move the refrigerator through a
narrow opening. If necessary, follow the directions below to

remove the door handles.

" Loosen the set screws with a _32" (2.38 mm) Ailen wrench and

remove the handle.

NOTE: If the handle mounting fasteners need to be tightened
or moved, use a 1/4" (6.35 ram) AHen wrench.

Mounting
fasteners

"'. Set screw

Left levelingleg

Right leveling leg

Raise the front of the refrigerator enough so the doors close
freely when opened halfway. The refrigerator should slope 1/4"
(6.35 rnm) to 1/2" (12. 7 ram) from front to back.

Then level the refrigerator from side to side.

wrench

9

HANDLE REMOVAL (TYPE 2)

• Grasp the handle tightly with both hands and slide the

handle up _ (this may require some force).

° The keyhole slots _ on the back of the handle allow the

handle to separate from the mounting screws Q.

° Then puii the handle towards you.

CAUTION: Use extreme care to prevent damage if using a

rubber mallet to remove the handles.

CAUTION: It may take some force to assemble

or

dissemble the handles.

EJectrlc Shock Hazard

* Disconnect electrical supply to the refrigerator before

installing. Failure to do so could result in death or serious
injury.

° Do not put your hands or feet or other objects into the air

vents° base griiler or bottom of the refrigerator.

° Be careful when you work with the hinger base grille and

stopper. You may be injured.

REMOVING AND REPLACING REFRIGERATOR DOORS
Before removing the doors r remove the base grille. See BASE

GRILLE INSTALLATION for reference.

Screws

mounted

on door

(_

Keyhole slots_
on back of /> L_

handle /

/

1.Open the door. Remove the top hinge cover screw (1).

2.Use a fiat blade screwdriver to pry back the hooks (not
shown) on the cabinet underside of the cover (2). Lift up the

cover.

3. Rotate the hinge lever (3) clod<wise. Lift the top hinge (4)
free of the hinge lever latch (5).

NOTE: Regardless of hinge lever type r removal process is the
same.

4.Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a non scratching
surface.

_'_ CAUTION: When lifting the hinge free of the latch, be

careful that the door does not fall forward.

10

Removing the left (freezer) door with water line connection

•Puii up the water feed tube while pressing area (Figure 1) as
shown in the figure below.

° NOTE: If a tube end is deformed or abraded, trim the

part away. Disconnecting the tube under the door causes
about 0.13 gallons (0.5 liters) water to flow out. Put a large
container at end of tube to prevent water from draining onto

the floor.

ure 1

(2)

(i)\

Relnstalling the right (refrigerator) door

/(2)

1. Place the door onto the lower hinge pin.

2.Fit top hinge (4) over hinge lever latch (5) into place. Rotate
lever (3) counterclockwise to secure hinge.

NOTE : Regardless of hinge lever type, installation process is
the same.

3.Hook tab an switch side of corner under edge of wire

opening in cabinet tap. Position cover (2) into place. Insert
and tighten cover screw (1).

Relnstafflng the Jeff(freezer) door

(3)

/

(6)

(7)

Type 1

1. Open the door. Remove the top hinge cover screw (1).

2.Use a fiat blade screwdriver to pry back the hooks (not
shown) on the cabinet underside of the cover (2). Lift up the

cover.

3. Disconnect all the wire harnesses (3).

4.Remove the grounding screw (4).

5.Rotate hinge lever (5) counterclockwise. Lift the top hinge
(6) free of the hinge lever latch (7).

NOTE: Regardless of hinge lever type, removal process isthe

same.

CAUTION: When lifting the hinge free of the latch, be
careful that the door does not fall forward.

6.Lift the door from the lower hinge pin being careful to pull
the water lines through the lower hinge pin.

7. Place the door, inside facing up, on a non scratching

surface.

(2)

(I)\

/

(6)......

/

(7)

Type 1

1. Feed the water tubes through the lower hinge pin and place
the door onto the lower hinge pin.

2. Fit top hinge (6) over hinge lever latch (7) and into place.

Rotate lever (5) clockwise to secure hinge.
NOTE: Regardless of hinge lever type, installation process is
the same.

3.Install the grounding screw (4) and connect all the wire

harnesses (3).

4.Hook tab on door switch side of cover (2) under edge of

wire opening in cabinet top. Position cover into place. Insert
and tighten cover screw (1).

5.Reconnect the water tubes by inserting the tubes into the

connectors.

Coilet

Tube --

11

Insert Line

DOOR ALIGNMENT

Before adjust the doors, remove the base grille. See BASE

GRILLE INSTALLATION for reference.

First select your adjusting tool, it could vary.

Type 1
Adjusting tool: fiat blade screwdriver

If the freezer compartment door is lower than the refrigerator
compartment door, level them by inserting a flat blade
screwdriver into the groove of the left leveling leg and

rotating it clockwise.

Type 2
Adjusting tools: wrench s/16"(8 ram] and wrench 3.4" (19 ram)

Height

difference

)I...........................

Keeper nut

Wrench

Left leveling
leg Height

difference

• /

If the freezer compartment door is higher than the refrigerator
compartment door, level them by inserting a flat blade
screwdriver into the groove of the right leveling leg and

rotating it clockwise.

Adj !

hinge;_w__" --F

Using a 3_" (19 mm) wrench, turn the keeper nut clockwise to
loosen the keeper nut. Using a s/1J' (8 mm) wrench, turn the
adjustment hinge pin clockwise or counterclockwise to level
the refrigerator and freezer door.
After setting the level door, turn the keeper nut
counterclockwise to tighten.

[] CAUTION: Do not overtight the door adjustment screw.

The hinge pin can be pulled out. (Adjustable range of
height is a maximum of 1/2" (12.7 ram)).

AFTER LEVELING THE DOOR HEIGHT
Make sure the front leveling legs are completely touching the

floor.

Height

difference

:J

Right leveling leg

12

CONNECTING THE WATER LINE

NOTE: Water line installation is needed when the Automatic

Icemaker and/or Water Dispenser features are available on
your product.

° A cold water supply. The water pressure must be between

20 and 120 PSI (1.4 bar and 8.2 bar) on models without a

water filter and between 40 and 120 PSI (2.8 bar and 8.4

bar) on models with a water filter.

BEFORE YOU BEGIN
This water line installation is not warranted by the refrigerator

or icemaker manufacturer or selien Follow these instructions
carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead to
water leakage or flooding. Caiia qualified plumber to correct
water hammer before installing the water supply line to the

refrigerator.
To prevent burns and product damage, do not hook up the

water line to the hot water line.

If you use your refrigerator before connecting the water line,

make sure the icemaker power switch is in the O (off) position.

Do not install the icemaker tubing in areas where
temperatures fail below freezing. When using any electrical
device (such as a power drill) during installation, be sure the
device is double-insulated or grounded in a manner to prevent
the hazard of electric shock, or is battery-powered.
Aii installations must be in accordance with local plumbing
code requirements.

NOTE: Wear eye protection.

* If a reverse osmosis water filtration system is connected

to your cold water supply, the water line installation is not
warranted by the refrigerator or icemaker manufacturer or
seller. Follow next instruction carefully to minimize the risk of
expensive water damage.

* if a reverse osmosis water filtratlon system is connected

to your cold water supply, the water pressure to the reverse
osmosis system needs to be a minimum of 40 to 60 PSI (2.8
kg*f/cm2-4.2 kg*f/cm 2, less than 2-3 sec. to flit a cup of 7
oz. capacity).

If the water pressure from the reverse osmosis system is less
than 21 PSI (1.5 kg°f/cm 2, more than 4 sec. to fill a cup of 7
oz. capacity):

° Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

° Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

° If the issue about water pressure from reverse osmosis

remains, call a licensed, qualified plumber.

WHAT YOU WILL NEED
* Copper Tubing, 1/4" (6.35 mm) outer

diameter to connect the refrigerator to
the water supply. Be sure both ends of the
tubing are cut square.

To determine how much tubing you need, measure the
distance from the water valve on the back of the refrigerator
to the water supply pipe. Then add 8 feet (2.4 m). Be sure
there is sufficient extra tubing (about 8 feet [2.4 m] coiled
into 3 turns of about 10" [25 cm] diameter) to allow the

refrigerator to move out from the waft after installation.

• Power driIN. 1/2" (12.7 mm) or
adjustable wrench.

* Flat head and Philllps

screwdrivers.

* Two 1/4" (6.35 ram) outer

diameter compression nuts and 2

Ferrules (sleeves) to connect the
copper tubing to the shutoff valve
and the refrigerator water valve.

• If your existing copper water line
has a flared fitting at the end, you

will need an adapter (available at

plumbing supply stores) to connect

the water line to the refrigerator

OR you can cut off the flared fitting with a tube cutter and

then use a compression fitting.

* Shutoff valve to connect to the cold

water llne. The shutoff valve should

have a water inlet with a minimum
inside diameter of _32" (3.96 mm) at

the point of connection to the COLD

WATER LINE. Saddle=type shutoff valves are included in
many water supply kits. Before purchasing, maize sure a
saddle=type valve complies with your local plumbing codes.

INSTALLATION iNSTRUCTIONS
Install the shutoff valve on the nearest frequently used drinking

water line.

1.SHUTOFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the line.

2.CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily
accessible. It is best to connect into the side

of a vertical water pipe. When it is necessary
to connect into a horizontal water pipe, maize
the connection to the top or side, rather than
at the bottom, to avoid drawing off any
sediment from the water pipe.

3.DRILL THE HOLE FOR THE VALVE

Drill a 1/4" (6.35 mm) hole in the water
pipe using a sharp bit. Remove any

burrs resulting from drilling the hole
in the pipe. Take care not to allow

water to drain into the drill. Failure to
drill a 1/4" (6.35 mm) hole may result
in reduced ice production or smaller

cubes.
NOTE: Licensed plumbers must use only cooper NDA tubing

#49595 or 49499 or Cross Link Polyethylene (PEX) tubing.

m

Be sure that the kit you select allows at least 8 feet (2.4 m) as

described above.

13

4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with the pipe

clamp.

Pipe Clamp--_k

Saddle-Type j _ |__ Vertical Cold
Shutoff Valve Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing Codes

248CMR shall be adhered to. Saddle valves are illegal and
use is not permitted in Massachusetts. Consult with your

licensed plumber.

&TIGHTEN THE PiPE CLAMP
Tighten the clamp screws until the sealing washer begins to

swell. Washer

Pipe Clamp -- Inlet End

Clamp Screw-

&FLUSH OUT THE TUBING
Turn the main water supply on and flush out

the tubing until the water is dear.
Shut the water off at the water valve after

about one quart of water has been flushed
through the tubing.

9.CONNECT THE TUBING TO THE
REFRIGERATOR

NOTES:

* Before making the connection to the refrigerator, be sure the

refrigerator power cord is not plugged into the wall outlet.

° If your refrigerator does not have a water filter, we

recommend installing one. If your water supply has sand
or particles that could clog the screen of the refrigerator's

water valve, install the filter in the water line near the

refrigerator.

° Do not use old hoses; only use new hoses provided by

the manufacturer. For more information caii 1-800-4-MY-

HOME®.

1. Remove the plastic flexible cap from the refrigerator

connection.

2. Place the compression nut and ferrule (sleeve) onto the end

of the tubing. (See figure 1)

3. Insert the end of the tubing into the connection as far as

possible. While holding the tubing, tighten the fitting.

NOTE: Do not overtighten or you may crush the tubing.

&ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator. Route the tubing through a hole drilled in the wail
or floor (behind the refrigerator or adjacent base cabinet] as
close to the wail as possible.

NOTE: Be sure there is sufficient extra tubing [about 8 feet
(2.4 m) coiled into 3 turns of about 10" (254 mm) diameter]

to allow the refrigerator to move out from the wail after
installation.

7.CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper
tubing onto the end of the tubing and connect it to the shutoff
valve. Make sure the tubing is fully inserted into the valve.
Tighten the compression nut securely.

Saddle-Type
Shutoff Valve

Pacldng"__
Nut

Outlet
Valve

NOTE: Commonwealth of Massachusetts Plumbing Codes
248CMR shall be adhered to. Saddle valves are illegal and
use is not permitted in Massachusetts. Consult with your

licensed plumber.

_rule (sleeve)

Compression
Nut

CAUTION: Review that leaks are not occurring in the
water line.

Back of refrigerator

Tubing

1/4" (6.35 ram'
Compression

1/4"(6.35 mm)Tubing

)

Ferrule
(Sleeve)

Nut _

Refrigerator

Figure 1

Fasten the tubing into the tubing clamp attached to the back
of the refrigerator. First, loosen the screw fastening the clamp.
Next, insert the tubing in the groove. Finally, re-fasten the

screw.

10. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it

does not vibrate against the back of the
refrigerator or against the wall. Push the
refrigerator back to the wall.

11.STARTTHE ICEMAKER

Set the icemaker power switch to the ON position. The
icemaker wil! not begin to operate until it reaches its

operating temperature of 15°F (-9°C) or below. It will then
begin operation automatically if the icemaker power switch is

in the I (on) position.

14

Connection

Use this page to become more familiar with the parts and features.

NOT_: This guide covers several different models. The refrigerator you have purchased may have some or all of the items

listed below. The locations of the features shown below may not match your model.

O Freezer Door Rack

Automatic Icemaker

ice is produced in the icemaker and sent to the dispenser.

Freezer Lamp

_) Freezer Shelf (with Deco/without Deco)

Drawer (Plastic/Wire)

0 Base Grille

0 Dairy Corner

For storage of dairy products such as butter and cheese,

0 Refrigerator Lamp

Water Filter

0 Refrigerator Shelf

Snack Pan

For storage of meat or fresh food.

Refrigerator Door Rack (Plastic/Opaque)

Vegetable Drawer

15

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow between
the refrigerator and freezer sections. As shown in the
illustration below, cool air enters through the refrigerator of
the freezer section and moves up. Most of the air then flows

through the freezer section vents and recircuiates under the

freezer floor. The rest of the air enters the refrigerator section
through the top vent.

CONTROL PANEL FEATURES
(Identify your Control type)

Type ]

Type 2

* Do not block any of these vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

IMPORTANT:

Because air circulates

between both sections,
any odors formed in

one section will transfer
to the other. You must

thoroughly clean both
sections to eliminate

odors. To prevent odor
transfer and dried out

food, wrap or cover
foods tightly. (See the

Food Storage Guide

section for details.)

NOTE: If you close the

refrigerator door, you may see the freezer door open and
close again due to pressure from internal air flow.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off: dust
accumulated during shipping.

2. Install accessories such as ice cube bin, drawers, shelves,
etc., in their proper places. They are packed together to

prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours before

puffing food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling.
Your refrigerator is now ready for use.

REFRIGERATOR AND FREEZER CONTROLS

It's recommended to maintain the initial temperatures setting
(middle) by pressing Fridge Temp graphic and Freezer Temp

graphic.
NOTE: When changing control settings, waif 24 hours before

making additional adjustments. After 24 hours, adjust the
compartments temperatures as desired. The more lit bars, the
colder the refrigerator and freezer will be. See Figure ] for

reference.

Figure 1

Display Off Mode
The display lights up and stays lit when the refrigerator is

plugged in for 20 seconds. All the display lights go off: except
the dispenser icon selected (crush, water or cube), and the

display only lights when door is opened or display button is
pressed. The display will turn off: 20 seconds after the door
is closed or the display button is pressed. You can change
the display to always ON by pressing the Freezer Temp and

Ultra Ice buttons at the same time for 5 seconds. A tone will
sound indicating that the display is ON ( Display Off: Mode

Deactivated). To return to Display Off: Mode, press the same
two buttons for 5 seconds.

..... ULTRA ICE

Press this button once to activate increased ice
making function. The ULTRA ICE icon on the display

panel will illuminate when activated. The Ultra Ice function
runs the freezer compartment at the coldest settings for a 24
hour period to increase ice making. Press the button again to

cancel the Ultra Ice function.

16

: LOCI< CONTROLS / LOCI<

[_ The LOCI< CONTROLS/LOCK button

HOLD3SECS deactivates the temperature controls

TYPE1 TYPE2and dispenser functions. Press and hold

this button for 3 seconds or until the Loci<indicator light is

lit. To disable the Loci< function, press and hold the LOCI<
CONTROLS/LOCI< button for 3 seconds or until the Loci<
indicator light is off.

Door Alarm
When either refrigerator or freezer door is left open for more

than 60 seconds, an alarm will sound 5 times at 30 seconds
intervals to let you know the door is open. Please contact the

local service center if warning tone continues to sound even
after closing the door.

C.ANOEH_2T_R

FILTER RESET

HOLD 3 SECS

° There is a replacement indicator light for the water filter

cartridge on the dispenser.

° Water filter usually needs replacement once every six

months.

° Filter light comes on and blinks to let you know when to

replace filter.

° After replacing filter, press and hold Filter Reset button for 3

seconds to turn off filter status light.

( 1 Ice&Water 1 1 _CE & WATER

(Identify your icon type)
You can select between the water or ice options.
* Select Water, Crushed Ice or Cubed Ice by pressing the

ICE & WATER button to the selection desired. The Water,

Crushed Ice or Cubed Ice icon will light up to indicate
selection.

Cube

Selecting this icon indicates that cubed ice will be
dispensed when the dispenser pad is activated.

TYPE 1 TYPE 2

Water

Selecting this icon indicates that water will be

TYPE 1 TYPE 2

Crushed

dispensed when the dispenser pad is activated.

Selecting this icon indicates that crushed ice will be

TYPE 1 TYPE 2

dispensed when the dispenser pad is activated.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before
making final adjustments. It is best to wait 24 hours before
doing this. The initial settings mentioned in CONTROL PANEL

FEATURES section should be correct for normal household
refrigerator use.

The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The colder
the setting, the longer the compressor will run to keep the
temperature colder. The freezer control adjusts the cold air
flow from the freezer to the refrigerator. Setting the freezer
control to a lower temperature keeps more cold air in the
freezer compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator. Then wait 24 hours
before checking the freezer temperature. If it is too warm or
too cold, then adjust the freezer control.
Use the settings listed in the chart below as a guide. Always

remember to wait at least 24 hours between adjustments.

CONDITION/REASON RECOMMENDED

ADJUSTMENT:

[]REFRIGERATOR section too

warm.

° Door opened often.
° Large amount of food added.
° Room temperature very warm.

[]FREEZER section too warm/ice

not made fast enough.

° Door opened often.
° Large amount of food added.
° Very cold room temperature

(compressor does not cycle often
enough).

° Heavy ice usage.
° Air vents blocked by items.

[]REFRIGERATOR section too cold.
° Controls not set correctly for your

conditions.

[] FREEZER section too cold.
° Controls not set correctly for your

conditions.

Press the
REFRIGERATOR control

to next coldest level,
wait 24 hours.

Press the FREEZER
control to next coldest

level, wait 24 hours.

Move items out of
airstream.

Set REFRIGERATOR
control to next warmer

level, wait 24 hours.
Press the FREEZER

control to next warmer
level, wait 24 hours.

To dispense water or ice, gently push your cup against the
dispenser pad.

NOTE: Hold your cup in place for a couple of seconds after

dispensing ice or water so the last few drops go in your cup
instead of on the floor.

17

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-

proof material unless otherwise noted. This prevents food

odor and taste transfer throughout the refrigerator. For dated

products, check date code to ensure freshness.

items How to Store
Butter or _ Keep opened butter in a covered

margarine dish or closed compartment. When

storing an extra supply, wrap in
freezer packaging and freeze.

Cheese _ Store in the original wrapping

until you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.

Mill< _ Wipe mill< cartons. For best storage,

place milk on interior shelf, not on
door rack.

Eggs _ Store in original carton on interior

shelf, not on door rack.

Fruits _ Wash, let dry, and store in

refrigerator in plastic bags or in the
crisper. Do not wash or hull berries
until you are ready to use them. Sort
and keep berries in their original
container in a crisper, or store in a
closed and sealed paper bag on a
refrigerator shelf.

Leafy vegetables

Remove store wrapping and trim
and tear of? bruised and discolored

areas. Wash in cold water and
drain. Place in plastic bag or plastic

container and store them in crisper.

Vegetables with
skins (carrots,

Place in plastic bags or plastic
container and store in crisper.

peppers)
Fish _ Use fresh fish and shellfish the same

day purchased.

Leftovers _ Cover leftovers with plastic wrap

or aJuminium foil. Plastic containers
with tight lids can also be used.

STORING FROZEN FOOD
NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a
reliable cookbook.

Packaging
Successful freezing depends on correct packaging. When you
close and seal the package, it must not allow air or moisture
in or out. If it does, you could have food odor and taste
transfer throughout the refrigerator and also dry out frozen

food.

Packaging recommendations

° Rigid plastic containers with "tight=fitting lids"
* Straight-sided canning/freezing jars
° Heavy-duty aluminum foil
° Plastic-coated paper
° Non-permeable plastic wraps
° Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper freezing
methods.

Do not use:

° Bread wrappers
° Containers without tight lids
° Wax paper or wax-coated freezer wrap
° Thin, semi-permeable wrap

CAUTION: Do not keep beverage cans or plastic food
containers in the freezer compartment. They may break if
they freeze.

Freezing

Your freezer wiii not quick-freeze any large quantity of food.
Do not put more unfrozen food into the freezer than wi!l
freeze within 24 hours [no more than 2 to 3 lb. of food per
cubic foot (0.9 to 1.36 kg per cubic meter) of freezer space].
Leave enough space in the freezer for air to circulate around
packages. Be careful to leave enough room at the front so the
door can close tightly.

Food storage times will vary according to the quality and
type of food, the type of packaging or wrap used (airtight
and moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for 30
minutes, then package and freeze. Cooling hot foods before
freezing saves energy.

18

WATER AND ICE DISPENSER
Your refrigerator has a mechanism that can dispense cool

water and ice cubes without opening the door.
° The tray can easily be removed by pressing down and lifting

it out.

° First push the tray in the area labeled 'PUSH', then place

your finger in the center hole and lift up to remove the tray.

ICE STORAGE BIN
The ice bin stores the ice cubes made by the icemaken If you

need to remove the ice storage bin, do so as follows.

NOTE: Use both hands to remove the ice bin to avoid
dropping it. If the ice bin does not slide into place easily, twist

the drive device slightly.

° Hold the ice storage bin as shown in the left figure lift it @

while slightly pulling it out @.

®

° To assemble the ice storage bin, lift it (3) while slightly

pushing it in @.

Ll_ WARNING: Do not put your hands into the water and ice

dispenser opening. Doing so may cause an injury to your

hand.

@. If not, rotate the auger drive in the direction shown by the

I NOTE: Make sure the bin is fully engaged into the auger drive

CAUTION: When using the dispenser with a container with • Lift the ice shelf @ and pull it out @.
a small opening, place the container as close to the top as

possible.

° The dispenser has the following dimensions:

Depth 4 _?' (124 mm)

Width 6 z,/d'(175 mm)

Height 9 _d' (238 mm)
We suggest you use a container that is within the
specifications for better performance.

arrow until the bin is fully engaged into the auger drive.
ICENAKER COVER

If you need access to the icemaker, follow these steps:

DOOR RACK AND SUPPORT
Your refrigerator and freezer features racks which can easily

be arranged for packaged products.
° Lift the door rack holding both sides @ and puii it out in @

direction.

19

CRISPER AND CRISPER COVER

The crisper allows for better conservation of fruits and
vegetables.
° To remove the crisper compartment cover, pull out the crisper

compartment a bit to the front O, lift the front part Q, and
take it out Q.

REFRIGERATOR SHELVES

CAUTION: Make sure to keep shelf horizontal while
removing;

otherwise it may drop.

The refrigerator compartment shelf is adjustable so that you
can place it at a height according to space requirement of

foods.

@ ........... ........

CAUTION: When removing the crisper compartment you
will see the water tank. Do not remove it, you can produce

water leakage. The water tank is not a removable part.

You can control the amount of humidity in the moisture-
sealed crispers. Adjust the control to any setting between

"VEGETABLE" and "FRUIT".
"VEGETABLE": Keeps moist air in the crisper for best storage

of fresh, leafy vegetables.
"FRUIT": Lets moist air out of crisper for best storage of fruits

or vegetables with skins.

° Puii the shelf towards you O, then lift both front and rear Q.

CAUTION: Be careful when pulling out the shelf. If you

apply too much force, it may hit the refrigerator door and
damage it or you could hurt yourself.

/Door

° Carefully lift the shelf up fully Q.

SNACK PAN

° To remove the snack pan cover, puii the snack pan out a bit

O. Lift the front part of the snack pan cover and pull out Q.

* Tilt the shelf Q and puii forward to remove it ®.

20

FREEZERSHELF

To assemble or disassemble the freezer shelf, follow the next
steps:

° Pull the shelf towards the front 0. The shelf hook wiii contact

the support on the guide. Lift the shelf so the hook clears the
guide support (view detail).

° Tilt the shelf (as shown in figure) Q and then puii it toward

you (_).

21

WATER FILTER
* Filter Reset: When the Filter Reset icon turns on,

you have to change the water fiiten Press the Filter

Reset button for 3 seconds to turn the icon off.

CHANGE FILTER

HOLD 3 SECS

Before removing or installing the wafer filter

1. IMPORTANT: Turn off household wafer supply.

2.Take out the fop shelf and move if to the lowest level.

Removing the wafer filter

For filter replacement, remove aid filter by turning it
counterclockwise a quarter turn and pulling it down.

NOTE: The subsfffufe cap must be retained for fhe fufure.

If fhe filler is removed and nor replaced, if is necessary fo
reinstall fhe substitute cap fo prevenf water leaks from fhe
filter housing.

3.Push the water filter up into the filter receptacle and rotate

it clockwise to loci<it into place. Once installed correctly,
the lock symbol I_ should be facing you and you should

not be able to rotate the filter clockwise any more.

NOTE: After installation, if you notice that the lock symbol t_
is not facing you or you can continue to rotate the filter

clockwise; remove the filter and repeat installation to prevent
water leaks.

After insfallng the water filter

1. Replace the shelf to the initial position.

2.After installing filter, turn on household water supply.

3.Dispense 2.5 gallons (9.46 liters) of water to purge the
system, depressing and releasing the dispenser pad in
cycles of 30 seconds ON and 60 seconds OFF. Open the

refrigerator door and check the shelf area for water leaks.

Insfallng the wafer filter

1. Remove the red cap from the fitter.

2.Hold the filter with the unlock symbol E3_ facing towards
you as shown in the figure below. Insert the filter into
the filter receptacle on the right side of the refrigerator

compartment.

f

IiOOiIl

To purchase replacement water filters, caii
1-800-4-MY-HOME ®.

22

Filter Performance Data Sheet

Model Number ADQ72910902

Use with replacement cartridge ADQ72910902

This system has been tested according to NSF/ANSI 42 for the reduction of the substances listed below. The
concentration of the indicated substances in water entering the system was reduced to a concentration Jess than

equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42.

System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine, Taste and

Odor and Nominal Particulate Class III.

Contaminant Reduction Average Influent Challenge Avg. Product Water Average % Min. Required Max. Effluent mcj/L

Particulate Class III Particles At least 10000

5m to 15urn particles/ml

Chlorine taste and odor 2.0 mg/L 2.0 mg/L 4- 10% mg/L 97.4 _>50% 0.06 mg/L

Influent concentration. Concentration Reduction Reduction

48000 7.5 99.9 ->85% 26

° To a capacity of 500 gallons (1892 L).
° Note that while the testing was performed under standard laboratory conditions, actual performance may vary.

Application Guidelines / Water Supply Parameters
Water pressure 20 - 125 psi (138 - 862 kPa)
Water temperature 34°F - IO0°F (1°C - 3Z8°C)

Service flow 0.5 gpm (1.9 Ipm)

To reduce the risk associated with ingestion
of contaminants due to use with water that is

microbioiogicaJiy unsafe or of unknown quality.
Do not use with water that is microbioJogically unsafe or
of unknown quality without adequate disinfection before
or after the system.

Systems must be installed and operated in accordance with

manufacturer's recommended procedures and guidelines.

To reduce the risk of property damage due to water

leakage:
° Read and follow Use instructions before installation and

use of this system.
° Install on COLD water lines only.
° Company with all state and local plumbing codes. Never

install or operate where inlet water pressure may exceed

125 psi (862 kPa).
° Protect filter from freezing. Remove filter in temperatures

below 34°F (1°C).

° Replace cartridge at specified service interval. Cartridge

MUST be replaced at least every 6 months.
° After replacing the water filter cartridge, dispense 2.5

gallons (9.46 liters) of water to purge the system,

depressing and releasing the dispenser pad in cycles

of 30 seconds ON and 60 seconds OFF. Discard the

purged water.

To purchase a replacement fiiteb visit your local Sears store
or call 1-800-4-MY-HOME ®. Visit us an the web at

www.sears.com

Product distributed in the United States by Sears Brands
Management Corporation, Hoffman Estates, IL 60179.

23

Explosion Hazard
Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once a

month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS
* Unplug refrigerator or disconnect power.

* Remove all removable parts, such as shelves, crispers, etc.

Refer to sections in Using Your Refrigerator for removal
instructions.

* Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

* Hand wash, rinse and dry all surfaces thoroughly.
* Plug in refrigerator or reconnect power.

OUTSIDE
Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or auto

paste wax). Apply wax with a clean, soft cloth. Do not use
wax stainless steel exteriors. Use a product specially designed
for polishing stainless steel appliances, or clean with a soft
cloth or clean sponge and a mild detergent dissolved in warm
water. Dry thoroughly with a soft cloth.

NOTE: Avoid door surface contact with chemical products
that contain Phosphate or Chlorine.

iNSiDE WALLS

NOTE: Allow freezer |o warm up so clo|h will no| s|ick.

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water.) Be sure the baking soda is completely
dissolved so it does not scratch the surfaces of the refrigerator.

BACK COVER

Electrlcal Shock Hazard
Before you begin, either unplug the refrigerator or turn off:

power at the circuit breaker or fuse box.
Failure to do so can result in death or serious injury.

NOTE: Back cover should only be removed by a qualified
|echnlclan.

Clean the vents on the back
cover. Use a vacuum cleaner

with the brush attachmenh at
least twice a year to keep your
refrigerator working efficiently.

LAMP REPLACEMENT

Electrlcal Shock Hazard
Before replacing a burned-out light bulb, either unplug the

refrigerator or turn off: power at the circuit breaker fuse box.

NOTE: Not all appliance bulbs will fit your refrigerator be
sure to replace the bulb with one of the same size, shape and

wattage.

To change the refrigerator and freezer lamp:

1. Unplug the refrigerator.

2.Remove the cover lamp by pressing upward on bottom O
and rotating outward _).

3.Remove the bulb with a counterclockwise movement.

4.Replace with 40 watt (maximum) appliance bulb.

5.Reinstall cover lamp and plug again the refrigerator.

DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergent, bleaches,

or cleaners containing petroleum on plastic refrigerator parts.

Use a clean sponge or soft cloth and a mild detergent in

warm water. Wash, rinse and dry all surfaces thoroughly.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleaners, or flammable
fluids. These can scratch or damage the material. Use a clean
sponge or soft cloth and a mild detergent in warm water.
Wash, rinse and dry all surfaces thoroughly.

POWER iNTERRUPTiONS

1. If the power wii[ be out for 24 hours or less, keep ai[
refrigerator doors closed to help foods stay cold and frozen.

2.If the power will be out for more than 24 hours, remove all

frozen food and store it in a frozen food locker.

24

WHEN YOU GO ON VACATION

if you choose to unplug the refrigerator while you are away,

follow these steps to prepare your refrigerator before you

leave.

1. Use up any perishables and freeze other items.

2.Empty the ice bin.

3.Turn OFF the icemaker.
NOTE: If the ambient temperature will drop below freezing,

have a qualified service technician drain the water supply

system to prevent serious property damage due to possible
flooding from ruptured water lines or connections.

if you choose to unplug the refrlgerator before you leave,

follow these steps.

1. Remove all food from the refrigerator and empty ice bin.

2. Unplug refrigeraton

3.Clean refrigerator, wipe, and dry well.

4.Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops odor
and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow
these steps to prepare it for the move.

1. Remove aii food from the refrigerator and pack aii frozen

food in dry ice.

2. Unplug refrigerator.

3.Clean refrigerator, wipe, and dry well.

4.Empty water from the defrost pan.

5.Clean, wipe and dry thoroughly.

6.Take out aii removable parts, wrap them weii and tape

together so they do not shift and raffle during the move.
Refer to sections in Using Your Refrigerator for removal

instructions.

7. Depending on the model, raise the front of the refrigerator

so it roils more easily OR screw in the leveling legs all
the way so they do not scrape the floor. See the DOOR

ALIGNMENT section.

8.Tape the doors shut and tape the power cord to the

refrigerator cabinet. When you get to your new home r
put everything back and refer to the REFRIGERATION
iNSTALLATION section for setup instructions.

ICEMAKER OPERATION

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or the heating element that releases the
cubes. DO NOT place fingers or hands on the automatic
icemaking while the refrigerator is plugged in.

A newly=installed refrigerator may take 12 to 24 hours to
begin making ice.

Power Switch
(ON/OFF)

\

Shutoff Arm

The icemaker wiii produce 8 cubes per cycle, approximately
70 -80 cubes in a 24 hour period, depending on freezer
compartment temperature, room temperature, number of door
openings and other operating conditions. If the refrigerator is
used before the water connection is made to the icemaker, set
the power switch to OFF. Throw away the first few batches of

ice to allow the water line to clear.
Be sure nothing interferes with the sweep of the feeler arm.

When the bin fliis to the level of the feeler arm, the icemaker
wiii stop producing ice.
It is normal for several cubes to be stuck together. If ice is not
used frequently, aid ice cubes wiii become cloudy, taste stale,

and shrink.

WHEN SHOULD YOU SET THE ICEMAKER POWER SWITCH

TO OFF
° When the water supply will be shut off for several hours.

° When the ice storage bin is removed for more than a minute

or two.

° When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR
The icemaker water valve wiii buzz as the icemaker fliis with

water. If the power switch is in the ON position, it wiii buzz
even if it has not yet been hooked up to water. To stop the
buzzing, move the power switch to OFF position.
NOTE: Keeping the power switch in the ON position before
the water line is connected can damage the icemaker. You
wiii hear the sound of cubes dropping into the bin and water
running in the pipes as the icemaker refills.

25

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one did

not make. Because the sounds are new to you, you might be

concerned about them. Most of the new sounds are normal.

Hard surfaces, like the floor, walls and cabinets, can make the
sounds seem louder than they actually are. The following list
describes the kinds of sounds and what may be making them.

" The defrost timer will click when the automatic defrost cycle

begins and ends. The thermostat control (or refrigerator

control, depending on the model) will also click when cycling
on and off:.

• Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.

• Your refrigerator is designed to run more emcienfly to

keep your food items at the desired temperature. The high

efflciency compressor may cause your new refrigerator to

run longer than your old one, and you may hear a pulsating

or high-pitched sound.

may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

each cycle ends, you may hear a gurgling sound due to

the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause a
popping noise.

pping on the defrost heater during a defrost cycle

may cause a sizzling sound.

You may hear air being forced over the condenser by the
condenser fan.

You may hear water running into the drain pan during the
defrost cycle.

Refrigerator does Firmly unplug the cord into a live outlet with proper voltage.
not operate. Replace the fuse or reset the circuit breaker.

The power supply cord is unplugged.
A household fuse has blown or circuit

breaker tripped.
The refrigerator is in the defrost cycle.
The display shows the word OFF.

Wait about 30 minutes for defrost cycle to end.

The refrigerator control has been put into the store Demo
(Demonstration) Mode.
The Demo Mode disables the cooling system, only lamps and

display works normally.

To disable Demo Mode open one door, then press Ultra Ice

and Fridge Temp buttons at the same time for 5 seconds.
When Demo Mode is deactivated, you will see the previous

value setting you had on display.

Vibration or The refrigerator is not resting solidly on
rattling noise, the floor.

Lights do not work. The power supply cord is unplugged.

Light bulb is loose in the socket.

Floor is weak or uneven or leveling legs need adjustment. See
DOOR ALIGNMENT section.

Firmly plug the cord into a live outlet with proper voltage.
Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then

plug in the refrigerator and reset the refrigerator control.

work.

Light bulb has burned out.Lamps do not

Replace with an appliance bulb of the same wattage, size

and shape available at your local hardware store. See the

LAMP REPLACEMENT section.
Turn the temperature control to the OFF position and unplug

the refrigerator prior to replacement.

Compressor motor

seems to run too

much.

The refrigerator that was replaced was
an older model.

The room temperature is hotter than
normal.

Modern refrigerators with more storage space require more
operational time. Even though this refrigerator may run more
than your older one, it will still use less energy.

The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run
even more than previous models.

26

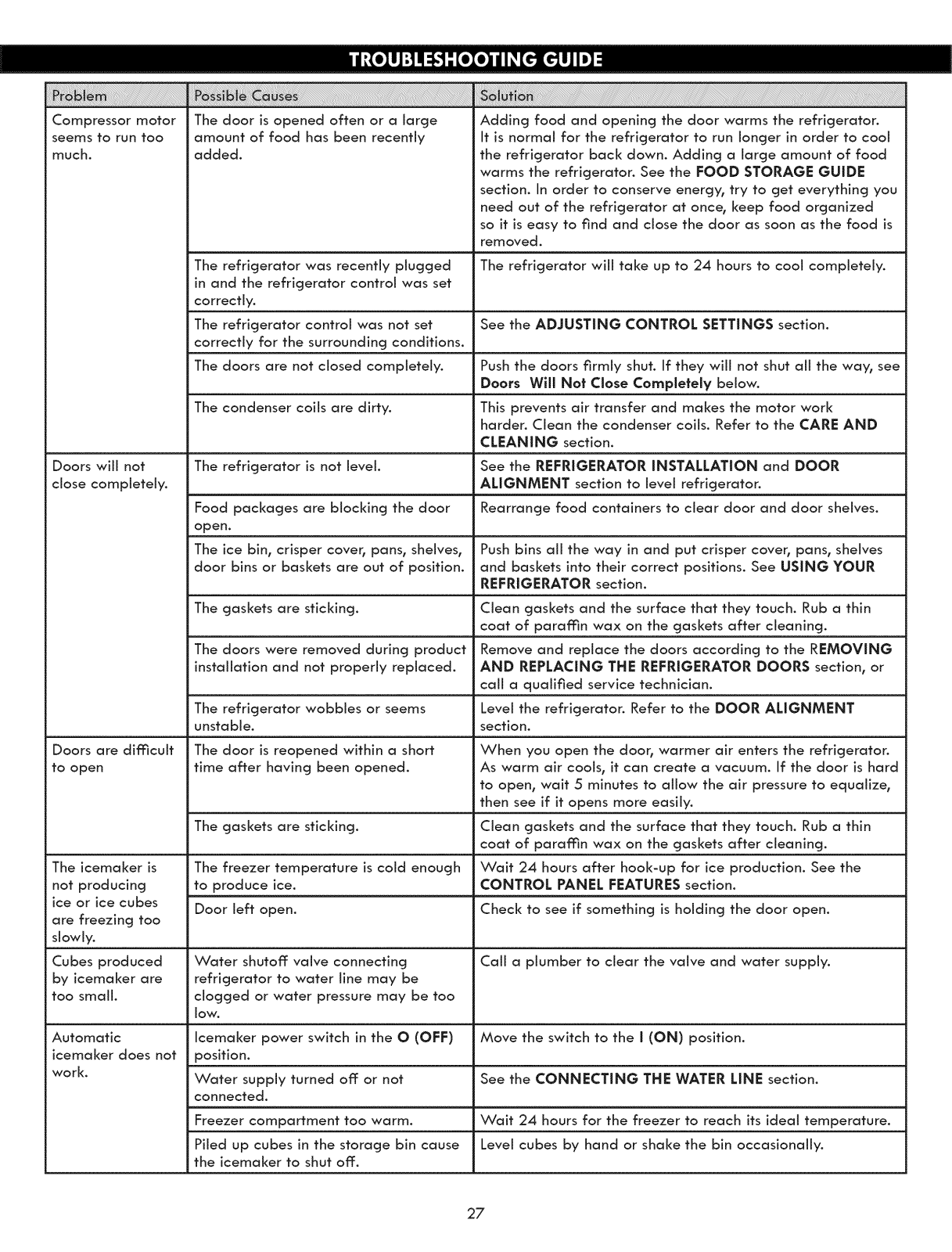

Compressor motor
seems to run too

much.

The door is opened often or a large
amount of food has been recently
added.

Adding food and opening the door warms the refrigerator.

It is normal for the refrigerator to run longer in order to cool
the refrigerator back down. Adding a large amount of food
warms the refrigerator. See the FOOD STORAGE GUIDE

section. In order to conserve energy, try to get everything you

need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food is

removed.

The refrigerator was recently plugged

The refrigerator will take up to 24 hours to cool completely.

in and the refrigerator control was set
correctly.

The refrigerator control was not set

See the ADJUSTING CONTROL SETTINGS section.

correctly for the surrounding conditions.
The doors are not closed completely.

Push the doors firmly shut. If they will not shut all the way, see

Doors Will Not Close Complefely below.

The condenser coils are dirty.

This prevents air transfer and makes the motor work

harder. Clean the condenser coils. Refer to the CARE AND

CLEANING section.

Doors will not The refrigerator is not level.
close completely.

Food packages are blocking the door

See the REFRIGERATOR INSTALLATION and DOOR
ALIGNMENT section to level refrigerator.

Rearrange food containers to clear door and door shelves.

open.
The ice bin, crisper cover, pans, shelves,

door bins or baskets are out of position.

Push bins all the way in and put crisper cover_ pans, shelves

and baskets into their correct positions. See USING YOUR

REFRIGERATOR section.

The gaskets are sticking.

Clean gaskets and the surface that they touch. Rub a thin

coat of paraffin wax on the gaskets after cleaning.

The doors were removed during product
installation and not properly replaced.

Remove and replace the doors according to the REMOVING
AND REPLACING THE REFRIGERATOR DOORS section, or

call a qualified service technician.

The refrigerator wobbles or seems
unstable.

Doors are difficult The door is reopened within a short
to open time after having been opened.

Level the refrigerator. Refer to the DOOR ALIGNMENT

section.

When you open the door, warmer air enters the refrigerator.
As warm air cools, it can create a vacuum. If the door is hard
to open, wait 5 minutes to allow the air pressure to equalize,
then see if it opens more easily.

The gaskets are sticking.

Clean gaskets and the surface that they touch. Rub a thin

coat of paraffin wax on the gaskets after cleaning.

The icemaker is The freezer temperature is cold enough Wait 24 hours after hook-up for ice production. See the

not producing to produce ice. CONTROL PANEL FEATURES section.
ice or ice cubes Door left open. Check to see if something is holding the door open.

are freezing too
slowly.

Cubes produced Water shutoff valve connecting Call a plumber to clear the valve and water supply.
by icemaker are refrigerator to water line may be
too small, clogged or water pressure may be too

lOW.

Automatic Icemaker power switch in the O (OFF) Move the switch to the I (ON) position.
icemaker does not position.

work. Water supply turned off or not See the CONNECTING THE WATER LINE section.

connected.

Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal temperature.
Piled up cubes in the storage bin cause Level cubes by hand or shake the bin occasionally.

the icemaker to shut off:.

27

Frost or ice The door is not closing properly.
crystals on frozen The door is opened often.

food.

Temperature is too
warm or there is

interior moisture
buildup.

Ice has bad taste The icemaker was recently installed. Discard first few batches of ice to avoid discolored or off:-
or odor flavored ice.

There is water in The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into
the defrost drain the defrost pan.

pan It is more humid than normal. Expect that the water in the defrost pan will take longer to

The refrigerator The sound may be normal for your Refer to the UNDERSTANDING SOUNDS YOU MAY HEAR
seems to maize too refrigerator, section.

much noise.

The air vents are blocked. Cold air
circulates from the freezer to the fresh

food section and back again through
air vents in the waft dividing the two

sections.

The doors are opened often.

The control is not set correctly for the Refer to the CONTROL PANEL FEATURES sections. Wait
surrounding conditions. 24 hours for temperature to stabilize or even out. If the

A large amount of food has just been Adding food warms the refrigerator. It can take a few hours
added to the refrigerator or freezer, for the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off: damp containers prior to

The doors are not closing completely. See Doors Wild Not Close Compgefely.
The weather is humid. In humid weather, air carries moisture into refrigerator when

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

The ice has been stored for too long. Throw away old ice and maize new supply.
The food has not been wrapped tightly Rewrap food since odors may migrate to the ice if food is

in either compartment, not wrapped properly.
The water supply contains minerals such A new filter may need to be installed to eliminate taste and

as sulfur, odor problems.
The interior of refrigerator needs See CARE AND CLEANING section.

cleaning.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

See Doors Wiii Not Close Completely above.

When the door is opened, warm, humid air is allowed in the

freezer resulting in frost.

Locate air vents by using your hand to sense airflow and

move all packages that block vents and restrict airflow.

Refer to ENSURING PROPER AiR CIRCULATION section for
the location of air vents.

When the door is opened, warm humid air is allowed into
the refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator

must cool. Try to get everything you need out of the

refrigerator at once, keep food organized so it is easy to find

and close the door as soon as the food is removed.

temperature is too cold or too warm, adjust the setting one

level at a time.

storing in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

FOOD STORAGE GUIDE section.

doors are opened.

refrigerator self-defrost.

evaporate. This is normal when it is hot or humid.

28

GARANTJA 30

CONTRATO DE PROTECCI6N 31

INSTRUCCIONES IMPORTANTES DE SEGURIDAD 32
REQUERIMIENTOS DE CONEXION A TIERRA 33
INSTALACI6N DEL REFRIGERADOR

Desempaque Del Refrigerador 34
Instalaci6n 34

Instaiaci6n De La Cubierta Inferior 34
Nivelando La Puerto Del Refrigerador 35
Desinstaiaci6n De La Manija 35 - 36

Desinstaiaci6n Y Reempiazo de Los Puertas Dei 40 - 41
Refrigerador

AJineamiento de Puertas 38
Conexi6n De La Tuberia De Agua 39

Antes De Comenzar 39
Qu_ Necesitar_ 39

Instrucciones De Instalaci6n 39 - 40

PARTES Y FUNCIONES 41
USO DEL REFRIGERADOR

Asegurando Ei Fiujo De Aire Adecuado 42

Panel De Control 42 - 43

Ajuste De Los Controles 43
Guia Para AImacenamiento De Alimentos 44

AImacenamiento De Alimentos Congelados 44

Dispensador De Agua Y Hielo 45
Bandeja Para Hielo 45

Cubierta De La F6brica De Hielo 45
Anaqueies De La Puerto 46

Compartimento Para Verduras 46
Charoia Para Carnes Frias 46

Estantes Dei Refrigerador 46
Estante Dei Congelador 47

RLTRO

Fiitro Para Agua 48
Hoja De Datos Y Funcionamiento 49

CONSEJOS DE LIMPIEZA

Consejos De Limpieza 50

Exterior 50
Paredes Internas 50
Revestimientos De Los Puertas 50

Partes Pi6sticas 50

Cubierta Posterior 50

Cambio De L6mpara
Interrupciones De Eiectricidad
Cuando Se Vaya De Vacaciones

Cuando Se Mude
Operaci6n De La M6quina De Hielo

Sonidos Normales Que Puede Escuchar

GUJA PARA SOLUCION DE PROBLEMAS
INFORMACI6N DE SERVICIO

50
50

51
51

51
51

58 = 62

CUBiERTA

POSTERIOR

29

® Registered Trademark / TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de F&brica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC en otros paises
MCMarque de commerce / Marque deposee de Sears Brands, LLC

MD
