Page 1

Use & Care Guide Guía de uso y cuidada

English / Español

Model/Modelos:

790. 9210*, 9220*, 9230*, 9240*

Kenmore®

Electric Range

Estufa eléctrica

* = color number, código de color

P/N 316902008 Rev B

Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com www.sears.com

Page 2

Table of Contents

Appliance Warranty ............................................................................. 2

Important Safety Instructions ......................................................... 3-6

Product Record/Serial Plate Location ............................................... 6

Before Setting Oven Controls .............................................................. 7

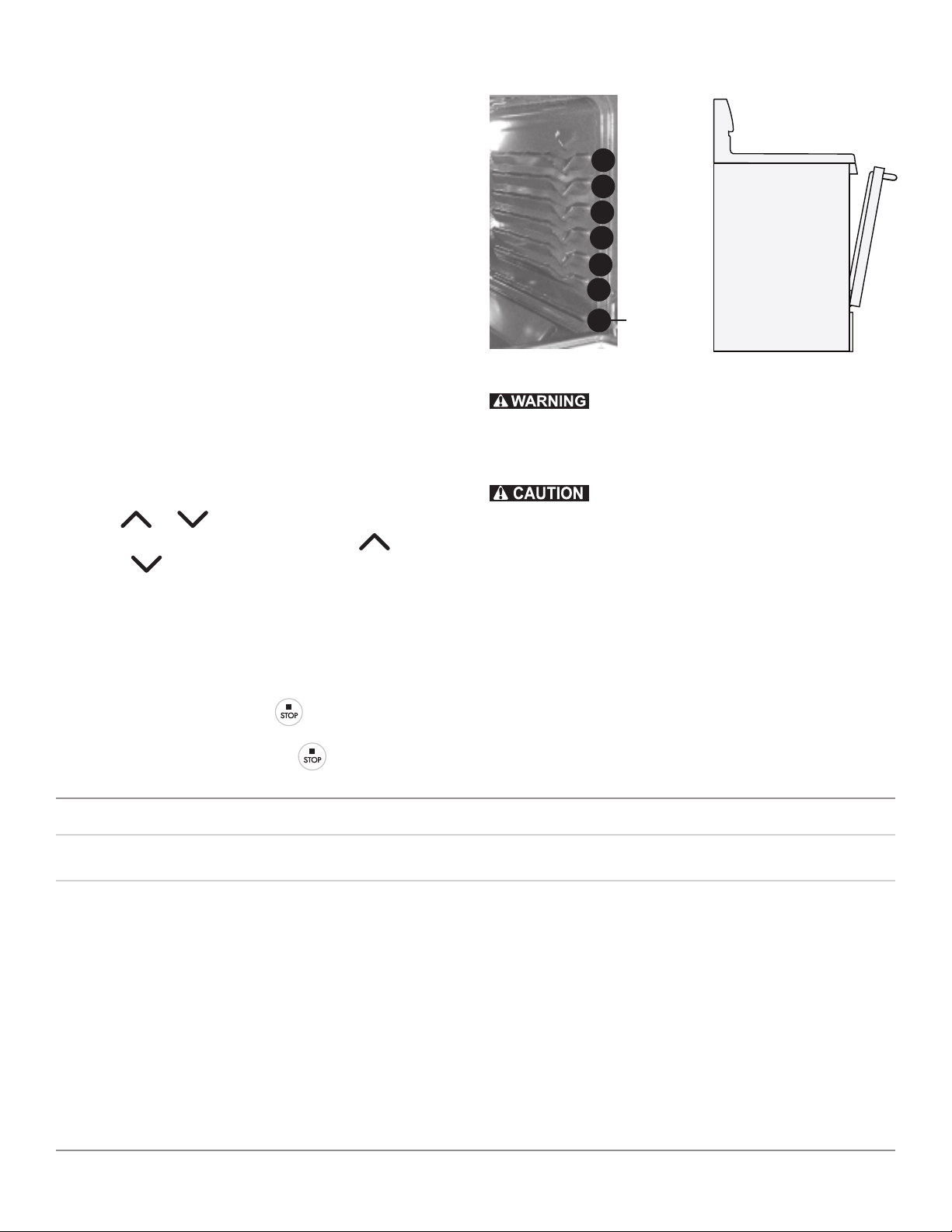

Removing, replacing & arranging the oven racks ....................... 7

Before Setting Surface Controls ..................................................... 8-10

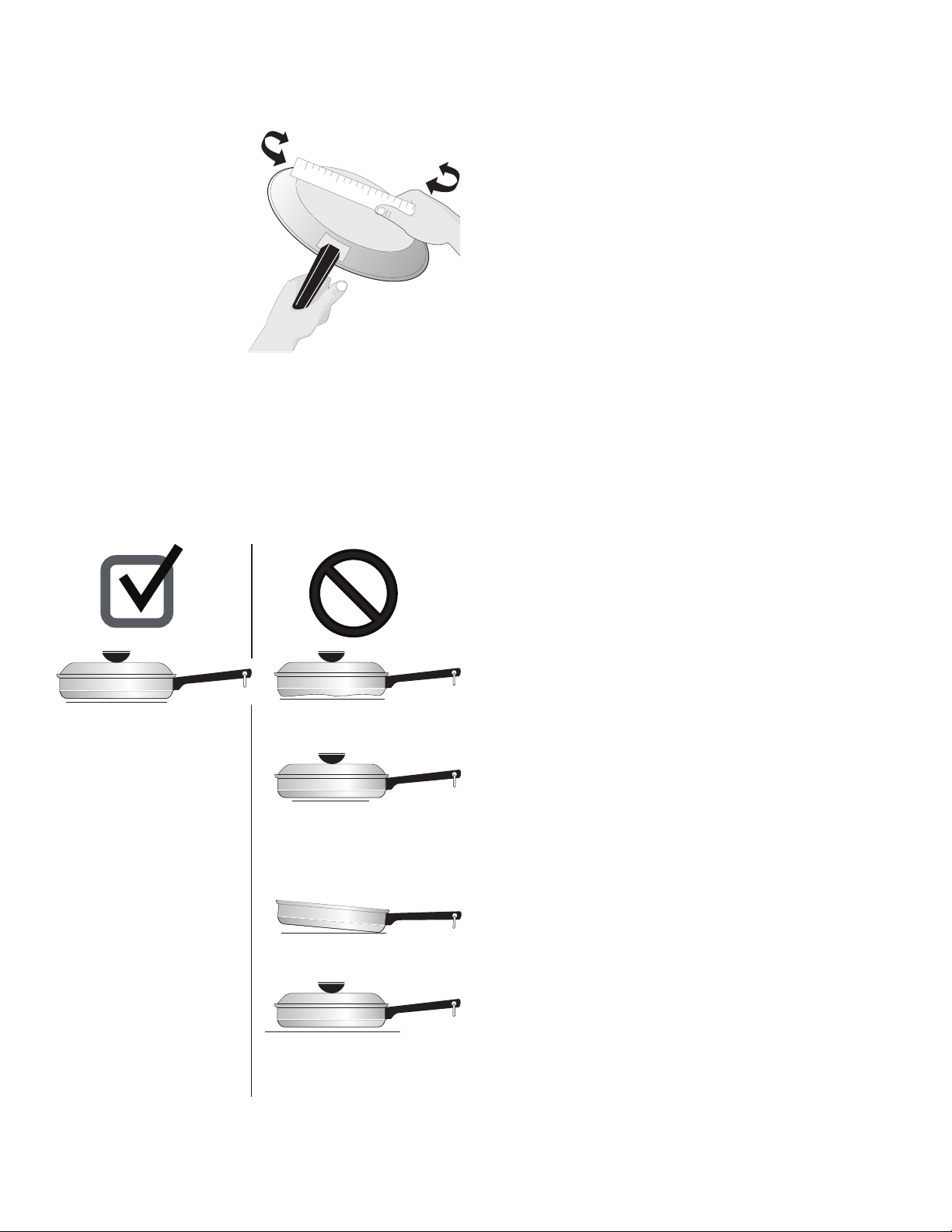

Using proper cookware .................................................................... 8

Cookware material types................................................................. 8

Home canning ................................................................................... 10

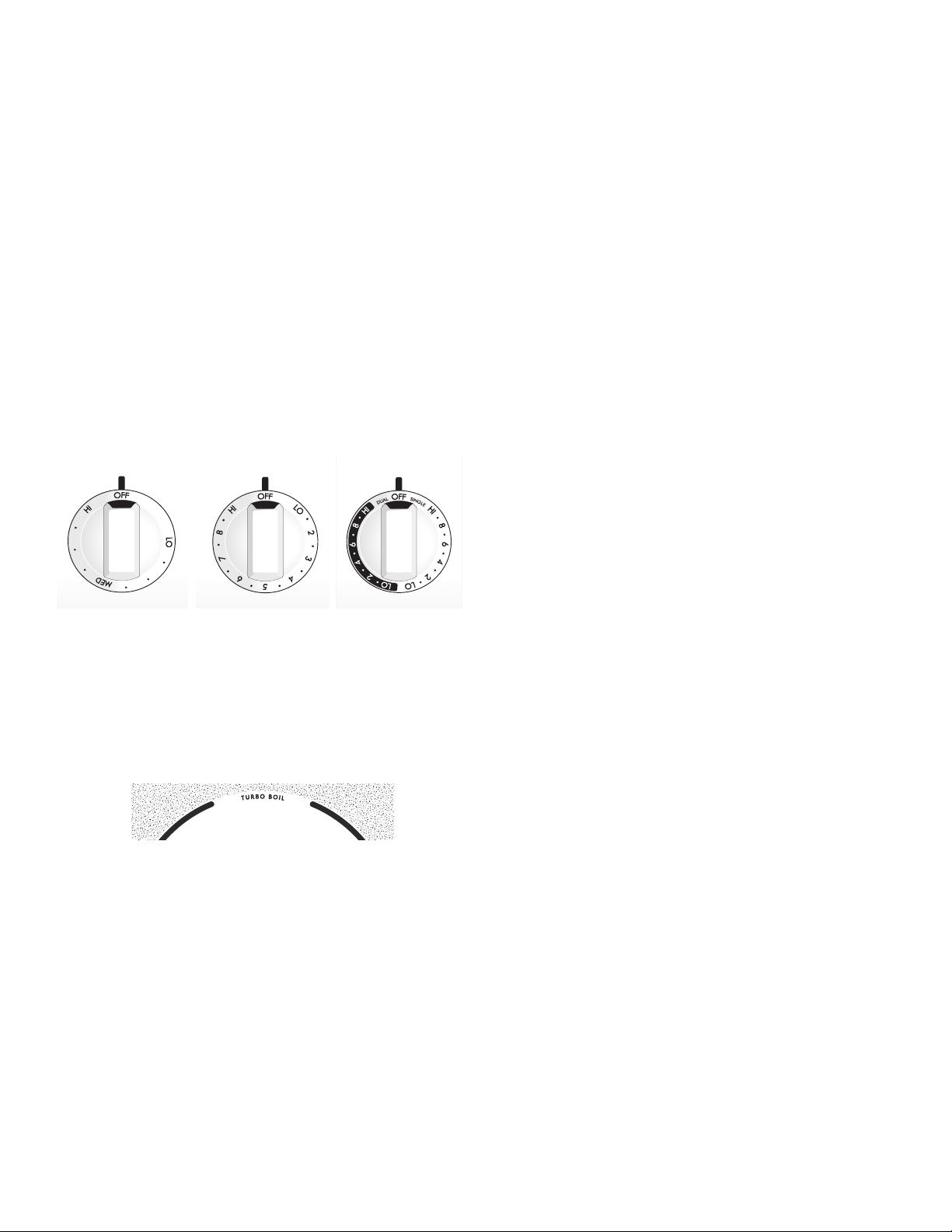

Setting Surface Controls ................................................................. 11-14

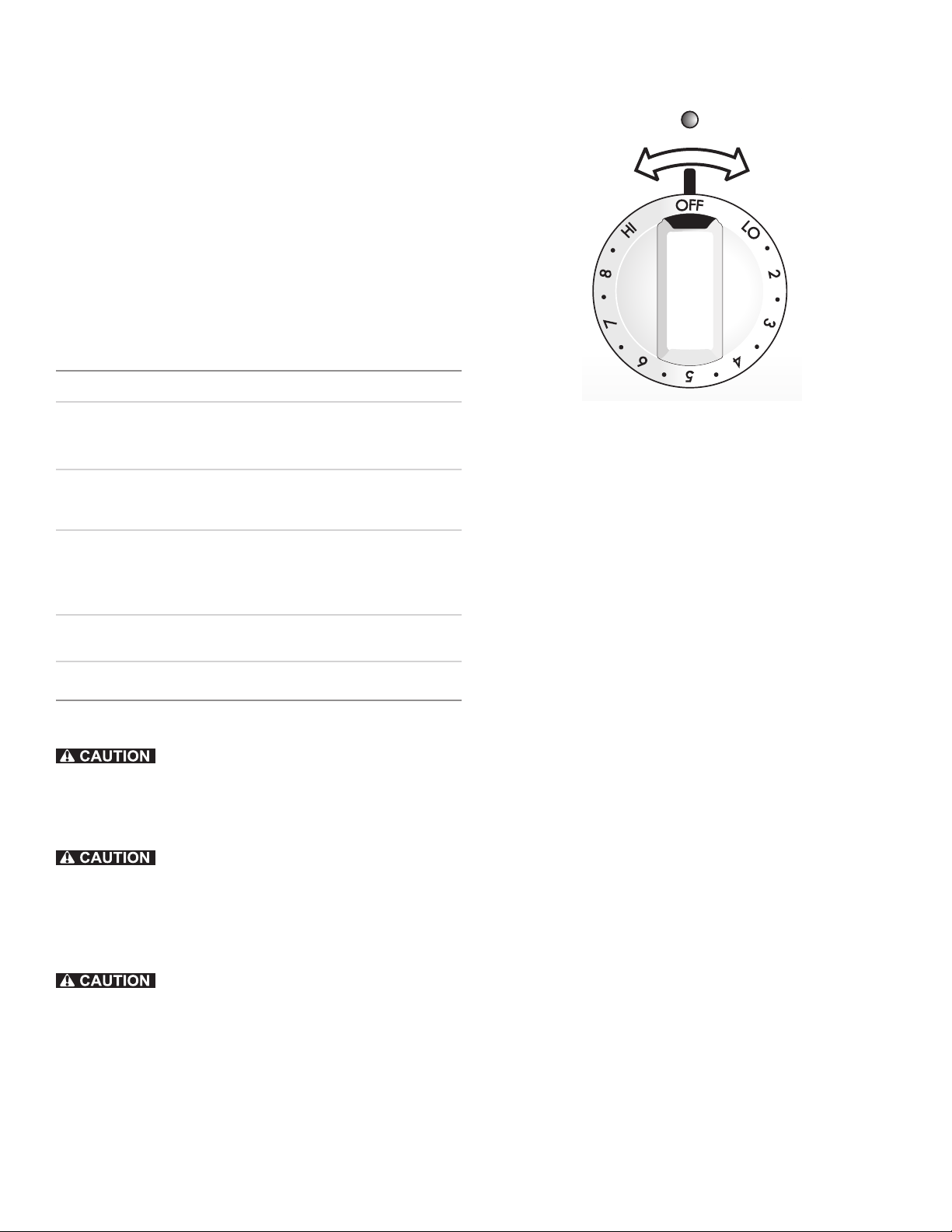

Radiant surface element ..................................................................11

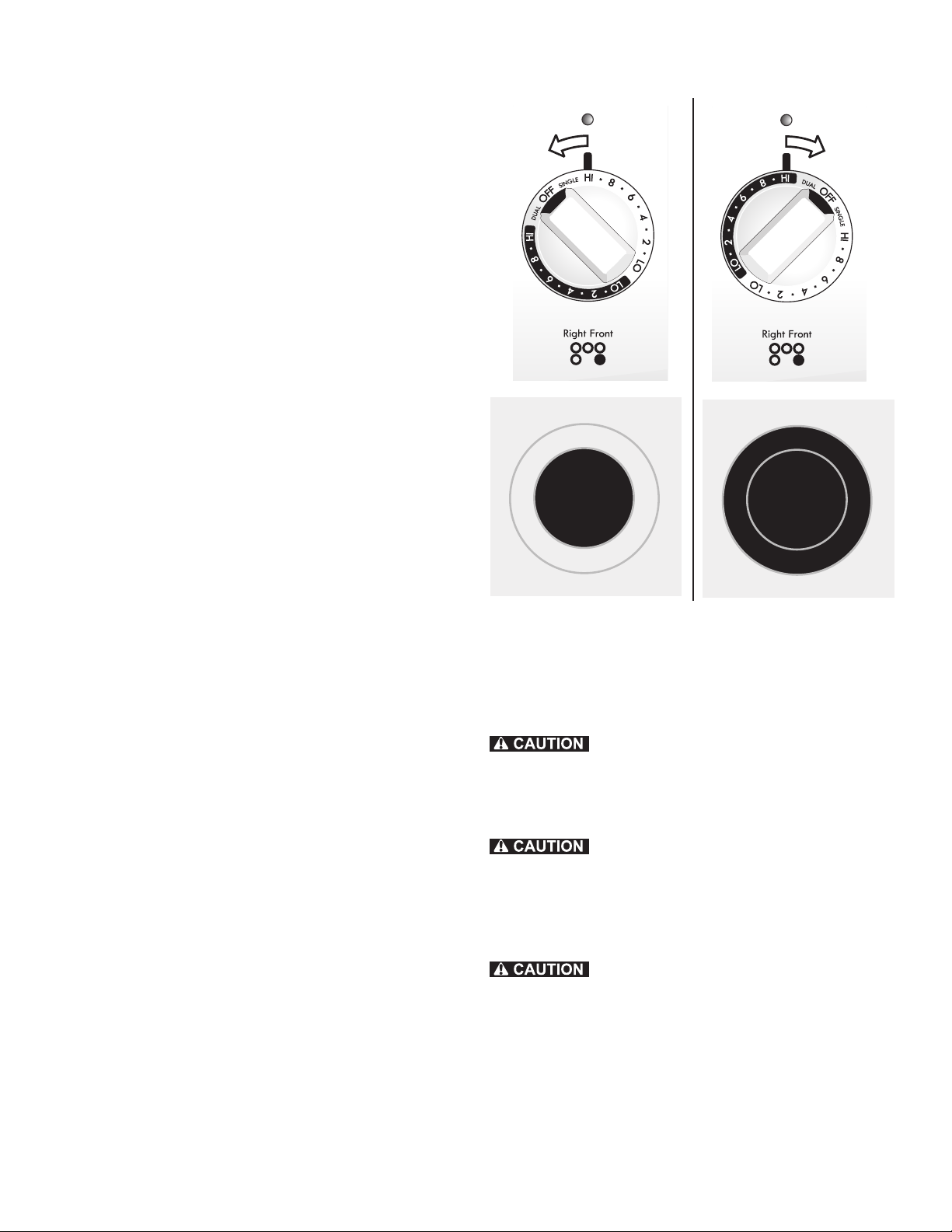

Dual radiant surface element ........................................................ 12

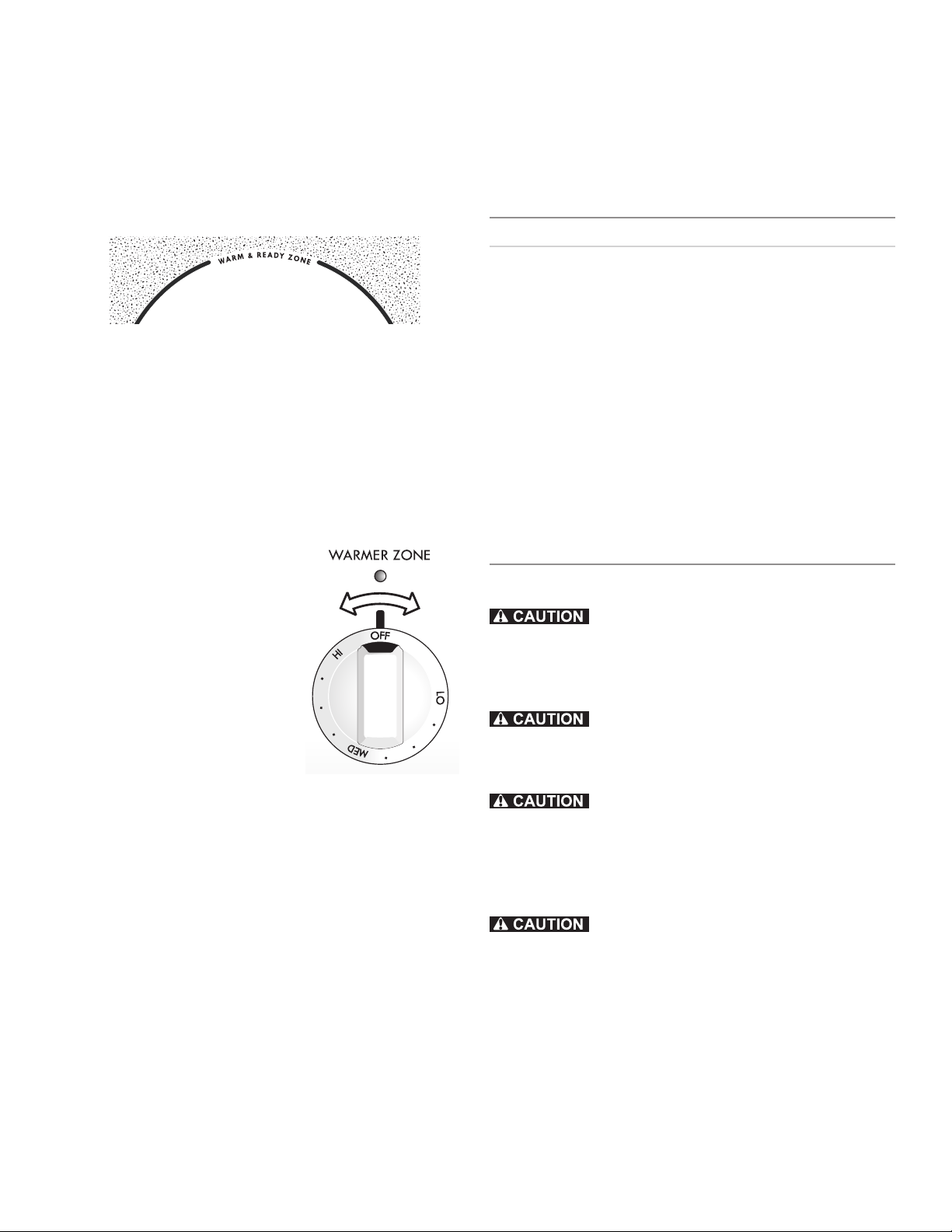

Warm & Ready™ Zone .................................................................. 13

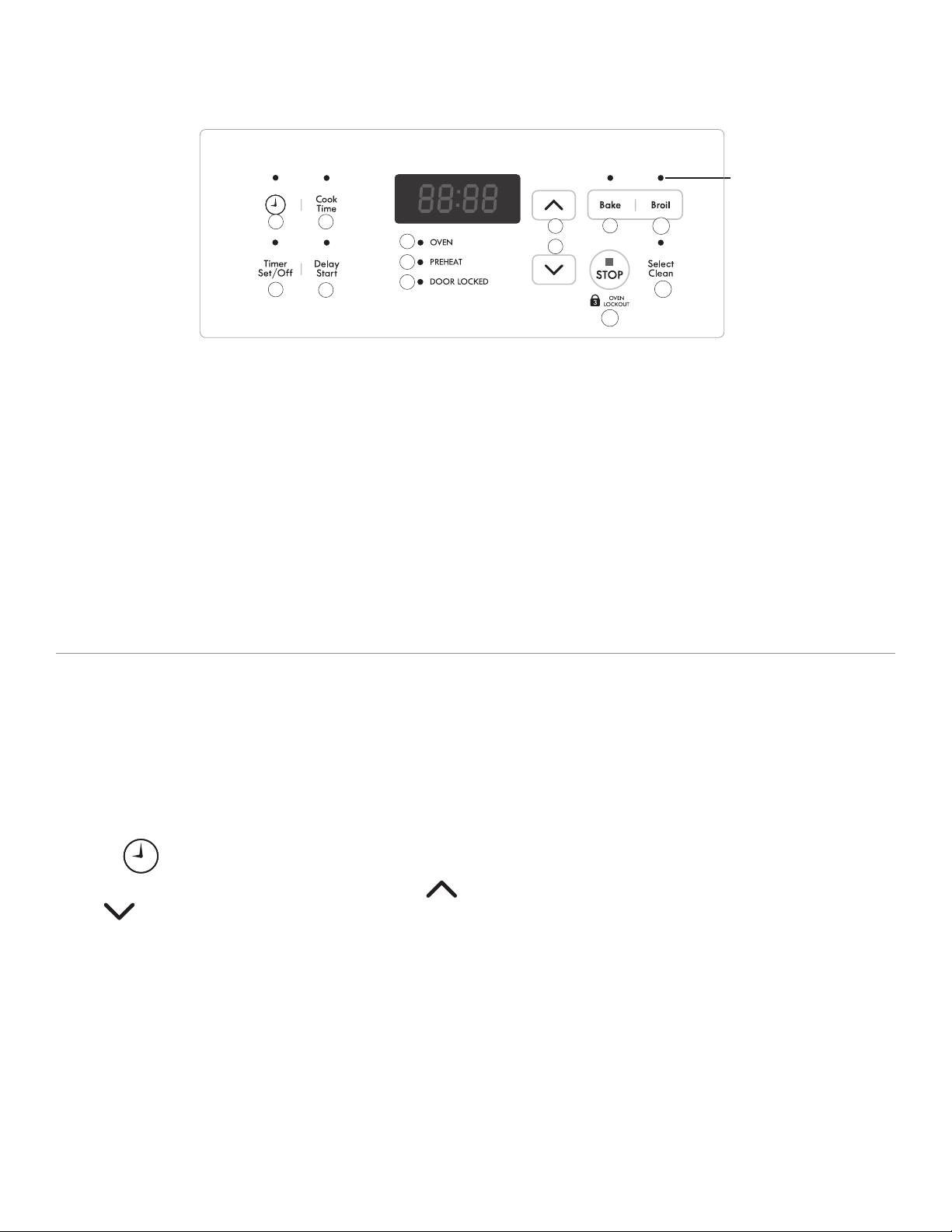

Oven Control Functions ....................................................................... 14

Setting Oven Controls ................................................................... 14-20

Setting clock ...................................................................................... 14

Setting silent or audible control mode ......................................... 14

Changing temperature display (F° or C°).................................... 15

Changing between continuous bake setting or 12-Hour

Energy Saving feature ..................................................................... 15

Setting Timer ..................................................................................... 15

Oven Lockout .................................................................................... 16

Setting Bake ...................................................................................... 16

Setting Cook Time ............................................................................17

Setting Delay Start ........................................................................... 18

Broil ..................................................................................................... 19

Adjusting oven temperature ..........................................................20

Select Clean .................................................................................... 21-22

Care & Cleaning ............................................................................ 23-27

Cleaning recommendation table .................................................. 23

Cooktop maintenance and cleaning ...................................... 24-25

Replacing oven light ....................................................................... 26

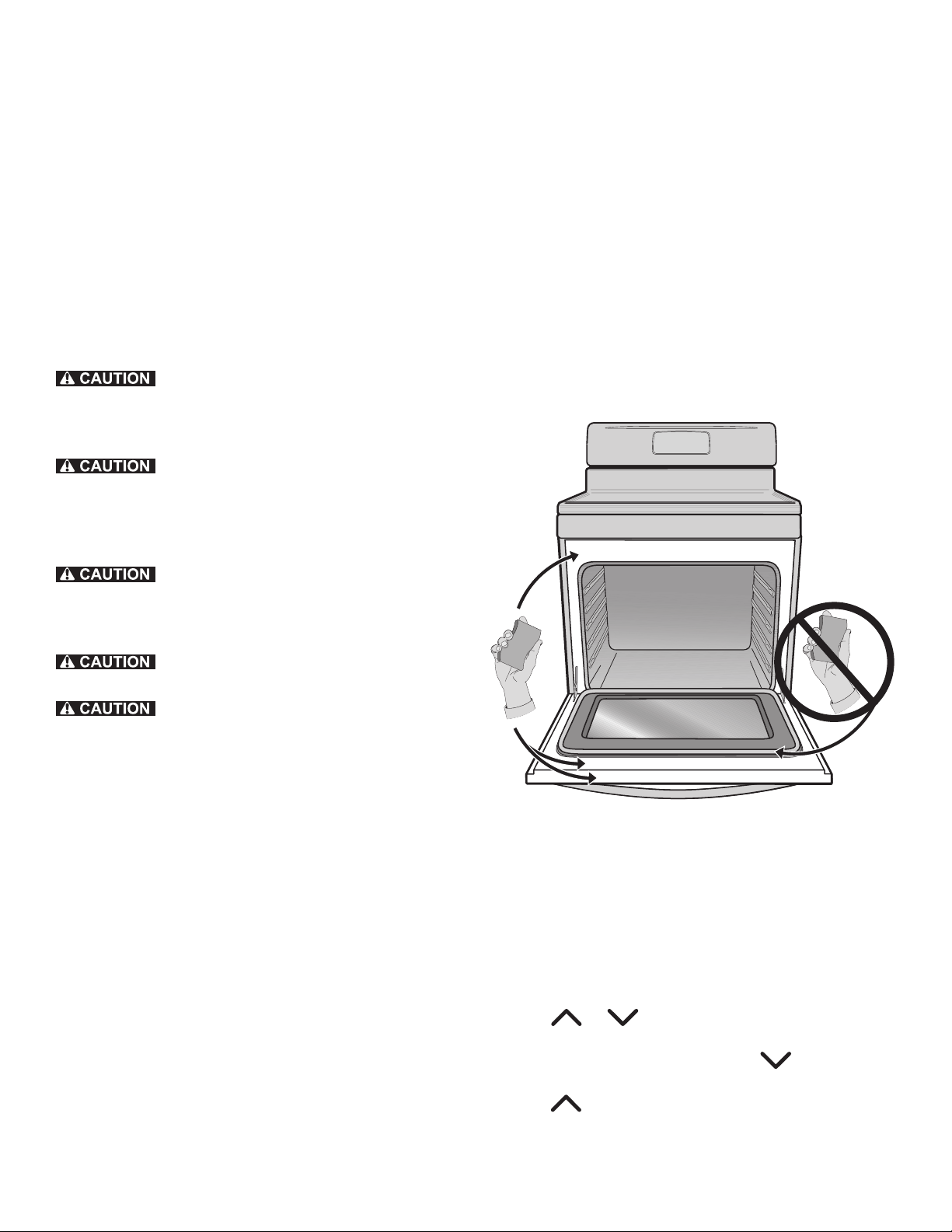

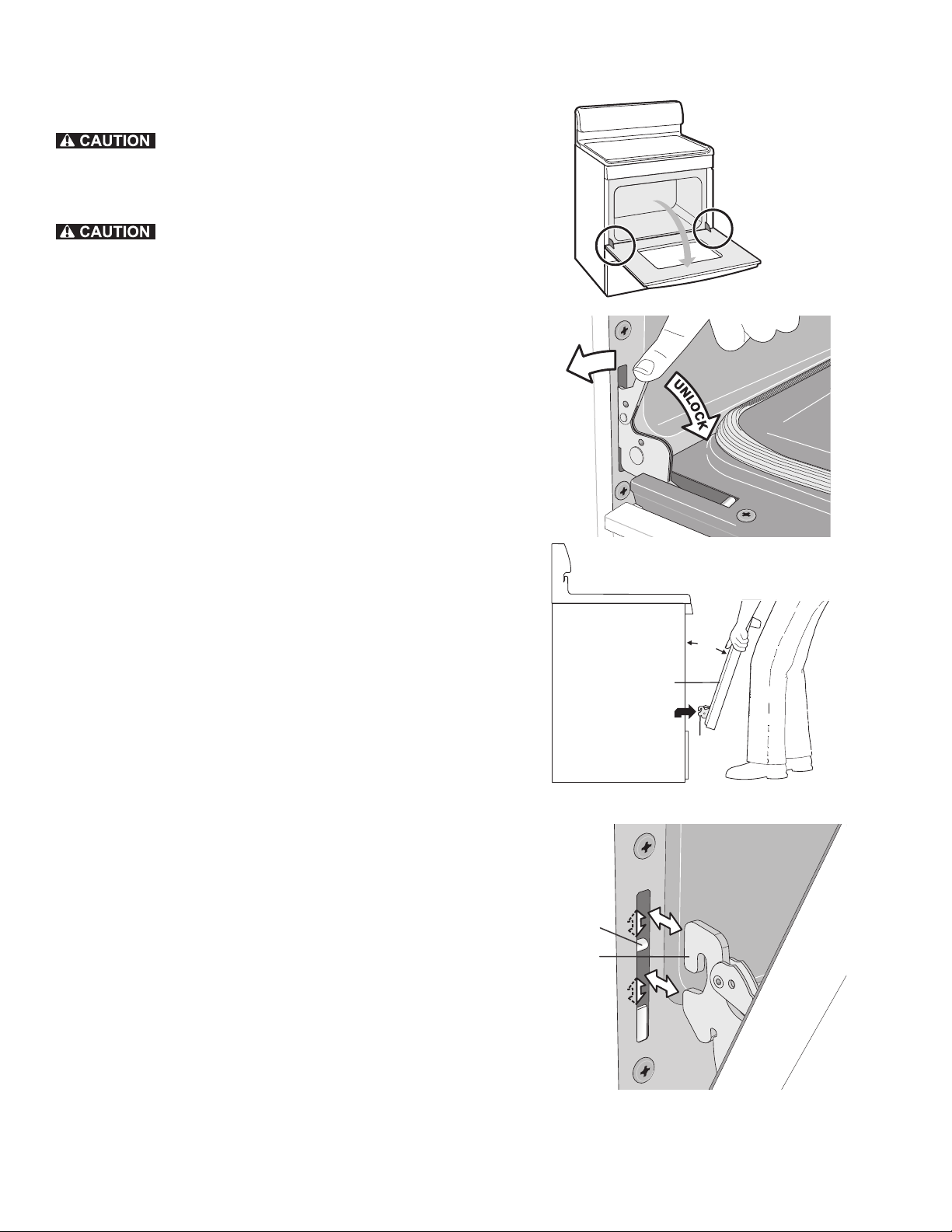

Removing and replacing lift-off oven door................................ 27

Before You Call - Solutions to common problems ................... 28-30

Master Protection Agreements ........................................................... 31

Sears Service ......................................................................... back cover

Kenmore Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair. This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions supplied with the product.

3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

4. A service technician to instruct the user in correct product installation, operation or maintenance.

5. A service technician to clean or maintain this product.

6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A. Sears Canada Inc., Toronto, Ontario, Canada M5B 2B

Page 3

Important Safety Instructions

Read all instructions before using this appliance.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

Definitions

This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

- -

- indicates a potentially hazardous

- -

situation which, if not avoided, may result in death or serious injury.

- indicates a potentially hazardous

situation which, if not avoided, may result in minor or moderate injury.

• Remove all tape and packaging before using the range.

Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

••

• Proper installation—Be sure your appliance is properly

••

installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/ NFPA No. 70 latest edition and local electrical code requirements. Install only per installation instructions

provided in the literature package for this range.

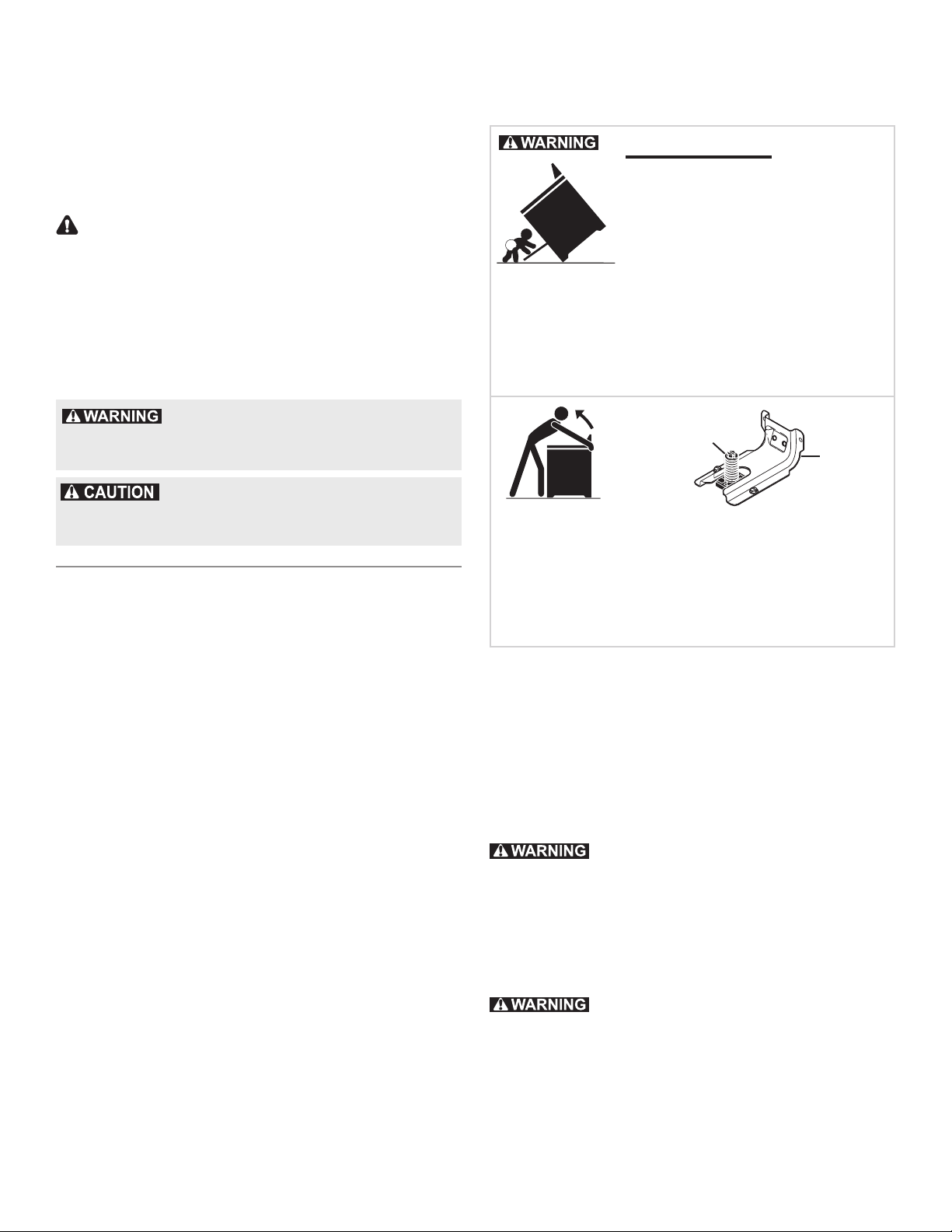

Tip Over Hazard

• A child or adult can tip the range and be killed.

• Verify the anti-tip device has been installed to floor or wall.

• Ensure the anti-tip device is re-engaged when the range is moved to floor or wall.

• Do not operate the range without the anti-tip device in place and engaged.

• Failure to follow these instructions can result in death or serious burns to children and adults.

Range leveling leg

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

• Remove the oven door from any unused range if it is to be stored or discarded.

• Do not attempt to operate the range during a power failure.

the range is not turned off and the power resumes, the range will begin to operate again. Once the power resumes, reset the clock and oven function.

If the power fails, always turn off the range. If

Anti-Tip bracket

• •

• User servicing—Do not repair or replace any part of the

• • appliance unless specifically recommended in the manuals. All other servicing should be done only by a

qualified technician, This may reduce the risk of personal injury and damage to the range.

Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

••

•

Never modify or alter the construction of a range by

•• removing the leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the range.

Save these instructions for future reference.

Stepping, leaning or sitting on the door or drawers of a range can result in serious injuries and also cause damage to the appliance.

to climb or play around the range. The weight of a child on an open oven door may cause the range to tip, resulting in serious burns or other injury.

Storage in or on appliance — flammable materials should not be stored in an oven, near surface units or in the storage drawer, warmer drawer or lower oven. This includes paper, plastic and cloth items, such as

cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the range.

DO NOTDO NOT

DO NOT allow children

DO NOTDO NOT

Page 4

Important Safety Instructions

NEVER cover any slots, holes or passages in the oven bottom or cover an entire oven rack with materials such as aluminum foil. Aluminum foil linings may trap heat, causing a fire hazard.

DO NOT LEAVE CHILDREN ALONE — children should not be left alone or unattended in the area where appliance is in use. They should never be

allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer or lower double oven.

Do not store items of interest to children in the cabinets above a range or on the backguard of the range. Children climbing on the range to reach items

could be seriously injured.

DO NOT TOUCH SURFACE HEATING UNITS, OR SURFACE COOKING ELEMENTS, AREAS NEAR THESE SURFACE HEATING UNITS, OR INTERIOR SURFACE OF THE OVEN. Both surface heating and oven

heating elements may be hot even though they are dark in color. Areas near surface cooking units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the cook top, surfaces facing the cook top, the oven vent openings and surfaces near these openings, oven door and oven door window.

Wear proper apparel — loose-fitting or hanging garments should never be worn while using the appliance. Do not let clothing or other flammable materials contact hot surfaces.

DO NOT USE WATER OR FLOUR on grease fires — smother the fire with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.

When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to become

too hot.

Use dry potholders — moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholders touch hot heating elements.

Do not use a towel or other bulky cloth instead of a potholder.

Do not heat unopened food containers — buildup of pressure may cause container to burst and result in injury.

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

Protective Liners — DO NOT USE ALUMINUM FOIL to line the oven bottom.

aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

• Use care when opening oven door, warmer drawer or

lower oven door — Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

• •

• Keep oven vent ducts unobstructed. The oven vent is

• •

located below the backguard. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items on or near the oven vent. These items could melt or ignite.

• •

• Placement of interior oven racks. Always place oven

• •

racks in desired location while oven is cool. If rack must be moved while oven is hot use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot heating elements in the oven. Remove all utensils from the rack before moving.

• •

• Do not use the broiler pan without its insert. The broiler

• •

pan and its insert allow dripping fat to drain and be kept away from the high heat of the broiler.

• •

• Do not cover the broiler insert with aluminum foil.

• •

Exposed fat and grease could ignite.

Only use

Save these instructions for future reference.

Page 5

Important Safety Instructions

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• •

• Know which knob controls each surface heating unit.

• •

Place a pan of food on the surface element unit before turning it on, and turn the element off before removing the pan.

• •

• Use proper pan size — This appliance is equipped with

• • one or more surface units of different sizes. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to element will also improve efficiency.

• •

• Utensil handles should be turned inward and not extend

• • over adjacent surface elements —

burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

To reduce the risk of

IMPORTANT INSTRUCTIONS FOR CERAMICGLASS COOK TOP MODELS

• Do not cook on broken cook top — If cook top should

break, cleaning solutions and spillovers may penetrate the broken cook top and create a risk of electric shock. Contact a qualified technician immediately.

• Clean cook top with caution — If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

• •

• Never leave surface elements unattended at high heat

• • settings —

that may ignite, or a pan that has boiled dry may melt.

• •

• Glazed cooking utensils —

• •

glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature. Check the manufacturer’s recommendations for cook top use.

• •

• When flaming foods under a ventilating hood, turn the

• • fan on.

Boilovers cause smoking and greasy spillovers

Only certain types of glass,

Save these instructions for future reference.

Page 6

Important Safety Instructions

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

Before manually cleaning any part of the range, be sure all controls are turned OFF and the range is COOL. The range may be hot and can cause burns.

• Clean the range regularly to keep all parts free of

grease that could catch fire. Pay particular attention to

the area around each surface element. Do not allow grease to accumulate.

• Kitchen cleaners and aerosols — Always follow the

manufacturer’s recommended directions for use. Be

aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

• Clean ventilating hoods frequently — Grease should not

be allowed to accumulate on the hood or filter. Follow

the manufacturer’s instructions for cleaning hoods.

IMPORTANT INSTRUCTIONS FOR SELFCLEANING OVENS

• Clean in the self-cleaning cycle only the parts listed in this Use & Care Manual. Before self-cleaning the oven,

remove the oven racks, broil pan, broil pan insert and any cookware, cooking utensils or foods from the oven.

• Do Not Use Oven Cleaners — No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

• Do Not Clean Door Gasket — The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

• The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.

Save these instructions for future reference.

Product Record

In this space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on an identification plate. See bottom of this page for serial plate location.

Model No. _____________________________________

Serial No. _____________________________________

Date of Purchase ________________________________

Save sales receipt for future reference.

790.

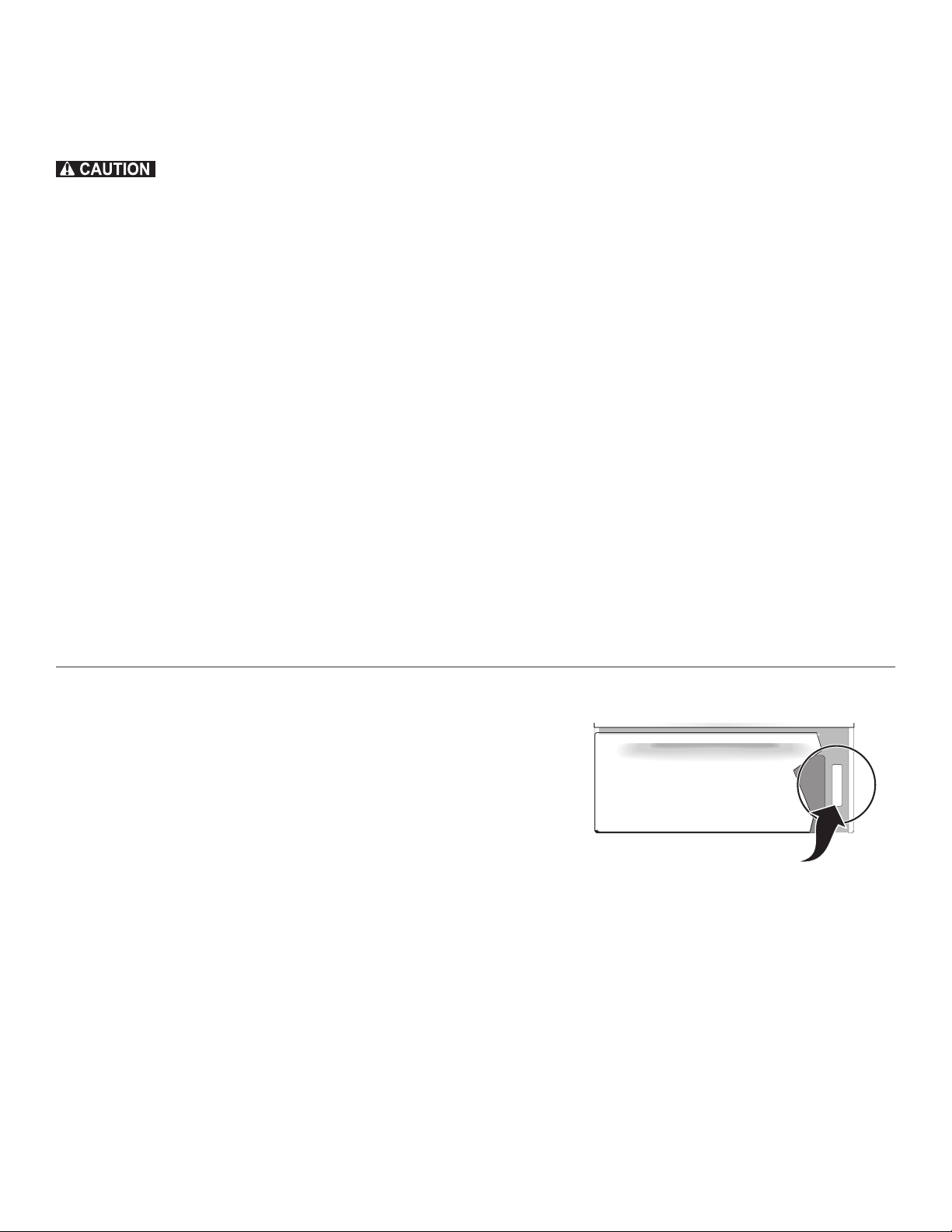

Serial Plate Location

To locate the serial plate open the storage drawer. The serial plate is attached to the lower right oven frame.

Page 7

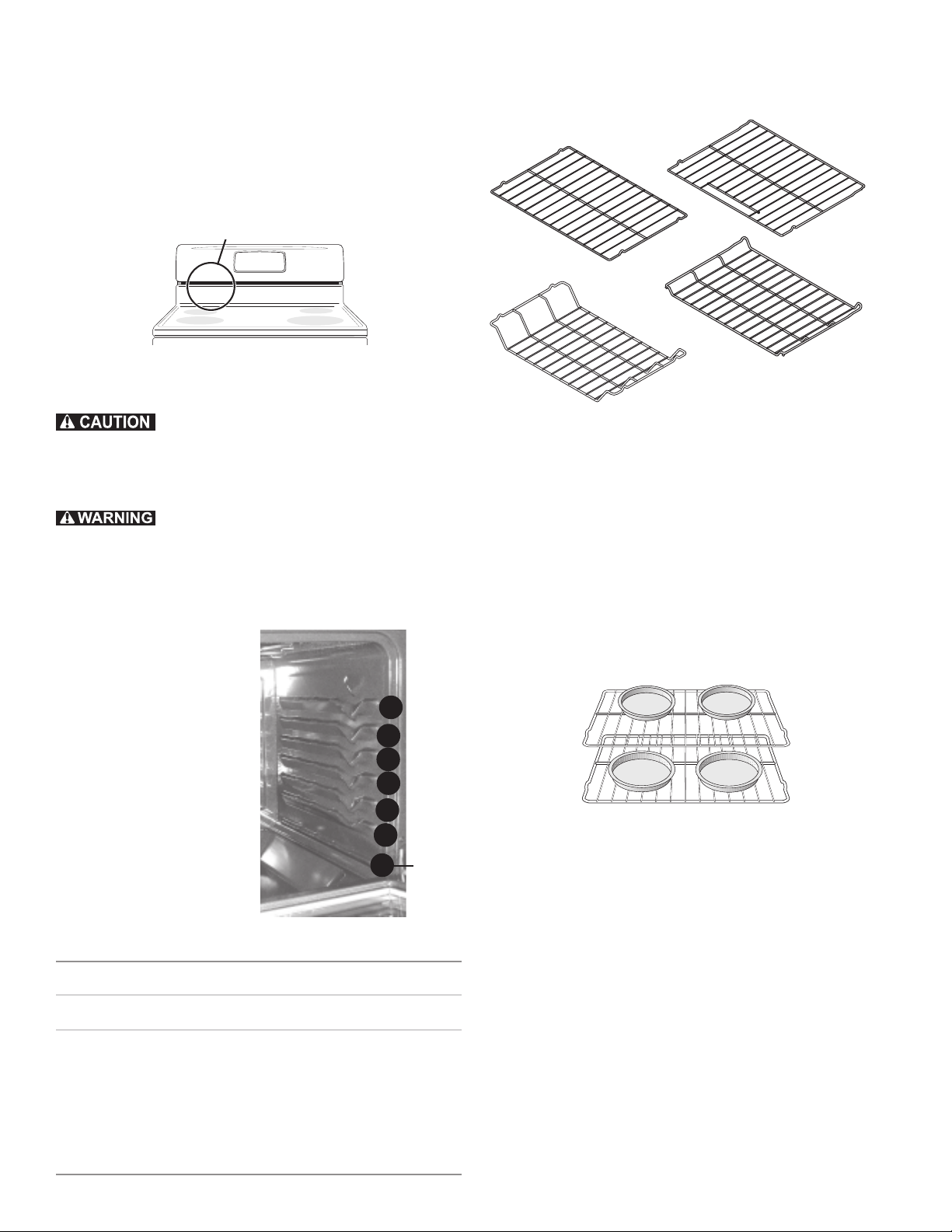

Before Setting Oven Controls

Oven vent location

The oven vent is located panelpanel

panel (See Fig. 1). When the oven is on, warm air passes

panelpanel through this vent. This venting is necessary for proper air circulation in the oven and good baking results. Do not

block oven vent.

under the left side of the contrunder the left side of the contr

under the left side of the contr

under the left side of the contrunder the left side of the contr

oven vent

Fig. 1

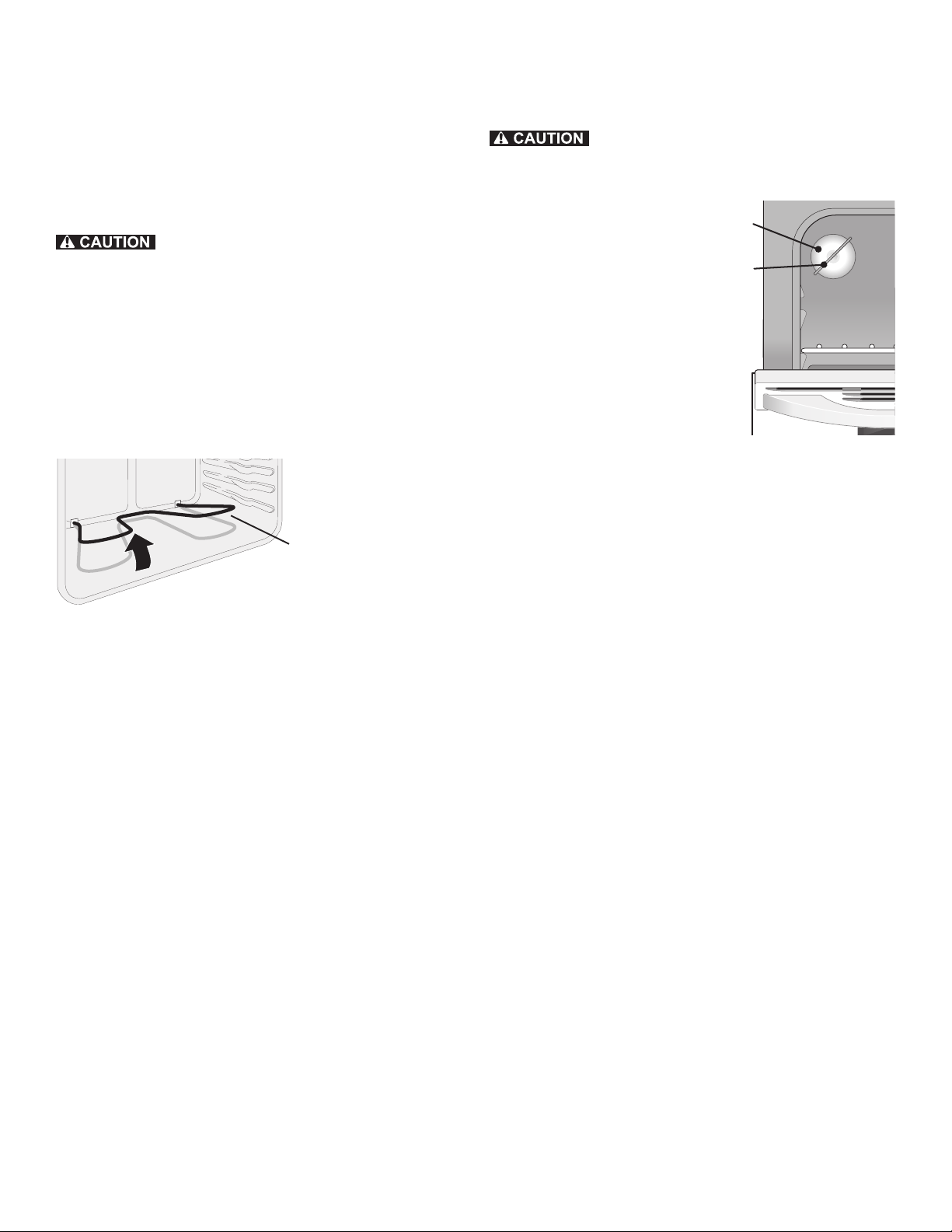

Removing, replacing and arranging racks

Always use pot holders or oven mitts when

using the oven. When cooking, the oven interior and

exterior, oven racks and cooktop will become very hot which can cause burns.

Protective Liners — DO NOT USE

Fig. 2

Only use

6 5 4

some models

ALUMINUM FOIL to line the oven bottom.

aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

Arranging - always arrange the oven racks when the oven is cool (prior to operating the oven).

To remove - pull the rack forward until it stops. Lift up front of rack and slide out.

To replace - fit oven rack onto the rack guides on both sides of oven walls. Tilt the front of oven rack upward and slide the rack back into place. Be sure oven racks are level before using.

Recommended oven rack positions by food type:

olol

Types of oven racks

flat handle

oven rack

flat oven rack

offset

oven rack

bottom

oven rack

The flat oven rack (some models) or flat handle oven rack (some models) may be used for most cooking needs.

The offset oven rack (some models) is designed to place the base of the rack about 1/2 of a rack position lower than flat oven racks. This design provides several additional possible positions between the flat rack positions.

To maximize oven cooking space place the bottom oven rack (on some models) in the lowest rack position for roasting large cuts of meat.

Fig. 3

Air circulation in the oven

For best baking results allow 2-4" (5-10 cm) around the cookware for proper air circulation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. Hot air must be able to circulate around the cookware in the oven for even heat to reach around the food (See Fig. 3 ).

Food type Position

Broiling See broil Cookies, cakes, pies, biscuits & muffins 4 or 5 Frozen pies, angel food cake, yeast, bread

and casseroles 2 or 3 Small cuts of meat or poultry 1 or 2 Turkey, roast or ham 1 or 2

Baking layer cakes with 1 or 2 oven racks

For best results when baking cakes or cookies using 2 oven racks, place cookware on rack positions 2 and 5 (6 using the offset oven rack on some models). For best results when baking cakes or cookies using a single oven rack, place cookware on rack in positions 2, 3 or 4 (See Fig. 2).

Page 8

Before Setting Surface Controls

Using proper cookware

The size and type of cookware used will influence the radiant element power level setting needed for best cooking results. Be sure to follow the recommendations for using proper cookware as illustrated in both Figs. 1 & 2.

Fig. 1

Check for flatness by rotating a ruler across the bottom of the cookware (See Fig. 1). Cookware should have flat bottoms that make good contact with the entire surface heating element (See Fig. 2). For more detailed information about the ceramic cooktop see Cooktop maintenance and Cooktop cleaning in the Care & Cleaning section.

Cookware material types

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom. The most popular materials available are:

Aluminum - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining & pitting). If aluminum pans slide across the ceramic cooktop, they may leave metal marks which will resemble scratches. Remove these marks immediately.

Copper - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum).

Stainless - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

Cast Iron - A slow heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

Porcelain-enamel on metal - Heating characteristics will vary depending on base material. Porcelain-enamel coating must be smooth to avoid scratching ceramic cooktops.

• Flat bottom and straight

sides.

• Tight fitting lids.

• Weight of handle does

not tilt pan. Pan is well balanced.

• Pan sizes match the

amount of food to be prepared and the size of the surface element.

• Made of material that

conducts heat well.

• Easy to clean.

• Always match pot

diameter to element size.

• Curved and warped pans.

• Cookware larger than cooking area marked on cooktop by more than one-half inch or 12mm.

• Heavy handle tilts pan.

• Pan is smaller than the heating area marked on cooktop.

Fig. 2

Glass - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

Important note: Do not place empty aluminum, glass or porcelain-enamel

coated cookware on the ceramic cooktop! The melting point of cookware made with these materials may be reached quickly especially if left empty & they may bond to the ceramic cooktop. If the cookware melts it will damage the cooktop! Be sure to follow all the cookware manufacturer’s suggestions when using any type of cookware on the ceramic cooktop.

Page 9

Before Setting Surface Controls

About the ceramic glass cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop and only flat-bottomed cookware should be used.

The type and size of cookware, the number of surface elements in use and their settings are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to cause burns.

About the radiant surface elements

The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the selected setting the element will cycle ON and OFF. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle.

For efficient cooking, turn OFF the element several minutes before cooking is complete. This will allow residual heat to complete the cooking process.

Element On & Hot Surface indicator lights

Your appliance is equipped with different types of surface indicator lights that will glow on the control panel — the ELEMENT ON and the HOT SURFACE

The ELEMENT ON indicator light panel and will glow when a surface cooking element is turned ON. A quick glance at this indicator light after cooking is an easy check to be sure ALL surface controls are turned OFF.

The HOT SURFACE indicator light panel and will glow when any surface cooking element heats up and will remain on until the cooktop has cooled to a MODERATE level.

indicator lights.

is marked on the control

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

Do not place plastic items such as salt and

pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use.

ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.

Do not allow aluminum foil, empty glass/

porcelain cookware or ANY material that can melt to make contact with the ceramic cooktop.

on the cooktop they may damage the ceramic cooktop.

These items could melt or

If these items melt

Important notes:

• Radiant elements have a limiter that allows the radiant heating element to cycle ON and OFF, even at the HI setting. This helps to prevent damage to the ceramic smoothtop. Cycling at the HI setting is normal and will occur more often if the cookware is too small for the radiant element or if the cookware bottom is not flat.

• Be sure to read the detailed instructions for ceramic glass cooktop maintenance and cleaning in the Care & Cleaning and Before You Call checklist sections of this Use & Care Guide.

Page 10

Before Setting Surface Controls

Types of cooktop surface elements

The ceramic glass cooktop has radiant surface elements located below the surface of the glass. The patterns on the ceramic glass will outline the size and type of element available.

The single outline pattern shown on the cooktop. The warmer zone feature (on some models) located on the center rear area of the cooktop uses one round outline and is designed to keep food warm only.

A dual set the smaller inner portion as a single element or both inner and outer portions may be set to heat together (See Fig. 1).

radiant element or elements will have one round

(on some models) radiant element allows the user to

Home Canning

Be sure to read and observe all the following points when home canning with your appliance. Check with the USDA (United States Department of Agriculture) website and be sure to read all the information they have available as well as follow their recommendations for home canning procedures.

• •

• Use only quality flat bottom canners when home canning.

• • Use a straight-edge to check canner bottom.

• •

• Use only a completely flat bottom canner with no ridges

• • that radiate from the bottom center when home canning using a ceramic cooktop.

• •

• Make sure the diameter of the canner does not exceed 1

• • inch beyond the surface element markings or burner. It is recommended to use smaller diameter canners on electric coil and ceramic glass cooktops.

• •

• Start with hot tap water to bring water to boil more

• • quickly.

Warmer Zone

control

(some models)

Single

element

control

Dual element control

(some models)

Fig. 1 - Position of control knobs may be different

depending on model.

Turbo Boil feature (on some models)

Your appliance may be equipped with a special element on the ceramic cooktop marked TURBO BOIL.

These higher wattage radiant elements are best used when bringing larger quantities of liquid to temperature and when preparing larger quantities of food.

• •

• Use the highest heat seating when first bringing the water

• • to a boil. Once boiling is achieved, reduce heat to lowest possible setting to maintain that boil.

• •

• NEVER place or straddle a cooking utensil over 2

• • different surface cooking areas at the same time. This will cause uneven heating results and may cause the ceramic cooktop to fracture.

Page 11

Setting Surface Controls

Radiant surface element settings

The size and type of utensil used, and the amount and type of food being cooked will influence the surface element power level setting needed for best cooking results.

The suggested settings found in Fig. 1 below are based when cooking with medium-weight aluminum pans with lids. Settings may vary when using other types of pans.

Suggested settings for single, dual and triple radiant surface elements table

Settings Type of cooking

High (HI - 9) Start most foods, bring water to a

boil, pan broiling

Medium high (7 - 8) Continue a rapid boil, fry, deep

fat fry

Medium (5 - 6) Maintain a slow boil, thicken

sauces and gravies or steam vegetables

Medium Low (2 - 4) Keep foods cooking, poach, stew

Low (LO - 1) Keep warm, melt, simmer

Fig. 1

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use.

ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.

Do not allow aluminum foil, empty glass/

porcelain cookware or ANY material that can melt to make contact with the ceramic cooktop.

on the cooktop they may damage the ceramic cooktop.

These items could melt or

If these items melt

Fig. 2

Single radiant surface elements (all models)

To operate the single radiant element:

1. Place correctly sized cookware on single radiant surface element.

2. Push in and turn the surface control knob in either direction to the desired setting (See Fig. 2).

3. When cooking is complete, turn the radiant surface element OFF before removing the cookware.

Important notes:

• For efficient cooking, turn OFF the element several

minutes before cooking is complete. This will allow residual heat to complete the cooking process.

• The surface control knobs do not have to be set exactly

on a particular spot. Use the graphics provided as a guide and adjust the control knob as needed. Each surface element provides a constant amount of heat at each setting. Refer to the Suggested radiant surface element settings table for suggested power level settings.

• Start most cooking operations on a higher setting and

then turn to a lower setting to finish cooking.

• Radiant elements have a limiter that allows the radiant

heating element to cycle ON and OFF, even at the HI setting. This helps prevent damage to the ceramic smoothtop. Cycling at the HI setting is normal and will occur more often if the cookware is too small for the radiant element or if the cookware bottom is not flat.

• A glowing red surface heating area extending beyond

the bottom edge of the cookware indicates the cookware

too smalltoo small

too small for the surface heating area.

too smalltoo small

Page 12

Setting Surface Controls

Dual radiant surface element (some models)

To operate the dual radiant element:

1. Place correctly sized cookware on single radiant surface element.

2. Push in and turn the surface control knob clockwise to begin heating both the inner and outer portions of the element (marked dual - See Fig. 2). If only the inner heating portion is needed (marked single - See Fig. 1) for smaller cookware, push in and turn the knob counterclockwise to start.

Please note that you may switch from the single or dual

settings at any time during cooking.

3. When cooking is complete, turn the radiant surface element OFF before removing the cookware.

Important notes:

• For efficient cooking, turn OFF the element several

minutes before cooking is complete. This will allow residual heat to complete the cooking process.

• The surface control knobs do not have to be set exactly

• Start most cooking operations on a higher setting and

then turn to a lower setting to finish cooking.

• Radiant elements have a limiter that allows the radiant

• A glowing red surface heating area extending beyond

the bottom edge of the cookware indicates the cookware

too smalltoo small

too small for the surface heating area.

too smalltoo small

Fig. 1 Fig. 2

Heating with inner (small) element only

Areas that heat are shown darkened.

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use.

ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.

Do not allow aluminum foil, empty glass/

porcelain cookware or ANY material that can melt to make contact with the ceramic cooktop.

on the cooktop they may damage the ceramic cooktop.

Heating with both

elements

These items could melt or

If these items melt

Page 13

Setting Surface Controls

Warm & Ready™ Zone (some models)

The purpose of the warmer zone is to keep hot cooked foods at serving temperature. Use the warmer zone feature (See Fig. 1) to keep cooked foods hot such as; vegetables, gravies, casseroles, soups, stews, breads, pastries and ovensafe dinner plates.

Fig. 1

Always start with hot food. Do not heat cold food with the warmer zone. All food placed on the warmer zone should be covered with a lid to maintain quality.

For best results, when warming pastries or breads, the cover should have an opening to allow moisture to escape. Use only dishware, utensils and cookware recommended for oven and cooktop use on the warmer zone.

Setting warmer zone control:

1. Push in either direction and turn the warmer zone control knob to the desired temperature level (See Fig 2). The temperatures are approximate, and are designated by HI (high), MED (medium) and LO (low). However, the control can be set at any position between HI and LO for different levels of warming.

2. When ready to serve, turn the warmer zone control knob to OFF position. The warmer zone will remain hot until the hot surface indicator light turns OFF.

Important notes:

• The warmer zone temperature level may be adjusted at

any time when the warmer zone is turned ON.

• Use only plates, utensils and cookware recommended for

oven and ceramic cooktop use. Do not use plastic wrap or aluminum foil to cover food. Plastic or aluminum foil can melt onto the cooktop.

Fig. 2

Temperature selection - Refer to the warmer zone recommended food settings (See Fig. 3). If a particular food is not listed, start with the medium level, and adjust as needed. Most foods can be kept at serving temperatures using the medium setting.

Warmer zone recommended food settings

Food Item Heating Level

Breads/Pastries LO (Low) Casseroles LO (Low) Dinner Plates with Food LO (Low) Eggs LO (Low) Gravies LO (Low) Meats MED (Medium) Sauces MED (Medium) Soups (cream) MED (Medium) Stews MED (Medium) Vegetables MED (Medium) Fried Foods HI (High) Hot Beverages HI (High) Soups (liquid) HI (High)

Fig. 3

Unlike other radiant surface elements, the warmer zone will not glow red when it is HOT. The glass surface may still be hot and burns can occur if the glass surface is touched before it has cooled sufficiently.

Always use potholders or oven mitts when removing food from the warmer zone as cookware and plates will be hot.

Do not place flammable items such as plastic salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.

Do not allow aluminum foil, empty glass/

porcelain cookware or ANY material that can melt to make contact with the ceramic cooktop.

on the cooktop they may damage the ceramic cooktop.

These items

If these items melt

Page 14

Oven Control Functions

For satisfactory use of your oven, become familiar with the various key pad functions and features of the oven.

Function indicator lights - These lights

located above the functions will glow when the function is active.

Oven control keypads

1 2

1. Clock - Use to set the time of day.

2. Cook Time - Use to enter length of cook time desired.

3. Timer Set/Off - Use to set or cancel Timer.

4. Delay Start - Use with Bake and Select Clean functions to program a delay start time or delay start self-cleaning cycle.

5. OVEN indicator light - The OVEN light will glow each time the oven turns on to maintain the set oven temperature.

6. PREHEAT indicator light - The PREHEAT light will glow when the oven is first set for cooking and remain on until the oven reaches the set temperature.

Setting Oven Controls

Setting Clock

When the appliance is first powered up or when the power supply to the appliance has been interrupted, 12:00 will flash in the display (See Fig. 1). The time of day must first be set before operating the oven.

To set the clock:

1. Press

key pad once (do not hold key pad down).

7. DOOR LOCKED indicator light - The DOOR LOCKED light will glow when the oven door locks or unlocks, oven lockout is active or when Select Clean is active.

8. Up / Down arrow key pads - Use with function keypads to accept settings and to adjust temperature and times.

9. Bake - Use to select Bake function.

10. Broil - Use to select variable Broil function.

11. STOP - Use to cancel any oven mode previously entered except clock and timer. Press STOP to stop cooking. Use to activate or cancel OVEN LOCKOUT.

12. Select Clean - Use to set a 2, 3 or 4 hour self-clean cycle.

Setting silent or audible control mode

The oven control is factory preset with audible tones active. The control may be programmed for silent operation or with normal audible tones.

To block the control from sounding when any key pad is pressed, press and hold Delay Start key pad until the control beeps once (about 6 seconds).

2. Within 5 seconds, press and continue pressing the or key pad until the correct time of day appears in the display. Release key pad.

Important note:

The time of day cannot be changed when the oven is set for cooking or when Select Clean is active.

To return to the audible control mode, press and hold Delay Start key pad until the control beeps once (about 6 seconds).

Page 15

Setting Oven Controls

Changing temperature display (°F or °C)

The electronic oven control is set to display °F (Fahrenheit) when shipped from the factory. The display may be changed to show either Fahrenheit or Celsius oven temperatures.

To change temperature display mode from °F to °C (Celsius) or from °C to °F (Fahrenheit):

1. Press Broil key pad. — — appears in the display.

2. Press and hold

3. Press and hold Broil key pad until F or C appears in the

display.

4. Press either

(Fahrenheit) or C (Celsius) mode choices. Release key pad when desired mode is displayed.

5. To accept selection, press any control key pad once. The

display will return to the time of day.

Important note:

The temperature display mode cannot be changed when the oven is set for cooking or Select Clean is active.

until HI appears in display.

or key pad to toggle between F

Changing between continuous bake setting or 12-Hour Energy Saving feature

The oven control has a factory preset 12-Hour Energy Saving feature that will turn the oven off automatically if the oven is left on for more than 12 hours. The control may be programmed to override this feature to continuously bake.

To change to continuous bake mode:

Press and hold Timer Set/Off key pad until the control beeps once (about 6 seconds). - - hr will appear in display indicating the control is now set for continuous bake setting.

To change to 12-Hour Energy Saving feature:

Press and hold Timer Set/Off key pad until the control beeps once (about 6 seconds). 12hr will now appear in display indicating the control is set for 12-Hour Energy Saving feature.

Setting Timer

The timer allows you to track your cooking times without interferring the cooking process. The timer may be set from 1 minute up to 11 hours and 59 minutes.

To set the timer:

1. Press Timer Set/Off key pad.

2. Press the increments. Press and hold 10 minute increments. Release time appears in the display. The timer will begin to

count down.

3. When the set time has run out, the Timer will sound with 3 beeps and will continue to beep 3 times every 60 seconds until Timer Set/Off key pad is pressed.

To change time remaining in Timer:

While the timer is active, press and hold the key pad to increase or decrease any time remaining.

To cancel the Timer before the set time has run out: Press Timer Set/Off key pad once.

Important notes:

• The timer does not start or stop the cooking process. It

serves as an extra timer in the kitchen that will beep when the set time has run out. The timer may be used alone or when any other oven function is active.

• The indicator light located above the Timer Set/Off key

pad will glow when the timer is active.

• The timer will display hours and minutes until 1 hour

remains. When less than 1 hour remains, the display will count down in minutes and seconds. Once the timer has less than 1 minute remaining only seconds will display.

• If the timer is active when oven cooking, the minute timer

will show in the display by default. To view information of any other active oven function, press the key pad once for the active function to view status.

to increase the time in one minute

to increase the time in

when the desired

Important note:

Changing between continuous bake or the 12-Hour Energy saving mode does not change how the cooktop controls operate.

Page 16

Setting Oven Controls

Oven Lockout

The control may be programmed to lockout the oven control key pads and oven door.

To activate OVEN LOCKOUT feature:

1. Be sure oven door is completely closed.

2. Press and hold

appear in the display. The DOOR LOCKED indicator light will flash and the motor driven door latch mechanism will begin locking the oven door automatically. Do not open the oven door at this time. Allow about 15 seconds for the oven door to completely lock. Once the oven door is locked, the time of day will appear in the display.

To cancel OVEN LOCKOUT feature:

1. Press and hold

LOCKED indicator light will flash and the motor driven door latch mechanism will begin to unlock the oven door. Do not open the oven door at this time. Allow about 15 seconds for the oven door to completely unlock.

key pad for 3 seconds. Loc will

key pad for 3 seconds. The DOOR

Setting Bake

Use the bake function whenever the recipe calls for baking using normal temperatures. A reminder tone will sound when the set bake temperature is reached. Bake may be programmed for any temperature from 170°F to 550°F (77°C to 287°C). The factory preset bake temperature is 350°F (177°C).

To set Bake:

1. Arrange oven racks and close oven door.

2. Press Bake key pad. — — —

3. Within 5 seconds, press show the default oven temperature of 350°F (177°C). By pressing or , the oven temperature may be adjusted in 5°F increments (1°C if the control is set to display Celsius).

4. As soon as the oven will begin heating to the selected temperature. When the oven temperature reaches the set temperature, the PREHEAT indicator light will turn off and the oven control will beep 3 times.

or key pad is released, the

°°

° appears in display.

°°

or . The display will

2. The oven control key pads will be available and the oven door may be opened.

Important notes:

• To avoid possible damage to the oven door latch

mechanism, do not attempt to open or close the oven door whenever the DOOR LOCKED indicator light is flashing.

• If a control key pad is pressed when OVEN LOCKOUT is

active, Loc will appear in the display as a reminder that the key pad action is not available when the OVEN LOCKOUT feature is active.

To cancel bake at anytime:

Press

To change the oven temperature after Bake has started:

1. Press Bake key pad. The current set oven temperature will display.

2. Press the current set temperature to the new oven temperature.

using the oven. When cooking, the oven interior, oven racks and cooktop will become very hot which can cause burns.

Important notes:

• The oven will bake no longer than 12 hours. If you wish

to continuously bake, see Changing between continuous bake setting or 12-Hour Energy Saving mode for detailed information.

• Dark or dull pans absorb more heat than shiny

bakeware resulting in dark or overbrowning of foods. It may be necessary to reduce the oven temperature or cook time to prevent overbrowning of some foods. Dark pans are recommended for pies. Shiny pans are recommended for cakes, cookies and muffins.

or pad to increase or decrease the

Always use pot holders or oven mitts when

Page 17

Setting Oven Controls

Setting Cook Time

Use Cook Time to set the amount of time needed for baking. The oven will turn on immediately and stop automatically after the set cook time ends.

FOOD POISONING HAZARD. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when finished cooking.

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, oven

racks and cooktop will become very hot which can cause burns.

To program the oven to begin baking immediately and to shut off automatically:

1. Be sure that the clock displays the correct time of day.

2. Arrange oven racks and close oven door.

3. Press

4. Within 5 seconds, press

Bake key pad.

display will show the default oven temperature of 350°F (177°C). By pressing may be adjusted in 5°F increments (1°C if the control is set to display Celsius).

— — — °— — — °

— — — ° appears in display.

— — — °— — — °

or key pad. The

or , the temperature

To change the oven temperature or cook time after baking has started:

1. To change press Bake (for oven temperature) or Cook Time key pad.

2. To adjust, press desired setting appears in the display.

Important notes:

• The maximum Cook Time or Delay Start setting is 11

hours & 59 minutes.

• Cook Time may be set with Bake or Convection (on some

models). Cook Time or Delay Start will not operate with Broil active.

• While baking with Cook Time, press the Cook Time key

pad to display any cook time remaining.

• Dark or dull pans absorb more heat than shiny

or and release when the

5. Press Cook Time key pad. :00 will appear in display.

6. Press time appears in the display.

7. The oven will turn ON and begin heating. When the oven temperature reaches the set temperature, the PREHEAT indicator light will turn off and the oven control will beep 3 times.

To cancel at anytime press

When the cook time runs out: End will appear in the display. As a reminder, the oven

control will beep 3 times and continue every minute after

until

or and release when the desired cook

is pressed.

Page 18

Setting Oven Controls

Setting Delay Start

Delay Start allows you to set a delayed starting time to the oven baking or cleaning functions.

To change the oven temperature or cook time after baking has started:

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, oven

racks and cooktop will become very hot which can cause burns.

To program oven for a delayed starting time and to shutoff automatically:

1. Be sure that the clock displays the correct time of day.

2. Arrange oven racks and close oven door.

3. Press

4. Within 5 seconds, press

Bake key pad.

display will show the default oven temperature of 350°F (177°C). By pressing temperature may be adjusted in 5°F increments (1°C if the control is set to display Celsius).

— — — °— — — °

— — — ° appears in display.

— — — °— — — °

or key pad . The

or key pad, the oven

1. To change press Bake (for oven temperature) or Cook Time key pad.

2. To adjust, press desired setting appears in the display.

When the cook time runs out: End will appear in the display. As a reminder, the oven

control will beep 3 times and continue every minute after

until

Important notes:

• Cook Time may be set with Bake or Convection (on some

models). Cook Time or Delay Start will not operate with Broil active.

• The maximum Cook Time or Delay Start setting is 11

hours & 59 minutes.

is pressed.

or and release when the

5. Press Cook Time key pad. :00 will appear in display.

6. Press the cook time appears in the display.

7. Press Delay Start. The time of day will appear in the display.

8. Press appears in the display and release.

9. The oven will automatically turn ON at the set delayed starting time and begin heating. When the oven temperature reaches the set temperature, the PREHEAT indicator light will turn off and the oven control will beep 3 times.

To cancel at anytime press

or and release when the desired

or until the desired starting time

Page 19

Setting Oven Controls

Broil

Use the broil function to cook meats that require direct exposure to flame heat for optimum browning results. The Broil function is factory preset to broil at 550°F.

The suggested broil settings table (See Fig. 3) is provided for recommendations only. Increase or decrease broiling times, or move to a different rack position to suit for doneness. If the food you are broiling is not listed in the table, follow the instructions provided in your cookbook and watch the item closely.

To set Broil:

1. Arrange the oven racks when cool. For optimum

browning results, preheat oven for 5 minutes before adding food.

2. Position cookware in oven. Leave oven door open at

broil stop position when broiling (See Fig. 2).

3. Press Broil key pad. — — will appear in display.

4. Press

setting level appears in the display. Press broil or broiled at the HI broil setting. Select the LO broil setting

to avoid excess browning or drying of foods that should be cooked to the well-done stage.

5. Broil on one side until food is browned. Turn and broil

food on 2nd side.

6. When finished broiling press

To cancel Broil at anytime press

or key pad until the desired broil

for HI

for LO broil setting. Most foods may be

7 6 5 4

some

models

Fig. 1

Fig. 2

Should an oven fire occur, close the oven door and turn the oven OFF. If the fire continues, use a fire extinguisher.

DO NODO NO

DO NO

DO NODO NO

T put water or flour on the fire. Flour

may be explosive.

Always use pot holders or oven mitts when using the oven. When cooking, the oven interior, exterior,

oven racks and cooktop will become very hot which can cause burns

Important notes:

• Always arrange oven racks when the oven is cool.

• For best results when broiling, use a quality broil pan

along with a broil pan insert. A broil pan is designed to drain the fat from the food, help avoid spatter and reduce smoking.

• When broiling, always pull the oven rack out to the stop

position before turning or removing food.

• Cook Time or Delay Start will not operate with the Broil

function.

Suggested broil settings table (electric oven)

Food Rack position Setting Cook time in minutes

(See Fig. 1) 1st side 2nd side Doneness

Steak 1” thick 6th or 7th* Hi 6 4 Medium Steak 1” thick 6th or 7th* Hi 7 5 Medium-well Steak 1” thick 6th or 7th* Hi 8 7 Well Pork chops 3/4” thick 6th Hi 8 6 Well Chicken-bone in 5th Lo 20 10 Well Chicken-boneless 6th Lo 8 6 Well Fish 6th Hi - as directed - Well Shrimp 5th Hi - as directed - Well Hamburger 1” thick 6th or 7th* Hi 9 7 Medium Hamburger 1” thick 6th Hi 10 8 Well

Cook times given are approximate and should be used only as a guide. *Use the off-set rack only in rack position 7 (on some models).

Fig. 3

Page 20

Setting Oven Controls

Adjusting oven temperature

Your appliance has been factory calibrated and tested to ensure an accurate baking temperature. For the first few uses, follow your recipe times and temperature recommendations carefully. If you think the oven is cooking too hot or too cool for your recipe times, you may adjust the control so the oven cooks hotter or cooler than the oven temperature displayed.

The oven temperature may be increased as much as +35°F (+19°C) or decreased -35°F (-19°C) from the factory calibrated settings.

To adjust oven temperature:

1. Press Bake key pad.

2. Set the oven temperature to 550°F (287°C) by pressing and holding the appears in display (287°C if control is set for Celsius display mode).

3. Within 2 seconds, press and hold Bake key pad until numeric digit(s) appear. Release Bake keypad. display now indicates the amount of degrees offset from the original factory temperature setting and the current temperature setting. If the control still has the original factory calibration, the display will read 0.

key pad. Release when 550°F

The

Operating oven light (on some models)

The interior oven light will automatically turn ON when the oven door is opened.

Press the rocker switch marked OVEN LIGHT on the control panel to turn the oven light ON or OFF whenever the oven door is closed.

The oven light is located at the upper left rear wall of the oven interior and is covered with a glass shield held by a wire holder. The glass shield protects the bulb from high temperatures and should always be in place whenever the oven is in use.

To replace the interior oven light, see Replacing oven light in the Care & Cleaning section.

4. The temperature may be adjusted up or down 35°F (19°C), in 5°F increments by pressing and holding the

or key pads. Adjust until the desired amount of temperature offset appears in the display and release key pad.

5. Press

Important notes:

• Oven temperature adjustments made will not change the Broil or Select Clean operating temperatures.

• DO NOT USE oven thermometers such as those found in grocery stores to check the temperature settings inside your oven. These oven thermometers may vary as much as 20 to 40°F degrees from actual temperatures.

• The oven temperature adjustment may be made if your

oven control has been set to display °C (Celsius) temperatures. Minimum and maximum settings for Celsius is plus (+) or minus (-) 19°C.

to accept and return to normal operation.

• If the display mode is set for Celsius, adjustments made

will be in 1°C increments each press of the key pads.

Page 21

Select Clean

A self-cleaning oven cleans itself with high temperatures (well above normal cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away aftwerwards with a damp cloth.

The Select Clean function allows you to select 3 different cleaning times from 2, 3 or 4 hours. A 3-hour cleaning time is best used for normal cleaning; 2-hour time for light soils and a 4-hour clean time for heavier stubborn soils.

Read before starting Select Clean

Be sure to read all the following caution and important statements BEFORE starting a self-clean cycle:

DO NOT leave small children unattended

near the appliance. During the self-cleaning cycle, the

outside of the range can become very hot to touch and can cause burns.

DO NOT line the oven walls, racks, bottom or any other part of the range with aluminum foil. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior. Aluminum foil will melt to the interior of the oven.

• Remove any excessive spillovers. Any spills on the oven bottom should be wiped-up and removed before starting a self-clean cycle. To clean, use hot, soapy water and a cloth. Large spillovers can cause heavy smoke or fire when subjected to high temperatures. DO NOT allow food spills with a high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface as they may leave a dull spot even after cleaning.

• DO NOT clean the oven door gasket (See Fig. 1). The woven material of the oven door gasket is essential for a good seal. Care should be taken not to rub, damage or remove the gasket. DO NOT use any cleaning materials on the oven door gasket. Doing so could cause damage to the door gasket.

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.

DO NOT force the oven door open. This can damage the automatic door locking system.

Use caution when opening the oven door after self-cleaning. The oven may still be VERY HOT and can cause burns. To avoid possible burns stand to the side of the oven when opening the oven door to allow hot air or steam to escape.

Important notes:

• Completely remove ALL OVEN RACKS and ANY

ACCESSORIES FROM OVEN CAVITY to avoid damage to oven racks. If the oven racks are not removed they

may discolor.

• Remove ALL items from the oven and cooktop including

cookware, utensils and ANY ALUMINUM FOIL. Aluminum foil will not withstand high temperatures from a self-clean cycle and will melt.

• DO NOT use oven cleaners or oven protective coatings

in or around any part of the oven interior.

• Clean any soil from the oven frame, the door liner

outside the oven door gasket and the small area at the front center of the oven bottom (See Fig. 1). These areas heat sufficiently to burn soil on. Clean using soap and water prior to starting Select Clean (See Fig. 1).

Fig. 1

Setting Select Clean

To set Select Clean to start immediately:

1. Be sure the oven is empty and ALL removed. Remove all items from the cooktop. Be sure oven door is completely closed.

2. Press Select Clean key pad. — — — appears in the display.

3. Press indicating the default 3 hour clean time is selected. To change to a 2 hour clean time press appears in the display. To select a 4 hour clean time press

4. After selecting the clean time Select Clean will activate. The DOOR LOCKED indicator light will glow and CLn will appear in the display.

or once. 3:00 appears in the display

; "4:00" appears in the display.

oven racks are

; "2:00"

Page 22

Select Clean

When Select Clean begins the cleaning cycle, the motorized door latch mechanism will automatically start to lock the oven door and the DOOR LOCKED indicator light will flash. LOCKED indicator light is flashing. Allow about 15 seconds for the oven door to completely lock.

Once the oven door has locked the DOOR LOCKED indicator light will glow steady. When CLn will appears in the display Select Clean is active.

after self-cleaning. The oven may still be VERY HOT and can cause burns. To avoid possible burns stand to the side of the oven when opening the oven door to allow hot air or steam to escape.

When Select Clean is finished:

1. The time of day will appear in the display window and the Select Clean and DOOR LOCKED indicator lights will continue to glow.

2. Once the oven has cooled down (about 1 hour) and the DOOR LOCKED indicator light has turned off the oven door may be opened.

3. When the oven interior has completely cooled, wipe away any residue or powdered ash with a damp cloth or paper towel.

DO NODO NO

DO NO

DO NODO NO

T open the oven door when the DOOR

Use caution when opening the oven door

Delayed Start Select Clean

To set Delay Start Select Clean:

1. Be sure the oven is empty and ALL removed. Remove all items from the cooktop. Be sure oven door is completely closed.

2. Be sure the clock shows the correct time of day.

3. Press Delay Start key pad.

4. Press and hold the start the self-clean cycle. Release the key pad when the desired start time is displayed.

5. Press

6. Press

7. After selecting the clean time Select Clean is set to

Select CleanSelect Clean

Select Clean key pad. — — — appears in the

Select CleanSelect Clean

display.

or once. 3:00 appears in the display indicating the default 3 hour clean time is selected. To select a 2 hour clean time press the display. To select a 4 hour clean time press 4:00 appears in the display.

activate. The DOOR LOCKED indicator light will turn on and the oven door will lock in advance of the starting time. Once the starting time is reached CLn will appear in the display.

key pad to scroll to the time to

oven racks are

; 2:00 appears in

;

Important notes:

• The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the 1st self-clean cycle. This will help eliminate the normal odors associated with the 1st self-clean cycle.

• DO NOT attempt to open the oven door when the DOOR LOCKED indicator light is flashing. Allow about 15 seconds for the motorized door latch mechanism to completely lock or unlock the oven door.

• When the clean time finishes the oven door will remain locked until the range has cooled sufficiently. In addition to the clean time that was programmed, you must allow about 1 additional hour for the oven to cool before you will be able to open the oven door.

• The Select Clean function will not operate whenever a radiant surface element is ON or the oven lockout is active.

If it becomes necessary to stop Select Clean when active:

1. Press

2. If Select Clean has heated the oven to a high temperature, allow enough time for the oven to cool and for the DOOR LOCKED indicator light to turn off. When this indicator light turns OFF the oven door may be opened.

3. Restart Select Clean if needed.

Important notes:

• If Select Clean is active and a power failure occurs, the

oven may not have thoroughly cleaned. This would depend on how much cleaning time had elapsed before the power failure. If needed after power is restored, set Select Clean again.

Page 23

Care & Cleaning

Cleaning recommendation table

Surface type Recommendation

Control knobs Painted body parts Painted decorative trim Aluminum, plastic or vinyl trim pieces

Control panel Control key pad membrane Decorative trim (some models)

Porcelain enamel parts & door liner

For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 3060 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any of these materials; they can scratch. To remove control knobs, turn to OFF position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides of both knob and shaft; then push knob into place.

Before cleaning the control panel, turn all controls OFF, activate oven lockout (on some models) and if needed remove any knobs from panel. Do not use abrasive cleaners on any of these materials; they can scratch. Clean using hot, soapy water and a dishcloth. Be sure to squeeze excess water from dishcloth before wiping control panel; especially when wiping around the controls area. Excess water in or around the controls may cause damage to the appliance. When rinsing, use clean water and a dishcloth and be sure to squeeze excess water from dishcloth before wiping the control panel.

Gentle scubbing with a soapy no-scratch cleaning pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-filled no-scratch cleaning pad. Rinse and wipe dry with a clean cloth. Do not allow food spills with high sugar or acid content (milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface; they may cause a dull spot even after cleaning.

Oven interior

Oven racks

Oven door

Ceramic cooktop

Stainless Steel (some models) Only use cleaners and polishes that are specifically manufactured for cleaning

For oven interior remove excessive spillovers from oven cavity bottom before starting Select Clean. Clean any soils from oven frame and door liner outside the oven door gasket. For very important cleaning precautions be sure to read all the instructions in the Select Clean section.

Remove oven racks from oven cavity before starting Select Clean. Clean by using a mild, abrasive cleaner following manufacturer's instructions. Rinse with clean water, dry and then replace in oven.

Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. Do not immerse the door in water. Do not spray or allow water or the glass cleaner to enter the door vents. Do not use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of the oven door.

Do not use spray oven cleaners on the cooktop. See “Cooktop cleaning” and “Cooktop maintenance” later in the Care & Cleaning section.

stainless steel. Always rub in direction of metal grain to avoid damaging. Do not use cleaners with high concentrations of chlorides or chlorine. Do not use harsh scrubbing cleaners. Polish with a lint-free cloth. Always be sure to wipe excess cleaner/polish off from the metal surface as bluish stains may occur during future oven heating that cannot be removed. Clean heavier soils with hot, soapy water and a dishcloth. Rinse and dry using clean water and a cloth.

Page 24

Care & Cleaning

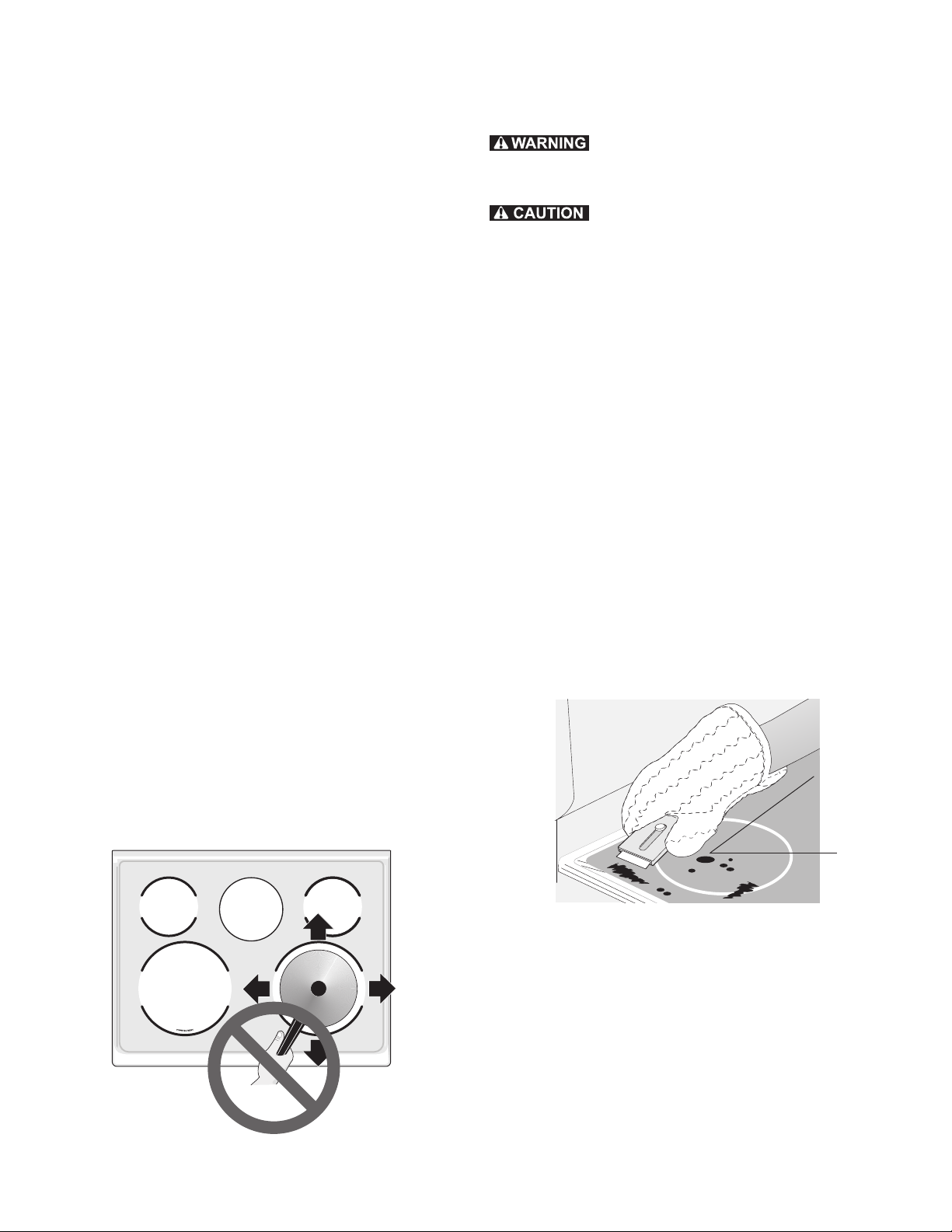

Cooktop maintenance

Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a nonabrasive cloth or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface.

Cooktop cleaning

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the ceramic-glass surface.

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL. The glass surface could be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for any other purpose.

Do not:Do not:

Do not:

Do not:Do not:

• Slide anything metal or glass across the cooktop.

• Use cookware with dirt or dirt build up on bottom; replace with clean cookware before using.

• Use your cooktop as a cutting board or work surface in the kitchen.

• Cook foods directly on the cooktop surface without a pan.

• Drop heavy or hard objects on the ceramic glass cooktop, they may cause it to crack.

If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils with cooktop cleaning cream and buff surface clean.

30°

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

Page 25

Care & Cleaning

Cooktop cleaning

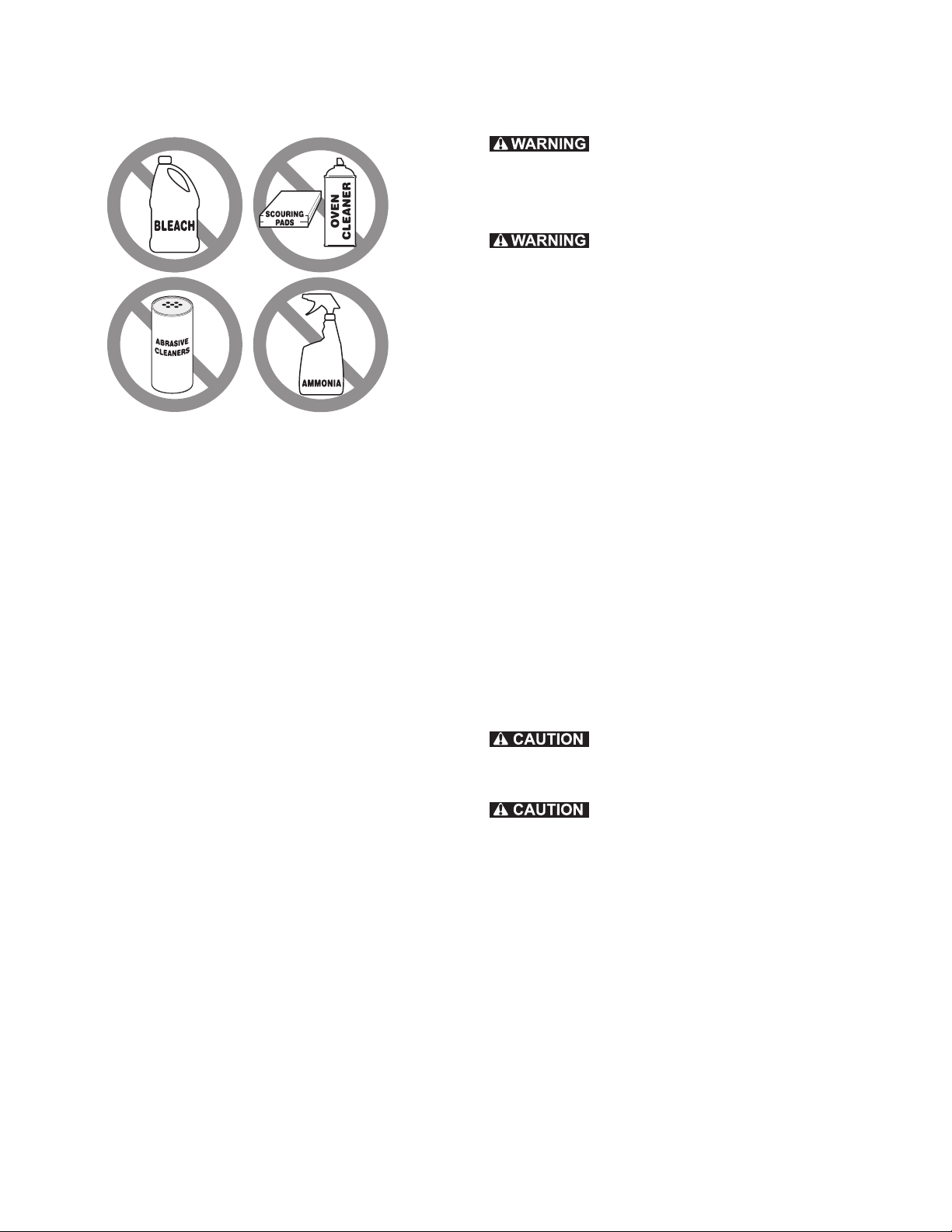

Do not use the following on the cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the cooktop which can burn and cause discoloration.

Important note:

Damage to the ceramic glass cooktop may occur if you use an abrasive type cleaning pad. Only use cleaning products that have been specifically designed for ceramic glass cooktops.

Aluminum foil and utensils

NEVER cover any slots, holes or passages in the oven bottom or cover an entire oven rack with materials such as aluminum foil. Aluminum foil linings may trap heat, causing a fire hazard.

Protective Liners — DO NOT USE ALUMINUM FOIL to line the oven bottom.

aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

• Aluminum foil - Use of aluminum foil on a hot cooktop

can damage the cooktop. Do not use thin aluminum cooking utensils or allow aluminum foil to touch the surface elements under ANY circumstances.

• Aluminum utensils - The melting point of aluminum is

much lower than that of other metals. Care must be taken when aluminum pots or pans are used on the cooktop. If aluminum pans are allowed to boil dry when using the cooktop, not only will the utensil be damaged or destroyed, but it may fuse to, break or mark the ceramic glass surface, permanently damaging the cooktop surface.

Only use

General cleaning

Refer to the Cleaning recommendation table in the Care & Cleaning section for more detailed information about cleaning specific parts of the range.

Before manually cleaning any part of the range, be sure all controls are turned OFF and the range is COOL. The range may be hot and can cause burns.

Ammonia must be rinsed before operating the oven. Provide adequate ventilation.

Page 26

Care & Cleaning

Cleaning oven bottom (on some models)

Please note:

On some models the lower oven bake element is visible. The following cleaning instruction applies ONLY for models that have a visible lower bake element.

Oven elements may appear to have cooled after they have been turned off. The oven bake and broil elements may still be hot and burns may occur if touched before they have cooled sufficiently.

The bake element may be tilted from the front for better access to the oven bottom for cleaning. It is recommended to remove spill-overs from the oven bottom before running a self-clean cycle. Be careful not to raise the element more than 4 or 5 inches from a resting position.

On models with visible bake element only; lower bake element may be raised from the front 4-5 inches to clean oven bottom.

Replacing oven light

Be sure the range is unplugged and all parts are COOL before replacing oven light. Wear a leatherfaced glove for protection against possible broken glass.

The oven light is located at the rear of the oven cavity and is covered with a glass shield held by a wire holder. The glass shield protects the light bulb and must be in place whenever the oven is in use.

To replace interior oven light bulb:

1. Turn electrical power off at the main source or unplug

the range.

2. Press wire holder to one side to release the glass shield

that covers the light bulb.

3. Replace light with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder

back into place.

5. Turn power on at main source (or plug the appliance in).

6. The clock will then need to be reset. To reset, see

Setting clock in this Use & Care Guide.

glass shield

wire holder

Page 27

Care & Cleaning

Removing and replacing the lift-off oven door

To avoid possible injury when removing or

replacing the oven door, follow the instructions below carefully and always hold the oven door with both hands positioned away

from the door hinge area.

The door is heavy. For safe, temporary storage,

lay the door flat with the inside of the door facing down.

To remove oven door:

1. Open oven door completely (horizontal with floor - Fig.1).

2. Pull the door hinge locks on both left and right door hinges down from the oven frame completely towards the oven door (Fig. 2). A tool such as a small flat-blade screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - Fig. 3).

4. Close the door to the broil stop position (the oven door will stop into this position just before fully closing).

5. With the oven door in the broil stop position, lift the oven door hinge arms over the roller pins located on each side of the oven frame (Fig. 4).

Oven door hinge locations

Fig. 1

Fig. 2

To replace oven door:

1. Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - Fig. 3).

2. Holding the oven door at the same angle as the removal position, seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (Fig. 4). The hook of the hinge arms must be fully seated onto the roller pins.

3. Fully open the oven door (horizontal with floor - Fig. 1).

4. Push the door hinge locks up towards and into the oven frame on both left and right oven door hinges (Fig. 2) to the locked position; then close the oven door.

Special door care instructions

Most oven doors contain glass that can break. Read the following recommendations:

• Do not close the oven door until all the oven racks are fully in

place inside the oven cavity.

• Do not hit the glass with pots, pans, or any other object.

• Scratching, hitting, jarring or stressing the glass may weaken its

structure causing an increased risk of breakage at a later time.

about 10°

oven door

hinge

Fig. 3

roller

hinge

arm

Fig. 4

Page 28

Before You Call • Solutions to common problems

Before you call for service, review the following list. It may save you time & expense. Possible solutions to these problems are provided with the problem listed:

Problem Solution

Poor baking results. • Many factors affect baking results. Make sure the proper oven rack position

is used. Center food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. If you feel the oven is too hot or cool, see Adjusting oven temperature in Setting Oven Controls section.

Appliance is not level.

Cannot move appliance easily. Appliance must be accessible for service.

Entire appliance does not operate.

Oven portion of appliance does not operate.

• Be sure floor is level, strong & stable enough to adequately support range.

• If floor is sagging or sloping, contact a carpenter to correct the situation.

• Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of appliance until the rack is level.

• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square & have sufficient room for appliance clearance.

• Cabinets not square or are built in too tightly. Contact builder or installer to make appliance accessible.

• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over carpet.

• Make sure power cord is plugged properly into outlet.

• Electrical power outage. Check house lights to be sure. Call your local

electric company for service outage information.

• Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See

back cover).

• The time of day is not set. The time of day must first be set in order to operate the oven. See Setting clock in Setting Oven Controls section.

• Be sure the oven controls are set properly for the desired function. See Setting Oven Controls section and review instructions for the desired cooking function in this manual or see “Entire appliance does not operate” in this checklist.

Surface element is too hot or not hot enough.

Surface element does not heat or does not heat evenly.

Oven light does not work.

• Incorrect surface control setting. Adjust power level setting.

• Be sure the correct surface control knob is turned ON for element needed.

• Lightweight or warped pans used. Use only flat, evenly balanced, medium or

heavyweight cookware. Flat pans heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy & mediumweight pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.

• Be sure the oven light is secure in the socket. Also see Replacing oven light in the Care & Cleaning section.

Page 29

Before You Call • Solutions to common problems

Problem Solution

Oven smokes excessively when broiling.

Flames inside oven or smoking from oven vent.

Oven control panel beeps & displays any F code error.

• Incorrect setting. Follow broiling instructions in Setting Oven Controls

section.

• Be sure oven door is opened to broil stop position when broiling.

• Meat too close to the broil element. Reposition the broil rack to provide

proper clearance between the meat & the element. Preheat the broil element for searing.

• Meat not properly prepared. Remove excess fat from meat. Cut remaining

fatty edges to prevent curling, but do not cut into lean.

• Grease has built up on oven surfaces. Regular cleaning is necessary when

broiling frequently. Old grease or food spatters cause excessive smoking.

• Excessive spillovers in oven. For example this will happen for pie spillovers or large amounts of grease left on the oven bottom. Wipe up excessive spillovers before starting oven. If flames or excessive smoke are present follow broiling instructions in Setting Oven Controls section.

• Oven control has detected a fault or error condition. Press

clear the error code. Try Bake or Broil function. If the F code error repeats, remove power from appliance, wait 5 minutes and then repower appliance and set clock with the correct time of day. Try Bake or Broil function again.

key pad to

If the fault recurs, press

assistance (See back cover).

Select Clean does not work. • Oven control not set properly. Review instructions in Select Clean section.

Soil not completely removed after Select Clean.

Oven racks discolored. • Oven racks left in oven cavity during Select Clean. Always remove oven

• Select Clean was interrupted. Review instructions in Select Clean section.

• Excessive spillovers on oven bottom. Remove before starting Select Clean.

• Failure to clean soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. These areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean these areas before the self-cleaning cycle is started. Burned-on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

racks from oven cavity before starting a self-clean cycle. Clean by using a mild, abrasive cleaner following manufacturer's instructions. Rinse with clean water, dry and replace in oven.

to clear and call 1-800-4-MY-HOME® for

Page 30

Before You Call • Solutions to common problems

Problem Solution

Scratches or abrasions on cooktop surface.

Metal marks on the cooktop. • Sliding or scraping of metal utensils on cooktop surface. Do not slide metal

• Coarse particles such as salt or hardened soils between cooktop and utensils can cause scratches. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time.

• Cleaning materials not recommended for ceramic-glass cooktop have been used. Apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or no-scratch cleaning pad. For more information see “Cooktop maintenance” and “Cooktop cleaning” in the Care and Cleaning section of this Use & Care Guide.

• Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.

utensils on cooktop surface. Apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a nonabrasive cloth or no-scratch cleaning pad. For more information see “Cooktop maintenance” and “Cooktop cleaning” in the Care and Cleaning section of this Use & Care Guide.

Brown streaks or specks on cooktop surface.

Areas of discoloration with metallic sheen on cooktop surface.

• Boilovers are cooked onto surface. Use razor blade scraper to remove soil. For more information see “Cooktop maintenance” and “Cooktop cleaning” in the Care and Cleaning section of this Use & Care Guide.

• Mineral deposits from water and food. Remove using the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or no-scratch cleaning pad. For more information see “Cooktop maintenance” and “Cooktop cleaning” in the Care and Cleaning section of this Use & Care Guide.

Page 31

Protection Agreements Acuerodes de protección

Page 32
