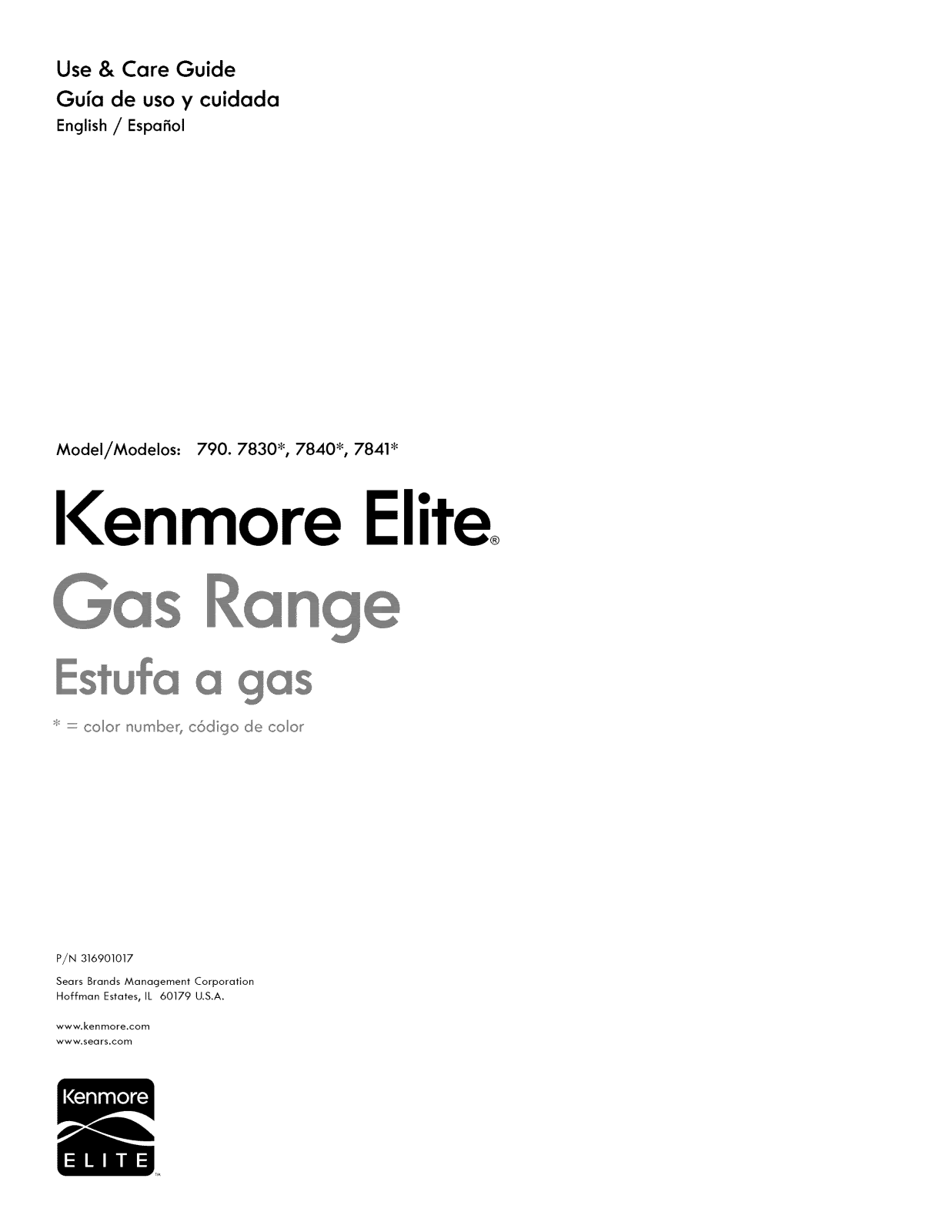

Use & Care Guide
Gufa de uso y cuidada
English / Espafiol
Model/Modelos: 790. 7830", 7840", 7841"
I(enmore Elite
::::::::::::collop nu_'_llo@_,c6di'_9o de collo_
P/N 316901017
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
I= III IIi/I:
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg2.png)

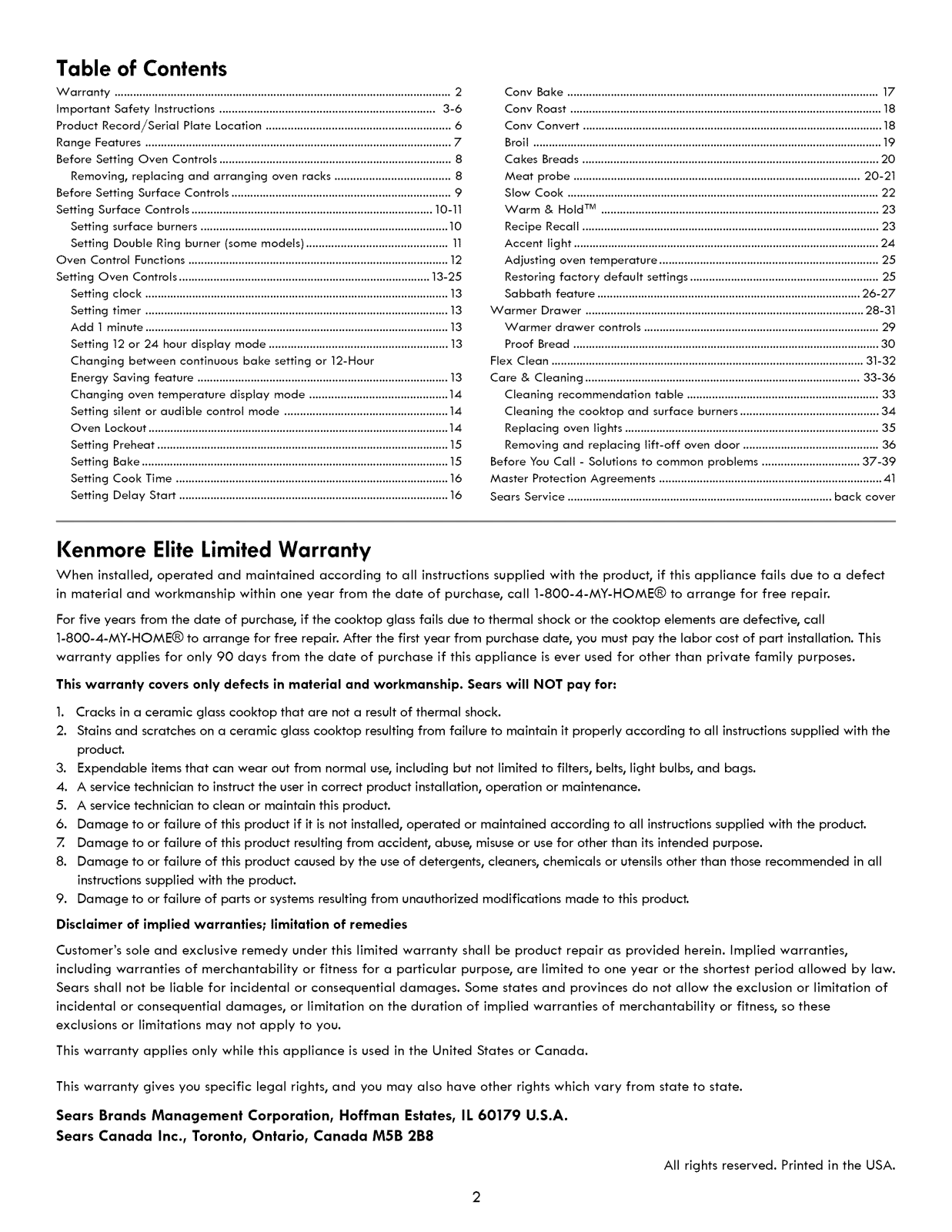

Table of Contents
Warranty ............................................................................................................ 2
Important Safety Instructions ..................................................................... 3-6
Product Record/Serial Plate Location ........................................................... 6
Range Features .................................................................................................. 7

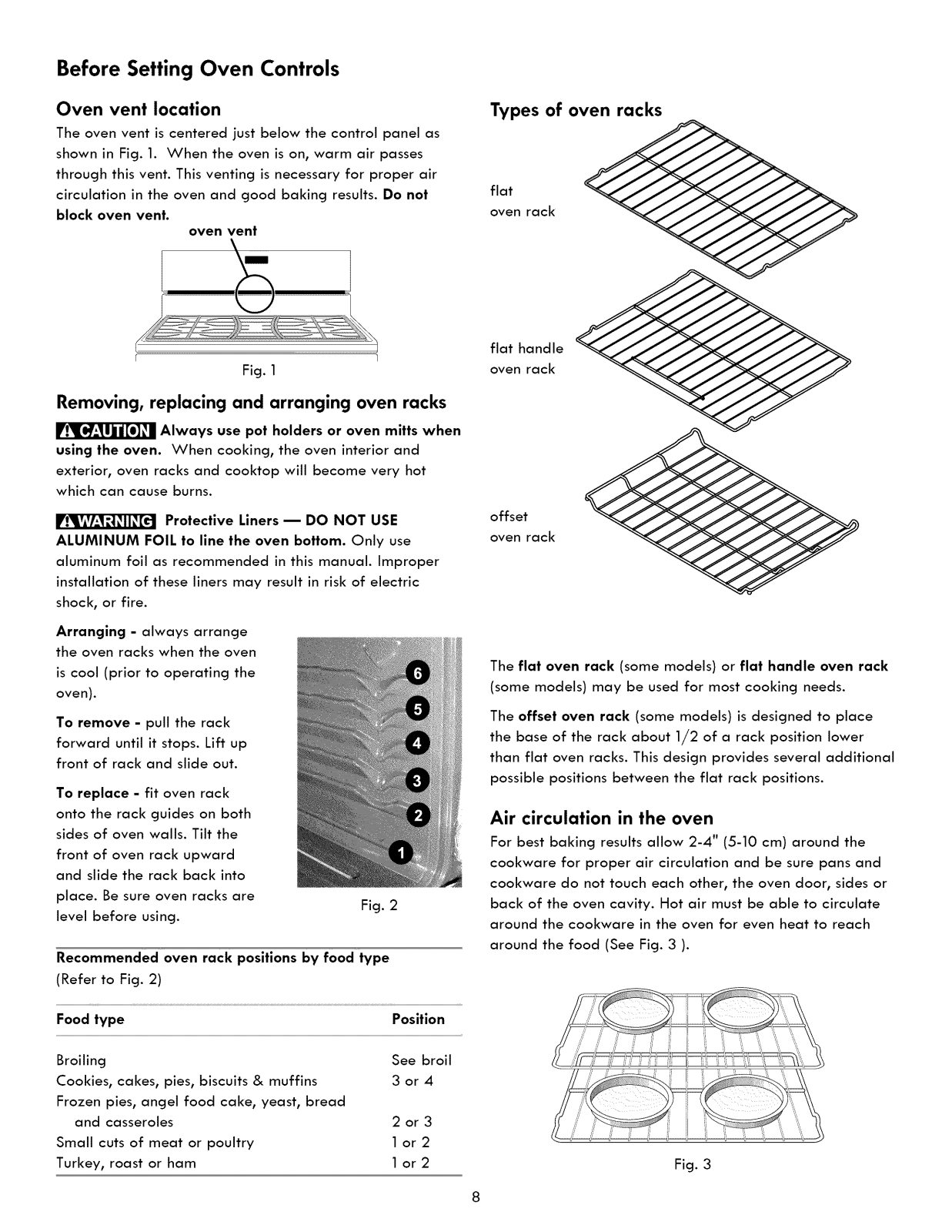

Before Setting Oven Controls.......................................................................... 8
Removing, replacing and arranging oven racks ..................................... 8

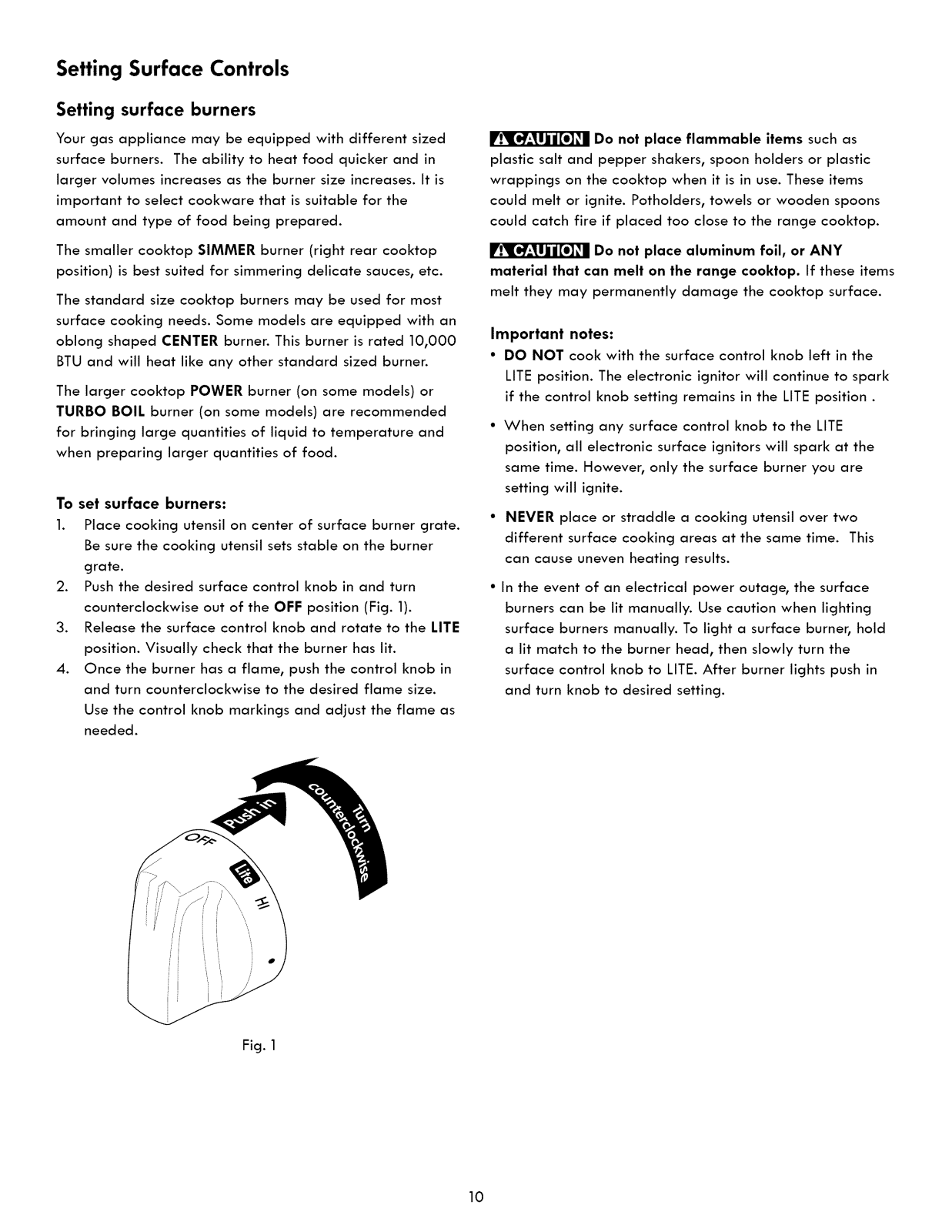

Before Setting Surface Controls...................................................................... 9
Setting Surface Controls............................................................................. 10-11
Setting surface burners ............................................................................... 10

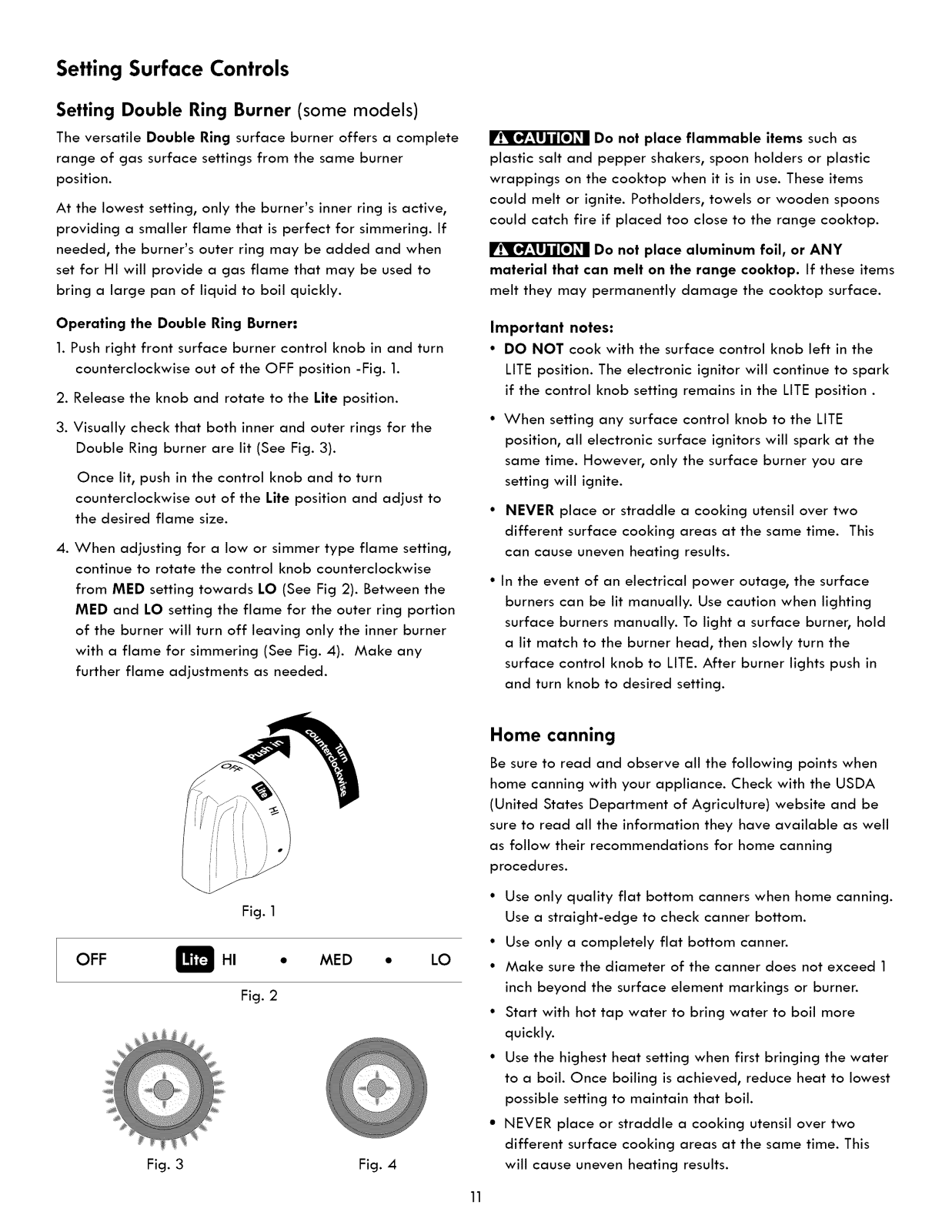

Setting Double Ring burner (some models) ............................................. 11
Oven Control Functions................................................................................... 12
Setting Oven Controls ................................................................................ 13-25
Setting clock ................................................................................................. 13
Setting timer ................................................................................................. 13
Add 1 minute ................................................................................................. 13
Setting 12 or 24 hour display mode ......................................................... 13
Changing between continuous bake setting or 12-Hour
Energy Saving feature ................................................................................ 13

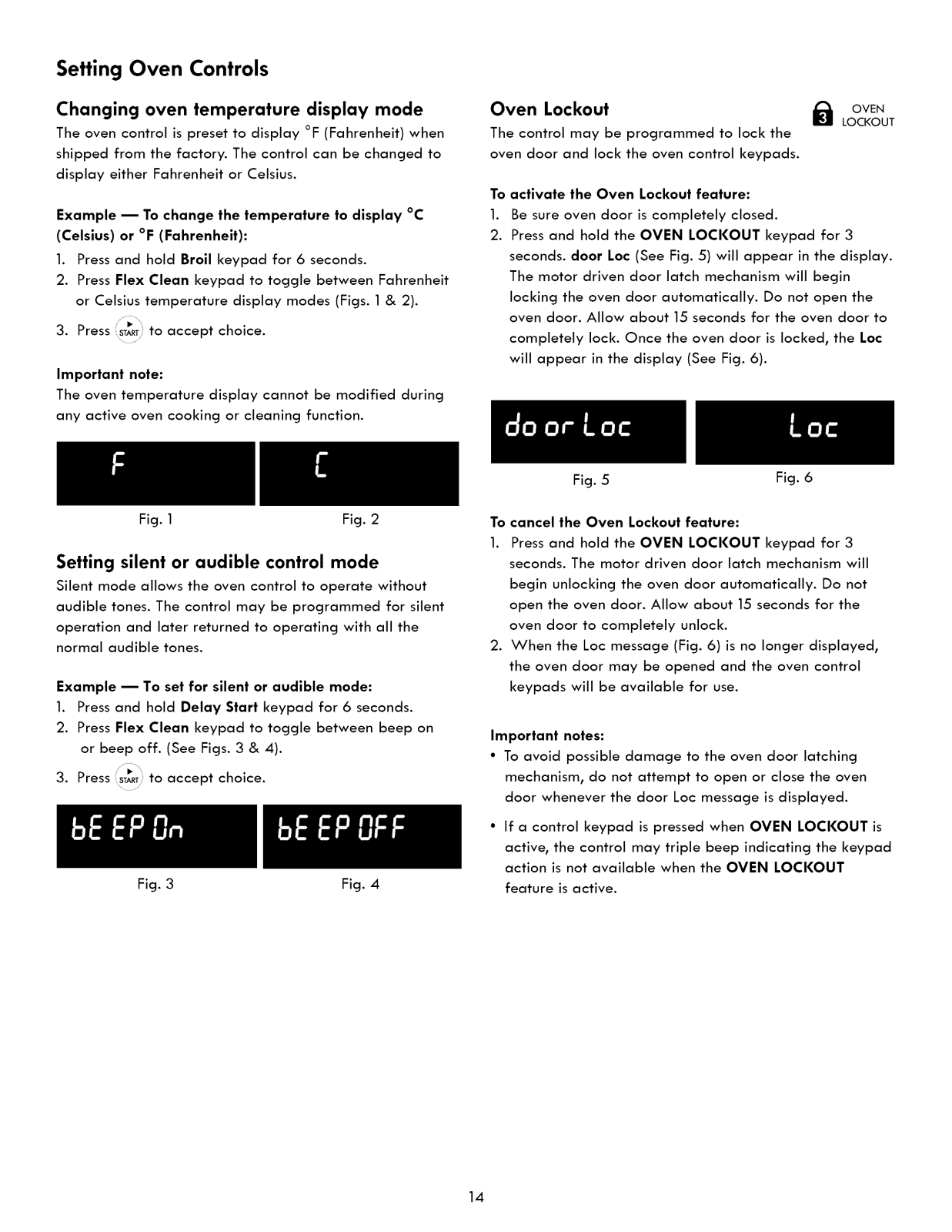

Changing oven temperature display mode ............................................ 14
Setting silent or audible control mode .................................................... 14
Oven Lockout ................................................................................................ 14

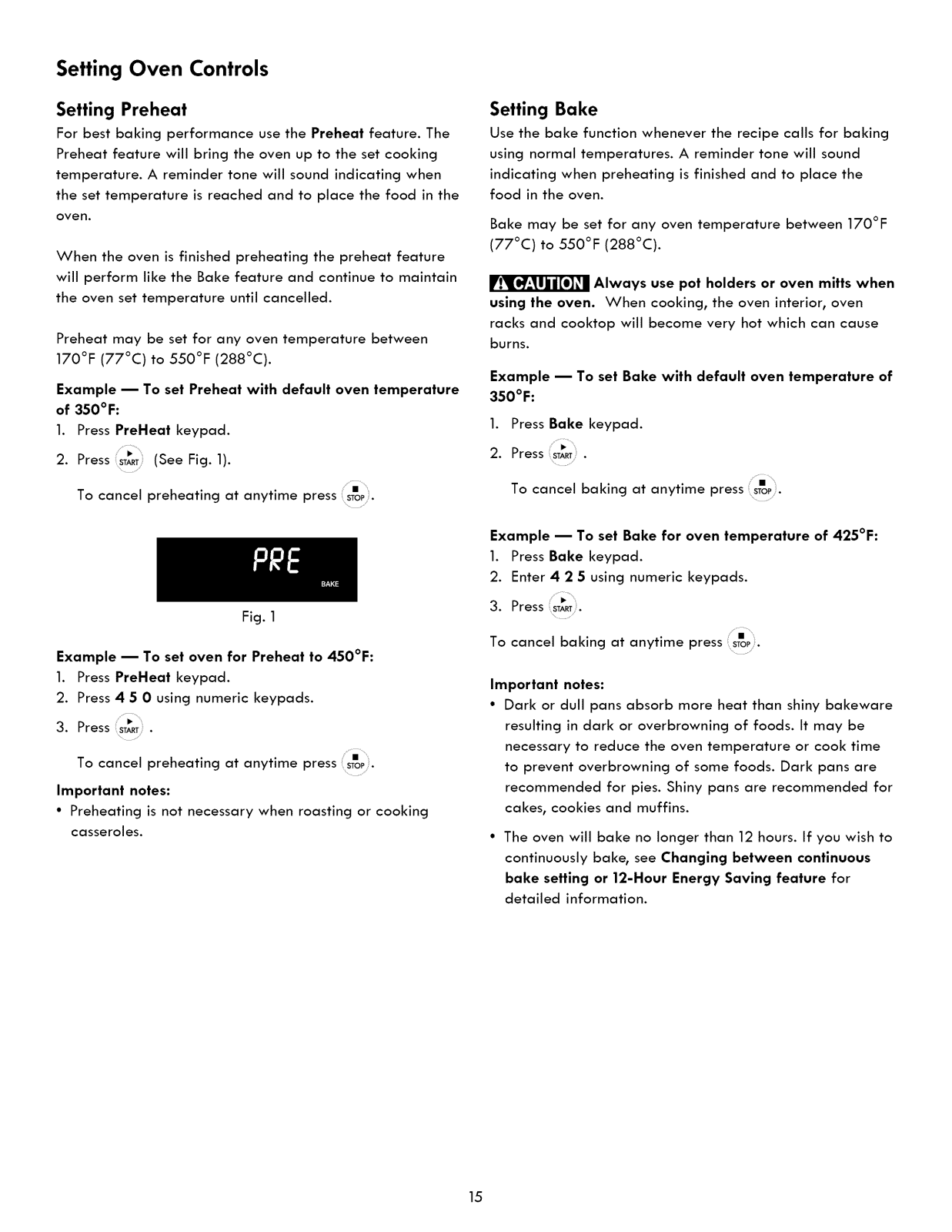

Setting Preheat ............................................................................................. 15
Setting Bake .................................................................................................. 15
Setting Cook Time ....................................................................................... 16
Setting Delay Start ...................................................................................... 16
Conv Bake .................................................................................................... 17
Conv Roast .................................................................................................... 18
Conv Convert ................................................................................................ 18
Broil ................................................................................................................ 19
Cakes Breads ............................................................................................... 20
Meat probe ............................................................................................ 20-21

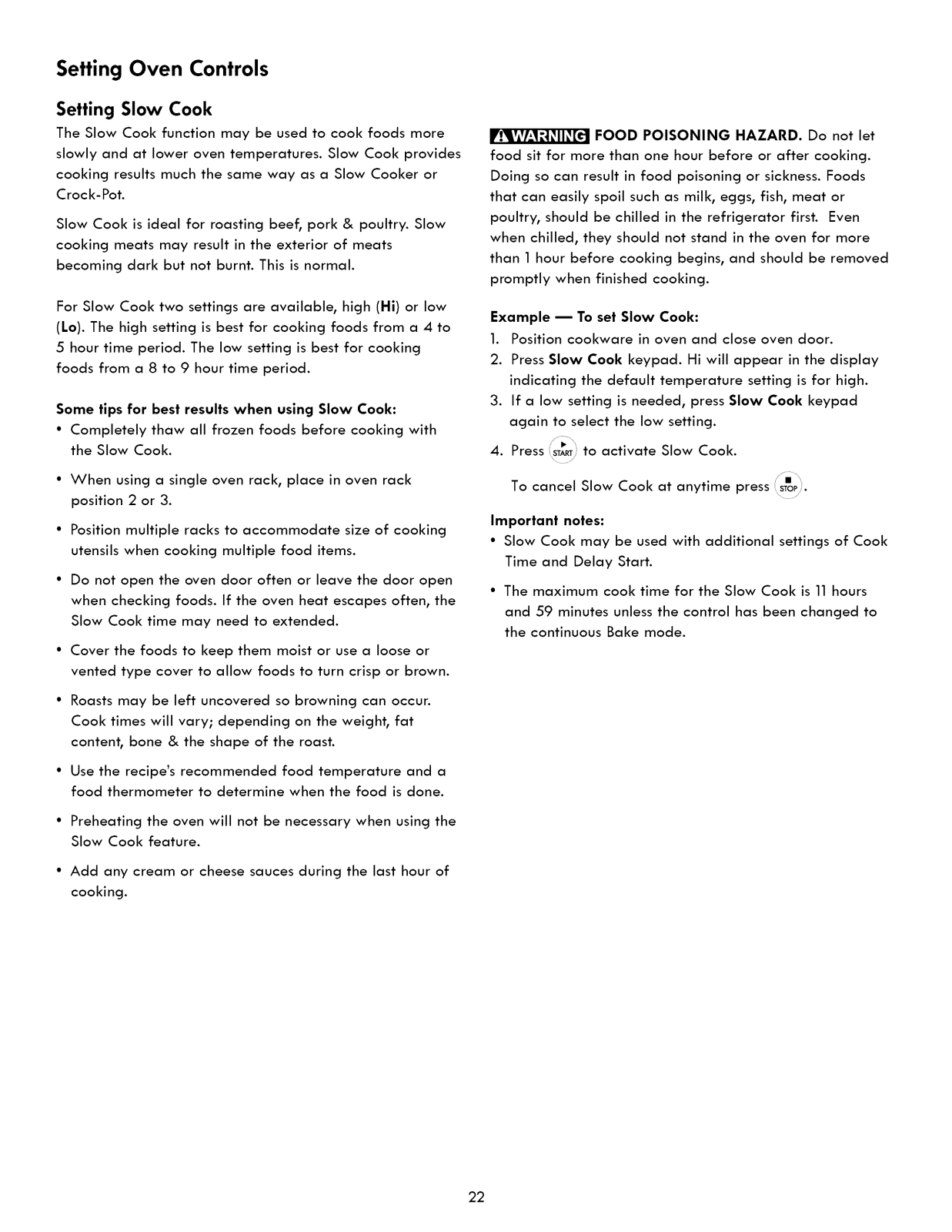

Slow Cook .................................................................................................... 22
Warm & Hold TM ......................................................................................... 23
Recipe Recall ............................................................................................... 23
Accent light .................................................................................................. 24
Adjusting oven temperature ...................................................................... 25
Restoring factory default settings ............................................................ 25

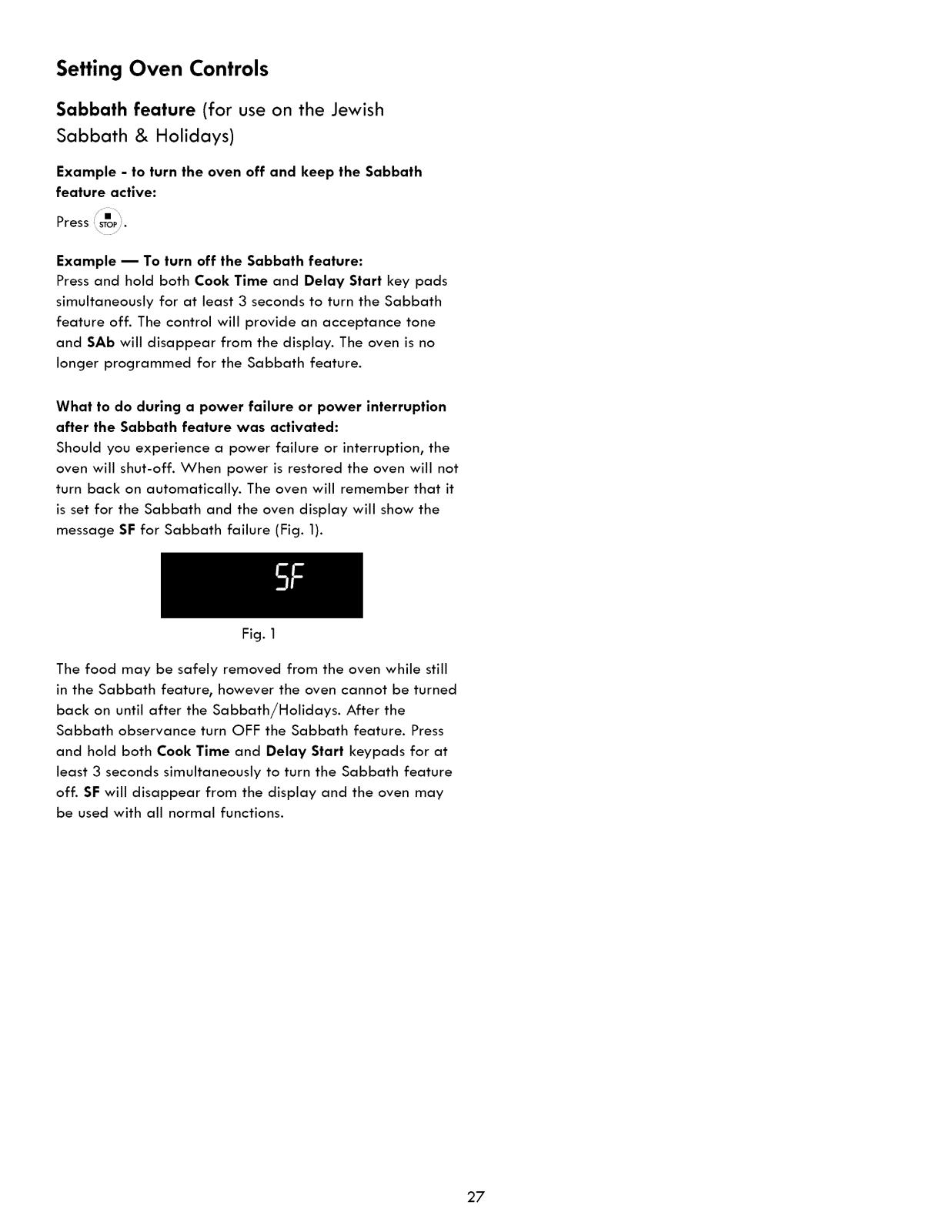

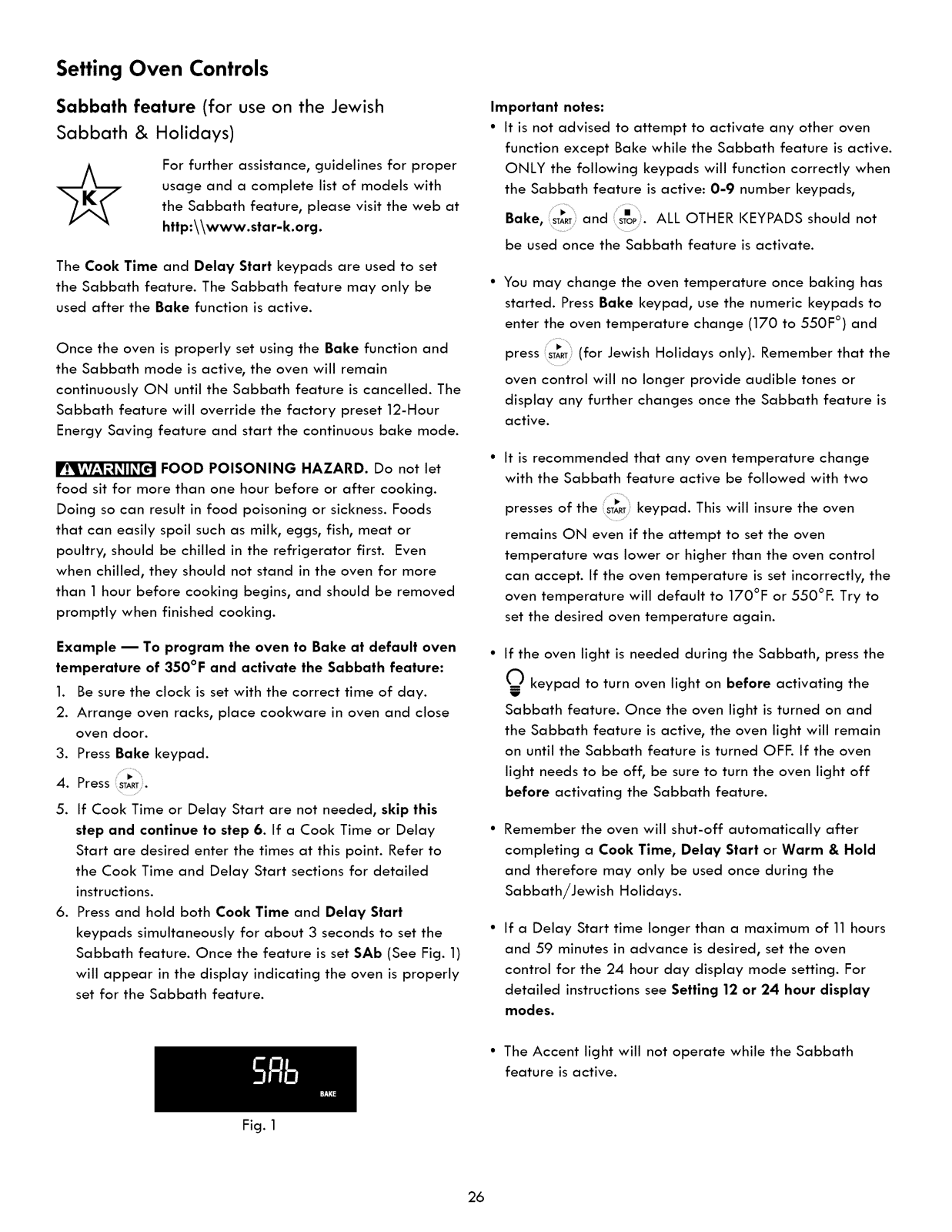

Sabbath feature .................................................................................... 26-27
Warmer Drawer ......................................................................................... 28-31
Warmer drawer controls ........................................................................... 29
Proof Bread .................................................................................................. 30
Flex Clean .................................................................................................... 31-32
Care & Cleaning ........................................................................................ 33-36

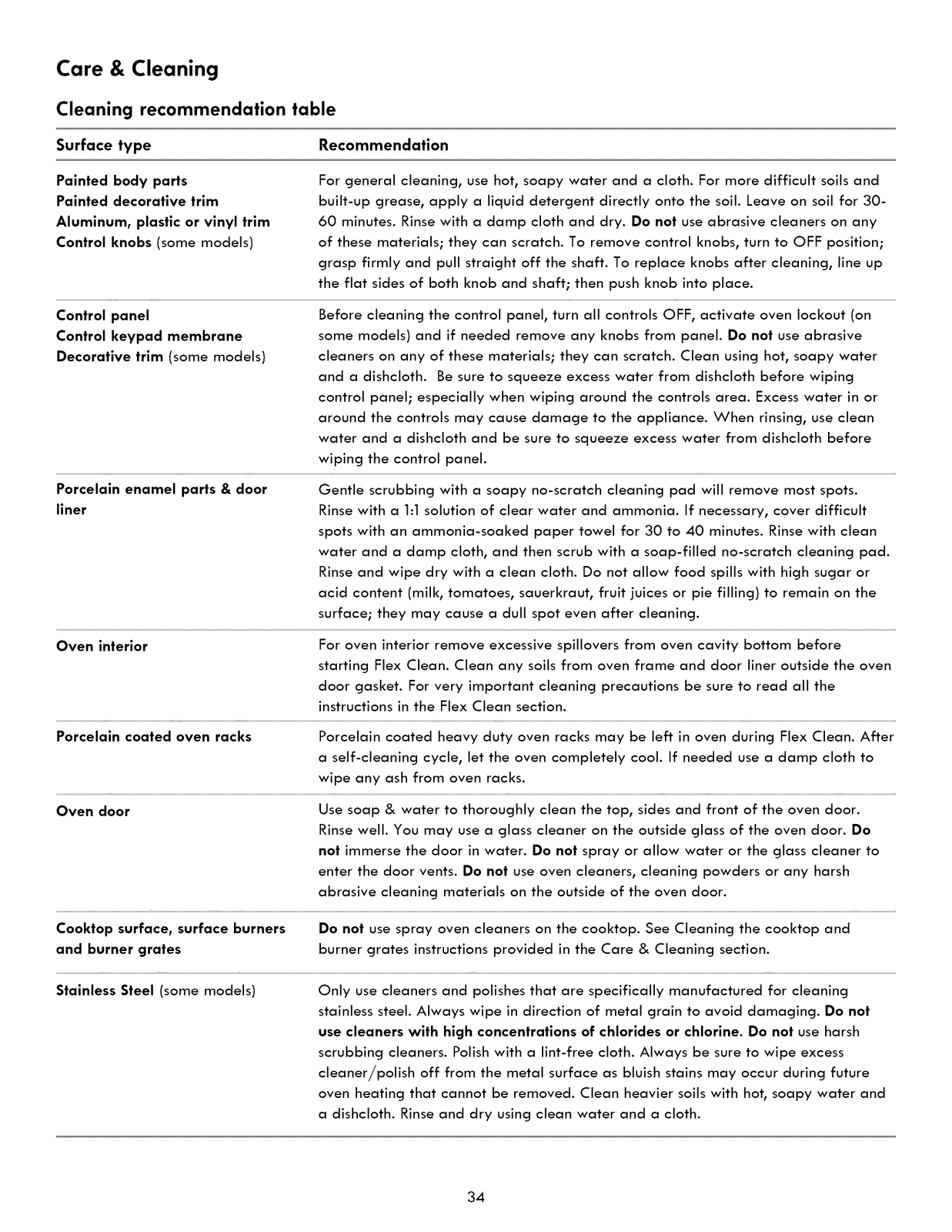

Cleaning recommendation table ............................................................. 33
Cleaning the cooktop and surface burners ............................................ 34
Replacing oven lights ................................................................................. 35
Removing and replacing lift-off oven door ........................................... 36

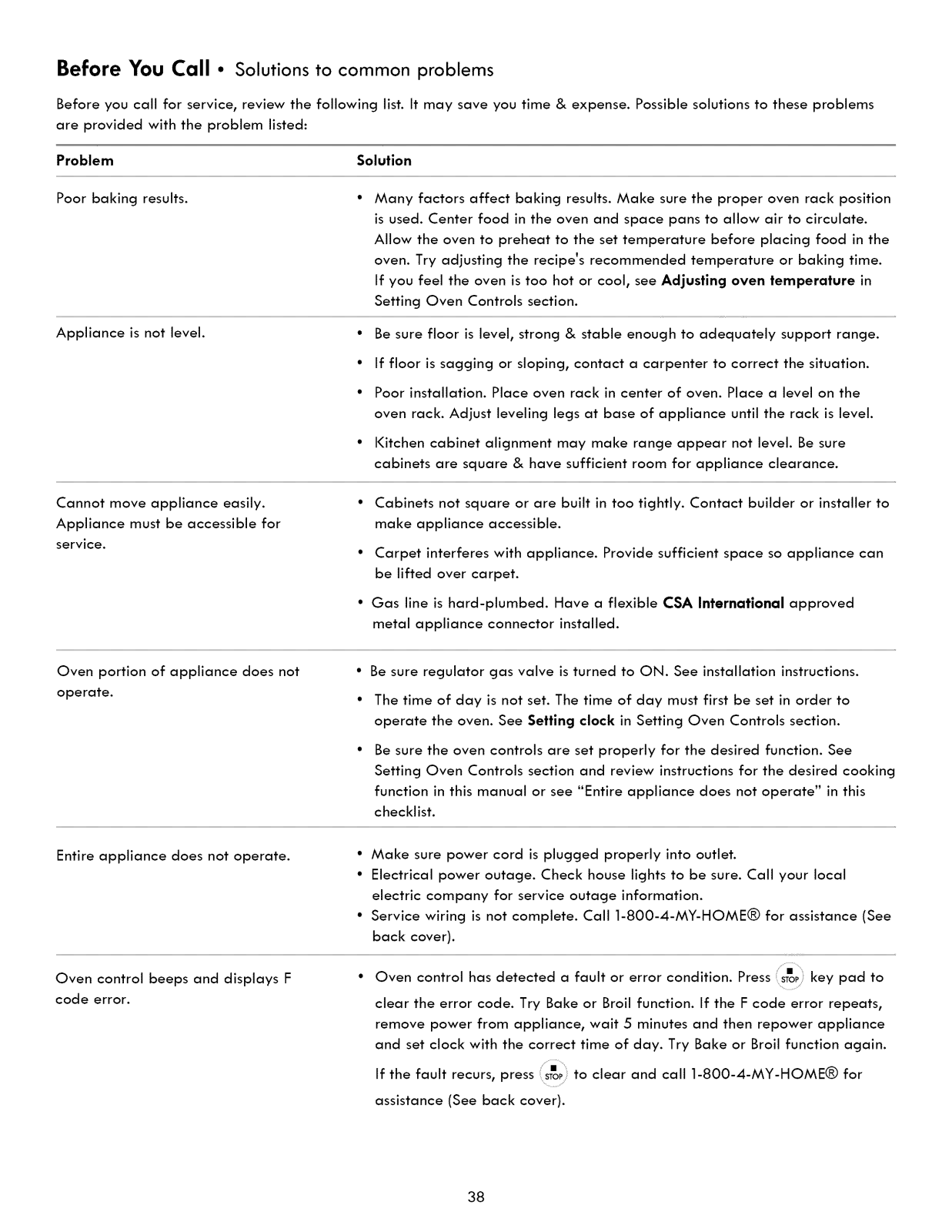

Before You Call - Solutions to common problems ............................... 37-39

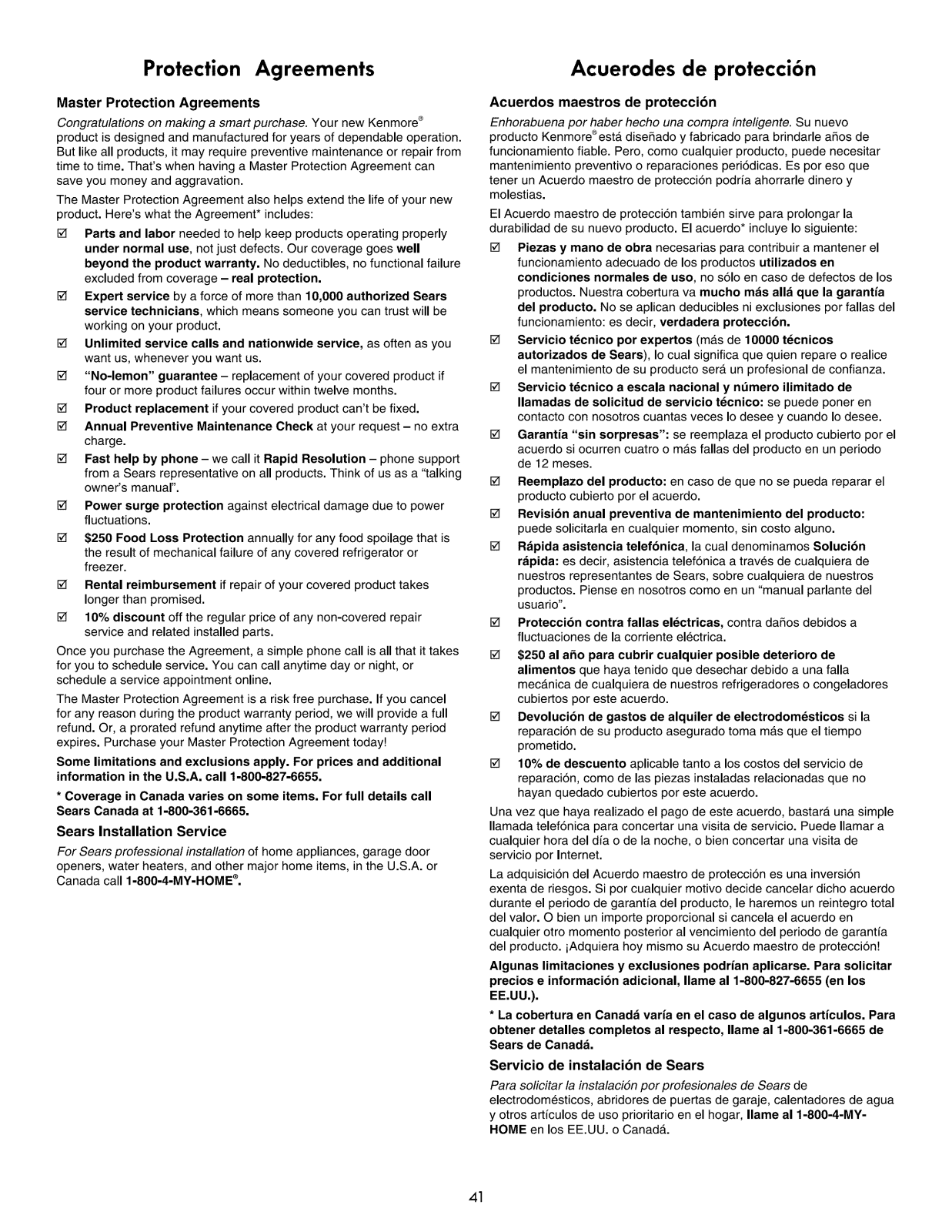

Master Protection Agreements ....................................................................... 41
Sears Service ..................................................................................... back cover
Kenmore Elite Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect
in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
For five years from the date of purchase, if the cooktop glass fails due to thermal shock or the cooktop elements are defective, call
1-800-4-MY-HOME® to arrange for free repair. After the first year from purchase date, you must pay the labor cost of part installation. This
warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.
Thiswarranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions supplied with the
product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all
instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of
incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these
exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
All rights reserved. Printedin the USA.
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg3.png)

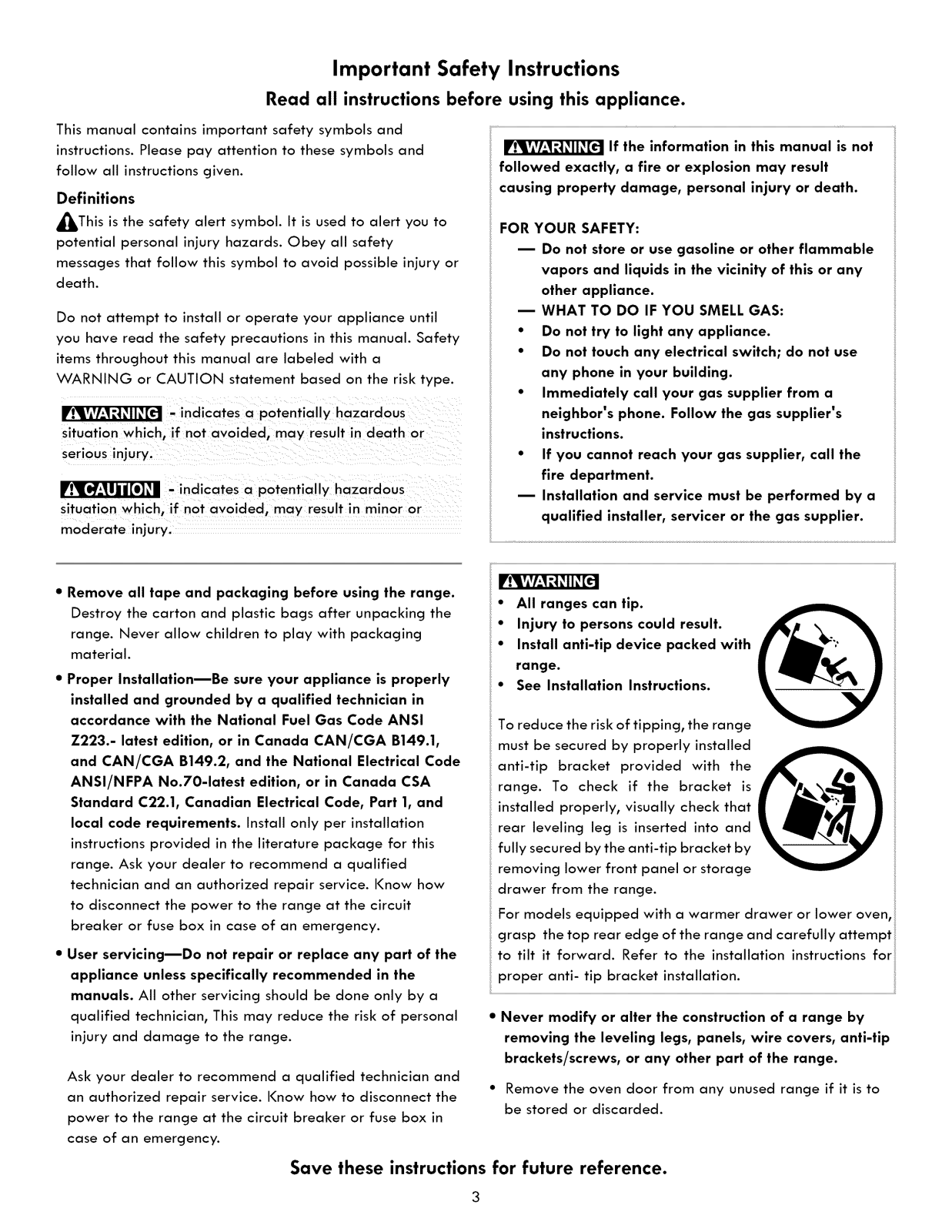

Important Safety Instructions
Read all instructions before using this appliance.
This manual contains important safety symbols and
instructions. Please pay attention to these symbols and
follow all instructions given.
Definitions
_'_This is the alert It is used to alert to
potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or
death.
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a
WARNING or CAUTION statement based on the risk type.
situation which, if not avoided, may result in death or
serious injury.
situation which, if not avoided, may result in minor or
moderate injury.
safety symbol.
- indicates a potentially hazardous
- indicates a potentially hazardous
you
If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
m Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, servicer or the gas supplier.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging
material.
• Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Fuel Gas Code ANSI
Z223.- latest edition, or in Canada CAN/CGA B149.1,
and CAN/CGA B149.2, and the National Electrical Code
ANSI/NFPA No.70-1atest edition, or in Canada CSA
Standard C22.1, Canadian Electrical Code, Part 1, and
local code requirements. Install only per installation
instructions provided in the literature package for this
range. Ask your dealer to recommend a qualified
technician and an authorized repair service. Know how
to disconnect the power to the range at the circuit
breaker or fuse box in case of an emergency.
• User servicing_Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician, This may reduce the risk of personal
injury and damage to the range.
Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with
range.
• See Installation Instructions.
To reduce the risk of tipping, the range
must be secured by properly installed
anti-tip bracket provided with the _ /_"_
installed properly, visually check that
rear leveling leg is inserted into and
range. To check if the bracket is
fully secured by the anti-tip bracket by
removing lower front panel or storage
drawer from the range.
For models equipped with a warmer drawer or lower oven,
grasp the top rear edge of the range and carefully attempt
to tilt it forward. Refer to the installation instructions for
proper anti- tip bracket installation.
• Never modify or alter the construction of a range by
removing the leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the range.
• Remove the oven door from any unused range if it is to
be stored or discarded.
Save these instructions for future reference.
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg4.png)

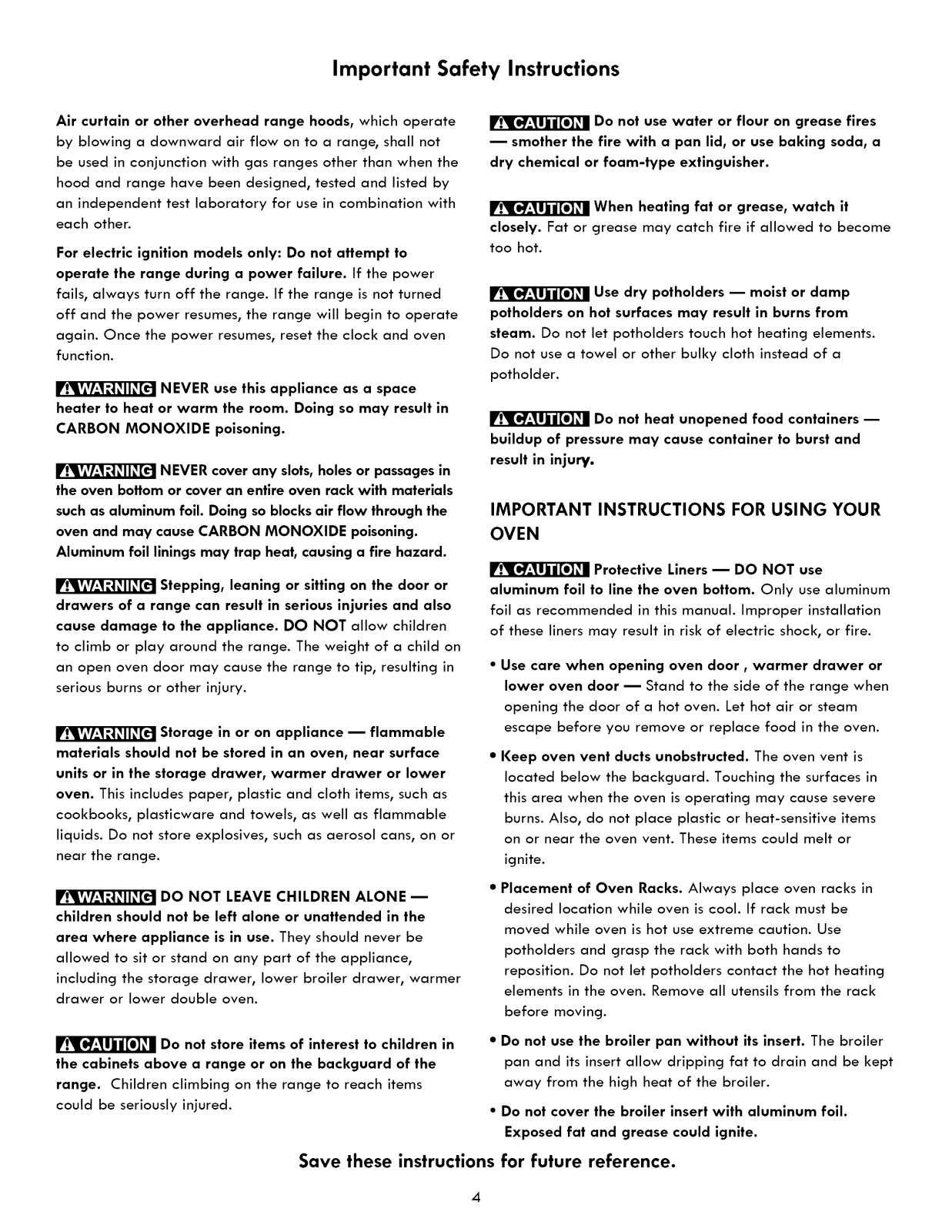

Important Safety Instructions
Air curtain or other overhead range hoods, which operate
by blowing a downward air flow on to a range, shall not
be used in conjunction with gas ranges other than when the
hood and range have been designed, tested and listed by
an independent test laboratory for use in combination with
each other.
For electric ignition models only: Do nat attempt to
operate the range during a power failure. If the power
fails, always turn off the range. If the range is not turned
off and the power resumes, the range will begin to operate
again. Once the power resumes, reset the clock and oven
function.
NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
CARBON MONOXIDE poisoning.
NEVER cover any slots, holes or passages in
the oven bottom or cover an entire oven rack with materials
such as aluminum foil. Doing so blocks air flow through the
oven and may cause CARBON MONOXIDE poisoning.
Aluminum foil linings may trap heat, causing a fire hazard.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries and also
cause damage to the appliance. DO NOT allow children
to climb or play around the range. The weight of a child on
an open oven door may cause the range to tip, resulting in
serious burns or other injury.
Storage in or on appliance m flammable
materials should not be stored in an oven, near surface
units or in the storage drawer, warmer drawer or lower
oven. This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or
near the range.
Do not use water or flour on grease fires
smother the fire with a pan lid, or use baking soda, a
dry chemical or foam-type extinguisher.
When heating fat or grease, watch it
closely. Fat or grease may catch fire if allowed to become
too hot.
Use dry potholders m moist or damp
potholders on hot surfaces may result in burns from
steam. Do not let potholders touch hot heating elements.
Do not use a towel or other bulky cloth instead of a
potholder.
Do not heat unopened food containers
buildup of pressure may cause container to burst and
result in injurv.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
Protective Liners _ DO NOT use
aluminum foil to line the oven bottom. Only use aluminum
foil as recommended in this manual. Improper installation
of these liners may result in risk of electric shock, or fire.
Use care when opening oven door, warmer drawer or
lower oven door _ Stand to the side of the range when
opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven.
Keep oven vent ducts unobstructed. The oven vent is
located below the backguard. Touching the surfaces in
this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or
ignite.
DO NOT LEAVE CHILDREN ALONE
children should nat be left alone or unattended in the
area where appliance is in use. They should never be
allowed to sit or stand on any part of the appliance,
including the storage drawer, lower broiler drawer, warmer
drawer or lower double oven.
Do not store items of interest to children in
the cabinets above a range or on the backguard of the
range. Children climbing on the range to reach items
could be seriously injured.
Save these instructions for future reference.
Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be
moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
Do not use the broiler pan without its insert. The broiler
pan and its insert allow dripping fat to drain and be kept
away from the high heat of the broiler.
Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg5.png)

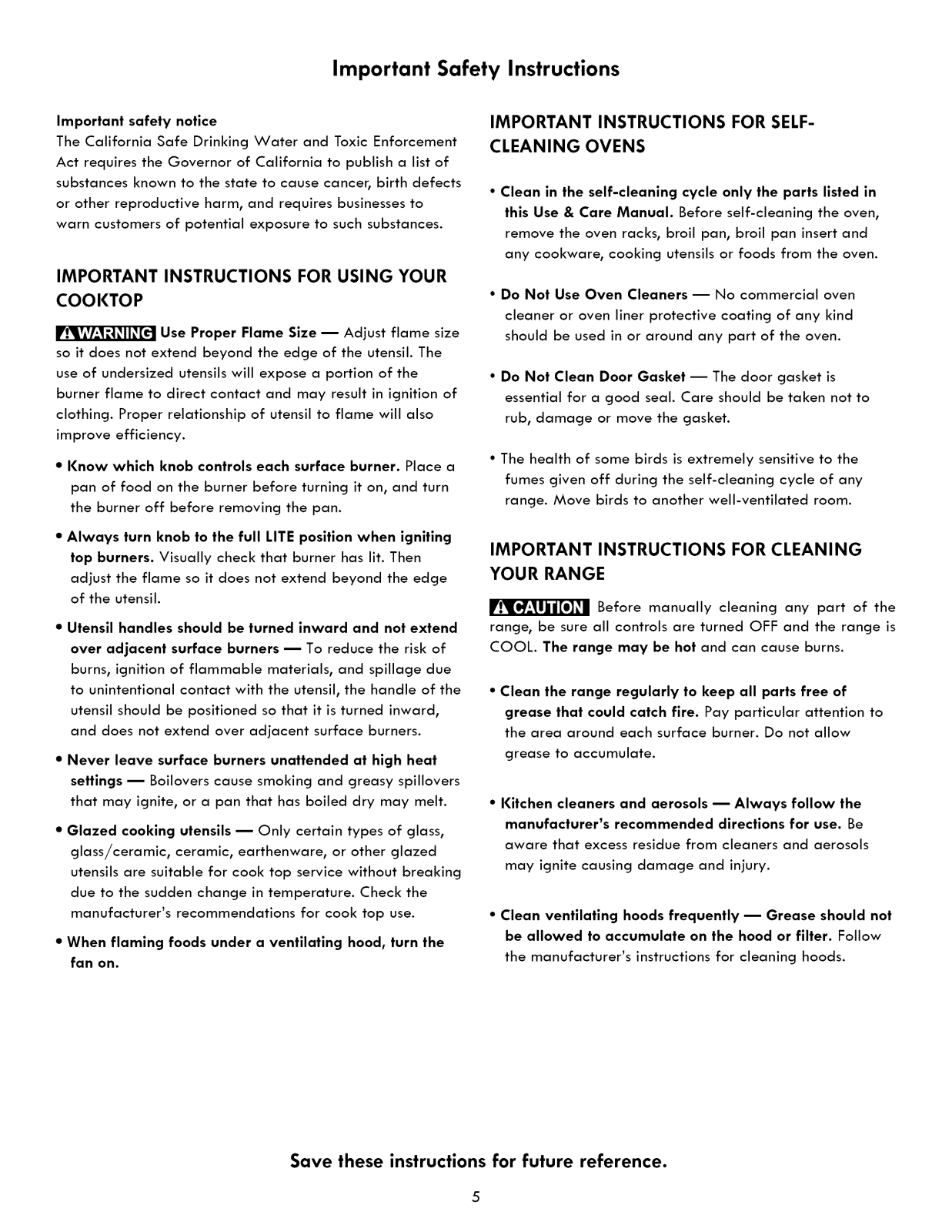

Important Safety Instructions
Important safety notice
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects
or other reproductive harm, and requires businesses to
warn customers of potential exposure to such substances.
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOl(TOP
Use Proper Flame Size m Adjust flame size
so it does not extend beyond the edge of the utensil. The
use of undersized utensils will expose a portion of the
burner flame to direct contact and may result in ignition of
clothing. Proper relationship of utensil to flame will also
improve efficiency.
• Know which knob controls each surface burner. Place a
pan of food on the burner before turning it on, and turn
the burner off before removing the pan.
• Always turn knob to the full LITE position when igniting
top burners. Visually check that burner has lit. Then
adjust the flame so it does not extend beyond the edge
of the utensil.
• Utensil handles should be turned inward and not extend
over adjacent surface burners m To reduce the risk of
burns, ignition of flammable materials, and spillage due
to unintentional contact with the utensil, the handle of the
utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface burners.
• Never leave surface burners unattended at high heat
settings _ Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
• Glazed cooking utensils _ Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the
fan on.
IMPORTANT INSTRUCTIONS FOR SELF-
CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in
this Use & Care Manual. Before self-cleaning the oven,
remove the oven racks, broil pan, broil pan insert and
any cookware, cooking utensils or foods from the oven.
• Do Not Use Oven Cleaners -- No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
• Do Not Clean Door Gasket -- The door gasket is
essential for a good seal. Care should be taken not to
rub, damage or move the gasket.
• The health of some birds is extremely sensitive to the
fumes given off during the self-cleaning cycle of any
range. Move birds to another well-ventilated room.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
Before manually cleaning any part of the
range, be sure all controls are turned OFF and the range is
COOL. The range may be hot and can cause burns.
• Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention to
the area around each surface burner. Do not allow
grease to accumulate.
• Kitchen cleaners and aerosols _ Always follow the
manufacturer's recommended directions for use. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
• Clean ventilating hoods frequently _ Grease should not
be allowed to accumulate on the hood or filter. Follow
the manufacturer's instructions for cleaning hoods.
Save these instructions for future reference.
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg6.png)

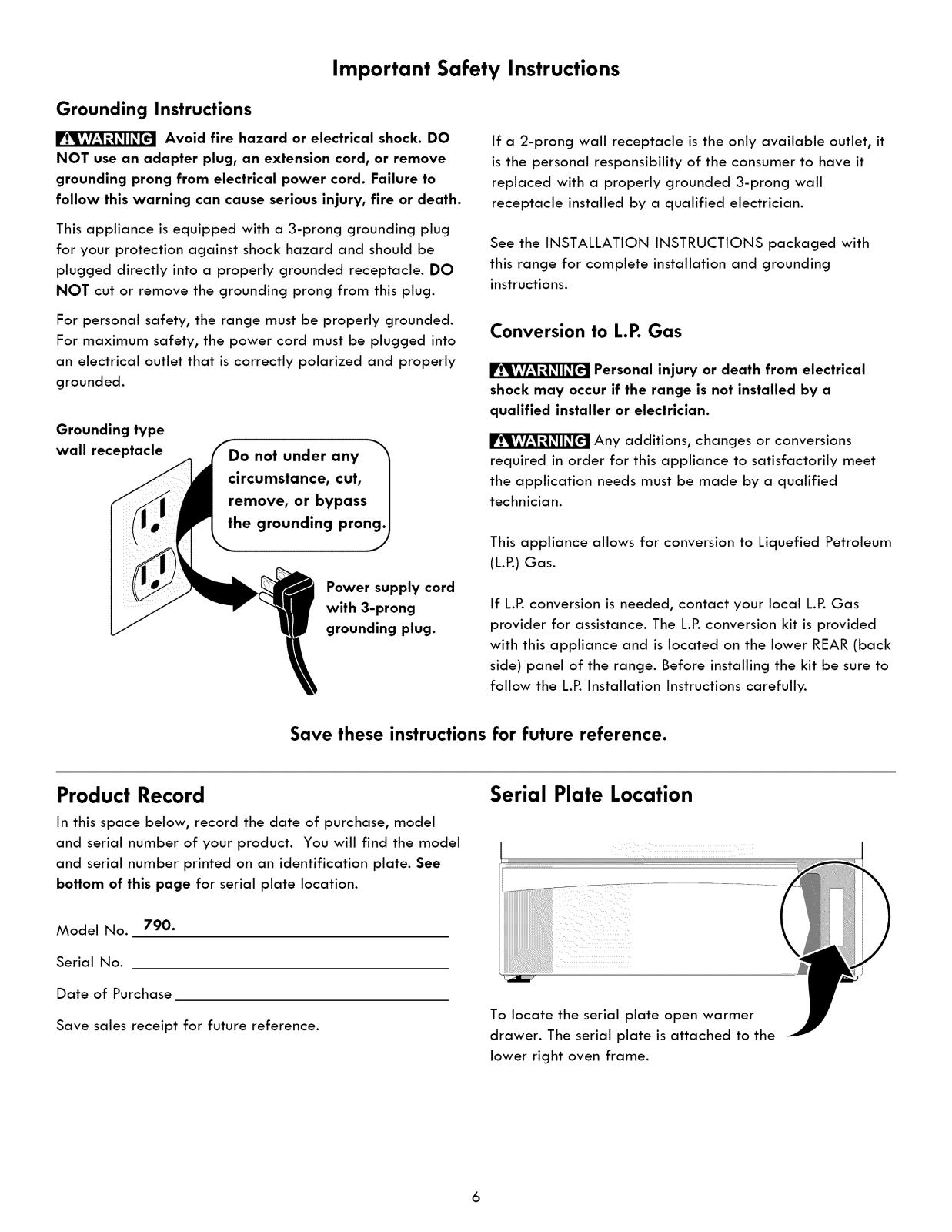

Grounding Instructions
Important Safety Instructions
Avoid fire hazard or electrical shock. DO
NOT use an adapter plug, an extension cord, or remove
grounding prong from electrical power cord. Failure to
follow this warning can cause serious injury, fire or death.
This appliance is equipped with a 3-prong grounding plug
for your protection against shock hazard and should be
plugged directly into a properly grounded receptacle. DO
NOT cut or remove the grounding prong from this plug.
For personal safety, the range must be properly grounded.
For maximum safety, the power cord must be plugged into
an electrical outlet that is correctly polarized and properly
grounded.
Grounding type
wall receptacle
Power supply cord
with 3-prong
grounding plug.
If a 2-prong wall receptacle is the only available outlet, it
is the personal responsibility of the consumer to have it
replaced with a properly grounded 3-prong wall
receptacle installed by a qualified electrician.
See the INSTALLATION INSTRUCTIONS packaged with
this range for complete installation and grounding
instructions.
Conversion to L.P. Gas
Personal injury or death from electrical
shock may occur if the range is not installed by a
qualified installer or electrician.
Any additions, changes or conversions
required in order for this appliance to satisfactorily meet
the application needs must be made by a qualified
technician.
This appliance allows for conversion to Liquefied Petroleum
(L.P.) Gas.
If L.P. conversion is needed, contact your local L.P.Gas
provider for assistance. The L.P. conversion kit is provided
with this appliance and is located on the lower REAR (back
side) panel of the range. Before installing the kit be sure to
follow the L.P.Installation Instructions carefully.
Save these instructions for future reference.
Product Record
In this space below, record the date of purchase, model
and serial number of your product. You will find the model
and serial number printed on an identification plate. See
bottom of this page for serial plate location.
Model No. 790.
Serial No.
Date of Purchase
Save sales receipt for future reference.
Serial Plate Location
To locate the serial plate open warmer
drawer. The serial plate is attached to the
lower right oven frame.
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg7.png)

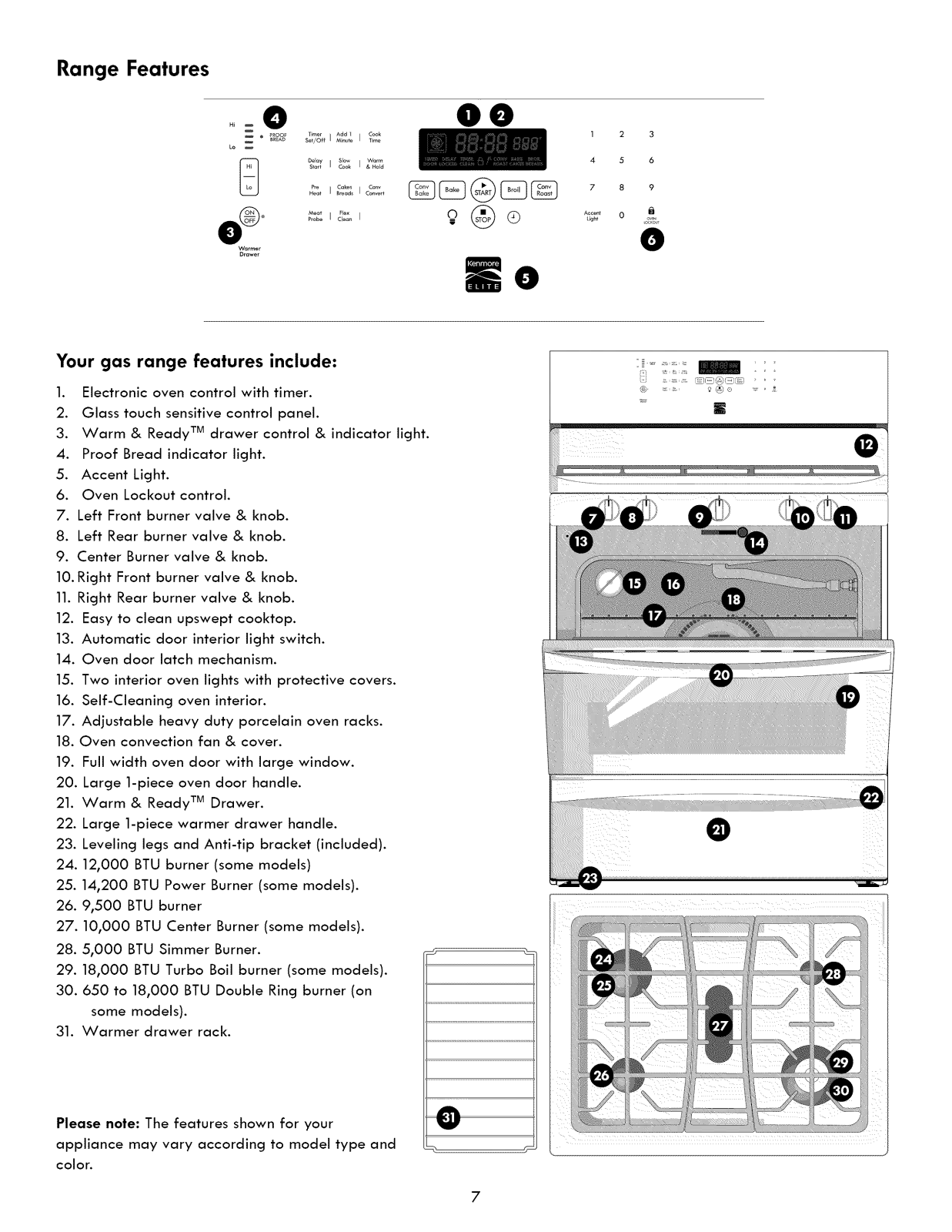

Range Features
l_mer Add 1 Cook
BR_AD
S,o,,I I W_o_.
Me_t FlexP,cbe I can [
Warmer
Drawer
Your gas range features include:
1. Electronic oven control with timer.
2. Glass touch sensitive control panel.
3. Warm & Ready TM drawer control & indicator light.
4. Proof Bread indicator light.
5. Accent Light.
6. Oven Lockout control.
7. Left Front burner valve & knob.
8. Left Rear burner valve & knob.
9. Center Burner valve & knob.
10. Right Front burner valve & knob.
11. Right Rear burner valve & knob.
12. Easy to clean upswept cooktop.
13. Automatic door interior light switch.
14. Oven door latch mechanism.
15. Two interior oven lights with protective covers.
16. Self-Cleaning oven interior.
17. Adjustable heavy duty porcelain oven racks.
18. Oven convection fan & cover.
19. Full width oven door with large window.
20. Large 1-piece oven door handle.
21. Warm & Ready TM Drawer.
22. Large 1-piece warmer drawer handle.
23. Leveling legs and Anti-tip bracket (included).
24. 12,000 BTU burner (some models)
25. 14,200 BTU Power Burner (some models).
26. 9,500 BTU burner
27. 10,000 BTU Center Burner (some models).
28. 5,000 BTU Simmer Burner.
29. 18,000 BTU Turbo Boil burner (some models).
30. 650 to 18,000 BTU Double Ring burner (on
some models).
31. Warmer drawer rack.
O0
....=,=,=,=,=,=,=,=,=,=,=,=,=,_=,_ ....
.....=====================,
.....=====================,_
1 2
4 5
7 8
Accen_ 0
Light
,_u,
0
ii............
j
@
iij!i
iii_I_! i i_ 0_I
Please note: The features shown for your
appliance may vary according to model type and
color.
@
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg8.png)
Before Setting Oven Controls
Oven vent location
The oven vent is centered just below the control panel as
shown in Fig. 1. When the oven is on, warm air passes
through this vent. This venting is necessary for proper air
circulation in the oven and good baking results. Do not
block oven vent.
oven vent
Fig. 1
Removing, replacing and arranging oven racks
Always use pot holders or oven mitts when
using the oven. When cooking, the oven interior and
exterior, oven racks and cooktop will become very hot
which can cause burns.
Protective Liners m DO NOT USE
ALUMINUM FOIL to line the oven bottom. Only use
aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric
shock, or fire.
Types of oven racks
flat
oven rack
@
flat handle
oven rack
offset
oven rack
Arranging - always arrange
the oven racks when the oven
is cool (prior to operating the
oven).
To remove - pull the rack
forward until it stops. Lift up
front of rack and slide out.
To replace - fit oven rack
onto the rack guides on both
sides of oven walls. Tilt the
front of oven rack upward
and slide the rack back into
place. Be sure oven racks are
level before using.
Recommended oven rack positions by food type
(Refer to Fig. 2)
Food type Position
Broiling
Cookies, cakes, pies, biscuits & muffins
Frozen pies, angel food cake, yeast, bread
and casseroles
Small cuts of meat or poultry
Turkey, roast or ham
Fig. 2
See broil
3or4
2or3
lor2
lor2
The flat oven rack (some models) or flat handle oven rack
(some models) may be used for most cooking needs.
The offset oven rack (some models) is designed to place
the base of the rack about 1/2 of a rack position lower
than flat oven racks. This design provides several additional
possible positions between the flat rack positions.
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Hot air must be able to circulate
around the cookware in the oven for even heat to reach
around the food (See Fig. 3 ).
Fig. 3
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bg9.png)
Before Setting Surface Controls

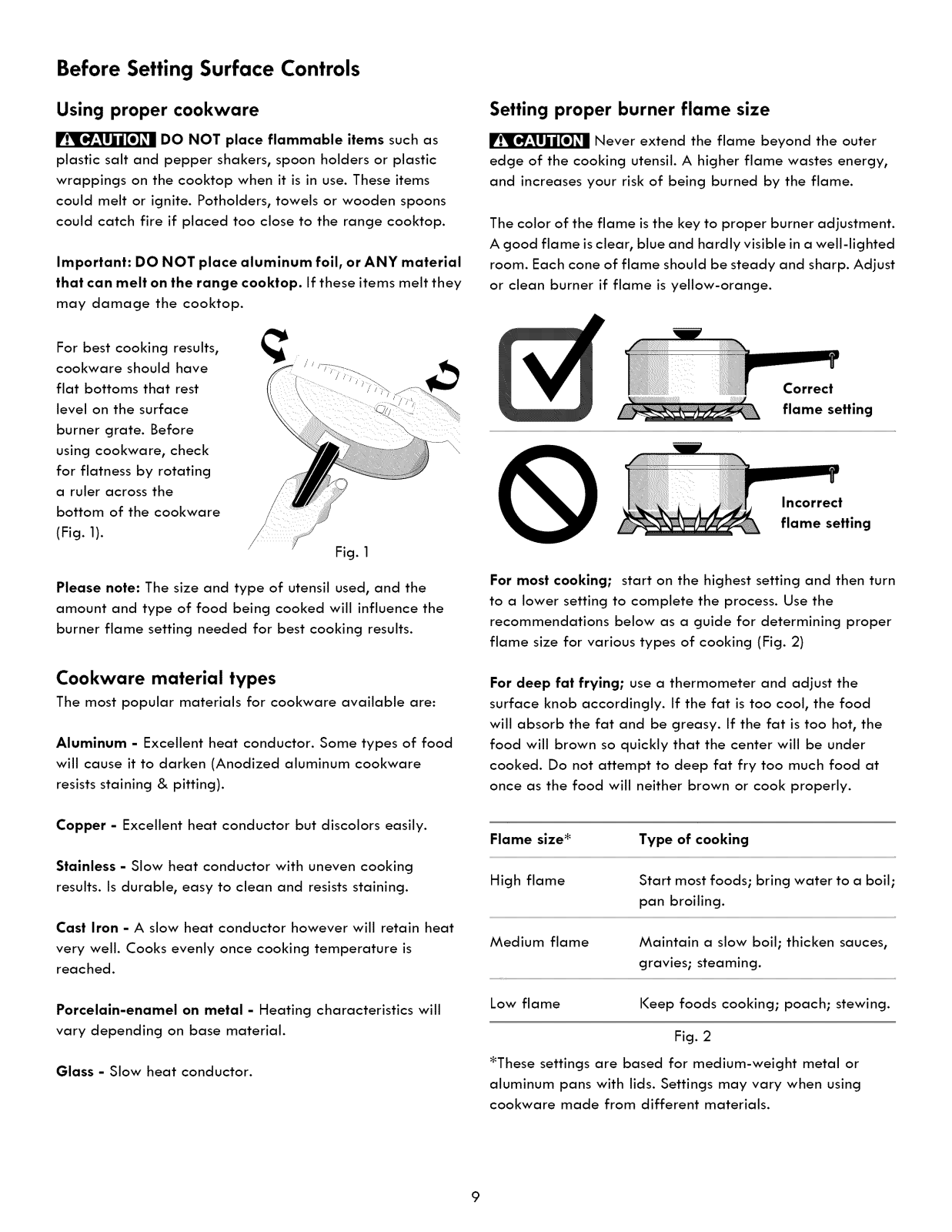

Using proper cookware
DO NOT place flammable items such as
plastic salt and pepper shakers, spoon holders or plastic
wrappings on the cooktop when it is in use. These items
could melt or ignite. Potholders, towels or wooden spoons
could catch fire if placed too close to the range cooktop.
Important: DO NOT place aluminum foil, or ANY material
that can melt on the range cooktop. If these items melt they
may damage the cooktop.
For best cooking results,
cookware should have
flat bottoms that rest
level on the surface
burner grate. Before
using cookware, check
for flatness by rotating
a ruler across the
bottom of the cookware
(Fig. 1).
Fig. 1
Setting proper burner flame size
Never extend the flame beyond the outer
edge of the cooking utensil. A higher flame wastes energy,
and increases your risk of being burned by the flame.
The color of the flame is the key to proper burner adjustment.
A good flame is clear, blue and hardly visible in a well-lighted
room. Each cone of flame should be steady and sharp. Adjust
or clean burner if flame is yellow-orange.
Correct
flame setting
incorrect
flame setting
Please note: The size and type of utensil used, and the
amount and type of food being cooked will influence the
burner flame setting needed for best cooking results.
Cookware material types
The most popular materials for cookware available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware
resists staining & pitting).
Copper - Excellent heat conductor but discolors easily.
Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is
reached.
Porcelain-enamel on metal - Heating characteristics will
vary depending on base material.
Glass - Slow heat conductor.
For most cooking; start on the highest setting and then turn
to a lower setting to complete the process. Use the
recommendations below as a guide for determining proper
flame size for various types of cooking (Fig. 2)
For deep fat frying; use a thermometer and adjust the
surface knob accordingly. If the fat is too cool, the food
will absorb the fat and be greasy. If the fat is too hot, the
food will brown so quickly that the center will be under
cooked. Do not attempt to deep fat fry too much food at
once as the food will neither brown or cook properly.
Flame size _ Type of cooking
High flame Start most foods; bring water to a boil;
pan broiling.
Medium flame Maintain a slow boil; thicken sauces,
gravies; steaming.
Low flame
_These settings are based for medium-weight metal or
aluminum pans with lids. Settings may vary when using
cookware made from different materials.
Keep foods cooking; poach; stewing.
Fig. 2
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bga.png)
Setting Surface Controls
Setting surface burners
Your gas appliance may be equipped with different sized
surface burners. The ability to heat food quicker and in
larger volumes increases as the burner size increases. It is
important to select cookware that is suitable for the
amount and type of food being prepared.
Do not place flammable items such as
plastic salt and pepper shakers, spoon holders or plastic
wrappings on the cooktop when it is in use. These items
could melt or ignite. Potholders, towels or wooden spoons
could catch fire if placed too close to the range cooktop.
The smaller cooktop SIMMER burner (right rear cooktop
position) is best suited for simmering delicate sauces, etc.
The standard size cooktop burners may be used for most
surface cooking needs. Some models are equipped with an
oblong shaped CENTER burner. This burner is rated 10,000
BTU and will heat like any other standard sized burner.
The larger cooktop POWER burner (on some models) or
TURBO BOIL burner (on some models) are recommended
for bringing large quantities of liquid to temperature and
when preparing larger quantities of food.
To set surface burners:
1. Place cooking utensil on center of surface burner grate.
Be sure the cooking utensil sets stable on the burner
grate.
2. Push the desired surface control knob in and turn
counterclockwise out of the OFF position (Fig. 1).
3. Release the surface control knob and rotate to the LITE
position. Visually check that the burner has lit.
4. Once the burner has a flame, push the control knob in
and turn counterclockwise to the desired flame size.
Use the control knob markings and adjust the flame as
needed.
Do not place aluminum foil, or ANY
material that can melt on the range cooktop. If these items
melt they may permanently damage the cooktop surface.
Important notes:
• DO NOT cook with the surface control knob left in the
LITE position. The electronic ignitor will continue to spark
if the control knob setting remains in the LITE position.
When setting any surface control knob to the LITE
position, all electronic surface ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.
• NEVER place or straddle a cooking utensil over two
different surface cooking areas at the same time. This
can cause uneven heating results.
In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner, hold
a lit match to the burner head, then slowly turn the
surface control knob to LITE. After burner lights push in
and turn knob to desired setting.
\
Fig. 1
10
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bgb.png)
Setting Surface Controls
Setting Double Ring Burner (some models)
The versatile Double Ring surface burner offers a complete
range of gas surface settings from the same burner
position.
At the lowest setting, only the burner's inner ring is active,
providing a smaller flame that is perfect for simmering. If
needed, the burner's outer ring may be added and when
set for HI will provide a gas flame that may be used to
bring a large pan of liquid to boil quickly.
I_ Do not place flammable items such as
plastic salt and pepper shakers, spoon holders or plastic
wrappings on the cooktop when it is in use. These items
could melt or ignite. Potholders, towels or wooden spoons
could catch fire if placed too close to the range cooktop.
I_ Do not place aluminum foil, or ANY
material that can melt on the range cooktop. If these items
melt they may permanently damage the cooktop surface.
Operating the Double Ring Burner:
1. Push right front surface burner control knob in and turn
counterclockwise out of the OFF position -Fig. 1.
2. Release the knob and rotate to the Lite position.
3. Visually check that both inner and outer rings for the
Double Ring burner are lit (See Fig. 3).
Once lit, push in the control knob and to turn
counterclockwise out of the Lite position and adjust to
the desired flame size.
4. When adjusting for a low or simmer type flame setting,
continue to rotate the control knob counterclockwise
from MED setting towards LO (See Fig 2). Between the
MED and LO setting the flame for the outer ring portion
of the burner will turn off leaving only the inner burner
with a flame for simmering (See Fig. 4). Make any
further flame adjustments as needed.
Important notes:
• DO NOT cook with the surface control knob left in the
LITE position. The electronic ignitor will continue to spark
if the control knob setting remains in the LITE position.
When setting any surface control knob to the LITE
position, all electronic surface ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.
• NEVER place or straddle a cooking utensil over two
different surface cooking areas at the same time. This
can cause uneven heating results.
In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner, hold
a lit match to the burner head, then slowly turn the
surface control knob to LITE. After burner lights push in
and turn knob to desired setting.
Home canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as well
as follow their recommendations for home canning
procedures.
Fig. 1
OFF HI * MED * LO
Fig. 2
Fig. 3 Fig. 4
• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom.
• Use only a completely flat bottom canner.
• Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner.
• Start with hot tap water to bring water to boil more
quickly.
• Use the highest heat setting when first bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
• NEVER place or straddle a cooking utensil over two
different surface cooking areas at the same time. This
will cause uneven heating results.
11
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bgc.png)

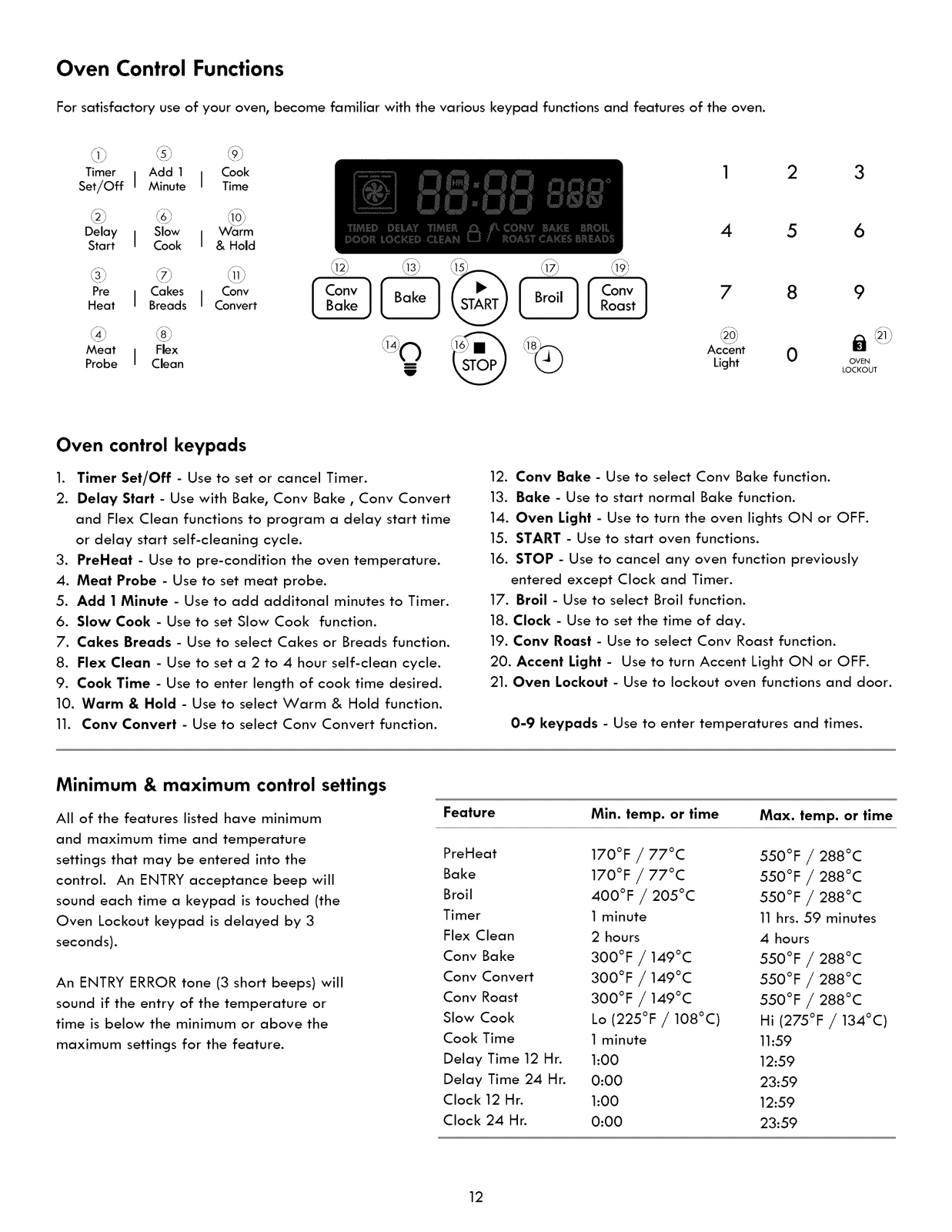

Oven Control Functions
For satisfactory use of your oven, become familiar with the various keypad functions and features of the oven.
Timer Add 1 Cook
Set/Off I I
Delay Slow Warm
Start I I
Heat I I
Pre Cakes Conv _ [_
S \,
Meat Flex Accent
Probe I Clean _ Light
Minute Time
Cook & Hold
Breads Convert
W
Oven control keypads
1. Timer Set/Off - Use to set or cancel Timer.
2. Delay Start - Use with Bake, Cony Bake, Cony Convert
and Flex Clean functions to program a delay start time
or delay start self-cleaning cycle.
3. PreHeat - Use to pre-condition the oven temperature.
4. Meat Probe - Use to set meat probe.
5. Add 1 Minute - Use to add additonal minutes to Timer.
6. Slow Cook - Use to set Slow Cook function.
7. Cakes Breads - Use to select Cakes or Breads function.
8. Flex Clean - Use to set a 2 to 4 hour self-clean cycle.
9. Cook Time - Use to enter length of cook time desired.
10. Warm & Hold - Use to select Warm & Hold function.
11. Conv Convert - Use to select Conv Convert function.
12. Conv Bake - Use to select Conv Bake function.
13. Bake - Use to start normal Bake function.
14. Oven Light - Use to turn the oven lights ON or OFF.
15. START - Use to start oven functions.
16. STOP - Use to cancel any oven function previously
entered except Clock and Timer.
17. Broil - Use to select Broil function.
18. Clock - Use to set the time of day.
19. Conv Roast - Use to select Conv Roast function.
20. Accent Light - Use to turn Accent Light ON or OFF.
21. Oven Lockout - Use to lockout oven functions and door.
0-9 keypads - Use to enter temperatures and times.
4 5 6
0 oven
LOCKOUT
3
21_
Minimum & maximum control settings
All of the features listed have minimum
and maximum time and temperature
settings that may be entered into the
control. An ENTRY acceptance beep will
sound each time a keypad is touched (the
Oven Lockout keypad is delayed by 3
seconds).
An ENTRY ERROR tone (3 short beeps) will
sound if the entry of the temperature or
time is below the minimum or above the
maximum settings for the feature.
Feature Min. temp. or time Max. temp. or time
PreHeat 170°F / 77°C 550°F / 288°C
Bake 170°F / 77°C 550°F / 288°C
Broil 400°F / 205°C 550°F / 288°C
Timer 1 minute 11hrs. 59 minutes
Flex Clean 2 hours 4 hours
Conv Bake 300°F / 149°C 550°F / 288°C
Conv Convert 300°F / 149°C 550°F / 288°C
Conv Roast 300°F / 149°C 550°F / 288°C
Slow Cook Lo (225°F / 108°C) Hi (275°F / 134°C)
Cook Time 1 minute 11:59
Delay Time 12 Hr. 1:00 12:59
Delay Time 24 Hr. 0:00 23:59
Clock 12 Hr. 1:00 12:59
Clock 24 Hr. 0:00 23:59
12
![](/html/14/1421/14218f038b40c13c8e0c7dc77eb43aafd62880263e80083ff5aa9c65fe8f36d9/bgd.png)

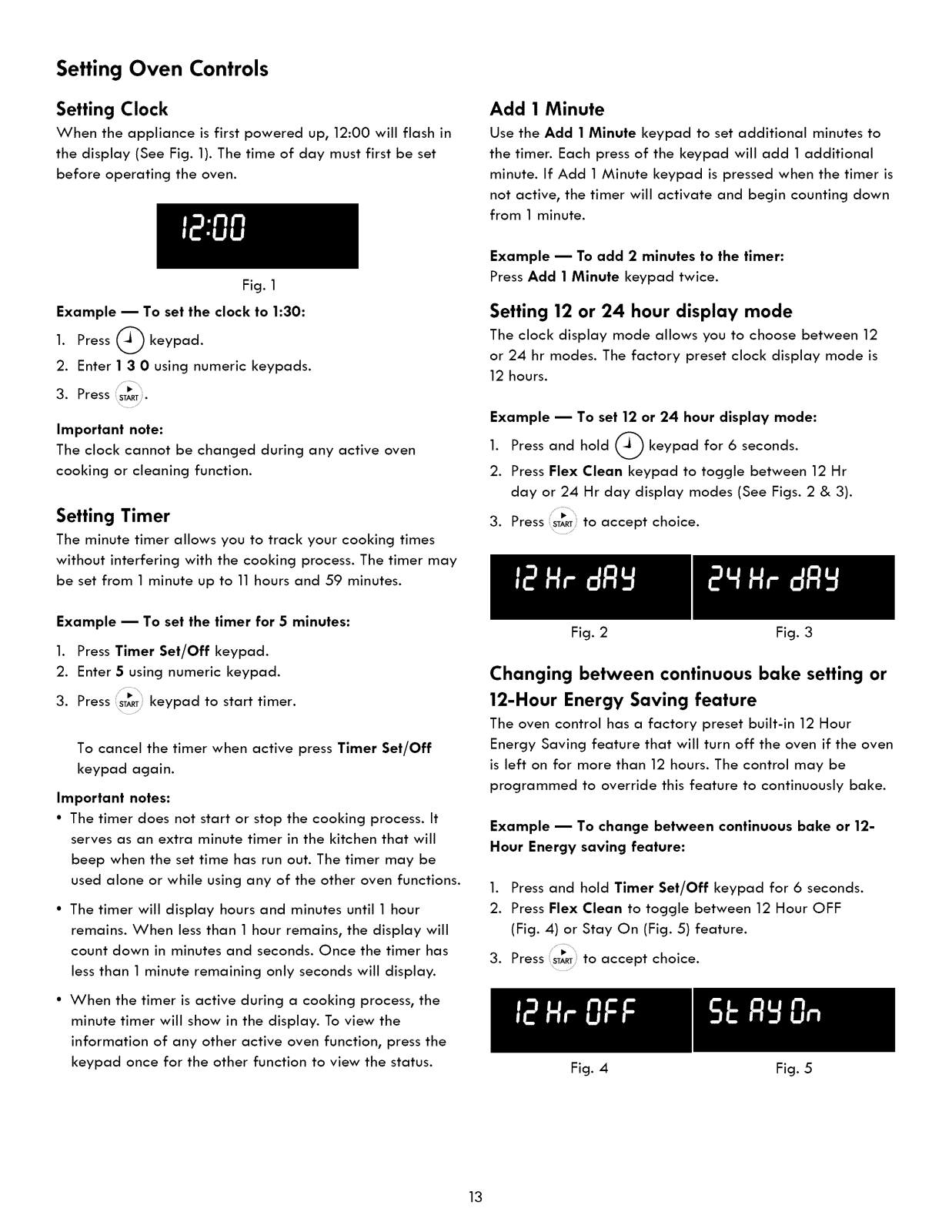

Setting Oven Controls
Setting Clock
When the appliance is first powered up, 12:00 will flash in
the display (See Fig. 1). The time of day must first be set
before operating the oven.
Fig. 1
Example -- To set the clock to 1:30:
1. Press _ keypad.
2. Enter 1 3 0 using numeric keypads.
3. Press •
Important note:
The clock cannot be changed during any active oven
cooking or cleaning function.
START •
Setting Timer
The minute timer allows you to track your cooking times
without interfering with the cooking process. The timer may
be set from 1 minute up to 11hours and 59 minutes.
Add 1 Minute
Use the Add 1Minute keypad to set additional minutes to
the timer. Each press of the keypad will add 1 additional
minute. If Add 1 Minute keypad is pressed when the timer is
not active, the timer will activate and begin counting down
from 1 minute.
Example -- To add 2 minutes to the timer:
Press Add 1Minute keypad twice.
Setting 12 or 24 hour display mode
The clock display mode allows you to choose between 12
or 24 hr modes. The factory preset clock display mode is
12 hours.
Example -- To set 12 or 24 hour display mode:
1. Press and hold _ keypad for 6 seconds.
2. Press Flex Clean keypad to toggle between 12 Hr
day or 24 Hr day display modes (See Figs. 2 & 3).
3. Press STARTto accept choice.
y
Example -- To set the timer for 5 minutes:
1. Press Timer Set/Off keypad.
2. Enter 5 using numeric keypad.
3. Press STARTkeypad to start timer.
To cancel the timer when active press Timer Set/Off
keypad again.
Important notes:
• The timer does not start or stop the cooking process. It
serves as an extra minute timer in the kitchen that will
beep when the set time has run out. The timer may be
used alone or while using any of the other oven functions.
• The timer will display hours and minutes until 1 hour
remains. When less than 1 hour remains, the display will
count down in minutes and seconds. Once the timer has
less than 1 minute remaining only seconds will display.
• When the timer is active during a cooking process, the
minute timer will show in the display. To view the
information of any other active oven function, press the
keypad once for the other function to view the status.
Fig. 2 Fig. 3
Changing between continuous bake setting or
12-Hour Energy Saving feature
The oven control has a factory preset built-in 12 Hour
Energy Saving feature that will turn off the oven if the oven
is left on for more than 12 hours. The control may be
programmed to override this feature to continuously bake.
Example -- To change between continuous bake or 12-
Hour Energy saving feature:
1. Press and hold Timer Set/Off keypad for 6 seconds.
2. Press Flex Clean to toggle between 12 Hour OFF
(Fig. 4) or Stay On (Fig. 5) feature.
3. Press STARTto accept choice.
Fig. 4 Fig. 5
13
