Kenmore 790-4940, 790-4942 User Manual
Use & Care Guide
Manual de Uso y Cuidado
English / Español
Model/Modèle: 790-4942*, 790-4940*
Kenmore®
Electric Built-In Oven
Horno de pared doble
* = color number, número de color
P/N 139900101 Rev. A
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada Inc.
Toronto (Ontario) Canada M5B 2B8
www.sears.ca
Table of Contents
Please carefully read and save these instructions ...............................2
Kenmore Limited Warranty ..................................................................... 2
Before Setting Oven Controls ...................................................................... 7
Oven vent location ..................................................................................... 7
Oven Controls ................................................................................................. 8

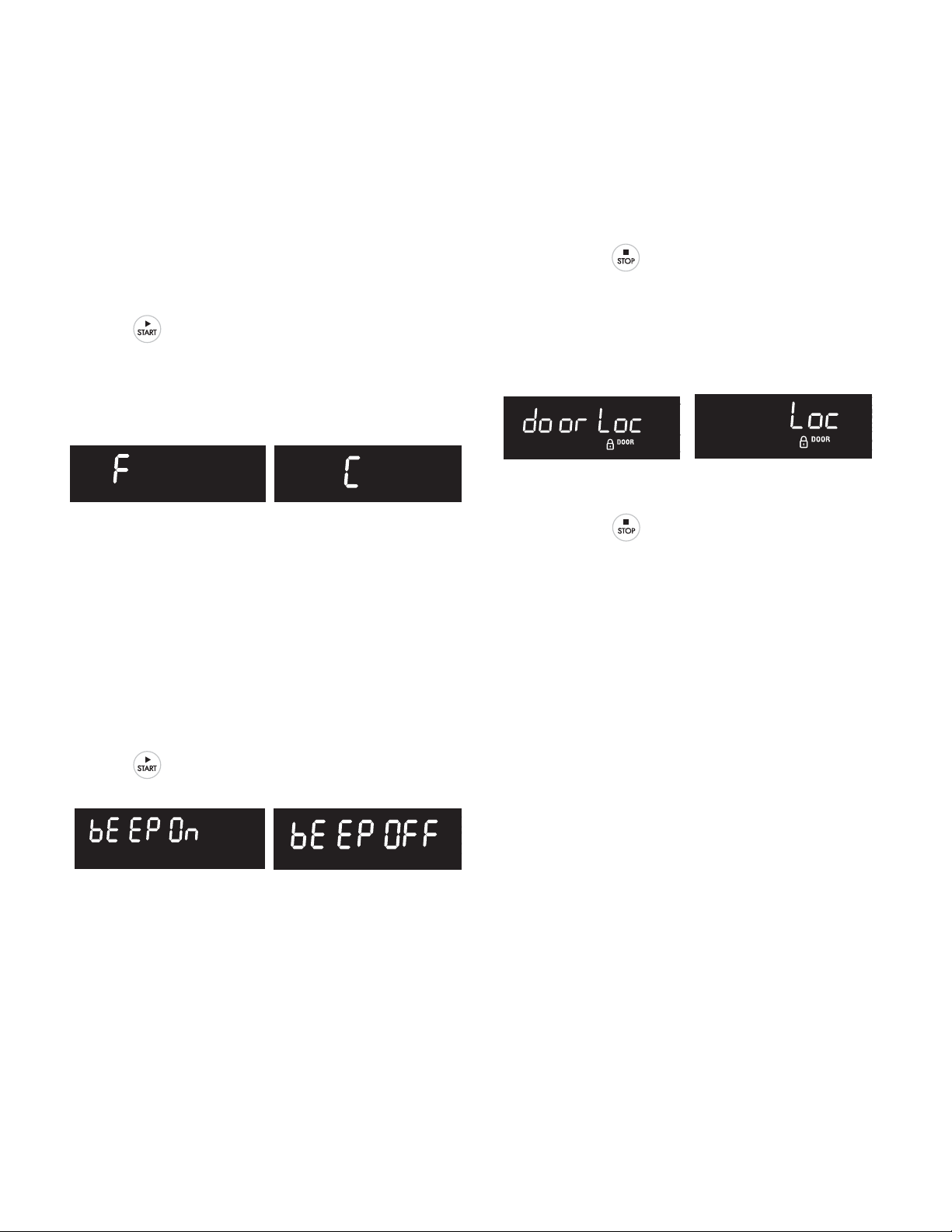

Oven Control Features ..............................................................................8
Minimum and Maximum Control Settings ..............................................8

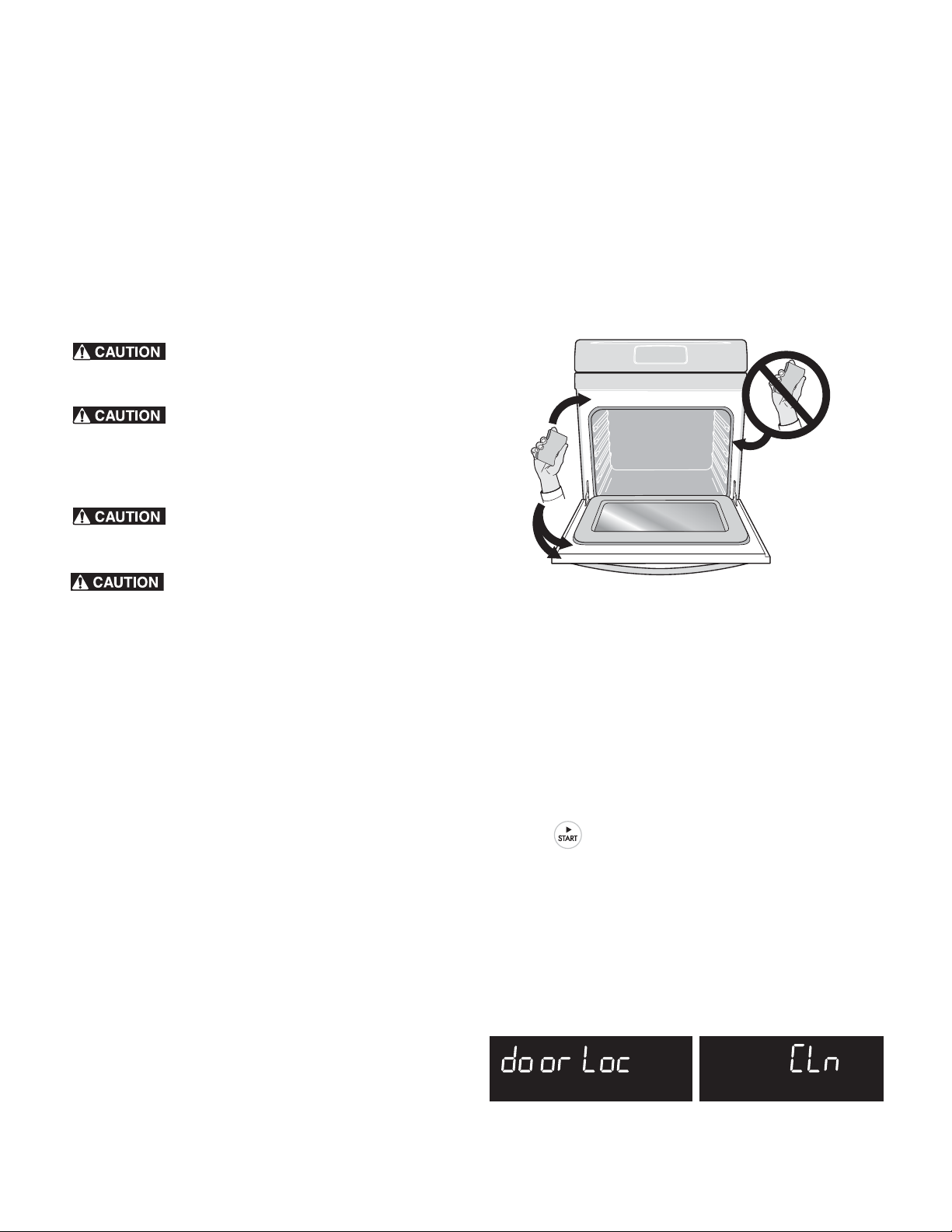

Self Clean ..................................................................................................17
Care and Cleaning ..................................................................................... 19
Cleaning Various Parts of Your Oven .................................................19

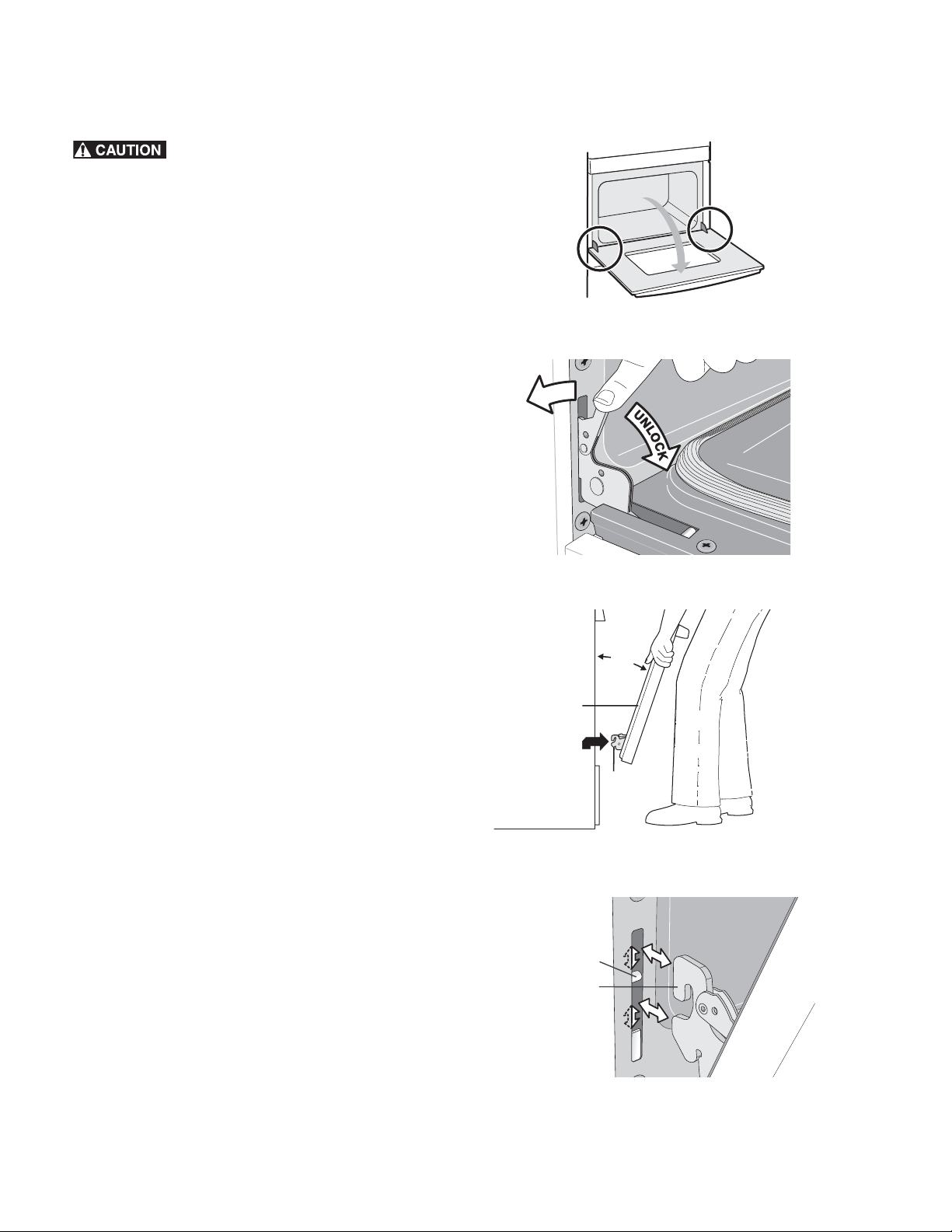

Removing and Replacing the Oven Door ............................................20
Replacing the oven light .........................................................................21
Before You Call ........................................................................................... 22

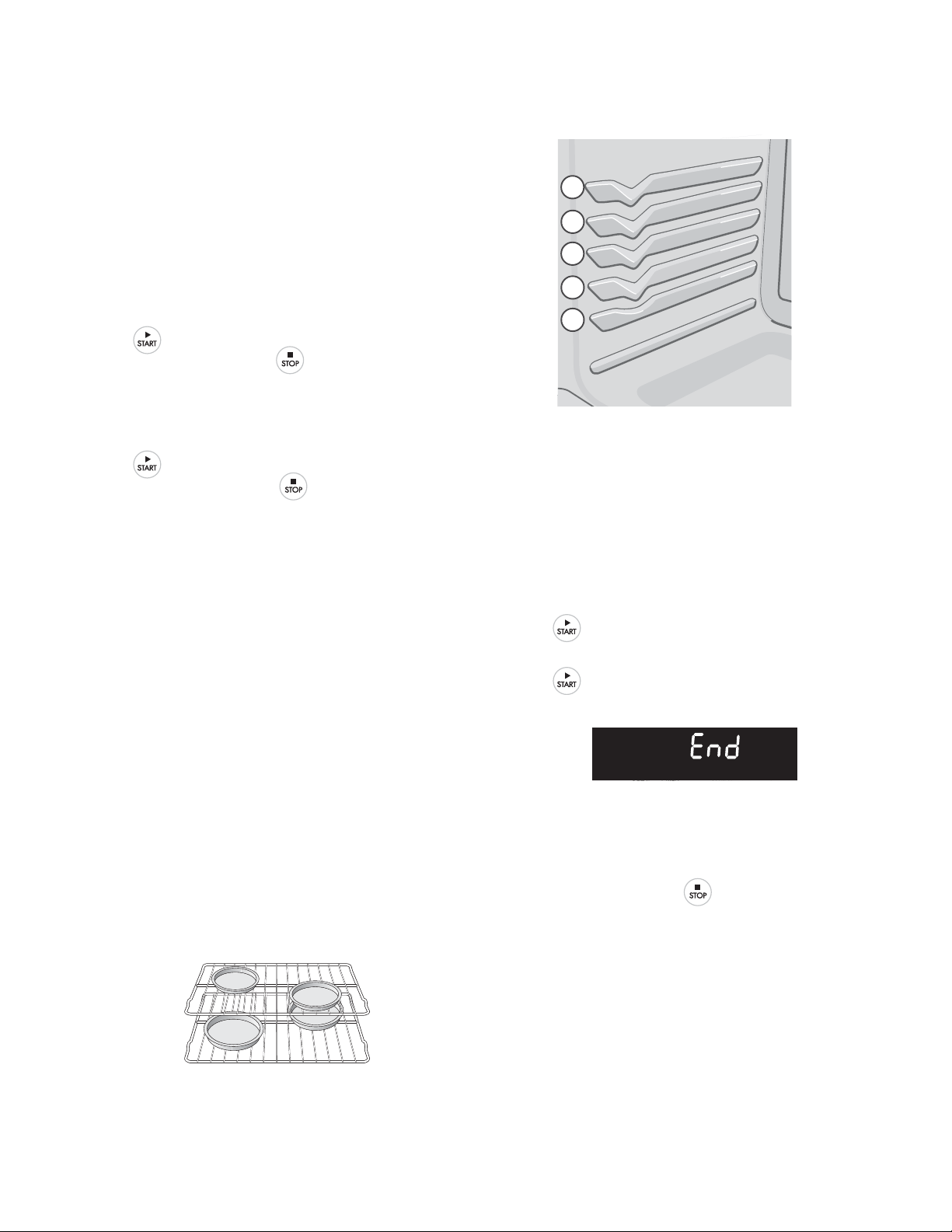

Oven Baking .............................................................................................22
Solutions to Common Problems ..............................................................23
Please carefully read and save these instructions
This Use & Care Guide contains operating instructions for your appliance and feature information for several models. Your product
may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look
exactly like those shown. Common sense and caution must be practiced with installing, operating and maintaining any appliance.
Kenmore Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family
purposes.
This warranty covers only defects in material and workmanship. Sears will not pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions
supplied with the product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
All rights reserved. Printed in the USA.
2
IMPORTANT SAFETY INSTRUCTIONS
Tip Over Hazard
• A child or adult can tip the
oven and be killed.
• Install the anti-tip device to
oven and/or structure per
installation instructions.
• Ensure the anti-tip device is re-engaged
when the oven is moved.
• Do not operate the oven without the
anti-tip device in place and engaged.
• Failure to follow these instructions can
result in death or serious burns to children
and adults.
Refer to the installation
instructions supplied
with your appliance for
proper installation.
Check for proper installation with a visual
check that the anti-tip
screws are present.
Anti-tip mounting
holes
Test the installation with light downward
pressure on the open oven door. The oven
should not tip forward.
Read all instructions before using this appliance.
Read all instructions before using this appliance.
This manual contains important safety
symbols and instructions. Pay attention to
these symbols and follow all instructions
given.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based on
the hazard type.
DEFINITIONS
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
- Indicates a potentially
hazardous situation which, if not avoided,
may result in death or serious injury.
- Indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
Important: Indicates installation, operation,
maintenance, or valuable information that is
not hazard related.
Flammable materials should not be stored in
an oven or near surface units. This includes
paper, plastic, and cloth items, such as cookbooks, plastic ware, and towels, as well as
flammable liquids. Do not store explosives,
such as aerosol cans, on or near the oven.
Storage In or On Appliance—
Do Not Leave Children Alone Children should not be left alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand
on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer
drawer, or lower double oven.
Save these instructions for future reference.
3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Stepping, leaning, or sitting on
the door or drawers of an oven can result in
serious injuries and also cause damage to the
appliance. Do not allow children to climb or
play around the oven. The weight of a child
on an open over door may cause the oven to
tip, resulting in serious burns or other injury.
Never cover any slots, holes, or
passages in the oven bottom or cover an
entire oven rack with materials, such as
aluminum foil. Aluminum foil linings may trap
heat, causing a fire hazard.
Wear proper apparel. Loosefitting or hanging garments should never be
worn while using this appliance. Do not let
clothing or other flammable materials come
into contact with hot surfaces.
Do not heat unopened food
containers. Build-up of pressure may cause
container to burst and result in injury.
When heating fat or grease,
watch it closely. Grease may catch fire if it
becomes too hot.
Do not use water or flour on
grease fires. Smother fire or flame or use dry
chemical or foam-type extinguisher. Cover
the fire with a pan lid or use baking soda.
Use dry potholders. Moist or
damp potholders on hot surfaces may result
in burns from steam. Do not let potholders
touch hot cooking areas. Do not use towels or
other bulky cloths.
Important: Important Safety Notice - The
California Safe Drinking Water and Toxic
Enforcement Act requires the governor of
California to publish a list of substances
known to cause cancer, birth defects, or other
reproductive harms, and it requires businesses to warn customers of potential
exposures to such substances.
Read and follow the below
instructions and precautions for unpacking,
installing, and servicing your appliance:
• Remove all tape and packaging before
using the oven. Destroy the carton and
plastic bags after unpacking the oven.
Never allow children to play with
packaging material.
• Proper Installation—Be sure your
appliance is properly installed and
grounded by a qualified technician in
accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition
and local electrical code requirements. In
Canada, install in accordance with CSA
Standard C22.1, Canadian Electrical
code, Part 1, and local electrical code
requirements. Install only per installation
instructions provided in the literature
package for this oven.
• User Servicing—Do not repair or replace
any part of the appliance unless specifically recommended in the manuals. All
other servicing should be done only by a
qualified technician. This reduces the risk
of personal injury and damage to the
oven.
• Ask your dealer to recommend a qualified
technician and an authorized repair
service. Know how to disconnect the
power to the oven at the circuit breaker or
fuse box in case of an emergency.
• Never modify or alter the construction of
an oven by removing the leveling legs,
panels, wire covers, anti-tip brackets/
screws, or any other part of the oven.
• Remove the oven door from any unused
oven if it is to be stored or discarded.
Save these instructions for future reference.
4
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
• Do not attempt to operate the oven
during a power failure. If the power fails,
always turn off the oven. If the oven is not
turned off and the power resumes, the
oven will begin to operate again. Once
the power resumes, reset the clock and
oven function.
• Cold temperatures can damage the electronic control. When using this appliance
for the first time, or when the appliance
has not been used for an extended period
of time, be sure the appliance has been in
temperatures above 32ºF (0ºC) for at
least 3 hours before turning on the power
to the appliance.
• Be sure to have an appropriate foam-type
fire extinguisher available, visible, and
easily located near the appliance.
IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN
• Never use your appliance for warming or
heating the room.
• Use care when opening oven door, lower
oven door, or warmer drawer (some
models). Stand to the side of the oven
when opening the door of a hot oven. Let
hot air or steam escape before you
remove or replace food in the oven.
• Keep oven vent ducts unobstructed.
Touching surfaces in this area when the
oven is on may cause severe burns. Do not
place plastic or heat-sensitive items on or
near the oven vent. These items can melt
or ignite.
• Do not use a broiler pan without its insert.
Broiler pans and inserts allow dripping fat
to drain away from the high heat of the
broiler. Do not cover the broiler insert with
aluminum foil; exposed fat and grease
could ignite.
• Protective Liners - Do not use aluminum
foil to line surface unit drip bowls or oven
bottoms, except as suggested in the
manual. Improper installation of these
liners may result in a risk of electric shock,
or fire.
• Do not cook food on the oven bottom.
Always cook in proper bakeware and
always use the oven racks.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR
OVEN
Before manually cleaning any
part of the oven, be sure all controls are
turned off and the oven is cool. Cleaning a
hot oven can cause burns.
Clean the oven regularly to keep all parts
free of grease that could catch fire. Do not
allow grease to accumulate.
Always follow the manufacturer’s recommended directions for use of kitchen cleaners
and aerosols. Be aware that excess residue
from cleaners and aerosols may ignite
causing damage and injury.
Clean ventilating hoods frequently. Grease
should not be allowed to accumulate on the
hood or filter. Follow the manufacturer’s
instructions for cleaning hoods.
• Placement of Oven Racks - Always place
oven racks in desired location while oven
is cool. If rack must be moved while oven
in hot, do not let potholder contact hot
heating element in oven. Use potholders
and grasp the rack with both hands to
reposition. Remove all bakeware and
utensils before moving the rack.
Save these instructions for future reference.
5
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
SELF-CLEANING OVENS
• Clean only the parts listed in this manual.
Before using self-clean, remove the broiler
pan, any food, utensils, and bakeware
from the oven. Remove oven racks unless
otherwise instructed.
• Do Not Use Oven Cleaners. No commercial oven cleaner or oven liner protective
coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage, or
move the gasket.
• Some birds are extremely sensitive to the
fumes given off during the self-clean
cycle of any oven. Move birds to another
well-ventilated room.
this appliance for complete installation and
grounding instructions.
DO NOT TOUCH HEATING
ELEMENTS OR INTERIOR SURFACES OF
OVEN - Heating elements may be hot even
though they are dark in color. Interior
surfaces of an oven become hot enough to
cause burns. During and after use, do not
touch, or let clothing or other flammable
materials contact heating elements or interior
surfaces of oven until they have had sufficient time to cool. Other surfaces of the
appliance may become hot enough to cause
burns - among these surfaces are (identification of surfaces - for example, oven vent
openings and surfaces near these openings,
oven doors, and windows of oven doors).
GROUNDING INSTRUCTIONS
Do not use an adapter plug or an
extension cord, or remove grounding prong
from the power cord. Failure to follow this
warning may cause serious injury, fire, or
death.
For personal safety, this appliance must be
properly grounded.
For models factory-equipped with a power
cord:
For maximum safety, the power cord must be
plugged into an electrical outlet that is the
correct voltage, is correctly polar-ized, and is
properly grounded in accordance with local
codes.
For ovens to be wired into a junction box:
It is the personal responsibility of the
consumer to have the appropriate outlet with
the correct, properly grounded wall receptacle installed by a qualified electrician. See
the installation instructions packaged with
Save these instructions for future reference.
6
Before Setting Oven Controls
oven vent
location
Oven vent location
The oven vent is located under the control panel. When the oven
is on, warm air passes through this vent. This venting is necessary
for proper air circulation in the oven and good baking results.
Do not block oven vent.
Figure 1: Do not block oven vent location
Protective Liners — Do not use aluminum foil to
line the oven bottom. Only use aluminum foil as recommended
in this manual. Improper installation of these liners may result in
risk of electric shock or fire.
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior and exterior, as well
as the oven racks, will become very hot which can cause burns.
Removing, replacing, and arranging flat or offset oven
racks
To Arrange - Always arrange the oven racks when the oven is
cool (prior to operating the oven).
To Remove - Pull the oven rack straight forward until it reaches
the stop position. Lift up front of oven rack slightly and slide out.
To Replace - Place the oven rack on the rack guides on both
sides of oven walls. Tilt the front of oven rack upward slightly
and slide the oven rack back into place. Be sure oven racks are
level before using.
flat
oven rack
flat handle
oven rack
offset
oven rack
Figure 2: Oven rack types
Oven Rack Descriptions
• Flat oven racks (or the flat handle oven rack) may be used
for most cooking needs and may be placed in most oven
rack positions.
• The offset oven rack (some models) provides additional step
down positions from the standard flat rack design. The
offset design positions the base of the rack about half of a
rack position lower than the flat rack and may be used in
most oven rack positions.
Air circulation in the oven
For best air circulation when baking, allow a space of 2 inches
(5 cm) around the bakeware for proper air circulation. Be sure
pans and bakeware do not touch each other, the oven door,
sides, or back of the oven cavity.
Hot air must be able to circulate around bakeware for even
heat to reach the food.
7
Oven Controls
1
2
3
4
5
6
9
11
12
13
14
10
7
8
Oven Control Features
1. Timer Set-Off - Use to set or cancel the timer.
2. Cook Time - Use to enter length of desired cooking time.
3. Warm & Hold - Use to select Warm & Hold function.
4. Oven Light - Use to turn oven lights on and off.
5. Add 1 Minute - Use to add one minute to the timer. This
works with the kitchen timer and does not affect any cook
time or start time functions.
6. Delay Start - Use to set the desired start time for baking.
May be used with Cook Time to program a delayed bake
cycle or a delayed clean cycle.
7. S e l f C l e a n - Use to set a 2, 3, or 4 hour self clean cycle.

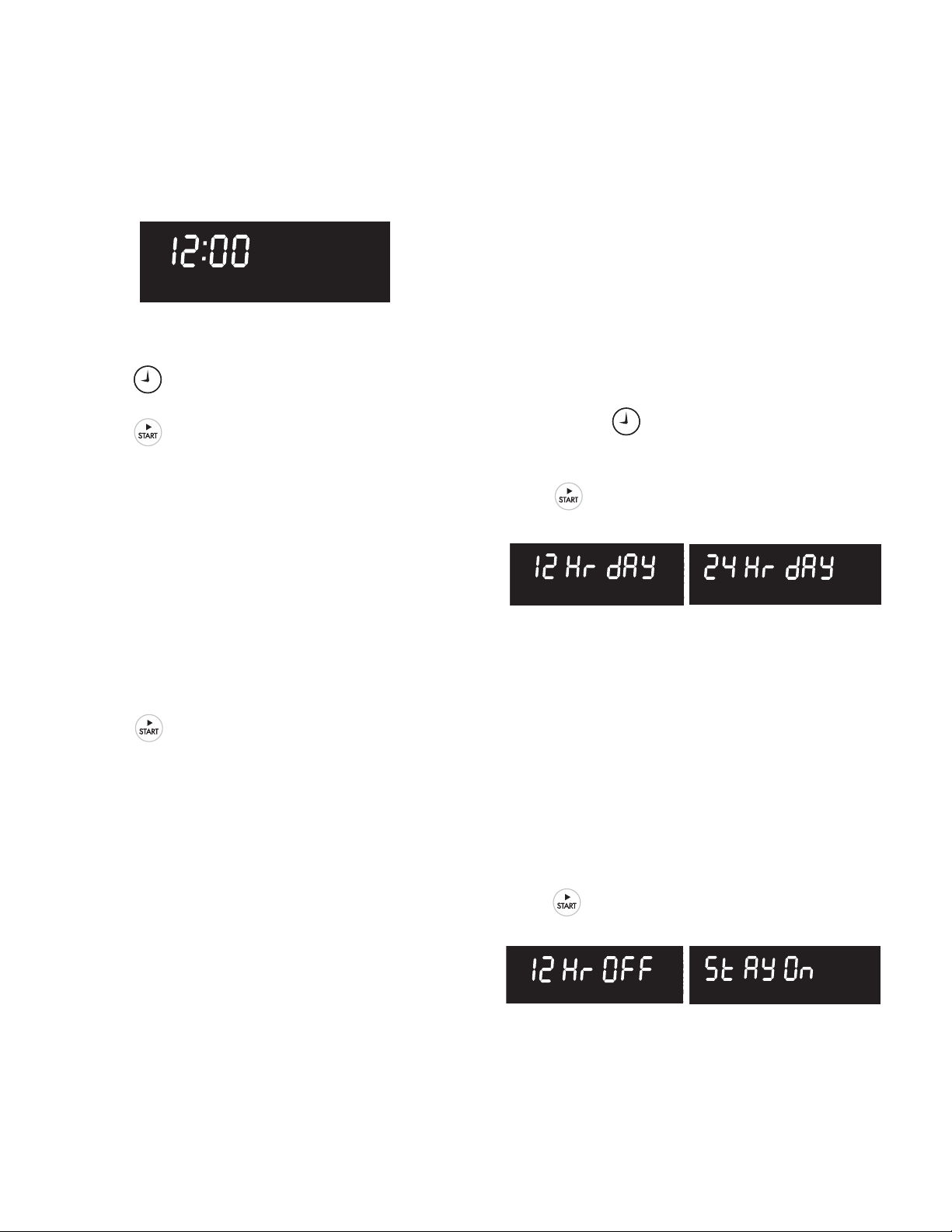

8. Clock - Use to set time of day.
9. Bake - Use to start the regular bake function.
10. Broil - Use to select the broil function.
11. 0-9 Keypads - Use to enter oven temperatures and times.
12. START - Use to start oven functions.
13. STOP - Use to clear any function previously entered except
the time of day and minute timer. Press STOP to stop
cooking. Also, the STOP key is used to activate oven lockout
setting.
14. Oven Lockout - Use in conjunction with the STOP key to lock
out oven functions and door.
Important:
Read the instructions carefully before using the oven. For satisfactory use of your oven, become familiar with the various
functions of the oven.
Minimum and Maximum Control Settings
All of the features listed have minimum and maximum time and
temperature settings that may be entered into the control. An
entry acceptance beep will sound each time a key is touched
(the Oven Lockout tone is delayed by 3 seconds). An entry error
tone (three short beeps) will sound if the entry of the temperature or time is below the minimum or above the maximum
settings for the feature.
Table 1: Minimum and maximum control settings
Feature Min. Temp or Time Max. Temp or Time
Bake 170°F (77°C) 550°F (288°C)
Broil 400°F (205°C) 550°F (288°C)
Timer 1 minute 11 hrs. 59 mins.
Self Clean 2 Hours 4 Hours
Warm & Hold 170°F (77°C) 3 Hours
Cook Time 1 Minute 11:59
Delay Time 12 Hr. 1:00 12:59
Delay Time 24 Hr. 0:00 23:59
Clock 12 Hr. 1:00 12:59
Clock 24 Hr. 0:00 23:59
8
Loading...
