Kenmore 790.4773 User Manual
KGnmorG
ELECTRIC BUILT-IN OVEN
Use & Care Guide
HORNO DE PARED
Manual del Usuario
Models, Modelos
790. 4773>f, 4777>f,
4776>f, 4787>f
= Color number,
número de color
Sears Roebyck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
P/N 318205129 Rev. B (0712)
Table of Contents
Wall Oven Warranty........................................................2
Product Record
Serial Plate Location
..............................................................2
..................................................
2
IMPORTANT SAFETY INSTRUCTIONS......................3-4
Protection Agreements
..................................................
Wall Oven Features ........................................................6
Oven Vent and Racks................................................... 7
Air Circulation in the Oven
............................................
Please carefully read and save these instructions
This Use & Care Manual contains general operating instructions for your appliance and feature information for several
models. Your product may not have all the described features. The graphics shown are representative. The graphics on
your appliance may not look exactly like those shown. Common sense and caution must be practiced when installing,
operating and maintaining any appliance.
Ken more Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®to arrange for free repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada lnc.,Toronto, Ontario, Canada MSB 2B8
Control Pad Features
.....................................................
Setting the Clock........................................................ 9
Setting the Oven Controls .....................................
Adjusting Your Oven Temperature
5
Cleaning the Self-Clean Oven
.............................
................................
General Care & Cleaning........................................19-21
Before You Call........................................................22-23
7
Sears Service
................................................................
10-15
17-18
8
16
24
Product Record
In this space below, record the date of purchase, model
and serial number of your product. You will find the model
and serial number printed on the serial plate.
Model No.
Serial No.___________________________________________
Date of purchase_____________________________________
Save these instructions and your sales receipt for future
reference.
Printed in United States
790.
_______________________________
Serial Plate Location
You will find the model and serial
number printed on the serial plate.
The serial plate is located along
the interior side trim of the lower
oven and visible when the oven
door is opened.
Remember to record the serial
number for future reference.
Serial Plate Location-^
Important Safety Instructions
Read ail instroctions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all
instructions given.
ik WARNING
ik CAUTION
Remove all tape and packaging before using the
appliance. Destroy the carton and plastic bags after
unpacking the appliance. Never allow children to play
with packaging material.
Proper Installation. Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with National Electrical
Code ANSI/NFPA No.70 (USA) or CSA C22.1, PART
1 (Canada)-latest edition and local code
requirements. Install only per installation instructions
provided in the literature package for this appliance.
In case of an emergency, know how to disconnect
the electrical power to the appliance at the circuit
breaker or fuse box and how to turn off the gas
supply at the main shutoff valve.
A CAUTION
by cold temperatures. When you use your appliance
for the first time, or if it has not been used for a long
period of time, make sure that it has been exposed to
a temperature above 0°C/32°F for at least 3 hours
before connecting it to the power supply.
• User Servicing—Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by
a qualified technician to reduce the risk of personal
injury and damage to the appliance. Sears Parts &
Repair is the recommended repair service for this
appliance.
• Never modify or alter the construction of an
appliance by removing panels, wire covers or any
other part of the product.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
Electronic controllers can be damaged
A WARNING
• All wall ovens can tip.
• Injury to persons could result.
• Install anti-tip bracket packed with
wall oven.
• See Installation Instructions.
To reduce the risk of tipping, the wall
oven must be secured by properly
installed anti-tip bracket provided with
the wall oven. Refer to the Installation
Instructions for proper anti-tip bracket
installation.
Remove the oven door from any unused appliance
if it is to be stored or discarded.
A WARNING
down on the door of this appliance can result in
serious injuries and may also cause damage to the
appliance. Do not allow children to climb or play around
the appliance.
• Storage on Appliance. Flammable materials
should not be stored near surface units. This
includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as
aerosol cans, on or near the appliance. Flammable
materials may explode and result in fire or property
damage.
A WARNING
A CAUTION
children in the cabinets above an appliance. Children
climbing on the appliance to reach items could be
seriously injured.
• Do not leave children alone. Children should not
be left alone or unattended in the area where an
appliance is in use. They should never be allowed to
sit or stand on any part of the appliance.
• DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR THESE SURFACES. Surface units may be hot
even though they are dark in color. Areas near
surface units may become hot enough to cause burns.
During and after use, do not touch, or let clothing or
other flammable materials touch these areas until they
have had sufficient time to cool. Among these areas
are the cooktop and areas facing the cooktop.
• Wear Proper Apparel. Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
A WARNING
or heating the room.
• Do Not Use Water or Flour on Grease Fires.
Smother the fire with a pan lid, or use baking soda,
a dry chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
Stepping, leaning, sitting or pulling
Do not use the oven for storage.
Do not store items of interest to
I Never use your appliance for warming
Important Safety Instructions
• Use Only Dry Potholders. Moist or damp potholders
on hot surfaces may result in burns from steam. Do
not let the potholders touch hot heating surface units.
Do not use a towel or other bulky cloth instead of a
potholder.
• Do Not Heat Unopened Food Containers. Buildup of
pressure may cause the container to burst and
result in injury.
IMPORTANT—Do not attempt to operate the appliance
during a power failure. If power fails, always turn off the
appliance. If the appliance is not turned off and the power
resumes, it will begin to operate again. Once the power
resumes, reset the clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN
• Use Care When Opening an Oven Door—Stand to the
side of the appliance when opening the door of a hot
oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The wall oven is
vented at the upper control panel or at the center trim
depending of the model. Touching the surfaces in this
area when the wall oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items
near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. Remove all utensils
from the rack before removing rack. If rack must be
moved while oven is hot, use extreme caution. Use pot
holders and grasp the rack with both hands to reposition.
Do not let pot holders contact the hot oven element or
interior of the oven.

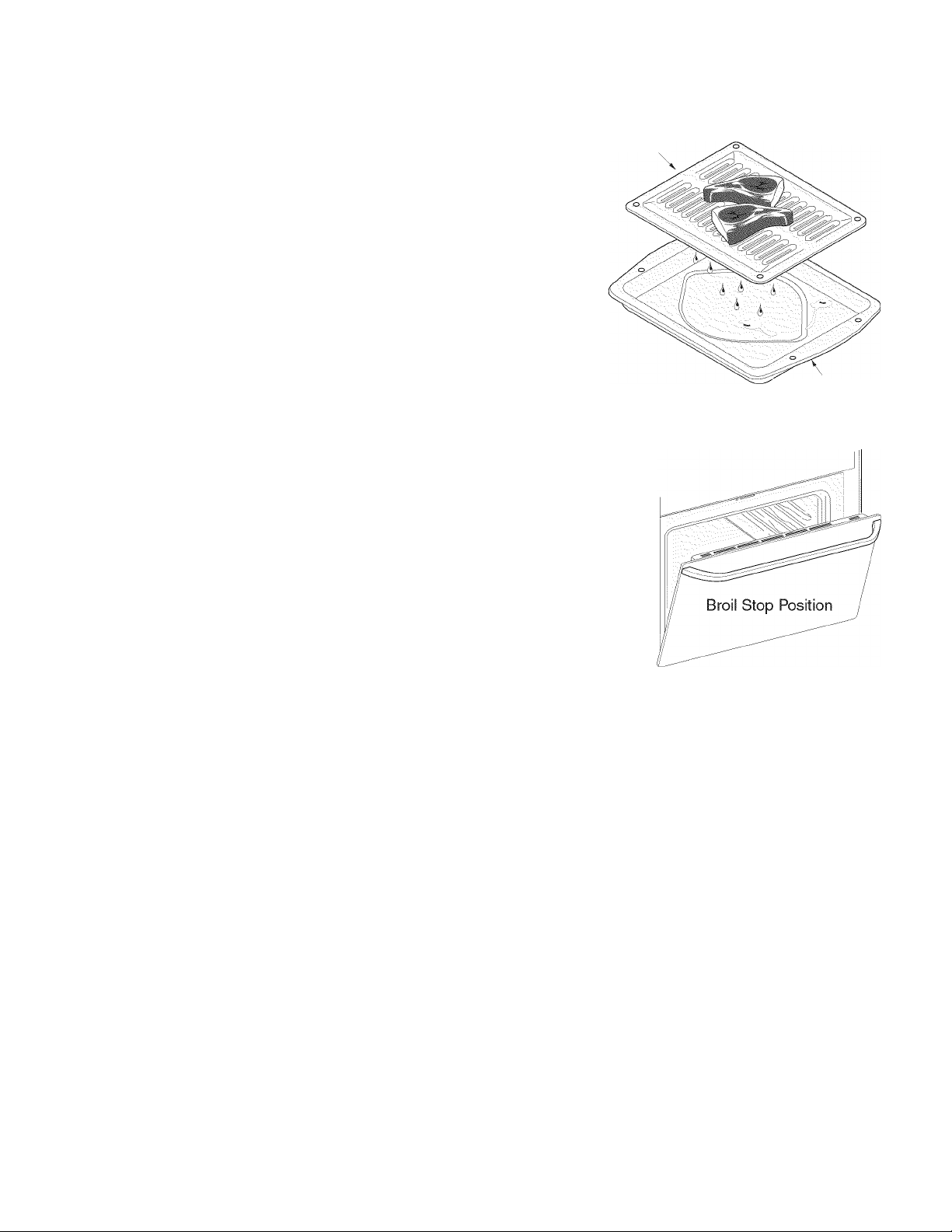

• Do not use your broiler pan without its insert. Your
broiler pan and its grid allow dripping fat to drain and be
kept away from the high heat of the broiler.
• Do not cover your broiler grid or oven bottom with
aluminum foil. Exposed fat and grease could ignite.
• Do not touch a hot oven light bulb with a damp cloth.
Doing so could cause the bulb to break. Disconnect the
appliance or shut off the power to the appliance before
removing and replacing the bulb.
•
• Protective liners—Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock, or fire.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR OVEN
• Clean the appliance regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation
hoods and grease filters should be kept clean. Do not
allow grease to accumulate. Greasy deposits in the fan
could catch fire. Refer to the hood manufacturer's
instructions for cleaning.
• Cleaners/Aerosols—Always follow the manufacturer's
recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing
damage and/or injury.
SELF-CLEANING OVEN MODELS
• Clean in the self-cleaning cycle only the parts of the
appliance listed in this Owner's Guide. Before using the
self-cleaning cycle of the appliance, remove all utensils
stored in the appliance.
• Do not clean the oven door gasket. The door gasket is
essential for a good seal. Care should be taken not to rub,
damage or move the gasket.
• Do not use oven cleaners. No oven cleaner or oven liner
protective coating of any kind should be used in or around
any part of the appliance
 CAUTION
sensitive to the fumes given off during the self-clean cycle
of any wall oven. Move birds to another well ventilated
room.
The health of some birds is extremely
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause
cancer, birth defects or other productive harm, and
requires businesses to warn customers of potential
exposure to such substances.
PROTECTION AGREEIVIENTS
Master Protection Agreements ■
Congratulations on making a smart purchase. Your new ;
Kenmore® product is designed and manufactured for years of i
dependable operafion. Buf like all products, it may require ;
preventive maintenance or repair from fime fo fime.Thaf’s when ;
having a Masfer Profection Agreemenf can save you money i
and aggravafion. ;
The Masfer Profection Agreement also helps extend the life of ;
your new product. Here’s what the Agreement* includes: ;
0 Parts and labor needed to help keep products operating i
properly under normal use, not just defects. Our coverage :
goes well beyond the product warranty. No deductibles, |
no functional failure excluded from coverage - real ;
protection. ■
0 Expert service by a force of more fhan 10,000 authorized :
Sears service technicians, which means someone you ;
can trust will be working on your product. I
0 Unlimited service calls and nationwide service, as ;
often as you want us, whenever you want us. :
0 «No-lemon» guarantee - replacement of your covered :
product if four or more product failures occur within twelve ;
months. ;
0 Product replacement if your covered product can’t be ■
fixed. i
0 Annual Preventive Maintenance Check at your request - =
no extra charge. :
0 Fast help by phone - we call it Rapid Resolution - |
phone support from a Sears representative on all products. :
Think of us as a «talking owner’s manual». ;
0 Power surge protection against electrical damage due to ;
power fluctuations. ;
0 $250 Food Loss Protection annually for any food ;
spoilage that is the result of mechanical failure of any :
covered refrigerator or freezer. ;
0 Rental reimbursement if repair of your covered product ;
takes longer than promised. ■
0 10% discount off the regular price of any non-covered I
repair service and related installed parts. j
Once you purchase the Agreement, a simple phone call is all |
that it takes for you to schedule service. You can call anytime ;
day or night, or schedule a service appointment online. ■
The Master Protection Agreement is a risk free purchase. If you ;
cancel for any reason during the product warranty period, we :
will provide a full refund. Or, a prorated refund anytime after the ■
product warranty period expires. Purchase your Master ;
Protection Agreement today! :
Some limitations and exclusions apply. For prices and :
additional information in the U.S.A. call 1-800-827-6655. ;
* Coverage in Canada varies on some items. For full details ;
call Sears Canada at 1-800-361-6665. ;
Sears Installation Service I
For Sears professional installation of home appliances, garage I
*
door openers, water heaters, and other major home items, in i
the U.S.A. or Canada call 1-800-4-MY-HOME®. I
Acuerdos maestros de protección
Enhorabuena por haber hecho una compra Inteligente. Su nuevo producto
Kenmore®está diseñado y fabricado para brindarle años de funcionamiento
fiable. Pero, como cualquier producto, puede necesitar mantenimiento
preventivo o reparaciones periódicas. Es por eso que tener un Acuerdo maestro
de protección podría ahorrarle dinero y molestias.
El Acuerdo maestro de protección también sirve para prolongar la durabilidad
de su nuevo producto. El acuerdo* incluye lo siguiente:
0 Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en condiciones
normales de uso, no sólo en caso de defectos de los productos. Nuestra
cobertura va mucho más allá que la garantía del producto. No se
aplican deducibles ni exclusiones por fallas del funcionamiento: es decir,
verdadera protección.
0 Servicio técnico por expertos (más de 10000 técnicos autorizados de
Sears), lo cual significa que quien repare o realice el mantenimiento de su
producto será un profesional de confianza.
0 Servicio técnico a escala nacional y número ilimitado de llamadas de
solicitud de servicio técnico: se puede poner en contacto con nosotros
cuantas veces lo desee y cuando lo desee.
0 Garantía «sin sorpresas»: se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o más fallas del producto en un periodo de 12
meses.
0 Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por el acuerdo.
0 Revisión anual preventiva de mantenimiento del producto: puede
solicitarla en cualquier momento, sin costo alguno.
0 Rápida asistencia telefónica, la cual denominamos Solución rápida: es
decir, asistencia telefónica a través de cualquiera de nuestros
representantes de Sears, sobre cualquiera de nuestros productos. Piense
en nosotros como en un «manual parlante del usuario».
0 Protección contra fallas eléctricas, contra daños debidos a fluctuaciones
de la corriente eléctrica.
0 $250 al año para cubrir cualquier posible deterioro de alimentos que
haya tenido que desechar debido a una falla mecánica de cualquiera de
nuestros refrigeradores o congeladores cubiertos por este acuerdo.
0 Devolución de gastos de alquiler de electrodomésticos si la reparación
de su producto asegurado toma más que el tiempo prometido.
0 10% de descuento aplicable tanto a los costos del servicio de reparación,
como de las piezas instaladas relacionadas que no hayan quedado
cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastará una simple
llamada telefónica para concertar una visita de servicio. Puede llamar a
cualquier hora del día o de la noche, o bien concertar una visita de servicio por
Internet.
La adquisición del Acuerdo maestro de protección es una inversión exenta de
riesgos. Si por cualquier motivo decide cancelar dicho acuerdo durante el
periodo de garantía del producto, le haremos un reintegro total del valor. O bien
un importe proporcional si cancela el acuerdo en cualquier otro momento
posterior al vencimiento del periodo de garantía del producto. ¡Adquiera hoy
mismo su Acuerdo maestro de protección!
Algunas limitaciones y exclusiones podrían aplicarse. Para solicitar
precios e información adicional, llame al 1-800-827-6655 (en los EE.UU.).
* La cobertura en Canadá varía en el caso de algunos artículos. Para
obtener detalles completos al respecto, llame al 1-800-361-6665 de Sears
de Canadá.
Servicio de instalación de Sears
Para solicitar la Instalación por profesionales de Sears de electrodomésticos,
abridores de puertas de garaje, calentadores de agua y otros artículos de uso
prioritario en el hogar, llame al 1-800-4-MY-HOME en los EE.UU. o Canadá.
Your
Electric
Wail Oven Features
Note: The features of your wall oven will vary according to model.
Oven Vent(s) and Racks
Upper Oven
Vent Location
___________
 CAUTION
and self-cleaning mode to keep all internal components at a cool temperature.
The blower may keep running even if the oven has been turned off, until the
components have cooled down.
Some models are equipped with a blower which runs in baking
Oven Vent Location
Each oven is vented at the upper front frame. When the oven is on, warm air is
released through the vent. This venting is necessary for proper air circulation in the
oven and good baking results.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN
IS COOL (PRIOR TO OPERATING THE OVEN). Always
use oven mitts when using the oven.
To remove an oven rack, pull the rack forward until it
stops. Lift up front of rack and slide out.
To replace an oven rack, fit the rack onto the guides on
the oven walls. Tilt the front of the rack upward and slide
the rack back into place.
Air Circulation in the Oven
If using 1 rack, place in center of oven. If using multiple racks, stagger
cookware as shown.
For best air circulation and baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and cookware do not
touch each other, the oven door, sides or back of the oven cavity. The hot air
must circulate around the pans and cookware in the oven for even heat to
reach around the food.
Control Pad Features
Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions
are the same. Also, pads may be shaped differently than those appearing in this Use and Care Guide.
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various functions of the oven as described below.
OVEN INTERIOR
LIGHT PAD Used
to turn oven
interior light ON
and OFF.
WARM &
HOLD PAD
Used to set
the Warm &
Hold
feature.
SELECT SELF
CLEAN PAD
Used to select
the Self-Cleaning
cycle. A 2, 3 or 4
hour Self-Clean
fime may be
selected.
STOP CLEAR PAD Used to clear any function previously
entered except the time of day and minufe fimer. Press
STOP CLEAR to stop cooking. Also the STOP CLEAR
pad is used to activate oven lockout setting.
BAKE PAD
Used to
select the
bake
function.
BROIL PAD
Used to
select the
variable broil
function.
DELAY START PAD Used to
set the desired start time for
baking or cleaning. May be
used with COOK TIME to
program a delayed bake cycle.
COOK TIME UP and DOWN ARROWS PADS Used
PAD Used to along with the function pads to select oven
enter the length temperature, cook time, start time (when
of the baking programming an automatic start time), time
time. of day, clean fime and minute timer.
CLOCK
SET PAD
Used to set
the time of
day.
ADD 1 MINUTE PAD Used to add 1
minute to the Timer Countdown. This
feature works with the Kitchen Timer only
and does not affect any cook time or start
time functions (some models).
Select Clean Pad
(some models)
TIMER SET/OFF PAD Used to set or cancel the minute timer. The minute
timer does not start or stop cooking. Also, TIMER SET/OFF Pad is used to
set the Continuous Bake Feature.
Cook Time Pad
(some models)
Warm &
Hold Pad
(some
models)
Delay Start
Pad (some
models)
For a silent control panel:
The (^) pad controls the Silent Control Panel feature. The Silent Control Panel feature allows the oven control to be
operated without sounds or beeps whenever necessary. If desired the control can be programmed for silent operation and
later returned to operating with all the normal sounds and beeps.
To change control from normal sound operation to silent control operation
1. Press and hold pad for 6 seconds. A beep will sound, will appear, "UPPER" and "DELAY" will flash in the
display. After 6 seconds, a beep will sound and "SP" (speaker) will appear in the display.
2. Press yv or "v pad to switch between normal sound operation and silent operation mode. If "SP" appears, the control
will operate with normal sounds and beeps. If appears, the control is in the silent operation mode.
3. Wait 5 seconds to accept the change or press pad to reject the change.
Temperature Conversion (Fahrenheit / Celsius)
The pad controls the Fahrenheit or Celsius temperature display modes. The oven control can be programmed to display
temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit. Note: both ovens
will be changed at the same time.
To change display from Fahrenheit to Celsius or Celsius to Fahrenheit
1. Press pad and hold for 6 seconds. A beep will sound, "—" will appear "UPPER" and "BROIL" will flash in the display.
After 6 seconds a beep will be heard and "F" or "C" will appear in the display. If "F" appears, the display is set to show
temperatures in Fahrenheit. If "C" appears, the display is set to show temperatures in Celsius.
2. Press ^ or -v" pad to switch between Fahrenheit or Celsius display modes. The display will show either "F" or "C".
3. Wait 5 seconds to accept the change or press pad to reject the change.
Loading...
