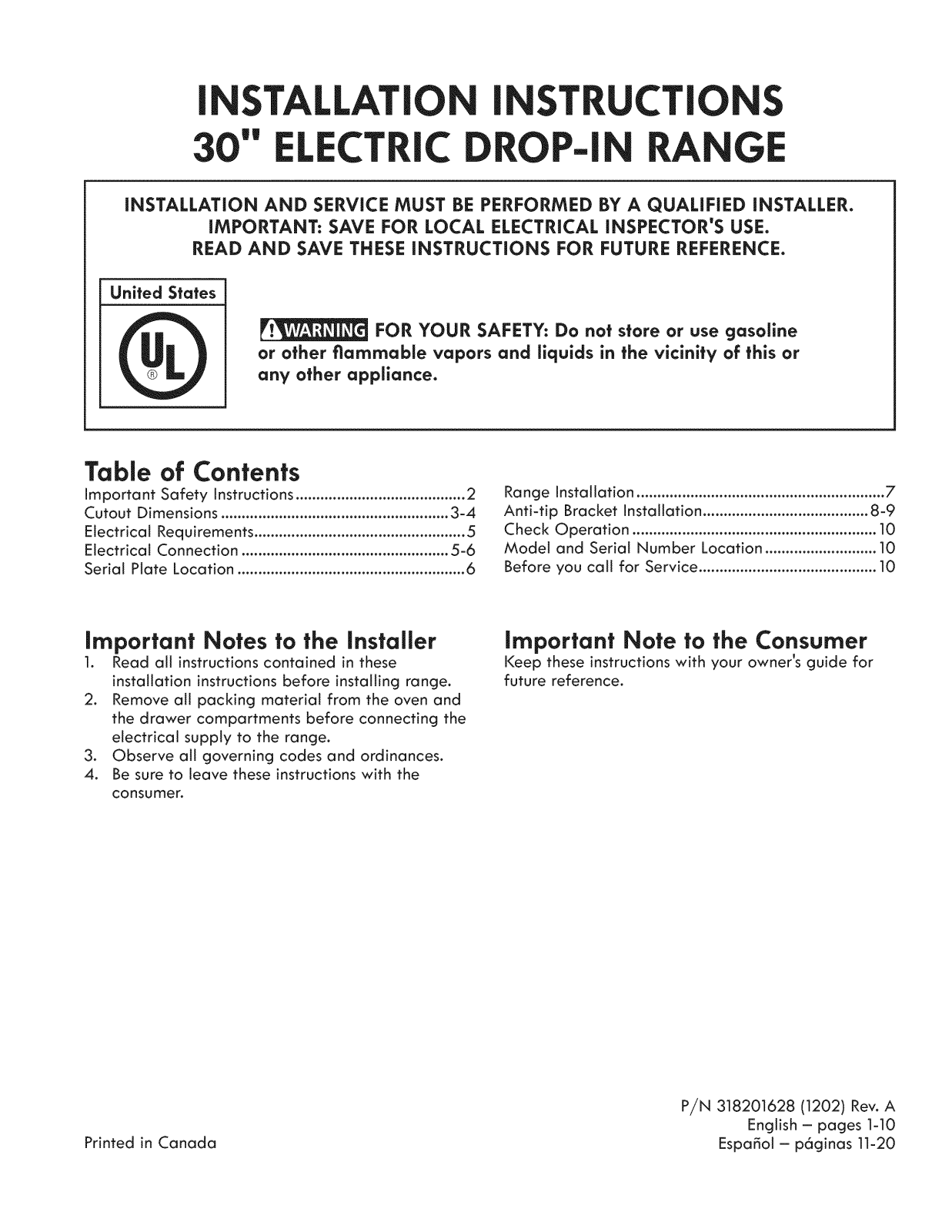

Kenmore 79045582904, 79045582905 Installation Guide

I STALLAT

I STRUCT

30" CT C

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

United States

FOR YOUR SAFETY: Do not store or use gasoline

or other flammable vapors and liquids in the vicinity of this or
any other appliance.

P-I GE

Table of Contents

important Safety instructions ......................................... 2

Cutout Dimensions ....................................................... 3-4

Electrical Requirements ................................................... 5

Electrical Connection .................................................. 5-6

Serial Plate Location ....................................................... 6

Range installation ............................................................ 7

Anti-tip Bracket Installation ........................................ 8-9

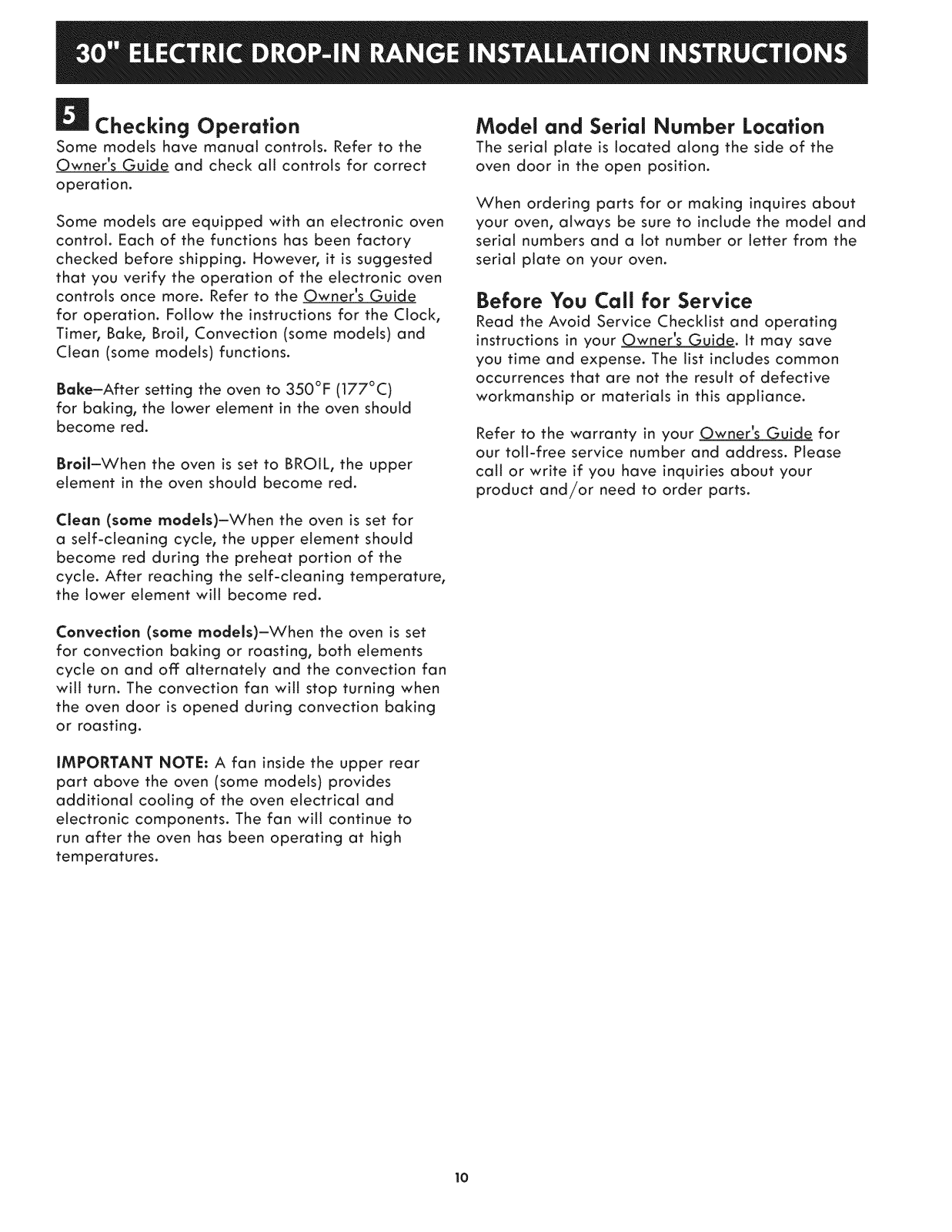

Check Operation ........................................................... 10

Model and Serial Number Location ........................... 10

Before you call for Service ........................................... 10

important Notes to the Installer

1. Read att instructions contained in these
installation instructions before installing range.

2. Remove all packing material from the oven and
the drawer compartments before connecting the
electrical supply to the range.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructions with the
consumer.

important Note to the Consumer

Keep these instructions with your owner's guide for
future reference.

Printed in Canada

P/N 318201628 (1202) Rev. A

English - pages 1-10

Espahot - p6ginas 11-20

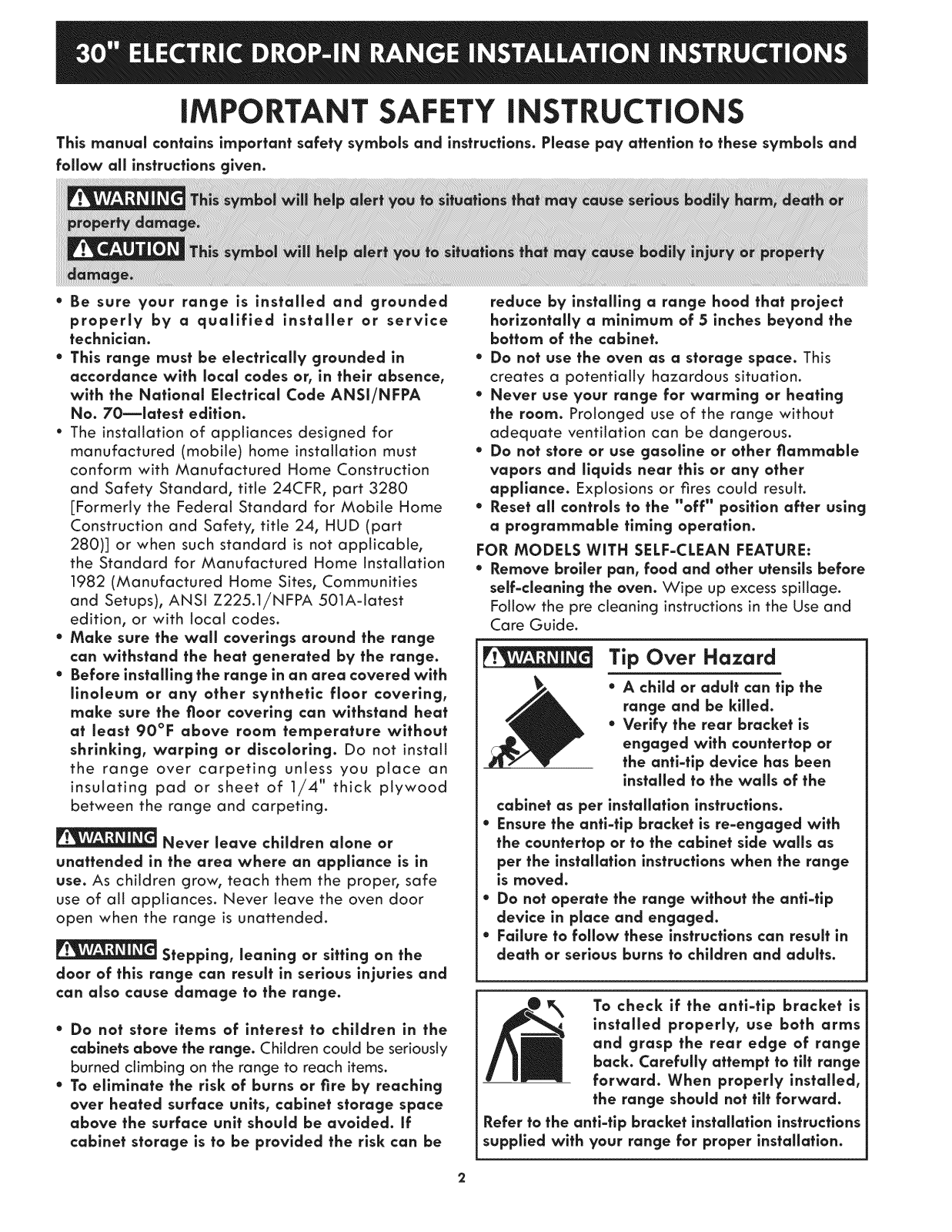

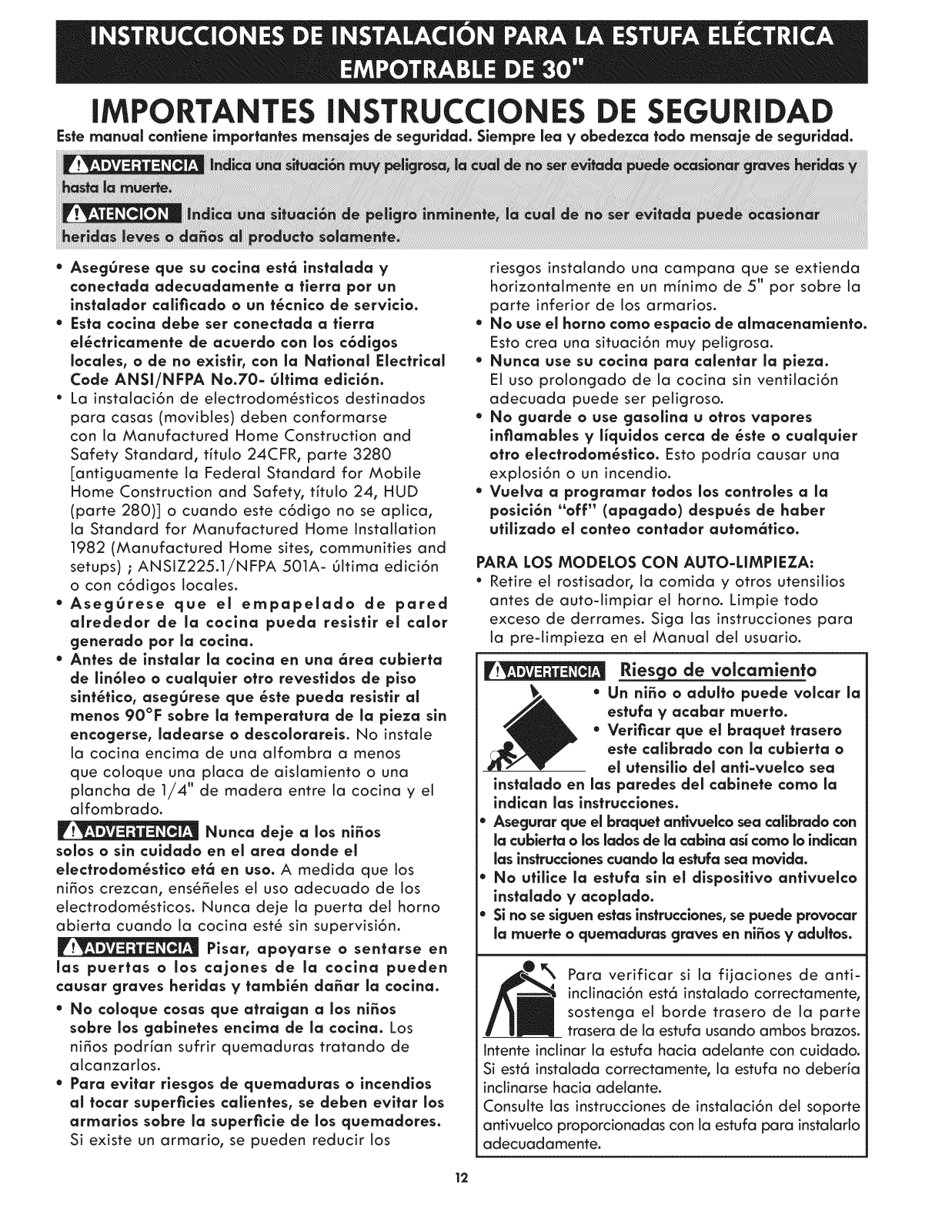

iMPORTANT SAFETY iNSTRUCTiONS

This manual contains important safety symbols and instructions. Please pay attention to these symbols and
follow all instructions given.

* Be sure your range is installed and grounded

properly by a cluallfled installer or service

technician.

* This range must be electrlcally grounded in

accordance with local codes or, in their absence,
with the Natlanal Electrical Code ANSI/NFPA

No. 70--latest edition.

* The installation of appliances designed for

manufactured (mobile) home installation must
conform with Manufactured Home Construction

and Safety Standard, title 24CFR, part 3280
[Formerly the Federal Standard for Mobile Home

Construction and Safety, title 24, HUD (part

280)] or when such standard is not applicable,
the Standard for Manufactured Home installation

1982 (Manufactured Home Sites, Communities
and Setups), ANSI Z225.1/NFPA 501Adatest

edition, or with local codes.

* Make sure the wall coverings around the range

can withstand the heat generated by the range.

* Before installlng the range in an area covered with

llnoleum or any other synthetic floor covering,
make sure the floor covering can withstand heat

at least 90°F above room temperature without
shrinking, warping or dlscolarlng. Do not instait

the range over carpeting unless you place an
insulating pad or sheet of 1/4" thick plywood
between the range and carpeting.

Never leave children alone or

unattended in the area where an appllance is in
use. As children grow, teach them the proper, safe
use of all appliances. Never leave the oven door
open when the range is unattended.

Stepping, leaning or sitting an the

door of this range can result in serious injuries and
can also cause damage to the range.

* Do nat store items of interest to children in the

cabinets above the range. Children could be seriously

burned climbing on the range to reach items.

* To eliminate the risk of burns or fire by reaching

over heated surface units, cabinet storage space
above the surface unit should be avoided. If

cabinet storage is to be provided the risk can be

reduce by installing a range hood that project

horizontally a minimum of 5 inches beyond the
bottom of the cabinet.

* Do nat use the oven as a storage space. This

creates a potentially hazardous situation.

* Never use your range far warming or heating

the room. Prolonged use of the range without
adequate ventilation can be dangerous.

* Do not store or use gasoline or other flammable

vapors and llcluids near this or any other

appliance. Explosions or fires could resutt.

* Reset all controls to the "off" position after using

a programmable timing operation.

FOR MODELS WITH SELF=CLEAN FEATURE:
* Remove broiler pan, food and other utensils before

seif=cleanlng the oven. Wipe up excess spillage.

Follow the pre cleaning instructions in the Use and

Care Guide.

Tip Over Hazard

* A child or adult can tip the

range and be kliled.

* Verify the rear bracket is

engaged with cauntertap or
the anti=tlp device has been

installed to the walls of the

cabinet as per installatlon instructions.

* Ensure the anti=tlp bracket is re=engaged with

the cauntertop or to the cabinet side wails as

per the instailatlan instructions when the range

is moved.

* Do not operate the range without the anti=tlp

device in place and engaged.

* Failure to fallow these instructions can result in

death or serious burns to children and adults.

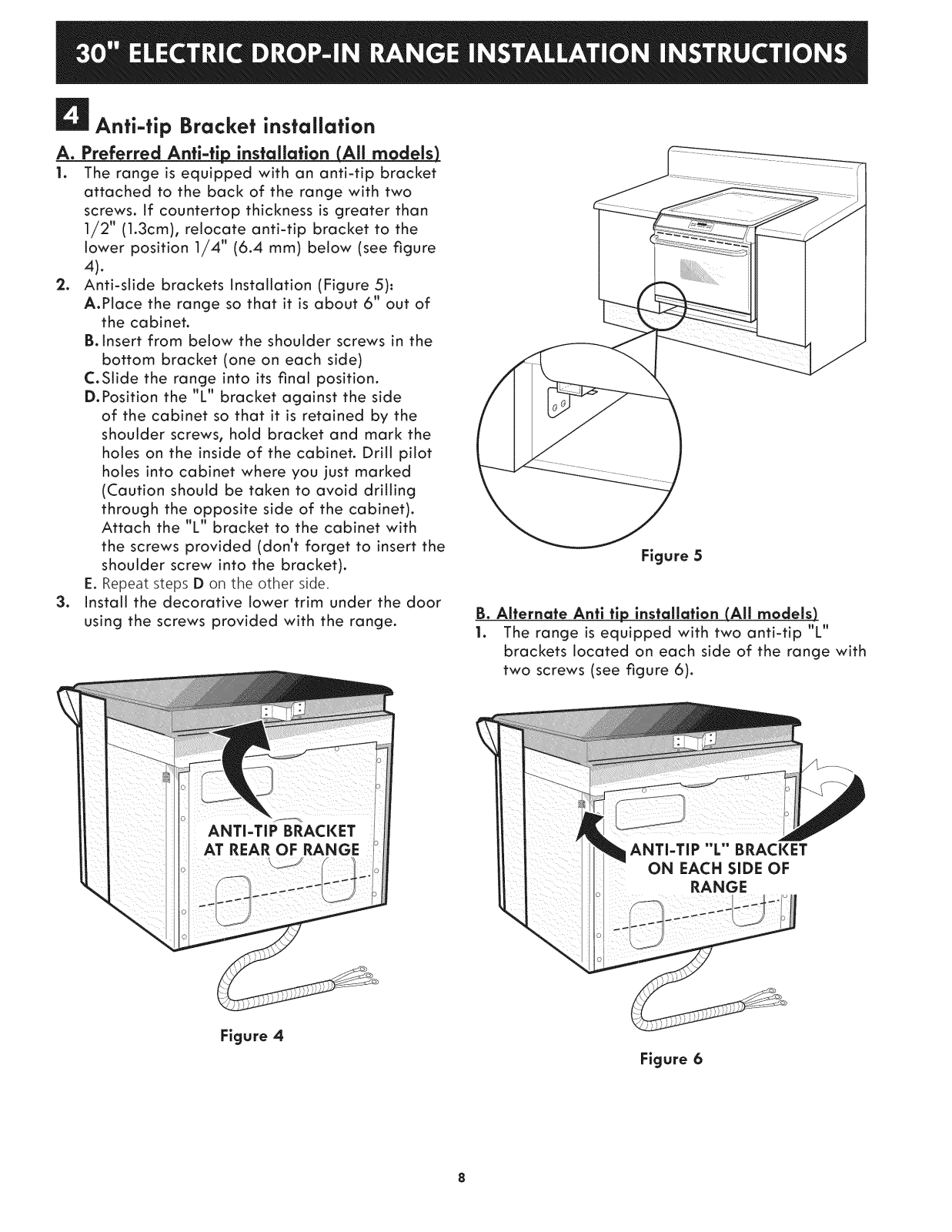

To check if the anti=tlp bracket is
installed properly, use both arms

and grasp the rear edge of range

back. Carefully attempt to flit range

forward. When properly installed,
the range should not tilt forward.

Refer to the anti=tlp bracket installation instructions

supplled with your range for proper installation.

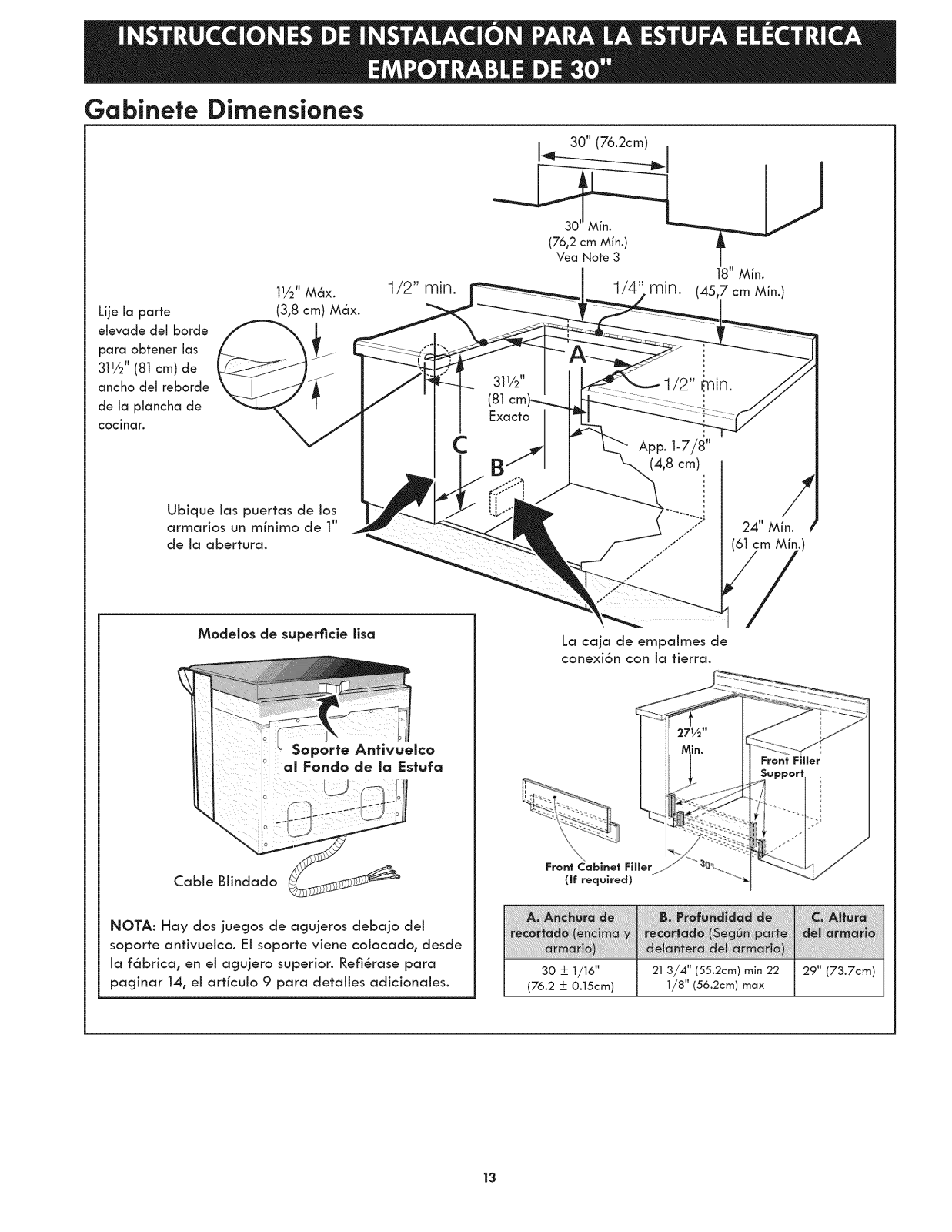

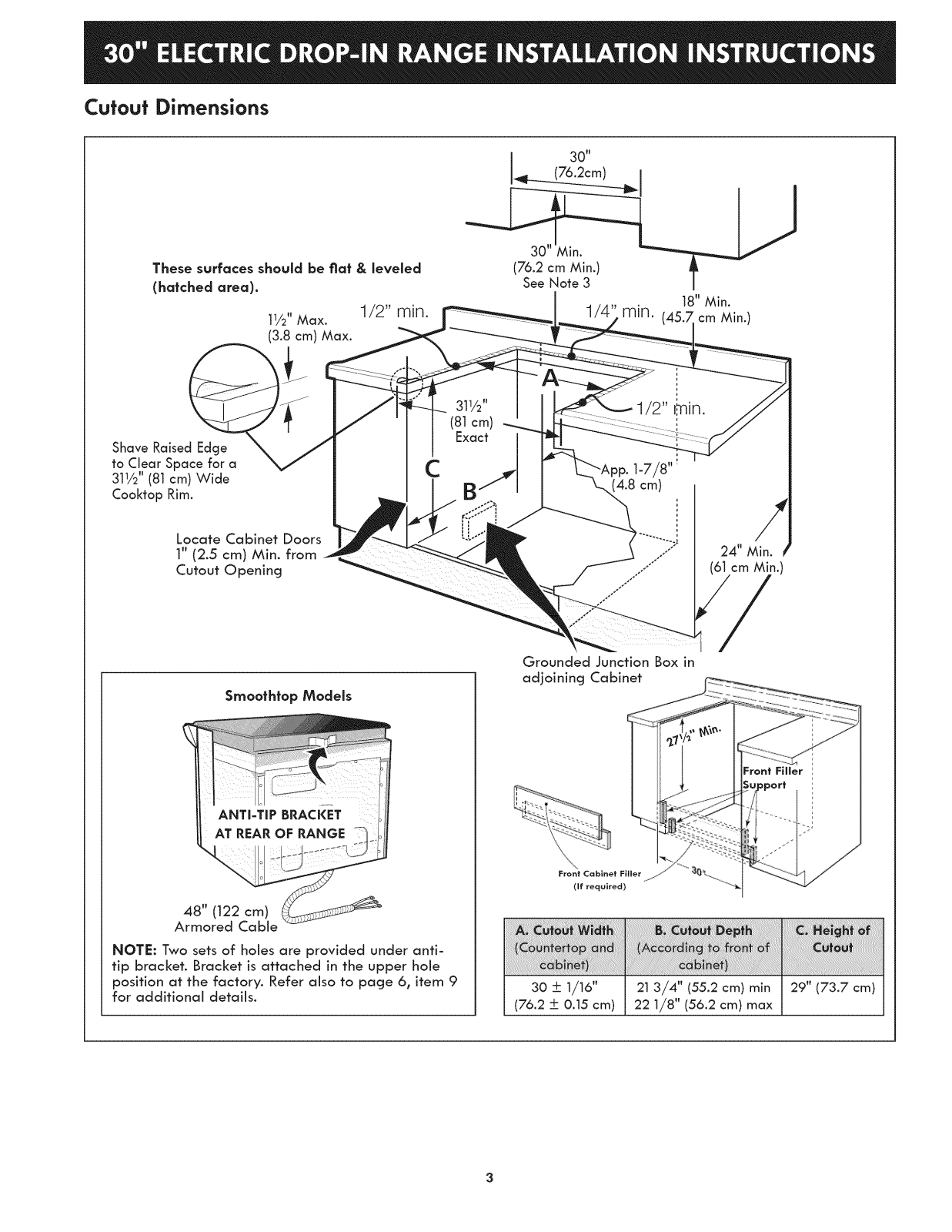

Cutout Dimensions

' 30"

(76.2 cm Min.)

See Note 3 I

18" Min.

',mJn. cmMin.)

Shave Raised Edge
to Clear Space for a
311/2"(81 cm) Wide
Cooktop Rim.

Locate Cabinet Doors

1" (2.5 cm) Min. from
Cutout Opening

Smoothtop Models

C

311/2"

(81 cm)

Exact

1/2" _nin.

24" Min.

61 cm Min.)

Grounded Junction Box in
adjoining Cabinet

48" (122 cm)

Armored Cable

NOTE: Two sets of holes are provided under anti-
tip bracket. Bracket is attached in the upper hole
position at the factory. Refer also to page 6, item 9

for additional details.

Front Cabinet Fff]er

(If required)

30 ___1/16" 21 3/4" (55.2 cm) min 29" (73.7 cm)

(76.2 -I- 0.15 cm) 22 1/8" (56.2 cm) max

3

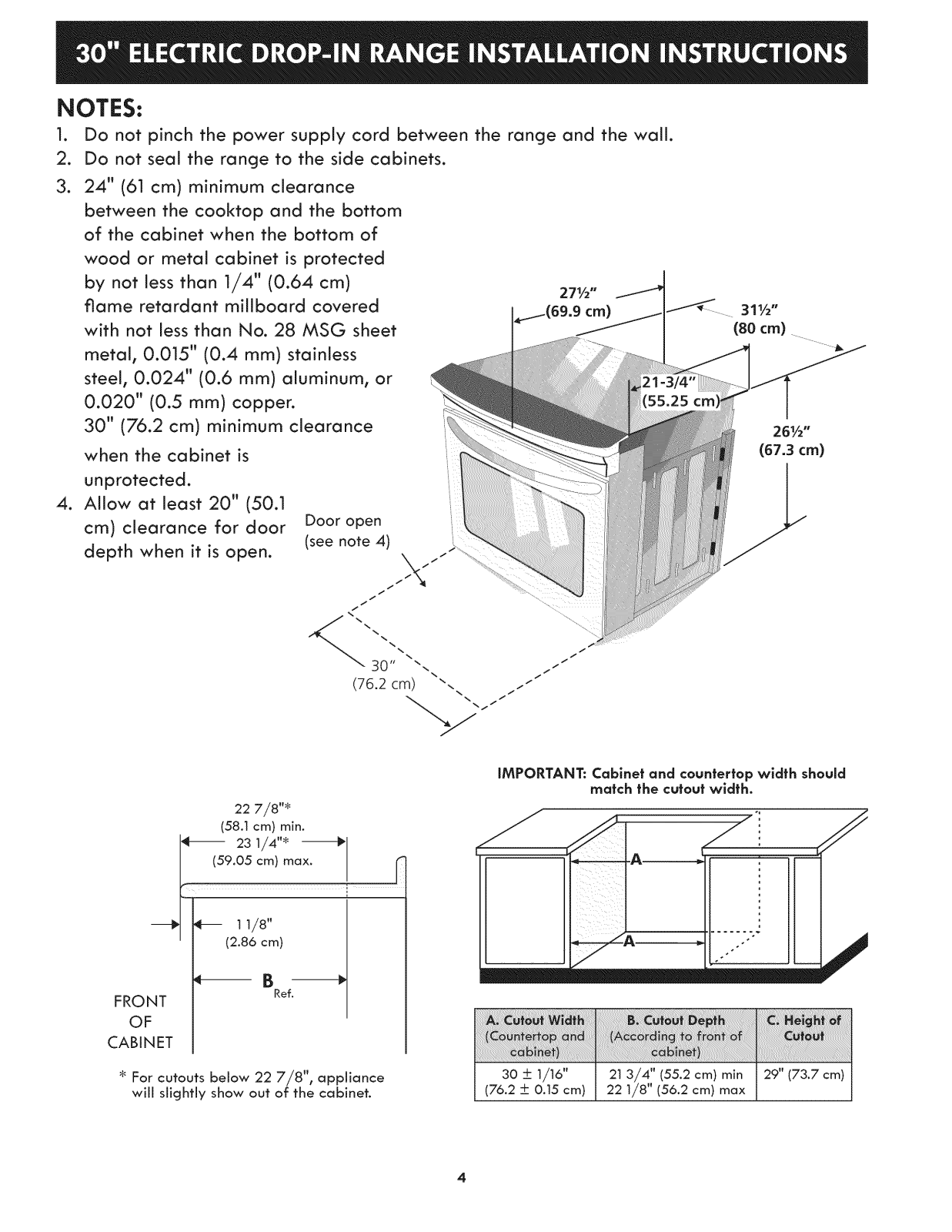

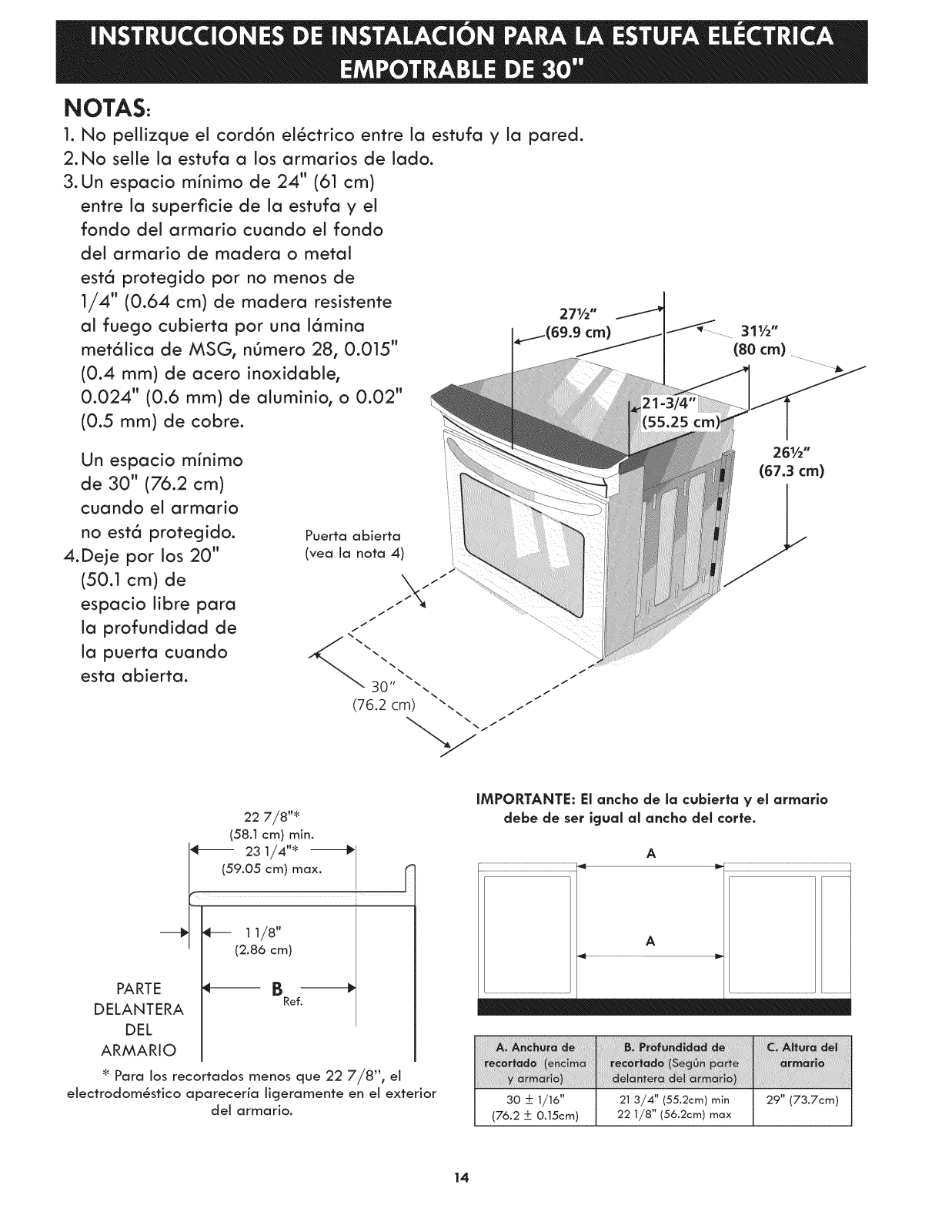

NOTES:

1. Do not pinch the power supply cord between the range and the wall.

2. Do not seal the range to the side cabinets.

3. 24" (61 cm) minimum clearance
between the cooktop and the bottom

of the cabinet when the bottom of
wood or metal cabinet is protected

by not less than 1/4" (0.64 cm)
flame retardant millboard covered

with not less than No. 28 MSG sheet
metal, 0.015" (0.4 mm) stainless

steel, 0.024" (0.6 mm) aluminum, or

0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance

when the cabinet is
unprotected.

.

Allow at least 20" (50.1
cm) clearance for door
depth when it is open.

22 7/8 ''_

(58.1 cm) rain.

I_ 231/4"*

" (2.86 cm)

FRONT Ref.

OF

CABINET

For cutouts below 22 7/8", appliance

will slightly show out of the cabinet.

IMPORTANT: Cabinet and countertop width should

30 + 1/16" 21 3/4" (55.2 cm) min 29" (73.7 cm)

(76.2 + 0.15 cm) 22 1/8" (56.2 cm) max

[match the cutout width.

i iii

ii :ill

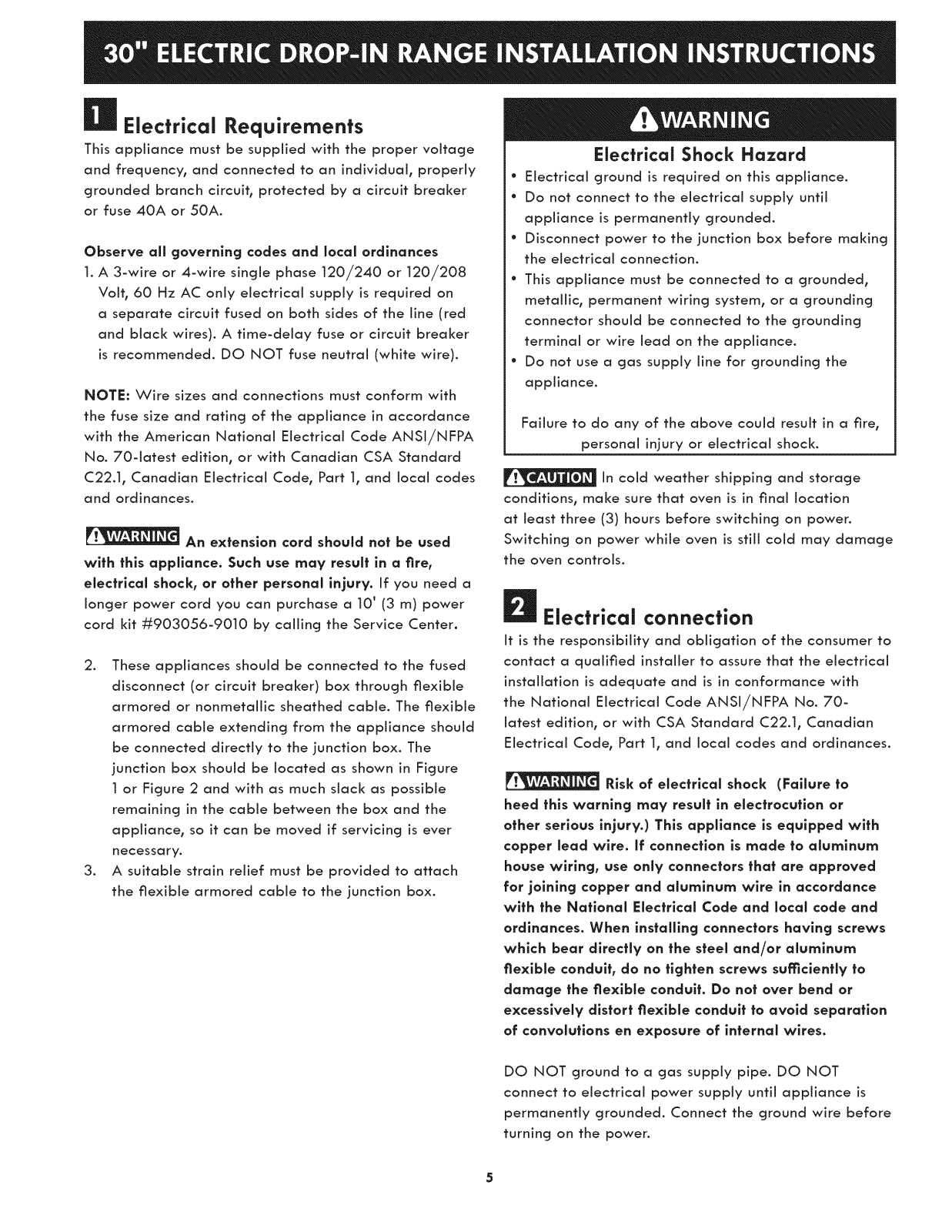

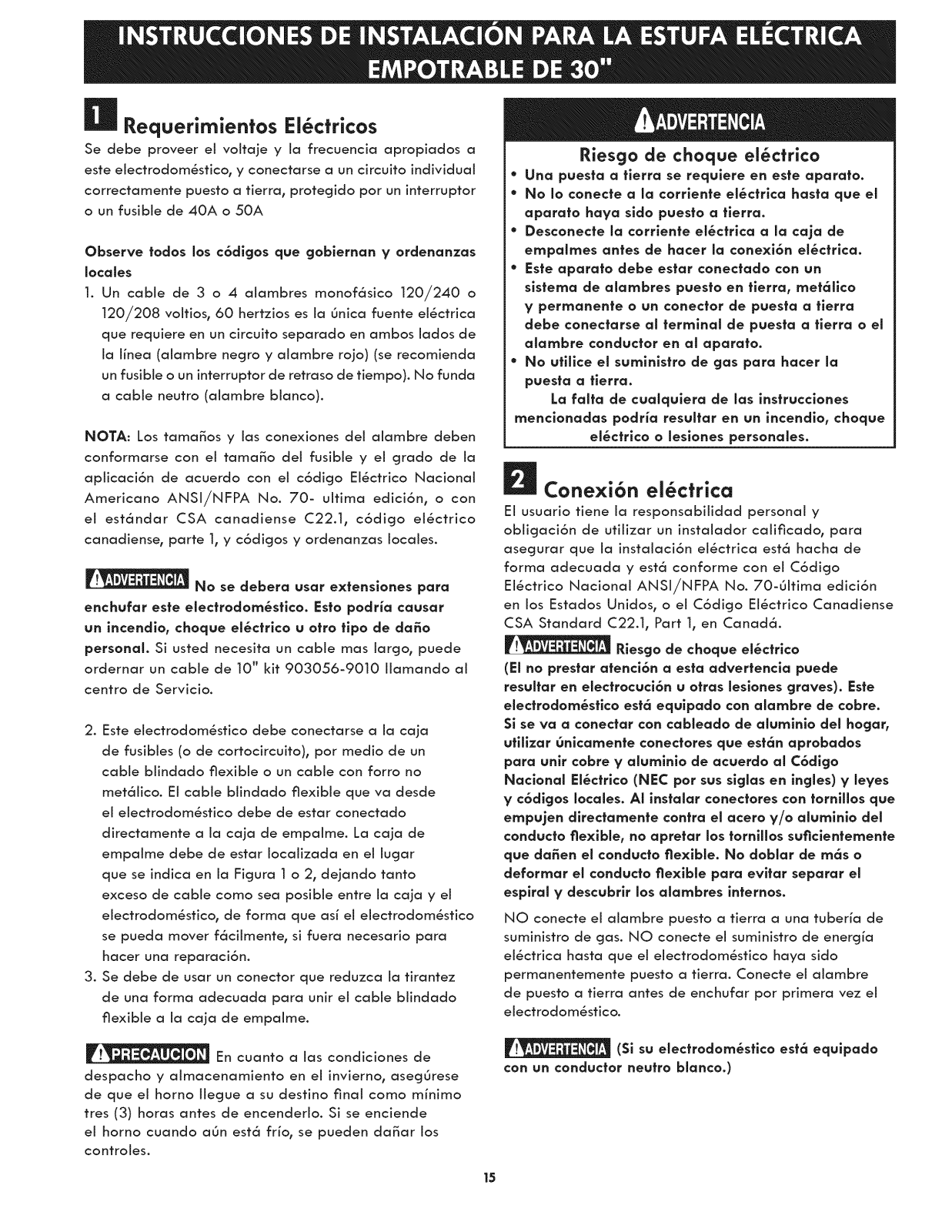

Electrical Requirements

This appliance must be supplied with the proper voltage
and frequency, and connected to an individual, properly

grounded branch circuit, protected by a circuit breaker
or fuse 40A or 50A.

Observe all governing codes and local ordinances

1. A 3-wire or 4-wire single phase 120/240 or 120/208

Volt, 60 Hz AC only electrical supply is required on
a separate circuit fused on both sides of the line (red
and black wires). A time-delay fuse or circuit breaker
is recommended. DO NOT fuse neutral (white wire).

NOTE: Wire sizes and connections must conform with
the fuse size and rating of the appliance in accordance

with the American National Electrical Code ANSI/NFPA
No. 70-latest edition, or with Canadian CSA Standard
C22.1, Canadian Electrical Code, Part 1, and local codes

and ordinances.

An extension cord should not be used

with this appllance. Such use may result in a fire,
electrlcal shock, or other personal injury. If you need a
longer power cord you can purchase a 10' (3 m) power

cord kit #903056-9010 by calling the Service Center.

2. These appliances should be connected to the fused

disconnect (or circuit breaker) box through flexible
armored or nonmetallic sheathed cable. The flexible

armored cable extending from the appliance should
be connected directly to the junction box. The

junction box should be located as shown in Figure

] or Figure 2 and with as much slack as possible
remaining in the cable between the box and the

appliance, so it can be moved if servicing is ever
necessary.

3. A suitable strain relief must be provided to attach

the flexible armored cable to the junction box.

Electrical Shock Hazard

° Electrical ground is required on this appliance.
° Do not connect to the electrical supply until

appliance is permanently grounded.

° Disconnect power to the junction box before making

the electrical connection.

° This appliance must be connected to a grounded,

metallic, permanent wiring system, or a grounding
connector should be connected to the grounding
terminal or wire lead on the appliance.

• Do not use a gas supply line for grounding the
appliance.

Failure to do any of the above could result in a fire,

personal injury or electrical shock.

In cold weather shipping and storage

conditions, make sure that oven is in final location
at least three (3) hours before switching on power.
Switching on power while oven is still cold may damage

the oven controls.

Electrical connection

It is the responsibility and obligation of the consumer to
contact a qualified installer to assure that the electrical
installation is adequate and is in conformance with

the National Electrical Code ANSI/NFPA No. 70-
latest edition, or with CSA Standard C22.1, Canadian
Electrical Code, Part 1, and local codes and ordinances.

Risk of eiectrlcal shock (Failure to

heed this warning may result in electrocution or
other serious injury.) This appllance is equipped with
copper lead wire. if connection is made to aluminum
house wiring, use only connectors that are approved

for joining copper and alumlnum wire in accordance
with the National Electrlcal Code and local code and

ordinances. When installlng connectors having screws
which bear directly on the steel and/or alumlnum
fiexlble condult, do no tlghten screws sufflclenHy to
damage the fiexlble condult. Do not aver bend or

excessively distort fiexlble conduit to avoid separation
of convolutions en exposure of internal wires.

DO NOT ground to a gas supply pipe. DO NOT
connect to electrical power supply until appliance is

permanently grounded. Connect the ground wire before
turning on the power.

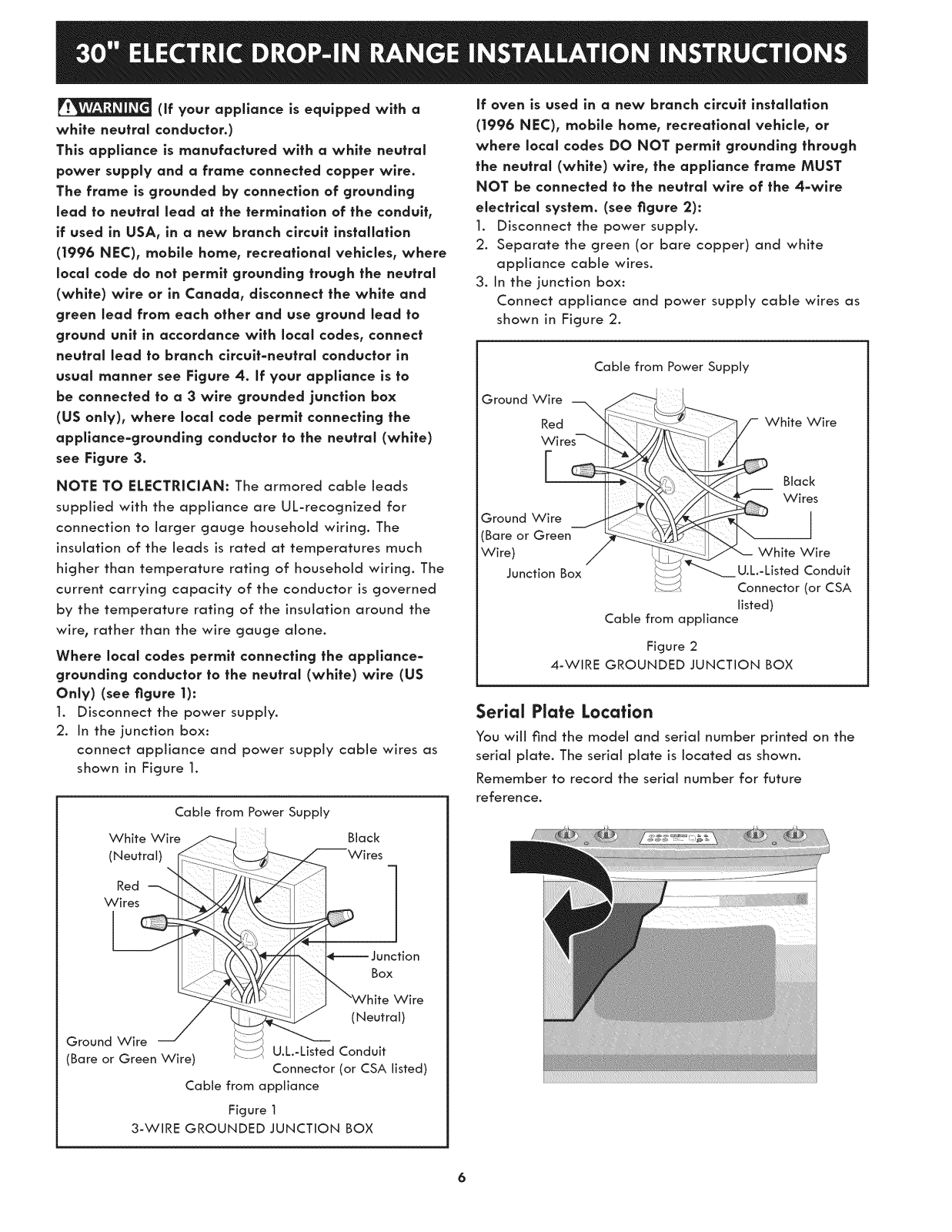

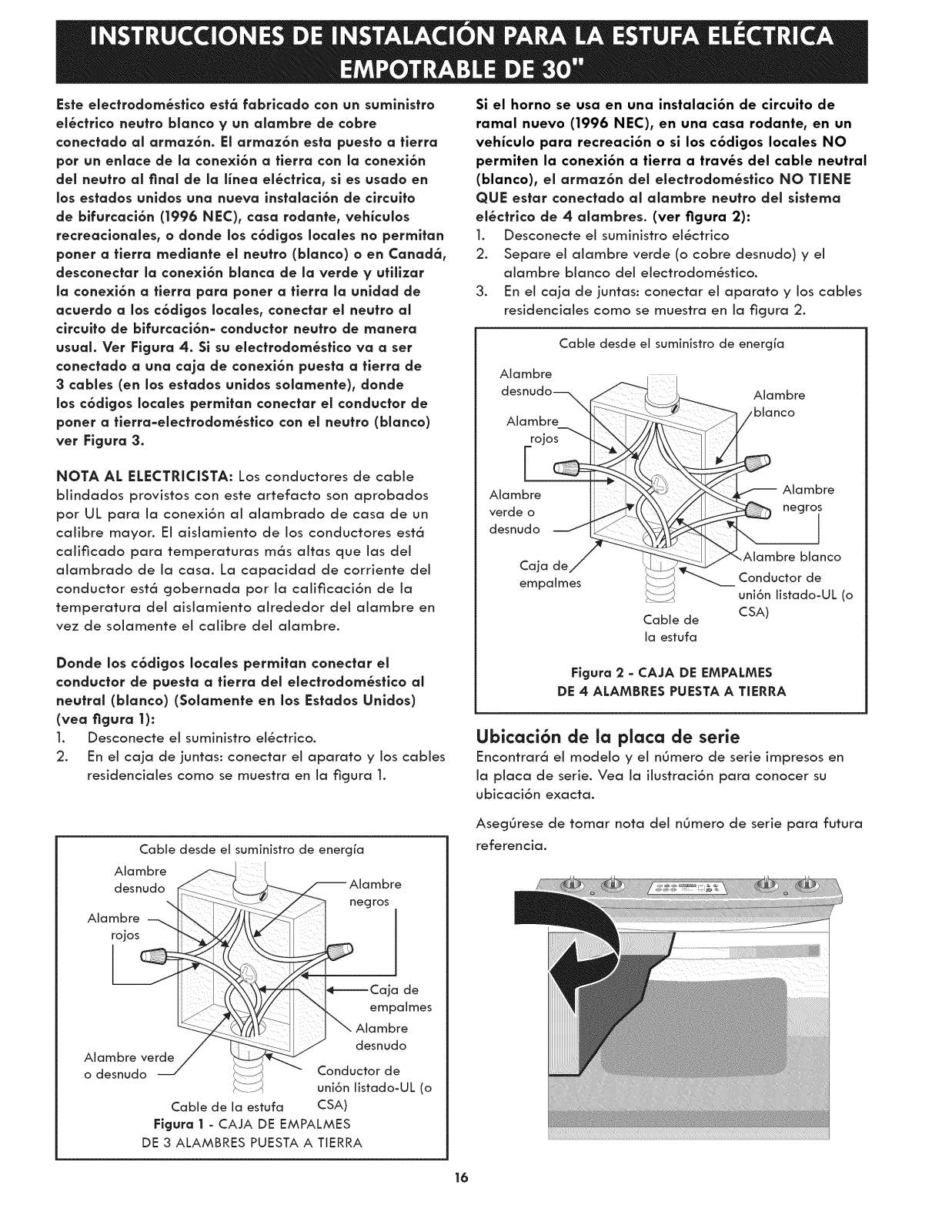

(if your appliance is equipped with a

white neutral conductor.)
This appliance is manufactured with a white neutral

power supply and a frame connected copper wire.
The frame is grounded by connection of grounding
lead to neutral lead at the termination of the conduit,
if used in USA, in a new branch circuit installation

(1996 NEC), mobile home, recreational vehicles, where
local code do not permit grounding trough the neutral
(white) wlre or in Canada, disconnect the white and
green lead from each other and use ground lead to

ground unit in accordance with local codes, connect
neutral lead to branch clrcult-neutral conductor in

usual manner see Figure A. if your appllance is to
be connected to a 3 wire grounded junction box
(US only), where local code permit connecting the

appllance-groundlng conductor to the neutral (white)
see Figure 3.

NOTE TO ELECTRiCiAN: The armored cable leads

supplied with the appliance are UL-recognized for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures much

higher than temperature rating of household wiring. The
current carrying capacity of the conductor is governed
by the temperature rating of the insulation around the
wire, rather than the wire gauge alone.

Where local codes permit connecting the appllance-
grounding conductor to the neutral (white) wire (US
Only) (see figure 1):

1. Disconnect the power supply.

2. In the junction box:
connect appliance and power supply cable wires as
shown in Figure 1.

Cable from Power Supply

White Wire -'_-_ J
(Neutra) r_ :L.L_.L___

Black

If oven is used in a new branch circuit instaffafion
(1996 NEC), mobile home, recreatlonal vehlcle, or

where local codes DO NOT permit grounding through
the neutral (white) wire, the appliance frame MUST

NOT be connected to the neutral wire of the 4-wlre
electrlcal system. (see figure 2):

1. Disconnect the power supply.

2. Separate the green (or bare copper) and white
appliance cable wires.

3. In the junction box:
Connect appliance and power supply cable wires as
shown in Figure 2.

Cable from Power Supply

Ground Wire

hite Wire

Black

Ground Wire __'--_-_
(Bareor Green __

Junction Box _q-:_'S

Cable from appliance

4-WIRE GROUNDED JUNCTION BOX

.....__ U.L.-Listed Conduit

Figure 2

Serial Plate Location

You willfind the model and serial number printed on the
serial plate. The serial plate is located as shown.

Remember to record the serial number for future
reference,

White W_'re

Connector (or CSA

listed)

Wires

Ground Wire __z _
(Bare or Green Wire) _--_

Cable from appliance

Figure 1

3-WIRE GROUNDED JUNCTION BOX

_\. !'_---- Juncti°n

i Box

_'_" (Neutral)

U.L.-Listed Conduit
Connector (or CSA listed)
