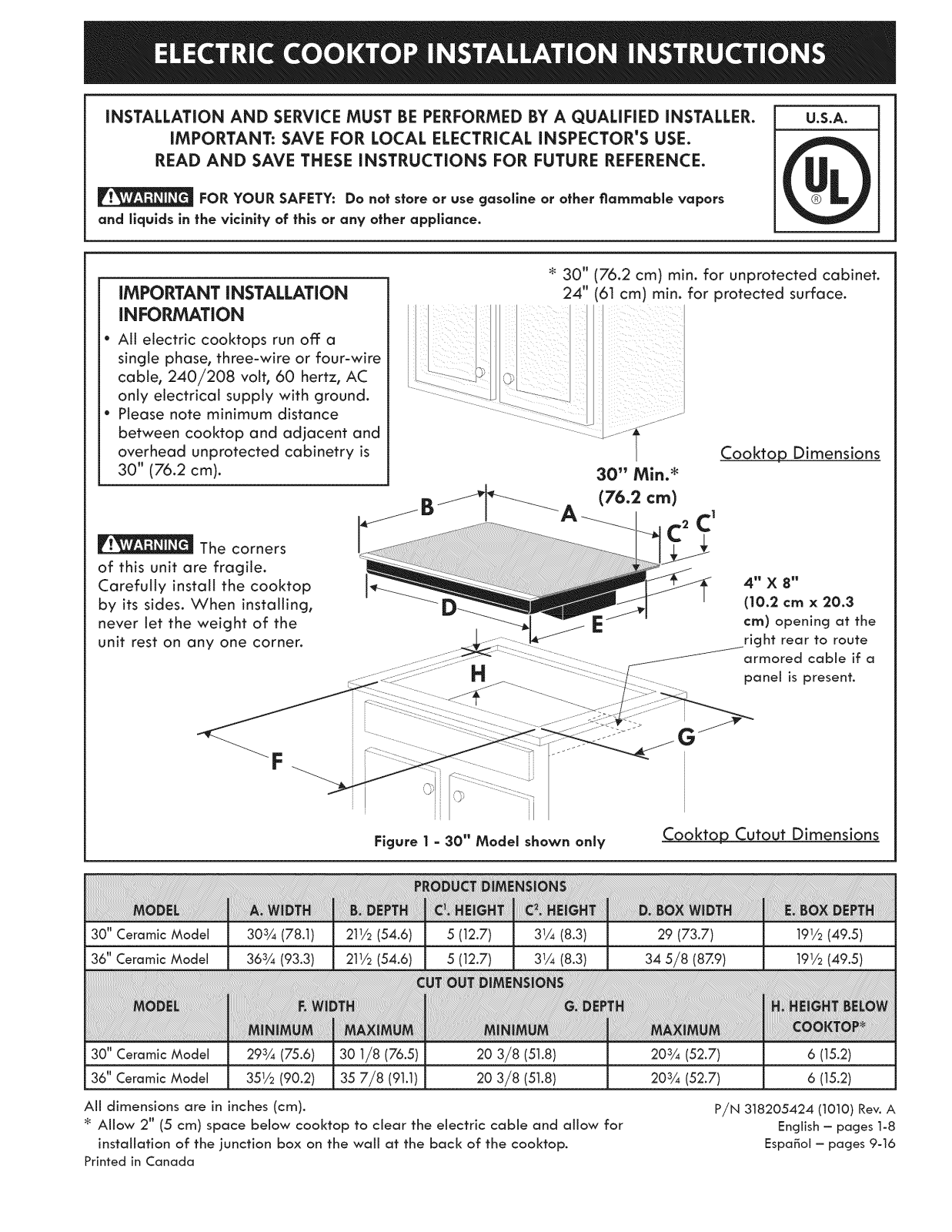

Kenmore 79044223100, 79044223101, 79044229100, 79044229101 Installation Guide

iNSTALLATiON AND SERVICEMUST BE PERFORMED BY A QUALiFiED iNSTALLER.

iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.

READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of fhls or any other appliance.

30" (76.2 cm) min. for unprotected cabinet.

iMPORTANT INSTALLATION

24" (61 cm) min. for protected surface.

iNFORMATiON

* All electric cooktops run off a

single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC only electrical supply with ground.

* Please note minimum distance

between cooktop and adjacent and overhead unprotected cabinetry is 30" (76.2 cm).

Cooktop Dimensions

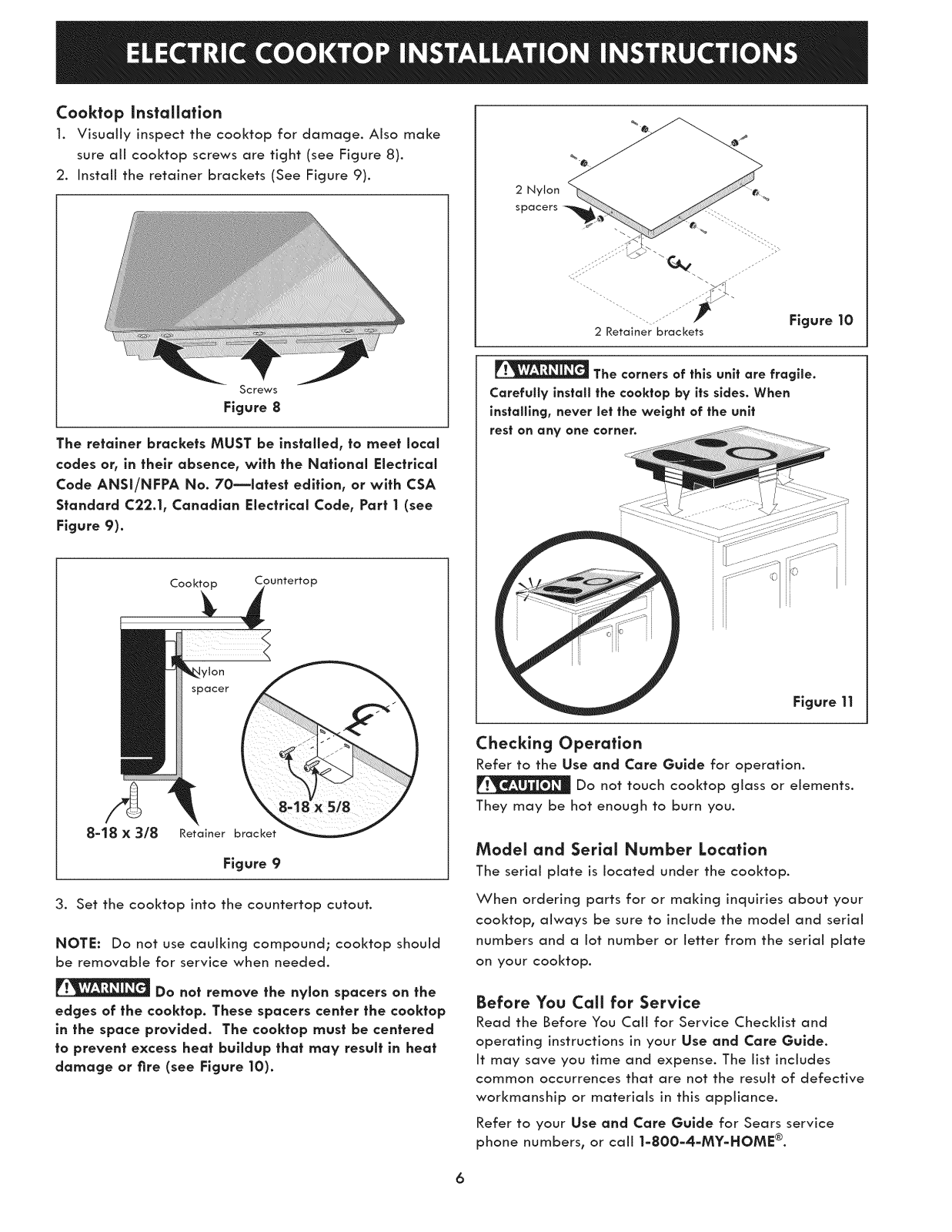

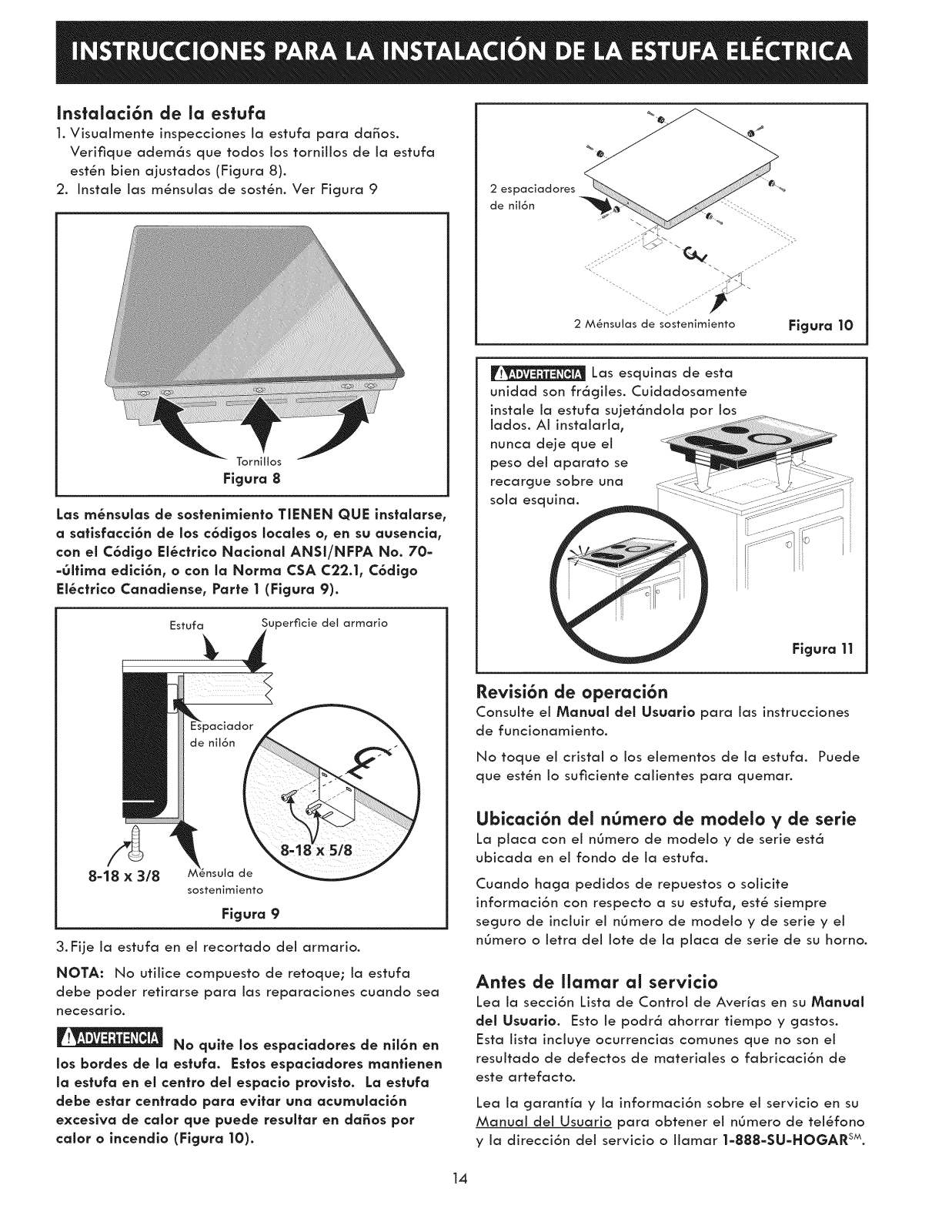

The corners

of this unit are fragile. Carefully install the cooktop by its sides. When installing, never let the weight of the unit rest on any one corner.

U.S.A.

4" X 8"

(10.2 cmx 20.3

cm) opening at the

right rear to route

armored cable if a

panel is present.

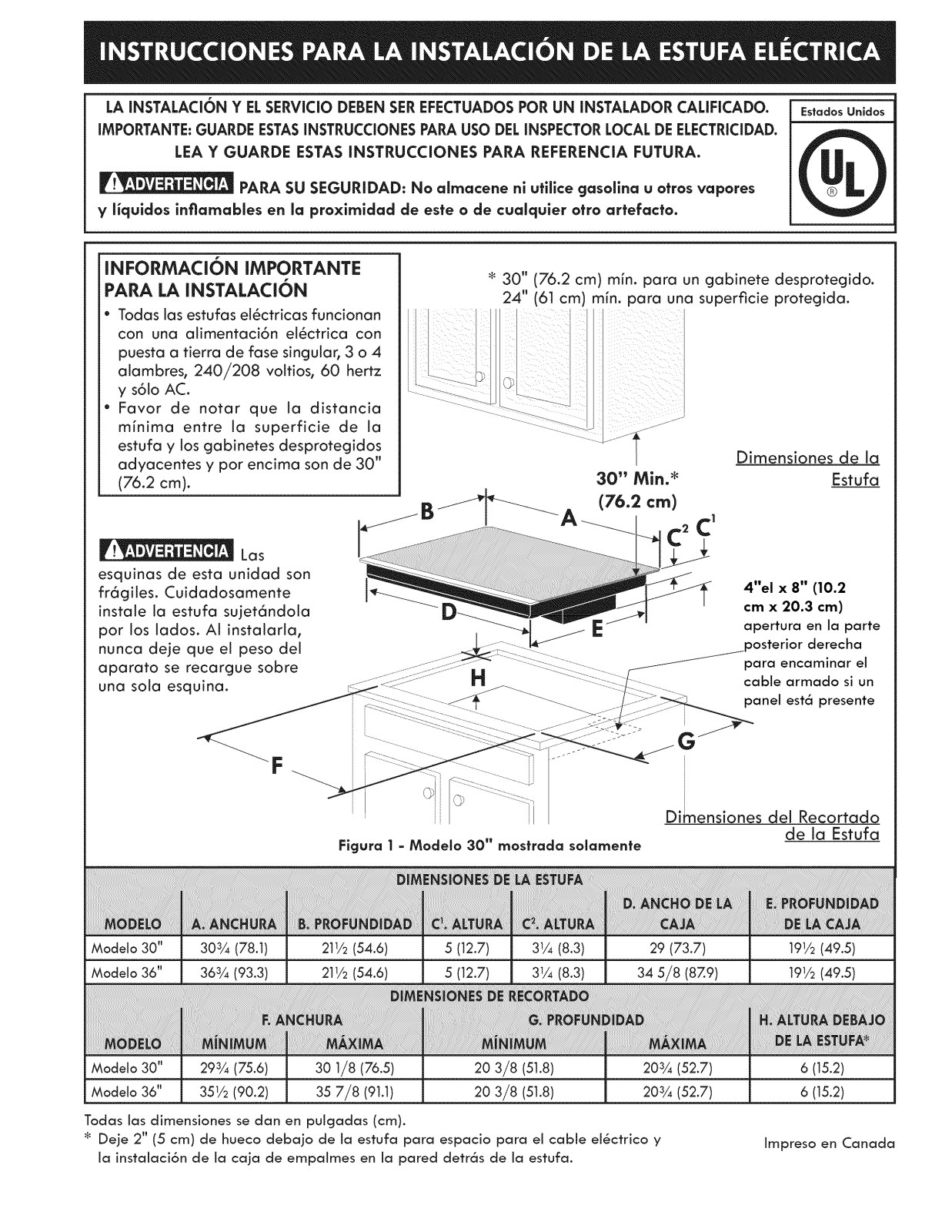

Figure | - 30" Model shown only

30" Ceramic Model 303¼ (78.1) 211/2(54.6) 5 (12.7) 31/4(8.3) 29 (73.7) 191/2(49.5) 36" Ceramic Model 3634 (93.3) 211/2(54.6) 5 (12.7) 31/4 (8.3) 34 5/8 (8Z9) 191/2(49.5)

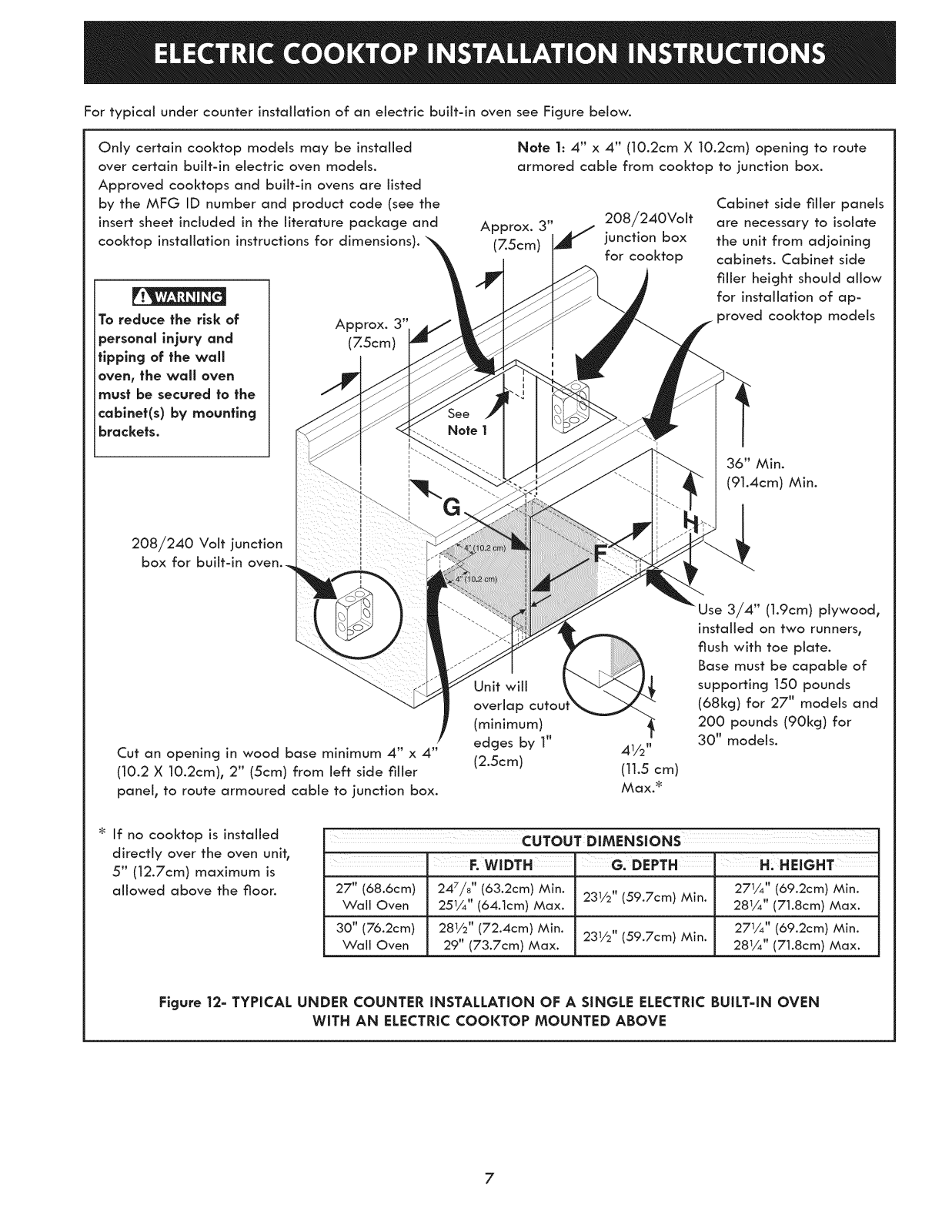

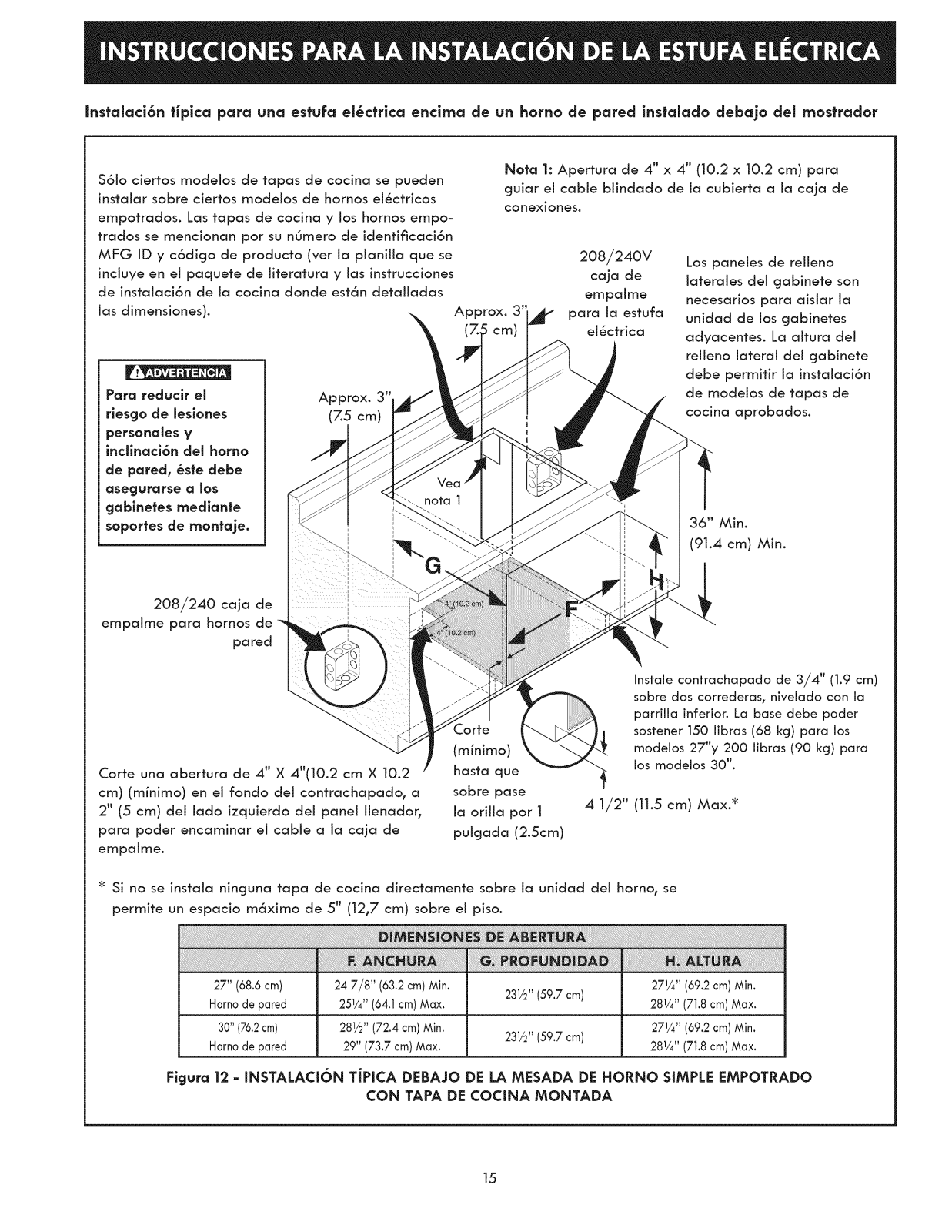

Cooktop Cutout Dimensions

..........................................................................................................................................................................MAx .....................................................................................................................

30" Ceramic Model 2934 (75.6) 30 1/8 (76.5) 20 3/8 (51.8) 2034 (52.7) 6 (15.2) 36" Ceramic Model 351/2 (90.2) 35 7/8 (91.1) 20 3/8 (51.8) 2034 (52.7) 6 (15.2)

All dimensions are in inches (cm).

Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for installation of the junction box on the wail at the back of the cooktop.

Printed in Canada

P/N 318205424 (1010) Rev. A

English = pages 1-8

Espa_ol = pages 9-16

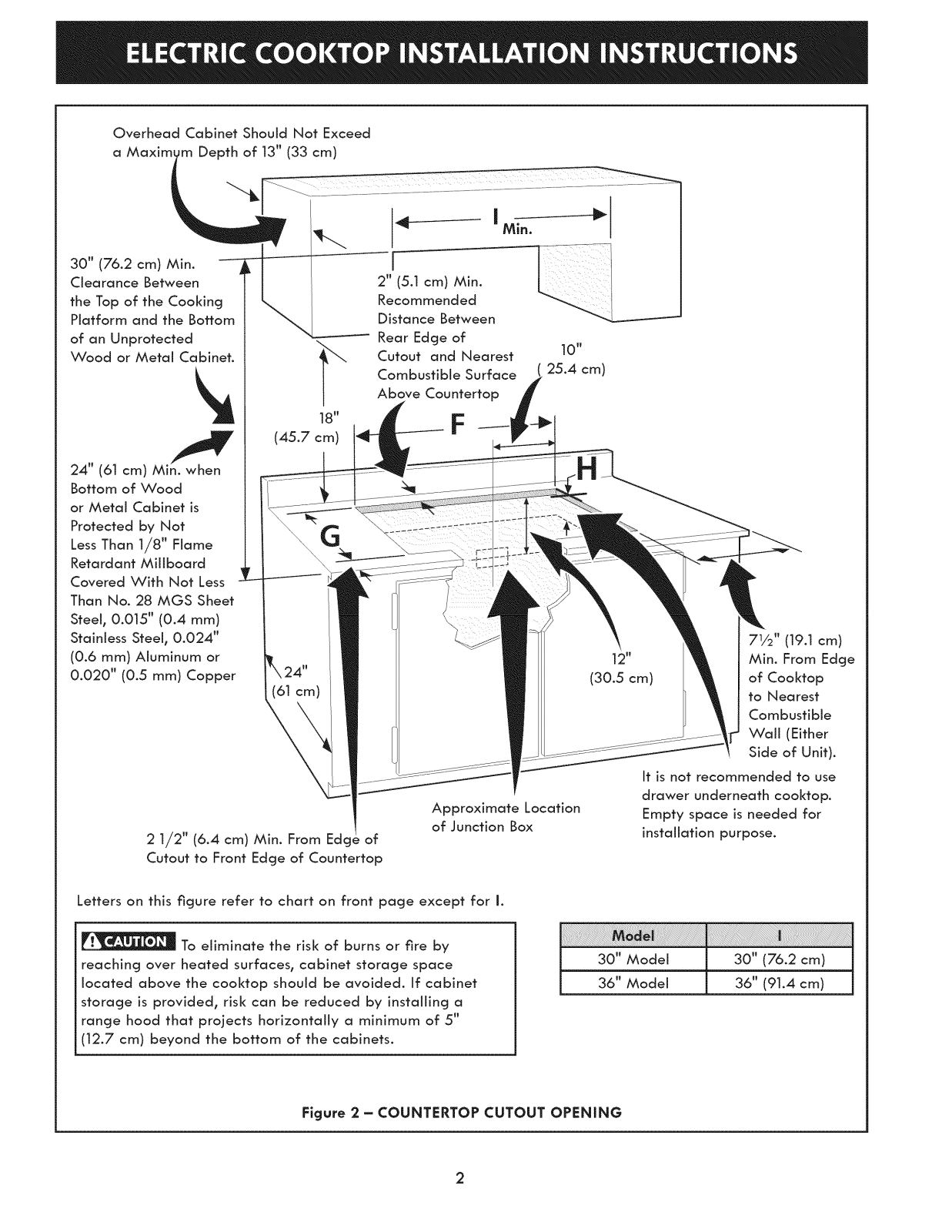

Overhead Cabinet Should Not Exceed a Maximl,m Depth of 13" (33 cm)

30" (76.2 cm) Min. Clearance Between

the Top of the Cooking

Platform and the Bottom

of an Unprotected Wood or Metal Cabinet.

24" (61 cm) Min. when

Bottom of Wood

or Metal Cabinet is

Protected by Not Less Than 1/8" Flame

Retardant Miliboard Covered With Not Less Than No. 28 MGS Sheet

Steel, 0.015" (0.4 ram) Stainless Steel, 0.024"

(0.6 ram) Aluminum or

0.020" (0.5 ram) Copper

2 1/2" (6.4 cm) Min. From Edg of Cutout to Front Edge of Countertop

18"

(45.7 cm)

Min.

2 " )

Recommended Distance Between

Rear Edge of Cutout and Nearest Combustible Surface 25.4 cm)

Above Countertop

10"

Approximate Location

of Junction Box

12 tw

(30.5 cm)

71/2" (19.1 cm) Min. From Edge of Cooktop

to Nearest Combustible

Wall (Either

Side of Unit). It is not recommended to use drawer underneath cooktop.

Empty space is needed for installation purpose.

Letters on this figure refer to chart on front page except for J.

To eliminate the risk of burns or fire by

reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.

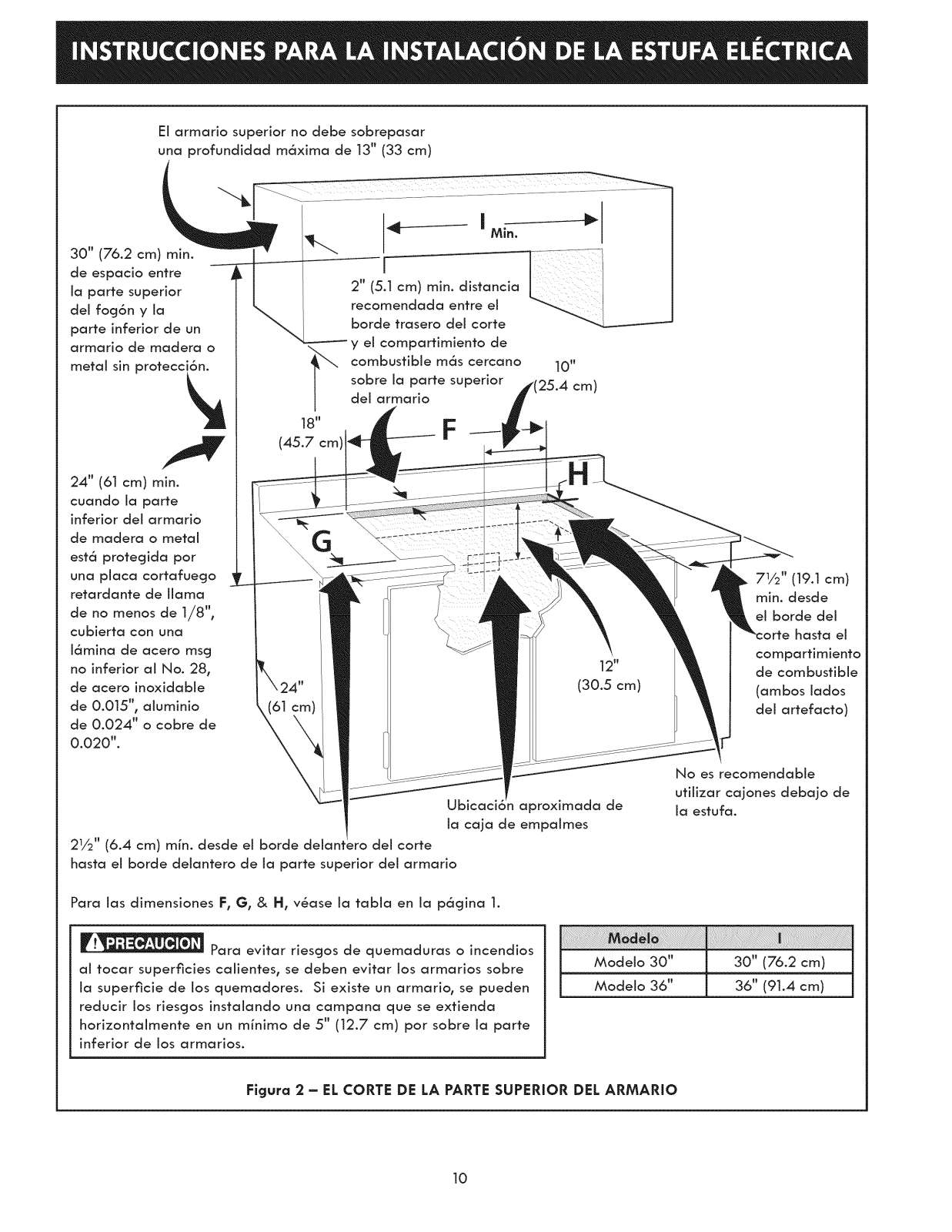

Figure 2 - COUNTERTOP CUTOUT OPENING

ii!ii!i!!! i!! ! i i i i i!i ii i i i i ii i i ii i iiiiii!iiiiii i ! i i i! i i i i i ii ii ii !ii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii!iil i i i i i i i i iiiiiiiii iiiiiiiii !! ! !!ii!!!!!i!ii!iiiiiiiiiiiiiiiiiii!!!!!!!!! !!!! i!!i!i!i!iiiiiii i !i!i!i!i!i i iiiiiii ii ! i!!! iiiiiiiiii iii i ii i ii!!ii!i!i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ii i

• 30" Model _ 30" (76.2 cm) 36" Model 36" (91.4 cm)

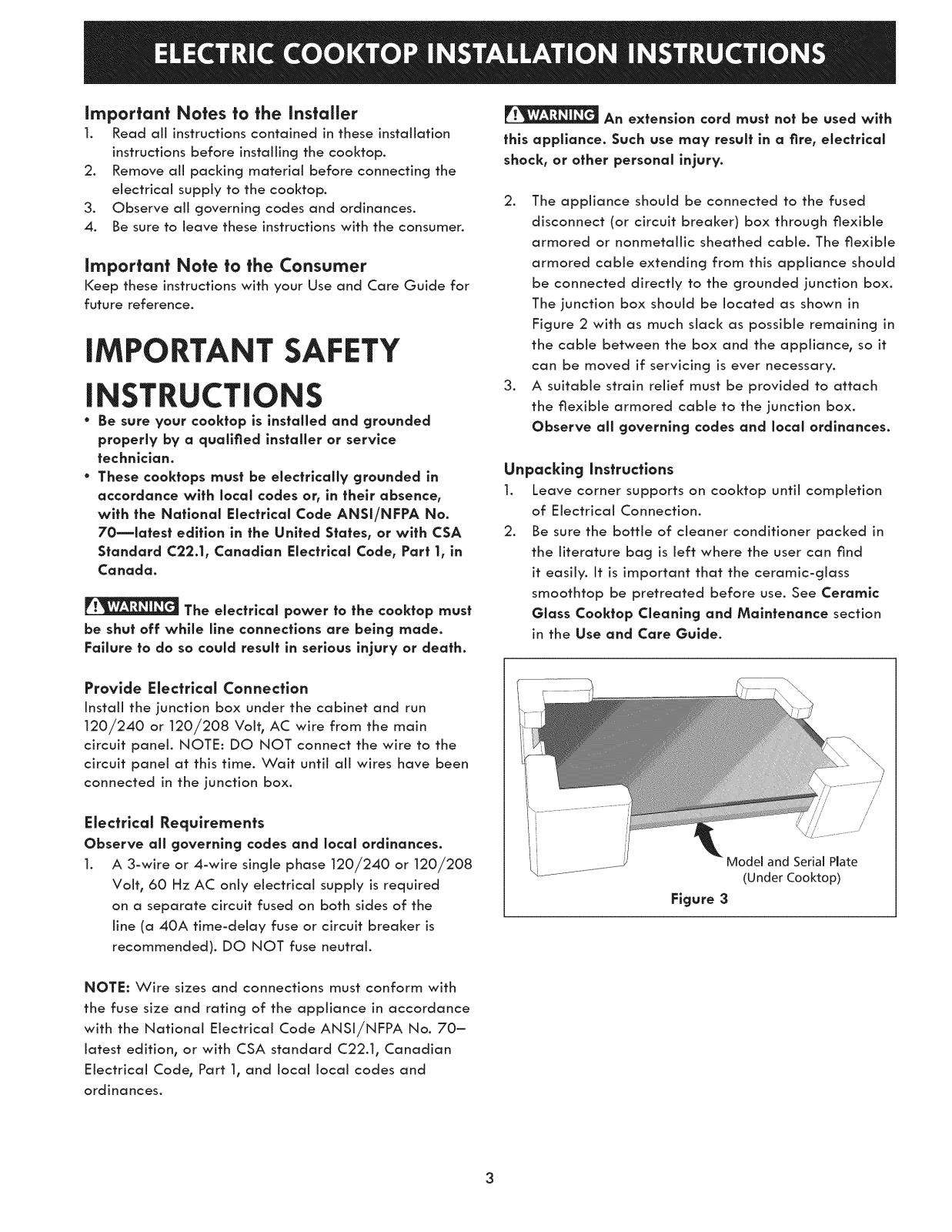

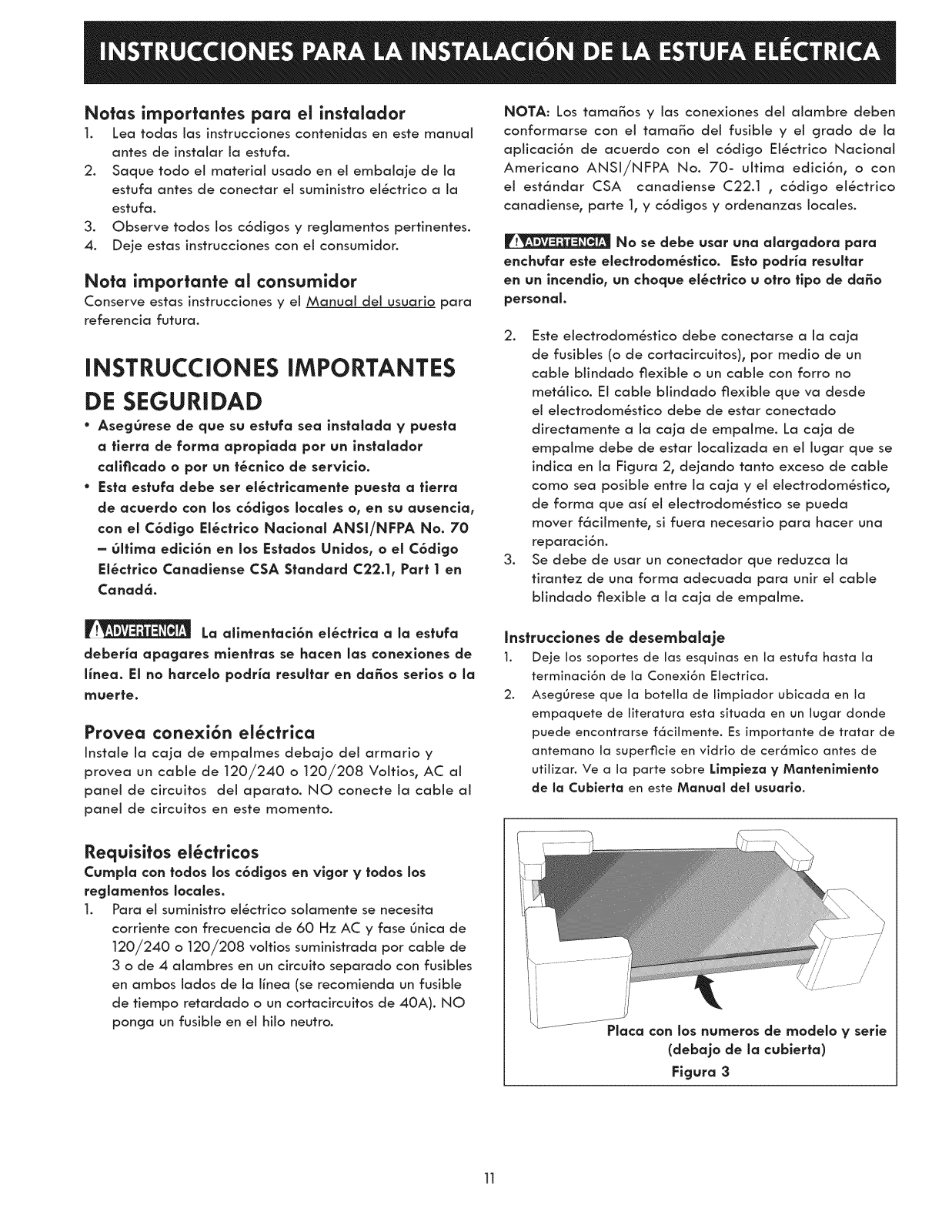

important Notes to the installer

1. Read all instructions contained in these installation instructions before installing the cooktop.

2. Remove all packing material before connecting the electrical supply to the cooktop.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructions with the consumer.

Important Note to the Consumer

Keep these instructions with your Use and Care Guide for

future reference.

iMPORTANT SAFETY

INSTRUCTIONS

° Be sure your cooktop is installed and grounded

properly by a qualified installer or service

technician.

° These cooktops must be electrically grounded in

accordance with local codes or, in their absence,

with the National Electrical Code ANSI/NFPA No.

70mlatest edition in the United States, or with CSA Standard C22.1, Canadian Electrical Code, Part 1, in

Canada.

The electrical power to the cooktop must

be shut off while llne connections are being made. Failure to do so could result in serious injury or death.

An extension cord must not be used with

this appliance. Such use may result in a fire, electrical shock, or other personal injury.

2. The appliance should be connected to the fused disconnect (or circuit breaker) box through flexible

armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should

be connected directly to the grounded junction box. The junction box should be located as shown in

Figure 2 with as much slack as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.

3. A suitable strain relief must be provided to attach the flexible armored cable to the junction box.

Observe aH governing codes and local ordinances.

Unpacking Instructions

1. Leave corner supports on cooktop until completion of Electrical Connection.

2. Be sure the bottle of cleaner conditioner packed in the literature bag is left where the user can find it easily. It is important that the ceramic-glass smoothtop be pretreated before use. See Ceramic

Glass Cooktop Cleaning and Maintenance section in the Use and Care Guide.

Provide Electrical Connection

Install the junction box under the cabinet and run 120/240 or 120/208 Volt, AC wire from the main circuit panel. NOTE: DO NOT connect the wire to the circuit panel at this time. Wait until all wires have been connected in the junction box.

Electrical Requirements Observe all governing codes and local ordinances.

1. A 3-wire or 4-wire single phase 120/240 or 120/208 Volt, 60 Hz AC only electrical supply is required on a separate circuit fused on both sides of the

line (a 40A time-delay fuse or circuit breaker is recommended). DO NOT fuse neutral.

NOTE: Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance with the National Electrical Code ANSIiNFPA No. 70-

latest edition, or with CSA standard C22.1, Canadian Electrical Code, Part 1, and local local codes and

ordinances.

_del and Serial Plate

(Under Cooktop)

Figure 3

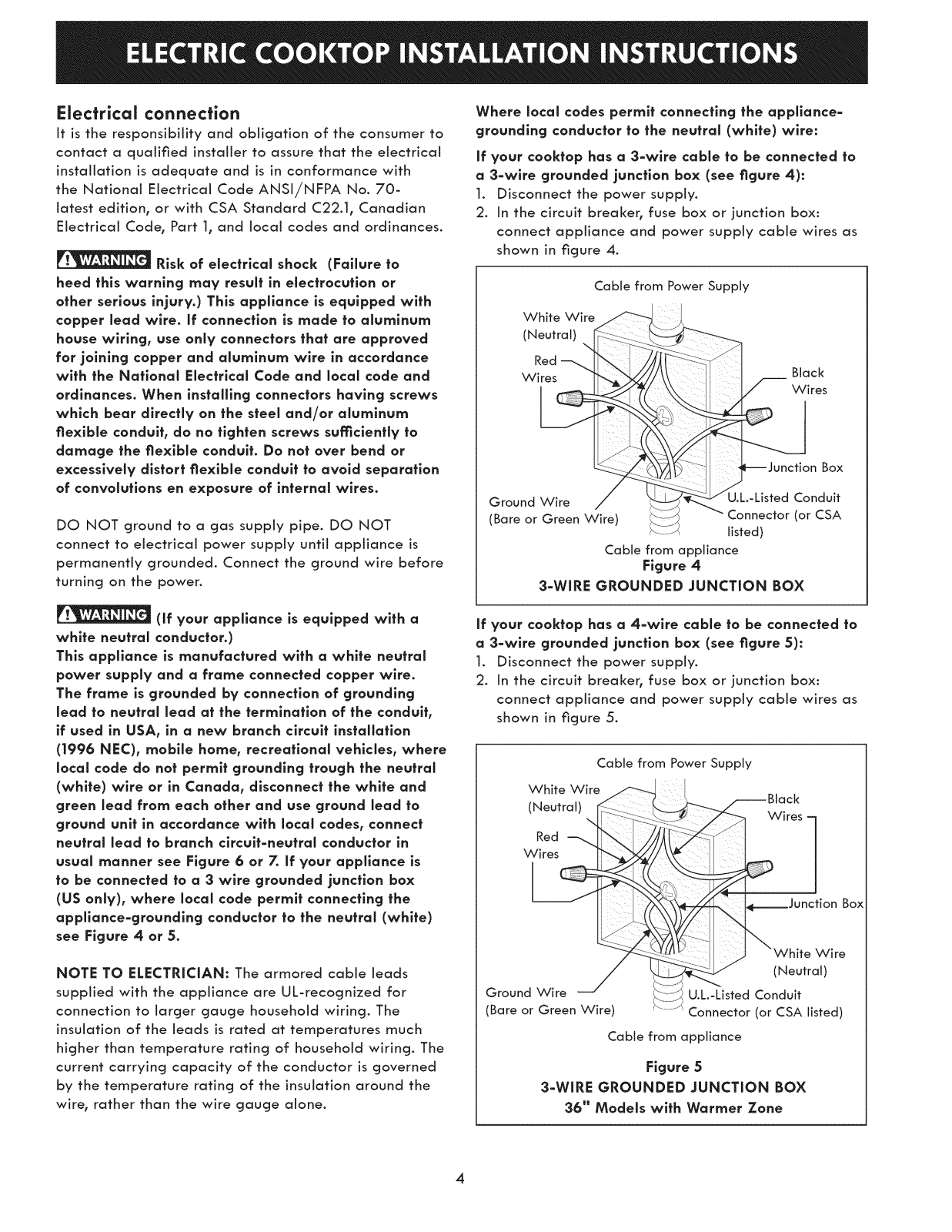

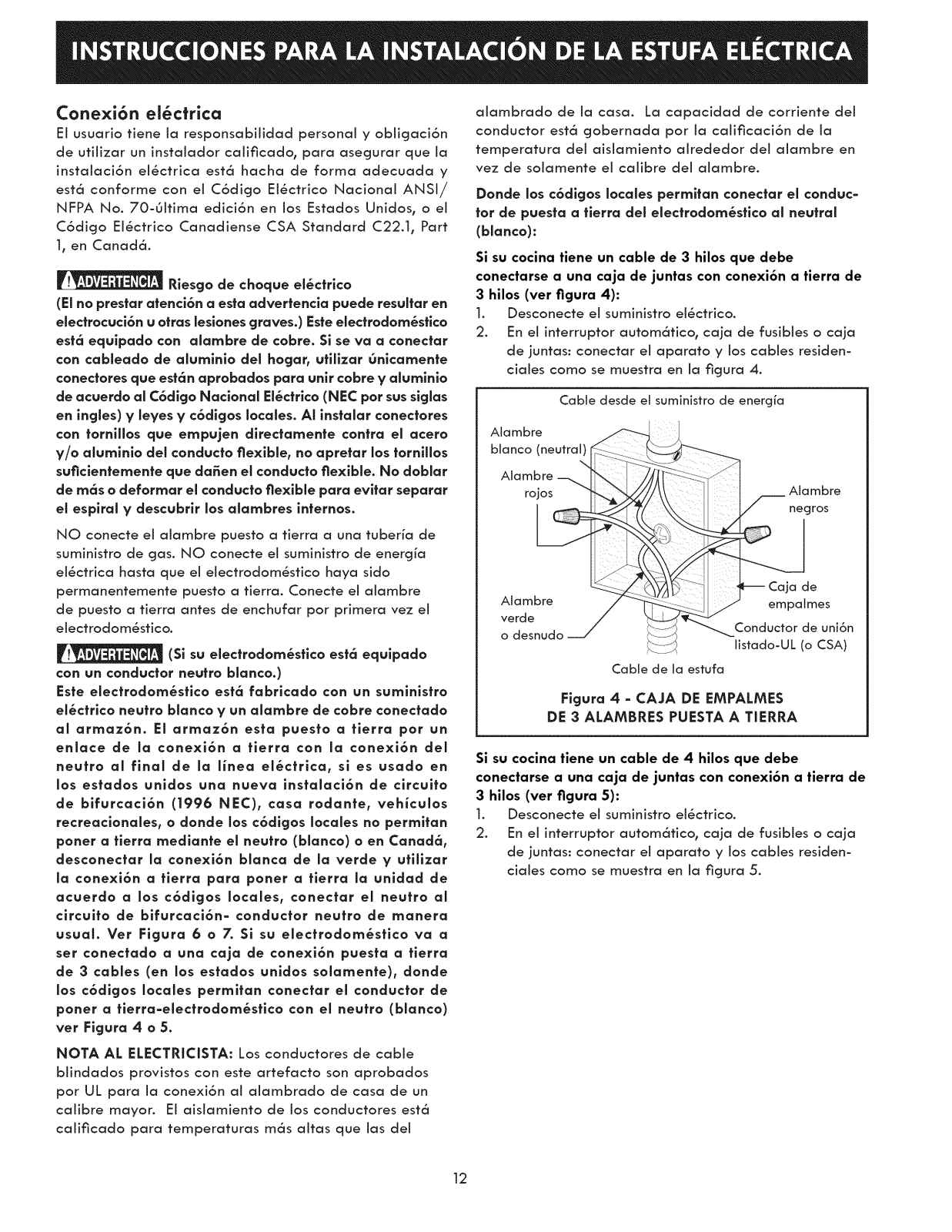

Electrical connection

It is the responsibility and obligation of the consumer to contact a qualified installer to assure that the electrical installation is adequate and is in conformance with the National Electrical Code ANSI/NFPA No. 70- latest edition, or with CSA Standard C22.1, Canadian Electrical Code, Part 1, and local codes and ordinances.

Risk of electrical shock (Failure to

heed this warning may result in electrocution or

other serious injury.) This appilance is equipped with copper lead wire. If connection is made to aluminum house wiring, use only connectors that are approved for joining copper and aluminum wire in accordance

with the National Electrical Code and local code and ordinances. When installlng connectors having screws

which bear directly an the steel and/or aluminum flexible conduit, do no tighten screws sufficiently to damage the flexlble conduit. Do nat over bend or excessively distort flexible conduit to avoid separation of convolutions en exposure of internal wires.

Where local codes permit connecting the appllance- grounding conductor to the neutral (white) wire:

if your cooktop has a 3-wlre cable to be connected to

a 3-wlre grounded junction box (see figure 4):

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box: connect appliance and power supply cable wires as shown in figure 4.

Cable from Power Supply

White Wire ""---_ .....

/Neutral/

W I Black

i 7{ _+\x

Ground

ii ; '_ _Junction Box

DO NOT ground to a gas supply pipe. DO NOT connect to electrical power supply until appliance is permanently grounded. Connect the ground wire before turning on the powen

(If your appliance is equipped with a

white neutral conductor.) This appliance is manufactured with a white neutral power supply and a frame connected copper wire. The frame is grounded by connection of grounding

lead to neutral lead at the termination of the conduit, if used in USA, in cl new branch circuit installation (1996 NEC), mobile home, recreational vehicles, where local code do nat permit grounding trough the neutral (white) wire or in Canada, disconnect the white and green lead from each other and use ground lead to ground unit in accordance with local codes, connect

neutral lead to branch clrcult-neutral conductor in

usucil manner see Figure 6 or 7. If your appliance is to be connected to a 3 wire grounded junction box (US only), where local code permit connecting the appllance-groundlng conductor to the neutral (white)

see Figure 4 or 5.

NOTE TO ELECTRICIAN: The armored cable leads supplied with the appliance are UL-recognized for

connection to larger gauge household wiring. The insulation of the leads is rated at temperatures much higher than temperature rating of household wiring. The current carrying capacity of the conductor is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone.

(Bare or Green Wire)

Cable from appliance

Figure 4

3=WIRE GROUNDED JUNCTION BOX

If your cooklop has a 4-wlre cable to be connected to a 3=wlre grounded junction box (see figure 5):

1. Disconnect the power supply.

2. In the circuit breaker, fuse box or junction box: connect appNance and power supply cable wires as shown in figure 5.

Cable from Power Supply

Whte Wre

(Neutral) _ :::............,_ _"_----_/_---- ....

Red :: _ ' /

Wires _'_ __

iI ....:_: :_ _, / ---. vvlres

listed)

Black

L-J I i t7 . unctionBox

/_:_; .......i ) "White Wire

/ _-ZJ- _ (Neutral)

Ground Wire _2L% U.L.=ListedCon " (Bare or Green Wire) Connector (or CSA listed)

_/ _"--J duff

Cable from appliance

Figure 5

3-WIRE GROUNDED JUNCTION BOX

36" Models wlth Warmer Zone

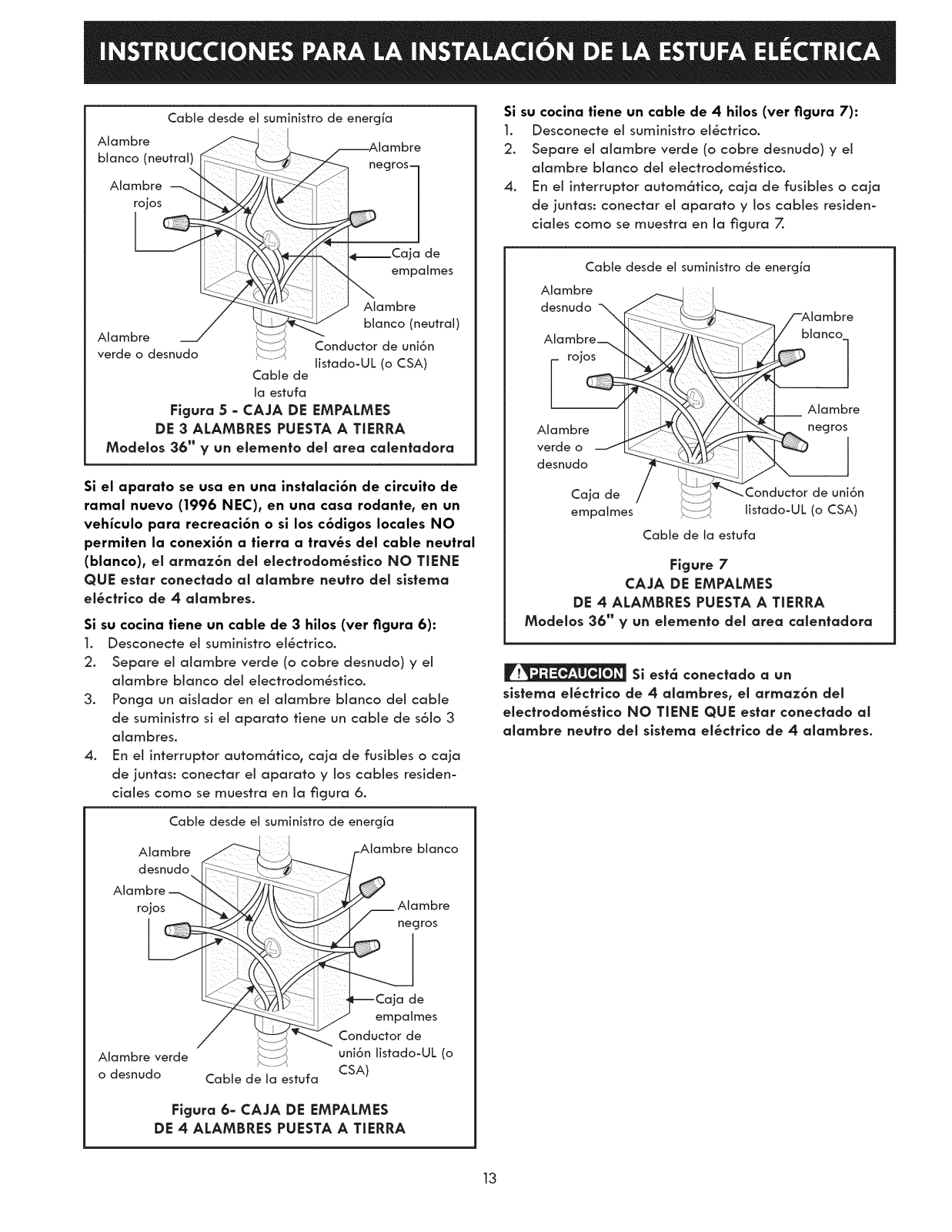

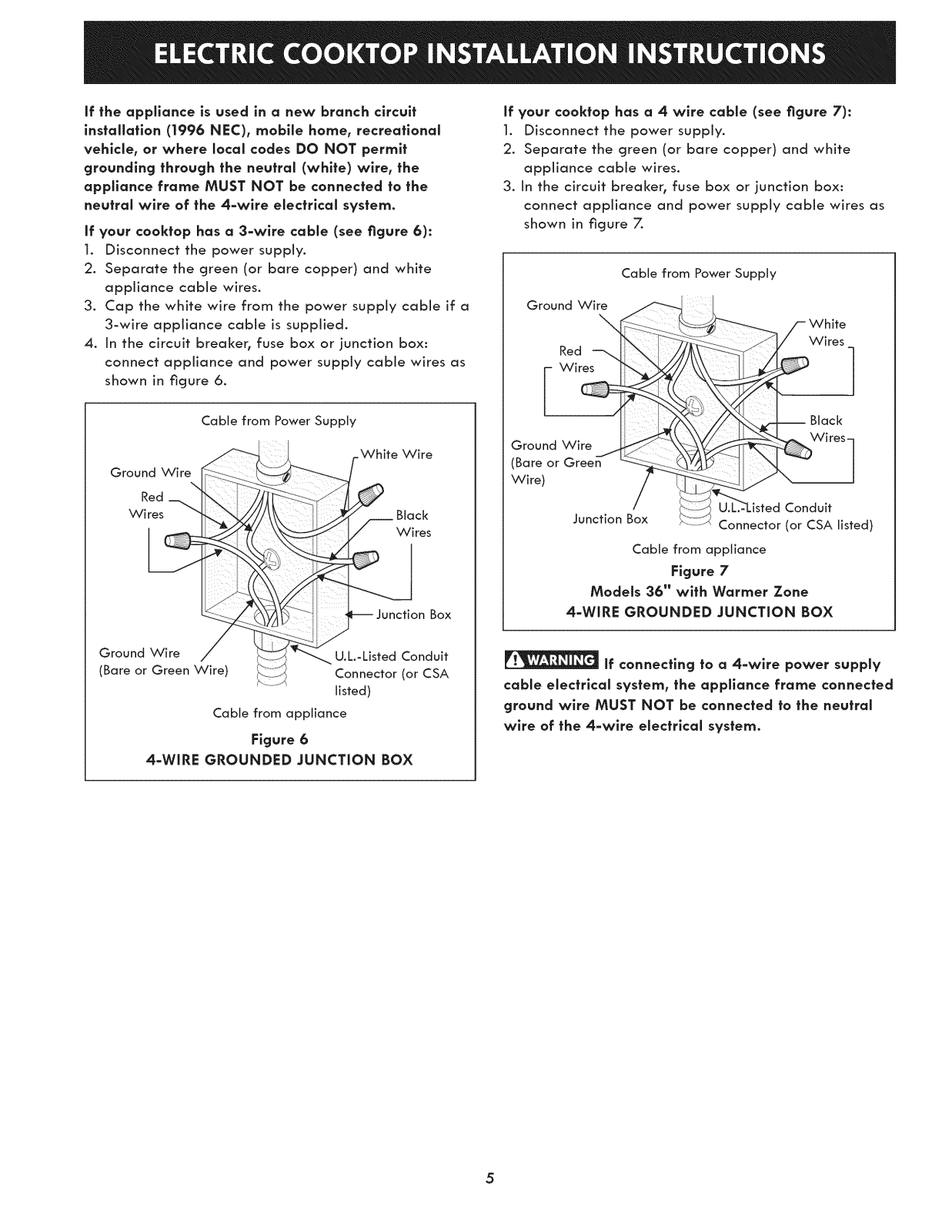

If the appliance is used in a new branch circuit

installation (1996 NEC), mobile home, recreational vehicle, or where local codes DO NOT permit grounding through the neutral (white) wire, the appliance frame MUST NOT be connected to the neutral wire of the 4-wire electrical system.

if your cooktop has a 3=wlre cable (see figure 6):

1. Disconnect the power supply.

2. Separate the green (or bare copper) and white appliance cable wires.

3. Cap the white wire from the power supply cable if a 3-wire appliance cable is supplied.

4. In the circuit breaker, fuse box or junction box: connect appliance and power supply cable wires as shown in figure 6.

If your cooktop has a 4 wire cable (see figure 7):

1. Disconnect the power supply.

2. Separate the green (or bare copper) and white appliance cable wires.

3. In the circuit breaker, fuse box or junction box: connect appliance and power supply cable wires as shown in figure 7.

Cable from Power Supply

Ground Wire

White

Red

Wires

Cable from Power Supply

.White Wire

Ground Wire

Red

Wires

Black

Wires

Junction Box

Ground Wire U.L.-Listed Conduit (Bare or Green Wire) Connector (or CSA

listed)

Cable from appliance

Figure 6

4=WIRE GROUNDED JUNCTION BOX

-- Black

Ground Wire (Bare or Green

Wire)

Conduit

Junction Box Connector (or CSA listed)

Cable from appliance

Figure 7

Models 36" with Warmer Zone

4=WIRE GROUNDED JUNCTION BOX

if connecting to a 4=wlre power supply

cable electrical system, the appllance frame connected

ground wire MUST NOT be connected to the neutral wire of the 4=wlre electrical system.
