DUAL EL

A GE

Slide-in models

ESTU E EL

UAL

IVlodeios deslizables

IVlodeis, modelos 790.4103_-, 790.4104_-

_- = color number, n_mero de color

00 00

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com

PIN 318203893 Bey. A (0806)

Table of Contents

Slide-in Range Warranty ............................................................ 2

IMPORTANTSAFETY INSTRUCTIONS ..................................3-5

Product Record .......................................................................... 5

Serial Plate Location .................................................................5

Conversion to Liquefied Petroleum Gas (or L.P. Gas)............ 5

Protection Agreements .............................................................6

Range Features .......................................................................... 7

Before Setting Surface Controls ........................................... 8-9

Setting Surface Controls .................................................... 10-11

Surface Cooking ................................................................. 12-13

Before Setting Oven Controls ............................................ 13=14

Air Circulation in the Oven ...................................................... 14

Control Pad Features ............................................................... 15

Minimum and Maximum Control Pad Settings ...................... 15

Setting Oven Controls ........................................................ 16=34

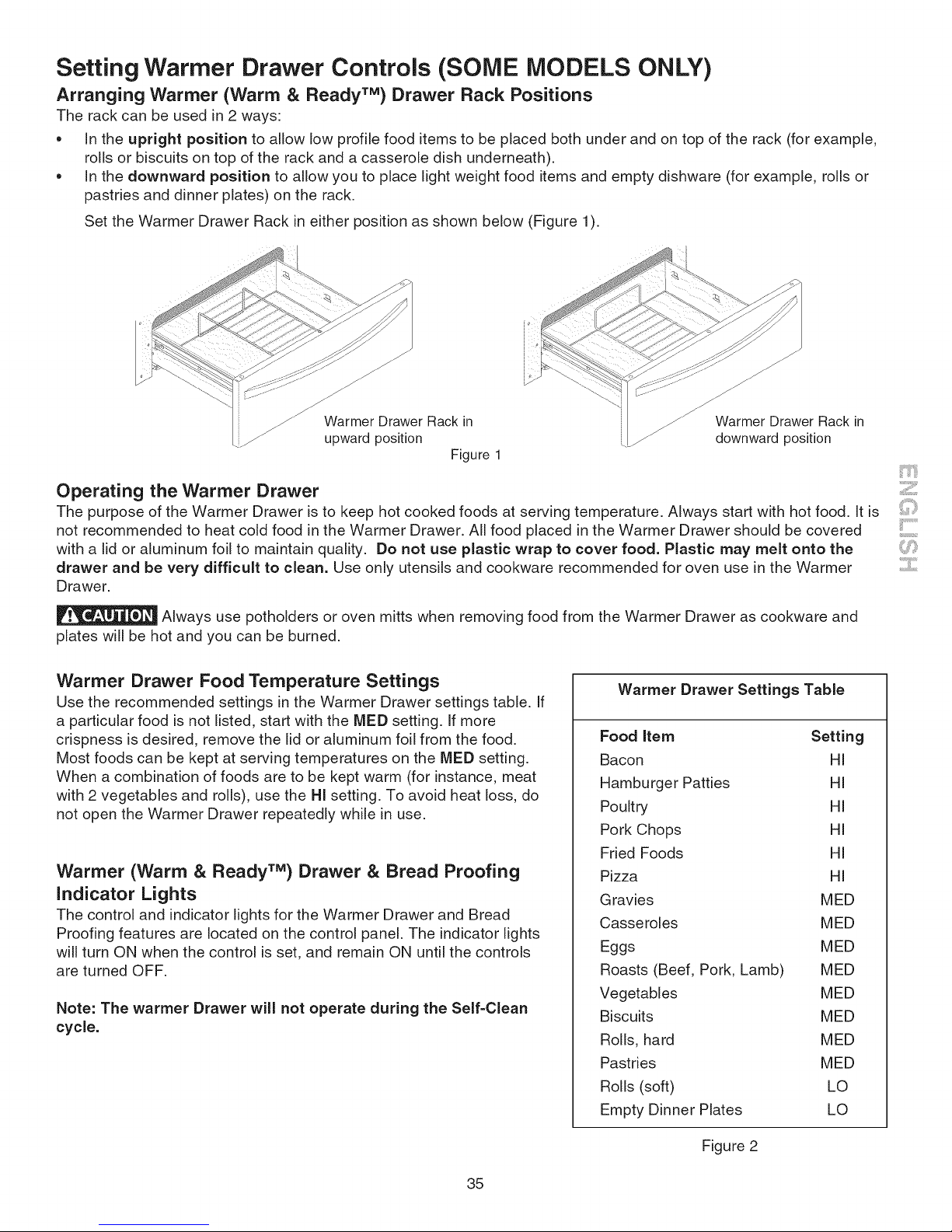

Setting Warmer Drawer Controls ....................................... 35=36

Self=Cleaning ....................................................................... 37=40

Adjusting Oven Temperature .................................................. 40

General Care & Cleaning .................................................... 41-45

Before You Call .................................................................... 46-47

Sears Service ........................................................................... 48

Please carefully read and save these instructions

This Use & Care Manual contains general operating instructionsfor your appliance and feature informationfor several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Kenmore Elite Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.

For five years from the date of purchase, if the cooktop glass fails due to thermal shock, call 1-800-4-MY-HOME® to arrange for free part replacement. After the first year from purchase date, you must pay the labor cost of part installation.

This warranty applies for only 90 days from the date of purchase ifthis appliance is ever used for other than private family purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.

3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

4. A service technician to instruct the user in correct product installation, operation or maintenance.

5. A service technician to clean or maintain this product.

6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions supplied with the product.

7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

2 Printed in United States

important Safety instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains many important safety messages. Always read and obey all safety messages. The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or

others, or cause damage to the product.

indicates an imminently hazardous situation which, if not avoided may result in death or

serious injury.

indicates an imminently hazardous situation which, if not avoided may result in minor or

moderate injury, or product damage. All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the

instructions are not followed.

if the information in this manual is not followed

exactly, a fire or explosion may result causing property damage,

personal injury or death. FOR YOUR SAFETY:

-- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

-- WHAT TO DO iF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone

in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• if you cannot reach your gas supplier, call the fire department.

-- installation and service must be performed by a qualified installer, servicer or the gas supplier.

Remove all tape and packaging before using the

range. Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

Proper Installation-Be sure your appliance is properly installed and grounded by a qualified

technician in accordance with the National Fuel Gas Code ANSI Z223.1 latest edition, and National

Electrical Code ANSI/NFPA No. 70--latest edition, and local code requirements. Install only per installation instructions provided in the literature package for this range.

Sears Parts & Repair is the recommended repair service for this appliance. Know how to disconnect the power to the range at the circuit breaker or fuse box and gas supply at the main shutoff valve in case of an emergency.

Remove the drawer to access the valve.

• User servicing--Do not repair or replace any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician, This may reduce the risk of personal injury and damage to the range.

,, Never modify or alter the construction of a range by

removing leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the product.

Stepping, leaning or sitting on the door or

drawer of this range can result in serious injuries and also cause damage to the range. Do not allow children to

climb or play around the range. The weight of a child on an open door may cause the range to tip, resulting in serious burns or other injury. An open drawer, when hot, may cause

burns.

equipped) for storage.

in the cabinets above a range. Children climbing on the range to reach items could be seriously injured.

heater to heat or warm the room. Doing so may result in

carbon monoxide poisoning and overheating of the oven.

• Storage in or on Appliance--Flammable materialsshould not be stored in an oven, near surface burners or in the

drawer (if equipped). This includes paper, plastic and cloth

items, such as cookbooks, plasticware and towels, as well as

flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may

explode and result in fire or property damage.

,, Do not leave children alone--Children should not be

left alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on

any part of the appliance.

• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESE BURNERS, OVEN HEATING ELEMENTS OR

INTERIOR SURFACES OF THE OVEN OR WARMER DRAWER (if equipped). Both surface burners and oven

heating elements may be hot even though they are dark

_, Injury to persons could result.

_i Install anti-tip device packed

the range must be secured by properly

installed anti-tip bracket(s) provided with the range. To check if the bracket(s) is installed properly, remove the lower panel or storage

drawer and verify that the anti-tip bracket(s)

is engaged. Refer to the Installation Instructions for proper anti-tip bracket(s)

installation.

Do not use the over= or warmer drawer (if

Do not store items of interest to children

NEVER use this appliance as a space

All ranges can tip.

with range. See Installation Instructions.

To reduce the risk of tipping,

important Safety instructions

in color. Areas near surface burners may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the cooktop, surfaces facing the cooktop, the oven vent openings and surfaces near these openings, oven door and window.

• Wear proper apparelRLoose=fitting or hanging garments should never be worn while using the appliance. Do not let clothing or other flammable

materials contact hot surfaces.

,, Do not use water or flour on grease fires--Smother

the fire with a pan lid, or use baking soda, a dry

chemical or foam=type extinguisher.

,, When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

In case of fire or gas leak, be sure to turn

off the main gas shutoff valve. ,, Use only dry potholders--Moist or damp potholders

on hot surfaces may result in burns from steam. Do not let potholders touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.

,, Do not heat unopened food containers--Buildup of

pressure may cause container to burst and result in

injury.

• Remove the oven door from any unused range if it is to be stored or discarded.

IMPORTANT--Do not attempt to operate the oven during a power failure, if the power fails, always turn

the oven off. If the oven is not turns off and the power resumes, the oven may begin to operate again. Food left unattended could catch fire or spoil.

Use proper flame size--Adjust flame

size so it does not extend beyond the edge of the utensil. The use of undersize utensils will exposed a

portion of the burner flame to direct contact and may result in ignition of clothing. Proper relationship of utensil to flame will also improve efficiency.

Do not use stove top grills on the burner

grates of sealed gas burners. If you use a stove top grill on a sealed gas burner, it will cause incomplete combustion and can result in exposure to carbon monoxide levels

above allowable current standards. This can be hazardous to your health.

Electronic controllers can be damaged

by cold temperatures. When you use your appliance for the first time, or if it has not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before connecting it to the power supply.

IMPORTANT INSTRUCTIONS FOR USING

YOUR COOKTOP

• Know which knob controls each surface heating unit. Always turn the knob to the LITE position when igniting the burners. Visually check that burner has lit.

Then adjust the flame so it does not extend beyond the edge of the utensil.

,, Use proper pan size. This appliance is equipped with one

or more surface burners of different sizes. Select utensils having flat bottoms large enough to cover the surface

burner. The use of undersized utensils will expose a portion of the surface burner to direct contact and may result in ignition of clothing. Proper relationship of utensil to the surface burner will also improve efficiency.

,, Utensil handles should be turned inward and not

extend over adjacent surface burnersiTo reduce the risk of burns, ignition of flammable materials, and spillage

due to unintentional contact with the utensil. The handle of the utensil should be positioned so that it is turned inward,

and does not extend over adjacent surface burners.

,, Never leave surface burners unattended at high heat

settingsiBoilovers cause smoking and greasy

spillovers that may ignite, or a pan that has boiled dry may melt.

,, Protective linersiDo not use aluminum foil to line oven

bottom or any other part of the appliance. Only use aluminum foil as recommended for baking if used as a cover placed on the food. Any other use of protective liners or aluminum foil may result in a risk of electric

shock or fire or short circuit.

,, Glazed cooking utensilsiOnly certain types of glass,

glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for rangetop service without breaking due to the sudden change in temperature.

Check the manufacturer's recommendations for rangetop use.

,, Do not use decorative surface burner covers. If a

burner is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop or burners because the covers may cause overheating. Air will be blocked from the burner and cause combustion problems.

FOR GLASS COOKTOPS ONLY

,, Do not clean or operate a broken cooktopilf cooktop

should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.

,, Clean cooktop glass with cautionilf a wet sponge or

cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can

produce harmful fumes if applied to a hot surface.

,, Avoid scratching the cooktop glass with sharp

objects.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

• Use care when opening oven door or warmer drawer (if

equipped)iStand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven/warmer drawer.

• Keep oven vent ducts unobstructed. The oven vent is located at the rear of the cooktop. Touching the surfaces

important Safety instructions

in this area when the oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items

on or near the oven vent. These items could melt or ignite.

,, Placement of oven/warmer drawer (if equipped)

racks. Always place oven racks in desired location while oven/warmer drawer (if equipped) is cool. if rack must be

moved while oven is hot use extreme caution. Use potholders and grasp the rack with both hands to

reposition. Do not let potholders contact the hot heating elements in the oven/warmer drawer (if equipped).

Remove a!l utensils from the rack before moving.

,, Do not use the broiler pan without its insert. The

broiler pan and its insert allow dripping fat to drain and be kept away from the high heat of the broiler.

,, Do not cover the broiler insert with aluminum foil.

Exposed fat and grease could ignite.

,, Do not touch a hot light bulb with a damp cloth.

Doing so could cause the bulb to break. Disconnect the appliance or turn off the power to the appliance before removing and replacing light bulb.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

• Clean the range regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not

allow grease to accumulate on hood or filter. Greasy deposits in the fan could catch fire. When you are flaming

food under the hood, turn the fan on. Refer to the hood

manufacturer's instructionsfor cleaning.

SELF CLEANING OVENS

• in the self-Cleaning cycJe only clean the parts listed in this Use and Care Guide. Before self cleaning the

oven, remove the broiler pan and any utensils or foods

from the oven.

• Do not use oven cleaners--No commercial oven cleaner or oven liner protective coating of any kind should

be used in or around any part of the oven.

• Do not clean door gasket--The door gasket Jsessential

for a good seal. Care should be taken not to rub, damage

or move the gasket.

• Remove oven racks. Oven racks color will change Jfleft Jnthe oven during a self-cleaning cycle.

,, _ The health of some birds is extremely

sensitive to the fumes given off during the self= cleaning cycle of the range. Move the birds to

another well ventilated room.

Important Safety Notice

The California Safe Drinking Water and Toxic

Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause

cancer, birth defects or other reproductive harm, and

requires businesses to warn customers of potential exposure to such substances.

Product Record

in this space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on the serial plate.

Model No. 790. Serial No.

Date of purchase Save these instructions and your sales receipt for future reference.

Serial Plate Location

You will find the model and serial number printed on the

serial plate. The serial plate "_ is located as shown below.

Remember to record the

serial number for future reference. Serial Plate

Location

Conversion to Liquefied Petroleum Gas (or L. P. Gas)

This natural gas range is designed to allow for conversion to Liquefied Petroleum (L. P.) Gas.

Only a qualified service agent should perform the L. P. conversion. Contact the local gas provider for conversion. A L. P. Conversion Kit is supplied with this range and is located on the main back of the range. The kit contains installation instructions which must be read before and followed carefully when installing the kit.

To avoid serious injury, any additions, changes or conversions required in order for this appliance to

satisfactorily meet the application needs must be made by a qualified service agent.

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore®product is designed and manufactured for years of

dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when

having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement* includes:

[] Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our coverage

goes well beyond the product warranty. No deductibles,

no functional failure excluded from coverage - real

protection.

[] Expert service by a force of more than 10,000 authorized

Sears service technicians, which means someone you

can trust will be working on your product.

[] Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

[] ,,No-lemon,, guarantee- replacement of your covered

product if four or more product failures occur within twelve months.

[]

Product replacement if your covered product can't be

fixed.

[]

Annual Preventive Maintenance Check at your request -

no extra charge.

[]

Fast help by phone - we call it Rapid Resolution - phone support from a Sears representative on all products.

Think of us as a ,4alking owner's manuab.

[] Power surge protection against electrical damage due to

power fluctuations.

[] $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freeoer.

[] Rental reimbursement if repair of your covered product

takes longer than promised.

[] 10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime

day or night, or schedule a service appointment online. The Master Protection Agreement is a risk free purchase. If you

cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the

product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and

additional information in the U.S.A. call 1-800-827-6655. * Coverage in Canada varies on some items. For full details

call Sears Canada at 1-800-361-6665. Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME ®.

Acuerdos maestros de proteccibn

Enhorabuena por haber hecho una compra intetigente. Su nuevo producto Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento

fiable. Pero, como cualquier producto, puede necesitar mantenimiento

preventivo o reparaciones peri6dicas. Es por eso que tener un Acuerdo maestro

de protecci6n podria ahorrarle dinero y molestias.

El Acuerdo maestro de protecci6n tambien sirve para prolongar la durabilidad

de su nuevo producto. El acuerdo* incluye Io siguiente:

[] Piezas y mano de obra necesarias para contribuir a mantener el

funcionamiento adecuado de los productos utilizados en condiciones normales de uso, no s61o en caso de defectos de los productos. Nuestra

cobertura va mucho mbs allb que la garantia del producto. No se aplican deducibles ni exclusiones por fallas del funcionamiento: es decir, verdadera proteccibn.

[] Servicio t_cnico por expertos (mas de 10000 t_cnicos autorizados de

Sears), Io cual significa que quien repare o realice el mantenimiento de su producto sera un profesional de confianza.

[] Servicio t_cnico a escala nacional y n_mero ilimitado de Ilamadas de

solicitud de servicio t_cnico: se puede poner en contacto con nosotros cuantas veces Io desee y cuando Io desee.

[] Garantia <,sin sorpresas,,: se reemplaza el producto cubierto por el

acuerdo si ocurren cuatro o mas fallas del producto en un periodo de 12 meses.

[] Reemplazo del producto: en caso de que no se pueda reparar el

producto cubierto por el acuerdo.

[] Revisibn anual preventiva de mantenimiento del producto: puede

solicitarla en cualquier momento, sin costo alguno.

[] Rbpida asistencia telefbnica, la cual denominamos Solucibn rbpida: es

decir, asistencia telef6nica a traves de cualquiera de nuestros

representantes de Sears, sobre cualquiera de nuestros productos. Piense

en nosotros como en un <<manualparlante del usuario>,.

[] Proteccibn contra fallas el_ctricas, contra daSos debidos a fluctuaciones

de la corriente electrica.

[] $250 al aSo para cubrir cualquier posible deterioro de alimentos que

haya tenido que desechar debido a una falla mecanica de cualquiera de nuestros refrigeradores o congeladores cubiertos por este acuerdo.

[] Devolucibn de gastos de alquiler de electrodom_sticos si la reparaci6n

de su producto asegurado toma masque el tiempo prometido.

[] 10% de descuento aplicable tanto a los costos del servicio de reparaci6n,

como de las piezas instaladas relacionadas que no hayan quedado cubiertos por este acuerdo.

Una vez que haya realizado el pago de este acuerdo, bastara una simple Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a

cualquier hora del dia o de la noche, o bien concertar una visita de servicio por

Internet. La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n exenta de

riesgos. Si por cualquier motivo decide cancelar dicho acuerdo durante el periodo de garantia del producto, le haremos un reintegro total del valor. O bien un importe proporcional si cancela el acuerdo en cualquier otro momento posterior al vencimiento del periodo de garantia del producto, iAdquiera hoy

mismo su Acuerdo maestro de protecci6n!

Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar

precios e informacibn adicional, Ilame al 1-800-827-6655 (en los EE.UU.).

* La cobertura en Canadb varia en el caso de algunos articulos. Para obtener detalles completos al respecto, Ilame al 1-800-361-6665 de Sears

de Canadb.

Servicio de instalaci6n de Sears

Para solicitar la instalacidn por profesionales de Sears de electrodomesticos,

abridores de puertas de garaje, calentadores de agua y otros articulos de uso

prioritario en el hogar, Ilame al 1-800-4-MY-HOME en los EE.UU. o CanadA.

Range

Your Dual Fuel

Slide-in Range

Features At a Glance

Features

Dishwasher Safe Burner Grates

Electronic Oven Controls with Clock and Kitchen Timer

Electronic Warmer Drawer Control

Surface Control

Knob

Oven Vent

Broil Element

5,000 BTU

14,200 BTU

Burner Dishwasher Safe

Burner Grates

Simmer Burner

Convection Fan Cover

Self-Cleaning Interior Oven

Adjustable Oven Racks

Interior Halogen

Oven Ligths

One Piece Door Handle

Glass Oven Door with

Large Window :........

Opening _,,i

Warmer

Drawer

with Rack

Porcelain Cooktop 9,500 BTU 17,200 BTU

Burner

Note: The features of your range will vary according to model,

Power Burner

*9,000 BTU Burner

27,000 BTU when used with all 3 burners combined as a

Bridge Burner.

5,OOOBTU

Dishwasher Safe Simmer Burner

Burner Grates

17,200 BTU Glass Power Burner Cooktop

Before Setting Surface Controls

Glass Cooktop • Assembly of the Surface Burner Heads, Burner Caps and Burner Grates

It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps and Surface Burner Grates are installed correctly and at the correct locations.

1. Be sure to follow the Installation Instructions before

installing and using your new range.

:S %_ (not m_rked)

q k A

2. Remove all packing tape from cooktop. Remove Burner Caps and Burner Heads (See Figure 1).

3. Discard all packing material located under all Burner Heads (if applicable).

4. To replace Burner Heads & Caps, match the letters located under center of Burner Caps with the letters located inside Burner Head (only positions A & F are marked with letters - See Figure 2). Place all Burner Heads & Caps on the cooktop (See Figure 1) while

carefully aligning the Electrodes into slots or holes of the Bridge Burner Head Burner Heads (Figure 4). Note: The Burner Heads should |

sit flat on Cooktop Burner Skirts.

5. Replace Bridge Burner Caps. These include one Bridge Burner Center Cap (rectangular shaped) and the two

Bridge Burner End Caps (The Bridge Burner End Caps

tions). Make sure that the tabs located under the Bridge

Burner Caps fall into the slots located in the Bridge Burner

will fit either the front or rear Bridge Burner Head Ioca- ......

Burner Caps lie flat and evenly on the Bridge Burner

Head (See arrows in Figure 3) and that all the Bridge Head.

6. Unpack Burner Grates. NOTE: Do not force End Burner Grates down on cooktop. Be careful to line up the 2 Grate

Pins located on each of the 2 End Burner Grates into the Pilot holes located on top of the Burner Caps (See Figure

5). Position Burner Grates on cooktop and check that all

the Burner Grate legs lie on the glass surface.

7. Place Center Burner Grate between the end Burner

Figure 3

Grates.

REMEMBER -- DO NOT ALLOW SPILLS, FOOD,

CLEANING AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING. Always

keep the Burner Caps and Burner Heads in place whenever the surface burners are in use.

3 peSitions

17.2k

Figure 1

Bridge Burner End

Cap

Bridge Burner

Center Cap

must align into slot or hole

for each Burner Head

Figure 4

Figure 5

Locations of the Gas Surface Burners (See Figure 6)

The SIMMER burner is best used for simmering delicate sauces, etc. This burner is located at the right rear burner position on the cooktop.

The STANDARD sized burner are used for most surface cooking needs. These burners are located at the left front

and left rear positions on the cooktop. The POWER burner is best used for bringing large

quantities of liquid rapidly up to temperature or when preparing larger quantities of food. This burner is located at the right front position on the cooktop.

The BRIDGE burner is best suited when using rectangular or long shaped cookware. The left rear and left middle are combined and controlled by the same control knob. The left front burner may also be added for a total of 3 burners.

Figure 6

Before Setting Surface Controls

Porcelain Cooktop: Assembly of the Surface Burner Heads, Burner Caps and Burner Grates

It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps and Surface Burner Grates are installed correctly and at the correct locations.

1. Remove all packing tape from cooktop area. Remove all Burner Caps and Burner Heads.

2. Discard all packing material located under Burner Heads (if applicable).

3. To replace the Burner Heads & Caps, match the letters located under center of Burner Caps with the letters located inside Burner Heads (Figure 1).

4. Match Burner Skirts with Burner Heads and Burner Caps (see Figure 1). Replace the Burner Heads and Caps on cooktop (see Figure 2). Carefully align the Electrodes into slot or hole of each Burner Head (Figure 3). Note: The Burner Heads should sit flat on Cooktop Burner Skirts.

5. Place the removable oven vent cover over the fixed oven vent cover.

6. Unpack Burner Grates and position on the cooktop.

REMEMBER = DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING. Always keep the Burner Caps and Burner Heads in place whenever the surface burners are in use.

Locations of the Gas Surface Burners (See Figure 4)

Your range is equipped with gas surface burners with different BTU ratings. The ability to heat food quicker and in larger volumes

increases as the burner size increases.

B BUper

Figure 1

17.2K

Figure 2

Figure 3 align into slot or hole for each

Burner Head

/iH..............

The small SIMMER burner is best used for simmering delicate sauces, etc. This burner is located at the right rear burner position on the cooktop.

The STANDARD burner can be used for most surface cooking needs. This standard burner is located at the left front position on the cooktop.

The POWER burners are best used for bringing large quantities of liquid rapidly up to temperature or when preparing larger quantities of food. The POWER burners are located at the right front and left rear positions on the cooktop.

Regardless of size, always select cookware that is suitable for the amount and type of food being prepared. Select a burner and flame size appropriate to the pan. Never allow flames to extend beyond the outer edge of the pan.

Figure 4

Setting Surface Controls

Do not place plastic

items such as salt and pepper shakers, spoon holders or plastic wrappings on

top of the range when it is in use. These items could melt or ignite. Potholders, towels or wood spoons could catch fire if placed too close to a flame.

In the event of an electrical power outage, the surface burners can be lit manually. To light a surface burner, hold a lit match to the burner head, then slowly turn the

surface control knob to LITE. After burner lights push in and turn knob to desired

setting. Use caution when lighting surface burners manually.

Operating the Gas Surface Controls:

1. Place cooking utensil on surface burner.

2. Push the surface control knob down and turn counterclockwise out of the OFF position (See Figure 1).

3. Release the knob and rotate to the LITE position. Note: All four electronic surface ignitors will spark at the same time. However, only the burner you are turning on will ignite.

4. Visually check that the burner has a flame.

5. Turn the control knob counterclockwise to the desired flame size. The control knobs do not have to be set at a particular setting. Use the knob

indicator settings to adjust the flame as needed. DO NOT cook with the surface control knob in the LITE position. (The electronic ignitor will continue to spark if the knob is left in the LITE position.)

Setting Proper Surface Burner Flame Size

For most cooking, start on the highest control setting and then turn to a

lower one to complete the process. Use the recommendations below as a guide for determining proper flame size for various types of cooking. The size and type of utensil used and the amount of food being cooked will

influence the setting needed for cooking.

*Flame Size Type of Cooking

Figure 1

High Flame Start most foods; bring water to a boil; pan broiling.

Medium Flame Maintain a slow boil; thicken sauces, gravies; steaming.

Low Flame Keep foods cooking; poach; stewing. *These settings are based on using medium=weight metal or

aluminum pans with lids. Settings may vary when using other types of pans. The color of the flame is the key to proper burner adjustment. A good flame is clear, blue and hardly visible in a well-lighted room. Each cone of flame should be steady and sharp. Clean burner if flame is yellow-

orange.

Never extend the flame beyond the outer edge of the utensil. A higher flame wastes heat and energy and increases your risk of being burned by the flame (Figure 2).

For deep fat frying, use a thermometer and adjust the surface control

knob accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If the fat is too hot, the food will brown quickly and the center will be

undercooked. Do not attempt to deep fat fry too much food at once as the food will neither brown nor cook properly.

improper

flame size

Figure 2

Setting Surface Controls (cont'd)

Glass Cooktop Only;." Setting the Bridge Burner

The Bridge Burner should be used with rectangular shaped cookware. Cookware like the cast-iron Griddle that is supplied with your range is designed specifically for best results with the Bridge Burner.

The Bridge Burner feature may be used to combine the cooking power of 2 or if needed 3 gas surface Burners located along the left-hand side of the glass cooktop.The left rear and left center Burners are controlled by the left rear surface Control Knob. In addition the left front Burner may be added to the Bridge Burner with the left front gas Control Knob (See Figure 1).

Operating the Bridge Burner

1. Push the left rear surface control knob in and turn counterclockwise out of the OFF position (See Figure 2).

2. Release the knob and rotate to the LITE position (See Figures 2 & 3). Note: All electronic surface ignitors will spark at the same time. However, only the selected

surface Burner will lite.

3. Visually check that the left rear Burner has lit.

4. Continue to rotate the gas control knob counterclockwise past the first LO setting to the arrow.. ' ,

5. Visually check that both the left rear and left center Burners are lit.

6. When both burners are lit, continue to turn the control knob counterclockwise to adjust to the desired flame size for both burners together. Note: The markings Figure 1

between the 2rid HI and LO settings on the left rear control knob adjust the flame size for both burners. Use the guide marks between the 2nd HI and LO settings and adjust the flame size as

needed (Refer to Figure 3).

7. Add the left front Burner if needed. Once lit, visually adjust the flame size of the left front Burner to match the flame size of the Bridge Burner.

8. Place cooking utensil centered over the left-hand cooktop surface Burner Grate. DO NOT cook with any of the surface control knobs in the LITE position (The electronic ignitor will continue to spark if the knob is left in the LITE position).

Note: If only the left rear surface Burner is needed, follow the instructions provided below.

Operating only the Left rear Gas Surface Burner

1. Place cooking utensil centered over the left-rear surface Burner Grate.

2. Push the left rear surface control knob in and turn counterclockwise out of the OFF position (See Figure 2).

3. Release the knob and rotate to the LITE position. Note: All electronic surface ignitors will spark at the same time. However, only the left rear Burner will ignite.

4. Visually check that the left-rear burner has lit. Adjust the flame size by turning the control knob between the first HI and LO settings (See Figure 3). DO NOT cook with the surface control knob in the LITE position (The electronic ignitor will continue to spark if the knob is left in the LiTE position).

position for the

Center Portion of the

Burner

Figure 2

Center + Rear Portions of the Bridge Burner

adjustment area

Figure 3

Surface Cooking

Use Proper Cookware

Cookware should have flat bottoms that

make good contact with the entire

surface heating element. Check for

flatness by rotating a ruler across the Figure 1

bottom of the cookware (See

Figure 1). Be sure to follow the recommendations for using cookware as shown in Figure 2.

CORRECT

• Flat bottom and straight sides.

• Tight fitting lids.

Weight of handle does not tilt

pan. Pan is well balanced. Pan sizes match the amount

of food to be prepared.

Made of material that

conducts heat well.

INCORRECT

= Curved and warped pan bottoms.

Pan overhangs burner grate by

more than 2.5 cm (1").

Heavy handle tilts pan.

Flame extends beyond pan.

Note: The size and type of cookware used will influence the setting needed for best cooking results.

Note: Always use a utensil for its intended purpose. Follow manufacturer's instructions.

Some utensils were not made to be used in the oven or on the cooktop.

Using a wok (some models)

Woks with flat bottoms suitable for

use on your cooktop are available in most cookshop or hardware stores. Round-bottomed woks (with a support ring that does not extend beyond the

burner circumference) may also be

used. The metal ring was designed to support the wok safely when it is filled with large amounts of liquids (soup

making) or fat (frying).

Wire trivets: Do not use wire trivets.

Cookware bottoms must be in direct contact with the grates.

Easy to clean.

Figure 2

* Specialty pans such as lobster pots, griddles and pressure cookers may

be used but must conform to the above recommended cookware

requirements.

DO NOT use a wok if it is equipped with

a metal ring that extends beyond the

burner circumference. Because this ring traps heat, the surface unit and

cooktop surface could be damaged.

Surface Cooking

Care & Seasoning of the Griddle (some models)

Before first use:

,,Wash Griddle in hot soapy water. Rinse and then dry completely. ,,Apply a thin coat of vegetable oil to the entire surface (front and back of griddle). ,, Preheat your oven to 350°R Place the griddle on the upper rack in your oven. ,,Bake griddle for 1 hour at 350°E then turn oven OFF and let cool before remov-

ing.

,,The surface may appear to have a tacky feel to it from the seasoning process, if

desired, wash the griddle in hot soapy water, rinse well, and dry completely.

After each use: ,,To prevent rusting, store in a dry place and keep uncovered.

,,After each use, clean with a stiff brush and hot water only.

• DO NOT CLEAN GRIDDLE IN DISHWASHER. ,,Dry Immediately and apply a light coating of vegetable oil to griddle before

storing.

Using the Griddle:

,, Place either side of the griddle centered over the left side gas burners or over the

Bridge Burner. For location refer to Figure 1.

,, Preheat the griddle for 5 minutes on medium to medium low setting. Slow

preheat ensures even heat distribution during the cooking process.

,,DO NOT preheat the griddle on HI setting. Preheating on HI may warp the

griddle and prevent even heat distribution.

Figure 1

Before Setting Oven Controls

i _ This range has a fan that will turn "0 N" and "OFF" by itself to keep the electron its cool. It may conti hue

to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while.

Oven Vent Location

The oven vent is located at right side of the front panel and visible when the oven door is open. When the oven is on, hot air is released through the vents. This venting is necessary for proper air circulation in the oven and good

baking results. OVEN VENT

To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides on the oven walls. Tilt the front of the rack

upward and slide the rack back into place.

Removing and Replacing Oven Racks

Before Setting Oven Controls (cont'd)

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN), Always use oven mitts when the oven is hot.

RECOMMENDED RACK POSITIONS FOR

BROILING, BAKING & ROASTING

Figure 1

Types of Oven Racks

Rack positions

Food Broiling meats, chicken or fish

Cookies, cakes, pies, biscuits &muffins

Frozen pies, angel food cake, yeast, bread,

casseroles, small cuts of meat or poultry Turkey, roast or ham

Note: Always use caution when removing food.

Rack position

3or4 2or3

1 or2

Flat Handle Oven Rack

Figure 2

Always use pot holders or

oven mitts when adjusting the oven racks. Wait until the oven has completely cooled if possible. Oven racks may be HOT and may

cause burns. Your appliance may be equipped with one

or more of the oven rack types shown; Flat Handle Oven Rack (Figure 2) and Flat Oven Half Rack (Figure 3).

The Flat Half Rack has a removable insert that can provide extra space for larger food items. The right half rack portion may still be used for other food items like a

casserole dish (See Figure 3). To remove the insert, squeeze on the left front insert side (See Figure 4) of the rack and tilt out clockwise. To reinstall insert rear hooks at back of insert (See Figure 5) and lay insert down. Make sure both insert front hooks snap into rack (See Figure 5).

Do not use cookware that extends beyond the edge of the Flat Half Rack. For best results, allow 2 inches between the pan placed on the rack and oven side or

rear walls.

Flat Half Oven Rack (some models)

Figure 3

Figure 4

Air Circulation in the Oven

Figure 5

1 Oven Rack

For best air circulation and baking results allow 2-4" (5-10 cm) around the cookware for proper air circulation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. The hot air must circulate around the pans and

cookware in the oven for even heat to reach around the food.

Multiple Oven Racks

Control Pad Features

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become

familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Guide.

FLEX CLEAN

SLOW COOK-- PAD-- Use to Use to select the select the

Slow Cook feature.\ Self-Cleaning

"x_ature.

OVEN COOK TIME-- Use to enter the length \

of the baking time.

WARM & HOLD INDICATOR

LIGHT--Indicates if the Warm & Hold feature is active.

DELAY START-- Use with BAKE,

COOK TIME and CLEAN to program a

Delayed Timed Bake or Delay Self- Cleaning cycle start

time. KITCHEN TIMER

ON/OFF Use to set or cancel the Kitchen Timer. The Kitchen

Timer does not ADD 1 MINUTE-- start or stop Use to select Add

cooking. 1 Minute feature.

WARM & HOLD

PAD--Use to

select the Warm

& Hold feature.

START--Use Use to enter to start all CONVECTION the normal oven features BAKE-- Use Bake feature.

(not used to select the

with Oven Convection

Light). Bake feature.

CONV CONVERT--Use

to select the

Convection Convert feature.

OVEN LIGHT--Use

to turn the oven

light ON and OFF.

BAKE PAD--

MEAT PROBE-- CAKES & Use to activate or BREADS-- Use to desactivate the select the Cakes &

meat probe Breads cooking

function (some feature.

models). PREHEAT-- Use to raise oven to cooking

temperature.

CLOCK SET-- Use to set the time of day.

BROIL CONVECTION 0 THRU 9

PAD-- Use ROAST-- Use NUMBER to select to select the PADS -- Use variable Convection to enter

broil Roast feature, temperature function, and times.

STOP CLEAR--Use to cancel any oven mode

previously entered except the time of day

and minute timer. Press STOP/CLEAR to stop

cooking. STOP/CLEAR also controls the Oven

Lockout featu re.

Minimum and Maximum

Control Pad Settings

FEATURE PREHEAT TEMP.

BAKE, CAKES, BREADS TEMP. BROIL TEMP.

KITCHEN TIMER 12 Hr.

CLOCK TIME 12 Hr.

COOK TIME 12 Hr.

DELAY START 12 Hr.

CLEAN TIME CONVECTION BAKE, ROAST.

MEAT PROBE

All of the features listed below have minimum and maximum time or temperature settings that may be entered into the control. An ENTRY acceptance beep will sound each time a control pad is touched (the Oven Lockout pad is delayed 3 seconds).

An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or time is below the minimum or above the maximum settings for the feature.

24 Hr.

MINIMUM TEMP./TIME 170 °F/77° C 170 °F/77°C 400°F/205°C 0:01 Min. 0:01 Min. 1:00 Hr./Min. 0:00 Hr./Min. 0:01 Min. 0:01 Min.

1:00 Hr./Min. 0:00 Hr./Min. 2 hours 170°F/77°C 130 °F/54°C

MAXIMUM TEMP./TIME 550°F/288°C 550°F/288°C 550 °F/288°C

11:59 Hr./Min.

11:59 Hr./Min. 12:59 Hr./Min. 23:59 Hr./Min.

11:59 Hr./Min.

12:59 Hr./Min. 23:59 Hr./Min. 4 hours 550 °F/288°C 210°F/99°C

Setting Oven Controls

Setting the Clock

The _'_ pad is used to set the clock. The clock may be set for 12 or 24 hour time of clay operation. The clock has been preset at the factory for the 12 hour operation. When the

range is first plugged in, or when the power supply to the range has been interrupted, the timer in the display will flash (See Fig. 1).

Figure 1

INSTRUCTIONS

To set the clock (example below for 1:30)

1. Press @. "CLO" will appear in the display (Figure 2).

2. Press (_ (_) _ pads to set the time of day to 1:30 (Figure 3). "CLO" will stay in the display• Press "CLO"

will disappear and the clock will start (Figure 4).

Changing between 12 or 24 hour time of day display

1. Press and hold _'_ for 7 seconds• "CLO" will appear in the display. "12h" (Figure 5) or "24h" (Figure 6) appears in the

display and the control beeps once.

2. Press _ to switch between the 12 and 24 hour time of clay display. The display will show either "12h" (Figure 5) or "24h"

(Figure 6).

3. Press to accept the change or press _ to reject the change•

4. Reset the correct time as described in To set the Clock above. Please note that if the 24 hour time of day mode was

chosen, the clock will now display time from 0:00 through 23:59 hours•

PRESS

qb( db

for 7 seconds

DISPLAY

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Setting Oven Controls (con't)

Setting Continuous Bake or 12 Hour Energy Saving

The TIMER _ and FLEX CLEAN @ pads control the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is

left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking, iNSTRUCTiONS PR ESS DISPLAY

To set the control for Continuous Bake or 12 Hour Energy Saving features

1. Press and hold _ for 7 seconds (Figure1). After 7 seconds "12h" or %

-h" will appear in the display and the control will beep once.

2. Press @ to switch between the 12 Hour Energy Saving and continuous bake features. Note: "12h" (Figure 2) in the display indicates

the control is set for the 12 Hour Energy Saving mode and "- -h" indicates the control is set for the Continuous Bake feature (Figure 3).

3. Press :START'to accept the change (Figure 4; display will return to

time of day) or press _ to reject the change.

for 7

seconds

Figure 1

Figure 2

Figure 3

Setting Kitchen Timer Figure 4 _,,i

The TIMER _ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the kitchen that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be used during

any of the other oven control functions. Refer to "Minimum and Maximum Control Pad Settings" for time amount settings.

INSTRUCTIONS

PRESS DISPLAY

To set the Kitchen Timer (example for 5 minutes)

Press @. .....--.-- will appear and "TIMER" will flash in the display

(Figure 5).

2. Press the number pads to set the desired time in the display (example

(_). Press _START'IThe time will begin to count down with "5:00" and (_ _TAR_

"TIMER" will stay in the display (Figure 6). Note: If is not pressed the timer will return to the time of day after 25 seconds.

3. When the set time has run out, "End" and "TIMER" will show in the display (Figure 7). The clock will sound with 3 beeps every 5 seconds

until _,_,,_ is

To cancel the Kitchen Timer before the set time has run out Press _. The display will return to the time of

pressed.

To Set Add 1 Minute Feature

The _ ADD 1 MINUTE pad is used to set the Add 1 Minute feature. When the _ pad is pressed, 1 minute is added to the Kitchen Timer feature if this feature is already active. If the Kitchen Timer feature is not active and the

pad is pressed, the Kitchen Timer feature will become active and will begin counting down from 1 minute.

Figure 5

Figure 6

Figure 7

day.

Consumer Defined Control

Note: The Consumer Defined Control features are adjustments to the control that will not affect cooking results. These include the Oven Lockout, Temperature Display and Silent Control Operation features

Setting Oven Lockout Feature

The (To_ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and prevents the oven from being turned on. It does not disable the clock, Kitchen Timer or the interior oven lights.

INSTRUCTIONS

PRESS DISPLAY

To activate the Oven Lockout feature

1. Press and hold _ for 3 seconds.

2. After 3 seconds "Loc" and i_1will appear, a beep will sound and "DOOR LOCKED" will flash in the display. Once the oven door is locked the "DOOR LOCKED" indicator will stop flashing and remain on along with the "Loc" (Figure 1).

for 3

seconds

Figure 1

To reactivate normal oven operation:

1. Press and hold @ for 3 seconds. A beep will sound. The "DOOR LOCKED" will flash in the display until the oven door

has completely unlocked (Figure 2).

2. The wall oven is again fully operational.

for 3

seconds

Figure 2

Setting Silent Control Operation

The DELAYTIME _ and FLEX CLEAN _ pads control the Silent Control operation feature. The Silent Control operation feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the

control can be programmed for silent operation and later returned to operating with all the normal sounds and beeps.

INSTRUCTIONS

PRESS DISPLAY

To change control from normal sound operation to silent control operation

1. To tell if your range is set for normal or silent operation press

and hold _. '....--.-- will appear and "DELAY" will flash in the

display (Figure 3). After 7 seconds "SP" (Speaker) will appear in the display. (Figure 4)

2. Press _ to switch between normal sound operation and silent operation mode. The display will show either "SP"

(Figure 4) or ":=="(Figure 5).

If "SP" appears (Figure 4), the control will operate with normal sounds and beeps. If ":=="appears (Figure 5), the control is in the silent operation mode.

Press to accept the change or press to reject the change.

Note: The control will always beep at the end of a kitchen timer and will beep when a set temperature has been reached, even if the control is set to silent operation.

.... @

for 7 seconds

or @ Figure 5

Figure 3

Figure 4

Consumer Defined Control Features

Setting Temperature Display = Fahrenheit or Celsius:

The BROIL ,B!o!!;_and FLEX CLEAN pads control the Fahrenheit or Celsius temperature display modes• The oven control can be programmed to display temperatures in Fahrenheit or Celsius• The oven has been preset at the

factory to display in Fahrenheit.

iNSTRUCTiONS PRESS DISPLAY

To change display from Fahrenheit to Celsius or

Celsius to Fahrenheit

1 To tell if the display is set for Fahrenheit or Celsius press (B_oii_il.

• ,,j

(Figure 1) and hold for 7 seconds; "550 °'' will appear and "BROIL" will flash in the display and a beep will sound. If "F" appears, the display is set to show temperatures in Fahrenheit (Figure 2). If "C" appears, the display is set to show temperatures in Celsius (Figure 3).

2. Press @ to switch between Fahrenheit or Celsius display modes. The display will show either "F" (Figure 2) or "C"

(Figure 3).

for 7seconds

Figure 1

Figure 2

3. Press to accept the change or press to reject the change.

or Figure 3

............................ Q

Setting Oven Controls

important Things to Know Before Setting any Basic Oven Cooking Function

This appliance has been factory pre-set to start any BAKE, CONV BAKE, CONV ROAST, PREHEAT, CAKE or BREAD function with the oven set temperature automatically set for 350°R However if desired, the oven set temperature may be adjusted at any time during the cooking process.You may also choose to add a COOKTIME or DELAY START with any of

the functions listed above.

Temperature Visual Display

Your oven is equipped with a temperature visual display. When a cooking mode is set, the actual temperature will be

shown in the display and will rise as the unit preheat. When the unit has reached its target temperature, a chime will sound

to remind you to place the food in the oven. This feature will be active with some cooking modes; bake, convection bake, convection roast, cakes and breads.

NOTE: The lowest temperature that can be displayed is IO0°F.

Setting Oven Controls

Setting Preheat

The PREHEAT _ pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then indicate when to place the food in the oven• Use this feature when recipes call for preheating. Preheating is not

necessary when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature between 170°F to 550°F.

INSTRUCTIONS PRESS DISPLAY

To set the Preheat temperature for 375°F

1. Arrange the interior oven racks.

2. Press @. "350" and "BAKE" will appear in the display (Figure 1).Note that if a preheat of 350°F is needed, press

3. Press _ _-_ _5_. "375 °" and "BAKE" will appear in the display (Figure 2).

4. Press START"BAKE" will appear in the display• "PRE" and the actual oven temperature shown in the display will alternate

as the oven heats and reaches 375°F (Figure 3).

Note: After the oven has reached the desired temperature (this example, 375°F) the control will beep and the "PRE" light will turn off and oven target temperature will be displayed (Figure 4). If you missed hearing the beep, you can tell that the oven has reached preheat temperature if you see the oven temperature showing in the oven display. Once the oven has preheated, PLACE FOOD iN THE OVEN. The "BAKE" lightwill stay on.

Press _tO_ when baking is complete or to cancel the preheat feature.

To change Preheat temperature while oven is preheating (example: changing from 375°F to 425°F)

if it is necessary to change the preheat temperature while the oven

is preheating to the original temperature:

Figure 1

QQQ

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

1. While preheating, press @. "375" and "BAKE" will in the display (Figure 5)

2. Enter the new preheat temperature. Press @ _ @. "425 °'' and "BAKE" will appear in the display (Figure 6).

3. Press "BAKE" will appear in the display• "PRE" and the actual oven temperature shown in the display will alternate

as the oven heats and reaches 425°F (Figure 7).

Note: A beep will sound once the oven temperature reaches 425°F

and the display will show "425 °.' and "BAKE" (Figure 8).

4. When baking is complete press _XO_.

Note: While in preheat mode, the convection fan will be activated during the first rise of temperature to allow the oven to reach its target temperature faster. The Bake, Broil and Convection elements will also cycle for a better heat distribution.

appear

C)OQ

Figure 7

Figure 8

Setting Oven Controls

Setting Bake

The BAKE B_'ke_}} pad controls normal baking. If preheating is necessary, refer to the _ Preheat Feature for instructions. The oven can be programmed to bake at any temperature from 170 ° F to 550 ° F (the sample shown below

is for 350°F).

INSTRUCTIONS PR ESS DISPLAY

To set the Bake Temperature to 375°F

1. Arrange interior oven racks and place food in oven.

2. Press Bake, will appear and "BAKE" will flash in the

J............350"

\, ,,.j,

display(Figure 1). If a bake of 350°F is needed, press

Figure 1

3. Press (_ _ _ (Figure 2). "BAKE" will continue to flash and "375 °'' will appear in the display.

4. Press :START'::The actual temperature will be displayed (Figure

3). A beep will sound once the oven temperature reaches 375°F and the display will show "375 °" and "BAKE" (Figure 4).

Pressing _TO_ will cancel the Bake feature at any time.

To change the Bake Temperature (example: changing from 375°F to 425°F)

1. After the oven has already been set to bake at 375°F and the oven temperature needs to be changed to 425°F, press Bake

(Figure 5) and "375" will appear and "BAKE" will flash in the display.

2. Press _ _'_ _ (Figure 6). "BAKE" will continue to flash and "425 °" will appear inthe display.

3. Press

Note: During the first rise of temperature, the convection fan will be activated to allow the oven to reach its target temperature faster. The Bake, Broil and Convection elements will also cycle for a better heat

distribution.

O(2>Q

Q(Z)d >

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Setting Oven Controls

Oven Baking information

For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Refer to "Adjusting the Oven Temperature" section.

Baking problems and solutions

Baking Problems

Cookies and biscuits burn on the bottom.

Cakes too dark on top or bottom.

Cakes not done in the center.

Cakes not level.

Causes Correct ions

• •

Cookies and biscuits put into the oven before the preheating time is completed.

Oven rack overcrowded.

Allow oven to preheat to the selected temperature before placing food in oven. Choose pan sizes that will permit 2" to 4" (5.1 cm to

10.2 cm) of air space on all sides when placed in the ove n.

• Dark pan absorbs heat too fast.

Cakes put into the oven before

preheating time is completed.

Oven rack position too high or

• Use a medium-weight aluminum baking sheet.

Allow oven to preheat to the selected temperature before placing food in the oven. Use proper rack position for baking needs.

low.

Oven too hot.

• Set oven temperature 25°F/12°C lower than recommended.

Oven too hot.

Set oven temperature 25°F/12°C lower than recommended.

Incorrect pan size. Pan not centered in the oven.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 2" to

4" (5.1 cm to 10.2 cm) of space on all sides of pan.

• Range not level.

• Place marked glass measuring cup filled with water

on the center of the oven rack. If water level is uneven, refer to the installation instructions for

leveling the appliance.

Pan too close to oven wall or rack overcrowded.

• Pan warped.

• Be sure to allow 2" to 4" (5.1 cmtol0.2cm) of clearance on all sides of each pan in the oven. Do not use pans that are dented or warped.

Foods not done

Oven too cool.

when cooking time

• Oven overcrowded.

is up.

• Oven door opened too frequently.

Set oven temperature 25°F/12°C higher than suggested and bake for the recommended time.

• Be sure to remove all pans from the oven except the ones to be used for baking.

• Open oven door only after shortest recommended baking time.

Setting Oven Controls

Setting Convection Bake

The CONVECTION BAKE ',,,_,_k;,ipad controls the Convection Bake feature. Use the Convection Bake feature when cooking speed Jsdesired. The oven can be programmed for Convection baking at any temperature between 170°F (77°C) to 550°F (288°C).

Convection baking uses a fan to circulate the oven"s heat evenly and continuously within the oven (See Figure 1). This improved heat distribution allows for fast, even cooking and browning results. It also gives better baking results when using 2 or 3 racks at the same time. Breads and pastries brown more evenly. Convection bake cooks most foods faster and more evenly than conventional bake. Some models are equipped with multiple fan speeds for even cooking when baking and better tasting meats when roasting. It will use a slower fan speed for baking. The slow fan speed slowly and evenly moves the air through the cavity and produce lighter flakier crusts for pies and evenly brown cookies.

General Convection Bake instructions

1. Time reductions will vary depending on the amount and type of food to be cooked. Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans with a dark finish will cook faster.

2. Preheating is not necessary when cooking casseroles with Convection Bake.

3. When using Convection Bake with a single rack, place oven rack in position 2 or 3. if cooking on multiple racks, place the oven racks in positions 2 and

/Conv ,_

Air

circulation

during

Convection

Bake

Figure 1

4th Rack

_osition

3rd Rack position

Rack

_osition

position

Figure 2

Benefits of Convection Bake:

--Some foods cook faster, saving time and energy.

--Multiple rack baking.

--No special pans or bakeware

needed.

INSTRUCTIONS

To set the oven for Convection Bake and temperature to 375°F

1. Arrange interior oven racks and place food Jnoven.

2. Press _@k#,,,""CONV BAKE" will flash and "350" will appear in the display (Figure 3). If a Conv Bake of 350°F is needed,

press

3. Press _ _ @ . "CONV BAKE" will keep flashing and "375 °" will appear in the display (Figure 4).

4. Press ::STAR_I*The actual oven temperature will be displayed. "CONV BAKE" will stop flashing and the fan icon will appear in

the display (Figure 5).

Note: The convection fan will start AS SOON AS the oven is set for Convection Bake. The display will show an icon of rotating fan

within a square. This rotating fan icon indicates when the Convection Fan is operating. The Bake, Broil and Convection elements will also cycle for a better heat distribution.

Press @ to stop Convection Bake or cancel Convection Bake at any time.

PRESS

QQQ

DISPLAY

Figure 3

Figure 4

Figure 5

Setting Oven Controls

Setting Convection Roast

This method of cooking enables you to obtain the best results when roasting. The oven can be programmed to convection roast at any temperature from 170°F to 550°F (77°C to 288°C). Remember to use tested recipes with times adjusted for convection roasting when using the convection mode, This oven is equipped with multiple fan speeds for even cooking when baking and better tasting meats when roasting, it will use a faster fan speed for roasting which will quickly strip the cold air away from the meats replacing it with warm air (making a crisp outside - type of searing) sealing in juices for better tasting meats.

INSTRUCTIONS PRESS

To Set the oven to Convection Roast at 375°F

1. Arrange oven racks.

2. Press _,_._,_t, willbe displayed; CONV ROAST willflash (Figure 1).

3. Enter the desired roasting temperature using the number pads (_) (_ (_ (_

4. Press The actual oven temperature will be displayed, CONV

/_o'__,_."350"

ROAST and the fan icon will be displayed (Figure 3). The Bake, Broil and Convection elements will also cycle for a better heat distribution.

To Change the Convection Roast temperature (example: changing from 375°F to 425°F)

1. Press _,8.o_,t/, will be displayed; CONV ROAST will flash (Figure 2).

2. Enter the desired roasting temperature using the number pads (_(_ (_) (_

/Y_;_'__-"375"

DISPLAY

Figure 1

Figure 2

Figure 3

3. Push the current oven temperature, CONV ROAST and the fan icon will be displayed.

After the oven has reached the desired temperature, the control will beep and CONV ROAST light will stay on. Note: The Bake, Broil and Convection elements will cycle for a better heat distribution.

When convection roasting is complete press _ZO_.

Figure 4

Setting Convection Convert

The %,z¢_ CONV CONVERT pad is used to automatically convert a standard baking recipe for convection baking. When set properly, this feature is designed to display the actual converted (reduced) temperature in the display.

Convection Convert may ONLY be used with a Cony Bake, Timed Conv Bake or a Delay Start (Delayed Timed Conv Bake) setting. When used with a Timed Bake or a Delay Start (Delayed Timed Bake) setting, the Convection Convert will display a "CF" for check food when the bake time is 75% complete (See Fig. 8). At this time the oven control will sound 3 long beeps at regular intervals until baking had finished. When the bake time has completely finished the control will

display "End" and will sound 3 long beeps every 30 seconds until the _._,) pad is pressed.

To change from a normal bake recipe to a convection bake recipe (example: changing a 400°F normal bake

recipe to a convection bake recipe)

When the conv bake mode is on at 400°F (Figure 6), press £££ve;_ "CONY BAKE" and the oven temperature adjustment will appear

briefly in the display (for this example it is 375°F) (Fig. 7) then the actual oven temperature will be displayed. A beep will sound once the adjusted oven temperature is reached. The display will show "375°'', "CONV BAKE" and the fan icon (Fig. 7). NOTE: When using a Cook Time, the convection convert will not operate if you have a timed bake under 20 minutes. 24

Figure 6

Figure 7

Figure 8

Setting Oven Controls

Setting the Slow Cook Feature

The _ SLOW COOK pad is used to activate this feature. The Slow Cook feature may be used to cook foods

slowly, at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot. The Slow Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of meats becoming dark but not burnt. This is normal.

There are 2 settings available, high (HI) or low (LO). The maximum cook time for the Slow Cook feature is 12 hours unless the oven control has been changed to the Continuous Bake mode.This feature may be used with the additional settings of a Timed Bake Slow Cook (see Timed Bake beginning with step 5-7) or a Delayed Start Bake Slow Cook (see Delayed Start Bake steps 6-10).

Below is a list of preparation and cooking tips you should review for best possible results using Slow Cook:

Completely thaw all frozen foods before cooking with the Slow Cook feature. When using a single rack, place in position 2 or 3 (see figure 1 on page 15).

Position multiple racks to accommodate size of cooking utensils when cooking multiple food items.

Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the Slow Cook time may need to be extended. Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown. Cook times will vary; depending on the weight, fat content, bone & the shape of the meat.

Use the recipe's recommended food temperature and a food thermometer to determine when the food is done.

Preheating the oven will not be necessary when using the Slow Cook feature. Add any cream or cheese sauces during the last hour of cooking.

iNSTRUCTiONS

PRESS DISPLAY

To Program the Oven to begin baking with the Slow Cook feature

1. Place the food in the oven,

2. Press @. "SLO" and "HI" will appear in the display. The Slow Cook feature will be set to the high setting. This setting is

best for cooking foods from a 4 to 5 hour time period (Figure 1).

4. Press again @ to set the Slow Cook feature to the low setting (Lo will appear in the display). This setting is best for

cooking foods from a 8 to 9 hour time period (Figure 2).

5. Press (Figure 3).

6. If desired, add any Timed Bake or Delayed Start Bake settings at this time.

7. To cancel the Slow Cook feature press _ZO_ at anytime.

Figure 1

Figure 2

Figure 3

Setting Oven Controls

Setting Timed Bake, Timed Convection Bake or Timed Convection Roast

Timed Oven

The BAKE .................Bakejor CONVECTION BAKE _,B_k_,_for CONVECTION ROAST _oa_,, and OVEN COOK TIME _ pads

control the Timed Bake feature. The automatic timer of the Timed Bake feature will turn the oven OFF after cooking for the desired amount of time you selected.

iNSTRUCTiONS PRESS DISPLAY

To program the oven to begin baking immediately and to shut off automatically (example: BAKE at 350°F for 30 minutes)

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press (B_k'e'ii/,"350" will appear and "BAKE" will flash in the display (Figure 1).

4. Press START"BAKE" and the actual oven temperature will appear in the display (See Figure 2).

Timed Oven

5. Press _. "TIMED" will flash; "BAKE", .....--.-- and the actual

temperature will appear in the display (Figure 3).

6. Enter the desired baking time by pressing _ @ (Figure 4).

Note: Baking time can be set for any amount of time between 1 minute to 11 hours and 59 minutes.

7. Press Both the "TIMED" and "BAKE" icons will remain on in the display and the actual oven temperature will be displayed

(Figure 5). Once the Timed Bake feature has started, the current time of day will appear in the display. Tim_dOv0n

Timed Oven @

Note: After the Timed Bake feature has activated, press _ to display the bake time remaining in the Timed Bake mode. Once

Timed Bake has started baking, a beep will sound when the oven temperature reaches the set temperature.

Press _./oP_when baking has finished or at any time to cancel the Timed Bake feature.

When the timed bake finishes:

1. "End" and the time of day will show in display. The oven will shut off automatically (Figure 6).

2. The control will beep 3 times. The control will continue to beep 3 times every 30 seconds until (_TO_iSpressed.

Timed Oven

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Use caution with the DELAY START (Delayed Timed Bake) features. Use the automatic timer when

cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.

Setting Oven Controls

Setting Delayed Timed Bake or Delayed Timed Convection Bake

Timed Oven

The BAKE Bakeor CONVECTION BAKE/e_i__,, Delayed Time Bake feature• The automatic timer of the Delayed Time Bake will turn the oven on and off at the time you

select in advance. Note: If your clock is set for normal 12 hour display mode the Delayed Timed Bake or Delayed Timed Convection Bake cycle can never be set to start more than 12 hours in advance. To set for Delayed Timed Bake or Delayed Timed Convection Bake 12-24 hours in advance set the control for the 24 hour time of day display mode•

To program the oven for a delayed BAKE start time and to shut off automatically (example: baking at 350°F, starting at 5:30 and baking for 30 minutes)

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press Bake). will appear and will flash in the display (Figure 1).

4. Press STAre- "BAKE" and the actual oven temperature will stay in the display (See Figure 2).

5. Press @. "TIMED" will flash, '--.-- will appear and "BAKE" and the actual oven temperature will remain in the display (Figure 3).

6. Enter the desired baking time using the number pads by pressing (_

................ ,_ak_/ OVEN COOK TIME and DELAY START pads control the

INSTRUCTIONS PR ESS DISPLAY

f' .................350 .... BAKE"

\ ........ /

Timed Oven

Figure 1

Figure 2

Figure 3

. "TIMED" will flash; "BAKE", "-<30" and the actual oven

temperature will appear in the display (Figure 4). Note: Baking time can be set for any amount of time from 1 minute to 11 hours and 59 minutes.

7. Press "TIMED", "BAKE" and the actual oven temperature will remain in the display (Figure 5).

8. Press @. "DELAY" will flash in the display. Enter the desired start time using the number pads @ @ @ (Figure 6).

9. Press When Delayed Time Bake starts, the set oven temperature will appear, "DELAY", "BAKE" and the current time of

day will appear in the display (Figure 7).

10. When the desired start time is reached, the actual oven temperature appears in display and "DELAY" disappears. Oven starts to bake at the previously selected temperature (Figure 8).

Timed Oven

Note: Once Delayed Time Bake has started, press @ to display the bake time remaining. Once the Delayed Timed Bake has started baking,

a beep will sound when the oven temperature reaches the set temperature.

Press _oP_ when baking has completed or at any time to cancel the Delayed Time Bake feature.

Figure 4

Figure 5

Figure 6

Tim_dOv0, Figure 7

@ Figure 8

When the set bake time runs out:

1. "End" will appear in the display and the oven will shut off automatically (Figure 9).

2. The control will beep 3 times. The control will continue to beep 3

times every 30 seconds until ST_ iS pressed.

Figure 9

Setting Oven Controls (cont'd)

Setting the Food Categories Feature: The CAKES _ and BREADS _ pads Jnthe Food Categories feature are used when cooking certain food

items•These pads have been designed to give optimum cook performance for the foods selected Jn each category• The CAKES pad provides a preheat with a gentle cycling of heat giving cakes more volume and allowing delicate foods to

cook more evenly. The BREADS pad adds a preheat feature to the bake cycle to thoroughly heat the oven from top to bottom to give more

evenly browned foods. Refer to (Figure 4) for foods to cook in each category.

INSTRUCTIONS PRESS DISPLAY

To set the Food Categories feature (example: for Cakes to cook at 375°F)

1. Arrange interior oven racks and place food Jnoven•

2. Press G" "CAKES" will flash and "350 °'' will be displayed (See Figure 1). Note that if a bake temperature of 350°F Js

needed, simply press START:

3. Press (_) (_ (_ . "CAKES" will flash and "375 °'' will appear in the display (See Figure 2).

OQ(Z>

Figure 1

4. Press START'"CAKES" will stop flashing and "375 °'' will remain in the display (See Figure 3).

Press _ to stop cooking Cakes or Breads, or to cancel cooking Cakes or Breads at any time.

Cakes Breads

Recommended foods to be cooked in each

category

Cakes Breads

Brownies Rolls

Pies (fresh & frozen) Biscuits

Baked Custards Muffins

Cheesecake Cornbread

Figure 4

Figure 2

Figure 3

Setting Oven Controls

Using and Setting Meat Probe (Some Models)

Checking the internal temperature of your food isthe most effective way of insuringthat your food has been properly cooked. When cooking meat such as roasts, hams or poultry you can use the meat probe to check the internal temperature without any guesswork. For some foods, especially poultry and roasts, testing the internal temperature isthe best method to insure properly cooked meats.

important things to consider:

Use only the probe supplied with your appliance; any other may result in damage to the probe or the appliance. Handle the probe carefully when inserting and removing from the food or the receptacle. Do not use tongs to pull the cable when inserting or removing from the food or the receptacle. Defrost your food completely before inserting the probe to avoid damaging probe.

Never leave or store the probe inside the oven when not in use.

To prevent the possibility of burns, after

cooking carefully unplug the probe using a pot

holder.

Proper Meat Probe placement:

• Always insert the probe so that the tip rests in

the center of the thickest part of the meat. Do

not allow the probe to touch bone, fat, gristle or

the pan.

For bone-in ham or lamb, insert the probe into

the center of the lowest large muscle or joint.

For dishes such as meat loaf or casseroles, insert the probe into the center of the food. To

find the center of the food visually measure with the probe (See Fig. 1). When cooking fish,

insert the probe just above the gill. For whole poultry or turkey, insert the probe into

the thickest part of the inner thigh, below the leg

(See Fig. 2).

1/2

Fig. 1

USDA Minimum Recommended internal Food Temperature

Fish

145°F

63oc

For more informations, visit: www.isitdoneyet.gov

Beef, Veal, Lamb Steaks & Roasts

145°F

63°C

Pork

160°F

71°C

Egg Dishes

160°F

71°C

Beef, Veal, Lamb Ground

160°F

71°C

Fig. 2

Turkey, Chicken & Duck WhoLe,

Pieces & Ground

165°F

74oc

Setting Oven Controls

Using and Setting Meat Probe (Some Models)

To use the meat probe:

1. Prepare the food and properly insert the temperature probe into the food. DO NOT PREHEAT or start cooking before properly inserting the meat probe, The probe should be inserted into the food and receptacle while the oven

is still cool.

2. Place the prepared food on the desired oven rack position and slide into the oven.

3. Plug the meat probe into the probe receptacle located on the left front oven cavity side.

4. Close the oven door.

5. The oven control will detect if the meat probe is correctly plugged in and will illuminate with ,yt icon in the display.

6. The actual meat probe temperature will appear in the display.

7. To set the target temperature press @ pad once then enter the desired the desired target internal

using the numeric key pads (default setting is 170°F/77°C)t. Press _ to accept the meat probe target temperature.

8. Set the oven control for _, c_a_v_ or _ and the desired oven temperature. You may use the meat probe with some other baking features but cannot be set with Broil or Flex=Clean.

9. During the cooking process you may check the actual internal temperature by pressing the @ key once. The actual temperature will display. After 8 seconds the display will return to the actual oven temperature.

10. If the target temperature needs to be changed during the cooking process, press @ twice and use the numeric

keypads to adjust the target temperature. Press the _ key to accept the change.

t The U.S. Department of Agriculture states, "Rare fresh beef is popular, but you should know that cooking it to only 140°F/60°C means some food poisoning organisms may survive." (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.)

The lowest temperature recommended by the USDA is 145°F/63°C for medium rare fresh beef.

Setting the oven to automatically stop cooking after reaching meat probe target temperature: The oven leaves the factory preset to alert you when the internal target temperature has been reached but to continue

cooking at the oven set temperature. You may desire to change how your oven reacts when using the meat probe.

temperature

Note: Changing how the meat probe reacts must be done before starting the cooking process.

1. To set oven to shut-off automatically after reaching the Meat Probe target temperature press @ and hold for 7

seconds then use the ___,_ key toggle to the message P CO (Probe, cancel cooking) then press _ARj_ to accept.

2. Use the @ key to toggle back to PnCC (Probe, no cancel cooking) and then press OEPAR_to accept if you wish for the oven to continue cooking after the meat probe reaches the target temperature.

......

Setting Oven Controls (cont'd)

Setting the Warm & Hold TM Feature

The Warm & Hold _ pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170°F The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3

hours the Warm & Hold feature will shut the oven OFF. The Warm & Hold feature may be used without any other cooking operations or can be used after cooking has finished using BAKE, CONVECTION BAKE, CONVECTION ROAST•

The Warm & Hold feature may be used with TIMED BAKE if you wish to have the Warm & Hold feature turn ON automatically when cooking has finished. The Timed Bake features require you to set start time and the amount of cooking time. With this information the control can calculate the time when cooking will complete and can then start the Warm & Hold feature automatically.

INSTRUCTIONS PRESS DISPLAY

To set Warm & Hold

1. Arrange interior oven racks and place food in oven•

2. Press _. "HLd" will appear in the display (Figure 1). Note: if no pad is touched within 25 seconds the request to turn

ON Warm & Hold feature will be cancelled.

3. Press STARTThe oven icon will appear in the display (Figure 2).

4. To turn the Warm & Hold OFF at any time press @. Note: The Warm & Hold feature will automatically turn OFF after

3 hours.

Figure 1

Figure 2

(77°C).

_iiilD

!!!C

To set Warm & Hold to turn ON automatically

1. Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delayed Timed Bake.

2. Press

3. Press "HLd" will disappear and the temperature will be

4. To turn the Warm & Hold feature OFF at any time press _.ZoP_.

Pressing _ at any time will stop all oven baking operations.

@ (Figure 3).

Note: if no pad is touched within 25 seconds the request to turn ON Warm & Hold feature all functions previously programmed will

be cleared.

displayed (Figure 4). The Warm & Hold mode is set to turn ON automatically after Timed Bake has finished (See Figure 2).

Note: The Warm & Hold feature will automatically turn OFF after 3 hours.

Figure 3

Figure 4

Setting Oven Controls

Setting Broil

The _ pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for The Broil feature temperature may be set between 400°F and 550°F. The broil pan and broil pan insert used together

allow dripping grease to drain and be kept away from the high heat of the oven broiler. DO NOT use the broil pan without the insert (See Figure 5). DO NOT cover the broil pan insert with foil. The exposed grease could catch fire.

Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw

baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water can cause a grease fire to spread and cause personal injury.

INSTRUCTIONS

PRESS DISPLAY

even

coverage.

To set the oven to broil at 500°F

1. Place the broiler pan insert on the broiler pan. Then place the food on the broiler pan insert. DO NOT use the broiler pan without the insert. DO NOT cover the broiler insert with foil. The exposed grease could ignite.

2. Arrange the interior oven rack and place the broiler pan on the rack. Be sure to center the broiler pan directly under the broiler

element. Make sure the oven door is in the broil stop position (See Figure 4).

3. Press (ilBroil"_."BROIL" will flash and "550" will appear (Figure 1).

4. Press@@@.

5. If a lower broil temperature is desired (minimum broil temperature setting is 400°F), press the desired temperature before continuing to step 6.

QQd >

Figure 1

Figure 2

Figure 3

6. Press _TAR_':::The oven will begin to broil. "BROIL" and "500°'' will appear in the display (Figure 2).

7. Broil on one side until food is browned; turn and cook on the second side. Season and serve. Note: Always pull the rack out to the stop position before turning or removing food.

8. To cancel broiling press _To_ (Figure 3).

Broiling Times and Searing Grill (if equipped)

Use the following table for approximate broiling times. Increase or decrease broiling times, or move the broiling pan to a different rack position to suit for doneness. If the food you are broiling is not listed in the table, follow the instructions provided in your cookbook and watch the item closely. Use the Searing Grill for meats and steaks if desired. Before placing the meat, be sure to heat the Searing Grill using Broil for 10 minutes. Cook times should be reduced 1-2 minutes per side when cooking with the Searing Grill. Place Searing Grill on top of Broiler Pan and insert for meats and steaks (See Figure 6).

Electric Range Broiling Table Recommendations Food Rack Temp Cook Time Item Position Setting 1st side 2nd side Doneness

Steak 1" thick 2nd 550° F 6:00 4:00 Rare

2nd 550° F 7:00 5:00 Medium

Pork Chops 3/4" thick 2nd 550° F 8:00 6:00 Well Chicken - Bone In 3rd 450 ° F 20:00 10:00 Well

Chicken - Boneless 2nd 450° F 8:00 6:00 Well Fish 2nd 500 ° F 13:00 n/a Well

Shrimp 3rd 550° F 5:00 n/a Well Hamburger 1" thick 2nd 550 ° F 9:00 7:00 Medium

3rd 550 ° F 10:00 8:00 Well

Broil Stop Position

Figure _ .....

Supplied with some models

Figure 5

Searing

Grill

Supplied with some models

Figure 6

Setting Oven Controls

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)

Timed Oven

The @ COOK TIME and _ DELAY START pads are used to set the Sabbath feature. The Sabbath feature

may

only be used with the/' B_kepad. The oven temperature may be set higher or lower after setting the Sabbath feature

.,., J

(the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly show or provide any audible tones indicating whether the change occurred correctly. Once the oven is properly set using Bake with the Sabbath feature active, the oven will remain continuously ON until cancelled. This will override the factory preset 12-Hour Energy Saving feature.

If the oven light will be needed during the Sabbath, press @ before activating the Sabbath feature. Once the

oven

light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature. IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the

Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature; @ to (_,

\Bake & . ALL OTHER KEYPADS should not be used once the Sabbath feature is properly activated.

INSTRUCTIONS

PRESS DISPLAY

To Program the Oven to Begin Baking Immediately & activate the Sabbath feature (example: baking at 350°F)

1. Be sure that the clock is set with the correct time of day.

2. Place the food in the oven,

3. Press (_JB_keil)."350°'' appears inthe display.

4. Press The actual oven temperature appears in the display

%, ,/

...............++

(Figure 1).

5. If you desire to set the oven control for a Timed Bake or Delayed Start Bake do so at this time. If not, skip this step and continue to step 7. Refer to the Timed Bake (complete steps 5-7) / Delayed Start Bake (complete steps 6-10) section for complete instructions. Remember the oven will shut down after using Timed Bake or Delay Start Bake and therefore may only be used once during the Sabbath/Jewish Holidays. The maximum Delayed Start Bake time is 11 hours & 59 minutes.

The oven will turn ON and begin heating.

7. Press and hold both the @ and @ pads for at least 3 @ @

Timed Oven Timed Oven

seconds. SAb will appear in the display (Figure 2). Once SAb appears in the display the oven control will no longer beep or display any further changes and the oven is properly set for the

Sabbath feature.

Note: You may change the oven temperature once baking has started by pressing _,B_k%,the numeric key pads for the

/ ...........

Figure 1

Figure 2

iiiiiiiiiii:il

temperature you want (example for 425°0 press _, _, _) and then pressing TWICE (for Jewish Holidays only). Remember that the oven control will no longer beep or display any further changes once the oven

is set for the Sabbath feature.

8. The oven may be turned OFF at any time by first pressing G pad (this will turn the oven OFF only). To turn OFF the Sabbath

Timed Oven

feature press and hold both the _ and _ pads for at least 3 seconds. SAb will disappear from the display (Figure 3).

Timed Oven

Figure 3

Setting Oven Controls

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays) (continued)

Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not turn back on automatically. If your food was nearly fully cooked, you may allow the trapped heat in the oven to finish the cooking process. Otherwise, you should remove the food when the power failure occurs, because you may only start the oven once during the Sabbath/Jewish Holidays. After the Sabbath observance turn OFF the Sabbath feature and the oven may be used with all normal functions.

Timed Oven

After the Sabbath observance turn OFF the Sabbath feature. Press and hold both the _ and _ pads for at least 3 seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further assistance,

guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at

http:\\www.star-k.org.

To Set the Recipe Recall Feature

This feature will ONLY recall a Bake, Convection Bake, Convection roast, Slow Cook, Cakes, Breads, Timed Bake or a Timed Bake with a Warm & Hold added setting. This feature will not work with any other function including a

Delayed Timed Bake, a Clean Cycle or a Broil setting.

INSTRUCTIONS PRESS DISPLAY

To Program the Oven to Begin Baking Immediately and record a Recipe (example: for a Bake mode at

375°0)

1. Place the food in the oven,

2. Press _} "350" appears and "BAKE" will flash in the display (Figure 1).

3. Enter the desired roasting temperature using the number pads

(2>( /R0ure

4. Press and hold pad for at least 3 seconds or until a beep sounds. The beep indicates that this recipe has been recorded

for future recall,

To Program the Oven to Begin Baking with a stored Recipe

1. Place the food in the oven,

2. Press Bake,} 375 appears and "BAKE" will flash in the display (Figure 2) and (Figure 3).

To Quickly Erase all Stored Recipes:

1. Press and hold the _ key pad until the first single beep sounds (6 seconds).

2. After the first beep press the key pad once. Any stored

O(2bdb

for 3 seconds.

Figure 1

Figure 2

Figure 3

recipes will be erased. Please note: Clearing the recipes will also reset all other adjustments back to the factory settings. These include 12 or 24 Hour Time of Day Display, Continuous Bake or 12 Hour Energy Savings mode, Silent Control Operation, Fahrenheit or Celsius Temperature Display and any Oven Temperature adjustments that are set.

Setting Warmer Drawer Controls (SOME MODELS ONLY)

Arranging Warmer (Warm & Ready TM) Drawer Rack Positions

The rack can be used in 2 ways:

• in the upright position to allow low profile food items to be placed both under and on top of the rack (for example,

rolls or biscuits on top of the rack and a casserole dish underneath).

• in the downward position to allow you to place light weight food items and empty dishware (for example, rolls or pastries and dinner plates) on the rack.

Set the Warmer Drawer Rack in either position as shown below (Figure 1).

Warmer Drawer Rack in

upward position

Figure 1

Warmer Drawer Rack in downward position

Operating the Warmer Drawer

The purpose of the Warmer Drawer is to keep hot cooked foods at serving temperature. Always start with hot food. It is not recommended to heat cold food in the Warmer Drawer. All food placed in the Warmer Drawer should be covered with a lid or aluminum foil to maintain quality. Do not use plastic wrap to cover food. Plastic may melt onto the drawer and be very difficult to clean. Use only utensils and cookware recommended for oven use in the Warmer

Drawer.

Always use potholders or oven mitts when removing food from the Warmer Drawer as cookware and

plates will be hot and you can be burned.

Warmer Drawer Food Temperature Settings

Use the recommended settings inthe Warmer Drawer settings table. If a particular food is not listed, start with the MED setting. If more crispness is desired, remove the lid or aluminum foil from the food. Most foods can be kept at serving temperatures on the MED setting. When a combination of foods are to be kept warm (for instance, meat with 2 vegetables and rolls), use the HI setting. To avoid heat loss, do not open the Warmer Drawer repeatedly while in use.

Warmer (Warm & Ready TM) Drawer & Bread Proofing Indicator Lights

The control and indicator lights for the Warmer Drawer and Bread Proofing features are located on the control panel. The indicator lights

will turn ON when the control is set, and remain ON until the controls are turned OFF.

Note: The warmer Drawer will not operate during the Self=Clean cycle.

Warmer Drawer Settings Table

Food Item Setting Bacon HI

Hamburger Patties HI Poultry HI Pork Chops HI

Fried Foods HI Pizza HI

Gravies MED Casseroles MED

Eggs MED Roasts (Beef, Pork, Lamb) MED

Vegetables MED

Biscuits MED Rolls, hard MED

Pastries MED Rolls (soft) LO

Empty Dinner Plates LO

Figure 2

Setting Warmer Drawer Controls

(cont'd) (SOME MODELS ONLY)

To Set the Warmer Drawer & Bread Proof Controls:

The control and indicator lights for the Warmer Drawer Bread Proof features are located on the control panel. The temperatures are approximate, and are designated by HI (high), MED (medium) and LO (low) and BREAD PROOF.

1. Touch the o,/0F_pad at the Warmer Drawer control position. The Warmer

Drawer indicator light will flash. Note: If no further pads are touched within 25 seconds the request to power the Warmer Drawer ON will clear.

2. Set the desired power level. Touch (_ once to turn ON the power level for

(see Figure 2) or Q to turn ON the power level for LO (see Figure 4).

The Warmer Drawer indicator light located above the ON/OFF pad will turn

ON steady.

3. Each touch of the (_ or _ pads will decrease or increase through 6

power levels from Hi (see Figure 2) to MED (see Figure 3) to LO (see Figure

4) and to the Bread Proof feature (see Figure 5). Ifthe Warmer Drawer is set at the LO setting and the 0 pad is touched again the Bread Proof feature

and indicator light will be set (see Figure 5 and bread dough preparation

instructions on this page). To return to standard Warmer Drawer setting touch

Q pad at least once.

Note: For best results, preheat the Warmer Drawer before adding the food or

bread dough. An empty drawer will preheat in approximately 15 minutes.

4. When the food is ready for removal, touch the O,IOFFpad once to turn the

Warmer Drawer or bread Proof feature OFF. The Warmer Drawer indicator

light will turn OFF.

HIo

MED

LO_ <7

HIo

MED_->

d-> PROOF

Lo o <->

MED

WARMER

PROOF

BREAD

HIo

ON/OFF

DRAWER

Figure 1

PROOF BREAD

HI c>

MED

LO_ <->

HI d:>

MED <>

<-> PROOF

LOc>

PROOF

BREAD

Preparing Bread Dough for the Warmer Drawer

The Warmer Drawer has a "Proof Bread" feature that can be used to help prepare bread dough. The recommended length of time to

keep bread dough in the Warmer Drawer is about 45-60 minutes, Be sure however to follow the recipe's recommended times,

The prepared bread dough should be placed in a large bowl since the dough will nearly double in volume. Arrange the Warmer Drawer Rack in the downward position (see Figure 6). Place the

bowl in the Warmer Drawer and follow the Warmer Drawer and Bread Proof Control setting instructions at the top of this page.

Figure 4

Figure 6

Figure 5

Self=Cleaning

During the Self-

Cleaning cycle, the outside of the range can become very hot to the

touch. DO NOT leave small children unattended near the appliance.

The health of some

birds is extremely sensitive to the fumes given off during the Self- Cleaning cycle of any range. Move

birds to another well-ventilated room.

DO NOT line the oven

walls, racks, bottom or any other part of the range with aluminum foil. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).

DO NOT force the

oven door open. This can damage the automatic door locking system. Use caution when opening the door after the Self-Cleaning cycle is completed. The oven may still be VERY HOT.

DO HAND

CLEAN

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above cooking temperatures) which eliminate soils completely or reduces them to a

fine powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

,, DO NOT use oven cleaners or oven protective coatings in or around any

part of the Self-Cleaning oven.

,, DO NOT clean the oven door gasket. The woven material of the oven

door gasket is essential for a good seal. Care should be taken not to rub, damage or remove the gasket.

,, DO NOT use any cleaning materials on the oven door gasket. Doing so

could cause damage.

• Remove the broiler pan and insert, all utensils and any aluminum foil. These items cannot withstand high cleaning temperatures.

• Porcelain oven racks do not have to be removed. After the cycle is complete and the oven has cooled, rub the sides of the oven racks with wax paper or a cloth containing a small amount of salad oil (this will make the racks glide easier into the rack position).

• Remove any excessive spiilovers in the oven cavity before starting

the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth.

Large spillovers can cause heavy smoke or fire when subjected to high

temperatures. DO NOT allow food spills with a high sugar or acid

content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface as they may leave a dull spot even after cleaning.

• Clean any soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. These areas heat sufficiently to burn soil on. Clean with soap and water.

DO NOTHAND

DO HAND CLEAN DOOR

Note: See additional cleaning informa- tion for the oven door in the General

Care & Cleaning section.

NOTE: A smoke eliminator in the oven vent converts most of the smoke into a

colorless vapor.

CLEAN SEAL

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven bottom should be removed.

What to Expect during Cleaning

While the oven is in operation, the oven heats to temperatures much higher

than those used in normal cooking. Sounds of metal expansion and

contraction are normal. Odor is also normal as the food soil is being removed. Smoke may appear through the oven vent.

If heavy spillovers are not wiped up before cleaning, they may flame and cause more smoke and odor than usual. This is normal and safe and should

not cause alarm. Ifavailable, use an exhaust fan during the self-cleaning cycle.

To avoid possible burns use care when opening the oven

door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape.

Self-Cleaning

What to Expect during Cleaning

While the oven isinoperation, the oven heats to temperatures much higher than those used in normal cooking. Sounds of metal expansion and contraction are normal. Odor

is also normal as the food soil is being removed. Smoke may appear through the oven vent. If heavy spillovers are not wiped up before cleaning, they may flame and cause

more smoke and odor than usual. This is normal and safe and should not cause alarm. If available, use an exhaust fan during the self-cleaning cycle.

Self-Clean Cycle Time Length

The FLEX CLEAN C_x_ pad controls the Self-Cleaning feature. If you are planning to use the oven direc-tlyyafter a self-clean cycle remember to allow time for the oven

to cool down and the oven door to unlock. This normally takes about one hour. So a 3 hour self-clean cycle will actually take about 4 hours to complete.

*It is recommend to use a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for heavy soils (to assure satisfactory results).

INSTRUCTIONS

To set the controls for a 3 hour Self-Cleaning cycle to start immediately and shut off automatically

1. Be sure the clock is set with the correct time of day and the oven door is closed.

PRESS

To avoid possible

burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape.

DO NOT force the

oven door open. This can damage the automatic door

locking system. Use caution and avoid possible burns when opening the door after the Self- Cleaning cycle has completed. The oven may still be VERY

HOT.

DISPLAY

2. Press _. "CLEAN" will flash and "3:00" HR will show in the display (Figure 1). The control will automatically clean for a 3

hour period (default self-cleaning cycle time). Note: if a 2 or 4 hour clean time is desired, press (_ @ @ for 2 hour or

_0_ _ for a 4 hour clean time. Set thepress cleaning

time based on the amount of soil: light, medium or heavy (* See above).

3. Press :StAre The "DOOR LOCKED" icon will flash; "CLEAN" and the letters "CLn" will remain on in the display (Figure 2).

4. As soon as the control is set, the motor driven oven door lock will begin to close automatically. Once the door has been locked the "DOOR LOCKED" indicator light will stop flashing and remain on. Also, the oven icon will appear in the display (Figure

3).

Note: Allow about 15 seconds for the oven door lock to close.

When the Self-Clean Cycle is Completed

1. "HOT" will appear in the display. The time of day, the "DOOR LOCKED" and "CLEAN" icon will remain in the display (Figure

4).

2. Once the oven has cooled down for approximately 1 HOUR, and the "DOOR LOCKED" is longer displayed, the oven door can then be opened (Figure 5).

Figure 1

Figure 2

Figure 3

Figure 4

Stopping or Interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a self-cleaning cycle due to excessive smoke or fire in the oven:

1. Press @.

2. The oven door can only be opened after the oven has cooled down for approximately 1 HOUR and the "DOOR LOCKED" icon is no longer displayed (Figure 5).

Figure 5

Self-Cleaning

To Start the delayed Self-Clean Cycle

The FLEX CLEAN _, DELAY START _ pads and length of clean cycle, controls the Delayed Self-Clean operation. The automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO

START THE SELF-CLEAN CYCLE for recommended clean times.

INSTRUCTIONS PR ESS DISPLAY

To set the control for the Self-Cleaning Cycle to start at a delayed time and shut off automatically

(example: 3 hour self-clean cycle to start at 4:30)

1. Be sure the clock is set with the correct time of day and the oven door is closed.

2. Press _. "CLEAN" will flash and "3:00" NR will show in the display (Figure 1). The control will automatically clean for

a 3 hour period (default self-cleaning cycle time). Note: If a 2 or 4 hour clean time is desired, press (_ @ @ for 2

hour or press _ @ @ for a 4 hour clean time. Set the cleaning time based on the amount of soil--light, medium

or heavy (*See previous page).

3. Press START'The "DOOR LOCKED" icon will flash; "CLEAN" and the letters "CLn" will remain on in the display

(Figure 2).

4. Press @. Enter the desired start time using the number pads @ @ @ (Figure 3).

5. Press "DELAY", "DOOR LOCKED" and "CLEAN" icons will remain on (Figure 4).

6. As soon as the control is set, the motor driven oven door lock will begin to close automatically• Once the door has been

locked the "DOOR LOCKED" indicator light will quit flashing and remain on.

7. The control will start the self-cleaning at the set start time, for the period of time previously selected. At that time, the icon "DELAY" will go out; "CLn" and oven icon will appear in the display (Figure 5).

(Z>@@or

Q@@

Qdb@

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

When the Self-Clean Cycle is Completed

1. "HOT" will appear in the display.The time of day, the "DOOR LOCKED" and "CLEAN" icon will remain in the display (Figure 6).

2. Once the oven has cooled down for approximately 1 HOUR, and the "DOOR LOCKED" is no longer displayed, the oven door can then be opened (Figure 7).

Figure 6

Figure 7

Self=Cleaning

iNSTRUCTiONS PRESS DISPLAY

Stopping or interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a self-cleaning cycle due to excessive smoke or fire in the oven:

1. Press s_).

2. Once the oven has cooled down for approximately 1 HOUR and the "DOOR LOCKED" icon is no longer displayed, the oven door can then be opened (Figure 1).

Note: Self-Clean cycle can never be set to start more than 12 hours in advance.

Adjusting Oven Temperature

The temperature in the oven has been pre-set at the factory. When first using the oven, be sure to follow recipe times and temperatures. If you think the oven is cooking too hot or too cool for the temperature you select, you can adjust the actual oven temperature to be more or less than what is displayed. Before adjusting, test a recipe by using a temperature setting that is higher or lower than the recommended temperature. The baking results should help you to decide how much of an adjustment

is needed.

INSTRUCTIONS

To adjust the oven temperature higher

1. Press ( Bake; for 6 seconds (Figure 2).

2. To increase the temperature use the number pads to enter the desired change (Example 30°F) (_ (_ (Figure 3). The

temperature may be increased as much as 35°F (19°C).

,H .................

PRESS

Figure 1

Note: The oven temperature adjustments

made with this feature will not change the Self-Clean

cycle temperature.

DISPLAY

Figure 2

3. Press to accept the temperature change and the display

will return to the time of clay (Figure 4). Press @ to reject the change if necessary,

To adjust the oven temperature lower

1. Press (i'B'_kil} for 6 seconds. 0° will appear in the display (Figure 5).

2. To decrease the temperature use the number pads to enter the desired change (Example -30°F) @ @ and then press @

(Figure 6). The temperature may be decreased as much as 35°F (lg°C).

3. Press STARTto accept the temperature change and the display

will return to the time of day (Figure 7). Press @ to reject the change if necessary.

Note: The oven temperature adjustments are permanent and will stay forever in the unit memory unless you manually change it again. Even a power outage will not reset these changes. Follow the same procedure again if you wish to change it to a different setting.

Qdb

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

General Care & Cleaning

Cleaning Various Parts of Your Range

Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers and heavy soiling as soon as possible. Regular cleanings will reduce the effort required for major cleanings later.

Surfaces

How to Clean

Aluminum & Vinyl Control Panel and Trim

Pieces

Glass, Painted and Plastic

Body Parts, Control Knobs and Decorative Trim

Pieces

Stainless Steel (some models) Oven door & drawer front panel

Use hot, soapy water and a cloth. Dry with a clean cloth. Before cleaning the control panel, turn all controls to OFF and remove the control

knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy water

and a dishcloth. Rinse with a clean water and a dishcloth. Be sure to squeeze

excess water from the cloth before wiping the panel; especially when wiping around the controls. Excess water in or around the controls may cause damage to the appliance. Be sure to rinse the cleaners as bluish stains may occur during heating and cannot de removed. To replace knobs after cleaning, line up the flat sides of

both the knob and the shaft; then push the knob into place.

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water. Follow by rinsing the area with clean water; dry and polish with a

soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray

liquids directly on the control pad and display area. Do not use large amounts of water on the control panel - excess water on the control area may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or

paper towels - they will damage the finish. To remove control knobs, turn to the OFF

position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,

line up the flat sides of both the knob and the shaft; then push the knob into place.

Clean with hot, soapy water and dishcloth. Rinse with clean water and cloth. Do not

use cleaners with high concentrations of chlorides or chlorines. Do not use

harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners off from the surface as

bluish stains may occur during heating that cannot be removed.

Oven Racks

Porcelain Enamel Broiler Pan and insert, Door Liner, Body Parts and

Warmer Drawer and Drawer Cavity.

Oven Door

_ DO HAND

;_ :_ _:-- DOOR GASKET

CLEAN '

DO HAND _)

DOOR (

N FRAME_ I

DO NOT HAND

CLEAN OVEN

This oven comes with lubricated porcelain oven racks, which can remain in the oven during the self-clean cycle. Do not clean this vegetable oil lubrication off the racks. It

is important that the sides of the oven racks always have a light coating of vegetable oil. To maintain optimal rack performance, re-apply a thin layer of vegetable oil to the

sides of the rack after every self-clean cycle or when the rack becomes difficult to

slide.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1

solution of clear water and ammonia, if necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

Use soap & water to thoroughly clean the top, sides and front of the oven door.

Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO

NOT immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of the oven door.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven

material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not to rub, damage or remove this gasket.

Cooktop, Burner Heads, See Cleaning the Cooktop, Burner Caps, Burner Heads & Grates in the General Burner Caps & Grates Care & Cleaning section for complete instructions.

General Care & Cleaning (cont'd)

Cleaning the Cooktop, Burner Heads, Caps & Grates

The cooktop is designed to make cleaning easier. Because the gas Burners are sealed, cleanups are easy when spillovers are cleaned up immediately.

The cooktop, Burner Heads and Caps should be routinely cleaned. Keeping the Burner Head Ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions:

THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.

THE FIXED OVEN VENT IS NOT REMOVABLE. Do not attempt to remove the fixed oven vent cover.

Use caution when replacing the Burner Caps so the Electrodes are not damaged. This may cause a

delayed ignition or prevent the burner from igniting.

To Remove and Replace the Surface Burner Caps and Burner Heads -

Surface

Burner

Grate

Remove in the following order: (1st) surface Burner Grates, (2nd) Burner Caps and (3rd) Burner Heads. Replace in the following order: Burner Heads, Burner Caps and Burner Grates.

Figure 1

Burner

Surface

Burner

Head

'_ Electrode

Orifice

holder

urface

Cap

To Remove and Replace the Triple Burner Parts (some models only) - Follow the steps described in the section Before Setting Surface Controls at page 9.

Do not remove any parts from the cooktop until they have completely cooled and are safe to handle. Do not operate the surface Burners without

the Burner Caps and Burner Heads properly in place.

To Clean the surface Burner Caps and Burner Heads (all models)- Use a soap-filled scouring pad or a mild abrasive cleanser to clean the surface Burner Caps and Burner Heads. The ports (or slots) around the Burner Heads must be routinely cleaned. If residue still remains in these ports, use a small-gauge wire or needle to clean the slots or holes. For proper flow of gas and ignition of the burner--DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY

OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING. ALWAYS keep the surface Burner Caps and Burner Heads in place whenever

the gas Burners are in use.

To Clean the Burner Grates (all models)- The Burner Grates are dishwasher safe and may be cleaned in the dishwasher. Remove any excessive soils before placing in the dishwasher.

To Clean the Cooktop and contoured areas of the cooktop (all models)- If a spill occurs on the porcelain cooktop, blot up spill with an absorbent cloth. Rinse with a clean, damp cloth and wipe dry. Do not use harsh abrasive cleaners on the cooktop. They can scratch the porcelain. Completely rinse any mild cleaners used from the surface or the porcelain cooktop may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

General Care & Cleaning (cont'd)

Ceramic Glass Cooktop Cleaning and Maintenance

Consistent and proper cleaning is essential to your ceramic glass cooktop

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do not slide anything metal or glass across the cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen. Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy or hard objects on the glass cooktop, because they may cause it to crack.

Cleaning Recommendations for the Ceramic Glass Cooktop

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and

can chemically damage the ceramic-glass surface.

For light to moderate soil: Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving

no residue. For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive plastic type no=scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for any other purpose.

if soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils, then apply a few drops of cleaning cream and buff surface

clean.

iMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you use an abrasive type scratch pad. Only use cleaning products that have been specifically designed for ceramic glass cooktop.

Plastic or foods with a high sugar content: These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface.

Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

General Care & Cleaningj(cont'd)

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cool(top, making it more

difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cool(top.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the cool(top which can burn and cause discoloration.

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

• Aluminum foil

Use of aluminum foil will damage the cooktop. Do not use under any circum- stances.

• Aluminum utensils

Since the melting point of aluminum is much lower than that of other metals, care must be taken when aluminum pots or pans are used. Pans that boil dry may permanently damage cooktop by breaking, fusing to, or marking it.

Care and Cleaning of Stainless Steel (StainlessSteel models only)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning

section in this Use & Care Guide.

Hinge lever

Hinge leve_ hook

Hin(

support _....

Lock engaged for door removal

Figure 1

HINGE SLOT =Door

removed from the oven

Figure 2

Removing and Replacing the Oven Door

The door is heavy. For safe, temporary storage, lay the door flat

with the inside of the door facing down. To Remove Oven Door:

1. Open the door to the fully opened position.

2. Pull up the lock located on each hinge support and engage it onto the hinge lever hook (Figure 1).You may have to apply a little downward pressure on the door to pull the lock fully over the hinge lever hook.

3. Grab the door by the sides and pull the bottom of the door up and toward you to disengage the hinge supports. Keep pulling the bottom of the door toward you while rotating the top of the door toward the range to completely disen- gage the hinge levers (Figure 2).

4. To clean oven door, follow the instructions provided in the General Care & Cleaning table.

To Replace Oven Door:

1. Grab the door by the sides; place the hinge supports and levers into the hinge slots. Open the door to the fully opened position.

2. Disengage the lock from the hinge lever hooks on both sides (Figure 3). Note: Make sure the hinge supports are fully engaged before unlocking the hinge levers.

3. Close the oven door.

Lock in normal position

Figure 3

Special Door Care Instructions - Most oven

doors contain glass that can break.

Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

General Care & Cleaning (cont'd)

Removing and Replacing Warmer (Warm & Ready TM) Drawer

Electrical Shock Hazard can occur and result

in serious injury or death. Disconnect appliance from electric

power before cleaning and servicing the warmer drawer.

To Remove Warmer Drawer:

1. _ Turn power off before removing the warmer drawer.

2. Open the drawer to the fully opened position.

3. Locate glide lever on each side of drawer, pull up on the left glide lever and push down on the right glide lever (See Figure 1).

4. Pull the drawer away from the range.

To Replace Warmer (Warm & Ready TM) Drawer:

1. Pull the plastic slider to the front of the glide slots on each side of the drawer cavity (See Figure 2).

2. Align the glide on each side of the drawer with the drawer cavity glide slot.

3. Push the drawer into the drawer cavity until glide levers "click" (approximately 2"). If you do not hear the glide levers "click" or the drawer does not feel seated remove the drawer and repeat steps 1

thru 3.

Note: The Warmer Drawer will NOT operate while in the "Self-Clean" and "Oven Lockout" modes

Pull down lever

with finger

Figure 1

Figure 2

Pull up lever

with finger

Right Glide

Changing the Oven Light

Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on during the self-cleaning cycle. High temperature will reduce lamp life.

The interior oven light will turn on automatically when the oven door is opened.

The oven light may be turned on when the door is closed by using the oven light switch

located on the control panel. On a self clean oven the lamp is covered with a glass shield held in place by a wire holder.

THIS GLASS SHIELD MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.

To replace the light bulb:

CAUTION: BE SURE OVEN IS COOL

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. Replace bulb with a 40 watt appliance bulb only.

4. For self-cleaning oven, press wire holder to one side to release glass shield, change bulb and be sure to replace glass shield.

Before You Call

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE Range is not level.

Cannot move appliance easily. Appliance must

be accessible for

service.

Entire range or oven does not operate.

Surface burners do not light.

POSSIBLE CAUSE/SOLUTION Poor installation. Place oven rack in center of oven. Place a level on the oven rack.

Adjust leveling legs at base of range until the rack is level. When range is level, cooktop may appear out of alignment if countertop is not level.

Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a carpenter to correct sagging or sloping floor.

Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are square and have sufficient room for range clearance.

Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem. Contact builder or installer to make appliance accessible. Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet. Gas line is hard-plumbed. Have a flexible C.S.A international approved metal appliance

connector installed. Make sure cord/plug is tightly into outlet.

Service wiring is not complete. Call 1=800=4=MY=HOME®(See backcover). Power outage. Check house lights to be sure. Call your local electric company for

service. Surface burners can be lit manually. Surface control knob has not been completely turned to LITE. Push in and turn the

surface control knob to LITE (until burner ignites) and then turn the surface control knob to the desired flame size.

Surface burner flame burns half way around.

Surface burner flame is orange.

Scratches or abrasions on cooktop surface.

Metalmarks.

Brown streaks or

specks.

Burner ports are clogged. Clean burners. See "Cleaning the Burner Grates, Burner Caps and Burner Heads" under General Cleaning.

Electrical power outage. Be sure the gas supply to the range is turned "ON".

Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire or needle.

Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until flame is full. Dry the burners thoroughly following instructions in the "General Care & Cleaning" section.

Dust particles in main line. Allow the burner to operate a few minutes until flame turns blue.

Salt air in coastal areas. A slightly orange flame is unavoidable. Coarse particles such as salt or sand between cooktop and utensils can cause scratches.

Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used. See "Ceramic Glass Cooktop Cleaning & Maintenance" section under General Care & Cleaning.

Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. See "Ceramic Glass Cooktop Cleaning & Maintenance" section under General Care & Cleaning.

Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See "Ceramic Glass Cooktop Cleaning & Maintenance" section under General Care & Cleaning.

Areas of discoloration Mineral deposits from water and food. Remove using a ceramic glass cooktop cleaning with metallic sheen, cream. Use cookware with clean, dry bottoms.

*Oven control beeps and Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display displays any F code error and stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP/

(for example F11) CLEAR and call 1-800-4-MY-HOME 6) for assistance (See back cover). Oven light does not Replace bulb. See "Changing Oven Light" in this Use and Care Guide for instructions.

work. Poor baking results. Many factors affect baking results. Make sure the proper rack position is used. Center

food in the oven and space pans to allow air to circulate. If conventional baking, allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. If you feel the oven is too hot or cool, see "Adjusting the Oven Temperature" section in this Use and Care Guide.

Fan noise during cooking operation.

A cooling fan may automatically turn on and off to cool internal parts. It is normal, and the fan may continue to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while.

Flames inside oven or smoking from vent.

Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.

Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts of grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean cycle. If flames or excessive smoke are present, stop the self-clean cycle and follow the steps under "Stopping or Interrupting a Self-Cleaning Cycle" in this Use

and Care Guide.

Oven smokes excessively during

broiling.

Control(s) not set properly. Follow instructions under "Setting Broil" in this Use and Care Guide.

Make sure oven is opened to Broil Stop Position. Meat too close to the element. Reposition the rack to provide proper clearance between

the meat and the element.

Self=cleaning cycle does not work.

Soil not completely removed after self-

cleaning cycle.

Excessive smoking from oven vent.

The insert on broiler pan wrong side up and grease not draining. Always place insert on the broiler pan with ribs up and slots down to allow grease to drip into pan.

Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty edges to prevent the meat from curling, but do not cut into the lean of the meat.

Broiler pan used without the Broiler Pan Insert or insert is covered with foil. DO NOT use the Broiler Pan without the Broiler Pan Insert or cover the insert with foil.

Broiler Pan or Broiler Pan Insert needs to be cleaned. Excessive smoking is caused by build-up of grease or food spatters. Clean the Broiler Pan and Insert on a regular basis.

Control(s) not set properly. Follow instructions under "Self-Cleaning" in this Use and Care Guide.

Self-cleaning cycle was interrupted. Stop time must be 3 to 4 hours past the start time.

Follow steps under "Stopping or interrupting a Self-Cleaning Cycle" in this Use and Care Guide.

Set Self-Clean cycle for a longer cleaning time. Hand clean bottom, front top of oven, frame or door area outside oven seal before the

self-cleaning is started. These areas are not in the self-cleaning area, but get hot enough to burn on residue. Burned-on residue can be cleaned with a stiff nylon brush and water or nylon scrubber. Be careful not to damage the oven seal by attempting to

clean it.

Excessive spillovers in oven, especially for pie spillovers or large amounts of grease on the oven bottom. Wipe up excessive spillovers before starting the Self-Clean cycle. If flames or excessive smoke are present, stop the Self-Clean cycle and follow the steps under "Stopping or Interrupting the Self-Cleaning Cycle" in this Use and Care

Guide.

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

............................................................................................................................................................................................................................._w:sears:com ............................................................................................................................................................................................_w.sears_ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

® Registered Trademark / Trademark / Service Mark of Sears Brands, LLC ® Marca Registrada / Marca de Fabrica / SM Marca de Servicio de Sears Brands, LLC

MCMarque de commerce / MDMarque depos6e de Sears Brands, LLC

TM SM

Kenmore 4104 - Elite 30 in. Slide-In Dual Fuel Range, 4101 - Elite 30 in. Slide-In Electric Range, 790.4103 Series, 790.4104 Series Use And Care Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
