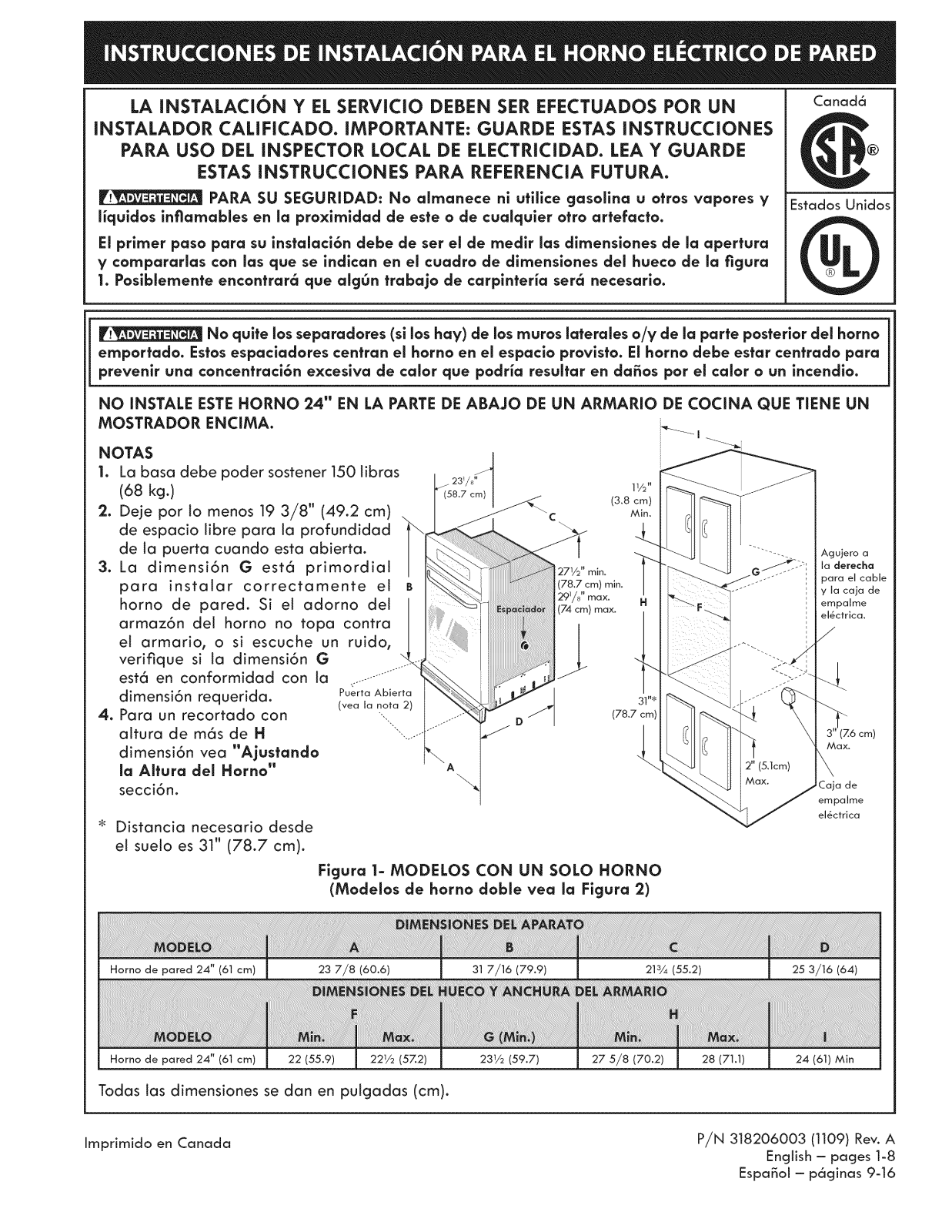

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED
iNSTALLER, iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
F_ FOR YOUR SAFETY: Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes
to make the job of installing easier. The first step of your installation should be
to measure your current cutout dimensions and compare them to the cutout
dimensions chart below for your model. You may find little or no cabinet work
being necessary.
Canada
United States
pr_ Do not remove spacers (if equipped) on the side walls and/or on the back of
the built=in oven. These spacers center the oven in the space provided. The oven must be
centered to prevent excess heat buildup that may result in heat damage or fire.
DO NOT INSTALL THIS WALL OVEN IN A BASE CABINET WITH A COUNTERTOP ABOVE IT.
NOTES:
1. Base must be capable of supporting 150 pounds (68 kg).
2. Allow at least 19 3/8" (49.2 cm)
23_/8'' z
clearance for door depth when (5 cm)
it is open.
3. Dimension G is critical to the )_"_c
proper installation of the built- t_.
in oven. If the oven decorative
/
trim does not butt against the
cabinet, or if noise is heard B
on convection models, verify
dimension G to assure it is /
according to the required
dimension. Doo_6pe,
4. For a cutout height (see.note 2)
greater than H dimension .............
see "Adjusting oven ........
height" section.
Required distance from _.
floor is 31" (78.7 cm).
I
11/2"
(3.8 cr
Hole for
cable and
electrical
junction
box on
/_ght side
3" (7.6 cm)
Max.
Junction Box
Location

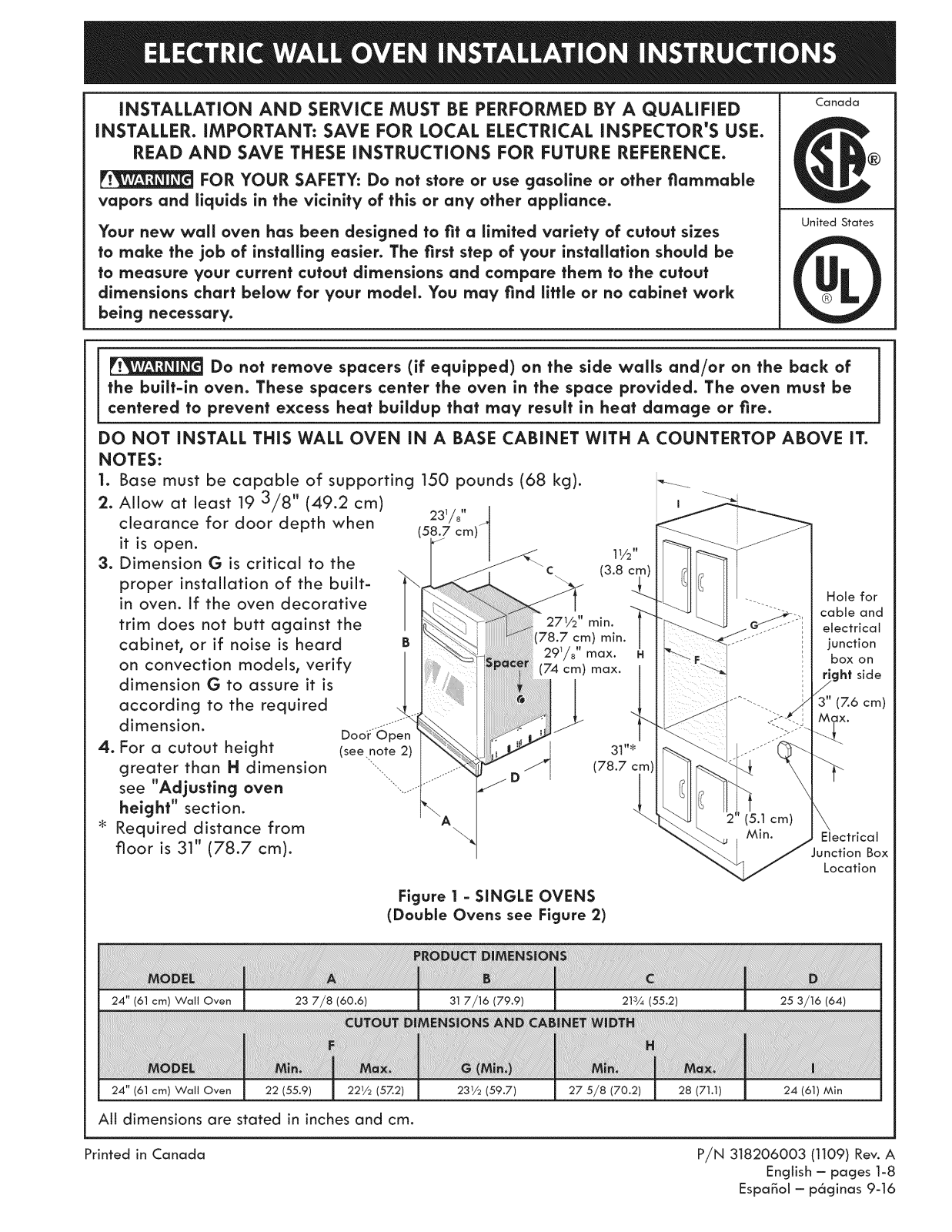

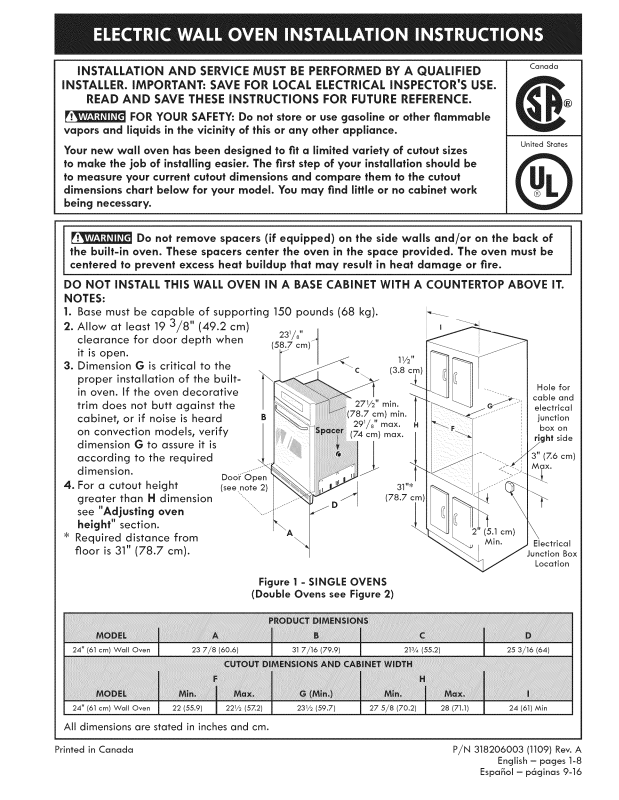

Figure 1 = SINGLE OVENS
(Double Ovens see Figure 2)
24" (61 cm) Wall Oven 22 (55.9) 221/2 (57.2)
All dimensions are stated in inches and cm.
23V2 (59.7) 27 5/8 (70.2) 28 (71.1) 24 (61) Min
Printed in Canada
P/N 318206003 (1109) Rev. A
English - pages 1-8
Espa_ol - p6ginas 9-16

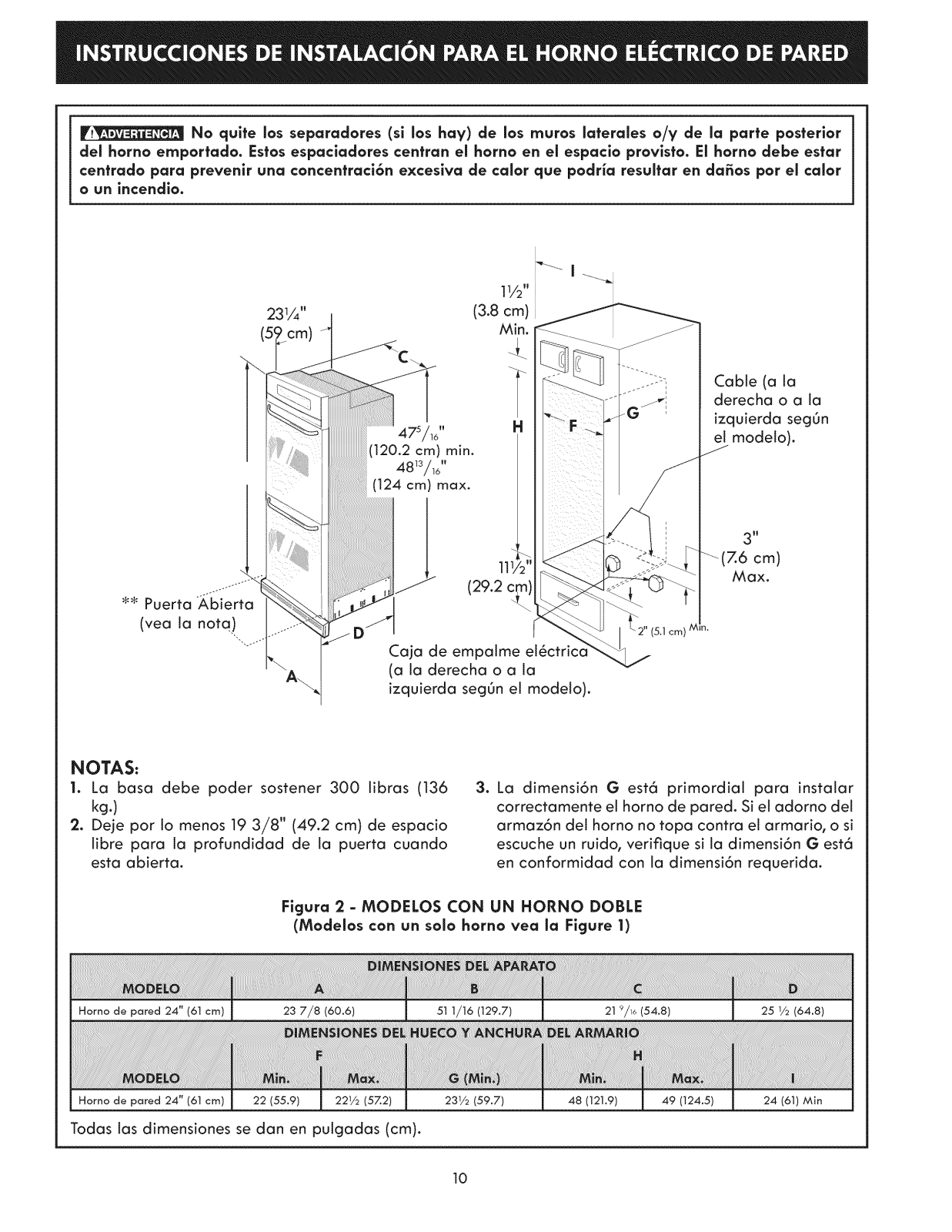

Do not remove spacers (if equipped) on the side wails and/or an the back of the
built-in oven. These spacers center the oven in the space provided. The oven must be centered to
prevent excess heat buildup that may result in heat damage or fire.
!
L
Door Open
(see note 2)
11/, ,w
23_/4 ,, /2 __
S,:n (3.8 cm) Mi n. <-___
/ .
;: _ !120o2 ¢m)min,
4813/16 (124im) max" i _
111/2"f_
Electrical Juncitio_Bol _11"_-(5"1
(Right or left side v
depending on model)
Hole for cable and
electrical junction box
on left or right side
jdepending on model.
_3" (7.6 cm) Max.
cm) Max.
NOTES
I. Base must be capable of supporting 300
pounds (136 kg).
2. Allow at least 19 3/8" (49.2 cm) clearance for
door depth when it is open.
3. Dimension G is critical to the proper
installation of the built-in oven. if the oven
decorative trim does not butt against the
cabinet, or if noise is heard on convection
models, verify dimension G to assure it is
according to the required dimension.

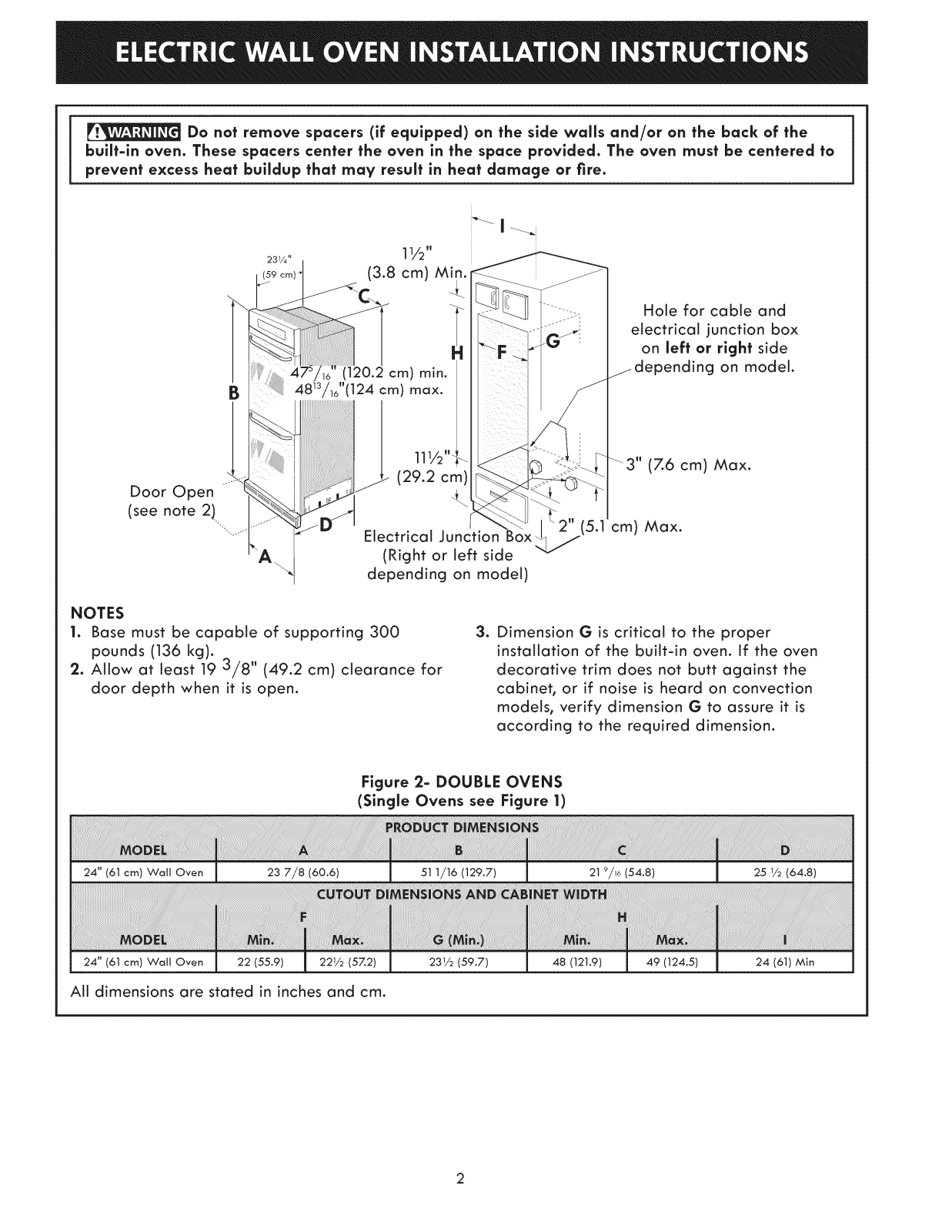

Figure 2= DOUBLE OVENS
(Single Ovens see Figure 1)
25 V2 (64.8)
24" (61 cm) Wall Oven 22 (55.9) 221/2 (57.2)
All dimensions are stated in inches and cm.
23V2(59.7) 48 (121.9) 49 (124.5) 24 (61) Min

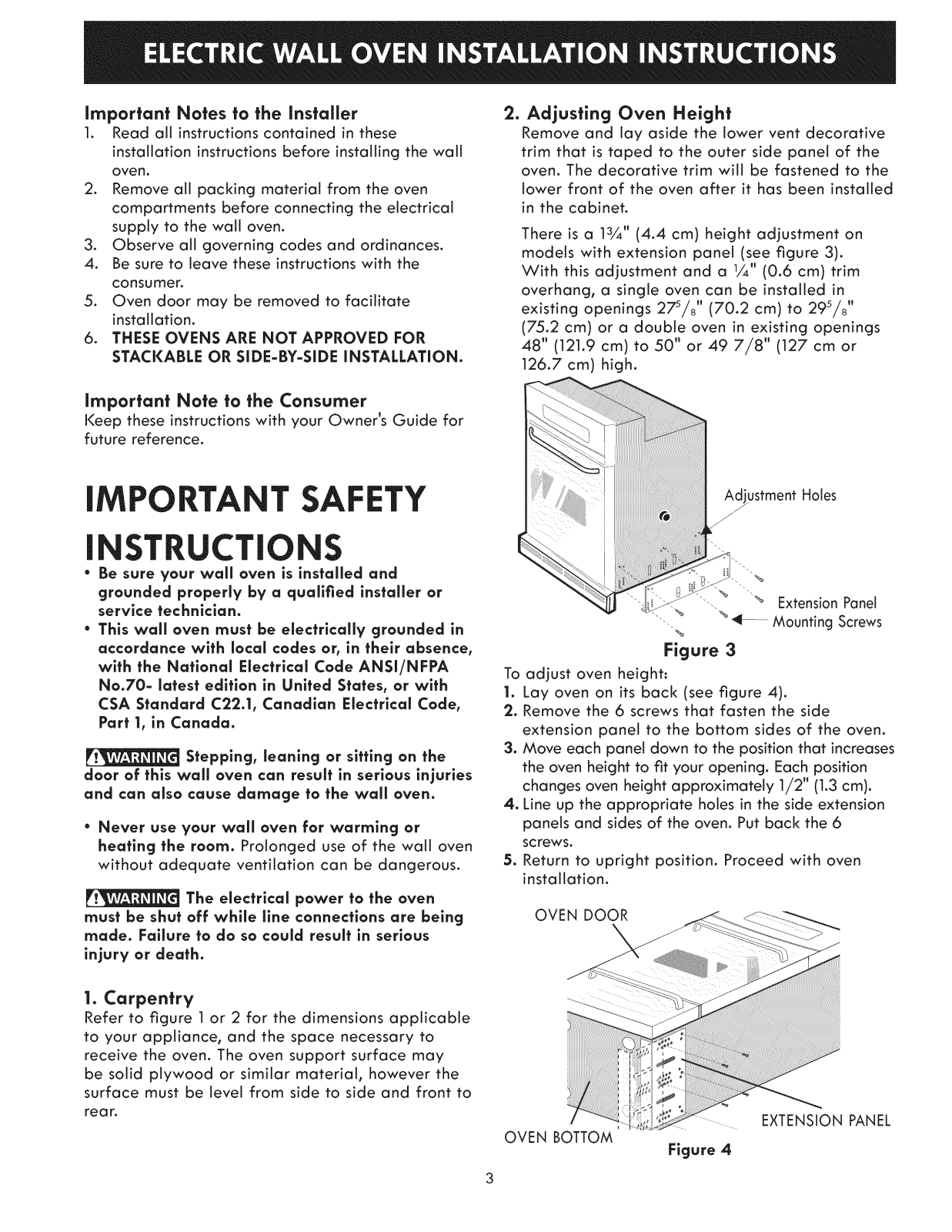

important Notes to the installer
1. Read att instructions contained in these
installation instructions before installing the wall
oven.
2. Remove all packing material from the oven
compartments before connecting the electrical
supply to the watt oven.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the
consumer.
5. Oven door may be removed to facilitate
installation.
6. THESE OVENS ARE NOT APPROVED FOP,
STACKABLE OR SIDE-BY-SIDE INSTALLATION.

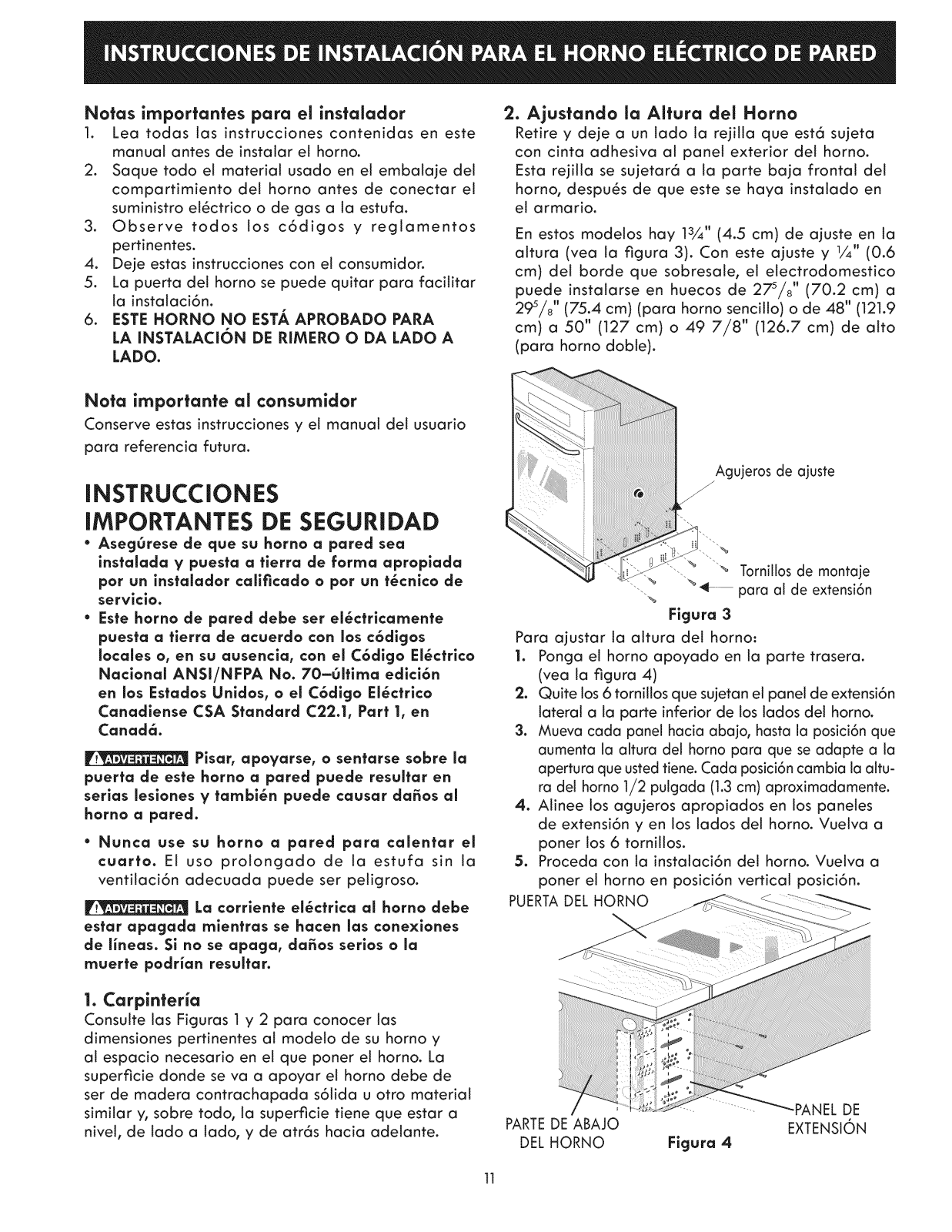

2. Adjusting Oven Height
Remove and lay aside the lower vent decorative
trim that is taped to the outer side panel of the
oven. The decorative trim will be fastened to the
lower front of the oven after it has been installed
in the cabinet.
There is a 13¼"(4.4 cm) height adjustment on
models with extension panel (see figure 3).
With this adjustment and a 1/4" (0.6 cm) trim
overhang, a single oven can be installed in
existing openings 27s/8 '' (70.2 cm) to 29s/8 ''
(75.2 cm) or a double oven in existing openings
48" (121.9 cm) to 50" or 49 7/8" (127 cm or
126.7 cm) high.
important Note to the Consumer
Keep these instructions with your Owner's Guide for
future reference.
iMPORTANT SAFETY
iNSTRUCTiONS
* Be sure your wall oven is installed and
grounded properly by a qualified installer or
service technician.
* This wall oven must be electrically grounded in
accordance with local codes or, in their absence,
with the Natlonal Electrlcal Code ANSI/NFPA
No.70- latest edition in United States, or with
CSA Standard C22.1, Canadian Electrlcal Code,
Part 1, in Canada.
Stepping, leaning or sitting an the
door of this wall oven can result in serious injuries
and can also cause damage to the wall oven.
* Never use your wall oven far warming or
heating the room. Prolonged use of the walt oven
without adequate ventilation can be dangerous.
The electrlcal power to the oven
must be shut off while llne connections are being
made. Failure to do so could result in serious
injury or death.
To
1.
2.
.
.
.
stmentHoles
_"_'_ _iiii_ Extension
Panel
Mounting Screws
Figure 3
adjust oven height:
Lay oven on its back (see figure 4).
Remove the 6 screws that fasten the side
extension panel to the bottom sides of the oven.
Move each panel down to the position that increases
the oven height to fit your opening. Each position
changes oven height approximately 1/2" (1.3cm).
Line up the appropriate holes in the side extension
panels and sides of the oven. Put back the 6
screws.
Return to upright position. Proceed with oven
installation.
OVEN DOOR
|. Carpentry
Refer to figure 1 or 2 for the dimensions applicable
to your appliance, and the space necessary to
receive the oven. The oven support surface may
be solid plywood or similar material, however the
surface must be level from side to side and front to
rear.
3
OVEN BOTTOM'
Figure 4
EXTENSION PANEL

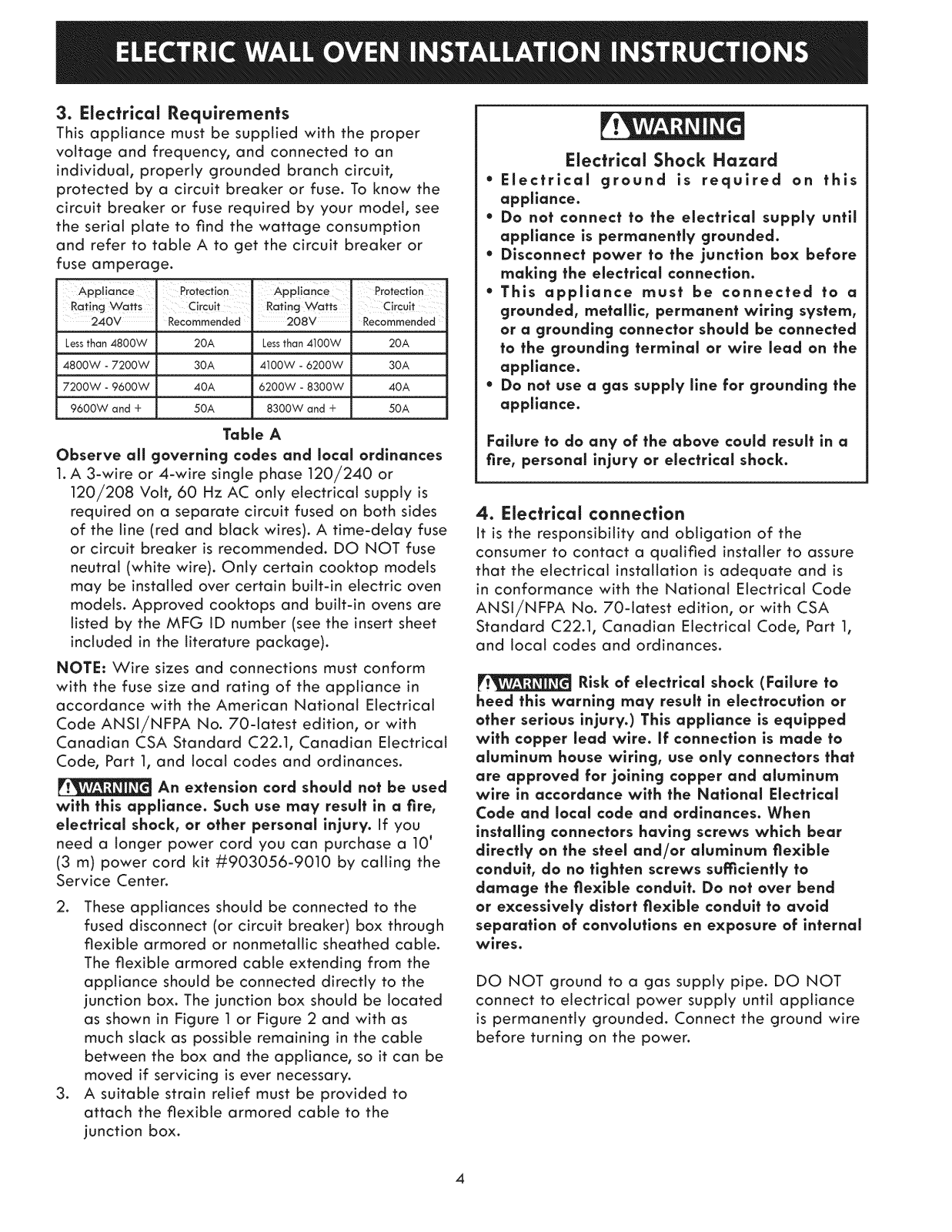

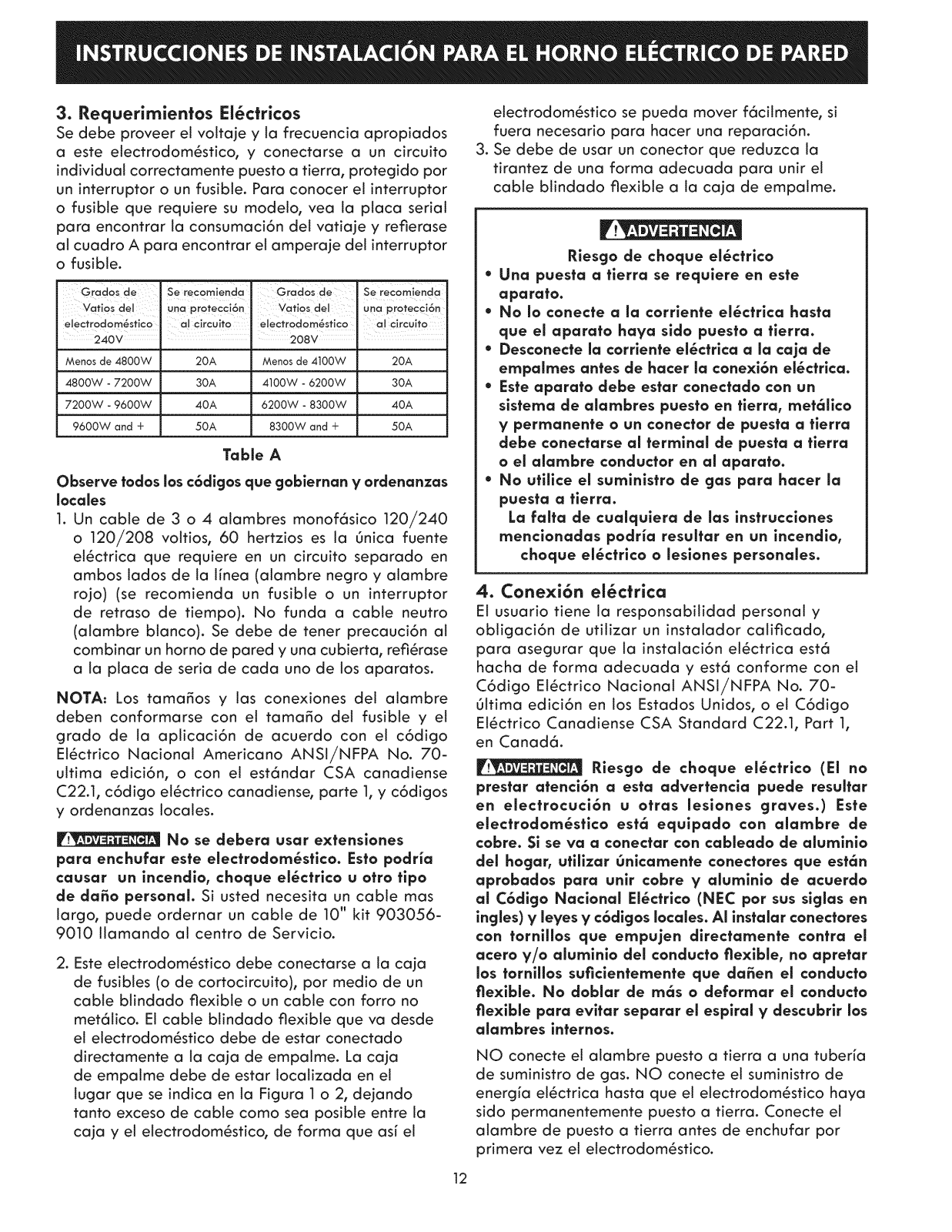

3. Electrical Requirements
This appliance must be supplied with the proper
voltage and frequency, and connected to an
individual, properly grounded branch circuit,
protected by a circuit breaker or fuse. To know the
circuit breaker or fuse required by your model, see
the serial plate to find the wattage consumption
and refer to table A to get the circuit breaker or
fuse amperage.
| I
Appliance ProtectiQn Appliance ProtectiQn
Rating Watts Circuit Rating Watts Circuit
n H
240V Recommended 208V Recommended
Lessthan 4800W 20A Lessthan 4100W 20A
4800W - 7200W 30A 4100W - 6200W 30A
7200W - 9600W 40A 6200W - 8300W 40A
9600W and + 50A 8300W and + 50A
Table A
Observe all governing codes and local ordinances
1. A 3-wire or 4-wire single phase 120/240 or
120/208 Volt, 60 Hz AC only electrical supply is
required on a separate circuit fused on both sides
of the line (red and black wires). A time-delay fuse
or circuit breaker is recommended. DO NOT fuse
neutral (white wire). Onty certain cooktop models
may be installed over certain built-in electric oven
models. Approved cooktops and built-in ovens are
listed by the MFG ID number (see the insert sheet
included in the literature package).
NOTE: Wire sizes and connections must conform
with the fuse size and rating of the appliance in
accordance with the American National Electrical
Code ANSI/NFPA No. 70-latest edition, or with
Canadian CSA Standard C22.1, Canadian Electrical
Code, Part 1, and local codes and ordinances.
An extension cord should not be used
with this appllance. Such use may result in a fire,
electrlcal shock, or other personal injury, if you
need a longer power cord you can purchase a 10'
(3 m) power cord kit #903056-9010 by calling the
Service Center.
2. These appliances should be connected to the
fused disconnect (or circuit breaker) box through
flexible armored or nonmetallic sheathed cable.
The flexible armored cable extending from the
appliance shoutd be connected directly to the
junction box. The junction box should be located
as shown in Figure 1 or Figure 2 and with as
much slack as possible remaining in the cable
between the box and the appliance, so it can be
moved if servicing is ever necessary.
3. A suitable strain relief must be provided to
attach the flexible armored cable to the
junction box.
Electrical Shock Hazard
* Electrlcal ground is required on this
appliance.
* Do not connect to the electrlcal supply until
appffance is permanenHv grounded.
* Disconnect power to the junction box before
making the electrlcal connection.
* This appliance must be connected to a
grounded, metallic, permanent wiring system,
or a grounding connector should be connected
to the grounding terminal or wire lead on the
appffance.
* Do not use a gas supply llne for grounding the
appffance.
Failure to do any of the above could result in a
fire, personal injury or electrical shock.
4. Electrical connection
It is the responsibility and obligation of the
consumer to contact a qualified installer to assure
that the electrical installation is adequate and is
in conformance with the National Electrical Code
ANSI/NFPA No. 70-latest edition, or with CSA
Standard C22.1, Canadian Electrical Code, Part 1,
and local codes and ordinances.
Risk of electrical shock (Failure to
heed this warning may result in electrocution or
other serious injury.) This appllance is equipped
with copper lead wire. if connection is made to
aluminum house wiring, use only connectors that
are approved for joining copper and aluminum
wire in accordance with the National Electrical
Code and local code and ordinances. When
installing connectors having screws which bear
direcHy on the steel and/or alumlnum fiexlble
conduit, do no tighten screws sufflcientiy to
damage the flexible conduit. Do not over bend
or excessively distort fiexlble conduit to avoid
separation of convolutions en exposure of internal
wires.
DO NOT ground to a gas supply pipe. DO NOT
connect to electrical power supply until appliance
is permanently grounded. Connect the ground wire
before turning on the power.
4

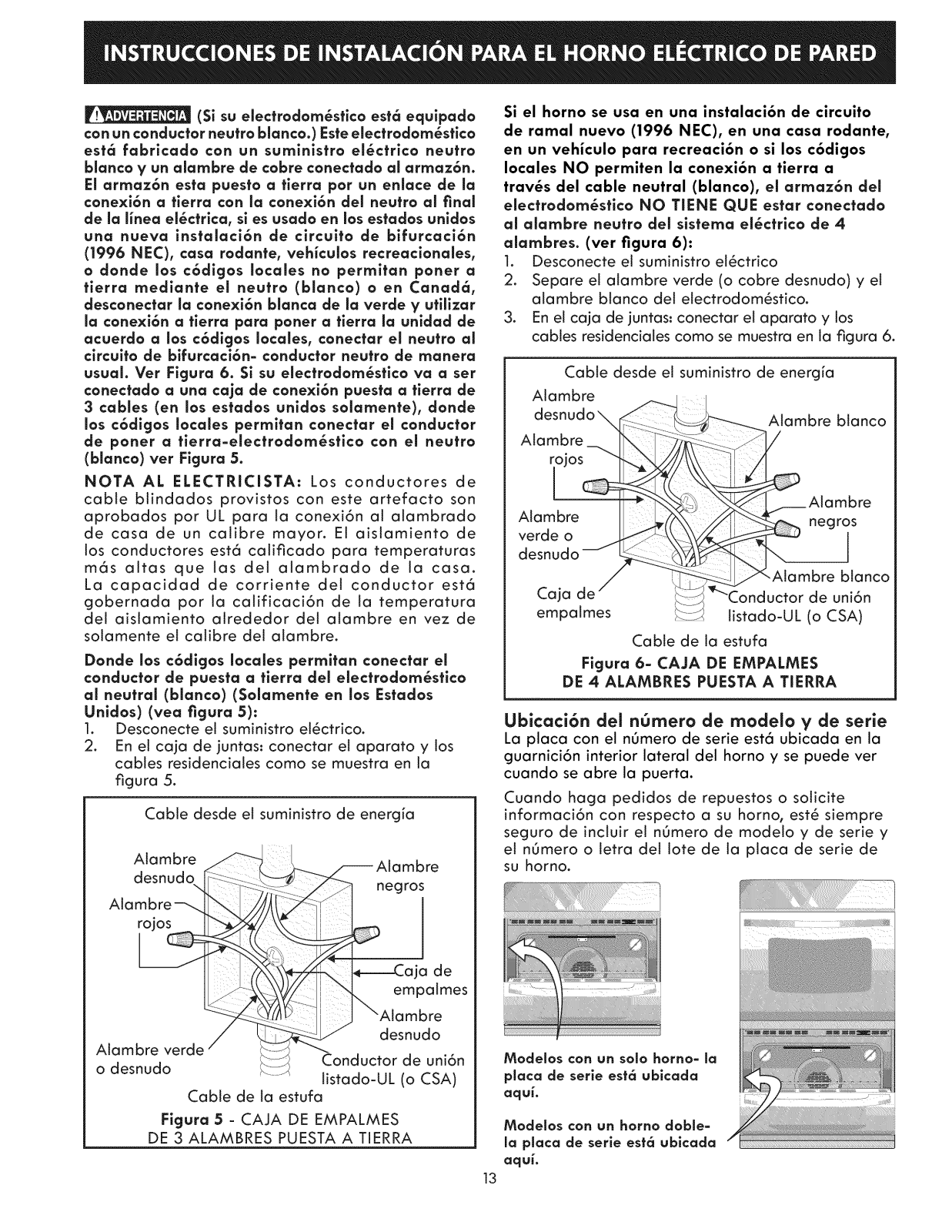

(If your appliance is equipped with a
white neutral conductor.)
This appliance is manufactured with a white
neutral power supply and a frame connected
copper wire. The frame is grounded by connection
of grounding lead to neutral lead at the
termination of the conduit, if used in USA, in a
new branch circuit installation (1996 NEC), mobile
home, recreational vehicles, where local code do
not permit grounding trough the neutral (white)
wire or in Canada, disconnect the white and
green lead from each other and use ground lead
to ground unit in accordance with local codes,
connect neutral lead to branch circult-neutral
conductor in usual manner see Figure 6. If your
appliance is to be connected to a 3 wire grounded
junction box (US only), where local code permit
connecting the appllance-grounding conductor to
the neutral (white) see Figure 5.
NOTE TO ELECTRICIAN: The armored cable leads
supplied with the appliance are UL-recognized for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures much
higher than temperature rating of household wiring.
The current carrying capacity of the conductor is
governed by the temperature rating of the insulation
around the wire, rather than the wire gauge alone.
Where local codes permit connecting the
appffance-groundlng conductor to the neutral

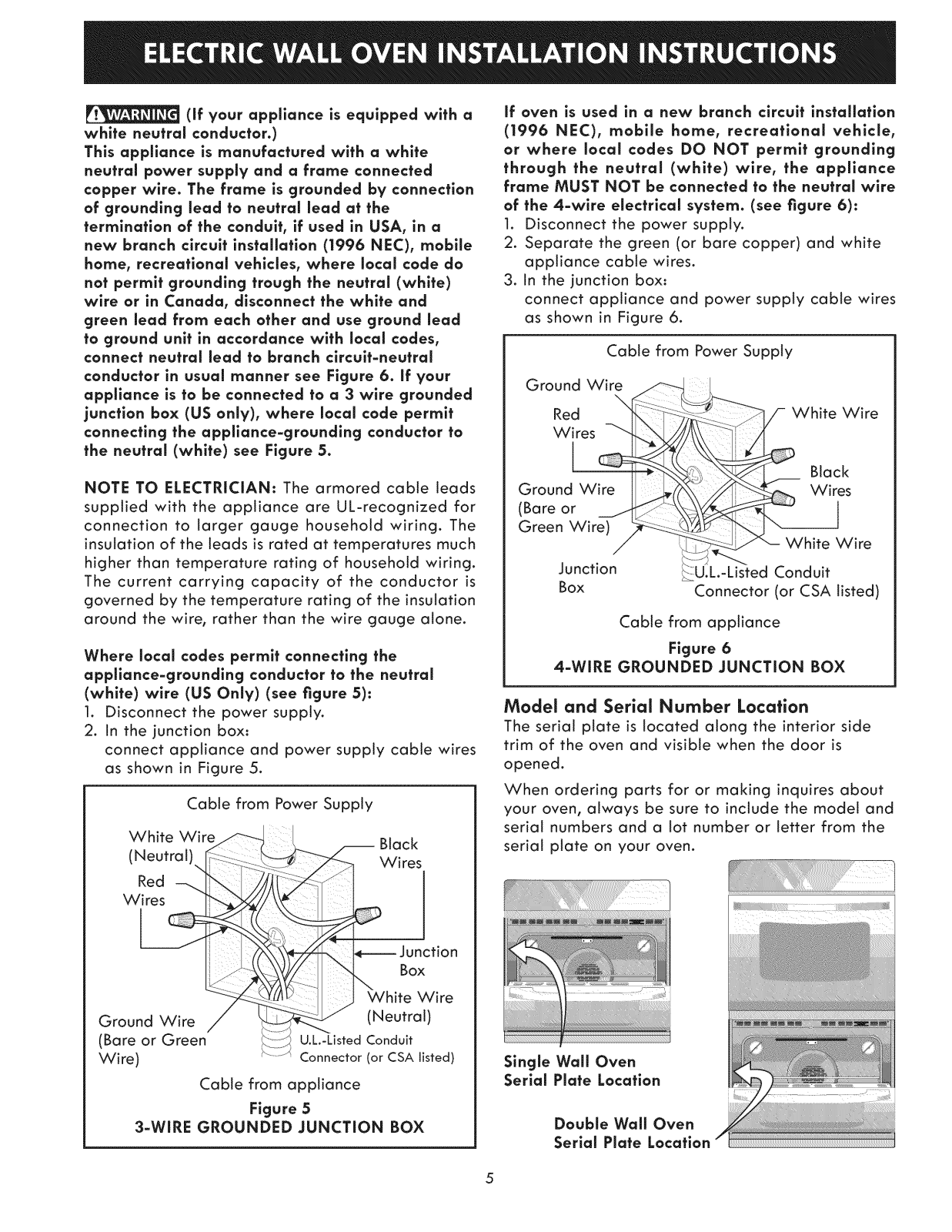

(white) wire (US Only) (see figure 5):
1. Disconnect the power supply.
2. In the junction box:
connect appliance and power supply cable wires
as shown in Figure 5.
Cable from Power Supply
White Wire -'_-_
(Neutral) _ :::::............
Red _.
Wires I" _--_!//k_
Ground Wire /
(Bare or Green _
Wire)
Black
ires
Junction
Box
i ...J _iVhite Wire
(Neutral)
U.L.-Listed Conduit
Connector (or CSA listed)
Cable from appliance
Figure 5
3-WIRE GROUNDED JUNCTION BOX
ff oven is used in a new branch circuit installation
(1996 NEC), mobile home, recreational vehicle,
or where local codes DO NOT permit grounding
through the neutral (white) wire, the appliance
frame MUST NOT be connected to the neutral wire
of the 4-wire electrical system. (see figure 6):
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance cable wires.
3. In the junction box:
connect appliance and power supply cable wires
as shown in Figure 6.
Cable from Power Supply
Ground Wirex _-_
Red __
Ground Wire "_
(Bare or _Lk_
Green Wire) __
Junction
Box
_?j_'_/- White Wire
_ Black
::U.k.-kisted Conduit
Connector (or CSA listed)
Cable from appliance
Figure 6
4-WIRE GROUNDED JUNCTION BOX
Model and Serial Number Location
The serial plate is located along the interior side
trim of the oven and visible when the door is
opened.
When ordering parts for or making inquires about
your oven, always be sure to include the model and
serial numbers and a lot number or letter from the
serial plate on your oven.
Single Wall Oven
Serial Plate Location
Double Wall Oven
Serial Plate Location
5

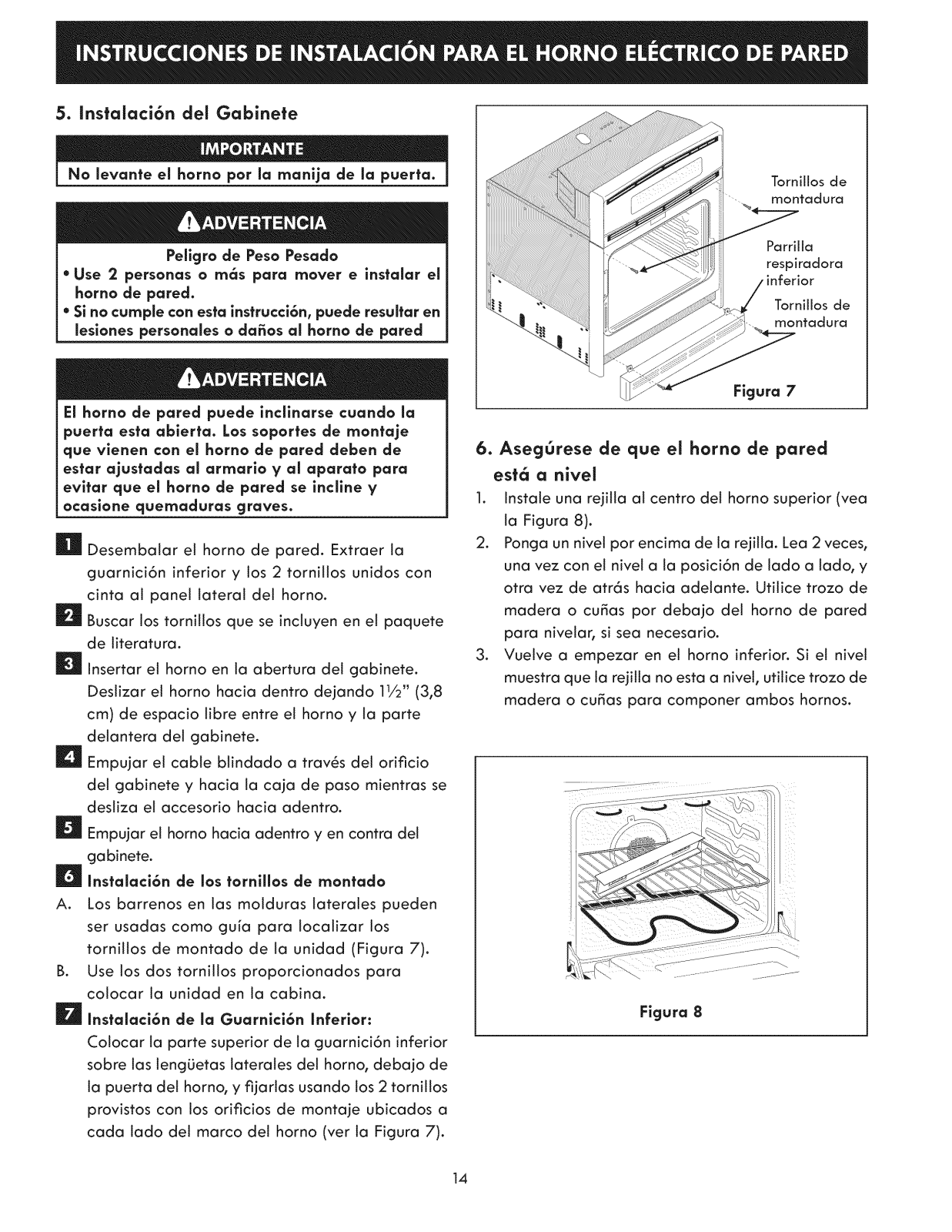

Loading...
