Kenmore 790. 4045 User Manual

Kenmore

ELECTRIC BUILT-IN OVEN

HORNO DE PARED

Models, Modelos 790.4045>1<

>I< = Color number, número de color

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

P/N 318205309 Rev. B (0909)

Table of Contents

Wall Oven Warranty.............................................................2

Product Record
Serial Plate Location

IMPORTANT SAFETY INSTRUCTIONS ..........................3-4

Wall Oven Features
Oven Vent and Racks

Air Circulation in the Oven .................................................6

.........

..........................................................

...

........................................................

...

...........................................................5

..........................................................

Control Pad Features
Setting the Oven Controls
Self-Cleaning

2

General Care & Cleaning

2

Adjusting the Oven Temperature

Before You Call.............................................................19-20

Protection Agreements.....................................................21

6

Sears Service

............................................................... 14-15

.....................................................................

..........................................................7

.............................................

.............................................

...................................

8-13

16-18

19

22

Please carefully read and save these instructions

This Use & Care Manual contains general operating instructions for your appliance and feature information for several
models. Your product may not have all the described features. The graphics shown are representative. The graphics on
your appliance may not look exactly like those shown. Common sense and caution must be practiced when installing,
operating and maintaining any appliance.

Ken more Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in
material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.

This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family
purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.

3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

4. A service technician to instruct the user in correct product installation, operation or maintenance.

5. A service technician to clean or maintain this product.

6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions supplied
with the product.

7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.

9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 - Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8

Product Record

In this space below, record the date of purchase, model and
serial number of your product. You will find the model and
serial number printed on the serial plate.

Model No.^QQ-
Serial No.
Date of purchase
Save these instructions and your sales receipt for future

reference.

Printed in United States

___________________________________

________________________________________

__________________________________

Serial Plate

Location

You will find the model and
serial number printed on the
serial plate. The serial plate
is located along the interior
side trim and visible when
the oven door is opened.

Remember to record the
serial number for future
reference.

Serial Plate
Location

Important Safety Instructions

Read ail instructions before using this appliance.

Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all
instructions given.

A WARNING

damage.

ik CAUTION

This symbol will help alert you to situations that may cause serious bodily harm, death or property

This symbol will help alert you to situations that may cause bodily injury or property damage.

• Remove all tape and packaging before using the
appliance. Destroy the carton and plastic bags after un

packing the appliance. Never allow children to play with
packaging material.

• Proper Installation. Be sure your appliance is proper

ly installed and grounded by a qualified technician in

accordance with National Electrical Code ANSI/NFPA

No.70 (USA) or CSA C22.1, PART 1 (Canada)-latest

edition and local code requirements. Install only per

installation instructions provided in the literature package

for this appliance.

Sears Parts & Repair is the recommended repair service

for this appliance. Know how to disconnect the electrical

power to the appliance at the circuit breaker or fuse box in
case of an emergency.

• User Servicing. Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by

a qualified technician to reduce the risk of personal injury
and damage to the appliance.

• Never modify or alter the construction of an appli
ance by removing panels, wire covers or any other

part of the product.

• Remove the oven door from any unused appliance if

it is to be stored or discarded.

Д WARNING

on the door of this appliance can result in serious inju
ries and may also cause damage to the appliance. Do

not allow children to climb or play around the appliance.

I Stepping, leaning, sitting or pulling down

ik WARNING

• All wall ovens can tip.

• Injury to persons could result.

• Install mounting brackets packed with

the wall oven.

• See Installation Instructions.
To reduce the risk of tipping, the wall

oven must be secured by properly

installed mounting brackets provided

with the wall oven. Refer to the

Installation Instructions for proper
mounting bracket installation.

Storage on Appliance. Flammable materials should
not be stored in the oven. This includes paper, plastic

and cloth items, such as cookbooks, plasticware and
towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the appli
ance. Flammable materials may explode and result in
fire or property damage.

ik WARNING

ik CAUTION

dren in the cabinets above an appliance. Children

climbing on the appliance to reach items could be seri
ously injured.

• Do not leave children alone. Children should not be

left alone or unattended in the area where an appli
ance is in use. They should never be allowed to sit or

stand on any part of the appliance.

• DO NOT TOUCH BAKE AND BROILING ELEMENTS
OR AREAS NEAR THESE ELEMENTS. Baking and

broiling elements may be hot even though they are
dark in color. Areas near elements may become hot
enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials
touch these areas until they have had sufficient time to
cool.

• Wear Proper Apparel. Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable

materials contact hot surfaces.

ik WARNING

or heating the room.

• Do Not Use Water or Flour on Grease Fires.
Smother the fire with a pan lid, or use baking soda,
a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

• Use Only Dry Potholders. Moist or damp potholders
on hot surfaces may result in burns from steam. Do

not let the potholders touch hot heating surface units.
Do not use a towel or other bulky cloth instead of a
potholder.

Do not use the oven for storage.

Do not store items of interest to chil

Never use your appliance for warming

Important Safety Instructions

• Do Not Heat Unopened Food Containers. Buildup of
pressure may cause the container to burst and result
in injury.

IMPORTANT—Do not attempt to operate the appliance
during a power failure. If power fails, always turn off the

appliance. If the appliance is not turned off and the power
resumes, it will begin to operate again. Once the power
resumes, reset the clock and oven function.

IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR OVEN

• Clean the appliance regularly to keep all parts free

of grease that could catch fire. Exhaust fan ventilation

hoods and grease filters should be kept clean. Do not
allow grease to accumulate. Greasy deposits in the fan
could catch fire. Refer to the hood manufacturer’s instruc
tions for cleaning.

IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN

• Use Care When Opening an Oven Door—Stand to the

side of the appliance when opening the door of a hot

oven. Let hot air or steam escape before you remove or

replace food in the oven.

• Keep Oven Vent Ducts Unobstructed. The wall oven is

vented at the upper control panel or at the center trim de

pending of the model. Touching the surfaces in this area

when the wall oven is operating may cause severe burns.
Also, do not place plastic or heat-sensitive items near the
oven vent. These items could melt or ignite.

• Placement of Oven Racks. Always place oven racks
in desired location while oven is cool. Remove all uten
sils from the rack before removing rack. If rack must be
moved while oven is hot, use extreme caution. Use pot
holders and grasp the rack with both hands to reposition.
Do not let pot holders contact the hot oven element or
interior of the oven.

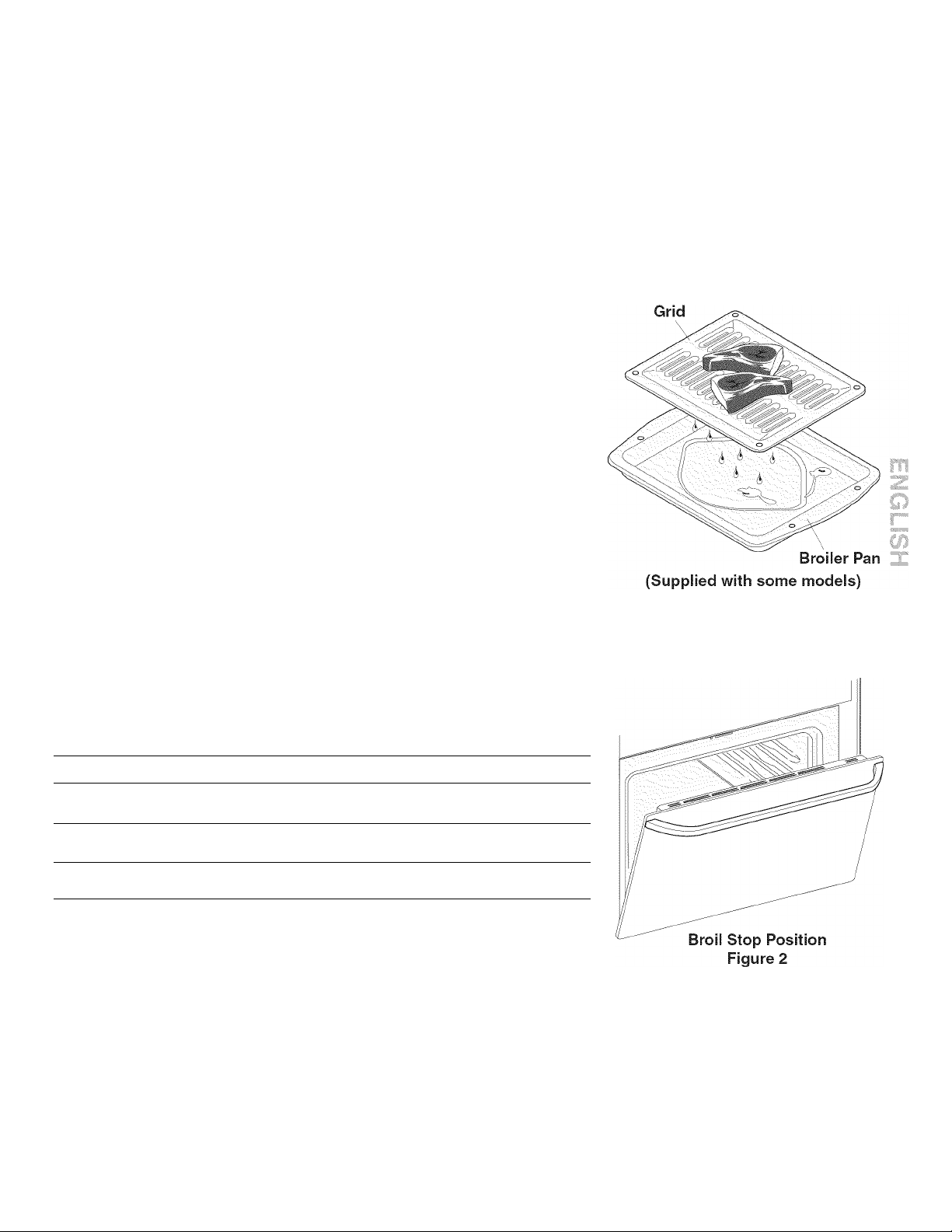

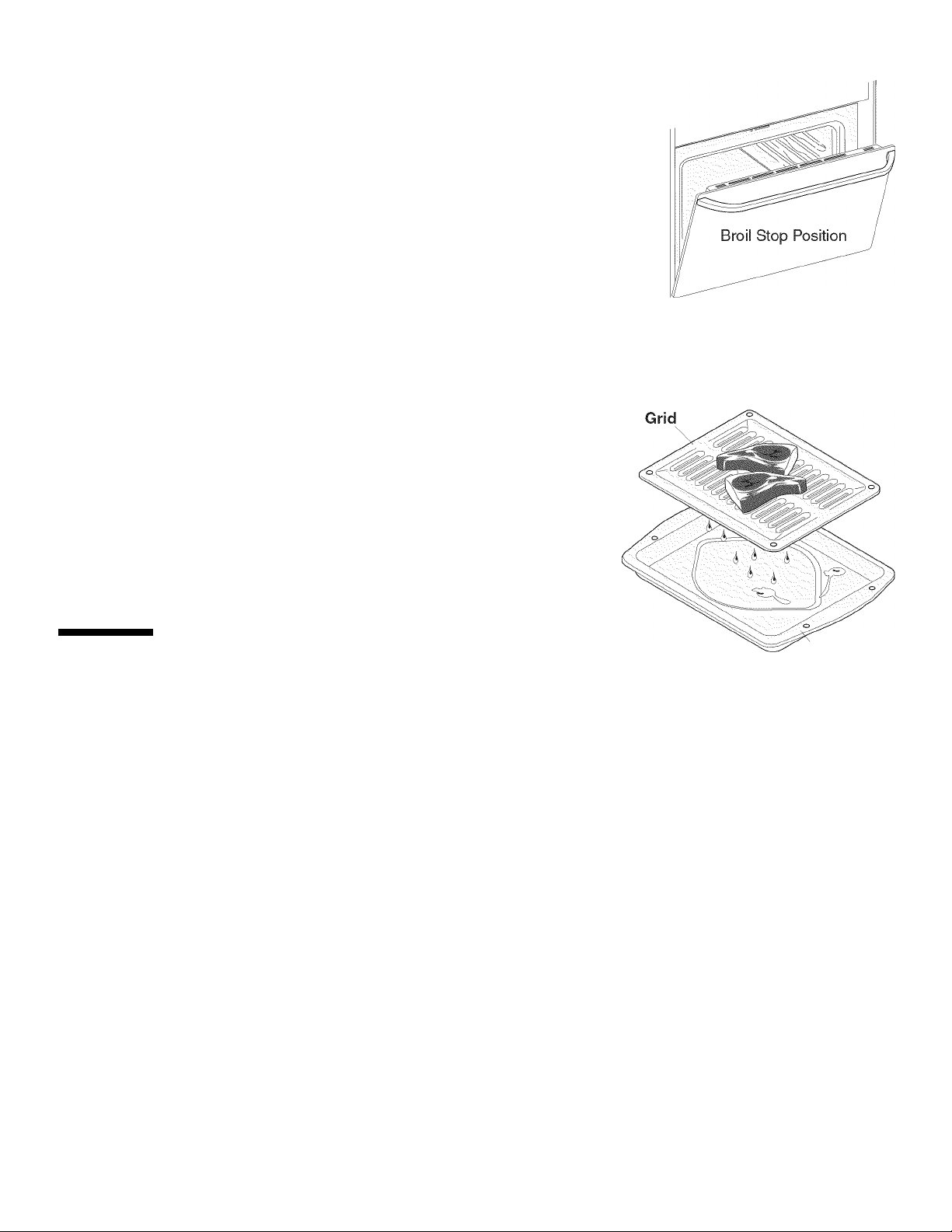

• Do not use your broiler pan without its insert. Broiler
pan and grid allow dripping fat to drain and be kept away

from the high heat of the broiler.

SELF-CLEANING OVEN MODELS

• Clean in the self-cleaning cycle only the parts of the

appliance listed in this Owner’s Guide. Before using the

self-cleaning cycle of the appliance, remove all utensils
stored in the appliance.

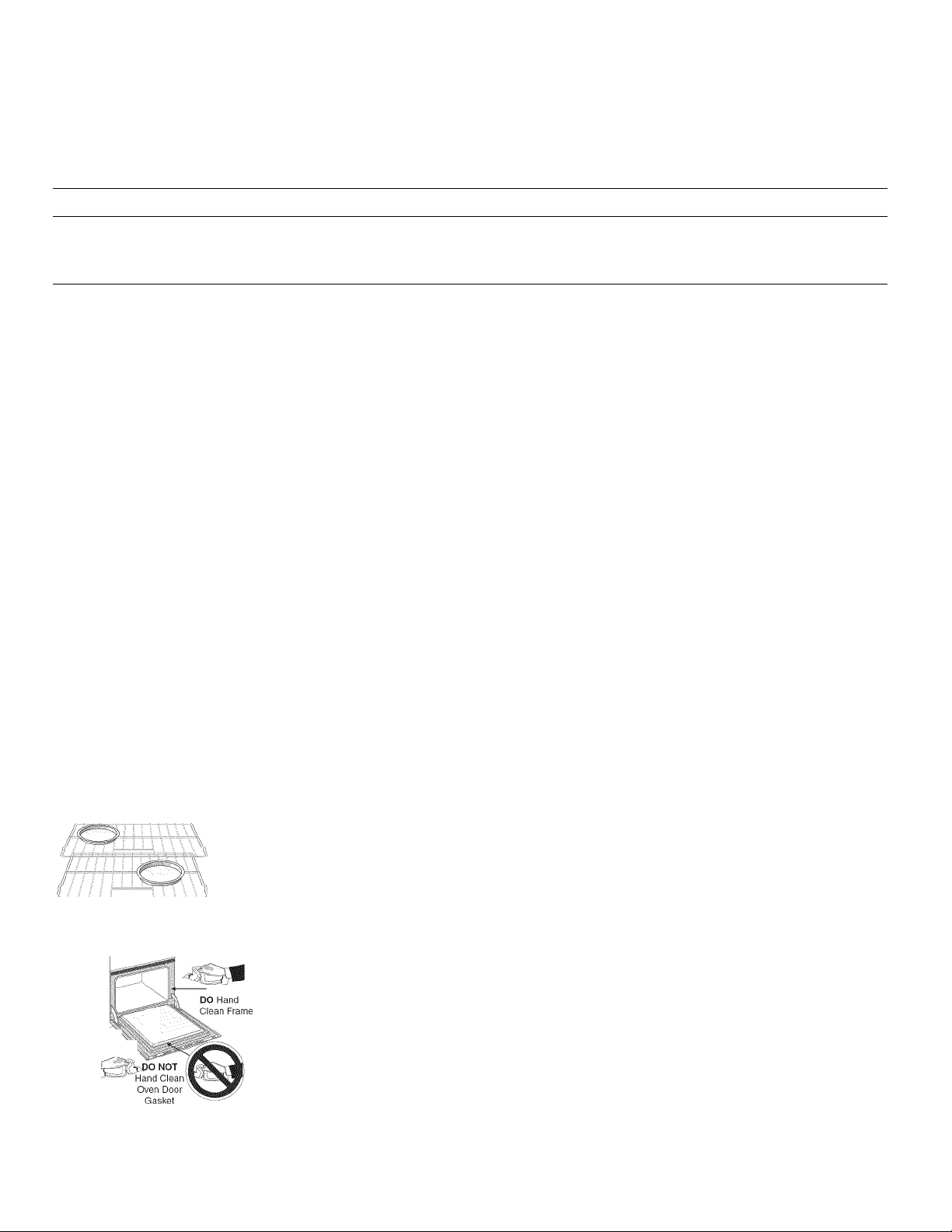

• Do not clean the oven door gasket. The door gasket is

essential for a good seal. Care should be taken not to rub,
damage or move the gasket.

• Do not use oven cleaners. No oven cleaner or oven liner

protective coating of any kind should be used in or around
any part of the appliance.

 CAUTION

tive to the fumes given off during the self-clean cycle of any
wall oven. Move birds to another well ventilated room.

I The health of some birds is extremely sensi

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth de
fects or other productive harm, and requires businesses to
warn customers of potential exposure to such substances.

• Do not cover broiler grid or oven bottom with alumi
num foil. Exposed fat and grease could ignite.

• Do not touch a hot oven light bulb with a damp cloth.

Doing so could cause the bulb to break. Disconnect the

appliance or shut off the power to the appliance before

removing and replacing the bulb.

• Protective liners—Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended

in this manual. Improper installation of these liners may
result in risk of electric shock, or fire.

•

Yoor Electric

Wall Oven

Features

At a Glance

Electronic Oven —
Controls with Clock
and Kitchen Timer

Wail Oven Features

Oven Vent

Oven Light

'Switch

Decorative
Bottom Trim

Oven Vent and Racks

Oven Vent Location

ik CAUTION

self-cleaning mode to keep all internal components at a cool temperature. The
blower may keep running even if the oven has been turned off, until the compo
nents have cooled down.

I Some models are equipped with a blower which runs in baking and

Oven Vent Location

The oven is vented through the upper trim. When the oven is on, warm air is released
through the vent. This venting is necessary for proper air circulation in the oven and good
baking results.

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO

OPERATING THE OVEN). Always use oven mitts when using the oven.

To remove an oven rack, pull the rack forward until it stops. Lift up front of rack and slide
out.
To replace an oven rack, fit the rack onto the guides on the oven walls. Tilt the front of
the rack upward and slide the rack back into place.

Rack

positions

RECOMMENDED RACK POSITIONS FOR

BROILING & BAKING

Food Rack position
Broiling meats, chicken or fish 3or4
Cookies, cakes, pies, biscuits & muffins

1 rack 2 or3
Multiple racks 2 &4

Frozen pies, angel food cake, yeast, bread,

casseroles, small cuts of meat or poultry
Turkey, roast or ham 1

1 or 2

Note: Always use caution when removing food.

Air Circulation in the Oven

If using 1 rack, place in center of oven. If using multiple racks, stagger cookware
as shown.

For best air circulation and baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and cookware do not touch
each other, the oven door, sides or back of the oven cavity. The hot air must
circulate around the pans and cookware in the oven for even heat to reach
around the food.

1 Oven Rack

Control Pad Features

Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are

the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide.

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become

familiar with the various functions of the oven as described below.

CLOCK SET
PAD—Used to

set the time of
day.

TIMER SET/OFF
PAD—Used to set

or cancel the minute
timer. The minute
timer does not start
or stop cooking. Also,
TIMER SET/OFF
Pad is used to set
the Continuous Bake"
Feature.

DELAY START
PAD—Used to set the'

desired start time for
baking. May be used
with COOK TIME to
program a delayed
bake cycle.

COOK TIME PAD

Used to enter the
length of the baking
time.

OVEN, PREHEAT & DOOR LOCK LIGHTS* The “Oven” light will glow

each time the oven unit turns on to maintain the set oven temperature.
The “Preheat” light will glow when the oven is first set to operate, or if
the desired temperature is reset higher than the actual oven temperature.

“Door Locked” light will flash unfil the door locks when the self

The
clean cycle is in use. It glows constantly after the door locks.

UP and DOWN ARROWS PADS Used along with the

function pads to select oven temperature, cook time,
start time (when programming an automatic start time)
time of day, clean fime and minufe fimer.

Cbok

• OVEN

• PREHEAT

• DOOR LOCKED

BAKE
PAD—Used

to select the
bake function.

Bake

STOP PAD— Used to clear any function

previously entered except the time of day
and minufe fimer. Press STOP to stop
cooking. Also the STOP pad is used to
activate oven lockout setting.

FEATURE
INDICATOR
LIGHTS— These

light to show which
feature is in use.

BROIL PAD—

Used to select

'the variable broil

function.

SELECT CLEAN
PAD—Used to

select the Self-

_Cleaning cycle. A

2 or 3 hours Self
Clean fime may be
selecfed.

*Note: The OVEN indicator light on the electronic display will turn ON and OFF when using the Bake feature and
during preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature.
When the preheat indicator light turns OFF, your oven is ready.

For a silent control panel

When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed

for silent operation. Press and hold sfa'-' . After 7 seconds, the control will beep once. This will block the controls from

sounding when a pad is pressed. To return the sound, press and hold storC again for 7 seconds until the control beeps
once.
Note: The control will return to the audible mode after a power outage.

I •.

I ■

Temperature conversion

The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be
programmed for any temperature from 170°F to 550°F (77°C to 287°C).

To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):

1. Press . "

2. Press and hold the until "HI" appears in the display.

3. Press and hold until °F or °C appears in the display.

4. Press the or to change °F to °C or °C to °F.

5. Press any control pad to return to normal operating mode.

--------------

" appears in the display.
