Models, Modelos 790.3693.-.',..
.,. = Color number, nOmero de color
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
P/N 318205855 Rev. B (0908)
Table of Contents
Slide-in Range Warranty .................................................. 2
Product Record ................................................................. 2
IMPORTANT SAFETY iNSTRUCTIONS ....................... 3-5
Grounding instructions .................................................... 6
Conversion to Liquefied Petroleum Gas (or L.P. Gas)... 6
Range Features ................................................................. 7
Before Setting Surface Controls ..................................... 8
Setting Surface Controls ................................................. 9
Surface Cooking ............................................................ 10
Before Setting Oven Controls ....................................... 11
Control Pad Functions ................................................... 12

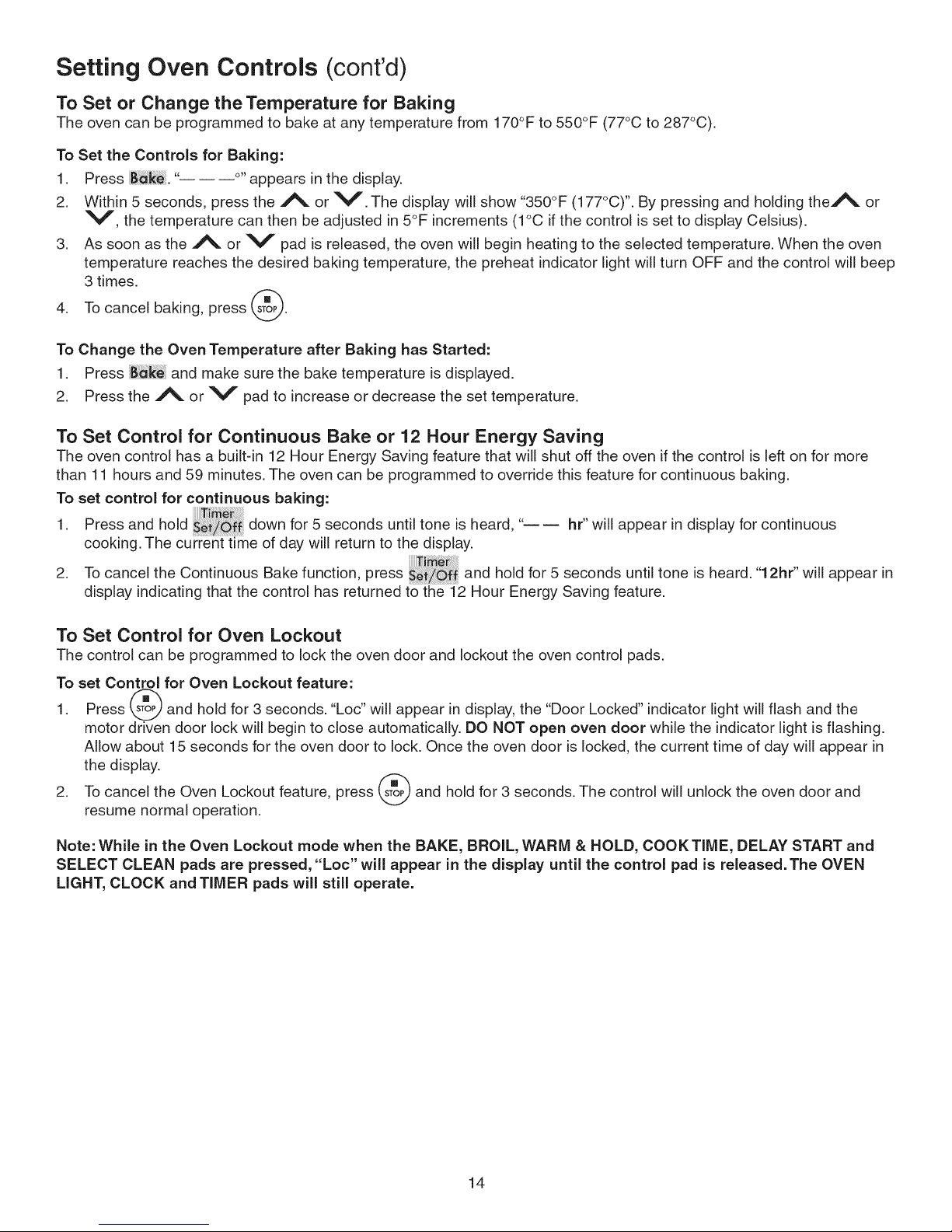

Setting Oven Controls ............................................... 13=18
Adjusting the Oven Temperature .................................. 18
Self=Cleaning .............................................................. 19=20
General Cleaning ....................................................... 21=24
Before You Call ........................................................... 25=26
Protection Agreements .................................................. 27
Sears Service ................................................................. 28
Kenmore Warranty
When installed, operated and maintained according to all instructions supplied withthe product, ifthis appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family
purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Product Record
In this space below, record the date of purchase, model and serial number of
your product. You will find the model and serial number printed on the serial
plate.
Model No. 790.
Serial No.
Date of purchase
Save these instructions and your sales receipt for future reference.
Please carefully read and save these instructions
This Use & Care Manual contains general operating instructions for your appliance
and feature information for several models. Your product may not have all the
described features, The graphics shown are representative. The graphics on your
appliance may not look exactly like those shown. Common sense and caution must
be practiced when installing, operating and maintaining any appliance.
Printed in United States
Serial Plate Location
You will find the model and serial
number printed on the serial plate. The
serial plate is located as shown below.
Remember to record the serial number
for future reference.
Serial Plate
Location
important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols
and follow all instructions given.
This symbol will help alert you to situations that may cause serious bodily harm, death or
property damage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
if the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
-- WHATTO DO IFYOU SMELL GAS:
,, Do not try to light any appliance.
,, Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
,, if you cannot reach your gas supplier, call the fire
department.
-- installation and service must be performed by a
qualified installer, servicer or the gas supplier.
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
• See installation instructions.
_To reduce the risk of
tipping, the range must be secured
by properly installed anti=tip
(s) provided with the
range. To check if the bracket(s)
is installed properly, remove the
lower panel or storage drawer and
verify that the anti-tip bracket(s) is
engaged. Refer to the Installation
instructions for proper anti-tip
bracket(s) installation.
iii,,,,,,,,,,¸......
....."Iii.......
,, Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
,, Proper Installation=Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National
Fuel Gas Code ANSI Z223.1 latest edition, and
National Electrical Code ANSI/NFPA No. 70 latest
edition, and local code requirements. Install only
per installation instructions provided in the literature
package for this range.
Sears Parts & Repair is the recommended repair service
for this appliance. Know how to disconnect the electrical
power to the appliance at the circuit breaker or fuse box in
case of an emergency.
,, User servicing--Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only
by a qualified technician, This may reduce the risk of
personal injury and damage to the range.
,, Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti=tip
brackets/screws, or any other part of the product.
Stepping, leaning or sitting on the door
or drawer of this range can result in serious injuries
and also cause damage to the range. Do not allow
children to climb or play around the range. The weight of a
child on an open door may cause the range to tip, resulting
in serious burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
Do not store items of interest to children
in the cabinets above a range. Children climbing on the
range to reach items could be seriously injured.
NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of the oven.
• Storage in or on Appliance--Flammable materials
should not be stored in an oven, near surface burners or
in the drawer (if equipped). This includes paper, plastic and
cloth items, such as cookbooks, plasticware and towels, as
well as flammable liquids. Do not store explosives, such as
aerosol cans, on or near the appliance. Flammable materials
may explode and result in fire or property damage.
• Do not leave children alone--Children should not be
left alone or unattended in the area where appliance
is in use. They should never be allowed to sit or stand
on any part of the appliance.
important Safety instructions
• DO NOTTOUCH SURFACE BURNERS, AREAS NEAR
THESE BURNERS, OVEN BURNERS OR INTERIOR
SURFACES OF THE OVEN. Both surface burners and
oven burners may be hot even though flames are not
visible. Areas near surface burners may become hot
enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch
these areas until they have had sufficient time to cool.
Among these areas are the cooktop, surfaces facing
the cooktop, the oven vent openings and surfaces near
these openings, oven door and window.
• Wear proper appareIRLoose=fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
• Do not use water or flour on grease fires--Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam=type extinguisher.
• When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
In case of fire or gas leak, be sure to turn
off the main gas shutoff valve.
• Use only dry potholders--Moist or damp potholders
on hot surfaces may result in burns from steam. Do
not let potholders touch hot heating burners. Do not use
a towel or other bulky cloth instead of a potholder.
• Do not heat unopened food containers--Buildup of
pressure may cause container to burst and result in
injury.
Remove the oven door from any unused range if it is
to be stored or discarded.
IMPORTANT--Do not attempt to operate the oven
during a power failure. If the power fails, always turn
off the oven. If the oven is not turned off and the power
resumes, the oven may begin to operate again. Once the
power resumes, reset the clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
Use proper flame size--Adjust flame size
so itdoes not extend beyond the edge of the utensil. The
use of undersized utensils will expose a portion of the
burner flame to direct contact and may result inignition
of clothing. Proper relationship of utensil to flame will also
improve efficiency.
Do not use stove top grills on the burner
grates of sealed gas burners. If you use a stove top grill on
a sealed gas burner, it will cause incomplete combustion
and can result in exposure to carbon monoxide levels
above allowable current standards. This can be hazardous
to your health.
• Know which knob controls each surface burner.
Place a pan of food on the burner before turning it on,
and turn the burner off before removing the pan.
• Always turn the knob to the full LITE position when
igniting top burners. Visually check that burner has lit.
Then adjust the flame so it does not extend beyond the
edge of the utensil.
• Use proper pan size. This appliance is equipped with
one or more surface burners of different sizes. Select
utensils having flat bottoms large enough to cover the
surface burner. The use of undersized utensils will
expose a portion of the surface burner to direct contact
and may result in ignition of clothing. Proper relationship
of utensil to the surface burner will also improve
efficiency.
Utensil handles should be turned inward and not
extend over adjacent surface burners. To reduce
the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is
turned inward, and does not extend to adjacent surface
burners.
Never leave surface burners unattended at high
heat settings--Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
• Protective liners--Do not use aluminum foil to line
surface burner pans, or oven bottom, except as
suggested in this manual. Improper installation of these
liners may result in risk of electric shock, or fire.
• Glazed cooking utensils--Only certain types of
glass, glass/ceramic, ceramic, earthenware, or other
glazed utensils are suitable for rangetop service without
breaking due to the sudden change in temperature.
Check the manufacturer's recommendations for cooktop
use.
Do not use Searing Grill on the cooktop. The searing
grill is not designed for use on the cooktop. Doing so
may result in a fire.
Do not use decorative surface burner covers. If a
burner is accidentally turned on, the decorative cover
will become hot and possibly melt. Burns will occur ifthe
hot covers are touched. Damage may also be done to
the cooktop or burners because the covers may cause
overheating. Air will be blocked from the burner and
cause combustion problems.
important Safety instructions
iMPORTANT iNSTRUCTiONS FOR USING
YOUR OVEN
• Use care when opening oven door or warmer drawer
(if equipped)--Stand to the side of the range when
opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven/
warmer drawer.
• Keep oven vent ducts unobstructed. The oven vent
is located at the center rear of the cooktop. Touching the
surfaces in this area when the oven is operating may
cause severe burns. Also, do not place plastic or heat-
sensitive items on or near the oven vent. These items
could melt or ignite.
NEVER cover any slots, holes or
passages in the oven bottom or cover an entire rack
materials such as aluminum foil. Doing so blocks air
flow through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may trap heat, causing a
fire hazard.
• Placement of oven/warmer drawer (if equipped)
racks. Always place oven racks in desired location
while oven/warmer drawer (if equipped) is cool. If rack
must be moved while oven is hot use extreme caution.
Use potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven/warmer drawer (if equipped).
Remove all utensils from the rack before moving.
• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and be
kept away from the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil,
Exposed fat and grease could ignite.
• Do not touch a hot light bulb with a damp cloth.
Doing so could cause the bulb to break. Disconnect the
appliance or turn off the power to the appliance before
removing and replacing light bulb.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of
grease that could catch fire, Exhaust fan ventilation
hoods and grease filters should be kept clean. Do not
allow grease to accumulate on hood or filter. Greasy
deposits in the fan could catch fire. When you are flaming
food under the hood, turn the fan on. Refer to the hood
manufacturer's instructions for cleaning.
SELF-CLEANING OVENS
• In the self-Cleaning cycle only clean the parts listed
in this Use and Care Guide. Before self-cleaning the
oven, remove the broiler pan and any utensils or foods
from the oven.
• Do not use oven cleaners--No commercial oven
cleaner or oven liner protective coating of any kind should
be used in or around any part of the oven.
• Do not clean door gasketiThe door gasket is essential
for a good seal. Care should be taken not to rub, damage :::'
or move the gasket. _::::/
• Remove oven racks. Oven racks color will change if left :""::::::
in the oven during a self-cleaning cycle.
_The health of some birds is extremely
sensitive to the fumes given off during the self-
cleaning cycle of the range. Move the birds to another
well ventilated room.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a
list of substances known to the state to cause cancer,
birth defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to
such substances.
SAVETHESE SAFETY I STRUCTI
Grounding instructions
For personal safety, the cooktop must be properly grounded. For maximum
safety, the power cord must be plugged into an electrical outlet that is
correctly polarized and properly grounded.
DO NOT Operate the cooktop using a 2-prong adapter or an extension
cord. If a 2-prong wall receptacle is the only available outlet, it is the
personal responsibility of the consumer to have it replaced with a properly
grounded 3-prong wall receptacle installed by a qualified electrician.
See the INSTALLATION INSTRUCTIONS packaged with this cooktop for
complete installation and grounding instructions.
_This appliance is equipped with a 3-prong grounding
plug foryour protection against shock hazard and should be plugged
directly into a properly grounded receptacle. DO NOT cut or remove
the grounding prong from this plug.
Grounding
type wall
rece
shock. DO NOT use an adapter plug, an
extension cord, or remove grounding prong
from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death.
Conversion to Liquefied Petroleum Gas (or L.P. Gas)
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.
Power supply
cord with 3-prong
grounding plug
Avoid fire hazard or electrical
This natural gas range is designed to allow for conversion
to Liquefied Petroleum (L.R) Gas.
Only a qualified service agent should perform the L. R
conversion. Contact the local gas provider for conversion.
The L. R Conversion Kit is supplied with this range and
is located on the main back of the range. The kit contains
installation instructions which must be read before and
followed carefully when installing the kit.
Personal injury or death from electrical shock
may occur if the range is not installed by a qualified installer
or electrician.
To avoid serious injury, any additions,
changes or conversions required in order for this appliance
to satisfactorily meet the application needs must be made by
a qualified service agent.
Range
Features
Your
Range
Features
At a Glance
Self-Cleaning
Oven
Removable Surface
Burner Grates (Styles and
color will vary by model)
Electronic Oven
Controls with
Clock and Kitchen
Timer
Surface Burner
Control Knobs
Oven Light
(2) Adjustable
Oven Racks
Oven Door
Handle
¸121111
iii,,,,,,,,,,¸......
....."Iii.......
Storage Drawer
12,200 BTU
Sealed Burner
(LP convertible)
Glass Front Oven
Door with Large
Window Opening
Oven Vent
5,OOOBTU
Sealed Burner
(LP convertible)
14,200 BTU
Sealed Burner
(LP convertible)
NOTE: Features
shown for your
appliance may
vary with model
type and color,
9,5OOBTU
Sealed Burner
(LP convertible)
Porcelain Cook Top
Before Setting Surface Controls
Assembly of the Surface Burner Heads, Burner Caps and Burner Grates
It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps and Surface Burner Grates
are installed correctly and at the correct locations.
1. Remove all packing tape from cooktop area. Remove
all Burner Caps and Burner Heads.
2. Discard all packing material located under Burner
Heads (if applicable).
3. To replace the Burner Heads & Caps, match the
letters located under center of Burner Caps with the
letters located inside Burner Heads (Figure 1).
4. Match Burner Skirts with Burner Heads and Burner
Caps (see Figure 1). Replace the Burner Heads and
Caps on cooktop (see Figure 2). Carefully align the
Electrodes into slot or hole of each Burner Head
(Figure 3).Note: The Burner Heads should sit flat on
Cooktop Burner Skirts.
5. Place the removable oven vent cover over the fixed
oven vent cover.
6. Unpack Burner Grates and position on the cooktop.
REMEMBER -- DO NOT ALLOW SPILLS, FOOD,
CLEANING AGENTS OR ANY OTHER MATERIAL
TO ENTER THE GAS ORIFICE HOLDER OPENING.
Always keep the Burner Caps and Burner Heads in place
whenever the surface burners are in use.
B BUper
Figure 1
Burner Skirt
_12.2K T
P
Figure 2
_ectrodes must
Figure 3 align into slot or hole for each
Burner Head
5K1
H4.2K
Figure 4
Control Locations of the Gas Surface
Burners
Your range is equipped with gas surface burners with
different BTU ratings. The ability to heat food quicker
and in larger volumes increases as the burner size
increases,
The small SIMMER burner is best used for simmering
delicate sauces, etc. This burner is located at the right
rear burner position on the cooktop (see Figure 4).
The STANDARD burner can be used for most surface
cooking needs. The standard burner is located at the
left front position on the cooktop (see Figure 4).
The POWER burners are best used for bringing large
quantities of liquid rapidly up to temperature or when
preparing larger quantities of food. The POWER
burners are located at the right front and left rear burner
positions on the cooktop (see Figure 4).
Regardless of size, always select cookware that
is suitable for the amount and type of food being
prepared. Select a burner and flame size appropriate to
the pan. Never allow flames to extend beyond the outer
edge of the pan.
Setting Surface Controls
Do not place plastic
items such as salt and pepper shakers,
spoon holders or plastic wrappings
on top of the range when it is in
use. These items could melt or ignite.
Potholders, towels or wood spoons could
catch fire if placed too close to a flame.
in the event of an electrical power outage,
the surface burners can be lit manually.
To light a surface burner, hold a lit match
to the burner head, then slowly turn the
surface control knob to LITE. After burner
lights push in and turn knob to desired
setting. Use caution when lighting surface
burners manually.
Operating the Gas Surface Controls:
1. Place cooking utensil on surface burner.
2. Push the surface control knob down and turn counterclockwise out of
the OFF position (See Figure 1).
3. Release the knob and rotate to the LITE position (Figure 2). Note: All
four electronic surface ignitors will spark at the same time. However,
only the burner you are turning on will ignite.
4. Visually check that the burner has a flame.
5. Turn the control knob counterclockwise to the desired flame size. The
control knobs do not have to be set at a particular setting. Use the knob
indicator settings to adjust the flame as needed. DO NOT cook with
the surface control knob in the LITE position. (The electronic ignitor will
continue to spark if the knob is left in the LITE position.)
Setting Proper Surface Burner Flame Size
For most cooking, start on the highest control setting and then turn to a
lower one to complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of cooking. The
size and type of utensil used and the amount of food being cooked will
influence the setting needed for cooking.
High Flame Start most foods; bring water to a boil; pan broiling.
Medium Flame Maintain a slow broil; thicken sauces, gravies; steaming.
Figure 1
Figure 2
Low Flame Keep foods cooking; poach; stewing.
*These settings are based on using medium=weight metal or
aluminum pans with lids. Settings may vary when using other types
of pans. The color of the flame is the key to proper burner adjustment. A
good flame is clear, blue and hardly visible in a well-lighted room. Each
cone of flame should be steady and sharp. Adjust or clean burner if flame
is yellow-orange.
Regardless of size, always select cookware that is suitable for the
amount and type of food being prepared. Select a burner and flame size
appropriate to the pan. Never allow flames to extend beyond the outer
edge of the pan.
For deep fat frying, use a thermometer and adjust the surface control
knob accordingly. Ifthe fat is too cool, the food will absorb the fat and be
greasy. If the fat is too hot, the food will brown so quickly that the center
will be undercooked. Do not attempt to deep fat fry too much food at once
as the food will neither brown nor cook properly.
Proper
flame size
Improper
flame size
Figure 3
Surface Cooking
Use Proper Cookware
Cookware should have
flat bottoms that make _,.-
good contact with the
entire surface heating
element. Check for
flatness by rotating a
ruler across the bottom
of the cookware (See
Figure 1).Be sure to
follow the recommendations for using
cookware as shown in Figure 2.
Note: The size and type of cookware used
will influence the setting needed for best
cooking results.
Note: Always use a utensil for its intended
purpose. Follow manufacturer's instruc-
tions. Some utensils were not made to be
used in the oven or on the cooktop.
Figure 1
CORRECT INCORRECT
= Curved and warped pan bottoms.
Flat bottom and straight
sides.
Tight fitting lids.
Weight of handle does not tilt
pan. Pan is well balanced.
Pan sizes match the amount
of food to be prepared.
Made of material that con-
ducts heat well.
Easy to clean.
Specialty pans such as lobster pots, griddles and pressure cookers
may be used but must conform to the above recommended cookware
requirements.
Pan overhangs unit by more than
2.5 cm (1").
Heavy handle tilts pan.
Flame extends beyond unit.
Figure 2
Using a wok
Woks with flat bottoms suitable for
use on your cooktop are available
in most cook shop or hardware
stores. Round-bottomed woks (with
a support ring that does not extend
beyond the burner unit) may also be
used. The metal ring was designed to
support the wok safely when it is filled
with large amounts of liquids (soup
making) or fat (frying).
Wire trivets: Do not use wire trivets.
Cookware bottoms must be in direct
contact with the grates.
DO NOT use a wok if it is equipped
with a metal ring that extends beyond
the burner unit. Because this ring
traps heat, the surface unit and
cooktop surface could be damaged.
10
Before Setting Oven Controls
i I__ This range has afan t hatwill turn"ON'and"OFF" by itself to keep the electronics cool. it may continue
to run after the range has been turned "OFF" but may also stop immediately to turn "ON" after a while.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when the oven is hot.
Oven Vent Location
The oven vent is located in the center rear on the cooktop. When
the oven is on, warm air passes through the vent. This venting is
necessary for proper air circulation in the oven and good baking
results. DO NOT BLOCK OVEN VENT.
Never close off the openings with aluminum foil or any other material.
OVENVENT
RECOMMENDED RACK POSITIONS FOR
Food Rack position
Broiling meats, chicken or fish 3 or 4
Cookies, cakes, pies, biscuits & muffins
1 rack 2 or 3
Multiple racks 2 & 4
Frozen pies, angel food cake, yeast, bread, 1 or 2
casseroles, small cuts of meat or poultry
Turkey, roast or ham 1
Removing and Replacing Oven Racks
To remove, pull the rack forward until it
stops. Lift up front of rack and slide out. To
replace, fit the rack onto the guides on the
oven walls. Tilt the front of the rack upward
and slide the rack back into place.
iii,,,,,,,,,,¸......
....._'Iii.......
BROILING, BAKING & ROASTING
Air Circulation in the Oven
For best air circulation and baking results allow 2-4 inches (5-10 cm) around
the cookware for proper air circulation and be sure pans and cookware do
not touch each other, the oven door, sides or back of the oven cavity. The hot
air must circulate around the pans and cookware for even heating.
Note: Always use caution when removing food.
1 Oven Rack
11 Multiple Oven Racks
Control Pad Functions
READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various functions of the oven as described below,
CLOCK SET COOK TIME UP and DOWN ARROW PADS-- Used BAKE PAD--Used FEATURE iNDiCATOR
PAD-- Used PAD-- Used to along with the function pads to select oven to select the bake LIGHTS-- These light to
to set the enter the length of temperature, cook time, start time (when function, show which feature is in
time of day. the baking time. programming an automatic start time), time of J use.
\ day, clean time and minute timer. I / BROIL PAD--
_ _ I _ Used to select
OVENiNTERiOR _ \ \ I / thevariablebroil
LIGHT PAD-- _ k \ I / function.
Usedtoturnoven \ \ I / /
interiorlightONor _ _" \" _k I" " /
OFF. _ _ _ _ , _ _ f I _ WARM & HOLD
_._ Time _ _ [ poke I Bro _ PAD-- Used to set
• • • • OVEN
PAD-- Used to -- Select Timer Delay Q PREHEAT
SELECT CLEAN _ (__
select the Self- Clean I I STOP PAD-- Used
2, 3 or 4 hour Self- LOCKOUT except the time of
Clean time may be day and minute timer.
selected.
o / o....
TIMER SET/OFF PAD--
Used to set or cancel the
minute timer. The minute
timer does not start or stop
cooking. Also,
TIMER SET/OFF pad is
used to set the Continuous
Bake featu re.
DELAY START
PAD-- Used to set
the desired start
time for baking &
Self-Clean. May be
used with COOK
TIME to program a
delayed bake cycle.
Set/Off Start • DOOR LOCKED to clear any function
OVEN, PREHEAT & DOOR LOCKED LIGHTS* -- The "OVEN"
light will glow each time the oven turns on to maintain the set oven
temperature. The "PREHEAT" light will glow when the oven is first
set to operate, or if the desired temperature is reset higher than the
actual oven temperature. The "DOOR LOCKED" light will flash when
the oven door locks and unlocks or when using the Self-Clean cycle
or when the oven lockout is activated. The indicator light will glow
constantly after the door locks.
the Warm & Hold
feature.
Press STOP to stop
cooking. Also the
STOP pad is used
to activate oven door
lockout setting.
*Note: The OVEN indicator light on the electronic display will turn ON and OFF when usingthe Bake feature and during
preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature. When the pre-
heat indicator light turns OFF, your oven has reached the set temperature.
For a silent control panel
When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed
for silent operation. Press and hold After 5 seconds, the control will beep once. This will block the controls from
sounding when a pad is pressed. To return to normal sound operation, press and hold again for 5 seconds until the
control beeps once.
Temperature conversion
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be
programmed for any temperature from 170°F to 550°F (77°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Press _roil. "----" appears in the display.
2. Press and hold the A until "HI" appears in the display.
3. Press and hold _roil until °F or °C appears in the display.
4. Press the A or V to change °Fto °C or °C to °R
5. Press any control pad to return to normal operating mode.
12
Setting Oven Controls
Note: The time of day must first be set in order to operate the oven.
To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
1. Press (_ once (do not hold pad down).
2. Within 5 seconds, press and hold the J%. orV until the correct time of day appears in the display.
Note: The clock cannot be changed during any timed bake or Self-Clean cycle.
To Set the Minute Timer:
1. Press 8_/_{_.
2. Press the ,J_ to increase the time in one minute increments. Press and hold the J%, to increase the time in 10
minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.
Note: If the V pad is pressed first, the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will countdown in
seconds.
4. When the set time has run out, the timer will beep 3 times, it will then continue to beep 3 times every 60 seconds
until is pressed.
Note: The indicator light located above the pad will glow while the minute timer is active.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the
set time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute
timer is in use with any other function, the minute timer will be shown in the display. To view other functions, press the
pad for that function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press and hold the A or V to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out: Press
Note: To turn the time of day display OFF or ON in the display press G and hold for 7 seconds (the control will beep
once) and then release. This feature does not remove the set time of day from the memory of the control. When the
display is turned OFF the time of day will re-appear for a few seconds any time the (_ pad is touched.
iii,,,,,,,,,,¸......
....."Iii.......
13
Setting Oven Controls (cont'd)
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press B_.' .... appears in the display.
2. Within 5 seconds, press the A or V. The display will show "350°F (177°C) ''. By pressing and holding theA or
V, the temperature can then be adjusted in 5°F increments (1°C ifthe control is set to display Celsius).
3. As soon as the J_, or V pad is released, the oven will begin heating to the selected temperature. When the oven
temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control will beep
3 times.
4. To cancel baking, press _.
To Change the Oven Temperature after Baking has Started:
1. Press and make sure the bake temperature is displayed.
2. Press the A or V pad to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more
than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.
To set control for continuous baking:
1. Press and hold down for 5 seconds until tone is heard, "---- will appear in display for continuous
cooking. The current time of day will return to the display.
hr"
2. To cancel the Continuous Bake function, press and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.
To Set Control for Oven Lockout
The control can be programmed to lock the oven door and lockout the oven control pads.
To set Control for Oven Lockout feature:
1. Press _ and hold for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open oven door while the indicator light is flashing.
Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will appear in
the display.
2. To cancel the Oven Lockout feature, press _ and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.
Note: While in the Oven Lockout mode when the BAKE, BROIL, WARM & HOLD, COOKTIME, DELAY START and
SELECT CLEAN pads are pressed, "Loc" will appear in the display until the control pad is released.The OVEN
LIGHT, CLOCK and TIMER pads will still operate.
14
Setting Oven Controls (cont'd)
To Set the Timed Bake and Delay Start Features
The COOK TIME and DELAY START pads operate the features that will turn the oven ON and OFF at the
times you select in advance• The oven can be programmed to start immediately and shut off automatically (Timed Bake)
or to begin baking at a later time with a delayed start time (Delay Start)•
To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press "------ o,,appears in the display.
4. Within 5 seconds, press the,_ or V. The display will show "350°F (177°C) ''. By holding the ,_ or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. Press will flash in the display (HR:MIN).
6. Press the A or V until the desired baking time appears inthe display.
7. The oven will turn ON and begin heating.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake):
•
Be sure that the clock shows the correct time of day.
2.
Place the food in the oven.
3.
Press B:Sk_. "-- -- -- o,,appears in the display.
4.
Within 5 seconds, press theA or V. The display will show "350°F (177°C) ''. By holding theA or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. Press will flash in the display (HR:MIN).
6. Press the A or V until the desired baking time appears.
7. Press The ear estpossbestarttmew appear nthedspay
8. Press the_ or V until the desired start time appears in the display.
9.
The oven will turn ON at the delayed start time and begin heating.
" :00"
" :00"
iii,,,,,,,,,,¸......
....."Iii.......
When the Set BakeTime Runs Out:
1. "End" will appear in the display window and the oven will shut-off automatically.
2. The control will beep 3 times every 60 seconds until (_o_ is pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
1. Press the function pad you want to change.
2. Press the _ or V to adjust the setting.
Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
15
Setting Oven Controls (cont'd)
Oven Baking Informations
For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat
the oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Refer to "Adjusting the Oven Temperature" section.
Baking probJems and soJutions
Baking Problems Causes
Cookies and
biscuits burn on the
bottom.
e
Cookies and biscuits put into the
oven before the preheating time
is completed.
Oven rack overcrowded.
Dark pan absorbs heat too fast.
Solutions
Allow oven to preheat to the selected temperature
before placing food in oven.
Choose pan sizes that will permit 2" to 4" (5.1cm to
10.2cm) of air space on all sides when placed in the
oven.
Use a medium-weight aluminum baking sheet.
Cakes too dark on
top or bottom.
Cakes not done in
the center.
Cakes not level.
Foods not done
when cooking time
is up.
Cakes put into the oven before
preheating time is completed.
Oven rack position too high or
low.
Oven too hot.
Oven too hot.
Incorrect pan size.
Pan not centered in the oven.
Range not level.
Pan too close to oven wall or
rack overcrowded.
Pan warped.
Oven too cool.
Oven overcrowded.
Oven door opened too
frequently.
Allow oven to preheat to the selected temperature
before placing food in the oven.
Use proper rack position for baking needs.
Set oven temperature 25°F/12°C lower than
recommended.
Set oven temperature 25°F/12°C lower than
recommended.
Use pan size suggested in recipe.
Use proper rack position and place pan so there is 2" to
4" (5.1cm to 10.2cm) of space on all sides of pan.
• Place marked glass measuring cup filled with water on
the center of the oven rack. If water level is uneven, refer
to the installation instructions for leveling the appliance.
Be sure to allow 2" to 4" (5.1cm to 10.2cm) of clearance
on all sides of each pan in the oven.
Do not use pans that are dented or warped.
Set oven temperature 25°F/12°C higher than
suggested and bake for the recommended time.
Be sure to remove all pans from the oven except the
ones to be used for baking.
Open oven door only after shortest recommended
baking time.
16
Setting Oven Controls (cont'd)
To Set for Broiling
1. Arrange the oven rack while oven is still cook Position the rack as suggested in the
Broil Rack Position Table below.
2. Press Bro!!. "----" will appear in display.
3. Press and hold the A or V until the desired broil setting level appears inthe
display. Press the ,/_ for Hi broil or the V for LO broil. Most foods may be
broiled at the HI broil setting. Select the LO broil setting to avoid excess browning
or drying of foods that should be cooked to the well-done stage.
4. Preheat for 5 minutes before broiling.
5. Place the insert on the broil pan, then place the food on the insert (See Fig. 1). DO
NOT use the broil pan without the insert or cover the insert with aluminum foil.
The exposed fat could ignite.
6. Place the pan on the oven rack. Close the oven door.
7. Broil on one side until food is browned. Turn and broil food on 2nd side.
Note: Always pull the oven rack out to the stop position before turning or removing
the food.
8. When
Broil Rack Position Table (Refer to Fig. 2)
broiling is finished, press ('s_P').
i !i !i !i !i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i
4th rack position Medium-rare steaks & hamburgers
3rd rack position Fish, medium steaks & pork chops
3rd rack position Well-done foods such as chicken & lobster
Note:The broiler pan and the
insert are availableby mailorder.
Figure 1
Note: The broiler pan and the
insert allows grease to drain
and be kept away from the
high heat of the broiler. DO
NOT use the pan without the
insert. DO NOT cover the _
insert with foil; the exposed
grease could ignite. :....
r
Should an oven fire occur, close the oven door and turn the oven OFR
If the fire continues, use a fire extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
To Operate the Oven Light
The interior oven light will automatically turn ON when the oven door is opened,
Press _= to turn the interior oven light ON and OFF whenever the oven door is closed,
The interior oven light is located at the upper right rear wall of the oven interior and is
covered with a glass shield held by a wire holder. The glass shield must be in place
whenever the oven is in use. To change the interior oven light, see "Changing the Oven
Light" in the General Care & Cleaning section.
Figure 2
17
Setting Oven Controls (cont'd)
Setting the Warm & Hold TM Feature
The pad turns ON the Warm & HoldTM feature and will maintain an oven temperature of 170° F (77°C). The Warm
& Hold TM feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the
Warm & HoldTM feature will shut the oven OFF automatically. The Warm & HoldTM feature may be used without any other
cooking operations or can be used after cooking has finished using TIMED BAKE or DELAY START BAKE.
To set Warm & HoldrM:
1. Arrange interior oven racks and place baked food in oven. If the food is already in the oven go to step 2.
2. Press 8ia • ---- will appear in the display and the Warm & HoldTM indicator light above the pad will turn ON.
3. Press A or V to start.
4. To turn Warm & Hold OFF at any time press (s_oP).The Warm & Hold indicator light above the pad will turn OFR
To set Warm & Hold TM to turn ON automatically:
1. Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delay Start Bake.
2. Press .... will appear in the display and the Warm & Hold TM indicator light above the pad will turn ON.
3. To turn Waim & Hold OFF at any time press .The Warm & Hold indicator light above the pad will turn OFR
wa_:_ ....
Note: If no further pads are touched within 6 seconds the request to turn ON Warm & HoldTM will be cleared.
TM TM
Adjusting the Oven Temperature
Your oven control has been precisely set at the factory. This setting may differ from your previous oven however, so your
recipe times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your
recipe times, you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.
To Adjust Oven Temperature:
1. Press B_:.
2. Set the temperature to 550°F (287°C) by pressing and holding the J_.
3. Within 2 seconds, press and hold until the 2 digit display appears. Release . The display now indicates
the amount of degrees offset between the original factory temperature setting and the current temperature setting. If
the oven control has the original factory calibration, the display will read "0".
4. The temperature can now be adjusted up or down 35°F or 19°C, in 5°F or 1°C steps by pressing and holding the
or V. Adjust until the desired amount of offset appears in the display. When lowering the oven temperature,
a minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed amount of
degrees.
5. When you have made the desired adjustment, press (sT_P)to go back to the time of day display.
Note: Oven temperature adjustments made will not change the Self-Cleaning feature temperature.
18
Self-Cleaning
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The health of some
birds is extremely sensitive to the fumes
given off during the Self-Cleaning cycle
of any range. Move birds to another well-
ventilated room.
DO NOT line the
oven walls, racks, bottom or any other
part of the range with aluminum foil.
Doing so will destroy heat distribution,
produce poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the
oven door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
DO HAND
CLEAN "
FRAME
DO NOT HAND
DO HAND
CLEAN DOOR
CLEAN GASKET
O I (Z) I CookTime BakeI Bro,,
® ® ® . OVEN
SelectcleanI Timer I Delay .PREHEAT [_ (_ _
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (we[[ above
cooking temperatures) which eliminate soils completely or reduces them to
a fine powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
,, DO NOT use oven cleaners or oven protective coatings in or around
any part of the Self-Cleaning oven.
,, DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to
rub, damage or remove the gasket.
,, DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
• Remove the broiler pan and insert, a[[ utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
,, Oven racks do not have to be removed, but remaining in the oven
during the Self-Clean will turn them slightly blue and dull their finish.
If left in, after the cycle is complete and the oven has cooled, rub the
sides of the oven racks with wax paper or a cloth containing a small
amount of salad oil (this will make the racks glide easier into the rack
position).
Remove any excessive spi[[overs inthe oven cavity before starting
the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth.
Large spillovers can cause heavy smoke or fire when subjected to
high temperatures. DO NOT allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may leave a dull spot even after cleaning.
,, Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water. Do
not hand clean door gasket.
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the
oven bottom should be removed.
Set/Off Start . DOOR LOCKED
iii,,,,,,,,,,¸......
....."Iii.......
Note: See additional cleaning informa-
tion for the oven door in the General
Care & Cleaning section.
What to Expect during Cleaning
While the oven is in operation, the oven heats to temperatures much higher
than those used in normal cooking. Sounds of metal expansion and con-
traction are normal. Odor is also normal as the food soil is being removed.
Smoke may appear through the oven vent.
If heavy spillovers are not wiped up before cleaning, they may flame and
cause more smoke and odor than usual. This is normal and safe and
should not cause alarm. If available, use an exhaust fan during the self-
cleaning cycle.
19
Self-Cleaning (cont'd)
Self-Clean Time Length
For satisfactory results, use a 2 hour Self-Clean cycle for light soils, and a 3 hour cycle for average, and a 4 hour cycle
for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust
hood during the Self-Clean cycle. This will help eliminate the normal odors associated with the Self-Clean cycle.
To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3)
1 Be sure the clock shows the correct time of day
2. Press ":" in the time of day will flash.
3. Press and hold the J_, pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the
desired time is displayed.
4. Press "appears in the display.
5. Press the J_, or V once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press V.
"2:00" appears in the display or to select a 4 hour cycle press A. "4:00" appears inthe display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the "Door Locked"
indicator light will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the
oven door to lock).
,
"CLn" will appear in the display during the Self-Clean cycle and the "Door Locked" light will glow until the Self-
Cleaning cycle is completed or cancelled and the oven temperature has cooled.
When the Self=Clean Cycle is Completed:
The
S:_: ,,
1. The time of day or "End" will appear in the display window and the "Clean" and "Door Locked" light will continue to glow.
2. Once the oven has cooled down for about 1 HOUR and the "Door Locked" light has gone out, the oven door can be
opened.
3. If "End" is in the display and the Select Clean indicator light remains ON, press ('s_P').The time of day will appear in
the display.
NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a Self-Cleaning cycle:
1. Press _.
2. Once the oven has cooled down for about 1 HOUR and the "Door Locked" light has gone out, the oven door can be
opened.
3. Restart the Self-Clean cycle once all conditions have been corrected.
To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the
side of the oven when opening the door to allow hot air or steam to escape.
DO NOT force the oven door open. This can damage the automatic door locking system. Use caution
and avoid possible burns when opening the door after the Self-Cleaning cycle has completed. The oven may still be
VERY HOT.
2O
General Care & Cleaning
Cleaning Various Parts of Your Range
Before cleaning any part of the oven, be sure all controls are turned OFF and the range is COOL. REMOVE
SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE
EXTENT AND DIFFICULTY OF MAJOR CLEANING LATER.
Surfaces How to Clean
Aluminum (trim pieces) & Use hot, soapy water and a cloth. Dry with a clean cloth.
Vinyl
Glass, Painted and Plastic
Body Parts, Control Knobs
& Decoratives Trim Pieces
Control Panel
Porcelain Enamel
Burner Grates, Cooktop
Surface, Below Cooktop,
Broiler Pan & Insert, Door
Liner, Oven Bottom &
Burner Drip Pans
Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT spray
liquids directly on the control pad and display area. Do not use large amounts of
water on the control panel - excess water on the control area may cause damage to
the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or
paper towels -they will damage the finish. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning,
line up the flat sides of both the knob and the shaft; then push the knob into place.
Before cleaning the controlpanel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to
the appliance. To replace knobs after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place.
Clean burner grates, broiler pan and insert in the dishwasher and dry upon removal.
If soils are not removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, then scrub with a soap-filled scouring pad. Rinse and wipe dry with
a clean cloth. Remove all cleaners or the porcelain may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.
iii,,,,,,,,,,¸......
....."Iii.......
Stainless Steel (some
models) Oven door & drawer
front panel
Oven Racks
Oven Door
-_I DoHand
Clean Frame
Do Hand ,_Do Not Hand
Clean Door (_Clean Oven
I_,_._._ \_'Door Gasket
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water
and a cloth. Do not use cleaners with high concentrations of chlorides or
chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are
especially made for cleaning stainless steel. Always be sure to rinse the cleaners
from the surface as bluish stains may occur during heating that cannot be removed.
Oven racks should be removed, or else their finish will dull and their color turn slightly
blue. If they do go through the self-clean cycle, wait until the oven has cooled, then
remove the oven racks and rub their sides with wax paper or a cloth containing a
small amount of baby or salad oil; this will make the oven racks glide easier back in
and out of their positions.
Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the oven door. DO NOT
immerse the door in water. DO NOT spray or allow water or the glass cleaner to
enter the door vents. DO NOT use oven cleaners, cleaning powders or any harsh
abrasive cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal. Care should be
taken not to rub, damage or remove this gasket.
21
General Care & Cleaning (cont'd)
Cleaning the Cooktop, Burner Heads, Caps & Grates
The cooktop is designed to make cleaning easier. Because the gas Burners are sealed, spillovers are easier to clean
provided that they are cleaned up immediately.
The cooktop, Burner Heads and Caps should be routinely cleaned. Keeping the Burner Head Ports clean will prevent
improper ignition and an uneven flame. Refer to the following instructions:
THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
THE FIXED OVEN VENT IS NOT REMOVABLE. Do not attempt to remove the fixed
oven vent cover.
Use caution when replacing the Burner Caps so the Electrodes are not damaged. This may cause a
delayed ignition or prevent the burner from igniting.
Any additions, changes or conversions required in order for this appliance to perform satisfactorily must
be made by Sears Service. Call 1-800-4-MY-HOME® (See back cover).
To Remove and Replace the Surface Burner Caps and Burner Heads -
Surface
Burner
Grate
Remove in the following order: (1st) surface Burner Grates, (2nd) Burner Caps
and (3rd) Burner Heads. Replace them in reverse order: Heads, Caps, then
Grates.
Figure 1
Orifice
holder
Electrode
Surface
Burner
Cap
Surface
Burner
Head
PLEASE NOTE: The Bridge Burner Head is not removable.
Do not remove any parts from the cooktop until they have completely
cooled and are safe to handle. Do not operate the surface Burners without
the Burner Caps and Burner Heads properly in place.
To Clean the surface Burner Caps and Burner Heads- Use a soap-filled
scouring pad or a mild abrasive cleanser to clean the surface Burner Caps and
Burner Heads. The ports (or slots) around the Burner Heads must be routinely
cleaned. If residue still remains in these ports, use a small-gauge wire or needle
to clean the slots or holes. For proper flow of gas and ignition of the burner=
DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY OTHER
MATERIALTO ENTER THE GAS ORIFICE HOLDER OPENING. ALWAYS
keep the surface Burner Caps and Burner Heads in place whenever the gas
Burners are in use.
To Clean the Burner Grates- The Burner Grates are dishwasher safe and may
be cleaned in the dishwasher. Remove any excessive soils before placing in the
dishwasher.
To Clean the Cooktop and contoured areas of the cooktop= If a spill occurs
on the porcelain cooktop, blot up spill with an absorbent cloth. Rinse with a
clean, damp cloth and wipe dry. Do not use harsh abrasive cleaners on the
cooktop. They can scratch the porcelain. Completely rinse any mild cleaners
used from the surface or the porcelain cooktop may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.
22
General Care & Cleaning (cont'd)
Removing and Replacing the Lift-Off Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with
the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor - See Fig. 1).
2. Pull the door hinge locks on both left and right door hinges down from the oven
frame completely towards the oven door (See Fig. 2). A tool such as a small
Door Hinge locations
with oven door fully open
Fig. 1
Fig.2
//
Oven door-
tF
Fig.3
flat-blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do not use the oven
door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will stop into this
position just before fully closing).
5. With the oven door in the broil stop position, lift the oven door hinge arms over
the roller pins located on each side of the oven frame (See Fig. 4).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides (Do not use the oven
door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the hook :,
of the hinge arm over the roller pins located on each side of the oven door
frame (See Fig. 4). The hook of the hinge arms must be fully seated onto the
rolle r pins.
3. Fully open the oven door (horizontal with floor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left and
right oven door hinges (See Fig. 2) to the locked position.
5. Close the oven door.
Special Door Care Instructions =Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
Fig. 4
23
General Care & Cleaning (cont'd)
Storage Drawer
Use the storage drawer for storing cooking utensils. The drawer can de removed to facilitate cleaning under the range.
Use care when handling the drawer.
J
Removing and Replacing Storage Drawer
To remove the drawer:
Storage Drawer
1. Pull empty drawer out to the roller guide stop.
2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:
1. Insert the rear end of the drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Push the drawer in until it stops, then lift to allow the rollers to clear the
roller guide stop, and push in.
Front Frame
Changing Oven Light
Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on
during a self-cleaning cycle. High temperature will reduce lamp life.
On some models an interior oven light will turn on automatically when the oven is opened.
The oven light may be turned on when the door is closed by using the oven light switch located on the Electronic Oven
control.
The oven light bulb is covered with a glass shield held in place by a wire holder. THIS GLASS SHIELD MUST ALWAYS
BE IN PLACE WHEN THE OVEN IS IN USE.
To Replace the Light Bulb:
BE SURE OVEN IS COOL
1. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
/
3. Replace bulb with a 40 Watt appliance bulb only.
4. Press wire holder to one side to release glass shield, change bulb and be sure to replace
glass shield.
24
Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of range until the rack is level. When range is level,
cooktop may appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range. If floor
is sagging or slopping, contact a carpenter to correct the situation.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure
cabinets are square and have sufficient room for range clearance.
Cannot move appliance easily. Appliance
must be accessible for service.
Entire range or oven does not operate.
*Oven control beeps and displays any F
code error (for exemple F11)
Oven light does not work.
Surface burners do not light.
Surface burner flame burns half way
around.
Surface burner flame is orange.
Poor baking results.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct the
problem.
Contact builder or installer to make appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over
carpet.
Gas line is hard-plumbed. Have a flexible C.S.A international approved metal
appliance connector installed.
Make sure cord/plug is plugged tightly into outlet.
Service wiring is not complete. Call 1=800=4=MY=HOME® (See back cover).
Electrical power outage. Check house lights to be sure. Call your local electric
company for service. Surface burners can be lit manually.
Electronic control has detected a fault condition. Press STOP to clear the display and
stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP and
call 1=800=4=MY=HOME® for assistance (See back cover).
Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.
Electrical power outage. Check house lights to be sure. Call your local electric
company for service.
Surface control knob has not been completely turned to LITE. Push in and turn the
surface control knob to LITE until burner ignites and then turn the surface control
knob to the desired flame size.
Burner ports are clogged. Clean burners. See "Cleaning the Burner Grates, Burner
Caps and Burner Heads" under General Cleaning.
Range power is disconnected from outlet. Be sure cord is securely plugged into the
outlet.
Electrical power outage.
Be sure the gas supply to the range is turned "ON".
Burner ports or slots are clogged. With the burner off, use a small-gauge wire or
needle to clean ports or slots.
Moisture is present after cleaning. Lightly fan the flame and allow the burner to
operate until flame is full. Dry the burners thoroughly following instructions under
General Cleaning.
Dust particles in main line. Allow the burner to operate a few minutes until flame turns
blue.
Salt air in coastal areas. A slightly orange flame is unavoidable.
Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat
to the set temperature before placing food in the oven. Try adjusting the recipes'
recommended temperature or baking time. If you feel the oven is too hot or cool, see
"Adjusting your Oven Temperature" section in this Use and Care Guide.
iii,,,,,,,,,,¸......
....._'Iii.......
25
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Fan noise during cooking operation. A cooling fan may automatically turn on and off to cool internal parts. It is normal, and
the fan may continue to run after the range has been turned "OFF" but may also stop
immediately to turn "ON" after a while.
Flames inside oven or smoking from
vent.
Oven smokes excessively during broiling.
Self=cleaning cycle does not work.
Soil not completely removed after self=
cleaning cycle.
Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especially for pie spillovers or large
amounts of grease on the oven bottom. Wipe up excessive spillovers before starting
the self-clean cycle, if flames or excessive smoke are present, stop the self-clean
cycle and follow the steps under "Stopping or Interrupting the Self=Cleaning
Cycle" inthis Use and Care Guide.
Meat is too close to the element. Reposition the rack to provide proper clearance
between the meat and the oven broil element.
Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty
edges to prevent the meat from curling, but do not cut into the lean of the meat.
Broiler pan used without the Broiler Pan Insert or insert is covered with foil. DO NOT
use the Broiler Pan without the Broiler Pan Insert or cover the insert with foil.
Broiler Pan or Broiler Pan Insert needs to be cleaned. Excessive smoking is caused
by build-up of grease or food spatters. Clean the Broiler Pan and Insert on a regular
basis.
Control(s) not set properly. Follow instructions under "Self=Cleaning" in this Use and
Care Guide.
Self-cleaning cycle was interrupted. Stop time must be 2 to 4 hours past the start
time. Follow steps under "Stopping or Interrupting the Self=Cleaning Cycle" in this
Use and Care Guide.
Control(s) not set properly. Follow instructions under "Self=Cleaning" in this Use and
Care Guide.
Self-cleaning cycle was interrupted. Stop time must be 2 to 4 hours past the start
time. Follow steps under "Stopping or Interrupting the Self=Cleaning Cycle" in this
Use and Care Guide.
26
PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore®product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money
and aggravation.
The Master Protection Agreement also helps extend the life of
your new product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles,
no functional failure excluded from coverage - real
protection.
[] Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you
can trust will be working on your product.
[] Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
[] ,,No-lemon,, guarantee- replacement of your covered
product if four or more product failures occur within twelve
months.
[]
Product replacement if your covered product can't be
fixed.
[]
Annual Preventive Maintenance Check at your request -
no extra charge.
[]
Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative on all products.
Think of us as a ,4alking owner's manual,,.
[] Power surge protection against electrical damage due to
power fluctuations.
[] $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
[] Rental reimbursement if repair of your covered product
takes longer than promised.
[] 10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. You can call anytime
day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after the
product warranty period expires. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details
call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in
the U.S.A. or Canada call 1-800-4-MY-HOME ®.
Acuerdos maestros de protecci6n
Enhorabuena por haber hecho una compra inteligente. Su nuevo producto
Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento
fiable. Pero, como cualquier producto, puede necesitar mantenimiento
preventivo o reparaciones peri6dicas. Es por eso que tener un Acuerdo maestro
de protecci6n podria ahorrarle dinero y molestias.
El Acuerdo maestro de protecci6n tambien sirve para prolongar la durabilidad
de su nuevo producto. El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en condiciones
normales de uso, no s61o en case de defectos de los productos. Nuestra
cobertura va mucho mas alia que la garantia del producto. No se
aplican deducibles ni exclusiones per fallas del funcionamiento: es decir,
verdadera protecci6n.
[] Servicio t_cnico por expertos (mas de 10000 t_cnicos autorizados de
Sears), Io cual significa que quien repare o realice el mantenimiento de su
producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y ndmero ilimitado de Ilamadas de
solicitud de servicio t_cnico: se puede poner en contacto con nosotros
cuantas veces Io desee y cuando Io desee.
[] Garantia ,<sin sorpresas,,: se reemplaza el producto cubierto per el
acuerdo si ocurren cuatro o mas fallas del producto en un periodo de 12
meses.
[] Reemplazo del producto: en case de que no se pueda reparar el
producto cubierto por el acuerdo.
[] Revisi6n anual preventiva de mantenimiento del producto: puede
solicitarla en cualquier momento, sin costo alguno.
[] Rapida asistencia telef6nica, la cual denominamos Soluci6n rapida: es
decir, asistencia telef6nica a traves de cualquiera de nuestros
representantes de Sears, sobre cualquiera de nuestros productos. Piense
en nosotros como en un ,,manual parlante del usuario_.
[] Protecci6n contra fallas el_ctricas, contra daSos debidos a fluctuaciones
de la corriente electrica.
[] $250 al aSo para cubrir cualquier posible deterioro de alimentos que
haya tenido que desechar debido a una falla mecanica de cualquiera de
nuestros refrigeradores o congeladores cubiertos per este acuerdo.
[] Devolucibn de gastos de alquiler de electrodom_sticos si la reparaci6n
de su producto asegurado toma masque el tiempo prometido.
[] 10% de descuento aplicable tanto a los costos del servicio de reparaci6n,
come de las piezas instaladas relacionadas que no hayan quedado
cubiertos per este acuerdo.
Una vez que haya realizado el page de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hera del dia o de la noche, o bien concertar una visita de servicio per
Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n exenta de
riesgos. Si per cualquier motive decide cancelar dicho acuerdo durante el
periodo de garantia del producto, le haremos un reintegro total del valor. 0 bien
un importe proporcional si cancela el acuerdo en cualquier otro memento
posterior al vencimiento del periodo de garantia del producto, iAdquiera hey
mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1-800-827-6655 (en los EE.UU.).
* La cobertura en Canada varia en el caso de algunos articulos. Para
obtener detalles completos al respecto, Ilame al 1-800-361-6665 de Sears
de Canada.
Servicio de instalaci6n de Sears
Para solicitar la instalacion por profesionales de Sears de electrodomesticos,
abridores de puertas de garaje, calentadores de agua y otros articulos de use
prioritario en el hogar, Ilame al 1-800-4-MY-HOME en los EE.UU. o CanadA.
27
iii,,,,,,,,,,¸......
....."Iii.......
Your Home
For expert troubleshooting and home solutions advice:
www.managemyhome.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
Au Canada pour service en fran(;ais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
® Registered Trademark / TM Trademark / SMService Mark of Sears Brands, LLC
® Marca Registrada / TM Marca de Fabrica / sM Marca de Servicio de Sears Brands, LLC
MCMarque de commerce / MDMarque depos6e de Sears Brands, LLC © Sears Brands, LLC
Loading...
