GAS BUILT-IN OVEN

Use & Care Guide

HORNO DE PARED

Manual del Usuario Models, Modelos 790.30475:«

5;« = Color number, número de color

Sears Roebyck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

pm 318200954 Rev. B (0601)

Table of Contents

Wall Oven Warranty....................................................... 2

Product Record .............................................................. 2

Serial Plate Location ...................................................... 2

IMPORTANT SAFETY INSTRUCTIONS.........................

Protection Agreements................................................... 5

Grounding Instructions .................................................. 6

Oven Ignition................................................................... 6

Liquefied Petroleum (Propane) Gas Conversion ........... 6

Wall Oven Features ......................................................... 7

Oven Vent and Racks ...................................................... 8

Air Circulation in the Oven ............................................. 8

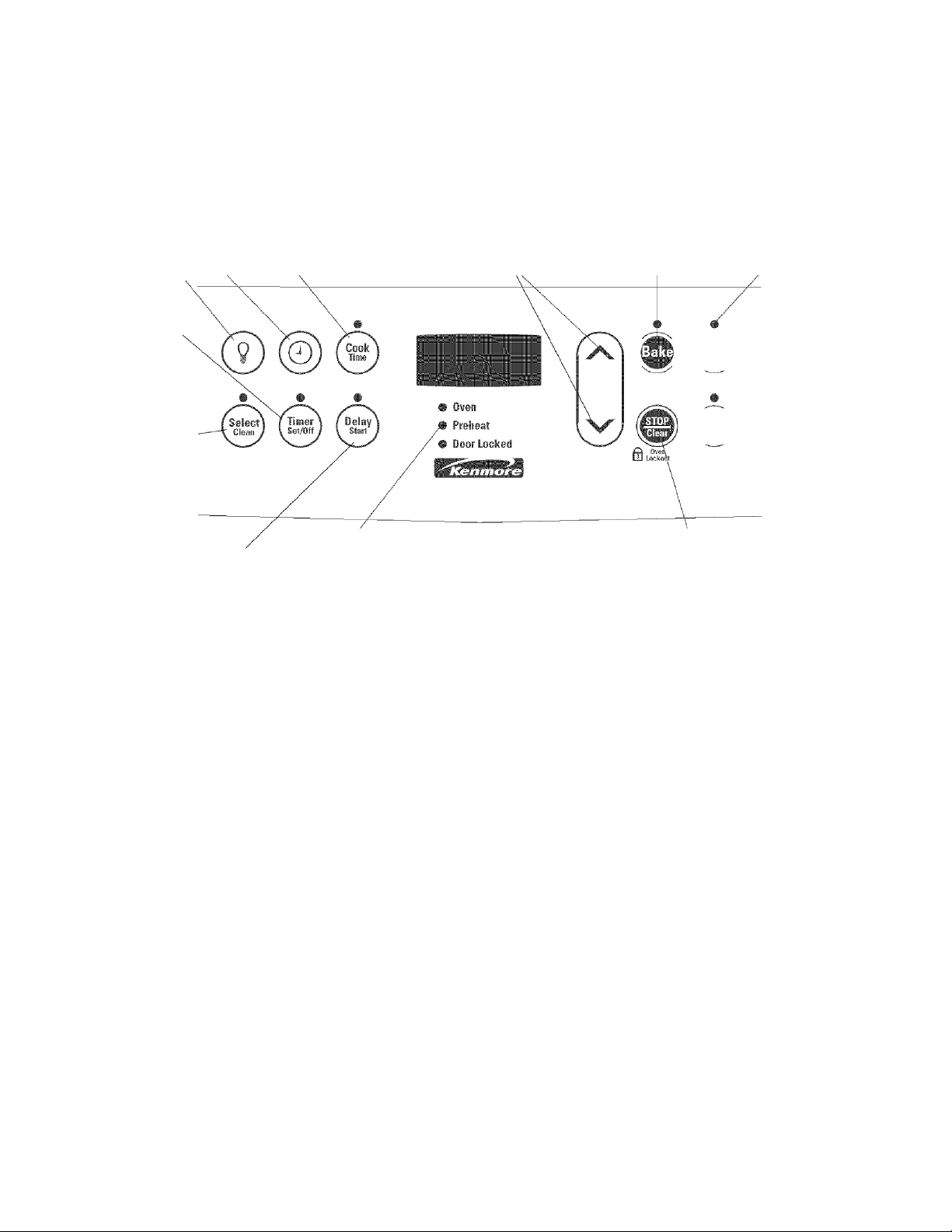

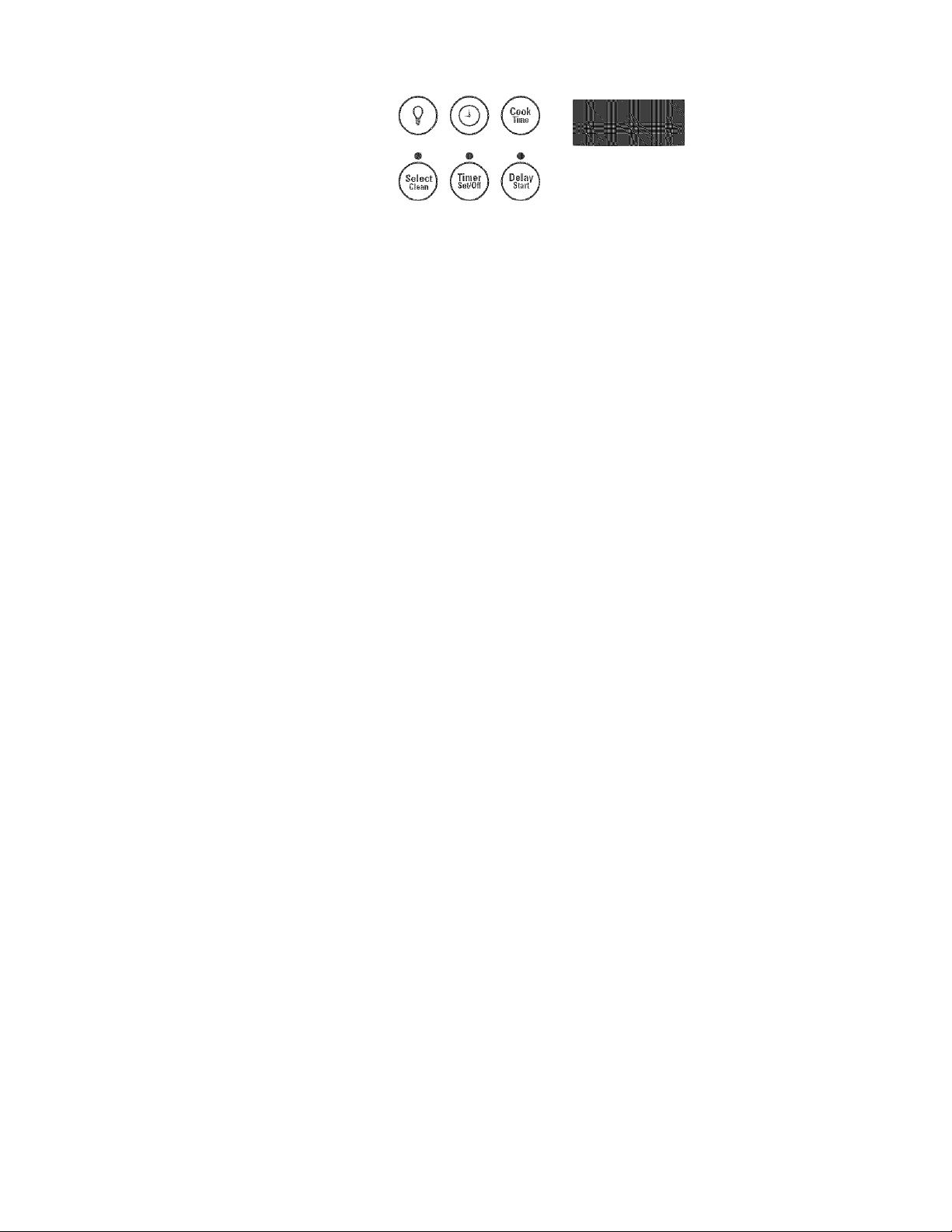

Control Pad Features ...................................................... 9

Setting the Clock............................................................ 10

Setting the Oven Controls ........................................ 11-17

Self-Cieaning (some models)................................... 18-19

General Care & Cleaning 20-23

Adjusting the Oven Temperature ...................................23

Before You Call.......................................................... 24-25

Sears Service .................................................................26

Kenmore Appliance Warranty

One Year Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material orworkmanship within one year from the date of purchase, call 1-800-4-MY-HOME®to arrange for free repair. If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those

recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitation may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Sears Canada Inc.,Toronto, Ontario, Canada MSB 2B8

Product Record

In this space below, record the date of purchase, model and serial number of your product. You will find the model and serial number printed on the serial plate. 700 _

Model No.________________________________________ Serial No._____________________________________ Date of purchase Save these instructions and your sales receipt for future reference.

Please carefully read and save these instructions

This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Printed in United States 2

__________________________________

Serial Plate Location

You will find the model and serial number printed on the serial plate. The serial plate is located along the interior side trim and visible when the oven door is opened.

Rememberto record the serial number for future reference.

ESSSk

-.1-

■ ’’Í

-------

Serial Plate

Location

Important Safety Instructions

Read ail instryctions before using this appliance.

Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

rlwMMlM This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

This symbol will help alert you to situations that may cause bodily injury or property damage.

ik WARNING

property damage, personal injury or death.

FOR YOUR SAFETY: — Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. ^ WHAT TO DO IF YOU SMELL GAS: * Do not try to light any appliance. ® Do not touch any electrical switch; do not use any phone in your building. ® Immediately call your gas supplier from a neighbor’s phone. Follow the

gas supplier's instructions. * If you cannot reach your gas supplier, call the fire department. — Installation and service must be performed by a qualified installer, servicer or the gas supplier.

® Remove all tape and packaging before using the

appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material.

• Proper Installation. Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Fuel Gas Code ANSI Z223.1/NFPA 54 latest edition, and National Electrical Code ANSI/NFPA No.70-latest edition and local code requirements. Install only per installation instructions provided in the literature package for this appliance.

Sears Parts & Repair is the recommended repair service for this appliance. Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency.

A CAUTION Electronic controllers can be damaged by

cold temperatures. When you use your appliance for the first time, or if it has not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at leasts hours before connecting it to the power supply.

If the information in this manual is not followed exactly, a fire or explosion may result causing

User Servicing. Do not repair or replace any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician to reduce the risk of personal injury and damage to the appliance.

Never modify or alter the construction of an appliance by removing panels, wire covers or any other part of the product.

Remove the oven door from any unused appliance if it is to be stored or discarded.

A WARNING

® All wall ovens can tip.

• Injury to persons could result. ® Install mounting brackets packed with

wall oven.

® See Installation Instructions. To reduce the risk of tipping, the wall

oven must be secured by properly installed mounting brackets provided with the wall oven. Refer to the Installation Instructionsfor proper mounting bracket installation.

A WARNING

down on the door of this appliance can result in serious injuries and may also cause damage to the appliance. Do not allow children to climb or play around theappliance.

® Storage on Appliance. Flammable materials should

not be stored near surface units. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or nearthe appliance. Flammable materials may explode and result in fire or property damage.

A WARNING

A CAUTION

children in the cabinets above an appliance. Children climbing on the appliance to reach items could be seriously injured.

® Do not leave children alone. Children should not be

left alone or unattended in the area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

Stepping, leaning, sitting or pulling

Do not use the oven for storage.

Do not store items of interest to

Important Safety Instructions

DO NOT TOUCH INTERIOR OVEN BURNER OR INTERIORSURFACESOFTHEWALLOVENUNTILTHEY HAVE COOLED. The oven heating burner may be hot even though the flames are not visible. Areas nearthe burner may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the oven vent openings, the surfaces nearthese openings, oven door, windowand broilerdrawer

Wear Proper Apparel. Loose-fitting or hanging garments should never be worn while using the appliance. Do not let clothing or other flammable materials contact hot surfaces.

ik WARNING

heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven.

® Do Not Use Water or Flour on Grease Fires. Smother

the fire with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.

® When heating fat or grease, watch it closely. Fat or

grease may catch fire if allowed to become too hot.

® Use Only Dry Potholders. Moist or damp potholders

on hot surfaces may result in burns from steam. Do not let the potholders touch hot heating surface units. Do not use a towel or other bulky cloth instead of a potholder.

® Remove the oven doors from any unused appliance if it

is to be stored or discarded.

® Do Not Heat Unopened Food Containers. Buildup of

pressure may cause the container to burst and result in injury.

IMPORTANT—Do not attempt to operate the appliance during a power failure. If power fails, always turn off the appliance. If the appliance is not turned off and the power resumes, it will begin to operate again. Once the power resumes, reset the clock and oven function.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

® Use Care When Opening an Oven Door—Stand to the

side of the appliance when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

® Keep Oven Vent Ducts Unobstructed. The wall oven is

vented at the upper control panel or at the center trim depending of the model. Touching the surfaces in this area when the wall oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items near the oven vent. These items could melt or ignite.

A WARNING

in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks airflow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may trap heat, causing a fire hazard.

I NEVER use this appliance as a space

I NEVER cover any slots, holes or passages

• Placement of Oven Racks. Always place oven racks in desired location while oven is cool. Remove all utensils from the rack before removing rack. If rack must be moved while oven is hot, use extreme caution. Use pot holders and grasp the rack with both hands to reposition. Do not let pot holders contact the hot oven element or interior of the oven.

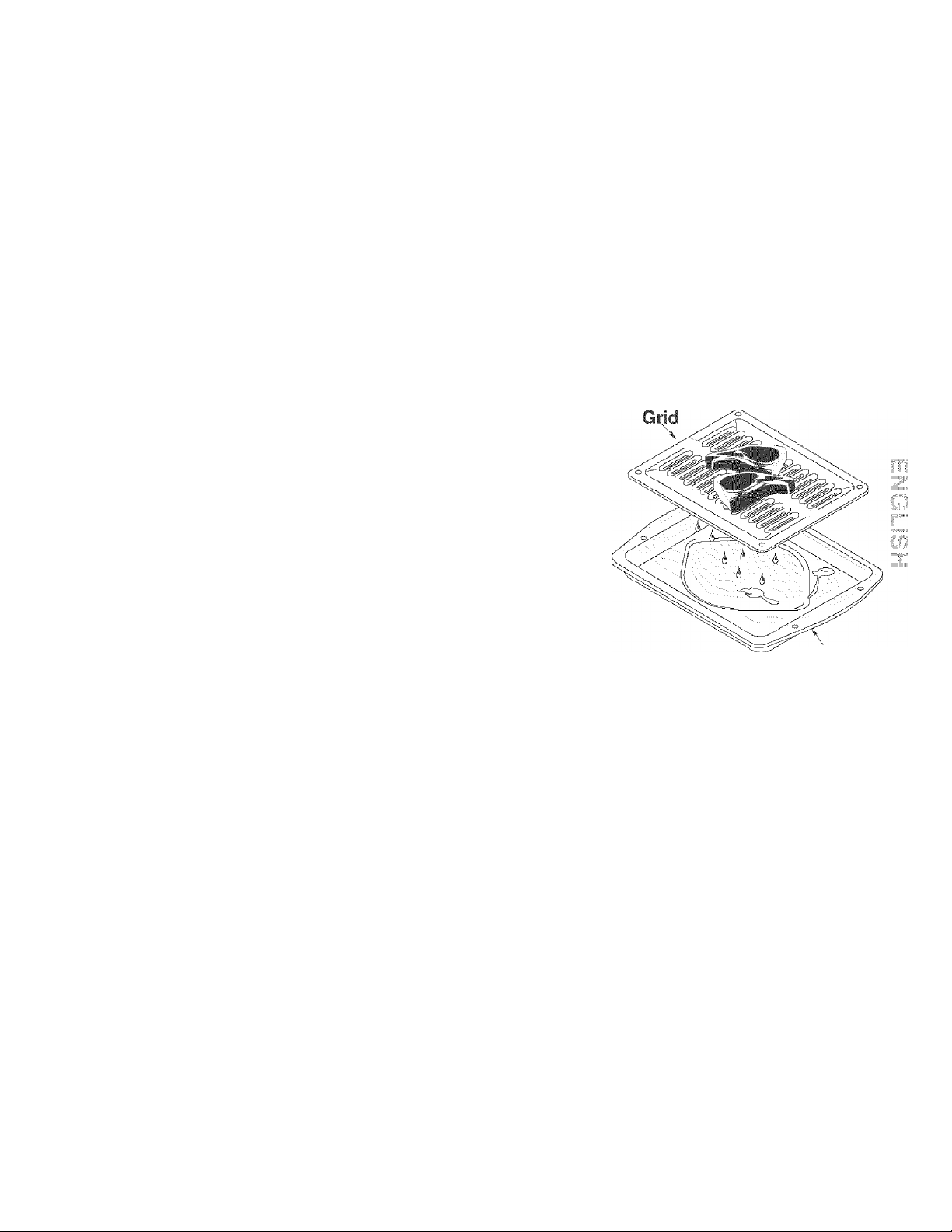

• Do not use the broiler pan without its insert. The broiler pan and grid allow dripping fat to drain and be kept away from the high heat of the broiler.

® Do not cover the broiler grid or oven bottom with

aluminum foil. Exposed fat and grease could ignite.

® Do not touch a hot oven light bulb with a damp cloth.

Doing so could cause the bulb to break. Disconnect the appliance or shut off the power to the appliance before removing and replacing the bulb.

® Protective liners—Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR OVEN

® Clean the appliance regularly to keep all parts free of

grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate. Greasy deposits in the fan could catch fire. Refer to the hood manufacturer's instructions for cleaning.

® Cleaners/Aerosols—Always follow the manufacturer's

recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and/or injury.

SELF^CLEANING OVEN MODELS

® Clean in the self-cleaning cycle only the parts of the

appliance listed in this Owner's Guide. Before using the self-cleaning cycle of the appliance, remove the broiler pan and any utensils stored in the appliance.

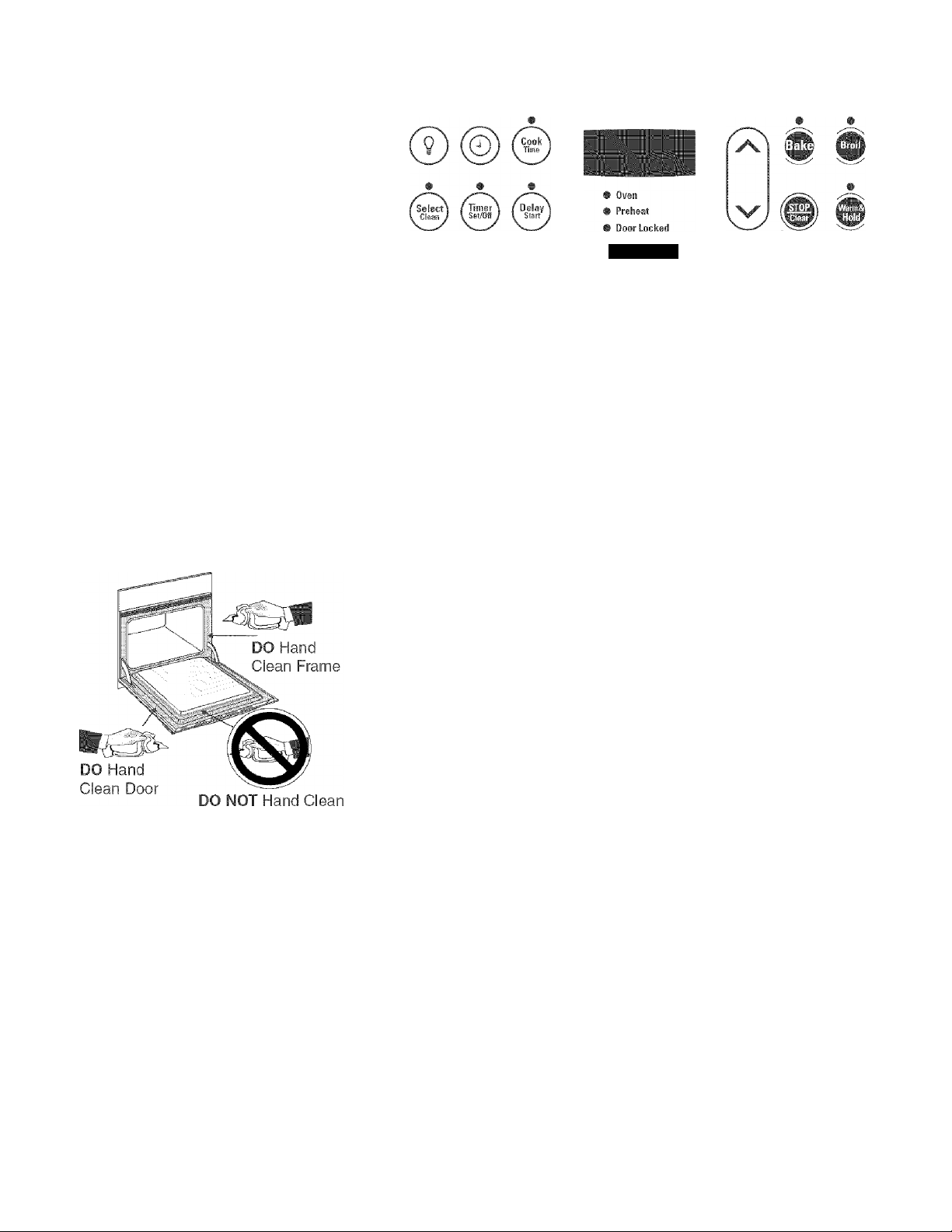

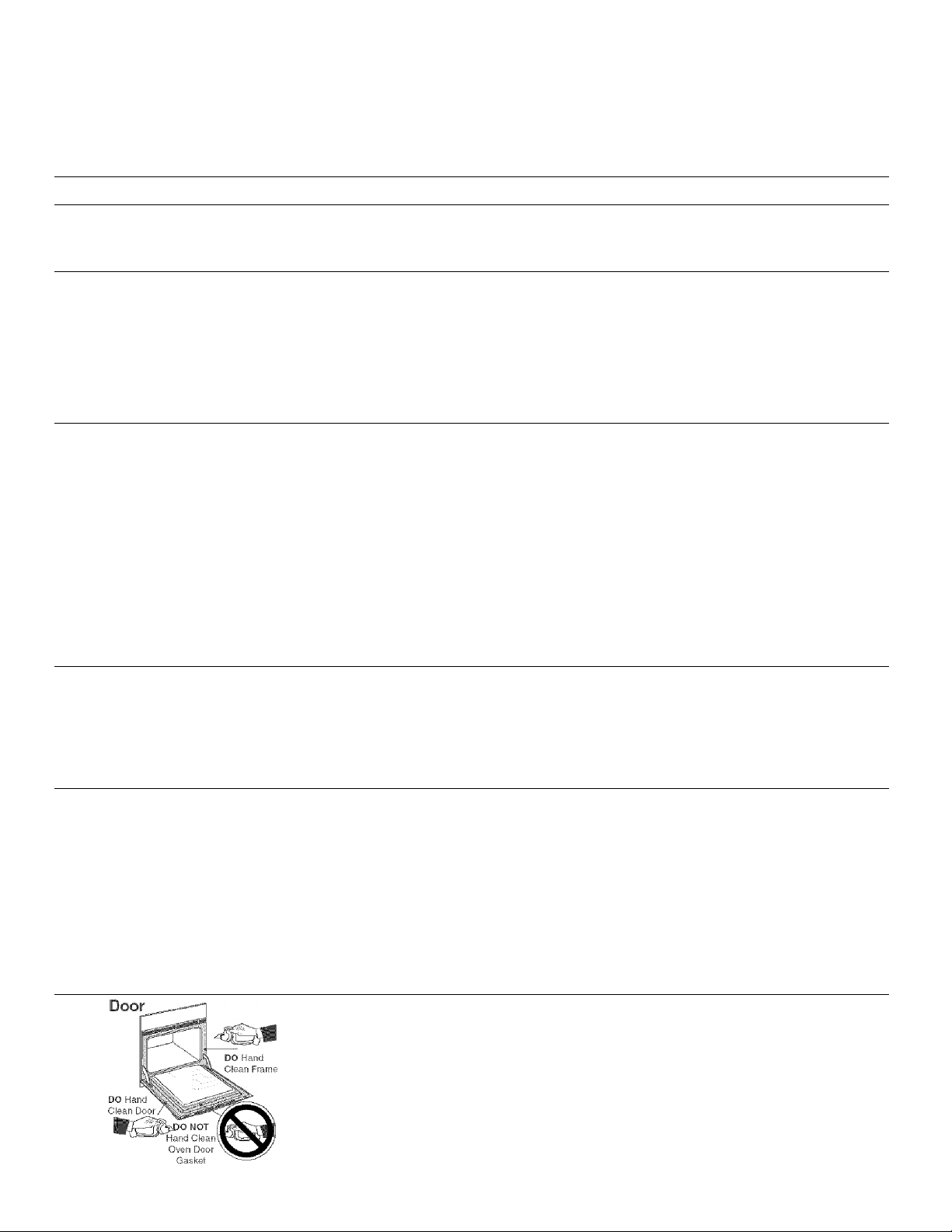

® Do not clean the oven door gasket The door gasket is

essential for a good seal. Care should be taken not to rub, damage or move the gasket.

® Do not use oven cleaners. No oven cleaner or oven liner

protectivecoating of any kind should be used in oraround any part of the appliance

À CAUTION

sensitive to the fumes given off during the self-clean cycle of any wall oven. Move birds to another well ventilated room.

The health of some birds is extremely

IMPORTANT SAFETY NOTICE

The California Safe Drinking Waterand Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other productive harm, and requires businesses to warn customers of potential exposure to such substances.

PROTECTION AGREEMENTS

in the U.S.A.

Master Protection Agreements Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection

Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and pro

tect yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new product. Here’s what’s included in the Agreement:

Expert service by our 12,000 professional repair specialists

Unlimited service and no charge for parts and labor on all covered repairs

“No-lemon” guarantee - replacement

of your covered product if four or more product failures occur within twelve months

Product replacement if your covered product can’t

be fixed Annual Preventive Maintenance Check at your

request - no extra charge Fast help by phone - phone support from a Sears

technician on products requiring in-home repair, plus convenient repair scheduling

Power surge protection against electrical damage

due to power fluctuations

Rental reimbursement if repair of your covered

product takes longer than promised

In Canada

Maintenance Agreements Your purchase has added value because you can depend on Sears HomeCentraPfor service. With over 2400 Service Technicians and more than a million parts and accessories, we have the tools, parts, knowledge and skills to ensure our pledge: We Service What We Sell.

Your Kenmore®product is designed, manufactured and tested to provide years of dependable operation. But like all products, it may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced.

The Sears Maintenance Agreement:

■ Is your way to buy tomorrow’s service at today’s price

- Eliminates repair bills resulting from normal wear and tear

■ Provides phone support from a Sears technician on products requiring in-home repair

• Even if you don’t need repairs, provides an annual Preventive Maintenance Check, at your request, to ensure that your product is in proper running condition.

Some limitations apply. For more information about Sears Canada Maintenance Agreements, call 1-800-361-6665

•Ж CD

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service

appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That’s the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Master Protection

Agreement today! Some limitations and exclusions apply.

For prices and additional information call 1-800-827-6655.

Sears Instailation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-800-4-MY-HOME®

REV. 030509

Grounding Instructions (electric ignjtion models only)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

ik WARNING

your protection against shock hazard and should be plugged directly into a properly grounded receptacle. DO NOT cutorremovethegroundingprongfrom this plug.

For personal safety, this oven must be properly grounded. For maximum safety, the power cord must be plugged into a 120V—60 Hz. outlet that is correctly polarized and properly grounded.

If a two-prong wall receptacle is the only available outlet, it is the personal responsibility of the consumer to have it replaced with a properly grounded three-prong wall receptacle installed by a qualified electrician.

Do not under any circumstances cut or remove the third round grounding prong from the powercord plug. See the installation instructions packaged with this oven for complete installation and grounding instructions. Do not operate the oven using a two-prong adapter or an extension cord.

This appliance is equipped with a 3-prong grounding plug for

A WARNING

electrical shock. Do not use an adaptor plug, an extension cord, or remove grounding prong from electrical powercord. Failure to follow this warning can cause serious injury, fire or death.

Grounding type wall receptacle

Power supply cord with

3-prong grounding plug

Avoid fire hazard or

Do not, under any

circumstances, cut,

remove, or bypass

the grounding prong.

Owen Ignition

When you turn the oven on, the glow bar igniter begins to heat. When the lighter is hot enough, in less than 1 minute, the gas flows into the burner and is ignited.

The igniter glows bright orange when hot. It cycles on and off with the thermostat and will glow whenever the burner is on.

A WARNING

and will prevent the gas from flowing through the burner valves to the burners. In the event of a power failure, turn the Temperature Control knob to OFF. When power resumes, turn the Temperature Control knob back to desired temperature.

I Do not attempt to light the oven burners during a power failure. The oven burner valves will not open up

Liquefied Petroleum (Propane) Gas Conversion

This appliance can be used with Natural Gas or Liquefied Petroleum (Propane) Gas. It is shipped from the factory for use with Natural Gas. Referto the Installation Instructions for conversion from Natural Gas to Propane Gas, or from Propane Gas to Natural Gas.

A WARNING

A CAUTION

needs must be made by an authorized Sears Service Center or other qualified L.P. service agency.

Severe shock or damage to the appliance may occur if the appliance is not installed by a qualified installer.

¡Any additions, changes or conversions required in order for this appliance to satisfactorily meet the application

Your Gas Wail Oven Features At a Glance

Wall Owen Features

Note: The features of your wall oven will vary according to model.

Oven Vent and Racks

Oven Vent Location

The oven is vented through the upper control panel trim. When the oven is on, warm air is released through the vent. This venting is necessary for proper air circulation in the oven and good baking results.

Arranging Oven Racks

ALyS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use oven mitts when using the oven.

To remove an oven rack, pull the rack forward until it stops. Lift up front of rack and slide out. To replace an oven rack, fit the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place.

____________

A CAUTION

and self-cleaning mode to keep all internal components at a cool temperature. The blower may keep running even if the oven has been turned off, until the components have cooled down.

j Some models are equipped with a blower which runs in baking

Air Clrcylation in the Oven

If using 1 rack, place in center of oven. If using multiple racks, stagger cookware as shown.

For best air circulation and baking results allow 2-4" (5-10 cm) around the cookware for proper air circulation and be sure pansand cookware do not touch each other, the oven door, sides or back of the oven cavity. The hot air must ci rculate around the pans and cookware in the oven for even heat to reach around the food.

Control Pad Features

Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions

are the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide.

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various functions of the oven as described below.

OVEN CLOCK SET COOKTME UP and DOWN ARROWS PADS Used BAKE PAD—

INTERiOR PAD Used to PAD Used to afong with the function pads to seiect Used to select

LIGHT PAD set the time enter the length oven temperature, cook time, start time the bake Used to turn of day. of the baking (when programming an automatic start function,

oven interior light \ time. \ time), time of day, clean time and ON and OFF

TIMER SET/OFF PAD Used to set or cancel the minute timer. The minute timer does not start or stop cooking Aiso, TIMER SET/OFF Pad is used to set the

Continuous Bake Feature.

SELECT CLEAN PAD (some models) Used to select the Self-Cleaning cycle. A 2, 3 or 4 hour SeSf-

Clean time may be seiected (some models).

DELAY START PAD Used to set the

desired start time for baking. May be used with COOK TIME to program a

delayed bake cycle or a delayed clean

cycle.

________ \ \ minute timer.

OVEN, PREHEAT & DOOR LOCK (some models) LIGHTS* The “Oven” light wii! glow each time the oven

unit turns on to maintain the set oven temperature. The

“Preheat” light will glow when the oven is first set to

operate, or if the desired temperature is reset higher than

the actual oven temperature. The “Door Locked” light wili

flash until the door locks when the self-clean cycle is in use.

It glows constantiy after the door locks (some models).

‘Note: The OVEN indicator light on the electronic display will turn ON and OFF when using the Bake feature and during preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature. When preheat indicator light turns OFF, your oven is ready.

FEATURE INDICATOR LIGHTS— These light to show which

feature is in use.

BROIL PAD— Used to select

the variable broil function.

^^^———

STOP CLEAR PAD— Used to

clear any function previously entered except the time of day and minute timer. Press STOP CLEAR to stop cooking. Also the STOP CLEAR pad Is used to

activate oven lockout setting,

(some models).

WARM & HOLD PAD— Used to

set the Warm &

Hold feature. i

For a slient control panel:

When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed for silent operation.

1. To tell if your oven is set for normal or silent operation press and hold for 7 seconds. - " or "SP" (speaker) appears in the display.

2. Within 5 seconds, press the or v pad to switch between normal sound operation and silent operation mode. The display will show either - " or "SP".

3. Wait 5 seconds to return to normal operating mode.

If "SP" appears, the control will operate with normal sounds and beeps. If "- - " appears, the control is in the silent operation mode.

Temperature Conversion (Fahrenheit / Celsius)

The electronic oven control is set to operate in “F (Fahrenheit) when shipped from the factory. The oven can be programmed for any temperature from 170“F to 550“F (77“C to 288°C).

To change the temperature to °C (Celsius) or from °C to °F (contro! should not be in a Bake or Clean mode):

1. Press and hold for 7 seconds until °F or °C appears in the display.

2. Press the yv or pad to change °F to °C or °C to °F.

3. Wait 5 seconds to accept the changes or press to reject the changes.

Setting the Clock

Note: The time of day must first be set in order to operate the oven.

To Set the Clock

When the range is first plugged in, or when the power supply to the appliance has been interrupted, the display will flash ”12:00".

1. Press once (do not hold pad down).

2. Within 5 seconds, press and hold the yv or v'' until the correct time of day appears in the display.

3. Press once to accept the new time of day. If is not pressed, the timer will return automatically to the new time of day after 7 seconds. Note: The clock cannot be changed during any timed bake, delayed time bake, self-clean cycle or delayed self

clean cycle.

Changing Between 12 or 24 Hour Time of Day Display

1. Press and hold (0) for? seconds. After 7 seconds, "i2Hr" or "24Hr" will appear in the display and the control will beep once.

2. Press w or to switch between the 12 and 24 hourtimeof day display. The display will show either "12Hr" or "24HrT

3. Wait 5 seconds or press to return to the time of day display.

4. Reset the correct time as described in To set the Clock above. Please note that if the 24 hour time of day mode was chosen, the clock will now display time from 0:00 through 23:59 hours.

To Set the Minyte Timer

1. Press

2. Press the to increase or to decrease the time in one minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.

3. The display shows the timer countdown in minutes if more than 1 hour remains. When less than 1 hour remains, the display will count down in seconds.

4. When the set time has run out, the timer will beep 3 times. It will continue to beep 3 times every 8 seconds until

is pressed.

Note: The indicator light located above the pad will glow while the minute timer is active. Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when

the set time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute timer is in use with any other functions, the minute timer will be shown in the display. To view other functions, press the pad for that function.

To Cancel the Minute Timer before the set time has run out: Press iSS'

Setting Owen Controls

Note:The time of day must first be set

in order to operate the oven.

# Oven # Preheat # Door Locked

fli.

To Set or Change thè Temperature for Baking

The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 288°C). To Set thè Controls for Normal Baking:

Press

--------------------

Within 5 seconds, press the ys. or %/'. The display will show "350“F (177“C)." By pressing and holding oi" the temperature can then be adjusted in 5°F increments (1 °C if the control is set to display Celsius).

10 seconds after the yv or pad is released, the oven will begin heating to the selected temperature. When

displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF.

4. To cancel the baking function, press

To Change the Oven Temperature after Baking has Started: Press the yv or pad to increase or decrease the set temperature.

appears in the display.

the

rii

r”‘ №

To Set Control for Continuous Bake or 12 Hour Energy Saving:

The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.

To set control for continuous baking:

Press and hold (I“a down for 7 seconds until tone is heard.

Within 5 seconds, press the yv or pad to switch between Continuous Bake and 12 Hour Energy Saving mode. The display will show either- hr" or "12hr".

If“ hr" appears, the oven will be set to continuous baking. If "12hr" appears, the oven is set to 12 hour energy

saving mode.

Wait 5 seconds or press to return to normal operating mode.

To Set Control for Oven Lockout (some models):

The control can be programmed to lock the oven door {some models) and/or lock the oven control pads (all models). To Set Control for Oven Lockout feature:

1. Press (^B) and hold for 3 seconds. The "Door Locked" indicator light will glow and the motor driven door lock will begin to close automatically. DO NOT open oven door while the indicator light is flashing. Allow about 15 seconds

for the oven door to lock. Once the oven door is locked, "Loc" will appear in display.

2. To cancel the Oven Lockout feature, press 0 and hold for 3 seconds. The control will unlock the oven door and

resume normal operation.

Setting Owen Controls

To Set the Timed Bake and Delay Start Features

The COOK TIME and DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed

Bake) or to begin baking at a later time with a delayed start time (Delay Start). Note: During Timed Bake the preheat indicator light will glow during the preheat operation.

To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):

1. Be sure that the clock shows the correct time of day.

2. Place the food in the oven.

Press

4. Within 5 seconds, press the ys. or v. The display will show "350°F {177°C)." By holding the yv or v". the temperature can then be adjusted in 5°F increments (1° if the control is set to display Celsius).

5. Wait 8 seconds to accept the temperature.

6. Press fejy. "0:00" will flash in the display (MIN:SEC) and (HR:MIN) if programmed for more than 60 minutes.

7. Press the yy or v pad until the desired baking time appears in the display.

8. The oven will turn ON and begin heating.

Note: When the control is set for this function the oven temperature will be displayed. To see the cook time remaining

press and to see the time of day press

To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake):

1. Be sure that the clock shows the correct time of day.

Place the food in the oven. Press "---------------------appears in the display.

Within 5 seconds, press the yy or The display will show "350“F (177°C)." By holding the yy or >y, the temperature can then be adjusted in 5°F increments (1° if the control is set to display Celsius). Wait 8 seconds to accept the temperature.

Press 0:00" will flash in the display (MIN:SEC) and (HR:MIN) if programmed for more than 60 minutes.

Press the yy or until the desired baking time appears.

Wait 5 seconds for control to accept the time.

Kmk

-----------

appears in the display.

9. Press rstarty. The earliest possible start time will appear in the display.

10. Press the yy or until the desired start time appears in the display and wait 7 seconds to accept.

11. Once the controls are set, the control calculates the time when baking will start and stop.

12. The oven will turn ON at the delayed start time and begin heating.

Note: When the control is set for a delayed time bake the time of day is displayed until the delayed time bake is

reached. When the oven will turn on, the oven temperature will be displayed. To see the cook time remaining

press and to see the time of day press

When the Set Bake Time Runs Out:

1. "END" will appear in the display window and the oven will shut off automatically.

2. The control will beep 3 times every 25 seconds until is pressed.

To Change the Oven Temperature or Bake Time after Baking has Started:

1. Press the function pad you want to change.

2. Press the yy or >y to adjust the setting.

ik CAUTION

eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.

Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,

Setting Owen Controls

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc... There is no need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions Chart

Baking Problems

Cookies and biscults burn on the bottom.

Cakes too dark on top or bottom.

f ■

......

I ® Rack position too high or low. ® Use proper rack position for baking needs.

Cakes not done in the center.

/-■ ,

Causes Corrections

® Cookies and biscuits put into ® Allow oven to preheat to the selected temperature be-

the oven before the preheat ing time is completed.

• Oven rack overcrowded. • Choose pan sizes that will permit 5.1 cm to 10.2 cm

® Dark pan absorbs heat too

fast.

• Cakes put into the oven be- • Allow oven to preheat to the selected temperature before preheating time is com pleted.

• Oven too hot. • Set oven temperature 25°F/12°C lower than recom

® Incorrect pan size. * Use pan size suggested in recipe. ® Pan not centered in oven. ® Use proper rack position and place pan so there is 5.1

fore placing food in oven.

(2” to 4”) of air space on all sides when placed In the

oven.

® Use a medium-weight aluminum baking sheet.

fore placing food in the oven.

mended.

cm to 10.2 cm (2” to 4”) of space on all sides of pan.

Cakes not level.

..r'T

Foods not done when cooking time is up.

• Range not level. • Place a marked glass measuring cup filled with water

on the center of the oven rack. If the water level is

uneven, referto the installation instructions for level ing the range.

• Pan too close to oven wall or

rack overcrowded.

» Pan warped. • Do not use pans that are dented or warped.

® Oven too cool. ® Set oven temperature 25“F/12“C higher than sug

» Oven overcrowded. • Be sure to remove all pans from the oven except the

• Oven door opened too f re- • Open oven door only after shortest recommended quently. baking time.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clear ance on all sides of each pan in the oven.

gested and bake for the recommended time.

ones to be used for baking.

Setting Owen Controls

Broil

Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. Be sure you center the broiler pan directly under the broil element for best results. Arrange oven rack while oven is still cool. Position the rack as needed. The broiler pan and its insert allow dripping grease to drain and be kept away from the high heat of the broiler. DO NOT use the pan without its insert. DO NOT cower the insert with foil. The exposed grease could ignite.

ik WARNING

the oven. If the fire continues, throw baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water can cause a grease fire to spread and cause personal injury.

I Should an oven fire occur, close the oven door and turn off

Grid

To set for broiling:

1. Arrange oven or broiler drawer rack while oven or drawer is still cool.

Press will appear in the display.

Press the pad until the desired broil setting level appears in the display. Press the w pad for HI broil or the v pad for LO broil. Most foods may be broiled at the HI broil setting. Select the LO broil setting to avoid excess browning or drying of foods that should be cooked to the well-done stage.

Place the insert on the broiler pan, then place the food on the insert. DO NOT use the pan without the insert or cover the insert with aluminum foil. The exposed grease could ignite.

Place the pan on the oven rack or on the broiler drawer rack. Close the oven door or the broiler drawer panel when broiling.

Broil on one side until food is browned. Turn and broil food on 2nd side. Note: Always pull the rack out to the stop position before turning or

removing food.

7. When broiling is finished, press

To Operate the Oven Light(s) The interior oven light(s) will automatically turn ON when the oven door is opened.

Press to turn the interior light(s) ON and OFF whenever the door is

Broiler Pan

closed. The interior oven light(s) is (are) located at the upper left (and right, some

models) rear wall of the oven interior and is covered with a glass shield held by a wire holder. The glass shield must be in place whenever the oven is in use. To change the interior oven light(s), see changing the Oven Light in the General Care & Cleaning section.

Setting 0¥en Controls

Broiling information

Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven.

Preheating

Preheating the oven is suggested when searing rare steaks. (Remove the broiler pan before preheating. Foods will stick if placed on hot metal.) To preheat, set the control(s) to BROIL as instructed in the Use & Care Guide. Wait for the element to become red-hot, usually about 2 minutes. Preheating is not necessary when broiling meats well-done.

To Broil

Broil on side until the food is browned; turn and cook on the second side. Season and serve. Always pull rack out to the "stop" position before turning or removing food.

Determine Broiling Times

Broiling times vary, so watch the food closely. Time not only depends on the distance from element, but on the thickness and aging of meat, fat content and doneness preferred. The first side usually requires a few minutes longer than second. Frozen meats also require additional time.

Broiling Tips

The broiler pan and its grid allow dripping grease to drain and be kept away from the high heat of the broiler.

DO NOT use the pan without its grid. DO NOT cower the grid with foil.The exposed grease could ignite.

___________

A CAUTION

oven. If the fire continues, throw baking soda on the fire or use fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive.

Broiler Clean-Up Tips:

To make cleaning easier, line the bottom of the broiler pan with aluminum foil. DO NOT cover the broiler grid with foil. To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking is completed. Use hot pads because the broiler pan is extremely hot. Pour off grease. Soak the pan in HOT, soapy water. Clean the broiler pan as soon as possible after each use. If necessary, use soap-filled steel wool pads. Heavy scouring may scratch the grid.

Should an oven fire occur, close the oven door and turn off the

Broiler Pan

Setting Oven Controls

Setting the Warm & Hold'^" Feature

The pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170° F (77°C). The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm

& Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any other cooking operations or can be used after cooking has finished using TIMED BAKE or DELAY TIMED BAKE.

To set Warm & Hold:

1. Arrange interior oven racks and place baked food in oven. If the food is already in the oven go to step 2.

2. Press will appear in the display and the Warm & Hold indicator light above the pad will turn ON. Note: If no further pads are touched within 6 seconds the request to turn ON Warm & Hold will be cleared.

3. Press "V to start.

To turn Warm & Hold OFF at any time press

The Warm & Hold indicator light above the pad will turn OFF.

©.

To set Warm & Hold to turn ON automaticaliy:

1. Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delay Timed Bake.

2.3.Press

Igf

Press y\ or to start. Warm & Hold is set to turn ON automatically after Timed Bake or Delayed Start Bake has finished.

To turn Warm & Hold OFF at any time press (^g). The Warm & Hold indicator light above the pad will turn OFF.

will appear in the display and the Warm & Hold indicator light above the pad will turn ON.

Setting Owen Controls

To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)

The COOK TIME and DELAY START pads are used to set the Sabbath feature. The Sabbath feature may

only be used with the pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly

show or provide any audible tones indicating whether the change occurred correctly. Once the oven Is properly set using Bake with the Sabbath feature active, the oven will remain continuously ON until cancelled. This will override the factory preset 12-Hour Energy Saving feature.

If the oven light will be needed during the Sabbath, press (^9^ before activating the Sabbath feature. Once the oven light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned OFF. If

the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.

IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature;

Si ALL OTHER KEYPADS will not function once the Sabbath feature is properly activated.

To Program the Oven to Begin Baking Immediately & activate the Sabbath feature:

1. Be sure that the clock is set with the correct time of day.

2. Place the food in the oven.

3. Press

appears in the display.

rii

;2,

№

Within 5 seconds, press the yy or ’xy. The display will show "350°F (177°C)." By holding the yy or ’\y, the temperature can then be adjusted in 5“F increments {1 “C if the control is set to display Celsius).

If you desire to set the oven control for a Timed Bake or Delayed Start Bake do so at this time. If not, skip this

step and continue to step 6. Refer to the Timed Bake (complete steps 6-7) / Delayed Start Bake (complete steps 6

10) section for complete instructions. Remember the oven will shut down after using Timed Bake or Delay Start Bake and therefore may only be used once during the Sabbath/Jewish Holidays. The maximum Delayed Start Bake

time is 11 hours & 59 minutes.

The oven will turn ON and begin heating.

Press and hold both the and

appears in the display the oven control will no longer beep or display any further changes and the oven is properly set for the Sabbath feature. Note: You may change the oven temperature once baking has started by pressing the yy or (for Jewish

Holidays only). The oven temperature will be adjusted in 5°F increments with each press of these pads (1°C if the

control is set to display Celsius). Remember that the oven control will no longer beep or display any further changes once the oven is set for the Sabbath feature.

8. The oven may be turned OFF at any time by first pressing pad (this will turn the oven OFF only). To turn OFF

the Sabbath feature press and hold both the and pads for at least 3 seconds. SAb will disappear from the display.

Should you experience a power failure or interruption, the oven will shutoff. When power is returned the oven will not turn back on automatically. The oven will remember that it is set for the Sabbath and the food may be safely removed from the oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath. After the

Sy pads for at least 3 seconds. SAb will appear in the display. Once SAb

Sabbath observance turn OFF the Sabbath feature. Press and hold both the and © pads for at least 3 seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further assistance,

guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at http:Wwww.star-k.org.

Self-Cleaning (some models)

ik CAUTION

cycle, the outside of the o¥en can become very hot to the touch. DO NOT leawe small children unattended near the appliance.

ik CAUTION

extremely sensitive to the fumes given off during the self-clean cycle of any wall oven. Move birds to another well ventilated room.

À CAUTION

racks, bottom or any other part of the appliance with aluminum foil. Doing so will destroy heat distribution, produce poor baking results and cause permanent damage to the interior {aluminum foil will melt to the interior surface of the oven).

A CAUTION

open. This can damage the automatic door locking system. Use caution when opening the door after the Self-Cleaning cycle is completed. The oven may still be VERY HOT.

Note: See additional cleaning information for the oven door in the General Care & Cleaning section.

A CAUTION

elements may appear to have cooled after they have been turned OFF. The elements may still be hot and burns may occur if these elements are touched before they have cooled sufficiently.

During the self-cleaning

The health of some birds is

DO NOT line the oven walls,

DO NOT force the oven door

Oven Door Gasket

I The oven bake and broil

ffenmore

Self-Cleaning Oven

A Self-Cleaning oven cleans itself with high temperatures (well above cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions: ® Allow the oven to cool before cleaning. ® Wear rubber gloves when cleaning any exterior parts of the oven

manually.

•• DO NOT clean the oven door gasket. The woven material of the oven door gasket is essential for a good seal. Care should be taken not to rub, damage or remove the gasket.

- DO NOT use any cleaning materials on the oven door gasket. Doing so could cause damage.

® Remove the broiler pan and insert, all utensils and any

aluminum foil. These items cannot withstand high cleaning temperatures.

® Oven racks may be removed or left in the oven during the self-clean

cycle for cleaning. If the racks are cleaned in the self-clean cycle, their color will turn slightly blue and the finish will be dull. After the self-clean cycle is completed and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier into the rack positions).

® Remove any excessive spillovers in the oven cavity before

starting the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large spillovers can cause heavy smoke or fire when subjected to high temperatures. DO NOT allow food spills with a high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit

juices or pie filling) to remain on the surface as they may leave a dull spot even after cleaning.

® Clean any soil from the oven frame, the door liner outside the oven

door gasket and the small area at the front center of the oven

bottom. These areas heat sufficiently to burn soil on. Clean with soap and water.

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven bottom should be removed.

Self-Cleaning (some models)

What to Expect during Cleaning:

While the oven is in operation, the oven heats to temperatures much higher than those used in normal cooking. Sounds of metal expansion and contraction are normal. Odor is also normal as the food soil is being removed. Smoke may appear through the oven vent.

If heavy spillovers are not wiped up before cleaning, they may flame and cause more smoke and odor than usual. This is normal and safe and should not cause alarm. If available, use an exhaust fan during the self-cleaning cycle.

Self-Clean Cycle time length

For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for average or a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle. This will help eliminate the normal odors associated with the Self-Clean cycle.

To Set the Controls for a Seif-Clean Cycle or a Delayed Start Seif-Clean Cycle:

(Note: If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3.)

1. Be sure the clock shows the correct time of day.

2. Press I

3. Press and hold theyypad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the desired time is displayed.

4. Press! -" appears in the display.

5. Press theyyor once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press'^^. "2:00" appears in the display or to select a 4 hour cycle press y\. "4:00" appears in the display. As soon as the controls are set, the motor driven lock will begin to close automatically and the “Door Locked” indicator light will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven door to lock).

6. "CLn" will appear in the display during the Self-Clean cycle and the "Door

Locked" light will glow until the Self-Cleaning cycle is complete or cancelled

and the oven temperature has cooled.

NOTE: A smoke eliminator in the oven vent converts most of the soil into a colorless vapor.

ik CAUTION

burns use care when opening the fc oven door after the Self-Cleaning ■ ■ L cycle. Stand to the side of the oven L ■ when opening the door to allow hot L* air or steam to escape. CT*

A CAUTION

oven door open. This can damage the automatic door locking system. Use caution and avoid possible burns when opening the door after the Self-Cleaning cycle has completed. The oven may still be VERY HOT.

To avoid possible

DO NOT force the

When the Self-Clean Cycle is Completed:

1. The time of day or "End" will appear in the display window and the “Clean” and "Door Lock" light will continue to glow.

2. Once the oven has cooled down for about 1 HOUR and the "Door Lock" light has gone out, the oven door can be opened.

3. If “End” is in the display and the Select Clean indicator light remains ON, press The time of day will appear in the display.

NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.

Stopping or Interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a Self-Cleaning cycle:

1. Press!

2. Once the oven has cooled down for about 1 HOUR and the "Door Lock" light has gone out, the oven door can be opened.

Restart the Self-Clean cycle once all conditions have been corrected.

General Care & Cleaning

Cleaning Various Parts of Your 0¥en

Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. DIFFICULTY OF MAJOR CLEANING LATER.

REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND

Surfaces

Aiuminum {Trim Pieces) & Vinyl

Painted and Plastic Control Panel, Body Parts, and Decorative Trim

Stainless Steel, Chrome Control Panel, Decorative Trim

How to Clean

Use hot, soapy water and a cloth. Dry with a clean cloth. Do not scour or use all purpose cleaners, ammonia, powdered cleaners or commercial oven cleaner. They can scratch and discolor aluminum.

For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to

60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these materials; they can scratch.

To remove control knobs, turn to the OFF position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides of both the knob and the shaft; then push the knob into place.

Before cleaning the control panel, turn all controls to OFF and remove the control knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy water and a dishcloth. Rinse with a clean water using a dishcloth. Be sure to squeeze excess water from the cloth before wiping the panel; especially when wiping around the controls. Excess water in or around the controls may cause damage to the appliance.To replace knobs after cleaning, line up the flat sides of both the knob and the shaft; then push the knob into place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish stains may occur during heating that cannot be removed.

Porcelain Enamel Broiler Pan and Insert, Door Liner, Body Parts

Oven and Broiler Racks

Oven

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use spray oven cleaners on the cooktop.

Non Self-Clean Models: Clean by using a mild, abrasivecleanerfollowing manufacturer’s instructions. Rinse with clean water and dry. After cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier into the rack position).

Self-Clean Models: Oven racks may be removed or left in the oven during the self-clean cycle for cleaning. If removed, follow instructions above. If the racks are cleaned in the self-clean cycle, their color will turn slightly blue and the finish will be dull. After the self clean cycle is completed and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier into the rack positions).

Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of the oven door.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not to rub, damage or remove this gasket.

General Care & Cleaning

Cleaning the Porcelain Enamel 0¥en (Manual clean oven only)

Porcelain has a smooth finish and is a type of glass fused to metal. Oven cleaners can be used on all interior oven surfaces.REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND DIFFICULTY OF MAJOR CLEANING LATER.

Adhere to the following cleaning precautions: ® Allow the oven to cool before cleaning. ® Wear rubber gloves when cleaning the appliance manually.

General Cleaning Remove soils using hot, soapy water. Do not allow food spills with a high sugar or acid content (such as milk, tomatoes, saukerkraut, fruit juices or pie filling) to remain on the surface as they may cause a dull spot even after cleaning.

To Remove Heavy Soil

1. Allow a dish of ammonia to sit in the oven overnight or for several hours with the oven door closed. Stand to the side of the oven when opening door to allow ammonia fumes to disperse. Clean softened

spots using hot, soapy water. Rinse well with water and a clean cloth.

2. If soil remains, use a soap-filled scouring pad or a nonabrasive cleaner. If necessary, use an oven cleaner following

manufacturer's instructions. DO NOT mix ammonia with other cleaners.

3. Clean any soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center

of the oven bottom. Clean with hot, soapy water. Rinse well using clean water and a cloth.

Adhere to the following precautions when using oven cleaners:

1. DO NOT spray on the electrical controls or switches because it could cause a short circuit and result in sparking or

fire.

2. DO NOT allow a film from the cleaner to build up on the temperature probe; it could cause the oven to heat improperly.

{The probe is located in the rear of the oven on the left side) Carefully wipe the probe clean after each oven cleaning, being careful not to move the probe. A change in its position could affect how the oven bakes. Avoid bending the probe.

3. DO NOT spray any cleaner on the oven door trim or gasket, handles or any exterior surfaces of the appliance, wood or

painted surfaces. The cleaner can damage these surfaces.

Ammonia must be rinsed from all surfaces before operating the oven. Provide adequate ventilation.

A CAUTION

will destroy heat distribution, produce poor baking results and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).

DO NOT line the oven walls, bottom, racks or any other part of the appliance with aluminum foil. Doing so

Cleaning the Owen Bottom

The oven bottom in non self-clean oven models can be removed for cleaning. See "To Remove and Replace Oven Bottom" in this General Care & Cleaning section. Clean using hot, soapy water, a mild abrasive cleanser, a soap-filled abrasive pad oroven cleaner following manufacturer's instructions.

Care and Cleaning of Stainless Steel (some models)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless steel parts. Please refer to the table provided at beginning of this General Care & Cleaning section.

General Care & Cleaning

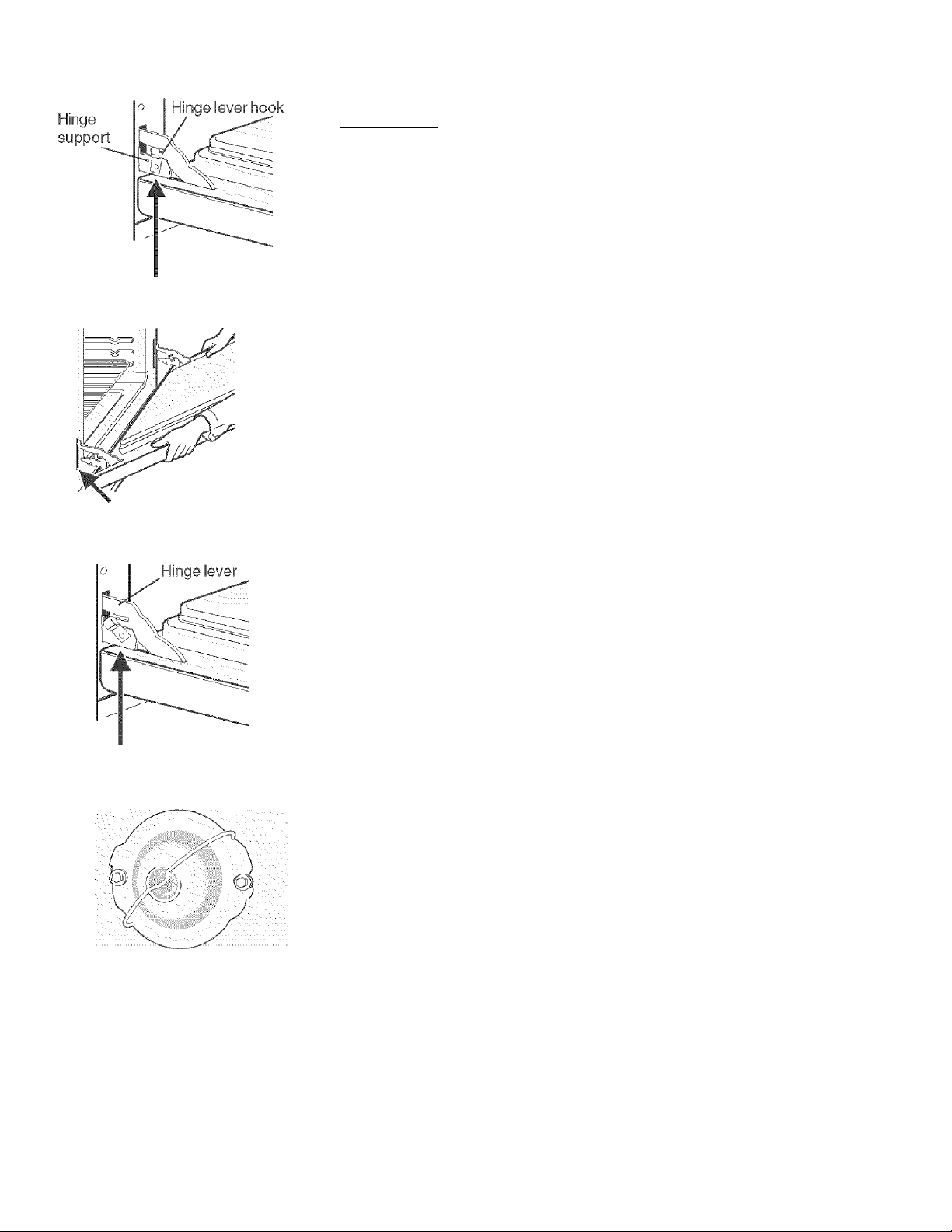

Removing and Replacing the Oven Door

Lock engaged for door remowal

Figure 1

HINGE SLOT - Door removed

from the oven

Figure 2

ik CAUTION

with the inside of the door facing down.

To Remove Oven Door:

Open the door to the fully opened position.

Pull up the lock located on both hinge supports and engage it in the hinge lever hooks (Figure 1). You may have to apply a little downward pressure on the door to pull the locks fully over the hinge lever hooks.

Grab the door by the sides and pull the bottom of the door up and toward you to disengage the hinge supports. Keep pulling the bottom of the door toward you while rotating the top of the door toward the range to completely disengage the hinge levers (Figure 2).

To clean oven door, follow the instructions provided in the General Care & Cleaning table.

To Replace Oven Door:

1. Grab the door by the sides; place the hinge supports in the hinge slots. Open the door to the fully opened position.

2. Disengage the lock from the hinge lever hooks on both sides (Figure 3). Note: Make sure the hinge supports are fully engaged before unlocking the hinge levers.

3. Close the oven door.

I The door is heavy. For safe, temporary storage, lay the door flat

Special Door Care Instructions

Most oven doors contain glass that can break. Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure

causing an increased risk of breakage at a later time.

Lock in normal position

Figure 3

Changing the Oven Light

On some models an interior oven light will turn automatically when the oven

door is opened. The oven light may be turned on when the door is closed by

pushing located on the control panel. On some models, the lamp is

covered with a glass shield held in place by a wire holder. THE GLASS

SHIELD MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.

To replace the light bulb:

CAUTION: BE SURE THE OVEN IS COOL.

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. Replace bulb with 40-watt appliance bulb only.

4. For models with glass shield, press holder on one side to release glass

shield, change bulb and be sure to replace the glass shield.

General Care & Cleaning

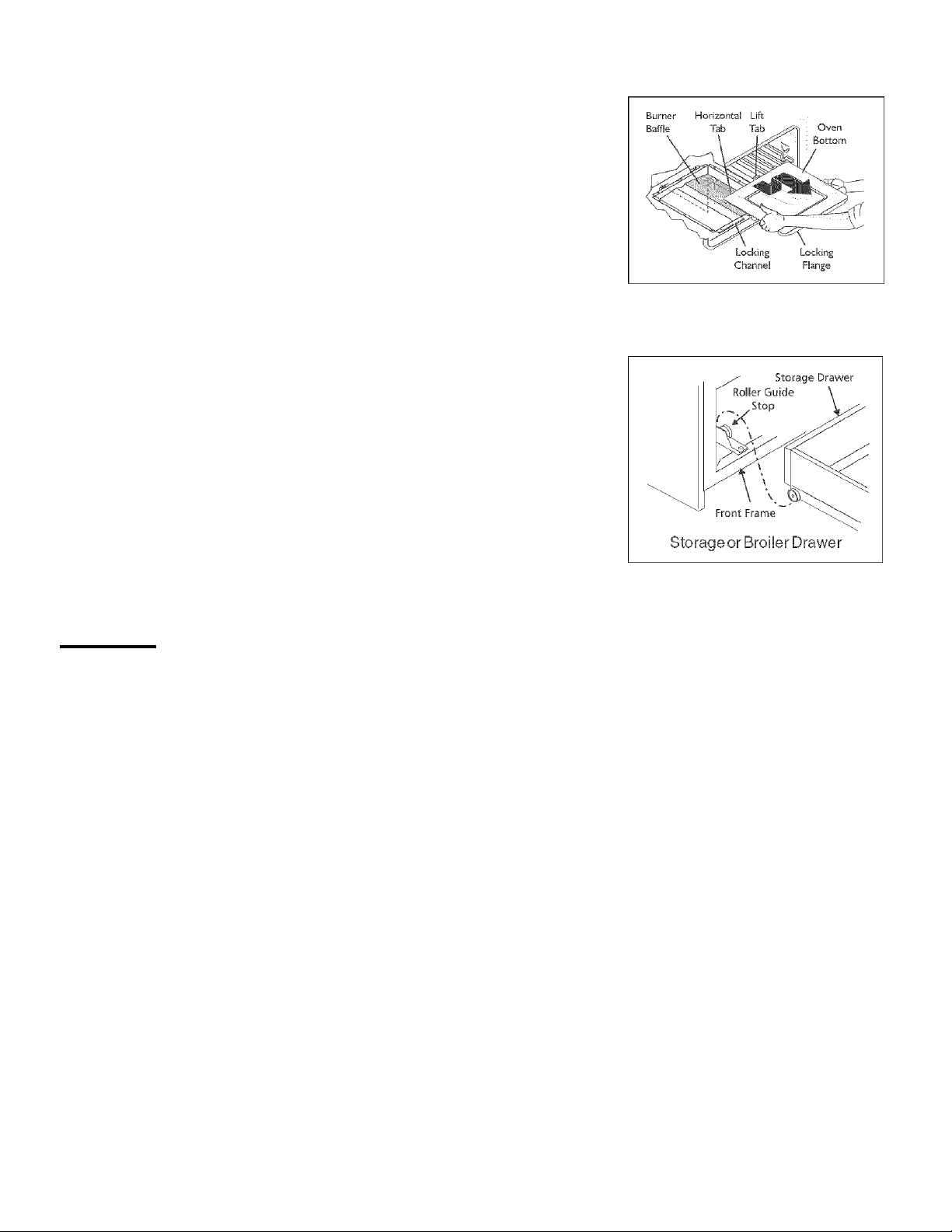

To Remowe and Replace Oven Bottom

To Remo¥e the Oven Bottom:

1. Lift up the lift tab at the back of the oven bottom

2. Slide oven bottom out, and lift it up and out.

To Replace the Oven Bottom:

1. Slide horizontal tabs on back of oven bottom into the holes at the back of oven cavity.

2. Lower the front of the oven bottom so locking flange fits into locking channel.

3. Replace lift tab to hold oven bottom in place.

To Remove and Replace the Storage (Seif-ciean Models) or Broiler Drawer (Manual clean Models)

Thedrawercanberemovedtofacilitatecleaningunderthewalloven. Use care when handling thedrawer. To Remove the Storage or Broiler Drawer

1. Open and empty the drawer of all utensils.

2. Pull drawer out to drawer stop.

3. Tilt the drawerdown and pull itoutoverthe rollers. Or, tilt the drawer up and pull

it out over the rollers {larger storage drawer models only).

To Replace the Storage or Broiler Drawer

1. Insert the rear end of the drawer into the opening.

2. Fit the end rollers onto the guide rails.

3. Hold the drawer in a horizontal position, then push in. Or, push the drawer in until it stops, then lift to allow the rollers to

clear the roller guide stop and push in (larger storage drawer models only).

ik WARNING

plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosive containers, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.

I Flammable materials should not be stored in an oven or in the storage or broiler drawer. This includes paper,

Adjysting the 0¥en Temperatyre

Your oven thermostat has been precisely set at the factory. This setting may differ from your previous oven, however, so your recipe times may not give you the results you expect. If you think that the oven is cooking too hot or cool for your recipe times, you can adjust the thermostat so that the oven cooks hotter or cooler than the temperature displayed.

To Adjust Oven Temperature:

1.2.Press and hold pad for 8 seconds. The display now indicates the amount of degrees offset between the original factory temperature setting and the current temperature setting. If the oven control has the original factory

calibration, the display will read “0”. The temperature can now be adjusted up or down 35“F or 19°C, in 1 “F or 1 °C steps by pushing and holding the

/s. or V. Adjust until the desired amount of degrees offset appears in the display. When lowering the oven tem perature, a minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed amount of degrees. When you have made the desired adjustment, wait 5 seconds and the timer will go back to the time of day display.

Note: Oven temperature adjustment made will not change the Self-Cleaning feature temperature.

Before Yoy Call

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list Includes common occurrences that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE POSSIBLE CAUSE/SOLUTION

Oven Control Beeps and Displays any F code error (example F11).

-dr- is displayed. The door was left open and controls set for self-cleaning cycle. Close the door

Installation. Place oven rack in center of oven. Place a level on the oven rack. Contact

Entire appliance does not operate. Make sure cord/plug is securely plugged into electrical outlet.

Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display and stop the beeping. Reprogram the oven. If a fault reoccurs, record the fault number. Press STOP/CLEAR and call Sears or another qualified servicer.

and push CANCEL pad.

installing agent if rack and cabinet cutout flooring are not level.

Kitchen cabinet misalignment may make oven appear to be not level. Be sure cabinets are square and level. Contact cabinet maker to correct problem.

Cord/plug is not installed or connected. Contact Sears or another qualified servicer.

Service wiring not complete. Contact Sears or another qualified servicer.

Power outage. Check house lights to be sure. Contact your local electric company.

Short in cord/plug. Replace cord/plug.

Controls are not set properly. See instructions in the Oven Control Guide to set the controls.

House fuse has blown orcircuit breaker has tripped immediately following installation. House fuse may not be fully engaged. Check fuse or engage circuit breaker securely.

House fuse has blown orcircuit breaker has tripped after the oven has been installed and previously operating. Contact Sears or another qualified servicer.

Wall oven is not properly connected to gas supply. Check connection {see Installation Instructions).

Entire oven does not operate. Make sure gas supply shut-off valve is opened before turning on the oven after

installing the wall oven.

Oven light does not work. Burned-out or loose bulb. Follow the instructions under Changing Oven Light

to replace or tighten the bulb.

Before Yoy Call

Solutions to Common Problems

OCCURRENCE POSSIBLE CAUSE/SOLUTION

Oven or broiler drawer smokes excessively during broiling.

Poor baking results. Many factors affect baking results. See Oven Baking for hints, causes and

Self-cleaning cycle does not work. Make sure the oven door is closed.

Door is open. Door should be closed during broiling.

Meat too close to the broil burner. Reposition the rack to provide more clearance between the meat and the broiler.

Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty edges to prevent curling, but do not cut into the lean.

Grid on broiler pan wrong side up. Grease cannot drain into broiler pan. Always place the grid on the broiler pan with the ribs up and the slots down to allow grease to drip into the pan.

Broiler pan used without grid or grid covered with foil. DO NOT use the broiler pan without the grid or cover the grid with foil.

Grease spatters and food buildup cause excessive smoke. Regular cleaning is necessary when broiling frequently.

corrections. See Adjusting Oven Temperature.

Controls not set properly. Follow instructions. Self-cleaning cycle was interrupted. Stop time must be set 2-4 hours past

the start time. Follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in this Use & Care Guide.

Soil not completely removed after self-cleaning cycle is completed.

Flames inside oven or smoke from vent.

Failure to clean bottom, from top of oven, frame of oven or door area outside oven seal. These areas are not in the self-cleaning area, but get not enough to burn on residue. Clean these areas before the self-cleaning cycle is started. Burned on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

Excessive spillovers in oven. Set the self-clean cycle for longer cleaning time.

Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie spillovers or for large amounts of grease on bottom of oven. Wipe up excessive spillovers.

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOHE® |1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com

www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1^800^488^1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-S655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYER“^

(1-800-533-6937)

www.sears.ca

® Registered Trademark / ™ Trademark / ™ Service Mark of Sears Brands, LLC

® Marca Registrada / ™ Marca de Fábrica / Marca de Servicio de Sears Brands, LLC

Marque de commerce / “° Marque déposée de Sears Brands, LLC

Kenmore 790. 3017 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
